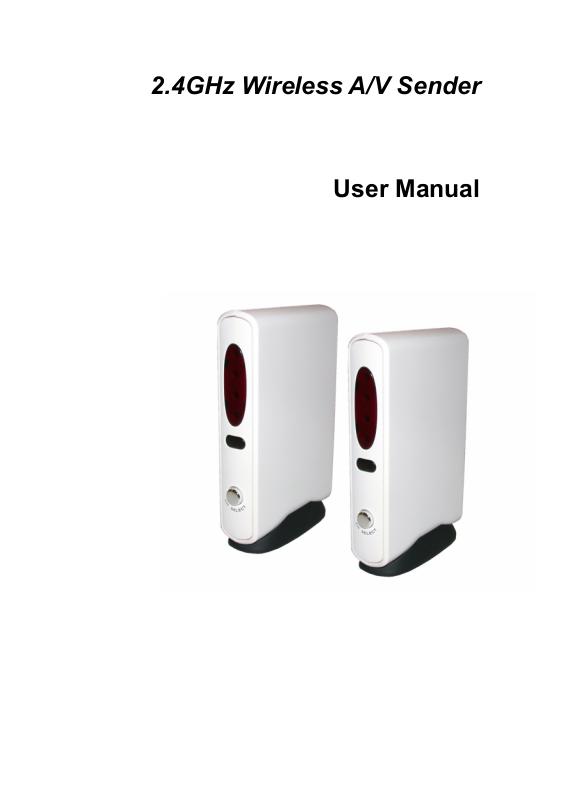

2.4GHz Wireless A/V Sender
User Manual
Package Contents
• Transmitter x 1
• Receiver x 1
• Base stand x 2
• Audio/Video cable x 2
• Power adaptors (DC6V) x 2
• User manual x 1
Note: The transmitter and the receiver look very similar. You can find
“transmitter” and “receiver” labels on the side of the units. See Fig. 1.
Fig. 1
Receiver Transmitter
Transmitter Receiver
Product Layout
Transmitter/Receiver (See Fig. 2 and Fig. 3)
1. Power/Channel Indicator
2. Channel Select Button (Select the channel by pressing the tact switch to
the channel number you want. Select the same channel both on the
transmitter and the receiver).
3. Audio Jack (Red)
4. Audio Jack (White)
5. Video Jack (Yellow)
6. Power On/Off
7. Power Adaptor Plug
1
Fig. 2
1
Fig. 3
3
4
5
Receiver/Transmitter
2
3
4
5
6
6
7
7
ReceiverTransmitter
Setting Up
Before you make the connection:
• Set the channel by pressing the select button on the front of the transmitter
and the receiver to the same channel.
1. Setting up the Transmitter
1.1 Connect the Transmitter to an A/V device
Connect the mini-plug of the provided A/V cables to the A/V jack on the
rear of the transmitter; connect the other end of the cables to the A/V
jacks of the A/V device labeled AUDIO/VIDEO OUT. See Fig. 4.
2
