ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual, 6326704-02 A01, February 2004
Quantum Corporation provides this publication “as is” without warranty of any kind, either express or
implied, including but not limited to the implied warranties of merchantability or fitness for a particular
purpose. Quantum Corporation may revise this publication from time to time without notice.
COPYRIGHT STATEMENT
Copyright 2004 by Quantum Corporation. All rights reserved.
Your right to copy this manual is limited by copyright law. Making copies or adaptations without prior
written authorization of Quantum Corporation is prohibited by law and constitutes a punishable violation of
the law.
TRADEMARK STATEMENT
Quantum, the Quantum logo, and ValueLoader are trademarks of Quantum Corporation, registered in the
U.S.A. and other countries. DLTtape and Super DLTtape are trademarks of Quantum Corporation. Products
mentioned herein are for identification purposes only and may be trademarks or registered trademarks of
their respective companies. All other trademarks are the property of their respective owners.
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manualix
Tables
xValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Preface
This chapter describes the ValueLoader User Manual’s audience,
purpose, organization, document conventions, and product safety.
AudienceThis user manual is designed and written for end users and field service
engineers.
PurposeThe purpose of this manual is to provide end users with the following
information:
•ValueLoader™ DLT VS80/DLT VS160 description and specifications.
•ValueLoader installation and configuration
•Tape cartridge description and general overview
•ValueLoader operation
•Troubleshooting
•Customer-replaceable components
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manualxi
Document
Organization
This manual is organized as follows:
•Chapter 1,
Installing the ValueLoader - This chapter describes
features, accessories, and installation tasks.
•Chapter 2,
Operating the ValueLoader - This chapter describes the
front panel menu structure, menu tree, and drive and tape
operations.
•Chapter 3,
ValueLoader Administration - This chapter describes how
to configure , upgrade firmware, and retrieve ValueLoader
information.
•Chapter 4,
Diagnostics and Troubleshooting - This chapter describes
how to identify and troubleshoot problems and resolve error
conditions.
•Appendix A,
Technical Specifications - This appendix describes
environmental, operational, drive, and media specifications.
•Appendix B,
Customer Support - This appendix lists information
required before calling for support.
•Appendix C,
Regulatory Statements - This appendix includes the
regulatory statements for this product.
xiiValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Notational
Conventions
This manual uses the following conventions to designate specific
elements:
Note:Notes emphasize important information related to the main
topic.
Caution:Cautions indicate potential hazards to equipment and are
included to prevent damage to equipment.
Warning:Warnings indicate potential hazards to personal safety
and are included to prevent injury.
SCSI-2
Specification
The SCSI-2 communications specification is the proposed American
National Standard for information systems, dated March 9, 1990. Copies
may be obtained from:
Global Engineering Documents
15 Inverness Way, East
Englewood, CO 80112
(800) 854-7179 or (303) 397-2740
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manualxiii
Contact Information
This section provides contact information for worldwide customer
support.
Quantum
To order documentation for the Quantum ValueLoader or other products
contact:
Quantum
Storage Systems
P.O. Box 57100
Irvine, CA 92619-7100
(949) 856-7800
(800) 284-5101
Technical Publications0
To comment on existing documentation, send e-mail to:
doc-comments@quantum.com
Visit the Quantum home page at:0
http://www.Quantum.com
Customer Support0
0
For information on support, or to access our “Frequently Asked
Questions” database, visit our Web site at
www.Quantum.com. Open the
Support tab and select the appropriate section under Tape Libraries.
xivValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Chapter 1
1Installing the ValueLoader
Section Overview1
This section describes the following:
•Installation Overview
•Understanding ValueLoader Features
•Choosing a Location
•Unpacking the ValueLoader
•Identifying ValueLoader Components
•Installing the ValueLoader into a Rack
•Connecting the SCSI and Power Cables
•Preparing the Host and Verifying the Connection
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual1
Chapter 1 Installing the ValueLoader
Installation Overview
Installation Overview1
Installing the ValueLoader consists of the following steps, which are
explained in more detail later in this section.
1 Choose a location for the ValueLoader (see page 6).
2 Unpack and check the ValueLoader for shipping damage (see
page 7).
3 Identify the accessories that come with the ValueLoader (see page 8).
4 Install the ValueLoader in a computer rack or select a table or
desktop near the host server (see
unit, refer to your rack Installation Guide.
5 Shut down, turn off, and remove power from the server and all
devices attached to the server (see
6 Attach the SCSI cable to the ValueLoader and server’s SCSI host
adapter (see
7 Attach the power cable to the ValueLoader and plug in the power
cable to the nearest power outlet (see
ValueLoader on to ensure it passes the Power-on Self Test (POST).
page 12).
page 9). If installing a rack mount
page 12).
page 12). Power the
8 Set the SCSI ID for the ValueLoader (see page 14).
9 Set up the host and verify the connection (see page 14).
Understanding ValueLoader Features1
The ValueLoader is a SCSI-2 low-voltage differential (LVD) data storage
device that incorporates a Quantum DLT VS80 or DLT VS160 tape drive,
and eight tape slots. The ValueLoader operates as a single SCSI device
with two Logical Unit Numbers (LUNs), one for the tape drive (0) and the
other for the ValueLoader robotics (1). The DLT VS80 ValueLoader uses
up to eight DLTtape™IV data cartridges, providing a maximum
formatted capacity of 640 gigabytes (GB) and a sustained data transfer
rate as high as 360 MB per minute, assuming a 2:1 compression ratio.
2ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Chapter 1 Installing the ValueLoader
Understanding ValueLoader Features
The ValueLoader DLT VS160 uses up to eight DLT VS1 data cartridges,
providing a maximum formatted capacity of 1280 GB and a sustained
data transfer rate as high as 960 MB per minute, assuming a 2:1
compression ratio.
The ValueLoader is compatible with most operating systems and
environments that support the SCSI interface, but requires either direct
support from the operating system or a compatible backup application to
take full advantage of its many features.
Bar Code Reader 1
SCSI
Requirements1
Your ValueLoader may have come equipped with an optional bar code
reader. The bar code reader is enclosed in a plastic housing that protrudes
out of the back panel of the ValueLoader, just above the SCSI connectors.
The bar code reader automatically scans each cartridge in the carousel
upon power up, after a reset, or when a
(see
Creating an Inventory of Cartridges on page 32). Beyond that, there
Re-inventory command is issued
is no user interface with the bar code reader via the front panel operator
controls or LCD screen. The information from each label is stored in
memory and available through SCSI to the computer’s operating system
or backup application upon request.
If utilizing the bar code reader, you must insert a bar code label into the
slide-in slot on the front of each cartridge. These labels must conform to
ANSI/AIM BC1-1995, Uniform Symbology Specification Code 39. A set
of bar code labels is included with the ValueLoader. Refer to
www.Quantum.com for information on obtaining additional bar code
labels.
The ValueLoader incorporates a wide SCSI-2, LVD SCSI bus. Make sure
your SCSI host adapter or controller supports these standards.
The ValueLoader can be attached to a single-ended (SE) SCSI bus, but this
is not recommended because it restricts performance. If you connect the
ValueLoader to an SE SCSI bus, or if there are SE devices attached to the
same SCSI bus, the autoloader’s performance is limited to the maximum
data transfer speed and maximum cable lengths of the SE bus. The
ValueLoader is NOT compatible with a standard differential (Diff) or
high-voltage differential (HVD) SCSI bus. The ValueLoader can be
attached to a narrow (50-pin) SCSI bus using a customer-supplied 68-pin
to 50-pin adapter that terminates the unused 18 pins. These adapters are
sometimes labeled high-byte termination.
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual3
Chapter 1 Installing the ValueLoader
Understanding ValueLoader Features
Product Overview 1

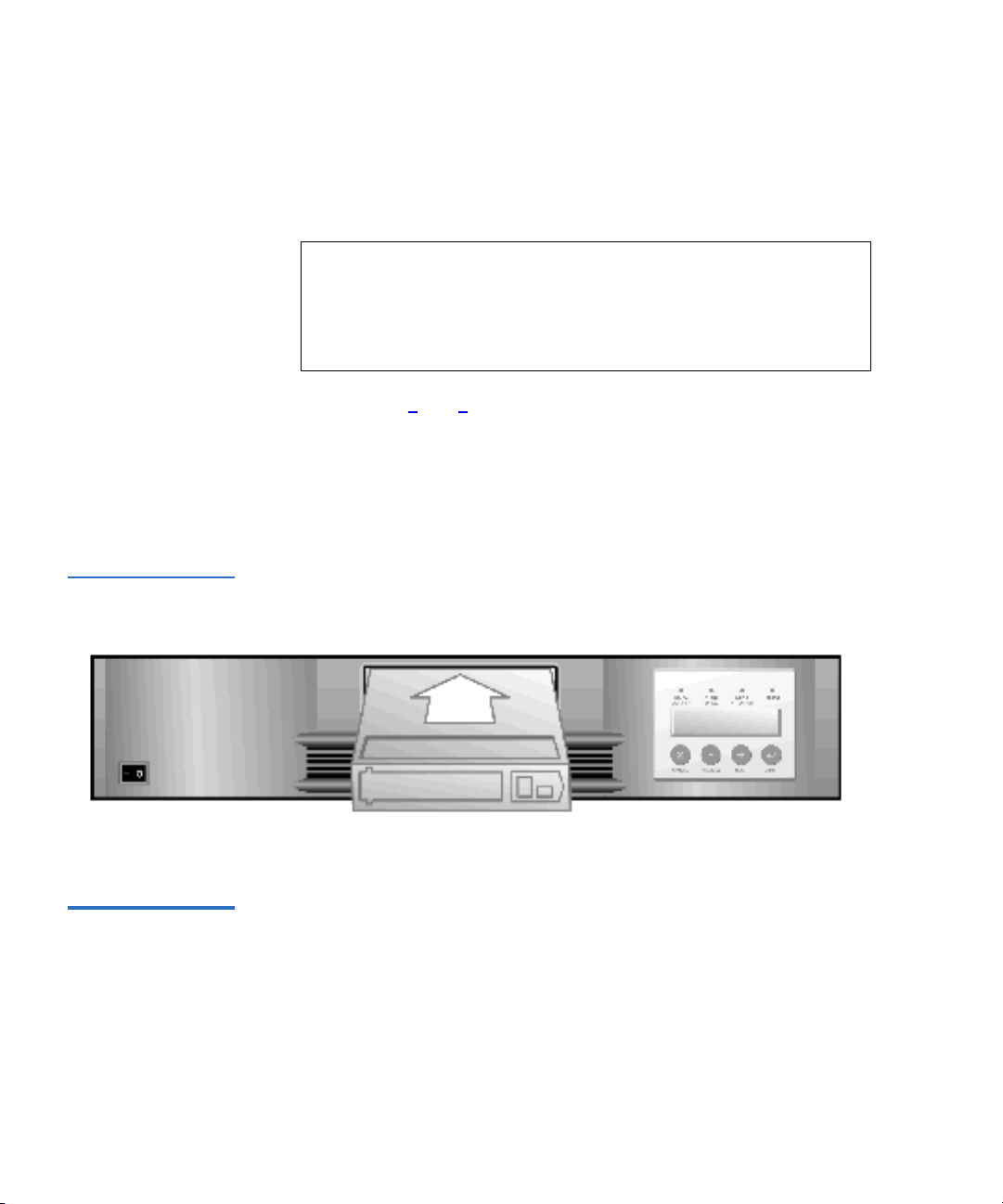

Figure 1 Front Panel
Controls
1Power switch
2Import/Export slot
3Front panel LEDs
4Front panel LCD screen
5Control keys
4ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Figure 2 Back Panel
Overview
Chapter 1 Installing the ValueLoader
Understanding ValueLoader Features
Note:The arrows indicate the screws on the back of the unit that
need to be removed if you want to remove the cover. Three
additional screws on each side of the unit must also be
removed in order to lift the top cover.
168-pin SCSI connectors
2Fan vent
3Power connector
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual5
Chapter 1 Installing the ValueLoader
Choosing a Location
Choosing a Location1
Choose a location that meets the following criteria (see appendix A on
page 61 for more specifications):
Table 1 Location
Criteria
RequirementDescription
Standalone
requirements
Rack requirementsStandard 19-inch rack with 2U of clearance.
Room temperature10-35° C (50-95° F)
Power sourceAC power voltage: 100-127 VAC; 200-240 VAC
Select a location that is flat, sturdy, level, and
close to a host server. Do not place the
ValueLoader on the floor or other carpeted
surface.
Caution:Do not place the ValueLoader on its
side or upside down or stack items
that weigh more than 15 kg (33 lbs)
on top of the ValueLoader.
Line frequency: 50-60 Hz
Note:Locate the AC outlet near the
ValueLoader. The AC power cable is
the product’s main AC disconnect
device and must be easily accessible at
all times.
Weight10 kg (22 lbs)
Air qualityMinimal sources of particulate contamination.
Avoid areas near frequently used doors and
walkways, stacks of supplies that collect dust,
printers, or smoke-filled rooms.
Caution:Excessive dust and debris can
damage tapes and tape drives.
6ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Chapter 1 Installing the ValueLoader
Unpacking the ValueLoader
RequirementDescription
Humidity20-80% RH
ClearanceBack: Minimum of 15.4 cm (6 in)
Front: Minimum of 30.8 cm (12 in)
Sides: Minimum of 5.08 cm (2 in)
Unpacking the ValueLoader1
Before you begin, clear a desk or table so that you can unpack the
ValueLoader. You also need to select an open 2U computer rack location
or a desktop location near the server that will be the host for the
ValueLoader.
Caution:If the room temperature you are working in differs from
the shipping or storage temperature by 15° C (30° F) or
more, let the ValueLoader acclimate to the surrounding
environment for at least 12 hours before opening the
shipping carton.
Unpack and inspect the ValueLoader for shipping damage by doing the
following:
1 Clear a table or desk so that you have room to unpack the
ValueLoader.
2 Inspect the shipping box for damage. If you notice any damage,
report it to the shipping company immediately.
3 Open the shipping box and remove the accessories package. Set the
accessories package aside for now.
4 Lift the ValueLoader and padding out of the box and place it on the
work surface, top facing up.
Caution:Placing the ValueLoader on its side, on end, or upside
down can cause permanent damage to the unit.
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual7
Chapter 1 Installing the ValueLoader
Identifying ValueLoader Components
5 Carefully remove the shipping padding from the left and right sides
of the ValueLoader. Then, remove the bag from the ValueLoader.
Note:Save the packing materials in case you need to move or
ship the ValueLoader in the future.
Identifying ValueLoader Components1
Accessories1
Figure 3 Accessories
1SCSI cable
2SCSI terminator
3Power cable
4Quick Start Guide
5Documentation CD
8ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Figure 4 Rack Kit
Components
Chapter 1 Installing the ValueLoader
Installing the ValueLoader into a Rack
Screws and clip nuts
Mounting
brackets
Mounting rails
Installing the ValueLoader into a Rack1
The ValueLoader fits all standard 19-inch racks, taking up 2U of space. To
install the ValueLoader into a rack, you need to install the mounting
brackets on both sides of the ValueLoader and the rails in the selected
rack location.
To install the ValueLoader, follow these steps:
1 Use a screwdriver to remove the two screws near the front on each
side of the ValueLoader.
2 Using the screws you removed in step 1, secure one mounting
bracket (from the rack kit) to each side of the ValueLoader, as shown
in
figure 5.
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual9
Chapter 1 Installing the ValueLoader
Installing the ValueLoader into a Rack
Figure 5 Installing
Mounting Brackets
(Left Side Shown)
3 Using the screws and clip nuts from the rackmount hardware
package, secure one rail to each side of the rack in the location in
which you plan to install the ValueLoader.
•Be sure to secure both the front and back of each rail to the rack.
The rails extend to fit a variety of rack depths.
•The correct orientation of the left rail is shown in figure 6. Repeat
for the right rail.
10ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Figure 6 Installing
Rails on Rack (Left
Side Shown)
Chapter 1 Installing the ValueLoader
Installing the ValueLoader into a Rack
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual11
Chapter 1 Installing the ValueLoader
Connecting the SCSI and Power Cables
4 Slide the ValueLoader onto the rails and secure the mounting bracket
to the rack using the screws and clip nuts from the rackmount
hardware package, as shown in
Figure 7 Sliding the
ValueLoader into the
Rack Slot, Securing
Mounting Bracket
figure 7.
Connecting the SCSI and Power Cables1
To connect the SCSI and power cables to the ValueLoader, follow these
steps:
1 Shut down and turn off the selected server. Turn off all attached
accessory devices, such as printers and other SCSI devices. Remove
the power cables from the server and all attached accessories.
Caution:Failure to remove the power cables from these devices
could result in damage to the ValueLoader.
12ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual
Chapter 1 Installing the ValueLoader
Connecting the SCSI and Power Cables
2 Attach one end of the SCSI cable (included in the accessory kit) to one
of the connectors on the back panel of the ValueLoader (see
figure 8).
3 Attach the other end of the SCSI cable to the connector on the SCSI
host adapter or to the connector on the previous device on the SCSI
bus.
Note:If the supplied SCSI cable does not fit the connector on
your SCSI host adapter, you either have an incompatible
SCSI host adapter or you need to purchase a cable adapter.
Contact your service representative or your SCSI host
adapter manufacturer for information.
4 Attach the terminator to the remaining SCSI connector on the back
panel of the ValueLoader (if the ValueLoader is the last or only
device on the SCSI bus). Otherwise, attach the cable to the next device
on the SCSI bus. Make sure that the last device on the SCSI bus is
properly terminated.
5 Attach the female connector on the power cable to the power
connector on the back panel of the ValueLoader (see
figure 8).
Figure 8 Attaching
SCSI and Power
Cables
ValueLoader DLT VS80/DLT VS160 Tape Autoloader User Manual13
Loading...
+ 61 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
