Quantum V2 Instruction Manual

Instruction manual

Warning:

Read the entire instruction manual to become familiar with the features of the product before operating. Failure to
operate the product correctly can result in damage of the product, personal property and cause serious injury.

Age recommendation:

Not for children age under 14, this is not a toy.

Safety precaution:

Always carefully follow the directions and warnings for this product.
Always keep all chemicals, small parts and anything electrical out of reach of children.
Always keep moving parts clean and dry.

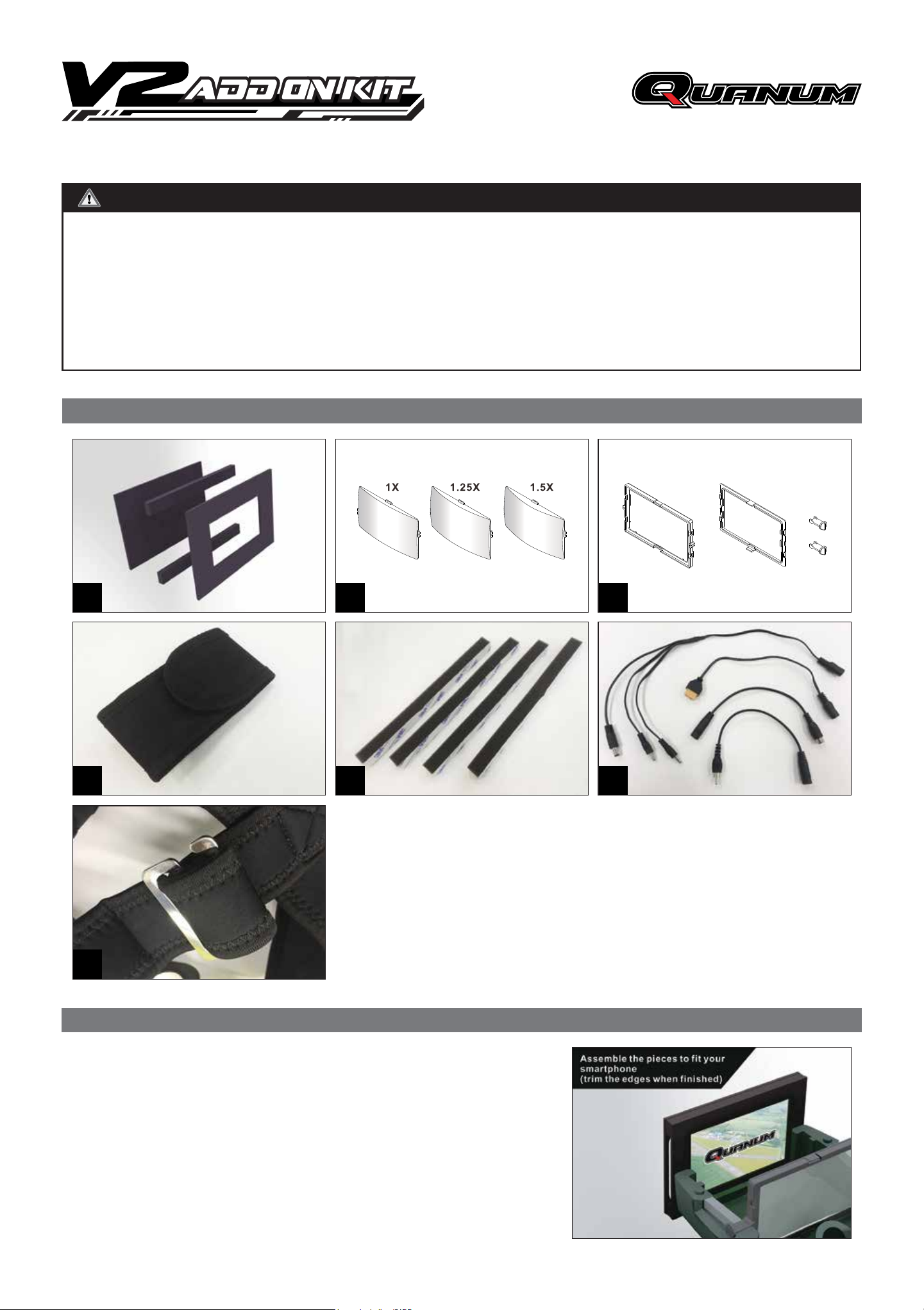

Part list:

1

4 5

1) EVA foam strips for DIY smartphone mount adaptor

2) Magnifying lens (1X, 1.25X and 1.5X

3) New frame for Acrylic lens

4) Battery pouch with velcro closure and buckle

5) Sponge for users' extra comfort.

6) Extension / conversion cable set

7

7) Stainless steel “S-loop”

32

6

)

a. 3.5mm female phone jack to 2.5mm male phone plug adaptor.
b. FPV DC jack to 1*5521 DC plug, 2*3315 DC plug length with 350mm.
c. 3.5mm phone female to RCA male cable with length 150mm.
d. XT60 male connector to FPV DC jack with length 210mm.
e. 3.5mm phone jack femail to RCA female cable with length 150mm.

Features:

EVA foam strips for DIY smartphone VR adaptor

- DIY foam pieces for mounting the smartphone on the goggles.

- For V2 goggles, recommended for smartphone size 143.4 mm x 70.5
mm x 6.8 mm (5.65 x 2.78 x 0.27 in) (i.e. Samsung Galaxy S6)

- Smartphone ports accessible at the ends while V2's neoprene
glove's front strap can hold the phone in place.

Features:

Acrylic lens set of 3 (2X, 3X and 4X magnification)

- Compatible with V2 and V2 pro goggles.

Single lens application

Double lens application

New frame for acrylic lens

- New designed frame to fit the new acrylic lens.

- Detachable design similar to Quanum V2 goggles.

- Easy to assemble and remove from goggles.

Battery pouch with velcro closure and buckle

- Good for mounting the battery on the goggle's headstrap behind
the user's head.

- Better balance for the goggles for placing behind the user's head.

- Better size for fitting battery size up to 77mm x 35m x 22mm.

Sponge strip with double sided tape

- Extra comfortable cushions for the goggles simply cut and stick
on your goggles.

- New sponge for extra comfort.

Extension / Conversion cable

a. 3.5mm female phone jack to 2.5mm male phone plug adaptor.
b. FPV DC jack to 1*5521 DC plug, 2*3315 DC plug length with

350mm.
c. 3.5mm phone female to RCA male cable with length 150mm.
d. XT60 male connector to FPV DC jack with length 210mm.
e. 3.5mm phone jack femail to RCA female cable with length

150mm.

Stainless steel “S-loop”

- For top strap adjustment

Recommended models:

EMPRM000412
