Quantum TC2201 User Manual

Download

8VHU¶V*XLGH8VHU¶V*XLGH8VHU¶V*XLGH8VHU¶V*XLGH8VHU¶V*XLGH

4XDQWXP7&

7&

$

Quantum TC2201 User’s Guide, 81-81539-01 A01, December 2005, Made in USA.

Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability or fitness for a particular purpose. Quantum Corporation may revise this publication from time to time without notice.

Your right to copy this manual is limited by copyright law. Making copies or adaptations without prior written authorization of Quantum Corporation is prohibited by law and constitutes a punishable violation of the law.

TRADEMARK STATEMENT

DLT, SDLT, DLTtape III, DLTtape IV and Super DLTtape I are all trademarks of Quantum Corporation. Other trademarks may be mentioned herein which belong to other companies.

Preface xvii

Chapter 1 Introduction 1

External Features ........................................................................................ 1

Operation Indicators.......................................................................................... 2

How the TC2201 Works .................................................................................... 3

Processing SCSI Information............................................................................ 3

LAN-free Backup and Restore ......................................................................... 5

TC2201 Features ................................................................................................. 6

iSCSI Features ............................................................................................ 6

SCSI Bus Features...................................................................................... 6

Management Features...............................................................................6

TC2201 Benefits .................................................................................................. 7

Enterprise Class Performance................................................................... 7

SAN Management Reduction ................................................................... 7

Add Intelligence to SCSI Storage..............................................................7

Industry Leading Inter Operability.......................................................... 8

Quantum TC2201 User’s Guide iii

Contents

TC2201 Specifications ........................................................................................8

Physical Specifications................................................................................8

Physical Dimensions...................................................................................8

Operating Environment .............................................................................8

Non-operating Environment.....................................................................9

Power ............................................................................................................9

Chapter 2 TC2201 Web Interface 10

Accessing TC2201 Web Interface ...................................................................11

Home Page ........................................................................................................12

System Page.......................................................................................................13

Serial Port Settings ....................................................................................14

iSCSI Settings .............................................................................................15

iSNS Settings..............................................................................................17

User Settings ..............................................................................................19

Real Time Clock Configuration...............................................................20

Factory Settings Reset...............................................................................21

Ethernet Page ....................................................................................................22

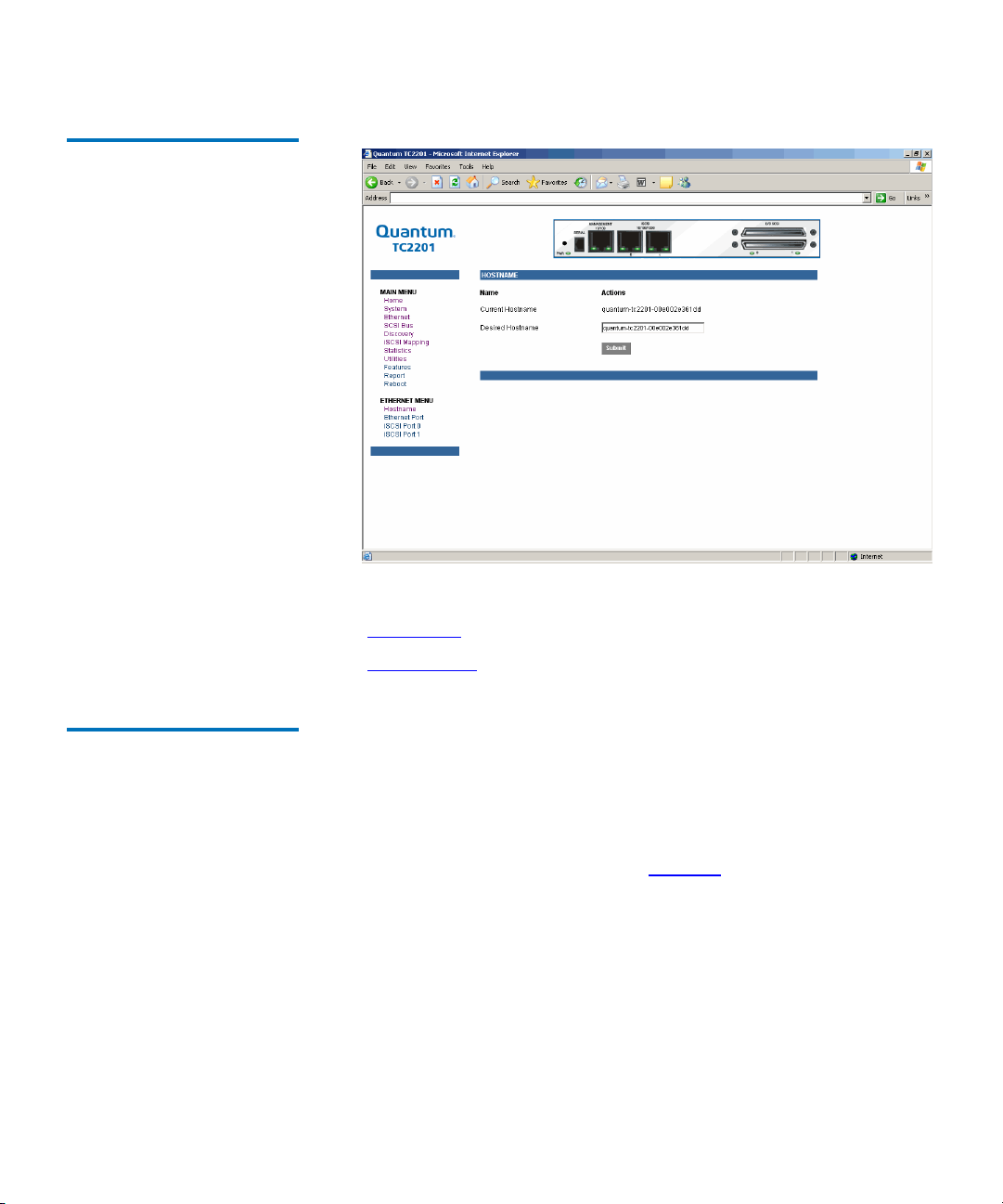

Host Name .................................................................................................23

Ethernet Port ..............................................................................................24

SCSI Bus Page ...................................................................................................27

Buffered Tape Writes................................................................................30

Discovery Page .................................................................................................32

iSCSI Mapping Page ........................................................................................33

Statistics Page....................................................................................................38

Utilities Page .....................................................................................................39

FTP Utility ..................................................................................................40

Trace Settings.............................................................................................41

Current Traces/ Previous Traces Last/Assert Traces .........................44

Clear Current Traces.................................................................................46

Clear Assert Traces ...................................................................................47

Event Log Settings.....................................................................................48

Event Log....................................................................................................49

Clear Event Log .........................................................................................50

SCSI Command Tracking.........................................................................51

Features..............................................................................................................53

Report.................................................................................................................54

Reboot ................................................................................................................55

Quantum TC2201 User’s Guide iv

Contents

Chapter 3 Troubleshooting 56

Indicators...........................................................................................................56

Basic Verification.............................................................................................. 58

Serial Port Problems ................................................................................. 58

Verify SCSI Bus Configuration ............................................................... 58

Verify iSCSI Connection ..........................................................................59

Verify SCSI Devices in Windows NT..................................................... 59

Verify Configuration ................................................................................ 59

Verify Mapping......................................................................................... 59

Verify Devices ........................................................................................... 60

Verify Host Configuration.......................................................................60

Verify HBA Device Driver Information ................................................ 60

Customer Support ....................................................................................60

Appendix A 3-Pin to DB-9 Serial Pin Assignments 61

RJ-45 Ethernet Pin Assignments .................................................................... 63

Appendix B Inband SCSI-3 Commands 65

General Commands......................................................................................... 66

Report LUNs Command.......................................................................... 66

Inquiry Command .................................................................................... 67

Vendor Unique Commands ...........................................................................70

Appendix C Using the Command Line Interface 71

Power Up Messages......................................................................................... 72

Quantum TC2201 User’s Guide v

Contents

Perform Configuration ....................................................................................74

User Settings Configuration ....................................................................75

Baud Rate Configuration .........................................................................75

Ethernet Configuration.............................................................................76

iSCSI Configuration ..................................................................................80

Parallel SCSI Configuration.....................................................................84

Parallel SCSI Buffered Tape Write Configuration Menu ....................88

Device Mapping ........................................................................................90

Trace and Event Settings Configuration..............................................104

Real-Time Clock Configuration ............................................................112

Save Configuration .................................................................................112

Restore Last Saved Configuration ........................................................112

Reset and Save Configuration to Factory Defaults ............................113

System Utilities ...............................................................................................113

System Statistics ......................................................................................114

Event Log..................................................................................................116

View Report .............................................................................................117

SCSI Command Tracking.......................................................................118

Display Trace and Assertion History ..........................................................119

Reboot ..............................................................................................................120

Advanced Software Licensed Features .......................................................120

Download a New Revision of the Firmware..............................................121

Appendix D Using the FTP Interface 123

Backup/Restore Configuration Settings.....................................................123

Configuration Backup Procedure .........................................................123

Configuration Restore Procedure .........................................................124

Get a Copy of Trace Buffer or Event Log....................................................126

Update Firmware ...........................................................................................127

Appendix A How to Change Block Sizes 128

Procedure A: EMC Legato NetWorker .......................................................129

Procedure B: Veritas NetBackup .................................................................130

Procedure C: Veritas Backup Exec...............................................................131

Procedure D: CA Brightstor ARCserve.......................................................132

Procedure E: Bakbone NetVault...................................................................132

Procedure F: HP Data Protector ...................................................................133

Procedure G: CommVault Galaxy ...............................................................135

Quantum TC2201 User’s Guide vi

Contents

Glossary 138

Quantum TC2201 User’s Guide vii

Contents

Quantum TC2201 User’s Guide viii

Figures

Figure 1 Front Panel ....................................................................................2

Figure 2 TC2201 LEDs................................................................................. 2

Figure 3 Information Processing................................................................ 4

Figure 4 Flow of data and responses ........................................................5

Figure 5 LAN-free Backup..........................................................................5

Figure 6 Home Page .................................................................................. 11

Figure 7 Password Dialog......................................................................... 12

Figure 8 TC2201 Image.............................................................................. 13

Figure 9 System Page................................................................................. 14

Figure 10 Serial Port Settings Page............................................................ 15

Figure 11 iSCSI Settings Page..................................................................... 16

Figure 12 iSNS Settings Page...................................................................... 18

Figure 13 User Settings Page...................................................................... 19

Figure 14 Real-Time Clock Page................................................................ 20

Figure 15 Factory Settings Reset Page ...................................................... 22

Figure 16 Ethernet Settings Page ............................................................... 23

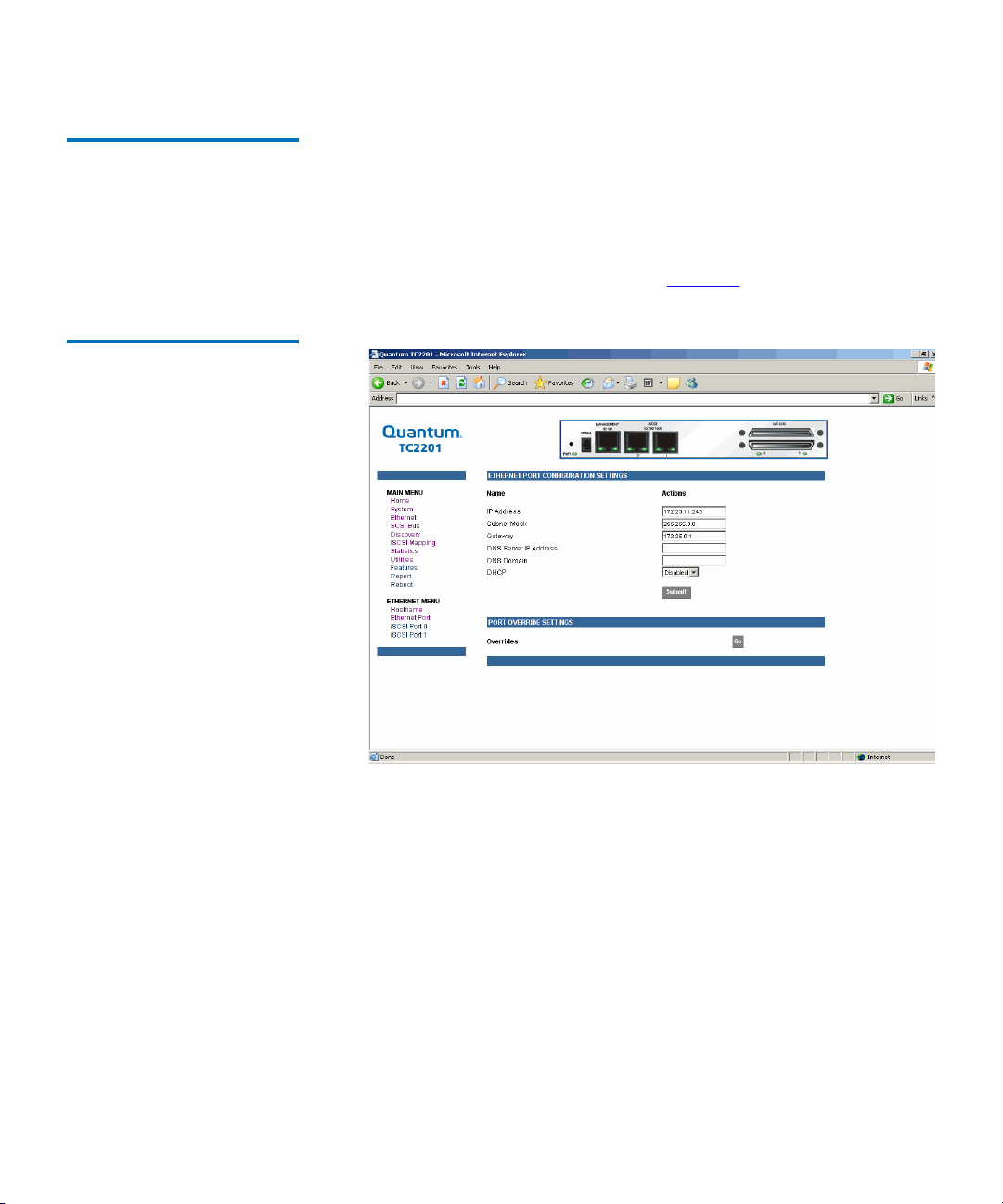

Figure 17 Ethernet Port Page...................................................................... 24

Quantum TC2201 User’s Guide ix

Figures

Figure 18 Ethernet Overrides Settings Page.............................................26

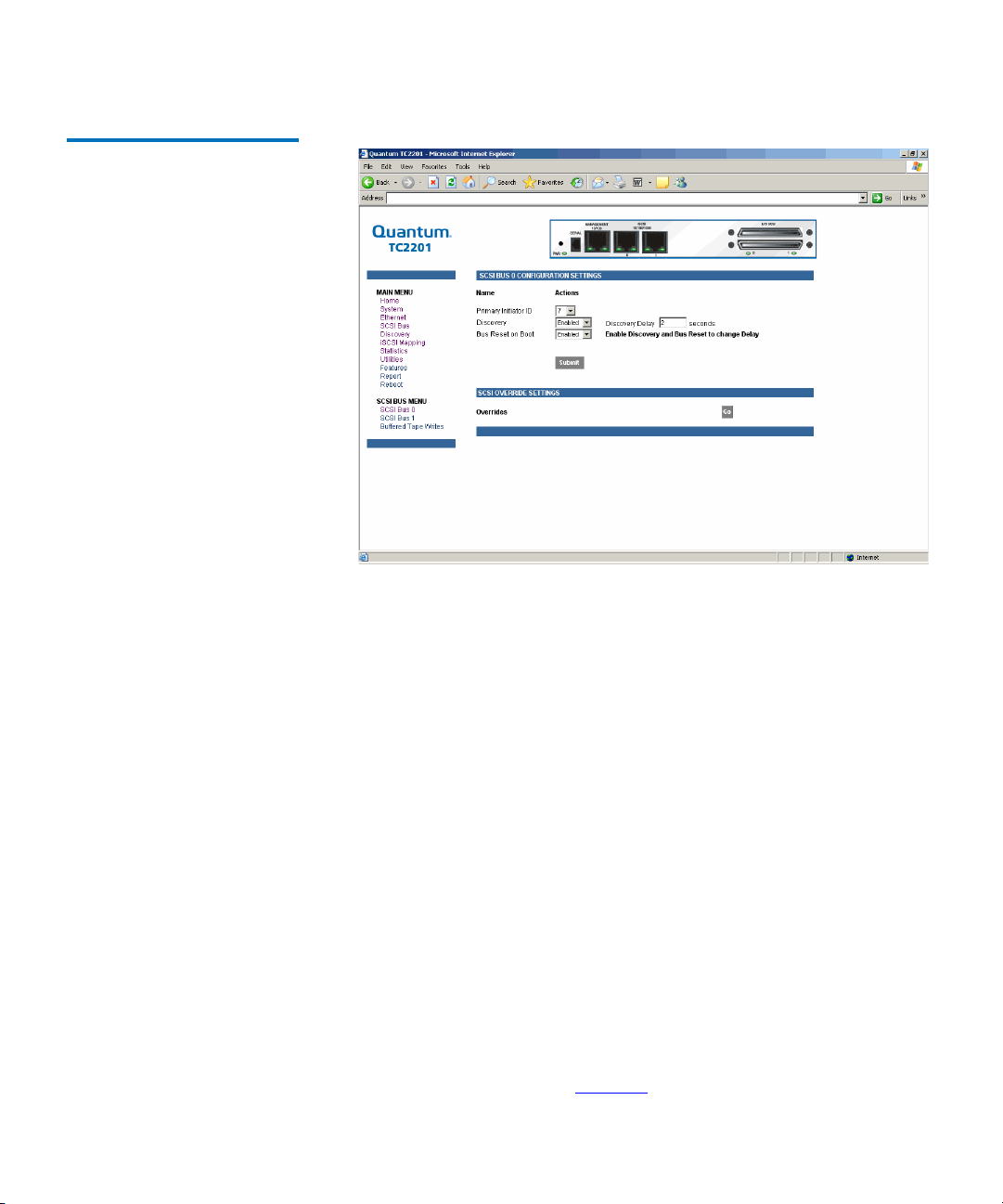

Figure 19 SCSI Bus Page..............................................................................27

Figure 20 SCSI bus Configuration Page ....................................................28

Figure 21 SCSI Overrides Settings Page....................................................29

Figure 22 SCSI target Overrides Settings Page ........................................30

Figure 23 Buffered Tape Writes Page........................................................31

Figure 24 Discovery Page............................................................................33

Figure 25 iSCSI Mapping Page...................................................................34

Figure 26 Select Host Page..........................................................................36

Figure 27 Select Current Map Page ...........................................................37

Figure 28 Statistics Page ..............................................................................39

Figure 29 Utilities Page................................................................................40

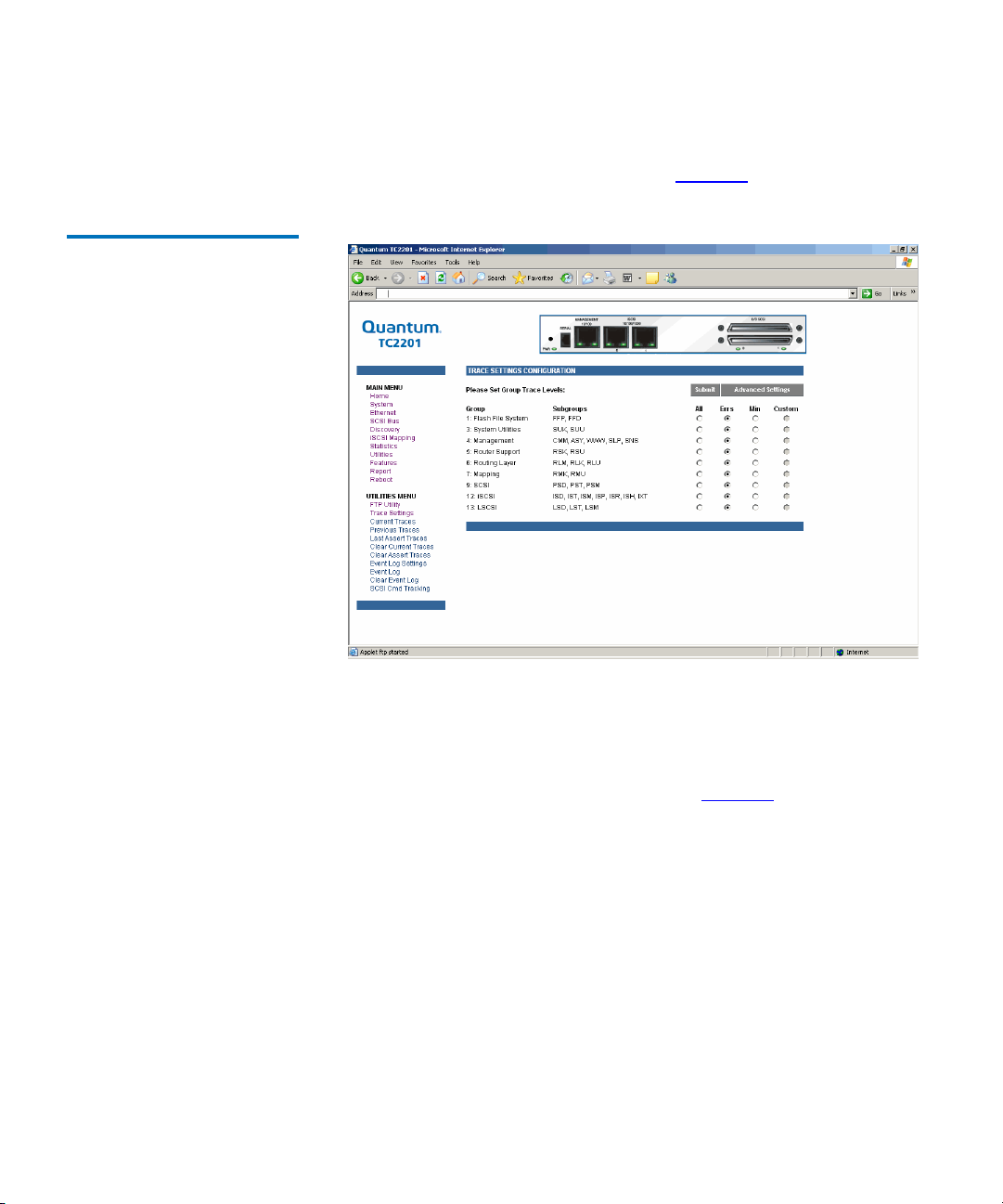

Figure 30 Trace Settings Page.....................................................................42

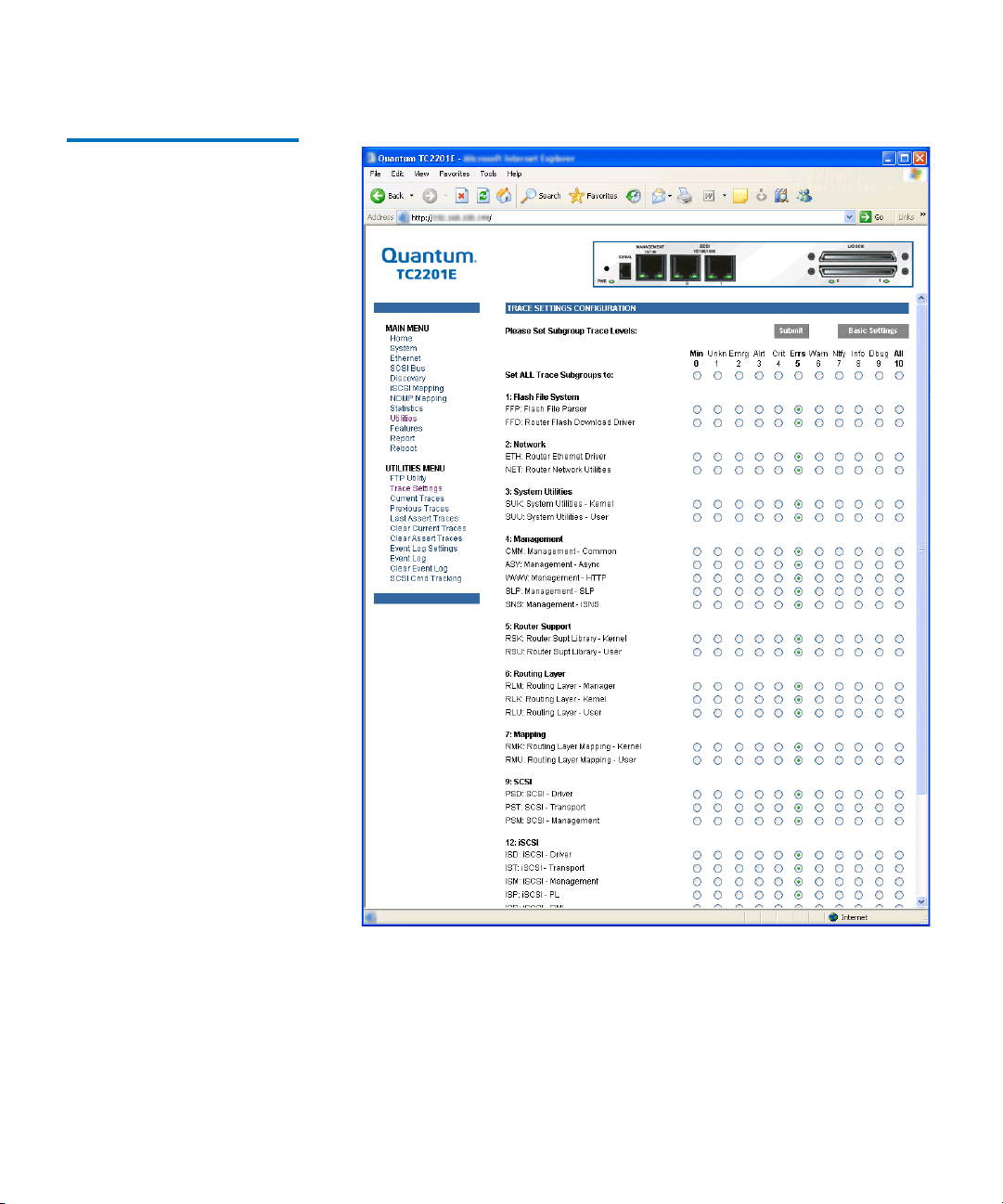

Figure 31 Advanced trace settings page ...................................................43

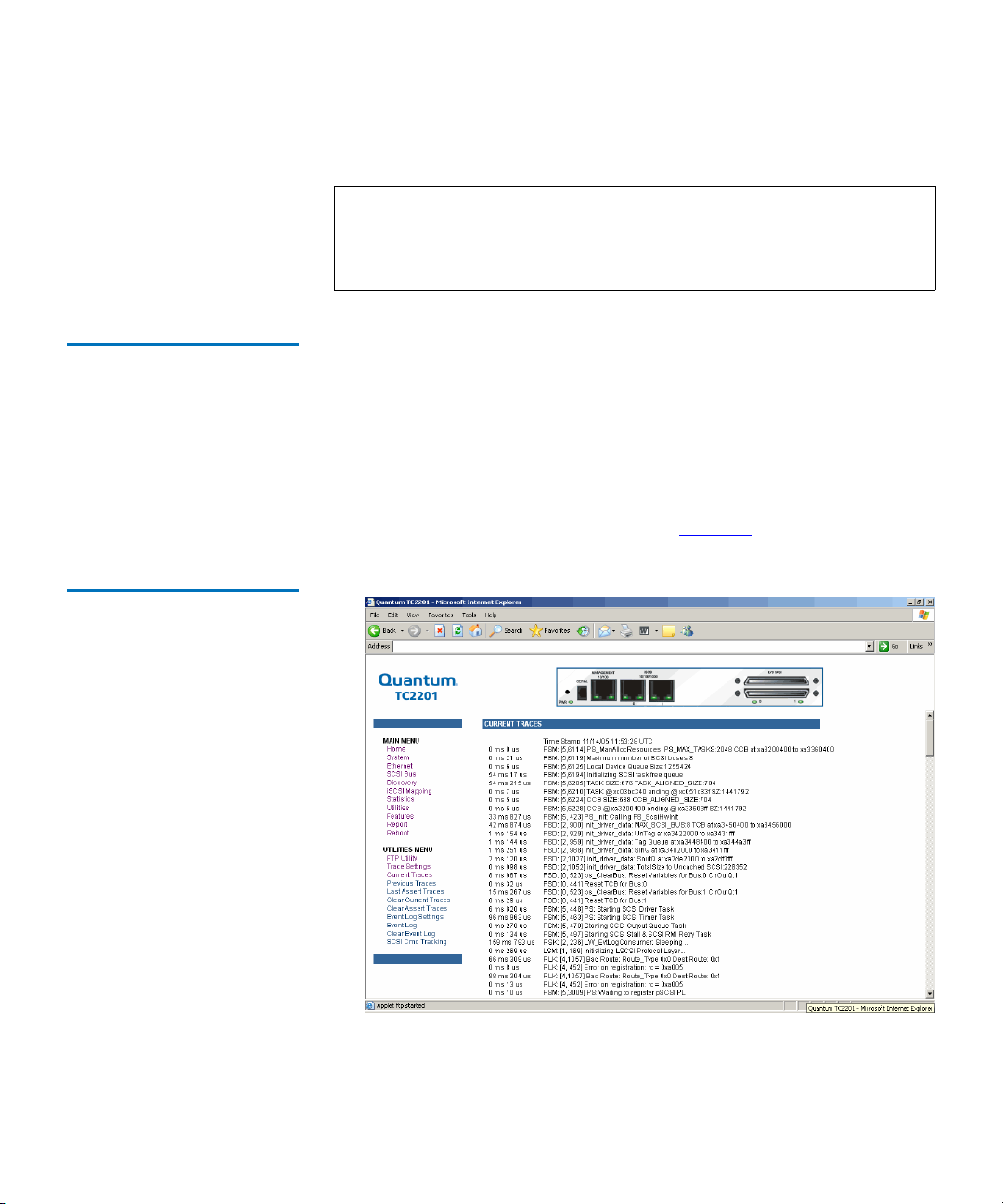

Figure 32 Current Traces Page ...................................................................44

Figure 33 Previous Traces Page..................................................................45

Figure 34 Last Assert Trace Page ...............................................................46

Figure 35 Clear Current Traces Page.........................................................47

Figure 36 Clear Assert Traces Page ...........................................................48

Figure 37 Event Log Settings Page.............................................................49

Figure 38 Event Log Page............................................................................50

Figure 39 Clear Event Log Page .................................................................51

Figure 40 SCSI Command Tracking Page.................................................52

Figure 41 Features Page...............................................................................53

Figure 42 Report Page..................................................................................54

Figure 43 Reboot Page .................................................................................55

Figure 44 TC2201 LEDs ...............................................................................57

Figure 45 Corresponding Pin Outs of DB-9 Connector ..........................62

Figure 46 RJ- 45 pin Assignments..............................................................63

Quantum TC2201 User’s Guide x

Figures

Figure 47 Clear all Entries from Current Map.........................................97

Figure 48 Registry Editor.......................................................................... 130

Figure 49 Veritas Backup Exec.................................................................131

Figure 50 Netvault Device Management................................................ 133

Figure 51 HP Data Protector (Advanced Options) ............................... 135

Figure 52 CommVault Galaxy .................................................................136

Figure 53 CommVault Galaxy (Advanced Tab)....................................137

Quantum TC2201 User’s Guide xi

Figures

Quantum TC2201 User’s Guide xii

Tables

Table 1 RJ-11 Pin Assignments............................................................... 61

Table 2 Format of Report LUNs Command......................................... 66

Table 3 Report LUNs Parameter List .................................................... 67

Table 4 Format of LUN Inquiry Command ......................................... 67

Table 5 Format of EVPD Page 0x80....................................................... 68

Table 6 TC2201 LUN Inquiry Data........................................................ 68

Table 7 Vendor Unique Commands..................................................... 70

Table 8 Main menu ..................................................................................73

Table 9 Configuration menu................................................................... 74

Table 10 User Settings Configuration Menu .......................................... 75

Table 11 Baud Rate Configuration Menu............................................... 76

Table 12 Figure 7-5: Ethernet Configuration Menu .............................. 77

Table 13 Change DNS Settings Menu ..................................................... 79

Table 14 iSCSI Configuration Menu........................................................ 80

Table 15 Authentication CHAP Records Configuration Menu........... 81

Table 16 iSNS Server Configuration Menu ............................................82

Table 17 iSCSI Portal Group Configuration Menu................................ 83

Quantum TC2201 User’s Guide xiii

Tables

Table 18 Parallel SCSI Configuration Menu...........................................84

Table 19 SCSI Initiator Menu ....................................................................86

Table 20 SCSI Target Overrides Menu ....................................................87

Table 21 Parallel SCSI Buffered Tape Write Configuration Menu......88

Table 22 Device Mapping Main Menu....................................................90

Table 23 Select Current Map.....................................................................91

Table 24 Add a Map...................................................................................92

Table 25 Delete Current Map....................................................................93

Table 26 Map Edit Menu ...........................................................................93

Table 27 Edit Map Name...........................................................................94

Table 28 Adding An iSCSI port Entry .....................................................95

Table 29 Device List for iSCSI Port ..........................................................95

Table 30 Deleting an Entry........................................................................96

Table 31 Deleting Multiple LUNs ............................................................97

Table 32 Fill Current Map .........................................................................98

Table 33 Clone Current Map.....................................................................98

Table 34 iSCSI Host List............................................................................99

Table 35 iSCSI Host List...........................................................................100

Table 36 Adding a iSCSI Host ................................................................101

Table 37 Deleting a Host..........................................................................102

Table 38 Editing Host List for iSCSI Port..............................................103

Table 39 Utility Settings...........................................................................105

Table 40 Trace Settings ............................................................................106

Table 41 Trace Settings, Page 2...............................................................107

Table 42 Trace Settings, Page 3...............................................................108

Table 43 Trace Settings, Page 4...............................................................109

Table 44 Trace Settings, Page 5...............................................................110

Table 45 Event Filter Settings..................................................................111

Table 46 System Clock Setup Menu.......................................................112

Quantum TC2201 User’s Guide xiv

Tables

Table 47 Sysem Utility Menu.................................................................. 113

Table 48 Sysem Status/Statistics Menu ................................................114

Table 49 Parallel SCSI Protocol Status Menu....................................... 114

Table 50 SCSI Device Display Menu..................................................... 115

Table 51 SCSI Resource Display............................................................. 116

Table 52 Event Log Menu .......................................................................117

Table 53 SCSI Command Tracking Menu ............................................ 118

Table 54 Trace Dump Menu ................................................................... 119

Table 55 Advanced Software Licences Menu ...................................... 120

Table 56 Advanced Licensed Features Menu ......................................121

Table 57 Download Firmware Menu .................................................... 122

Quantum TC2201 User’s Guide xv

Tables

Quantum TC2201 User’s Guide xvi

Preface

Audience This document is written for operators of the TC2201 router.

Purpose This document explains how to use the TC2201 router.

Document Organization

Quantum TC2201 User’s Guide xvii

This document is organized as follows:

• Chapter 1, Introduction, provides an overview of the TC2201 router.

• Chapter 2, TC2201 Web Interface, discusses the remote web management interface.

• Chapter 3, Troubleshooting, discusses basic troubleshooting of the TC2201 router.

• Appendix A, 3-Pin to DB-9 Serial Pin Assignments, discusses the pin out assignments.

• Appendix B, Inband SCSI-3 Commands, lists the inband SCSI-3 command tables.

• Appendix C, Using the Command Line Interface, lists the inband CLI commands available through the serial interface.

• Appendix D, Using the FTP Interface, provides information on using the FTP interface.

Preface

• Appendix A, How to Change Block Sizes, provides information on changing block sizes for your application.

This document concludes with a glossary.

Notational Conventions

1Introduction

The Quantum TC2201 iSCSI router provides bi-directional connectivity between two iSCSI networks, and two Narrow/ Wide Fast/Ultra160 LVD/SE SCSI buses.

Supported devices include:

• Initiator Devices – iSCSI hosts

• Direct Access Devices – RAID controllers, Disk drives, JBODs

• Sequential Access Devices – Tape drives

• Changer Devices – Tape and Magneto-Optical libraries

External Features 1 Figure 1 shows the front panel of the Quantum TC2201 iSCSI

router.

Quantum TC2201 User’s Guide 1

Figure 1 Front Panel

Reset button

Ethernet port

Chapter 1 Introduction

Operation Indicators

Serial port

iSCSI ports

SCSI buses

The SCSI and iSCSI interfaces are found on the front panel. Also on the front panel, Ethernet and Serial ports provide connections for configuration and management of the unit. The LEDs (operation indicators) provide basic status information.

Operation Indicators 1

The TC2201 is equipped with LED indicators for monitoring overall unit status (see

Figure 2 TC2201 LEDs

Ethernet activity Ethernet link status

Power/fault

The LED functionality of the TC2201 is detailed below:

Quantum TC2201 User’s Guide 2

figure 2).

iSCSI link status

iSCSI activity

SCSI activity for bus 0 SCSI activity for bus 1

Chapter 1 Introduction

How the TC2201 Works

• Power and Fault (Pwr)—This bi-color LED is green to show that power is currently active and is continuously amber-colored to show that the TC2201 detects a fault condition in the TC2201.

• iSCSI (Link/Act)—When lit green, the right indicator signifies a good iSCSI link on the port. When lit green, the left indicator signifies iSCSI port activity.

• SCSI Bus (0, 1)—When lit, these green indicators signify SCSI activity on the bus corresponding to the number of the indicator.

• Ethernet (Link/Act)—When lit green, the right indicator signifies a good Ethernet link on this management port. When lit green, the left indicator signifies Ethernet port activity on this management port.

How the TC2201 Works 1

The TC2201 is a router that translates the iSCSI protocol to and from the SCSI Protocol—transparently transferring commands, data, and status information—so that devices and hosts can communicate with each other. Interconnection is provided between two SCSI buses and one or two iSCSI networks, also making use of iSCSI’s ability to encapsulate SCSI protocol packets.

Processing SCSI Information 1

The following section describes how the TC2201 processes SCSI information when attached to iSCSI hosts. through 5 of the process.

1 An iSCSI host issues a command. The iSCSI host encapsulates the

command in the iSCSI protocol and sends the packet to the TC2201.

2 The iSCSI controller in the TC2201 receives the packet, interprets the

iSCSI information, and places the packet in buffer memory.

3 The TC2201’s processor interprets the information and programs a

SCSI controller to process the transaction.

Quantum TC2201 User’s Guide 3

Figure 3 illustrates steps 1

Figure 3 Information Processing

I3#3)HOST

Chapter 1 Introduction

Processing SCSI Information

4 The SCSI controller sends the command to the SCSI device (target). 5 The SCSI target interprets the command and executes it.

I3#3)HOST

I3#3) CONTROLLER

6 Data flows between the iSCSI host and SCSI target through payload

buffers (see

figure 4).

7 Response information flows from the SCSI target back to the iSCSI

host (see

figure 4).

Quantum TC2201 User’s Guide 4

Chapter 1 Introduction

LAN-free Backup and Restore

Figure 4 Flow of data and responses

L6&6,+RVW

LAN-free Backup and Restore 1

LAN-free backup and restore moves the bulk of data backup and recovery traffic from the LAN and onto a dedicated storage network. The TC2201 supports LAN-free backup/restore environments (see

figure 5).

Figure 5 LAN-free Backup

L6&6,+267

L6&6,

Quantum TC2201 User’s Guide 5

Chapter 1 Introduction

TC2201 Features

TC2201 Features 1

iSCSI Features 1 The TC2201 provides the following iSCSI features:

• Dual iSCSI ports (10/100/1000 baseT Ethernet)

• iSNS support

• Error Recovery Level 0

• Multiple iSCSI connections per session

• VLAN Quality of Service (QoS) support

SCSI Bus Features 1 The TC2201 provides the following SCSI bus features:

• Auto-negotiation for Narrow, Wide, Fast, and up to Ultra160

• Concurrent commands, tagged command queuing and disconnect/ reconnect

• SCSI-2 and SCSI-3 protocols

• Connection type is VHDCI 68-pin D shell, P type connectors

• LVD/single-ended termination

• Fully supports Quantum tape libraries and autoloader devices

Management Features 1 The TC2201 provides the following management options:

• Out-of-band 10/100 Ethernet TCP/IP management access Port

• Serial 3-pin connector for terminal access

• DHCP for easier network administration

• Indexed and Auto Assigned addressing modes

• Support for SCSI-3 Commands

• Ethernet RJ-45 connector for FTP, command line, and web browser access

• Field-updateable firmware

Quantum TC2201 User’s Guide 6

Chapter 1 Introduction

TC2201 Benefits

TC2201 Benefits 1

The Quantum TC2201 is designed to connect SCSI devices into an iSCSI network. The Quantum TC2201 is neatly packaged in a 1U form factor with two 1 Gb/s iSCSI ports and two LVD/SE SCSI buses. SCSI buses automatically negotiate for Fast, Narrow, Wide, and up to Ultra160 SCSI. External throughput is up to 200 MB/s bi-directional per iSCSI port (or 100 MB/s one way per iSCSI port), or up to a total of 400 MB/s bi-directional for both ports.

Enterprise Class Performance

SAN Management Reduction

Add Intelligence to SCSI Storage

The TC2201 offers enterprise class performance with memory buffer bandwidth exceeding 1 Gb/s and delivering end-to-end throughput of

up to 400 MB/s bi-directional for both ports (or 200 MB/s each way for both ports together). The TC2201 performs fast tape reads and writes, which enables it to handle larger data sets while completing backup and restore tasks within a smaller time frame.

The Quantum TC2201 is significantly easier to install than other routers due to the “store-and-forward” configuration feature and the Visual

Manager (VM) software. “Store-and-forward” allows configuration files and TC2201 operational settings to be saved and copied to other like routers, reducing redundant setup tasks. Using VM, service professionals and end users can configure a TC2201 with simple “point and click” choices on a graphical representation of the TC2201.

The TC2201 has many features that provide intelligence to SCSI devices and help manage SAN configurations, performance and reliability. A

short list includes Visual Manager, dynamic storage allocation (i.e. map activation without reboot), SCSI target reset, custom mapping, and access controls (LUN masking and management). These features of the TC2201 provide customers with a high level of storage functionality for high performance backup and recovery, reliability, security and manageability in their nearline storage solutions.

Quantum TC2201 User’s Guide 7

Chapter 1 Introduction

TC2201 Specifications

Industry Leading Inter Operability

Quantum has a proven history of industry leading inter operability, which we incorporate into all our products. Quantum and its partners

have tested thousands of different configurations, discovering and resolving many troublesome inter operability ability problems.

TC2201 Specifications 1

Physical Specifications 1 The physical specifications of the TC2201 are:

• Internal power supply with detachable power cord

• iSCSI link status and activity LEDs

• SCSI Bus activity LEDs

• Ethernet link status and activity LEDs

• Power/Fault LED

• Airflow with internal fan

• Rack mount or desktop enclosure

•Power Switch

Physical Dimensions 1 The physical dimensions of the TC2201 are:

• Width 43.18cm (17.00 inches)

• Depth 27.3cm (10.75 inches)

• Height 4.37cm (1.72 inches, 1U)

• Weight approx. 4kg (9 lbs.)

Operating Environment 1 The operating environment of the TC2201 is:

• 10 to 40°C

• 20 to 80% Relative Humidity (non-condensing)

Quantum TC2201 User’s Guide 8

Chapter 1 Introduction

TC2201 Specifications

Non-operating Environment

The non-operating environment of the TC2201 is:

• -40 to +65°C

• 10 to 90% Relative Humidity (non-condensing)

Power 1 The power requirements for the TC2201 are:

• 100 - 240 VAC, Auto Sensing

• 50/60 Hz, 1.0 Amps

• Consumption Rate: No more than 119.5 BTUs of heat per hour

Quantum TC2201 User’s Guide 9

Chapter 2

2TC2201 Web Interface

This chapter describes the TC2201 web interface. The current configuration and operating status of the TC2201 can be accessed from any standard Web browser, after the user logs in with the appropriate username and password. Information is presented in HTML format in accordance with the W3C specification for HTML 3.2. Current W3C Recommendations and other technical documents can be found at

The TC2201 web interface allows you to access the following TC2201 web pages:

• Home Page

• System Page

• Ethernet Page

http://www.w3.org/TR.

• SCSI Bus Page

• Discovery Page

• iSCSI Mapping Page

• Statistics Page

• Utilities Page

• Features

• Report

• Reboot

Quantum TC2201 User’s Guide 10

Chapter 2 TC2201 Web Interface

Accessing TC2201 Web Interface

Most settings may be changed and saved to the TC2201.

Note: Unless otherwise indicated, configuration changes

take effect when the unit next powers on or reboots.

Accessing TC2201 Web Interface 2

To access the TC2201 web interface:

1 On the host computer, open the internet browser software.

In the Address field, type http://IPaddress/ where IP address is the IP

address for the TC2201.

Note: The default IP address is 1.1.1.1

The TC2201 Home page is displayed, showing TC2201 status information (see

figure 6). The home page is accessible to anyone who knows the IP address.

Figure 6 Home Page

TC2201 bridge

Main menu

Status information

Quantum TC2201 User’s Guide 11

Figure 7 Password Dialog

Chapter 2 TC2201 Web Interface

Home Page

2 Select a menu option to access menus and screens.

The Password dialog box is displayed (see figure 7).

Note: The default Username is root and the Password is password.

Note: For the web interface’s dynamic display of the TC2201

configuration to be presented properly, use version 6.2 or later of Netscape’s browser on non-Solaris platforms, or Netscape version 6.2.3 for Solaris platforms. If using Internet Explorer, use revision 6.0 or later.

Home Page 2

The first page that displays when you access the TC2201 web pages is the TC2201 TC2201 status as follows:

• Current platform information

• Current bios initialization information

• Current bootup initialization information

Quantum TC2201 User’s Guide 12

Home page (see figure 6). This page includes information on the

Figure 8 TC2201 Image

Serial port

Chapter 2 TC2201 Web Interface

System Page

• TC2201 router - The TC2201 image is interactive, allowing quick access to configuration menus (see

iSCSI portsManagement port SCSI portsReset

figure 8):

• To display current settings and status for a port, click the corresponding

port shown on the TC2201 image.

• To open a menu for making changes to the configuration for that

particular port or bus, click the desired Ethernet port or SCSI port.

• To open the Network Configuration page, click the Management port

• Main menu

• Router status information

The Main menu displays a list of the TC2201 web pages. To view a page, click its corresponding link. The management frame displays the page you selected.

System Page 2

The System page is used to view and configure serial, network, trap, clock, and power supply components.

To access the System page:

1 Click System from the Main menu on the Home page.

The System page displays (see figure 9):

Quantum TC2201 User’s Guide 13

Figure 9 System Page

Chapter 2 TC2201 Web Interface

System Page

The System page allows you to configure:

• Serial Port Settings (see appendix C on page 71 for more information on

the command line interface through the serial port settings)

• iSCSI Settings

• iSNS Settings

• User Settings

• Real Time Clock Configuration

• Factory Settings Reset

Serial Port Settings 2 The Serial Port Settings page allows you to configure serial port settings

for the TC2201. To access the Serial Port Settings page:

1 Click Serial Port Settings in the System menu.

The Serial Port Settings page displays (see figure 10):

Quantum TC2201 User’s Guide 14

Figure 10 Serial Port Settings Page

Chapter 2 TC2201 Web Interface

System Page

2 Select the desired baud rate for the serial port and click Submit when

finished.

iSCSI Settings 2 The iSCSI Settings page allows you to configure iSCSI settings for the

TC2201. To access the iSCSI Settings page:

1 Click iSCSI Settings in the System menu.

The iSCSI Settings page displays (see figure 11):

Quantum TC2201 User’s Guide 15

Figure 11 iSCSI Settings Page

Chapter 2 TC2201 Web Interface

System Page

2 To make any changes, modify the entries as described below and

then select the Submit button.

iSCSI Target Settings 2

• Authentication can be toggled between Enabled and Disabled. The

default setting is Disabled. When set to Enabled, CHAP authentication for iSCSI is enabled.

• Setup Authentication button opens the iSCSI Authentication page.

This page consists of entry fields for CHAP name, Initiator Secret, and Target Secret, as well as a field for Target CHAP Name.

• CHAP Names are 1 to 255 characters in length and Initiator/ Target Secrets are 12 to 16 characters in length. Target CHAP Name is 1-18 characters.

•Select Delete All to remove all CHAP Authentication User Settings. Delete All does not remove the Target CHAP name.

• For each existing entry, select Edit to make changes or Delete to remove specific entries.

•Select Add in make a new entry.

Quantum TC2201 User’s Guide 16

Chapter 2 TC2201 Web Interface

System Page

•Select Save to save the CHAP authentication changes. These changes will become activated after the next time the TC2201 reboots.

iSCSI Portal Group Settings 2

The iSCSI portal group settings can be toggled between the following two options:

• Use one portal group for both ports: By default, the TC2201 is set to

use one Portal Group for both ports, which enables failover capability between the two iSCSI ports.

• Use separate portal groups for each port: This option disables failover

capability between the two iSCSI ports, so that each port can be mapped separately.

iSCSI Portal Group Map Settings 2

• iSCSI Portal Group Map Settings allows selection of the default map(s)

to the current iSCSI portal group(s). Map selections include Auto Assigned and Indexed.

• Once all changes are made, select the Submit button to send the changes to the TC2201. Changes will become activated after the next time the TC2201 reboots.

iSNS Settings 2 This page allows for configuration the iSNS settings for the TC2201.

To access the iSNS Settings page:

1 Click iSNS Settings in the System menu.

The iSNS Settings page displays (see figure 12):

Quantum TC2201 User’s Guide 17

Figure 12 iSNS Settings Page

Chapter 2 TC2201 Web Interface

System Page

iSNS servers maintain information about iSCSI clients and will respond to iSNS protocol queries and requests, and initiate iSNS protocol State Change Notifications.

To use iSNS, enable the TC2201 as a client and then enter a DNS name or IP address for up to three iSNS servers. To make changes or to discontinue communication with a server, change or clear the identification field(s), select the

Submit button, and then reboot the

TC2201 to activate changes.

• iSNS Client can be toggled between Enabled and Disabled. The

default setting is Disabled. When enabled, the TC2201 will function as an iSNS client and will initiate transactions with iSNS servers using the iSNS Protocol. The iSNS client is a process that is coresident in the TC2201, and which can register device attribute information with the iSNS server. The capability is used for automated device discovery.

• Server 1, Server 2, and Server 3 can be set up by entering a DNS name or IP address into the field for iSNS Server and entering the server TCP Port into the field TCP Port. The standard value for TCP Port is 3205.

Quantum TC2201 User’s Guide 18

Chapter 2 TC2201 Web Interface

System Page

User Settings 2 This User Settings page allows you to setup the security options for the

TC2201. To access the User Settings page:

1 Click User Settings in the System menu.

The User Settings page displays (see figure 13):

Figure 13 User Settings Page

Security settings include the User Name and Password for the TC2201. The administrator user name and password should be unique and kept confidential. It is recommended to use a combination of letters and numbers when creating user names and passwords. For the password, enter the password in the Confirm Password field to help ensure there are no typos made in the password. Then, select the

Submit button to

activate the user name and password you have setup.

The default settings are ‘root’ for the user name and ‘password’ for the password.

Note: The security settings entered here affect all user interfaces of

the TC2201 after reboot of the TC2201.

Quantum TC2201 User’s Guide 19

Chapter 2 TC2201 Web Interface

System Page

Note: In the event that either or both the user name and password

are forgotten, it is possible to reset the user name and password to their default values by resetting the TC2201 to factory defaults from the Command Line Interface using the serial port (see appendix C

on page 71). Note that resetting to factory defaults from the serial port will also reset all other configuration settings to factory defaults, as well as erase all current maps. It is recommended to capture a copy of the system report (available from the System Utilities Menu) in order to make reconfiguration easier.

Real Time Clock Configuration

Figure 14 Real-Time Clock Page

This Real-Time Clock configuration page allows you to set up of the date and time for the TC2201.

To access the Real-Time Clock page:

1 Click Real-Time Clock in the System menu.

The Real-Time Clock page displays (see figure 13):

Quantum TC2201 User’s Guide 20

Chapter 2 TC2201 Web Interface

System Page

To make any changes, modify the entries as described below and then select the

Submit button.

• Date Settings are for setting the date, month, and year. Use a four

digit number to represent the year.

• Time Settings are for setting the hours, minutes, and seconds. This is a

24 hour clock.

Note: Be sure to correctly set the time and date in the Real Time Clock

configuration menu so that event logging is accurate.

Factory Settings Reset 2 This page allows the TC2201 to be reset to the factory default settings. The

TC2201 must be rebooted before the reset settings will take effect.

Note: Resetting to factory defaults from the QVM interface will not

affect ethernet connectivity. User configured values for the IP address, gateway, and subnet mask are retained after the TC2201 resets. Note that user names and passwords are NOT retained.

Note: Settings are not reset to factory defaults until the TC2201 is

rebooted.

Quantum TC2201 User’s Guide 21

Figure 15 Factory Settings Reset Page

Chapter 2 TC2201 Web Interface

Ethernet Page

When this option is selected, a confirmation message will appear to verify the selection. If a response of current TC2201 activities will be disrupted while the unit resets the current configuration to the factory defaults and saves those options to FLASH memory as the current configuration.

Yes is given to the confirmation message,

Ethernet Page 2

The Ethernet page provides status and links for Ethernet and iSCSI port configuration pages.

To access the Ethernet page:

1 Click Ethernet from the Main menu on the Home page.

The Ethernet page displays (see figure 16):

Quantum TC2201 User’s Guide 22

Figure 16 Ethernet Settings Page

Chapter 2 TC2201 Web Interface

Ethernet Page

The Ethernet menu allows you to configure the following options:

• Host Name

• Ethernet Port

Host Name 2 The Host Name page allows you to assign or edit a host name for the

TC2201. To access the Host Name page:

1 Click Host Name from the Ethernet menu.

The Host Name page displays (see figure 16):

2 To make any changes, modify the entries as described below and

then select the

Submit button.

• Hostname is an alphanumeric entry of one word up to 255 characters

long. To change this entry, select hostname from the Ethernet Menu to open the Hostname page. From the hostname page, changes to the hostname can be entered into the Desired Hostname field. Select the

Submit button to accept the changes.

Quantum TC2201 User’s Guide 23

Chapter 2 TC2201 Web Interface

Ethernet Page

Ethernet Port 2 The Ethernet Port page allows you to configure the Ethernet ports on the

TC2201. To access the Ethernet Port page:

1 Click Ethernet Port from the Ethernet menu.

The Ethernet Port page displays (see figure 17):

Figure 17 Ethernet Port Page

Both the Ethernet management port and the two iSCSI ports can be configured for appropriate Ethernet network settings.

• IP address is the IP address of the TC2201. The default setting for the

Ethernet port is 1.1.1.1. The default setting for iSCSI Port 0 is

169.254.1.1. The default setting for iSCSI Port 1 is 169.254.1.2.

• Subnet Mask is the IP subnet mask for the TC2201. The default setting

is 255.255.255.0.

• IP Gateway is the IP address of the gateway for the Ethernet network

connected to the TC2201. The default setting is 0.0.0.0.

• DNS Server IP Address is the IP address for the DNS server and

should be similar in form to XXX.XXX.XXX.XXX where each XXX represents an integer in the range of 1 to 255.

Quantum TC2201 User’s Guide 24

Chapter 2 TC2201 Web Interface

Ethernet Page

• DNS Domain is the domain name used by the DNS server. For

example, a domain name could appear similar to “server.company.com”.

• DHCP enables/disables support for Dynamic Host Configuration

Protocol (DHCP). When enabled, the TC2201 will retrieve a dynamic IP address from a DHCP server located on the Ethernet network that the TC2201 is connected to. The default setting is Enabled. If DHCP is changed from Disabled to Enabled, it is necessary to reboot the TC2201 before an IP address will be requested from the DHCP server. After the TC2201 finishes rebooting, the QVM session will have to be restarted. The TC2201's IP address will be different than the former non-DHCP IP address.

Note: To use the DHCP feature, a DHCP server must be operational

on the Ethernet network connected to the TC2201. If the DHCP feature is used when there is no DHCP server, the standard for DHCP requires that the TC2201 wait three minutes for a response from a DHCP server before timing out. During this period, the TC2201 menus and functions will not be accessible.

A DHCP server may allow the setup of a lease reservation for an IP address if provided with the MAC address of the TC2201. This forces the DHCP server to always provide the same IP address to the TC2201. This setup is useful for remote management of the TC2201 via Telnet or Visual Manager. Because the method of setting up a lease reservation varies depending on the DHCP server, it is recommended to contact your Network Administrator for assistance.

• Override Settings are provided to enhance inter operability with some

devices that require special consideration during setup of the TC2201. Access to the Overrides Settings is reserved for authorized Quantum technicians. Selecting the

Go button opens a login prompt for which

an authorized technician will have the appropriate user name and password.

Quantum TC2201 User’s Guide 25

Figure 18 Ethernet Overrides Settings Page

Chapter 2 TC2201 Web Interface

Ethernet Page

To finalize any changes for the override settings, select the Submit button on the Ethernet Override Settings page.

Note: Override settings should not be changed except by or under

the direction of an authorized Quantum technician.

• Current MAC address is the current Media Access Control (MAC)

address configured for the TC2201. The MAC address is a hardware address that uniquely identifies each physical node on an Ethernet network. While the MAC address can be changed, it is highly recommended not to change this address.

• Original Factory MAC address is the MAC address assigned by the

hardware manufacturer to the Ethernet adapter in the hardware. The TC2201 comes initialized with this assigned MAC address.

• Ethernet MTU Size is the Maximum Transmission Unit (MTU) for

Ethernet. This setting can be configured for 1500 or 9000 byte frames. The Ethernet Management port is permanently set to 1500 and cannot be changed. The default setting for the iSCSI ports is also 1500 but a value of 9000 can be configured for jumbo frame support for iSCSI frames.

Quantum TC2201 User’s Guide 26

Chapter 2 TC2201 Web Interface

SCSI Bus Page

SCSI Bus Page 2

This SCSI Bus page allows for viewing the current SCSI attributes and settings for buffered tape writes.

To access the SCSI Bus page:

1 Click SCSI Bus from the Main menu on the Home page.

The SCSI Bus page displays (see figure 16):

Figure 19 SCSI Bus Page

• To make any changes, modify the entries as described below and then select the

SCSI Bus 0 or 1

Selecting either of these two options opens the following page for configuration of SCSI bus settings (see

Quantum TC2201 User’s Guide 27

Submit button.

figure 20).

Figure 20 SCSI bus Configuration Page

Chapter 2 TC2201 Web Interface

SCSI Bus Page

• Primary Initiator ID must be assigned an Initiator ID. This ID should be a unique ID on the bus. The default setting is 7.

• Discovery enables/disables device discovery on this SCSI bus. The default setting is

Enabled.

• Discovery Delay is the time in seconds that the TC2201 waits after a power-up or reboot process (which typically takes approximately 2 minutes) before starting to discover SCSI devices. Quantum recommends you set the value to at least 2 seconds to ensure all SCSI devices complete their individual power-ups. However, the user should be aware this delay is added to the time it takes for the TC2201 to reboot and for QVM to be active again. The default setting is 2 seconds.

• Bus Reset on Boot enables/disables automatic discovery of SCSI devices after an initial power up or reboot of the TC2201. The default setting is

Enabled.

• Override Settings are provided to enhance inter operability with some storage devices that require special consideration during setup of the TC2201. Access to the Overrides Settings is reserved for authorized Quantum technicians. Selecting the

Go button opens a login prompt

for which an authorized technician should have the appropriate user name and password (see

figure 21).

Quantum TC2201 User’s Guide 28

Figure 21 SCSI Overrides Settings Page

Chapter 2 TC2201 Web Interface

SCSI Bus Page

To finalize any changes for the override settings, select the Submit button.

Note: Override settings should not be changed except by or under

the direction of an authorized Quantum technician

• Alternate Initiator ID can be assigned an Initiator ID, which is the ID for a second SCSI device that can request operations from other SCSI devices, or targets. This ID should be a unique ID on the bus. The default setting is NONE.

SCSI Bus Target Overrides 2

Selecting a SCSI Target ID (0 through 15) opens the SCSI target overrides page (see

Quantum TC2201 User’s Guide 29

figure 22):

Figure 22 SCSI target Overrides Settings Page

Chapter 2 TC2201 Web Interface

SCSI Bus Page

To finalize any changes for the override settings, select the Submit button.

Note: Override settings should not be changed except by or under

the direction of an authorized Quantum technician

• Wide Negotiation enables/disables the option for negotiation on a wide SCSI bus. The default setting is Enabled.

• Sync Negotiation enables/disables the option for synchronous negotiation on the SCSI bus. The default setting is Enabled.

• Alternate Block Size enables/disables block sizes of 520 bytes each, which is the common block size used in AS/400 environments. The default setting is disabled.

• Ultra SCSI 3 Negotiation enables/disables Ultra SCSI 3 support for the selected Target ID. This feature is useful for solving certain compatibility issues in mixed vendor environments, where, for example, there may be a device that cannot handle automatic negotiation of the bus speed, or possibly where there is a device that does negotiate to use Ultra SCSI-3 but somehow cannot actually handle the speed. The default setting is Enabled.

Buffered Tape Writes 2 This Buffered Tape Writes page allows for making configuration changes

for buffered tape writes. To access the Buffered Tape Writes page:

Quantum TC2201 User’s Guide 30

Figure 23 Buffered Tape Writes Page

Chapter 2 TC2201 Web Interface

SCSI Bus Page

1 Click Buffered Tape Writes from the SCSI Bus menu.

The Buffered Tape Writes page displays (see figure 19):

Buffered Tape Writes can be enabled or disabled. The default setting is

enabled. Buffered Tape Writes is an option designed to enhance system performance. By returning status on consecutive write commands prior to the tape device receiving data, Buffered Tape Writes remove the latency of waiting for responses from the tape device. In the event that data does not transfer correctly for any reason, the router will return a check condition on a subsequent command.Commands other than Write(6) are not issued until status is received for any pending write. Also, status is not returned until the device completes the command. For instance, when a synchronizing command is sent to a drive, such as sending a Write File mark, a good status means all prior commands have been successfully completed and data has been successfully written to the medium. This is appropriate for such tasks as file backup/restore.

Note: If an application requires confirmation of individual blocks

being written to the medium, such as audit trail tapes or log tapes, this option should be disabled.

Quantum TC2201 User’s Guide 31

Chapter 2 TC2201 Web Interface

Discovery Page

• Maximum Writes Outstanding determines the maximum number of writes that can be buffered. Any additional writes beyond the maximum level allowed will be sent to the storage device without using buffering, but these writes may also be subsequently buffered when completion notices for earlier writes are received.

• Maximum Bytes Outstanding determines the maximum number of write bytes (shown in units of kilobytes) that can be buffered. Any additional writes beyond the maximum level allowed will be sent to the storage device without using buffering, but these writes may also be subsequently buffered when completion notices for earlier writes are received.

Discovery Page 2

The Discovery page shows currently known target devices and allows manual discovery of new target devices.

To access the Discovery page:

1 Click Discovery from the Main menu on the Home page.

The Discovery page displays (see figure 24):

Quantum TC2201 User’s Guide 32

Figure 24 Discovery Page

Chapter 2 TC2201 Web Interface

iSCSI Mapping Page

From the Discovery menu, select the SCSI bus to view/discover devices specific to that bus. The and buses, or for just the selected port or bus. When the discovery process is activated, it is performed according to the settings configured in the iSCSI and SCSI configuration pages.

Caution: Discovery should not be used when SCSI command or

I/O operations are in progress.

Go button activates discovery for all the ports

iSCSI Mapping Page 2

The iSCSI Mapping page shows all available iSCSI hosts with maps that have been assigned to the current port. Maps and hosts may be added, edited, or deleted. To choose a different port, select from the list of ports shown in the menu under the heading Mapping Menu by left-clicking on the desired port.

To access the iSCSI Mapping page:

Quantum TC2201 User’s Guide 33

Figure 25 iSCSI Mapping Page

Chapter 2 TC2201 Web Interface

iSCSI Mapping Page

1 Click iSCSI Mapping from the Main menu on the Home page.

The iSCSI Mapping page displays (see figure 25):

After the iSCSI port has been selected, mapping information for that port is displayed including the name of the port, the currently selected host and map. The following options are also available:

• Add a new host or map by selecting the respective Add button.

• Select an existing host or map from the pull-down lists for Select Host and

Select Map.

• Delete the currently selected host or map by selecting the respective

Delete button.

• View or Edit the currently selected host or map by selecting the respective

Edit/View button.

• Clone (via the Clone Map button) the currently selected map and set up the name of the new cloned map. This option makes it easier to setup new maps with similar information to previously created maps. Auto Assigned maps cannot be cloned.

Quantum TC2201 User’s Guide 34

Chapter 2 TC2201 Web Interface

iSCSI Mapping Page

• Select the Activate Mapping Changes button to dynamically update the current map without rebooting the TC2201. These changes are made effective immediately after being submitted.

Caution: Before activating any port mapping changes, it is strongly

recommended that the user verify there are not any command or data operations occurring in conjunction with devices affected by the mapping changes. For example, deleting a LUN or device from a map may disrupt I/O transfers with that device. It is the user’s responsibility to ensure that no operations will be negatively impacted due to the activation of mapping changes.

Note: All current Mapping Settings will take effect immediately! If

another management interface has made unsaved mapping changes, those changes will be lost.

Note: If the

Activate Mapping Changes button is not selected, the

mapping changes will not take effect unless the TC2201 is rebooted.

The following shows the select host page when the Select Host Edit/View button is selected (see

figure 26).

Quantum TC2201 User’s Guide 35

Figure 26 Select Host Page

Chapter 2 TC2201 Web Interface

iSCSI Mapping Page

The current host information is shown at the top of the page. This information can be changed in the

Modify iSCSI Host section.

• New or updated information can be typed into the field boxes for Host Name, iSCSI Name, and Map Name.

• The Map Name can be selected from the drop-down list.

• To make the changes permanent, select the Submit button.

Note: Host settings are saved to memory when the Submit button is

selected but are not activated until either the

Changes

button is selected or the TC2201 is rebooted.

Activate Mapping

The following shows the select current map page when the Select Current Map

Edit/View button is selected (see figure 27).

Quantum TC2201 User’s Guide 36

Figure 27 Select Current Map Page

Chapter 2 TC2201 Web Interface

iSCSI Mapping Page

• To completely clear the current map of all entries, select the Clear Map button.

• To fill the map, select the fill option from the pull-down list and then select the

Fill Map button. When the map is filled, the menu shows the

current mappings.

• To remove all gaps, or unfilled entries, from this map, select the

Remove Gaps button. When removing gaps from the table, this

option also renumbers all Indexes in sequential order starting with Index 0.

Note: Some operating systems require gaps be removed in the

mapping table in order to detect all devices.

Quantum TC2201 User’s Guide 37

Chapter 2 TC2201 Web Interface

Statistics Page

• To delete a specific map entry, select an Index from the pull-down list under Delete Map Item. To delete multiple Indexes, also select the end of the range from the optional pull-down list. Either way, select the

Delete Entry button to remove the item(s) from the map.

• To create a specific map item, the Index, Bus, and Device can be selected from the pull-down lists for either Discovered Device Entry or Manual Device Entry. Discovered Device Entry is limited to devices already discovered. Manual Device Entry allows you to manually set up a device type at a specific Device Target and Device LUN. To make the changes permanent, select the

Note: Maps named ‘Auto Assigned’ may not be modified, cleared,

filled, or have entries removed.

Note: Map settings are saved to memory when any of the buttons

within the page are selected but are not activated until either the

Activate Mapping Changes button is selected or the TC2201

is rebooted.

Create Entry button.

Statistics Page 2

The Statistics page shows SCSI bus statistics. To access the Statistics page:

1 Click Statistics from the Main menu on the Home page.

The Statistics page displays (see figure 28):

Quantum TC2201 User’s Guide 38

Figure 28 Statistics Page

Chapter 2 TC2201 Web Interface

Utilities Page

Select SCSI Statistics from the Statistics menu on the left and then select the

Go button to clear all current statistics for the selected buses and

continue logging any new statistics.

Utilities Page 2

The Utilities page allows access to the FTP utility, event log, and various trace options.

To access the Utilities page:

1 Click Utilities from the Main menu on the Home page.

The Utilities page displays (see figure 29):

Quantum TC2201 User’s Guide 39

Figure 29 Utilities Page

Chapter 2 TC2201 Web Interface

Utilities Page

The Utilities page consists of the following options:

• FTP Utility

• Trace Settings

• Current Traces/ Previous Traces Last/Assert Traces

• Clear Current Traces

• Clear Assert Traces

• Event Log Settings

• Event Log

• Clear Event Log

• SCSI Command Tracking

FTP Utility 2 The FTP Utility page provides access to an FTP Utility.

To access the FTP Utility page:

1 Click FTP Utility from the Utilities menu.

Quantum TC2201 User’s Guide 40

Chapter 2 TC2201 Web Interface

Utilities Page

The FTP Utility page displays (see figure 29):

Note: Internet access is required to verify the signature for the FTP

applet and to download the JAVA applet plug-in for your browser.

The FTP Utility requires the use of a JAVA applet and will prompt for permission to install the applet, if needed. If you receive this prompt, follow the on screen instructions to complete installation of the applet. The FTP Utility then prompts for permission to run the applet.

To proceed, select the Grant this session button so the FTP Utility becomes available for use.

To use the FTP Utility, do the following:

1 1. Fill in the User Name, Password, and IP Address of the TC2201. 2 2. Select the Connect button to establish an FTP session with the

TC2201.

3 3. Select a local file to upload or download. The following file types

are supported.

For uploads, or files sent to the TC2201, you can select from .cfg (configuration files) and .dlx (firmware files) formats.

For Downloads, or files retrieved from the TC2201, you can select from .cfg (configuration files) as well as from either curtrace.txt (system traces for current boot cycle) or prvtrace.txt (system traces from previous boot cycle).

4 Select binary transfer mode for the TC2201. 5 5. Select the Put to Rtr button to upload a file to the TC2201 or the Get

From Rtr

button to download a file from the TC2201.

If a valid firmware or configuration file is sent to the TC2201, an automatic reboot will occur once the file has been received by the TC2201. The user will not be able to access the TC2201 from the Visual Manager web interface during the time that the reboot is in process, usually a period of about 2 minutes.

Trace Settings 2 The Trace Settings page allows the configuration of trace settings.

To access the Trace Settings page:

Quantum TC2201 User’s Guide 41

Figure 30 Trace Settings Page

Chapter 2 TC2201 Web Interface

Utilities Page

1 Click Trace Settings from the Utilities menu.

The Trace Settings page displays (see figure 30):

Select the Submit button to submit changes for the Basic Trace Settings page.

Select the Advanced Button to open the Advanced Trace Settings page, which appears similar to the Basic Trace Settings Page but offers an expanded view with more trace options (see

Quantum TC2201 User’s Guide 42

figure 31).

Figure 31 Advanced trace settings page

Chapter 2 TC2201 Web Interface

Utilities Page

For both the Basic and Advanced pages, the default setting for each trace setting is Min (track non-error conditions) but any or all settings can be changed to Errs (track error conditions) or All (track both error and non-

Quantum TC2201 User’s Guide 43

Chapter 2 TC2201 Web Interface

Utilities Page

error conditions) or to advanced trace level settings located between these.

Note: These settings are normally used for diagnostic purposes as

directed by an authorized Quantum service technician. Using these settings during normal operations can result in performance degradation of the TC2201.

Current Traces/ Previous Trac es Last/Assert Traces

Figure 32 Current Traces Page

The Current T races, Previous T races, and Last Assert T races menu options show the indicated trace information.

TC2201 was last booted. cycle.

Last Assert Traces shows data from the last assertion.

Previous Traces shows data from the last boot

Current Traces shows data since the

To access the Current Traces page:

1 Click Current Traces from the Utilities menu.

The Current Traces page displays (see figure 32):

To access the Previous Traces page:

1 Click Previous Traces from the Utilities menu.

Quantum TC2201 User’s Guide 44

Figure 33 Previous Traces Page

Chapter 2 TC2201 Web Interface

Utilities Page

The Previous Traces page displays (see figure 33):

To access the Last Assert Trace page:

1 Click Last Assert Trace from the Utilities menu.

The Last Assert Trace page displays (see figure 34):

Quantum TC2201 User’s Guide 45

Figure 34 Last Assert Trace Page

Chapter 2 TC2201 Web Interface

Utilities Page

Trace buffers can be cleared by selecting either the Clear Current Traces option or the

Clear Assert Traces option.

Clear Current Traces 2 The Clear Current Traces page allows you to clear the current trace buffer.

To access the Clear Current Traces page:

1 Click Clear Current Traces from the Utilities menu.

The Clear Current Traces page displays (see figure 35):

Quantum TC2201 User’s Guide 46

Figure 35 Clear Current Traces Page

Chapter 2 TC2201 Web Interface

Utilities Page

When this option is selected, a confirmation message will appear to verify the selection. If a response of

Yes is given to the confirmation message,

the unit will clear the current trace buffer. Current TC2201 activities will not be disrupted by this operation. Select the

Submit button to finalize

your choice.

Clear Assert Traces 2 The Clear Assert Traces page allows you to clear the assert trace buffer.

To access the Clear Assert Traces page:

1 Click Clear Assert Traces from the Utilities menu.

The Clear Assert Traces page displays (see figure 36):

Quantum TC2201 User’s Guide 47

Figure 36 Clear Assert Traces Page

Chapter 2 TC2201 Web Interface

Utilities Page

When this option is selected, a confirmation message will appear to verify the selection. If a response of

Yes is given to the confirmation message,

the unit will clear the assert trace buffer. Current TC2201 activities will not be disrupted by this operation. Select the

Submit button to finalize

your choice.

Event Log Settings 2 The Event Log Settings page allows you to view and edit the event log

settings. To access the Event Log Settings page:

1 Click Event Log Settings from the Utilities menu.

The Event Log Settings page displays (see figure 37):

Quantum TC2201 User’s Guide 48

Figure 37 Event Log Settings Page

Chapter 2 TC2201 Web Interface

Utilities Page

To make any changes, modify the entries as described below and then select the

Submit button.

Select from the Event Log settings shown. Each option enables/disables its respective filtering option. Event logging captures over 2000 events and then starts overwriting the log when full. The default setting is All Events Logged.

Note: So that event logging is accurate, be sure to correctly set the

clock and date in the

Real Time Clock configuration menu.

Event Log 2 The Event Log page displays the event log.

To access the Event Log page:

1 Click Event Log from the Utilities menu.

The Event Log page displays (see figure 38):

Quantum TC2201 User’s Guide 49

Figure 38 Event Log Page

Chapter 2 TC2201 Web Interface

Utilities Page

Clear Event Log 2 The Clear Event Log page allows you to clear the event log.

To access the Clear Event Log page:

1 Click Clear Event Log from the Utilities menu.

The Clear Event Log page displays (see figure 39):

Quantum TC2201 User’s Guide 50

Figure 39 Clear Event Log Page

Chapter 2 TC2201 Web Interface

Utilities Page

When this option is selected, a confirmation message will appear to verify the selection. If a response of

Yes is given to the confirmation message,

the unit will clear the event log. Current TC2201 activities will not be disrupted by this operation. Select the

Submit button to finalize your

choice.

SCSI Command Tracking 2 The SCSI Command Tracking page provides options for setting up and

logging SCSI commands that are received or transmitted by the TC2201. Results are displayed in the Host/Device ID Table.

While the TC2201’s current, previous, and last assert trace data does provide a complete summary of events in a chronological fashion, SCSI Command Tracking adds the ability to filter the trace data to show only the information related to the processing of specific SCSI commands.

To access the SCSI Command Tracking page:

1 Click SCSI Command Tracking from the Utilities menu.

The SCSI Command Tracking page displays (see figure 40):

Quantum TC2201 User’s Guide 51

Figure 40 SCSI Command Tracking Page

Chapter 2 TC2201 Web Interface

Utilities Page

• SCSI Command Tracking can be toggled to ON or OFF. When

toggled ON and Submitted, all SCSI commands received or transmitted to or from the TC2201 are then logged in the SCSI Commands section shown on this screen. When set to OFF (and Submitted), no SCSI commands are logged.

• Previous entries for SCSI Command Tracking can also be cleared.

Toggling the clear option to the ON position and selecting the Submit button will clear all previous entries.

The settings for the Host/Device ID Table are used to filter the trace data such that a sub-set of the total logged information is displayed under the SCSI Commands section. Logged data can be defined according to the Protocol (FC, Other, or ALL), Type (Device, Host, or ALL), and Value (ID or ALL). For the ID, this can be a specific FC LUN or Switch ID (S_ID) or some other specific value. Selecting the Submit button activates the settings for Protocol, Type, and Value.

Quantum TC2201 User’s Guide 52

Chapter 2 TC2201 Web Interface

Features

Features 2

The Features page is where advanced software licensed features can be enabled.

To access the Features page:

1 Click Features from the Main menu.

The Features page displays (see figure 41):

Figure 41 Features Page

To enable an advanced software licensed feature, enter a key number in the field and select the licensed feature, enter the key number and select the

Currently, advanced software licensed features include features which are licensed by default (HTTP Interface, Two Custom Maps, and Eight Custom Maps).

Quantum TC2201 User’s Guide 53

Add button. To remove an advanced software

Disable button.

Chapter 2 TC2201 Web Interface

Report

Report 2

The Report page presents a consolidated view of all system information. To access the Report page:

1 Click Report from the Main menu.

The Report page displays (see figure 42):

Figure 42 Report Page

From your web browser, it is also possible to save a copy of the Report page. It is recommended to save the page as a *.txt file. Refer to the user documentation for your specific web browser for details.

Note: It may be necessary to disable popup blocking from your

browser in order to view the Report Page.

Quantum TC2201 User’s Guide 54

Chapter 2 TC2201 Web Interface

Reboot

Reboot 2

The Reboot page allows you to reboot the TC2201. To access the Reboot page:

1 Click Reboot from the Main menu.

The Reboot page displays (see figure 43):

Figure 43 Reboot Page

When this option is selected, a confirmation message will appear to verify the selection. If a response of current TC2201 activities will be disrupted while the unit restarts itself. The last submitted configuration changes will also take effect after the TC2201 powers on again. Select the

Quantum TC2201 User’s Guide 55

Yes is given to the confirmation message,

Submit button to finalize your choice.

Chapter 3

3Troubleshooting

Various problems can arise when configuring and using the TC2201. This section is provided to help guide the user through some of the basic methods of identifying faults in the setup and configuration of the unit.

Most problems are found in the initial installation. In general, it is wise to check all connections and review the configuration before proceeding with further trouble analysis. Simplify the installation if possible, reducing it to the most basic configuration then adding elements one at a time and verifying the operation at each step.

Indicators 3

The TC2201 is equipped with rear panel LED indicators for monitoring overall unit status (see

Quantum TC2201 User’s Guide 56

figure 44).

Figure 44 TC2201 LEDs

Chapter 3 Troubleshooting

Indicators

Power/fault

Ethernet Activity

The LED functionality of the TC2201 is detailed below:

• Power and Fault (Pwr)—This indicator is a bi-color LED. When green,

• iSCSI (Lnk/Act)—When lit green, the upper indicator signifies a good

iSCSI Link Status

iSCSI Activity SCSI Activity for Bus 0 SCSI Activity for Bus 1

this indicator shows that power is currently active. Lack of power indication suggests that the unit is turned off, a problem with the power supplied to the unit, or an internal problem with the unit. When this indicator is amber, this indicator shows that the TC2201 detects a fault condition. Faults can occur as a result of Power On Self Test (POST) failure or operational failures. It is normal for this indicator to flash on when the unit is powered up or reset. If the fault indicator stays lit, contact your product support representative.

iSCSI link on the port. When lit green, the lower indicator signifies iSCSI port activity. If the Link indicator fails to light at all, or if the Activity indicator stays continually lit without corresponding SCSI bus activity, there may be a problem with the iSCSI configuration. Verify the iSCSI configuration.

• SCSI Bus (0, 1)—When lit, these green indicators signify SCSI activity on the bus corresponding to the number of the indicator. Activity should be indicated only occur briefly during power up or configuration, and relatively often when the unit is transferring data. If an Activity indicator stays continually lit without corresponding target device activity, there may be a problem with the SCSI bus configuration. Verify the SCSI bus configuration.

• Ethernet (10/100)—When lit, these green indicators signify Ethernet link status and activity. If either of these indicators fail to flicker, or stay continuously lit, there may be a problem with the network connection or configuration. Verify the network connection and configuration. The port must be connected to a 10/100BaseT Ethernet network to function properly.

Quantum TC2201 User’s Guide 57

Chapter 3 Troubleshooting

Basic Verification

Basic Verification 3

Serial Port Problems 3 If you experience trouble communicating with the serial port, verify the

configuration of the host terminal or terminal emulation program. The TC2201 requires the baud rate to be set correctly, 8 data bits, 1 stop bit, and no parity. Flow control should be set to none or XON/XOFF, and may cause problems if set to ‘hardware’. Some terminal programs may not support baud rates higher than 19200, so a lower baud rate may be required. If problems persist, you may want to check the cabling or try a different host. Be sure the Scroll Lock key on the keyboard of the host computer is not enabled. If a valid Ethernet IP address is configured, serial configuration settings can also be set via telnet.

Verify SCSI Bus Configuration

Problems with SCSI bus configuration are common. Basic operation of a SCSI bus can be checked by using the configuration menu to view

attached SCSI devices. Conditions to look for include:

• Termination—Problems with termination can cause intermittent or hard failure. A SCSI bus must be terminated on both ends, and only both ends. Termination issues when both narrow and wide devices are on the same bus are common. Check to make sure that there are no loose terminators. All terminators should be firmly attached.

• Bus Type—The SE and LVD devices can be connected to the same SCSI bus, however on power up, if at least one SE device is detected, the LVD devices must convert to SE mode, and SE mode will be used. Only the LVD interface is being specified for the Fast/40 and higher rates.

• Device ID—Each device on a SCSI bus must have a unique ID. Also check the configured ID’s for the TC2201 to verify these are not in use by other devices on the same SCSI bus.

• Cabling—Check SCSI cables to verify they are functional. SCSI rules for total length, distance between devices, and stub length must be adhered to. Connections should also be checked and reseated if necessary.

Quantum TC2201 User’s Guide 58

Chapter 3 Troubleshooting

Basic Verification

• SCSI Devices—Verify that the SCSI devices on a particular SCSI Bus can be seen in the by the TC2201. Check the Discovery page to verify visibility of devices. If the TC2201 can not see the devices, verify SCSI configuration, cabling, and termination.

Even if the SCSI devices are displayed, they are not accessible unless the mapping mode is auto-assigned or another non-empty map is used.

Verify iSCSI Connection 3 If SCSI devices are recognized on the SCSI buses, but do not appear to the

iSCSI host, it may be that the iSCSI link is not properly established. Most switches have link indicators, showing link status. When the TC2201 is connected and powered-on, this link indicator should show a good link. If it does not, check the cabling or connections. As a means of verifying link integrity when connected to a functional host, disconnecting then reconnecting the Ethernet cable should cause momentary activity of this indicator as the link itself re initializes. Also verify that the media type of the TC2201 and attached switch are of corresponding types.

Verify SCSI Devices in Windows NT

Open the NT Control Panel, select “SCSI Adapters,” and double click on the iSCSI HBA. The SCSI devices should be listed.

If no devices are listed, verify the TC2201 configuration, iSCSI HBA configuration, and cabling.

If devices are listed, verify iSCSI HBA mapping mode and device addresses on the TC2201.

Verify Configuration 3 A number of configuration changes may result in an invalid

configuration. If you are in doubt about the configuration, restore the TC2201 to the factory default configuration and proceed to configure the unit a step at a time, verifying the functionality of the configuration as changes are made.

Verify Mapping 3 Verify that all desired devices have been discovered and mapped. If

using Indexed mapping, try swapping to Auto-assigned to see if this solves the problem.

Quantum TC2201 User’s Guide 59

Chapter 3 Troubleshooting

Basic Verification

Verify Devices 3 It may be useful to connect the SCSI target devices you are attempting to

use to the native SCSI interface to verify that the devices are functional. SCSI target devices can be connected to a host SCSI bus to verify they are functional.

Verify Host Configuration 3 In some cases, it may be that the iSCSI host bus adapter or host device

driver may not be working properly. Check the configuration of these elements. It may be useful to check the release notes for the driver provided to see if there are any specific issues or required configuration. It may also be useful to ensure that you are using a current version of the host bus adapter driver.

Verify HBA Device Driver Information

Check the HBA device driver Readme.txt file for configuration specifics. HBAs typically come with utility programs to view or change their

configurations.

Customer Support 3 If you are unable to resolve an issue, contact your authorized service

representative and ask for customer support (see

“Contacts” on page xix).

Quantum TC2201 User’s Guide 60

Appendix A

A3-Pin to DB-9 Serial Pin

Assignments

The pin assignments given for the 3-pin serial connection are in reference to the serial receptacle on the rear panel of the TC2201. Use an RS-232 null modem cable to connect the TC2201 to the host system.

Table 1 RJ-11 Pin Assignments

Quantum TC2201 User’s Guide 61

Pin No. Function

Pin 1 Receive Data

to TC2201

Pin 2 Serial

common (Ground)

Pin 3 Transmit

Data from TC2201

Appendix A 3-Pin to DB-9 Serial Pin Assignments

3-pin modular receptacle pin assignments

2 3

In conjunction with the pin assignments provided for the 3-pin receptacle on the rear panel of the TC2201, following are the corresponding pin out assignments for a DB-9 serial connector used to connect the other end of the serial cable to a terminal, or a computer running terminal emulation software.

The pin assignments given in Figure A-2 for the DB-9 serial connection are in reference to the serial connector at the end of the cable. Use an RS232 null modem cable to connect the TC2201 to the host system.

Note: To connect the Interface Controller to a host system, use the

RS-232 Serial 3-Pin-to-DB-9 cable included in the shipping container for this product.

Figure 45 Corresponding Pin Outs of DB-9 Connector

Pin No. Function

Pin 1 No

Connection

Pin 2 RX data

(Receive)

Pin 3 TX data

(Transmit)

Pin 4 No

Connection

Quantum TC2201 User’s Guide 62

Pin 5 Signal

Ground

Pin 6 No

Connection

Pin 7 RTS (Request

to Send), not used

Pin 8 CTS (Clear to

Send), not used

Pin 9 No

Connection

DB-9 modular receptacle pin assignments

Appendix A 3-Pin to DB-9 Serial Pin Assignments

RJ-45 Ethernet Pin Assignments

RJ-45 Ethernet Pin Assignments 1

The pin assignments given for the RJ-45 Ethernet connection are in reference to the Ethernet receptacle on the back panel of the TC2201. The TC2201 Ethernet connection supports the IEEE specifications for 10BASET and 100BASE-TX Ethernet standards.

Figure 46 RJ- 45 pin Assignments

Quantum TC2201 User’s Guide 63

Pin No. Function

Pin 1 Transmit

Out +

Pin 2 Transmit

Out -

Appendix A 3-Pin to DB-9 Serial Pin Assignments

Pin 3 Receive In +

Pin 4 No

Connection

Pin 5 No

Connection

Pin 6 Receive In -

Pin 7 No

Connection

Pin 8 No

Connection

RJ-45 modular receptacle pin assignments

RJ-45 Ethernet Pin Assignments

1 23456 7

Quantum TC2201 User’s Guide 64

Appendix B

BInband SCSI-3

Commands

The TC2201 supports a set of SCSI-3 commands that can be received inband over iSCSI. When received by the TC2201, these commands are then executed by the TC2201 itself.

When using SCSI-3 commands to access general management features, the commands can be sent to device LUNs that are mapped through the TC2201.

The following is a list of the SCSI-3 commands that are supported by the TC2201. Complete definitions of SCSI-3 commands can be found in the SCSI-3 standard available from the American National Standards Institute (ANSI).

General Commands 2

•REPORT LUNS

•INQUIRY

Quantum TC201 User’s Guide 65

Appendix B Inband SCSI-3 Commands

General Commands

General Commands 2

Following is a description of a general-use SCSI-3 command. For more information about the other general-use commands, please contact your service representative.

The TC2201 supports the Report LUNs command. The Report LUNs

Report LUNs Command 2

command will return a list of Logical Unit Numbers (LUNs) that can receive commands. The format of the report LUNs command is shown in Table B-1.

Table 2 Format of Report LUNs Command

Bit

Byte

0 Operation Code ( 0xA0)

1 Reserved 2 Reserved

3 Reserved 4 Reserved

5 Reserved 6 (MSB)

7 Allocation Length 8

9 (LSB) 10 Reserved

11 Control Byte

7 6 5 4 3 2 1 0

The TC2201 returns the LUN Parameters as defined in B-2.

Quantum TC201 User’s Guide 66

Appendix B Inband SCSI-3 Commands

General Commands

Table 3 Report LUNs Parameter List

Bit

Byte

0 (MSB)

1 LUN list length

3 (LSB)

4 Reserved

5 Reserved

6 Reserved

7 Reserved

0-7 First LUN

0-7 Last LUN

7 6 5 4 3 2 1 0

LUN list

Note: The LUN list length is the number of LUNs times 8.

All LUNs are reported and will appear in the host’s map.

Inquiry Command 2 The format of the Inquiry Command is shown in Table B-3.

Table 4 Format of LUN Inquiry Command

Quantum TC201 User’s Guide 67

Bit

Byte

0 Operation Code (12h) 1 Reserved EVPD

2 Page Code or Operation Code

7 6 5 4 3 2 1 0

Appendix B Inband SCSI-3 Commands

General Commands

3 Reserved

4 Allocation Length 5 Control

The TC2201 returns the LUN Inquiry Data as defined in Table B-5.

EVPD Page 0x80 2

If the EVPD bit is set and the Page Code is 0x80 the unit serial number page is returned. The format of this page is shown in

table 5.

Table 5 Format of EVPD Page 0x80

Bit

765432 1 0

Byte

0Device Type (0ch)

1 Page Code (80h)

3Reserved

4Page Length

…

Serial Number

The serial number field is a sixteen-byte left justified ASCII string.

Device Identification Page 0x83 2

If the EVPD bit is set and the Page Code is 0x83 the device identification page is returned, as described in SPC-2 section 8.4.4.

Table 6 TC2201 LUN Inquiry Data

Item Value

Peripheral Qualifier 0x00

Quantum TC201 User’s Guide 68

Appendix B Inband SCSI-3 Commands

General Commands

Peripheral Device Type 0x0C - Indicates Router/

Router function

RMB 0x00

Device Type Qualifier 0x00

ISO Version 0x00

AENC 0x00

TrmIOP 0x00

Response Data Format 0x02 - SCSI-2 Inquiry Data

Format

Additional Length 0x20

RelAdr 0x00

Wbus32 0x00

Wbus16 0x00

Sync 0x00

Linked 0x00

CmdQue 0x00

SftRe 0x00

Vendor ID “CROSSRDS”

Product ID “TC2201 router”

Revision Level “XXXXX”

The TC2201 will only reply to a SCSI Inquiry when using 8-byte LUN field of 0x00's.

Note: The Revision Level comes from the last four characters of the

build string, which appears in the headings for most menu screens.

Quantum TC201 User’s Guide 69

Appendix B Inband SCSI-3 Commands

Vendor Unique Commands

Vendor Unique Commands 2

The TC2201 supports a set of vendor unique commands. Table 7 below provides an overview of these commands. For more information about these vendor unique commands, please contact your service representative.

Table 7 Vendor Unique Commands

Command Description Device Type

E7 Initialize Element Status Tape / Medium Changer

B8 Read Element Status Tape / Medium Changer /

Communications

2E Write and Verify Disk / Write Once, Read Multiple /

Optical Memory

2F Verify Disk / Write Once, Read Multiple / CD-

ROM / Optical Memory

A5 Move Medium Tape /Medium Changer / Sequential

Access / CD-ROM

Quantum TC201 User’s Guide 70

Appendix C

CUsing the Command Line

Interface

This chapter describes specific configuration options available from the Command Line Interface (CLI).

The TC2201 allows the user to access many configuration settings through the CLI. Among these settings are:

• Baud rate of the serial port

• Ethernet IP and MAC addresses

• Device Mapping

• Trace level settings

All of the above settings may be changed and saved.

Note: Unless otherwise indicated, configuration changes take effect

when the unit next powers on or reboots.

Quantum TC2201 User’s Guide 71

Power Up Messages

Power Up Messages 3

When you press the TC2201’s power switch to the ‘ON’ position (marked with a ‘ the terminal or terminal emulation program for the serial port (See “

Port Settings on page 14), or the Telnet utility for Telnet sessions.

A series of power-up self tests are performed while the TC2201 starts (which can take up to 2 minutes), and messages related to these tests will be visible from the serial port. If completed successfully, the main menu will appear, as shown in Figure 7-1.

I’ symbol), a series of messages similar to the following appear on

Serial

Note: The illustrations in this chapter use Xs to represent numeric

values for certain data fields, such as the product release version and the revision of firmware.

Note: For the serial port, if you do not see messages over the

Command Line Interface, you may need to re-check your computer’s serial port settings.

The main menu appears as follows:

Quantum TC2201 User’s Guide 72

Table 8 Main menu

Quantum TC2201 Router

X.XX.XXXX XXXXXX XXXXXXXXXXXXXX

07/26/2005 18:37:08

1) Perform Configuration

2) System Utilities

3) Display Trace and Assertion History

4) Reboot

5) Advanced Software Licensed Features

6) Download a New Revision of The Firmware

Command >

The main menu allows for various operations to be performed on the TC2201.

Power Up Messages

•Select 1 to access TC2201 configuration settings. This option is

described later in this chapter.

•Select 2 to access system utilities information and settings. This

option is described later in this chapter.

•Select 3 to display trace and assertion history. This option is

described later in this chapter.

•Select 4 to reboot the TC2201. A confirmation message will appear verifying you want to do this. If you enter N for No, you are returned to the System Utilities menu. If you enter Y for Yes, the TC2201 will restart. This option is further described later in this chapter.

•Select 5 to access the Advanced Software Licensed Features menu. This option is described later in this chapter.

•Select 6 to download a new revision of the firmware. A confirmation message will appear verifying you want to do this. If you enter N for No, you are returned to the Main menu. If you enter Y for Yes, the TC2201 begins accepting firmware data from the serial port. This option is further described later in this chapter.

Quantum TC2201 User’s Guide 73

Perform Configuration

Perform Configuration 3

The Perform Configuration menu allows the administrator to configure the various options on the TC2201. For most configuration changes to take effect, you must reboot the TC2201.

Note: Menus are not case sensitive. You can enter uppercase and

lowercase characters interchangeably whenever menus indicate letters as choices.

Table 9 Configuration menu

Configuration Menu

X.XX.XXXX XXXXXX XXXXXXXXXXXXXX

07/26/2005 08:56:22

1) User Settings

2) Baud Rate

3) Ethernet

4) iSCSI

5) Parallel SCSI

6) Parallel SCSI Buffered Tape Write

7) Device Mapping

8) Trace and Event Log Settings

9) Real-Time Clock

A) Save Configuration B) Restore Last Saved Configuration C) Reset and Save Configuration to Factory Defaults

X) Return to main menu

Quantum TC2201 User’s Guide 74

Perform Configuration

User Settings Configuration

Table 10 User Settings Configuration Menu

This menu changes security settings, including the user name and password. User names and passwords should be unique and kept

confidential and it is recommended to use a combination of letters and numbers when creating user names and passwords. The default values are “root” for user name and “password” for password.

User Settings

X.XX.XXXX XXXXXX XXXXXXXXXXXXXX

07/26/2005 08:56:22

Current Username : root

1) Change Username

2) Change Password X) Return to previous menu

Note: In the event that either or both the user name and password

are forgotten, it is possible to reset the user name and password to their default values by resetting the TC2201 to factory defaults. Note that resetting to factory defaults from the serial port will also reset all other configuration settings to factory defaults, as well as erase all current maps. It is recommended to capture a copy of the system report (available from the System Utilities Menu) in order to make reconfiguration easier. If a backup configuration file was previously saved (as described in Chapter 8), this file can also make the reconfiguration process much easier.

Baud Rate Configuration

This menu changes the baud rate used on the serial port. Select 1 through 5 for the appropriate baud rate setting. The default setting for the baud

rate is 115200.

Quantum TC2201 User’s Guide 75

Perform Configuration

Table 11 Baud Rate Configuration Menu

Baud Rate Configuration Menu

X.XX.XXXX XXXXXX XXXXXXXXXXXXXX

07/26/2005 08:56:22

1) 9600 2) 19200

3) 38400 4) 57600

5) * 115200

X) Return to previous menu

Ethernet Configuration

Note:

The asterisk (*) symbol indicates the current setting for the baud rate.

This option allows for setting up the Ethernet network settings for the management port including DHCP configuration, IP address, subnet

mask, gateway, Ethernet MAC address, DNS settings, and Ethernet MTU size.

Quantum TC2201 User’s Guide 76

Perform Configuration

Table 12 Figure 7-5: Ethernet Configuration Menu

Ethernet Configuration Menu

X.XX.XXXX XXXXXX XXXXXXXXXXXXXX

07/26/2005 08:56:22

Port Type : 10-100 Ethernet IP Address : 192.168.100.159 [DHCP Enabled] Subnet Mask : 255.255.255.0 Gateway(s) : MAC Address : 00:E0:02:E3:13:94 Ethernet Mode : 10/100Mbps (Auto-Neg) Ethernet MTU Size : 1500

1) Toggle DHCP Configuration

2) Change IP Address

3) Change Subnet Mask

4) Change Gateway

5) Change Ethernet MAC Address

6) Change DNS Settings

7) Change Ethernet MTU Size

X) Return to previous menu

Command, <enter> for next port >

Select the Enter key to toggle to the next Ethernet port, such as to configure settings for one of the iSCSI ports.

•Select 1 to toggle the DHCP setting. This setting enables/disables support for Dynamic Configuration Protocol. When enabled, the TC2201 will retrieve a dynamic IP address from a DHCP server located on the Ethernet network that the TC2201 is connected to. Once DHCP is enabled, it is necessary to configuration and

reboot the TC2201 before an IP address will be

save the current

requested from the DHCP server. Use the following four steps:

Quantum TC2201 User’s Guide 77

Perform Configuration

1 Select X Return to previous menu 2 Select A Save Configuration 3 Select X Return to previous menu 4 Select 4 Reboot

After the TC2201 finishes rebooting, the Main Menu will appear on the serial port but, for Telnet, a new session will need to be opened to continue configuring the TC2201. DHCP status can be verified from the Ethernet Configuration Menu where DHCP Configuration is indicated as “Enabled” if DHCP has been successfully activated. Note that the IP address may also appear different than the former non-DHCP IP address.

Note: To use the DHCP feature, a DHCP server must be operational on the

Ethernet network used by the TC2201. If the DHCP feature is used when there is no DHCP server, the standard for DHCP requires that the TC2201 wait three minutes for a response from a DHCP server before timing out.

Your DHCP server may allow you to set up a lease reservation for an IP address by providing the server with the Ethernet MAC address of the TC2201. This sets the DHCP server to always provide the same IP address to the TC2201. This setup can be useful for remote management of the TC2201 via Telnet or Visual Manager. Because the method of setting up a lease reservation varies depending on the DHCP server being used, it is recommended you contact your Network Administrator for assistance.

For more information about configuring DHCP, see Appendix D of this manual.

•Select 2 to change the IP address of the TC2201. The default setting

for the Ethernet port is 1.1.1.1. The default setting for iSCSI Port 0 is

169.254.1.1. The default setting for iSCSI Port 1 is 169.254.1.2.

•Select 3 to change the IP subnet mask for the TC2201. The default for

this setting is 255.255.255.0.

•Select 4 to change the gateway for the Ethernet network of the

TC2201.

•Select 5 to change the Ethernet physical address, or MAC address, of

the TC2201. Ethernet physical addresses are always assigned to Ethernet adapters by the manufacturers.

Quantum TC2201 User’s Guide 78

•Select 6 to open the Change DNS Settings Menu. When DHCP is disabled, this menu can be used to assign the DNS server IP address and DNS domain.

Table 13 Change DNS Settings Menu

Change DNS Settings Menu

X.XX.XXXX XXXXXX XXXXXXXXXXXXXX

07/26/2005 08:56:22

DNS Configuration - Port 1

DNS Server IP Address : XXX.XXX.XXX.XXX DNS Domain : server.company.com

1) Change DNS Server IP Address

2) Change DNS Domain

Perform Configuration

X) Return to previous menu

•Select 1 to change the DNS Server IP Address. The IP address

should be similar in form to XXX.XXX.XXX.XXX where each XXX represents an integer in the range of 1 to 255.

•Select 2 to change the DNS Domain. The text

“server.company.com” shown above is an example of how a DNS Domain name could appear.

•Select 7 to change the Maximum Transmission Unit (MTU) for Ethernet. This setting can be configured for 1500 or 9000 byte frames. The Ethernet Management port is permanently set to 1500 and cannot be changed. The default setting for the iSCSI ports is also 1500 but a value of 9000 can be configured for jumbo frame support for iSCSI frames.

Quantum TC2201 User’s Guide 79

Perform Configuration

iSCSI Configuration

Table 14 iSCSI Configuration Menu

This menu allows for setting the iSCSI configuration.

iSCSI Configuration Menu

X.XX.XXXX XXXXXX XXXXXXXXXXXXXX

07/26/2005 08:56:22

Authentication : Enabled iSNS Client Option : Disabled

1) Toggle Authentication

2) Authentication Setup

3) Toggle iSNS Client

4) Change iSNS Server Settings

5) Portal Group Configuration

Command, <enter> for next iSCSI Port >

•Select 1 to toggle authentication between Enabled and Disabled. The

default setting is Disabled. When set to Enabled, CHAP authentication for iSCSI is enabled.

•Select 2 to configure CHAP authentication. This menu item appears

when menu item 3 above is toggled to Enabled. When this menu item is selected, the names and secrets for CHAP authentication can be configured. These settings must match the same settings on hosts that need to log into the target devices. Host settings can be set in the Microsoft iSCSI Initiator for Windows systems, or from the iSCSI initiator available in Linux or other operating systems.

Quantum TC2201 User’s Guide 80

Quantum TC2201 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Figures

Tables

Preface

1Introduction

External Features 1 Figure 1 shows the front panel of the Quantum TC2201 iSCSI

Operation Indicators

How the TC2201 Works

Processing SCSI Information 1

LAN-free Backup and Restore

TC2201 Features

iSCSI Features 1 The TC2201 provides the following iSCSI features:

SCSI Bus Features 1 The TC2201 provides the following SCSI bus features:

Management Features 1 The TC2201 provides the following management options:

TC2201 Benefits

Enterprise Class Performance

SAN Management Reduction

Add Intelligence to SCSI Storage

TC2201 Specifications

Industry Leading Inter Operability
