Quantum TAPE ARRAY 5 User Manual

Installation

Operating Guide

Tape Array 5 Rackmount
Enclosure

and

Copyright Notice

 Copyright ADIC 1998, 1999

The information contained in this document is subject to change without notice.
This document contains proprietary information that is protected by copyright. All rights are reserved. No

part of this document may be photocopied, reproduced or translated to another language without the prior
written consent of ADIC™.

ADIC shall not be liable for errors contained herein or for incidental or consequential damages (including
lost profits) in connection with the furnishing, performance or use of this material whether based on
warranty, contract, or other legal theory.

Printed in the U.S.A.

Document Number 62-0115-01 Rev. D

Corporate Headquarters:

Advanced Digital Information Corporation

Shipping Address: 11431 Willows Road NE

Redmond, WA 98052

Mailing Address: P.O. Box 97057

Redmond, WA 98073-9757

Telephone: [phone]

Fax: [phone]

World-wide web: http://www.adic.com

BBS: [phone]

ZAC des Basses Auges

1 rue Alfred de Vigny

78112 - Fourqueux, FRANCE

Telephone: [phone]

Fax: [phone]

ADIC Technical Assistance Center: [phone]

ADIC and ADIC Europe are trademarks of Advanced Digital Information Corporation. Quantum® is a
registered trademark of Quantum Corporation. DLT™ and DLTTape™ are trademarks of Quantum
Corporation.

August 1999

ADIC Europe

ii

Copyright Notice (Europe)

© Copyright ADIC Europe 1998, 1999
All rights reserved. No part of this document may be copied or reproduced in any form or by any means,

without prior written permission of ADIC Europe™, ZAC des Basses Auges, 1 rue Alfred de Vigny, 78112 ­Fourqueux, FRANCE.

ADIC Europe assumes no responsibility for any errors that may appear in this document, and retains the right
to make changes to these specifications and descriptions at any time, without notice.

This publication may describe designs for which patents are pending, or have been granted. By publishing
this information, ADIC Europe conveys no license under any patent or any other right.

ADIC Europe makes no representation or warranty with respect to the contents of this document and
specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further,
ADIC Europe reserves the right to revise or change this publication without obligation on the part of ADIC
Europe to notify any person or organization of such revision of change.

Every effort has been made to acknowledge trademarks and their owners. Trademarked names are used solely
for identification or exemplary purposes; any omissions are made unintentionally.

iii

EMI/RFI Compliance

United States – FCC

WARNING: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception
(which can be determined by turning the equipment off and on) the user is encouraged to try to correct the
interference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

You may find the following booklet prepared by the Federal Communications Commission helpful: How to
Identify and Resolve Radio-TV Interference Problems. This booklet is available from the U.S. Government

Printing Office, Washington, DC 20402, Stock No. 004-000-00354-04.

Canada – Department of Communications

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as
set out in the interference-causing equipment standard entitled "Digital Apparatus", ICES-003 of the
Department of Communications.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques
de Class B prescriptes dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-003 édictée
par le ministre des Communications.

Shielded Cables

Shielded data cables are required in order to meet FCC emissions limits. The ADIC data cable meets this
requirement. If you need a replacement cable, be sure to use an ADIC-approved shielded cable (to assure
acceptability to FCC requirements).

iv

Declaration of Conformity

according to EN 45014

Manufacturer’s Name:

Manufacturer’s Address:

Type of equipment:

Model No.:

Year of Manufacture:

conforms to the following international specifications, as required by 89/336/EEC & 92/31/EEC:

EMI:
EMC:
Safety:

Advanced Digital Information Corporation

11431 Willows Road NE ZAC des Basses Auges
Redmond, WA
98052

USA

External Digital Linear Tape Drive Enclosure

T5

1998

EN 50081-1, EN-55022 Class A
EN 50082-1, IEC 801-2, IEC 801-3, IEC 801-4
EN 60950

1 rue Alfred de Vigny
78112 - Fourqueux,
France

Redmond, Washington USA 1 July 1998

Location Date Signature/Title

Product Engineering Mgr.

v

Safety Warnings

K

CAUTION

RISK OFELECTRIC SHOC

DONOTOPEN

Thissymbolshouldalert the
usertothepresenceof
"dangerousvoltage" inside
the productthatmightcause
harmor electricshock.

Caution

All safety and operating instructions should be read before this product is
operated, and should be retained for future reference. This unit has been
engineered and manufactured to assure your personal safety. Improper use
can result in potential electrical shock or fire hazards. In order not to
defeat the safeguards, observe the following basic rules for its installation,
use and servicing.

CAUTION:

THERISKOFELECT RIC
SHOCK,DONOT REMOVE
COVER(ORBACK).
NOUSER-SERVICEABLE
PARTSINSIDE. REFER
SERVICINGTOQUALIFIED
SERVICEPERSONNEL .

TOREDUCE

1. Heed Warnings - All warnings on the product and in the operating instructions should be adhered

to.

2. Follow Instructions - All operating and use instructions should be followed.

3. Ventilation - The product should be situated so that its location or position does not interfere with

proper ventilation.

4. Heat - The product should be situated away from heat sources such as radiators, heat registers,

furnaces, or other heat producing appliances.

5. Power Sources - The product should be connected to a power source only of the type directed in

the operating instructions or as marked on the product.

6. Power Cord Protection - The AC line cord should be routed so that it is not likely to be walked on

or pinched by items placed upon or against it, paying particular attention to the cord at the wall
receptacle, and the point where the cord exits from the product.

7. Object and Liquid Entry - Care should be taken to insure that objects do not fall and liquids are not

spilled into the product’s enclosure through openings.

8. Servicing - The user should not attempt to service the product beyond that described in the

operating instructions. All other servicing should be referred to qualified service personnel.

vi

Precautions

• Do not use oil, solvents, gasoline, paint thinners or insecticides on the unit.

• Do not expose the unit to moisture, to temperatures higher than 140ºF (60ºC) or to extreme low

temperatures.

• Keep the unit away from direct sunlight, strong magnetic fields, excessive dust, humidity, and

electronic/electrical equipment, which generate electrical noise.

• Hold the AC power plug by the head when removing it from the AC source outlet; pulling the cord

can damage the internal wires.

• Use the unit on a firm level surface free from vibration, and do not place anything on top of unit.

vii

Blank Page

viii

Table of Contents

Copyright Notice ...............................................................................................................................................ii

Copyright Notice (Europe)...............................................................................................................................iii

EMI/RFI Compliance .......................................................................................................................................iv

Safety Warnings................................................................................................................................................vi

Precautions ......................................................................................................................................................vii

Chapter 1 Introduction...............................................................................................................................................1

Equipment Description......................................................................................................................................2

Rear Panel Connectors, Switches and Indicators.......................................................................................3

Power Supplies..........................................................................................................................................4

Cooling......................................................................................................................................................5

Chapter 2 Installation ................................................................................................................................................7

Unpacking and Inspecting .................................................................................................................................8

Installing Tape Drives........................................................................................................................................8

Installing SCSI Cables, Jumpers, and Terminators............................................................................................9

SCSI Cables and Jumpers..........................................................................................................................9

SCSI Terminators ....................................................................................................................................10

SCSI ID Selection Switches ............................................................................................................................10

Installing in the Rack.......................................................................................................................................11

Chapter 3 Operation and Maintenance....................................................................................................................13

Powering on the System ..................................................................................................................................16

Normal Operations ..........................................................................................................................................16

General Guidelines ..................................................................................................................................16

Drive(s) Power-on Self-Test....................................................................................................................16

Drive Operating Conditions.....................................................................................................................18

DLT Media ..............................................................................................................................................21

Loading a Data Cartridge.........................................................................................................................22

Tape in Use..............................................................................................................................................23

Removing a Data Cartridge......................................................................................................................23

Normal Maintenance .......................................................................................................................................24

Cleaning the Drive Head..........................................................................................................................24

Cleaning the Enclosure............................................................................................................................26

Power Supplies........................................................................................................................................26

Chapter 4 Troubleshooting and Diagnostics............................................................................................................29

High Humidity.................................................................................................................................................32

When You Need Assistance ............................................................................................................................32

Appendix A Specifications......................................................................................................................................33

ix

Blank Page

x Table of Contents

Introduction

This Chapter. . .

p provides a physical description of the switches, indicators and connectors on

the rear panel of the T5 Enclosure.

Chapter

1

1

Equipment Description

The Tape Array (T5) Rackmount Enclosure can house from one to five Quantum® DLT7000 or DLT8000
SCSI tape drives in a well-integrated package for use in rackmount applications. Included on the rear panel
of the T5, 10 HD68 SCSI connectors allow separate SCSI bus connections to each drive. Five drive SCSI ID
selection switches are also included on the rear panel.

The DLT tape drives are mounted in easily removed carriers, which slide into the front of the T5 chassis and
are retained with captive screws. The carriers contain SCSI and power connectors which dock with mating
connectors mounted inside the T5 chassis and provide all power and data connections between the drives and
the T5. The T5 Enclosure features a snap on/off front bezel, which can be easily snapped off for drive carrier
removal, and allows access to the media cartridges when in place.

Dual, redundant hot-swappable 300-watt power supplies provide all necessary operating voltages for the
DLT drives. Two cooling fans mounted on the T5 rear panel, and a self-contained cooling fan in each of the
power supplies provide drive cooling.

Front Bezel

2 Introduction

Figure 1-1: T5 Enclosure, Front View

Rear Panel Connectors, Switches and Indicators

Indicators

Drive SCSI ID Switches

AC Power Connector

Power Switch

SCSI I/O Connectors

Figure 1-2: T5 Rear Panel

PS Status

Rear Panel Connectors, Switches and Indicators
Power Switch
AC Power Connector

SCSI I/O Connectors

Drive SCSI ID Switches
Power Supply Status

Indicators

Turns on AC power to the T5 Enclosure.

Plug the T5 Enclosure AC power cord into this connector.
Connections for the interface cable, SCSI jumpers, and/or SCSI

terminators, which are used to connect the T5 Enclosure to the host
computer SCSI bus(ses) or to other devices on the SCSI channel.

Ten HD68 connectors allow a separate SCSI bus connection to
each drive installed in the T5 Enclosure.

Sets the SCSI ID for each drive.
Illuminates when power is applied, and the power supply is

operational. Extinguishes whenever the power supply becomes
non-operational, or power is removed.

Introduction 3

Power Supplies

Two redundant hot-swappable 300-watt power supplies provide operating voltages for the DLT tape drives
installed in the T5 Enclosure. The two supplies operate in parallel using proprietary power control and
sharing modules. Each supply plugs into the rear of the T5 and can be removed or replaced while the other
supply keeps the system fully operational. There is a normally green indicator on the T5 rear panel, at the top
of each power supply module, which extinguishes whenever the associated power supply fails, is turned off,
or is removed from the chassis.

Power Supplies

4 Introduction

Figure 1-3: T5 Rear Panel

Cooling

Power Supply Fans

The T5 enclosure is cooled by four fans, two of which are contained in the power supply modules and whose
status is reflected by the power supply status indicators. The other two fans are mounted on the chassis rear
panel and are easily removed and replaced while the system remains in operation.

Chassis Fans

Figure 1-4: T5 Rear Panel

Introduction 5

Blank Page

6 Introduction

Installation

This Chapter. . .

p explains the steps necessary to install your T5 enclosure.

Chapter

2

7

Unpacking and Inspecting

Unpack the T5 chassis and visually inspect for any damage that might have occurred during shipment. Retain
the shipping carton in case reshipment is necessary.

Remove the top cover of the chassis and inspect the power supplies and cabling for component damage. If
any damage has occurred, notify ADIC immediately.

Each shipping carton should contain the following:

• A T5 Enclosure chassis with two removable power supply assemblies and internal SCSI data cables, as

ordered.

• Accessories box containing this Installation and Operating Guide, a right and a left side rack mount

support bracket, and an accessory bag containing an AC power cord and hardware necessary to rack
mount the enclosure.

Installing Tape Drives

1. Insert each drive carrier assembly into the unit. Check the carrier to insure proper docking connections.

2. Fully tighten the captive screw at the top and bottom of the carrier to secure it in the T5 chassis.

Caution

When inserting a carrier, be sure that the orientation of the carrier is
correct. The SCSI data cable connector should be nearest the top of the
chassis.

8 Installation

Installing SCSI Cables, Jumpers, and Terminators

Follow the steps on the following pages to connect your T5 to one or more SCSI busses. This involves
installing SCSI cables, jumpers (daisy chain cables), and terminator(s) onto the SCSI I/O connectors on the
rear panel of the T5.

Note

The interface cable(s) must be shielded – ADIC can supply you with the correct
type(s).

The T5 Enclosure can contain up to five SCSI DLT tape drives. Listed below are the SCSI configurations
supported by the T5 Enclosure:

• Each DLT drive can be connected to a separate SCSI bus, or from two to five drives can be daisy-

chained together and connected to the same SCSI bus.

• Each SCSI bus can be either single-ended or differential. They must each match the SCSI host they are

connected to.

• Termination can be active or passive. ADIC recommends using active termination on a single-ended

bus.

• All termination must be external. Never use internal terminators to terminate the drives.

SCSI Cables and Jumpers

1. Attach one end of the SCSI interface cable(s) to the connector(s) shown on the rear of your T5

Enclosure. Press firmly and secure the jackscrews.

2. Attach the other end of the SCSI interface cable(s) to the external connector(s) on the SCSI interface

card(s). Press firmly and secure the jackscrews.

Note

The jackscrews at both ends of the SCSI cable must be securely fastened in
order for the drives to communicate properly with the host computer.

3. If daisy-chaining two or more drives together for connection to a single SCSI bus, attach one end of the

SCSI jumper cable to one of the drives.

4. Attach the other end of the SCSI jumper cable to the external connector on an adjacent drive.

Installation 9

SCSI Terminators

External SCSI bus terminators should be used with either single-ended or differential drive configurations.

1. Install any required external terminator(s) on the appropriate SCSI connector(s) on the rear panel of

your T5 Enclosure.

Note

A drive should only be terminated if it is the last physical device on a SCSI bus.

SCSI ID Selection Switches

The SCSI ID selection switches are located at the top, near the center of the T5 rear panel. Each switch has
sixteen positions (0 through 15) and the selected ID is shown in the switch window.

1. To select a higher SCSI ID, push the “+” button. To select a lower SCSI ID, push the “-” button.

Notes

• Each device attached to an individual SCSI channel must be assigned a

unique SCSI ID.

• SCSI IDs are preset at the factory to the following: Drive 1 = 1, Drive 2 = 2,

Drive 3 = 3, Drive 4 = 4, Drive 5 = 5.

10 Installation

Installing in the Rack

Perform the following procedure to install your T5 Enclosure in a standard 19" rack:

1. Remove the hardware components from the accessories bag.

2. Verify that the following components are included:

Quantity Component

10 Captive nut (cage nut), 10-32, slip-on
10 Captive nut (cage nut), 10-32, snap-in
12 Screw, Phillips, 10-32 x ½”
12 Washer, flat, # 10
12 Washer, lock, # 10

3. Locate the left- and right-side rack mount support brackets.
The rack mount support brackets are secured to your racks rear vertical rails with four 10-32 x ½” Phillips

screws and 10-32 cage nuts.

4. Install two cage nuts in each of the racks rear vertical rails (as shown below) by either snapping them

into, or slipping them into the holes in each rail. The cage nuts need to be vertically spaced to secure
each support bracket using a lower and an upper mounting slot.

Rear Vertical Rails

Front of Rack

Installation 11

5. Secure the right and left side rack mount support brackets to the racks rear vertical rails using a 10-32 x

½” Phillips screw in each cage nut as shown below.

Front of Rack

Support Brackets

Rear Vertical Rails

The T5 Enclosure is secured to your racks front vertical rails with four 10-32 x ½” Phillips screws and 10-32
cage nuts.

6. Install two cage nuts in each of the racks front vertical rails by either snapping them into, or slipping

them into the holes in each rail. The cage nuts should be at the same vertical height as those securing the
support brackets.

7. Remove the front bezel from the T5 Enclosure. It is held in place by four ball studs. Simply pull the

bezel off of the ball studs and set it aside.

8. If necessary, obtain assistance to hold your T5 Enclosure chassis in the rack where it will be located.

The rack mount support brackets are designed to support the rear of the T5 chassis. Place the T5
Enclosure so that it rests on the support brackets at the rear.

12 Installation

9. Secure your T5 Enclosure to your racks front vertical rails using a 10-32 x ½” Phillips screw through

each cage nut as shown below.

Front of Rack

10. Secure the bezel to the T5 Enclosure by placing it over the ball studs and pushing firmly until it snaps

into place.

Installation 13

Blank Page

14 Installation

Chapter

Operation and Maintenance

This Chapter. . .

p explains how to operate the T5 Enclosure.

3

15

Powering on the System

1. Plug the power cord into the back of your T5 Enclosure.

2. Plug the power cord from the T5 Enclosure into a grounded electrical outlet.

Use caution when plugging the power cord into an electrical outlet.
Hazardous voltages are present in the sockets of the outlet.

3. Plug the power cord from your host computer into a grounded electrical outlet.
Turn on the power switch located on the rear panel of the T5 Enclosure. Turn on the host computer power.

When the drives have completed their boot and initialization processes they are On-line on the appropriate
SCSI bus(ses).

Normal Operations

General Guidelines

Once your T5 Enclosure and your choice of application software are installed and configured, you can
automatically perform backup and restore operations via the application software. You do not need to
intervene unless the application software instructs you to exchange data cartridges.

Always follow these general-operating guidelines:

p Use only the recommended types of media cartridges described in this manual.
p Clean each of the DLT drives once a month, or whenever the Use Cleaning Tape LED is illuminated

on a drive front panel.

Drive(s) Power-on Self-Test

When you power up your T5 Enclosure, the DLT drives each perform a Power-on Self-Test (POST) while
the library is performing the Power-Up Checks. The sequence of events for each drive is:

1. The LEDs on the right front panel of the drive will turn on sequentially from top to bottom. All LEDs

will remain ON for a few seconds.

16 Operation and Maintenance

2. The LEDs on the left front panel of the drive will turn ON at the same time for about three seconds and

then turn OFF.

3. The Operate Handle, Write Protected, and Use Cleaning Tape LEDs will turn OFF. The Tape

in Use LED will blink while the tape drive initializes.

4 If your external SCSI bus terminator(s) have a Term Power LED it should also be illuminated.

Drive Status

After completion of the drive POST and initialization, each drive will be in one of the four states listed in the
following table:

Drive State Indicator Displays and Actions

1. No cartridge is present

2. A cartridge is present

and the handle is closed.

3. A cartridge is present,

but the handle is open.

4. The drive detects an

error condition.

The drive POST completes in about 13 seconds on each drive, and the drives will respond normally to all
commands. However, it may take longer for the media to become ready.

A. The Tape in Use LED turns OFF.
B. The Operate Handle LED turns ON.
C. The handle is unlatched.
D. The drive beeps momentarily.

The drive loads the cartridge. When the Tape in Use LED stops
blinking and stays ON, the tape’s actual density lights. For example, if
the actual tape density is 2.6, then the LED turns ON next to the 2.6
label. When the Density Override LED blinks, you can select a
density. The drive is ready for use.

The Tape in Use LED turns OFF. The Operate Handle LED
flashes. When the Tape in Use LED stops blinking and stays ON, the
tape’s actual density lights. For example, if the actual tape density is

2.6, then the LED turns ON next to the 2.6 label. When the Density
Override LED blinks, you can select a density. The drive is ready for
use.

Then all right or left side LEDs blink repeatedly. You may try to
unload the tape and reinitialize the drive by pressing the Unload key
or turn power OFF and then ON again. The right or left side LEDs stop
blinking and the drive tries to reinitialize. The LEDs turn ON steadily
again and then turn OFF if the test succeeds.

Operation and Maintenance 17

Drive Operating Conditions

Use the following illustrations and tables to determine each drive’s operating condition:

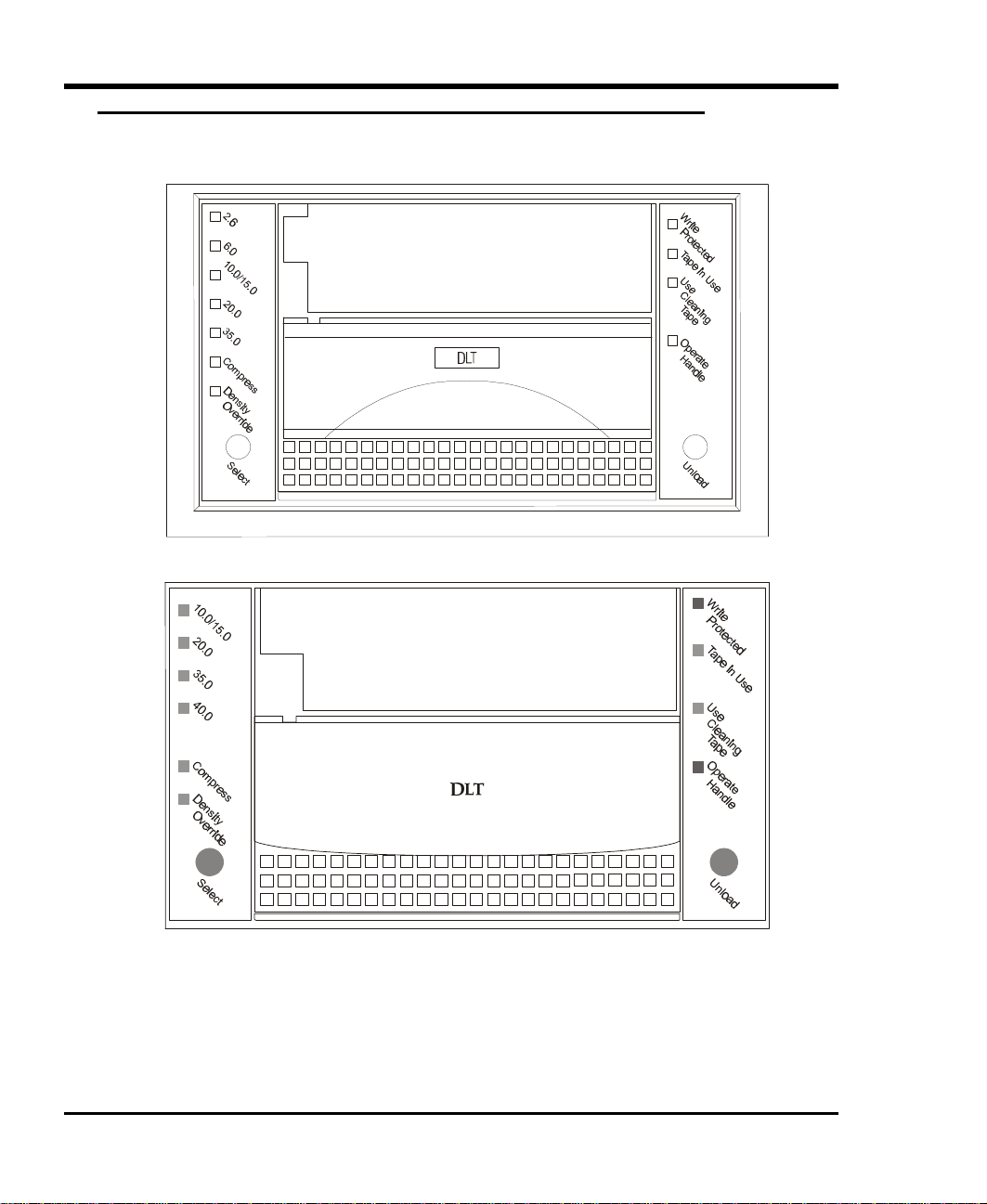

Figure 3-1 DLT 7000 Drive Front Panel

Figure 3-2 DLT 7000 Drive Front Panel

18 Operation and Maintenance

LED Label

(Right Indicator Panel)

Color State Operating Condition

Write Protected Orange ON

OFF

Tape in Use Yellow Blinking

ON

Use Cleaning Tape Yellow ON

Remains on after
unloading cleaning
tape

After cleaning,
turns on again
when reloading
data cartridge

Operate Handle Green ON

OFF

All Right Indicator
Panel LEDs,

ON
Blinking

or,
All Left Indicator
Panel LEDs

Tape is write-protected.
Tape is write-enabled.

Tape is moving.
Tape is loaded; ready for use.

Drive head needs cleaning, or the tape is bad.
Cleaning attempted, but tape expired, so cleaning

not performed.

Problem data cartridge. Try another cartridge.

OK to operate the Cartridge Insert/Release Handle.
Do not operate the Cartridge Insert/Release Handle.

POST is starting.
An error has occurred.

(continued on next page)

Operation and Maintenance 19

LED Label

(Left Indicator Panel)

Color State Operating Condition

2.6

(DLT4000,DLT7000)

6.0

(DLT4000,DLT7000)

10.0

(DLT4000 only)

10.0/15.0

(DLT7000, DLT8000)

20.0

(DLT4000, DLT7000,

DLT8000)

35.0

(DLT7000, DLT8000)

40.0

(DLT8000 only)

Yellow ON

Blinking

Yellow ON

Blinking

Yellow ON (default)

Blinking

Yellow ON (default)

Blinking

Yellow ON (default)

Blinking

Yellow ON (default)

Blinking

Yellow ON (default)

Blinking

Compress Yellow ON

OFF

Density Override Yellow ON

OFF (default)
Blinking

Tape is recorded in 2.6 format.

Tape is recorded in another density. You selected
this density for a write from BOT.

Tape is recorded in 6.0 format.
Tape is recorded in another density. You selected

this density for a write from BOT.
Tape is recorded in 10.0 format.

Tape is recorded in another density. You selected
this density for a write from BOT.

Tape is recorded in 10.0/15.0 format.
Tape is recorded in another density. You selected

this density for a write from BOT.

Tape is recorded in 20.0 format.
Tape is recorded in another density. You selected

this density for a write from BOT.
Tape is recorded in 35.0 format.

Tape is recorded in another density. You selected
this density for a write from BOT.

Tape is recorded in 40.0 format.
Tape is recorded in another density. You selected

this density for a write from BOT.
Compression mode enabled. (Compression

available only in 10.0, 15.0, 20.0, and 35.0
density.)

Compression mode disabled.
You selected a density from the front panel.

The host will select density (automatic).
You are in density selection mode.

All Right Indicator
Panel LEDs,
or,

ON
Blinking

all Left Indicator
Panel LEDs

20 Operation and Maintenance

Beginning POST.
A POST error has occurred.

DLT Media

Write-enabled

Data Protection

Warning

The Write-Protect switch on the data cartridge can be moved while the
cartridge is loaded into the drive. The drive will turn on the Write Protected
LED immediately. However, if the drive is writing to the tape, write protect
does not take effect until the write operation completes.

Before loading the data cartridge, if you move the Write-Protect switch to the left, the tape is write­protected; the Write Protected LED (orange) is ON and data cannot be written to, or erased from, the tape.

Before loading the data cartridge, if you move the Write-Protect switch to the right, the tape is write­enabled and data can be written to, or erased from, the tape (if it is not software write-protected).

After loading the data cartridge and during operation, if you move the Write-Protect switch from the write­protected position (to the left) to the write-enabled position (to the right), the tape becomes write-enabled
after a variable amount of time (seconds).

After loading the data cartridge and during operation, if you move the Write-Protect switch from the write­enabled position (to the right) to the write-protected position (to the left), the tape becomes write-protected
after a variable amount of time (seconds).

Orange

Indicator

Write-protect

Switch

Write-protected

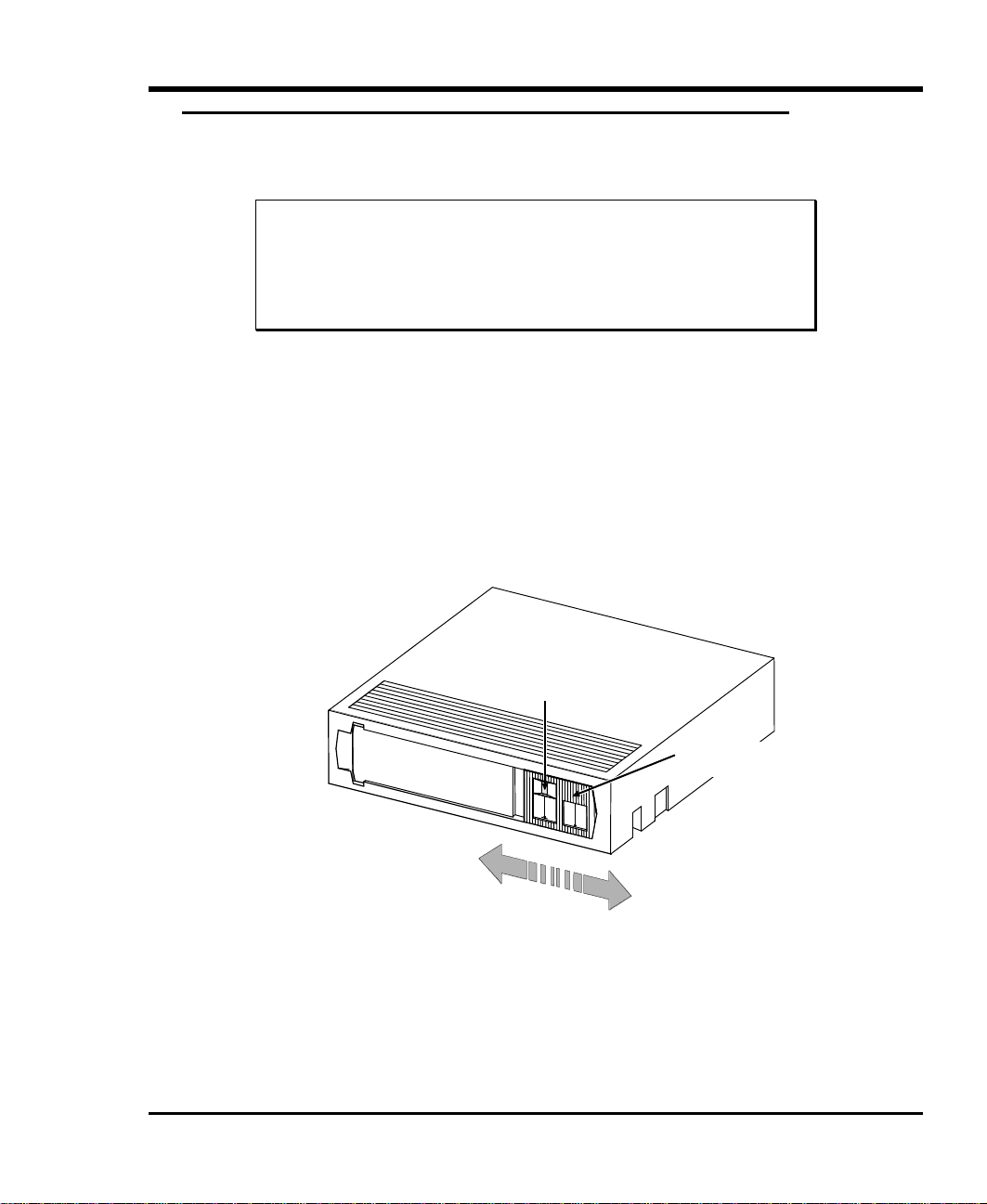

Figure 3-2 DLT Data Cartridge

Operation and Maintenance 21

Notes

• A small orange rectangle is visible whenever the cartridge is write-
protected (to the left).

• The orange rectangle will not be visible whenever the cartridge is write-
enabled (to the right).

• Store data cartridges in a dry, cool environment.

• Never reset or power down your computer or T5 Enclosure while a function

is in process or a tape is moving.

Loading a Data Cartridge

1. If you are planning to write data to, or erase data from, the cartridge, make sure the Write-Protect

switch on the cartridge is in the write-enabled position (all the way to the right).

Caution

A data cartridge can only be loaded when the Operate Handle LED is ON.
Do not attempt to open the Cartridge Insert/Release Handle unless this
LED is ON steady.

2. Lift up on the Cartridge Insert/Release Handle.

3. Insert the data cartridge into the slot.

4. Push the cartridge into the drive.

5. Push the Cartridge Insert/Release Handle closed. The drive will go on-line.

4 A load sequence will initiate where the Operate Handle LED will turn OFF and the Tape in Use

LED will blink while the drive moves the tape to BOT (Beginning of Tape). When the tape is at BOT,
the Tape in Use LED will turn ON steady. Additionally, one of the compression Density LEDs on the
Left Indicator Panel may be illuminated or blinking. The tape is now ready for use.

22 Operation and Maintenance

Tape in Use

Whenever the Tape in Use LED (yellow) is ON steady, the tape is ready to use. When the tape is being
read, written, or rewound, Tape in Use blinks.

Use the following table to determine what is happening during cartridge use:

Right Indicator Panel

LED State Meaning

Tape in Use

Operate
Handle

All LEDs Blinking An error has occurred during operation.

ON steady
Blinks irregularly
Blinks regularly

ON and beeper sounds Tape is unloaded into the cartridge and the cartridge

A cartridge is loaded, but the tape is not moving. This
can mean no application is communicating with the
controller, or that the application is communicating
but is not delivering commands for tape motion.

A read or write is in progress.
Tape is loading, unloading, or rewinding.

can now be removed, or if the drive is unloaded, a
cartridge can now be inserted.

Removing a Data Cartridge

Caution

Remove a cartridge from the drive before turning OFF host system power.
Failure to remove a cartridge before turning OFF host system power can result
in cartridge and drive damage.

To unload a cartridge from the drive perform the following steps:

1. Push the Unload button.

4 The Tape in Use LED will blink as the tape rewinds.

Caution

A data cartridge can only be unloaded when the Operate Handle LED is ON.
Do not attempt to open the Cartridge Insert/Release Handle unless this
LED is ON steady.

2. When the Operate Handle LED is ON (and the beeper has sounded), pull the Cartridge
Insert/Release Handle open to eject the cartridge from the drive.

Operation and Maintenance 23

3. Remove the cartridge.

4. Push the Cartridge Insert/Release Handle closed.

Caution

When you remove the cartridge from the drive, return the cartridge to its plastic
case to prolong the cartridge life.

Normal Maintenance

Cleaning the Drive Head

Cleaning the head should always be performed as the first step if the Use Cleaning Tape LED is
illuminated on the drive.

Note

The cleaning cartridge is exhausted after it has performed 20 cleanings. The
cleaning tape includes a label with 20 small boxes printed on it. Always place a
check mark in a box each time the tape performs a cleaning. Replace the
cleaning cartridge when it has performed 20 cleanings (all boxes will be
checked).

No routine maintenance is required apart from periodically cleaning a drive head whenever the appropriate
Use Cleaning Tape LED is illuminated.

24 Operation and Maintenance

The following table tells you when to use the cleaning tape:

If . . . It means . . . You should . . .

1. While using a data

cartridge, the Use
Cleaning Tape LED
illuminates.

2. While using a data

cartridge, the Use
Cleaning Tape LED
begins to blink.

3. Use Cleaning Tape LED

still illuminates after you
clean the drive head.

4. Use Cleaning Tape LED

illuminates after you load
the cleaning cartridge

The drive head needs cleaning
or the tape is bad

The data cartridge may be
damaged

Your data cartridge may be
causing the problem

Cleaning has not been
accomplished and the cleaning
cartridge has no remaining
cycles available.

Use the cleaning cartridge. Load
the cleaning cartridge using the
procedure in Loading the Data

Cartridge in Chapter 3,
Operations.

When cleaning is complete, the
beeper will sound alerting you to
remove the cleaning cartridge.
Follow the Removing the Data

Cartridge procedure in Chapter 3,
Operations to remove the cleaning

cartridge from the drive.
Back up the data from this

cartridge onto another cartridge, it
may be damaged. A damaged
cartridge may cause unnecessary
use of the cleaning cartridge.

Try another data cartridge.

Replace the cleaning cartridge.

Caution

Using cloth swabs, cotton swabs, cleaning agents, or unapproved cleaning
cartridges will void your warranty.

To clean the head, use a cleaning cartridge. Insert the cleaning cartridge in the drive following the Loading
the Data Cartridge procedure described earlier in this chapter. The drive will automatically clean the head.
When the cleaning operation is complete, the drive will illuminate the Operate Handle LED alerting you to
remove the cleaning cartridge.

Caution

Do not remove the cleaning cartridge before the drive sounds the beeper.

Follow the Removing the Data Cartridge procedure described earlier in this chapter to remove the cleaning
cartridge from the drive.

Operation and Maintenance 25

Note

If you load the cleaning cartridge into the drive after it has exhausted its
cleaning cycles, it will not clean the head (the cycle is noticeably shorter) and
the Use Cleaning TapeUse Cleaning Tape LED will be illuminated. Be sure to replace the cleaning
cartridge when the cleaning cycle is noticeably shorter.

Cleaning the Enclosure

The outside of the enclosure can be cleaned with a damp towel. If you use a liquid all-purpose cleaner, apply
it to the towel. Do not spray the enclosure.

Power Supplies

Introduction

The T5 comes with two "hot-swappable" 300-watt power supplies. Each auto-sensing (90 to 230 VAC, 50 to
63 Hz) supply provides operating voltages of +5 V @ 30 A and +12 V @ 14 A. Either supply will power the
chassis in the event that the other ceases to function. This is particularly important for DLTTM drives since
data loss can occur as a result of a power failure. Under nominal operating conditions both power supplies
provide approximately half of the chassis power, which results in extending each power supply’s mean-time­between-failure (MTBF) rating.

The power supplies are located at the rear of the T5 chassis. If either supply needs replacement, the entire
power supply assembly should be unplugged and replaced.

Power Supply Operation

The T5 provides dual redundant power supplies, either of which can power the T5 chassis and its installed
DLT drives. The power supplies normally operate in parallel and are controlled by proprietary power control
and sharing circuits. In the event of a power supply failure, the surviving supply immediately assumes the full
chassis load.

The T5 power supplies are "hot-swappable" and can be individually removed or replaced while the system is
operating. If a power supply fault occurs, or if a supply is removed or turned off, the corresponding indicator
will extinguish.

Note

Do not operate the system with only a single power supply for any longer than
is absolutely necessary. Doing so will not jeopardize the T5 in any way but it
does leave all data stored on the currently loaded tapes subject to becoming
unavailable.

Power supply removal requires only the unfastening of three captive retaining screws. Pulling straight out on
the handle will then de-couple the docking connectors and allow the supply to be taken directly out of the
chassis.

26 Operation and Maintenance

Caution

Removal of the wrong power supply can threaten the security of stored
data. Use the indicators on the rear panel of the T5 to be certain that the
correct power supply is being removed.

Power Supply Removal

Follow this procedure below to remove a power supply module.

1. Unfasten the three captive screws that retain the supply module in the chassis. Refer to Figure 3-1 for
the location of these screws.

Power Supply

Captive Retaining

Figure 3-3 Power Supplies

2. Use the handle on the module to pull the supply assembly from the chassis. The module docking
connector will disengage from the chassis connector.

3. Replace the power supply module as soon as possible and make sure that the module connector mates
firmly with the chassis connector.

4. Reattach the three captive screws to secure the supply module.

Fan Removal

Follow this procedure to remove and replace a chassis-mounted fan. The power supply fans are an integral
part of the power supply modules and are not field-replaceable.

Operation and Maintenance 27

1. Remove the two screws at the top of the fan, as shown in Figure 3.2

Figure 3.4 Fan Removal

2. Gently pull the fan away from its mounting location. Reach inside the T5 chassis and disconnect the red

DC power connectors, then remove the fan from the chassis.

28 Operation and Maintenance

DC power Connectors

Figure 3.5 DC Fan Power Removal

3. Replace the fan as soon as possible making sure that the power connector on the fan is firmly mated

with the DC power connector in the T5 chassis.

4. Reinstall the two screws to secure the fan to the T5 chassis.

Operation and Maintenance 29

Blank Page

30 Operation and Maintenance

Chapter

4

Troubleshooting and Diagnostics

This Chapter. . .

p describes the effects of high humidity on the T5 Enclosure.
p explains what to do when you need technical support.

31

High Humidity

If the drive detects high humidity, a warning is displayed by the drive LEDs. Any commands which are
currently being executed are aborted, and any commands which access the tape are rejected with a CHECK
CONDITION. In addition, the tape is unthreaded to prevent tape and head damage. As soon as the drive
detects that the humidity is at an acceptable level, it will once again respond to commands which access the
tape.

To minimize the chance of condensation, please observe the following guidelines:

• If you expose cartridges to temperatures outside the operating limits (5-40°C/40-113°F), stabilize them

before you use them. To do this, leave the cartridges in the operating temperature for a minimum of two
hours.

• Avoid temperature problems by ensuring that the ventilator slots at the front of the drive and the grille

on the side of the chassis are not obstructed so that the drive has adequate ventilation.

• Position the drive where the temperature is relatively stable, for example, away from open windows, fan

heaters, and doors.

• Avoid leaving cartridges in severe temperature conditions, for example, in a car standing in bright

sunlight.

• Avoid transferring data (reading from and writing to cartridges) when the temperature is changing by

more than 10°C per hour.

When You Need Assistance

When Calling the ADIC Technical Assistance Center

Customer Support is provided free of charge to all ADIC customers during the ADIC Technical Assistqance
Center (ATAC) hours of operation, 6:00 a.m. to 4:00 p.m. Pacific Time, Monday through Friday. Limited
after hours emergency assistance is also available. Customers must provide serial numbers to qualify for this
support.

Warranty exchange service is available to all customers who have validated their warranty by returning the
warranty card shipped with their unit, in accordance with the terms of the warranty.

The following steps will help you take full advantage of your call to ADIC:
p Make certain that you have reviewed the documentation to solve any problems. Most questions are

answered in your documentation.

p Identify whether the software or hardware has worked properly at anytime before this call. Have you

changed anything recently?

p Pinpoint the exact location of your problem, if possible. Note the steps you took which led to the

problem. Are you able to duplicate the same problem or is it a one-time occurrence?

p Note any error messages displayed on your PC screen or file server. Write down the exact error

message.

p If at all possible, call while at your computer with your ADIC system installed and turned on.
p If running on a network, have all information available (i.e., type, version #, network hardware, etc.).

32 Troubleshooting and Diagnostics

p Be prepared to provide the following information:

• Your name

• Company name

• ADIC model number

• Serial number of ADIC unit

• Hardware configuration

• Software configuration

• A brief description of your problem

• Where you purchased your ADIC system

Having this information available when you call for customer support will enable ADIC to resolve your
problem in the most efficient manner possible.

p Call the ADIC Customer Assistance Center: [phone].

Note

ADIC's telephone support services are not provided as a substitute for proper
review and use of applicable ADIC user manuals.

RMA (Return Material Authorization)

When it has been determined that there is a hardware problem with an ADIC system, ADIC Customer
Assistance Center will provide you with an RMA number. The warranty card must be completed and returned
to ADIC before the warranty is valid. (Customers who have not completed warranty registration can fax the
warranty card to ADIC. Call the ADIC Sales Department at [phone] for details.)

Warranty exchange service is provided at no charge to customers with validated warranties. If the item is
NOT in warranty, the repairs will be billable. Therefore, we will need a PO number at the time the RMA
number is issued. However, with first-time customers, it may be necessary to ship the system back C.O.D. for
the first repair until credit information can be obtained by the accounting department.

p Be sure all procedures in the ADIC user's manual have been checked and tried.
p When calling for an RMA number have the exact ADIC model number, serial number, and a brief,

descriptive explanation of the problem found. Be sure you give complete address information (e.g., any
mail stops or special codes) at the time the RMA is issued.

p Please send the complete ADIC system, i.e., interface cables, and the unit, if possible. A defective

component as well as the unit may have caused problems itself.

p The RMA number should be kept as a reference for calling to check on the status of an open RMA. It

must also be written on the outside of the package for identification purposes.

Troubleshooting and Diagnostics 33

Blank Page

34 Troubleshooting and Diagnostics

Specifications

This Appendix . . .

p contains specification information on the T5.

Appendix

A

35

Drive:

Approved Types:

Enclosure

Media Type:

Indicators/Controls: SCSI ID selection switch/indicator for each drive bay, status indicator for

Power Supplies:

Cooling:

Electrical Interface:

Physical Interface:

Reliability

Maintenance: Use cleaning cassette whenever the Status LED displays the Cleaning

MTBF: More than 200,000 power-on hours
MTTR: Within 30 minutes

Physical

Dimensions: 8.75” high (5U) x 19” wide x 24” deep
Weight: Approximately 185 lbs.
Power Consumption: less than 40 watts

Environment

Electrical: 90-230 vac, 50-63 Hz
Temperature:

Humidity: 20% to 80% (Operating)

Vibration: 0.25G (5-500 Hz) (Operating)

Shock: 2G Operating

Quantum® model DLT7000
Quantum® model DLT8000

DLTTape™ IV

each power supply and a power switch, all mounted on chassis rear panel.

Two 300 watt drive power supplies

Each supply provides +5 VDC at 30 amperes and +12 VDC at 14 amperes.

Front panel air intake with rear exhaust provided by a fan in each power
supply and two rear-mounted hot-swappable fans.

SE or HVD Fast Wide SCSI (DLT7000)

SE/LVD or HVD Fast Wide SCSI (DLT8000)

68-contact shielded high-density device connector

Request message

0 °C to 50° C (Operating)

-20° C to 70° C (Storage/Shipping)

0%to 95% (Storage/Shipping)

0.5G (5-500 Hz) (Storage/Shipping)

30G Storage/Shipping

36 Specifications
