ZRC SYSTEM BLOCK DIAGRAM

BOM Option Table

Reference

IV@

X'TAL

14.318MHz

SW@

D D

C C

B B

Cardreader

P32

Description

for UMA only SKU for Switchable Graphic only SKU

DDRIII-SODIMM1 DDRIII-SODIMM2

SLG8LV595

CLOCK GENERATOR

SATA - HDD

SATA - ODD

USB Port

USB/B Con. (USB Port x3)

Bluetooth Con.

AU6437-GBL

Cardreader control

P14,15

P34

P32

Dual Channel DDR III 800/1066 MHZ

P3

P29

USB-1

USB-3/9/11

USB-4

USB-12

P8

BATTERY

Azalia

SATA 0

SATA 1

FDI

CLK

SATA

Ibex Peak-M

USB

PCH

P8, 9, 10, 11, 12, 13

RTC

IHDA

Arrandale

rPGA 989

P4, 5, 6, 7

LPC

DMI

DMI(x4)

DMI

GFXIMC

Display

PCI-E x1

SPI

PCI-E x16

INT_CRT INT_LVDS

INT_HDMI

X'TAL

32.768KHz

X'TAL 25MHz

SPI ROM

AMD GPU

Robson_XT & Park_XT ( 512M ) Capilano-Pro & Madison-Pro ( 1G or 2G )

P16, 17, 18, 21, 22, 23

P8

PCIE-6 USB-13

PCIE-1

Channel A Channel B EXT_HDMI EXT_CRT EXT_LVDS

MINI CARD WLAN

BRM 57780

GIGA LAN

PS8101

LS

P28

P26

X'TAL 25MHz

ISL88731A

Batery Charger

64Mb x 16 IO x 4 pcs 64Mb x 16 IO x 8 pcs 128Mb x 16 IO x 8 pcs

P38

P19, 20

P25

UP6111AQDD

+1.05V

USB-8

Int. MIC

RJ45

CRT Con.

LVDS/CCD/MIC Con.

HDMI Con.

P27

P42

P24

P25

ISL62881HRZ-T

+VGFX_AXG

P46

LPC

Int. MIC

A A

ALC272X

AUDIO CODEC

MIC JACK

P31

P30

GMT 1453L amp

P35

NPCE781

EC

Power Board Con.

P33

P37

SW/B

P33

Touch Pad Board Con.

P35

X'TAL

32.768KHz

Speaker

P31

HP/SPDIF

P31

5

K/B Con.

4

W25X16VSS1G

SPI FLASH

P37P35

EM-6781-T3

HALL SENSOR

P24

3

Fan Driver

(PWM Type)

P35

RT8206B

3V/5V

ISL62882

CPU core

UP6111AQDD

+1.1V_VTT

2

RT8207A

+1.5V_SUS

P39

MAX8792ETD+T

+VGPU_CORE

P40

ISL62872

+VGPU_IO

P41

Size Document Number Rev

Date: Sheet

TPS54418RTE x2

+1.8V/+1V

P43

Discharger

P44

Thermal Protection

P45

Quanta Computer Inc.

PROJECT :

Block Diagram

1

ZRC

P47

P48

1A

of

146Wednesday, July 21, 2010

1

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

GPU PWR CTRL Option 1 (Default/ VDDR3 before VDDC)

+3.3V

2

VIN

3

+1.5V

4

+1.5V_SUS

5

+1.8V

6

7

8

+5V

dGPU_VRON

A A

VDDR3

MOS (AO3413)

+3_D (0.5A)

+3V_D

P22

VDDC

ISL6264

+VGPU_CORE (20A)

P44

PG_GPUIO_EN

VDDCI

ISL62872

P45

+VGPU_IO (4.5A)

PG_1V_EN

(DP PLL PWR)

+1V

G9334ADJ & MOS

+1V (3A)

P47

PG_1.5V_EN

VDDR1

MOS (AO4710)

P43

+1.5V_GPU (10A)

PG_1.5V_EN

VDDR4

MOS (AO6402)

P43

+1.8V_GPU (3A)

PG_1.5V_EN

BJT

P22

dGPU_PWROK

dGPU_PWR_EN#

MOS

AO3413

+5_GPU

P22

GPU PWR CTRL Option 2 (VDDR3 after VDDR1)

VIN

VDDCI

ISL62872

P45

+VGPU_IO (4.5A)

PG_1V_EN

dGPU_VRON

VIN

VDDC

ISL6264

PG_GPUIO_EN

P44

+VGPU_CORE (20A)

Power States

POWER PLANE

B B

C C

VIN +VCCRTC +3VPCU +5VPCU +15V +3V_S5 +5V_S5 +5V +3V +1.5VSUS +0.75V_DDR_VTT +VGFX_AXG +1.8V +1.5V +1.1V_VTT +1.05V +VCC_CORE LCDVCC +5V_GPU +GPU_CORE +GPU_IO

VOLTAGE

+10V~+19V +3V~+3.3V +3.3V +5V +15V +3.3V +5V +5V +3.3V +1.5V +0.75V variation +1.8V +1.5V

+1.05V or +1.1V

+1.05V variation +3.3V +5V Discrete enable

+0.9V~+1.1V

DESCRIPTION

RTC POWER EC POWER CHARGE POWER CHARGE PUMP POWER LAN/BT/CIR POWER USB POWER HDD/ODD/Codec/TP/CRT/HDMI POWER PCH/GPU/Peripheral component POWER CPU/SODIMM CORE POWER SODIMM Termination POWER

CPU/PCH/Braidwood POWER MINI CARD/NEW CARD POWER CPU VTT POWER PCH CORE POWER CPU CORE POWER LCD POWER SWITCHABLE PWM IC POWER

GPU_CRE/LVDS/PLL POWER

+1.5V

(DP PLL PWR)

+1V

G9334ADJ & MOS

+1V (3A)

CONTROL SIGNAL

ALWAYSMAIN POWER ALWAYS ALWAYS ALWAYS

S5_ON S5_ON MAINON MAINON SUSON MAINON GFX_ONInternal GPU POWER MAINON MAINON MAINON MAINON VRON LVDS_VDDEN

dGPU_PWR_EN#

PG_GPUIO_EN PG_1.5V_EN+1.5V+1.5V_GPU +1.5V_GPU+1.8V+1.8V_GPU PG_1V_EN+1V+1V Discrete enableDP/PEG POWER

P47

PG_1.5V_EN

+1.5V_SUS

VDDR1

MOS (AO4710)

+1.5V_GPU (10A)

ACTIVE IN

ALWAYS ALWAYS ALWAYS ALWAYS ALWAYSALWAYS S0-S5 S0-S5 S0 S0 S0-S3 S0 S0 S0 S0 S0 S0 S0 S0

Discrete enable+3V_DGPU CORE POWER+0.9V~+1.1V Discrete enableGPU I/O POWER Discrete enableVRAM CORE POWER Discrete enable

+1.5V_GPU

P43

Thermal Follow Chart

CPU CORE PWR

+3.3V

VDDR3

MOS (AO3413)

P22

+3_D (0.5A)

+3V_D

H_ORICHOT#

H/W Throttling

+1.8V

VDDR4

MOS (AO6402)

P43

+1.8V_GPU (3A)

NTC Thermal Protection

CPU

PCH

SM-Bus

EC

PG_1.5V_EN

BJT

P22

PM_THRMTRIP#

SML1ALERT#

CPUFAN#

dGPU_PWROK

SYS_SHDN#

WIRE-AND

dGPU_PWR_EN#

3V/5 V SYS PWR

FANFAN Driver

+5V

MOS

AO3413

+5_GPU

P22

D D

Quanta Computer Inc.

1

2

3

4

5

6

PROJECT :

Size Document Number Rev

PWR Status & GPU PWR CRL & THRM

Date: Sheet of

7

PROJECT :

ZRC

1A

246Wednesday, July 21, 2010

8

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

D D

L54 *PBY160808T-181Y-N/2A/180ohm_6L54 *PBY160808T-181Y-N/2A/180ohm_6

+1.5V

R586

R586 0_6

0_6

C464

.1u/16V_4

20mil

L29 BLM18AG601SN1D/200mA/600ohm_6L29 BLM18AG601SN1D/200mA/600ohm_6

+3V

C432

4.7u/10V_8

C C

150mA(30mil)

C434

.1u/16V_4

C442

.1u/16V_4

CLK_ICH_14M[10]

.1u/16V_4

+3V_CLK

IDT: AL003197000 (ICS9LRS3197AKLFT) Realtek: AL000875002 (RTM875N-632-VB-GRT) Silego: AL8SP585000 (SLG8SP585VTR)

C740

4

+1.5V_CLK

C437

C437 .1u/16V_4

.1u/16V_4

C735 33p/50V_4C735 33p/50V_4

C733 33p/50V_4C733 33p/50V_4

R564 33_4R564 33_4

Y6

14.318MHz

3

6/21 add R586 for 3V CLK gen Un-stuff L54 U31 Change P/N

U31

1

VDD_DOT

17

VDD_SRC

24

VDD_CPU

5

VDD_27

29

CLK_SDATA CLK_SCLK

CPU_SEL

XTAL_IN XTAL_OUT

VDD_REF

31

SDA

32

SCL

30

REF_0/CPU_SEL

28

XTAL_IN

27

XTAL_OUT

2

VSS_DOT

8

VSS_27

9

VSS_SATA

12

VSS_SRC

21

VSS_CPU

26

VSS_REF

33

GND

SLG8LV585V

VDD_SRC_I/O VDD_CPU_I/O

DOT_96

DOT_96#

27M

27M_SS

SRC_1/SATA

SRC_1#/SATA#

SRC_2

SRC_2#

*CPU_STOP#

CPU_1

CPU_1#

CPU_0

CPU_0#

CKPWRGD/PD#

15 18

3 4

R561 *33_4R561 *33_4

6

R562 *33_4R562 *33_4

7 10

11 13 14

16 20

19 23 22

CK_PWRGD_R

25

+VDDIO_CLK

CLK_BUF_DREFCLK [10] CLK_BUF_DREFCLK# [10]

C467 *10p/50V_4C467 *10p/50V_4

CLK_BUF_DREFSSCLK [10] CLK_BUF_DREFSSCLK# [10] CLK_BUF_PCIE_3GPLL [10] CLK_BUF_PCIE_3GPLL# [10]

R287 10K_4R287 10K_4

TP19TP19

TP20TP20

CLK_BUF_BCLK [10] CLK_BUF_BCLK# [10]

2

80mA(20mil)

C435

C734

.1u/16V_4

Place each 0.1uF cap as close as possible to each VDD IO pin. Place the 10uF caps on the VDD_IO plane.

27M_CLK [17] 27M_CLK_SS [17]

REV: B Switch CLK_BUF_DREFSSCLK and

+3V

CLK_BUF_PCIE_3GPLL

L53 PBY160808T/2A/180ohm_6L53 PBY160808T/2A/180ohm_6

C731

C731 10u/Y5V_8

10u/Y5V_8

C732

C732 10u/Y5V_8

10u/Y5V_8

1

+1.05V

AL000890000REALTEK

AL000595000SLG

B B

+1.05V

R560

R560 *10K_4

*10K_4

R559

R559 10K_4

10K_4

CPU_SEL

C737

C737 *10p/50V/COG_4

*10p/50V/COG_4

01

A A

CPU_SEL

CPU0/1=133MHz (default)

5

CPU0/1=100MHz

SMBusCPU_CLK select

ICH_SMBDATA[10]

ICH_SMBCLK[10]

4

+3V

CLK Enable

R555

2

3

+3V

2

Q20

Q20 2N7002K

2N7002K

Q19

Q19 2N7002K

2N7002K

R555

2.2K_4

CLK_SDATA

1

R554

2.2K_4

CLK_SCLK

1

3

CLK_SDATA [14,15,28]

CLK_SCLK [14,15,28]

VR_PWRGD_CK505#[39]

Size Document Number Rev

Date: Sheet

2

Date: Sheet

+3V

R558

R558 1K/F_4

1K/F_4

3

Q21

Q21 2N7002K

2N7002K

2

1

Quanta Computer Inc.

PROJECT :

Clock Generator

CK_PWRGD_R

R556

R556 100K/F_4

100K/F_4

ZRC

1A

of

346Wednesday, July 21, 2010

of

346Wednesday, July 21, 2010

of

346Wednesday, July 21, 2010

1

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

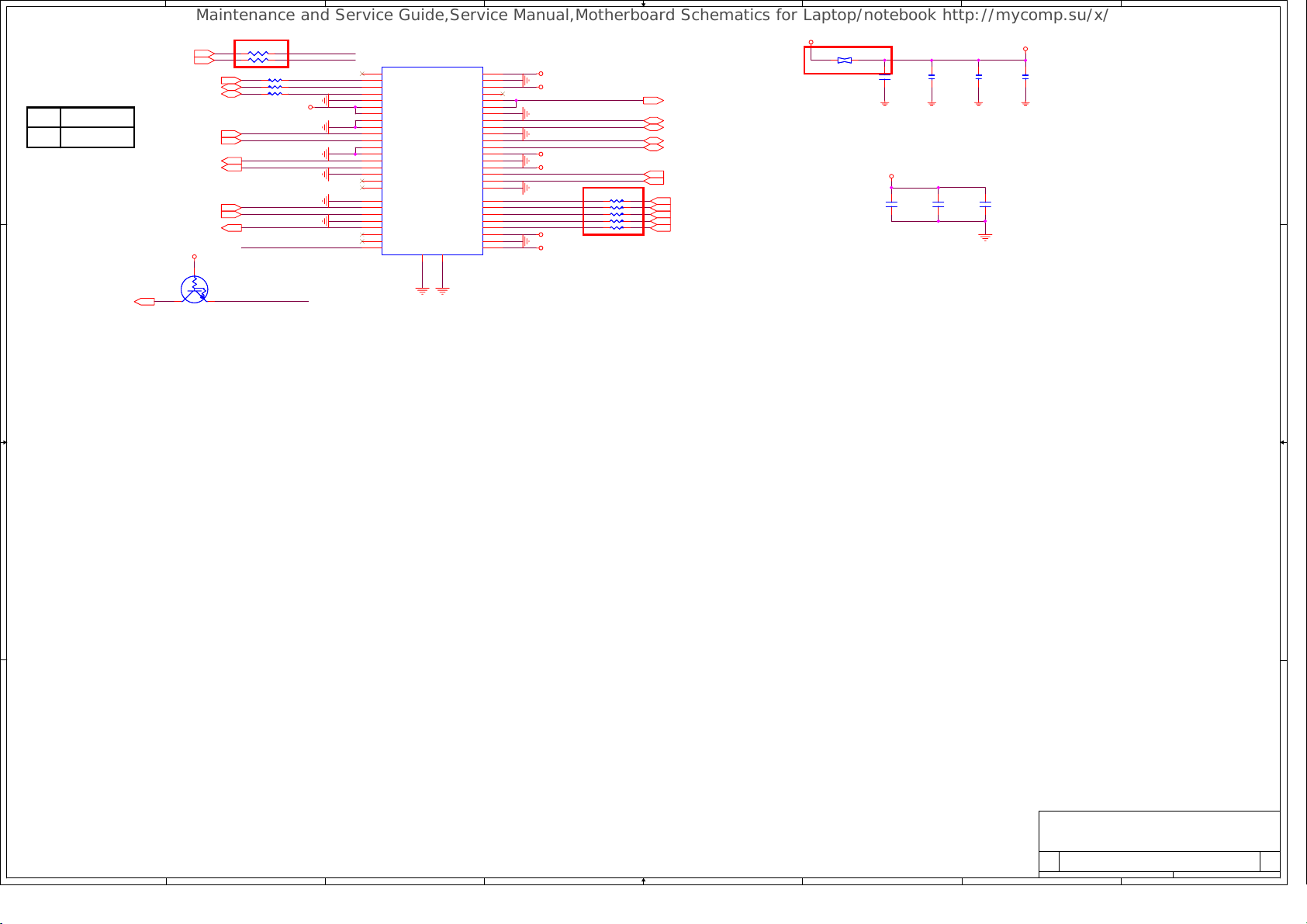

AUBURNDALE/CLARKSFIELD PROCESSOR (DMI,PEG,FDI)

U24A

FDI_FSYNC0_R FDI_FSYNC1_R

FDI_INT_R

FDI_LSYNC0_R FDI_LSYNC1_R

A24

DMI_RX#[0]

C23

DMI_RX#[1]

B22

DMI_RX#[2]

A21

DMI_RX#[3]

B24

DMI_RX[0]

D23

DMI_RX[1]

B23

DMI_RX[2]

A22

DMI_RX[3]

D24

DMI_TX#[0]

G24

DMI_TX#[1]

F23

DMI_TX#[2]

H23

DMI_TX#[3]

D25

DMI_TX[0]

F24

DMI_TX[1]

E23

DMI_TX[2]

G23

DMI_TX[3]

E22

FDI_TX#[0]

D21

FDI_TX#[1]

D19

FDI_TX#[2]

D18

FDI_TX#[3]

G21

FDI_TX#[4]

E19

FDI_TX#[5]

F21

FDI_TX#[6]

G18

FDI_TX#[7]

D22

FDI_TX[0]

C21

FDI_TX[1]

D20

FDI_TX[2]

C18

FDI_TX[3]

G22

FDI_TX[4]

E20

FDI_TX[5]

F20

FDI_TX[6]

G19

FDI_TX[7]

F17

FDI_FSYNC[0]

E17

FDI_FSYNC[1]

C17

FDI_INT

F18

FDI_LSYNC[0]

D17

FDI_LSYNC[1]

Clarksfield/Auburndale

DMI Intel(R) FDI

PCI EXPRESS -- GRAPHICS

DMI_TXN0[8] DMI_TXN1[8] DMI_TXN2[8] DMI_TXN3[8]

D D

DMI_TXP0[8] DMI_TXP1[8] DMI_TXP2[8] DMI_TXP3[8]

DMI_RXN0[8] DMI_RXN1[8] DMI_RXN2[8] DMI_RXN3[8]

DMI_RXP0[8] DMI_RXP1[8] DMI_RXP2[8] DMI_RXP3[8]

FDI_TXN0[8] FDI_TXN1[8] FDI_TXN2[8] FDI_TXN3[8] FDI_TXN4[8] FDI_TXN5[8] FDI_TXN6[8] FDI_TXN7[8]

FDI_TXP0[8] FDI_TXP1[8] FDI_TXP2[8] FDI_TXP3[8] FDI_TXP4[8]

C C

FDI_TXP5[8] FDI_TXP6[8] FDI_TXP7[8]

B B

PEG_ICOMPI

PEG_ICOMPO

PEG_RCOMPO

PEG_RBIAS PEG_RX#[0]

PEG_RX#[1] PEG_RX#[2] PEG_RX#[3] PEG_RX#[4] PEG_RX#[5] PEG_RX#[6] PEG_RX#[7] PEG_RX#[8]

PEG_RX#[9] PEG_RX#[10] PEG_RX#[11] PEG_RX#[12] PEG_RX#[13] PEG_RX#[14] PEG_RX#[15]

PEG_RX[0] PEG_RX[1] PEG_RX[2] PEG_RX[3] PEG_RX[4] PEG_RX[5] PEG_RX[6] PEG_RX[7] PEG_RX[8]

PEG_RX[9] PEG_RX[10] PEG_RX[11] PEG_RX[12] PEG_RX[13] PEG_RX[14] PEG_RX[15]

PEG_TX#[0] PEG_TX#[1] PEG_TX#[2] PEG_TX#[3] PEG_TX#[4] PEG_TX#[5] PEG_TX#[6] PEG_TX#[7] PEG_TX#[8] PEG_TX#[9]

PEG_TX#[10] PEG_TX#[11] PEG_TX#[12] PEG_TX#[13] PEG_TX#[14] PEG_TX#[15]

PEG_TX[0]

PEG_TX[1]

PEG_TX[2]

PEG_TX[3]

PEG_TX[4]

PEG_TX[5]

PEG_TX[6]

PEG_TX[7]

PEG_TX[8]

PEG_TX[9] PEG_TX[10] PEG_TX[11] PEG_TX[12] PEG_TX[13] PEG_TX[14] PEG_TX[15]

B26 A26 B27 A25

K35 J34 J33 G35 G32 F34 F31 D35 E33 C33 D32 B32 C31 B28 B30 A31

J35 H34 H33 F35 G33 E34 F32 D34 F33 B33 D31 A32 C30 A28 B29 A30

L33 M35 M33 M30 L31 K32 M29 J31 K29 H30 H29 F29 E28 D29 D27 C26

L34 M34 M32 L30 M31 K31 M28 H31 K28 G30 G29 F28 E27 D28 C27 C25

PEG_RXN0 PEG_RXN1 PEG_RXN2 PEG_RXN3 PEG_RXN4 PEG_RXN5 PEG_RXN6 PEG_RXN7 PEG_RXN8 PEG_RXN9 PEG_RXN10 PEG_RXN11 PEG_RXN12 PEG_RXN13 PEG_RXN14 PEG_RXN15

PEG_RXP0 PEG_RXP1 PEG_RXP2 PEG_RXP3 PEG_RXP4 PEG_RXP5 PEG_RXP6 PEG_RXP7 PEG_RXP8 PEG_RXP9 PEG_RXP10 PEG_RXP11 PEG_RXP12 PEG_RXP13 PEG_RXP14 PEG_RXP15

CPEG_TXN0 CPEG_TXN1 CPEG_TXN2 CPEG_TXN3 CPEG_TXN4 CPEG_TXN5 CPEG_TXN6 CPEG_TXN7 CPEG_TXN8 CPEG_TXN9

CPEG_TXN10

CPEG_TXN11

CPEG_TXN12

CPEG_TXN13

CPEG_TXN14

CPEG_TXN15

CPEG_TXP0 CPEG_TXP1 CPEG_TXP2 CPEG_TXP3 CPEG_TXP4 CPEG_TXP5 CPEG_TXP6 CPEG_TXP7 CPEG_TXP8 CPEG_TXP9

CPEG_TXP10

CPEG_TXP11

CPEG_TXP12

CPEG_TXP13

CPEG_TXP14

CPEG_TXP15

4

R424 49.9/F_4R424 49.9/F_4

R426 750/F_4R426 750/F_4

C603 EV@0.1u/10V_4C603 EV@0.1u/10V_4 C586 EV@0.1u/10V_4C586 EV@0.1u/10V_4 C601 EV@0.1u/10V_4C601 EV@0.1u/10V_4 C584 EV@0.1u/10V_4C584 EV@0.1u/10V_4 C599 EV@0.1u/10V_4C599 EV@0.1u/10V_4 C582 EV@0.1u/10V_4C582 EV@0.1u/10V_4 C597 EV@0.1u/10V_4C597 EV@0.1u/10V_4 C580 EV@0.1u/10V_4C580 EV@0.1u/10V_4 C595 EV@0.1u/10V_4C595 EV@0.1u/10V_4 C578 EV@0.1u/10V_4C578 EV@0.1u/10V_4

C576 EV@0.1u/10V_4C576 EV@0.1u/10V_4 C591 EV@0.1u/10V_4C591 EV@0.1u/10V_4 C611 EV@0.1u/10V_4C611 EV@0.1u/10V_4 C615 EV@0.1u/10V_4C615 EV@0.1u/10V_4 C623 EV@0.1u/10V_4C623 EV@0.1u/10V_4

C602 EV@0.1u/10V_4C602 EV@0.1u/10V_4 C585 EV@0.1u/10V_4C585 EV@0.1u/10V_4 C600 EV@0.1u/10V_4C600 EV@0.1u/10V_4 C583 EV@0.1u/10V_4C583 EV@0.1u/10V_4 C598 EV@0.1u/10V_4C598 EV@0.1u/10V_4 C581 EV@0.1u/10V_4C581 EV@0.1u/10V_4 C596 EV@0.1u/10V_4C596 EV@0.1u/10V_4 C579 EV@0.1u/10V_4C579 EV@0.1u/10V_4 C594 EV@0.1u/10V_4C594 EV@0.1u/10V_4 C577 EV@0.1u/10V_4C577 EV@0.1u/10V_4 C592 EV@0.1u/10V_4C592 EV@0.1u/10V_4 C575 EV@0.1u/10V_4C575 EV@0.1u/10V_4 C590 EV@0.1u/10V_4C590 EV@0.1u/10V_4 C613 EV@0.1u/10V_4C613 EV@0.1u/10V_4 C617 EV@0.1u/10V_4C617 EV@0.1u/10V_4 C627 EV@0.1u/10V_4C627 EV@0.1u/10V_4

PEG_RXN[0..15] [16]

Use reverse type (at GPU side)

PEG_RXP[0..15] [16]

PEG_TXN0 PEG_TXN1 PEG_TXN2 PEG_TXN3 PEG_TXN4 PEG_TXN5 PEG_TXN6 PEG_TXN7 PEG_TXN8 PEG_TXN9 PEG_TXN10 PEG_TXN11 PEG_TXN12 PEG_TXN13 PEG_TXN14 PEG_TXN15

PEG_TXP0 PEG_TXP1 PEG_TXP2 PEG_TXP3 PEG_TXP4 PEG_TXP5 PEG_TXP6 PEG_TXP7 PEG_TXP8 PEG_TXP9 PEG_TXP10 PEG_TXP11 PEG_TXP12 PEG_TXP13 PEG_TXP14 PEG_TXP15

PEG_TXN[0..15] [16]

PEG_TXP[0..15] [16]

3

Processor Compensation Signals

R439 20/F_4R439 20/F_4 R435 20/F_4R435 20/F_4 R131 49.9/F_4R131 49.9/F_4 R432 49.9/F_4R432 49.9/F_4

H_PECI[11]

H_PROCHOT#[39]

PM_THRMTRIP#[11]

PM_SYNC[8]

H_PWRGOOD[11]

PM_DRAM_PWRGD[8]

PLTRST#[10,11,26,28,32,36]

R143 1.5K/F_4R143 1.5K/F_4

2

AUBURNDALE/CLARKSFIELD PROCESSOR (CLK,MISC,JTAG)

DPLL_REF_SSCLK and DPLL_REF_SSCLK# can be connected to GND on Arrandale directly if motherboard only supports discrete graphics. If motherboard supports

U24B

R147

R147 750/F_4

750/F_4

U24B

AT23

COMP3

AT24

COMP2

G16

COMP1

AT26

COMP0

AH24

SKTOCC#

AK14

CATERR#

AT15

PECI

AN26

PROCHOT#

AK15

THERMTRIP#

AP26

RESET_OBS#

AL15

PM_SYNC

AN14

VCCPWRGOOD_1

AN27

VCCPWRGOOD_0

AK13

SM_DRAMPWROK

AM15

VTTPWRGOOD

AM26

TAPPWRGOOD

AL14

RSTIN#

Clarksfield/Auburndale

MISC THERMAL

BCLK_ITP#

PEG_CLK#

DPLL_REF_SSCLK

DPLL_REF_SSCLK#

CLOCKS

SM_DRAMRST#

SM_RCOMP[0] SM_RCOMP[1] SM_RCOMP[2]

PM_EXT_TS#[0] PM_EXT_TS#[1]

DDR3

MISC

DDR3

MISC

PWR MANAGEMENT

JTAG & BPM

H_COMP3 H_COMP2 H_COMP1 H_COMP0

T14T14

H_CATERR#

H_PROCHOT#

H_CPURST# XDP_TMS

H_VTTPWRGD

T18T18

CPU_PLTRST#

integrated graphics but without eDP, these pins can also be connected to GND directly.

BCLK

BCLK#

BCLK_ITP

PEG_CLK

PRDY#

PREQ#

TRST#

TDI_M

TDO_M

DBR#

BPM#[0] BPM#[1] BPM#[2] BPM#[3] BPM#[4] BPM#[5] BPM#[6] BPM#[7]

TCK

TMS

TDI

TDO

A16 B16

AR30 AT30

E16 D16

DPLL_REF_SSCLK_R

A18

DPLL_REF_SSCLK#_R

A17

F6

SM_RCOMP_0

AL1

SM_RCOMP_1

AM1

SM_RCOMP_2

AN1 AN15

AP15

AT28

XDP_PREQ#

AP27

XDP_TCLK

AN28 AP28

XDP_TRST#

AT27

XDP_TDI_R

AT29

XDP_TDO

AR27

XDP_TDI_M

AR29

XDP_TDO_M

AP29 AN25

XDP_OBS0

AJ22

XDP_OBS1

AK22

XDP_OBS2

AK24

XDP_OBS3

AJ24

XDP_OBS4

AJ25

XDP_OBS5

AH22

XDP_OBS6

AK23

XDP_OBS7

AH23

T57T57 T58T58

CLK_CPU_BCLK [11] CLK_CPU_BCLK# [11]

CLK_PCIE_3GPLL [10] CLK_PCIE_3GPLL# [10]

DDR3_DRAMRST# [14,15]

R195 100/F_4R195 100/F_4 R194 24.9/F_4R194 24.9/F_4 R193 130/F_4R193 130/F_4

R137 10K_4R137 10K_4 R134 10K_4R134 10K_4

T60T60

R402 *0_4R402 *0_4

T23T23 T22T22 T21T21 T17T17 T15T15 T19T19 T20T20 T16T16C593 EV@0.1u/10V_4C593 EV@0.1u/10V_4

R453 *0_4R453 *0_4 R457 *0_4R457 *0_4 R458 *Short_4R458 *Short_4 R452 *Short_4R452 *Short_4

+1.05V

REV : B R116 SHORT

1

Layout Note: Place these resistors near Processor

PM_EXTTS#0 [14]

PM_EXTTS#1 [15]

XDP_DBRST# [8]

DGG^9000005LTS

DGG^9000016

SUY

DGG^9000023

FOX

DPLL_REF_SSCLK [10] DPLL_REF_SSCLK# [10]

REV : B R458 & R452 Change to short pad

Thermaltrip protect

+1.05V

REV :B Change P/N for EOD

3

Q16

DELAY_VR_PWRGOOD[8,39]

A A

PM_THRMTRIP#

5

2

1 3

FDV301N

1

R162

R162 1K_4

1K_4

2

Q15

Q15 MMBT3904

MMBT3904

SYS_SHDN# [38,45]

4

VTT PWR_Good

MPWROK[36]

+3V

C295

0.1u/10V_4

R129

3 5

4

U6 TC7SH08FUU6TC7SH08FU

R129

2K/F_4

H_VTTPWRGD

R133

R133 1K_4

1K_4

3

2 1

Processor pull-up

+1.5VSUS

R156

1.1K/F_4

R154

R154 3K/F_4

3K/F_4

XDP_TDO H_CATERR# H_PROCHOT# H_CPURST# XDP_TMS XDP_TDI_R XDP_PREQ# XDP_TCLK XDP_TRST#

PM_DRAM_PWRGD

R414 51/F_4R414 51/F_4 R141 49.9/F_4R141 49.9/F_4

R428 *68_4R428 *68_4 R112 *51_4R112 *51_4 R425 *51_4R425 *51_4 R417 *51_4R417 *51_4 R111 *51_4R111 *51_4 R429 51/F_4R429 51/F_4

Use a voltage divider with VDDQ (1.5V) rail (ON in S3) and resistor combination of 4.75K (to VDDQ)/12K(to GND) to generate the required voltage. Note: CRB uses a 3.3V (always ON) rail with 2K and 1K combination.

+1.05V

2

FDI_FSYNC0[8] FDI_FSYNC1[8]

FDI_LSYNC0[8] FDI_LSYNC1[8]

R121 IV@0_4R121 IV@0_4 R123 IV@0_4R123 IV@0_4

R128 IV@0_4R128 IV@0_4

FDI_INT[8]

R119 IV@0_4R119 IV@0_4 R126 IV@0_4R126 IV@0_4R113 68_4R113 68_4

R120 EV@1K_4R120 EV@1K_4 R122 EV@1K_4R122 EV@1K_4 R127 EV@1K_4R127 EV@1K_4 R118 EV@1K_4R118 EV@1K_4 R125 EV@1K_4R125 EV@1K_4

<The GFX_IMON, FDI_FSYNC[0], FDI_FSYNC[1], FDI_LSYNC[0], FDI_LSYNC[1], and FDI_INT>Note that if these signals are left as no connect, there are no functional impacts, but a small amount of power (~15 mW) maybe wasted.

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

AUBURNDA 1/4

Date: Sheet of

PROJECT :

1

FDI_FSYNC0_R FDI_FSYNC1_R

FDI_INT_R FDI_LSYNC0_R

FDI_LSYNC1_R

ZRB

446Wednesday, July 21, 2010

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

AUBURNDALE/CLARKSFIELD PROCESSOR (DDR3)

U24C

M_A_DQ[63:0][14]

D D

C C

B B

M_A_BS#0[14] M_A_BS#1[14] M_A_BS#2[14]

M_A_CAS#[14] M_A_RAS#[14] M_A_WE#[14]

M_A_DQ0 M_A_DQ1 M_A_DQ2 M_A_DQ3 M_A_DQ4 M_A_DQ5 M_A_DQ6 M_A_DQ7 M_A_DQ8 M_A_DQ9 M_A_DQ10 M_A_DQ11 M_A_DQ12 M_A_DQ13 M_A_DQ14 M_A_DQ15 M_A_DQ16 M_A_DQ17 M_A_DQ18 M_A_DQ19 M_A_DQ20 M_A_DQ21 M_A_DQ22 M_A_DQ23 M_A_DQ24 M_A_DQ25 M_A_DQ26 M_A_DQ27 M_A_DQ28 M_A_DQ29 M_A_DQ30 M_A_DQ31 M_A_DQ32 M_A_DQ33 M_A_DQ34 M_A_DQ35 M_A_DQ36 M_A_DQ37 M_A_DQ38 M_A_DQ39 M_A_DQ40 M_A_DQ41 M_A_DQ42 M_A_DQ43 M_A_DQ44 M_A_DQ45 M_A_DQ46 M_A_DQ47 M_A_DQ48 M_A_DQ49 M_A_DQ50 M_A_DQ51 M_A_DQ52 M_A_DQ53 M_A_DQ54 M_A_DQ55 M_A_DQ56 M_A_DQ57 M_A_DQ58 M_A_DQ59 M_A_DQ60 M_A_DQ61 M_A_DQ62 M_A_DQ63

AJ10 AL10

AK12

AK11

AM10 AR11

AL11

AM9

AT11

AP12 AM12 AN12 AM13

AT14

AT12

AL13 AR14

AP14

A10 C10

B10 D10 E10

H10

G10

AH5 AF5 AK6 AK7 AF6 AG5

AK8 AL7

AL8 AN8

AN9

AC3 AB2

AE1 AB3 AE9

F10

J10

AJ7 AJ6

AJ9

C7 A7

A8 D8

E6 F7 E9 B7 E7 C6

G8 K7

J8

G7

J7

L7 M6 M8

L9

L6 K8 N8 P9

U7

SA_DQ[0] SA_DQ[1] SA_DQ[2] SA_DQ[3] SA_DQ[4] SA_DQ[5] SA_DQ[6] SA_DQ[7] SA_DQ[8] SA_DQ[9] SA_DQ[10] SA_DQ[11] SA_DQ[12] SA_DQ[13] SA_DQ[14] SA_DQ[15] SA_DQ[16] SA_DQ[17] SA_DQ[18] SA_DQ[19] SA_DQ[20] SA_DQ[21] SA_DQ[22] SA_DQ[23] SA_DQ[24] SA_DQ[25] SA_DQ[26] SA_DQ[27] SA_DQ[28] SA_DQ[29] SA_DQ[30] SA_DQ[31] SA_DQ[32] SA_DQ[33] SA_DQ[34] SA_DQ[35] SA_DQ[36] SA_DQ[37] SA_DQ[38] SA_DQ[39] SA_DQ[40] SA_DQ[41] SA_DQ[42] SA_DQ[43] SA_DQ[44] SA_DQ[45] SA_DQ[46] SA_DQ[47] SA_DQ[48] SA_DQ[49] SA_DQ[50] SA_DQ[51] SA_DQ[52] SA_DQ[53] SA_DQ[54] SA_DQ[55] SA_DQ[56] SA_DQ[57] SA_DQ[58] SA_DQ[59] SA_DQ[60] SA_DQ[61] SA_DQ[62] SA_DQ[63]

SA_BS[0] SA_BS[1] SA_BS[2]

SA_CAS# SA_RAS# SA_WE#

DDR SYSTEM MEMORY A

4

SA_CK[0] SA_CK#[0] SA_CKE[0]

SA_CK[1] SA_CK#[1] SA_CKE[1]

SA_CS#[0] SA_CS#[1]

SA_ODT[0] SA_ODT[1]

SA_DM[0]

SA_DM[1]

SA_DM[2]

SA_DM[3]

SA_DM[4]

SA_DM[5]

SA_DM[6]

SA_DM[7]

SA_DQS#[0] SA_DQS#[1] SA_DQS#[2] SA_DQS#[3] SA_DQS#[4] SA_DQS#[5] SA_DQS#[6] SA_DQS#[7]

SA_DQS[0] SA_DQS[1] SA_DQS[2] SA_DQS[3] SA_DQS[4] SA_DQS[5] SA_DQS[6] SA_DQS[7]

SA_MA[0]

SA_MA[1]

SA_MA[2]

SA_MA[3]

SA_MA[4]

SA_MA[5]

SA_MA[6]

SA_MA[7]

SA_MA[8]

SA_MA[9]

SA_MA[10] SA_MA[11] SA_MA[12] SA_MA[13] SA_MA[14] SA_MA[15]

AA6 AA7 P7

Y6 Y5 P6

AE2 AE8

AD8 AF9

B9 D7 H7 M7 AG6 AM7 AN10 AN13

C9 F8 J9 N9 AH7 AK9 AP11 AT13

C8 F9 H9 M9 AH8 AK10 AN11 AR13

Y3 W1 AA8 AA3 V1 AA9 V8 T1 Y9 U6 AD4 T2 U3 AG8 T3 V9

M_A_DM0 M_A_DM1 M_A_DM2 M_A_DM3 M_A_DM4 M_A_DM5 M_A_DM6 M_A_DM7

M_A_DQS#0 M_A_DQS#1 M_A_DQS#2 M_A_DQS#3 M_A_DQS#4 M_A_DQS#5 M_A_DQS#6 M_A_DQS#7

M_A_DQS0 M_A_DQS1 M_A_DQS2 M_A_DQS3 M_A_DQS4 M_A_DQS5 M_A_DQS6 M_A_DQS7

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13 M_A_A14 M_A_A15

M_A_CLK0 [14] M_A_CLK0# [14] M_A_CKE0 [14]

M_A_CLK1 [14] M_A_CLK1# [14] M_A_CKE1 [14]

M_A_CS#0 [14] M_A_CS#1 [14]

M_A_ODT0 [14] M_A_ODT1 [14]

M_A_DM[7:0] [14]

M_A_DQS#[7:0] [14]

M_A_DQS[7:0] [14]

M_A_A[15:0] [14]

3

M_B_DQ[63:0][15]

M_B_BS#0[15] M_B_BS#1[15] M_B_BS#2[15]

M_B_CAS#[15] M_B_RAS#[15] M_B_WE#[15]

M_B_DQ0 M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ4 M_B_DQ5 M_B_DQ6 M_B_DQ7 M_B_DQ8 M_B_DQ9 M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ16 M_B_DQ17 M_B_DQ18 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ24 M_B_DQ25 M_B_DQ26 M_B_DQ27 M_B_DQ28 M_B_DQ29 M_B_DQ30 M_B_DQ31 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35 M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ41 M_B_DQ42 M_B_DQ43 M_B_DQ44 M_B_DQ45 M_B_DQ46 M_B_DQ47 M_B_DQ48 M_B_DQ49 M_B_DQ50 M_B_DQ51 M_B_DQ52 M_B_DQ53 M_B_DQ54 M_B_DQ55 M_B_DQ56 M_B_DQ57 M_B_DQ58 M_B_DQ59 M_B_DQ60 M_B_DQ61 M_B_DQ62 M_B_DQ63

AG1

AG4 AG3

AH4

AM6 AN2

AM4 AM3

AN5 AN6

AN4 AN3

AN7

AR10 AT10

AC5 AC6

AF3 AJ3

AK1

AJ4 AK3

AK4

AK5 AK2

AP3 AT4

AT5 AT6

AP6 AP8 AT9 AT7 AP9

AB1 W5

B5 A5

C3

B3 E4 A6

A4 C4 D1 D2

F2

F1 C2

F5

F3 G4 H6 G2

J6

J3 G1 G5

J2

J1

J5

K2

L3 M1

K5

K4 M4 N5

R7

Y7

U24D

SB_DQ[0] SB_DQ[1] SB_DQ[2] SB_DQ[3] SB_DQ[4] SB_DQ[5] SB_DQ[6] SB_DQ[7] SB_DQ[8] SB_DQ[9] SB_DQ[10] SB_DQ[11] SB_DQ[12] SB_DQ[13] SB_DQ[14] SB_DQ[15] SB_DQ[16] SB_DQ[17] SB_DQ[18] SB_DQ[19] SB_DQ[20] SB_DQ[21] SB_DQ[22] SB_DQ[23] SB_DQ[24] SB_DQ[25] SB_DQ[26] SB_DQ[27] SB_DQ[28] SB_DQ[29] SB_DQ[30] SB_DQ[31] SB_DQ[32] SB_DQ[33] SB_DQ[34] SB_DQ[35] SB_DQ[36] SB_DQ[37] SB_DQ[38] SB_DQ[39] SB_DQ[40] SB_DQ[41] SB_DQ[42] SB_DQ[43] SB_DQ[44] SB_DQ[45] SB_DQ[46] SB_DQ[47] SB_DQ[48] SB_DQ[49] SB_DQ[50] SB_DQ[51] SB_DQ[52] SB_DQ[53] SB_DQ[54] SB_DQ[55] SB_DQ[56] SB_DQ[57] SB_DQ[58] SB_DQ[59] SB_DQ[60] SB_DQ[61] SB_DQ[62] SB_DQ[63]

SB_BS[0] SB_BS[1] SB_BS[2]

SB_CAS# SB_RAS# SB_WE#

2

W8

SB_CK[0]

W9

SB_CK#[0]

M3

SB_CKE[0]

V7

SB_CK[1]

V6

SB_CK#[1]

M2

SB_CKE[1]

AB8

SB_CS#[0]

AD6

SB_CS#[1]

AC7

SB_ODT[0]

AD1

SB_ODT[1]

M_B_DM0

D4

SB_DM[0] SB_DM[1] SB_DM[2] SB_DM[3] SB_DM[4] SB_DM[5] SB_DM[6] SB_DM[7]

SB_DQS#[0] SB_DQS#[1] SB_DQS#[2] SB_DQS#[3] SB_DQS#[4] SB_DQS#[5] SB_DQS#[6] SB_DQS#[7]

SB_DQS[0] SB_DQS[1] SB_DQS[2] SB_DQS[3] SB_DQS[4] SB_DQS[5] SB_DQS[6] SB_DQS[7]

DDR SYSTEM MEMORY - B

SB_MA[0] SB_MA[1] SB_MA[2] SB_MA[3] SB_MA[4] SB_MA[5] SB_MA[6] SB_MA[7] SB_MA[8]

SB_MA[9] SB_MA[10] SB_MA[11] SB_MA[12] SB_MA[13] SB_MA[14] SB_MA[15]

E1 H3 K1 AH1 AL2 AR4 AT8

D5 F4 J4 L4 AH2 AL4 AR5 AR8

C5 E3 H4 M5 AG2 AL5 AP5 AR7

U5 V2 T5 V3 R1 T8 R2 R6 R4 R5 AB5 P3 R3 AF7 P5 N1

M_B_DM1 M_B_DM2 M_B_DM3 M_B_DM4 M_B_DM5 M_B_DM6 M_B_DM7

M_B_DQS#0 M_B_DQS#1 M_B_DQS#2 M_B_DQS#3 M_B_DQS#4 M_B_DQS#5 M_B_DQS#6 M_B_DQS#7

M_B_DQS0 M_B_DQS1 M_B_DQS2 M_B_DQS3 M_B_DQS4 M_B_DQS5 M_B_DQS6 M_B_DQS7

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12 M_B_A13 M_B_A14 M_B_A15

1

M_B_CLK0 [15] M_B_CLK0# [15] M_B_CKE0 [15]

M_B_CLK1 [15] M_B_CLK1# [15] M_B_CKE1 [15]

M_B_CS#0 [15] M_B_CS#1 [15]

M_B_ODT0 [15] M_B_ODT1 [15]

M_B_DQS#[7:0] [15]

M_B_DQS[7:0] [15]

M_B_DM[7:0] [15]

M_B_A[15:0] [15]

Clarksfield/Auburndale

Channel A DQ[15,32,48,54], DM[5] Requires minimum 12mils spacing with all other signals, including data signals.

A A

5

4

3

Channel B DQ[16,18,36,42,56,57,60,61,62] Requires minimum 12mils spacing with all other signals, including data signals.

Clarksfield/Auburndale

2

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

AUBURNDA 2/4

Date: Sheet of

PROJECT :

ZRB

546Wednesday, July 21, 2010

1

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

U24F

CPU Core Power

ARD:48A CFD:52A

C604 10U/6.3V_8C604 10U/6.3V_8 C653 22U/6.3V_8C653 22U/6.3V_8 C249 10U/6.3V_8C249 10U/6.3V_8

D D

C C

B B

A A

C607 22U/6.3V_8C607 22U/6.3V_8 C673 10U/6.3V_8C673 10U/6.3V_8

C672 10U/6.3V_8C672 10U/6.3V_8 C196 22U/6.3V_8C196 22U/6.3V_8 C606 22U/6.3V_8C606 22U/6.3V_8 C670 10U/6.3V_8C670 10U/6.3V_8 C217 10U/6.3V_8C217 10U/6.3V_8 C181 22U/6.3V_8C181 22U/6.3V_8 C250 10U/6.3V_8C250 10U/6.3V_8 C195 10U/6.3V_8C195 10U/6.3V_8 C288 10U/6.3V_8C288 10U/6.3V_8 C651 10U/6.3V_8C651 10U/6.3V_8 C648 10U/6.3V_8C648 10U/6.3V_8 C669 10U/6.3V_8C669 10U/6.3V_8 C652 10U/6.3V_8C652 10U/6.3V_8 C605 10U/6.3V_8C605 10U/6.3V_8 C649 10U/6.3V_8C649 10U/6.3V_8 C274 10U/6.3V_8C274 10U/6.3V_8 C273 10U/6.3V_8C273 10U/6.3V_8 C251 10U/6.3V_8C251 10U/6.3V_8 C671 10U/6.3V_8C671 10U/6.3V_8 C286 10U/6.3V_8C286 10U/6.3V_8 C248 10U/6.3V_8C248 10U/6.3V_8 C662 10U/6.3V_8C662 10U/6.3V_8 C280 0.1u/10V_4C280 0.1u/10V_4 C276 0.1u/10V_4C276 0.1u/10V_4

C284 330u/2V_7343

C284 330u/2V_7343 C285 330u/2V_7343

C285 330u/2V_7343

+VCC_CORE

+

U24F

AG35

VCC1

AG34

VCC2

AG33

VCC3

AG32

VCC4

AG31

VCC5

AG30

VCC6

AG29

VCC7

AG28

VCC8

AG27

VCC9

AG26

VCC10

AF35

VCC11

AF34

VCC12

AF33

VCC13

AF32

VCC14

AF31

VCC15

AF30

VCC16

AF29

VCC17

AF28

VCC18

AF27

VCC19

AF26

VCC20

AD35

VCC21

AD34

VCC22

AD33

VCC23

AD32

VCC24

AD31

VCC25

AD30

VCC26

AD29

VCC27

AD28

VCC28

AD27

VCC29

AD26

VCC30

AC35

VCC31

AC34

VCC32

AC33

VCC33

AC32

VCC34

AC31

VCC35

AC30

VCC36

AC29

VCC37

AC28

VCC38

AC27

VCC39

AC26

VCC40

AA35

VCC41

AA34

VCC42

AA33

VCC43

AA32

VCC44

AA31

VCC45

AA30

VCC46

AA29

VCC47

AA28

VCC48

AA27

VCC49

AA26

VCC50

Y35

VCC51

Y34

VCC52

Y33

VCC53

Y32

VCC54

Y31

VCC55

Y30

VCC56

Y29

VCC57

Y28

VCC58

Y27

VCC59

Y26

VCC60

V35

VCC61

V34

VCC62

V33

VCC63

V32

VCC64

V31

VCC65

V30

VCC66

V29

VCC67

V28

VCC68

V27

VCC69

V26

VCC70

U35

VCC71

U34

VCC72

U33

VCC73

U32

VCC74

U31

VCC75

U30

VCC76

U29

VCC77

U28

VCC78

U27

VCC79

U26

VCC80

R35

VCC81

R34

VCC82

R33

VCC83

R32

VCC84

R31

VCC85

R30

VCC86

R29

VCC87

R28

VCC88

R27

VCC89

R26

VCC90

P35

VCC91

P34

VCC92

P33

VCC93

P32

VCC94

P31

VCC95

P30

VCC96

P29

VCC97

P28

VCC98

P27

VCC99

P26

VCC100

Clarksfield/Auburndale

AUBURNDALE/CLARKSFIELD PROCESSOR (POWER)

5

4

1.1V RAIL POWER

CPU CORE SUPPLY

POWER

PROC_DPRSLPVR

CPU VIDS

VTT_SELECT

VCC_SENSE VSS_SENSE

VSS_SENSE_VTT

SENSE LINES

4

VTT0_1 VTT0_2 VTT0_3 VTT0_4 VTT0_5 VTT0_6 VTT0_7 VTT0_8

VTT0_9 VTT0_10 VTT0_11 VTT0_12 VTT0_13 VTT0_14 VTT0_15 VTT0_16 VTT0_17 VTT0_18 VTT0_19 VTT0_20 VTT0_21 VTT0_22 VTT0_23 VTT0_24 VTT0_25 VTT0_26 VTT0_27 VTT0_28 VTT0_29 VTT0_30 VTT0_31 VTT0_32

VTT0_33 VTT0_34 VTT0_35 VTT0_36 VTT0_37 VTT0_38 VTT0_39 VTT0_40 VTT0_41 VTT0_42 VTT0_43 VTT0_44

VID[0] VID[1] VID[2] VID[3] VID[4] VID[5] VID[6]

ISENSE

VTT_SENSE

AH14 AH12 AH11 AH10 J14 J13 H14 H12 G14 G13 G12 G11 F14 F13 F12 F11 E14 E12 D14 D13 D12 D11 C14 C13 C12 C11 B14 B12 A14 A13 A12 A11

AF10 AE10 AC10 AB10 Y10 W10 U10 T10 J12 J11 J16 J15

H_PSI#

AN33

PSI#

H_VID0

AK35

H_VID1

AK33

H_VID2

AK34

H_VID3

AL35

H_VID4

AL33

H_VID5

AM33

H_VID6

AM35

H_DPRSLPVR

AM34

G15

H_VTTVID1=Low, 1.1V H_VTTVID1=High, 1.05V

AN35

AJ34 AJ35

VTT_SENSE

B15

VSS_SENSE_VTT

A15

C694 10U/6.3V_8C694 10U/6.3V_8 C693 10U/6.3V_8C693 10U/6.3V_8C650 22U/6.3V_8C650 22U/6.3V_8 C664 10U/6.3V_8C664 10U/6.3V_8 C306 10U/6.3V_8C306 10U/6.3V_8 C678 10U/6.3V_8C678 10U/6.3V_8 C685 10U/6.3V_8C685 10U/6.3V_8 C675 10U/6.3V_8C675 10U/6.3V_8 C695 10U/6.3V_8C695 10U/6.3V_8 C696 10U/6.3V_8C696 10U/6.3V_8 C308 10U/6.3V_8C308 10U/6.3V_8

+

C301 330u/2V_7343

C298 22U/6.3V_8C298 22U/6.3V_8 C305 22U/6.3V_8C305 22U/6.3V_8

R71 100/F_4R71 100/F_4

R70 100/F_4R70 100/F_4

VTT Rail Values are Auburndal VTT=1.05V Clarksfield VTT=1.1V

18A

+1.05V

H_PSI# [39]

H_VID0 [39] H_VID1 [39] H_VID2 [39] H_VID3 [39] H_VID4 [39] H_VID5 [39] H_VID6 [39] H_DPRSLPVR [39]

I_MON [39]

+VCC_CORE

VCCSENSE [39] VSSSENSE [39]

T64T64 T63T63

3

2

1

AUBURNDALE/CLARKSFIELD PROCESSOR (GRAPHICS POWER)

+VGFX_AXG

22A

+

C665

C665 *330U/2V_7343

*330U/2V_7343

+

C686

C686 *330U/2V_7343

*330U/2V_7343

+1.05V

C309

C309 10U/6.3V_8

10U/6.3V_8

3

C283

C283 IV@22u/6.3V_8

IV@22u/6.3V_8

C289

C289 IV@10u/6.3V_8

IV@10u/6.3V_8

C296

C296 10U/6.3V_8

10U/6.3V_8

C692

C692 10U/6.3V_8

10U/6.3V_8

1

0

1

0

1

0

Note: For Validating IMVP VR R6451 should be STUFF and R2N1 NO_STUFF

R117 EV@1K_4R117 EV@1K_4

C691

C691 22u/6.3V_8

22u/6.3V_8

C297

C297 22u/6.3V_8

22u/6.3V_8

H_VID0 H_VID1 H_VID2 H_VID3 H_VID4 H_VID5 H_VID6 H_DPRSLPVR H_PSI#

C282

C282 IV@22u/6.3V_8

IV@22u/6.3V_8

C290

C290 IV@10u/6.3V_8

IV@10u/6.3V_8

C307

C307 22u/6.3V_8

22u/6.3V_8

R381 1K_4R381 1K_4 R386 *1K/F_4R386 *1K/F_4 R380 1K_4R380 1K_4 R385 *1K/F_4R385 *1K/F_4 R382 1K_4R382 1K_4 R387 *1K/F_4R387 *1K/F_4 R389 *1K/F_4R389 *1K/F_4 R395 1K_4R395 1K_4 R390 *1K/F_4R390 *1K/F_4 R396 1K_4R396 1K_4 R393 1K_4R393 1K_4 R399 *1K/F_4R399 *1K/F_4 R391 *1K/F_4R391 *1K/F_4 R397 1K_4R397 1K_4 R392 1K_4R392 1K_4 R398 *1K/F_4R398 *1K/F_4 R407 *1K/F_4R407 *1K/F_4 R401 1K_4R401 1K_4

U24G

AT21

VAXG1

AT19

VAXG2

AT18

VAXG3

AT16

VAXG4

AR21

VAXG5

AR19

VAXG6

AR18

VAXG7

AR16

VAXG8

AP21

VAXG9

AP19

VAXG10

AP18

VAXG11

AP16

VAXG12

AN21

VAXG13

AN19

VAXG14

AN18

VAXG15

AN16

VAXG16

AM21

VAXG17

AM19

VAXG18

AM18

VAXG19

AM16

VAXG20

AL21

VAXG21

AL19

VAXG22

AL18

VAXG23

AL16

VAXG24

AK21

VAXG25

AK19

VAXG26

AK18

VAXG27

AK16

VAXG28

AJ21

VAXG29

AJ19

VAXG30

AJ18

VAXG31

AJ16

VAXG32

AH21

VAXG33

AH19

VAXG34

AH18

VAXG35

AH16

VAXG36

J24

VTT1_45

J23

VTT1_46

H25

VTT1_47

K26

VTT1_48

J27

VTT1_49

J26

VTT1_50

J25

VTT1_51

H27

VTT1_52

G28

VTT1_53

G27

VTT1_54

G26

VTT1_55

F26

VTT1_56

E26

VTT1_57

E25

VTT1_58

Clarksfield/Auburndale

HFM_VID : Max 1.4V LFM_VID : Min 0.65V

2

GRAPHICS

FDI PEG & DMI

+1.05V

VAXG_SENSE

VSSAXG_SENSE

SENSE

LINES

SENSE

LINES

GFX_VID[0] GFX_VID[1] GFX_VID[2] GFX_VID[3] GFX_VID[4] GFX_VID[5] GFX_VID[6]

GFX_VR_EN

GFX_DPRSLPVR

GFX_IMON

GRAPHICS VIDs

VDDQ10 VDDQ11 VDDQ12 VDDQ13 VDDQ14 VDDQ15 VDDQ16 VDDQ17

POWER

VDDQ18

DDR3 - 1.5V RAILS

VTT0_59 VTT0_60 VTT0_61 VTT0_62

VTT1_63 VTT1_64 VTT1_65

1.1V1.8V

VTT1_66 VTT1_67 VTT1_68

VCCPLL1 VCCPLL2 VCCPLL3

VDDQ1 VDDQ2 VDDQ3 VDDQ4 VDDQ5 VDDQ6 VDDQ7 VDDQ8 VDDQ9

AR22 AT22

AM22 AP22 AN22 AP23 AM23 AP24 AN24

AR25 AT25 AM24

R115 EV@1K_4R115 EV@1K_4

AJ1 AF1 AE7 AE4 AC1 AB7 AB4 Y1 W7 W4 U1 T7 T4 P1 N7 N4 L1 H1

P10 N10

C697 10U/6.3V_8C697 10U/6.3V_8

L10

C690 10U/6.3V_8C690 10U/6.3V_8

K10

J22

C644 10U/6.3V_8C644 10U/6.3V_8

J20

C658 10U/6.3V_8C658 10U/6.3V_8

J18 H21 H20 H19

L26 L27

C271 22U/6.3V_8C271 22U/6.3V_8

M26

C278 4.7U/6.3V_6C278 4.7U/6.3V_6 C223 2.2U/6.3V_6C223 2.2U/6.3V_6 C225 1U/6.3V_4C225 1U/6.3V_4 C226 1U/6.3V_4C226 1U/6.3V_4

Size Document Number Rev

AUBURNDA 3/4 (PWR)

Date: Sheet

C347

C347 1U/6.3V_4

1U/6.3V_4

C415

C415 1U/6.3V_4

1U/6.3V_4

VCC_AXG_SENSE [42] VSS_AXG_SENSE [42]

GFX_VID0 [42] GFX_VID1 [42] GFX_VID2 [42] GFX_VID3 [42] GFX_VID4 [42] GFX_VID5 [42] GFX_VID6 [42]

GFX_ON [42] GFX_DPRSLPVR [42] GFX_IMON [42]

ARD:3A CFD:6A

C342

C341

C338

1U/6.3V_4

C343

C343 22U/6.3V_8

22U/6.3V_8

C338 1U/6.3V_4

1U/6.3V_4

ZRB

1U/6.3V_4

C352

C352 22U/6.3V_8

22U/6.3V_8

+1.05V

0.6A

+1.8V

Quanta Computer Inc.

PROJECT :

1

+

C358

C358 *330U/2V_7343

*330U/2V_7343

646Thursday, July 22, 2010

+1.5VSUS

of

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

4

3

2

1

AUBURNDALE/CLARKSFIELD PROCESSOR (GND) AUBURNDALE/CLARKSFIELD PROCESSOR( RESERVED, CFG)

U24H

AT20

VSS1

AT17

VSS2

AR31

VSS3

AR28

VSS4

AR26

VSS5

AR24

VSS6

AR23

VSS7

AR20

VSS8

AR17

VSS9

AR15

VSS10

D D

C C

B B

AR12

VSS11

AR9

VSS12

AR6

VSS13

AR3

VSS14

AP20

VSS15

AP17

VSS16

AP13

VSS17

AP10

VSS18

AP7

VSS19

AP4

VSS20

AP2

VSS21

AN34

VSS22

AN31

VSS23

AN23

VSS24

AN20

VSS25

AN17

VSS26

AM29

VSS27

AM27

VSS28

AM25

VSS29

AM20

VSS30

AM17

VSS31

AM14

VSS32

AM11

VSS33

AM8

VSS34

AM5

VSS35

AM2

VSS36

AL34

VSS37

AL31

VSS38

AL23

VSS39

AL20

VSS40

AL17

VSS41

AL12

VSS42

AL9

VSS43

AL6

VSS44

AL3

VSS45

AK29

VSS46

AK27

VSS47

AK25

VSS48

AK20

VSS49

AK17

VSS50

AJ31

VSS51

AJ23

VSS52

AJ20

VSS53

AJ17

VSS54

AJ14

VSS55

AJ11

VSS56

AJ8

VSS57

AJ5

VSS58

AJ2

VSS59

AH35

VSS60

AH34

VSS61

AH33

VSS62

AH32

VSS63

AH31

VSS64

AH30

VSS65

AH29

VSS66

AH28

VSS67

AH27

VSS68

AH26

VSS69

AH20

VSS70

AH17

VSS71

AH13

VSS72

AH9

VSS73

AH6

VSS74

AH3

VSS75

AG10

VSS76

AF8

VSS77

AF4

VSS78

AF2

VSS79

AE35

VSS80

Clarksfield/Auburndale

VSS

VSS81 VSS82 VSS83 VSS84 VSS85 VSS86 VSS87 VSS88 VSS89 VSS90 VSS91 VSS92 VSS93 VSS94 VSS95 VSS96 VSS97 VSS98

VSS99 VSS100 VSS101 VSS102 VSS103 VSS104 VSS105 VSS106 VSS107 VSS108 VSS109 VSS110 VSS111 VSS112 VSS113 VSS114 VSS115 VSS116 VSS117 VSS118 VSS119 VSS120 VSS121 VSS122 VSS123 VSS124 VSS125 VSS126 VSS127 VSS128 VSS129 VSS130 VSS131 VSS132 VSS133 VSS134 VSS135 VSS136 VSS137 VSS138 VSS139 VSS140 VSS141 VSS142 VSS143 VSS144 VSS145 VSS146 VSS147 VSS148 VSS149 VSS150 VSS151 VSS152 VSS153 VSS154 VSS155 VSS156 VSS157 VSS158 VSS159 VSS160

AE34 AE33 AE32 AE31 AE30 AE29 AE28 AE27 AE26 AE6 AD10 AC8 AC4 AC2 AB35 AB34 AB33 AB32 AB31 AB30 AB29 AB28 AB27 AB26 AB6 AA10 Y8 Y4 Y2 W35 W34 W33 W32 W31 W30 W29 W28 W27 W26 W6 V10 U8 U4 U2 T35 T34 T33 T32 T31 T30 T29 T28 T27 T26 T6 R10 P8 P4 P2 N35 N34 N33 N32 N31 N30 N29 N28 N27 N26 N6 M10 L35 L32 L29 L8 L5 L2 K34 K33 K30

Processor Strapping

CFG0 (PCI-Epress Configuration Select)

CFG3 (PCI-Epress Static Lane Reversal)

A A

5

CFG4 (Embended Display Port Presence)

The Clarkfield processor's PCI Express interface may not meet PCI Express 2.0 jitte

pecifications

ntel recommends placing a 3.01K +/- 5% pull down resistor to VSS on CFG[7] pin for both rPG

nd BG

Ac

omponents. This pull down resistor should be removed when this issue is fixed

U24I

K27

K9 K6

K3 J32 J30 J21 J19

H35 H32 H28 H26 H24 H22 H18 H15 H13 H11

H8

H5

H2

G34 G31 G20

G9 G6

G3 F30 F27 F25 F22 F19 F16 E35 E32 E29 E24 E21 E18 E13 E11

E8

E5

E2 D33 D30 D26

D9

D6

D3 C34 C32 C29 C28 C24 C22 C20 C19 C16 B31 B25 B21 B18 B17 B13 B11

B8

B6

B4 A29 A27 A23

A9

Clarksfield/Auburndale

.I

VSS161 VSS162 VSS163 VSS164 VSS165 VSS166 VSS167 VSS168 VSS169 VSS170 VSS171 VSS172 VSS173 VSS174 VSS175 VSS176 VSS177 VSS178 VSS179 VSS180 VSS181 VSS182 VSS183 VSS184 VSS185 VSS186 VSS187 VSS188 VSS189 VSS190 VSS191 VSS192 VSS193 VSS194 VSS195 VSS196 VSS197 VSS198 VSS199 VSS200 VSS201 VSS202 VSS203 VSS204 VSS205 VSS206 VSS207 VSS208 VSS209 VSS210 VSS211 VSS212 VSS213 VSS214 VSS215 VSS216 VSS217 VSS218 VSS219 VSS220 VSS221 VSS222 VSS223 VSS224 VSS225 VSS226 VSS227 VSS228 VSS229 VSS230 VSS231 VSS232 VSS233

VSS

NCTF

10

Single PEG

Normal Operation Lane Numbers Reversed

Disabled; No Physical Display Port attached to Embedded Diplay Port

4

VSS_NCTF1 VSS_NCTF2 VSS_NCTF3 VSS_NCTF4 VSS_NCTF5 VSS_NCTF6 VSS_NCTF7

AT35 AT1 AR34 B34 B2 B1 A35

TP7TP7 TP9TP9 TP13TP13

Bifurcation enabled

Enabled; An external Display port device is connected to the Embedded Display port

rs

Aa

.

3

DEFAULT

1

TP10TP10 TP11TP11

CFG0

CFG3 CFG4

CFG7

U24E

AP25

RSVD1

AL25

RSVD2

AL24

RSVD3

AL22

RSVD4

AJ33

RSVD5

AG9

RSVD6

M27

RSVD7

L28

RSVD8

J17

SA_DIMM_VREF

H17

SB_DIMM_VREF

G25

RSVD11

G17

RSVD12

E31

RSVD13

E30

RSVD14

AM30

CFG[0]

AM28

CFG[1]

AP31

CFG[2]

AL32

CFG[3]

AL30

CFG[4]

AM31

CFG[5]

AN29

CFG[6]

AM32

CFG[7]

AK32

CFG[8]

AK31

CFG[9]

AK28

CFG[10]

AJ28

CFG[11]

AN30

CFG[12]

AN32

CFG[13]

AJ32

CFG[14]

AJ29

CFG[15]

AJ30

CFG[16]

AK30

CFG[17]

H16

RSVD_TP_86

B19

RSVD15

A19

RSVD16

A20

RSVD17

B20

RSVD18

U9

RSVD19

T9

RSVD20

AC9

RSVD21

AB9

RSVD22

C1

RSVD_NCTF_23

A3

RSVD_NCTF_24

J29

RSVD26

J28

RSVD27

A34

RSVD_NCTF_28

A33

RSVD_NCTF_29

C35

RSVD_NCTF_30

B35

RSVD_NCTF_31

Clarksfield/Auburndale

CFG0

R110 *3.01K_NCR110 *3.01K_NC

CFG3

R102 3.01K/F_4R102 3.01K/F_4

CFG4

R109 *3.01KR109 *3.01K

CFG7

R103 *3.01K/F_4R103 *3.01K/F_4

AJ13

RSVD32

AJ12

RSVD33

AH25

RSVD34

AK26

RSVD35

AL26

RSVD36

RSVD_NCTF_37

RSVD_NCTF_40 RSVD_NCTF_41

RSVD_NCTF_42 RSVD_NCTF_43

RSVD_NCTF_54 RSVD_NCTF_55 RSVD_NCTF_56 RSVD_NCTF_57

RSVD_TP_59 RSVD_TP_60

RESERVED

RSVD_TP_66 RSVD_TP_67 RSVD_TP_68 RSVD_TP_69 RSVD_TP_70 RSVD_TP_71 RSVD_TP_72 RSVD_TP_73 RSVD_TP_74 RSVD_TP_75

RSVD_TP_76 RSVD_TP_77 RSVD_TP_78 RSVD_TP_79 RSVD_TP_80 RSVD_TP_81 RSVD_TP_82 RSVD_TP_83 RSVD_TP_84 RSVD_TP_85

2

AR2 AJ26

RSVD38

AJ27

RSVD39

AP1 AT2

AT3 AR1

AL28

RSVD45

AL29

RSVD46

AP30

RSVD47

AP32

RSVD48

AL27

RSVD49

AT31

RSVD50

AT32

RSVD51

AP33

RSVD52

AR33

RSVD53

AT33 AT34 AP35 AR35 AR32

RSVD58

E15 F15 A2

KEY

D15

RSVD62

C15

RSVD63

AJ15

RSVD64 RSVD65

VSS

Size Document Number Rev

Date: Sheet

TP1TP1

AH15

TP2TP2

AA5 AA4 R8 AD3 AD2 AA2 AA1 R9 AG7 AE3

V4 V5 N2 AD5 AD7 W3 W2 N3 AE5 AD9

AP34

TP8TP8

AP34 can be NC on CRB; EDS/DG suggestion to GND

Quanta Computer Inc.

PROJECT :

AUBURNDA 4/4

1

ZRB

746Wednesday, July 21, 2010

1A

of

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

IBEX PEAK-M (DMI,FDI,GPIO)

4

3

2

1

AC-coupling CAP place close to PCH

U26C

XDP_DBRST#

ACIN_R

PM_BATLOW#

PM_RI#

BC24

BJ22

AW20

BJ20

BD24 BG22 BA20 BG20

BE22 BF21 BD20 BE18

BD22 BH21 BC20 BD18

BH25 BF25

T6

M6

B17

K5

A10

D9

C16

M1

P5

P7

A6

F14

IbexPeak-M_R1P0

DMI_RXN0[4]

SYS_PWROK

ICH_RSMRST#[36]

DNBSWON#[36]

PCH_ACIN[36]

DMI_RXN1[4] DMI_RXN2[4] DMI_RXN3[4]

DMI_RXP0[4] DMI_RXP1[4] DMI_RXP2[4] DMI_RXP3[4]

DMI_TXN0[4] DMI_TXN1[4] DMI_TXN2[4] DMI_TXN3[4]

DMI_TXP0[4] DMI_TXP1[4] DMI_TXP2[4] DMI_TXP3[4]

+1.05V

R480 49.9/F_4R480 49.9/F_4

RSV_ICH_LAN_RST#

SUS_PWR_ACK_R

R258 *0_4R258 *0_4

D D

C C

XDP_DBRST#[4]

PM_DRAM_PWRGD[4]

B B

0-ohm resistor place close to PCH

DMI0RXN DMI1RXN DMI2RXN DMI3RXN

DMI0RXP DMI1RXP DMI2RXP DMI3RXP

DMI0TXN DMI1TXN DMI2TXN DMI3TXN

DMI0TXP DMI1TXP DMI2TXP DMI3TXP

DMI_ZCOMP DMI_IRCOMP

SYS_RESET#

SYS_PWROK

PWROK

MEPWROK

LAN_RST#

DRAMPWROK

RSMRST#

SUS_PWR_DN_ACK / GPIO30

PWRBTN#

ACPRESENT / GPIO31

BATLOW# / GPIO72

RI#

System Power Management

DMI

FDI_RXN0 FDI_RXN1 FDI_RXN2 FDI_RXN3 FDI_RXN4 FDI_RXN5 FDI_RXN6 FDI_RXN7

FDI_RXP0 FDI_RXP1 FDI_RXP2 FDI_RXP3 FDI_RXP4 FDI_RXP5 FDI_RXP6 FDI_RXP7

FDI_INT

FDI_FSYNC0

FDI

FDI_FSYNC1 FDI_LSYNC0 FDI_LSYNC1

WAKE#

CLKRUN# / GPIO32

SUS_STAT# / GPIO61

SUSCLK / GPIO62

SLP_S5# / GPIO63

SLP_S4#

SLP_S3#

SLP_M#

TP23

PMSYNCH

SLP_LAN# / GPIO29

BA18 BH17 BD16 BJ16 BA16 BE14 BA14 BC12

BB18 BF17 BC16 BG16 AW16 BD14 BB14 BD12

BJ14 BF13 BH13 BJ12 BG14

J12

Y1

P8

F3

E4

H7

P12

K8

N2

BJ10

F6

FDI_TXN0_R FDI_TXN1_R FDI_TXN2_R FDI_TXN3_R FDI_TXN4_R FDI_TXN5_R FDI_TXN6_R FDI_TXN7_R

FDI_TXP0_R FDI_TXP1_R FDI_TXP2_R FDI_TXP3_R FDI_TXP4_R FDI_TXP5_R FDI_TXP6_R FDI_TXP7_R

SLP_M#

PM_SLP_LAN#

R491 IV@0_4R491 IV@0_4 R499 IV@0_4R499 IV@0_4 R506 IV@0_4R506 IV@0_4 R510 IV@0_4R510 IV@0_4 R496 IV@0_4R496 IV@0_4 R505 IV@0_4R505 IV@0_4 R517 IV@0_4R517 IV@0_4 R514 IV@0_4R514 IV@0_4

R493 IV@0_4R493 IV@0_4 R500 IV@0_4R500 IV@0_4 R503 IV@0_4R503 IV@0_4 R512 IV@0_4R512 IV@0_4 R495 IV@0_4R495 IV@0_4 R509 IV@0_4R509 IV@0_4 R515 IV@0_4R515 IV@0_4 R513 IV@0_4R513 IV@0_4

REV : B R244 SHORT

R235 *0_4R235 *0_4

TP18TP18

TP6TP6

FDI_TXN0 [4] FDI_TXN1 [4] FDI_TXN2 [4] FDI_TXN3 [4] FDI_TXN4 [4] FDI_TXN5 [4] FDI_TXN6 [4] FDI_TXN7 [4]

FDI_TXP0 [4] FDI_TXP1 [4] FDI_TXP2 [4] FDI_TXP3 [4] FDI_TXP4 [4] FDI_TXP5 [4] FDI_TXP6 [4] FDI_TXP7 [4]

FDI_INT [4] FDI_FSYNC0 [4] FDI_FSYNC1 [4] FDI_LSYNC0 [4] FDI_LSYNC1 [4]

PCIE_WAKE# [26,28]

CLKRUN# [36]

ICH_SUSCLK [36]

SUSC# [36]

SUSB# [36]

PM_SYNC [4]

INT_LVDS_BLON[24]

INT_LVDS_DIGON[24]

INT_LVDS_BRIGHT[24]

INT_LVDS_EDIDCLK[24] INT_LVDS_EDIDDATA[24]

INT_TXLCLKOUT-[24]

INT_TXLCLKOUT+[24]

INT_TXLOUT0-[24]

INT_TXLOUT1-[24]

INT_TXLOUT2-[24]

INT_CRT_BLU[24] INT_CRT_GRN[24] INT_CRT_RED[24]

INT_CRT_DDCCLK[24] INT_CRT_DDCDAT[24]

INT_HSYNC[24] INT_VSYNC[24]

+3V

INT_TXLOUT0+[24]

INT_TXLOUT1+[24]

INT_TXLOUT2+[24]

R149 IV@10K_4R149 IV@10K_4 R150 IV@10K_4R150 IV@10K_4

R170 IV@2.37K/F_4R170 IV@2.37K/F_4

R132 IV@0_4R132 IV@0_4 R135 IV@0_4R135 IV@0_4

INT_TXLCLKOUTINT_TXLCLKOUT+

INT_TXLOUT0INT_TXLOUT1INT_TXLOUT2-

INT_TXLOUT0+ INT_TXLOUT1+ INT_TXLOUT2+

INT_CRT_BLU INT_CRT_GRN INT_CRT_RED

DAC_IREF

R161

R161 1K/F_4

1K/F_4

IBEX PEAK-M (LVDS,DDI)

U26D

AB48

AB46

AP39 AP41

AT43 AT42

AV53 AV51

BB47 BA52

AY48

AV47 BB48

BA50

AY49

AV48

AP48 AP47

AY53 AT49

AU52

AT53 AY51

AT48

AU50

AT51

AA52 AB53 AD53

AD48 AB51

T48 T47

Y48

Y45

V48

V51 V53

Y53 Y51

L_BKLTEN L_VDD_EN

L_BKLTCTL L_DDC_CLK

L_DDC_DATA L_CTRL_CLK

L_CTRL_DATA LVD_IBG

LVD_VBG LVD_VREFH

LVD_VREFL

LVDSA_CLK# LVDSA_CLK

LVDSA_DATA#0 LVDSA_DATA#1 LVDSA_DATA#2 LVDSA_DATA#3

LVDSA_DATA0 LVDSA_DATA1 LVDSA_DATA2 LVDSA_DATA3

LVDSB_CLK# LVDSB_CLK

LVDSB_DATA#0 LVDSB_DATA#1 LVDSB_DATA#2 LVDSB_DATA#3

LVDSB_DATA0 LVDSB_DATA1 LVDSB_DATA2 LVDSB_DATA3

CRT_BLUE CRT_GREEN CRT_RED

CRT_DDC_CLK CRT_DDC_DATA

CRT_HSYNC CRT_VSYNC

DAC_IREF CRT_IRTN

IbexPeak-M_R1P0

SDVO_TVCLKINN SDVO_TVCLKINP

SDVO_STALLN SDVO_STALLP

SDVO_CTRLCLK

SDVO_CTRLDATA

DDPB_AUXN

LVDS

DDPC_CTRLCLK

DDPC_CTRLDATA

DDPC_AUXN DDPC_AUXP

Digital Display Interface

DDPD_CTRLCLK

DDPD_CTRLDATA

DDPD_AUXN DDPD_AUXP

CRT

SDVO_INTN

SDVO_INTP

DDPB_AUXP

DDPB_HPD

DDPB_0N

DDPB_0P

DDPB_1N

DDPB_1P

DDPB_2N

DDPB_2P

DDPB_3N

DDPB_3P

DDPC_HPD

DDPC_0N DDPC_0P DDPC_1N DDPC_1P DDPC_2N DDPC_2P DDPC_3N DDPC_3P

DDPD_HPD

DDPD_0N DDPD_0P DDPD_1N DDPD_1P DDPD_2N DDPD_2P DDPD_3N DDPD_3P

BJ46 BG46

BJ48 BG48

BF45 BH45

T51 T53

BG44 BJ44 AU38

BD42 BC42 BJ42 BG42 BB40 BA40 AW38 BA38

Y49 AB49

BE44 BD44 AV40

BE40 BD40 BF41 BH41 BD38 BC38 BB36 BA36

U50 U52

BC46 BD46 AT38

BJ40 BG40 BJ38 BG38 BF37 BH37 BE36 BD36

SDVO_CTRLCLK SDVO_CTRLDAT

INT_HDMI_HPD INT_HDMITX2N_R

INT_HDMITX2P_R INT_HDMITX1N_R INT_HDMITX1P_R INT_HDMITX0N_R INT_HDMITX0P_R INT_HDMICLK-_R INT_HDMICLK+_R

R49 IV@0_4R49 IV@0_4 R48 IV@0_4R48 IV@0_4

R171 IV@0_4R171 IV@0_4

C275 IV@0.1u/10V_4_X7RC275 IV@0.1u/10V_4_X7R C272 IV@0.1u/10V_4_X7RC272 IV@0.1u/10V_4_X7R C269 IV@0.1u/10V_4_X7RC269 IV@0.1u/10V_4_X7R C270 IV@0.1u/10V_4_X7RC270 IV@0.1u/10V_4_X7R C281 IV@0.1u/10V_4_X7RC281 IV@0.1u/10V_4_X7R C279 IV@0.1u/10V_4_X7RC279 IV@0.1u/10V_4_X7R C257 IV@0.1u/10V_4_X7RC257 IV@0.1u/10V_4_X7R C266 IV@0.1u/10V_4_X7RC266 IV@0.1u/10V_4_X7R

R place close to PCH

R465 IV@150_4R465 IV@150_4 R466 IV@150_4R466 IV@150_4 R467 IV@150_4R467 IV@150_4

HDMI_DDCCLK_SW [17,25] HDMI_DDCDATA_SW [17,25]

HDMI_HP [17,25]

INT_HDMITX2N [25] INT_HDMITX2P [25] INT_HDMITX1N [25] INT_HDMITX1P [25] INT_HDMITX0N [25] INT_HDMITX0P [25] INT_HDMICLK- [25] INT_HDMICLK+ [25]

INT_CRT_BLU INT_CRT_GRN INT_CRT_RED

PCH Pull-high/low

+3V

CLKRUN#

A A

XDP_DBRST#

ICH_RSMRST# RSV_ICH_LAN_RST# SYS_PWROK

R532 8.2K_4R532 8.2K_4 R236 1K_4R236 1K_4

R507 10K_4R507 10K_4 R516 10K_4R516 10K_4 R502 10K_4R502 10K_4

5

PM_RI# PM_BATLOW# PCIE_WAKE# PM_SLP_LAN# SUS_PWR_ACK_R ACIN_R

R200 10K_4R200 10K_4 R523 10K_4R523 10K_4 R240 10K_4R240 10K_4 R260 *10K_4R260 *10K_4 R536 10K_4R536 10K_4 R237 10K_4R237 10K_4

+3V_S5

4

System PWR_OK

3

C703 *.1u_4C703 *.1u_4

SYS_PWROK

U28

TC7SH08FU

+3V_S5

DELAY_VR_PWRGOOD need PU 2K to +3V. PU at power side

53

1

4

2

R546 100K_4R546 100K_4

DELAY_VR_PWRGOOD [4,39]

PWROK_EC [36]

2

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

IBEX PEAK-M 1/6

Date: Sheet of

PROJECT :

ZRB

846Wednesday, July 21, 2010

1

846Wednesday, July 21, 2010

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

RTC Circuitry

+VCCRTC

CR1

+3VPCU

VCCRTC_1

R478

R478 1K_4

1K_4

BT1

D D

BT1

1

2

RTC_CONN

CR1

BAT54C

R508 20K/F_4R508 20K/F_4

R501 20K/F_4R501 20K/F_4

C710

C710 1u/10V_4

1u/10V_4

C709

C709 1u/10V_4

1u/10V_4

C708

C708 1u/10V_4

1u/10V_4

RTC_RST#

12

J3

J3 *SHORT_ PAD1

*SHORT_ PAD1

SRTC_RST#

12

J2

J2 *SHORT_ PAD1

*SHORT_ PAD1

HDA Bus

C C

PCH_AZ_CODEC_SYNC[30]

PCH_AZ_CODEC_RST#[30]

PCH_AZ_CODEC_SDOUT[30]

PCH_AZ_CODEC_BITCLK[30]

R490 33_4R490 33_4

R484 33_4R484 33_4

R492 33_4R492 33_4

R487 33_4R487 33_4

C704

C704 *27p_4

*27p_4

ACZ_SYNCACZ_SYNC

ACZ_RST#

ACZ_SDOUTACZ_SDOUT

ACZ_BIT_CLKACZ_BIT_CLK

4

HDA_SYNC (PCH strap pin)

Internal weak pull-down VCCVRM=>+1.8V (default) external pull-up VCCVRM=>+1.5V

C364 15p/50V_4C364 15p/50V_4

C362 15p/50V_4C362 15p/50V_4

+VCCRTC

PCH_AZ_CODEC_SDIN0[30]

+3V_S5

+3VPCU

23

Y1

32.768KHZY132.768KHZ

4 1

R504 1M_4R504 1M_4

ACZ_BIT_CLK ACZ_SYNC

SPKR[30]

ACZ_RST#

R494 *10K_4R494 *10K_4

R553 *10K_4R553 *10K_4

3

R207

R207 10M_4

10M_4

RTC_RST# SRTC_RST# SM_INTRUDER#

PCH_INVRMEN

SPKR

ACZ_SDOUT

PCH_GPIO33

RTC_X1 RTC_X2

SPI_CLK_R

SPI_CS0#_R

SPI_CS1#

SPI_SI_R

SPI_SO_R

U26A

B13

RTCX1

D13

RTCX2

C14

RTCRST#

D17

SRTCRST#

A16

INTRUDER#

A14

INTVRMEN

A30

HDA_BCLK

D29

HDA_SYNC

P1

SPKR

C30

HDA_RST#

G30

HDA_SDIN0

F30

HDA_SDIN1

E32

HDA_SDIN2

F32

HDA_SDIN3

B29

HDA_SDO

H32

HDA_DOCK_EN# / GPIO33

J30

HDA_DOCK_RST# / GPIO13

M3

JTAG_TCK

K3

JTAG_TMS

K1

JTAG_TDI

J2

JTAG_TDO

J4

TRST#

BA2

SPI_CLK

AV3

SPI_CS0#

AY3

SPI_CS1#

AY1

SPI_MOSI

AV1

SPI_MISO

IbexPeak-M_R1P0

RTCIHDA

SPI JTAG

FWH0 / LAD0 FWH1 / LAD1 FWH2 / LAD2 FWH3 / LAD3

FWH4 / LFRAME#

LDRQ1# / GPIO23

LPC

SATA0RXN SATA0RXP SATA0TXN SATA0TXP

SATA1RXN SATA1RXP SATA1TXN SATA1TXP

SATA2RXN SATA2RXP SATA2TXN SATA2TXP

SATA3RXN SATA3RXP SATA3TXN SATA3TXP

SATA4RXN SATA4RXP SATA4TXN

SATA

SATA4TXP SATA5RXN

SATA5RXP SATA5TXN SATA5TXP

SATAICOMPO

SATAICOMPI

SATALED#

SATA0GP / GPIO21 SATA1GP / GPIO19

LDRQ0#

SERIRQ

2

D33 B33 C32 A32

C34 A34

F34 AB9

AK7 AK6 AK11 AK9

AH6 AH5 AH9 AH8

AF11 AF9 AF7 AF6

AH3 AH1 AF3 AF1

AD9 AD8 AD6 AD5

AD3 AD1 AB3 AB1

AF16 AF15

T3

Y9 V1

R232 10K_4R232 10K_4

SATA_RXN0_C SATA_RXP0_C

SATA_RXN1_C SATA_RXP1_C

Note: SATA port2/3 may not be available on all PCH sku (HM55 support 3 port only)

R199 37.4/F_4R199 37.4/F_4

SATA_ACT# [33]

R252 43K/F_4R252 43K/F_4 R530 43K/F_4R530 43K/F_4

LPC_LAD0 [28,36] LPC_LAD1 [28,36] LPC_LAD2 [28,36] LPC_LAD3 [28,36]

LPC_LFRAME# [28,36]

+3V

IRQ_SERIRQ [36]

SATA_RXN0_C [29] SATA_RXP0_C [29] SATA_TXN0 [29] SATA_TXP0 [29]

SATA_RXN1_C [29] SATA_RXP1_C [29] SATA_TXN1 [29] SATA_TXP1 [29]

+1.05V

+3V +3V

1

PCH Strap Pin Configuration Table-1

INTVRMEN

SPI_MOSI

PCH SPI

B B

SPI_CS0#_R SPI_CLK_R SPI_SI_R SPI_SO_R

R552 3.3K/F_4R552 3.3K/F_4

+3V

U29

1

CE#

6

SCK

5

SI

2

SO

3

WP#

W25Q32BVSSIG

HOLD#

VDD

VSS

8

R547 3.3K/F_4R547 3.3K/F_4

7 4

+3V

C721

C721 .1u/10V_4

.1u/10V_4

SPKR

HDA_DOCK_EN #/GPIO33

GNT0#, GNT1#

GNT2#/ GPIO53

GNT3#/ GPIO55

NV_ALE NV_CLE

Integrated 1.05V VRM Enable / Disable

TPM Functionality Disable

Reboot option at power-up

Flash Descriptor Security Override

Boot BIOS Strap

ESI Strap (Server Only)

Top-Block

Swap Override IntelR Anti-Theft Technology HDD Data Protection (Intel AT-d) Enable

DMI Termination Voltage

1 = Integrated VRM is enabled

1 = Enabled 0 = Disable 0 = Default Mode (Internal weak Pull-down) 1 = No Reboot Mode with TCO Disabled

0 = Flash Descriptor Security will be overridden 1 = Security measure defined in the Flash Descriptor will be enabled.

(0,0) = LPC (0,1) = Reserved NAND (1,0) = PCI (1,1) = SPI

ESI compatible mode is for server platforms only

0 = Top Block Swap Mode 1 = Default Mode (Internal pull-up)

1 = Enabled 0 = Disabled (Default)

DMI termination voltage. Weak internal pull-up. Do not pull low.

0 = Integrated VRM is disabled

+VCCRTC

+3V

PCH_GPIO33

PCI_GNT0#[10] PCI_GNT1#[10]

PWM_SELECT#[10]

PCI_GNT3#[10]

NV_ALE[10]

NV_CLE[10]

1 2

R158 1K_4R158 1K_4 R152 1K_4R152 1K_4 R153 *1K_4R153 *1K_4 R159 *1K_4R159 *1K_4

R182 *1K/F_4R182 *1K/F_4

R462 *10K/F_4R462 *10K/F_4

R213 *1K/F_4R213 *1K/F_4

R216 *1K/F_4R216 *1K/F_4

PCH_INVRMEN

SPI_SI_R

SPKR

R511 330K_6R511 330K_6

R551 *1K_4R551 *1K_4

R538 *1K/F_4R538 *1K/F_4

J1 *SHORT_ PAD1J1 *SHORT_ PAD1

+3V

+1.8V

GPIO8

A A

GPIO15

GPIO27

5

4

Reserved This signal has a weak internal pull up.

Reserved

On-Die PLL Voltage Regulator <internal weak pull-up>

NOTE: This signal should not be pulled low

0 = Intel ME Crypto Transport Layer Security (TLS) cipher suite with no confidentiality 1 = Intel ME Crypto Transport Layer Security (TLS) cipher suite with confidentiality

0 = Disables the VccVRM. 1 = Enables the internal VccVRM to have a clean supply for analog rails.

3

RSV_GPIO8[11]

CR_WAKE#[11]

PCH_GPIO27[11]

R215 10K_4R215 10K_4 R214 *1K_4R214 *1K_4

R256 1K_4R256 1K_4

R231 *10K_4R231 *10K_4

2

+3V_S5

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

IBEX PEAK-M 2/6

Date: Sheet of

PROJECT :

ZRB

946Wednesday, July 21, 2010

1

946Wednesday, July 21, 2010

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

U26E

H40

AD0

N34

AD1

C44

AD2

A38

AD3

C36

AD4

J34

AD5

A40

AD6

D45

D D

PCI_PIRQA# PCI_PIRQB# PCI_PIRQC# PCI_PIRQD#

TP5TP5

R464 22_4R464 22_4

TP12TP12

R157 22_4R157 22_4 R146 22_4R146 22_4

PCI_REQ0# PCI_REQ1# dGPU_SELECT# PCI_REQ3#

PCI_GNT0# PCI_GNT1# PWM_SELECT# PCI_GNT3#

PCI_PIRQE# PCI_PIRQF# PCI_PIRQG# PCI_PIRQH#

PCI_RST# PCI_SERR#

PCI_PERR#

PCI_IRDY# PCI_DEVSEL#

PCI_FRAME# PCI_PLOCK# PCI_STOP#

PCI_TRDY# ICH_PME# PCI_PLTRST#

CLK_LPC_DEBUG_C CLK_PCI_PCCARD CLK_PCI_775_CCLK_PCI_775_C

C C

PCI_GNT0#[9] PCI_GNT1#[9] PWM_SELECT#[9] PCI_GNT3#[9]

PCI_RST#[28]

CLK_LPC_DEBUG[28]

B B

CLK_PCI_775[36]

CLK_PCI_FB CLK_PCI_FB_C

AD7

E36

AD8

H48

AD9

E40

AD10

C40

AD11

M48

AD12

M45

AD13

F53

AD14

M40

AD15

M43

AD16

J36

AD17

K48

AD18

F40

AD19

C42

AD20

K46

AD21

M51

AD22

J52

AD23

K51

AD24

L34

AD25

F42

AD26

J40

AD27

G46

AD28

F44

AD29

M47

AD30

H36

AD31

J50

C/BE0#

G42

C/BE1#

H47

C/BE2#

G34

C/BE3#

G38

PIRQA#

H51

PIRQB#

B37

PIRQC#

A44

PIRQD#

F51

REQ0#

A46

REQ1# / GPIO50

B45

REQ2# / GPIO52

M53

REQ3# / GPIO54

F48

GNT0#

K45

GNT1# / GPIO51

F36

GNT2# / GPIO53

H53

GNT3# / GPIO55

B41

PIRQE# / GPIO2

K53

PIRQF# / GPIO3

A36

PIRQG# / GPIO4

A48

PIRQH# / GPIO5

K6

PCIRST#

E44

SERR#

E50

PERR#

A42

IRDY#

H44

PAR

F46

DEVSEL#

C46

FRAME#

D49

PLOCK#

D41

STOP#

C48

TRDY#

M7

PME#

D5

PLTRST#

N52

CLKOUT_PCI0

P53

CLKOUT_PCI1

P46

CLKOUT_PCI2

P51

CLKOUT_PCI3

P48

CLKOUT_PCI4

IbexPeak-M_R1P0

PCI

NV_DQ0 / NV_IO0 NV_DQ1 / NV_IO1 NV_DQ2 / NV_IO2 NV_DQ3 / NV_IO3 NV_DQ4 / NV_IO4 NV_DQ5 / NV_IO5 NV_DQ6 / NV_IO6 NV_DQ7 / NV_IO7 NV_DQ8 / NV_IO8

NV_DQ9 / NV_IO9 NV_DQ10 / NV_IO10 NV_DQ11 / NV_IO11

NVRAM

NV_DQ12 / NV_IO12 NV_DQ13 / NV_IO13 NV_DQ14 / NV_IO14 NV_DQ15 / NV_IO15

NV_WR#0_RE# NV_WR#1_RE#

NV_WE#_CK0 NV_WE#_CK1

USB

OC0# / GPIO59 OC1# / GPIO40 OC2# / GPIO41 OC3# / GPIO42 OC4# / GPIO43

OC5# / GPIO9 OC6# / GPIO10 OC7# / GPIO14

NV_CE#0 NV_CE#1 NV_CE#2 NV_CE#3

NV_DQS0 NV_DQS1

NV_ALE NV_CLE

NV_RCOMP

NV_RB#

USBP0N USBP0P USBP1N USBP1P USBP2N USBP2P USBP3N USBP3P USBP4N USBP4P USBP5N USBP5P USBP6N USBP6P USBP7N USBP7P USBP8N USBP8P USBP9N

USBP9P USBP10N USBP10P USBP11N USBP11P USBP12N USBP12P USBP13N USBP13P

USBRBIAS#

USBRBIAS

AY9 BD1 AP15 BD8

AV9 BG8

AP7 AP6 AT6 AT9 BB1 AV6 BB3 BA4 BE4 BB6 BD6 BB7 BC8 BJ8 BJ6 BG6

BD3 AY6

AU2 AV7 AY8

AY5 AV11

BF5

H18 J18 A18 C18 N20 P20 J20 L20 F20 G20 A20 C20 M22 N22 B21 D21 H22 J22 E22 F22 A22 C22 G24 H24 L24 M24 A24 C24

B25 D25

N16 J16 F16 L16 E14 G16 F12 T15

4

NV_ALE NV_CLE

NV_RCOMP

R519 *32.4/F_4R519 *32.4/F_4

Port1 and port9 can be used on debug mode

USBP1- [34] USBP1+ [34]

USBP4- [34]

USBP4+ [34]

TP16TP16 TP17TP17

USB port6/7 may not be available on all PCH sku (HM55 support 12port only)

USBP8- [24]

USBP8+ [24]

USBP9- [34]

USBP9+ [34]

TP15TP15 TP14TP14

USBP11- [34]

USBP11+ [34]

USBP12- [32]

USBP12+ [32]

USBP13- [28]

USB_BIAS

USB_OC0# USB_OC1# USB_OC2# USB_OC3# USB_OC4_5#

USB_OC6# USB_OC7#

USBP13+ [28]

R497 22.6/F_4R497 22.6/F_4

NV_ALE [9] NV_CLE [9]

MB USB

BLUETOOTH

Camera USB/B-USB1-2

USB/B-USB1-1 Card Reader Mini Card (WLAN)

USB_OC0# [34]

USB_OC4_5# [34]

EHCI1

EHCI2

Wireless

LAN

3

PCIE_RX1-[26] PCIE_RX1+[26] PCIE_TX1-[26] PCIE_TX1+[26]

PCIE_RX6-[28] PCIE_RX6+[28] PCIE_TX6-[28] PCIE_TX6+[28]

CLK_PCH_SRC2#[28] CLK_PCH_SRC2[28]

PCIE_CLK_REQ2#[28]

CLK_PCIE_LOM#[26] CLK_PCIE_LOM[26]

CLK_PCIE_LAN_REQ#[26]

C701 0.1u/10V_4_X7RC701 0.1u/10V_4_X7R C702 0.1u/10V_4_X7RC702 0.1u/10V_4_X7R

C316 0.1u/10V_4_X7RC316 0.1u/10V_4_X7R C320 0.1u/10V_4_X7RC320 0.1u/10V_4_X7R

CLK_PCIE_REQ0#

CLK_PCIE_REQ1#_R

CLK_PCIE_REQ2#_R

R537 *Short_4R537 *Short_4

REV : B Change to short pad

CLK_PCIE_REQ3#

CLK_PCIE_REQ4#

CLK_PCIE_REQ5#

REV : B R243 SHORT

PCIE_TXN1_C PCIE_TXP1_C

PCIE_TXN6_C PCIE_TXP6_C

BG30 BF29

BH29

AW30

BA30 BC30 BD30

AU30 AT30 AU32 AV32

BA32 BB32 BD32 BE32

BF33 BH33 BG32

BA34

AW34

BC34 BD34

AT34 AU34 AU36 AV36

BG34 BG36

AK48 AK47

AM43 AM45

AM47 AM48

AH42 AH41

AM51 AM53

AK53 AK51

BJ30

BJ32

BJ34 BJ36

U4

N4

M9

AJ50 AJ52

H6

P13

U26B

PERN1 PERP1 PETN1 PETP1

PERN2 PERP2 PETN2 PETP2

PERN3 PERP3 PETN3 PETP3

PERN4 PERP4 PETN4 PETP4

PERN5 PERP5 PETN5 PETP5

PERN6 PERP6 PETN6 PETP6

PERN7 PERP7 PETN7 PETP7

PERN8 PERP8 PETN8 PETP8

CLKOUT_PCIE0N CLKOUT_PCIE0P

P9

PCIECLKRQ0# / GPIO73

CLKOUT_PCIE1N CLKOUT_PCIE1P

PCIECLKRQ1# / GPIO18

CLKOUT_PCIE2N CLKOUT_PCIE2P

PCIECLKRQ2# / GPIO20

CLKOUT_PCIE3N CLKOUT_PCIE3P

A8

PCIECLKRQ3# / GPIO25

CLKOUT_PCIE4N CLKOUT_PCIE4P

PCIECLKRQ4# / GPIO26

CLKOUT_PCIE5N CLKOUT_PCIE5P

PCIECLKRQ5# / GPIO44

CLKOUT_PEG_B_N CLKOUT_PEG_B_P

PEG_B_CLKRQ# / GPIO56

IbexPeak-M_R1P0

2

PCI-E*

SMBALERT# / GPIO11

SMBDATA

SML0ALERT# / GPIO60

SML0CLK

SML0DATA

SML1ALERT# / GPIO74

SMBus

SML1CLK / GPIO58

SML1DATA / GPIO75

Link

Controller

PEG

CLKOUT_DP_N / CLKOUT_BCLK1_N

CLKOUT_DP_P / CLKOUT_BCLK1_P

From CLK BUFFER

Clock Flex

CL_DATA1 CL_RST1#

PEG_A_CLKRQ# / GPIO47

CLKOUT_PEG_A_N CLKOUT_PEG_A_P

CLKOUT_DMI_N CLKOUT_DMI_P

CLKIN_DMI_N CLKIN_DMI_P

CLKIN_BCLK_N CLKIN_BCLK_P

CLKIN_DOT_96N CLKIN_DOT_96P

CLKIN_SATA_N / CKSSCD_N CLKIN_SATA_P / CKSSCD_P

REFCLK14IN

CLKIN_PCILOOPBACK

XTAL25_IN

XTAL25_OUT

XCLK_RCOMP

CLKOUTFLEX0 / GPIO64

CLKOUTFLEX1 / GPIO65

CLKOUTFLEX2 / GPIO66

CLKOUTFLEX3 / GPIO67

SMBCLK

CL_CLK1

B9 H14 C8

J14 C6 G8

M14 E10 G12

CL_CLK1

T13

CL_DATA1

T11

CL_RST1#

T9

PEG_CLKREQ#_R

H1

AD43 AD45

AN4 AN2

AT1 AT3

AW24 BA24

AP3 AP1

F18 E18

AH13 AH12

P41

J42

AH51 AH53

XCLK_RCOMP

AF38

T45

P43

T42

dGPU_EDIDSEL#

N50

RSV_SMBALERT# ICH_SMBCLK ICH_SMBDATA

RSV_SML0ALERT# SMB_CLK_ME0 SMB_DATA_ME0

RSV_SML1ALERT# SMB_CLK_ME1 SMB_DATA_ME1

CLK_PCI_FB

XTAL25_IN XTAL25_OUT

R167 90.9/F_4R167 90.9/F_4

BOARD_ID1

BOARD_ID2

BOARD_ID3

R254 *0_4R254 *0_4

CL_CLK1 [28] CL_DATA1 [28] CL_RST1# [28]

CLK_PCIE_VGA# [16] CLK_PCIE_VGA [16]

CLK_PCIE_3GPLL# [4] CLK_PCIE_3GPLL [4]

DPLL_REF_SSCLK# [4] DPLL_REF_SSCLK [4]

R151 *10K_4R151 *10K_4

1

ICH_SMBCLK [3] ICH_SMBDATA [3]

SML1ALERT# [11,35,36]

CLK_BUF_PCIE_3GPLL# [3] CLK_BUF_PCIE_3GPLL [3]

CLK_BUF_BCLK# [3] CLK_BUF_BCLK [3]

CLK_BUF_DREFCLK# [3] CLK_BUF_DREFCLK [3]

CLK_BUF_DREFSSCLK# [3] CLK_BUF_DREFSSCLK [3]

CLK_ICH_14M [3]

+1.05V

+3V

R468

R468 1M_4

1M_4

C683 27p/50V_4C683 27p/50V_4

12

Y5 25MHzY525MHz

C682 27p/50V_4C682 27p/50V_4

+3V

EC1

EC1 *0.1u/10V_4

*0.1u/10V_4

+3V_S5

R257 10K_4R257 10K_4 R522 10K_4R522 10K_4 R239 10K_4R239 10K_4 R259 10K_4R259 10K_4 R242 10K_4R242 10K_4 R526 IV@10K_4R526 IV@10K_4

+3V

R540 10K_4R540 10K_4

+3V

R164 10K_4R164 10K_4 R165 8.2K_4R165 8.2K_4 R463 8.2K_4R463 8.2K_4 R169 8.2K_4R169 8.2K_4 R527 10K_4R527 10K_4

R535 EV@10K/F_4R535 EV@10K/F_4

CLK_PCIE_REQ0# CLK_PCIE_REQ3# CLK_PCIE_REQ4# CLK_PCIE_REQ5# CLK_PCIE_LAN_REQ#

PEG_CLKREQ#_R

CLK_PCIE_REQ1#_R

dGPU_SELECT# PCI_PIRQE# PCI_PIRQF# PCI_PIRQG# CLK_PCIE_REQ2#_R

PEG_CLKREQ#_R

3

RP2

USB_OC3# USB_OC2#

+3V_S5

C395

C395 .1u/10V_4

.1u/10V_4

PCI_PLTRST#

R261 *0_4R261 *0_4

A A

2 1

R264

R264 10K_4

10K_4

+3V

U8

3 5

TC7SH08FUU8TC7SH08FU

R265 *0_4R265 *0_4

4

5

R262

R262 100K_4

100K_4

PLTRST# [4,11,26,28,32,36]

USB_OC4_5#

+3V_S5

PCI_PIRQD# PCI_REQ1# PCI_FRAME# PCI_TRDY#

+3V

PCI_PIRQC# PCI_PIRQA# PCI_STOP# PCI_PLOCK# PCI_IRDY#

+3V

6 7 8 9

10

6 7 8 9

10

6 7 8 9

10

RP2

8.2K_10P8R

RP4

8.2K_10P8R

RP1

8.2K_10P8R

4

5 4 3 2 1

USB_OC1# USB_OC0# USB_OC6# USB_OC7#

PCI_REQ3# PCI_PIRQB# PCI_REQ0# PCI_PIRQH#

PCI_DEVSEL# PCI_PERR#

PCI_SERR#

+3V_S5

+3V

R163 stuff/R442 non stuff for SMT debug

BOARD_ID1

R441 SP@10K_4R441 SP@10K_4 R442 *10K_4R442 *10K_4 R443 *10K_4R443 *10K_4

BOARD_ID1

BOARD_ID2

BOARD_ID3

+3V_S5

High = Capilano Low = Madsion or other GPUs High = 80port output to LPC Low = 80port output to PCI High = Reserved Low = Reserved (Default)

2

BOARD_ID2 BOARD_ID3

R518 10K_4R518 10K_4 R220 10K_4R220 10K_4 R255 10K_4R255 10K_4 R521 2.2K_4R521 2.2K_4 R520 2.2K_4R520 2.2K_4 R225 2.2K_4R225 2.2K_4 R222 2.2K_4R222 2.2K_4

R160 SP@10K_4R160 SP@10K_4 R163 10K_4R163 10K_4 R444 10K_4R444 10K_4

RSV_SMBALERT# RSV_SML0ALERT# RSV_SML1ALERT# ICH_SMBCLK ICH_SMBDATA SMB_CLK_ME0 SMB_DATA_ME0

2ND_MBCLK[36]

2ND_MBDATA[36]

+3V_S5

R203

2

2.2K_4

SMB_CLK_ME1

3

1

Q1 2N7002KQ12N7002K

+3V_S5

R204

2

2.2K_4

SMB_DATA_ME1

3

1

Q2 2N7002KQ22N7002K

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

IBEX PEAK-M 3/6

Date: Sheet

Date: Sheet of

PROJECT :

1

ZRB

10 46Friday, July 23, 2010

of

10 46Friday, July 23, 2010

of

10 46Friday, July 23, 2010

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

4

3

2

1

GPU RST#

D D

LCD_DETECT[24] SIO_EXT_SMI#[36] SIO_EXT_SCI#[36]

RSV_GPIO8[9]

CR_WAKE#[9]

dGPU_PWROK[19]

PCH_GPIO27[9]

C C

dGPU_VRON[19,43]

dGPU_PWR_EN# should be stable before dGPU_VRON enable

REV : B Change to short pad

SML1ALERT#[10,35,36]

EC suggestion use GPIO49 for FAN control

SATA5GP / GPIO49 / TEMP_ALERT# is used to alert for EC when CPU or Graph/Memory controllers' temperature go out of limit.

B B

So connecting GPIO49 to EC and avoid this pin to be used for other purpose

A A

R533 *Short_4R533 *Short_4

LCD_DETECT SIO_EXT_SMI# SIO_EXT_SCI# BOARD_ID0

RSV_GPIO8

LAN_DISABLE#

CR_WAKE#

dGPU_HOLD_RST#

GPIO22

PCH_GPIO27

TP_PCH_GPIO28 STP_PCI#

dGPU_PWR_EN#dGPU_PWR_EN# dGPU_PRSNT# GPIO38

SAVE_LED#

GPIO45

RST_GATE#

SV_SET_UP

SATA5GP

GPIO57

C38 D37

F10

AA2 F38

H10

AB12

V13 M11

AB7

AB13

AB6 AA4

A49 A50

A52 A53

B52 B53 BE1

BE53

BF1

BF53

BH1

BH2 BH52 BH53

BJ1

BJ2

BJ4

BJ49

BJ5

BJ50 BJ52 BJ53

D53

E53

IBEX PEAK-M (GPIO,VSS_NCTF,RSVD)

U26F

A20GATE

PECI

RCIN#

TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18

TP19 NC_1 NC_2 NC_3 NC_4 NC_5

INIT3_3V#

TP24

AH45 AH46

AF48 AF47

U2

AM3 AM1 BG10 T1 BE10 BD10

BA22

TP1

AW22

TP2

BB22

TP3

AY45

TP4

AY46

TP5

AV43

TP6

AV45

TP7

AF13

TP8

M18

TP9

N18 AJ24 AK41 AK42 M32 N32 M30 N30 H12 AA23 AB45 AB38 AB42 AB41 T39

P6 C10

Y3

BMBUSY# / GPIO0 TACH1 / GPIO1 TACH2 / GPIO6

J32

TACH3 / GPIO7 GPIO8

K9

LAN_PHY_PWR_CTRL / GPIO12

T7

GPIO15 SATA4GP / GPIO16 TACH0 / GPIO17

Y7

SCLOCK / GPIO22 GPIO24 GPIO27 GPIO28 STP_PCI# / GPIO34

V6

SATACLKREQ# / GPIO35 SATA2GP / GPIO36 SATA3GP / GPIO37

V3

SLOAD / GPIO38

P3

SDATAOUT0 / GPIO39

H3

PCIECLKRQ6# / GPIO45

F1

PCIECLKRQ7# / GPIO46 SDATAOUT1 / GPIO48 SATA5GP / GPIO49

F8

GPIO57

A4

VSS_NCTF_1 VSS_NCTF_2

A5

VSS_NCTF_3 VSS_NCTF_4 VSS_NCTF_5 VSS_NCTF_6

B2

VSS_NCTF_7

B4

VSS_NCTF_8 VSS_NCTF_9 VSS_NCTF_10 VSS_NCTF_11 VSS_NCTF_12 VSS_NCTF_13 VSS_NCTF_14 VSS_NCTF_15 VSS_NCTF_16 VSS_NCTF_17 VSS_NCTF_18 VSS_NCTF_19 VSS_NCTF_20 VSS_NCTF_21 VSS_NCTF_22 VSS_NCTF_23 VSS_NCTF_24 VSS_NCTF_25 VSS_NCTF_26

D1

VSS_NCTF_27

D2

VSS_NCTF_28 VSS_NCTF_29

E1

VSS_NCTF_30 VSS_NCTF_31

IbexPeak-M_R1P0

MISC

CLKOUT_BCLK0_N / CLKOUT_PCIE8N CLKOUT_BCLK0_P / CLKOUT_PCIE8P

GPIO

CPU

NCTF

RSVD

CLKOUT_PCIE6N CLKOUT_PCIE6P

CLKOUT_PCIE7N CLKOUT_PCIE7P

PROCPWRGD

THRMTRIP#

PCH_THRMTRIP#_R

R208 56/F_4R208 56/F_4

SIO_A20GATE [36]

CLK_CPU_BCLK# [4] CLK_CPU_BCLK [4] H_PECI [4] SIO_RCIN# [36] H_PWRGOOD [4]

R211 56/F_4R211 56/F_4

PM_THRMTRIP# [4]

+1.05V

GPU_RST# [16]

GPIO Pull-up/Pull-down

TP_PCH_GPIO28 GPIO45 RST_GATE# GPIO57 LAN_DISABLE#

SIO_EXT_SMI# SIO_EXT_SCI# dGPU_PWR_EN# dGPU_PWROK

SIO_RCIN# SIO_A20GATE dGPU_HOLD_RST# SATA5GP GPIO22

SAVE_LED# STP_PCI#

GPIO38 LCD_DETECT SV_SET_UP

SV_SET_UP 1-X High = Strong (Default)

GPIO57 stuff PD and not stuff PU for Intel suggestion at 6/1

R173 10K_4R173 10K_4

+3V

R250 IV@10K_4R250 IV@10K_4

+3V

53

4

GPIO57

BOARD_ID0

R267 EV@0_4R267 EV@0_4

*.1u_4

C408

1

dGPU_HOLD_RST#

2

U9

U9 *TC7SH08FU

*TC7SH08FU

R251 10K_4R251 10K_4 R525 10K_4R525 10K_4 R524 10K_4R524 10K_4 R218 *10K_4R218 *10K_4 R241 10K_4R241 10K_4

R172 10K_4R172 10K_4 R483 10K_4R483 10K_4 R233 10K_4R233 10K_4 R175 *10K_4R175 *10K_4

R539 10K_4R539 10K_4 R529 10K_4R529 10K_4 R542 *10K_4R542 *10K_4 R543 10K_4R543 10K_4 R234 10K_4R234 10K_4

R528 10K_4R528 10K_4 R238 10K_4R238 10K_4

R541 10K_4R541 10K_4 R531 *8.2K_4R531 *8.2K_4 R253 10K_4R253 10K_4

R217 10K_4R217 10K_4

BOARD_ID0 dGPU_PRSNT#

dGPU always exist

High = 15" Low = 14"

PLTRST#[4,10,26,28,32,36]

R246

R246 *100K_4

*100K_4

+3V_S5

+3V

R181 *10K_4R181 *10K_4

R230 EV@10K_4R230 EV@10K_4

5

4

3

2

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

IBEX PEAK-M 4/6

Date: Sheet

PROJECT :

ZRB

of

11 46Wednesday, July 21, 2010

1

1A

IBEX PEAK-M (POWER)

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

+1.05V

REV : B Change to short pad

D D

5

R144 *Short_8R144 *Short_8 R155 *Short_8R155 *Short_8

+1.05V_VCCCORE_ICH

C335

C335 10u/6.3V_8

10u/6.3V_8

VCCCORE(+1.05V) = 1.432A(80mils)

C330

C330 1u/6.3V_4

1u/6.3V_4

AB24 AB26 AB28 AD26 AD28

AH26 AH28 AH30 AH31

AF26 AF28 AF30 AF31

AJ30 AJ31

U26G

VCCCORE[1] VCCCORE[2] VCCCORE[3] VCCCORE[4] VCCCORE[5] VCCCORE[6] VCCCORE[7] VCCCORE[8] VCCCORE[9] VCCCORE[10] VCCCORE[11] VCCCORE[12] VCCCORE[13] VCCCORE[14] VCCCORE[15]

REV : B Change to short pad

C705 *10u/6.3V_6C705 *10u/6.3V_6

37mA(15mils)

C707

C707 *10u/6.3V_6

*10u/6.3V_6

+1.05V_PCH_VCCDPLL_EXP

+V1.1LAN_VCCAPLL_EXP

C333 10U/6.3V_8C333 10U/6.3V_8 C336 1U/6.3V_4C336 1U/6.3V_4 C348 1U/6.3V_4C348 1U/6.3V_4 C337 1U/6.3V_4C337 1U/6.3V_4

+3V

+V1.5S_1.8S

+V1.1LAN_VCCAPLL_FDI

+1.05V

REV : B Short R189

AK24

AN20 AN22 AN23 AN24 AN26 AN28

AT26 AT28 AU26 AU28 AV26

AV28 AW26 AW28

BA26

BA28

BB26

BB28

BC26

BC28

BD26

BD28

BE26

BE28

BG26

BG28

BH27

AN30

AN31

AN35

AT22

AM23

BJ24

BJ26 BJ28

BJ18

VCCIO[24]

VCCAPLLEXP

VCCIO[25] VCCIO[26] VCCIO[27] VCCIO[28] VCCIO[29] VCCIO[30] VCCIO[31] VCCIO[32] VCCIO[33] VCCIO[34] VCCIO[35] VCCIO[36] VCCIO[37] VCCIO[38] VCCIO[39] VCCIO[40] VCCIO[41] VCCIO[42] VCCIO[43] VCCIO[44] VCCIO[45] VCCIO[46] VCCIO[47] VCCIO[48] VCCIO[49] VCCIO[50] VCCIO[51] VCCIO[52] VCCIO[53]

VCCIO[54] VCCIO[55]

VCC3_3[1]

VCCVRM[1] VCCFDIPLL VCCIO[1]

IbexPeak-M_R1P0

R191 *Short_6R191 *Short_6

+1.05V

40mA(15mils)

C C

L46 *1uh_6L46 *1uh_6

+1.05V

VCCIO = 3.062A(150mils)

+1.05V

REV : B Short R140 & R201

L47 *1uH_6L47 *1uH_6

+1.05V

B B

VCCVRM=196mA(15mils)

R224 *Short_6R224 *Short_6

+1.8V

REV : B Change to short pad

VRM enable by strap pin GPIO27 which supply clean 1.05V for [VCCACLK,VCCAPLLEXP,VCCFDIPLL,VCCSATAPLL]

L44 *10uh_8L44 *10uh_8

+1.05V

L43 10uh_8L43 10uh_8

A A

POWER

VCC CORE

PCI E*

C376

C376 .1u/16V_4

.1u/16V_4

4

CRTLVDS

HVCMOS

DMI

NAND / SPI

FDI

C379

C379 .1u/16V_4

.1u/16V_4

+

C667

C667 *220u_3528

*220u_3528

+

C684

C684 220u_3528

220u_3528

VCCADAC[1]

VCCADAC[2] VSSA_DAC[1] VSSA_DAC[2]

VCCALVDS

VSSA_LVDS

VCCTX_LVDS[1] VCCTX_LVDS[2] VCCTX_LVDS[3] VCCTX_LVDS[4]

VCC3_3[2] VCC3_3[3] VCC3_3[4]

VCCVRM[2]

VCCDMI[1] VCCDMI[2]

VCCPNAND[1] VCCPNAND[2] VCCPNAND[3] VCCPNAND[4] VCCPNAND[5] VCCPNAND[6] VCCPNAND[7] VCCPNAND[8] VCCPNAND[9]

VCCME3_3[1] VCCME3_3[2] VCCME3_3[3] VCCME3_3[4]

+V1.5S_1.8S

+VCCA_DAC_1_2

AE50 AE52 AF53 AF51

AH38 AH39

SP@ UMA=CH31004KB17<0.01u>

AP43

MXM=CS00002JB38<0_ohm>

AP45 AT46

C314

AT45

SP@.01u/25V_4

AB34 AB35

+3V_VCC_GIO

AD35

C328

C328 .1u/16V_4

.1u/16V_4

+VCCVRM

AT24

+VCCDMI

AT16 AU16

C359

C359 1u/10V_4

1u/10V_4

AM16 AK16 AK20

VCCPNAND

AK19 AK15

C355

AK13 AM12

.1u/16V_4

AM13 AM15

AM8

+3V_VCCME_SPI

AM9 AP11

C361

AP9

.1u/16V_4

HDA_SYNC (PCH strap pin)

Internal weak pull-down VCCVRM=>+1.8V (default) external pull-up VCCVRM=>+1.5V

+V1.1LAN_VCCA_A_DPL

R461

R461 *Short_8

*Short_8

+V1.1LAN_VCCA_B_DPL

VCCADAC= 69mA(15mils)

L42

L42 SP@PBY160808T/3A/60ohm_6

SP@PBY160808T/3A/60ohm_6

C681

C655

C655 IV@22u/6.3V_8

IV@22u/6.3V_8

R142 IV@0_4R142 IV@0_4

VCCTX_LVDS

C313

C313 IV@.01u/25V_4

IV@.01u/25V_4

C681

REV: B change P/N for EOD

IV@0.1u/10V_4_X7R

C311

C311 IV@22u/6.3V_8

IV@22u/6.3V_8

+3V

C688

C688 IV@.01u/25V_4

IV@.01u/25V_4

VCCALVDS= 1mA

VCCALVDS

R148

R148 EV@0_4

EV@0_4

VCC3_3 = 357mA(30mils)

R136 *Short_6R136 *Short_6

REV : B Change to short pad

R197 *Short_6R197 *Short_6

R206 *Short_4R206 *Short_4

REV : B Change to short pad

VCCPNAND= 156mA(15mils)

R219 *Short_8R219 *Short_8

REV : B Change to short pad

+V1.5S_1.8S

+1.05V

+1.8V

REV : B Change to short pad

R212 *Short_6R212 *Short_6

EC8

EC8 *0.1u/10V_4

*0.1u/10V_4

REV : B Change to short pad

3

3.3 V. This rail should be powered up during S0 system state. Note that Thermal Sensor shares the same power supply rail with DAC. The external filters on this pin are not needed in case internal graphic is disabled so only 3.3-V connection is required.

+3V

REV C:C655 change footprint from 0603 to 0805

+3V

VCCTX_LVDS= 59mA(15mils)

L26 IV@0.1UH_8/250mAL26 IV@0.1UH_8/250mA

VCCACLK= 52mA(15mils)

+1.05V

VCCLAN = 320mA(30mils)

+1.05V

R196 *0_6R196 *0_6

+1.05V

+1.8V

C482 change to 0 ohm resistor.

VCCME(+1.05V) = 1.849A(100mils)

R166 *Short_8R166 *Short_8 R174 *Short_8R174 *Short_8

REV : B Change to short pad

VCCVRM= 196mA(15mils)

VCCDMI= 61mA(15mils)

VCCIO = 3.062A(150mils)

+3V

VCCME3_3= 85mA(15mils)

VCCSUS3_3 = 163mA(20mils)

+3V_S5

REV : B Change to short pad

VCC3_3 = 0.357A(30mils)

REV : B Change to short pad

V_CPU_IO >1mA(15mils)

+1.05V

VCCRTC= 2mA(15mils)

2

POWER

VCCACLK[1] VCCACLK[2]

VCCLAN[1] VCCLAN[2]

DCPSUSBYP

VCCME[1] VCCME[2] VCCME[3] VCCME[4] VCCME[5] VCCME[6] VCCME[7] VCCME[8] VCCME[9] VCCME[10] VCCME[11] VCCME[12]

DCPRTC

VCCVRM[3]

VCCADPLLA[1] VCCADPLLA[2]

VCCADPLLB[1] VCCADPLLB[2]

VCCIO[21] VCCIO[22] VCCIO[23]

VCCIO[2] VCCIO[3] VCCIO[4] DCPSST

DCPSUS

VCCSUS3_3[29] VCCSUS3_3[30] VCCSUS3_3[31] VCCSUS3_3[32]

VCC3_3[5] VCC3_3[6] VCC3_3[7]

V_CPU_IO[1]

V_CPU_IO[2]

VCCRTC

POWER

VCCIO[5] VCCIO[6] VCCIO[7] VCCIO[8]

VCCSUS3_3[1] VCCSUS3_3[2] VCCSUS3_3[3] VCCSUS3_3[4] VCCSUS3_3[5] VCCSUS3_3[6] VCCSUS3_3[7] VCCSUS3_3[8]

VCCSUS3_3[9] VCCSUS3_3[10] VCCSUS3_3[11] VCCSUS3_3[12] VCCSUS3_3[13]

USB

VCCSUS3_3[14] VCCSUS3_3[15] VCCSUS3_3[16] VCCSUS3_3[17] VCCSUS3_3[18] VCCSUS3_3[19] VCCSUS3_3[20] VCCSUS3_3[21] VCCSUS3_3[22] VCCSUS3_3[23] VCCSUS3_3[24] VCCSUS3_3[25] VCCSUS3_3[26] VCCSUS3_3[27]

VCCSUS3_3[28]

VCCIO[56]

V5REF_SUS

V5REF

VCC3_3[8]

Clock and Miscellaneous

PCI/GPIO/LPC

CPU

RTC

VCC3_3[9] VCC3_3[10] VCC3_3[11] VCC3_3[12]

PCI/GPIO/LPC

VCC3_3[13]

VCC3_3[14]

VCCSATAPLL[1] VCCSATAPLL[2]

VCCIO[9]

VCCVRM[4]

VCCIO[10]

VCCIO[11]

SATA

VCCIO[12]

VCCIO[13]

VCCIO[14]

VCCIO[15]

VCCIO[16]

VCCIO[17]

VCCIO[18]

VCCIO[19]

VCCIO[20]

VCCME[13] VCCME[14] VCCME[15] VCCME[16]

VCCSUSHDA

HDA

U26J

C680 *10u/6.3V_6C680 *10u/6.3V_6 C687 *1u/6.3V_4C687 *1u/6.3V_4

+1.05V_VCCAUX

C344

C344 1U/6.3V_4

1U/6.3V_4

+1.05V_VCCEPW

C363 0.1u/10V_4_X7RC363 0.1u/10V_4_X7R

+V1.5S_1.8S

+V1.1LAN_VCCA_A_DPL

+V1.1LAN_VCCA_B_DPL

C360 0.1u/10V_4_X7RC360 0.1u/10V_4_X7R

C349 0.1u/10V_4_X7RC349 0.1u/10V_4_X7R

C375 4.7U/6.3V_6C375 4.7U/6.3V_6 C370 0.1u/10V_4_X7RC370 0.1u/10V_4_X7R C366 0.1u/10V_4_X7RC366 0.1u/10V_4_X7R

C711 0.1u/10V_4_X7RC711 0.1u/10V_4_X7R C712 0.1u/10V_4_X7RC712 0.1u/10V_4_X7R

+V1.1LAN_VCCA_CLK

TP_PCH_VCCDSW

C350

C350 1u/6.3V_4

1u/6.3V_4

C315 22U/6.3V_8C315 22U/6.3V_8 C321 22U/6.3V_8C321 22U/6.3V_8 C326 1U/6.3V_4C326 1U/6.3V_4 C327 1U/6.3V_4C327 1U/6.3V_4C329 1U/6.3V_4C329 1U/6.3V_4

+VCCRTCEXT

C332 1U/6.3V_4C332 1U/6.3V_4 C331 1U/6.3V_4C331 1U/6.3V_4 C322 1U/6.3V_4C322 1U/6.3V_4

+VCCSST

+V1.1LAN_INT_VCCSUS

+3V_S5_VCCPSUS

C353 0.1u/10V_4_X7RC353 0.1u/10V_4_X7R

+3V_VCCPCORE

C354 0.1u/10V_4_X7RC354 0.1u/10V_4_X7R

+VTT_VCCPCPU

L45 *10uh_8L45 *10uh_8

68mA(15mils)

69mA(15mils)

+1.05V

R188 *Short_6R188 *Short_6

R202 *Short_6R202 *Short_6

+3V

R209 *Short_6R209 *Short_6

+VCCRTC +3V_S5

AP51 AP53

AD38 AD39 AD41

AU24

BB51 BB53

BD51 BD53

AH23 AH35

AH34

AT18

AU18

AF23 AF24

AF43 AF41 AF42

AJ35

AF34

AF32

Y20

V39 V41 V42 Y39 Y41 Y42

V9

V12

Y22

P18 U19 U20 U22

V15

V16

Y16

A12

U26J

IbexPeak-M_R1P0

VCCIO = 3.208A(150mils)

V24 V26

C340 1U/6.3V_4C340 1U/6.3V_4

Y24 Y26

+3V_S5_VCCPUSB

V28 U28

C346 0.1u/10V_4_X7RC346 0.1u/10V_4_X7R

U26

C334 0.1u/10V_4_X7RC334 0.1u/10V_4_X7R

U24

C345 0.022U/16V_4C345 0.022U/16V_4

P28 P26 N28 N26 M28 M26 L28

VCCSUS3_3 = 0.163A(20mils)

L26 J28 J26 H28 H26 G28 G26 F28 F26 E28 E26 C28 C26 B27 A28 A26

REV : B

U23

Short R190

V23

+1.05V

V5REF_SUS

F24

V5REF

K49

+3V_VCCPPCI

J38 L38

C318 0.1u/10V_4_X7RC318 0.1u/10V_4_X7R

M36 N36

C317 0.1u/10V_4_X7RC317 0.1u/10V_4_X7R

P36 U35

AD13

+V1.1LAN_VCCAPLL

AK3 AK1

AH22

AT20

AH19 AD20 AF22 AD19

AF20 AF19 AH20

AB19 AB20 AB22 AD22

+1.05V_VCCEPW

AA34 Y34 Y35 AA35

+V3.3A_1.5A_HDA_IO

L30

C325

C325 1u/10V_4

1u/10V_4

1

R184 *Short_8R184 *Short_8

REV : B Change to short pad

R168 *Short_6R168 *Short_6

C714

C388

*1u/6.3V_4

*10u/6.3V_6

C356

+V1.5S_1.8S

C356 1u/10V_4

1u/10V_4

VCCME = 1.849A(100mils)

R185 *Short_4R185 *Short_4

REV : B Change to short pad

VCCSUSHDA= 6mA(15mils)

+1.05V

+3V_S5

V5REF_SUS< 1mA

R498 100/F_4R498 100/F_4 D17 RB500V-40D17 RB500V-40 C706 1U/6.3V_4C706 1U/6.3V_4

V5REF< 1mA

R145 100/F_4R145 100/F_4

D8 RB500V-40D8 RB500V-40 C310 1U/6.3V_4C310 1U/6.3V_4

REV : B Change to short pad

+3V

VCC3_3 = 0.357A(30mils)

31mA(15mils)

L28 *10uh_8L28 *10uh_8

VCCIO = 3.062A(150mils)

REV : B Short R534

+1.05V

+5V_S5 +3V_S5

+5V +3V

5

4

3

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

IBEX PEAK-M 5/6

Date: Sheet

2

Date: Sheet

PROJECT :

1

ZRB

1A

of

12 46Friday, July 23, 2010

of

12 46Friday, July 23, 2010

of

12 46Friday, July 23, 2010

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

IBEX PEAK-M (GND)

D D

U26H

AB16

VSS[0]

AA19

VSS[1]

AA20

VSS[2]

AA22

VSS[3]

AM19

VSS[4]

AA24

VSS[5]

AA26

VSS[6]

AA28

VSS[7]

AA30

VSS[8]

AA31

VSS[9]

AA32

VSS[10]

AB11

VSS[11]

AB15

VSS[12]

AB23

VSS[13]

AB30

VSS[14]

AB31

VSS[15]

AB32

VSS[16]

AB39

VSS[17]

AB43

VSS[18]

AB47

AC52 AD11 AD12 AD16 AD23 AD30 AD31 AD32 AD34 AU22 AD42 AD46 AD49

AF12 AH49 AF35

AP13 AN34 AF45 AF46 AF49

AG52 AH11 AH15 AH16 AH24 AH32 AV18 AH43 AH47

AJ19 AJ20

AJ22 AJ23 AJ26 AJ28 AJ32 AJ34

AK12

AM41

AN19 AK26 AK22 AK23 AK28

AB5 AB8 AC2

AD7 AE2 AE4

Y13 AU4

AF5 AF8 AG2

AH7 AJ2

AT5 AJ4

VSS[19] VSS[20] VSS[21] VSS[22] VSS[23] VSS[24] VSS[25] VSS[26] VSS[27] VSS[28] VSS[29] VSS[30] VSS[31] VSS[32] VSS[33] VSS[34] VSS[35] VSS[36] VSS[37] VSS[38] VSS[39] VSS[40] VSS[41] VSS[42] VSS[43] VSS[44] VSS[45] VSS[46] VSS[47] VSS[48] VSS[49] VSS[50] VSS[51] VSS[52] VSS[53] VSS[54] VSS[55] VSS[56] VSS[57] VSS[58] VSS[59] VSS[60] VSS[61] VSS[62] VSS[63] VSS[64] VSS[65] VSS[66] VSS[67] VSS[68] VSS[69] VSS[70] VSS[71] VSS[72] VSS[73] VSS[74] VSS[75] VSS[76] VSS[77] VSS[78] VSS[79]

IbexPeak-M_R1P0

C C

B B

A A

VSS[80] VSS[81] VSS[82] VSS[83] VSS[84] VSS[85] VSS[86] VSS[87] VSS[88] VSS[89] VSS[90] VSS[91] VSS[92] VSS[93] VSS[94] VSS[95] VSS[96] VSS[97] VSS[98]

VSS[99] VSS[100] VSS[101] VSS[102] VSS[103] VSS[104] VSS[105] VSS[106] VSS[107] VSS[108] VSS[109] VSS[110] VSS[111] VSS[112] VSS[113] VSS[114] VSS[115] VSS[116] VSS[117] VSS[118] VSS[119] VSS[120] VSS[121] VSS[122] VSS[123] VSS[124] VSS[125] VSS[126] VSS[127] VSS[128] VSS[129] VSS[130] VSS[131] VSS[132] VSS[133] VSS[134] VSS[135] VSS[136] VSS[137] VSS[138] VSS[139] VSS[140] VSS[141] VSS[142] VSS[143] VSS[144] VSS[145] VSS[146] VSS[147] VSS[148] VSS[149] VSS[150] VSS[151] VSS[152] VSS[153] VSS[154] VSS[155] VSS[156] VSS[157] VSS[158]

4

AK30 AK31 AK32 AK34 AK35 AK38 AK43 AK46 AK49 AK5 AK8 AL2 AL52 AM11 BB44 AD24 AM20 AM22 AM24 AM26 AM28 BA42 AM30 AM31 AM32 AM34 AM35 AM38 AM39 AM42 AU20 AM46 AV22 AM49 AM7 AA50 BB10 AN32 AN50 AN52 AP12 AP42 AP46 AP49 AP5 AP8 AR2 AR52 AT11 BA12 AH48 AT32 AT36 AT41 AT47 AT7 AV12 AV16 AV20 AV24 AV30 AV34 AV38 AV42 AV46 AV49 AV5 AV8 AW14 AW18 AW2 BF9 AW32 AW36 AW40 AW52 AY11 AY43 AY47

BG12 BB12 BB16 BB20 BB24 BB30 BB34 BB38 BB42 BB49

BC10 BC14 BC18

BC2 BC22 BC32 BC36 BC40 BC44 BC52

BH9 BD48 BD49

BD5 BE12 BE16 BE20 BE24 BE30 BE34 BE38 BE42 BE46 BE48 BE50

BF49 BF51 BG18 BG24

BG4 BG50 BH11 BH15 BH19 BH23 BH31 BH35 BH39 BH43 BH47

BH7

AF39

3

U26I

AY7

VSS[159]

B11

VSS[160]

B15

VSS[161]

B19

VSS[162]

B23

VSS[163]

B31

VSS[164]

B35

VSS[165]

B39

VSS[166]

B43

VSS[167]

B47

VSS[168]

B7

VSS[169] VSS[170] VSS[171] VSS[172] VSS[173] VSS[174] VSS[175] VSS[176] VSS[177] VSS[178] VSS[179]

BB5

VSS[180] VSS[181] VSS[182] VSS[183] VSS[184] VSS[185] VSS[186] VSS[187] VSS[188] VSS[189] VSS[190] VSS[191] VSS[192] VSS[193] VSS[194] VSS[195] VSS[196] VSS[197] VSS[198] VSS[199] VSS[200] VSS[201] VSS[202] VSS[203] VSS[204] VSS[205]

BE6

VSS[206]

BE8

VSS[207]

BF3

VSS[208] VSS[209] VSS[210] VSS[211] VSS[212] VSS[213] VSS[214] VSS[215] VSS[216] VSS[217] VSS[218] VSS[219] VSS[220] VSS[221] VSS[222] VSS[223] VSS[224]

C12

VSS[225]

C50

VSS[226]

D51

VSS[227]

E12

VSS[228]

E16

VSS[229]

E20

VSS[230]

E24

VSS[231]

E30

VSS[232]

E34

VSS[233]

E38

VSS[234]

E42

VSS[235]

E46

VSS[236]

E48

VSS[237]

E6

VSS[238]

E8

VSS[239]

F49

VSS[240]

F5

VSS[241]

G10

VSS[242]

G14

VSS[243]

G18

VSS[244]

G2

VSS[245]

G22

VSS[246]

G32

VSS[247]

G36

VSS[248]

G40

VSS[249]

G44

VSS[250]

G52

VSS[251] VSS[252]

H16

VSS[253]

H20

VSS[254]

H30

VSS[255]

H34

VSS[256]

H38

VSS[257]

H42

VSS[258]

VSS[259] VSS[260] VSS[261] VSS[262] VSS[263] VSS[264] VSS[265] VSS[266] VSS[267] VSS[268] VSS[269] VSS[270] VSS[271] VSS[272] VSS[273] VSS[274] VSS[275] VSS[276] VSS[277] VSS[278] VSS[279] VSS[280] VSS[281] VSS[282] VSS[283] VSS[284] VSS[285] VSS[286] VSS[287] VSS[288] VSS[289] VSS[290] VSS[291] VSS[292] VSS[293] VSS[294] VSS[295] VSS[296] VSS[297] VSS[298] VSS[299] VSS[300] VSS[301] VSS[302] VSS[303] VSS[304] VSS[305] VSS[306] VSS[307] VSS[308] VSS[309] VSS[310] VSS[311] VSS[312] VSS[313] VSS[314] VSS[315] VSS[316] VSS[317] VSS[318] VSS[319] VSS[320] VSS[321] VSS[322] VSS[323] VSS[324] VSS[325] VSS[326] VSS[327] VSS[328] VSS[329] VSS[330] VSS[331] VSS[332] VSS[333] VSS[334] VSS[335] VSS[336] VSS[337] VSS[338] VSS[339] VSS[340] VSS[341] VSS[342] VSS[343] VSS[344] VSS[345] VSS[346] VSS[347] VSS[348] VSS[349] VSS[350] VSS[351] VSS[352] VSS[353] VSS[354] VSS[355] VSS[356] VSS[366]

H49 H5 J24 K11 K43 K47 K7 L14 L18 L2 L22 L32 L36 L40 L52 M12 M16 M20 N38 M34 M38 M42 M46 M49 M5 M8 N24 P11 AD15 P22 P30 P32 P34 P42 P45 P47 R2 R52 T12 T41 T46 T49 T5 T8 U30 U31 U32 U34 P38 V11 P16 V19 V20 V22 V30 V31 V32 V34 V35 V38 V43 V45 V46 V47 V49 V5 V7 V8 W2 W52 Y11 Y12 Y15 Y19 Y23 Y28 Y30 Y31 Y32 Y38 Y43 Y46 P49 Y5 Y6 Y8 P24 T43 AD51 AT8 AD47 Y47 AT12 AM6 AT13 AM5 AK45 AK39 AV14

2

1

IbexPeak-M_R1P0

Size Document Number Rev

IBEX PEAK-M 6/6

Date: Sheet of

5

4

3

2

Date: Sheet of

Quanta Computer Inc.

PROJECT :

ZRB

13 46Wednesday, July 21, 2010

1

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

M_A_A[15:0][5]

DGMK4000087LTK

D D

C C

B B

DGMK4000073SUY

R249 10K_4R249 10K_4 R248 10K_4R248 10K_4

M_A_BS#0[5] M_A_BS#1[5] M_A_BS#2[5] M_A_CS#0[5] M_A_CS#1[5] M_A_CLK0[5] M_A_CLK0#[5] M_A_CLK1[5] M_A_CLK1#[5] M_A_CKE0[5] M_A_CKE1[5] M_A_CAS#[5] M_A_RAS#[5] M_A_WE#[5]

CLK_SCLK[3,15,28]

CLK_SDATA[3,15,28]

M_A_ODT0[5] M_A_ODT1[5]

M_A_DM[7:0][5]

M_A_DQS[7:0][5]

M_A_DQS#[7:0][5]

M_A_A0 M_A_A1 M_A_A2 M_A_A3 M_A_A4 M_A_A5 M_A_A6 M_A_A7 M_A_A8 M_A_A9 M_A_A10 M_A_A11 M_A_A12 M_A_A13 M_A_A14 M_A_A15

DIMM0_SA0 DIMM0_SA1 CLK_SCLK CLK_SDATA

M_A_DM0 M_A_DM1 M_A_DM2 M_A_DM3 M_A_DM4 M_A_DM5 M_A_DM6 M_A_DM7

M_A_DQS0 M_A_DQS1 M_A_DQS2 M_A_DQS3 M_A_DQS4 M_A_DQS5 M_A_DQS6 M_A_DQS7 M_A_DQS#0 M_A_DQS#1 M_A_DQS#2 M_A_DQS#3 M_A_DQS#4 M_A_DQS#5 M_A_DQS#6 M_A_DQS#7

107

119

109 108

114 121 101 103 102 104

115 110 113 197 201 202 200

116 120

136 153 170 187

137 154 171 188

135 152 169 186

98 97 96 95 92 91 90 86 89 85

84 83

80 78

79

73 74

11 28 46 63

12 29 47 64

10 27 45 62

Place these Caps near So-Dimm0.

+1.5VSUS

C394

C373

C373 .1u/16V_4

.1u/16V_4

C394 .1u/16V_4

.1u/16V_4

C368

C368 .1u/16V_4

.1u/16V_4

+

C372

C372 330u/2V_7343

330u/2V_7343

C367

10u/6.3V_6

C369

C369 10u/6.3V_6

10u/6.3V_6

C398

C398 10u/6.3V_6

10u/6.3V_6

C382

C382 10u/6.3V_6

10u/6.3V_6

C371

C371 10u/6.3V_6

10u/6.3V_6

C377

C377 10u/6.3V_6

10u/6.3V_6

C378

C378 .1u/16V_4

.1u/16V_4

C385

C385 .1u/16V_4

.1u/16V_4

4

JDIM1A

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10/AP A11 A12/BC# A13 A14 A15

BA0 BA1 BA2 S0# S1# CK0 CK0# CK1 CK1# CKE0 CKE1 CAS# RAS# WE# SA0 SA1 SCL SDA

ODT0 ODT1

DM0 DM1 DM2 DM3 DM4 DM5 DM6 DM7

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7 DQS#0 DQS#1 DQS#2 DQS#3 DQS#4 DQS#5 DQS#6 DQS#7

DDR3-DIMM1_H=8.0_Reverse

+SMDDR_VREF_DIMM

C386

.1u/16V_4

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8

DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46

(204P)

PC2100 DDR3 SDRAM SO-DIMM

DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

C384

2.2u/6.3V_6

5 7 15 17 4 6 16 18 21 23 33 35 22 24 34 36 39 41 51 53 40 42 50 52 57 59 67 69 56 58 68 70 129 131 141 143 130 132 140 142 147 149 157 159 146 148 158 160 163 165 175 177 164 166 174 176 181 183 191 193 180 182 192 194

+SMDDR_VREF_DQ0

C392

.1u/16V_4

M_A_DQ4 M_A_DQ0 M_A_DQ2 M_A_DQ3 M_A_DQ1 M_A_DQ5 M_A_DQ6 M_A_DQ7 M_A_DQ12 M_A_DQ13 M_A_DQ11 M_A_DQ10 M_A_DQ8 M_A_DQ9 M_A_DQ14 M_A_DQ15 M_A_DQ17 M_A_DQ20 M_A_DQ18 M_A_DQ19 M_A_DQ16 M_A_DQ21 M_A_DQ22 M_A_DQ23 M_A_DQ24 M_A_DQ28 M_A_DQ25 M_A_DQ26 M_A_DQ27 M_A_DQ29 M_A_DQ31 M_A_DQ30 M_A_DQ36 M_A_DQ33 M_A_DQ35 M_A_DQ34 M_A_DQ32 M_A_DQ37 M_A_DQ38 M_A_DQ39 M_A_DQ45 M_A_DQ44 M_A_DQ47 M_A_DQ42 M_A_DQ41 M_A_DQ40 M_A_DQ46 M_A_DQ43 M_A_DQ48 M_A_DQ49 M_A_DQ50 M_A_DQ51 M_A_DQ52 M_A_DQ53 M_A_DQ54 M_A_DQ55 M_A_DQ56 M_A_DQ57 M_A_DQ62 M_A_DQ59 M_A_DQ60 M_A_DQ61 M_A_DQ63 M_A_DQ58

C390

2.2u/6.3V_6

3

M_A_DQ[63:0] [5]

PM_EXTTS#0[4]

DDR3_DRAMRST#[4,15]

+SMDDR_VREF_DQ +SMDDR_VREF_DIMM

+1.5VSUS

R269

R269 10K/F_4

10K/F_4

+SMDDR_VREF_DIMM

R229

R229 10K/F_4

10K/F_4

+1.5VSUS

R223

R223 10K/F_4

10K/F_4

+SMDDR_VREF_DQ

R226

R226 10K/F_4

10K/F_4

2.48A

+3V

+SMDDR_VREF_DQ +SMDDR_VREF_DIMM

C412

C412 470p/X7R_4

470p/X7R_4

C387

C387 470p/X7R_4

470p/X7R_4

2

+1.5VSUS

JDIM1B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

DDR3-DIMM1_H=8.0_Reverse

1

44

VSS16

48

VSS17

49

VSS18

54

VSS19

55

VSS20

60

VSS21

61

VSS22

65

VSS23

66

VSS24

71

VSS25

72

VSS26

127

VSS27

128

VSS28

133

VSS29

134

VSS30

138

VSS31

139

VSS32

144

VSS33

145

VSS34

150

VSS35

151

VSS36

155

VSS37

156

VSS38

161

VSS39

162

VSS40

167

VSS41

168

VSS42

172

VSS43

173

VSS44

178

VSS45

179

VSS46

184

VSS47

185

VSS48

189

VSS49

190

VSS50

195

VSS51

196

VSS52

(204P)

PC2100 DDR3 SDRAM SO-DIMM

VTT1 VTT2

GND GND

203 204

205 206

+0.75V_DDR_VTT

A A

+3V

C405

2.2u/6.3V_6

C402

C402 .1u/16V_4

.1u/16V_4

5

+0.75V_DDR_VTT

C401

C401 1U/6.3V_4

1U/6.3V_4

C383

C383 1U/6.3V_4

1U/6.3V_4

C381

C381 1U/6.3V_4

1U/6.3V_4

C397

C397 1U/6.3V_4

1U/6.3V_4

4.7U/6.3V_6

4

C380

C404

4.7U/6.3V_6

C421

4.7U/6.3V_6

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

DDRIII SO-DIMM-0

Date: Sheet

3

2

Date: Sheet

PROJECT :

ZRB

1A

of

14 46Wednesday, July 21, 2010

1

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

4

3

2

1

JDIM2A

M_B_A[15:0][5]

DGMK4000005LTK

R286 10K_4R286 10K_4 R290 10K_4R290 10K_4

+3V

DGMK4000010MOLEX

M_B_BS#0[5] M_B_BS#1[5] M_B_BS#2[5] M_B_CS#0[5] M_B_CS#1[5] M_B_CLK0[5] M_B_CLK0#[5] M_B_CLK1[5] M_B_CLK1#[5] M_B_CKE0[5] M_B_CKE1[5] M_B_CAS#[5] M_B_RAS#[5] M_B_WE#[5]

CLK_SCLK[3,14,28]

CLK_SDATA[3,14,28]

M_B_ODT0[5] M_B_ODT1[5]

M_B_DM[7:0][5]

M_B_DQS[7:0][5]

M_B_DQS#[7:0][5]

D D

C C

B B

M_B_A0 M_B_A1 M_B_A2 M_B_A3 M_B_A4 M_B_A5 M_B_A6 M_B_A7 M_B_A8 M_B_A9 M_B_A10 M_B_A11 M_B_A12 M_B_A13 M_B_A14 M_B_A15

DIMM1_SA0 DIMM1_SA1

M_B_DM0 M_B_DM1 M_B_DM2 M_B_DM3 M_B_DM4 M_B_DM5 M_B_DM6 M_B_DM7

M_B_DQS0 M_B_DQS1 M_B_DQS2 M_B_DQS3 M_B_DQS4 M_B_DQS5 M_B_DQS6 M_B_DQS7 M_B_DQS#0 M_B_DQS#1 M_B_DQS#2 M_B_DQS#3 M_B_DQS#4 M_B_DQS#5 M_B_DQS#6 M_B_DQS#7

JDIM2A

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10/AP

84

A11

83

A12/BC#

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

PC2100 DDR3 SDRAM SO-DIMM

12 29 47

64 137 154 171 188

10

27

45

62 135 152 169 186

DDR3-DIMM1_H=4.0_Reverse

PC2100 DDR3 SDRAM SO-DIMM

DQS0 DQS1 DQS2 DQS3 DQS4 DQS5 DQS6 DQS7 DQS#0 DQS#1 DQS#2 DQS#3 DQS#4 DQS#5 DQS#6 DQS#7

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8

DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQ32 DQ33 DQ34 DQ35 DQ36 DQ37 DQ38 DQ39 DQ40 DQ41 DQ42 DQ43 DQ44 DQ45 DQ46

(204P)

DQ47 DQ48 DQ49 DQ50 DQ51 DQ52 DQ53 DQ54 DQ55 DQ56 DQ57 DQ58 DQ59 DQ60 DQ61 DQ62 DQ63

5 7 15 17 4 6 16 18 21 23 33 35 22 24 34 36 39 41 51 53 40 42 50 52 57 59 67 69 56 58 68 70 129 131 141 143 130 132 140 142 147 149 157 159 146 148 158 160 163 165 175 177 164 166 174 176 181 183 191 193 180 182 192 194

M_B_DQ5 M_B_DQ1 M_B_DQ2 M_B_DQ3 M_B_DQ0 M_B_DQ4 M_B_DQ6 M_B_DQ7 M_B_DQ8 M_B_DQ9 M_B_DQ10 M_B_DQ11 M_B_DQ12 M_B_DQ13 M_B_DQ14 M_B_DQ15 M_B_DQ18 M_B_DQ17 M_B_DQ16 M_B_DQ19 M_B_DQ20 M_B_DQ21 M_B_DQ22 M_B_DQ23 M_B_DQ26 M_B_DQ25 M_B_DQ30 M_B_DQ27 M_B_DQ29 M_B_DQ24 M_B_DQ28 M_B_DQ31 M_B_DQ32 M_B_DQ33 M_B_DQ34 M_B_DQ35 M_B_DQ36 M_B_DQ37 M_B_DQ38 M_B_DQ39 M_B_DQ40 M_B_DQ45 M_B_DQ47 M_B_DQ43 M_B_DQ44 M_B_DQ41 M_B_DQ46 M_B_DQ42 M_B_DQ48 M_B_DQ53 M_B_DQ50 M_B_DQ54 M_B_DQ52 M_B_DQ49 M_B_DQ51 M_B_DQ55 M_B_DQ60 M_B_DQ57 M_B_DQ63 M_B_DQ58 M_B_DQ59 M_B_DQ56 M_B_DQ62 M_B_DQ61

M_B_DQ[63:0] [5]

PM_EXTTS#1[4]

DDR3_DRAMRST#[4,14]

+SMDDR_VREF_DQ +SMDDR_VREF_DIMM

2.48A

+1.5VSUS

+3V

+SMDDR_VREF_DQ

JDIM2B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

DDR3-DIMM1_H=4.0_Reverse

44

VSS16

48

VSS17

49

VSS18

54

VSS19

55

VSS20

60

VSS21

61

VSS22

65

VSS23

66

VSS24

71

VSS25

72

VSS26

127

VSS27

128

VSS28

133

VSS29

134

VSS30

138

VSS31

139

VSS32

144

VSS33

145

VSS34

150

VSS35

151

VSS36

155

VSS37

156

VSS38

161

VSS39

162

VSS40

167

VSS41

168

VSS42

172

VSS43

173

VSS44

178

VSS45

179

VSS46

184

VSS47

185

VSS48

189

VSS49

190

VSS50

195

VSS51

196

VSS52

(204P)

PC2100 DDR3 SDRAM SO-DIMM

VTT1 VTT2

GND GND

203 204

205 206

+0.75V_DDR_VTT

+1.5VSUS

C451

C451 10u/6.3V_6

10u/6.3V_6

+3V

A A

Place these Caps near So-Dimm1.

C447

C450

C450 10u/6.3V_6

10u/6.3V_6

C454

2.2u/6.3V_6

C448

C448 10u/6.3V_6

10u/6.3V_6

C438

C438 .1u/16V_4

.1u/16V_4

C447 10u/6.3V_6

10u/6.3V_6

C418

C418 10u/6.3V_6

10u/6.3V_6

5

C449

C449 10u/6.3V_6

10u/6.3V_6

+0.75V_DDR_VTT

C417

C417 .1u/16V_4

.1u/16V_4

C436

C436 1U/6.3V_4

1U/6.3V_4

C446

C446 .1u/16V_4

.1u/16V_4

C423

C423 1U/6.3V_4

1U/6.3V_4

C414

C414 .1u/16V_4

.1u/16V_4

C416

C416 .1u/16V_4

.1u/16V_4

C445

C445 .1u/16V_4

.1u/16V_4

C433

C433 1U/6.3V_4

1U/6.3V_4

+SMDDR_VREF_DIMM

+

C459

C459 330u/2V_7343

330u/2V_7343

C424

C424 1U/6.3V_4

1U/6.3V_4

C422

.1u/16V_4

4.7U/6.3V_6

4

C420

C425

.1u/16V_4

2.2u/6.3V_6

C429

4.7U/6.3V_6

+SMDDR_VREF_DQ1

C452

C455

2.2u/6.3V_6

C411

4.7U/6.3V_6

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

DDRIII SO-DIMM-1

Date: Sheet

3

2

Date: Sheet

PROJECT :

ZRB

1A

of

15 46Wednesday, July 21, 2010

1

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

GPU_1(VGA)

PEG_TXP[0..15][4]

PEG_TXN[0..15][4]

PEG_RXP[0..15][4]

D D

PEG_RXN[0..15][4]

C C

B B

PEG_TXP[0..15] PEG_TXN[0..15]

PEG_RXP[0..15] PEG_RXN[0..15]

0518 SWAP PCIE for VGA side

PEG_TXP15[4]

PEG_TXN15[4]

PEG_TXP14[4]

PEG_TXN14[4]

PEG_TXP13[4]

PEG_TXN13[4]

PEG_TXP12[4]

PEG_TXN12[4]

PEG_TXP11[4]

PEG_TXN11[4]

PEG_TXP10[4]

PEG_TXN10[4]

PEG_TXP9[4]

PEG_TXN9[4]

PEG_TXP8[4]

PEG_TXN8[4]

PEG_TXP7[4]

PEG_TXN7[4]

PEG_TXP6[4]

PEG_TXN6[4]

PEG_TXP5[4]

PEG_TXN5[4]

PEG_TXP4[4]

PEG_TXN4[4]

PEG_TXP3[4]

PEG_TXN3[4]

PEG_TXP2[4]

PEG_TXN2[4]

PEG_TXP1[4]

PEG_TXN1[4]

PEG_TXP0[4]

PEG_TXN0[4]

PEG_TXP15 PEG_TXN15

PEG_TXP14 PEG_TXN14

PEG_TXP13 PEG_TXN13

PEG_TXP12 PEG_TXN12

PEG_TXP11 PEG_TXN11

PEG_TXP10 PEG_TXN10

PEG_TXP9 PEG_TXN9

PEG_TXP8 PEG_TXN8

PEG_TXP7 PEG_TXN7

PEG_TXP6 PEG_TXN6

PEG_TXP5 PEG_TXN5

PEG_TXP4 PEG_TXN4

PEG_TXP3 PEG_TXN3

PEG_TXP2 PEG_TXN2

PEG_TXP1 PEG_TXN1

PEG_TXP0 PEG_TXN0

AA38

Y37

Y35

W36

W38

V37

V35 U36

U38 T37

T35 R36

R38 P37

P35 N36

N38

M37

M35

K37

K35

H37

H35 G36

G38 F37

F35 E37

4

L36

L38

J36

J38

U21A

PCIE_RX0P PCIE_RX0N

PCIE_RX1P PCIE_RX1N

PCIE_RX2P PCIE_RX2N

PCIE_RX3P PCIE_RX3N

PCIE_RX4P PCIE_RX4N

PCIE_RX5P PCIE_RX5N

PCIE_RX6P PCIE_RX6N

PCIE_RX7P PCIE_RX7N

PCIE_RX8P PCIE_RX8N

PCIE_RX9P PCIE_RX9N

PCIE_RX10P PCIE_RX10N

PCIE_RX11P PCIE_RX11N

PCIE_RX12P PCIE_RX12N

PCIE_RX13P PCIE_RX13N

PCIE_RX14P PCIE_RX14N

PCIE_RX15P PCIE_RX15N

3

0518 SWAP PCIE for VGA side

CPEG_RXP15

PCIE_TX0P

PCIE_TX0N

PCIE_TX1P

PCIE_TX1N

PCIE_TX2P

PCIE_TX2N

PCIE_TX3P

PCIE_TX3N

PCIE_TX4P

PCI EXPRESS INTERFACE

PCIE_TX4N

PCIE_TX5P

PCIE_TX5N

PCIE_TX6P

PCIE_TX6N

PCIE_TX7P

PCIE_TX7N

PCIE_TX8P

PCIE_TX8N

PCIE_TX9P

PCIE_TX9N

PCIE_TX10P PCIE_TX10N

PCIE_TX11P PCIE_TX11N

PCIE_TX12P PCIE_TX12N

PCIE_TX13P PCIE_TX13N

PCIE_TX14P PCIE_TX14N

PCIE_TX15P PCIE_TX15N

Y33 Y32

W33 W32

U33 U32

U30 U29

T33 T32

T30 T29

P33 P32

P30 P29

N33 N32

N30 N29

L33 L32

L30 L29

K33 K32

J33 J32

K30 K29

H33 H32

CPEG_RXN15

CPEG_RXP14 CPEG_RXN14

CPEG_RXP13 CPEG_RXN13

CPEG_RXP12 CPEG_RXN12

CPEG_RXP11 CPEG_RXN11

CPEG_RXP10 CPEG_RXN10

CPEG_RXP9 CPEG_RXN9

CPEG_RXP8 CPEG_RXN8

CPEG_RXP7 CPEG_RXN7

CPEG_RXP6 CPEG_RXN6

CPEG_RXP5 CPEG_RXN5

CPEG_RXP4 CPEG_RXN4

CPEG_RXP3 CPEG_RXN3

CPEG_RXP2 CPEG_RXN2

CPEG_RXP1 CPEG_RXN1

CPEG_RXP0 CPEG_RXN0

C155 EV@0.1u/10V_4C155 EV@0.1u/10V_4 C164 EV@0.1u/10V_4C164 EV@0.1u/10V_4

C147 EV@0.1u/10V_4C147 EV@0.1u/10V_4 C154 EV@0.1u/10V_4C154 EV@0.1u/10V_4

C141 EV@0.1u/10V_4C141 EV@0.1u/10V_4 C146 EV@0.1u/10V_4C146 EV@0.1u/10V_4

C136 EV@0.1u/10V_4C136 EV@0.1u/10V_4 C131 EV@0.1u/10V_4C131 EV@0.1u/10V_4

C130 EV@0.1u/10V_4C130 EV@0.1u/10V_4 C116 EV@0.1u/10V_4C116 EV@0.1u/10V_4

C109 EV@0.1u/10V_4C109 EV@0.1u/10V_4 C106 EV@0.1u/10V_4C106 EV@0.1u/10V_4

C105 EV@0.1u/10V_4C105 EV@0.1u/10V_4 C92 EV@0.1u/10V_4C92 EV@0.1u/10V_4

C91 EV@0.1u/10V_4C91 EV@0.1u/10V_4 C87 EV@0.1u/10V_4C87 EV@0.1u/10V_4

C86 EV@0.1u/10V_4C86 EV@0.1u/10V_4 C80 EV@0.1u/10V_4C80 EV@0.1u/10V_4

C79 EV@0.1u/10V_4C79 EV@0.1u/10V_4 C75 EV@0.1u/10V_4C75 EV@0.1u/10V_4

C72 EV@0.1u/10V_4C72 EV@0.1u/10V_4 C69 EV@0.1u/10V_4C69 EV@0.1u/10V_4

C67 EV@0.1u/10V_4C67 EV@0.1u/10V_4 C63 EV@0.1u/10V_4C63 EV@0.1u/10V_4

C59 EV@0.1u/10V_4C59 EV@0.1u/10V_4 C61 EV@0.1u/10V_4C61 EV@0.1u/10V_4

C56 EV@0.1u/10V_4C56 EV@0.1u/10V_4 C58 EV@0.1u/10V_4C58 EV@0.1u/10V_4

C50 EV@0.1u/10V_4C50 EV@0.1u/10V_4 C48 EV@0.1u/10V_4C48 EV@0.1u/10V_4

C55 EV@0.1u/10V_4C55 EV@0.1u/10V_4 C52 EV@0.1u/10V_4C52 EV@0.1u/10V_4

PEG_RXP15 [4]

PEG_RXN15 [4]

PEG_RXP14 [4]

PEG_RXN14 [4]

PEG_RXP13 [4]

PEG_RXN13 [4]

PEG_RXP12 [4]

PEG_RXN12 [4]

PEG_RXP11 [4]

PEG_RXN11 [4]

PEG_RXP10 [4]

PEG_RXN10 [4]

PEG_RXP9 [4]

PEG_RXN9 [4]

PEG_RXP8 [4]

PEG_RXN8 [4]

PEG_RXP7 [4]

PEG_RXN7 [4]

PEG_RXP6 [4]

PEG_RXN6 [4]

PEG_RXP5 [4]

PEG_RXN5 [4]

PEG_RXP4 [4]

PEG_RXN4 [4]

PEG_RXP3 [4]

PEG_RXN3 [4]

PEG_RXP2 [4]

PEG_RXN2 [4]

PEG_RXP1 [4]

PEG_RXN1 [4]

PEG_RXP0 [4]

PEG_RXN0 [4]

2

1

CLOCK

CLK_PCIE_VGA[10]

CLK_PCIE_VGA#[10]

For Broadway, Madison and Park

A A

the PWRGOOD ball must be conneccted to ground

R67 EV@10K_4R67 EV@10K_4

GPU_RST#[11]

5

AB35

PCIE_REFCLKP

AA36

PCIE_REFCLKN

AJ21

NC#1

AK21

NC#2

AH16

PWRGOOD

AA30

PERSTB

SP@Capilano/Robson

4

CALIBRATION

PCIE_CALRP PCIE_CALRN

R47 EV@1.27K/F_4R47 EV@1.27K/F_4

Y30

R46 EV@2K/F_4R46 EV@2K/F_4

Y29

+1V

+1.0V

For M97, Broadway, Madison and Park PCIE_VDDC is 1.0V

3

2

AJ007720T02Madison

Park

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Capilano/Robson -PCIE I/F

Date: Sheet

PROJECT :

AJ077400T08

ZRB

of

16 46Wednesday, July 21, 2010

of

16 46Wednesday, July 21, 2010

of

16 46Wednesday, July 21, 2010

1

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

GPU_2(VGA)

D D

GPU Power-on sequence

1 => +VGPU_CORE 2 => +VGPU_IO 3 => +1V 4 => +1.5V_GPU 5 => +3V_D 6 => +1.8V_GPU 7 => dGPU_PWROK

C C

3.3V GPIO

B B

+1.8V_GPU

+1V

A A

+1.8V_GPU

EV@SBY100505T-121Y-N/300mA/120ohm_4L11 EV@SBY100505T-121Y-N/300mA/120ohm_4L11

EV@SBY100505T-121Y-N/300mA/120ohm_4L14 EV@SBY100505T-121Y-N/300mA/120ohm_4L14

EV@SBY100505T-121Y-N/300mA/120ohm_4L10 EV@SBY100505T-121Y-N/300mA/120ohm_4L10

5

C214

EV@10u/6.3V_6

C234

EV@10u/6.3V_6

C212

EV@10u/6.3V_6

+1.8V(75mA)

C211

EV@1u/6.3V_4

+1.0V(125mA)

C221

EV@1u/6.3V_4

+1.8V(5mA)

C201

EV@0.1u/10V_4

+3V_D

R405

*10K/F_4

R404

*10K/F_4

DPLL_PVDD

C213

EV@0.1u/10V_4

DPLL_VDDC

C208

EV@0.1u/10V_4

1.8V GPIO

+3V_D

R419

*10K_4

R412

EV@10K_4

TS_VDD

GPIO3_SMBDAT[21] GPIO4_SMBCLK[21]

EV_LVDS_BLON[24]

HDMI_HP[8,25]

27M_CLK_SS[3]

4

GPU_GPIO0[21] GPU_GPIO1[21] GPU_GPIO2[21]

1/21 ramp remove IO_VID0

GPU_GPIO11[21] GPU_GPIO12[21] GPU_GPIO13[21]

VID1[43]

ALT#_GPIO17[21]

VID2[43]

27M_CLK[3]

+3V_D

R84 EV@0_4R84 EV@0_4

R406 *0_4R406 *0_4

C624 EV@27p/50V_4C624 EV@27p/50V_4

21

C625 EV@27p/50V_4C625 EV@27p/50V_4

4

NC on Park

RAM_STRAP0[21] RAM_STRAP1[21] RAM_STRAP2[21]

NC on Park

+3V_D

R78

EV@10K_4

27M_CLK

R83 *10K_4R83 *10K_4

+1.8V_GPU

R95

EV@499/F_4

R90

EV@249/F_4

R403

Y4

EV@1M/F_4

EV@27MHZY4EV@27MHZ

GPU_D+[21] GPU_D-[21]

T55T55

T59T59

R75

EV@10K_4

T56T56 T9T9

T12T12

HDMI_HP_EV

VREFG

C209

EV@0.1u/10V_4

DPLL_PVDD

DPLL_VDDC

XTALI_27M XTALO_27M

TS_VDD

U21B

AR8

DVPCNTL_MVP_0

AU8

DVPCNTL_MVP_1

AP8

DVPCNTL_0

AW8

DVPCNTL_1

AR3

DVPCNTL_2

AR1

DVPCLK

AU1

DVPDATA_0

AU3

DVPDATA_1

AW3

DVPDATA_2

AP6

DVPDATA_3

AW5

DVPDATA_4

AU5

DVPDATA_5

AR6

DVPDATA_6

AW6

DVPDATA_7

AU6

DVPDATA_8

AT7

DVPDATA_9

AV7

DVPDATA_10

AN7

DVPDATA_11

AV9

DVPDATA_12

AT9

DVPDATA_13

AR10

DVPDATA_14

AW10

DVPDATA_15

AU10

DVPDATA_16

AP10

DVPDATA_17

AV11

DVPDATA_18

AT11

DVPDATA_19

AR12

DVPDATA_20

AW12

DVPDATA_21

AU12

DVPDATA_22

AP12

DVPDATA_23

AK26

SCL

AJ26

SDA

GENERAL PURPOSE I/O

AH20

GPIO_0

AH18

GPIO_1

AN16

GPIO_2

AH23

GPIO_3_SMBDATA

AJ23

GPIO_4_SMBCLK

AH17

GPIO_5_AC_BATT

AJ17

GPIO_6

AK17

GPIO_7_BLON

AJ13

GPIO_8_ROMSO

AH15

GPIO_9_ROMSI

AJ16

GPIO_10_ROMSCK

AK16

GPIO_11

AL16

GPIO_12

AM16

GPIO_13

AM14

GPIO_14_HPD2

AM13

GPIO_15_PWRCNTL_0

AK14

GPIO_16_SSIN

AG30

GPIO_17_THERMAL_INT

AN14

GPIO_18_HPD3

AM17

GPIO_19_CTF

AL13

GPIO_20_PWRCNTL_1

AJ14

GPIO_21_BB_EN

AK13

GPIO_22_ROMCSB

AN13

GPIO_23_CLKREQB

AM23

JTAG_TRSTB

AN23

JTAG_TDI

AK23

JTAG_TCK

AL24

JTAG_TMS

AM24

JTAG_TDO

AJ19

GENERICA

AK19

GENERICB

AJ20

GENERICC

AK20

GENERICD

AJ24

GENERICE_HPD4

AH26

GENERICF

AH24

GENERICG

AK24

HPD1

AH13

VREFG

AM32

DPLL_PVDD

AN32

DPLL_PVSS

AN31

DPLL_VDDC

AV33

XTALIN

AU34

XTALOUT

AF29

DPLUS

AG29

DMINUS

AK32

TS_FDO

AJ32

TSVDD

AJ33

TSVSS

SP@Capilano/Robson

MUTI GFX

I2C

PLL/CLOCK

THERMAL

3

TXCAP_DPA3P TXCAM_DPA3N

TX0P_DPA2P TX0M_DPA2N

DPA

TX1P_DPA1P TX1M_DPA1N

TX2P_DPA0P TX2M_DPA0N

TXCBP_DPB3P TXCBM_DPB3N

TX3P_DPB2P TX3M_DPB2N

DPB

TX4P_DPB1P TX4M_DPB1N

TX5P_DPB0P TX5M_DPB0N

TXCCP_DPC3P

TXCCM_DPC3N

TX0P_DPC2P TX0M_DPC2N

DPC

TX1P_DPC1P TX1M_DPC1N

TX2P_DPC0P TX2M_DPC0N

TXCDP_DPD3P

TXCDM_DPD3N

TX3P_DPD2P TX3M_DPD2N

DPD

TX4P_DPD1P TX4M_DPD1N

TX5P_DPD0P TX5M_DPD0N

DAC1

DAC2

H2SYNC V2SYNC

A2VDDQ A2VSSQ

DDC/AUX

DDC1CLK

DDC1DATA

DDC2CLK

DDC2DATA

DDCCLK_AUX3P

DDCDATA_AUX3N

DDCCLK_AUX4P

DDCDATA_AUX4N

DDCCLK_AUX5P

DDCDATA_AUX5N

DDC6CLK

DDC6DATA

NC_DDCCLK_AUX7P

NC_DDCDATA_AUX7N

3

HSYNC VSYNC

RSET AVDD

AVSSQ VDD1DI

VSS1DI

COMP

VDD2DI VSS2DI

A2VDD

R2SET

AUX1P AUX1N

AUX2P AUX2N

R2B

G2B

B2B

AU24 AV23

AT25 AR24

AU26 AV25

AT27 AR26

AR30 AT29

AV31 AU30

AR32 AT31

AT33 AU32

AU14 AV13

AT15 AR14

AU16 AV15

AT17 AR16

AU20 AT19

AT21 AR20

AU22 AV21

AT23 AR22

AD39

R

AD37

RB

AE36

G

AD35

GB

AF37

B

AE38

BB

AC36 AC38

AB34 AD34

AE34 AC33

AC34

AC30

R2

AC31 AD30

G2

AD31 AF30

B2

AF31

AC32

C

AD32

Y

AF32

AD29 AC29

AG31 AG32

AG33 AD33 AF33

AA29

AM26 AN26

AM27 AL27

AM19 AL19

AN20 AM20

AL30 AM30

AL29 AM29

AN21 AM21

AJ30 AJ31

AK30 AK29

R50 EV@499/F_4R50 EV@499/F_4

AVDD

VDD1DI

R54 EV@0_4R54 EV@0_4

R62 EV@0_4R62 EV@0_4

R61 EV@0_4R61 EV@0_4

T8T8

VDD1DI

R63 EV@0_4R63 EV@0_4

R65 EV@0_4R65 EV@0_4

A2VDDQ

R51 EV@715/F_4R51 EV@715/F_4

MXM_DDCCK

R373 EV@0_4R373 EV@0_4

MXM_DDCDAT

R374 EV@0_4R374 EV@0_4

T11T11

HDMICLK+ [25] HDMICLK- [25]

HDMITX0P [25] HDMITX0N [25]

HDMITX1P [25] HDMITX1N [25]

HDMITX2P [25] HDMITX2N [25]

Channel D N.C for Park-M2

R60

EV_HSYNC [21,24] EV_VSYNC [21,24]

R60

EV@150/F_4

DAC2 will be NC on future ASIC

V2SYNC [21]

(3.3V@130mA A2VDD)

+3V_D

C202

EV@0.1u/10V_4

HDMI_DDCCLK_SW [8,25] HDMI_DDCDATA_SW [8,25]

EV_LVDS_DDCCLK [24] EV_LVDS_DDCDAT [24]

EV_CRTDCLK [24]

EV_CRTDDAT [24]

DDC AUX4 NC for Park_M2 LVDS CRT DDC AUX7 NC for Park_M2

2

U21G

SP@Capilano/Robson

R57

EV@150/F_4

2

LVDS CONTROL

LVTMDP

R55

EV@150/F_4

HDMI

AK27

VARY_BL

AJ27

DIGON

TXOUT_U3P TXOUT_U3N

TXOUT_L3P TXOUT_L3N

AK35 AL36

AJ38 AK37

AH35 AJ36

AG38 AH37

AF35 AG36

AP34 AR34

AW37 AU35

AR37 AU39

AP35 AR35

AN36 AP37

EV_CRT_RED [24]

EV_CRT_GRN [24]

EV_CRT_BLU [24]

TXCLK_UP_DPF3P TXCLK_UN_DPF3N

TXOUT_U0P_DPF2P

TXOUT_U0N_DPF2N

TXOUT_U1P_DPF1P

TXOUT_U1N_DPF1N

TXOUT_U2P_DPF0P

TXOUT_U2N_DPF0N

TXCLK_LP_DPE3P TXCLK_LN_DPE3N

TXOUT_L0P_DPE2P TXOUT_L0N_DPE2N

TXOUT_L1P_DPE1P TXOUT_L1N_DPE1N

TXOUT_L2P_DPE0P TXOUT_L2N_DPE0N

REV C: C188 change footprint from 0603 to 0805

(1.8V@70mA AVDD)

AVDD

C172

EV@0.1u/10V_4

VDD1DI

C200

EV@0.1u/10V_4

(1.8V@2mA A2VDDQ)

A2VDDQ

C171

EV@0.1u/10V_4

C182

EV@1u/6.3V_4

(1.8V@100mA VDD1DI)

C199

EV@1u/6.3V_4

C168

EV@1u/6.3V_4

Size Document Number Rev

Capilano/Robson -PCIE I/F

Date: Sheet of

1

EV_LVDS_BRIGHT [24] EV_LVDS_VDDEN [24]

EV_TXLCLKOUT+ [24] EV_TXLCLKOUT- [24]

EV_TXLOUT0+ [24] EV_TXLOUT0- [24]

EV_TXLOUT1+ [24] EV_TXLOUT1- [24]

EV_TXLOUT2+ [24] EV_TXLOUT2- [24]

EV@SBY100505T-800Y-N/500mA/80ohm_4L8 EV@SBY100505T-800Y-N/500mA/80ohm_4L8

C188

EV@22u/6.3V_8

EV@SBY100505T-121Y-N/300mA/120ohm_4L9 EV@SBY100505T-121Y-N/300mA/120ohm_4L9

C205

EV@10u/6.3V_6

+1.8V_GPU

EV@SBY100505T-121Y-N/300mA/120ohm_4L38 EV@SBY100505T-121Y-N/300mA/120ohm_4L38

Quanta Computer Inc.

PROJECT :

1

+1.8V_GPU

ZRB

1A

17 46Wednesday, July 21, 2010

1A

GPU_3(VGA)

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

5

4

3

2

1

Park M2-channel B used(S3 package use Channel A)

+1.5V_GPU

R59

EV@40.2/F_4

R53

EV@100/F_4

+1.5V_GPU

R52

EV@40.2/F_4

R64

EV@100/F_4

VMB_DQ[63..0] VMB_DM[7..0] VMB_RDQS[7..0] VMB_WDQS[7..0]

VMB_MA[13..0]

VMB_BA0 VMB_BA1 VMB_BA2

C169

EV@0.1u/10V_4

C190

EV@0.1u/10V_4

+3V_D

VMB_DQ0 VMB_DQ1 VMB_DQ2 VMB_DQ3 VMB_DQ4 VMB_DQ5 VMB_DQ6 VMB_DQ7 VMB_DQ8 VMB_DQ9 VMB_DQ10 VMB_DQ11 VMB_DQ12 VMB_DQ13 VMB_DQ14 VMB_DQ15 VMB_DQ16 VMB_DQ17 VMB_DQ18 VMB_DQ19 VMB_DQ20 VMB_DQ21 VMB_DQ22 VMB_DQ23 VMB_DQ24 VMB_DQ25 VMB_DQ26 VMB_DQ27 VMB_DQ28 VMB_DQ29 VMB_DQ30 VMB_DQ31 VMB_DQ32 VMB_DQ33 VMB_DQ34 VMB_DQ35 VMB_DQ36 VMB_DQ37 VMB_DQ38 VMB_DQ39 VMB_DQ40 VMB_DQ41 VMB_DQ42 VMB_DQ43 VMB_DQ44 VMB_DQ45 VMB_DQ46 VMB_DQ47 VMB_DQ48 VMB_DQ49 VMB_DQ50 VMB_DQ51 VMB_DQ52 VMB_DQ53 VMB_DQ54 VMB_DQ55 VMB_DQ56 VMB_DQ57 VMB_DQ58 VMB_DQ59 VMB_DQ60 VMB_DQ61 VMB_DQ62 VMB_DQ63

MVREFDB MVREFSB

R74 *10K_4R74 *10K_4 R58 EV@10K_4R58 EV@10K_4

R93

*0_4

AA12

AD28 AK10

R91

*0_4

U21D

DDR2

DDR2 GDDR3/GDDR5

GDDR3/GDDR5 DDR3

DDR3

C5

DQB0_0/DQB_0

C3

DQB0_1/DQB_1

E3

DQB0_2/DQB_2

E1

DQB0_3/DQB_3

F1

DQB0_4/DQB_4

F3

DQB0_5/DQB_5

F5

DQB0_6/DQB_6

G4

DQB0_7/DQB_7

H5

DQB0_8/DQB_8

H6

DQB0_9/DQB_9

J4

DQB0_10/DQB_10

K6

DQB0_11/DQB_11

K5

DQB0_12/DQB_12

L4

DQB0_13/DQB_13

M6

DQB0_14/DQB_14

M1

DQB0_15/DQB_15

M3

DQB0_16/DQB_16

M5

DQB0_17/DQB_17

N4

DQB0_18/DQB_18

P6

DQB0_19/DQB_19

P5

DQB0_20/DQB_20

R4

DQB0_21/DQB_21

T6

DQB0_22/DQB_22

T1

DQB0_23/DQB_23

U4

DQB0_24/DQB_24

V6

DQB0_25/DQB_25

V1

DQB0_26/DQB_26

V3

DQB0_27/DQB_27

Y6

DQB0_28/DQB_28

Y1

DQB0_29/DQB_29

Y3

DQB0_30/DQB_30

Y5

DQB0_31/DQB_31

AA4

DQB1_0/DQB_32

AB6

DQB1_1/DQB_33

AB1

DQB1_2/DQB_34

AB3

DQB1_3/DQB_35

AD6

DQB1_4/DQB_36

AD1

DQB1_5/DQB_37

AD3

DQB1_6/DQB_38

AD5

DQB1_7/DQB_39

AF1

DQB1_8/DQB_40

AF3

DQB1_9/DQB_41

AF6

DQB1_10/DQB_42

AG4

DQB1_11/DQB_43

AH5

DQB1_12/DQB_44

AH6

DQB1_13/DQB_45

AJ4

DQB1_14/DQB_46

AK3

DQB1_15/DQB_47

AF8

DQB1_16/DQB_48

AF9

DQB1_17/DQB_49

AG8

DQB1_18/DQB_50

AG7

DQB1_19/DQB_51

AK9

DQB1_20/DQB_52

AL7

DQB1_21/DQB_53

AM8

DQB1_22/DQB_54

AM7

DQB1_23/DQB_55

AK1

DQB1_24/DQB_56

AL4

DQB1_25/DQB_57

AM6

DQB1_26/DQB_58

AM1

DQB1_27/DQB_59

AN4

DQB1_28/DQB_60

AP3

DQB1_29/DQB_61

AP1

DQB1_30/DQB_62

AP5

DQB1_31/DQB_63

Y12

MVREFDB MVREFSB

TESTEN CLKTESTA

AL10

CLKTESTB

SP@Capilano/Robson

DDR2

DDR2 GDDR5/GDDR3

GDDR5/GDDR3 DDR3

DDR3

MAB0_0/MAB_0 MAB0_1/MAB_1 MAB0_2/MAB_2 MAB0_3/MAB_3 MAB0_4/MAB_4 MAB0_5/MAB_5 MAB0_6/MAB_6 MAB0_7/MAB_7 MAB1_0/MAB_8

MAB1_1/MAB_9 MAB1_2/MAB_10 MAB1_3/MAB_11 MAB1_4/MAB_12

MAB1_5/BA2 MAB1_6/BA0 MAB1_7/BA1

WCKB0_0/DQMB_0

WCKB0B_0/DQMB_1

WCKB0_1/DQMB_2

WCKB0B_1/DQMB_3

WCKB1_0/DQMB_4

WCKB1B_0/DQMB_5

WCKB1_1/DQMB_6

WCKB1B_1/DQMB_7

MEMORY INTERFACE B

GDDR5/DDR2/GDDR3

EDCB0_0/QSB_0/RDQSB_0 EDCB0_1/QSB_1/RDQSB_1 EDCB0_2/QSB_2/RDQSB_2 EDCB0_3/QSB_3/RDQSB_3 EDCB1_0/QSB_4/RDQSB_4 EDCB1_1/QSB_5/RDQSB_5 EDCB1_2/QSB_6/RDQSB_6 EDCB1_3/QSB_7/RDQSB_7

DDBIB0_0/QSB_0B/WDQSB_0 DDBIB0_1/QSB_1B/WDQSB_1 DDBIB0_2/QSB_2B/WDQSB_2 DDBIB0_3/QSB_3B/WDQSB_3 DDBIB1_0/QSB_4B/WDQSB_4 DDBIB1_1/QSB_5B/WDQSB_5 DDBIB1_2/QSB_6B/WDQSB_6 DDBIB1_3/QSB_7B/WDQSB_7

ADBIB0/ODTB0 ADBIB1/ODTB1

CLKB0

CLKB0B

CLKB1

CLKB1B RASB0B

RASB1B CASB0B

CASB1B

CSB0B_0 CSB0B_1

CSB1B_0 CSB1B_1

CKEB0 CKEB1

WEB0B WEB1B

MAB0_8 MAB1_8

GDDR5

DRAM_RST

P8 T9 P9 N7 N8 N9 U9 U8 Y9 W9 AC8 AC9 AA7 AA8 Y8 AA9

H3 H1 T3 T5 AE4 AF5 AK6 AK5

F6 K3 P3 V5 AB5 AH1 AJ9 AM5

G7 K1 P1 W4 AC4 AH3 AJ8 AM3

T7 W7

L9 L8

AD8 AD7

T10 Y10

W10 AA10

P10 L10

AD10 AC10

U10 AA11

N10 AB11

T8 W8

AH11

VMB_MA0 VMB_MA1 VMB_MA2 VMB_MA3 VMB_MA4 VMB_MA5 VMB_MA6 VMB_MA7 VMB_MA8 VMB_MA9 VMB_MA10 VMB_MA11 VMB_MA12 VMB_BA2 VMB_BA0 VMB_BA1

VMB_DM0 VMB_DM1 VMB_DM2 VMB_DM3 VMB_DM4 VMB_DM5 VMB_DM6 VMB_DM7

VMB_RDQS0 VMB_RDQS1 VMB_RDQS2 VMB_RDQS3 VMB_RDQS4 VMB_RDQS5 VMB_RDQS6 VMB_RDQS7

VMB_WDQS0 VMB_WDQS1 VMB_WDQS2 VMB_WDQS3 VMB_WDQS4 VMB_WDQS5 VMB_WDQS6 VMB_WDQS7

VMB_CLKP0 VMB_CLKN0

VMB_CLKP1 VMB_CLKN1

VMB_RAS0# VMB_RAS1#

VMB_CAS0# VMB_CAS1#

VMB_CS0#

VMB_CS1#

VMB_CKE0 VMB_CKE1

VMB_WE0# VMB_WE1#

VMB_MA13

R87 EV@10/F_4R87 EV@10/F_4

Place all these components very close to GPU

R72

EV@5.1K_4

QSB[7..0]

QSB#[7..0]

VMB_ODT0 [23] VMB_ODT1 [23]

VMB_CLKP0 [23] VMB_CLKN0 [23]

VMB_CLKP1 [23] VMB_CLKN1 [23]

VMB_RAS0# [23] VMB_RAS1# [23]

VMB_CAS0# [23] VMB_CAS1# [23]

VMB_CS0# [23]

VMB_CS1# [23]

VMB_CKE0 [23] VMB_CKE1 [23]

VMB_WE0# [23] VMB_WE1# [23]

R89 EV@51_4R89 EV@51_4

C230

EV@120P/50V_4

MEM_RST# [22,23]

C65

EV@0.1u/10V_4

C64

EV@0.1u/10V_4

VMA_DQ[63..0] VMA_DM[7..0] VMA_RDQS[7..0] VMA_WDQS[7..0]

VMA_MA[13..0]

VMA_BA0 VMA_BA1 VMA_BA2

+1.5V_GPU

VMA_DQ0 VMA_DQ1 VMA_DQ2 VMA_DQ3 VMA_DQ4 VMA_DQ5 VMA_DQ6 VMA_DQ7 VMA_DQ8 VMA_DQ9 VMA_DQ10 VMA_DQ11 VMA_DQ12 VMA_DQ13 VMA_DQ14 VMA_DQ15 VMA_DQ16 VMA_DQ17 VMA_DQ18 VMA_DQ19 VMA_DQ20 VMA_DQ21 VMA_DQ22 VMA_DQ23 VMA_DQ24 VMA_DQ25 VMA_DQ26 VMA_DQ27 VMA_DQ28 VMA_DQ29 VMA_DQ30 VMA_DQ31 VMA_DQ32 VMA_DQ33 VMA_DQ34 VMA_DQ35 VMA_DQ36 VMA_DQ37 VMA_DQ38 VMA_DQ39 VMA_DQ40 VMA_DQ41 VMA_DQ42 VMA_DQ43 VMA_DQ44 VMA_DQ45 VMA_DQ46 VMA_DQ47 VMA_DQ48 VMA_DQ49 VMA_DQ50 VMA_DQ51 VMA_DQ52 VMA_DQ53 VMA_DQ54 VMA_DQ55 VMA_DQ56 VMA_DQ57 VMA_DQ58 VMA_DQ59 VMA_DQ60 VMA_DQ61 VMA_DQ62 VMA_DQ63

MVREFDA

R36 EV@243/F_4R36 EV@243/F_4 R39 EV@243/F_4R39 EV@243/F_4 R66 EV@243/F_4R66 EV@243/F_4

R41 EV@243/F_4R41 EV@243/F_4 R40 EV@243/F_4R40 EV@243/F_4 R68 EV@243/F_4R68 EV@243/F_4

MVREFSAMVREFSA

Note by AN_M96_C1

U21C

C37

DQA0_0/DQA_0

C35

DQA0_1/DQA_1

A35

DQA0_2/DQA_2

E34

DQA0_3/DQA_3

G32

DQA0_4/DQA_4

D33

DQA0_5/DQA_5

F32

DQA0_6/DQA_6

E32

DQA0_7/DQA_7

D31

DQA0_8/DQA_8

F30

DQA0_9/DQA_9

C30

DQA0_10/DQA_10

A30

DQA0_11/DQA_11

F28

DQA0_12/DQA_12

C28

DQA0_13/DQA_13

A28

DQA0_14/DQA_14

E28

DQA0_15/DQA_15

D27

DQA0_16/DQA_16

F26

DQA0_17/DQA_17

C26

DQA0_18/DQA_18

A26

DQA0_19/DQA_19

F24

DQA0_20/DQA_20

C24

DQA0_21/DQA_21

A24

DQA0_22/DQA_22

E24

DQA0_23/DQA_23

C22

DQA0_24/DQA_24

A22

DQA0_25/DQA_25

F22

DQA0_26/DQA_26

D21

DQA0_27/DQA_27

A20

DQA0_28/DQA_28

F20

DQA0_29/DQA_29

D19

DQA0_30/DQA_30

E18

DQA0_31/DQA_31

C18

DQA1_0/DQA_32

A18

DQA1_1/DQA_33

F18

DQA1_2/DQA_34

D17

DQA1_3/DQA_35

A16

DQA1_4/DQA_36

F16

DQA1_5/DQA_37

D15

DQA1_6/DQA_38

E14

DQA1_7/DQA_39

F14

DQA1_8/DQA_40

D13

DQA1_9/DQA_41

F12

DQA1_10/DQA_42

A12

DQA1_11/DQA_43

D11

DQA1_12/DQA_44

F10

DQA1_13/DQA_45

A10

DQA1_14/DQA_46

C10

DQA1_15/DQA_47

G13

DQA1_16/DQA_48

H13

DQA1_17/DQA_49

J13

DQA1_18/DQA_50

H11

DQA1_19/DQA_51

G10

DQA1_20/DQA_52

G8

DQA1_21/DQA_53

K9

DQA1_22/DQA_54

K10

DQA1_23/DQA_55

G9

DQA1_24/DQA_56

A8

DQA1_25/DQA_57

C8

DQA1_26/DQA_58

E8

DQA1_27/DQA_59

A6

DQA1_28/DQA_60

C6

DQA1_29/DQA_61

E6

DQA1_30/DQA_62

A5

DQA1_31/DQA_63

L18

MVREFDA

L20

MVREFSA

L27

MEM_CALRN0

N12

MEM_CALRN1

AG12

MEM_CALRN2

M12

MEM_CALRP1

M27

MEM_CALRP0

AH12

MEM_CALRP2

AL31

RSVD

SP@Capilano/Robson

DDR2

DDR2 GDDR3/GDDR5

GDDR3/GDDR5 DDR3

DDR3

DDR2

DDR2 GDDR5/GDDR3

GDDR5/GDDR3 DDR3

DDR3

MAA0_0/MAA_0 MAA0_1/MAA_1 MAA0_2/MAA_2 MAA0_3/MAA_3 MAA0_4/MAA_4 MAA0_5/MAA_5 MAA0_6/MAA_6 MAA0_7/MAA_7 MAA1_0/MAA_8

MAA1_1/MAA_9 MAA1_2/MAA_10 MAA1_3/MAA_11 MAA1_4/MAA_12

MAA1_5/MAA_13_BA2 MAA1_6/MAA_14_BA0

MAA1_7/MAA_A15_BA1

WCKA0_0/DQMA_0

WCKA0B_0/DQMA_1

WCKA0_1/DQMA_2

WCKA0B_1/DQMA_3

WCKA1_0/DQMA_4

WCKA1B_0/DQMA_5

WCKA1_1/DQMA_6

MEMORY INTERFACE A

WCKA1B_1/DQMA_7

GDDR5/DDR2/GDDR3

EDCA0_0/QSA_0/RDQSA_0 EDCA0_1/QSA_1/RDQSA_1 EDCA0_2/QSA_2/RDQSA_2 EDCA0_3/QSA_3/RDQSA_3 EDCA1_0/QSA_4/RDQSA_4 EDCA1_1/QSA_5/RDQSA_5 EDCA1_2/QSA_6/RDQSA_6 EDCA1_3/QSA_7/RDQSA_7

DDBIA0_0/QSA_0B/WDQSA_0 DDBIA0_1/QSA_1B/WDQSA_1 DDBIA0_2/QSA_2B/WDQSA_2 DDBIA0_3/QSA_3B/WDQSA_3 DDBIA1_0/QSA_4B/WDQSA_4 DDBIA1_1/QSA_5B/WDQSA_5 DDBIA1_2/QSA_6B/WDQSA_6 DDBIA1_3/QSA_7B/WDQSA_7

ADBIA0/ODTA0 ADBIA1/ODTA1

CLKA0

CLKA0B

CLKA1

CLKA1B RASA0B

RASA1B CASA0B

CASA1B

CSA0B_0 CSA0B_1

CSA1B_0 CSA1B_1

CKEA0 CKEA1

WEA0B WEA1B

MAA0_8 MAA1_8

GDDR5

G24 J23 H24 J24 H26 J26 H21 G21 H19 H20 L13 G16 J16 H16 J17 H17

A32 C32 D23 E22 C14 A14 E10 D9

C34 D29 D25 E20 E16 E12 J10 D7

A34 E30 E26 C20 C16 C12 J11 F8

J21 G19

H27 G27

J14 H14

K23 K19

K20 K17

K24 K27

M13 K16

K21 J20

K26 L15

H23 J19

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4 VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12 VMA_BA2 VMA_BA0 VMA_BA1

VMA_DM0 VMA_DM1 VMA_DM2 VMA_DM3 VMA_DM4 VMA_DM5 VMA_DM6 VMA_DM7

VMA_RDQS0 VMA_RDQS1 VMA_RDQS2 VMA_RDQS3 VMA_RDQS4 VMA_RDQS5 VMA_RDQS6 VMA_RDQS7

VMA_WDQS0 VMA_WDQS1 VMA_WDQS2 VMA_WDQS3 VMA_WDQS4 VMA_WDQS5 VMA_WDQS6 VMA_WDQS7

VMA_CLK0 VMA_CLK0#

VMA_CLK1 VMA_CLK1#

VMA_RAS0# VMA_RAS1#

VMA_CAS0# VMA_CAS1#

VMA_CS0#

VMA_CS1#

VMA_CKE0 VMA_CKE1

VMA_WE0# VMA_WE1#

VMA_MA13

QSA[7..0]

QSA#[7..0]

VMA_ODT0 [22]

VMA_ODT1 [22]

VMA_CLK0 [22]

VMA_CLK0# [22]

VMA_CLK1 [22] VMA_CLK1# [22]

VMA_RAS0# [22] VMA_RAS1# [22]

VMA_CAS0# [22] VMA_CAS1# [22]

VMA_CS0# [22]

VMA_CS1# [22]

VMA_CKE0 [22] VMA_CKE1 [22]

VMA_WE0# [22] VMA_WE1# [22]

VMA_DQ[63..0][22]

VMA_DM[7..0][22]

VMA_RDQS[7..0][22]

VMA_WDQS[7..0][22]

D D

C C

B B

+1.5V_GPU

R34

EV@40.2/F_4

R38

EV@100/F_4

+1.5V_GPU

R33

EV@40.2/F_4

R37

EV@100/F_4

VMA_MA[13..0][22]

VMA_BA0[22] VMA_BA1[22] VMA_BA2[22]

VMB_DQ[63..0][23]

VMB_DM[7..0][23]

VMB_RDQS[7..0][23]

VMB_WDQS[7..0][23]

VMB_MA[13..0][23]

VMB_BA0[23] VMB_BA1[23] VMB_BA2[23]

Used for Park-M2

A A

Quanta Computer Inc.

PROJECT :

5

4

3

2

Size Document Number Rev

Capilano/Robson -PCIE I/F

Date: Sheet of

PROJECT :

ZRB

18 46Wednesday, July 21, 2010

1

18 46Wednesday, July 21, 2010

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

4

3

2

1

GPU_4(VGA)

U21F

U21E

+1.5V_GPU

Near CN11, rev B add

+1.5VSUS

D D

+

C767

C767 *100u/6.3V_3528

*100u/6.3V_3528

PCIE_PVDD

PCIE_VDDR

+1V

+1.8V_GPU

R375

*0_4

120 ohm/300mA

C C

+1.8V_GPU

B B

+1.8V_GPU

GPU all PWROK

A A

+1.8V_GPU

For DDR3, MVDDQ = 1.5V (7.5A)

close GPU

+

C608

C62

EV@100u/6.3V_3528

EV@10u/6.3V_6

C126

C81

EV@1u/6.3V_4

C77

C71

EV@1u/6.3V_4

C122

C82

EV@1u/6.3V_4

EV@0.1u/10V_4

EV@SBY100505T-121Y-N/300mA/120ohm_4L19 EV@SBY100505T-121Y-N/300mA/120ohm_4L19

+3V_D

+1.8V_GPU

(1.8V@40mA PCIE_PVDD)

EV@SBY100505T-121Y-N/300mA/120ohm_4L37 EV@SBY100505T-121Y-N/300mA/120ohm_4L37

C588

C588 EV@10u/6.3V_6

EV@10u/6.3V_6

(1.8V@150mA MPV18)

EV@SBY100505T-121Y-N/300mA/120ohm_4L4 EV@SBY100505T-121Y-N/300mA/120ohm_4L4

C54

C54 EV@10u/6.3V_6

EV@10u/6.3V_6

(1.8V@75mA SPV18)

EV@SBY100505T-121Y-N/300mA/120ohm_4L17 EV@SBY100505T-121Y-N/300mA/120ohm_4L17

C231

C231 EV@10u/6.3V_6

EV@10u/6.3V_6

(1.0V@120mA SPV10)

EV@SBY100505T-121Y-N/300mA/120ohm_4L15 EV@SBY100505T-121Y-N/300mA/120ohm_4L15

C229

C229 EV@10u/6.3V_6

EV@10u/6.3V_6

R449

R449 EV@10K_4

EV@10K_4

Q10

2

EV@DTC144EUA

1 3

5

C83

EV@10u/6.3V_6

C263

EV@1u/6.3V_4

C123

EV@1u/6.3V_4

C89

EV@0.1u/10V_4

(1.8V@110mA VDD_CT)

(3.3V@60mA))

C203

C203 EV@10u/6.3V_6

EV@10u/6.3V_6

EV@SBY100505T-121Y-N/300mA/120ohm_4L18 EV@SBY100505T-121Y-N/300mA/120ohm_4L18

C589

C587

C587 EV@0.1u/10V_4

EV@0.1u/10V_4

EV@1u/6.3V_4

C60

C57

EV@0.1u/10V_4

EV@1u/6.3V_4

C215

C215 EV@0.1u/10V_4

EV@0.1u/10V_4

C218

C218 EV@0.1u/10V_4

EV@0.1u/10V_4

+3V

R459

R459 EV@10K_4

EV@10K_4

3

Q11

2

EV@2N7002K

1

C51

EV@10u/6.3V_6

C206

EV@1u/6.3V_4

C95

EV@1u/6.3V_4

C96

EV@0.1u/10V_4

C244

C244 EV@10u/6.3V_6

EV@10u/6.3V_6

C194

C194 EV@1u/6.3V_4

EV@1u/6.3V_4

VDDC_SENSE/VSS_SENSE and VDDCI_SENSE/VSS_SENSE route as differetial pair

dGPU_PWROK [11]

C210

EV@10u/6.3V_6

C185

EV@1u/6.3V_4

C66

EV@1u/6.3V_4

C76

EV@0.1u/10V_4

C191

C191 EV@1u/6.3V_4

EV@1u/6.3V_4

C189

C189 EV@1u/6.3V_4

EV@1u/6.3V_4

C184

C184 EV@1u/6.3V_4

EV@1u/6.3V_4

VDDC_CT

C180

C180 EV@0.1u/10V_4

EV@0.1u/10V_4

C198

C198 EV@1u/6.3V_4

EV@1u/6.3V_4

C174

C174 EV@0.1u/10V_4

EV@0.1u/10V_4

PCIE_PVDD

MPV18

SPV18

SPV10

C119

EV@10u/6.3V_6

C148

EV@1u/6.3V_4

C85

EV@1u/6.3V_4

VDDR4

T13T13

T10T10

U21E

AC7

VDDR1#1

AD11

VDDR1#2

AF7

VDDR1#3

AG10

VDDR1#4

AJ7

VDDR1#5

AK8

VDDR1#6

AL9

VDDR1#7

G11

VDDR1#8

G14

VDDR1#9

G17

VDDR1#10

G20

VDDR1#11

G23

VDDR1#12

G26

VDDR1#13

G29

VDDR1#14

H10

VDDR1#15

J7

VDDR1#16

J9

VDDR1#17

K11

VDDR1#18

K13

VDDR1#19

K8

VDDR1#20

L12

VDDR1#21

L16

VDDR1#22

L21

VDDR1#23

L23

VDDR1#24

L26

VDDR1#25

L7

VDDR1#26

M11

VDDR1#27

N11

VDDR1#28

P7

VDDR1#29

R11

VDDR1#30

U11

VDDR1#31

U7

VDDR1#32

Y11

VDDR1#33

Y7

VDDR1#34

AF26

VDD_CT#1

AF27

VDD_CT#2

AG26

VDD_CT#3

AG27

VDD_CT#4

AF23

VDDR3#1

AF24

VDDR3#2

AG23

VDDR3#3

AG24

VDDR3#4

AF13

VDDR4#4

AF15

VDDR4#5

AG13

VDDR4#7

AG15

VDDR4#8

AD12

VDDR4#1

AF11

VDDR4#2

AF12

VDDR4#3

AG11

VDDR4#6

M20

NC_VDDRHA

M21

NC_VSSRHA

V12

NC_VDDRHB

U12

NC_VSSRHB

AB37

PCIE_PVDD

H7

MPV18#1

H8

MPV18#2

AM10

SPV18

AN9

SPV10

AN10

SPVSS

AF28

FB_VDDC

AG28

FB_VDDCI

AH29

FB_GND

SP@Capilano/Robson

MEM I/O

LEVEL

LEVEL TRANSLATION

TRANSLATION

I/O

PLL

VOLTAGE

VOLTAGE SENESE

SENESE

4

PCIE

PCIE_VDDR#1 PCIE_VDDR#2 PCIE_VDDR#3 PCIE_VDDR#4 PCIE_VDDR#5 PCIE_VDDR#6 PCIE_VDDR#7 PCIE_VDDR#8

PCIE_VDDC#1 PCIE_VDDC#2 PCIE_VDDC#3 PCIE_VDDC#4 PCIE_VDDC#5 PCIE_VDDC#6 PCIE_VDDC#7 PCIE_VDDC#8

PCIE_VDDC#9 PCIE_VDDC#10 PCIE_VDDC#11 PCIE_VDDC#12

VDDC#1

CORE

VDDC#2 VDDC#3 VDDC#4 VDDC#5 VDDC#6 VDDC#7 VDDC#8

VDDC#9 VDDC#10 VDDC#11 VDDC#12 VDDC#13 VDDC#14 VDDC#15

POWER

VDDC#16 VDDC#17 VDDC#18 VDDC#19 VDDC#20 VDDC#21 VDDC#22 VDDC#23 VDDC#24 VDDC#25 VDDC#26 VDDC#27 VDDC#28 VDDC#29 VDDC#30 VDDC#31 VDDC#32 VDDC#33 VDDC#34 VDDC#35 VDDC#36 VDDC#37 VDDC#38 VDDC#39 VDDC#40 VDDC#41 VDDC#42 VDDC#43 VDDC#44 VDDC#45 VDDC#46 VDDC#47 VDDC#48 VDDC#49 VDDC#50 VDDC#51 VDDC#52 VDDC#53 VDDC#54 VDDC#55 VDDC#56 VDDC#57 VDDC#58

VDDCI#1 VDDCI#2 VDDCI#3 VDDCI#4 VDDCI#5 VDDCI#6 VDDCI#7 VDDCI#8

VDDCI#9 VDDCI#10 VDDCI#11 VDDCI#12 VDDCI#13 VDDCI#14 VDDCI#15

ISOLATED

VDDCI#16

CORE I/O

VDDCI#17 VDDCI#18 VDDCI#19 VDDCI#20 VDDCI#21 VDDCI#22

PCIE_VDDR

AA31 AA32 AA33

C156

AA34

EV@0.1u/10V_4

V28 W29 W30 Y31

G30 G31 H29 H30 J29

C108

J30

EV@1u/6.3V_4

L28 M28 N28 R28 T28 U28

AA15 AA17 AA20 AA22 AA24 AA27 AB16 AB18 AB21 AB23 AB26 AB28 AC17 AC20 AC22 AC24 AC27 AD18 AD21 AD23 AD26 AF17 AF20 AF22 AG16 AG18 AG21 AH22 AH27 AH28 M26 N24 N27 R18 R21 R23 R26 T17 T20 T22 T24 T27 U16 U18 U21 U23 U26 V17 V20 V22 V24 V27 Y16 Y18 Y21 Y23 Y26 Y28

AA13 AB13 AC12 AC15 AD13 AD16 M15 M16 M18 M23 N13 N15 N17 N20 N22 R12 R13 R16 T12 T15 V15 Y13

C113

C113 EV@1u/6.3V_4

EV@1u/6.3V_4

C193

C193 EV@1u/6.3V_4

EV@1u/6.3V_4

C165

C165 EV@1u/6.3V_4

EV@1u/6.3V_4

C160

C160 EV@10u/6.3V_6

EV@10u/6.3V_6

BIF_VDDC should be connected to VDDC if BACO feature not used. For BACO, refer to the databook

PIN different between Broadway and Madison

N27

AL31

AL21

C103

C103 EV@1u/6.3V_4

EV@1u/6.3V_4

C178

C178 EV@10u/6.3V_6

EV@10u/6.3V_6

(1.8V@400mA PCIE_VDDR)

C569

C149

C149 EV@1u/6.3V_4

EV@1u/6.3V_4

EV@0.1u/10V_4

C94

C94 EV@1u/6.3V_4

EV@1u/6.3V_4

C120

C120 EV@1u/6.3V_4

EV@1u/6.3V_4

C197

C197 EV@1u/6.3V_4

EV@1u/6.3V_4

C161

C161 EV@1u/6.3V_4

EV@1u/6.3V_4

C138

C138 EV@10u/6.3V_6

EV@10u/6.3V_6

Broadway Madison

VDDC BIF_VDDC

TS_A NC_TS_A

GND PX_EN

C152

C152 EV@1u/6.3V_4

EV@1u/6.3V_4

C88

C88 EV@10u/6.3V_6

EV@10u/6.3V_6

C142

C142 EV@1u/6.3V_4

EV@1u/6.3V_4

(1.0V@1.1A PCIE_VDDC)

C70

C78

C78 EV@1u/6.3V_4

EV@1u/6.3V_4

C151

C151 EV@1u/6.3V_4

EV@1u/6.3V_4

C175

C175 EV@1u/6.3V_4

EV@1u/6.3V_4

C159

C159 EV@1u/6.3V_4

EV@1u/6.3V_4

C158

C158 EV@10u/6.3V_6

EV@10u/6.3V_6

(DDR3 1.12V@4A VDDCI) or more

C115

C97

EV@1u/6.3V_4

C134

C134 EV@10u/6.3V_6

EV@10u/6.3V_6

GPU +3V power

Fine-tune Power-on sequence

R446 *0_4R446 *0_4

MAINON[36,40,41,44]

dGPU_VRON[11,43]

R450 *0_4R450 *0_4

C656

C656 *1u/6.3V_4

*1u/6.3V_4

2

3

C170

C170 EV@1u/6.3V_4

EV@1u/6.3V_4

C129

C129 EV@1u/6.3V_4

EV@1u/6.3V_4

C114

C153

EV@1u/6.3V_4

C192

C157

EV@10u/6.3V_6

EV@1u/6.3V_4

C176

C183

EV@1u/6.3V_4

C101

C139

EV@10u/6.3V_6

C167

C167 EV@1u/6.3V_4

EV@1u/6.3V_4

2

+3V +3V

R431

R431 *4.7K_4

*4.7K_4

2

Q6 *DTC144EUAQ6*DTC144EUA

1 3

C570

C570 EV@1u/6.3V_4

EV@1u/6.3V_4

C84

C84 EV@1u/6.3V_4

EV@1u/6.3V_4

C179

C179 EV@1u/6.3V_4

EV@1u/6.3V_4

C186

C186 EV@1u/6.3V_4

EV@1u/6.3V_4

C137

C137 EV@1u/6.3V_4

EV@1u/6.3V_4

C140

C140 EV@10u/6.3V_6

EV@10u/6.3V_6

C102

C102 EV@1u/6.3V_4

EV@1u/6.3V_4

+3V

1

*AO3413Q9*AO3413 Q9

3

C679

*10u/6.3V_6

1

*AO3413Q7*AO3413 Q7

3

C663

*10u/6.3V_6

L36 EV@HCB1608KF-181T15/1.5A/180ohm_6L36 EV@HCB1608KF-181T15/1.5A/180ohm_6

C568

C571

EV@1u/6.3V_4

EV@10u/6.3V_6

+1V

C73

C104

C104 EV@1u/6.3V_4

EV@1u/6.3V_4

EV@10u/6.3V_6

(30A or more)

C173

C110

EV@1u/6.3V_4

C177

C133

EV@1u/6.3V_4

C162

C132

C132 EV@1u/6.3V_4

EV@1u/6.3V_4

C99

C112

C112 EV@1u/6.3V_4

EV@1u/6.3V_4

C99 EV@1u/6.3V_4

EV@1u/6.3V_4

C100

C100 EV@1u/6.3V_4

EV@1u/6.3V_4

R456

R456 EV@0_6

EV@0_6

0.5A

C668

C674

*0.1u/10V_4

*1u/6.3V_4

R434

R434 EV@0_6

EV@0_6

0.5A

C645

C659

*0.1u/10V_4

*1u/6.3V_4

+VGPU_CORE

C111

C111 EV@1u/6.3V_4

EV@1u/6.3V_4

C166

C166 EV@1u/6.3V_4

EV@1u/6.3V_4

C145

C145 EV@1u/6.3V_4

EV@1u/6.3V_4

+VGPU_CORE

+3V_D_S

Spec: 0.15A Rating: 3A

R427

R427 *0_6

*0_6

+3V_D

Spec: 0.15A Rating: 3A

+1.8V_GPU

C163

C163 EV@1u/6.3V_4

EV@1u/6.3V_4

C187

C187 EV@1u/6.3V_4

EV@1u/6.3V_4

C128

C128 EV@1u/6.3V_4

EV@1u/6.3V_4

C98

C98 EV@1u/6.3V_4

EV@1u/6.3V_4

R590 *0_4R590 *0_4 R591 *0_4R591 *0_4

REV C: Add R590/591 footprint for AMD sch

2

U21F

AB39

PCIE_VSS#1

E39

PCIE_VSS#2

F34

PCIE_VSS#3

F39

PCIE_VSS#4

G33

PCIE_VSS#5

G34

PCIE_VSS#6

H31

PCIE_VSS#7

H34

PCIE_VSS#8

H39

PCIE_VSS#9

J31

PCIE_VSS#10

J34

PCIE_VSS#11

K31

PCIE_VSS#12

K34

PCIE_VSS#13

K39

PCIE_VSS#14

L31

PCIE_VSS#15

L34

PCIE_VSS#16

M34

PCIE_VSS#17

M39

PCIE_VSS#18

N31

PCIE_VSS#19

N34

PCIE_VSS#20

P31

PCIE_VSS#21

P34

PCIE_VSS#22

P39

PCIE_VSS#23

R34

PCIE_VSS#24

T31

PCIE_VSS#25

T34

PCIE_VSS#26

T39

PCIE_VSS#27

U31

PCIE_VSS#28

U34

PCIE_VSS#29

V34

PCIE_VSS#30

V39

PCIE_VSS#31

W31

PCIE_VSS#32

W34

PCIE_VSS#33

Y34

PCIE_VSS#34

Y39

PCIE_VSS#35

F15

GND#100

F17

GND#101

F19

GND#102

F21

GND#103

F23

GND#104

F25

GND#105

F27

GND#106

F29

GND#107

F31

GND#108

F33

GND#109

F7

GND#110

F9

GND#111

G2

GND#112

G6

GND#113

H9

GND#114

J2

GND#115

J27

GND#116

J6

GND#117

J8

GND#118

K14

GND#119

K7

GND#120

L11

GND#121

L17

GND#122

L2

GND#123

L22

GND#124

L24

GND#125

L6

GND#126

M17

GND#127

M22

GND#128

M24

GND#129

N16

GND#130

N18

GND#131

N2

GND#132

N21

GND#133

N23

GND#134

N26

GND#135

N6

GND#136

R15

GND#137

R17

GND#138

R2

GND#139

R20

GND#140

R22

GND#141

R24

GND#142

R27

GND#143

R6

GND#144

T11

GND#145

T13

GND#146

T16

GND#147

T18

GND#148

T21

GND#149

T23

GND#150

T26

GND#151

U15

GND#153

U17

GND#154

U2

GND#155

U20

GND#156

U22

GND#157

U24

GND#158

U27

GND#159

U6

GND#160

V11

GND#161

V16

GND#163

V18

GND#164

V21

GND#165

V23

GND#166

V26

GND#167

W2

GND#168

W6

GND#169

Y15

GND#170

Y17

GND#171

Y20

GND#172

Y22

GND#173

Y24

GND#174

Y27

GND#175

U13

GND#152

V13

GND#162

SP@Capilano/Robson

GND

GND#1 GND#2 GND#3 GND#4 GND#5 GND#6 GND#7 GND#8

GND#9 GND#10 GND#11 GND#12 GND#13 GND#14 GND#15 GND#16 GND#17 GND#18 GND#19 GND#20 GND#21 GND#22 GND#23 GND#24 GND#25 GND#26 GND#27 GND#28 GND#29 GND#30 GND#31 GND#32 GND#33 GND#34 GND#35 GND#36 GND#37 GND#38 GND#39 GND#40 GND#41 GND#42 GND#43 GND#44 GND#45 GND#46 GND#47 GND#48 GND#49 GND#50 GND#51 GND#52 GND#53 GND#54 GND#55 GND#56 GND#57 GND#58 GND#59 GND#60 GND#61 GND#62 GND#63 GND#64 GND#65 GND#66 GND#67 GND#68 GND#69 GND#70 GND#71 GND#72 GND#73 GND#74 GND#75 GND#76 GND#77 GND#78 GND#79 GND#80 GND#81 GND#82 GND#83 GND#84 GND#85 GND#86 GND#87 GND#88 GND#89 GND#90 GND#91 GND#92 GND#93 GND#94 GND#95 GND#96 GND#97 GND#98 GND#99

VSS_MECH#1 VSS_MECH#2 VSS_MECH#3

A3 A37 AA16 AA18 AA2 AA21 AA23 AA26 AA28 AA6 AB12 AB15 AB17 AB20 AB22 AB24 AB27 AC11 AC13 AC16 AC18 AC2 AC21 AC23 AC26 AC28 AC6 AD15 AD17 AD20 AD22 AD24 AD27 AD9 AE2 AE6 AF10 AF16 AF18 AF21 AG17 AG2 AG20 AG22 AG6 AG9 AH21 AJ10 AJ11 AJ2 AJ28 AJ6 AK11 AK31 AK7 AL11 AL14 AL17 AL2 AL20 AL21 AL23 AL26 AL32 AL6 AL8 AM11 AM31 AM9 AN11 AN2 AN30 AN6 AN8 AP11 AP7 AP9 AR5 AW34 B11 B13 B15 B17 B19 B21 B23 B25 B27 B29 B31 B33 B7 B9 C1 C39 E35 E5 F11 F13

A39 AW1 AW39

PowerXpress control signal for Madsion and Park only If not used, can be disconnected. PX_EN = LOW, turn on PX_EN = HIGH, turn off PX_EN is used to turn ON/OFF some regulators for PowerXpress mode. An output high ‘3.3V’ will turn the regulators OFF. An output low ‘0V’ will turn the regulators ON. PX_EN outputs low (0V) by default. If this signal is unused, it can be NC (not connected) or connected to ground.

R99 *0_4R99 *0_4

R98

R98 *0_4

*0_4

Pin AL21 to Ground for Broadway

Size Document Number Rev

Capilano/Robson -PCIE I/F

Date: Sheet

+3V_D

Quanta Computer Inc.

PROJECT :

1

ZRB

1A

of

19 46Friday, July 23, 2010

of

19 46Friday, July 23, 2010

of

19 46Friday, July 23, 2010

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

GPU_5(VGA)

D D

+1.8V_GPU

(1.8V@130mA DPA_VDD18)

EV@SBY100505T-121Y-N/300mA/120ohm_4L22 EV@SBY100505T-121Y-N/300mA/120ohm_4L22

C241

EV@10u/6.3V_6

C232

C232 EV@1u/10V_6

EV@1u/10V_6

DPA_VDD18

C220

C220 EV@0.1u/10V_4

EV@0.1u/10V_4

4

U21H

DPA_VDD18

DPA_VDD10

DPA_VDD18

DPA_VDD10

AP20 AP21

AP13 AT13

AN17

AP16

AP17 AW14 AW16

AP22

AP23

AP14

AP15

DPC_VDD18#1 DPC_VDD18#2

DPC_VDD10#1 DPC_VDD10#2

DPC_VSSR#1 DPC_VSSR#2 DPC_VSSR#3 DPC_VSSR#4 DPC_VSSR#5

DPD_VDD18#1 DPD_VDD18#2

DPD_VDD10#1 DPD_VDD10#2

DP A/B POWERDP C/D POWER

DPA_VDD18#1 DPA_VDD18#2

DPA_VDD10#1 DPA_VDD10#2

DPA_VSSR#1 DPA_VSSR#2 DPA_VSSR#3 DPA_VSSR#4 DPA_VSSR#5

DPB_VDD18#1 DPB_VDD18#2

DPB_VDD10#1 DPB_VDD10#2

3

AN24 AP24

AP31 AP32

AN27 AP27 AP28 AW24 AW26

AP25 AP26

AN33 AP33

DPA_VDD18

DPA_VDD10

DPA_VDD18

DPA_VDD10

2

DPA_VDD10

(1.0V@110mA DPA_VDD10)

C224

C224 EV@10u/6.3V_6

EV@10u/6.3V_6

DPA_VDD18

DPA_PVDD

DPB_PVDD DPD_PVDD

C216

C216 EV@1u/6.3V_4

EV@1u/6.3V_4

R96

*0_4

DPC_PVDD

R100

*0_4

C222

EV@0.1u/10V_4

1

+1V

EV@SBY100505T-121Y-N/300mA/120ohm_4L13 EV@SBY100505T-121Y-N/300mA/120ohm_4L13

DPE_VDD18

R92

*0_4

R88

*0_4

DPE_PVDD

R394

*0_4

C C

R97 EV@150/F_4R97 EV@150/F_4

DPE_VDD18

+1.8V_GPU

L39 EV@HCB1608KF-181T15/1.5A/180ohm_6L39 EV@HCB1608KF-181T15/1.5A/180ohm_6 C253

B B

+1V

180 ohm/1.5A

L12 EV@HCB1608KF-181T15/1.5A/180ohm_6L12 EV@HCB1608KF-181T15/1.5A/180ohm_6

A A

(1.8V@400mA DPE/F_VDD18)

C610

C610 EV@0.1u/10V_4

EV@0.1u/10V_4

C614

C614 EV@1u/6.3V_4

EV@1u/6.3V_4

C609

C609 EV@10u/6.3V_6

EV@10u/6.3V_6

(1.0V@400mA DPE/F_VDD10)

C227

C204

C228

C228 EV@0.1u/10V_4

EV@0.1u/10V_4

5

C204 EV@1u/6.3V_4

EV@1u/6.3V_4

EV@10u/6.3V_6

DPE_VDD18

DPE_VDD10

DPE_VDD18

DPE_VDD10

R400 EV@150/F_4R400 EV@150/F_4

4

DPCD_CALR

DPEF_CALR

AN19

DPD_VSSR#1

AP18

DPD_VSSR#2

AP19

DPD_VSSR#3

AW20

DPD_VSSR#4

AW22

DPD_VSSR#5

AW18

DPCD_CALR

AH34

DPE_VDD18#1

AJ34

DPE_VDD18#2

AL33

DPE_VDD10#1

AM33

DPE_VDD10#2

AN34

DPE_VSSR#1

AP39

DPE_VSSR#2

AR39

DPE_VSSR#3

AU37

DPE_VSSR#4

AW35

DPE_VSSR#5

AF34

DPF_VDD18#1

AG34

DPF_VDD18#2

AK33

DPF_VDD10#1

AK34

DPF_VDD10#2

AF39

DPF_VSSR#1

AH39

DPF_VSSR#2

AK39

DPF_VSSR#3

AL34

DPF_VSSR#4

AM34

DPF_VSSR#5

AM39

DPEF_CALR

SP@Capilano/Robson

DP E/F POWER

DPB_VSSR#1 DPB_VSSR#2 DPB_VSSR#3 DPB_VSSR#4 DPB_VSSR#5

DPAB_CALR

DP PLL POWER

DPA_PVDD DPA_PVSS

DPB_PVDD DPB_PVSS

DPC_PVDD DPC_PVSS

DPD_PVDD DPD_PVSS

DPE_PVDD DPE_PVSS

NC_DPF_PVDD

NC_DPF_PVSS

AN29 AP29 AP30 AW30 AW32

DPAB_CALR

AW28

AU28 AV27

AV29 AR28

AU18 AV17

AV19 AR18

AM37 AN38

AL38 AM35

3

R413 EV@150/F_4R413 EV@150/F_4

DPA_PVDD

C247

C247 EV@10u/6.3V_6

EV@10u/6.3V_6

DPB_PVDD

C253 EV@10u/6.3V_6

EV@10u/6.3V_6

DPC_PVDD

C240

C240 *10u/6.3V_6

*10u/6.3V_6

DPD_PVDD

C635

C635 *10u/6.3V_6

*10u/6.3V_6

DPE_PVDD

C612

C612 EV@10u/6.3V_6

EV@10u/6.3V_6

C238

C238 EV@1u/6.3V_4

EV@1u/6.3V_4

C246

C246 EV@1u/6.3V_4

EV@1u/6.3V_4

C239

C239 *1u/6.3V_4

*1u/6.3V_4

C620

C620 *1u/6.3V_4

*1u/6.3V_4

C619

C619 EV@1u/6.3V_4

EV@1u/6.3V_4

2

(1.8V@20mA DPA_PVDD)

C235

C235 EV@0.1u/10V_4

EV@0.1u/10V_4

(1.8V@20mA DPB_PVDD)

C242

C242 EV@0.1u/10V_4

EV@0.1u/10V_4

(1.8V@20mA DPC_PVDD)

C621

C621 *0.1u/10V_4

*0.1u/10V_4

(1.8V@20mA DPD_PVDD)

C631

C631 *0.1u/10V_4

*0.1u/10V_4

(1.8V@40mA DPE/F_PVDD)

C616

C616 EV@0.1u/10V_4

EV@0.1u/10V_4

Size Document Number Rev

Capilano/Robson -PCIE I/F

Date: Sheet

EV@SBY100505T-121Y-N/300mA/120ohm_4L21 EV@SBY100505T-121Y-N/300mA/120ohm_4L21

EV@SBY100505T-121Y-N/300mA/120ohm_4L20 EV@SBY100505T-121Y-N/300mA/120ohm_4L20

EV@0_4L16 EV@0_4L16

EV@0_4L41 EV@0_4L41

DP C/D_PVDD : AMD request. if no use, need to conect to +1.8V_GPU

EV@SBY100505T-121Y-N/300mA/120ohm_4L40 EV@SBY100505T-121Y-N/300mA/120ohm_4L40

Quanta Computer Inc.

PROJECT :

+1.8V_GPU

ZRB

1

1A

of

20 46Wednesday, July 21, 2010

of

20 46Wednesday, July 21, 2010

of

20 46Wednesday, July 21, 2010

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

4

3

2

1

PIN STRAPS(VGA)

CONFIGURATION STRAPS

+3V_D

GPU_GPIO0[17]

D D

C C

GPU_GPIO1[17]

GPIO3_SMBDAT[17] GPIO4_SMBCLK[17]

GPU_GPIO13[17] GPU_GPIO12[17] GPU_GPIO11[17]

GPU_GPIO2[17]

EV_HSYNC[17,24]

EV_VSYNC[17,24]

V2SYNC[17]

R82 *10K_4R82 *10K_4 R85 *10K_4R85 *10K_4

R77 *10K_4R77 *10K_4 R76 *10K_4R76 *10K_4

R101 *10K_4R101 *10K_4 R105 *10K_4R105 *10K_4 R94 EV@10K_4R94 EV@10K_4

R86 *10K_4R86 *10K_4

R378 EV@10K_4R378 EV@10K_4 R379 EV@10K_4R379 EV@10K_4

R408 *10K_4R408 *10K_4

Size of the primary memory apertures GPIO[13:11]

128 MB

256MB

64 MB

32 MB

More than 512 MB

000

001

010

011

Not Supported

DDR3 Memory Aperture size(GPU)

ALLOW FOR PULLUP PADS FOR THESE STRAPS AND IF THESE GPIOS ARE USED, THEY MUST NOT CONFLICT DURING RESET

STRAPS DESCRIPTION OF DEFAULT SETTINGSPIN

GPIO0TX_PWRS_ENB

GPIO1TX_DEEMPH_EN

BIOS_ROM_EN

BIF_GEN2_EN_A

GPIO_8_ROMSO

GPIO_9_ROMSI

VIP_DEVICE_STRAP_ENA V2SYNC

GPIO_22_ROMCSB

GPIO[13:11]ROMIDCFG[2:0]

GPIO2

GPIO8 H2SYNCH2SYNC GPIO21GPIO_21_BB_EN

HSYNCAUD[1] VSYNCAUD[0]

GPIO9

0 = 50% TX OUTPUT SWING

1 = FULL TX OUTPUT SWING PCIE TRANSMITTER DE-EMPHASIS ENABLED

0 = TX DE-EMPHASIS DISABLED

1 = TX DE-EMPHASIS ENABLED Enable external BIOS ROM device

0 - Disable external BIOS ROM device

1 - Enable external BIOS ROM device

SERIAL ROM TYPE OR MEMORY APERTURE SIZE SELECT

0 = PCIE DEVICE AS 2.5GT/S CAPABLE

1 = PCIE DEVICE AS 5GT/S CAPABLE

Reserved Only

AUD[1:0] 00: NO AUDIO FUNCTION. 01: AUDIO FOR DISPLAYPORT AND HDMI IF ADAPTER IS DETECTED. 10: AUDIO FOR DISPLAYPORT ONLY.

11: AUDIO FOR BOTH DISPLAYPORT AND HDMI.

0 = VGA controller capacity enable

0 = DRIVER would ignore the value sample on VHAD_0 during RESET.

DEFAULT

0

001

0

11

0

REMARK

See ROM table

See Audio table

DDR3 Memory size

Vendor

Vendor P/N

STN B/S P/N

DVPDATA_2

RAM_STRAP1RAM_STRAP2

DVPDATA_1

RAM_STRAP0

DVPDATA_0

101

Hynix

H5TQ1G63BFR-12C

B B

H5TQ2G63BFR-12C

Thermal Sensor(VGA)

WINDBOND GMT AL000780000

+3V_D_S

R433

R423

EV@10K_4

*10K_4

MXM_SMCLK12[36]

A A

MXM_SMDATA12[36]

ALT#_GPIO17[17]

VGA_THERM#[36]

5

ADDRESS: 98H

U23

8

SCLK

7

SDA

6

ALERT#

4

OVERT#

EV@G780P81U

ADDRESS: 98H

VCC DXP DXN

GND

+3V_D_S

C642 EV@0.1u/10V_4C642 EV@0.1u/10V_4

1 2 3 5

4

C638

C638 EV@2200p/50V_4

EV@2200p/50V_4

P/NVendor

AL83L771K01

GPU_D+ [17]

GPU_D- [17]

USD0.16

3

Samsung

RAM_STRAP2[17]

RAM_STRAP1[17]

RAM_STRAP0[17]

K4W1G1646E-HC12

23EY2387MA12-SZ AKD5LGGT700

AMD

R421 SP@10K_4R421 SP@10K_4 R410

R410

R422 *10K_4R422 *10K_4 R411

R411

R420

R420 R409

R409

AKD5LZGTW04 (64M*16)

AKD5MGGTW03 (128M*16)

AKD5LGGT506 (64M*16)

AKD5MGGT500 (128m*16)K4W2G1646B-HC12

Samsung - 1Gb

SP@10K_4

EV@10K_4

SP@10K_4

SP@10K_4 SP@10K_4

SP@10K_4

2

+1.8V_GPU

1

0

110

00

0

001

RAM_STRAP2 SET DDR3 Vendor RAM_STRAP[1:0] SET SIZE.

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Strip/Thermal

Date: Sheet

PROJECT :

ZRB

of

21 46Wednesday, July 21, 2010

1

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

VMA_DQ[63..0][18]

VMA_DM[7..0][18] VMA_RDQS[7..0][18] VMA_WDQS[7..0][18]

D D

C C

VMA_DQ[63..0] VMA_DM[7..0] VMA_RDQS[7..0] VMA_WDQS[7..0]

VMA_MA0[18] VMA_MA1[18] VMA_MA2[18] VMA_MA3[18] VMA_MA4[18] VMA_MA5[18] VMA_MA6[18] VMA_MA7[18] VMA_MA8[18]

VMA_MA9[18] VMA_MA10[18] VMA_MA11[18] VMA_MA12[18] VMA_MA13[18]

VMA_BA0[18]

VMA_BA1[18]

VMA_BA2[18]

VMA_CLK0[18]

VMA_CLK0#[18]

VMA_CKE0[18]

VMA_ODT0[18]

VMA_CS0#[18] VMA_RAS0#[18] VMA_CAS0#[18] VMA_WE0#[18]

MEM_RST#[18,23]

QSA[7..0] QSA#[7..0]

VREFC_VMA1 VREFD_VMA1

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4 VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12 VMA_MA13 VMA_MA13 VMA_MA13 VMA_MA13

VMA_BA0 VMA_BA1 VMA_BA2

VMA_CLK0 VMA_CLK0# VMA_CKE0

VMA_ODT0 VMA_CS0# VMA_RAS0# VMA_CAS0# VMA_WE0#

VMA_RDQS1 VMA_RDQS2

VMA_DM1 VMA_DM2

VMA_WDQS1 VMA_WDQS2

MEM_RST#

VMA_ZQ1

R22

R22 SP@243/F_4

SP@243/F_4

U2

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

SP@VRAM _DDR3

100-BALL

100-BALL SDRAM DDR3

SDRAM DDR3

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1 VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2 VDDQ#E9 VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9

VSS#T1

VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8 VSSQ#F9 VSSQ#G1 VSSQ#G9

E3 F7 F2 F8 H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

TOP Left

VMA_DQ9 VMA_DQ8 VMA_DQ13 VMA_DQ11 VMA_DQ15 VMA_DQ10 VMA_DQ14 VMA_DQ12

VMA_DQ19 VMA_DQ22 VMA_DQ17 VMA_DQ20 VMA_DQ18 VMA_DQ21 VMA_DQ16 VMA_DQ23

+1.5V_GPU

4

3

2

1

CHANNEL A: 512MB DDR3 (64M*16*4pcs)

U3

R27

R27 SP@243/F_4

SP@243/F_4

U3

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

100-BALL

100-BALL SDRAM DDR3

SDRAM DDR3

SP@VRAM _DDR3

TOP RightBOT Left BOT Right

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1

VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2

VDDQ#E9

VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9 VSS#T1 VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8 VSSQ#F9 VSSQ#G1 VSSQ#G9

VMA_DQ55

E3

VMA_DQ48

F7

VMA_DQ54

F2

VMA_DQ51

F8

VMA_DQ52

H3

VMA_DQ49

H8

VMA_DQ53

G2

VMA_DQ50

H7

VMA_DQ44

D7

VMA_DQ45

C3

VMA_DQ40

C8

VMA_DQ47

C2

VMA_DQ42

A7

VMA_DQ46

A2

VMA_DQ41

B8

VMA_DQ43

A3

+1.5V_GPU

B2 D9 G7 K2 K8 N1 N9 R1 R9

+1.5V_GPU

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

U18

R347

R347 SP@243/F_4

SP@243/F_4

U18

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

100-BALL

100-BALL SDRAM DDR3

SDRAM DDR3

SP@VRAM _DDR3

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1

VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2

VDDQ#E9

VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9 VSS#T1 VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8 VSSQ#F9 VSSQ#G1 VSSQ#G9

VMA_DQ1

E3

VMA_DQ5

F7

VMA_DQ2

F2

VMA_DQ7

F8

VMA_DQ0

H3

VMA_DQ4

H8

VMA_DQ3

G2

VMA_DQ6

H7

VMA_DQ31

D7

VMA_DQ25

C3

VMA_DQ30

C8

VMA_DQ26

C2

VMA_DQ28

A7

VMA_DQ27

A2

VMA_DQ29

B8

VMA_DQ24

A3

+1.5V_GPU

B2 D9 G7 K2 K8 N1 N9 R1 R9

+1.5V_GPU +1.5V_GPU

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

VMA_CLK1[18] VMA_CLK1#[18] VMA_CKE1[18]

VMA_ODT1[18]

VMA_CS1#[18] VMA_RAS1#[18] VMA_CAS1#[18] VMA_WE1#[18]

VREFC_VMA2 VREFD_VMA2

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4 VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12

VMA_BA0 VMA_BA1 VMA_BA2

VMA_CLK0 VMA_CLK0# VMA_CKE0

VMA_ODT0 VMA_CS0# VMA_RAS0# VMA_CAS0# VMA_WE0#

VMA_RDQS0 VMA_RDQS3

VMA_DM0 VMA_DM3

VMA_WDQS0 VMA_WDQS3

MEM_RST#

VMA_ZQ2 VMA_ZQ3

VREFC_VMA3 VREFD_VMA3

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4 VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12

VMA_BA0 VMA_BA1 VMA_BA2

VMA_CLK1 VMA_CLK1# VMA_CKE1

VMA_ODT1 VMA_CS1# VMA_RAS1# VMA_CAS1# VMA_WE1#

VMA_RDQS7 VMA_RDQS4

VMA_DM7 VMA_DM4

VMA_WDQS7 VMA_WDQS4

MEM_RST#

R345

R345 SP@243/F_4

SP@243/F_4

U17

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

SP@VRAM _DDR3

100-BALL

100-BALL SDRAM DDR3

SDRAM DDR3

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1

VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2

VDDQ#E9

VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9 VSS#T1 VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8 VSSQ#F9 VSSQ#G1 VSSQ#G9

VMA_DQ57

E3

VMA_DQ62

F7

VMA_DQ59

F2

VMA_DQ60

F8

VMA_DQ58

H3

VMA_DQ63

H8

VMA_DQ56

G2

VMA_DQ61

H7

VMA_DQ39

D7

VMA_DQ35

C3

VMA_DQ37

C8

VMA_DQ32

C2

VMA_DQ36

A7

VMA_DQ33

A2

VMA_DQ38

B8

VMA_DQ34

A3

+1.5V_GPU

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

VREFC_VMA4 VREFD_VMA4

VMA_MA0 VMA_MA1 VMA_MA2 VMA_MA3 VMA_MA4 VMA_MA5 VMA_MA6 VMA_MA7 VMA_MA8 VMA_MA9 VMA_MA10 VMA_MA11 VMA_MA12

VMA_BA0 VMA_BA1 VMA_BA2

VMA_CLK1 VMA_CLK1# VMA_CKE1

VMA_ODT1 VMA_CS1# VMA_RAS1# VMA_CAS1# VMA_WE1#

VMA_RDQS6 VMA_RDQS5

VMA_DM6 VMA_DM5

VMA_WDQS6 VMA_WDQS5

MEM_RST#

VMA_ZQ4

Group-A1 VREFGroup-A0 VREF

+1.5V_GPU+1.5V_GPU+1.5V_GPU +1.5V_GPU+1.5V_GPU +1.5V_GPU+1.5V_GPU +1.5V_GPU

B B

R339

R339 SP@4.99K/F_4

SP@4.99K/F_4

R341

R341 SP@4.99K/F_4

SP@4.99K/F_4

VREFC_VMA1

C517

C517 SP@.1u/10V_4

SP@.1u/10V_4

R346

R340

R356

R356 SP@4.99K/F_4

SP@4.99K/F_4

VREFD_VMA1 VREFC_VMA3 VREFD_VMA3

R360

R360 SP@4.99K/F_4

SP@4.99K/F_4

C534

C534 SP@.1u/10V_4

SP@.1u/10V_4

R340 SP@4.99K/F_4

SP@4.99K/F_4

R344

R344 SP@4.99K/F_4

SP@4.99K/F_4

C525

C525 SP@.1u/10V_4

SP@.1u/10V_4

R346 SP@4.99K/F_4

SP@4.99K/F_4

R353

R353 SP@4.99K/F_4

SP@4.99K/F_4

C532

C532 SP@.1u/10V_4

SP@.1u/10V_4

R30

R30 SP@4.99K/F_4

SP@4.99K/F_4

R29

R29 SP@4.99K/F_4

SP@4.99K/F_4

C35

C35 SP@.1u/10V_4

SP@.1u/10V_4

R354

R354 SP@4.99K/F_4

SP@4.99K/F_4

R357

R357 SP@4.99K/F_4

SP@4.99K/F_4

C535

C535 SP@.1u/10V_4

SP@.1u/10V_4

R24

R24 SP@4.99K/F_4

SP@4.99K/F_4

R23

R23 SP@4.99K/F_4

SP@4.99K/F_4

VREFC_VMA4 VREFD_VMA4VREFC_VMA2 VREFD_VMA2

C17

C17 SP@.1u/10V_4

SP@.1u/10V_4

R32

R32 SP@4.99K/F_4

SP@4.99K/F_4

R31

R31 SP@4.99K/F_4

SP@4.99K/F_4

C36

C36 SP@.1u/10V_4

SP@.1u/10V_4

MEM_A0 CLK

VMA_CLK0 VMA_CLK0#

R361

R358

SP@56.2/F_4

C536

C536 SP@.01u/16V_4

A A

SP@.01u/16V_4

5

Group-A0 decoupling CAP

+1.5V_GPU

C44

C43

SP@1u/6.3V_4

+1.5V_GPU

C37

C39

SP@1u/6.3V_4

+1.5V_GPU

C24

C33

SP@10u/6.3V_6

C16

C16 SP@1u/6.3V_4

SP@1u/6.3V_4

C544

C544 SP@1u/6.3V_4

SP@1u/6.3V_4

C29

C29 SP@10u/6.3V_6

SP@10u/6.3V_6

4

C38

C38 SP@1u/6.3V_4

SP@1u/6.3V_4

C537

C537 SP@1u/6.3V_4

SP@1u/6.3V_4

C510

C510 SP@10u/6.3V_6

SP@10u/6.3V_6

C543

C543 SP@1u/6.3V_4

SP@1u/6.3V_4

C539

C539 SP@1u/6.3V_4

SP@1u/6.3V_4

C511

C511 SP@10u/6.3V_6

SP@10u/6.3V_6

C524

C524 SP@1u/6.3V_4

SP@1u/6.3V_4

C538

C538 SP@1u/6.3V_4

SP@1u/6.3V_4

C540

C540 SP@1u/6.3V_4

SP@1u/6.3V_4

C42

C42 SP@1u/6.3V_4

SP@1u/6.3V_4

C531

C531 SP@1u/6.3V_4

SP@1u/6.3V_4

C40

C40 SP@1u/6.3V_4

SP@1u/6.3V_4

Group-A1 decoupling CAP MEM_A1 CLK

+1.5V_GPU

C526

C513

C513 SP@1u/6.3V_4

SP@1u/6.3V_4

C516

C516 SP@1u/6.3V_4

SP@1u/6.3V_4

C25

C25 SP@10u/6.3V_6

SP@10u/6.3V_6

C526 SP@1u/6.3V_4

SP@1u/6.3V_4

C41

C41 SP@1u/6.3V_4

SP@1u/6.3V_4

C26

C26 SP@10u/6.3V_6

SP@10u/6.3V_6

C523

C512

SP@1u/6.3V_4

+1.5V_GPU

C509

C520

SP@1u/6.3V_4

+1.5V_GPU

C515

C519

SP@10u/6.3V_6

SP@10u/6.3V_6C33

3

C34

C34 SP@1u/6.3V_4

SP@1u/6.3V_4

C528

C528 SP@1u/6.3V_4

SP@1u/6.3V_4

C30

C30 SP@10u/6.3V_6

SP@10u/6.3V_6

2

C21

C21 SP@1u/6.3V_4

SP@1u/6.3V_4

C31

C31 SP@1u/6.3V_4

SP@1u/6.3V_4

C20

C20 SP@1u/6.3V_4

SP@1u/6.3V_4

C19

C19 SP@1u/6.3V_4

SP@1u/6.3V_4

C22

C22 SP@1u/6.3V_4

SP@1u/6.3V_4

C18

C18 SP@1u/6.3V_4

SP@1u/6.3V_4

VMA_CLK1 VMA_CLK1#

R359

R355

SP@56.2/F_4

C530

C530 SP@.01u/16V_4

SP@.01u/16V_4

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet of

PROJECT :

MEMORY 1 channel A

ZRB

22 46Wednesday, July 21, 2010

1

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

VMB_DQ[63..0][18]

VMB_DM[7..0][18]

VMB_RDQS[7..0][18]

VMB_WDQS[7..0][18]

D D

C C

VMB_DQ[63..0] VMB_DM[7..0] VMB_RDQS[7..0] VMB_WDQS[7..0]

VMB_MA0[18] VMB_MA1[18] VMB_MA2[18] VMB_MA3[18] VMB_MA4[18] VMB_MA5[18] VMB_MA6[18] VMB_MA7[18] VMB_MA8[18]

VMB_MA9[18] VMB_MA10[18] VMB_MA11[18] VMB_MA12[18] VMB_MA13[18]

VMB_BA0[18]

VMB_BA1[18]

VMB_BA2[18]

VMB_CLKP0[18] VMB_CLKN0[18]

VMB_CKE0[18]

VMB_ODT0[18]

VMB_CS0#[18] VMB_RAS0#[18] VMB_CAS0#[18] VMB_WE0#[18]

MEM_RST#[18,22]

QSA[7..0] QSA#[7..0]

VREFC_VMB1 VREFD_VMB1

VMB_MA0 VMB_MA1 VMB_MA2 VMB_MA3 VMB_MA4 VMB_MA5 VMB_MA6 VMB_MA7 VMB_MA8 VMB_MA9 VMB_MA10 VMB_MA11 VMB_MA12 VMB_MA13 VMB_MA13 VMB_MA13VMB_MA13

VMB_BA0 VMB_BA1 VMB_BA2

VMB_CLKP0 VMB_CLKN0 VMB_CKE0

VMB_ODT0 VMB_CS0# VMB_RAS0# VMB_CAS0# VMB_WE0#

VMB_RDQS3 VMB_RDQS0

VMB_DM3 VMB_DM0

VMB_WDQS3 VMB_WDQS0

MEM_RST#

VMB_ZQ1

R35

R35 EV@240/F_4

EV@240/F_4

U4

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

100-BALL

100-BALL SDRAM DDR3

SDRAM DDR3

SP@VRAM _DDR3

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1 VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2 VDDQ#E9

VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9 VSS#T1 VSS#T9

VSSQ#B1

VSSQ#B9 VSSQ#D1 VSSQ#D8

VSSQ#E2

VSSQ#E8

VSSQ#F9 VSSQ#G1 VSSQ#G9

VMB_DQ24

E3

VMB_DQ26

F7

VMB_DQ31

F2

VMB_DQ27

F8

VMB_DQ30

H3

VMB_DQ28

H8

VMB_DQ29

G2

VMB_DQ25

H7

VMB_DQ3

D7

VMB_DQ6

C3

VMB_DQ0 VMB_DQ14

C8

VMB_DQ4

C2

VMB_DQ2

A7

VMB_DQ5

A2

VMB_DQ1

B8

VMB_DQ7

A3

+1.5V_GPU

B2 D9 G7 K2 K8 N1 N9 R1 R9

+1.5V_GPU

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

BOT Down

4

3

2

1

CHANNEL B: 512MB DDR3 (16*64M*4pcs)

Park, M92M Use Channel B Memory Interface Only

U22

R418

R418 EV@240/F_4

EV@240/F_4

U22

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

SP@VRAM _DDR3

100-BALL

100-BALL SDRAM DDR3

SDRAM DDR3

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1

VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2 VDDQ#E9 VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9

VSS#T1

VSS#T9

VSSQ#B1 VSSQ#B9

VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8

VSSQ#F9 VSSQ#G1 VSSQ#G9

VMB_DQ32

E3

VMB_DQ37

F7

VMB_DQ35

F2

VMB_DQ36

F8

VMB_DQ33

H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

VMB_DQ38 VMB_DQ34 VMB_DQ39

VMB_DQ63 VMB_DQ59 VMB_DQ60 VMB_DQ56 VMB_DQ62 VMB_DQ57 VMB_DQ61 VMB_DQ58

4

7

+1.5V_GPU

VREFC_VMB4 VREFD_VMB4

VMB_MA0 VMB_MA1 VMB_MA2 VMB_MA3 VMB_MA4 VMB_MA5 VMB_MA6 VMB_MA7 VMB_MA8 VMB_MA9 VMB_MA10 VMB_MA11 VMB_MA12

VMB_BA0 VMB_BA1 VMB_BA2

VMB_CLKP1 VMB_CLKN1 VMB_CKE1

VMB_ODT1 VMB_CS1# VMB_RAS1# VMB_CAS1# VMB_WE1#

VMB_RDQS5 VMB_RDQS6

VMB_DM5 VMB_DM6

VMB_WDQS5 VMB_WDQS6

MEM_RST#

U19

R370

R370 EV@240/F_4

EV@240/F_4

U19

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

SP@VRAM _DDR3

100-BALL

100-BALL SDRAM DDR3

SDRAM DDR3

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7 VDD#K2 VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1 VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2 VDDQ#E9 VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9 VSS#T1 VSS#T9

VSSQ#B1 VSSQ#B9 VSSQ#D1 VSSQ#D8 VSSQ#E2 VSSQ#E8 VSSQ#F9 VSSQ#G1 VSSQ#G9

VMB_DQ20

E3

VMB_DQ18

F7

VMB_DQ16

F2

VMB_DQ21

F8

VMB_DQ19

H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

2

VMB_DQ22 VMB_DQ17 VMB_DQ23

VMB_DQ15 VMB_DQ10

VMB_DQ9

1

VMB_DQ12 VMB_DQ8 VMB_DQ13 VMB_DQ11

+1.5V_GPU

VMB_CLKP1[18] VMB_CLKN1[18]

+1.5V_GPU +1.5V_GPU

VMB_CKE1[18]

VMB_ODT1[18]

VMB_CS1#[18] VMB_RAS1#[18] VMB_CAS1#[18] VMB_WE1#[18]

VREFC_VMB3 VREFD_VMB3

VMB_MA0 VMB_MA1 VMB_MA2 VMB_MA3 VMB_MA4 VMB_MA5 VMB_MA6 VMB_MA7 VMB_MA8 VMB_MA9 VMB_MA10 VMB_MA11 VMB_MA12

VMB_BA0 VMB_BA1 VMB_BA2

VMB_CLKP1 VMB_CLKN1 VMB_CKE1

VMB_ODT1 VMB_CS1# VMB_RAS1# VMB_CAS1# VMB_WE1#

VMB_RDQS4 VMB_RDQS7

VMB_DM7

VMB_WDQS4 VMB_WDQS7

MEM_RST#

VREFC_VMB2 VREFD_VMB2

VMB_MA0

3

0

VMB_MA1 VMB_MA2 VMB_MA3 VMB_MA4 VMB_MA5 VMB_MA6 VMB_MA7 VMB_MA8 VMB_MA9 VMB_MA10 VMB_MA11 VMB_MA12

VMB_BA0 VMB_BA1 VMB_BA2

VMB_CLKP0 VMB_CLKN0 VMB_CKE0

VMB_ODT0 VMB_CS0# VMB_RAS0# VMB_CAS0# VMB_WE0#

VMB_RDQS2 VMB_RDQS1

VMB_DM2 VMB_DM4 VMB_DM1

VMB_WDQS2 VMB_WDQS1

MEM_RST#

VMB_ZQ2 VMB_ZQ3

TOP Down TOP Up

VMB_ZQ4

R56

R56 EV@240/F_4

EV@240/F_4

U5

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

C7

DQSU

E7

DML

D3

DMU

G3

DQSL

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

SP@VRAM _DDR3

BOT Up

100-BALL

100-BALL SDRAM DDR3

SDRAM DDR3

DQL0 DQL1 DQL2 DQL3 DQL4 DQL5 DQL6 DQL7

DQU0 DQU1 DQU2 DQU3 DQU4 DQU5 DQU6 DQU7

VDD#B2 VDD#D9 VDD#G7

VDD#K2

VDD#K8 VDD#N1 VDD#N9 VDD#R1 VDD#R9

VDDQ#A1 VDDQ#A8 VDDQ#C1 VDDQ#C9 VDDQ#D2 VDDQ#E9

VDDQ#F1 VDDQ#H2 VDDQ#H9

VSS#A9 VSS#B3 VSS#E1 VSS#G8

VSS#J2

VSS#J8 VSS#M1 VSS#M9 VSS#P1 VSS#P9 VSS#T1 VSS#T9

VSSQ#B1

VSSQ#B9 VSSQ#D1 VSSQ#D8

VSSQ#E2

VSSQ#E8

VSSQ#F9 VSSQ#G1 VSSQ#G9

VMB_DQ46

E3

VMB_DQ42

F7

VMB_DQ47

F2

VMB_DQ41

F8

VMB_DQ45

H3 H8 G2 H7

D7 C3 C8 C2 A7 A2 B8 A3

B2 D9 G7 K2 K8 N1 N9 R1 R9

A1 A8 C1 C9 D2 E9 F1 H2 H9

A9 B3 E1 G8 J2 J8 M1 M9 P1 P9 T1 T9

B1 B9 D1 D8 E2 E8 F9 G1 G9

VMB_DQ40 VMB_DQ44 VMB_DQ43

VMB_DQ50 VMB_DQ55 VMB_DQ48 VMB_DQ52 VMB_DQ51 VMB_DQ54 VMB_DQ49 VMB_DQ53

6

5

+1.5V_GPU+1.5V_GPU

Group-B0 VREF Group-B1 VREF

B B

R368

R368 EV@4.99K/F_4

EV@4.99K/F_4

VREFC_VMB1 VREFD_VMB1

C547

R363

R363 EV@4.99K/F_4

EV@4.99K/F_4

EV@0.1u/10V_4

MEM_B0 CLK

VMB_CLKP0 VMB_CLKN0

R366

R365

R365 EV@56.2/F_4

EV@56.2/F_4

A A

C545

C545 EV@0.01u/16V_4

EV@0.01u/16V_4

5

R42

R42 EV@4.99K/F_4

EV@4.99K/F_4

R43

R43 EV@4.99K/F_4

EV@4.99K/F_4

C127

C127 EV@0.1u/10V_4

EV@0.1u/10V_4

+1.5V_GPU

C557

C557 EV@1u/6.3V_4

EV@1u/6.3V_4

+1.5V_GPU

C555

C555 EV@1u/6.3V_4

EV@1u/6.3V_4

+1.5V_GPU

C564

C564 EV@10u/6.3V_6

EV@10u/6.3V_6

C565

C565 EV@1u/6.3V_4

EV@1u/6.3V_4

C264

C264 EV@1u/6.3V_4

EV@1u/6.3V_4

C90

C90 EV@10u/6.3V_6

EV@10u/6.3V_6

4

C550

C550 EV@1u/6.3V_4

EV@1u/6.3V_4

C46

C46 EV@1u/6.3V_4

EV@1u/6.3V_4

C551

C551 EV@10u/6.3V_6

EV@10u/6.3V_6

R372

R372 EV@4.99K/F_4

EV@4.99K/F_4

R371

R371 EV@4.99K/F_4

EV@4.99K/F_4

C556

C556 EV@1u/6.3V_4

EV@1u/6.3V_4

C121

C121 EV@1u/6.3V_4

EV@1u/6.3V_4

C552

C552 EV@10u/6.3V_6

EV@10u/6.3V_6

C554

C554 EV@0.1u/10V_4

EV@0.1u/10V_4

C558

C558 EV@1u/6.3V_4

EV@1u/6.3V_4

C566

C566 EV@1u/6.3V_4

EV@1u/6.3V_4

C561

C561 EV@10u/6.3V_6

EV@10u/6.3V_6

C49

C49 EV@1u/6.3V_4

EV@1u/6.3V_4

C125

C125 EV@1u/6.3V_4

EV@1u/6.3V_4

R367

R367 EV@4.99K/F_4

EV@4.99K/F_4

R364

R364 EV@4.99K/F_4

EV@4.99K/F_4

C261

C261 EV@1u/6.3V_4

EV@1u/6.3V_4

C45

C45 EV@1u/6.3V_4

EV@1u/6.3V_4

C549

C549 EV@0.1u/10V_4

EV@0.1u/10V_4

C559

C559 EV@1u/6.3V_4

EV@1u/6.3V_4

C262

C262 EV@1u/6.3V_4

EV@1u/6.3V_4

R107

R107 EV@4.99K/F_4

EV@4.99K/F_4

VREFC_VMB3 VREFD_VMB3

C260

R108

R108 EV@4.99K/F_4

EV@4.99K/F_4

EV@0.1u/10V_4

Group-B1 decoupling CAPGroup-B0 decoupling CAP

+1.5V_GPU

C265

C47

EV@1u/6.3V_4

+1.5V_GPU

C252

C548

C548 EV@1u/6.3V_4

EV@1u/6.3V_4

+1.5V_GPU

C118

C632

C632 EV@10u/6.3V_6

EV@10u/6.3V_6

3

C53

C53 EV@1u/6.3V_4

EV@1u/6.3V_4

C629

C629 EV@1u/6.3V_4

EV@1u/6.3V_4

C219

C219 EV@10u/6.3V_6

EV@10u/6.3V_6

C258

C258 EV@1u/6.3V_4

EV@1u/6.3V_4

C243

C243 EV@1u/6.3V_4

EV@1u/6.3V_4

C574

C574 EV@1u/6.3V_4

EV@1u/6.3V_4

C573

C573 EV@1u/6.3V_4

EV@1u/6.3V_4

C634

C634 EV@10u/6.3V_6

EV@10u/6.3V_6

R377

R377 EV@4.99K/F_4

EV@4.99K/F_4

R376

R376 EV@4.99K/F_4

EV@4.99K/F_4

C124

C124 EV@1u/6.3V_4

EV@1u/6.3V_4

C560

C560 EV@1u/6.3V_4

EV@1u/6.3V_4

C633

C633 EV@10u/6.3V_6

EV@10u/6.3V_6

2

C572

C572 EV@0.1u/10V_4

EV@0.1u/10V_4

C236

C236 EV@1u/6.3V_4

EV@1u/6.3V_4

C233

C233 EV@1u/6.3V_4

EV@1u/6.3V_4

C630

C630 EV@1u/6.3V_4

EV@1u/6.3V_4

C546

C546 EV@1u/6.3V_4

EV@1u/6.3V_4

R80

R80 EV@4.99K/F_4

EV@4.99K/F_4

VREFC_VMB4 VREFD_VMB4VREFC_VMB2 VREFD_VMB2

C207

R79

R79 EV@4.99K/F_4

EV@4.99K/F_4

EV@0.1u/10V_4

MEM_B1 CLK

Size Document Number Rev

Date: Sheet of

+1.5V_GPU+1.5V_GPU+1.5V_GPU+1.5V_GPU+1.5V_GPU+1.5V_GPU+1.5V_GPU+1.5V_GPU

R106

R106 EV@4.99K/F_4

EV@4.99K/F_4

R104

C259

EV@4.99K/F_4

EV@0.1u/10V_4

VMB_CLKP1 VMB_CLKN1

R415

R416

EV@56.2/F_4

C637

C637 EV@0.01u/16V_4

EV@0.01u/16V_4

Quanta Computer Inc.

PROJECT :

MEMORY 2 channel B

ZRB

1

1A

23 46Wednesday, July 21, 2010

1A

1

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

CRT Switch

A A

IV@

INT_CRT_DDCDAT[8] INT_CRT_DDCCLK[8]

2

3

0_ohm Resistor place close to Joint-Point

INT_CRT_RED[8] INT_CRT_GRN[8] INT_CRT_BLU[8]

INT_VSYNC[8] INT_HSYNC[8]

INT_CRT_RED INT_CRT_GRN INT_CRT_BLU

R81 IV@0_4R81 IV@0_4 R69 IV@0_4R69 IV@0_4

RN1 IV@0_4P2RRN1 IV@0_4P2R

1 2

RN3 IV@0_4P2RRN3 IV@0_4P2R

1 2

VGA_RED VGA_GRN VGA_BLU

43

CRTDDATAINT_CRT_DDCDAT

CRTDCLKINT_CRT_DDCCLK

43

4

CRT

VGA_RED CRT_11

VGA_BLU

R139

VSYNCINT_VSYNC HSYNCINT_HSYNC

R139 150/F_4

150/F_4

R130

R130 150/F_4

150/F_4

5

R124

R124 150/F_4

150/F_4

+5V

C304

C304 10p/50V_4

10p/50V_4

6

F2

SMD1206P110TFT

L25 BLM18BA750SN1D/0.3A/75ohm_6L25 BLM18BA750SN1D/0.3A/75ohm_6 L24 BLM18BA750SN1D/0.3A/75ohm_6L24 BLM18BA750SN1D/0.3A/75ohm_6 L23 BLM18BA750SN1D/0.3A/75ohm_6L23 BLM18BA750SN1D/0.3A/75ohm_6R73 IV@0_4R73 IV@0_4

C294

C294 10p/50V_4

10p/50V_4

12

C287

C287 10p/50V_4

10p/50V_4

D15 SSM22LLPTD15 SSM22LLPT

C666

C666 10p/50V_4

10p/50V_4

C277 0.1u/10V_4C277 0.1u/10V_4

CRTVDD5

CRT_R1 CRT_G1 CRT_B1 CRTHSYNC

C677

C689

10p/50V_4

C689 10p/50V_4

10p/50V_4

10

7

1617

CN8

CN8 CRT-CONN

CRT-CONN

6

111

7

12

2 8

13

3 9

14

4

15

5

DDCDAT_1VGA_GRN

CRTVSYNC DDCCLK_1

T24T24

8

EV_CRT_BLU[17] EV_CRT_GRN[17] EV_CRT_RED[17]

EV@

B B

EV_HSYNC[17,21] EV_VSYNC[17,21]

EV_CRTDCLK[17] EV_CRTDDAT[17]

EV_CRT_BLU EV_CRT_GRN EV_CRT_RED

EV_HSYNC EV_VSYNC

EV_CRTDCLK EV_CRTDDAT

R383 EV@0_4R383 EV@0_4 R388 EV@0_4R388 EV@0_4 R384 EV@0_4R384 EV@0_4

RN9 EV@0_4P2RRN9 EV@0_4P2R

1 2

RN11 EV@0_4P2RRN11 EV@0_4P2R

1 2

LVDS

0_ohm Resistor place close to Joint-Point

RN15 IV@0_4P2RRN15 IV@0_4P2R

INT_LVDS_EDIDCLK[8]

INT_LVDS_EDIDDATA[8]

INT_LVDS_DIGON[8] INT_LVDS_BLON[8]

IV@

EV@

C C

LVDS_BRIGHT

CCD-USB

INT_TXLCLKOUT+[8] INT_TXLCLKOUT-[8]

INT_TXLOUT0+[8] INT_TXLOUT0-[8] INT_TXLOUT1+[8] INT_TXLOUT1-[8] INT_TXLOUT2+[8] INT_TXLOUT2-[8]

EV_LVDS_DDCCLK[17] EV_LVDS_DDCDAT[17]

EV_LVDS_VDDEN[17]

EV_LVDS_BLON[17]

EV_TXLCLKOUT-[17] EV_TXLCLKOUT+[17]

EV_TXLOUT0-[17] EV_TXLOUT0+[17] EV_TXLOUT1-[17] EV_TXLOUT1+[17] EV_TXLOUT2-[17] EV_TXLOUT2+[17]

EV_LVDS_BRIGHT[17] INT_LVDS_BRIGHT[8]

USBP8+[10]

USBP8-[10]

CONTRAST[36]

INT_LVDS_DIGON INT_LVDS_BLON

INT_TXLCLKOUT+ INT_TXLCLKOUTINT_TXLOUT0+ INT_TXLOUT0INT_TXLOUT1+ INT_TXLOUT1INT_TXLOUT2+ INT_TXLOUT2-

EV_LVDS_VDDEN EV_LVDS_BLON

EV_TXLCLKOUTEV_TXLCLKOUT+ EV_TXLOUT0EV_TXLOUT0+ EV_TXLOUT1EV_TXLOUT1+ EV_TXLOUT2EV_TXLOUT2+

R12 EV@0_4R12 EV@0_4 R14 *0_4R14 *0_4 R15 IV@0_4R15 IV@0_4

R2 *0_4R2 *0_4

L1

2

3

RFCMF1632100M3T/200mA/90ohm

R3 *0_4R3 *0_4

43

1 2

RN8 IV@0_4P2RRN8 IV@0_4P2R

1 2

43

RN12 IV@0_4P2RRN12 IV@0_4P2R

1 2

43

RN13 IV@0_4P2RRN13 IV@0_4P2R

1 2

43

RN14 IV@0_4P2RRN14 IV@0_4P2R

1 2

43

RN10 IV@0_4P2RRN10 IV@0_4P2R

1 2

43

RN7 EV@0_4P2RRN7 EV@0_4P2R

1 2

43

RN16 EV@0_4P2RRN16 EV@0_4P2R

1 2

43

RN6 EV@0_4P2RRN6 EV@0_4P2R

1 2

43

RN5 EV@0_4P2RRN5 EV@0_4P2R

1 2

43

RN4 EV@0_4P2RRN4 EV@0_4P2R

1 2

43

RN2 EV@0_4P2RRN2 EV@0_4P2R

1 2

43

LVDS_BRIGHT

USBP8+_R

1

USBP8-_R

443

CCD +3V-current budget 0.2A

D D

1

2

LCD_EDIDCLKINT_LVDS_EDIDCLK LCD_EDIDDATAINT_LVDS_EDIDDATA

LVDS_VDDEN LVDS_BLON

TXLCLKOUT+ TXLCLKOUTTXLOUT0+ TXLOUT0TXLOUT1+ TXLOUT1TXLOUT2+ TXLOUT2-

LCD_EDIDCLKEV_LVDS_DDCCLK LCD_EDIDDATAEV_LVDS_DDCDAT

LVDS_VDDEN LVDS_BLON

TXLCLKOUTTXLCLKOUT+ TXLOUT0TXLOUT0+ TXLOUT1TXLOUT1+ TXLOUT2TXLOUT2+

VGA_BLU VGA_GRN VGA_RED

HSYNC

43

VSYNC

CRTDCLK

CRTDDATA

LVDS

C8

0.1u/10V_4_X7R

VIN

+3V

0.8A

R5 *Short_8R5 *Short_8 R10 *Short_8R10 *Short_8

LVDS_BRIGHT BL_ON

R13 10K_4R13 10K_4 R7 2.2K_4R7 2.2K_4 R8 2.2K_4R8 2.2K_4

C11

*1u/6.3V_4

LCDVCC

+3V

R9 *Short_6R9 *Short_6

REV : B Change to short pad

LCD_DETECT H --> CCFL L --> LED

REV : B Change to short pad

R6 *Short_6R6 *Short_6

C12

*1u/6.3V_4

C14

*1u/6.3V_4

LCD_DETECT[11]

C13

*1u/6.3V_4

+3V

C291

0.1u/10V_4_X7R

+3V

C7

1000p/50V_4

C661 .22u/25V_6C661 .22u/25V_6

C299

0.1u/10V_4_X7R

VIN+3V

C3

4.7u/25V_8C34.7u/25V_8

REV : B Change to short pad

INVCC0

+3V

LCD_DETECT_C LCD_EDIDCLK LCD_EDIDDATA

TXLOUT0TXLOUT0+

TXLOUT1TXLOUT1+

TXLOUT2TXLOUT2+

TXLCLKOUTTXLCLKOUT+

USBP8-_R USBP8+_R

CCD_PWR

R11 BLM15AG121SS1/0.5A/120ohm_4R11 BLM15AG121SS1/0.5A/120ohm_4

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

CRTVDD5

CRT_BYP

CRT_R1 CRT_G1 CRT_B1

C2

C2 1000p/50V_4

1000p/50V_4

CN5

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

LVDS

U25

1

VCC_SYNC

SYNC_OUT2 SYNC_OUT1

7

VCC_DDC

8

BYP VCC_VIDEO

VIDEO_1 VIDEO_2 VIDEO_3

GND

CM2009-02QR

SYNC_IN2 SYNC_IN1

DDC_IN1 DDC_IN2

DDC_OUT1 DDC_OUT2

2

3 4 5

6

LCD Power

LVDS_VDDEN

Backlight Control

34

31

Lid Switch (Hall sensor)

+3VPCU

0.1u/10V_4C503 0.1u/10V_4C503

1

2

HE1

HE1 PT3661-BB

PT3661-BB

PT3661-BB : AL003661003 EM-6781-T3 : AL006781000

3

4

21

D12

D12 *VPORT_6

*VPORT_6

LID591#

5

LVDS_BLON

REV : C Change to 0402 R REV : B Change to short pad

CRT_VSYNC2

16

CRT_HSYNC2

14

VSYNC

15

HSYNC

13

CRTDCLK

10

CRTDDATA

11

DDCCLK_1

9

DDCDAT_1

12

+3V

C1

1U/6.3V_4C11U/6.3V_4

R4

100K_4R4100K_4

6

R447 SP@10/F_4R447 SP@10/F_4

R451 2.7K_4R451 2.7K_4 R455 2.7K_4R455 2.7K_4

U1

6

IN

4

IN

3

ON/OFF

AAT4280-4U1AAT4280-4

2

Q5

R437

2N7002KQ52N7002K

100K_4

CRTVSYNC CRTHSYNC

CRTVDD5

+3V

1

OUT

2

GND

5

GND

+3V

R430

R430 10K_4

10K_4

3

BL#

2

3

Q4 2N7002KQ42N7002K

1

R460

R445

2.7K_4

C6 *.1u/10V_4C6*.1u/10V_4

R438

R438 10K_4

10K_4

Q8

Q8 DTC144EUA

DTC144EUA

1 3

Size Document Number Rev

Date: Sheet of

7

C698 *.1u/10V_4C698 *.1u/10V_4R448 SP@10/F_4R448 SP@10/F_4 C647 IV@15p/50V_4C647 IV@15p/50V_4 C646 IV@15p/50V_4C646 IV@15p/50V_4 C660 10p/50V_4C660 10p/50V_4 C676 10p/50V_4C676 10p/50V_4

C9

C5

0.1u/10V_4C90.1u/10V_4

*2.2u/10V_8C5*2.2u/10V_8

+3VPCU

R440

R440 *100K_4

*100K_4

LID591#,EC intrnal PU

D16

D16 BAS316

BAS316

2 1

BL_ON

2

Quanta Computer Inc.

PROJECT :

CRT/LVDS/CAMERA/LID

C10

C10 .01u/25V_4

.01u/25V_4

LID591# [36]

EC_FPBACK# [36]

ZRB

8

CRTVDD5 CRTVSYNC CRTHSYNC DDCCLK_1 DDCDAT_1

LCDVCC

C4

24 46Friday, July 23, 2010

22u/6.3V_8C422u/6.3V_8

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

HDMI LEVEL SHIFTER

+3V

C319

C319 IV@2.2u/6.3V_6

D D

IV@2.2u/6.3V_6

+3V

C312

C312 IV@.1u/10V_4

IV@.1u/10V_4

C700

C700 IV@.1u/10V_4

IV@.1u/10V_4

close to pin2/11/15/21/26/33/40/46

C303

C303 *.1u/10V_4

*.1u/10V_4

IV@

+3V

R548 *4.7K_4R548 *4.7K_4 R549 *4.7K_4R549 *4.7K_4

C C

R550 IV@4.7K_4R550 IV@4.7K_4 R486 *4.7K_4R486 *4.7K_4

R178 IV@4.7K_4R178 IV@4.7K_4 R485 *4.7K_4R485 *4.7K_4

R179 *4.7K_4R179 *4.7K_4

Equalization Control

PC0

PC1

EQ Control

PIN4

PIN3

LL

H

L HL

H

PC0 internal PD PC1 internal PD DDCBUF_EN internal PD

8dB

CFG internal PD

4dB

DDC_EN internal PU

12dB 0dB

PC0

PC1 DDCBUF_EN

CFG

C323

C323 IV@.1u/10V_4

IV@.1u/10V_4

C324

C324 IV@.1u/10V_4

IV@.1u/10V_4

C699

C699 IV@.1u/10V_4

IV@.1u/10V_4

from PCH

Control by pin4 HPDEN_R

HDMI_DDCDATA_SW[8,17] HDMI_DDCCLK_SW[8,17]

INT_HDMITX0N[8] INT_HDMITX0P[8]

INT_HDMITX2N[8] INT_HDMITX2P[8]

INT_HDMITX1P[8] INT_HDMITX1N[8]

INT_HDMICLK+[8] INT_HDMICLK-[8]

4

R180 IV@4.7K_4R180 IV@4.7K_4

+3V

HDMI_HP[8,17]

Active Buffer

U7

37 38 39 40 41 42 43 44 45 46 47 48 49

R138 IV@3.9K/F_4R138 IV@3.9K/F_4

DDCBUF_EN CFG

36

35

GND

GND IN_D1IN_D1+ VCC IN_D2IN_D2+ GND IN_D3IN_D3+ VCC IN_D4IN_D4+ GND

GND1VCC2TRIM3HPDEN4GND5REXT6HPD_S7SDA_S8SCL_S9NC10VCC11GND

+3V

PC0 PC1

+3V

CCT134CCT2

+3V

29

27

31

25

26

28

33

32

30

OE#

VCC

GND

DDC_EN

SCL_SINK

SDA_SINK

HPD_SINK

OUT_D1-

OUT_D1+

OUT_D2-

OUT_D2+

OUT_D3-

OUT_D3+

OUT_D4-

OUT_D4+

12

+3V

LS_REXT

3

HDMI_MB_HP HDMI_DDCDATA_MB HDMI_DDCCLK_MB HDMI_HPD_EC#

24

GND

23 22 21

VCC

GND

VCC

IV@SN75DP139RGZR

+3V

20 19 18 17 16 15

+3V

14 13

MB_HDMITX0N MB_HDMITX0P

MB_HDMITX2N MB_HDMITX2P

MB_HDMITX1P MB_HDMITX1N

MB_HDMICLK+ MB_HDMICLK-

HDMI-detect

EV@

I2C

EV@

HDMI_DDCCLK_SW

HDMI_DDCDATA_SW

2

HDMI_HPD_EC#

HDMI_MB_HP

+3V

R186

2.2K_4

+3V

R187

2.2K_4

+5V

R274

R274 *10K_4

*10K_4

U13 : LV

HDMI_PASSHDMI_PASS

Q14

2

EV@BSN20

1

R176 *0_4R176 *0_4

Q13

2

EV@BSN20

1

R177 *0_4R177 *0_4

3

2

+3V

R271

R271 10K_4

10K_4

3

Q17

Q17 2N7002E

2N7002E

1

+5V

21

HDMI_DDCCLK_MB

+5V

21

R488

1.5K_4

HDMI_DDCDATA_MB

1

U13 : LV

+3V

R270

R270 EV@10K_4

EV@10K_4

HDMI_HP

3

2

Q18

Q18 EV@2N7002E

EV@2N7002E

1

D19

REV: B add Q25 for HDMI detect switch

RB501V-40

R489

1.5K_4

HDMI_MB_HP

D18

D18 RB501V-40

RB501V-40

REV : B Change P/N for ESD

+3V

3

Q25

2

*FDV301N

1

HDMI_PASS

R189

EV@0_4

Switchable Graphic HDMI source

B B

U13 : LV

R479

R479 EV@499/F_4

EV@499/F_4

MB_HDMITX0N MB_HDMITX0P

MB_HDMITX2N MB_HDMITX2P

MB_HDMITX1P MB_HDMITX1N

MB_HDMICLK+ MB_HDMICLK-

R482

R482 EV@499/F_4

EV@499/F_4

3

INT_HDMITX0N INT_HDMITX0P

INT_HDMITX2N INT_HDMITX2P

INT_HDMITX1P INT_HDMITX1N

INT_HDMICLK+ INT_HDMICLK-

EV@

HDMITX0N[17] HDMITX0P[17]

HDMITX2N[17] HDMITX2P[17]

HDMITX1P[17] HDMITX1N[17]

HDMICLK+[17] HDMICLK-[17]

C657 EV@0.1u/10V_4C657 EV@0.1u/10V_4 C654 EV@0.1u/10V_4C654 EV@0.1u/10V_4

C643 EV@0.1u/10V_4C643 EV@0.1u/10V_4 C641 EV@0.1u/10V_4C641 EV@0.1u/10V_4

C640 EV@0.1u/10V_4C640 EV@0.1u/10V_4 C639 EV@0.1u/10V_4C639 EV@0.1u/10V_4

C636 EV@0.1u/10V_4C636 EV@0.1u/10V_4 C628 EV@0.1u/10V_4C628 EV@0.1u/10V_4

AC-coupling CAP place close to HDMI-connector

A A

5

RN20 EV@0_4P2RRN20 EV@0_4P2R

43

1 2

RN19 EV@0_4P2RRN19 EV@0_4P2R

43

1 2

RN18 EV@0_4P2RRN18 EV@0_4P2R

43

1 2

RN17 EV@0_4P2RRN17 EV@0_4P2R

43

1 2

2

+5V

R454

R454 *1M_4

*1M_4

4

R469

R469 EV@499/F_4

EV@499/F_4

3

Q12

EV@2N7002E

1

R472

R471

R471 EV@499/F_4

EV@499/F_4

R474

R474 EV@499/F_4

EV@499/F_4

REV : B Change P/N for ESD

R475

R475 EV@499/F_4

EV@499/F_4

R477

R477 EV@499/F_4

EV@499/F_4

EMI

R476 *100/F_4R476 *100/F_4

R473 *100/F_4R473 *100/F_4

R481 *100/F_4R481 *100/F_4R472

R470 *100/F_4R470 *100/F_4

REV : C Location :D20 Change Footprint & P/N

MB_HDMITX2P

MB_HDMITX2N MB_HDMITX1P

MB_HDMITX1N MB_HDMITX0P

MB_HDMITX0N MB_HDMICLK+

MB_HDMICLK-

+5V

F1 SMD1206P110TFTF1 SMD1206P110TFT

REV C: Change D20 footprint for HDMI

SUY

LTS

2

12

HDMI_MB_HP

DFHD19MR053

DFHD19MR085

MB_HDMITX2P MB_HDMITX2N

MB_HDMITX1P MB_HDMITX1N

MB_HDMITX0P MB_HDMITX0N

MB_HDMICLK+ MB_HDMICLK-

HDMI_DDCCLK_MB HDMI_DDCDATA_MB

D20 RSX101M-30D20 RSX101M-30

2 1

R263 *Short_4R263 *Short_4

R545

R545 100K_4

100K_4

REV : B Change to short pad and add C480

Size Document Number Rev

Date: Sheet of

HDMI connector

CN10

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0-

10

CK+

11

CK Shield

12

CK-

13

CE Remote

14

NC

15

DDC CLK

16

DDC DATA

17

GND

18

+5V

19

HP DET

HDMI

C480

C480 *.1u/10V_4

*.1u/10V_4

Quanta Computer Inc.

PROJECT :

HDMI (PS8101)

HDMI

1

SHELL1

SHELL2

ZRB

GND GND

20

23 22

21

25 46Friday, July 23, 2010

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

Giga-LAN BCM57780

4

3

2

1

U10

15mil

+3V_S5

D D

VAUX_12

AVDDL

C769

0.1u/10V_4

L49

BLM18AG601SN1_6

L50

BLM18AG601SN1_6

L51

BLM18AG601SN1_6

15mil

4.7U/6.3V_6C722 4.7U/6.3V_6C722

0.1u/10V_4C724 0.1u/10V_4C724

VAUX_12

10U/6.3V_6C715 10U/6.3V_6C715

0.1u/10V_4C718 0.1u/10V_4C718

GPHY_PLLVDD

4.7U/6.3V_6C400 4.7U/6.3V_6C400

0.1u/10V_4C396 0.1u/10V_4C396

PCIE_PLLVDD

AVDDL

42

VDDO

6

VDDC

15

VDDC

41

VDDC

27

AVDDL

33

AVDDL

39

AVDDL

24

GPHY_PLLVDDL

18

PCIE_PLLVDDL

21

PCIE_PLLVDDL

BCM57780

7mm X 7mm

7mm X 7mm 48-Pin QFN

48-Pin QFN

BIASVDDH

XTALVDDH

AVDDH AVDDH

TRD3_N TRD3_P

TRD2_N TRD2_P

TRD1_N TRD1_P

TRD0_N TRD0_P

BIASVDD

25

XTALVDD

14

AVDDH

30 36

37 38

35 34

31 32

29 28

L27 BLM18AG601SN1_6L27 BLM18AG601SN1_6

0.1u/10V_4C389 0.1u/10V_4C389 L52 BLM18AG601SN1_6L52 BLM18AG601SN1_6

0.1u/10V_4C728 0.1u/10V_4C728

L48 BLM18AG601SN1_6L48 BLM18AG601SN1_6

0.1u/10V_4C717 0.1u/10V_4C717

0.1u/10V_4C716 0.1u/10V_4C716 *10U/6.3V_6C766 *10U/6.3V_6C766

LAN_TRD3N [27] LAN_TRD3P [27]

LAN_TRD2N [27] LAN_TRD2P [27]

LAN_TRD1N [27] LAN_TRD1P [27]

LAN_TRD0N [27] LAN_TRD0P [27]

+3V_S5

Rev C: Add for LAN, near C720

BCM_EEC BCM_EED

LAN_LINKLED#

LAN_ACTLED#

C730

4.7U/6.3V_6

C729

0.1u/10V_4

L30 4.7uhL30 4.7uh

+3V_S5

LAN_LINKLED# [27]

LAN_ACTLED# [27]

VAUX_12

C426

C430

0.1u/10V_4

10u/6.3V_6

Don't route under Choke.

48

LINKLED#

MODE

EECLK

EEDATA

SR_LX

SR_VFB

SR_VDDP

SR_VDD

47 46 45

5

44 43

11 8

10 9

7

NC

SPD100LED#

SPD1000LED#

PCIE_RXP1_LAN_R PCIE_RXN1_LAN_R

R282 *4.7K_4R282 *4.7K_4

BCM_CLKREQ#

VMA_PRES LOW_PWR

XTALO XTALI

RDAC

17

PCIE_TXDP

16

PCIE_TXDN

22

PCIE_RXDP

23

PCIE_RXDN

4

WAKE#

2

PERST#

20

PCIE_REFCLK_P

19

PCIE_REFCLK_N

40

VMAIN_PRSNT

1

LOW_PWR

13

XTALO

12

XTALI

26

RDAC

3

CLK_REQ#

BCM57780

GND

49

PCIE_TX1+[10] PCIE_TX1-[10]

PLTRST#[4,10,11,28,32,36]

+3V

C413 0.1u/10V_4C413 0.1u/10V_4 C419 0.1u/10V_4C419 0.1u/10V_4

R266 1K/F_4R266 1K/F_4 R281 4.7K_4R281 4.7K_4

R277 200/F_4R277 200/F_4

R245 1.24K/F_4R245 1.24K/F_4

+3V_S5

R283 *Short_4R283 *Short_4

PCIE_RX1+[10] PCIE_RX1-[10]

C C

33p_4C428 33p_4C428

1.2H

33p_4C427 33p_4C427

CLK_PCIE_LAN_REQ#[10]

PCIE_WAKE#[8,28]

CLK_PCIE_LOM[10] CLK_PCIE_LOM#[10]

12

Y2 25MHzY225MHz

REV : B Change to short pad

TRAFFICLED#

B B

LAN POWER

+3V_S5

4.7U/6.3V_6C726 4.7U/6.3V_6C726

0.1u/10V_4C410 0.1u/10V_4C410

A A

VAUX_12

20mil

4.7U/6.3V_6C723 4.7U/6.3V_6C723

0.1u/10V_4C725 0.1u/10V_4C725

0.1u/10V_4C720 0.1u/10V_4C720

0.1u/10V_4C407 0.1u/10V_4C407

EEPROM

BCM_EED BCM_EEC

+3V_S5

R275

R275 1K_4

1K_4

R278

R278 *1K_4

*1K_4

R285

R285 *1K_4

*1K_4

R280

R280 1K_4

1K_4

5 6

7 4

U30

SDA SCL

WP GND

*24LC02

VCC

1

A0

2

A1

3

A2

8

+3V_S5

C431

C431 *0.1u/10V_4

*0.1u/10V_4

EEPROM Strapping

EEPROM Type

24LC02

Internal

5

4

EECLK EEDATA

11

10

3

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet of

2

Date: Sheet of

PROJECT :

GLAN BCM57780

ZRB

1A

26 46Friday, July 23, 2010

1

26 46Friday, July 23, 2010

1A

1

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

TRANSFORMER

2

3

4

5

6

7

8

DFTJ12FR109SUY

X-TX0P

X-TX0N X-TX1P

X-TX2P

X-TX2N X-TX1N

X-TX3P

X-TX3N

DFTJ12FR135AEC

CN9

9

YELLOW_N

10

1 2 3 4 5 6 7 8

11 12

YELLOW_P

0+ 01+ 2+ 213+ 3-

GREEN_N GREEN_P

RJ45

GND2 GND1

R227 *0_6R227 *0_6

14

R183 *0_6R183 *0_6

13

U27

A A

LAN_TRD0P[26]

C351

0.1u/10V_4

C365

0.1u/10V_4

C357

0.1u/10V_4

C374

0.1u/10V_4

LAN_TRD0N[26]

LAN_TRD1P[26]

LAN_TRD1N[26]

LAN_TRD2P[26]

LAN_TRD2N[26]

LAN_TRD3P[26]

LAN_TRD3N[26]

Delta LFE9276D-R (DB0ZY8LAN00)

B B

LAN_TRD0P LAN_TRD0N LAN_TRD1P LAN_TRD1N LAN_TRD2P LAN_TRD2N LAN_TRD3P LAN_TRD3N

*.1u/16V_4EC2 *.1u/16V_4EC2 *.1u/16V_4EC3 *.1u/16V_4EC3 *.1u/16V_4EC5 *.1u/16V_4EC5 *.1u/16V_4EC4 *.1u/16V_4EC4 *.1u/16V_4EC6 *.1u/16V_4EC6 *.1u/16V_4EC7 *.1u/16V_4EC7 *.1u/16V_4EC10 *.1u/16V_4EC10 *.1u/16V_4EC9 *.1u/16V_4EC9

U27

1

TCT1

2

TD1+

3

TD1-

4

TCT2

5

TD2+

6

TD2-

7

TCT3

8

TD3+

9

TD3-

10

TCT4

11

TD4+

12

TD4-

TRANSFORMER

MCT1 MX1+

MX1-

MCT2 MX2+

MX2-

MCT3 MX3+

MX3-

MCT4 MX4+

MX4-

24 23 22

21 20 19

18 17 16

15 14 13

R198

R198 75/F_8

75/F_8

R205

R205 75/F_8

75/F_8

R210

R210 75/F_8

75/F_8

C713

C713 1500p/3KV_18

1500p/3KV_18

X-TX0P X-TX0N

X-TX1P X-TX1N

X-TX2P X-TX2N

X-TX3P X-TX3N

R221

R221 75/F_8

75/F_8

LAN_ACTLED#[26]

+3V_S5

LAN_LINKLED#[26]

+3V_S5

C339

C339 *.1u/16V_4

*.1u/16V_4

R192 220_8R192 220_8

R228 220_8R228 220_8

LAN_ACTLED# LAN_LINKLED#

C391

C391 *.1u/16V_4

*.1u/16V_4

LAN_ACTLED# LAN_ACT_LED_PWR

LAN_LINKLED# LAN_LNK_LED_PWR

REV : B Change to 0402 for ESD

C C

D D

Quanta Computer Inc.

Size Document Number Rev

Date: Sheet

1

2

3

4

5

Date: Sheet

6

PROJECT :

LAN Transformer and RJ45

7

ZRB

1A

of

27 46Thursday, July 22, 2010

of

27 46Thursday, July 22, 2010

of

27 46Thursday, July 22, 2010

8

1

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

2

3

4

5

6

7

8

MINI-CARD WLAN(MPC)

+3.3V: 1000mA +3.3Vaux:330mA +1.5V:500mA

A A

DFHS52FR028PTI

DFHS52FR038LTS

PCIE_WAKE#[8,26]

B B

PCI_RST#[10]

CLK_LPC_DEBUG[10]

CLK_PCH_SRC2[10] CLK_PCH_SRC2#[10]

PCIE_CLK_REQ2#[10]

Debug

CL_RST1#[10] CL_DATA1[10]

CL_CLK1[10]

PCIE_TX6+[10] PCIE_TX6-[10]

PCIE_RX6+[10] PCIE_RX6-[10]

+WL_VDD

2

REV : B Unstuff

+WL_VDD

PCIE_WAKE#_R

CL_DATA1_WLAN CL_CLK1_WLAN

CL_RST1#_WLAN CL_DATA1_WLAN CL_CLK1_WLAN

51 49 47 45 43 41 39 37 35 33 31 29 27 25 23 21 19 17

15 13 11

9 7 5 3 1

CN13

Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved GND PETp0 PETn0 GND GND PERp0 PERn0 GND UIM_C4 UIM_C8

GND REFCLK+ REFCLKGND CLKREQ# Reserved Reserved WAKE#

H=7.0mm

LTS_AAA-PCI-046-K01

53

+3.3V

GND

+1.5V

LED_WPAN#

LED_WLAN#

LED_WWAN#

GND

USB_D+

USB_D-

GND

SMB_DATA

SMB_CLK

+1.5V

GND

+3.3Vaux

PERST#

W_DISABLE#

GND

UIM_VPP UIM_RST UIM_CLK

UIM_DATA

UIM_PWR

+1.5V

GND

+3.3V

GND54GND

52 50 48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18

16 14 12 10 8 6 4 2

+WL_VDD +1.5V

RF_LED#

+1.5V +WL_VDD

A_LFRAME#_R A_LAD3_R A_LAD2_R A_LAD1_R A_LAD0_R

+1.5V +WL_VDD

PLTRST#

R284 0_4R284 0_4 R279 0_4R279 0_4 C742

R273 0_4R273 0_4 R272 0_4R272 0_4

REV B: Unstuff REV C: stuff for SMT debug

RF_LED# [33]

USBP13+ [10] USBP13- [10]

CLK_SDATA [3,14,15] CLK_SCLK [3,14,15]

PLTRST# [4,10,11,26,32,36] RF_EN [36]

LPC_LFRAME# [9,36] LPC_LAD3 [9,36] LPC_LAD2 [9,36] LPC_LAD1 [9,36] LPC_LAD0 [9,36]

REV : B Change to short pad

Debug

R566 *0_4R566 *0_4 R294 *0_4R294 *0_4

R567 *0_4R567 *0_4 C466 R565 *0_4R565 *0_4 R295 *0_4R295 *0_4

Q3

Q3 *DTC144EUA

*DTC144EUA

13

+3V

R291 *Short_8R291 *Short_8

C466 10u/6.3V_8

10u/6.3V_8

+1.5V

+WL_VDD

C742 *1000p/50V_4

*1000p/50V_4R276 0_4R276 0_4

C469

0.1u/10V_4

C727

C727 *0.1u/10V_4

*0.1u/10V_4

C743

C743 *0.1u/10V_4

*0.1u/10V_4

C736

C736 *10u/6.3V_8

*10u/6.3V_8

+WL_VDD

C444

C444 *0.1u/10V_4

*0.1u/10V_4

C C

D D

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet of

1

2

3

4

5

6

Date: Sheet

7

PROJECT :

MINI PCI-E card/TV

ZRB

8

1A

of

28 46Friday, July 23, 2010

1

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

2

3

4

MAIN SATA HDD

CN11

23

A A

B B

SATA-HDD(C166S4-12205-L)

GND23

GND1

RXP

RXN

GND2

TXN

TXP

GND3

3.3V

3.3V GND GND GND

GND

RSVD

GND

12V 12V 12V

GND24

1 2 3 4 5 6 7

8 9 10 11 12 13 14

5V

15

5V

16

5V

17 18 19 20 21 22

24

REV : B Change footprint

SATA_TXP0_C SATA_TXN0_C

SATA_RXN0 SATA_RXP0

C473 .01u/25V_4C473 .01u/25V_4 C471 .01u/25V_4C471 .01u/25V_4

C463 .01u/25V_4C463 .01u/25V_4 C461 .01u/25V_4C461 .01u/25V_4

C399

C399 .01u/25V_4

.01u/25V_4

SATA_TXP0 [9] SATA_TXN0 [9]

SATA_RXN0_C [9] SATA_RXP0_C [9]

C409

C403

C403 .01u/25V_4

.01u/25V_4

C406

C406 *.1u/16V_4

*.1u/16V_4

C409 *.1u/16V_4

*.1u/16V_4

REV: B change P/N for EOD

+5V_HDD

REV : B Change to short pad

R544 *Short_8R544 *Short_8

C393

C393 10u/6.3V_6

10u/6.3V_6

C719

+

*100u/6.3V_3528

+5V

EE RETURN-PATH CAPACITORS

+VGPU_CORE

C74

C68

C68 EV@.1u/10V_4

EV@.1u/10V_4

C74 EV@.1u/10V_4

EV@.1u/10V_4

VIN

C93

C93 EV@.1u/10V_4

EV@.1u/10V_4

4.7u/25V_8

4.7u/25V_8 C245

C245

C135

C135 EV@.1u/10V_4

EV@.1u/10V_4

0.1u/25V_4

0.1u/25V_4 C237

C237

C117

C117 EV@.1u/10V_4

EV@.1u/10V_4

C107

C107 EV@.1u/10V_4

EV@.1u/10V_4

ODD (SATA)

CN7

C C

SATA_ODD_H=7.7

D D

GND14

GND

DP

MD GND GND

GND15

14 1

2

A+

3

A-

4 5

B-

6

B+

7

8 9

5V

10

5V

11 12 13

15

SATA_TXP1_C SATA_TXN1_C

SATA_RXN1 SATA_RXP1

SATA_DP

C302 .01u/25V_4C302 .01u/25V_4 C300 .01u/25V_4C300 .01u/25V_4

C293 .01u/25V_4C293 .01u/25V_4 C292 .01u/25V_4C292 .01u/25V_4

R114 *1K_4R114 *1K_4

C267

C267 .01u/25V_4

.01u/25V_4

C256

C256 .01u/25V_4

.01u/25V_4

SATA_TXP1 [9] SATA_TXN1 [9]

SATA_RXN1_C [9] SATA_RXP1_C [9]

C255

C255 *.1u/16V_4

*.1u/16V_4

+5V_ODD

C268

C268 *.1u/16V_4

*.1u/16V_4

REV : B Change to short pad

R436 *Short_8R436 *Short_8

+

C254

C254 10u/6.3V_6

10u/6.3V_6

+

C626

C626 *100u/6.3V_3528

*100u/6.3V_3528

+5V

AOP

AEC

REV: B change P/N for EOD

DFHS13FR011AOP

DFHS13FR010OTK

Size Document Number Rev

Date: Sheet

1

2

3

Date: Sheet

DFHS22FR214SUY

DFHS22FR232

DFHS22FR216

Quanta Computer Inc.

PROJECT :

SATA-HDD/ODD/RETURN-PATH

ZRB

29 46Wednesday, July 21, 2010

4

29 46Wednesday, July 21, 2010

1A

of

Codec(ADO)

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

5

HP

HP-R[31] HP-L[31]

HPOUT_JD[31]

R301 5.1K/F_4R301 5.1K/F_4

SENSEB

4

3

2

1

MUTE(AMP)

REV : B Change AMP circuit

ADOGND

28

25

26

27

VREF

AVSS1

AVDD1

MIC1-VREFO

LINE2-VREFO

MIC2-VREFO

LINE1-VREFO

12

C441 *22p/50V_4C441 *22p/50V_4

MIC1-VREFO [31]

Place next to pin 27

C485

0.1u/10V_4

24

LINE1-R

23

LINE1-L

22

MIC1-R

21

MIC1-L

20 19 18 17

MIC2-R

LINE2-R

LINE2-L Sense A

MIC2-L

MIC2_INT_L

16 15 14 13

ANALOG

DIGITAL

1.6Vrms

C460 1u/10V_6C460 1u/10V_6

R557 22_4R557 22_4

C488

C488 10u/6.3V_6

10u/6.3V_6

Place next to pin 25

C484

0.1u/10V_4

T30T30 T29T29

ADOGND

MIC1-R

MIC1-L

MIC2-VREFO

C474 1u/10V_6C474 1u/10V_6 C472 1u/10V_6C472 1u/10V_6

R293 20K/F_4R293 20K/F_4

BEEP_1PCBEEP

C439

C439 100p/50V_4

100p/50V_4

PCH_AZ_CODEC_SYNC [9]

PCH_AZ_CODEC_SDIN0 [9]

PCH_AZ_CODEC_SDOUT [9]

PCH_AZ_CODEC_BITCLK [9]

+5VA

C487

10u/6.3V_6

MIC1-R [31] MIC1-L [31]

R288

4.7K_4

MIC1_JDSENSEA

MIC

MIC2_INTL1_RMIC2_INT_R

MIC1_JD [31]

R289 47K/F_4R289 47K/F_4

C440

C440 *100p/50V_4

*100p/50V_4

R296 1K_4R296 1K_4

PCH_AZ_CODEC_RST# [9]

MIC2_INTL1

SPKR [9]

C443

0.1u/10V_4

Place next to pin 9

FRONT-R

C482 *0.47u/10V_6C482 *0.47u/10V_6

MONO-OUT

C483 0.47u/10V_6C483 0.47u/10V_6

FRONT-L

C491 *0.47u/10V_6C491 *0.47u/10V_6

ADOGND

C494 0.47u/10V_6C494 0.47u/10V_6

Change to 0.47U to reduce popping noise

+3V

AMP_MUTE#[36]

EAPD#

+3V

C453

C453 10u/6.3V_6

10u/6.3V_6

FRONT-R-1 FRONT-R+1

R140 *0_6R140 *0_6

ADOGND

R303 22K/F_6R303 22K/F_6 R307 22K/F_6R307 22K/F_6

REV:B Change P/N

R308 *100K_4R308 *100K_4 R302 *0_4R302 *0_4

R116 *Short_6R116 *Short_6

53

U33

1

4

2

TC7SH08FU

R304 *0_4R304 *0_4

4.7U/6.3V_6C486 4.7U/6.3V_6C486

2

FRONT-R-2

4

FRONT-R+2

3 1

+5V_S5+3V_S5

REV : B Change to short pad

U13

Bypass ININ+ SHUTDOWN

G1442P81U

R311 *Short_4R311 *Short_4

VO2

GND

VDD VO1

C496

*4.7u/10V_6

8

INSPKR+ [31]

7

ADOGND 6 5

INSPKR- [31]

+5VA

C500

0.1u/10V_4

HP_MUTE# [31]

C481

0.1u/10V_4

ADOGND

C501

4.7U/6.3V_6

D D

FRONT-L= (L+R)/2

Speaker

FRONT-L FRONT-R

36

U12

37 38 39 40 41 42 43 44 45 46 47 48

C458

C458 10u/6.3V_6

10u/6.3V_6

U12

FRONT-R

MONO-OUT AVDD2 SURR-L JDREF SURR-R AVSS2

ALC272X<LQFP-48>

NC DMIC-CLK3/4 SPDIFO2 DMIC-CLK1/2 EAPD SPDIFO1

DVDD11DMIC-1/2/GPIO02DMIC-3/4/GPIO13DVSS14SDATA-OUT5BIT-CLK6DVSS27SDATA-IN8DVDD-IO9SYNC10RESET#11PCBEEP

C457

0.1u/10V_4

5/10 Add

ADOGND

ANALOG

DIGITAL

MONO-OUT

R297 20K/F_4R297 20K/F_4

ADOGND

T28T28

+5VA

C477

C479

0.1u/10V_4

10u/6.3V_6

ADOGND

Place next to pin 38

C C

Split by DGND

EAPD#

Split by DGND

+3V

ADOGND

C490

C489

+

2.2u/6.3V_6

31

29

30

34

32

33

35

CBP

CBN

CPVEE

Sense B

FRONT-L

HPOUT-L

HPOUT-R

Place next to pin 1

B B

ACZ_SDIN0_R

C456 22p/50V_4C456 22p/50V_4

REV : B C478 Change to short pad and Stuff R563 ,R570 ,R569 ,R584 ,R299 ,C738

Place in Bottom of codec

R563 *Short_4R563 *Short_4

R570 *Short_4R570 *Short_4 R569 *Short_4R569 *Short_4 R584 *Short_4R584 *Short_4 R299 *Short_4R299 *Short_4 C475 *1000p/50V_4C475 *1000p/50V_4 C738 *Short_4C738 *Short_4

ADOGND

Tied at one point only under the codec or near the codec

INT MIC array

CN4

*INT_MIC

ADOGND

cap place close to MIC-connector

3

1

2

C502

C502 *22P_4

*22P_4

ADOGND

C478 *0.1u/10V_4C478 *0.1u/10V_4

MIC2_INTL1 MIC2-VREFO

R320

2.2K_4

REV : B C478 Unstuff

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet

2

Date: Sheet

PROJECT :

REALTEK ALC663&888/MDC

1

ZRB

30 46Wednesday, July 21, 2010

of

+5VA

ADOGND

C759

C759 *0.1u/10V_4

*0.1u/10V_4

Power (ADO)

4

+5V

A A

C754

C753

*0.1u/10V_4

+

R319 *0_4R319 *0_4

*10u/10V_3216

C730, C787 close U37 pin3 and L65

5

ANALOG DIGITAL

L56 UPB201209T-310Y-N/6A/31ohm_8L56 UPB201209T-310Y-N/6A/31ohm_8

U34

IN GND SHDN

*G923-330T1UF

4

OUT

R581 *29.4K/F_4R581 *29.4K/F_4

5

SET

ADOGND

R574

R574 *10K/F_4

*10K/F_4

3 2 1

+

C755

C755 *10u/10V_3216

*10u/10V_3216

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

MIC

MIC1-VREFO[30]

D D

MIC1-L[30]

C493 4.7u/6.3V_6C493 4.7u/6.3V_6 C492 4.7u/6.3V_6C492 4.7u/6.3V_6

D9 BAS316D9 BAS316 D10 BAS316D10 BAS316

R306 1K/F_4R306 1K/F_4

MIC1_L2 MIC1_R2

R305 1K/F_4R305 1K/F_4 L32

Max. 100mVrms input for Mic-IN

MIC1_JD

C C

12

ADOGND

D21

D21 *VPORT_6

*VPORT_6

HP/SPDIF

HP_MUTE#[30]

HP-L[30]

B B

HP-R[30]

3

HP_MUTE#

3

R309 *0_6R309 *0_6

HPOUT_JD

A A

REV :B Change P/N for EOD

2

1

Q22

FDV301N

R310 *0_6R310 *0_6

REV :B Change P/N for EOD

2

1

Q23

FDV301N

12

D11

D11 *VPORT_6

*VPORT_6

ADOGND

HP-L-2

HP-R-2

R313

4.7K/F_4

MIC1_JD[30]

4

R312

4.7K/F_4

MIC1_L3

HP_MUTE#[30]

L33

L33 BLM15AG121SS1/0.5A/120ohm_4

BLM15AG121SS1/0.5A/120ohm_4 L32 BLM15AG121SS1/0.5A/120ohm_4

BLM15AG121SS1/0.5A/120ohm_4

C497

C497 470p/50V_4

470p/50V_4

ADOGND

HP-L-2

R316 56/F_4R316 56/F_4

HP-R-2

R315 56/F_4R315 56/F_4 L34 BLM15AG121SS1/0.5A/120ohm_4L34 BLM15AG121SS1/0.5A/120ohm_4

De-pop noise

R576

*10K/F_4

MIC1_L MIC1_RMIC1_R3

MIC1_JD

C495

C495 470p/50V_4

470p/50V_4

HPL-1

R314

R314 *1K_4

*1K_4

R579

R579 *220K_4

*220K_4

2

3

Normal OPEN Jack

CN18

BLACK

ADOGND

MIC

1 2 6 3 4

5

7

8

DFTJ08FR130FOX

DFTJ08FR128SIT

L35 BLM15AG121SS1/0.5A/120ohm_4L35 BLM15AG121SS1/0.5A/120ohm_4

R317

R317 *1K_4

*1K_4

C498

C498 2200p/50V_4

2200p/50V_4

ADOGND

REV : B Add

+3V

1

*MMBT3906

Q28

R589

3

*1K/F_4

C499

C499 2200p/50V_4

2200p/50V_4

C768

C768 *10u/10V_6

*10u/10V_6

Internal Speaker

REV : B Change to short pad

INSPKR-[30] INSPKR+[30]MIC1-R[30]

HPL_SYS HPR_SYSHPR-1

HPOUT_JD[30]

HPL-1

HPR-1

R587

*1K/F_4

*1K/F_4 R588

R588

*1K/F_4

2

1 3

2

R585 *Short_6R585 *Short_6 R583 *Short_6R583 *Short_6

Q26

Q26 *MMBT3904

*MMBT3904

2

Q27

Q27 *MMBT3904

*MMBT3904

1 3

C764

*0.22u/25V_6

ADOGND

R_SPK-_1 R_SPK+_1

C765

*0.22u/25V_6

BLACK

CN17

1 2 6 3 4

5

JA6331-0230T3B-8H

1

CN16

2

1

INT_Speaker

DFHD02MR311ACS

DFHD02MR508PTI

7

8

ADOGND

5

4

3

ADOGND

2

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet

PROJECT :

AMP /AUDIO JACK CONN

ZRB

of

31 46Wednesday, July 21, 2010

of

31 46Wednesday, July 21, 2010

of

31 46Wednesday, July 21, 2010

1

1A

A

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

B

C

D

E

CARD READER Controller

2 IN 1 CARD READER (SD/MMC)

Close to connector

4 4

Clock input selection '1' for 48MHz input [Default,Internal PU] '0' for 12MHz input

+1.8V_VDD

R571 *Short_4R571 *Short_4

REV : B Change to short pad

3 3

PLTRST#[4,10,11,26,28,36]

R575 *Short_6R575 *Short_6

+3V

REV : B Change to short pad

USBP12+[10]

USBP12-[10]

2 2

XTALSEL

R582 *0_4R582 *0_4

C760

4.7u/10V_6

+3V_VDD

C756

C756 *5p/50V_4

*5p/50V_4

R578 100K_4R578 100K_4

C758 10u/6.3V_6C758 10u/6.3V_6

C757

C757 *5p/50V_4

*5p/50V_4

crystal trace width needs at least 10 mils.

R577

R577 270K_4

270K_4

XI

XO

C761 18p/50V_4C761 18p/50V_4

C762 18p/50V_4C762 18p/50V_4

Y7 12MHzY712MHz

+3V_VDD

+1.8V_VDD

8/14 C707 close PIN11, 12

8/14 pin13 output 20mils

R580 330_4R580 330_4

+3V_VDD

C743 close PIN46, 47

C708 close PIN48, 47

C750

U32

1 2 3 4 5 6 7 8

9 10 11 12

C752

4.7u/10V_6

C750

0.1u/16V_4

GPON7 EXT48IN RSTN REXT VD33P DP DM VS33P XI XO VDD VDD

C745

4.7u/10V_6

C748

0.1u/16V_4

XI XO

T88T88

T86T86

XTALSEL

CRMD_N

NBMD

SD_WP

46

44

48

43

47

45

VDD

GND

TRIST

NBMD

VDDHM

V1813CF_V33

CTRL142CTRL3

XTALSEL

AU6437-GBL

V3317VDD20SDWPEN

GND

VCC33

VDDHM

AGND5V16XDCDN22EEPCLK

14

19

15

18

VCC_XD

C747

0.1u/16V_4

SD_DAT1

SD_DAT0

SD_CD#

41

40

DATA1

CTRL4

21

39

DATA0

38

23

37

DATA7

DATA6

CTRL0 DATA5 CTRL2

DATA4 DATA3 DATA2

XDWPN

XDCEN

EEPDATA

24

+1.8V_VDD +3V_VDD

GPI4

GPI2

GPI1

EEPCLK

CTRL0

R292 BLM15AG121SS1/0.5A/120ohm_4R292 BLM15AG121SS1/0.5A/120ohm_4

5/10 Modify

CTRL0, CRTL 1 trace length shorter , and surround with GND.

CTRL0

36 35

SD_CMD

34

GPI4

33 32

SD_DAT3

31

SD_DAT2

30 29

GPI2

28 27

EEPDATA

26

GPI1

25

T87T87

SD write protect 1:decided by SDWP[Default] 0:letting SD always write-able

T85T85

T82T82 T83T83

T84T84

R568*0_4 R568*0_4

C468

C468 *10p/50V_4

*10p/50V_4

DFHS11FR011PNT

DFHS11FR033PLA

SD_CLK

VCC_XD

SD_WP SD_CD#

SD_DAT1 SD_DAT0

SD_CMD SD_DAT3 SD_DAT2

VCC_XD

C465

4.7u/10V_6

Close to CN14 pin 14 & pin23

4.7u CAP close to pin23

10

9 8 7 6 5 3 2 1

SD-CARD

C470

0.1u/16V_4

CN3

DATA1 DATA0 VSS2 CLK VDD VSS1 CMD DATA3 DATA2

4

CD/SW

12

11

WP/SW

SW COM

GND13GND1

14

1 1

PROJECT : ZQ5

Quanta Computer Inc.

Size Document Number Rev

A

B

C

D

Size Document Number Rev

AU6433 CardReader

Date: Sheet

E

1A

of

43

of

43

of

43

32Wednesday, July 21, 2010

LED

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

5

4

3

2

1

D D

Power LED

LED1 BuleLED1 Bule

R1 100/F_4R1 100/F_4

+3V

POWER

SUSLED#[36]

PWRLED#[36]

R329 300/F_4R329 300/F_4 R330 100/F_4R330 100/F_4

Amber

LED2

4 3 1

LED_A/B

+3V_S5

2

Blue

R327 *1M_4R327 *1M_4 R323 *1M_4R323 *1M_4

Battery

BATLED1#[36]

C C

BATLED0#[36]

R326 300/F_4R326 300/F_4 R322 100/F_4R322 100/F_4

+3VPCU

Amber

LED3

4 3 1

LED_A/B

+3VPCU

2

Blue

+3V

WIFI LEDHDD

Amber

R324

R324 10K/F_4

10K/F_4

SATA_ACT#[9]

B B

REV : B Change to short pad

53

1

4

2

U14

U14 *TC7SH08FU

*TC7SH08FU

R321 *Short_4R321 *Short_4

SATA_LED#_R

LED4 BuleLED4 Bule

R328 100/F_4R328 100/F_4

LED5

RF_LED#[28]

R325 220/F_4R325 220/F_4

LED5

LED_AMBER

A A

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet

5

4

3

Date: Sheet

2

PROJECT :

POWER/MMB/LAUNCH/LED

ZRB

1

1A

of

33 46Monday, July 26, 2010

of

33 46Monday, July 26, 2010

of

33 46Monday, July 26, 2010

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

C462

C462 1U/6.3V_4

1U/6.3V_4

+5V_S5

USBP1-[10]

USBP1+[10]

U11

2

IN1 IN23OUT2

4

EN#

1

GND

G547F2P81U

8

OUT3

7 6

OUT1

5

OC#

R298 *0_4R298 *0_4

L31

2

3

DLW21HN900SQ2L/300mA/90ohm

R300 *0_4R300 *0_4

+

1

4

USBPWR1

C741

C741 330u/6.3V_6X5.7

330u/6.3V_6X5.7

USB

D D

USBON#[36]

USB_OC0#[10]

DFHS04FR201FOX

C C

DFHD04MR096SUY

USBP1-_R USBP1+_R

12

RV2

RV2 *EGA-0402

*EGA-0402

4

C476

C476 1000p/50V_4

1000p/50V_4

12

RV1

RV1 *EGA-0402

*EGA-0402

CN14

1

2

3

3 445

USB_MB_Turbo

3

2

1

BLUETOOTH CONNECTOR

+3V_S5

BT_POWERON#[36]

8

7

6

5

DFWF05MR027ACS

R572 4.7K_4R572 4.7K_4 C746 *1000p_4C746 *1000p_4

1

USBP4+[10]

USBP4-[10]

DFWF05MR012SCY

3

Q24

2

AO3413

REV : B Change to short & Del L55

+

C749

2.2u/6.3V_6

C751

C751 1000p/50V_4

1000p/50V_4

T89T89

BT_POWER

BT_LED

CN15

5 4 3 2 1

BT_CONN

C763

C763 *.01u/16V_4

*.01u/16V_4

7 6

C739

C739 *1u/6.3V_4

*1u/6.3V_4

+5V_S5

USB_DB FFC CONN

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 11718

CN12

2

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet

PROJECT :

USB/ BT

ZRC

of

34 46Friday, July 23, 2010

of

34 46Friday, July 23, 2010

of

34 46Friday, July 23, 2010

1

1A

USB/B

USB_OC4_5#[10]

USBP11-[10]

B B

A A

5

4

3

USBP11+[10]

USBP9-[10]

USBP9+[10]

USBON#

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

K/B

7 8 5 3 1

CP1 *100p/50Vx4CP1 *100p/50Vx4

7 8

D D

C C

HOLE4

HOLE4 H-C315i154D154P2

H-C315i154D154P2

1

HOLE11

HOLE11 H-TC197BC122D122P2

H-TC197BC122D122P2

B B

1

HOLE18

HOLE18 h-c315d146p2

h-c315d146p2

1

5 3 1

CP2 *100p/50Vx4CP2 *100p/50Vx4

7 8 5 3 1

CP6 *100p/50Vx4CP6 *100p/50Vx4

7 8 5 3 1

CP5 *100p/50Vx4CP5 *100p/50Vx4

7 8 5 3 1

CP4 *100p/50Vx4CP4 *100p/50Vx4

7 8 5 3 1

CP3 *100p/50Vx4CP3 *100p/50Vx4 C541 *100p/50V_4C541 *100p/50V_4 C542 *100p/50V_4C542 *100p/50V_4

HOLE10

HOLE10 H-TC197BC122D122P2

H-TC197BC122D122P2

1

HOLE17

HOLE17 H-TC197BC122D122P2

H-TC197BC122D122P2

1

HOLE25

HOLE25 H-TC315BC146D146P2

H-TC315BC146D146P2

1

MX3 MX2

6

MX4

4

MX5

2

MX6 MX7

6

MY17

4

MY16

2

MY3 MY2

6

MY1

4

MY0

2

MY7 MY6

6

MY5

4

MY4

2

MY11 MY10

6

MY9

4

MY8

2

MY15 MY14

6

MY13

4

MY12

2

MX1 MX0

DFFC26FR155PTI

DFFC26FR014ACS

HOLE24

HOLE24 *h-c315in158d118p2

*h-c315in158d118p2

1

HOLE13

HOLE13 *h-c315d118p2

*h-c315d118p2

1

HOLE5

HOLE5 *h-c315d118p2

*h-c315d118p2

1

HOLE32

HOLE32 *h-c315d118p2

*h-c315d118p2

1

HOLE14

HOLE14 *H-TC165BC256D165P2

*H-TC165BC256D165P2

4

MY0[36] MY1[36] MY2[36] MY3[36] MY4[36] MY5[36] MY6[36] MY7[36] MY8[36] MY9[36] MY10[36] MY11[36] MY12[36] MY13[36] MY14[36] MY15[36] MY16[36] MY17[36] MX7[36] MX6[36] MX5[36] MX4[36] MX3[36] MX2[36] MX1[36] MX0[36]

+3VPCU

RP3 10K_10P8RRP3 10K_10P8R

10

MX4 MX2

9

MX5

8

MX6

7 4

MX7

HOLE31

1

HOLE31 *h-c315d118p2

*h-c315d118p2

HOLE16

HOLE16 *h-c315d118p2

*h-c315d118p2

HOLE21

HOLE21 *H-TC165BC256D165P2

*H-TC165BC256D165P2

HOLE7

HOLE7 *h-c315d118p2

*h-c315d118p2

HOLE3

HOLE3 *h-c315d118p2

*h-c315d118p2

1

3

MY0 MY1 MY2 MY3 MY4 MY5 MY6 MY7 MY8 MY9 MY10 MY11 MY12 MY13 MY14 MY15 MY16 MY17 MX7 MX6 MX5 MX4 MX3 MX2 MX1 MX0

MX3

1

2

MX1

3

MX0

56

1

CN1KBCN1

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

KB

HOLE26

HOLE26 *h-c315d118p2

*h-c315d118p2

1

HOLE29

HOLE29 *h-c315d118p2

*h-c315d118p2

1

HOLE20

HOLE20 *H-TC165BC256D165P2

*H-TC165BC256D165P2

27 28

HOLE30

HOLE30 *h-c315d118p2

*h-c315d118p2

1

HOLE22

HOLE22 *h-c315d118p2

*h-c315d118p2

1

CPU FAN

+5V

C567

2.2U_6

1 2

SML1ALERT#[10,11,36]

CPUFAN#[36]

DFWF03MS091ACS

FANPWR = 1.6*VSET

DFWF03MS000SCY

TOUCHPAD & Switch CONN.

+5V

R44

R45

10K_4

TPDATA[36]

TPCLK[36]

RIGHT# LEFT#

L6 *Short_6L6 *Short_6 L7 *Short_6L7 *Short_6

SW3

3 1 4

SWITCH_1.5

2

U20

VIN2VO

GND

1

/FON

GND GND

4

VSET

GND

G995

REV : B Change to short pad

C143

*.01u/25V_4

2

3 5 6 7 8

C144

C144 *.01u/25V_4

*.01u/25V_4

FANSIG[36]

TH_FAN_POWERTH_FAN_POWER

1 2

+5V

L5 *Short_6L5 *Short_6

C562

2.2U_6

C563

C563 .01U_4

.01U_4

C150

0.1u/10V_4

RIGHT#

LEFT#

+TPVDD

TPDATA_R TPCLK_R

C553

C553 *.01U_4

*.01U_4

SW2

3 1 4

SWITCH_1.5

+3V

R369

R369 10K_4

10K_4

SCY

PTI

CN2

1 2 3 4 5 6 7 8

9 10 11 12

Aces 88501-120N

1

CN6

1 2 3

FAN_CONN

DFFC12FR017ACS

DFFC12FR015

DFFC12FR234

13 14

2

HOLE9

HOLE27

HOLE27 h-c197d87p2

h-c197d87p2

A A

1

HOLE19

HOLE19 *H-TC91BC197D91P2

*H-TC91BC197D91P2

1

HOLE1

HOLE1 h-tc197bc79d79p2

h-tc197bc79d79p2

1

HOLE15

HOLE15 *H-TC91BC197D91P2

*H-TC91BC197D91P2

1

5

HOLE2

HOLE2 h-tc197bc102d102p2

h-tc197bc102d102p2

1

HOLE23

HOLE23 *H-TC91BC197D91P2

*H-TC91BC197D91P2

1

HOLE9 *h-o315x354d315x354n

*h-o315x354d315x354n

1

HOLE28

HOLE28 *H-TC91BC197D91P2

*H-TC91BC197D91P2

1

+1.05V+1.05V

HOLE12

HOLE12 *h-c315d118p2

1

*SPAD1

*SPAD1 PAD1

PAD1

4

1

*SPAD3

*SPAD3 PAD3

PAD3

3

*h-c315d118p2

1

HOLE6

HOLE6 *h-c94d94n

*h-c94d94n

1

HOLE8

HOLE8 *h-c1417d1417na1457

*h-c1417d1417na1457

1

2

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet

PROJECT :

KB/FAN/TP+FP

ZRB

of

35 46Friday, July 23, 2010

of

35 46Friday, July 23, 2010

of

35 46Friday, July 23, 2010

1

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

EC(KBC)

L3 PBY160808T-250Y-N/3A/25ohm_6L3 PBY160808T-250Y-N/3A/25ohm_6

30mil

+3VPCU

R28 2.2_6R28 2.2_6

1 2

D D

CLK_PCI_775 CLK_PCI_775

R343

R343 *22_4

*22_4

C521

C521 *10p/50V_4

*10p/50V_4

C C

B B

+3VPCU_EC

C23

4.7U/6.3V_6

ICH_SUSCLK[8]

0.03A(30mils)

C504

0.1u/10V_4

LPC_LFRAME#[9,28]

LPC_LAD0[9,28] LPC_LAD1[9,28] LPC_LAD2[9,28] LPC_LAD3[9,28]

CLK_PCI_775[10]

CLKRUN#[8]

SIO_A20GATE[11]

SIO_RCIN#[11] SIO_EXT_SCI#[11] EC_FPBACK#[24]

PLTRST#[4,10,11,26,28,32]

IRQ_SERIRQ[9]

SIO_EXT_SMI#[11]

R333 *Short_4R333 *Short_4

REV : B Change to short pad

E775AGND

C529

*.1u/16V_4

2ND_MBDATA[10]

BT_POWERON#[34]

C506

C506 *15p/50V_4

*15p/50V_4

C507

0.1u/10V_4

MX0[35] MX1[35] MX2[35] MX3[35] MX4[35] MX5[35] MX6[35] MX7[35]

MY0[35] MY1[35] MY2[35] MY3[35] MY4[35] MY5[35] MY6[35] MY7[35] MY8[35]

MY9[35] MY10[35] MY11[35] MY12[35] MY13[35] MY14[35] MY15[35] MY16[35] MY17[35]

MBCLK[37]

MBDATA[37]

2ND_MBCLK[10]

TPCLK[35]

TPDATA[35]

PCH_ACIN[8]

MAINON[19,40,41,44]

T41T41

R334 *20M_6R334 *20M_6

Y3

1 4

*32.768KHz

C32

*.1u/16V_4

D13 BAS316D13 BAS316

EC_FPBACK#

T44T44

PLTRST# USBON# IRQ_SERIRQ

MX0 MX1 MX2 MX3 MX4 MX5 MX6 MX7

MY0 MY1 MY2 MY3 MY4 MY5 MY6 MY7 MY8 MY9 MY10 MY11 MY12 MY13 MY14 MY15 MY16 MY17

MBCLK MBDATA 2ND_MBCLK 2ND_MBDATA

TPCLK TPDATA PCH_ACIN

MAINOND

E775_32KX1

E775_32KX2

R335

R335 *33K/F_4

*33K/F_4

C508

C508 *15p/50V_4

*15p/50V_4

E775AGND

C15

0.1u/10V_4

NOCIR#

4

+A3VPCU

C27

C28

0.1u/10V_4

U15

3

LFRAME

126

LAD0

127

LAD1

128

LAD2

1

LAD3

2

LCLK

8

GPIO11/CLKRUN

121

GPIO85/GA20

122

KBRST/GPIO86

29

ECSCI/GPIO54

6

GPIO24/LDRQ

124

GPIO10/LPCPD

7

LREST

123

GPIO67/PWUREQ

125

SERIRQ

9

GPIO65/SMI

54

KBSIN0

55

KBSIN1

56

KBSIN2

57

KBSIN3

58

KBSIN4

59

KBSIN5

60

KBSIN6

61

KBSIN7

53

KBSOUT0/JENK

52

KBSOUT1/TCK

51

KBSOUT2/TMS

50

KBSOUT3/TDI

49

KBSOUT4/JEN0

48

KBSOUT5/TDO

47

KBSOUT6/RDY

43

KBSOUT7

42

KBSOUT8

41

KBSOUT9/SDP_VIS

40

KBSOUT10/P80_CLK

39

KBSOUT11/P80_DAT

38

KBSOUT12/GPIO64

37

KBSOUT13/GPIO63

36

KBSOUT14/GPIO62

35

KBSOUT15/GPIO61/XOR_OUT

34

GPIO60/KBSOUT16

33

GPIO57/KBSOUT17

70

GPIO17/SCL1

69

GPIO22/SDA1

67

GPIO73/SCL2

68

GPIO74/SDA2

72

GPIO37/PSCLK1

71

GPIO35/PSDAT1

10

GPIO26/PSCLK2

11

GPIO27PSDAT2

12

GPIO25/PSCLK3

13

GPIO12/PSDAT3

77

GPIO00/32KCLKIN

79

GPIO02

NPCE781

L2 PBY160808T-250Y-N/3A/25ohm_6L2 PBY160808T-250Y-N/3A/25ohm_6

10u/6.3V_6

19

46

VCC1

VCC2

76

88

VCC3

VCC4

REV: B change P/N for EOD

115

102

VCC5

AVCC

GND1

GND2

5

18

E775AGND

3

+3V

C518

C514

D14

BAS316

4

VDD

97

GPIO90/AD0

98

GPIO91/AD1

99

GPIO92/AD2

A/D

D/A

LPC

GPIO06/IOX_DOUT

GPIO30/CIRTX2

GPIO31/SDA3 GPIO32/D_PWM GPIO33/H_PWM

GPIO40/F_PWM

GPIO

GPIO45/E_PWM

GPIO46/CIRRXM/TRST

GPIO52/CIRTX2/RDY

GPIO53/SDA4

GPO84/TRIST

KB

SMB

PS/2

GND3

GND4

45

78

89

TIMER

SPI

IR

FIU

GND5

GND6

116

GPIO20/TA2/IOX_DIN

GPIO15/A_PWM GPIO21/B_PWM GPIO13/C_PWM GPIO66/G_PWM

GPIO77/SPI_DI

GPO76/SPI_DO/SHBM

GPIO75/SPI_SCK

GPIO72/IRRX1/SIN2

GPIO70/IRRX2_IRSL0

GPIO71/IRTX/SOUT2

GPIO87/CIRRXM/SIN_CR

GPIO34/CIRRXL

GPIO16/CIRTX

GPO83/SOUT_CR/XORTR

GPIO55/CLKOUT/IOX_DIN

VCORF

AGND

44

103

VCORF_uR

C505

1u/6.3V_4

GPIO93/AD3

GPIO05 GPIO04

GPIO94/DA0

GPI95/DA1 GPI96/DA2

GPI97

GPIO01/TB2

GPIO03 GPIO07

GPIO23/SCL3

GPIO36

GPIO42/TCK

GPIO43/TMS

GPIO44/TDI

GPO47/SCL4 GPIO50/TDO

GPIO51

GPIO81

GPO82/TEST

GPIO41

GPIO56/TA1 GPIO14/TB1

F_SDI

F_SDO

F_CS0

F_SCK

VCC_POR

VREF

100 108 96

101 105 106 107

64 95 93 94 119 109 120 65 66 15 16 17 20 21 22 23 24 25 26 27 28 91 110 112 80

31 117 63

32 118 62 81

84 83 82

75 73 74 113 14 114 111

86 87 90 92

30 85 104

0.1u/10V_4

4.7U/6.3V_6

C533 10u/6.3V_8C533 10u/6.3V_8

WL_SW

AC_OFF 3G_SW

ODDLED

SHBM_R

RSMRST#_uR PWROK_EC_uR

P_SAVE_LED#

SPI_SDI_uR SPI_CS0#_uR

SPI_SCK_uR_R ECDB_CLOCK VCC_POR# VREF_uR +A3VPCU

C527 0.01u/16V_4C527 0.01u/16V_4

T49T49 T50T50

NBSWON#

T46T46

T43T43 T39T39

T38T38 T37T37 T36T36

T1T1 T35T35

T2T2

T33T33

T40T40

T42T42

HWPG

T47T47

R337 22_4R337 22_4 R338 22_4R338 22_4

T34T34

R20 47K/F_4R20 47K/F_4

R352 *Short_4R352 *Short_4

T45T45

T48T48 T3T3

R332 *Short_4R332 *Short_4 R331 *Short_4R331 *Short_4

REV : B Change to short pad

ICMNTE775AGND

TEMP_MBAT [37] SML1ALERT# [10,11,35]

ICMNT [37] VGA_THERM# [21]

CPUFAN# [35]

ACIN [37] LID591# [24]

SUSB# [8] MXM_SMCLK12 [21]

MXM_SMDATA12 [21] BATLED0# [33]USBON#[34] BATLED1# [33]

VRON [39]

SUSLED# [33] AMP_MUTE# [30]

D/C# [37]

S5_ON [38,45]

DNBSWON# [8]

SUSON [41] FANSIG [35]

CONTRAST [24] PWRLED# [33]

ICH_RSMRST# [8] SUSC# [8] PWROK_EC [8] RF_EN [28]

SPI_SDO_uRSPI_SDO_uR_R SPI_SCK_uR

+3VPCU

SM BUS ARRANGEMENT TABLE

SM Bus 1

Battery

SM Bus 2

PCH

SM Bus 3

GPU-I2C

SM Bus 4

N/A

2

1

I/O ADDRESS SETTING(KBC)

SHBM=0: Enable shared memory with host BIOS

SHBM

1/13 Comfirm by vendor mail : Disabled ('1') if using FWH device on LPC. Enabled ('0') if using SPI flash for both system BIOS and EC firmware

SHBM_R

SM BUS PU(KBC)

MBCLK MBDATA

MXM_SMCLK12 MXM_SMDATA12

2ND_MBCLK 2ND_MBDATA

VGA_THERM#

SPI FLASH(KBC)

SPI_SDI_uR

R21 100K_4R21 100K_4

+3VPCU

1/13 Comfirm by vendor mail : If the Southbridge enables 'Long Wait Abort' by default, the flash device should be 50MHz (or faster)

R25 22_4R25 22_4

7/24 modify

R26 10K_4R26 10K_4

HWPG(KBC)

HWPG_1.8V[44] HWPG_1.05V[40] HWPG_1.5V[41] SYS_HWPG[38] HWPG_GFX[42]

D7 BAS316D7 BAS316 D5 BAS316D5 BAS316 D6 BAS316D6 BAS316 D4 BAS316D4 BAS316 D3 IV@BAS316D3 IV@BAS316

R336 *10K_4R336 *10K_4

R19 10K_4R19 10K_4 R18 10K_4R18 10K_4

R350 EV@2.2K_4R350 EV@2.2K_4 R351 EV@2.2K_4R351 EV@2.2K_4

R16 10K_4R16 10K_4 R17 10K_4R17 10K_4

R342 EV@10K_4R342 EV@10K_4

SPI_SDI_uR_R SPI_SDO_uR SPI_SCK_uR SPI_CS0#_uR

+3VPCU

+3V_D_S

U16

2

SO

5

SI

6

SCK

1

CE

W25X40BVSSIG

+3V

R348

R348 10K_4

10K_4

+3V

+3VPCU

8

VDD

7

HOLD

3

WP

4

VSS

REV : B Change to short pad

HWPG

R349

R349 *Short_4

*Short_4

MPWROK [4]

C522

0.1u/10V_4

POWER-ON Switch(KBC)

SW1

A A

NBSWON#

D2 BAS316D2 BAS316 R362 10K_4R362 10K_4

21

D1 *VPORT_6D1*VPORT_6

5/13 change the location

5

4

SW1 SWITCH_1.5

SWITCH_1.5

1 3

2 4 5 6

3

2

INTERNAL KEYBOARD STRIP SET(KBC)

MY0

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

Date: Sheet

PROJECT :

WPCE781 & FLASH

1

ZRB

36 46Wednesday, July 21, 2010

+3VPCU

1A

of

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

SP@POWER_JACK

dcjk-2dc2003-000111-3p-v

PJ1

1 2

3

456

7

D D

PC88

0.1u/50V_6

PC89

2200p/50V_6

PC90

*47u/25V_6.3*6

PL2

HI0805R800R-00_8

PL1

HI0805R800R-00_8

5/12 EMI RESERVE

C C

+3VPCU

PR22

PR22 100K_4

100K_4

ACIN[36]

PC92

0.1u/50V_6

12

PC94

PC5

47p/50V_6

+3VPCU

PC94

100p/50V_6

PR10

PR10 100_4

100_4

PR9

PR9 100_4

100_4

PC6

PC6 47p/50V_6

47p/50V_6

MBCLK [36]

MBDATA [36]

PL4

HI0805R800R-00_8

PL5

HI0805R800R-00_8

TEMP_MBAT

PR12

PR12 100K_4

100K_4

B B

PR8

*Short_4

PU1

PU1 CM1293A-04SO

CM1293A-04SO

CH1

CH4 VN CH23CH3

MBAT+

VP

PR11

PR11 100_4

100_4

MBDATA

6 5

MBCLKTEMP_MBAT

4

5

C114F3-108A1-L_Batt_Conn

1

10

2 3 4 5 6 7 89

PJ2

A A

1 2

Add ESD diode base on EC FAE suggestion

VA1

PC91

0.1u/50V_6

PD1

PD1 SW1010CPT

SW1010CPT

BAT-V

+3VPCU

4

PR4

49.9/F_6

PR13

82.5K/F_4

PR15

PR15 22K/F_4

22K/F_4

TEMP_MBAT [36]

4

PD5

SBR1045SP5-13

1 2

88731ACSET88731ACSET88731ACSET88731ACSET

PC10

*1u/16V_6

MBDATA

MBCLK

DCINDCIN

3

2 1

+3VPCU

PC15

0.1u/50V_6

PC12

0.01u/50V_6

PD6

PD6 SMAJ20A

SMAJ20A

5/14 add short PAD

PC2

0.1u/50V_6

PC13

PC13 *0.01u/50V_6

*0.01u/50V_6

VA2VA2VA2VA2

VA2VA2VA

PC1

0.1u/50V_6

CSIN_1

CSIP_1

1

11

VDDSMB

9

SDA

10

SCL

13

ACOK

22

DCIN

2

ACIN

3

VREF

4

ICOMP

5

NC

6

VCOMP

PR21

2.21K/F_4

PC14

0.01u/50V_6

PR5

PR5 10/F_4

10/F_4

NC

GND33GND32GND31GND

PR3

PR3 220K_4

220K_4

PR2

PR2 220K_4

220K_4

0.1u/50V_6

CSIP

30

28

CSSP

NC

7

PC7

ISL88731A

3

1 6 2 3

CSIN

27

CSSN

PU2

ICM

8

ICMNT

3

PQ1

IMD2AT108

PR6

PR6 10/F_4

10/F_4

14

PQ17

PQ17 FDD6685

FDD6685

43

1

5 4

PC4

1u/16V_6

PR14

4.7_6

ISL88731_VDDP

26

21

VCC

VDDP

BOOT

UGATE

PHASE

LGATE

PGND

CSOP

CSON

GND GND

NC

12

VBF

NC

88731B_2

25

ISL88731_UGATE

24

ISL88731_PHASE

23

ISL88731_LGATEISL88731_LGATEISL88731_LGATEISL88731_LGATE

20

19

CSOP

18

CSON

17

PR158 *Short_4PR158 *Short_4

16

15 29

PR7

2.7_6

ISL88731 thermal pad tie to Pin12

ICMNT [36]

1 2

PR152

PR152 SHORT_PAD_4

SHORT_PAD_4

88731B_1

PR19

PR19 10/F_4

10/F_4

PC11

0.1u/50V_6

PR20

PR20 10/F_4

10/F_4

0.01_3720

0.01_3720 PR151

PR151

PC9

PC9 1u/16V_6

1u/16V_6

PD7

PD7 *RB500V-40

*RB500V-40

PC3

0.1u/50V_8

CSOP_1

PR157

PR157 100_4

100_4

BAT-V

2

5/14 add short PAD

PR150

PR150 SHORT_PAD_4

SHORT_PAD_4

CSIN_1 CSIP_1

PR1 *Short_4PR1 *Short_4

578

3 6

578

3 6

BAT-V

2

1

PQ20

PR155

PR155 33K/F_4

33K/F_4

2

PQ21

PQ21 DMN601K-7

DMN601K-7

10u/25V_1206

1

PQ20 FDD6685

FDD6685

1

PR154

PR154 10K_4

10K_4

3

1

140mil

PC101

ZRB

37 46Friday, July 23, 2010

43

BAT-VBAT-V

PC100

10u/25V_1206

of

1A

VIN

PC99

0.1u/50V_6

D/C# [36]

VIN

PC8

4.7u/25V_8

PC96

*0.1u/50V_6

PC95

2200p/50V_6

PQ18

PQ18 AO4468

AO4468

241

PQ19

PQ19 AO4468

AO4468

241

PR153

PR153 *4.7_6

*4.7_6

PC93

PC93 *680p/50V_6

*680p/50V_6

PL3

6.8uH

1 2

CSOP_1 BAT-V

Size Document Number Rev

Charger(ISL88731A)

Date: Sheet

0.01_3720

0.01_3720 PR156

PR156

300mil200mil

PC98

2200p/50V_6

PC97

2200p/50V_6

Quanta Computer Inc.

PROJECT :

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

4

3

2

1

MAIND

D D

VIN

+

PC166

100u/25V_6X5.7

200mil OCP:6.5A

5A

+5VPCU

C C

+

PC137

PC137 330u/6.3V_6X5.7

PC43

0.1u/50V_6

B B

330u/6.3V_6X5.7

OCP:6.5A

L(ripple current) =(9-5)*5/(2.2u*0.4M*9)=2.525A Iocp=6.5-(2.525/2)=5.24A Vth=5.24A*14.2mOhm=0.074V R(Ilim)=(0.07437V*10)/5uA=148.74K Ipeak(choke)=10.687A

PC149

*4.7u/25V_8

PR84

PR84 *0_4

*0_4

PR76

*Short_4

MAIND [41,44]

PC49

4.7u/25V_8

PC53

2.2n/50V_6

PL10

2.2uH

PR209

PR209 *4.7_6

*4.7_6

PC145

PC145 *680p/50V_6

*680p/50V_6

5V_EN

5V_DH

5V_DL

3V5V_EN

PR81

PR81 *Short_4

*Short_4

+15V_ALWP

VL

12

3V_EN

PR75

PR75 39K/F_4

39K/F_4

PR109

PR109 *Short_4

*Short_4

PD2

PD2 CHN217

CHN217

PD3

PD3 CHN217

CHN217

1 2

PR83

PR83 147K/F_4

147K/F_4

PC51

0.1u/50V_6

2

1

2

1

PC48

0.1u/50V_6

PR94

PR94 390K_4

390K_4

PR96

PR96 150K_4

150K_4

3

1 2

+5VPCU

DDPWRGD_R

1 2

PC45

0.1u/50V_6

PR72

PR72 *200K/F_4

*200K/F_4

PC57

0.1u/50V_6

5V_EN

PR80

PR80 1/F_6

1/F_6

PR92

PR92 *0_6

*0_6

PC47

0.1u/50V_6

0.01u/16V_4

8206_ONLDO

9 10 11 12 13 14 15 16 37 36

PC59

BYP OUT1 FB1 ILIM1 PGOOD1 EN1 DH1 LX1 PAD PAD

35

VL

PC61

PC61 1u/16V_6

1u/16V_6

VL

1 2

5

8

7

6

4

NC

VIN

LDO

LDOREFIN

PU5

PU5 RT8206B

RT8206B

BST117DL118PVCC19NC20GND21PGND22DL223BST2

PAD33PAD34PAD

PR119 *Short_4PR119 *Short_4

PR98 *Short_4PR98 *Short_4

12

PR95

PR95 *39K/F_4

*39K/F_4

PC63

4.7u/10V_8

PR100

PR100 *Short_4

*Short_4

1

3

REF

TON2VCC

ONLDO

REFIN2

PGOOD2

24

PR102 *Short_6PR102 *Short_6

PR220 *Short_4PR220 *Short_4

12

PR219

PR115

PR115 220K/F_4

220K/F_4

PC71

0.1u/50V_6

PR219 *0_4

*0_4

3V_DH

3V_LX

3V_DL

SKIP

PC68

0.1u/50V_6

REF

ILIM2 OUT2

SKIP#

EN2

DH2

LX2

1 2

PR218

PR218 *0_6

*0_6

32 31 30 29 28 27 26 25

PR108

PR108 1/F_6

1/F_6

PC66

PC66 1u/16V_6

1u/16V_6

REFIN2

1 2

DDPWRGD_R

3V_EN

OCP:9A

L(ripple current) =(9-3.3)*3.3/(2.2u*0.5M*9) =1.9A

Iocp=9-(1.9/2)=8.05A Vth=8.05A*14.2mOhm=114.31mV R(Ilim)=(114.31mV*10)/5uA=228.62K Ipeak(choke)=11.479A

578

3 6

241

578

3 6

241

+3VPCU_OUT

1 2

PR111

PR111 *0_4

*0_4

PR112 *Short_4PR112 *Short_4

PQ52

PQ52 AO4468

AO4468

PQ51

PQ51 AO4710

AO4710

REF

PC156

2.2n/50V_4

PL13

2.2uH

PR228

PR228 *4.7_6

*4.7_6

PC163

PC163 *680p/50V_6

*680p/50V_6

PR113 *Short_4PR113 *Short_4

1 2

PR114 *0_4PR114 *0_4

DDPWRGD_R

+3VPCU

PR110

PR110 *100K/F_4

*100K/F_4

PR82 *Short_4PR82 *Short_4

PC158

4.7u/25V_8

1 2

PR120

PR120 *0_4

*0_4

PR122

PR122 *0_4

*0_4

VIN

280mil OCP:9A

7A

PC171

0.1u/50V_6

SYS_HWPG [36]

+3VPCU

+

PC174

330u/6.3V_6X5.7

SYS_SHDN#[4,45]

+5VPCU_FB

PR74 *Short_4PR74 *Short_4

241

+15V

578

PQ46

PQ46 AO4468

AO4468

3 6

5V_LX SKIP

578

PQ47

PQ47 AO4710

AO4710

3 6

PC46

0.1u/50V_6

PR73

PR73 22_8

22_8

+15VVIN

PR208

PR208 1M_6

1M_6

3

PQ44

1

DMN601K-7

VIN

PR207

PR207 *1M_6

*1M_6

PC144

PC144 *2.2n/50V_4

*2.2n/50V_4

578

S5D MAIND MAIND

PQ54

PQ54 AO4468

AO4468

3 6

241

+5V_S5

+5V_S5+3V_S5

PR196

PR210

PR210 1M_6

1M_6

A A

S5_ON[36,45]

2

PQ40

DTC144EU

PR206

1 3

PR206 1M_6

1M_6

PR196 22_8

22_8

3

2

PQ39

PQ39 DMN601K-7

DMN601K-7

1

PR205

PR205 22_8

22_8

3

2

1

PQ41

PQ41 DMN601K-7

DMN601K-7

2

2.85A

114mil

5

4

+5VPCU

578

3 6

241

12

C622

C622 *22u/10V_1206

*22u/10V_1206

3

+3VPCU

578

PQ34

PQ34 AO4468

AO4468

3 6

241

+5V

87mil 107mil

12

C744

C744 *22u/10V_1206

*22u/10V_1206

PQ59

PQ59 AO4468

AO4468

+3VPCU+5VPCU

3

S5D

2

PQ58

PQ58 AO3404

AO3404

1

+3V

3A2.171A

2

10mil

+3V_S5

0.23A

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

SYSTEM 5V/3V (RT8206)

Date: Sheet

PROJECT :

ZRB

38 46Friday, July 23, 2010

1

1A

of

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

4

3

2

1

VID 1.2875V

H_VID0

H_VID1

H_VID2

H_VID3

H_VID4

H_VID5

H_VID6

PR201 *Short_4PR201 *Short_4

PR197 *Short_4PR197 *Short_4

PR60

PR60 *499/F_4

*499/F_4

H_PSI#[6]

PQ6

PQ6 *DMN601K-7

*DMN601K-7

2

This NTC Close to Phase 1 Inductor

PR181

*220K_6 NTC

PC136

1 2

*.01U/16V_4

H_VID0[6] H_VID1[6] H_VID2[6] H_VID3[6] H_VID4[6] H_VID5[6]

H_DPRSLPVR[6]

H_VID6[6]

+3V

PC35

150p/50V_4

PR56

1.65K/F_4

PR51 *Short_4PR51 *Short_4

PR52 *Short_4PR52 *Short_4

PR199

PR199 *27.4_4

*27.4_4

PR50

PR50 *27.4_4

*27.4_4

PR47 *Short_4PR47 *Short_4

PR42 499/F_4PR42 499/F_4

PR53 1.91K/F_4PR53 1.91K/F_4

PC36

PC36 150p/50V_4

150p/50V_4

3212_FBRTN

I_MON[6]

PR44

PR44 10_6

10_6

PC31

2.2U/6.3V_6

PR41 *Short_4PR41 *Short_4

PR200

7.32K/F_4

+5VPCU

PR55

39.2K/F_4

PC133 1000p/50V_4PC133 1000p/50V_4

+VCC_CORE

+5VPCU

PR57 5.1K/F_4PR57 5.1K/F_4

DPRSLPVR_R

12

PR198

4.99K/F_4

1 2

PC132

0.082u/16V_4

VSSSENSE [6]

VCCSENSE [6]

Connect to input caps

PR62

PR62 649K/F_4

649K/F_4

3212_VCC

12

AGND

49

AGND

PSI#_1

41

PSI#

10

VR_TT

+5VPCU

11

TTSNS

8

TRDET#

9

VARFR

48

VID0

47

VID1

46

VID2

45

VID3

44

VID4

43

VID5

42

VID6

VR_ON

1

EN

40

DPRSLPVR

4

CLK_EN#

22

OD3#

23

PWM3

24

SWFB3

3212_FB

6

+1.05V

PR194

PR194 *0_4

*0_4

FB

7

COMP

5

FBRTN

3

IMON

PR204

80.6K/F_4

PC34

PC34 12p/50V_4

12p/50V_4

3212_COMP

37

VCC

IREF

13

69.8K/F_4

PR203

4

3212_RAMP

16

RAMP

RPM

14

DELAY_VR_PWRGOOD [4,8]

12

PQ32

5

AOL1448

3212_DH2

PC39

0.22u/25V_6

PR68

PR68 165K/F_4

165K/F_4

PR180

PR180 220K_6 NTC

220K_6 NTC

AOL1448

PQ37

PQ37 AOL1718

AOL1718

3212_SW2

3212_DL2

3212_CS_PH2

3212_CS_PH1

3212_CSSUM

4

213

5

213

PQ45

PQ45 AOL1448

AOL1448

PQ42

PQ42 AOL1718

AOL1718

PC27

2200p/50V_4

6/3 add for EMI

PQ35

PQ35 AOL1718

AOL1718

4

5

4

213

5

4

213

PR71

PR71 150K/F_6

150K/F_6 PR66

PR66 150K/F_6

150K/F_6

Close to Phase 1 Inductor

Peak :40A ; OCP:53A (1.69K/F_4) Peak :48A ; OCP:55A (1.74K/F_4)

3

PC28

0.1u/50V_6

5

213

6/3 add for EMI

PC44

2200p/50V_4

PQ43

PQ43 AOL1718

AOL1718

4

PC129

4.7u/25V_8

PR45

PR45 *2.2/F_6

*2.2/F_6

PC32

PC32 *1000P/50V_6

*1000P/50V_6

5

213

12

PC143

0.1u/50V_6

PC128

4.7u/25V_8

PR64

PR64 1K/F_4

1K/F_4

+3V

+5VPCU

PC138

PC138 1000p/50V_4

1000p/50V_4

ADP3212

PR202

PR202 162K/F_4

162K/F_4

PR49

1.91K/F_4

39

38

2

PH0

PH1

PWRGD

3212_DH1

35

DRVH1

3212_BOOT1

36

BST1

PR48 2.2_6PR48 2.2_6

PC33

0.22u/25V_6

3212_SW1

34

SW1

3212_DL1

31

DRVL1

PU3

RT

15

32

PVCC

26

DRVH2

3212_BOOT2

25

BOOT2

27

SW2

29

DRVL2

30

PGND

PR58 100/F_4PR58 100/F_4

28

SWFB2

PR54 100/F_4PR54 100/F_4

33

SWFB1

19

CSSUM

20

CSCOMP

CSREF

18

PC139

PC139 1u/6.3V_4

1u/6.3V_4

3212_CSCOMP

17

LLINE

3212_ILIM

21

ILIM

PR63 *Short_4PR63 *Short_4

3212_CSREF CSREF

PC37

1 2

4.7U/6.3V_6

PC40

PC40 820P/50V_4

820P/50V_4

PR59

2.2_6

PC42

PC42 1000p/50V_4

1000p/50V_4

12

PR61

1.69K/F_4

+5VPCU

PR67

73.2K/F_4

PC29

4.7u/25V_8

12

PC141

4.7u/25V_8

PR65

PR65 *2.2/F_6

*2.2/F_6

PC41

PC41 *1000P/50V_6

*1000P/50V_6

12

PC142

4.7u/25V_8

+

PC126

100u/25V_6X5.7

12

2

PR40

*Short_4

PC140

4.7u/25V_8

*Short_4

VIN

5/20 add

+

PC127

100u/25V_6X5.7

PL8

0.36uH

1 2

3

4

PR43

PR43 10/F_6

10/F_6

5/19 change to 0603

12

+

PC146

100u/25V_6X5.7

PL9

0.36uH

1 2

3

4

PR70

PR69

PR70 10/F_6

10/F_6

5/19 change to 0603

+VCC_CORE Countinue current:36A Peak current:48A OCP minimum 55A Loadline=1.9mV/A (IMVP 6.5) Rilm=1.69K

+VCC_CORE

750mil

12

Size Document Number Rev

Date: Sheet

+

PC135

0.1u/50V_6

PC26

PC26 *330u/2V_7343

*330u/2V_7343

VIN

+VCC_CORE

750mil

+

PC25

0.1u/50V_6

PC38

PC38 330u/2V_7343

330u/2V_7343

Quanta Computer Inc.

PROJECT :

+VCC_CORE ADP3212

+

PC30

330u/2V_7343

+

PC134

*330u/2V_7343

1

ZRB

of

39 46Friday, July 23, 2010

1A

H_PROCHOT#[4]

Panasonic ERT-J0EV474J

PR46

PR46 100K/F_4

100K/F_4

PR191 *0_4PR191 *0_4

PR192 *0_4PR192 *0_4

PR190 *0_4PR190 *0_4

PR189 *0_4PR189 *0_4

PR188 *0_4PR188 *0_4

PR187 *0_4PR187 *0_4

PR184 *0_4PR184 *0_4

+1.05V

3

1

VR_PWRGD_CK505#[3]

1 2

5

+3VPCU

D D

C C

VRON[36]

B B

A A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

4

3

2

1

[PWM]

PC165

+

560u/2.5V

PC176

0.1u/50V_6

760mil OCP:23A

19A

+1.05V

VIN

5/19 change location

PR127

PR127 *Short_6

*Short_6

PC85

PC85 1u/16V_6

1u/16V_6

R1

+5V_S5

PD4

PD4 RB500V-40

RB500V-40

PC83

0.1u/50V_6

UGATE-1.05V

PHASE-1.05V

LGATE-1.05V

PR132

4.02K/F_4

PC80

4.7u/6.3V_6

PR131

2.15K/F_4

PQ56

PQ56 AOL1718

AOL1718

PC177

PC177 *33p/50V_6

*33p/50V_6

EC11

5/19 add

+

5

4

213

PQ55

PQ55 AOL1448

AOL1448

5

4

213

PQ57

PQ57 AOL1718

AOL1718

+

PC179

100u/25V_6X5.7

5

4

213

PC178

2.2n/50V_4

EC11

0.1u/50V_6

4.7u/25V_8

PR238

PR238 *4.7_6

*4.7_6

PC181

PC181 *680p/50V_6

*680p/50V_6

PC180

PL14

0.56uH

PC86

4.7u/25V_8

+

PC172

560u/2.5V_6X5.7

D D

PR130

PR130 10_6

10_6

PR128

PR128 1M/F_4

1M/F_4

PU6

PU6 G5602

G5602

15

EN/DEM

16

TON

1

VOUT

2

VDD

3

FB

4

PGOOD

6

GND

5

NC

14

NC

1.05V_FB

PR135

PR135 *10K/F_4

*10K/F_4

PR129 *Short_4PR129 *Short_4

+3V

PC82

PC82 *0.1u/50V_6

*0.1u/50V_6

PC84

PC84 1u/16V_6

1u/16V_6

PC81

*1000p/50V_6

MAINON[19,36,41,44]

C C

HWPG_1.05V[36]

B B

BOOT UGATE PHASE

VDDP

LGATE

PGND

TPAD

PR133

2.2/F_6

13 12 11 10

OC

9 8 7 17

PR134

PR134 10K/F_4

10K/F_4

R2

PR136 *Short_4PR136 *Short_4

TON=3.85p*RTON*Vout/(Vin-0.5)

Frequency=Vout/(Vin*TON)

A A

TON=3.85p*1M*1/(Vin-0.5)

AO1718 Rdson=3~4.3mOhm

L(ripple current) =(19-1.05)*1.05/(0.56u*272k*19) ~6.512A

RILIM=2.15mohm*23-3.256/20uA=2.122Kohm I(choke)peak=29.512A

Frequency=1/(0.0036767)=272K

5

4

3

PR239 *Short_4PR239 *Short_4

Quanta Computer Inc.

ZRB

1

ZRB

1A

of

40 46Wednesday, July 21, 2010

PROJECT :

Size Document Number Rev

+VTT (UP6111A)

Date: Sheet

2

Date: Sheet

PROJECT :

[PWM]

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

5

4

3

2

1

D D

+0.75V_DDR_VTT

PC170

+SMDDR_VREF

PC170 10u/10V_8

10u/10V_8

0.75A

C C

0.15A

PR124 *Short_4PR124 *Short_4

PR125 *Short_4PR125 *Short_4

B B

PC79

0.033u/50V_6

PC169

PC169 10u/10V_8

10u/10V_8

+1.5VSUS

+5V_S5

*33p/50V_6

1

2

3

4

5

6

FOR DDR III

PC175

PC167

PC167 10u/10V_8

10u/10V_8

23

25

24

22

VTT

GND

VTTGND

VTTSNS

GND

MODE

VTTREF

COMP

10.2K/F_4

8207A_SET

10K/F_4

PR232

PR234

VBST

VLDOIN

RT8207A

PU11

NC7VDDQSNS8VDDQSET9S310S511NC

PC168

18

17

16

15

14

13

PR233

PR233 620K/F_4

620K/F_4

PC168

0.1u/50V_6

PR123

7.5K/F_4

12

PR230

PC173

5.1/F_6

1u/6.3V_4

PR126

PR126 100K/F_4

100K/F_4

(For RT8207A 400KHZ ) close to pc2008

VIN

SUSON [36]

MAINON [19,36,40,44]

+3V

HWPG_1.5V [36]

8207A_VBST

21

DRVH

PR235

PR235 *0_4

*0_4

PR229 *Short_6PR229 *Short_6

19LL20

CS_GND

PGOOD

12

PR236 *Short_4PR236 *Short_4

S5_1.8V

PR237 *Short_4PR237 *Short_4

S3_1.8V

DRVL

PGND

V5IN

V5FILT

CS

+5V_S5

Vout = (PR150/PR149) X 0.75 + 0.75

S3_1.8VS5_1.8V

PR231

PR231 *0_4

*0_4

8207A_DH 8207A_LX 8207A_DL

12

+1.5VSUS

+5V_S5

PC78

PC78 1u/6.3V_4

1u/6.3V_4

6/3 add for EMI

PC73

5/19 add

+

PC164

*100u/25V_6X5.7

+

PC157

PC157 560u/2.5V

560u/2.5V

PC74

4.7u/25V_8

PC75

0.1u/50V_6

5

4.7u/25V_8

PL12

0.56uH

4.7u/25V_8

4

213

5

4

213

PQ50

PQ50 AOL1448

AOL1448

PQ53

PQ53 AOL1718

AOL1718

PC76

2200p/50V_6

PR121

PR121 *4.7_6

*4.7_6

PC77

PC77 *680p/50V_6

*680p/50V_6

PC64

0.1u/50V_6

VIN

720mil OCP:20A

18A

+1.5VSUS

AO1718 Rdson=3.8~4.3mOhm

L(ripple current) =(19-1.5)*1.5/(0.56u*400k*19) ~6.168A

Vtrip= (20-6.168/2)*4.3mohm=0.072739V RILIM=Vtrip/10u=7.273K

578

MAIND[38,44]

A A

5

4

MAIND

PQ60

PQ60 AO4468

AO4468

3 6

241

+1.5V

2.03A

82mil

3

S0

S3

S4/S5

2

S3 S5

11

10

00

Size Document Number Rev

Date: Sheet of

ON ON ON

ON ON

OFF

Quanta Computer Inc.

PROJECT :

DDR 1.5V(RT8207A)

1

ZRB

VTTREF+1.5VSUS

OFF

OFFOFF

1A

41 46Wednesday, July 21, 2010

1A

A

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

Int_VGA

1 1

2 2

3 3

62881_GND

PR93

IV@820K/F_4

[PWM]

PR215 *Short_4PR215 *Short_4

PR216 *Short_4PR216 *Short_4

62881_GND

HWPG_GFX[36]

IV@100P/50V_4

PR99

IV@17.8K/F_4

*150K/F_4

PC62

62881_GND

PR223

PC67

IV@150P/50V_4

PR78 *Short_4PR78 *Short_4

PC60

IV@22p/50V_4

IV@330p/50V_4

62881_GND

PR221 IV@47K/F_4PR221 IV@47K/F_4

PR91 IV@8.06K/F_4PR91 IV@8.06K/F_4

GFX_VID0[6] GFX_VID1[6] GFX_VID2[6] GFX_VID3[6] GFX_VID4[6] GFX_VID5[6] GFX_VID6[6]

PC153

GFX_ON[6]

GFX_DPRSLPVR[6]

PC58

IV@1000P/50V_4

62881_GND

B

62881_GND

+3V

PR90

PR90 *100K_4

*100K_4

PR97

PR97 IV@8.87K/F_4

IV@8.87K/F_4

Rdroop

PC161

PC161 IV@330p/50V_4

IV@330p/50V_4

PC155

PC155 IV@1000P/50V_4

IV@1000P/50V_4

62881PGOOD

62881RBIAS

62881VW

62881COMP

62881FB

62881VSEN

PC150

*0.01u/25V_4

PR217 IV@100K_4PR217 IV@100K_4

PR214 *Short_4PR214 *Short_4

PR85 *Short_4PR85 *Short_4

31

GND30GND

1

CLK_EN#

2

PGOOD

3

RBIAS

4

VW

5

COMP

6

FB

7

VSEN

RTN

8

62881RTN

12

62881_GND

62881DPRSLPVR

28

29

GND

DPRSLPVR

IV@ISL62881HRTZ-T

ISUM-

9

62881ISUM-

62881VR_ON

27

10

62881ISUM+

VR_ON

PU4

ISUM+

C

GFX_VID6

26

VID6

GFX_VID5

25

VDD

11

62881VDD

PC154

PC154 IV@1u/6.3V_4

IV@1u/6.3V_4

62881_GND

VID5

12

62881VIN

GFX_VID4

GFX_VID3

23

24

VID4

VIN

13

PR222 *Short_4PR222 *Short_4

PC152

PC152 IV@0.22u/25V_6

IV@0.22u/25V_6

62881_GND

PR224

PR224 IV@10_6

IV@10_6

VID3

IMON

GFX_IMON

PR117

PR117 *10K/F_4

*10K/F_4

+5V_S5

GFX_VID2

22

VID2

VCCP

LGATE

VSSP

PHASE

UGATE

BOOT

14

62881BOOT

D

PR86

PR86 *0_4

*0_4

GFX_VID6 GFX_VID0GFX_VID3 GFX_VID2GFX_VID5 GFX_VID4 GFX_VID1

+5V_S5

GFX_VID0

GFX_VID1

21

VID1

20

VID0

19

62881LGATE

18

17

62881PHASE

16

62881UGATE

15

PR101

PR101 IV@1_6

IV@1_6

1 2

PC72

PC72 *0.22u/10V_4

*0.22u/10V_4

1 2

VIN

PC151

1 2

IV@4.7u/6.3V_6

PC65

IV@0.22u/25V_6

GFX_IMON [6]

VSS_AXG_SENSE [6]

PQ48

PQ48 IV@AOL1718

IV@AOL1718

E

+1.05V +1.05V

PR79

PQ49

PQ49 IV@AOL1448

IV@AOL1448

PQ7

IV@AOL1718

PR79 *0_4

*0_4

PC56

IV@2.2n/50V_4

PR77

5

*2.2/F_4

4

213

PC50

*2.2n/50V_4

PR87

PR87 *0_4

*0_4

5

4

213

5

4

213

PR88

PR88 *0_4

*0_4

F

PR89

PR89 *0_4

*0_4

PC54

IV@4.7u/25V_8

DCR= 1.6 ~1.8 mohm

PR225

PR225 IV@3.65K/F_4

IV@3.65K/F_4

PR107

IV@2.61K/F_4

PR105

IV@82.5/F_4

PC55

IV@4.7u/25V_8

PL11

PL11 IV@0.56uH

IV@0.56uH

1 2

3

PR106

IV@11K/F_4

PC70

IV@0.15U/10V_4

PC159

*0.1u/10V_4

PR226

IV@2.49K/F_4

PR212

PR212 *0_4

*0_4

4

PR211

IV@10K_6_NTC

Close to Phase Inductor

62881_GND

Ri

12

PC69

PC69 IV@0.01u/25V_4

IV@0.01u/25V_4

Close to Pin9 and Pin10

PC147

IV@560u/2.5V_6X5.7

PC160

PC160 IV@0.1u/10V_4

IV@0.1u/10V_4

PC162

PC162 *180P/50V_4

*180P/50V_4

PR227

PR227 *100/F_4

*100/F_4

PR213

PR213 *0_4

*0_4

+

G

H

OCP:14.1A Ri=2.87K Change Ri can adjust OCP point LL=7.08mv/A Rdroop=4.99K Change Rdroop can adjust loadline

VIN

660mil

OCP:22A

16.5A

+

PC148

IV@560u/2.5V_6X5.7

PC52

IV@10u/6.3V_8

DCR=1.6~1.8mOhm Load Line=7mV/A

1.6m*0.6168=0.986m

0.986m/.49K=396p 392p*2*8.87K=7.03m OCP 20u/2*2.49K=24.9m

24.9m/0.6168=40.3m

40.3m/1.6m=25.2A

+VGFX_AXG

Parallel

4 4

A

B

PR104 *Short_4PR104 *Short_4

PR103 *Short_4PR103 *Short_4

C

PR118 IV@10/F_4PR118 IV@10/F_4

VSS_AXG_SENSE

PR116 IV@10/F_4PR116 IV@10/F_4

D

VCC_AXG_SENSE [6]

Size Document Number Rev

1.Level 1 Environment-related Substances Should NEVER be Used.

2.Purchase ink, paint, wire rods, and Molding resins only from the business Partners that Sony approves as Green Partners.

E

F

Date: Sheet

G

Quanta Computer Inc.

PROJECT :

+VGFX_AXG (ISL62881)

H

ZQ9

of

42 9Wednesday, July 21, 2010

of

42 9Wednesday, July 21, 2010

of

42 9Wednesday, July 21, 2010

1A

1

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

2

3

4

5

A A

PR32

+3V_D_S

PR169

EV@10K_4

PR160

*0_4

PR28 *Short_4PR28 *Short_4

EV@10K_4

PC106

EV@0.1u/10V_4

PR30

PR30 EV@100K_4

EV@100K_4

5/12 change

PG_1V_EN[45]

dGPU_VRON[11,19]

+3V_D_S[19,21,36]

B B

PR32 *0_4

*0_4

PC105 EV@1u/10V_6PC105 EV@1u/10V_6

PC107 EV@1u/10V_6PC107 EV@1u/10V_6

PR35 *0_4PR35 *0_4

R1

R3

PR27

3

EV@332K/F_4

PC16

EV@0.01u/16V_4

PC17

EV@0.01u/16V_4

2

PQ4

PQ4 EV@DMN601K-7

EV@DMN601K-7

1

R2

R4

PR29

3

EV@130K/F_4

2

PQ5

PQ5 EV@DMN601K-7

EV@DMN601K-7

1

VID1[17]

PR25

EV@3K_4

C C

VID2[17]

PR26

PR26 EV@3K_4

EV@3K_4

REF-2V

+5V_S5

8792VCC

8792EN

8792SKIP#

8792REFIN

8792REF

PR168

PR168 EV@39.2K/F_4

EV@39.2K/F_4

PC104

EV@1000P/50V_4

PR31

PR31 EV@49.9K/F_4

EV@49.9K/F_4

PR33 *Short_4PR33 *Short_4

PR34 *Short_4PR34 *Short_4

2

VDD

13

VCC

14

PGOOD

1

EN

EV@MAX8792ETD+T

12

SKIP#

10

REFIN

11

REF

PR166

PR166 EV@51K/F_4

EV@51K/F_4

PR167

PR167 EV@100K_4

EV@100K_4

PR164

EV@200K/F_4

8792TON

7

TON

8792DH

5

DH

8792BST

6

BST

PU7

EP

15

8792LX

4

LX

8792DL

3

DL

8

FB

8792ILIM

9

ILIM

EV@200K/F_4

PR165

PR165 EV@1_6

EV@1_6

PC103

EV@0.22u/25V_6

Frequency(PR220=200K) 300K

AMD Park VID Table

GPU_VID1 (GPIO15) GPU_VID2 (GPIO20)

0 1 0 11

0 0 1

4

PQ28

EV@AOL1718

5

213

5

213

PQ27

EV@AOL1718

EV@2200p/50V_4

PQ25

PQ25 EV@AOL1448

EV@AOL1448

PC20

PC18

EV@4.7u/25V_8

PL6

EV@0.68uH_13X13X5

PR36

PR36 *2.2_6

*2.2_6

PC21

PC21 *1000p/50V_4

*1000p/50V_4

PC108

EV@0.1u/50V_6

5

4

213

PQ26

EV@AOL1448

5

4

213

PC22

*4700P/25V_4

*4700P/25V_4 PC108

+VGPU_CORE

1.12V

1.05V

0.95V

0.9V

8792EN

2

PQ23

EV@DTC144EU

VIN

PC19

PC19 EV@4.7u/25V_8

EV@4.7u/25V_8

+VGPU_CORE

1050mil OCP=35A

26.25A

+

PC111

EV@330u/2V_7343

PC24

EV@330u/2V_7343

VIN

PR161

PR161 EV@1M_6

EV@1M_6

2

PR162

PR162 EV@1M_6

1 3

EV@1M_6

*330u/2V_7343

+VGPU_CORE

PR159

PR159 EV@22_8

EV@22_8

3

PQ22

PQ22 EV@DMN601K-7

EV@DMN601K-7

1

PC23

Place near GND pin15

D D

Quanta Computer Inc.

PROJECT :

Size Document Number Rev

GPU CORE(MAX8792)

Date: Sheet

1

2

3

4

Date: Sheet

PROJECT :

ZQ9

43 9Wednesday, July 21, 2010

5

43 9Wednesday, July 21, 2010

1A

of

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

+3VPCU

PC118

PR172

15K/F_4

PC117

PC117 *100P/50V_4

*100P/50V_4

PC118

0.1u/25V_4

54418-1_VFB

PC115

PC115 1200p/50V_4

1200p/50V_4

PC119

PC119 10u/10V_8

10u/10V_8

D D

MAINON[19,36,40,41]

PR37 *Short_4PR37 *Short_4

PR39

PR39 *100K/F_4

*100K/F_4

PC116

PC116 1000p/50V_4

1000p/50V_4

PR171

PR171 182K/F_4

182K/F_4

4

PU8 HPA00835RTERPU8 HPA00835RTER

16

VIN

1

VIN

2

VIN

15

EN

6

VSNS

7

COMP

8

RT/CLK

9

SS

PC114

0.01u/25V_4

3

10

PH

11

PH

12

PH

PR170 *Short_6PR170 *Short_6

13

BOOT

14

PWRGD

3

GND

4

GND

5

AGND

PAD17PAD18PAD19PAD20PAD21PAD

22

PC113

0.1u/50V_6

PR38

100K/F_4

1uH_7X7X3

5/12 change

HWPG_1.8V [36]

+3V_S5

PL7

PR173

R1

100K/F_4

PC109

PC112

10u/10V_8

0.1u/25V_4

54418-1_VFB

0.1u/25V_4

2.17A

+1.8V

PC110

10u/10V_8

2

1

87mil

V0=0.8*(R1+R2)/R2

PR174

78.7K/F_4

R2

VIN

C C

PG_1.5V_EN[45]

PR147

PR147 *100K_4

*100K_4

+1.5V_GPU

PR16

PR16 EV@1K_4

B B

A A

EV@1K_4

PR18

PR18 EV@100K_4

EV@100K_4

MAINON

12

EV@DTC144EUA

12

PQ3

EV@PDTC143TT

2

PQ14

2

PR137

PR137 *100K/F_6

*100K/F_6

1 3

PQ8

PQ8 DTC144EU

DTC144EU

1 3

PR145

PR145 EV@1M_4

EV@1M_4

PR148

PR148 EV@1M_4

EV@1M_4

VIN

PR24

PR24 EV@1M_4

EV@1M_4

PR17

PR17 EV@1M_4

EV@1M_4PQ3

VIN

PR143

PR143 1M_4

1M_4

PR144

PR144 1M_4

1M_4

PR149

PR149 EV@22_8

EV@22_8

3

2

PQ16

PQ16 EV@DMN601K-7

EV@DMN601K-7

1

PR23

PR23 EV@22_8

EV@22_8

3

2

PQ2

PQ2 EV@DMN601K-7

EV@DMN601K-7

1

PR140

PR140 22_8

22_8

3

2

PQ11

PQ11 DMN601K-7

DMN601K-7

1

+15V+1.5V_GPU

PR240

PR240 EV@1M_4

EV@1M_4

dGPU_D

3

2

PQ61

PQ61 EV@DMN601K-7

EV@DMN601K-7

1

+15V+1.8V_GPU

PR163

PR163 EV@1M_4

EV@1M_4

3

2

PQ24

PQ24 EV@DMN601K-7

EV@DMN601K-7

1

PR141

PR141 22_8

22_8

3

2

PQ12

PQ12 DMN601K-7

DMN601K-7

1

dGPU_D1

+0.75V_DDR_VTT

3

2

1

PC125

PC125 *2.2n/50V_4

*2.2n/50V_4

PC102

PC102 *2.2n/50V_4

*2.2n/50V_4

PR146

PR146 22_8

22_8

PQ15

PQ15 DMN601K-7

DMN601K-7

+1.5VSUS

+

C618

2

C618 EV@100u/6.3V_3528

EV@100u/6.3V_3528

+15V+5V+3V

PR138

PR138 1M_4

1M_4

3

PQ10

PQ10 DMN601K-7

DMN601K-7

1

close PQ9030

MAINDMAINON_ON_G

PC87

PC87 *2200p/50V_4

*2200p/50V_4

MAIND [38,41]

PQ29

5

EV@AOL1718

4

+1.8V

3

2

1

PR142

PR142 22_8

22_8

3

2

PQ13

DMN601K-7

1

213

PQ38

PQ38 EV@AO3404

EV@AO3404

2

342mil

8.55A

+1.5V_GPU

57mil

1.41A

+1.8V_GPU

+1.8V+1.5V

PR139

PR139 *22_8

*22_8

3

*DMN601K-7

1

PQ9

5

4

3

2

7/7 modify

Quanta Computer Inc.

ZRB

PROJECT :

Size Document Number Rev

Discharge/1.8V)

Date: Sheet

PROJECT :

ZRB

of

44 46Friday, July 23, 2010

of

44 46Friday, July 23, 2010

of

1

44 46Friday, July 23, 2010

1A

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

+5VPCU

PC123

EV@0.1u/50V_6

PR175

PR175 EV@100K_4

EV@100K_4

EV@10u/10V_8

EV@0.1u/50V_6

PC121

EV@0.1u/50V_6

PC122

EV@0.1u/50V_6

D D

PG_1V_EN[43]

+1.5VSUS

12

PC120

PU9

PU9 EV@G966A

EV@G966A

4

VPP

2

VEN

3

VIN

8

GND

9

GND

PGOOD

ADJ

7

4

+3V_S5

12

PR176

PR176 EV@10K_4

EV@10K_4

1 6

VO

5

NC

PR177

PR177 EV@9.1K/F_4

EV@9.1K/F_4

0.8V

PR178

PR178 EV@34K/F_4

EV@34K/F_4

12

PC124

EV@22u/10V_1206

PG_1.5V_EN [44]

+1V

1.5A

3

2

1

Vout =0.8(1+R1/R2) =1V

C C

VIN

PD8

PD8 SW1010CPT

SW1010CPT

PU10B

PU10B LM393

LM393

5

+

6

7

-

PR179

PR179 1M_6

1M_6

Thermal protection

B B

S5_ON[36,38]

S5_ON

2

PQ30

DTC144EU

VLVL

1 3

1

PQ33

PQ33 AO3409

3

AO3409

PR193

PR193 *Short_6

*Short_6

2

Need fine tune for thermal protect point

PC131

PU10A

PU10A LM393

LM393

1

PC131

0.1u/50V_6

4

PR183

PR185

1.74K/F_4

PR186

10K_6_NTC

3

A A

S5_ON

2

1

Note placement position

PQ31

PQ31 DMN601K-7

DMN601K-7

5

1.74K/F_4

PR183 200K/F_4

200K/F_4

2.469V

PR182

PR182 200K/F_4

200K/F_4

84

3

+

2

-

For EC control thermal protection (output 3.3V)

SYS_SHDN# [4,38]

PR195

PR195 200K_6

200K_6

3

2

PQ36

PQ36 DMN601K-7

PC130

0.1u/50V_6

1

DMN601K-7

3

Quanta Computer Inc.

ZRB

PROJECT :

Size Document Number Rev

Date: Sheet

2

Date: Sheet

PROJECT :

ZRB

1A

of

45 46Wednesday, July 21, 2010

of

45 46Wednesday, July 21, 2010

of

45 46Wednesday, July 21, 2010

1

5

Maintenance and Service Guide,Service Manual,Motherboard Schematics for Laptop/notebook http://mycomp.su/x/

Model

ZY9B MB

D D

REV

FIRST RELEASED

1A

Page 3 : Unstuff L54 & stuff R586 & change U31 P/N for 3V CLK gen and Switch CLK_BUF_DREFSSCLK and CLK_BUF_PCIE_3GPLL Page 4 : Q16 Change P/N for EOD part & short R116 (Del.) for 0 ohm Page 8 : Short R244 (Del.) for 0 ohm Page 10 :Short R243 (Del.) for 0 ohm Page 12 :Short R189 ,R190 & R534 (Del.) for 0 ohm & C655 change P/N for EOD part Page 14 :Del. R268 & R247 for M3 solution & stuff R269 ,R229 ,R223 & R226 for M1 solution,Stuff C372 for +1.5VSUS leakage Page 15 :Stuff C459 for +1.5VSUS leakage Page 25 :Q12 ,Q17 & Q18 Change P/N for ESD , CN10 Change P/N ,Q14.2 & Q13.2 Change from +5V to +3V Page 27 :C339 & C391 of footprint Change from 0805 to 0402 for ESD Page 28 :Unstuff R566 ,R294 ,R284 ,R279 ,R276 ,R273 ,R272 for disable debug card function

2A

Page 29 :C393 & C254 Change P/N for EOD , CN11 Change footprint for ME design request. Page 30 :U13 Change AMP circuit Page 31 :Q22 & Q23 Change P/N for EOD part. Page 34 :Del. L55 , CN12 Change P/N Page 36 :C27 Change P/N for EOD part Page All : Change to short pad : Location : R458 ,R452 ,R537 ,R533 ,R144 ,R155 ,R191 ,R140 ,R201 ,R224 ,R461 ,R136 ,R197

,R206 ,R219 ,R212 ,R166 ,R174 ,R188 ,R202 ,R209 ,R184 ,R168 ,R185 ,R448 ,R447 ,R5 ,R10 ,R9 ,R6 ,R263 ,R288 ,R544 ,R436 ,R563 ,R570 ,R569 ,R584 ,R299 ,C738 ,R311 ,R585 ,R583 ,R571 ,R582 ,R575 ,R576 ,R579 ,R333 ,R352 ,R331 ,R332 & R349

3A

C C

B B

A A

3C

4

3

CHANGE LIST

2

MODEL

1

ZY9B

FROM To

X X 1A 1A 1A 1A 1A 1A 1A 1A 1A 1A 1A 1A 1A 1A1A2A

1A1A2A

1A 2A 1A 1A 1A 1A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A

1A 1A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A

2A

2A 2A1A

2A

2A 2A 2A 2A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3A 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B 3B

Quanta Computer Inc.

PROJECT :

ZYA

PROJECT :

ZYA

PROJECT :

Size Document Number Rev

Change list

Date: Sheet

ZYA

of

49 50Wednesday, July 21, 2010

of

49 50Wednesday, July 21, 2010

of

49 50Wednesday, July 21, 2010

5

DOC NO.

1A

4

PART NUMBER:

3

APPROVED BY:PROJECT MODEL : ZY9B DRAWING BY:

2

DATE:

REVISON:

2009/05/??

1A

1

QUANTA ZRC Schematics

Specifications and Main Features

Frequently Asked Questions

User Manual
