Quanta N61A Schematic

5

www.schematic-x.blogspot.com

4

3

2

1

HP Crane System Block Diagram

01

-G PCA Only

LGA1150 socket

D D

DDR3-SODIMM CH. A

DDR3 1600 MT/s

PEGx8

CPU

Skylake-S

DDR3-SODIMM CH. B

C C

3.5" SATA HDD

SATA ODD

WEBCAM

Bell Cliffs CAM

14pin CONN

DDR3 1600 MT/s

SATA Gen3

SATA Gen2

USB 2.0

USB 3.0

Up to 35W

FDI

DMI

Skylake PCH-H

(100 Series)

eDP
HDMI

USB 2.0
PCIe

PCIe

PCIe

AMD S3
Exo ( Meso)

27 MHz

eDP to LVDS

Card Reader

RTS5239-R

Gigabit LAN

RTL8161GSH

2GB VRAM x4

LVDS(2ch)

LVDS(2ch) CONN 30PIN

HDMI IN CONN 20PIN

M.2 Slot

WLAN+BT Combo

CR Slot

RJ45

Cabled

Int Spkr

B B

Touch Contl.

USB 2.0 x4
( External)

USB 3.0 x2
( External)

(1 port with fast Charging)

A A

TPM

Infineon

USB 2.0

USB 2.0

USB 3.0

SPI

Azalia

32.768KHz

LPC

Audio Codec

Realtek

ALC3228

EC

IT8518E

Cabled

Cabled

I2C

SPI

Int Spkr

Combo
Jack

DMIC

Converter
Connector

SPI ROM

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

SLB9670

Project:

Project:

w w w . c h i n a f i x . c o m

25MHZ XTAL

5

4

SPI

SPI ROM
64Mbit

3

FAN

2

Title

Title

Title

System Block Diagram

System Block Diagram

System Block Diagram

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

1 56Wednesday, July 29, 2015

1 56Wednesday, July 29, 2015

1 56Wednesday, July 29, 2015

5

4

3

2

1

Voltage Rails

Voltage

+RTC_VCC 3V

+VIN

+5V_AUX

D D

+5V_SUS

+3.3V_SUS

+1.8V_SUS

+1.0V_SUS 1.0V

+VCCST_VCCPLL

+VDDQ

SMDDR_VTERM

+5V

+3.3V

+12V 12V MAIN_ON1

C C

+VCCSA

+VCCGT

+3.3V_VGA 3.3V

+1.8V_VGA 1.8V

+0.95V_VGA

+VGA_CORE

+VCCCORE

19V

5V

3.3V+3.3V_AUX

3.3V

1.8V

1.0V

1.35V

0.75V

5V

3.3V

0.95V PG_MAINOFF+VCCIO

1.05V

0.65~1.3V

0.95V

0.8~1.15V

1.5V+1.5V_VGA

0.65~1.3V

ON ON ON ON ON ON

ON ON ON ON ON OFF

ON ON ON ON ON OFF

ON ON ON ON ON OFF

ON ON ON ON OFF OFF

ON ON ON ON

ON ON ON ON

ON ON ON ON OFF OFF

OFF OFF OFFON OFFON S3_ON

ON

ON

OFF

ON OFFOFFOFFOFF OFF

ON OFFOFFOFF OFFOFF

ON OFF OFF OFF OFF

ON OFF OFF OFF OFFOFF

ON OFF OFF OFF OFFOFF

ON OFF OFF OFF OFFOFF

ON OFF OFF OFF OFF OFF

ON OFF OFF OFF OFF OFF

ON OFF OFF OFF OFF OFF

ON OFF OFF OFF OFF OFF

ON OFF OFF OFF OFF OFF

OFF OFF OFFON OFF

OFF OFF OFFON OFF

OFF OFF OFFON OFF MAIN_ON1

PCUPower Rail S0 Ctl SignalS3 S4 S5

OFF

OFF

G3

Adaptor in

AUX_ON

3V/5V PWM IC_LDO

EC_SUS_ON5V

EC_SUS_ON

OFF

OFF

EC_SUS_ON

PG_+1.8V_SUS

S3_ON

DDR_VTT_CNTL

MAIN_ON1

PG_+VCCIO

VR_ON

EN_+3.3V_VGA

EN_+3.3V_VGA

EN_+3.3V_VGA

PG_+1.8V_VGA

GFX_PWR_GOOD

VR_ON

02

RTC Batt, PCH , EC

USB Charger
EC, Flash
PCH, USB, 3D WebCAM, Touch Panel
PCH, XDP, SPI flash ROM,NGFF LAN

PCH, XDP, NGFF LAN
PCH

CPU, PCH, XDP
DDR3, CPU DDR3 I/O
DDR3
HDD, ODD,Audio AMP,Panel VCC,FAN
PCH, Audio, Card Reader, TPM, FHD CAM

3.5" HDD
CPU
PCH, CPU
PCH
dGPU
dGPU
dCPU
dGPU
dGPU, VRAM
CPU

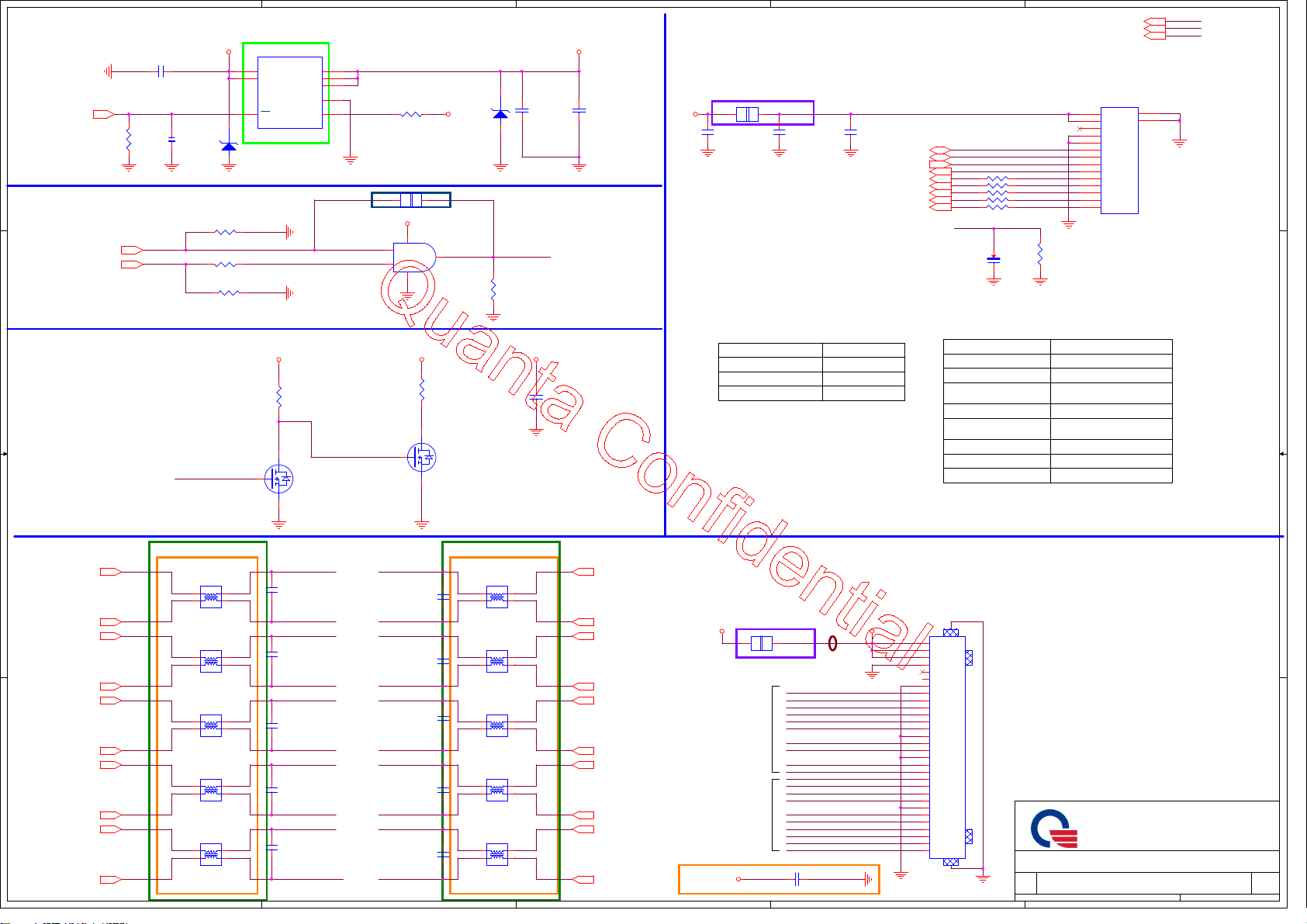

Schematic “Value” Definition

Intel Platform Crusher-G and Crusher-U

B B

By Value
format

XX

*XX

PROTO@XX

MP@XX
DIS@xx

UMA@xx

A A

M_DIS@xx

E_DIS@xx

Description Auto BOM

Control

Install

Non-Install

Install in
Pre-production only

Install in MP only

Install Discrete
(DGPU) only

Install UMA

Install Discrete
Meso GPU only

Install Discrete
Exo GPU only

V

V

V

V

V

V

V

V

UMA

***Board ID and VRAM ID by manual control

5

4

DB/SI/PV Stage MP

Discrete
Meso GPU

Discrete
Exo GPU

UMA

Discrete
Meso GPU

Discrete
Exo GPU

V V V V V V

V V V

V V V

V V V V

V

V

V

V

V

3

2

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

V

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

Project:

Project:

Power States & Value Definition

Power States & Value Definition

Power States & Value Definition
810606-000

810606-000

810606-000

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

2 56Wednesday, July 29, 2015

2 56Wednesday, July 29, 2015

2 56Wednesday, July 29, 2015

5

4

3

2

1

?

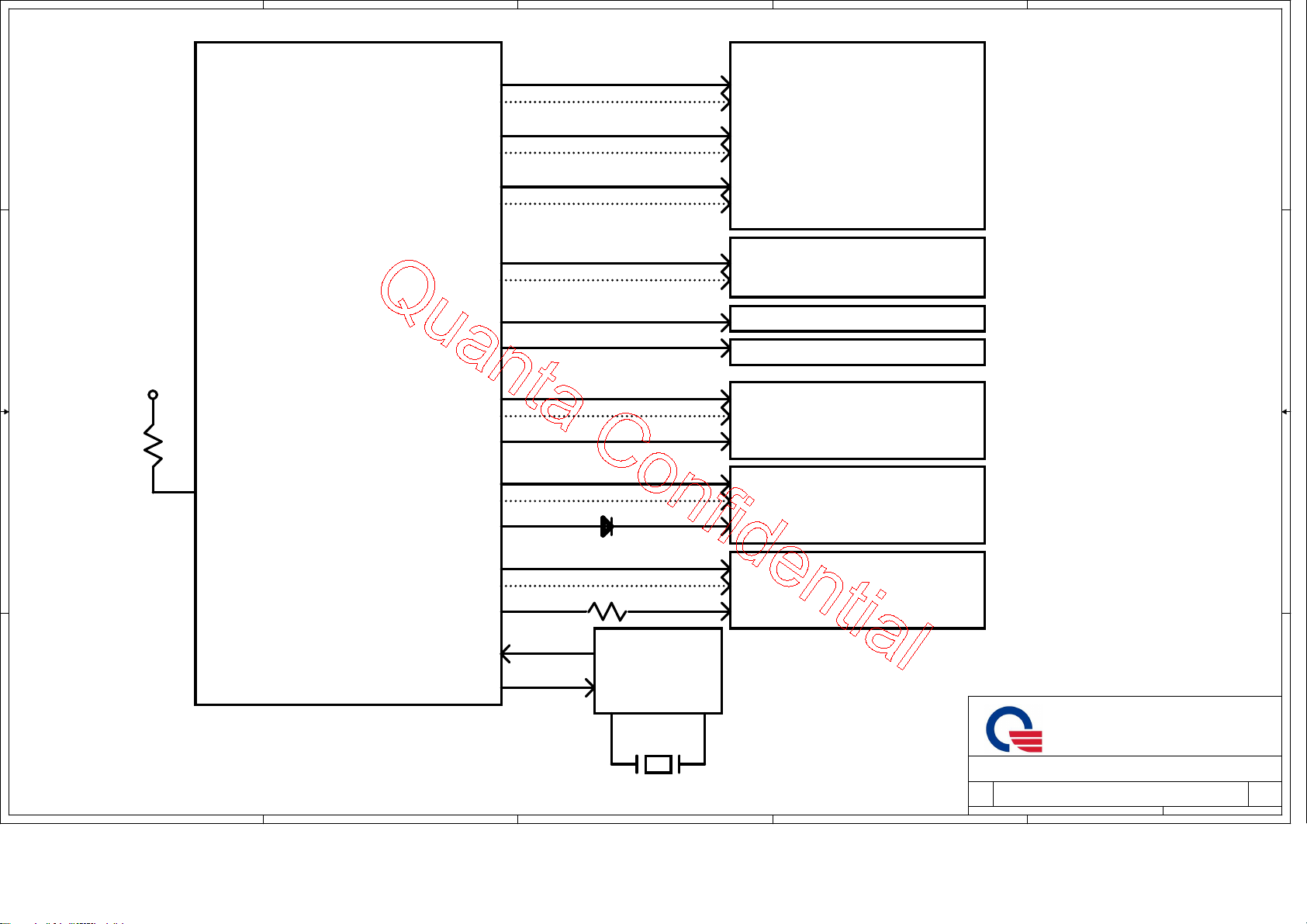

M_A_DQ[63:0](14)

D D

C C

B B

A A

M_A_DQ0
M_A_DQ1
M_A_DQ2
M_A_DQ3
M_A_DQ4
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ8
M_A_DQ9
M_A_DQ10
M_A_DQ11
M_A_DQ12
M_A_DQ13
M_A_DQ14
M_A_DQ15
M_A_DQ16
M_A_DQ17
M_A_DQ18
M_A_DQ19
M_A_DQ20
M_A_DQ21
M_A_DQ22
M_A_DQ23
M_A_DQ24
M_A_DQ25
M_A_DQ26
M_A_DQ27
M_A_DQ28
M_A_DQ29
M_A_DQ30
M_A_DQ31
M_A_DQ32
M_A_DQ33
M_A_DQ34
M_A_DQ35
M_A_DQ36
M_A_DQ37
M_A_DQ38
M_A_DQ39
M_A_DQ40
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ44
M_A_DQ45
M_A_DQ46
M_A_DQ47
M_A_DQ48
M_A_DQ49
M_A_DQ50
M_A_DQ51
M_A_DQ52
M_A_DQ53
M_A_DQ54
M_A_DQ55
M_A_DQ56
M_A_DQ57
M_A_DQ58
M_A_DQ59
M_A_DQ60
M_A_DQ61
M_A_DQ62
M_A_DQ63

5

J1A

AE38

DDR0_DQ[0]

AE37

DDR0_DQ[1]

AG38

DDR0_DQ[2]

AG37

DDR0_DQ[3]

AE39

DDR0_DQ[4]

AE40

DDR0_DQ[5]

AG39

DDR0_DQ[6]

AG40

DDR0_DQ[7]

AJ38

DDR0_DQ[8]

AJ37

DDR0_DQ[9]

AL38

DDR0_DQ[10]

AL37

DDR0_DQ[11]

AJ40

DDR0_DQ[12]

AJ39

DDR0_DQ[13]

AL39

DDR0_DQ[14]

AL40

DDR0_DQ[15]

AN38

DDR0_DQ[16]/DDR0_DQ[32]

AN40

DDR0_DQ[17]/DDR0_DQ[33]

AR38

DDR0_DQ[18]/DDR0_DQ[34]

AR37

DDR0_DQ[19]/DDR0_DQ[35]

AN39

DDR0_DQ[20]/DDR0_DQ[36]

AN37

DDR0_DQ[21]/DDR0_DQ[37]

AR39

DDR0_DQ[22]/DDR0_DQ[38]

AR40

DDR0_DQ[23]/DDR0_DQ[39]

AW37

DDR0_DQ[24]/DDR0_DQ[40]

AU38

DDR0_DQ[25]/DDR0_DQ[41]

AV35

DDR0_DQ[26]/DDR0_DQ[42]

AW35

DDR0_DQ[27]/DDR0_DQ[43]

AU37

DDR0_DQ[28]/DDR0_DQ[44]

AV37

DDR0_DQ[29]/DDR0_DQ[45]

AT35

DDR0_DQ[30]/DDR0_DQ[46]

AU35

DDR0_DQ[31]/DDR0_DQ[47]

AY8

DDR0_DQ[32]/DDR1_DQ[0]

AW8

DDR0_DQ[33]/DDR1_DQ[1]

AV6

DDR0_DQ[34]/DDR1_DQ[2]

AU6

DDR0_DQ[35]/DDR1_DQ[3]

AU8

DDR0_DQ[36]/DDR1_DQ[4]

AV8

DDR0_DQ[37]/DDR1_DQ[5]

AW6

DDR0_DQ[38]/DDR1_DQ[6]

AY6

DDR0_DQ[39]/DDR1_DQ[7]

AY4

DDR0_DQ[40]/DDR1_DQ[8]

AV4

DDR0_DQ[41]/DDR1_DQ[9]

AT1

DDR0_DQ[42]/DDR1_DQ[10]

AT2

DDR0_DQ[43]/DDR1_DQ[11]

AV3

DDR0_DQ[44]/DDR1_DQ[12]

AW4

DDR0_DQ[45]/DDR1_DQ[13]

AT4

DDR0_DQ[46]/DDR1_DQ[14]

AT3

DDR0_DQ[47]/DDR1_DQ[15]

AP2

DDR0_DQ[48]/DDR1_DQ[32]

AM4

DDR0_DQ[49]/DDR1_DQ[33]

AP3

DDR0_DQ[50]/DDR1_DQ[34]

AM3

DDR0_DQ[51]/DDR1_DQ[35]

AP4

DDR0_DQ[52]/DDR1_DQ[36]

AM2

DDR0_DQ[53]/DDR1_DQ[37]

AP1

DDR0_DQ[54]/DDR1_DQ[38]

AM1

DDR0_DQ[55]/DDR1_DQ[39]

AK3

DDR0_DQ[56]/DDR1_DQ[40]

AH1

DDR0_DQ[57]/DDR1_DQ[41]

AK4

DDR0_DQ[58]/DDR1_DQ[42]

AH2

DDR0_DQ[59]/DDR1_DQ[43]

AH4

DDR0_DQ[60]/DDR1_DQ[44]

AK2

DDR0_DQ[61]/DDR1_DQ[45]

AH3

DDR0_DQ[62]/DDR1_DQ[46]

AK1

DDR0_DQ[63]/DDR1_DQ[47]

AU33

DDR0_ECC[0]

AT33

DDR0_ECC[1]

AW33

DDR0_ECC[2]

AV31

DDR0_ECC[3]

AU31

DDR0_ECC[4]

AV33

DDR0_ECC[5]

AW31

DDR0_ECC[6]

AY31

DDR0_ECC[7]

DDR CHANNEL A

SKL_S_CPU_LGA

SKL_S_CPU

LGA1151

DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0]
DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1]
DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0]

DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16]

DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14]

DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15]

DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0]
DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1]
DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2]

DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5]
DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6]
DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7]
DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8]

DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9]
DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10]
DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11]
DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12]
DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13]

DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1]
DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT#

DDR0_DQSN[2]/DDR0_DQSN[4]
DDR0_DQSN[3]/DDR0_DQSN[5]
DDR0_DQSN[4]/DDR1_DQSN[0]
DDR0_DQSN[5]/DDR1_DQSN[1]
DDR0_DQSN[6]/DDR1_DQSN[4]
DDR0_DQSN[7]/DDR1_DQSN[5]

DDR0_DQSP[2]/DDR0_DQSP[4]
DDR0_DQSP[3]/DDR0_DQSP[5]
DDR0_DQSP[4]/DDR1_DQSP[0]
DDR0_DQSP[5]/DDR1_DQSP[1]
DDR0_DQSP[6]/DDR1_DQSP[4]
DDR0_DQSP[7]/DDR1_DQSP[5]

1 OF 12

DDR0_CKP[0]
DDR0_CKN[0]
DDR0_CKP[1]
DDR0_CKN[1]
DDR0_CKP[2]
DDR0_CKN[2]
DDR0_CKP[3]
DDR0_CKN[3]

DDR0_CKE[0]
DDR0_CKE[1]
DDR0_CKE[2]
DDR0_CKE[3]

DDR0_CS#[0]
DDR0_CS#[1]
DDR0_CS#[2]
DDR0_CS#[3]

DDR0_ODT[0]
DDR0_ODT[1]
DDR0_ODT[2]
DDR0_ODT[3]

DDR0_MA[3]
DDR0_MA[4]

DDR0_PAR

DDR0_ALERT#

DDR0_DQSN[0]
DDR0_DQSN[1]

DDR0_DQSP[0]
DDR0_DQSP[1]

DDR0_DQSP[8]
DDR0_DQSN[8]

4

?REV = 1.2

AW18
AV18
AW17
AY17
AW16
AV16
AT16
AU16

AY24
AW24
AV24
AV25

AW12
AU11
AV13
AV10

AW11
AU14
AU12
AY10

AY13

M_A_BS#0

AV15

M_A_BS#1

AW23

M_A_BS#2

AW13
AV14
AY11

AW15

M_A_A0

AU18

M_A_A1

AU17

M_A_A2

AV19

M_A_A3

AT19

M_A_A4

AU20

M_A_A5

AV20

M_A_A6

AU21

M_A_A7

AT20

M_A_A8

AT22

M_A_A9

AY14

M_A_A10

AU22

M_A_A11

AV22

M_A_A12

AV12

M_A_A13

AV23

M_A_A14

AU24

M_A_A15

AY15

M_A_PAR

AT23

AF39
AK39
AP39
AU36
AW7
AU3
AN3
AJ3

AF38
AK38
AP38
AV36
AV7
AU2
AN2
AJ2

AV32

M_A_DQS8

AU32

M_A_DQS#8

BK:
CRB

DIMM_CA_CPU_VREF_A

TP9
TP10

TP21

M_A_CLKP0 (14)
M_A_CLKN0 (14)
M_A_CLKP1 (14)
M_A_CLKN1 (14)

M_A_CKE0 (14)
M_A_CKE1 (14)

M_A_CS#0 (14)
M_A_CS#1 (14)

M_A_ODT0 (14)
M_A_ODT1 (14)

M_A_BS#[2..0] (14)

M_A_RAS# (14)
M_A_WE# (14)
M_A_CAS# (14)
M_A_A[15:0] (14)

M_A_DQS#0 (14)
M_A_DQS#1 (14)
M_A_DQS#2 (14)
M_A_DQS#3 (14)
M_A_DQS#4 (14)
M_A_DQS#5 (14)
M_A_DQS#6 (14)
M_A_DQS#7 (14)

M_A_DQS0 (14)
M_A_DQS1 (14)
M_A_DQS2 (14)
M_A_DQS3 (14)
M_A_DQS4 (14)
M_A_DQS5 (14)
M_A_DQS6 (14)
M_A_DQS7 (14)

R50 2.0/1%_4
R51 2.0/1%_4

C46

0.022u/16V/X7R_4

DIMM_CA_CPU_VREF_A_RC

R52

24.9/1%_4

M_B_DQ[63:0](15)

M_B_DQ0
M_B_DQ1
M_B_DQ2
M_B_DQ3
M_B_DQ4
M_B_DQ5
M_B_DQ6
M_B_DQ7
M_B_DQ8
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ13
M_B_DQ14
M_B_DQ15
M_B_DQ16
M_B_DQ17
M_B_DQ18
M_B_DQ19
M_B_DQ20
M_B_DQ21
M_B_DQ22
M_B_DQ23
M_B_DQ24
M_B_DQ25
M_B_DQ26
M_B_DQ27
M_B_DQ28
M_B_DQ29
M_B_DQ30
M_B_DQ31
M_B_DQ32
M_B_DQ33
M_B_DQ34
M_B_DQ35
M_B_DQ36
M_B_DQ37
M_B_DQ38
M_B_DQ39
M_B_DQ40
M_B_DQ41
M_B_DQ42
M_B_DQ43
M_B_DQ44
M_B_DQ45
M_B_DQ46
M_B_DQ47
M_B_DQ48
M_B_DQ49
M_B_DQ50
M_B_DQ51
M_B_DQ52
M_B_DQ53
M_B_DQ54
M_B_DQ55
M_B_DQ56
M_B_DQ57
M_B_DQ58
M_B_DQ59
M_B_DQ60
M_B_DQ61
M_B_DQ62
M_B_DQ63

DIMM_CA_VREF_A (14)
DIMM_CA_VREF_B (15)

3

J1B

AD34

DDR1_DQ[0]/DDR0_DQ[16]

AD35

DDR1_DQ[1]/DDR0_DQ[17]

AG35

DDR1_DQ[2]/DDR0_DQ[18]

AH35

DDR1_DQ[3]/DDR0_DQ[19]

AE35

DDR1_DQ[4]/DDR0_DQ[20]

AE34

DDR1_DQ[5]/DDR0_DQ[21]

AG34

DDR1_DQ[6]/DDR0_DQ[22]

AH34

DDR1_DQ[7]/DDR0_DQ[23]

AK35

DDR1_DQ[8]/DDR0_DQ[24]

AL35

DDR1_DQ[9]/DDR0_DQ[25]

AK32

DDR1_DQ[10]/DDR0_DQ[26]

AL32

DDR1_DQ[11]/DDR0_DQ[27]

AK34

DDR1_DQ[12]/DDR0_DQ[28]

AL34

DDR1_DQ[13]/DDR0_DQ[29]

AK31

DDR1_DQ[14]/DDR0_DQ[30]

AL31

DDR1_DQ[15]/DDR0_DQ[31]

AP35

DDR1_DQ[16]/DDR0_DQ[48]

AN35

DDR1_DQ[17]/DDR0_DQ[49]

AN32

DDR1_DQ[18]/DDR0_DQ[50]

AP32

DDR1_DQ[19]/DDR0_DQ[51]

AN34

DDR1_DQ[20]/DDR0_DQ[52]

AP34

DDR1_DQ[21]/DDR0_DQ[53]

AN31

DDR1_DQ[22]/DDR0_DQ[54]

AP31

DDR1_DQ[23]/DDR0_DQ[55]

AL29

DDR1_DQ[24]/DDR0_DQ[56]

AM29

DDR1_DQ[25]/DDR0_DQ[57]

AP29

DDR1_DQ[26]/DDR0_DQ[58]

AR29

DDR1_DQ[27]/DDR0_DQ[59]

AM28

DDR1_DQ[28]/DDR0_DQ[60]

AL28

DDR1_DQ[29]/DDR0_DQ[61]

AR28

DDR1_DQ[30]/DDR0_DQ[62]

AP28

DDR1_DQ[31]/DDR0_DQ[63]

AR12

DDR1_DQ[32]/DDR1_DQ[16]

AP12

DDR1_DQ[33]/DDR1_DQ[17]

AM13

DDR1_DQ[34]/DDR1_DQ[18]

AL13

DDR1_DQ[35]/DDR1_DQ[19]

AR13

DDR1_DQ[36]/DDR1_DQ[20]

AP13

DDR1_DQ[37]/DDR1_DQ[21]

AM12

DDR1_DQ[38]/DDR1_DQ[22]

AL12

DDR1_DQ[39]/DDR1_DQ[23]

AP10

DDR1_DQ[40]/DDR1_DQ[24]

AR10

DDR1_DQ[41]/DDR1_DQ[25]

AR7

DDR1_DQ[42]/DDR1_DQ[26]

AP7

DDR1_DQ[43]/DDR1_DQ[27]

AR9

DDR1_DQ[44]/DDR1_DQ[28]

AP9

DDR1_DQ[45]/DDR1_DQ[29]

AR6

DDR1_DQ[46]/DDR1_DQ[30]

AP6

DDR1_DQ[47]/DDR1_DQ[31]

AM10

DDR1_DQ[48]

AL10

DDR1_DQ[49]

AM7

DDR1_DQ[50]

AL7

DDR1_DQ[51]

AM9

DDR1_DQ[52]

AL9

DDR1_DQ[53]

AM6

DDR1_DQ[54]

AL6

DDR1_DQ[55]

AJ6

DDR1_DQ[56]

AJ7

DDR1_DQ[57]

AE6

DDR1_DQ[58]

AF7

DDR1_DQ[59]

AH7

DDR1_DQ[60]

AH6

DDR1_DQ[61]

AE7

DDR1_DQ[62]

AF6

DDR1_DQ[63]

AR25

DDR1_ECC[0]

AR26

DDR1_ECC[1]

AM26

DDR1_ECC[2]

AM25

DDR1_ECC[3]

AP26

DDR1_ECC[4]

AP25

DDR1_ECC[5]

AL25

DDR1_ECC[6]

AL26

DDR1_ECC[7]

SKL_S_CPU_LGA

DDR CHANNEL B

?

SKL_S_CPU

LGA1151

DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16]

DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14]

DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15]

DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0]
DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1]
DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0]

DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0]
DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1]
DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2]

DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5]
DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6]
DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7]
DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8]

DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9]
DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10]
DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11]
DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12]
DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13]

DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1]
DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT#

DDR1_DQSN[0]/DDR0_DQSN[2]
DDR1_DQSN[1]/DDR0_DQSN[3]
DDR1_DQSN[2]/DDR0_DQSN[6]
DDR1_DQSN[3]/DDR0_DQSN[7]
DDR1_DQSN[4]/DDR1_DQSN[2]
DDR1_DQSN[5]/DDR1_DQSN[3]

DDR1_DQSP[0]/DDR0_DQSP[2]
DDR1_DQSP[1]/DDR0_DQSP[3]
DDR1_DQSP[2]/DDR0_DQSP[6]
DDR1_DQSP[3]/DDR0_DQSP[7]
DDR1_DQSP[4]/DDR1_DQSP[2]
DDR1_DQSP[5]/DDR1_DQSP[3]

2 OF 12

2

DDR1_MA[3]
DDR1_MA[4]

DDR1_PAR

?

AM20
AM21
AP22
AP21
AN20
AN21
AP19
AP20

AY29
AV29
AW29
AU29

AP17
AN15
AN17
AM15

AM16
AL16
AP15
AL15

AN18
AL17
AP16

AL18

M_B_BS#0

AM18

M_B_BS#1

AW28

M_B_BS#2

AL19

M_B_A0

AL22

M_B_A1

AM22

M_B_A2

AM23

M_B_A3

AP23

M_B_A4

AL23

M_B_A5

AW26

M_B_A6

AY26

M_B_A7

AU26

M_B_A8

AW27

M_B_A9

AP18

M_B_A10

AU27

M_B_A11

AV27

M_B_A12

AR15

M_B_A13

AY28

M_B_A14

AU28

M_B_A15

AL20

M_B_PAR

AY25

AF34
AK33
AN33
AN29
AN13
AR8
AM8
AG6

AF35
AL33
AP33
AN28
AN12
AP8
AL8
AG7

AN25

M_B_DQS8

AN26

M_B_DQS#8

AB40

DIMM_CA_CPU_VREF_A

AC40
AC39

TP84
TP85

TP86

DDR1_CKP[0]
DDR1_CKN[0]
DDR1_CKP[1]
DDR1_CKN[1]
DDR1_CKP[2]
DDR1_CKN[2]
DDR1_CKP[3]
DDR1_CKN[3]

DDR1_CKE[0]
DDR1_CKE[1]
DDR1_CKE[2]
DDR1_CKE[3]

DDR1_CS#[0]
DDR1_CS#[1]
DDR1_CS#[2]
DDR1_CS#[3]

DDR1_ODT[0]
DDR1_ODT[1]
DDR1_ODT[2]
DDR1_ODT[3]

DDR1_ALERT#

DDR1_DQSN[6]
DDR1_DQSN[7]

DDR1_DQSP[6]
DDR1_DQSP[7]

DDR1_DQSP[8]
DDR1_DQSN[8]

DDR_VREF_CA
DDR0_VREF_DQ
DDR1_VREF_DQ

REV = 1.2

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

CPU_PEG/DISPLAY

CPU_PEG/DISPLAY

CPU_PEG/DISPLAY

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

M_B_DQS#0 (15)
M_B_DQS#1 (15)
M_B_DQS#2 (15)
M_B_DQS#3 (15)
M_B_DQS#4 (15)
M_B_DQS#5 (15)
M_B_DQS#6 (15)
M_B_DQS#7 (15)

M_B_DQS0 (15)
M_B_DQS1 (15)
M_B_DQS2 (15)
M_B_DQS3 (15)
M_B_DQS4 (15)
M_B_DQS5 (15)
M_B_DQS6 (15)
M_B_DQS7 (15)

DIMM_DQ_CPU_VREF_A (14)
DIMM_DQ_CPU_VREF_B (15)

03

M_B_CLKP0 (15)
M_B_CLKN0 (15)
M_B_CLKP1 (15)
M_B_CLKN1 (15)

M_B_CKE0 (15)
M_B_CKE1 (15)

M_B_CS#0 (15)
M_B_CS#1 (15)

M_B_ODT0 (15)
M_B_ODT1 (15)

M_B_RAS# (15)
M_B_WE# (15)
M_B_CAS# (15)
M_B_BS#[2..0] (15)

M_B_A[15:0] (15)

3 56Wednesday, July 29, 2015

3 56Wednesday, July 29, 2015

3 56Wednesday, July 29, 2015

B

B

B

5

J1C

(16)

PEG_RXP0

(16)

PEG_RXN0

(16)

D D

C C

+VCCIO

B B

(10)

DMI_PCH_CPU_RXP0

(10)

DMI_PCH_CPU_RXN0

(10)

DMI_PCH_CPU_RXP1

(10)

DMI_PCH_CPU_RXN1

(10)

DMI_PCH_CPU_RXP2

(10)

DMI_PCH_CPU_RXN2

(10)

DMI_PCH_CPU_RXP3

(10)

DMI_PCH_CPU_RXN3

PEG_RXP1

(16)

PEG_RXN1

(16)

PEG_RXP2

(16)

PEG_RXN2

(16)

PEG_RXP3

(16)

PEG_RXN3

(16)

PEG_RXP4

(16)

PEG_RXN4

(16)

PEG_RXP5

(16)

PEG_RXN5

(16)

PEG_RXP6

(16)

PEG_RXN6

(16)

PEG_RXP7

(16)

PEG_RXN7

PEG_RCOMP
Trace length < 400 mils
Trace width = 12 mils
Trace spacing = 15 mils

R106 24.9/F_4

PEG_RCOMP

PLACE INSIDE CPU CAVITY

B8

PEG_RXP[0]

B7

PEG_RXN[0]

C7

PEG_RXP[1]

C6

PEG_RXN[1]

D6

PEG_RXP[2]

D5

PEG_RXN[2]

E5

PEG_RXP[3]

E4

PEG_RXN[3]

F6

PEG_RXP[4]

F5

PEG_RXN[4]

G5

PEG_RXP[5]

G4

PEG_RXN[5]

H6

PEG_RXP[6]

H5

PEG_RXN[6]

J5

PEG_RXP[7]

J4

PEG_RXN[7]

K6

PEG_RXP[8]

K5

PEG_RXN[8]

L5

PEG_RXP[9]

L4

PEG_RXN[9]

M6

PEG_RXP[10]

M5

PEG_RXN[10]

N5

PEG_RXP[11]

N4

PEG_RXN[11]

P6

PEG_RXP[12]

P5

PEG_RXN[12]

R5

PEG_RXP[13]

R4

PEG_RXN[13]

T6

PEG_RXP[14]

T5

PEG_RXN[14]

U5

PEG_RXP[15]

U4

PEG_RXN[15]

L7

PEG_RCOMP

Y3

DMI_RXP[0]

Y4

DMI_RXN[0]

AA4

DMI_RXP[1]

AA5

DMI_RXN[1]

AB4

DMI_RXP[2]

AB3

DMI_RXN[2]

AC4

DMI_RXP[3]

AC5

DMI_RXN[3]

SKL_S_CPU_LGA

SKL_S_CPU

LGA1151

3 OF 12

4

PEG_TXP[0]
PEG_TXN[0]

PEG_TXP[1]
PEG_TXN[1]

PEG_TXP[2]
PEG_TXN[2]

PEG_TXP[3]
PEG_TXN[3]

PEG_TXP[4]
PEG_TXN[4]

PEG_TXP[5]
PEG_TXN[5]

PEG_TXP[6]
PEG_TXN[6]

PEG_TXP[7]
PEG_TXN[7]

PEG_TXP[8]
PEG_TXN[8]

PEG_TXP[9]
PEG_TXN[9]

PEG_TXP[10]
PEG_TXN[10]

PEG_TXP[11]
PEG_TXN[11]

PEG_TXP[12]
PEG_TXN[12]

PEG_TXP[13]
PEG_TXN[13]

PEG_TXP[14]
PEG_TXN[14]

PEG_TXP[15]
PEG_TXN[15]

DMI_TXP[0]
DMI_TXN[0]

DMI_TXP[1]
DMI_TXN[1]

DMI_TXP[2]
DMI_TXN[2]

DMI_TXP[3]
DMI_TXN[3]

REV = 1.2

3

?

A5
A6

B4
B5

C3
C4

D2
D3

E1
E2

F2
F3

G1
G2

H2
H3

J1
J2

K2
K3

L1
L2

M2
M3

N1
N2

P2
P3

R2
R1

T2
T3

AC2
AC1

AD3
AD2

AE2
AE1

AF2
AF3

?

(16)

PEG_TXP0

(16)

PEG_TXN0

(16)

PEG_TXP1

(16)

PEG_TXN1

(16)

PEG_TXP2

(16)

PEG_TXN2

(16)

PEG_TXP3

(16)

PEG_TXN3

(16)

PEG_TXP4

(16)

PEG_TXN4

(16)

PEG_TXP5

(16)

PEG_TXN5

(16)

PEG_TXP6

(16)

PEG_TXN6

(16)

PEG_TXP7

(16)

PEG_TXN7

DMI_CPU_PCH_TXP0
DMI_CPU_PCH_TXN0

DMI_CPU_PCH_TXP1
DMI_CPU_PCH_TXN1

DMI_CPU_PCH_TXP2
DMI_CPU_PCH_TXN2

DMI_CPU_PCH_TXP3
DMI_CPU_PCH_TXN3

HDMI

(10)
(10)

(10)
(10)

(10)
(10)

(10)
(10)

(23)
(23)
(23)
(23)
(23)
(23)
(23)
(23)

HDMI_TX2P
HDMI_TX2N
HDMI_TX1P
HDMI_TX1N
HDMI_TX0P
HDMI_TX0N
HDMI_CLKP
HDMI_CLKN

C21
D21
D22

E22
B23

A23
C23
D23

B13
C13

B18

A18
D18

E18
C19
D19
D20

E20

A12

B12

B14

A14
C15

B15

B16

A16
C17

B17

B11
C11

2

J1D

DDI1_TXP[0]
DDI1_TXN[0]
DDI1_TXP[1]
DDI1_TXN[1]
DDI1_TXP[2]
DDI1_TXN[2]
DDI1_TXP[3]
DDI1_TXN[3]

DDI1_AUXP
DDI1_AUXN

DDI2_TXP[0]
DDI2_TXN[0]
DDI2_TXP[1]
DDI2_TXN[1]
DDI2_TXP[2]
DDI2_TXN[2]
DDI2_TXP[3]
DDI2_TXN[3]

DDI2_AUXP
DDI2_AUXN

DDI3_TXP[0]
DDI3_TXN[0]
DDI3_TXP[1]
DDI3_TXN[1]
DDI3_TXP[2]
DDI3_TXN[2]
DDI3_TXP[3]
DDI3_TXN[3]

DDI3_AUXP
DDI3_AUXN

SKL_S_CPU_LGA

AUD_CPU_SDI_R

EMI reserved

AUD_CPU_BCLK

?

SKL_S_CPU

LGA1151

4 OF 12

R145 20/1%_4

C128 *10p/50V/NPO_4

(7,34,38,43)

EDP_TXP[0]
EDP_TXN[0]
EDP_TXP[1]
EDP_TXN[1]
EDP_TXN[2]
EDP_TXP[2]
EDP_TXN[3]
EDP_TXP[3]

EDP_AUXP
EDP_AUXN

EDP_DISP_UTIL

EDP_RCOMP

PROC_AUDIO_CLK

PROC_AUDIO_SDI

PROC_AUDIO_SDO

+VCCIO

E10
D10
D9
C9
H10
G10
G9
F9

D12
E12

D14

M9

EDP_COMP

V3

AUD_CPU_BCLK

V2
U1

AUD_CPU_SDI_R

?REV = 1.2

AUD_CPU_SDI

1

04

DDID_TXDP0
DDID_TXDN0
DDID_TXDP1
DDID_TXDN1

EDP_AUXP
EDP_AUXN

+VCCIO

R113 24.9/F_4

Place inside CPU cavity

AUD_CPU_BCLK
AUD_CPU_SDO

(9)

(22)
(22)
(22)
(22)

(22)
(22)

(9)
(9)

HP Restricted Secret

A A

Title

Title

Title

CPU_PEG/DISPLAY

CPU_PEG/DISPLAY

CPU_PEG/DISPLAY

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

5

4

3

2

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

4 56Wednesday, July 29, 2015

4 56Wednesday, July 29, 2015

4 56Wednesday, July 29, 2015

B

B

B

5

CLK_DMI_100M_P(12)
CLK_DMI_100M_N(12)

CLK_PCIBCLK_P(12)
CLK_PCIBCLK_N(12)

D D

CLK_24MHZ_P(12)
CLK_24MHZ_N(12)

+VCCST_VCCPLL

R2 56/1%_4
R4 100/1%_4

H_VIDALERT#(44)
H_VIDSCK(44)
H_VIDSOUT(44)

DDR_VTT_CNTL(37)

(9,34)

VCCST_PWRGD

(9,34)

H_PWRGD

(10,34)

C C

(10)

H_PM_SYNC

(10)

H_PM_DOWN

(10)

PCH_THERMTRIP#

(11)

H_SKTOCC#

(33)

H_CATERR#

B B

H_PROHOT#

VR_HOT#(35,44)

EC-PV-E01

EC_PROCHOT(28)

VR_HOT#

EC-PV-E02

R11 100/1%_4

DG: 75<Rec<200

Near CPU

R3 220_4

R8 100/1%_4

TP80
TP82

R144 2.8K/F_4
R147 6.04K/F_4

R505 20/1%_4
R107 SP_4

3

EC_PRHOT_S

2

H_VIDALERT#_R
H_VIDSCK
H_VIDSOUT
H_PROCHOT#

FM_OPC_ZVM_N
RSCD_AC37

H_PWRGD

H_PM_DOWN_R
H_PECI
H_THERMTRIP#

SKL_CNL

R10 75/1%_4

1

Q1
2N7002K/60V/0.3A

R12 100k/5%_4

4

?

J1E

W5

BCLKP

W4

BCLKN

W1

PCI_BCLKP

W2

PCI_BCLKN

K9

CLK24P

J9

CLK24N

E39

VIDALERT#

E38

VIDSCK

E40

VIDSOUT

C39

PROCHOT#

AC36

DDR_VTT_CNTL

AC38

ZVM#

AC37

RSVD_AC37

H_VCCST_PWRGD

U2

VCCST_PWRGD

F8

PROCPWRGD

E7

RESET#

E8

PM_SYNC

D8

PM_DOWN

G7

PECI

D11

THERMTRIP#

AB35

SKTOCC#

AB36

PROC_SELECT#

D13

CATERR#

SKL_S_CPU_LGA

+VCCST_VCCPLL

VR_HOT# PCH_THERMTRIP#

C6
1000P/50V_4

SKL_S_CPU

LGA1151

5 OF 12

H_PECI

H_PECI

CFG[0]
CFG[1]
CFG[2]
CFG[3]
CFG[4]
CFG[5]
CFG[6]
CFG[7]
CFG[8]

CFG[9]
CFG[10]
CFG[11]
CFG[12]
CFG[13]
CFG[14]
CFG[15]

CFG[17]
CFG[16]
CFG[19]
CFG[18]

BPM#[0]
BPM#[1]
BPM#[2]
BPM#[3]

PROC_TDO

PROC_TDI
PROC_TMS
PROC_TCK

PROC_TRST#
PROC_PREQ#
PROC_PRDY#

CFG_RCOMP

EC-PV-E02

R487 SP_4
R489 *0/5%_4

H15
F15
F16
H16
F19
H18
G21
H20
G16
E16
F17
H17
G20
F20
F21
H19

F14
E14
F18
G18

D16
D17
G14
H14

H13
G12
F13
F11

F12
B9
B10

M11

?REV = 1.2

3

PD_TEST_CPU_0
PD_TEST_CPU_1
PD_TEST_CPU_2
PD_TEST_CPU_3
PD_TEST_CPU_4
PD_TEST_CPU_5
PD_TEST_CPU_6
PD_TEST_CPU_7
PD_TEST_CPU_8
PD_TEST_CPU_9
PD_TEST_CPU_10
PD_TEST_CPU_11
PD_TEST_CPU_12
PD_TEST_CPU_13
PD_TEST_CPU_14
PD_TEST_CPU_15

SKL_PCUSTB_0_DP
SKL_PCUSTB_0_DN
SKL_PCUSTB_1_DP
SKL_PCUSTB_1_DN

SKL_XDP_BPM2
SKL_XDP_BPM3

CFG_RCOMP

PD_TEST_CPU_3

EC_PECI (28)
PCH_PECI (10)

EC-DB-E17

TP97
TP98

R104 49.9/F_4

R420 1K_4

EC-PV-E03

XDP_PCUDEBUG_3 (34)

2

PD_TEST_CPU_0 (34)
PD_TEST_CPU_1 (34)
PD_TEST_CPU_2 (34)
PD_TEST_CPU_3 (34)
PD_TEST_CPU_4 (34)
PD_TEST_CPU_5 (34)
PD_TEST_CPU_6 (34)
PD_TEST_CPU_7 (34)
PD_TEST_CPU_8 (34)
PD_TEST_CPU_9 (34)
PD_TEST_CPU_10 (34)
PD_TEST_CPU_11 (34)
PD_TEST_CPU_12 (34)
PD_TEST_CPU_13 (34)
PD_TEST_CPU_14 (34)
PD_TEST_CPU_15 (34)

SKL_PCUSTB_0_DP (34)
SKL_PCUSTB_0_DN (34)
SKL_PCUSTB_1_DP (34)
SKL_PCUSTB_1_DN (34)

SKL_XDP_BPM_0 (34)
SKL_XDP_BPM_1 (34)

H_TDO (34)CPU_RESET#
H_TDI (34)
H_TMS (34)
H_TCK (34)

H_TRST# (12,34)
H_PREQ# (34)
H_PRDY# (34)

EC-SI2-E18

EC-SI-E01

EC-SI-E01

EC-SI-E02

+VCCST_VCCPLL(7,9,33,34,42,43,44)
+VCCIO(4,7,34,38,43)

BK: FOLLOW CRB v1.0

H_PREQ#
H_TMS
H_TDO
H_TDI
H_TRST#
H_TCK

H_TCK TERMINATION PLACE NEAR CPU WITHIN

1.1 INCH

BK: FOLLOW CRB 1.1

PD_TEST_CPU_0
PD_TEST_CPU_1
PD_TEST_CPU_2
PD_TEST_CPU_3
PD_TEST_CPU_4
PD_TEST_CPU_5
PD_TEST_CPU_6
PD_TEST_CPU_7
PD_TEST_CPU_8
PD_TEST_CPU_9
PD_TEST_CPU_10
PD_TEST_CPU_11
PD_TEST_CPU_12
PD_TEST_CPU_13
PD_TEST_CPU_14
PD_TEST_CPU_15

Unstuff R461 & R462 for SPT-H

EC-DB-E24

SKL_CNL

SKL_PCUSTB_0_DP
SKL_PCUSTB_0_DN
SKL_PCUSTB_1_DP
SKL_PCUSTB_1_DN

BK: CRB --> NO THESE , NEED CONFIRM

CRB: Close to SPT-H

H_PWRGD

1

05

+VCCST_VCCPLL

R111 *51/F_4
R485 *51/F_4
R478 *51/F_4
R480 *51/F_4
R471 *51/F_4
R87 51/F_4

R419 *1K_4
R411 *1K_4
R415 *1K_4
R421 *1K_4
R438 1K_4
R437 1K_4
R444 *1K_4
R443 *1K_4
R417 *1K_4
R416 *1K_4
R423 *1K_4
R422 *1K_4
R461 *1K_4
R462 *1K_4
R447 *1K_4
R446 *1K_4

R9 *10k/5%_4

R413 *1K_4
R412 *1K_4
R431 *1K_4
R430 *1K_4

+VCCST_VCCPLL

R105 1k/5%_4

R493 *10k/5%_4

+3.3V_SUS

HP Restricted Secret

A A

EMI

H_PREQ#

H_TRST#

CPU_RESET#

D4 *TVS_AZ5125-01H

D29 *TVS_AZ5125-01H

D34 *TVS_AZ5125-01H

Near CPU

5

EC-DB-E07

H_THERMTRIP#

H_PWRGD

4

D5 *TVS_AZ5125-01H

D32 *TVS_AZ5125-01H

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

CPU MISC

CPU MISC

CPU MISC

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

3

2

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

5 56Wednesday, July 29, 2015

5 56Wednesday, July 29, 2015

5 56Wednesday, July 29, 2015

5

+VCCCPRE:
Icc ( max ) : 66A
Icc ( PS2) : 35A

+VCCCORE +VCCCORE

Decoupling Capacitors

D D

+VCCCORE

C422 470U/2.5V_7343

+

C421 470U/2.5V_7343

+

Place caps at top
socket edge

+VCCCORE

C68 22U
C334 22U
C71 22U
C343 22U
C72 22U

C C

B B

A A

C387 22U
C67 22U
C398 22U
C76 22U
C65 22U
C83 22U
C78 22U

Place all above caps on
top side of CPU cavity

+VCCCORE

C66 22U
C90 22U
C77 22U
C85 22U
C79 22U
C373 22U
C69 22U
C360 22U
C80 22U
C409 22U

Place all below caps
on bottom side near
CPU socket

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

VCCCORE_SENSE
VSSCORE_SENSE

A25
A26
A27
A28
A29
A30
B25
B27
B29
B31
B32
B33
B34
B35
B36
B37
C25
C26
C27
C28
C29
C30
C32
C34
C36
D25
D27
D29
D31
D32
D33
D34
D35
D36
E24
E25
E26
E27
E28
E29
E30
E32
E34
E36
F23
F24
F25
F27
F29

F31
G30
G32

H22

H23

H25

H27

H29

H31

AJ11
AJ13
AJ15
AJ17
AJ19
AJ21

SKL_S_CPU_LGA

J1G

SKL_S_CPU

VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC

LGA1151

VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC

VCC
VCC
VCC
VCC
VCC
VCC

R6 *0/5%_4

R5 100/1%_4
R7 100/1%_4

7 OF 12

DG: Near CPU

5

4

VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC

VCC
VCC
VCC
VCC
VCC
VCC

VCC_SENSE

VSS_SENSE

REV = 1.2

VSSCORE_SENSEVCCCORE_SENSE

4

?

H32
J21
F32
F33
F34
G23
G24
G25
G26
G27
G28
G29
J22
J23
J24
J25
J26
J27
J28
J29
J30
J31
K16
K18
K20
K21
K23
K25
K27
K29
K31
L14
L15
L16
L17
L18
L19
L20
L21
L22
L23
L24
L25
L26
L27
L28
L29
L30
M13
M14
M16
M18
M20
M22
M24
M26
M28
M30

AJ12
AJ14
AJ16
AJ18
AJ20
AJ22

C38
D38

?

+VCCCORE

+VCCCPRE:
Icc ( max ) : 40A
Icc ( PS2) : 32A

VCCCORE_SENSE (44)
VSSCORE_SENSE (44)

+VCCGT

3

AA34
AA35
AA36
AA37
AA38
AB33
AB34

G36
G37
G38
G39
G40
H36
H38
H40

J36
J37
J38
J39

J40
K36
K38
K40

L34

L35

L36

L37

L38

L39

L40
M33
M34
M36
M38
M40
N34
N35
N36
N37
N38
N39
N40
P33
P34
P36
P38
P40
R34
R35
R36
R37
R38
R39
R40
T33
T34
T36
T38
T40
U34
U35
U36
U37
U38
U39
U40
V33
V34
V36
V38
V40

W34
W35
W36
W37
W38

Y33
Y34
Y36
Y38

SKL_S_CPU_LGA

3

J1H

VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT
VCCGT

SKL_S_CPU

LGA1151

VCCGT_SENSE

VSSGT_SENSE

VCCGTX_SENSE
VSSGTX_SENSE

8 OF 12

VCCGTX
VCCGTX
VCCGTX
VCCGTX
VCCGTX
VCCGTX
VCCGTX
VCCGTX
VCCGTX
VCCGTX
VCCGTX
VCCGTX

REV = 1.2??

F35
G34
G35
H33
H34
J33
J35
K32
K34
L31
L33
M32

F39
F38

F37
F36

2

Decoupling Capacitors

+VCCGT

C337 47u/6.3V_8
C50 47u/6.3V_8
C57 47u/6.3V_8
C372 47u/6.3V_8
C327 47u/6.3V_8
C56 47u/6.3V_8
C353 47u/6.3V_8

Place caps on top side
socket cavity

+VCCGT

C354 47u/6.3V_8
C371 47u/6.3V_8
C55 47u/6.3V_8
C352 47u/6.3V_8
C338 47u/6.3V_8
C339 47u/6.3V_8
C51 47u/6.3V_8
C52 47u/6.3V_8
C58 47u/6.3V_8

Place caps on backside
under socket cavity

+VCCGT

C53 47u/6.3V_8
C54 47u/6.3V_8
C325 47u/6.3V_8
C326 47u/6.3V_8

VCCGT_SENSE (44)
VSSGT_SENSE (44)

2

HP Restricted Secret

Title

Title

Title

CPU POWER

CPU POWER

CPU POWER

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

1

+VCCCORE(7,43,44,45)
+VCCGT(43,44,46)

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

6 56Wednesday, July 29, 2015

6 56Wednesday, July 29, 2015

6 56Wednesday, July 29, 2015

B

B

B

5

+VCCSA

+VCCSA:
Icc ( max ) :11A

D D

+VCCIO

+VCCIO:
Icc ( max ) :5.31A

C C

VCCST:
Icc ( max ) :0.1A

B B

+VCCST_VCCPLL

+VCCFUSEPRG

AA7
AB6
AB7
AB8
AC7
AC8

N7
P7
R7
T7
U7
Y6
Y7
Y8

W7

V7

AA6

AK11
AK14
AK24

AJ23

M8

P8
T8

U8

W8

V5
V6

V4

SKL_S_CPU_LGA

VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA
VCCSA

VCCIO
VCCIO
VCCIO
VCCIO
VCCIO
VCCIO
VCCIO
VCCIO
VCCIO

VCCST
VCCST

VCCPLL

SKL_S_CPU

LGA1151

VCC_OPC_1P8
VCC_OPC_1P8

VCCSA_SENSE

VSS_SAIO_SENSE

VCCOPC_SENSE

VCCEOPIO_SENSE

VSSOPC_EOPIO_SENSE

9 OF 12

REV = 1.2 ?

VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ

VCCPLL_OC

VCCOPC
VCCOPC
VCCOPC
VCCOPC
VCCOPC

VCCEOPIO
VCCEOPIO

VCCIO_SENSE

?J1I

4

+VDDQ

AT18
AT21
AU13
AU15
AU19
AU23
AV11
AV17
AV21
AW10
AW14
AW25
AY12
AY16
AY18
AY23

AJ9

+VCCPLL_OC_R

+VCCPCC_OC:
Icc ( max ) :0.11A

AJ30
AJ27
AJ28
AJ29
AK27

AJ25
AJ26

AB37
AB38

AD5
AF4
AE4

AK21
AJ24
AK22

+VDDQ:
Icc ( max ) :2.5A

EC-PV-E05

R507 SP_4
R506 *0_4

+VDDQ
+VCCPLL_OC

PCH_2_CPU_TRIGGER(12)
CPU_2_PCH_TRIGGER(12)

VCCSA_SENSE (40)
VCCIO_SENSE (38)
VSS_SA_IO_SENSE (38,40)

3

EC-DB-E42

R118 20/1%_4

2

+VCCSA(40,43)
+VDDQ(9,14,15,37,42,43,49,50)
+VCCIO(4,34,38,43)
+VCCST_VCCPLL(5,9,33,34,42,43,44)

EC-DB-E09 EC-DB-E09

TP29
TP28

TP104

TP94
TP1
TP91
TP2

TP100
TP103

H_AV1
H_AW2

H_K10

H_J17
H_B39
H_J19
H_C40

PROC_TRIGOUT

H_L12
H_K12

J8

RSVD_TP

J7

RSVD_TP

L8

RSVD_TP

K8

RSVD_TP

AV1

RSVD_TP

AW2

RSVD_TP

H8

VSS

K10

RSVD

L10

RSVD

J17

RSVD

B39

RSVD

J19

RSVD

C40

RSVD

G8

VSS

AY3

VSS

D1

PROC_TRIGIN

L12

RSVD

K12

RSVD

SKL_S_CPU_LGA

J1J

SKL_S_CPU

LGA1151

10 OF 12

RSVD_TP
RSVD_TP

RSVD_TP
RSVD_TP

RSVD
RSVD

VSS
VSS

VSS

RSVD
RSVD

RSVD
RSVD

RSVD
RSVD
RSVD

RSVD
RSVD

REV = 1.2??

H11
H12

AW38
AV39

AU39
AU40

AT15
AR23

AR22

J15
J14

AU9
AU10

J13
K13
J11

D15
K11

H_H12
H_AW38

H_AV39
H_AU39

H_AU40

H_J15
H_J14

H_AU9
H_AU10

H_J13
H_K13

H_K11

R499
*560/F_4

CRB 1.1: remove

TP105
TP7

TP8
TP6

TP5

TP93
TP102

TP27
TP24

TP96
TP95

TP101

1

07

Decoupling Capacitors

EC-PV-E05

+VCCCORE

A A

R509 SP_4

R508 *0/5%_4

+VCCFUSEPRG+VCCST_VCCPLL

5

+VCCSA

C89 22U
C88 22U

Place all caps
inside CPU socket
cavity top ;

+VCCST_VCCPLL

C498 22U
C496 1U

X5R

Place caps at
top socket edge

0603X5R
0603X5R

0603X5R
0402

6.3V

6.3V

6.3V

6.3V

4

+VCCIO

C474 22U
C473 22U
C475 22U
C60 22U
C86 22U
C87 22U
C472 0.1U

X7R

C471 0.1U

X7R

C375 0.1U

X7R

Place all caps
inside CPU socket
cavity top

0603X5R
0603X5R
0603X5R
0603X5R
0603X5R
0603X5R
0402
0402
0402

6.3V

6.3V

6.3V

6.3V

6.3V

6.3V
16V
16V
16V

+VDDQ

C397 22U
C355 22U
C111 22U
C446 22U
C74 *22U

Place cap in socket edge top

3

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

6.3V

0603X5R

2

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

CPU POWER/RSVD

CPU POWER/RSVD

CPU POWER/RSVD

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

7 56Wednesday, July 29, 2015

7 56Wednesday, July 29, 2015

7 56Wednesday, July 29, 2015

5

J1F

SKL_S_CPU

D D

A7

VSS

AC34

VSS

AC35

VSS

AC6

VSS

AD1

VSS

AD33

VSS

AD36

VSS

AD37

VSS

AD38

VSS

AD39

VSS

AD4

VSS

AD40

VSS

AD6

VSS

AD7

VSS

AD8

VSS

AE3

VSS

AE33

VSS

AE36

VSS

AE5

VSS

AE8

VSS

AF1

VSS

AF33

VSS

AF36

VSS

AF37

VSS

C C

B B

A A

AF40

VSS

AF5

VSS

AF8

VSS

AJ31

VSS

AJ32

VSS

AJ33

VSS

AJ34

VSS

AJ35

VSS

AJ36

VSS

AJ4

VSS

AJ5

VSS

AJ8

VSS

AK10

VSS

AK12

VSS

AK13

VSS

AK15

VSS

AK16

VSS

AK17

VSS

AK18

VSS

AK19

VSS

AK20

VSS

AK23

VSS

AK25

VSS

AK26

VSS

AK28

VSS

SKL_S_CPU_LGA

5

VSS
VSS
VSS
VSS
VSS
VSS
VSS

LGA1151

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

6 OF 12

REV = 1.2 ?

?

AK29
AK30
AK36
AK37
AK40
AK5
AK6
AK7
AK8
AK9
AL1
AL11
AL14
AL2
AL21
AL24
AL27
AL3
AL30
AL36
AL4
AL5
AM11
AM14
AM17
AM19
AM24
AM27
AM30
AM31
AM32
AM33
AM34
AM35
AM36
AM37
AM38
AM39
AM40
AM5
AN1
AN10
AN11
AN14
AN16
AN19
AN22
AN23
AN24
AN27
AN30
AN36
AN4
AN5
AN6
AN7
AN8
AN9
AP11
AP14
AP24
AP27
AP30
AP36
AP37
AP40
AP5
AR1
AR11
AR14
AR16
AR17
AR18
AR19
AR2
AR20
AR21

AB5

AC3
AC33
AB39

AA8

A17
A11

AA33

AA3

A24
A13

A15
AG1
AH8

AJ1

AH40

AH5

AH39
AH38
AH37
AH36

AG8

AH33

AG5
AG4

AG36
AG33

AG3
AG2

AR30

AR3

AR27

AT10

H30

AV38

AV9

L11

K30

K28

K26

K24

H28

AT30
AT25
AT14

AR33

AU1
AT9

AT28
AT32

AY9

AW9
AW5

AW30

AW3

AV5

AV34
AV30
AV28
AV26

AV2
AU7
AU5

AU30

AT7
AT6
AT5

AT40
AT39
AT36
AT24
AT17
AT13
AT12
AT11

AR5
AR4

AR36
AR35
AR34
AR32
AR31

C20
C22
C35
C33
C31
C24

C2
A4
H7

L6
L9

B6

4

J1K

SKL_S_CPU

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

LGA1151

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS_NCTF
VSS_NCTF
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

SKL_S_CPU_LGA

4

?

VSS_NCTF

11 of 12

?

VSS
VSS

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

REV = 1.2

C37
J16
D40
K35
K37
K33
H37
C10
D24
D37
B30
B26
B24
AY7
AY5
AY30
AY27
AW36
AW34
AW32
C12
C14
C16
C18
C5
C8
D26
D28
D30
D4

G13
G17
G15

H21
H24
H26
H39

K14
K17
K22

T37
T35

R33

P39
P37

N33
M39
M37
M29
M25
M27
M23
M21
M19
M15
M17
M10
M12

L32
L13

K39
AU25
AU34

AU4
AT38
AT37
AT34
AT31
AT29
AT27
AT26

AR24

V35

V37
V39

AT8

Y35
Y37

J18
J20

W3
W6

G3
G6
H1

H4
H9

J3
J6

K1

U3

P4

P1

M1

L3

K7
K4

U6
V1

J1L

SKL_S_CPU

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

LGA1151

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

SKL_S_CPU_LGA

3

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

VSS_NCTF

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

12 of 12
REV = 1.2

3

2

?

D39
D7
E11
E13
E17
E15
E19
E21
E23
E3
E31
E33
E37
E35
E6
E9
F1
F22
F10
F26
F28
F30
F40
F4
F7
G11
G19
G22
G31
G33
H35
J10
J12
J32
J34
K15
K19
B38
U33
T4
T1
R6
R8
R3
P35
N8
N6
N3
M4
M7
M35
B28
T39
V8
W33
Y5

?

1

08

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

CPU GND

CPU GND

CPU GND

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

8 56Wednesday, July 29, 2015

8 56Wednesday, July 29, 2015

8 56Wednesday, July 29, 2015

5

U33D

PCH_BD1
PCH_BE2

EC-DB-E02

BA9

HDA_BCLK

BD8

HDA_RST#

BE7

HDA_SDI0

BC8

HDA_SDI1

BB7

HDA_SDO

BD9

HDA_SYNC

BD1

RSVD_BD1

BE2

RSVD_BE2

AM1

DISPA_SDO

AN2

DISPA_SDI

AM2

DISPA_BCLK

AL42

GPP_D8/SSP0_SCLK

AN42

GPP_D7/SSP0_RXD

AM43

GPP_D6/SSP0_TXD

AJ33

GPP_D5/SSP0_SFRM

AH44

GPP_D20/DMIC_DATA0

AJ35

GPP_D19/DMIC_CLK0

AJ38

GPP_D18/DMIC_DATA1

AJ42

GPP_D17/DMIC_CLK1

BC10

RTCRST#

BB10

SRTCRST#

AW11

PCH_PWROK

BA11

RSMRST#

AV11

DSW_PWROK

BB41

GPP_C2/SMBALERT#

AW44

GPP_C0/SMBCLK

BB43

GPP_C1/SMBDATA

BA40

GPP_C5/SML0ALERT#

AY44

GPP_C3/SML0CLK

BB39

GPP_C4/SML0DATA

AT27

GPP_B23/SML1ALERT#/PCHHOT#

AW42

GPP_C6/SML1CLK

AW45

GPP_C7/SML1DATA

SPT_PCH_DT/SKT

HDA_BCLK(25)
HDA_RST#(25)
HDA_SDIN(25)

HDA_SDOUT(25)
HDA_SYNC

(25)

D D

C C

AUD_CPU_SDO(4)
AUD_CPU_SDI(4)
AUD_CPU_BCLK(4)

(28)

PCHHOT#

R291 33/J_4
R642 33/J_4

R292 33/J_4
R641 33/J_4

R651 33/J_4
R638 33/J_4

Near PCH

HDA_BCLK_R
HDA_RST#_R
HDA_SDIN

HDA_SDOUT_R
HDA_SYNC_R

TP135
TP132

AUD_CPU_SDO_R
AUD_CPU_SCLK_R

PCH_RTCRST#
PCH_SRTCRST#

PCH_PWROK
PCH_REMRST#

PCH_DPWROK
SMB_ALT#
SMB_CLK_RESUME
SMB_DAT_RESUME
GPP_C_5
SML0_CLK
SML0_DAT
PCHHOT#
SMBCLK0_EC
SMBDATA0_EC

Strap Pin Table

Configuration

"Top swap" mode

0 = Disable, Default (Internal pull-down)
1 = Enable

"No-Reboot" mode

0 = Disable, Default (Internal pull-down)
1 = Enable

Intel ME Crypto TLS cipher suite.

0 = Disable, Default (Internal pull-down)
1 = Enable

BOOT SELECT STRAP

0 = SPI, Default (Internal pull-down)
1 = LPC

ESPI/LPC SELECT STRAP ( for EC )

0 = LPC ( Default, int. pull-down )
1 = ESPI

BOOT HALT

0 = Enable
1 = PCH has Internal weak pull-up

B B

JTAG ODT

0 = Enable
1 = PCH has Internal weak pull-up

CONSENT STRAP

0 = Consent strap is enabled
1 = PCH has Internal weak pull-up

PERSONALITY STRAP

0 = Enable
1 = PCH has Internal weak pull-up

0 = PCH has Internal weak pull-down
1 = EXI boot stall bypass is enabled

SECRUITY MEASURES.

0 = Enable, Defualt (Internal weak
pull-down)

1 = Disable. Flash Descriptor Security
overrided, pull up for debug only.

ESPI FLASH SHARING MODE

0 = Master (Internal weak pull-down)
1 = Slave

DFX TEST MODE

XTAL input is single ended if sampled low
else differential

A A

TEST SETUP MENU

0 = Test setup menu enabled
1 = Disabled (Default)

SV ADVANCE MENU TABLE

0 = SV ADVANCE MENU
1 = Normal Menu (Default)

Note

SPKR

LPSS_GSPI0_MOSI(12)

SMB_ALT#

LPSS_GSPI1_MOSI(12)

GPP_C_5

SPI_MOSI(10,33,34)

SPI_MISO(10,33)

SPI_IO2(10,34)

SPI_IO3(10)

150K PU NEEDED TO DISABLE EXI BOOT STALL BYPASS

PCHHOT#

CN20

1 2

HDA_SDOUT_R HDA_SDO

GPP_H_12(10)

VISACH2_D3(10,34)

TEST_SETUP_MENU(11)

SV_ADVANCE_GP48(10)

5

R593 *4.7K/F_4
R600 *20k/5%_4

R588 *4.7K/F_4

R590 *1k/5%_4

R198 *4.7K/F_4

R230 *4.7K/F_4
R232 *20k/5%_4

R550 *4.7K/F_4

R549 20k/5%_4

R585 1k/5%_4
R586 *4.7K/F_4

R582 *20k/5%_4
R579 *4.7K/F_4

R592 *20k/5%_4
R589 *1.2k/5%_4

R570 *20k/5%_4
R563 *4.7k/5%_4

R235 150k/1%_4
R236 *20k/5%_4

FDO_SLHY-02B1-B-045-F-R

R556 *4.7K/F_4
R555 *20k/5%_4

R544 *4.7K/F_4
R543 *20k/5%_4

R524 10K/J_4

R525 *0/5%_4

R523 20k/5%_4
R526 *0/5%_4

R283 1K/J_4

+DVDDIO_AUDIO

4

SPT-H_PCH

(Primary)

AUDIO

(Primary)

(RTC)
(RTC)

(RTC)

REV = 1.3

+3.3V

+3.3V

EC-S2I-E05

+3.3V_SUS

+3.3V_SUS

+3.3V_SUS

EC-DB-E43

+3.3V_SUS_SPI

+3.3V_SUS_SPI

+3.3V_SUS_SPI

EC-SI-E03

+3.3V_SUS_SPI

pull down is needed for
pre-ES1/ES1 samples.

+3.3V_SUS

EC-DB-E44

SMBUS

CRB 1.0

EC-SI-E04

+3.3V_SUS

+3.3V_SUS

+3.3V

EC-DB-E45

+3.3V

EC-DB-E46

4

BMBUSY#
PCH_LPC_CLKRUN#

LANPHYPC
SLP_WLAN#
DDR3_DRAMRST_N_R

VRALERTB_PU
TP_DETECT#
GPP_B_1
GPP_B_0
GPP_B_11
PCH_SYSPWROK

PCH_WAKE#
SLP_A#
SLP_LAN#
PM_SLP_S0_R#
PM_SLP_S3_R#
PM_SLP_S4#
PM_SLP_S5_R#

PCH_SUSCLK
BATLOW#
PCH_SUSACK#
PCH_SUSPWRACK

LAN_WAKE#
GPD1
PM_SLP_SUS#_N

SYS_RST#
SPKR
PCH_PROCPWRGD

PCH_JTAG_TMS
PCH_JTAG_TDO
PCH_JTAG_TDI

+3.3V_SUS

C585

0.1u/16V/X7R_4

U34

3 5

TC7SH08FU

R199 1k/5%_4
R176 1k/5%_4

R151 1k/5%_4
R164 1k/5%_4

3

TP71
TP68

EC-PV-E02

R625 SP_4

TP48
TP112
TP52

TP129

EC-PV-E02

TP59

R599 SP_4
R281 SP_4

R273 SP_4

EC-SI2-E18

R611 *0/5%_4
R612 *0/5%_4

EC-DB-E26

TP131

R637 30/1%_4

EC-DB-E25

C187 0.1u/25V/X5R_4

PCH_REMRST#

R286
*0_4

PCH_DPWROK

4

3

R275 47k/5%_4

CRB v1.1: R2039 -> 47kohm

Stuff R2043 and don't stuff R2048 if
not supporting Deep SX..

C188 *0.01u/50V/X7R_4
R287 100k/5%_4

PCH_PWROK_R

BK: DG

PCH_PWROK

R630 10K/J_4

R628 249/1%_4
R621 249/1%_4

+3.3V_SUS +3.3V

SMBCLK_PCH_MAIN
SMBDATA_PCH_MAIN

SMBCLK_PCH_MAIN (14,15,34)

SMBDATA_PCH_MAIN (14,15,34)

+3.3V_SUS

SMBCLK0_EC/SMBDATA0_EC:
Pull-up at EC side

SMBCLK0_EC (28)

SMBDATA0_EC(28)

PCH_PWROK

R223 1k/5%_4
R172 1k/5%_4

PCH_LPC_CLKRUN#

DDR3_DRAMRST#
TP_DETECT#

PCH_SYSPWROK
PCH_WAKE#

PM_SLP_S0#
PM_SLP_S3#
PM_SLP_S4#
PM_SLP_S5#

PCH_SUSCLK (31)
EC_SUSACK#

EC_SUSPWRACK (28)

EC_PWBTN_OUT# (28,34)
SYS_RST# (34)
SPKR (25)
H_PWRGD (5,34)

ITP_PMODE (34)
PCH_JTAGX (34)
PCH_JTAG_TMS (34)
PCH_JTAG_TDO (34)
PCH_JTAG_TDI (34)
PCH_JTAG_TCK (34)

VCCST_PWRGD

(28)

(14,15)
(29)

(33,34)
(26,31)

(28)
(28,33)
(28,33)
(28)

(28)

PCH_SYSPWROK

(Be asserted after both PWROK and VR_READY assertion)

EC_SYS_PWROK(28)

(5,34)

RTC circuit

+3.3V_AUX

R23

1.5k/1%_4

VCC_RTC_S

EC-DB-E10

R18

45.3k/1%_4

R19 1K_4

BT_+

12

+ -

?

GPP_B1
GPP_B0

GPP_B11

SYS_PWROK

WAKE#

SLP_LAN#

SLP_SUS#

SYS_RESET#

ITP_PMODE

JTAGX
JTAG_TMS
JTAG_TDO

JTAG_TDI

JTAG_TCK

BB17
AW22

AR15
AV13
BC14

BD23
AL27
AR27
N44
AN24
AY1

BC13
BC15
AV15
BC26
AW15
BD15
BA13

AN15
BD13
BB19
BD19

BD11
BB15
BB13
AT13
AW1
BD26
AM3

AT2
AR3
AR2
AP1
AP2
AN3

?

GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HOLDOFF#

GPP_A8/CLKRUN#
GPD11/LANPHYPC

(DSW)
(DSW)

GPD9/SLP_WLAN#

(DSW)
(Primary)

GPP_B2/VRALERT#

GPP_G17/ADR_COMPLETE

DRAM_RESET#

(Primary)
(DSW)

(DSW)
(DSW)
(Primary)
(DSW)
(DSW)
(DSW)

(DSW)
(DSW)
(Primary)

GPP_A13/SUSWARN#/SUSPWRDNACK

(DSW)
(DSW)
(DSW)

JTAG

4 OF 12

GPD6/SLP_A#

GPP_B12/SLP_S0#

GPD4/SLP_S3#
GPD5/SLP_S4#

GPD10/SLP_S5#

GPD8/SUSCLK

GPD0/BATLOW#

GPP_A15/SUSACK#

GPD2/LAN_WAKE#
GPD1/ACPRESENT

GPD3/PWRBTN#

GPP_B14/SPKR

PROCPWRGD

RSMRST# & DSW_PWROK

D10

+3.3V

6
2

5

Q13

R632
10K/J_4

R294 SP_4

*TVS AZ5125-01H.R7G

EC-PV-E02

R295 SP_4

EC-PV-E02

R626 *0/J_4

2
1

SMB_CLK_RESUME
SMB_DAT_RESUME

1

SMBCLK_PCH_MAIN

43

SMBDATA_PCH_MAIN

2N7002DW/60V/0.115A

EC_RSMRST#(28,34)

Near PCH

EC_DPWROK(28)

PCH_PWROK PCH SYSTEM RESET

VR_READY(28,44)
EC_PWROK(28)

VR_EADY to EC delay--> EC_PWROK

SYSTEM SMBUS

MEMORY,XDP
CRB: DIMM, PEG slot,

power thermal sensor?

SMB_CLK_RESUME

+3.3V

SMB_DAT_RESUME

SYSTEM SMBUS

SMBCLK0_EC

EC-SI-E05

EC-PV-02

SMBDATA0_EC

SMBCLK0_EC

SMBDATA0_EC

2

PM_SLP_SUS#

PM_SLP_SUS#_N

To EC ??

PCH_SUSPWRACK PCH_SUSACK#

BOM Note:
EMPTY R2029 FOR USB WAKE S4/S5

DESIGN NOTE:
STUFF R3030 FOR NON-DEEP SX

R649 Short pad_4

EC-S2I-E06

BK: CRB

PCH_SYSPWROK

D1
BAT54C

1
2

20MIL

BT_-

BT1
CONNDIPHOUSING2P

CLEAR CMOS

(28)

CLR_CMOS

2

R631 10k/5%_4

C584 *0.1u/25V/X5R_4

R615 *0/J_4
R614 *1k/5%_4

R653 1K/J_4R200 *20k/5%_4

+3.3V

R303

2.2K/J_4

JP3

1 2

SHORT PAD

+3.3V_RTC

R27/R26
CRB: 30.1k 1%
Check list: 20k

20MIL

3

R27 20K/F_4
C23 1u/10V/X5R_4

R26 20K/F_4
C25 1u/10V/X5R_4

PCH_RTCRST#

2

PDTC144EU
Q2

1 3

1

+3.3V_PCH_VCCDSW(13)
+3.3V_SUS(5,10,11,12,13,24,26,28,31,33,34,35,37,38,39,41,42,43,49)
+3.3V(10,11,12,13,14,15,22,23,25,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)
+VCCST_VCCPLL(5,7,33,34,42,43,44)

VRALERTB_PU

PM_SLP_SUS#

(28)

BMBUSY#
TP_DETECT#

PCH_LPC_CLKRUN#

PCH_WAKE#
BATLOW#
GPD1
LAN_WAKE#
EC_PWBTN_OUT#

EC-SI-E06

DDR3_DRAMRST#

PCH_JTAG_TDO
PCH_JTAG_TDI
PCH_JTAG_TMS

PCH_SUSCLK

PCH_SYSPWROK

R643 *10K/J_4

+3.3V

SYS_RST#_GSYS_RST#

R305 1K/J_4

JP1

12

SHORT PAD

PCH_RTCRST#

PCH_SRTCRST#

CRB: for
LPT-H

SML0_CLK
SML0_DAT

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

PCH_HDA/SMBUS/MISC

PCH_HDA/SMBUS/MISC

PCH_HDA/SMBUS/MISC
810606-000

810606-000

810606-000

HP-CRANE

HP-CRANE

HP-CRANE

1

09

+3.3V_SUS

EC-SI2-E07

R604 10K/J_4

EC-SI2-E08

R619 *10K/J_4
R591 10K/J_4

R240 8.2k/5%_4

+3.3V_PCH_VCCDSW

BK

R629 1K/J_4
R627 10K/J_4
R623 *10K/J_4
R633 4.7K/F_4
R284 10K/J_4

R624 470/5%_4

C583 *0.1u/25V/X5R_4

DG: NEAR DIMM

+VCCST_VCCPLL

R654 51/F_4
R646 *51/F_4
R645 *51/F_4

EC-SI2-E18

R265 *1.5K/F_4

EC-SI2-E16

+3.3V_SUS

R177 1k/5%_4
R202 1k/5%_4

9 56Wednesday, July 29, 2015

9 56Wednesday, July 29, 2015

9 56Wednesday, July 29, 2015

+VDDQ

+3.3V

B

B

B

5

?

U33B

PCH_RCOMPN
PCH_RCOMPP

PME_N

TP_PCH_AF17

TP_FPF_VREF
TP_FPF_MON

SPI_MOSI
SPI_MISO
SPI_CS0#
SPI_CLK

SPI_IO2_R
SPI_IO3_R

L27

DMI_RXN0

N27

DMI_RXP0

C27

DMI_TXN0

B27

DMI_TXP0

E24

DMI_RXN1

G24

DMI_RXP1

B28

DMI_TXN1

A28

DMI_TXP1

G27

DMI_RXN2

E26

DMI_RXP2

B29

DMI_TXN2

C29

DMI_TXP2

L29

DMI_RXN3

K29

DMI_RXP3

B30

DMI_TXN3

A30

DMI_TXP3

B18

PCIE_RCOMPN

C17

PCIE_RCOMPP

H15

PCIE1_RXN/USB3_7_RXN

G15

PCIE1_RXP/USB3_7_RXP

A16

PCIE1_TXN/USB3_7_TXN

B16

PCIE1_TXP/USB3_7_TXP

B19

PCIE2_TXN/USB3_8_TXN

C19

PCIE2_TXP/USB3_8_TXP

E17

PCIE2_RXN/USB3_8_RXN

G17

PCIE2_RXP/USB3_8_RXP

L17

PCIE3_RXN/USB3_9_RXN

K17

PCIE3_RXP/USB3_9_RXP

B20

PCIE3_TXN/USB3_9_TXN

C20

PCIE3_TXP/USB3_9_TXP

E20

PCIE4_RXN/USB3_10_RXN

G19

PCIE4_RXP/USB3_10_RXP

B21

PCIE4_TXN/USB3_10_TXN

A21

PCIE4_TXP/USB3_10_TXP

K19

PCIE5_RXN

L19

PCIE5_RXP

D22

PCIE5_TXN

C22

PCIE5_TXP

G22

PCIE6_RXN

E22

PCIE6_RXP

B22

PCIE6_TXN

A23

PCIE6_TXP

L22

PCIE7_RXN

K22

PCIE7_RXP

C23

PCIE7_TXN

B23

PCIE7_TXP

K24

PCIE8_RXN

L24

PCIE8_RXP

C24

PCIE8_TXN

B24

PCIE8_TXP

SPT_PCH_DT/SKT

U33A

BD17

GPP_A11/PME#

AG15

RSVD_AG15

AG14

RSVD_AG14

AF17

RSVD_AF17

AE17

RSVD_AE17

AR19

TP5

AN17

TP4

BB29

SPI0_MOSI

BE30

SPI0_MISO

BD31

SPI0_CS0#

BC31

SPI0_CLK

AW31

SPI0_CS1#

BC29

SPI0_IO2

BD30

SPI0_IO3

AT31

SPI0_CS2#

AN36

GPP_D1/SPI1_CLK

AL39

GPP_D0/SPI1_CS#

AN41

GPP_D3/SPI1_MOSI

AN38

GPP_D2/SPI1_MISO

AH43

GPP_D22/SPI1_IO3

AG44

GPP_D21/SPI1_IO2

SPT_PCH_DT/SKT

DMI_CPU_PCH_TXN0(4)
DMI_CPU_PCH_TXP0(4)
DMI_PCH_CPU_RXN0(4)
DMI_PCH_CPU_RXP0(4)
DMI_CPU_PCH_TXN1(4)
DMI_CPU_PCH_TXP1(4)
DMI_PCH_CPU_RXN1(4)
DMI_PCH_CPU_RXP1(4)
DMI_CPU_PCH_TXN2(4)

D D

DMI_CPU_PCH_TXP2(4)
DMI_PCH_CPU_RXN2(4)
DMI_PCH_CPU_RXP2(4)
DMI_CPU_PCH_TXN3(4)
DMI_CPU_PCH_TXP3(4)
DMI_PCH_CPU_RXN3(4)

(4)

DMI_PCH_CPU_RXP3

R616 100/F_4

C C

PCIE_WLAN_RX_N(31)

WLAN
Card

Reader

B B

PCIE_WLAN_RX_P(31)
PCIE_WLAN_TX_N(31)
PCIE_WLAN_TX_P(31)
PCIE_CR_RX_N(27)
PCIE_CR_RX_P(27)
PCIE_CR_TX_N(27)
PCIE_CR_TX_P(27)

+VCCPGPPA

R618 10K/J_4

TP64 R527 10K/J_4

EC-SI-xx remove TP

TP56
TP61

SPI_MOSI(9,33,34)
SPI_MISO(9,33)

SPI_CLK(33)

SPI_CS2#(33)

Platform Reset

A A

PLTRST_N

5

SPT-H_PCH

DMI

PCIe/USB 3

(H110)

(H110)

LAN,PCIe
(H110)

(H110)

2 OF 12

REV = 1.3

SPT-H_PCH

1 OF 12

REV = 1.3

R617 *0/J_4

+3.3V

C578 0.1U

10%

2
1

3 5

N/A

LAN

PCIe

?

4

U32
TC7SH08FUSSOP-5P

USB 2.0

N/A

(H110)

GPP_E9/USB2_OC0#
GPP_E10/USB2_OC1#
GPP_E11/USB2_OC2#
GPP_E12/USB2_OC3#

GPP_F15/USB2_OCB_4
GPP_F16/USB2_OCB_5
GPP_F17/USB2_OCB_6
GPP_F18/USB2_OCB_7

USB2_VBUSSENSE

GPP_B13/PLTRST#

GPP_G16/GSXCLK

GPP_G12/GSXDOUT

GPP_G13/GSXSLOAD

GPP_G14/GSXDIN

GPP_G15/GSXSRESET#

GPP_E3/CPU_GP0

GPP_E7/CPU_GP1

GPP_B3/CPU_GP2

GPP_B4/CPU_GP3

GPP_H18/SML4ALERT#

GPP_H17/SML4DATA

GPP_H16/SML4CLK

GPP_H15/SML3ALERT#

GPP_H14/SML3DATA

GPP_H13/SML3CLK

GPP_H12/SML2ALERT#

GPP_H11/SML2DATA

GPP_H10/SML2CLK

INTRUDER#

16V

0402 X7R

AF5

USB2N_1

AG7

USB2P_1

AD5

USB2N_2

AD7

USB2P_2

AG8

USB2N_3

AG10

USB2P_3

AE1

USB2N_4

AE2

USB2P_4

AC2

USB2N_5

AC3

USB2P_5

AF2

USB2N_6

AF3

USB2P_6

AB3

USB2N_7

AB2

USB2P_7

AL8

USB2N_8

AL7

USB2P_8

AA1

USB2N_9

AA2

USB2P_9

AJ8

USB2N_10

AJ7

USB2P_10

W2

USB2N_11

W3

USB2P_11

AD3

USB2N_12

AD2

USB2P_12

V2

USB2N_13

V1

USB2P_13

AJ11

USB2N_14

AJ13

USB2P_14

AD43
AD42
AD39
AC44
Y43
Y41
W44
W43

AG3

USB2_COMP

AD10
AB13

RSVD_AB13

AG2

USB2_ID

BD14

GPD7/RSVD

USB2_COMP
Trace length < 500 mils
Trace impedance 50 ohm
No longer than 450 mils to resistor
Trace spacing is 15 mils

?

BB27

P43
R39
R36
R42
R41

AF41
AE44
BC23
BD24

BC36
BE34
BD39
BB36
BA35
BC35
BD35
AW35
BD34

BE11

?

R608
100K/F_4

4

USB_OC_0#
USB_OC_1#
USB_OC_2#
VISACH2_D3
USB_OC_4#
USB_OC_5#
USB_OC_6#
USB_OC_7#

PCH_USB_COMP

R639 113/F_4
R280 1K_4

PCH_USB_SS
PCH_AB13

TP65

PCH_USB_ID

R640 1K_4

PCH_BD14

TP130

PLTRST_N_R

R597 30/1%_4

GPP_G_16
GPP_G_12
CAM_ON
GPP_G_14
GPP_G_15

PCH_GPP_E_3
PCH_GPP_E_7
BT_RF_OFF_R
GPP_B_4

GPP_H_18

GPP_H_15
GPP_H_14
GPP_H_13
GPP_H_12
GPP_H_11
GPP_H_10

INTRUDER#

CRB:
NFC
PLTRST_PEG_SLOTS_N
USBHUB_RST_N
TPM

TP119
TP38

TP117
TP35

R609 1k/5%_4

TP128
TP122

TP123
TP41
TP126

TP39
TP125

PLTRST_N_BUF (16,31)

4

USB2_USB3P_1N
USB2_USB3P_1P
USB2_USB3P_2N
USB2_USB3P_2P (30)
USB2_USB2P_3N
USB2_USB2P_3P
USB2_USB2P_4N
USB2_USB2P_4P
USB2_USB2P_5N
USB2_USB2P_5P
USB2_USB2P_6N
USB2_USB2P_6P
USB2_WLAN_7N
USB2_WLAN_7P
USB2_TCH_8N
USB2_TCH_8P
USB2_CAM_9N
USB2_CAM_9P

USB_OC_0#

(30,34)

USB_OC_1#

(30,34)

USB_OC_2#

(30,34)

VISACH2_D3

(9,34)

USB_OC_4#

(30)

EC-DB-E08

NEAR PCH

EC-SI2-E18

(30)

USB3.0 P1

(30)
(30)

USB3.0 P2

(30)
(30)

USB2.0 P3~P4

(30)
(30)
(30)
(30)

USB2.0 P1~P2

(30)
(30)
(31)

BT

(31)
(29)

TOUCH MODULE

(29)
(29)

WEBCAM

(29)

ODD

HDD

CRB:
LAN
EC
DBG

PLTRST_N

CAM_ON

PCH_GPP_E_3 (34)
PCH_GPP_E_7 (34)
BT_RF_OFF (31)

VCCPCHCORE_VID0 (38)
VCCPCHCORE_VID1 (38)

GPP_H_12 (9)

EC-DB-E27

Security Jumper

(26,27,33)

(29)

Reserve

EC-SI-07

SPI_MOSI
SPI_IO2_R
SPI_IO3_R

EC_PV2_E02

CLR_CMOS(CN16_1)

CONN MINI JUMPER
2P FS (P2.0,H5.0)
DFJP02FS000

EC_SCI#(28)

SV_ADVANCE_GP48(9)

SATA_TX1_N(32)
SATA_TX1_P(32)
SATA_RX1_N(32)
SATA_RX1_P(32)

SATA_TX0_N(32)
SATA_TX0_P(32)
SATA_RX0_N(32)
SATA_RX0_P(32)

R596 *1k/5%_4
R587 *0/5%_4
R578 SP_4

EC-DB-E27

SPI_CLK
SPI_MOSI
SPI_MISO

3

GPP_G_8

TP121

GPP_G_9

TP118

GPP_G_10

TP32

GPP_G_11

TP120

CLR_BIOS_DATA#
CLR_PASSWORD#
BOOT_BLK_REC#

EC_SCI#

BOOT_BLK_WRITE#

GPP_G_5

TP108

GPP_G_6

TP107

GPP_G_7

TP114

GPP_F_10

TP33

GPP_F_11

TP31

GPP_F_13

TP111

R270 33/J_4
R260 33/J_4
R299 33/J_4

SPI_IO2_R

SPI0_MOSI_XDP (34)
SPI_IO2 (9,34)
SPI_IO3 (9)

CN12

2
4
6
8

CONN_RCT_4X2

CONN HEADER SMD 8P 2R MS(P2.0,H6.2)

3

?

(H110)

SPT-H_PCH

PCIe,LAN

CLINK

N/A

FAN

SATA

(H110)

SATA,LAN

(H110)

LAN

(H110)

N/A

(H110)

(H110)

PCIe

(H110)

SATA

(H110)

PCIe/SATA

SATA

(H110)

N/A

(H110)

GPP_E0/SATAXPCIE0/SATAGP0
GPP_E1/SATAXPCIE1/SATAGP1
GPP_E2/SATAXPCIE2/SATAGP2
GPP_F0/SATAXPCIE3/SATAGP3
GPP_F1/SATAXPCIE4/SATAGP4
GPP_F2/SATAXPCIE5/SATAGP5
GPP_F3/SATAXPCIE6/SATAGP6
GPP_F4/SATAXPCIE7/SATAGP7

HOST

3 OF 12

U33C

AV2

CL_CLK

AV3

CL_DATA

AW2

CL_RST#

R44

GPP_G8/FAN_PWM_0

R43

GPP_G9/FAN_PWM_1

U39

GPP_G10/FAN_PWM_2

N42

GPP_G11/FAN_PWM_3

U43

GPP_G0/FAN_TACH_0

U42

GPP_G1/FAN_TACH_1

U41

GPP_G2/FAN_TACH_2

M44

GPP_G3/FAN_TACH_3

U36

GPP_G4/FAN_TACH_4

P44

GPP_G5/FAN_TACH_5

T45

GPP_G6/FAN_TACH_6

T44

GPP_G7/FAN_TACH_7

B33

PCIE11_TXP

C33

PCIE11_TXN

K31

PCIE11_RXP

L31

PCIE11_RXN

AB33

GPP_F10/SCLOCK

AB35

GPP_F11/SLOAD

AA44

GPP_F13/SDATAOUT0

AA45

GPP_F12/SDATAOUT1

B38

PCIE14_TXN/SATA1B_TXN

C38

PCIE14_TXP/SATA1B_TXP

D39

PCIE14_RXN/SATA1B_RXN

E37

PCIE14_RXP/SATA1B_RXP

C36

PCIE13_TXN/SATA0B_TXN

B36

PCIE13_TXP/SATA0B_TXP

G35

PCIE13_RXN/SATA0B_RXN

E35

PCIE13_RXP/SATA0B_RXP

A35

PCIE12_TXP

B35

PCIE12_TXN

H33

PCIE12_RXP

G33

PCIE12_RXN

J45

PCIE20_TXP

K44

PCIE20_TXN

N38

PCIE20_RXP

N39

PCIE20_RXN

H44

PCIE19_TXP

H43

PCIE19_TXN

L39

PCIE19_RXP

L37

PCIE19_RXN

SPT_PCH_DT/SKT

REV = 1.3

BIOS SPI ,64Mbit (8M Byte)

R300
1k_4

TP66
TP73

SPI_CS0#_R
SPI_CLK_R
SPI_SI
SPI_SO

R293 15_4

1

CLR_BIOS_DATA#

3

CLR_PASSWORD#

5

BOOT_BLK_REC#

7

BOOT_BLK_WRITE#

SPI_WP#

TP74
TP58

EC_PV2_E02

R233 SP_4

SPI_CS0#
SPI_SI
SPI_SO +3.3V_SUS_SPI_SKT
SPI_CLK_R
SPI_WP# SPI_HOLD

1
3
526

9 10

U13

1
6
5
2

3

W25Q64BVSSIG

SOCKET

CRITICAL

E1

87

*PROTO@HEADER_9P

CE#
SCK
SI
SO

WP#

SPI_CS0#_R

HOLD#

VDD

VSS

2

PCIE9_RXN/SATA0A_RXN

PCIE9_RXP/SATA0A_RXP
PCIE9_TXN/SATA0A_TXN
PCIE9_TXP/SATA0A_TXP

PCIE10_RXN/SATA1A_RXN
PCIE10_RXP/SATA1A_RXP
PCIE10_TXN/SATA1A_TXN
PCIE10_TXP/SATA1A_TXP

PCIE15_RXN/SATA2_RXN
PCIE15_RXP/SATA2_RXP
PCIE15_TXN/SATA2_TXN

PCIE15_TXP/SATA2_TXP

PCIE16_RXN/SATA3_RXN
PCIE16_RXP/SATA3_RXP
PCIE16_TXN/SATA3_TXN

PCIE16_TXP/SATA3_TXP

PCIE17_RXN/SATA4_RXN
PCIE17_RXP/SATA4_RXP
PCIE17_TXN/SATA4_TXN

PCIE17_TXP/SATA4_TXP

PCIE18_RXN/SATA5_RXN
PCIE18_RXP/SATA5_RXP
PCIE18_TXN/SATA5_TXN

PCIE18_TXP/SATA5_TXP

GPP_E8/SATALED#

GPP_F21/EDP_BKLTCTL

GPP_F20/EDP_BKLTEN

GPP_F19/EDP_VDDEN

THERMTRIP#

PECI

PM_SYNC

PLTRST_CPU#

PM_DOWN

8

7

SPI_HOLD

4

E16(1-2)

MINI_JUMP_2P_FM_2.54MM_BLACK
PROTO
Pinrex 202-H71-01GU0B

R207 Short pad_4

EC_SI2-E09

C153

0.1U

0402
16V
X7R

2

G31
H31
C31
B31

G29
E29
C32
B32

F41
E41
B39
A39

D43
E42
A41
A40

H42
H40
E45
F45

K37
G37
G45
G44

AD44
AG36

AG35
AG39
AD35
AD31
AD38
AC43
AB44

W36
W35
W42

AJ3
AL3
AJ4
AK2
AH2

?

R282
1k_4

R276 15_4

VISACH1_D0

PCH_GPP_F_2

PCH_W35
PCH_W42

PCH_THRMP#
H_PM_SYNC_R

EC_PV_E04

+3.3V_SUS_SPI

SPI_IO3_R

R655 560/F_4
R648 30/1%_4

C180

0.1U

0402
X7R
16V

+3.3V_SUS

PCIE_GLAN_RX_N (26)
PCIE_GLAN_RX_P (26)
PCIE_GLAN_TX_N (26)
PCIE_GLAN_TX_P (26)

TP46
TP109

R264 SP_4

EC_PV_E07

1

+3.3V(9,11,12,13,14,15,22,23,25,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)
+3.3V_RTC(9,13,28)
+3.3V_SUS(5,9,11,12,13,24,26,28,31,33,34,35,37,38,39,41,42,43,49)

LAN

R542 10K/J_4
R531 *10K/J_4
R530 *10K/J_4

R156 *10K/J_4
R154 10K/J_4
R155 *10K/J_4

R535 *10K/J_4
R536 10K/J_4
R169 *10K/J_4

R634 1M/J_4

R153 43k/1%_4
R152 *1k/5%_4

R650 1k/5%_4
C591 *47p/50V/NPO_4

R605 10K/J_4
R162 10K/J_4

R158 10K/J_4
R537 10K/J_4
R538 10K/J_4

R528 10K/J_4
R161 10K/J_4
R160 10K/J_4

D36 *TVS_AZ5125-01H

C576 *10p/50V/NPO_4

PCH_SATA_LED_#
VISACH1_CLK_SATA_PCIE_SEL0(34)

VISACH1_D0 (34)
PCH_GPP_E_2
PCH_GPP_F_0 (34)
PCH_GPP_F_1 (34)
PCH_GPP_F_2 (34)
PCH_GPP_F_3 (34)
PCH_GPP_F_4 (34)

PCH_BRIGHT (22)

PCH_THERMTRIP# (5)
PCH_PECI (5)
H_PM_SYNC (5)
CPU_RESET# (5,34)
H_PM_DOWN

+3.3V_SUS

EC_SI2-E10

EC_SI2-E10

(29,34)

(34)

(5)

EC_SCI#
GPP_G_5
GPP_G_6

GPP_F_11
PCH_SATA_LED_#
GPP_F_10

GPP_G_7
GPP_G_5
PCH_GPP_F_2

INTRUDER#

VISACH1_D0

PCH_PECI

BT_RF_OFF_R
CAM_ON

USB_OC_5#
USB_OC_6#
USB_OC_7#

CLR_BIOS_DATA#
CLR_PASSWORD#
BOOT_BLK_REC#
BOOT_BLK_WRITE#

ESD reserved

PLTRST_N

EMI reserved

SPI_CLK

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

PCH_DMI/PCIE/USB/SATA/GPIO

PCH_DMI/PCIE/USB/SATA/GPIO

PCH_DMI/PCIE/USB/SATA/GPIO
810606-000

810606-000

810606-000

HP-CRANE

HP-CRANE

HP-CRANE

1

10

+3.3V

+3.3V_RTC

+3.3V

+3.3V_SUS

+3.3V_SUS

+3.3V

10 56Wednesday, July 29, 2015

10 56Wednesday, July 29, 2015

10 56Wednesday, July 29, 2015

B

B

B

5

U33F

(30)

USB3_TXN1

(30)

USB3_TXP1

USB PORT

D D

USB PORT

C C

3D CAM

(23)

HDMI_HPD

EC_SMI#(28)

(30)

USB3_RXN1

(30)

USB3_RXP1

(30)

USB3_TXN2

(30)

USB3_TXP2

(30)

USB3_RXN2

(30)

USB3_RXP2

(29)

USB3_CAM_TX4P

(29)

USB3_CAM_TX4N
USB3_CAM_RX4P(29)
USB3_CAM_RX4N(29)

R290 SP_4

EC_SMI#_PCH

C11

USB3_1_TXN

B11

USB3_1_TXP

B7

USB3_1_RXN

A7

USB3_1_RXP

B12

USB3_2_TXN/SSIC_1_TXN

A12

USB3_2_TXP/SSIC_1_TXP

C8

USB3_2_RXN/SSIC_1_RXN

B8

USB3_2_RXP/SSIC_1_RXP

B15

USB3_6_TXN

C15

USB3_6_TXP

K15

USB3_6_RXN

K13

USB3_6_RXP

B14

USB3_5_TXN

C14

USB3_5_TXP

G13

USB3_5_RXN

H13

USB3_5_RXP

D13

USB3_3_TXP/SSIC_2_TXP

C13

USB3_3_TXN/SSIC_2_TXN

A9

USB3_3_RXP/SSIC_2_RXP

B10

USB3_3_RXN/SSIC_2_RXN

B13

USB3_4_TXP

A14

USB3_4_TXN

G11

USB3_4_RXP

E11

USB3_4_RXN

SPT_PCH_DT/SKT

U33E

AW4

GPP_I0/DDPB_HPD0

AY2

GPP_I1/DDPC_HPD1

AV4

GPP_I2/DDPD_HPD2

BA4

GPP_I3/DDPE_HPD3

EC_PV_E02

(22)

DDPD_HPD

B B

BD7

GPP_I4/EDP_HPD

Active high

SPT_PCH_DT/SKT

REV = 1.3

SPT-H_PCH

N/A

(H110)

USB

REV = 1.3

4

?

LPC/eSPI

GPP_A5/LFRAME#/ESPI_CS#

GPP_A7/PIRQA#/ESPI_ALERT0#

GPP_A0/RCIN#/ESPI_ALERT1#

GPP_A14/SUS_STAT#/ESPI_RESET#

GPP_A9/CLKOUT_LPC0/ESPI_CLK

SATA

USB3

(H110)

6 OF 12

?

SPT-H_PCH

GPP_I7/DDPC_CTRLCLK

GPP_I8/DDPC_CTRLDATA

GPP_I5/DDPB_CTRLCLK

GPP_I6/DDPB_CTRLDATA

GPP_I9/DDPD_CTRLCLK

GPP_I10/DDPD_CTRLDATA

5 OF 12

GPP_A1/LAD0/ESPI_IO0
GPP_A2/LAD1/ESPI_IO1
GPP_A3/LAD2/ESPI_IO2
GPP_A4/LAD3/ESPI_IO3

GPP_A6/SERIRQ

GPP_A10/CLKOUT_LPC1

GPP_G19/SMI#

GPP_G18/NMI#

GPP_E6/DEVSLP2
GPP_E5/DEVSLP1
GPP_E4/DEVSLP0
GPP_F9/DEVSLP7
GPP_F8/DEVSLP6
GPP_F7/DEVSLP5
GPP_F6/DEVSLP4
GPP_F5/DEVSLP3

BB3
BD6
BA5
BC4
BE5
BE6

Y44

GPP_F14

V44

GPP_F23

W39

GPP_F22

L43

GPP_G23

L44

GPP_G22

U35

GPP_G21

R35

GPP_G20

BD36

GPP_H23

?

AT22
AV22
AT19
BD16

BE16
BA17
AW17
AT17
BC18

BC17
AV19

M45
N43

AE45
AG43
AG42
AB39
AB36
AB43
AB42
AB41

?

DDPB_CTRLCLK
DDPB_CTRLDATA

CAM_DET#
DGPU_PLTRST_N

GPP_G_22

DMIC_DET#

3

SERIRQ
LPC_PIRQ
EC_KBRST#

CLKOUT_LPC0
CLKOUT_LPC1

PCH_SMI#_R
2X4_PWRDET

PCH_GPP_E_6
PCH_GPP_E_5
PCH_GPP_E_4
PCH_GPP_F_9
PCH_GPP_F_8
PCH_GPP_F_7
SSD_SATA_DEVSLP
PCH_CODEC_IRQ

R620 22_4
R242 22_4

R545 SP_4

EC_PV_E05

R702 *DIS@0_4

TP115

TP63

TP40
TP42
TP113
TP110
TP36

EC_PV_E02

F_LAD0
F_LAD1
F_LAD2
F_LAD3

L_FRAME#
SERIRQ

EC_KBRST#
EC_LPCPD# (28)

CK_24M_EC (28)
CK_24M_LPC (33)
CK_24M_DEBUG(31)
PCH_SMI# (33)

PCH_GPP_E_6
PCH_GPP_E_5
PCH_GPP_E_4

DDPB_CTRLCLK
DDPB_CTRLDATA

H_SKTOCC# (5)
CAM_DET# (29)
DGPU_PLTRST_N (16)

CAM_FW_UPDATE#
EN_+3.3V_VGA
SPI_TPM_PIRQ (33)
TEST_SETUP_MENU (9)

DMIC_DET# (29)

(28,31,33)
(28,31,33)
(28,31,33)
(28,31,33)

(28,31,33)
(28,33)

(28)

(34)
(34)
(34)

(23)
(23)

(29)
(28,49)

2

+3.3V(9,10,12,13,14,15,22,23,25,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)
+3.3V_SUS(5,9,10,12,13,24,26,28,31,33,34,35,37,38,39,41,42,43,49)

CRB: Connect to +3.3V_SUS directly

SERIRQ & LPC_PIRQ
Note: An external pull-up is required

EC-DB-E04

H/W STRAPS:
DDPB_CTRLDATA: ( pull up at HDMI page )
0= Port B is not detected. Default, Internal PD
1= Port B is detected.

EC-DB-E05

EC-DB-E03

1

EC-SI-E08

2X4_PWRDET
CAM_DET#

DMIC_DET#

EC_KBRST#
SERIRQ

PCH_SMI#

LPC_PIRQ

SPI_TPM_PIRQ

DGPU_PLTRST_N
EC_SMI#

11

R532 *10K/J_4
R302 10K/J_4

R554 10K/J_4

R262 10K/J_4
R263 10K/J_4

R546 10K/J_4
R547 *10K/J_4R238 22_4

+3.3V_SUS

R259 10K/J_4

+3.3V_SUS

R159 8.2k/5%_4

R157 10K/J_4
R304 10K/J_4

+3.3V

+3.3V

+3.3V

HP Restricted Secret

A A

EMI reserved

CK_24M_EC

CK_24M_LPC

5

4

3

C581 *10p/50V/NPO_4

C176 *10p/50V/NPO_4

2

Title

Title

Title

PCH_USB3/LPC

PCH_USB3/LPC

PCH_USB3/LPC

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

11 56Wednesday, July 29, 2015

11 56Wednesday, July 29, 2015

11 56Wednesday, July 29, 2015

B

B

B

5

4

3

2

1

?

U33G

AR17

GPP_A16/CLKOUT_48

CLK_24MHZ_P(5)
CLK_24MHZ_N(5)

CLK_DMI_100M_P(5)

D D

C C

B B

A A

CLK_DMI_100M_N(5)

+1.0V_SUS_VCCF24

R296 2.7K/F_4

LAN_PCIE_CLKREQ#(26)
WLAN_PCIE_CLKREQ#(31)
CR_PCIE_CLKREQ#(27)

GPU_PCIE_CLKREQ#(17)

XTAL_24M_PCH_OUT
XTAL_24M_PCH_IN

PCH_XCLK_BAISREF
XTAL_PCH_RTC1

XTAL_PCH_RTC2

LAN_PCIE_CLKREQ#
WLAN_PCIE_CLKREQ#
CR_PCIE_CLKREQ#

GPU_PCIE_CLKREQ#

PCA_ID0
PCA_ID1
BOARD_ID0
BOARD_ID1

EC-DB-E28

PCH_C1
PCH_D1

5

TP134
TP133

G1

CLKOUT_CPUNSSC_P

F1

CLKOUT_CPUNSSC

G2

CLKOUT_CPUBCLK_P

H2

CLKOUT_CPUBCLK

A5

XTAL24_OUT

A6

XTAL24_IN

E1

XCLK_BIASREF

BC9

RTCX1

BD10

RTCX2

BC24

GPP_B5/SRCCLKREQ0#

AW24

GPP_B6/SRCCLKREQ1#

AT24

GPP_B7/SRCCLKREQ2#

BD25

GPP_B8/SRCCLKREQ3#

BB24

GPP_B9/SRCCLKREQ4#

BE25

GPP_B10/SRCCLKREQ5#

AT33

GPP_H0/SRCCLKREQ6#

AR31

GPP_H1/SRCCLKREQ7#

BD32

GPP_H2/SRCCLKREQ8#

BC32

GPP_H3/SRCCLKREQ9#

BB31

GPP_H4/SRCCLKREQ10#

BC33

GPP_H5/SRCCLKREQ11#

BA33

GPP_H6/SRCCLKREQ12#

AW33

GPP_H7/SRCCLKREQ13#

BB33

GPP_H8/SRCCLKREQ14#

BD33

GPP_H9/SRCCLKREQ15#

R13

CLKOUT_PCIE_N15

R11

CLKOUT_PCIE_P15

P1

CLKOUT_PCIE_N14

R2

CLKOUT_PCIE_P14

W7

CLKOUT_PCIE_N13

Y5

CLKOUT_PCIE_P13

U2

CLKOUT_PCIE_N12

U3

CLKOUT_PCIE_P12

SPT_PCH_DT/SKT

BD2
BD45
BD44

BE44

D45

A42
B45
B44

A4
A3
B2
A2

B1
BB1
BC1

A44

C1

D1

SPT_PCH_DT/SKT

U33J

VSS_BD2
VSS_BD45
VSS_BD44
VSS_BE44
VSS_D45
VSS_A42
VSS_B45
VSS_B44
VSS_A4
VSS_A3
VSS_B2
VSS_A2
VSS_B1
VSS_BB1
VSS_BC1
VSS_A44

RSVD_C1
RSVD_D1

SPT-H_PCH

REV = 1.3

SPT-H_PCH

10 OF 12
REV = 1.3

CLKOUT_CPUPCIBCLK

CLKOUT_CPUPCIBCLK_P

7 OF 12

?

RSVD_AR22

RSVD_W13

RSVD_U13

RSVD_P31

RSVD_N31

RSVD_P27
RSVD_R27
RSVD_N29

RSVD_P29

RSVD_AN29

RSVD_R24

RSVD_P24

CPU_TRST#

PCH_TRIGOUT

PCH_TRIGIN

4

CLKOUT_ITPXDP

CLKOUT_ITPXDP_P

CLKOUT_PCIE_N0
CLKOUT_PCIE_P0

CLKOUT_PCIE_N1
CLKOUT_PCIE_P1

CLKOUT_PCIE_N2
CLKOUT_PCIE_P2

CLKOUT_PCIE_N3
CLKOUT_PCIE_P3

CLKOUT_PCIE_N4
CLKOUT_PCIE_P4

CLKOUT_PCIE_N5
CLKOUT_PCIE_P5

CLKOUT_PCIE_N6
CLKOUT_PCIE_P6

CLKOUT_PCIE_N7
CLKOUT_PCIE_P7

CLKOUT_PCIE_N8
CLKOUT_PCIE_P8

CLKOUT_PCIE_N9
CLKOUT_PCIE_P9

CLKOUT_PCIE_N10

CLKOUT_PCIE_P10

CLKOUT_PCIE_N11

CLKOUT_PCIE_P11

AR22
W13
U13
P31
N31

P27
R27
N29
P29
AN29
R24
P24

AT3

PREQ#

AT4

PRDY#

AY5

PCH_TRST#

AL2

PCH_TOUT

AK1

?

L1
L2

J1
J2

N7
N8

L7
L5

D3
F2

E5
G4

D5
E6

D8
D7

R8
R7

U5
U7

W10
W11

N3
N2

P3
P2

R3
R4

?

PCH_AR22
PCH_W13
PCH_U13
PCH_P31
PCH_N31

PCH_P27
PCH_R27
PCH_N29
PCH_P29
PCH_AN29
PCH_R24
PCH_P24

R288 SP_4
R652 30/1%_4

EC-DB-E30

UART for
Debug used

CLK_CPU_XDP_N
CLK_CPU_XDP_P

CLK_PCIBCLK_N (5)
CLK_PCIBCLK_P (5)

CLK_PCIE_LAN_N
CLK_PCIE_LAN_P

CLK_PCIE_WLAN_N
CLK_PCIE_WLAN_P

CLK_PCIE_CR_N
CLK_PCIE_CR_P

(31)

WLAN_OFF

CLK_PCIE_VGA_N
CLK_PCIE_VGA_P (16)

TP54
TP67
TP72
TP43
TP44

TP50
TP51
TP45
TP47
TP49
TP55
TP53

PCH_XDP_PREQ#_R
PCH_XDP_PRDY#_R
H_TRST#
PCH_2_CPU_TRIGGER
CPU_2_PCH_TRIGGER

EC_PV_E02

+3.3V_SUS

UART2_TXD
UART2_RXD

EC-DB-E29

3

(34)
(34)

(26)
(26)

(31)
(31)

(27)
(27)

(16)

JP2

1
2
3
4

DIP Header 4P

LPSS_GSPI1_MOSI(9)

LPSS_GSPI0_MOSI(9)

R595

Short pad_4

EC_SI2-E11

(34)
(34)
(5,34)
(7)
(7)

WLAN_OFF_R

WLAN_OFF_R

UART2_TXD
UART2_RXD

R566 UMA@10K_4
R565 10K_4

PCA ID [1:0]

00
01
10
11

LAN_PCIE_CLKREQ#
GPU_PCIE_CLKREQ#

WLAN_OFF_R

XTAL

R636 1M

C588
10P

1

AT29
AR29
AV29
BC27

BD28
BD27

AW27

AR24
AV44

BA41
AU44
AV43

AU41
AT44
AT43
AU43

AN43
AN44
AR39
AR45

AR41
AR44
AR38
AT42

AM44

AJ44

SPT_PCH_DT/SKT

PCA_ID0
PCA_ID1

R610 10K/J_4
R603 10K/J_4

R594 10K/J_4

Ra

1%

0603

Y3

3

1

3

C590
10P

4

224

XTAL 24MHz 30ppm

BG624000044

U33K

GPP_B22/GSPI1_MOSI
GPP_B21/GSPI1_MISO
GPP_B20/GSPI1_CLK
GPP_B19/GSPI1_CS#

GPP_B18/GSPI0_MOSI
GPP_B17/GSPI0_MISO
GPP_B16/GSPI0_CLK
GPP_B15/GSPI0_CS#

GPP_C9/UART0_TXD
GPP_C8/UART0_RXD
GPP_C11/UART0_CTS#
GPP_C10/UART0_RTS#

GPP_C15/UART1_CTS#/ISH_UART1_CTS#
GPP_C14/UART1_RTS#/ISH_UART1_RTS#
GPP_C13/UART1_TXD/ISH_UART1_TXD
GPP_C12/UART1_RXD/ISH_UART1_RXD

GPP_C23/UART2_CTS#
GPP_C22/UART2_RTS#
GPP_C21/UART2_TXD
GPP_C20/UART2_RXD

GPP_C19/I2C1_SCL
GPP_C18/I2C1_SDA
GPP_C17/I2C0_SCL
GPP_C16/I2C0_SDA

GPP_D4/ISH_I2C2_SDA
GPP_D23/ISH_I2C2_SCL

REV = 1.3

R560 DIS@10K_4 R572 10K_4
R564 *10K_4

PCA Name

SPT-H_PCH

+3.3V +3.3V

EC-MV-E02

R559 10K_4

Board Rev[1:0]

Crane-U
Crane-G

+3.3V

+3.3V

XTAL_24M_PCH_IN

XTAL_24M_PCH_OUT

32.768KHZ/12.5PF_20PPM

HP Restricted Secret

Title

Title

Title

PCH_CLOCK/I2C

PCH_CLOCK/I2C

PCH_CLOCK/I2C

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

+3.3V_SUS(5,9,10,11,13,24,26,28,31,33,34,35,37,38,39,41,42,43,49)
+3.3V(9,10,11,13,14,15,22,23,25,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)

?

GPP_D9
GPP_D10
GPP_D11
GPP_D12

GPP_D16/ISH_UART0_CTS#
GPP_D15/ISH_UART0_RTS#

GPP_D14/ISH_UART0_TXD

GPP_D13/ISH_UART0_RXD

GPP_H20/ISH_I2C0_SCL
GPP_H19/ISH_I2C0_SDA

GPP_H22/ISH_I2C1_SCL
GPP_H21/ISH_I2C1_SDA

GPP_A23/ISH_GP5
GPP_A22/ISH_GP4
GPP_A21/ISH_GP3
GPP_A20/ISH_GP2
GPP_A19/ISH_GP1
GPP_A18/ISH_GP0
GPP_A17/ISH_GP7

11 OF 12

?

BOARD_ID0
BOARD_ID1

R571 *10K_4

R557 *10K_4

Consumer AIO
00
01
10
11

00

01
10

All DB
All SI
PV1
PV2

MVB

1st Major ECN
2nd Major ECN
3rd Major ECN11

15P/50V_4

15P/50V_4

C589

21

Y4

10M_6

C587

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

XTAL_PCH_RTC1

R635

XTAL_PCH_RTC2

1

12

AL44
AL36
AL35
AJ39

AJ43
AL43
AK44
AK45

BC38
BB38

BD38
BE39

BC22
BD18
BE21
BD22
BD21
BB22
BC19

12 56Wednesday, July 29, 2015

12 56Wednesday, July 29, 2015

12 56Wednesday, July 29, 2015

B

B

B

5

+1.0V_SUS

VCCPRIM_1p0 : 7.11A

D D

VCCCLK1 : 0.035A
VCCCLK2 : 0.204A
VCCCLK3 : 0.057A
VCCCLK4 : 0.036A
VCCCLK5 : 0.007A

VCCMPHY_1p0 : 6.01A

VCCAMPHYPLL_1p0 : 0.08A
VCCPCIE3PLL_1p0 : 0.036A

VCCAPLLEBB_1p0 : 0.03A

C C

VCCUSB2PLL_1p0: 0.012A
VCCHDAPLL_1p0 : 0.033A

VCCHDA : 0.075A
VCCDSW_3p3 : 0.92A

+1.0V_SUS_VCCAPLL

+3.3V_PCH_VCCDSW

Group D 3.3V

+1.8V_SUS +VCCPGPPD

R541 *0_6

+3.3V_SUS

R540 SP_6

+3.3V_SUS +DVDDIO_AUDIO

EC-PV-E02

R274 SP_6

+1.8V_SUS

EC-PV-E02

B B

A A

R271 *0_6

+3.3V_RTC +3.3V_VCCPRTC

R245 SP_6

EC-PV-E02

+1.0V_SUS +1.0V_SUS_VCCF24

R289 SP_6

EC-PV-E02

+1.0V_SUS +1.0V_SUS_VCCAMPHYPLL

R553 SP_6

EC-PV-E02

+1.0V_SUS_VCCAPLL+1.0V_SUS

R301 SP_6

EC-PV-E02

+1.0V_PCH_VCCDSW

+1.0V_SUS

+1.0V_SUS_VCCF24

+1.0V_SUS

+1.0V_SUS_VCCAMPHYPLL

+1.0V_SUS

+DVDDIO_AUDIO

Group A 3.3V

+1.8V_SUS +VCCPGPPA

R227 *0_6

+3.3V_SUS

R224 SP_6

EC-PV-E02

C184 0.1u/25V/X5R_4

Near ball BA15

C177 1U/6.3V/X5R_4
C178 0.1u/25V/X5R_4

Place <5MM from PCH BA22
Place <3mm --> 0.1UF

C191 *22U/6.3V/X5R_6
C192 *22U/6.3V/X5R_6
C190 *1U/6.3V/X5R_4

Place <5MM from PCH K2

C570 *22U/6.3V/X5R_6
C565 *22U/6.3V/X5R_6
C563 *1U/6.3V/X5R_4

Place <5MM from PCH A42

C189 *22U/6.3V/X5R_6
C193 *22U/6.3V/X5R_6

Near to AJ5, AL5 and AN19.

5

U33H

AA23

VCCPRIM_1P0_AA23

AA26

VCCPRIM_1P0_AA26

AA28

VCCPRIM_1P0_AA28

AC23

VCCPRIM_1P0_AC23

AC26

VCCPRIM_1P0_AC26

AC28

VCCPRIM_1P0_AC28

AE23

VCCPRIM_1P0_AE23

AE26

VCCPRIM_1P0_AE26

Y23

VCCPRIM_1P0_Y23

Y25

VCCPRIM_1P0_Y25

BA29

DCPDSW_1P0

N17

VCCCLK1

R19

VCCCLK3

U20

VCCCLK4

V17

VCCCLK2

R17

VCCCLK6

K2

VCCCLK5_K2

K3

VCCCLK5_K3

U21

VCCMPHY_1P0_U21

U23

VCCMPHY_1P0_U23

U25

VCCMPHY_1P0_U25

U26

VCCMPHY_1P0_U26

V26

VCCMPHY_1P0_V26

A43

VCCMPHYPLL_1P0_A43

B43

VCCMPHYPLL_1P0_B43

C44

VCCPCIE3PLL_1P0_C44

C45

VCCPCIE3PLL_1P0_C45

V28

VCCAPLLEBB_1P0

AC17

VCCPRIM_1P0_AC17

AJ5

VCCUSB2PLL_1P0_AJ5

AL5

VCCUSB2PLL_1P0_AL5

AN19

VCCHDAPLL_1P0

BA15

VCCHDA

W15

VCCDSW_3P3_W15

SPT_PCH_DT/SKT

+3.3V_PCH_VCCDSW

+3.3V

+3.3V_SUS

+3.3V_SUS

+3.3V_SUS

+3.3V_SUS

+3.3V_SUS

4

?

SPT-H_PCH

CORE

MPHY

USB

C194 *1U/6.3V/X5R_4

Place <3MM from PCH W15

C186 1U/6.3V/X5R_4

Place <5MM from PCH AD13

C151 1U/6.3V/X5R_4
C181 0.1u/25V/X5R_4

Place <5mm from PCH BA20
Place <3mm --> 0.1UF

C141 *0.1u/25V/X5R_4

Place <3mm from PCH BC42

C142 *0.1u/25V/X5R_4

Place <3mm from PCH AJ41

C150 *0.1u/25V/X5R_4

Place <3mm from PCH AN5

C152 *0.1u/25V/X5R_4

Place <3mm from PCH AD41

4

8 OF 12REV = 1.3

VCCGPIO

(A)
(B,H)

(B,H)
(E,F)
(E,F)
(G)

(D)
(D)
(D)
(D)

VCCPRIM_1P0_AL22
VCCDSW_3P3_BA24

VCCPGPPBH_BC42
VCCPGPPBH_BD40

VCCPGPPEF_AL41

VCCPRIM_3P3_AN5

VCCPRIM_1P0_AD15

VCCPRIM_1P0_AJ20
VCCPRIM_1P0_AJ21
VCCPRIM_1P0_AJ23
VCCPRIM_1P0_AJ25

VCCPGPPCD_BC44
VCCPGPPCD_BA45
VCCPGPPCD_BC45
VCCPGPPCD_BB45

VCCPRIM_3P3_BD3
VCCPRIM_3P3_BE3
VCCPRIM_3P3_BE4

VCCPGPPA

VCCPGPPEF_AJ41

VCCPGPPG

VCCATS

VCCRTCPRIM_3P3

VCCRTC
DCPRTC

VCCSPI_BE41
VCCSPI_BE43
VCCSPI_BE42

?

3

+1.0V_SUS_AL22

EC-PV-E02

AL22

R243 SP_6

BA24
BA31

+VCCPGPPA

+3.3V_SUS

BC42
BD40
AJ41
AL41
AD41

+1.0V_SUS +3.3V +3.3V_SUS

AN5
AD15

AD13

0.007A

BA20

< 0.001A

BA22

0.001A

BA26

VCC_RTCEXT_CAP

Place <5mm from PCH BA26

+1.0V_SUS

AJ20
AJ21
AJ23
AJ25

+3.3V_SUS_VCCSPI

BE41
BE43
BE42

BC44
BA45
BC45
BB45

+3.3V_SUS_VCCPFUSE
BD3
BE3
BE4

+1.0V_SUS

C173 22U/6.3V/X5R_6
C179 1U/6.3V/X5R_4

Place <3MM from PCH U21

+1.0V_PCH_VCCDSW

Place <5MM from PCH BA29

+3.3V_SUS

+3.3V_SUS

+3.3V_AUX

C169 1U/6.3V/X5R_4

C182 *0.1u/25V/X5R_4

Place <3mm from PCH BC42 & BD40

EC-PV-E02

R297 SP_4

R298 *0/5%_4

+1.0V_SUS

VCCPGPPA : 0.082A
VCCPGPPBCH: 0.229A

VCCPGPPEF : 0.114A
VCCPGPPG : 0.065A

C172 0.1u/25V/X5R_4

0.029A

R539 SP_6

EC-PV-E02

0.078A

0.171A

R644 SP_6

EC-PV-E02

+3.3V_PCH_VCCDSW

+3.3V_PCH_VCCDSW

+3.3V_SUS

+VCCPGPPD

+3.3V_SUS

EC-SI-E09

3

+VCCPGPPA

+3.3V_VCCPRTC

R277

Short pad_4

PCH_AB10

AC18

AN4

AN10

BE14
BE18
BE23
BE28
BE32
BE37
BE40

BE9
C10

C2
C28
C37

J7
K10
K27
K33
K36

K4
K42
K43
L12
L13
L15

L4

L41

L8
M35
M42
N10
N15
N19
N22
N24
N35
N36

N4

N41

N5
P17
P19
P22
P45

R10
R14
R22
R29
R33
R38

R5

T1

T2

T4
Y18
Y20
Y21
Y26
Y28
Y29
A18
A25
A32
A37

AA17
AA18
AA20
AA21
AA25
AA29

AA4
AA42
AB10

SPT_PCH_DT/SKT

U33I

SPT-H_PCH

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

9 OF 12

2

?

AR5

VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS

2

AR7
U15
AL4
AE29
AE4
AE42
AF18
AF20
AF21
AF23
AF25
AF26
AF28
AF29
AG11
AG13
AG31
AG32
AG33
AG38
AG4
AH1
AH17
AH18
AH20
AH21
AH23
AH25
AH26
AH28
AH29
AH45
AJ10
AJ14
AJ15
AJ17
AJ18
AJ26
AJ28
AJ29
AJ31
AJ32
AJ36
AK4
AK42
AU7
AV17
AV24
AV27
AV31
AV33
AV6
AW13
AW19
AW29
AW37
AW9
AY38
AY45
B25
B3
B37
B40
B6
BA1
BB11
BB16
BB21
BB25
BB30
BB34
BC2
BD43

REV = 1.3
?

HP Restricted Secret

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

C42

VSS

D10

VSS

D12

VSS

D15

VSS

D16

VSS

D17

VSS

D19

VSS

D21

VSS

D24

VSS

D25

VSS

D27

VSS

D29

VSS

D30

VSS

D31

VSS

D33

VSS

D35

VSS

D36

VSS

E13

VSS

E15

VSS

E31

VSS

E33

VSS

F44

VSS

F8

VSS

G42

VSS

G9

VSS

H17

VSS

H19

VSS

H22

VSS

H24

VSS

H27

VSS

H29

VSS

H3

VSS

H35

VSS

J10

VSS

J11

VSS

J3

VSS

J39

VSS

J5

VSS

T42

VSS

U10

VSS

U11

VSS

U14

VSS

U17

VSS

U18

VSS

U28

VSS

U29

VSS

U31

VSS

U32

VSS

U33

VSS

U38

VSS

U4

VSS

U8

VSS

V18

VSS

V20

VSS

V21

VSS

V23

VSS

V25

VSS

V29

VSS

V3

VSS

V45

VSS

W14

VSS

W31

VSS

W32

VSS

W33

VSS

W38

VSS

W4

VSS

W8

VSS

Y17

VSS

SPT_PCH_DT/SKT

PCH_POWER/GND

PCH_POWER/GND

PCH_POWER/GND
810606-000

810606-000

810606-000

?

SPT-H_PCH

U33L

12 OF 12

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

1

AB11

VSS

AB7

VSS

AB14

VSS

AB31

VSS

AB32

VSS

AB38

VSS

AB4

VSS

AB5

VSS

AC1

VSS

AC20

VSS

AC21

VSS

AC25

VSS

AC29

VSS

AC45

VSS

AB8

VSS

AD11

VSS

AD14

VSS

AB15

VSS

AD32

VSS

AD33

VSS

AD36

VSS

AD4

VSS

AD8

VSS

AE18

VSS

AE20

VSS

AE21

VSS

AE25

VSS

AE28

VSS

AL10

VSS

AL11

VSS

AL13

VSS

AL17

VSS

AL19

VSS

AL24

VSS

AL29

VSS

AL32

VSS

AL33

VSS

AL38

VSS

AM15

VSS

AM17

VSS

AM19

VSS

AM22

VSS

AM24

VSS

AM27

VSS

AM29

VSS

AM45

VSS

AN11

VSS

AN22

VSS

AN27

VSS

AN31

VSS

AN39

VSS

AN7

VSS

AN8

VSS

AP11

VSS

AP4

VSS

AR33

VSS

AR34

VSS

AR42

VSS

AR9

VSS

AT10

VSS

AT15

VSS

AT36

VSS

AT9

VSS

AU1

VSS

AU35

VSS

AU36

VSS

AU39

VSS

AU45

VSS

C4

VSS

REV = 1.3

?

HP-CRANE

HP-CRANE

HP-CRANE

1

13

B

B

B

13 56Wednesday, July 29, 2015

13 56Wednesday, July 29, 2015

13 56Wednesday, July 29, 2015

5

CHANNEL A DIMM 0 H=9.2

M_A_A[15:0](3)

D D

M_A_BS#[2..0](3)

M_A_CS#0(3)
M_A_CS#1(3)
M_A_CLKP0(3)
M_A_CLKN0(3)
M_A_CLKP1(3)
M_A_CLKN1(3)
M_A_CKE0(3)
M_A_CKE1(3)
M_A_CAS#(3)
M_A_RAS#(3)
M_A_WE#(3)

C C

B B

SMBCLK_PCH_MAIN(9,15,34)
SMBDATA_PCH_MAIN(9,15,34)

M_A_ODT0(3)
M_A_ODT1(3)

M_A_DQS0(3)
M_A_DQS1(3)
M_A_DQS2(3)
M_A_DQS3(3)
M_A_DQS4(3)
M_A_DQS5(3)
M_A_DQS6(3)
M_A_DQS7(3)
M_A_DQS#0(3)
M_A_DQS#1(3)
M_A_DQS#2(3)
M_A_DQS#3(3)
M_A_DQS#4(3)
M_A_DQS#5(3)
M_A_DQS#6(3)
M_A_DQS#7(3)

DIMMA_DQ_VREF

+VDDQ

C262
R365
1K_4

DQ_DDRA_R

A A

R363
1K_4

*0.1u/25V/X5R_4

EC-PV-E02

R366 SP_4

C263

0.1u/25V/X5R_4

5

DIMM_DQ_R_VREF_A

M_A_A0
M_A_A1
M_A_A2
M_A_A3
M_A_A4
M_A_A5
M_A_A6
M_A_A7
M_A_A8
M_A_A9
M_A_A10
M_A_A11
M_A_A12
M_A_A13
M_A_A14
M_A_A15

M_A_BS#0
M_A_BS#1
M_A_BS#2

SA0_A_1
SA1_A_1

EC-SI-E26

C264

0.1u/25V/X5R_4

R367 2.0/1%_4

JDIM1A

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10/AP

84

A11

83

A12/BC#

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

DQS0

29

DQS1

47

DQS2

64

DQS3

137

DQS4

154

DQS5

171

DQS6

188

DQS7

10

DQS#0

27

DQS#1

45

DQS#2

62

DQS#3

135

DQS#4

152

DQS#5

169

DQS#6

186

DQS#7

DDR3-DIMM0_H=9.15_STD

C265

0.022u/16V/X7R_4

DIMMA_VREF_RC

R364

24.9/1%_4

4

5

DQ0

7

DQ1

15

DQ2

17

DQ3

4

DQ4

6

DQ5

16

DQ6

18

DQ7

21

DQ8

23

DQ9

33

DQ10

35

DQ11

22

DQ12

24

DQ13

34

DQ14

36

DQ15

39

DQ16

41

DQ17

51

DQ18

53

DQ19

40

DQ20

42

DQ21

50

DQ22

52

DQ23

57

DQ24

59

DQ25

67

DQ26

69

DQ27

56

DQ28

58

DQ29

68

DQ30

70

DQ31

129

DQ32

131

DQ33

141

DQ34

143

DQ35

130

DQ36

132

DQ37

140

DQ38

142

DQ39

147

DQ40

149

DQ41

157

DQ42

159

DQ43

146

DQ44

148

DQ45

158

DQ46

160

(204P)

PC2100 DDR3 SDRAM SO-DIMM

DQ47

163

DQ48

165

DQ49

175

DQ50

177

DQ51

164

DQ52

166

DQ53

174

DQ54

176

DQ55

181

DQ56

183

DQ57

191

DQ58

193

DQ59

180

DQ60

182

DQ61

192

DQ62

194

DQ63

DIMM_DQ_CPU_VREF_A (3)

CAD NOTE:
NEAR TO DIMM

4

M_A_DQ0
M_A_DQ5
M_A_DQ6
M_A_DQ7
M_A_DQ1
M_A_DQ4
M_A_DQ3
M_A_DQ2
M_A_DQ12
M_A_DQ8
M_A_DQ14
M_A_DQ10
M_A_DQ13
M_A_DQ9
M_A_DQ11
M_A_DQ15
M_A_DQ21
M_A_DQ20
M_A_DQ18
M_A_DQ22
M_A_DQ16
M_A_DQ17
M_A_DQ19
M_A_DQ23
M_A_DQ29
M_A_DQ24
M_A_DQ31
M_A_DQ26
M_A_DQ28
M_A_DQ25
M_A_DQ30
M_A_DQ27
M_A_DQ33
M_A_DQ32
M_A_DQ38
M_A_DQ35
M_A_DQ37
M_A_DQ36
M_A_DQ39
M_A_DQ34
M_A_DQ40
M_A_DQ44
M_A_DQ47
M_A_DQ46
M_A_DQ45
M_A_DQ41
M_A_DQ42
M_A_DQ43
M_A_DQ50
M_A_DQ48
M_A_DQ55
M_A_DQ49
M_A_DQ52
M_A_DQ54
M_A_DQ53
M_A_DQ51
M_A_DQ63
M_A_DQ58
M_A_DQ57
M_A_DQ60
M_A_DQ56
M_A_DQ61
M_A_DQ59
M_A_DQ62

DIMMA_CA_VREF

+VDDQ

R503
1K_4

CA_DDRA_R

R502
1K_4

3

M_A_DQ[63..0] (3)

EC-DB-E11
SWAP Memory dimm data bus

+3.3V

DDR3_DRAMRST#(9,15)

DIMM_DQ_R_VREF_A
DIMM_CA_VREF_A

C359

0.1u/25V/X5R_4

EC-PV-E02

R495 SP_4

DIMM_CA_VREF_A

C467

0.1u/25V/X5R_4

3

+VDDQ

JDIM1B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

DDR3-DIMM0_H=9.15_STD

EC-SI-E26

DIMM_CA_VREF_A (3)

CAD NOTE:
NEAR TO DIMM

PC2100 DDR3 SDRAM SO-DIMM

(204P)

VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52

VTT1
VTT2

GND
GND

44
48
49
54
55
60
61
65
66
71
72
127
128
133
134
138
139
144
145
150
151
155
156
161
162
167
168
172
173
178
179
184
185
189
190
195
196

SMDDR_VTERM

203
204

205
206

2

2

1

+VDDQ(7,9,15,37,42,43,49,50)
SMDDR_VTERM(15,37,43)
+3.3V(9,10,11,12,13,15,22,23,25,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)

M_A_CLKP0 M_A_CLKN0

M_A_CLKP1 M_A_CLKN1

R515

*4.7KR_4

R451 *100KR_4

R469 *100KR_4

+3.3V

R519
*4.7KR_4

SA1_A_1
SA0_A_1

R516
10k/5%_4

+3.3V

C538 0.1u/25V/X5R_4
C539 0.1u/25V/X5R_4

CAD note:
Place between CHA & CHB.
Don't punch VIA.

R520
10k/5%_4

SPD SA0

SPD SA1

0

0

Place these Caps near CHA So-Dimm0.

SMDDR_VTERM+VDDQ

C462 *22u/6.3V/X5R_6
C503 *22u/6.3V/X5R_6

C344 10U/6.3V/X5R_6
C390 10U/6.3V/X5R_6
C346 10U/6.3V/X5R_6
C392 10U/6.3V/X5R_6
C445 10U/6.3V/X5R_6
C443 10U/6.3V/X5R_6

C364 1U/6.3V/X5R_4
C430 1U/6.3V/X5R_4
C366 1U/6.3V/X5R_4
C420 1U/6.3V/X5R_4

C452 0.1u/25V/X5R_4
C376 0.1u/25V/X5R_4
C410 0.1u/25V/X5R_4
C341 0.1u/25V/X5R_4
C399 0.1u/25V/X5R_4

On "Bottom side"

BK: CRB ( 4.7UF + 0.1UF )

C532 *22U/6.3V/X5R_6
C533 *22U/6.3V/X5R_6

C548 *10U/6.3V/X5R_6
C547 *10U/6.3V/X5R_6
C555 10U/6.3V/X5R_6

C543 1U/6.3V/X5R_4
C542 1U/6.3V/X5R_4
C550 1U/6.3V/X5R_4
C549 1U/6.3V/X5R_4

+VDDQ

C342 180P/50V_4
C454 180P/50V_4
C379 180P/50V_4

EMI

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

DDR3 CHA DIMM 0

DDR3 CHA DIMM 0

DDR3 CHA DIMM 0

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

14

B

B

B

14 56Wednesday, July 29, 2015

14 56Wednesday, July 29, 2015

14 56Wednesday, July 29, 2015

5

CHANNEL B DIMM 0 H=5.2

M_B_A[15:0](3)

D D

M_B_BS#[2..0](3)

M_B_CS#0(3)
M_B_CS#1(3)
M_B_CLKP0(3)
M_B_CLKN0(3)
M_B_CLKP1(3)
M_B_CLKN1(3)
M_B_CKE0(3)
M_B_CKE1(3)
M_B_CAS#(3)
M_B_RAS#(3)
M_B_WE#(3)

C C

B B

SMBCLK_PCH_MAIN(9,14,34)
SMBDATA_PCH_MAIN(9,14,34)

M_B_ODT0(3)
M_B_ODT1(3)

M_B_DQS0(3)
M_B_DQS1(3)
M_B_DQS2(3)
M_B_DQS3(3)
M_B_DQS4(3)
M_B_DQS5(3)
M_B_DQS6(3)
M_B_DQS7(3)
M_B_DQS#0(3)
M_B_DQS#1(3)
M_B_DQS#2(3)
M_B_DQS#3(3)
M_B_DQS#4(3)
M_B_DQS#5(3)
M_B_DQS#6(3)
M_B_DQS#7(3)

M_B_A0
M_B_A1
M_B_A2
M_B_A3
M_B_A4
M_B_A5
M_B_A6
M_B_A7
M_B_A8
M_B_A9
M_B_A10
M_B_A11
M_B_A12
M_B_A13
M_B_A14
M_B_A15

M_B_BS#0
M_B_BS#1
M_B_BS#2

SA0_B_0
SA1_B_0

EC-SI-E26

JDIM2A

98

A0

97

A1

96

A2

95

A3

92

A4

91

A5

90

A6

86

A7

89

A8

85

A9

107

A10/AP

84

A11

83

A12/BC#

119

A13

80

A14

78

A15

109

BA0

108

BA1

79

BA2

114

S0#

121

S1#

101

CK0

103

CK0#

102

CK1

104

CK1#

73

CKE0

74

CKE1

115

CAS#

110

RAS#

113

WE#

197

SA0

201

SA1

202

SCL

200

SDA

116

ODT0

120

ODT1

11

DM0

28

DM1

46

DM2

63

DM3

136

DM4

153

DM5

170

DM6

187

DM7

12

DQS0

29

DQS1

47

DQS2

64

DQS3

137

DQS4

154

DQS5

171

DQS6

188

DQS7

10

DQS#0

27

DQS#1

45

DQS#2

62

DQS#3

135

DQS#4

152

DQS#5

169

DQS#6

186

DQS#7

DDR3-DIMM0_H=5.2_STD

DIMMB_DQ_VREF DIMMB_CA_VREF

+VDDQ

R371
1K_4

DQ_DDRB_R

A A

R372
1K_4

C274

0.1u/25V/X5R_4

EC-PV-E02 EC-PV-E02

R369 SP_4

C273

0.1u/25V/X5R_4

C267

0.1u/25V/X5R_4

R368 2.0/1%_4 R501 SP_4

C266

0.022u/16V/X7R_4

DIMMB_VREF_RC

R370

24.9/1%_4

either or R343 or R3047?

5

4

5

DQ0

7

DQ1

15

DQ2

17

DQ3

4

DQ4

6

DQ5

16

DQ6

18

DQ7

21

DQ8

23

DQ9

33

DQ10

35

DQ11

22

DQ12

24

DQ13

34

DQ14

36

DQ15

39

DQ16

41

DQ17

51

DQ18

53

DQ19

40

DQ20

42

DQ21

50

DQ22

52

DQ23

57

DQ24

59

DQ25

67

DQ26

69

DQ27

56

DQ28

58

DQ29

68

DQ30

70

DQ31

129

DQ32

131

DQ33

141

DQ34

143

DQ35

130

DQ36

132

DQ37

140

DQ38

142

DQ39

147

DQ40

149

DQ41

157

DQ42

159

DQ43

146

DQ44

148

DQ45

158

DQ46

160

(204P)

PC2100 DDR3 SDRAM SO-DIMM

DQ47

163

DQ48

165

DQ49

175

DQ50

177

DQ51

164

DQ52

166

DQ53

174

DQ54

176

DQ55

181

DQ56

183

DQ57

191

DQ58

193

DQ59

180

DQ60

182

DQ61

192

DQ62

194

DQ63

CAD NOTE:
NEAR TO DIMM

DIMM_DQ_CPU_VREF_B (3)

4

M_B_DQ5
M_B_DQ4
M_B_DQ3
M_B_DQ2
M_B_DQ0
M_B_DQ1
M_B_DQ6
M_B_DQ7
M_B_DQ12
M_B_DQ8
M_B_DQ14
M_B_DQ15
M_B_DQ13
M_B_DQ9
M_B_DQ10
M_B_DQ11
M_B_DQ20
M_B_DQ21
M_B_DQ23
M_B_DQ19
M_B_DQ17
M_B_DQ16
M_B_DQ18
M_B_DQ22
M_B_DQ25
M_B_DQ29
M_B_DQ27
M_B_DQ30
M_B_DQ28
M_B_DQ24
M_B_DQ26
M_B_DQ31
M_B_DQ32
M_B_DQ36
M_B_DQ38
M_B_DQ34
M_B_DQ33
M_B_DQ37
M_B_DQ35
M_B_DQ39
M_B_DQ44
M_B_DQ41
M_B_DQ46
M_B_DQ42
M_B_DQ45
M_B_DQ40
M_B_DQ47
M_B_DQ43
M_B_DQ52
M_B_DQ53
M_B_DQ55
M_B_DQ50
M_B_DQ48
M_B_DQ49
M_B_DQ54
M_B_DQ51
M_B_DQ61
M_B_DQ56
M_B_DQ58
M_B_DQ62
M_B_DQ57
M_B_DQ60
M_B_DQ63
M_B_DQ59

+VDDQ

R500
1K_4

R504
1K_4

EC-DB-E11
SWAP Memory dimm data bus

CA_DDRB_R

M_B_DQ[0..63] (3)

TP106

DDR3_DRAMRST#(9,14)

C459

0.1u/25V/X5R_4

3

+VDDQ

+3.3V

DIMM_EVENT#_B

DIMM_DQ_R_VREF_B
DIMM_CA_VREF_B

DIMM_CA_VREF_BDIMM_DQ_R_VREF_B

C487

0.1u/25V/X5R_4

3

JDIM2B

75

VDD1

76

VDD2

81

VDD3

82

VDD4

87

VDD5

88

VDD6

93

VDD7

94

VDD8

99

VDD9

100

VDD10

105

VDD11

106

VDD12

111

VDD13

112

VDD14

117

VDD15

118

VDD16

123

VDD17

124

VDD18

199

VDDSPD

77

NC1

122

NC2

125

NCTEST

198

EVENT#

30

RESET#

1

VREF_DQ

126

VREF_CA

2

VSS1

3

VSS2

8

VSS3

9

VSS4

13

VSS5

14

VSS6

19

VSS7

20

VSS8

25

VSS9

26

VSS10

31

VSS11

32

VSS12

37

VSS13

38

VSS14

43

VSS15

DDR3-DIMM0_H=5.2_STD

EC-SI-E26

DIMM_CA_VREF_B (3)

VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52

(204P)

PC2100 DDR3 SDRAM SO-DIMM

VTT1
VTT2

CAD NOTE:
NEAR TO DIMM

GND
GND

44
48
49
54
55
60
61
65
66
71
72
127
128
133
134
138
139
144
145
150
151
155
156
161
162
167
168
172
173
178
179
184
185
189
190
195
196

SMDDR_VTERM

203
204

205
206

2

+VDDQ(7,9,14,37,42,43,49,50)
SMDDR_VTERM(14,37,43)
+3.3V(9,10,11,12,13,14,22,23,25,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)

BK: CRB--> NO BOTH

M_B_CLKP0 M_B_CLKN0
M_B_CLKP1 M_B_CLKN1

C291
100p/50V_4

+3.3V

R518
*4.7KR_4

R517
10k/5%_4

R463 *100KR_4
R464 *100KR_4

DDR3_DRAMRST#

R521

4.7KR_4

R522

*0R_4

SA1_B_0
SA0_B_0

SPD SA010

SPD SA1

+3.3V

C540 0.1u/25V/X5R_4
C541 0.1u/25V/X5R_4

Close to PIN199 OF DIMM

Place these Caps near CHB So-Dimm0.

+VDDQ

C485 *22U/6.3V/X5R_6
C477 *22U/6.3V/X5R_6

C450 10U/6.3V/X5R_6
C345 10U/6.3V/X5R_6
C440 10U/6.3V/X5R_6
C391 10U/6.3V/X5R_6 C552 10U/6.3V/X5R_6
C348 10U/6.3V/X5R_6
C394 10U/6.3V/X5R_6

C423 1U/6.3V/X5R_4
C362 1U/6.3V/X5R_4
C427 1U/6.3V/X5R_4
C365 1U/6.3V/X5R_4

C455 0.1u/25V/X5R_4
C335 0.1u/25V/X5R_4
C386 0.1u/25V/X5R_4
C408 0.1u/25V/X5R_4
C340 0.1u/25V/X5R_4

On "Bottom side"

SMDDR_VTERM

C544 *22U/6.3V/X5R_6
C537 *22U/6.3V/X5R_6

C551 *10U/6.3V/X5R_6
C554 *10U/6.3V/X5R_6
C534 1U/6.3V/X5R_4

C535 1U/6.3V/X5R_4
C545 1U/6.3V/X5R_4
C546 1U/6.3V/X5R_4

BK: CRB ( 4.7UF + 0.1UF )

+VDDQ

C396 180P/50V_4
C358 180P/50V_4
C439 180P/50V_4

EMI

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

DDR3 CHB DIMM 0

DDR3 CHB DIMM 0

DDR3 CHB DIMM 0

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

13

B

B

B

15 56Wednesday, July 29, 2015

15 56Wednesday, July 29, 2015

1

15 56Wednesday, July 29, 2015

1

2

3

4

U6A

5

6

7

+3.3V_VGA(17,19,48,49)
+0.95V_VGA(17,19,49)

8

16

PEG_TXP7(4)
PEG_TXN7(4)

A A

LANE SWAP LANE SWAP

B B

PEG_TXP6(4)
PEG_TXN6(4)

PEG_TXP5(4)
PEG_TXN5(4)

PEG_TXP4(4)
PEG_TXN4(4)

PEG_TXP3(4)
PEG_TXN3(4)

PEG_TXP2(4)
PEG_TXN2(4)

PEG_TXP1(4)
PEG_TXN1(4)

PEG_TXP0(4)
PEG_TXN0(4)

C123 DIS@0.22u/10V/X5R_4
C121 DIS@0.22u/10V/X5R_4

C120 DIS@0.22u/10V/X5R_4
C116 DIS@0.22u/10V/X5R_4

C113 DIS@0.22u/10V/X5R_4
C112 DIS@0.22u/10V/X5R_4

C110 DIS@0.22u/10V/X5R_4
C106 DIS@0.22u/10V/X5R_4

C105 DIS@0.22u/10V/X5R_4
C103 DIS@0.22u/10V/X5R_4

C102 DIS@0.22u/10V/X5R_4
C101 DIS@0.22u/10V/X5R_4

C100 DIS@0.22u/10V/X5R_4
C99 DIS@0.22u/10V/X5R_4

C98 DIS@0.22u/10V/X5R_4
C92 DIS@0.22u/10V/X5R_4

C_PEG_TXP7
C_PEG_TXN7

C_PEG_TXP6
C_PEG_TXN6

C_PEG_TXP5
C_PEG_TXN5

C_PEG_TXP4
C_PEG_TXN4

C_PEG_TXP3
C_PEG_TXN3

C_PEG_TXP2
C_PEG_TXN2

C_PEG_TXP1
C_PEG_TXN1

C_PEG_TXP0
C_PEG_TXN0

12/15 Modify. Intel recommend.

C C

AF30
AE31

AE29

AD28

AD30
AC31

AC29

AB28

AB30
AA31

AA29

Y28

Y30

W31

W29

V28

V30
U31

U29

T28

T30

R31

R29
P28

P30
N31

N29
M28

M30

L31

L29

K30

PCIE_RX0P
PCIE_RX0N

PCIE_RX1P
PCIE_RX1N

PCIE_RX2P
PCIE_RX2N

PCIE_RX3P
PCIE_RX3N

PCIE_RX4P
PCIE_RX4N

PCIE_RX5P
PCIE_RX5N

PCIE_RX6P
PCIE_RX6N

PCIE_RX7P
PCIE_RX7N

NC#V30
NC#U31

NC#U29
NC#T28

NC#T30
NC#R31

NC#R29
NC#P28

NC#P30
NC#N31

NC#N29
NC#M28

NC#M30
NC#L31

NC#L29
NC#K30

PCI EXPRESS INTERFACE

PCIE_TX0P
PCIE_TX0N

PCIE_TX1P
PCIE_TX1N

PCIE_TX2P
PCIE_TX2N

PCIE_TX3P
PCIE_TX3N

PCIE_TX4P
PCIE_TX4N

PCIE_TX5P
PCIE_TX5N

PCIE_TX6P
PCIE_TX6N

PCIE_TX7P
PCIE_TX7N

EC-MV-E01

CLOCK

(12)

CLK_PCIE_VGA_P

(12)

CLK_PCIE_VGA_N

PERST#_BUF(48)

D D

PLTRST_N_BUF(10,31)
DGPU_PLTRST_N(11)

1

R146 *DIS@0_4

2

DGPU_PLTRST

*DIS@TC7SH08FU

R132 SP_4
R133 SP_4

R476 DIS@1K_4

+3.3V_VGA

C133*DIS@0.1u/16V/X5R_4

2
1

U8

3 5

R143 SP_4

3

4

EC-MV-E01

CLK_PCIE_VGAP_R
CLK_PCIE_VGAN_R

TEST_PG

PERST#_BUF

R142
DIS@100K/F_4

4

AK30

PCIE_REFCLKP

AK32

PCIE_REFCLKN

N10

TEST_PG

AL27

PERSTB

DIS@EXO/MESO_S3

CALIBRATION

PCIE_CALR_TX
PCIE_CALR_RX

5

NC#W24
NC#W23

NC#V27
NC#U26

NC#U24
NC#U23

NC#T26
NC#T27

NC#T24
NC#T23

NC#P27
NC#P26

NC#P24
NC#P23

NC#M27
NC#N26

AH30
AG31

AG29
AF28

AF27
AF26

AD27
AD26

AC25
AB25

Y23
Y24

AB27
AB26

Y27
Y26

W24
W23

V27
U26

U24
U23

T26
T27

T24
T23

P27
P26

P24
P23

M27
N26

Y22
AA22

C_PEG_RXP7
C_PEG_RXN7

C_PEG_RXP6

C_PEG_RXN6

C_PEG_RXP5
C_PEG_RXN5

C_PEG_RXP4
C_PEG_RXN4

C_PEG_RXP3
C_PEG_RXN3

C_PEG_RXP2
C_PEG_RXN2

C_PEG_RXP1
C_PEG_RXN1

C_PEG_RXP0
C_PEG_RXN0

C529 DIS@0.22u/10V/X5R_4
C530 DIS@0.22u/10V/X5R_4

C524 DIS@0.22u/10V/X5R_4
C528 DIS@0.22u/10V/X5R_4

C518 DIS@0.22u/10V/X5R_4
C521 DIS@0.22u/10V/X5R_4

C511 DIS@0.22u/10V/X5R_4
C516 DIS@0.22u/10V/X5R_4

C509 DIS@0.22u/10V/X5R_4
C510 DIS@0.22u/10V/X5R_4

C506 DIS@0.22u/10V/X5R_4
C508 DIS@0.22u/10V/X5R_4

C499 DIS@0.22u/10V/X5R_4
C505 DIS@0.22u/10V/X5R_4

C492 DIS@0.22u/10V/X5R_4
C497 DIS@0.22u/10V/X5R_4

12/15 Modify. Intel recommend.

SUN_PCIE_CALRP
SUN_PCIE_CALRN

6

R488 DIS@1.69K/F_4
R492 DIS@1K/F_4

PEG_RXP7 (4)
PEG_RXN7 (4)

PEG_RXP6 (4)
PEG_RXN6 (4)

PEG_RXP5 (4)
PEG_RXN5 (4)

PEG_RXP4 (4)
PEG_RXN4 (4)

PEG_RXP3 (4)
PEG_RXN3 (4)

PEG_RXP2 (4)
PEG_RXN2 (4)

PEG_RXP1 (4)
PEG_RXN1 (4)

PEG_RXP0 (4)
PEG_RXN0 (4)

+0.95V_VGA

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

AMD EXPO S3_PCIE_Interface

AMD EXPO S3_PCIE_Interface

AMD EXPO S3_PCIE_Interface

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

7

HP-CRANE

HP-CRANE

HP-CRANE

B

B

B

16 56Wednesday, July 29, 2015

16 56Wednesday, July 29, 2015

16 56Wednesday, July 29, 2015

8

5

+3.3V_VG A +3.3V_ VGA +3.3V_VG A

EC_PV_E09

R82

C107

OCP_L(48)

R97
*DIS@10K_ 4

U7

1

CE#

6

SCK

5

SI

2

SO

HOLD#

3

ROMWP#

WP#

*DIS@PM25LD512C2-SCE R

EC_PV_E09

R101
E_DIS@45.3K/F_4
R102
E_DIS@45.3K/F_4

M_DIS@10K _4

2

6

Q6A DIS@2N700 2KDW

Q6B DIS@2 N7002KDW

+3.3V_VG A

R494

VDD

VSS

+3.3V_VG A

1

5

3 4

R490 M_DIS@1K_4

*DIS@10K_ 4

GPIO22_ROMCS
GPIO10_ROMSCK
GPIO9_RO MSI
GPIO8_RO MSO

*DIS@22p/50V_4

D D

EXO : 45.3K
MESO: 47K

MBCLK_GP U(2 8)

MBDATA_GPU(28)

MESO ONLY

C C

EC-MV-E01

Active High

112

3

R474 SP_4

R467
*DIS@100_ 4

GPU_AC_B ATT
DGPU_TDI
DGPU_TMS
DGPU_TRSTB
VGA_ALE RT
DGPU_TCK

TESTEN
VGA_OVT

MLPS

EVGA-XTALI

R514
DIS@1M/F_4

EVGA-XTALO

(12)

GPU_PCIE_CLKREQ#

+3.3V_VG A

R479 DIS@4.7K_4
R80 *DIS@10K/F_4
R83 *DIS@10K/F_4
R68 *DIS@10K/F_4
R473 DIS@10K/F_4
R81 *DIS@10K/F_4

VGA_ALE RT(32)

VGA_OVT(28)

DGPU_PROCHOT_EC#(28)

+3.3V_VG A

R66
*DIS@5.1K/F_4

B B

R64
DIS@1K/F_4

C525 DIS@8.2p/5 0V/NPO_4

EC-SI-E10

EC-SI-E10

C526 DIS@8.2p/5 0V/NPO_4

R88
DIS@10K/F_4

R484 *E _DIS@10K/F_4

stuff R408=> EXO
unstuff R408=> MESO

2

Y2
DIS@27MHZ

443

BG62700 0039

8

7
4

ROMHOLD#

M_DIS@47K _4

BK: CRB

FOR DEBUG ONLY

EC_PV_E09

C104
R117
*DIS@10K_ 4

*DIS@0.1u/16V/X5R_4

R102

R101

M_DIS@47K _4

C447

M_DIS@0.1u/25V/X5R_4

DGPUT_CLK

DGPUT_DATA

GPU_GPIO 6

GPUCLKREQ#

DGPUT_DATA
DGPUT_CLK

GPIO8_RO MSO
GPIO9_RO MSI
GPIO10_ROMSCK

GPIO22_ROMCS

For Int Clk 27Mhz

+1.8V_VG A

A A

L10

DIS@HCB1608KF-121T30

C124
DIS@10U/6.3V/X5R_6

1.8V(5mA TSVDD)

C114

DIS@1U/6.3 V/X5R_4

5

C119

DIS@0.1u/16V/X5R_4

4

+1.8V_VG A

R512

M_DIS@4.7K_4

TP22
TP23

+3.3V_VG A

DIS@4.7K_ 4

R95

DIS@4.7K_ 4

R99

EC-MV-E01

R100 SP_4
R103 SP_4

TP92

R74 DIS@33_4
R120 DIS@33_4
R119 DIS@33_4

TP89
TP87

TP90

R477 *DIS@0_4
R78 DIS@33_4

TP88
TP16

TP19
TP18
TP20
TP17

R128 DIS@10K_4
R129 DIS@10K_4

GPU_THERMDA(32)
GPU_THERMDC(32)

4

R513
M_DIS@4.7K_4

MESO ONLY

BP_0
BP_1

DGPUT_DATA_L
DGPUT_CLK_L
GPU_AC_B ATT
GPU_GPIO 6

GPIO8_RO MSO_R
GPIO9_RO MSI_R
GPIO10_ROMSCK_R

GPU_GPIO 15
GFX_CORE_CNTRL2
VGA_ALE RT
VGA_OVT

GPU_GPIO 20
PROCHOT_EC#
GPIO22_ROMCS_R

GPUCLKREQ#
DGPU_TRSTB

DGPU_TDI
DGPU_TCK
DGPU_TMS
DGPU_TDO
TESTEN

EVGA-XTALI
EVGA-XTALO

XO_IN
XO_IN2

MLPS
+1.8V_TSVDD

DGPU_SCL
DGPU_SDA

U6B

N9

DBG_DATA16

L9

DBG_DATA15

AE9

DBG_DATA14

Y11

DBG_DATA13

AE8

DBG_DATA12

AD9

DBG_DATA11

AC10

DBG_DATA10

AD7

DBG_DATA9

AC8

DBG_DATA8

AC7

DBG_DATA7

AB9

DBG_DATA6

AB8

DBG_DATA5

AB7

DBG_DATA4

AB4

DBG_DATA3

AB2

DBG_DATA2

Y8

DBG_DATA1

Y7

DBG_DATA0

W6

NC#W6

V6

NC#V6

AC5

NC#AC5

AC6

N#CAC6

AA5

NC#AA5

AA6

NC#AA6

U1

NC#U1/BP_0

U3

NC#U3/BP_1

Y6

NC#Y6

R1

SCL

R3

SDA

GENERAL PURPOSE I/O

U6

GPIO_0

U8

SMBDATA

U7

SMBCLK

T9

GPIO_5_AC_BATT

T8

PCC/GPIO_6

T7

NC_GPIO_7

P10

GPIO_8_ROMSO

P4

GPIO_9_ROMSI

P2

GPIO_10_ROMSCK

N6

NC_GPIO_11

N5

NC_GPIO_12

N3

NC_GPIO_13

N1

GPIO_15_PWRCNTL_0

M4

GPIO_16

R6

GPIO_17_THERMAL_INT

M2

GPIO_19_CTF

P8

GPIO_20_PWRCNTL_1

P7

GPIO_21

N8

GPIO_22_ROMCSB

AK10

GPIO_29

AM10

GPIO_30

N7

CLKREQB

L6

JTAG_TRSTB

L5

JTAG_TDI

L3

JTAG_TCK

L1

JTAG_TMS

K4

JTAG_TDO

K7

TESTEN

AF24

NC#AF24

W8

NC_GENERICB

W7

NC_GENERICD

AD10

NC_GENERICE_HPD4

AJ9

NC#AJ9

AL9

DBG_CNTL0

AB16

PX_EN

AC16

NC_DBG_VREFG

AM28

XTALIN

AK28

XTALOUT

AC22

XO_IN

AB22

XO_IN2

T4

DPLUS

T2

DMINUS

R5

GPIO28_FDO

AD17

TSVDD

AC17

TSVSS

DIS@EXO/MESO_S3

DVO

I2C

PLL/CLOCK

THERMAL

3

NC#AF2
NC#AF4

NC#AG3

DPA

NC#AG5
NC#AH3

NC#AH1
NC#AK3

NC#AK1
NC#AK5

NC#AM3
NC#AK6

NC#AM5

DPB

NC#AJ7

NC#AH6
NC#AK8

NC#AL7

DPC

NC#V4

NC#U5

NC#V2
NC#Y4

NC#W5

NC#Y2

DCM/NC_R

NC_AVSSN#AK26

NC_AVSSN#AJ25

NC_AVSSN#AG25

NC_HSYNC

NC_VSYNC/WAKEb

NC_AVDD

NC_AVSSQ

NC_VDD1DI
NC_VSS1DI

NC_SVI2#1/GPIO_SVD
NC_SVI2#2/GPIO_SVT
NC_SVI2#3/GPIO_SVC

NC_GENLK_CLK

NC_GENLK_VSYNC

NC_SWAPLOCKA
NC_SWAPLOCKB

DDC/AUX

NC_DDC1CLK

NC_DDC1DATA

NC_AUX1P
NC_AUX1N

NC_AUX2P
NC_AUX2N

NC_DDCVGACLK

NC_DDCVGADATA

3

NC#J8

NC_G

NC_B

NC_RSET

PS_0
PS_1
PS_2
PS_3
TS_A

NC#AE16
NC#AD16

NC#AA1/PLL_ANALOG_IN

NC#AA3/PLL_ANALOG_OUT

DAC1

DAC2

AF2
AF4

AG3
AG5

AH3
AH1

AK3
AK1

AK5
AM3

AK6
AM5

AJ7
AH6

AK8
AL7

V4
U5

V2
Y4

W5

Y2
J8

AA1
AA3

AM26
AK26

AL25
AJ25

AH24
AG25

AH26
AJ27

AD22
AG24

AE22
AE23

AD23

AM12

NC

AK12
AL11
AJ11

AL13
AJ13

AG13
AH12

AC19
AD19
AE17
AE20
AE19

AE6
AE5

AD2
AD4

AD13
AD11

AE16
AD16

AC1
AC3

For AMD tuning
timing purpose

+1.8V_VG A

C517

DIS@10U/6.3V/X5R_6

DGPU_AA1
DGPU_AA3

R116
*DIS@16.2K_4

DIS@10U/6.3V/X5R_6

DGPU_VSYNC

R124
DIS@4.7K_ 4

EC-MV-E01

SVI2_SVD
SVI2_SVT
SVI2_SVC

MESO ONLY

PS_0
PS_1
PS_2
PS_3
TS_A

C515
DIS@1U/6.3 V/X5R_4

TP99

+0.95V_V GA

C514

C522

DIS@1U/6.3 V/X5R_4

R139

*DIS@10K_ 4

R127 *M_DIS@0_4S
R126 *M_DIS@0_4S
R122 *M_DIS@0_4S

DIS@10K_4

TP30

+1.8V_VG A

R140

R138
*DIS@10K_ 4

R137
*DIS@10K_ 4

Resistor Divider Table for Bits [3:1]

R_pu(Ω) R_pd (Ω) Bits [3:1]

NC

8.45K

4.53K

6.98K

4.53K

3.24K

3.4K

Note: 0402 1% resistors are required

DGPU_AC1

TP25

DGPU_AC3

TP26

4.75K
2K
2K

4.99K

4.99K

5.62K
10K
NC

Capacitor Table for Bits [5:4]

Cap Value(nF) Bits [5:4]

680

82
10
NC

C519
DIS@0.1u/25V/X5R_4

C527
DIS@0.1u/25V/X5R_4

R130
DIS@10K_4

R125
*DIS@10K_ 4

000
001
010
011
100
101
110

1114.75K

00
01
10
11

2

+3.3V_VG A(16 ,19,48,49 )
+1.8V_VG A(19,48,49)
+0.95V_V GA(16,19,49)

1

Remove

U6G

AG15

NC_DP_VDDR#1

AG16

NC_DP_VDDR#2

AF16

NC_DP_VDDR#3

AG17

NC_DP_VDDR#4

AG18

NC_DP_VDDR#5

AG19

NC_DP_VDDR#6

AF14

DP_VDDR

AG20

NC_DP_VDDC#1

AG21

NC_DP_VDDC#2

AF22

NC_DP_VDDC#3

AG22

NC_DP_VDDC#4

AD14

DP_VDDC

AG14

NC_DP_VSSR#1

AH14

NC_DP_VSSR#2

AM14

NC_DP_VSSR#3

AM16

NC_DP_VSSR#4

AM18

NC_DP_VSSR#5

AF23

NC_DP_VSSR#6

AG23

NC_DP_VSSR#7

AM20

NC_DP_VSSR#8

AM22

NC_DP_VSSR#9

AM24

NC_DP_VSSR#10

AF19

NC_DP_VSSR#11

AF20

NC_DP_VSSR#12

AE14

DP_VSSR

AF17

NC_UPHYAB_DP_CALR

GPU_SVD_ R
GPU_SVT_R
GPU_SVC_ R

GPU_SVD_ R (48 )

GPU_SVT_R (48)

GPU_SVC_ R (48 )

Multi-level Pin Straps Table

MLPS Bit Strap Name

PS_0[1]
PS_0[2]
PS_0[3]

PS_0[4] N/A 1
PS_0[5] 1AUD_PORT_CONN

PS_1[1] 1
PS_1[2]
PS_1[3] N/A 0
PS_1[4] TX_FULL_SWING 1
PS_1[5] TX_DEEMPH_EN 1
PS_2[1] N/A
PS_2[2] N/A
PS_2[3] BIOS_ROM_EN 0
PS_2[4] VGA_DIS 1
PS_2[5] N/A 1
PS_3[1]
PS_3[2]
PS_3[3]

PS_3[4]
PS_3[5]

VRAM list

000 Micron MT41J256M16HA-093G:E256Mx16 *4, 1000Mhz NC 4.75K
001

HP Restricted Secret

2

NC/DP POWERDP POWER

DIS@EXO/MESO_S3

ROM_CONFIG[0]
ROM_CONFIG[1]
ROM_CONFIG[2]

PINSTRAP[0]

PCIe_GEN3_EN

CLK_PM_EN 0

BOARD_CONFIG[0]
BOARD_CONFIG[1]
BOARD_CONFIG[2]

AUD_PORT_CONN
PINSTRAP[1][2]

NC#AE11
NC#AF11
NC#AE13
NC#AF13

NC#AG8

NC#AG10

NC#AF6
NC#AF7
NC#AF8
NC#AF9

NC#AE1
NC#AE3
NC#AG1
NC#AG6
NC#AH5

NC#AF10

NC#AG9
NC#AH8
NC#AM6
NC#AM8
NC#AG7

NC#AG11

NC#AE10

AE11
AF11
AE13
AF13
AG8
AG10

EC_PV_E10

AF6
AF7
AF8
AF9

AE1
AE3
AG1
AG6
AH5
AF10
AG9
AH8
AM6
AM8
AG7
AG11

AE10

Setting

+1.8V_VG A

R136

DIS@8.45K /F_4

R131

DIS@2K/F_4

+1.8V_VG A

R135

*DIS@4.53K/F_4

PS_2 PS_3

R123

DIS@4.75K /F_4

1

Pm25LD512C

0

ROM_CONFIG[0:2]:001

0

Must be 1 at reset.
1 = No usable endpoints

1=GEN3_EN 0=GEN3_DIS
1=CLK_PM EN 0=CLK_PM DIS
Must be 0 at reset.
1=full-swing 0=half-swing
1= EN 0=DIS

0

Reserved

0

Reserved
1=Ext ROM EN 0=Ext ROM DIS
1= DIS 0=EN
Reserved

VRAM list

1

11 = No usable endpoints

1

C115
*DIS@0.01U/50V_4

C118
*DIS@0.68U/4V_4

Description

Vendor Type Vendor P/NPS_3[3:1]

Hynix 256Mx16 *4, 1000Mhz H5TC4G63CFR-N0C 8.45K 2K
Micron 512Mx16 *4, 1000Mhz MT41K512M16HA-107G:A 4.53K 2K010

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

AMD EXO PRO S3_Main/DP POWER

AMD EXO PRO S3_Main/DP POWER

AMD EXO PRO S3_Main/DP POWER
810606-000

810606-000

810606-000

1

+1.8V_VG A

R134

DIS@8.45K /F_4

PS_1PS_0

R121

DIS@2K/F_4

+1.8V_VG A

R148

*DIS@0_4

R141

DIS@4.75K /F_4

HP-CRANE

HP-CRANE

HP-CRANE

17

C117

*DIS@0.082U/16V_4

C129

*DIS@0.01U/50V_4

R128 R123

17 56Wednesday, J uly 29, 2015

17 56Wednesday, J uly 29, 2015

17 56Wednesday, J uly 29, 2015

B

B

B

5

U6E

AA27

PCIE_VSS#1

AB24

PCIE_VSS#2

AB32

PCIE_VSS#3

D D

C C

B B

AC24
AC26
AC27
AD25
AD32
AE27

AF32
AG27
AH32

K28
K32

L27
M32
N25
N27

P25

P32
R27

T25

T32
U25
U27

V32

W25
W26
W27

Y25

Y32

N11
N13

N16
N18
N21

R12
R15
R17
R20

T13

T16

T18

T21
U15

U17
U20

V13

V16

V18

Y10

Y15

Y17

Y20

AA11

M12

V11

M6

P6
P9

T6

U9

PCIE_VSS#4
PCIE_VSS#5
PCIE_VSS#6
PCIE_VSS#7
PCIE_VSS#8
PCIE_VSS#9
PCIE_VSS#10
PCIE_VSS#11
PCIE_VSS#12
PCIE_VSS#13
PCIE_VSS#14
PCIE_VSS#15
PCIE_VSS#16
PCIE_VSS#17
PCIE_VSS#18
PCIE_VSS#19
PCIE_VSS#20
PCIE_VSS#21
PCIE_VSS#22
PCIE_VSS#23
PCIE_VSS#24
PCIE_VSS#25
PCIE_VSS#26
PCIE_VSS#27
PCIE_VSS#28
PCIE_VSS#29
PCIE_VSS#30
PCIE_VSS#31

GND#56
GND#57

GND#58
GND#59
GND#60
GND#61
GND#62
GND#63
GND#64
GND#65
GND#66
GND#67
GND#68
GND#69
GND#70
GND#71
GND#72
GND#73
GND#74
GND#75
GND#76
GND#77
GND#78
GND#79
GND#80
GND#81
GND#82
GND#83
GND#86
GND#87
GND#88

GND

VSS_MECH#1
VSS_MECH#2
VSS_MECH#3

GND#1
GND#2
GND#3
GND#4
GND#5
GND#6
GND#7
GND#8

GND#9
GND#10
GND#11
GND#12
GND#13
GND#14
GND#15
GND#16
GND#17
GND#18
GND#19
GND#20
GND#21
GND#22
GND#23
GND#24
GND#25
GND#26
GND#27
GND#28
GND#29
GND#30
GND#31
GND#32
GND#33
GND#34
GND#35
GND#36
GND#37
GND#38
GND#39
GND#40
GND#41
GND#42
GND#43
GND#44
GND#45
GND#46
GND#47
GND#48
GND#49
GND#50
GND#51
GND#52
GND#53
GND#54
GND#55
GND#84
GND#85

A3
A30
AA13
AA16
AB10
AB15
AB6
AC9
AD6
AD8
AE7
AG12
AH10
AH28
B10
B12
B14
B16
B18
B20
B22
B24
B26
B6
B8
C1
C32
E28
F10
F12
F14
F16
F18
F2
F20
F22
F24
F26
F6
F8
G10
G27
G31
G8
H14
H17
H2
H20
H6
J27
J31
K11
K2
K22
K6
T11
R11

A32
AM1
AM32

4

U6F

LVDS CONTROL

NC_UPHYAB_TMDPA_TX0N

NC_UPHYAB_TMDPA_TX0P

NC_UPHYAB_TMDPA_TX1N

NC_UPHYAB_TMDPA_TX1P

NC_UPHYAB_TMDPA_TX2N

NC_UPHYAB_TMDPA_TX2P

NC_UPHYAB_TMDPA_TX3N

NC_UPHYAB_TMDPA_TX3P

NC_TXOUT_L3P

NC_TXOUT_L3N

TMDP

NC_UPHYAB_TMDPB_TX0N

NC_UPHYAB_TMDPB_TX0P

NC_UPHYAB_TMDPB_TX1N

NC_UPHYAB_TMDPB_TX1P

NC_UPHYAB_TMDPB_TX2N

NC_UPHYAB_TMDPB_TX2P

NC_UPHYAB_TMDPB_TX3N

NC_UPHYAB_TMDPB_TX3P

NC_TXOUT_U3P

NC_TXOUT_U3N

DIS@EXO/MESO_S3

For Robson &
Seymour should

AL15
AK14

AH16
AJ15

AL17
AK16

AH18
AJ17

AL19
AK18

AH20
AJ19

AL21
AK20

AH22
AJ21

AL23
AK22

AK24
AJ23

3

CONFIGURATION STRAPS-- SEE EACH DATABOOK FOR STRAP DETAILS

ALLOW FOR PULLUP PADS FOR THESE STRAPS AND IF THESE GPIOS ARE USED,
THEY MUST NOT CONFLICT DURING RESET

STRAPS DESCRIPTION OF DEFAULT SETTINGSPIN

GPIO0 PCIE FULL TX OUTPUT SWINGTX_PWRS_ENB
GPIO1TX_DEEMPH_EN PCIE TRANSMITTER DE-EMPHASIS ENABLED

RSVD GPIO2 RESERVED 0
RSVD GPIO8 RESERVED 0

RSVD GPIO21 RESERVED 0

BIOS_ROM_EN

VIP_DEVICE_STRAP_ENA V2SYNC IGNORE VIP DEVICE STRAPS (Removed on Seymour/Whistler)

RSVD H2SYNC RESERVED 0

RSVD GENERICC RESERVED 0

GPIO_22_ROMCSB

GPIO[13:11]ROMIDCFG(2:0)

HSYNC 0AUD[1]
VSYNC 0AUD[0]

ENABLE EXTERNAL BIOS ROM

SERIAL ROM TYPE OR MEMORY APERTURE SIZE SELECT

SEE DATABOOK FOR DETAIL
SEE DATABOOK FOR DETAIL

2

+3.3V_VGA(16,17,19,48,49)

RECOMMENDED SETTINGS
0= DO NOT INSTALL RESISTOR
1 = INSTALL 3K RESISTOR
X = DESIGN DEPENDANT
NA = NOT APPLICABLE

1

0
X

0GPIO9 VGA ENABLEDBIF_VGA DIS

0

0 10

0

NOTE1: AMD RESERVED CONFIGURATION STRAPS

ALLOW FOR PULLUP PADS FOR THESE STRAPS BUT DO NOT INSTALL RESISTOR. IF THESE GPIOS ARE USED,
THEY MUST KEEP "LOW" AND NOT CONFLICT DURING RESET.

H2SYNC GENERICCGPIO21

VGA HOLE

GPIO8

GPIO2

18

be NC

DIS@EXO/MESO_S3

HP Restricted Secret

A A

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

AMD EXO PRO S3_GND/LVDS/Strap

AMD EXO PRO S3_GND/LVDS/Strap

AMD EXO PRO S3_GND/LVDS/Strap

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

5

4

3

2

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

18 56Wednesday, July 29, 2015

18 56Wednesday, July 29, 2015

18 56Wednesday, July 29, 2015

5

DIS@10U/6.3V/X5R_6

DIS@10U/6.3V/X5R_6

4

3

2

1

+1.5V_VGA(20,21,49)
+1.8V_VGA(17,48,49)
+0.95V_VGA(16,17,49)
+VGA_CORE(48,49)

19

C523
DIS@1U/10V/X5R_4

C458

DIS@1U/6.3V/X5R_4

C444

C460

C417

DIS@1U/6.3V/X5R_4

C401

DIS@1U/6.3V/X5R_4

C438
DIS@10U/6.3V/X5R_6

C451

DIS@0.1u/25V/X5R_4

VDDC_SEN (48)
VDDC_RTN (48)

MESO ONLY

2

+1.8V_VGA

C520

DIS@10U/6.3V/X5R_6

C449

DIS@1U/6.3V/X5R_4

C470

DIS@1U/6.3V/X5R_4

C480

DIS@1U/6.3V/X5R_4

C478

DIS@1U/6.3V/X5R_4

C488

DIS@1U/6.3V/X5R_4

C441

DIS@1U/6.3V/X5R_4

C429

DIS@1U/6.3V/X5R_4

C456

DIS@1U/6.3V/X5R_4

C468

DIS@1U/6.3V/X5R_4

C424

DIS@2.2U/10V/X5R_4

C457

DIS@1U/10V/X5R_4

C428

DIS@1U/6.3V/X5R_4

C491

DIS@1U/6.3V/X5R_4

C469

DIS@1U/6.3V/X5R_4

C406

DIS@1U/6.3V/X5R_4

C411

DIS@2.2U/10V/X5R_4

0.95V~1.1V(2A VDDCI)

C435

DIS@1U/6.3V/X5R_4

HP Restricted Secret

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

C437

DIS@1U/6.3V/X5R_4

C489

DIS@1U/6.3V/X5R_4

C483

DIS@1U/6.3V/X5R_4

C432

DIS@1U/6.3V/X5R_4

+

C507
330U/2.5V/ESR9_7343

+VGA_CORE

C448

DIS@10U/6.3V/X5R_6

AMD EXO PRO_Power

AMD EXO PRO_Power

AMD EXO PRO_Power
810606-000

810606-000

810606-000

C465

DIS@1U/6.3V/X5R_4

DIS@1U/6.3V/X5R_4

DIS@1U/10V/X5R_4

EC-SI-xx
Follow N61

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

+0.95V_VGA

C416

DIS@10U/6.3V/X5R_6

C486

C61

HP-CRANE

HP-CRANE

HP-CRANE

1

C403

DIS@10U/6.3V/X5R_6

+VGA_CORE

C482

DIS@10U/6.3V/X5R_6

C464

DIS@10U/6.3V/X5R_6

19 56Wednesday, July 29, 2015

19 56Wednesday, July 29, 2015

19 56Wednesday, July 29, 2015

C494

B

B

B

C414

+1.5V_VGA

D D

C41

DIS@10U/6.3V/X5R_6

C C

C40

DIS@10U/6.3V/X5R_6

C12

DIS@10U/6.3V/X5R_6

+1.8V_VGA

L32 DIS@BLM15PX181SN1D

+3.3V_VGA

L9 DIS@BLM15PX181SN1D

+1.8V_VGA

L7 DIS@BLM15PX181SN1D

C11

DIS@2.2U/6.3V/X5R_4

Memory Phase Lock Loop Power :

B B

A A

+1.8V_VGA

L30 DIS@PBY160808T-121Y-N

Engine Phase Lock Loop Power :
analog power pin for engine PLL

+0.95V_VGA

L31

Engine Phase Lock Loop Power :
digital power pin for engine PLL

5

DIS@PBY160808T-121Y-N

1.5V ( DDR3, MVDDQ = 1.5V@1.2A)

C402

DIS@2.2U/6.3V/X5R_4

C412

DIS@2.2U/6.3V/X5R_4

1.8V@13mA

C502

DIS@10U/6.3V/X5R_6

C495

DIS@1U/6.3V/X5R_4

3.3V@25mA

C127

*DIS@10U/6.3V/X5R_6

C479

DIS@1U/6.3V/X5R_4

1.8V@90mA

C64

DIS@10U/6.3V/X5R_6

C63

DIS@1U/6.3V/X5R_4

1.8V@75mA

C367

DIS@10U/6.3V/X5R_6

C368

DIS@1U/10V/X5R_4

0.95V@100mA

C407

DIS@10U/6.3V/X5R_6

C404

DIS@1U/10V/X5R_4

C419

DIS@2.2U/6.3V/X5R_4

+1.8V_VDDCT

C490
DIS@0.1u/25V/X5R_4

+3.3V_VDDR3

C126

DIS@1U/6.3V/X5R_4

+MPV18

C62
DIS@0.1U/16V/X5R_4

+SPV18

C369
DIS@0.1u/25V/X5R_4

+0.95V_VGA_SPV10

C405
DIS@0.1u/25V/X5R_4

4

C395

DIS@2.2U/6.3V/X5R_4

C125

DIS@1U/6.3V/X5R_4

U6D

H13

VDDR1#1

H16

VDDR1#2

H19

VDDR1#3

J10

VDDR1#4

J23

VDDR1#5

J24

VDDR1#6

J9

VDDR1#7

K10

VDDR1#8

K23

VDDR1#9

K24

VDDR1#10

K9

VDDR1#11

L11

VDDR1#12

L12

VDDR1#13

L13

VDDR1#14

L20

VDDR1#15

L21

VDDR1#16

L22

VDDR1#17

AA20

VDD_CT#1

AA21

VDD_CT#2

AB20

VDD_CT#3

AB21

VDD_CT#4

AA17

VDDR3#1

AA18

VDDR3#2

AB17

VDDR3#3

AB18

VDDR3#4

V12

NC_VDDR4#1

Y12

NC_VDDR4#2

U12

NC_VDDR4#3

L8

MPLL_PVDD

H7

SPLL_PVDD

H8

SPLL_VDDC

J7

SPLL_PVSS

DIS@EXO/MESO_S3

MEM I/O

LEVEL
TRANSLATION

I/O

PLL

PCIE_PVDD

PCIE

NC#AB23
NC#AC23
NC#AD24
NC#AE24
NC#AE25
NC#AE26
NC#AF25
NC#AG26

PCIE_VDDC#1
PCIE_VDDC#2
PCIE_VDDC#3
PCIE_VDDC#4
PCIE_VDDC#5
PCIE_VDDC#6
PCIE_VDDC#7
PCIE_VDDC#8

PCIE_VDDC#9
PCIE_VDDC#10
PCIE_VDDC#11
PCIE_VDDC#12

VDDC#1

CORE

VDDC#2
VDDC#3

POWER

VDDC#4
VDDC#5
VDDC#6
VDDC#7
VDDC#8

VDDC#9
VDDC#10
VDDC#11
VDDC#12
VDDC#13
VDDC#14
VDDC#15
VDDC#16
VDDC#17
VDDC#18
VDDC#20
VDDC#21
VDDC#22
VDDC#23
VDDC#24
VDDC#25
VDDC#26

VDDC/VARY_BL

VDDC/DIGON
VDDC/GENERICA
VDDC/GENERICC

VDDC/DDC2CLK

VDDC/DDC2DATA

VDDC/HPD1
VDDC/GPIO_1
VDDC/GPIO_2

VDDC/GPIO_18

VDDC/GPIO_14_HPD2

BIF_VDDC_1

BIF_VDDC_2

VDDCI#1

ISOLATED

VDDCI#2

CORE I/O

VDDCI#3
VDDCI#4
VDDCI#5
VDDCI#6
VDDCI#7
VDDCI#8

NC#W1/FB_VDDCI

NC#W3/FB_VSS

NC#FB_VDDC

NC#FB_VSS

3

AM30
AB23

AC23
AD24
AE24
AE25
AE26
AF25
AG26

L23
L24
L25
L26
M22
N22
N23
N24
R22
T22
U22
V22

AA15
N15
N17
R13
R16
R18
Y21
T12
T15
T17
T20
U13
U16
U18
V21
V15
V17
V20
Y13
Y16
Y18
AA12
M11
N12
U11
AB11
AB12
AB13
W9
AC11
AC13
AC14
U10
T10
W10
Y9

R21
U21

M13
M15
M16
M17
M18
M20
M21
N20

W1
W3

AC20
AD20

C504

DIS@0.01U/50V/X5R_4

C453

DIS@1U/6.3V/X5R_4

C476

DIS@1U/6.3V/X5R_4

C466

DIS@1U/6.3V/X5R_4

BIF_VDDC : 0.95V @ 1.4A

C81

DIS@1U/6.3V/X5R_4

C493

DIS@0.1u/25V/X5R_4

VDDC_SEN_R
VDDC_RTN_R

VCORE_SEN/RTN route as differetial pair

PCIE_VDDR : 1.8V @ 100mA

C513

0.1u/25V/X5R_4

PCIE_VDDC : 0.95V @ 1A (GEN3.0)

C436

DIS@1U/6.3V/X5R_4

VDDC+VDDCI

0.85~1.1V(14.2A peak )( Ripple < 87.2mV)

C425

DIS@1U/6.3V/X5R_4

C481

DIS@1U/6.3V/X5R_4

DIS@1U/6.3V/X5R_4

DIS@1U/6.3V/X5R_4

C461

C415

+0.95V_VGA

C73

DIS@1U/6.3V/X5R_4

C463

DIS@0.1u/25V/X5R_4

DIS@1U/6.3V/X5R_4

DIS@1U/6.3V/X5R_4

EC-MV-E01

R511 *M_DIS@0_4S
R510 *M_DIS@0_4S

5

VMA_ODT0(21)
VMA_ODT1(21)

VMA_RAS0#(21)
VMA_RAS1#(21)

VMA_CAS0#(21)

D D

C C

B B

DIS@0.1u/25V/X5R_4

A A

VMA_CAS1#(21)
VMA_WE0#(21)

VMA_WE1#(21)
VMA_CS0#(21)
VMA_CS1#(21)
VMA_CKE0(21)

VMA_CKE1(21)
VMA_CLK0(21)

VMA_CLK0#(21)
VMA_CLK1(21)

VMA_CLK1#(21)

VMA_WDQS[7..0](21)

VMA_RDQS[7..0](21)
VMA_DM[7..0](21)
VMA_DQ[63..0](21)
VMA_MA[15..0](21)

VMA_BA0(21)
VMA_BA1(21)
VMA_BA2(21)

C381

DIS@0.1u/25V/X5R_4

+1.5V_VGA

R439
DIS@40.2/F_4

DIS@100/F_4

5

VMA_ODT0
VMA_ODT1

VMA_RAS0#
VMA_RAS1#

VMA_CAS0#
VMA_CAS1#

VMA_WE0#
VMA_WE1#

VMA_CS0#
VMA_CS1#
VMA_CKE0

VMA_CKE1
VMA_CLK0

VMA_CLK0#
VMA_CLK1

VMA_CLK1#

VMA_WDQS[7..0]
VMA_RDQS[7..0]
VMA_DM[7..0]
VMA_DQ[63..0]
VMA_MA[15..0]

VMA_BA0
VMA_BA1
VMA_BA2

support 1Gbit
VRAM ( 64M X 16 )

+1.5V_VGA

R449

R424

DIS@40.2/F_4

C356

R434

DIS@100/F_4

MVREFD

MVREFS

Rd

R458 DIS@120/F_4

C385

*DIS@0.1u/25V/X5R_4

R445

*DIS@51.1/F_4

4

U6C

VMA_DQ0
VMA_DQ1
VMA_DQ2
VMA_DQ3
VMA_DQ4
VMA_DQ5
VMA_DQ6
VMA_DQ7
VMA_DQ8
VMA_DQ9
VMA_DQ10
VMA_DQ11
VMA_DQ12
VMA_DQ13
VMA_DQ14
VMA_DQ15
VMA_DQ16
VMA_DQ17

VMA_DQ18

VMA_DQ19
VMA_DQ20
VMA_DQ21
VMA_DQ22
VMA_DQ23
VMA_DQ24
VMA_DQ25
VMA_DQ26
VMA_DQ27
VMA_DQ28
VMA_DQ29
VMA_DQ30
VMA_DQ31
VMA_DQ32
VMA_DQ33
VMA_DQ34
VMA_DQ35
VMA_DQ36
VMA_DQ37
VMA_DQ38
VMA_DQ39
VMA_DQ40
VMA_DQ41
VMA_DQ42
VMA_DQ43
VMA_DQ44
VMA_DQ45
VMA_DQ46
VMA_DQ47
VMA_DQ48
VMA_DQ49
VMA_DQ50
VMA_DQ51
VMA_DQ52
VMA_DQ53
VMA_DQ54
VMA_DQ55
VMA_DQ56
VMA_DQ57
VMA_DQ58
VMA_DQ59
VMA_DQ60
VMA_DQ61
VMA_DQ62
VMA_DQ63

VMA_CALRP0

CLKTESTA
CLKTESTB

CLKTESTB_C

CLKTESTA_C

R457

w w w . c h i n a f i x . c o m

*DIS@51.1/F_4

4

K27

DQA0_0

J29

DQA0_1

H30

DQA0_2

H32

DQA0_3

G29

DQA0_4

F28

DQA0_5

F32

DQA0_6

F30

DQA0_7

C30

DQA0_8

F27

DQA0_9

A28

DQA0_10

C28

DQA0_11

E27

DQA0_12

G26

DQA0_13

D26

DQA0_14

F25

DQA0_15

A25

DQA0_16

C25

DQA0_17

E25

DQA0_18

D24

DQA0_19

E23

DQA0_20

F23

DQA0_21

D22

DQA0_22

F21

DQA0_23

E21

DQA0_24

D20

DQA0_25

F19

DQA0_26

A19

DQA0_27

D18

DQA0_28

F17

DQA0_29

A17

DQA0_30

C17

DQA0_31

E17

DQA1_0

D16

DQA1_1

F15

DQA1_2

A15

DQA1_3

D14

DQA1_4

F13

DQA1_5

A13

DQA1_6

C13

DQA1_7

E11

DQA1_8

A11

DQA1_9

C11

DQA1_10

F11

DQA1_11

A9

DQA1_12

C9

DQA1_13

F9

DQA1_14

D8

DQA1_15

E7

DQA1_16

A7

DQA1_17

C7

DQA1_18

F7

DQA1_19

A5

DQA1_20

E5

DQA1_21

C3

DQA1_22

E1

DQA1_23

G7

DQA1_24

G6

DQA1_25

G1

DQA1_26

G3

DQA1_27

J6

DQA1_28

J1

DQA1_29

J3

DQA1_30

J5

DQA1_31

K26

MVREFDA

J26

MVREFSA

J25

NC

K25

MEM_CALRP0

DRAM_RST

L10

DRAM_RST

K8

CLKTESTA

L7

C393
*DIS@0.1u/25V/X5R_4

CLKTESTB

DIS@EXO/MESO_S3

route 50ohms
single-ended/100ohms diff
and keep short

MAA0_0
MAA0_1
MAA0_2
MAA0_3
MAA0_4
MAA0_5
MAA0_6
MAA0_7
MAA0_8
MAA0_9

MAA1_0
MAA1_1
MAA1_2
MAA1_3
MAA1_4
MAA1_5
MAA1_6
MAA1_7

MMA1_8

MAA1_9

WCKA0_0

WCKA0B_0

WCKA0_1

WCKA0B_1

WCKA1_0

WCKA1B_0

WCKA1_1

MEMORY INTERFACE

WCKA1B_1

EDCA0_0
EDCA0_1
EDCA0_2
EDCA0_3
EDCA1_0
EDCA1_1
EDCA1_2
EDCA1_3

DDBIA0_0
DDBIA0_1
DDBIA0_2
DDBIA0_3
DDBIA1_0
DDBIA1_1
DDBIA1_2
DDBIA1_3

ADBIAO

ADBIA1

CLKA0

CLKA0B

CLKA1

CLKA1B

RASA0B
RASA1B

CASA0B
CASA1B

CSA0B_0
CSA0B_1

CSA1B_0
CSA1B_1

CKEA0
CKEA1

WEA0B
WEA1B

K17
J20
H23
G23
G24
H24
J19
K19
G20
L17

J14
K14
J11
J13
H11
G11
J16
L15
G14
L16

E32
E30
A21
C21
E13
D12
E3
F4

H28
C27
A23
E19
E15
D10
D6
G5

H27
A27
C23
C19
C15
E9
C5
H4

L18
K16

H26
H25

G9
H9

G22
G17

G19
G16

H22
J22

G13
K13

K20
J17

G25
H10

3

3

VMA_MA0
VMA_MA1
VMA_MA2
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA6
VMA_MA7
VMA_MA13
VMA_MA15

VMA_MA8
VMA_MA9
VMA_MA10
VMA_MA11
VMA_MA12
VMA_BA2
VMA_BA0
VMA_BA1
VMA_MA14

VMA_DM0
VMA_DM1
VMA_DM2
VMA_DM3
VMA_DM4
VMA_DM5
VMA_DM6
VMA_DM7

VMA_RDQS0
VMA_RDQS1
VMA_RDQS2
VMA_RDQS3
VMA_RDQS4
VMA_RDQS5
VMA_RDQS6
VMA_RDQS7

VMA_WDQS0
VMA_WDQS1
VMA_WDQS2
VMA_WDQS3
VMA_WDQS4
VMA_WDQS5
VMA_WDQS6
VMA_WDQS7

VMA_ODT0
VMA_ODT1

VMA_CLK0
VMA_CLK0#

VMA_CLK1
VMA_CLK1#

VMA_RAS0#
VMA_RAS1#

VMA_CAS0#
VMA_CAS1#

VMA_CS0#

VMA_CS1#

VMA_CKE0
VMA_CKE1

VMA_WE0#
VMA_WE1#

2

+1.5V_VGA(19,21,49)

25mm (max) 25mm (max)5mm (max)

From GPU

DRAM_RST

Place all these components very close to GPU (Within
25mm) and keep all component close to each Other (within
5mm) except Rser2

This basic topology should be used for DRAM_RST for DDR3/GDDR5.These
Capacitors and Resistor values are an example only. The Series R and
|| Cap values will depend on the DRAM load and will have to be
calculated for different Memory ,DRAM Load and board to pass Reset
Signal Spec.

R450 DIS@10/F_4

R459
DIS@4.99K/F_4

DRAM_RST_C

C382
DIS@120P/50V_4

R440 DIS@51/F_4

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

AMD EXO RPO S3_MEM_Interface

AMD EXO RPO S3_MEM_Interface

AMD EXO RPO S3_MEM_Interface

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

Project:

1

DRAM_RST_M (21)

HP-CRANE

HP-CRANE

HP-CRANE

1

20

B

B

B

20 56Wednesday, July 29, 2015

20 56Wednesday, July 29, 2015

20 56Wednesday, July 29, 2015

A

VMA_MA[15..0](20)
VMA_DM[7..0](20)

VMA_MA[15..0]

VMA_DQ[63..0](20)
VMA_WDQS[7..0](20)
VMA_RDQS[7..0](20)

B

2GB gDDR3L

C

D

E

+1.5V_VGA(19,20,49)

21

U27

DRAM_RST_M

VMA_ZQ4

R389
DIS@243/F_4

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

G3

DQSL

E7

DML

D3

DMU

C7

DQSU

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

96-BALL
SDRAM DDR3

DIS@MICRON_gDDR3L

+1.5V_VGA +1.5V_VGA

R380

DIS@4.99K/F_4

R384

DIS@4.99K/F_4

R376
DIS@243/F_4

U28

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

G3

DQSL

E7

DML

D3

DMU

C7

DQSU

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

96-BALL
SDRAM DDR3

DIS@MICRON_gDDR3L

R383

DIS@4.99K/F_4

R387

DIS@4.99K/F_4

VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9

VSSQ#D1
VSSQ#D8

VSSQ#G1
VSSQ#G9

+1.5V_VGA

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9

VSS#A9
VSS#B3
VSS#E1

VSS#G8

VSS#J2

VSS#J8
VSS#M1
VSS#M9

VSS#P1

VSS#P9

VSS#T1

VSS#T9

VSSQ#B1
VSSQ#B9

VSSQ#E2
VSSQ#E8
VSSQ#F9

C298
DIS@0.1u/25V/X5R_4

E3

VMA_DQ6

F7

VMA_DQ3

F2

VMA_DQ5

F8

VMA_DQ2

H3

VMA_DQ7

H8

VMA_DQ1

G2

VMA_DQ0

H7

VMA_DQ4

D7

VMA_DQ18

C3

VMA_DQ19

C8

VMA_DQ17

C2

VMA_DQ22

A7

VMA_DQ20

A2

VMA_DQ23

B8

VMA_DQ16

A3

VMA_DQ21

B2
D9
G7
K2
K8
N1
N9
R1
R9

+1.5V_VGA

A1
A8
C1
C9
D2
E9
F1
H2
H9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

DIS@4.99K/F_4

DIS@4.99K/F_4

Should be 240
Ohms +-1%

+1.5V_VGA

R14

R21

VREFC_VMA2
VREFD_VMA2

VMA_MA0
VMA_MA1
VMA_MA2
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA6
VMA_MA7
VMA_MA8
VMA_MA9
VMA_MA10
VMA_MA11
VMA_MA12
VMA_MA13
VMA_MA14

VMA_BA0VMA_BA0
VMA_BA1
VMA_BA2

VMA_CLK0
VMA_CLK0#
VMA_CKE0

VMA_ODT0
VMA_CS0#
VMA_RAS0#
VMA_CAS0#
VMA_WE0#

VMA_RDQS1
VMA_WDQS1

VMA_DM1
VMA_DM3

VMA_RDQS3
VMA_WDQS3

DRAM_RST_M

VMA_ZQ2

VREFC_VMA2

C18

DIS@0.1U/10V/X5R_4

D D

VMA_BA0(20)
VMA_BA1(20)
VMA_BA2(20)

VMA_CLK0(20)
VMA_CLK0#(20)
VMA_CKE0(20)

VMA_ODT0(20)
VMA_CS0#

(20)

VMA_RAS0#

(20)

DRAM_RST_M(20)

R373

DIS@4.99K/F_4

R375

DIS@4.99K/F_4

VMA_CAS0#(20)
VMA_WE0#(20)

Should be 240
Ohms +-1%

+1.5V_VGA

C C

B B

VREFC_VMA1
VREFD_VMA1

VMA_MA0
VMA_MA1
VMA_MA2
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA6
VMA_MA7
VMA_MA8
VMA_MA9
VMA_MA10
VMA_MA11
VMA_MA12
VMA_MA13
VMA_MA14
VMA_MA15 VMA_MA15

VMA_BA1
VMA_BA2

VMA_CLK0
VMA_CLK0#
VMA_CKE0

VMA_ODT0
VMA_CS0#
VMA_RAS0#
VMA_CAS0#
VMA_WE0#

VMA_RDQS0

VMA_WDQS0

VMA_DM0
VMA_DM2

VMA_RDQS2
VMA_WDQS2

DRAM_RST_M

VMA_ZQ1

VREFC_VMA1 VREFD_VMA1

C281
DIS@0.1u/25V/X5R_4

R25
DIS@243/F_4

U3

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

G3

DQSL

E7

DML

D3

DMU

C7

DQSU

B7

DQSU

T2

RESET

L8

ZQ

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

96-BALL
SDRAM DDR3

DIS@MICRON_gDDR3L

DIS@4.99K/F_4

DIS@4.99K/F_4

VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9

VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9

VSS#G8

VSS#M1
VSS#M9

VSSQ#B1

VSSQ#B9
VSSQ#D1
VSSQ#D8

VSSQ#E2

VSSQ#E8

VSSQ#F9
VSSQ#G1
VSSQ#G9

R20

R15

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VSS#A9
VSS#B3
VSS#E1

VSS#J2
VSS#J8

VSS#P1
VSS#P9
VSS#T1
VSS#T9

+1.5V_VGA

E3

VMA_DQ10

F7

VMA_DQ14

F2

VMA_DQ11

F8

VMA_DQ13

H3

VMA_DQ8

H8

VMA_DQ15

G2

VMA_DQ12

H7

VMA_DQ9

D7

VMA_DQ29

C3

VMA_DQ27

C8

VMA_DQ31

C2

VMA_DQ26

A7

VMA_DQ28

A2

VMA_DQ24

B8

VMA_DQ30

A3

VMA_DQ25

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

VREFD_VMA2

C16

DIS@0.1U/10V/X5R_4

+1.5V_VGA+1.5V_VGA

+1.5V_VGA

Should be 240
Ohms +-1%

VREFC_VMA3

VMA_MA0
VMA_MA1
VMA_MA2
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA6
VMA_MA7
VMA_MA8
VMA_MA9
VMA_MA10
VMA_MA11
VMA_MA12
VMA_MA13
VMA_MA14 VMA_MA14
VMA_MA15 VMA_MA15

VMA_BA0
VMA_BA1
VMA_BA2

VMA_CLK1
VMA_CLK1#
VMA_CKE1

VMA_ODT1
VMA_CS1#
VMA_RAS1#
VMA_CAS1#
VMA_WE1#

VMA_RDQS5
VMA_WDQS5

VMA_DM5
VMA_DM4

VMA_RDQS4
VMA_WDQS4

E3

VMA_DQ45

DQL0

F7

VMA_DQ41

DQL1

F2

VMA_DQ47

DQL2

F8

VMA_DQ42

DQL3

H3

VMA_DQ44

DQL4

H8

VMA_DQ43

DQL5

G2

VMA_DQ46

DQL6

H7

VMA_DQ40

DQL7

D7

VMA_DQ32

DQU0

C3

VMA_DQ36

DQU1

C8

VMA_DQ33

DQU2

C2

VMA_DQ39

DQU3

A7

VMA_DQ34

DQU4

A2

VMA_DQ37

DQU5

B8

VMA_DQ35

DQU6

A3

VMA_DQ38

DQU7

VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9

VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9

VSS#A9
VSS#B3
VSS#E1

VSS#G8

VSS#J2

VSS#J8
VSS#M1
VSS#M9

VSS#P1

VSS#P9

VSS#T1

VSS#T9

VSSQ#B1

VSSQ#B9
VSSQ#D1
VSSQ#D8

VSSQ#E2

VSSQ#E8

VSSQ#F9
VSSQ#G1
VSSQ#G9

VREFC_VMA3 VREFD_VMA3

C299

DIS@0.1U/10V/X5R_4

+1.5V_VGA

B2
D9
G7
K2
K8
N1
N9
R1
R9

+1.5V_VGA

A1
A8
C1
C9
D2
E9
F1
H2
H9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

R374

DIS@4.99K/F_4

R377

DIS@4.99K/F_4

VMA_CLK1(20)
VMA_CLK1#(20)
VMA_CKE1(20)

VMA_ODT1(20)
VMA_CS1#(20)
VMA_RAS1#(20)
VMA_CAS1#(20)
VMA_WE1#(20)

Should be 240
Ohms +-1%

C285

DIS@0.1U/10V/X5R_4

VREFC_VMA4
VREFD_VMA4VREFD_VMA3

VMA_MA0
VMA_MA1
VMA_MA2
VMA_MA3
VMA_MA4
VMA_MA5
VMA_MA6
VMA_MA7
VMA_MA8
VMA_MA9
VMA_MA10
VMA_MA11
VMA_MA12
VMA_MA13

VMA_BA0
VMA_BA1
VMA_BA2

VMA_RDQS7
VMA_WDQS7

VMA_DM7
VMA_DM6

VMA_RDQS6
VMA_WDQS6

DRAM_RST_M

VMA_ZQ3

DIS@4.99K/F_4

DIS@4.99K/F_4

U2

M8

VREFCA

H1

VREFDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

K1

ODT

L2

CS

J3

RAS

K3

CAS

L3

WE

F3

DQSL

G3

DQSL

E7

DML

D3

DMU

C7

DQSU

B7

DQSU

T2

RESET

L8

ZQ

R22
DIS@243/F_4

J1

NC#J1

L1

NC#L1

J9

NC#J9

L9

NC#L9

96-BALL
SDRAM DDR3

DIS@MICRON_gDDR3L

+1.5V_VGA +1.5V_VGA

R13

VREFC_VMA4 VREFD_VMA4

R16

C17

DIS@0.1U/10V/X5R_4

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7

DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

VDD#B2
VDD#D9
VDD#G7
VDD#K2
VDD#K8
VDD#N1
VDD#N9
VDD#R1
VDD#R9

VDDQ#A1
VDDQ#A8
VDDQ#C1
VDDQ#C9
VDDQ#D2
VDDQ#E9
VDDQ#F1
VDDQ#H2
VDDQ#H9

VSS#A9
VSS#B3
VSS#E1

VSS#G8

VSS#J2

VSS#J8
VSS#M1
VSS#M9

VSS#P1

VSS#P9

VSS#T1

VSS#T9

VSSQ#B1

VSSQ#B9
VSSQ#D1
VSSQ#D8

VSSQ#E2

VSSQ#E8

VSSQ#F9
VSSQ#G1
VSSQ#G9

E3
F7
F2
F8
H3
H8
G2
H7

D7
C3
C8
C2
A7
A2
B8
A3

B2
D9
G7
K2
K8
N1
N9
R1
R9

A1
A8
C1
C9
D2
E9
F1
H2
H9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

B1
B9
D1
D8
E2
E8
F9
G1
G9

DIS@4.99K/F_4

DIS@4.99K/F_4

VMA_DQ60
VMA_DQ59
VMA_DQ57
VMA_DQ58
VMA_DQ63
VMA_DQ62
VMA_DQ56
VMA_DQ61

VMA_DQ55
VMA_DQ50
VMA_DQ54
VMA_DQ48
VMA_DQ52
VMA_DQ51
VMA_DQ53
VMA_DQ49

R17

R24

+1.5V_VGA

+1.5V_VGA

C19

DIS@0.1U/10V/X5R_4

VMA_CLK0

R388
DIS@40.2/F_4

VMA_CLK0_COMM

R386

DIS@40.2/F_4

VMA_CLK0#

A

VMA_CLK1

VMA_CLK1#

R36
DIS@40.2/F_4

VMA_CLK1_COMM

R41

DIS@40.2/F_4

A A

C294

DIS@0.01U/50V/X7R_4

C35

DIS@0.01U/50V/X7R_4

+1.5V_VGA

C290

DIS@1U/6.3V/X5R_4

+1.5V_VGA

C33

DIS@1U/6.3V/X5R_4

+1.5V_VGA

C37

DIS@10U/6.3V_6

C13
DIS@1U/6.3V/X5R_4

C39

DIS@1U/6.3V/X5R_4

C317

DIS@10U/6.3V_6

B

C276

DIS@1U/6.3V/X5R_4

C27

DIS@1U/6.3V/X5R_4

C306

DIS@10U/6.3V_6

C289

DIS@1U/6.3V/X5R_4

C14

DIS@1U/6.3V/X5R_4

C7

DIS@10U/6.3V_6

C268

DIS@1U/6.3V/X5R_4

C282

DIS@1U/6.3V/X5R_4

+1.5V_VGA

C20

DIS@0.1U/10V/X5R_4

C303

DIS@1U/6.3V/X5R_4

C21

DIS@1U/6.3V/X5R_4

C270

DIS@0.1U/10V/X5R_4

C

C304

DIS@0.1u/25V/X5R_4

C319

DIS@0.1u/25V/X5R_4

C22

DIS@0.1U/10V/X5R_4

C292

DIS@0.1u/25V/X5R_4

C286

DIS@0.1u/25V/X5R_4

C24

DIS@0.1U/10V/X5R_4

+1.5V_VGA

C9

DIS@1U/6.3V/X5R_4

+1.5V_VGA

C305

DIS@1U/6.3V/X5R_4

C8

DIS@0.1U/10V/X5R_4

C15
DIS@1U/6.3V/X5R_4

C269
DIS@0.1u/25V/X5R_4

C26

DIS@0.1U/10V/X5R_4

D

C280
DIS@1U/6.3V/X5R_4

C272
DIS@1U/6.3V/X5R_4

C297

DIS@0.1U/10V/X5R_4

C279

DIS@1U/6.3V/X5R_4

C284
DIS@1U/6.3V/X5R_4

C293
DIS@0.1U/25V/X7R_6

C271

DIS@1U/6.3V/X5R_4

C275

DIS@1U/6.3V/X5R_4

C301

DIS@1U/6.3V/X5R_4

C10

DIS@1U/6.3V/X5R_4

C315
DIS@0.1u/25V/X5R_4

C277
DIS@0.1u/25V/X5R_4

C283
DIS@0.1u/25V/X5R_4

C278
DIS@0.1u/25V/X5R_4

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

VRAM_DDR3 BGA96

VRAM_DDR3 BGA96

VRAM_DDR3 BGA96
810606-000

810606-000

810606-000

HP-CRANE

HP-CRANE

HP-CRANE

E

B

B

B

21 56Wednesday, July 29, 2015

21 56Wednesday, July 29, 2015

21 56Wednesday, July 29, 2015

5

4

3

2

1

eDP to LVDS (RTD2136N-CG)

eDP to LVDS (RTD2136N-CG)

eDP to LVDS (RTD2136N-CG)eDP to LVDS (RTD2136N-CG)

+SWR_V12

C562 0.1u/16V/X5R_4

2136_BKLT_EN

D D

EDID_DAT
EDID_CLK
2136_CFG0
2136_CFG1

DP input signals

37

38

39

40

41

42

43

44

45

46

47

48

1

DP_HPD

2

TEST_MODE

3

AUX-CH_N

4

AUX-CH_P

5

DP_V33

6

DP_GND

7

LANE0P

8

LANE0N

9

LANE1P
LANE1N
DP_V12
DP_REXT

U30

+SWR_LX

49

EPD

MIICSCL1

MIICSCL0

MIICSDA0

RTD2136N

CIICSCL113CIICSDA114SWR_VCCK15GND16SWR_LX17SWR_VDD18GPIO/PWMOUT19GPIO/PWM120GPIO/PWMIN21PVCC22TXE3+23TXE3-

VCCK

TXO2-

TXO1-

TXO0-

TXO2+

TXO1+

TXO0+

MIICSDA1

GPIO/PWM0/PWMOUT

24

PCH_BRIGHT
2136_LVDS_PWREN
2136_VADJ

TXOC-

TXOC+

TXO3-

TXO3+

TXE0-

TXE0+

TXE1-

TXE1+

TXE2­TXE2+
TXEC-

TXEC+

36
35
34
33
32
31
30
29
28
27
26
25

(11)

DDPD_HPD

EDP_AUXN(4)
EDP_AUXP(4)

DDID_TXDP0(4)
DDID_TXDN0(4)
DDID_TXDP1(4)

C C

DDID_TXDN1(4)

B B

R568 1K/F_4

R575
100K/F_4

eDP_HPD with pull down 100K-ohm on PCH side.

eDP_HPD_R
TEST_MODE

C140

2136_AUXN
2136_AUXP

DPD_TXP0_R
DPD_TXN0_R
DPD_TXP1_R
DPD_TXN1_R

DP_REXT

R548
12K/F_6

2136_SCL
2136_SDA

+3.3V_2136_DVCC33

C575 0.1u/25V/X5R_4
C573 0.1u/25V/X5R_4

+3.3V_2136_AVCC33

C572 0.1u/25V/X5R_4
C571 0.1u/25V/X5R_4
C566 0.1u/25V/X5R_4
C564 0.1u/25V/X5R_4

+SWR_V12

0.1u/16V/X5R_4

+SWR_V12

10
11
12

RTD2136N-CG(QFN)

ODD_CH

LVDS_TX_ON0 (24)
LVDS_TX_OP0 (24)
LVDS_TX_ON1 (24)
LVDS_TX_OP1 (24)
LVDS_TX_ON2 (24)
LVDS_TX_OP2 (24)
LVDS_TXCLK_ON (24)
LVDS_TXCLK_OP (24)
LVDS_TX_ON3 (24)
LVDS_TX_OP3 (24)

EVEN_CH

LVDS_TX_EN0 (24)
LVDS_TX_EP0 (24)
LVDS_TX_EN1 (24)
LVDS_TX_EP1 (24)
LVDS_TX_EN2 (24)
LVDS_TX_EP2 (24)
LVDS_TXCLK_EN (24)
LVDS_TXCLK_EP (24)
LVDS_TX_EN3 (24)
LVDS_TX_EP3 (24)

+3.3V_2136_DVCC33

C731 close to Pin22

C561

0.1u/25V/X5R_4

RTD2136N Power

+3.3V +3.3V_2136_DVCC33

L11

HCB1608KF-600T30

Trace width >40mils

+3.3V

+SWR_LX

L12

HCB1608KF-600T30

EC-PV-E02

L33 SP_8

Trace width >30mils

Near to Pin17 within 400mils

Near to Pin17 within 400mils

Near to Pin17 within 400milsNear to Pin17 within 400mils

SWR MODE /LDO MODE

SWR MODE /LDO MODE

SWR MODE /LDO MODESWR MODE /LDO MODE

L9
SWR
LDO

EDID

EDID_CLK
EDID_DAT

Intel CRB

2136_AUXN
2136_AUXP

+3.3V_2136_AVCC33

+SWR_V12

2.2-uH 0 Olm

Connect NC

NC Connect

+3.3V_2136_DVCC33

R577 4.7K/F_4
R581 4.7K/F_4

R562 *100k/1%_4
R552 *100k/1%_4

C136 10U/6.3V/X5R_6
C137 0.1u/16V/X5R_4

C143 10U/6.3V/X5R_6
C145 0.1u/16V/X5R_4
C148 0.1u/16V/X5R_4

C560 22U/6.3V/X5R_6
C164 0.1u/25V/X5R_4

+3.3V

+3.3V(9,10,11,12,13,14,15,23,25,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)

+3.3V_2136_DVCC33

22

C557 22U/6.3V/X5R_6
C138 0.1u/16V/X5R_4

>80mils
Near to Pin18 within
200mils

GPIO & TESTing signals

Mode select

EEPROM

In System Programing

+3.3V_2136_DVCC33

slave address=0xA8

+3.3V_2136_DVCC33

TEST_MODE

R529
100K/F_4

2136_VADJ
2136_LVDS_PWREN
2136_BKLT_EN
PCH_BRIGHT

2136_VADJ(24)
2136_LVDS_PWREN(24)
2136_BKLT_EN(24)
PCH_BRIGHT(10)

R569
100K/F_4

A A

5

2136_CFG1
2136_CFG0

4

2136_CFG1
(PIN48)

R576 4.7K/F_4
R580 4.7K/F_4

R231 *4.7K_4
R228 *4.7K_4

2136_CFG0 (PIN47)

0
X

1

ROM ONLY MODE

1

EP MODE0

EEPROM MODE

+3.3V_2136_DVCC33

C170

0.1u/25V/X5R_4

EDID_DAT
EDID_CLK

SP_4

R229
R226 SP_4

FW_ROM_SDA
FW_ROM_SCL

EC-PV-E02

1- EEPROM with a size 8K-Byte
2- EEPROM device should be 2-byte addressing

device
3- Slave address should configure as 0xA8

3

8
5
6
4

U11

VCC
SDA
SCL
GND

M24C64

WP

2

EC

7
3

A2

2

A1

1

A0

LVDS_SCL(28)

LVDS_SDA(28)

HP Restricted Secret

Title

Title

Title

eDP-LVDS_RTD2136N

eDP-LVDS_RTD2136N

eDP-LVDS_RTD2136N

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

EC_SI2-E12

R533 Short pad_4
R534 Short pad_4

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

R150

4.7K/F_4

2136_SCL
2136_SDA

1

22 56Wednesday, July 29, 2015

22 56Wednesday, July 29, 2015

22 56Wednesday, July 29, 2015

R149

4.7K/F_4

B

B

B

5

HDMI

HDMI

HDMIHDMI

EC-SI-E11

+5V_HDMI

INT_HDMITX2P_C
INT_HDMITX2N_C

INT_HDMITX1P_C
INT_HDMITX1N_C

INT_HDMITX0P_C
INT_HDMITX0N_C

INT_HDMICLK+_CONN
INT_HDMICLK-_CONN

HDMI_DDC_SCL_C
HDMI_DDC_SDA_C

HP_DET_CNHDMI_MB_HP

12

D14

*1000p/50V_4

*PESD5V0U1BB

C207

HDMI_CE
HDMI_NC

C596
*1000p/50V_4

10
11
12
13
14
15
16
17
18
19

D D

R313

Short pad_4

EC_SI2-E13

C C

CN21

1

D2+

2

D2 Shield

3

D2-

4

D1+

5

D1 Shield

6

D1-

7

D0+

8

D0 Shield

9

D0­CK+
CK Shield
CK­CE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET

HDMI_CONN

4

SHELL1

GND
GND

SHELL2

3

2

+3.3V(9,10,11,12,13,14,15,22,25,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)
+5V(24,25,29,32,35,42,43,44,45,46,48,49,50)

1

23

20

23
22

21

HDMI INTERFACEHDMI connector HDMI POWER SUPPLY

HDMI_TX2P(4)
HDMI_TX2N(4)

HDMI_TX1P(4)
HDMI_TX1N(4)

HDMI_TX0P(4)
HDMI_TX0N(4)

HDMI_CLKP(4)
HDMI_CLKN(4)

INT_HDMICLK+_C
INT_HDMICLK-_C INT_HDMICLK-_CONN

DDPB_CTRLCLK(11)
DDPB_CTRLDATA(11)

C202 0.1u/16V/X7R_4
C201 0.1u/16V/X7R_4

C200 0.1u/16V/X7R_4
C199 0.1u/16V/X7R_4

C198 0.1u/16V/X7R_4
C197 0.1u/16V/X7R_4

C196 0.1u/16V/X7R_4
C195 0.1u/16V/X7R_4

R671 SP_4

L38

1

*DLW21HN900SQ2L_C/330mA/90ohm

R670 SP_4

2

1

2

3

443

R677 SP_4
R686 SP_4

INT_HDMITX2P_C
INT_HDMITX2N_C

INT_HDMITX1P_C
INT_HDMITX1N_C

INT_HDMITX0P_C
INT_HDMITX0N_C

INT_HDMICLK+_C
INT_HDMICLK-_C

EC-PV-E02

INT_HDMICLK+_CONN

EC-PV-E02

HDMI_DDC_SCL
HDMI_DDC_SDA

+5V +5V_HDMI

Q14

3

IN

AP2331SA-7

OUT
GND

1
2

40mils

C610

470p/50V/NPO_4

C208

0.1u/25V/X5R_4
D13

*100P/14V_4

EC-PV-E02

HDMI EMI (EMC)

INT_HDMITX2P_C

R309 150/F_4

INT_HDMITX2N_C

INT_HDMITX1P_C

R308 150/F_4

INT_HDMITX1N_C

INT_HDMITX0P_C

R307 150/F_4

INT_HDMITX0N_C

INT_HDMICLK+_C

R306 150/F_4

INT_HDMICLK-_C

HDMI_HPD(11)

+5V

21

21

HDMI-detect

+3.3V

R319
1M_4

HDMI LEVEL SHIFT

R656 470/F_4
R666 470/F_4

R669 470/F_4
R672 470/F_4

R673 470/F_4
R676 470/F_4

R678 470/F_4

HDMI_TX_R

2

R679 470/F_4

3

Q30

2N7002K

1

2

1

3

Q15
2N7002K

HDMI_MB_HP

R314
20K_4

+3.3V

*100K/F_4

R661

INT_HDMITX2P_C
INT_HDMITX2N_C

INT_HDMITX1P_C
INT_HDMITX1N_C

INT_HDMITX0P_C
INT_HDMITX0N_C

INT_HDMICLK+_C
INT_HDMICLK-_C

HDMI DDC

+3.3V

R685

2.2K_4

HDMI_DDC_SDA

B B

HDMI_DDC_SCL_C

HDMI_DDC_SDA_C

+3.3V

R681

2.2K_4

R682 2.2k/1%_4

R683 2.2k/1%_4

1

1

Q32

2

BSN20

3

HDMI_DDC_SDA_C

Q31

2

BSN20

3

HDMI_DDC_SCL_CHDMI_DDC_SCL

HDMI_DDC_SCL_1

HDMI_DDC_SDA_2

D41

RB500V-40/40V/0.1A

D40

RB500V-40/40V/0.1A

HP Restricted Secret

ESD reserve for HDMI

A A

U16

HDMI_DDC_SCL_C
HDMI_DDC_SDA_C

+5V_HDMI
HDMI_MB_HP

1

1

2

2

3

GND_3/8

4

4

5

5

*RClamp0524P

5

Layout Notes:
Place decoupling CAPs close to Connector

10

10

9
7

6

HDMI_DDC_SCL_C

9

HDMI_DDC_SDA_C

7

+5V_HDMI

6

HDMI_MB_HP

INT_HDMITX0P_C
INT_HDMITX0N_C

INT_HDMICLK-_C

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

U15

1

1

2

2

3

GND_3/8

4

4

5

5

*RClamp0524P

4

10

9
7

6

10

INT_HDMITX0P_C

9

INT_HDMITX0N_C

7

INT_HDMICLK+_C

6

INT_HDMICLK-_C

INT_HDMITX2P_C
INT_HDMITX2N_C

INT_HDMITX1P_CINT_HDMICLK+_C
INT_HDMITX1N_C

3

U14

1

1

2

2

3

GND_3/8

4

4

5

5

*RClamp0524P

10

9
7

6

10

INT_HDMITX2P_C

9

INT_HDMITX2N_C

7

INT_HDMITX1P_C

6

INT_HDMITX1N_C

Project:

Project:

Title

Title

Title

HDMI

HDMI

HDMI

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

23 56Wednesday, July 29, 2015

23 56Wednesday, July 29, 2015

23 56Wednesday, July 29, 2015

5

LED PANEL

LED PANEL

LED PANELLED PANEL

PANEL VCC CONTROL

C149 1U/10V/X5R_4

2136_LVDS_PWREN(22)

D D

100K/F_4

+5V +LCDVCC

D9
C147
*1U/6.3V/X5R_4

U9

2

VIN1

3

VIN2

4

EN

TVS_AZ5125-01H

6

VOUT1

7

VOUT2

8

VOUT3

1

GND

5

FLAG

G517G1P81U/3.4A_MSOP8

12/23 Change part for RDC

BackLight Enable

R574 100K/F_4

2136_BKLT_EN(22)
EC_CRTL(28)

R584 *0_4

R583 *10K/F_4

EC_CRTL_R

I (max) = 1.1 A
I (in-rush) = 3 A

5V_FLAG2136_LVDS_PWREN

R573 SP_4

EC-PV-E02

2
1

U31
*TC7SH08FU

4

R225 10K_4

+3.3V_SUS

5

TVS_AZ5125-01H

4

3

+5V

R567

*100K/F_4

D6

120 mil

LCD_BL_EN

C146
10u/10V/X5R_6

C167

0.1u/25V/X5R_4

3

2

1

+VIN(35,36,37,38,39,40,42,43,45,46,47,48,49,50)
+3.3V_SUS(5,9,10,11,12,13,26,28,31,33,34,35,37,38,39,41,42,43,49)
+5V(23,25,29,32,35,42,43,44,45,46,48,49,50)

24

CONVERTER CONN

PI0_R
PI1_R
PI2_R
PS0_R
PS1_R

R29

100K/F_4

50273-01401-001-14p-l
DFHD14MR054

Conn.Converter

1

16

1

2

15

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

CN2

16
15

+VIN

EC_SI2-E04

R32 Short pad_1206

C30

0.1U/25V/X5R_4

C29

4.7U/25V/X5R_8R165

C36

0.1U/25V/X5R_4

(28)

DDC_SCL

(28)

DDC_SDA
2136_VADJ(22)
LCD_BL_EN(28)
PANEL_ID0(28)
PANEL_ID1(28)
PANEL_ID2(28)
PANEL_SIZE0(28)
PANEL_SIZE1(28)

+19V_CONVERTER

2136_VADJ
LCD_BL_EN

R30 1K_4
R40 1K_4
R39 1K_4
R38 1K_4
R37 1K_4

2136_VADJ

100p/50V_4

C28

C C

LCDVCC Discharge Circuit

2136_LVDS_PWREN

2N7002K

EMI

B B

LVDS_TX_ON1(22)
LVDS_TX_OP0(22)

LVDS_TX_ON0(22)
LVDS_TXCLK_EP

(22)

LVDS_TXCLK_EN(22)
LVDS_TX_EP3(22)

A A

LVDS_TX_EN3(22)
LVDS_TX_EP2(22)

LVDS_TX_EN2(22)

EC_PV2_E03 EC_PV2_E03

LVDS_TX_OP1(22)

EC-SI-E12

L21

4 3
1

90ohm_400mA

L22

4 3
1

90ohm_400mA

L14

4 3
1

90ohm_400mA

L13

4 3
1

90ohm_400mA

L15

4 3
1

90ohm_400mA

5

+3.3V_SUS

R168
100K/F_4

31

2136_LVDS_PWREN_D1

2

Q11

LVDS_TX_OP1_R

2

2

2

2

2

C162
*1.5P/50V_4

LVDS_TX_ON1_R
LVDS_TX_OP0_R

C163
*1.5P/50V_4

LVDS_TX_ON0_R
LVDS_TXCLK_EP_R

C155
*1.5P/50V_4

LVDS_TXCLK_EN_R
LVDS_TX_EP3_R

C154
*1.5P/50V_4

LVDS_TX_EN3_R
LVDS_TX_EP2_R

C156
*1.5P/50V_4

LVDS_TX_EN2_R

+LCDVCC

R163

1.2K/F_4

2136_LVDS_PWREN_D2

31

2

LVDS_TX_OP2_R

C161

*1.5P/50V_4

LVDS_TX_ON2_R
LVDS_TX_OP3_R

C159

*1.5P/50V_4

LVDS_TX_ON3_R
LVDS_TXCLK_OP_R

C160

*1.5P/50V_4

LVDS_TXCLK_ON_R
LVDS_TX_EN0_R

C158

*1.5P/50V_4

LVDS_TX_EP0_R
LVDS_TX_EN1_R

C157

*1.5P/50V_4

LVDS_TX_EP1_R

4

Q10
2N7002K

EC-SI-E12

L20

1
4 3

90ohm_400mA

L18

1
4 3

90ohm_400mA

L19

1
4 3

90ohm_400mA

L17

4 3
1

90ohm_400mA

L16

4 3
1

90ohm_400mA

2

2

2

2

2

+3.3V_SUS

C144

0.1u/16V/X5R_4

LVDS_TX_OP2 (22)

LVDS_TX_ON2 (22)
LVDS_TX_OP3 (22)

LVDS_TX_ON3 (22)
LVDS_TXCLK_OP

LVDS_TXCLK_ON (22)
LVDS_TX_EN0 (22)

LVDS_TX_EP0 (22)
LVDS_TX_EN1 (22)

LVDS_TX_EP1 (22)

3

(22)

PANEL_Size Table

+LCDVCC

EC-SI-13

+LCDVCC_C

PANEL_Size[1:0]

10
11
01 27

L23 Short pad_6

EC_SI2-E04

Even
Ch.

Odd
Ch.

C632 1000p/16V/X7R_4

Size
23"

21.5

120 mil

LVDS_TX_EP3_R
LVDS_TX_EN3_R
LVDS_TXCLK_EP_R
LVDS_TXCLK_EN_R
LVDS_TX_EP2_R
LVDS_TX_EN2_R

LVDS_TX_EP1_R
LVDS_TX_EN1_R

LVDS_TX_EP0_R
LVDS_TX_EN0_R
LVDS_TX_OP3_R
LVDS_TX_ON3_R
LVDS_TXCLK_OP_R
LVDS_TXCLK_ON_R

LVDS_TX_OP2_R
LVDS_TX_ON2_R
LVDS_TX_OP1_R
LVDS_TX_ON1_R
LVDS_TX_OP0_R
LVDS_TX_ON0_R

+LCDVCC_C

+LCDVCC_C

ITLC

2

PANEL_ID Table

PANEL_ID[2:0]

LVDS Conn

CN18

G_0

1
2
3

G_1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

G_2
29
30

G_3

LCD_CONN

000
001
010

011
100

101
110
111

Reserve
SDC LTM215HL01_H02
SDC LTM230HL08

LTM215HL01_H01
Reserve

LGD LM230WF3
LM215WF3

Reserve
Reserve
No Connect

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Panel model

Project:

Project:

Title

Title

Title

Panel (Control).LVDS-Conn.

Panel (Control).LVDS-Conn.

Panel (Control).LVDS-Conn.

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

24 56Wednesday, July 29, 2015

24 56Wednesday, July 29, 2015

24 56Wednesday, July 29, 2015

5

Audio Codec ALC3228

Audio Codec ALC3228

Audio Codec ALC3228Audio Codec ALC3228

HDA_SDOUT(9)

AR10 SP_4

HDA_SDIN(9)
HDA_SYNC(9)

HDA_RST#(9)

+3.3V

EC-PV-E02

+DVDDIO_AUDIO

PWR_AUD

D D

AGND

+5V

AC22

10u/10V/X5R_6

+5V

AC20

10u/10V/X5R_6

C C

WEB_DMIC_CLK(29)
DMIC_CLK(29)
WEB_DMIC_DAT(29)
DMIC_DAT(29)

EC16 1000P/50V_4
EC12 1000P/50V_4

EC13 0.1u/25V/X5R_4

HDA_BCLK(9)

AL6

AC23

0.1u/25V/X5R_4

AL5

AC19

0.1u/25V/X5R_4

BLM18PG121SN1_120/2A_6

AC26

10u/10V/X5R_6

BLM18PG121SN1_120/2A_6

AC17

10u/10V/X5R_6

Co-lay

AR1 4.7_4
AR5 *0_4
AR11 0_4
AR6 *0_4

AC6

10P/50V_4

AGND

AGND

AC28

0.1u/25V/X5R_4

AC18

0.1u/25V/X5R_4

EC-SI-E15

AR2
*0_4

DMIC_DAT_RF

AC5

*22P/50V_4

close to codec

AC49 10u/10V/X5R_6

AC34 0.1u/16V/X5R_4

EC_PV2_E02

DMIC_SCL_RF

EC-SI2-E02

AR8
*0_4

AC10

*27P/50V_4

MIC1_L
MIC1_R
HP_LOUT
HP_ROUT

AR35
Short pad_6

AVDD2

PVDD2_AC
SPKOUTL+
SPKOUTL­SPKOUTR­SPKOUTR+
PVDD1_AC
COMBOJACK
EAPD#

DMIC_CLK_R

DMIC_DAT_R

HDA_BITCLK_C

ALG_BEEP_IN

AR7 SP_4

AR3 *0_4

EC-SI-E14

4

37
38
39
40
41
42
43
44
45
46
47
48
49

ALC3228-CG

AGND

CBP_CBNCBP

AC41 2.2U/10V/X5R_4

AC43 2.2U/10V/X5R_4

close to codec

AU1

MONO-OUT
AVDD2
LINE2-L
LINE2-R
PVDD1
SPK-L+
SPK-L­SPK-R­SPK-R+
PVDD2
GPIO2/DMIC-DATA34
EAPD
PGND

CPVEE

31

32

33

34

35

36

CBP

CBN

AVSS2

CPVEE

HP-OUT-R

AL003228000

GPIO3/SPDIFO1GPIO0/DMIC-CLK2DVDD-IO3GPIO1/DMIC-DATA124SDATA-OUT5BIT-CLK6GPIO47SDATA-IN8DVDD9SYNC10RESET#11PCBEEP

DVDD-IO

AC12

AC8

10U/6.3V/X5R_6

AC7

0.1u/25V/X5R_4

*10PF/50V_4

HP-OUT-L

33_4

TP78

AR4

30

+3.3V

PWR_AUD

3

EC-SI2-E02

AR39
Short pad_6

PWR_AUD_R

MIC1_VREFO

29

LINE1-R

MIC1-VREFO

VREF

25

26

27

28

VREF

AVSS1

AVDD1

LINE1-L

NC_4

LINE1-VREFO

JDREF

LDO-CAP

MIC1-R
MIC1-L

NC_3
NC_2
NC_1

AUX_CLK_In

Sense B
Sense A

12

close to codec

24
23

MIC-VREF

22

JDREF

21

LDO_CAP

20
19
18
17
16
15
14
13

SENSE_A

AGND

AC40 0.1u/16V/X5R_4

AC54 10u/10V/X5R_6

AC39 2.2U/10V/X5R_4

AC35 0.1u/16V/X5R_4

close to codec

AR24 20K/F_4
AC27 10u/10V/X5R_6

close to codec

AR18

39.2K/F_4

AGND

AGND

AGND
AGND

COMB_HPM_JD#

UDZ5V6B-7-F

AVDD_EC_Ctrl(28)

EC-SI2-E03

DGND

HDA_SDIN0_R

EC_AMP_MUTE(28)

D15

AC13

0.1u/25V/X5R_4

AC9

AC11

10U/6.3V/X5R_6

*22P/50V_4

*TVS_AZ5125-01H

Close to Codec

2

LDO

+5V_SUS

DGND plane AGND plane

La

AL7 *HCB2012KF220T60_22/6A_8

AD2

De-pop for HeadPhone & Line-Out

2 1

AR15

10K/F_4

DMN601K-7

AC37

0.1u/16V/X5R_4

AR20 SP_4

AR46
100K/F_4

+3.3V+3.3V_AUX

EC_AMP_MUTE_G

3

AQ1

2

60V

1

AD1 *RB500V-40

EAPD#

AC29
10u/10V/X5R_6

EC-PV-E02

AR16
*10K/F_4

3

2

AQ2

DMN601K-7

1

MUTE#

AR9 Short pad_4

EC-SI2-E02

Da

+3.3V

AR17
10K/F_4

MUTE#_R0 MUTE#_R1

13

AQ4

2

*MMBT3906

AD3 *BC004448Z64

AU2

1

GND

2

IN

3

IN

4

EN

AP2171DMPG-13/MSOP-8

Current Limit min:

1.1A

AR23

*0_4

1

+5V(23,24,29,32,35,42,43,44,45,46,48,49,50)
+3.3V_AUX(9,13,26,28,30,34,35,36,42,50)
+3.3V(9,10,11,12,13,14,15,22,23,26,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)

Vo=1.25*(1+Ra/Rb)

21

PWR_AUD

8

40MIL

NC

7

OUT

6

OUT

5

FLG

9

TP

0V : Power down Class D SPK amplifer

3.3V : Power up Class D SPK amplifer

AC32
*10u/10V/X5R_6

AR27
*220K_4

AR22
*1K/F_4

AR45

AP2171_OC#EN_PWR_AUD

22k/5%_4

AGND

+3.3V_AUX+3.3V

AR21
*220K_4

13

2

MUTE#_R2

25

AC42
*10u/10V/X5R_6

AC24

*0.01U/50V_6

AQ3
*MMBT3906

PD_MUTE

B B

MIC1_L
MIC1_R

AC48

4.7U/6.3V/X5R_4

MIC-VREF

AR29 2.2K_4 AL9

CODEC Return Path

AR14 SP_6

AC21 1000P/50V_4

Add 3 -4 Via
close to AR78 pin1 pin2

A A

AR32 *0_4

AC46 *1000P/50V_4

AR41 *0_4
AC45 0.47u/10V/X5R_4

EC-PV-E02

AGNDAGND

AGNDAGND

EC-SI-27

HP Jack EMI Mic Jack EMI LO Jack EMI

AC47

4.7U/6.3V/X5R_4

MIC1_LR

AR37
1K/F_4

MIC1_IN

BLM11B121SBPT_6_150mA_6

AR38
22K/F_4

AGND AGND

AR33 *0_4
AC38 0.47u/10V/X5R_4

AR43 *0/5%_8_S
AC25 *1000P/50V_4

AR26 *0_4
AC30 0.47u/10V/X5R_4

Place close to jackPlace close to jack Place close to jack

5

EC-SI-27

AR28 *0_4
AC31 *1000P/50V_4

AGNDAGNDAGND

HP_LOUT

HP_ROUT

COMBOJACK

AR36 75/F_4

AR30 75/F_4

AR42 22K/F_4

AC50

4.7U/6.3V/X5R_4

AR25 *2.2K/F_4

AR31 *2.2K/F_4

PD_MUTE_GPD_MUTE

AC36
*1U/25V/X5R_6

PD_MUTE_P

4

HP_LOUT_R HPL

HP_ROUT_R

AQ5

2

*MMBT3904

1 3

AGND AGND

AL10 BLM11B121SBPT_6_150mA_6

AL8 BLM11B121SBPT_6_150mA_6

AQ6

2

*MMBT3904

1 3

AC44
*1U/25V/X5R_6

AGND

EC-SI-24

HeadPhone/Mic Combo Conn

COMB_HPM_JD#COMB_HPM_JD#

AC33 *0.01U/50V_4

12

AD4

AD5

TVL040201SP0

TVL040201SP0

HPL HPR

EC15
100P/50V_4

3

AC53 100P/50V_4

AGND

12

AGND AGND

12

AD6

TVL040201SP0

EC14
100P/50V_4

12

AD7

TVL040201SP0

AC52 *0.01U/50V_4

EC-A-08

AGND

HPR
MIC1

MIC1
HPR
HPL

COMB_HPM_JD#

1
4
3

2
5
6

PN:DFTJ06FR733

Normal Open

AGND

CN31

7

HP Restricted Secret

2

SPKR(9)

SPKOUTR+
SPKOUTR-

EC-SI-29

SPKOUTL­SPKOUTL+

AR13

ALG_BEEPIN_B ALG_BEEP_IN

18K/F_4

AC15
100P/50V_4

AC14 0.1u/25V/X5R_4

AR12
2K/F_4

Internal Speaker (2W, 4 ohm)

AL4 PBY160808T-221Y-N_6
AL3 PBY160808T-221Y-N_6

AC4

1000P/50V_6

AL1 PBY160808T-221Y-N_6
AL2 PBY160808T-221Y-N_6

AC1

1000P/50V_6

Title

Title

Title

Audio ALC3228-CG

Audio ALC3228-CG

Audio ALC3228-CG

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

INT_R_SPK+_1

INT_R_SPK-_1

AC3
1000P/50V_6

INT_L_SPK-_1
INT_L_SPK+_1

AC2
1000P/50V_6

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

AC16
*0.01U/50V_6

CN16

234

1

EX_SPKR_CONN

CN17

1

234

EX_SPKR_CONN

25 56W ednesday, July 29, 2015

25 56W ednesday, July 29, 2015

25 56W ednesday, July 29, 2015

B

B

B

5

LAN (RTL8161GSH) 10/100/1000

LAN (RTL8161GSH) 10/100/1000

LAN (RTL8161GSH) 10/100/1000LAN (RTL8161GSH) 10/100/1000

4

3

2

1

+3.3V(9,10,11,12,13,14,15,22,23,25,27,28,29,31,32,33,34,38,40,42,43,44,48,49,50)
+3.3V_AUX(9,13,25,28,30,34,35,36,42,50)

26

R412 value should be

2.49K (1%)
for all application.

R696 2.49K/F_4

+3.3V_LAN

D D

33

MDI0+
MDI0­VDD10
MDI1+
MDI1­MDI2+
MDI2­VDD10

MDI3+
MDI3­+3.3V_LAN HSIN
CLKREQB

C C

LAN_PCIE_CLKREQ#(12)

BK: reserve

U39

GND

1

MDIP0

2

MDIN0

3

AVDD10(NC)

4

MDIP1

5

MDIN1

6

MDIP2(NC)

7

MDIN2(NC)

8

AVDD10_1

RSET

32

31

30

RSET

AVDD33

AVDD10_2

MDIP3(NC)9MDIN3(NC)

AVDD33(NC)

12

10

11

R342 *0/5%_4

28

27

26

LED0

CKXTAL229CKXTAL1

VDDREG(VDD33)

HSIP13HSIN14REFCLK_P15REFCLK_N

CLKREQB

CLKREQB

25

LED1/GPO

LED2(LED1)

REGOUT(NC)

DVDD10(NC)

LANWAKEB

16

ISOLATEB

PERSTB

HSON
HSOP

X'tal 25MHz

C256 10P/50V_4

2

443

C257 10P/50V_4

Y1

112

XTAL_25MHz_30ppm

BG625000085

3

25M_R

R360 SP_4

25MCLKX1

25MCLKX2

VDD10
25MCLKX2
25MCLKX1
LAN_LED0#
LED1/EEDO
LED2/EESK

24

REGOUT

23

VDD33_REG

22

VDD10

21

PCIE_WAKE#_LAN

20

ISOLATEB

19

LAN_RST#

18

HSON

17

HSOP

RTL8161GSH-CG

HSIP

LAN_RST#

PCIE_WAKE#_LAN

PCIE_WAKE#_LAN

T1
T3
T2

CLKREQB

+3.3V

EMI Suggest

R692
1K/F_4

R693 *15K/F_4

C620 0.1u/25V/X5R_4
C619 0.1u/25V/X5R_4

C618 0.1u/25V/X5R_4
C616 0.1u/25V/X5R_4

+3.3V_LAN

C237 0.1u/25V/X5R_4

5

3

TC7SH08FU

+3.3V_LAN

2

1 3

R354 *0_4

2
1

U20

Q16
DDTC144EUA

4

LAN_LED0#
LED1/EEDO
LED2/EESK

R344 1K/F_4

R690 10K/F_4

C630 *220P/50V/X7R_4
C631 *220P/50V/X7R_4
C629 *220P/50V/X7R_4

+3.3V_LAN

+3.3V

PCIE_GLAN_RX_N (10)
PCIE_GLAN_RX_P (10)

CLK_PCIE_LAN_N (12)
CLK_PCIE_LAN_P (12)
PCIE_GLAN_TX_N (10)
PCIE_GLAN_TX_P (10)

PLTRST_N (10,27,33)

PCH_WAKE# (9,31)

R358
*10K/F_4

LAN_PWR_ON(28)

*0.1u/25V/X5R_4

+3.3V_LAN

EVDD10/AVDD33_REG trace width >40mils

C626

C628

*4.7U/6.3V/X5R_4

EVDD10/N780946/REGOUT trace width >60mils

VDD10

C627

0.1u/25V/X5R_4

0.1u/25V/X5R_4

Close to PIN3, 8, 22, 30

C252

C244

0.1u/25V/X5R_4

EC-PV-E02

B B

A A

0.1U/50V/X7R_6

C622

NS892407_TCT

*BLM8SG700TN1D(70_4A)_6

L39

MDI0+

R353 1/F_6
R350 1/F_6

MDI0-

MDI1+

R347 1/F_6

MDI1-

R341 1/F_6

R338 1/F_6

MDI2+
MDI2-

R335 1/F_6

MDI3+

R330 1/F_6

MDI3-

R325 1/F_6

R695
*0_6

1 2

5

MDI0+_R
MDI0-_R

MDI1+_R
MDI1-_R

MDI2+_R
MDI2-_R

MDI3+_R
MDI3-_R

MDI0+

MDI1+

1
2
3
4
5
6
7
8

9
10
11
12

MDI2+

MDI3+

TCT0
TD0+
TD0­TCT1
TD1+
TD1­TCT2
TD2+
TD2­TCT3
TD3+
TD3-

NS892407

1
2

1
2

U21

U19

CH1

CH4
Vn
CH23CH3

TVL ST23 04 AD0

U22

CH1

CH4
Vn
CH23CH3

TVL ST23 04 AD0

Vp

Vp

MCT0

TX0+

TX0-

MCT1

TX1+

TX1-

MCT2

TX2+

TX2-

MCT3

TX3+

TX3-

+3.3V_LAN

4

TXCT0
RJ45-TX0+
RJ45-TX0­TXCT1
RJ45-TX1+
RJ45-TX1­TXCT2
RJ45-TX2+
RJ45-TX2­TXCT3

RJ45-TX3+

RJ45-TX3-

+3.3V_LAN

10MIL

IN0 10MIL

10MIL

IN1 10MIL

10MIL

IN2 10MIL

10MIL

IN3 10MIL

TXCT1
TXCT0

TXCT3
TXCT2

10MIL

R694 75/F_8

R691 75/F_8

R689 75/F_8

R688 75/F_8

Q34

1
3

Q33

1
3

2

BS4202N-C

2

BS4202N-C

NS892407_MCT

LANGND

LANGND

3

15MIL

C614
10P/3KV_1808

15MIL

LANGND

R312 SP_8
R667 SP_8
L24

HCB1608KF-221T20
C231 0.1U/50V/X7R_6
C219 *0.1U/25V/X5R_4
C249 *0.1U/25V/X5R_4

24
23
22
21
20
19
18
17
16
15
14
13

6

MDI2-

5
4

MDI3-

6

MDI0-

5
4

MDI1-

+3.3V_LAN

EC-A-09

R668 332/F_4

EC-SI-28

LED1/EEDO

EC-SI-28

EC-PV-E02

1000P/50V_4

LANGND

+3.3V_AUX

*4.7U/6.3V/X5R_4

Q18

5

IN_1

4

IN_2

3

ON/OFF

C254

G5243AT11U

0.1u/25V/X5R_4

C615

3V_LAN

OUT
GND

R356 SP_6

C617

0.1u/25V/X5R_4

Close to Pin11Close to Pin32 Close to Pin23

C621

C623

0.1u/25V/X5R_4

0.1u/25V/X5R_4

C624

0.1u/25V/X5R_4

C367,C368
Close to PIN22

C593

LANGND LANGNDLANGND

C204
1000P/50V_4

LANGND LANGNDLANGND LANGND

EC-A-09

R311 332/F_4

C203
1000P/50V_4

C592
1000P/50V_4

2

D37
TVS_AZ5125-01H

1

120mil

2

EC-PV-E02

D12
TVS_AZ5125-01H

D11
TVS_AZ5125-01H

+3.3V_SUS+3.3V_LAN

R355 *0_6

C248
*0.1u/25V/X5R_4

VDD33_REG

C250

0.1u/25V/X5R_4

C245
1U/6.3V/X5R_4

C251

4.7U/6.3V/X5R_4

L40 4.7uH

C253

4.7U/6.3V/X5R_4

REGOUT

C625
*0.1u/25V/X5R_4

LAN Conn

CN26

LED2/EESK
1000M_LED_R

RJ45-TX3­RJ45-TX3+
RJ45-TX1­RJ45-TX2­RJ45-TX2+
RJ45-TX1+
RJ45-TX0­RJ45-TX0+

LED1_R

LAN_LED0#

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

RTL8161/RJ45

RTL8161/RJ45

RTL8161/RJ45

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

12

Y-

11

Y+

8

NC/3-

7

NC/3+

6

RX-/1-

5

NC/2-

4

NC/2+

3

RX+/1+

2

TX-/0-

1

TX+/0+

10

G

G-

9

G+

RJ45-CONN

HP-CRANE

HP-CRANE

HP-CRANE

1

GND1

13

Y

LANGND

B

B

B

26 56Wednesday, July 29, 2015

26 56Wednesday, July 29, 2015

26 56Wednesday, July 29, 2015

5

CARD READER RTD5239-GRT

CARD READER RTD5239-GRT

CARD READER RTD5239-GRTCARD READER RTD5239-GRT

4

3

2

+3.3V(9,10,11,12,13,14,15,22,23,25,26,28,29,31,32,33,34,38,40,42,43,44,48,49,50)

1

MS_INS#

SD_CD#

+3.3V

D D

(10)
(10)
(12)
(12)
(10)
(10)

C C

EC-DB-E32

PCIE_CR_TX_P
PCIE_CR_TX_N
CLK_PCIE_CR_P
CLK_PCIE_CR_N

PCIE_CR_RX_P
PCIE_CR_RX_N

CR_PCIE_CLKREQ#(12)

C235 0.1u/25V/X5R_4
C230 0.1u/25V/X5R_4

C222 0.1u/25V/X5R_4
C221 0.1u/25V/X5R_4

4.7U/10V/X5R_4

R345 10K_4

R237 *0_4

PCIE_TXP_CR_C
PCIE_TXN_CR_C

PCIE_RXP_CR_C
PCIE_RXN_CR_C

C218

5239_CLKREQ#

U18

1

HSIP

2

HSIN

3

REFCLKP

4

REFCLKN

5

HSOP

6

HSON

25

GND

C225

0.1U/25V/X5R_4

24

23

CLKREQ#

RTS5239-GRT

QFN24

AV127RREF83V3_IN9CARD_3V310DV12_S11SP1

AV12

RREF

5239_GPIO

19

20

21

22

SP7

GPIO

PERST#

SD_CD#

MS_INS#

DV33_18

12

R343 10K/F_4

18

SP6

17

SP5

16

SP4

15
14

SP3

13

SP2

EC-A-07

R318

6.2K/F_4

+3.3V 3VCARDIN

EC_PV_E15

R687 SP_4

C217

B B

10U/6.3V/X5R_6

C224

0.1u/25V/X5R_4

C216

4.7U/10V/X5R_4

C228
1U/10V/X5R_4

C223

0.1u/25V/X5R_4

SP7

SP6
SP5
SP4
DV33_18
SP3
SP2

SP1
DV12_S

CARD_3V3

DV12_S

DV33_18

PLTRST_N (10,26,33)

TP77

+3.3V

C612

0.1u/25V/X5R_4

CARD_3V3

40 mils

+

C613
10U/6.3V/X5R_6

27

SD connector

CN28

11

WP/SW

10

CD/SW

8

DATA1

7

DATA0

6

VSS2

5

CLK

4

VDD

3

VSS1

2

CMD

1

DATA3

9

DATA2

CS1S-245-H-N

40 mils

SD_WP
SD_CD#
SD_D1
SD_D0

SD_CLK

SD_CMD
SD_D3
SD_D2

EMI

SD_D1

C213 5.6P/16V_4

A A

SD_D0
SD_CLK
SD_D3
SD_D2

C226 5.6P/16V_4
C227 5.6P/16V_4
C229 5.6P/16V_4
C236 5.6P/16V_4

SD damping resistor

SP1 SD_D1

R317 33_4

SP2 SD_D0

R322 33_4

SP3 SD_CLK

R326 33_4

SP4 SD_CMD

R331 33_4

SP5 SD_D3

R336 33_4

SP6 SD_D2

R339 33_4

SP7 SD_WP

R346 33_4

CARD_3V3

C611

0.1u/25V/X5R_4

EC_DB

5

4

3

PAD1
PAD2
PAD3
PAD4

12
13
14
15

2

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

Card Reader (RTS5239)

Card Reader (RTS5239)

Card Reader (RTS5239)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

27 56Wednesday, July 29, 2015

27 56Wednesday, July 29, 2015

27 56Wednesday, July 29, 2015

5

EC ITE 8528

EC ITE 8528

EC ITE 8528EC ITE 8528

C350

C349

1000P/50V_4

1U/6.3V/X5R_4

+3.3V_AUX

24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

+3.3V +3.3V_RTC

C332

EC-SI-E21

R408 33/J_4
R407 33/J_4
R406 33/J_4
R405 33/J_4

R699 33/J_4

EC-SI-E20

D22 B0530WS
D24 B0530WS

D19 B0530WS

R418
470K_4

PCURST#

C336

0.1u/25V/X5R_4

24

MX2

23

MX4

22

MX1

21

MX7

20

MX3

19

MX0

18

MX6

17

MX5

16

MY4

15

MY1

14

MY3

13

MY5

12

MY6

11

MY7

10

MY8

9

MY9

8

MY10

7

MY14

6

MY11

5

MY2

4

MY0

3

MY12

2

MY13

1

MY15

TP79
TP81

C318

0.1u/25V/X5R_4

F_LAD0_R
F_LAD1_R
F_LAD2_R
F_LAD3_R

EC_L_FRAME#
EC_LPCPD#

EC_SMI#_R
EC_SCI#_R
PCURST#
EC_KBRST#_C

PANEL_SIZE0
PANEL_SIZE1

PANEL_ID0
PANEL_ID1
PANEL_ID2
UART_TX
UART_RX

EC_SCK
EC_CS#
EC_MOSI
EC_MISO

BIOS_WP#

MY0
MY1
MY2
MY3
MY4
MY5
MY6
MY7
MY8
MY9
MY10
MY11
MY12
MY13
MY14
MY15

MX0
MX1
MX2
MX3
MX4
MX5
MX6
MX7

C331

0.1u/25V/X5R_4

10

LAD0

9

LAD1

8

LAD2

7

LAD3

22

LPCRST#/W UI4/GPD2

13

LPCCLK

6

LFRAME#

17

LPCPD#/WUI6/GPE6

126

GA20/GPB5

5

SERIRQ

15

ECSMI#/GPD4

23

ECSCI#/GPD3

14

WRST#

4

KBRST#/GPB6

16

PWUREQ#/BBO/GPC7

119

CRX0/GPC0

123

CTX0/TMA0/GPB2

80

DAC4/DCD0#GPJ4

104

DSR0#GPG6

33

GINT/CTS0#//GPD5

88

PS2DAT1/RTS0#/GPF3

81

DAC5/RIG0#/GPJ5

87

PS2CLK1/DTR0#/GPF2

109

TXD/SOUT0/GPB1

108

RXD/SIN0/GPB0

105

FSCK

101

FSCE#

102

FMOSI

103

FMISO

56

KSO16/SMOSI/GPC3

57

KSO17/SMISO/GPC5

32

PWM6/SSCK/GPA6

100

SSCE0#/GPG2

107

SBUSY/GPG1/ID7

106

GPG0

36

KSO0/PD0

37

KSO1/PD1

38

KSO2/PD2

39

KSO3/PD3

40

KSO4/PD4

41

KSO5/PD5

42

KSO6/PD6

43

KSO7/PD7

44

KSO8/ACK#

45

KSO9/BUSY

46

KSO10/PE

51

KSO11/ERR#

52

KSO12/SLCT

53

KSO13

54

KSO14

55

KSO15

U29
IT8528E/FX

D D

F_LAD0(11,31,33)
F_LAD1(11,31,33)
F_LAD2(11,31,33)
F_LAD3(11,31,33)

(35)

AC_Lost
CK_24M_EC(11)
L_FRAME#(11,31,33)

EC_LPCPD#(11)

EC_SUSPWRACK(9)

SERIRQ(11,33)
EC_SMI#(11)
EC_SCI#(10)

(11)

EC_KBRST#

(24)

LCD_BL_EN

EN_WLAN_PWR(31)

DGPU_PROCHOT_EC#(17)

C C

PANEL_SIZE0(24)

PM_SLP_S0#(9)

PANEL_SIZE1(24)
PANEL_ID0(24)
PANEL_ID1(24)
PANEL_ID2(24)

EC_DPWROK(9)
EC_CRTL(24)

EC_SUSACK#(9)
AVDD_EC_Ctrl(25)

EC Debug

B B

CN27
*EC_88502-2401-24P-L

0.1u/25V/X5R_4

+3.3V +3.3V_AUX_EC

11

114

VCC

VSTBY_126VSTBY_250VSTBY_392VSTBY_4

LPC

CIR

UART port

EXTERNAL SERIAL FLASH

SPI Device

KBMX

KSI0/STB#58KSI1/AFD#59KSI2/INIT#60KSI3/SLIN#61KSI462KSI563KSI664KSI7

+3.3V_AUX_EC_AVCC

+3.3V_RTC

121

3

74

VBAT

AVCC

VSTBY_5

65

4

(For PLL Power)

L29 FCM1005KF-121T03
L27 FCM1005KF-121T03

C313

0.1u/25V/X5R_4

+3.3V_AUX_EC_VSTBY

127

84

82

VSTBY_6

EGAD/WUI25/GPE1

EGCS#/WUI26/GPE283EGCLK/WUI27/GPE3

IT8528E

VSS_1

VSS_227VSS_349VSS_6

VSS_5

VSS_4

1

75

91

122

113

+3.3V_AUX

20

19

99

96

97

94

95

93

HSCK/GPH4/ID4

HMISO/GPH5/ID598HMOSI/GPH6/ID6

L80LLAT/WUI7/GPE7

HSCE#/WUI19/GPH3/ID3

L80HLAT/BAO/WUI24/GPE0

CLKRUN#/WUI16/GPH0/ID0

CTX1/WUI18/GPH2/SMDAT3/ID2

CRX1/WUI17/SMCLK3/GPH1/ID1

GPIO

PWM

WAKE UP

RING#/PWRFAIL#/CK32KOUT/LPCRST#/GPB7

A/D D/A

CLOCK

R426
Short pad_4

VCORE

12

EC_VCCORE

C333

0.1u/25V/X5R_4

AVSS

EC_AVSS

EC_SI2-E14

SMCLK0/GPB3
SMDAT0/GPB4
SMCLK1/GPC1

SMDAT1/GPC2
SMCLK2/WUI22/GPF6
SMDAT2/WUI23/GPF7

PS2CLK0/TMB0/GPF0

SM BUS

PS2DAT0/TMB1/GPF1

PS2CLK2/WUI20/GPF4
PS2DAT2/WUI21/GPF5

PS/2

PWM0/GPA0
PWM1/GPA1
PWM2/GPA2
PWM3/GPA3
PWM4/GPA4
PWM5/GPA5

PWM7/GPA7

TACH0/GPD6

TACH1/TMA1/GPD7

TMR0/WUI2/GPC4
TMR1/WUI3/GPC6

PWRSW/GPE4

RI1#/WUI0/GPD0
RI2#/WUI1/GPD1

ADC4/WUI28/GPI4
ADC5/WUI29/GPI5
ADC6/WUI30/GPI6
ADC7/WUI31/GPI7

C380

0.1u/25V/X5R_4

WUI5/GPE5

ADC0/GPI0
ADC1/GPI1
ADC2/GPI2
ADC3/GPI3

DAC0/GPJ0
DAC1/GPJ1
DAC2/GPJ2
DAC3/GPJ3

CK32KE

CK32K

110

SMBCLK0_EC

111

SMBDATA0_EC

115

DDC_SCL_EC

116

DDC_SDA_EC

117

H_EC_PECI

118
85

EC_PWBTN_OUT#_C

86

PCHHOT#_C

89
90

S4_ON

24

VADJ

25
28
29
30
31

EDID_WE#

34

EC_PROCHOT

47
48

120
124

125

PWRBTN#

18
21

EC_ACIN

35

PCUHOLD

112

66

ALL_SYS_PG

67
68
69
70
71

FUNCTION_ID

72
73

EC_BOARD_ID

76
77
78
79

Use Internal

2
128

PMUX1

EC-PV-E02

3

C442

0.1u/25V/X5R_4

EC-PV-E04

EC-DB-E12

R400
SP_4

TP83

TP13

TP14

+3.3V_AUX_EC

C322

0.1u/25V/X5R_4

D21 B0530WS
D20 B0530WS

EC-PV-E04

Board ID

+3.3V_AUX_EC

R435 DIS@10K_4

+3.3V_AUX_EC

R441 10K_4

C311

0.1u/25V/X5R_4

EC_AUX_ON (36)
MAIN_ON2 (37,43)

EC_SYS_PWROK (9)
EC_PWROK

PM_SLP_S4#
EC_RSMRST#
VR_ON

MAIN_ON1 (43,47)

LAN_PWR_ON (26)

HWPG_SUS (39)

S3_ON (30,37,38,42,43)
PCH_LPC_CLKRUN#

SMBCLK0_EC (9)
SMBDATA0_EC (9)

VR_READY (9,44)

EC_PWBTN_OUT# (9,34)
PCHHOT# (9)
EN_+3.3V_VGA (11,49)

AD_ID
FAN1_PWM (32)
PM_SLP_SUS# (9)
PWR_ON_LED# (32)

EC_PROCHOT (5)
FAN_TAC1 (32)

CLR_CMOS (9)
EC_THROTTLING_CPU

EC_SUS_ON

PWRBTN# (32,33)
PM_SLP_S3# (9,33)

HWPG_AUX

ADATER_ID (35)
SML1ALERT# (32)

PM_SLP_S5# (9)

VGA_OVT (17)
Iout (35)

EC_AMP_MUTE
USB_CTL1 (30)
USB_CTL2 (30)
USB_CTL3 (30)

EC_BOARD_ID

0
1

C310

0.1u/25V/X5R_4

EC_BOARD_ID

FUNCTION_ID

L28

FCM1005KF-121T03

C426

0.1u/25V/X5R_4

(9)
(9,33)
(9,34)
(40,44)

(9)

(35)

(35)

(41,43)

(36)

EC-DB-E13

EC-SI-E18

(25)

R436 UMA@10K_4

Consumer AiO

Crane-UMA
Crane-dGPU

R442 *10K_4

2

+3.3V_AUX

(5,9,10,11,12,13,24,26,31,33,34,35,37,38,39,41,42,43,49)

EC STRAPS

EC_PWBTN_OUT#

EC_SMI#_R

EC_PECI

R414 *4.7K/F_4

EC-SI-E16

H_EC_PECI

Thermal SMBUS

SMBCLK0_EC SMBCLK0_EC_R

Converter SMBUS

DDC_SDA_EC

DDC_SCL_EC

DDC_SDA_EC

DDC_SCL_EC

(9,13,25,26,30,34,35,36,42,50)

R410 10K_4

R401 43.2/1%_4

C314 *47p/50V/NPO_4

+3.3V

Q20
DMN601K-7

2

3

+3.3V

Q21
DMN601K-7

2

3

+3.3V_AUX

Q22

2

*2N7002K

3

R398 SP_4

+3.3V_AUX

Q19

2

*2N7002K

3

R391 SP_4

+3.3V

Q23

2

2N7002K

3

+3.3V

Q24

2

2N7002K

3

+3.3V_SUS

+3.3V_AUX

EC-SI-E17

1

1

1

1

1

1

R381

2.2K/F_4

R382

2.2K/F_4

SMBDATA0_EC_RSMBDATA0_EC

R392
*2.2K/F_4

EC-PV-E02

R393
*2.2K/F_4

EC-PV-E02

R390
*2.2K/F_4

R396
*2.2K/F_4

+3.3V_SUS
+3.3V_AUX
+3.3V(9,10,11,12,13,14,15,22,23,25,26,27,29,31,32,33,34,38,40,42,43,44,48,49,50)
+3.3V_RTC(9,10,13)

EC_ACIN
PANEL_SIZE0
PANEL_SIZE1
PANEL_ID0
PANEL_ID1
PANEL_ID2
EDID_WE#
SMBDATA0_EC
SMBCLK0_EC
DDC_SCL_EC
DDC_SDA_EC

EC_LPCPD#

EC_PECI (5)

EC-PV-E02

R378 SP_4

R394 SP_4

EC-MV-E01

EC-PV-E02

R379 SP_4

R395 SP_4

EC-MV-E01

1

R429 10K/F_4
R45 10K_4
R465 10K_4
R31 10K_4
R43 10K_4
R42 10K_4
R452 *10K_4
R403 *4.7K/F_4
R402 *4.7K/F_4
R385 4.7K/F_4
R397 4.7K/F_4

R425 *10K/F_4

28

+3.3V_AUX

THERM_CLK (32)
MBCLK_GPU (17)

THERM_DAT (32)
MBDATA_GPU (17)

DDC_SDA (24)

To Converter

DDC_SCL (24)

LVDS_SDA (22)

To RT2136

LVDS_SCL (22)

2

D26

+3.3V_AUX

13

SML1ALERT#
EC_RSMRST#

Q26
PDTA124EU_50V_100mA

PCUHOLD

R466
100K/F_4

D25 *TVS_AZ5125-01H
D17 *TVS_AZ5125-01H

2

Hi:
S0: wake-up

Near EC

+3.3V

ALL_SYS_PWRGD circuit

A A

PG_+VDDQ(37,42)
PG_+VCCIO(38,44)
PG_MAIN(38)

PG_DGPU(49)

D28 1N4148WS
D31 1N4148WS
D27 1N4148WS U4

D30 *1N4148WS-7-F

5

R491
10K/F_4

ALL_SYS_PG

ALL_SYS_PG (33)

BK: ALL_SYS_PG--> EC --> VR_ON

EC SPI ROM

EC_CS#
EC_SCK

R34 47_4

EC_MOSI EC_MOSI_R

R35 47_4

EC_MISO

R61 15/F_4

BIOS_WP#

R59 *0_4

4

4.7K/F_4

R60

+3.3V_AUX

EC_SCK_R
EC_MISO_R
BIOS_WP#_R

EC_SCK_R

TP4
TP11

TP12
TP3

EC1

22P/50V_4

1

CE#

VDD

6

SCK

5

SI

2

SO

HOLD#

3

WP#

VSS

W25Q80BVSSIG

SOIC8-8-1_27

8Mbit , SPI

PWRBTN#

PM_SLP_S3#

1N4448WS

8

7
4

4.7K/F_4

EC_SPI_H

R33

C34

1U/25V/X5R_6

ESD

3

Power button

PWRBTN#

R399 8.2k/5%_4

C312 0.01u/50V/X7R_4

+3.3V_AUX

Near connector

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

EC ITE 8528/ FlashROM

EC ITE 8528/ FlashROM

EC ITE 8528/ FlashROM
810606-000

810606-000

810606-000

HP-CRANE

HP-CRANE

HP-CRANE

1

28 56Wednesday, July 29, 2015

28 56Wednesday, July 29, 2015

28 56Wednesday, July 29, 2015

B

B

B

5

(Optional 1: 3DCAM+DMIC)

3D CAM

(10)

CAM_ON

D D

Follow CRB IVCAM

USB3_CAM_RX4N(11)
USB3_CAM_RX4P(11)

(11)

USB3_CAM_TX4N

(11)

USB3_CAM_TX4P

CAM_FW_UPDATE#(11)

C C

CAM_FW_UPDATE# CAM_DET#

C47 0.1u/25V/X5R_4
C45 0.1u/25V/X5R_4

DMIC

U41

EC-SI-E30

1

CH1

2

Vn
CH23CH3

TVL ST23 04 AD0

+5V_SUS

R46 *10K/J_4
R47 *10K/J_4

6

DMIC_DAT_C

CH4

5

Vp

4

DMIC_CLK_CDMIC_DET#

C295

4.7U/10V_6

+3.3V

DMIC_DAT(25)
DMIC_CLK(25)
DMIC_DET#(11)

U26

4

EN
IN_2
IN_1

OUT_2

GND

OUT_1

G547E1P81U

/OC

N/A

3
2
1

EC_PV2_E02

USB3_CAM_TX4N_R
USB3_CAM_TX4P_R

+3.3V

EC-DB-E31

5

Depth + Color = 0.366A
Design = 0.4A

6

20 mil

7
8

R49 SP_4

CML1

1
4 3

*90ohm_400mA

R48 SP_4

R44 *0_4

L5 BLM15AG121SN1D

DMIC_DAT_C
DMIC_CLK_C
DMIC_DET#

4

+5V_CAM

C296

+

10u/6.3V_6

CAM_DET#

2

USB3_CAM_TX4N_C
USB3_CAM_TX4P_C

CAM_FW_UPDATE#

12

C42 4.7U/10V_6

DMIC_DAT_C
DMIC_CLK_C
DMIC_DET#

C44 100p/50V/NPO_4
C48 100p/50V/NPO_4
C49 220p/50V/X7R_4

3D CAM Module

#
1
2
3 USB3_TX+
4 GND
5 USB3_RX­6 USB3_RX+
7 GND
8 FW_UPDATE
9 5V +/- 5%
10 5V +/- 5%

+5V_CAM

C38 0.1u/25V/X5R_4

CN4

1
2
3
4
5
6
7
8
9

10

3D_CAM

DFHS10FR068

50463-0104a-001-10p-l

+3.3V

1
2
3
4
5
6

Description
GND

USB3_TX-

12

1

12

11

2

11
3
4
5
6
7
8
9
10

CN6

7

8

SMD/Wire/6P_AIO

3

Touch Panel

(10)

USB2_TCH_8N

(10)

USB2_TCH_8P

(9)

TP_DETECT#

USB2_TCH_8N_C USB2_TCH_8P_C

LEDs

DC_IN LED

U5

1

CH1

2

Vn
CH23CH3

TVL ST23 04 AD0

CH4

Vp

2

+5V_SUS

6

TP_DETECT#_R

5
4

F1

POLY_8V/1.1A

R53 1K/F_4

L6

2

90ohm_400mA

+5V_TOUCH

12

1
43

60 mil

USB2_TCH_8N_C
USB2_TCH_8P_C

TP_DETECT#_R

2.2U/10V/X5R_4

+5V_TOUCH

+5V_SUS(25,30,32,35,37,39,40,41,42,43,48,49)
+5V_AUX(30,36,42)
+3.3V(9,10,11,12,13,14,15,22,23,25,26,27,28,31,32,33,34,38,40,42,43,44,48,49,50)
+5V(23,24,25,32,35,42,43,44,45,46,48,49,50)

D3
TVS_AZ5125-01H

Normal = 1A
Design = 1.5A

C32

EC3
*2200P/50V_4L4 BLM15AG121SN1D

1

+5V_TOUCH

CN5

1

1

2

2

3

3

4

4

5

5

TOUCH_MODULE

C31
*10u/10V/X5R_6

29

White

(Optional 2: WEBCAM+DMIC)

B B

+3.3V +3.3V_CCD

F3

20 mil

12

POLY_SW 6V/1.1A

F3_2X1_65-2_8

1

USB2_CAM_9P

(10)

USB2_CAM_9N

(10)

WEB_DMIC_CLK(25)
WEB_DMIC_DAT(25)

A A

WEB_DMIC-CLK_C

CAM_DET#(11)

1
2

U1

CH1
Vn
CH23CH3

TVL ST23 04 AD0

5

L2 90ohm_400mA

4 3

L3 BLM15AG121SN1D
L1 BLM15AG121SN1D

R28 1K_4

6

WEB_DMIC-DATA_C

CH4

5

Vp

4

USB2_CAM_9P_CUSB2_CAM_9N_C

2

D16

TVS DIODE

2 1

+3.3V_CCD

Normal = 0.135A
Design = 0.3A

C288 4.7U/10V_6
C287 *1000P/50V/4

+3.3V_CCD

USB2_CAM_9P_C
USB2_CAM_9N_C

WEB_DMIC-CLK_C
WEB_DMIC-DATA_C

CAM_DET#_C

CAM_DET#_C

D2 TVS_AZ5125-01H

4

CN3

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

HEADER_8P

SATA LED

9

G1

G2

10

EC-SI-E26

ESD for 3D CAM

USB3_CAM_RX4N
USB3_CAM_RX4P

USB3_CAM_TX4N_C
USB3_CAM_TX4P_C

USD protection diodes for ESD.

USD protection diodes for ESD.

USD protection diodes for ESD.USD protection diodes for ESD.

as close as possible to USB connector pins.

as close as possible to USB connector pins.

as close as possible to USB connector pins.as close as possible to USB connector pins.

3

LED6 LED_SMD(2P)WHI

PCH_SATA_LED_#(10,34)

U40

1

1

2

2

3

GND_3/8

4

4

5

5

*AZ1045-04F

21

R357 1K/F_4

10

USB3_CAM_RX4N

10

9

USB3_CAM_RX4P

9

7

USB3_CAM_TX4N_C

7

6

USB3_CAM_TX4P_C

6

2

POWER_LED

HDD_ON_LED#_B

R310 330_4

HDD_LED#-D2 HD_LED

13

2

Q17
MMBT3906

+5V_AUX

White

LED7

LED_SMD(2P)WHI

21

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

eDP-LVDS_RTD2136N

eDP-LVDS_RTD2136N

eDP-LVDS_RTD2136N

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

R359
300_6

+5V

B

B

B

29 56Wednesday, July 29, 2015

29 56Wednesday, July 29, 2015

29 56Wednesday, July 29, 2015

5

USB PORT

USB PORT

USB PORTUSB PORT

USB3.0 Charging Port

USB3_CHG_ILMHI
USB3_CHG_ILMLO

USB Charger

D D

100 mils

+5V_AUX
USB2_USB3P_1N(10)
USB2_USB3P_1P(10)

+3.3V_AUX

+3.3V_AUX

USB_CTL1(28)

USB_CTL2(28)
USB_CTL3(28)

C215 0.1u/25V/X5R_4

R315 100K/F_4
R316 *100K/F_4

R320 100K/F_4

R323 100K/F_4
R327 100K/F_4

R329 100K/F_4

USB3_CHG_ILMSEL

U17

1
2
3
4

EN_USB3_CHG

VIN
DM_OUT
DP_OUT
ILIM_SEL

15

14

13

16

17

U17

GND

GNDA

ILIM_HI

FAULT#

ILIM_LO

VOUT

DM_IN

DP_IN

STATUS#

CTL1

CTL2

EN

CTL3

TPS2546RTER

6

7

5

8

4

R321 16.9K/F_4
R324 *16.9K/F_4

12

USB3_VCC2_R

11

USB2_USB3P_1N_R

10

USB2_USB3P_1P_R

9

USB_WAKE#

USB_OC_0# (10,34)

100 mils

R334 SP_6

TP76
TP75

R333 *100K/F_4

+USB3.0_VCC2

EC_PV_E21

+3.3V_AUX

3

+5V_SUS

R332 10k/5%_4
R328 15k/5%_4

SDP : Standard Downstream Port
CDP : Charging downstream port
DCP : Dedicated Charging Port
Enable/Disable : setting by
BIOS

POWER

TPS2546 CHARGING MODE

STATE

CDP LOAD DETECTION WITH ILIM_LO +60MA THRESHOLDS

S0

OR IF A BC1.2 PRIMARY DETECTION OCCURS

AUTO MODE, LOAD DETECTION WITH POWER WAKE THRESHOLDS

S3

AUTO MODE, KEYBOARD/ MOUSE WAKE-UP, LOAD DETECTION

S4/S5

WITH ILIM_LO +60MA THRESHOLDS

USB_OC_0#

+USB3.0_VCC2

+

C246 330u/6.3V
C232 0.1u/25V/X5R_4

C247 470P/50V_4

2

CTRL1 CTRL2

CTRL3 ILIM

1 1 1 1

0 1 1

10 0

USB3_RXN2(11)
USB3_RXP2(11)

USB3_TXN2(11)
USB3_TXP2(11)

1

1

Remove co-lay: R352,R351

EC_PV2_E03

USB2_USB3P_1N_R
USB2_USB3P_1P_R

ESD

USB3_TXP2_C

+USB3.0_VCC2

USB2_USB3P_1N_C
USB3_RXP2

*USB30_ESD_AZ1065-06F.R7G

90ohm_400mA

1

2

4 3

L26

C239 0.1u/25V/X5R_4
C240 0.1u/25V/X5R_4

U24

1

I/O 1

2

VDD

GND_2

3

NC_1

4

I/O 2

5

I/O 3

11

+3.3V_AUX(9,13,25,26,28,34,35,36,42,50)
+5V_SUS(25,29,32,35,37,39,40,41,42,43,48,49)
+5V_AUX(29,36,42)

+USB3.0_VCC2

80 mils

USB2_USB3P_1N_C
USB2_USB3P_1P_C

USB3_RXN2
USB3_RXP2

USB3_TXN2_C
USB3_TXP2_C

10

USB3_TXN2_C

I/O 6

9
8

NC_2

7

USB2_USB3P_1P_C

I/O 5

6

USB3_RXN2

I/O 4
GND_1

USD protection diodes for ESD.

USD protection diodes for ESD.

USD protection diodes for ESD.USD protection diodes for ESD.
as close as possible to USB

as close as possible to USB

as close as possible to USBas close as possible to USB
connector pins.

connector pins.

connector pins.connector pins.

1

USB 3.0 Conn.

CN30

1

VBUS

2

D-

3

D+

4

GND

5

SSRX-

6

SSRX+

7

GND_DRAIN

8

SSTX­SSTX+9S2

USB30_9P

EC-DB-E47

S4
S1

S3

30

13
10

11
12

USB3.0 PORT

USB3.0 Power Switch

U23

C C

S3_ON(28,37,38,42,43)

+5V_SUS

S3_ON

C238

4.7U/10V/X5R_4

3
2
1

4

EN
IN_2
IN_1
GND

G547E1P81U

OUT_2
OUT_1

5

/OC

6

N/A

7
8

USB_OC_1# (10,34)

+USB3.0_VCC1

C255
10u/10V/X5R_6

+5V_SUS

R337 10k/5% _4
R340 15k/5% _4

+USB3.0_VCC1

C243 330u/6.3V
C234 0.1u/25V/X5R_4

C233 470P/50V_4

ESD

USB_OC_1#

+

USB3_TXP1_C

+USB3.0_VCC1

USB2_USB3P_2N_C
USB3_RXP1

*USB30_ESD_AZ1065-06F.R7G

U25

1

I/O 1

10

USB3_TXN1_C

I/O 6

2

VDD

9

GND_2

3

NC_1

8

NC_2

4

I/O 2

7

USB2_USB3P_2P_C

I/O 5

5

I/O 3

6

USB3_RXN1

I/O 4

GND_1

USD protection diodes for ESD.

USD protection diodes for ESD.

USD protection diodes for ESD.USD protection diodes for ESD.
as close as possible to USB

as close as possible to USB

as close as possible to USBas close as possible to USB

11

connector pins.

connector pins.

connector pins.connector pins.

Remove co-lay: R349,R348

(10)

USB2_USB3P_2N
USB2_USB3P_2P(10)

USB3_RXN1(11)
USB3_RXP1(11)

USB3_TXN1(11)
USB3_TXP1(11)

EC_PV2_E03

L25

1

2

4 3

90ohm_400mA

C241 0.1u/25V/X5R_4
C242 0.1u/25V/X5R_4

+USB3.0_VCC1

80 mils

USB2_USB3P_2N_C
USB2_USB3P_2P_C

USB3_RXN1
USB3_RXP1

USB3_TXN1_C
USB3_TXP1_C

USB3.0 Conn

CN29

S4

1

VBUS

S1

2

D-

3

D+

4

GND

5

SSRX-

6

SSRX+

7

GND_DRAIN

8

SSTX­SSTX+9S2

S3

USB30_9P

EC-DB-E47

13
10

11
12

USB2.0 X 2

+5V_S3_F1

+

USB3.0 Power Switch

B B

+5V_SUS

S3_ON

C608

4.7U/10V/X5R_6

4
3
2
1

EN
IN_2
IN_1
GND

G547E1P81U

OUT_2
OUT_1

U37

5

/OC

6

N/A

80MILS

7

+5V_S3_F1

8

C601

0.1u/25V/X5R_4

USB_OC_2# (10,34)

C595

0.1u/25V/X5R_4

USB2.0 X 2

USB3.0 Power Switch

U38

4

S3_ON

C607

3
2
1

4.7U/10V/X5R_6

+5V_SUS

A A

EN
IN_2
IN_1
GND

G547E1P81U

5

OUT_2
OUT_1

5

/OC

6

N/A

80MILS

7

+5V_S3_F2

8

C600

0.1u/25V/X5R_4

USB_OC_4# (10)

C597

0.1u/25V/X5R_4

4

C220 150U/6.3V_3528
C598 0.1u/25V/X5R_4

C599 470P/50V_4

1 2

D38 *PESD5V0U1BB

+5V_S3_F1

+

C605 150U/6.3V_3528
C212 0.1u/25V/X5R_4

C209 470P/50V_4

Layout:

1. All caps Near to Connector

2. Place D40 near CN21 and CN22

+5V_S3_F2

+

C594 150U/6.3V_3528
C210 0.1u/25V/X5R_4

C211 470P/50V_4

1 2

D39 *PESD5V0U1BB

+5V_S3_F2 +5V_S3_F2

+

C214 150U/6.3V_3528
C604 0.1u/25V/X5R_4

C603 470P/50V_4

Layout:

1. All caps Near to Connector

2. Place D41 near CN23 and CN24

+5V_SUS

U36

1

1

2

2

3

GND_3/8

4

4

5

5

*AZ1045-04F

1
2
3
4
5

USB_OC_2#

USB_OC_4#

U35

1
2
GND_3/8
4
5

*AZ1045-04F

10

9
7

6

10

10

USB2_USB2P_4P_C

9

USB2_USB2P_4N_C

7

USB2_USB2P_6N_C

6

USB2_USB2P_6P_C

10
9

9

7

7

6

6

R674 10k/5% _4
R675 15k/5% _4

ESD

USB2_USB2P_4P_C
USB2_USB2P_4N_C

USB2_USB2P_6N_C
USB2_USB2P_6P_C

USD protection diodes for ESD.

USD protection diodes for ESD.

USD protection diodes for ESD.USD protection diodes for ESD.
as close as possible to USB connector pins.

as close as possible to USB connector pins.

as close as possible to USB connector pins.as close as possible to USB connector pins.

+5V_SUS

R680 10k/5%_4
R684 15k/5%_4

USB2_USB2P_5P_C
USB2_USB2P_5N_C USB2_USB2P_5N_C

USB2_USB2P_3N_C
USB2_USB2P_3P_C

USD protection diodes for ESD.

USD protection diodes for ESD.

USD protection diodes for ESD.USD protection diodes for ESD.
as close as possible to USB connector pins.

as close as possible to USB connector pins.

as close as possible to USB connector pins.as close as possible to USB connector pins.

3

USB2_USB2P_5P_C

USB2_USB2P_3N_C
USB2_USB2P_3P_C

EC-DB-E14

EC-DB-E14

EC-DB-E14

EC-DB-E14

2

(10)

USB2_USB2P_6N

(10)

USB2_USB2P_6P

(10)

USB2_USB2P_4N

(10)

USB2_USB2P_4P

(10)

USB2_USB2P_3N

(10)

USB2_USB2P_3P

(10)

USB2_USB2P_5N

(10)

USB2_USB2P_5P

Remove co-lay: R663,R662

Remove co-lay: R664,R665

Remove co-lay: R659,R660

Remove co-lay: R658,R657

EC_PV2_E03

L36

4 3
1

90ohm_400mA

EC_PV2_E03

L37

1
4 3

90ohm_400mA

EC_PV2_E03

L35

1
4 3

90ohm_400mA

EC_PV2_E03

L34

4 3
1

90ohm_400mA

HP Restricted Secret

Title

Title

Title

USB2.0/USB3.0 Conn

USB2.0/USB3.0 Conn

USB2.0/USB3.0 Conn

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

40 mils

+5V_S3_F1

+5V_S3_F2

USB2.0 Conn

1
2
3
4

40 mils

1
2
3
4

40 mils

1
2
3
4

40 mils

1
2
3
4

HP-CRANE

HP-CRANE

HP-CRANE

1

+5V_S3_F1

USB2_USB2P_6N_C

2

USB2_USB2P_6P_C

2

USB2_USB2P_4N_C
USB2_USB2P_4P_C

2

USB2_USB2P_3N_C
USB2_USB2P_3P_C

USB2_USB2P_5N_C

2

USB2_USB2P_5P_C

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

CN22

VBUS
D­D+
GND

USB2.0_4P

CN23

VBUS
D­D+
GND

USB2.0_4P

CN25

VBUS
D­D+
GND

USB2.0_4P

CN24

VBUS
D­D+
GND

USB2.0_4P

5

S1

7

S3

8

S4

6

S2

5

S1

7

S3

8

S4

6

S2

5

S1

7

S3

8

S4

6

S2

5

S1

7

S3

8

S4

6

S2

B

B

B

30 56W ednesday, July 29, 2015

30 56W ednesday, July 29, 2015

30 56W ednesday, July 29, 2015

5

4

3

2

1

NGFF M2 Socket

L8

1

USB2_WLAN_7P

(10)

USB2_WLAN_7N

(10)

D D

(10)

PCIE_WLAN_TX_P

(10)

PCIE_WLAN_TX_N

EC-SI2-E17

EC-PV-E02

PCIE_WLAN_RX_P

(10)

PCIE_WLAN_RX_N

(10)

CLK_PCIE_WLAN_P(12)
CLK_PCIE_WLAN_N(12)

WLAN_PCIE_CLKREQ#(12)

C C

CK_24M_DEBUG(11)
L_FRAME#(11,28,33)

EC-SI2-E01

2

90ohm_400mA

C97 0.1u/16V/X5R_4
C96 0.1u/16V/X5R_4

R701 SP_4

L41 *90ohm_400mA

4 3
1

2

R700 SP_4

2 1

D33 *1SS355

For EMI

C91 *22P/50V_4

R115 Short pad_4
R114 33/J_4

43

USB2_WLAN_7P_C
USB2_WLAN_7N_C

PCIE_WLAN_TX_P_C
PCIE_WLAN_TX_N_C

PCIE_WLAN_RX_P_C
PCIE_WLAN_RX_N_C

M.2_WLAN_CLKREQ#
M.2_WLAN_WAKE#

CK_24M_DEBUG_R
L_FRAME#_R

EC-SI-E21

M.2 WLAN WAKE# M.2_BT_OFF# M.2_WLAN_OFF#

B B

M.2_WLAN_WAKE#

+3.3V_WLAN +3.3V_WLAN

R498

10K/F_4

2

1 3

R497 *0_4

Q29
DDTC144EUA

PCH_WAKE# (9,26)

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
53
55
57
59
61
63
65
67
69
71
73
75

H=9.0

CN9

NGFF

GND

Slot-A SD

USB_D+
USB_D­GND
SDIO CLK(O)(0/1.8V)
SDIO CMD(IO)(0/1.8V)
SDIO DAT0(IO)(0/1.8V)
SDIO DAT1(IO)(0/1.8V)
SDIO DAT2(IO)(0/1.8V)
SDIO DAT3(IO)(0/1.8V)
SDIO Wake(I)(0/1.8V)
SDIO Reset(O)(0/1.8V)
Key
Key
Key
Key
GND
PERp0
PERn0
GND
PETp0
PETn0
GND
REFCLKP0
REFCLKN0
GND
CLKREQ0#(0/3.3V)
PEWake0#(0/3.3V)
GND
Reserved/PETp1
Reserved/PETn1
GND
Reserved/PERp1
Reserved/PERn1
GND
RESERVED
RESERVED
GND

M.2_BT_OFF# M.2_WLAN_OFF#

L : BT ON
H : BT OFF

BT_RF_OFF(10) WLAN_OFF(12)

+3.3V_WLAN

2

3.3Vaux

4

3.3Vaux

GND

Key
Key
Key
Key

3.3Vaux

3.3Vaux

R481
10k/5%_4

3

6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
74

2

LED#1 (OD)

PCM_CLK (0/1.8V)

PCM_SYNC (0/1.8V)

PCM_IN (0/1.8V)

PCM_OUT (0/1.8V)

LED#2 (OD)

UART Wake(0/3.3V)

UART Rx (0/1.8V)

UART Tx (0/1.8V)
UART CTS (0/1.8V)
UART RTS (0/1.8V)

RESERVED
RESERVED

RESERVED
COEX3(?)(0/1.8V)
COEX2(?)(0/1.8V)
COEX1(?)(0/1.8V)

SUSCLK(32kHz)(0/3.3V)

PERST0#(0/3.3V)

W_Disable#2(0/3.3V)
W_Disable#1(0/3.3V)

I2C DATA(0/3.3)

I2C CLK(0/3.3)

ALERT(0/3.3)

RESERVED

RESERVED

RESERVED

RESERVED

WiFi/BT_NGFF_CONN

+3.3V_WLAN +3.3V_WLAN

LED#1

LED#2

SUSCLK_WLAN_
M.2 WLAN_RST#
M.2_BT_OFF#
M.2_WLAN_OFF#

F_LAD0_D
F_LAD1_D
F_LAD2_D
F_LAD3_D

1

Q28
PJA138K/50V_0.5A

CRB

R90 33/5%_4
R475 SP_4

EC_PV_E02

EC-SI-E21

R456 33/J_4
R455 33/J_4
R454 33/J_4
R453 33/J_4

L : WLAN ON
H : WLAN OFF

+3.3V_SUS(5,9,10,11,12,13,24,26,28,33,34,35,37,38,39,41,42,43,49)
+3.3V(9,10,11,12,13,14,15,22,23,25,26,27,28,29,32,33,34,38,40,42,43,44,48,49,50)

M.2_WLAN_CLKREQ#

LED#1
LED#2

LED1: WLAN_LED_N
LED2: BT_LED_N

PCH_SUSCLK (9)
PLTRST_N_BUF (10,16)

PLTRST_N_BUF: follow CRB

F_LAD0 (11,28,33)
F_LAD1 (11,28,33)
F_LAD2 (11,28,33)
F_LAD3 (11,28,33)

R483
10k/5%_4

3

Q27

2

PJA138K/50V_0.5A

1

R496 10K_4

R98 *10K_4
R94 *10K_4

31

+3.3V

+3.3V_WLAN

NGFF M2_power(S5)

+3.3V_SUS +3.3V_SUS

Normal = 1,100 mA
Peak(MAX) 2,750 mA

EC_PV_E02

R433 SP_8

R409
*10K/F_4

A A

EN_WLAN_PWR(28)

C328
*0.1u/25V/X5R_4

5

C330

0.1u/25V/X5R_4

Q25

5

IN_1

4

IN_2

3

ON/OFF

*G5243AT11U

OUT

GND_1

4

1
2

+3.3V_WLAN

120mil

+3.3V_WLAN

C389 10u/6.3V/X5R_6
C433 *10u/6.3V/X5R_6
C378 0.1u/25V/X5R_4
C384 0.01u/50V/X7R_4
C434 0.01u/50V/X7R_4

Near Pin2 / Pin4

+3.3V_WLAN

C383 10u/6.3V/X5R_6
C388 *10u/6.3V/X5R_6
C361 0.1u/25V/X5R_4
C370 0.01u/50V/X7R_4
C351 0.01u/50V/X7R_4

Near Pin72 / Pin74

3

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

NGFF M.2 WLAN

NGFF M.2 WLAN

NGFF M.2 WLAN

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

31 56Wednesday, July 29, 2015

31 56Wednesday, July 29, 2015

31 56Wednesday, July 29, 2015

1

+3.3V(9,10,11,12,13,14,15,22,23,25,26,27,28,29,31,33,34,38,40,42,43,44,48,49,50)

SATA HDD

HDD SATA Conn.

CN10

D D

9

GND

8

GND

SATA-HDD_CONN

DIP_H type

SATA-HDD-PWR

C C

CN7

GND3

RXP

RXN

GND2

TXN
TXP

GND1

1
2
3
4

7
6
5
4
3
2
1

SATA_TXP0_C
SATA_TXN0_C

SATA_RXN0_C
SATA_RXP0_C

C324
*47U/6.3V/X5R_8

C308
*47U/25V/X5R_8

C82 0.01U/50V/X7R_4
C84 0.01U/50V/X7R_4

C93 0.01U/50V/X7R_4
C94 0.01U/50V/X7R_4

C323
*4.7u/25V_8

C309
*4.7U/25V/X5R_8

+5V_HDD

C329

0.1U/25V/X5R_4

+12V_HDD

C320

0.1U/25V/X5R_4

SATA_TX0_P (10)
SATA_TX0_N (10)

SATA_RX0_N (10)
SATA_RX0_P (10)

120 mils

C347
10U/10V/X5R_8

120 mils

C307

10U/25V/X5R_8

R427 SP1206

D23

EC_PV_E19

TVS_AZ5125-01H

R404 SP1206

EC_PV_E02

D18

*TVS_AZ5125-01H

+5V

+12V

SATA ODD

B B

ODD SATA Conn.

sata-c12712-10704-l-7p-r

9

GND

8

GND

SATA-ODD

DFHS07FR023

CN11

GND3

GND2

GND1

RXP

RXN

TXN
TXP

7
6
5
4
3
2
1

SATA_TXP1_C

SATA_TXN1_C
SATA_RXN1_C

SATA_RXP1_C

C130 0.01U/50V/X7R_4
C131 0.01U/50V/X7R_4

C134 0.01U/50V/X7R_4
C135 0.01U/50V/X7R_4

SATA_TX1_P (10)
SATA_TX1_N (10)

SATA_RX1_N (10)
SATA_RX1_P (10)

SYSTEM FAN

+3.3V

R362

3.3K/F_4

FAN_TAC1(28)

12v *6.2/(3.3+15+6.2)
=3.03 v

C258
*0.1u/25V/X5R_4

THERMAL SENSOR

THERM_CLK(28)
THERM_DAT(28)

<check list>
Layout Note:Routing 10:10 mils and away
from noise source with ground gard

R204 10K_4

SML_ALT

R203 SP_4

SML_ALT

EC_PV_E02

8
7
6
5

Power Button.

PWRBTN#(28,33)
PWR_ON_LED#(28)

D8

TVL_0402 _01_AB1

FAN1_PWM(28)

EC_PV_E02

EMI reserve

FAN1_PWM
FAN1_SENSE

+3.3V

R234 1/F_6

SMCLK
SMDATA

-ALT
GND

G781-1P8

Ambient

R361 SP_4
R1 SP_4

+5V

20mil

EC18 120P/50V_4
EC17 120P/50V_4

+3.3V_THM

U10

1

VCC

2

DXP

3

DXN

4

-OVT

ALT

20mil

+5V_SUS

D7
TVL_0402 _01_AB1

C171 0.1u/25V/X5R_4

ALT

R205 UMA@10K_4

R206 SP_4

EC-MV-E01

POLY_8V/1.1A

+5V_SUS(25,29,30,35,37,39,40,41,42,43,48,49)
+5V(23,24,25,29,35,42,43,44,45,46,48,49,50)
+12V(47,50)

EC_PV2_E01

FAN1_PWM
FAN1_SENSE
+5V_FAN

C2

4.7U/10V/X5R_6

C168

1000P/50V_4

+3.3V+3.3V

Power Button CONN

F2

+5V_SUS_PWR

12

PWRBTN#
PWR_ON_LED#

32

FAN CONN

CN1

1
2
3
4

FAN_Conn.

GPU_THERMDA (17)

GPU_THERMDC (17)

VGA_ALERT (17)SML1ALERT# (28)

CN13

4
3
2
1

POWER_B

A A

CN14

1
2
3
4

SATA-ODD-PWR

50273-0047n-001-4p-l
DFHD04MR155

C569
22U/10V/X5R_8

C568
68P/50V_4

+5V_ODD

C567

0.1U/25V/X5R_4

120 mils

C574
10U/10V/X5R_8

R561 SP1206

EC_PV_E02

D35
*TVS_AZ5125-01H

+5V

1

EC-SI-E19

EMI reserve

+5V_SUS

PWRBTN#
PWR_ON_LED#

EC6 220P/50V_4

EC5 220P/50V_4
EC4 220P/50V_4

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

FAN/HDD/ODD/HDD CONN.

FAN/HDD/ODD/HDD CONN.

FAN/HDD/ODD/HDD CONN.

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

B

B

B

32 56Wednesday, July 29, 2015

32 56Wednesday, July 29, 2015

32 56Wednesday, July 29, 2015

5

PCA debug LED requirement:

PM_SLP_S4#_1

3

D D

PM_SLP_S4#(9,28)

PM_SLP_S3#(9,28)

C C

ALL_SYS_PG(28)

PCH_SYSPWROK(9,34)

B B

H_CATERR#(5)

2

Q5
*PROTO@DMN601K-7

1

PM_SLP_S3#_1

3

2

Q8
*PROTO@DMN601K-7

1

3

2

Q3
*PROTO@DMN601K-7

1

3

2

Q9
*PROTO@DMN601K-7

1

H_CATERR_N_LED

3

Q7 *PROTO@AO3413

Q4

1

2

H_CATERR_N-QC

2

H_CATERR_N-QB

*PROTO@MMBT3904

1 3

LED3

2 1

GREEN

*PROTO@19-213SYGC/S313/TR8

VF=1.75~2.35@IF=20mA

LED5

2 1

GREEN

*PROTO@19-213SYGC/S313/TR8

VF=1.75~2.35@IF=20mA

LED1

21

ALL_SYS_PG_2ALL_SYS_PG_1

GREEN

*PROTO@19-213SYGC/S313/TR8

LED4

21

PCH_SYSPWROK_2PCH_SYSPWROK_1

GREEN

*PROTO@19-213SYGC/S313/TR8

Red LED

LED2

Caterr# (IERR#)

2 1

H_CATERR_N_LED1

*PROTO@17-215SDRC

*PROTO@10K/F_4

*PROTO@10K/F_4

R73

R72

4

R93 *PROTO@1K/F_4

R112 *PROTO@1K/F_4

R89 *PROTO@470_4

R96 *PROTO@470_4

R79 *PROTO@1.2K_4

+3.3V

+3.3V_SUS

+VCCST_VCCPLL

+3.3V_SUS

+3.3V_SUS

+3.3V

+3.3V

3

TPM2.0

EC_PV_E07

SPI_CS2#(10)
SPI_CLK(10)
SPI_MOSI(9,10,34)
SPI_MISO(9,10)
SPI_TPM_PIRQ(11)
PLTRST_N(10,26,27)

TPM_CS2#
TPM_GPIO

TPM_PP

R279 *0_4
R278 *33_4
R269 *33_4
R257 *33_4
R285 *0_4

R272 *2.2k/5%_4

R241 *4.7K/F_4
R239 *0_4

R244 *4.7K/F_4

LPC HEADER

L_FRAME#(11,28,31)
F_LAD3(11,28,31)

F_LAD0

(11,28,31)

L_FRAME#
F_LAD3

F_LAD0
PLTRST_N

TPM_CS2#
TPM_CLK
TPM_SI
TPM_SO
TPM_PIRQA#
PLTRST_N
TPM_GPIO
TPM_PP

+3.3V_SUS

2

SPI TPM2.0

U12

20

CS#

19

SCLK

21

MOSI

24

MISO

18

PIRQ#

17

RST#

6

GPIO

7

PP

3

NC

4

NC

5

NC

10

NC

11

NC

12

NC

13

NC

14

NC

15

NC

16

NC

*SLB9670TT2.0

+3.3V

1

2

3

4

5

6
8

9

10

11

12

13

14

CN19

*PHOTO@LPC-7Px2_2.54mm-13p

VDD
VDD
VDD

GND
GND
GND
GND

NC
NC
NC
NC
NC
NC
NC

1
8
22

2
9
23
32

25
26
27
28
29
30
31

SERIRQ
F_LAD1

F_LAD2

+3.3V_SUS(5,9,10,11,12,13,24,26,28,31,34,35,37,38,39,41,42,43,49)
+3.3V(9,10,11,12,13,14,15,22,23,25,26,27,28,29,31,32,34,38,40,42,43,44,48,49,50)
+5V(23,24,25,29,32,35,42,43,44,45,46,48,49,50)
+VCCST_VCCPLL(5,7,9,34,42,43,44)

+3.3V_SUS

+3.3V_SUS

C183 *1u/10V/X5R_4
C174 *0.1u/25V/X5R_4
C175 *0.1u/25V/X5R_4

0.1uf near to VDD/GND

SERIRQ (11,28)
F_LAD1 (11,28,31)

F_LAD2
PCH_SMI#
CK_24M_LPC (11)

CHECK PCH_SMI#

(11,28,31)
(11)

1

33

SW1 For Debug.MP will remove it.

PWRBTN#(28,32)

A A

5

SW1
*PROTO@MSK-NTC016-AA1G-A160T

12
34

4

3

2

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

Debug /LPC Header/TPM

Debug /LPC Header/TPM

Debug /LPC Header/TPM

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

33 56Wednesday, July 29, 2015

33 56Wednesday, July 29, 2015

33 56Wednesday, July 29, 2015

5

XDP (CPU)

XDP_PCUDEBUG_3(5)

PD_TEST_CPU_0(5)

D D

PD_TEST_CPU_1(5)
PD_TEST_CPU_2(5)

PD_TEST_CPU_3(5)
SKL_XDP_BPM_0(5)

SKL_XDP_BPM_1(5)
PD_TEST_CPU_4(5)

PD_TEST_CPU_5(5)
PD_TEST_CPU_6(5)

PD_TEST_CPU_7(5)

EC_PV_E04

SMBDATA_PCH_MAIN(9,14,15)
SMBCLK_PCH_MAIN(9,14,15)

H_TCK(5)

C C

R108 *0_4

H_PREQ#
H_PRDY#

XDP_HOOK0
XDP_HOOK1

XDP_HOOK2
XDP_HOOK3

PCH_JTAG_TCK_R
H_TCK

CN8

1

31

31

3

32

32

5

33

33

7

34

34

9

35

35

11

36

36

13

37

37

15

38

38

17

39

39

19

40

40

21

41

41

23

42

42

25

43

43

27

44

44

29

45

45

31

46

46

33

47

47

35

48

48

37

49

49

39

50

50

41

51

51

43

52

52

45

53

53

47

54

54

49

55

55

51

56

56

53

57

57

55

58

58

57

59

59

59

60

60

*SEC_BSH-030-01-L-D-A-TR

R3008: STUFF FOR MERGED XDP

4

EC-DB-E15

GND
OBSFN_A0
OBSFN_A1
GND
OBSDATA_A_0
OBSDATA_A_1
GND
OBSDATA_A_2
OBSDATA_A_3
GND
OBSFN_B0
OBSFN_B1
GND
OBSDATA_B_0
OBSDATA_B_1
GND
OBSDATA_B_2
OBSDATA_B_3
GND
HOOK0
HOOK1
VCC_OBS_AB VCC_OBS_CD
HOOK2
HOOK3
GND
SDA
SCL
TCK1
TCK0
GND

GND_XDP_PRESENT

OBSFN_C0
OBSFN_C1

OBSDATA_C_0
OBSDATA_C_1

OBSDATA_C_2
OBSDATA_C_3

OBSFN_D_0
OBSFN_D_1

OBSDATA_D_0
OBSDATA_D_1

OBSDATA_D_2
OBSDATA_D_3

ITPCLK/HOOK4

ITPCLK#/HOOK5

RESET#/HOOK6

DBR#/HOOK7

TRSTn

GND

GND

GND

GND

GND

GND

GND

GND
TDO

TDI
TMS

3

2

30

30

4

29

29

6

28

28

8

27

27

10

26

26

12

25

25

14

24

24

16

23

23

18

22

22

20

21

21

22

20

20

24

19

19

26

18

18

28

17

17

30

16

16

32

15

15

34

14

14

36

13

13

38

12

12

40

11
10
9
8
7
6
5
4
3
2
1

CLK_CPU_XDP_P_R
CLK_CPU_XDP_N_R

XDP_HOOK6
SYS_RST#

H_TDI
H_TMS
XDP_PRS

R92 *0_4

11

42

10

44

9

46

8

48

7

50

6

52

5

54

4

56

3

58

2

60

1

EC_PV_E08

EC_PV_E04

R460 *0_4
R448 *0_4

R57 *0_4

R91 SP_4

EC_PV2_E02

SKL_PCUSTB_0_DP (5)
SKL_PCUSTB_0_DN (5)

PD_TEST_CPU_8 (5)
PD_TEST_CPU_9 (5)

PD_TEST_CPU_10 (5)
PD_TEST_CPU_11

SKL_PCUSTB_1_DP
SKL_PCUSTB_1_DN

PD_TEST_CPU_12 (5)
PD_TEST_CPU_13 (5)

PD_TEST_CPU_14 (5)
PD_TEST_CPU_15 (5)

CLK_CPU_XDP_P
CLK_CPU_XDP_N

CPU_RESET# (5,10)
SYS_RST# (9)

H_TDO (5)
H_TRST# (5,12)
H_TDI (5)
H_TMS (5)
SPI_IO2 (9,10)

EC_SI2-E19 Remove R85

XDP_HOOK0

XDP_HOOK2 PD_TEST_CPU_0

(5)
(5)

(5)

XDP_HOOK1

CRB 1.0

(12)
(12)

+1.0V_SUS+1.0V_SUS

SPI_MOSI(9,10,33)
PCH_SYSPWROK(9,33)

2

R67 1K_4
R65 *1K_4
R63 *1K_4

R54 150/F_4
R55 1K_4

R71 *1K_4
C59 *0.1u/25V/X5R_4

R70 *0/5%_4

EC_RSMRST#

EC_PV_E08

H_TCK

STUFF FOR MERGED XDP

EC_PV_E02

R86 SP_4

EC_PV2_E02

R166 SP_4

EC_SI2-E15

R76 *1K_4
R75 *0/5%_4

+VCCIO

+3.3V_AUX

(13,39,42,43)

(5,7,9,33,42,43,44)

VCCST_PWRGD (5,9)

H_PWRGD (5,9)

EC_PWBTN_OUT# (9,28)

XDP_HOOK6ITP_PMODE

XDP_HOOK3

+1.0V_SUS
+VCCST_VCCPLL
+3.3V_SUS_SPI(9,10)

H_TDO

R58 *51/F_4

NEAR XDP CONNECTOR

SYS_RST#

+VCCST_VCCPLL

R84 *1K_4

PCH_JTAGX (9)

R56 2.2k/5%_4

R77 2.2k/5%_4
C70 *0.1u/25V/X5R_4

+1.0V_SUS

+3.3V_SUS_SPI

1

34

+VCCST_VCCPLL

EC-SI2-E18

C413 0.1u/25V/X5R_4

XDP (PCH)

PCH_XDP_PREQ#

TP60
TP70

TP69

PCH_XDP_PRDY#

VISACH1_D0_R

VISACH1_D1_R
VISACH1_D2_R

VISACH1_D3_R
PCH_XDP_21

PCH_XDP_23
VISACH1_D4_R

VISACH1_D5_R
VISACH1_D6_R

VISACH1_D7_R
XDP_RSMRST_R

XDP_PWRBTNB
XDP_45

SPI0_MOSI_XDP_C
SMBDATA_PCH_MAIN

SMBCLK_PCH_MAIN
PCH_JTAG_TCK_R
XDP_57

EC_PV_E04

VISACH1_D0(10)
PCH_GPP_E_2(10)

PCH_GPP_E_3(10)
PCH_GPP_E_4(11)

B B

PCH_GPP_E_5(11)
PCH_GPP_E_6(11)

PCH_GPP_E_7(10)
PCH_SATA_LED_#(10,29)

EC_RSMRST#(9,28)

+1.0V_SUS +1.0V_SUS

SPI0_MOSI_XDP(10)

R249 *0_4
R250 *0_4

R251 *0_4

R252 *0_4
R253 *0_4

R254 *0_4
R255 *0_4

R256 1K_4

EC-SI2-E18

R606 *0_4

EC_PV_E08

PCH_JTAG_TCK(9)

R261 *0_4

TP62

CN15

GND

1

31

31

OBSFN_A0

3

32

32

OBSFN_A1

5

33

33

GND

7

34

34

OBSDATA_A_0

9

35

35

OBSDATA_A_1

11

36

36

GND

13

37

37

OBSDATA_A_2

15

38

38

OBSDATA_A_3

17

39

39

GND

19

40

40

OBSFN_B0

21

41

41

OBSFN_B1

23

42

42

GND

25

43

43

OBSDATA_B_0

27

44

44

OBSDATA_B_1

29

45

45

GND

31

46

46

OBSDATA_B_2

33

47

47

OBSDATA_B_3

35

48

48

GND

37

49

49

HOOK0

39

50

50

HOOK1

41

51

51

VCC_OBS_AB VCC_OBS_CD

43

52

52

HOOK2

45

53

53

HOOK3

47

54

54

GND

49

55

55

SDA

51

56

56

SCL

53

57

57

TCK1

55

58

58

TCK0

57

59

59

GND

59

60

60

*SEC_BSH-030-01-L-D-A-TR

EC-DB-E15

OBSFN_C0
OBSFN_C1

OBSDATA_C_0
OBSDATA_C_1

OBSDATA_C_2
OBSDATA_C_3

OBSFN_D_0
OBSFN_D_1

OBSDATA_D_0
OBSDATA_D_1

OBSDATA_D_2
OBSDATA_D_3

ITPCLK/HOOK4

ITPCLK#/HOOK5

RESET#/HOOK6

DBR#/HOOK7

TRSTn

GND_XDP_PRESENT

stuff for no meraged XDPstuff for no meraged XDP

GND

2

30

30

4

29

29

6

28

GND

8

27

10

26

12

25

GND

14

24

16

23

18

22

GND

20

21

22

20

24

19

GND

26

18

28

17

30

16

GND

32

15

34

14

36

13

GND

38

12

40

11

42

10

44

9

46

8

48

7

GND

50

6

TDO

52

5

54

4

TDI

56

3

TMS

58

2

60

1

VISACH1_CLK_R

28

VISACH2_CLK_R

27
26

VISACH2_D0_R

25

VISACH2_D1_R

24
23

VISACH2_D2_R

22

VISACH2_D3_R

21
20

PCH_XDP_22

19

PCH_XDP_24

18
17

VISACH2_D4_R

16

VISACH2_D5_R

15
14

VISACH2_D6_R

13

VISACH2_D7_R

12
11
10

PCH_XDP_42

9

+VCC_OBS_CD_PCH

8

ITP_PMODE_PCH_XDP

7

XDP_DBRESET#

6
5

PCH_JTAG_TDO_R

4

XDP_PCH_TRST#

3

PCH_JTAG_TDI_R

2

PCH_JTAG_TMS_R

1

PCH_XDP_PRSNT_R SPI_IO2

R220 *0_4

TP37
TP34

TP127

TP124

R208 *0_4
R209 *0_4

R210 *0_4
R211 *0_4

R212 *0_4
R213 *0_4

R216 *0_4
R217 *0_4

R201 SP_6
R170 *0_4

R171 *0_4
R221 *0_4

R222 *0_4
R174 1K_4

EC_PV_E04

EC_PV_E02

VISACH1_CLK_SATA_PCIE_SEL0(10)
PCH_GPP_F_4 (10)

USB_OC_0# (10,30)
USB_OC_1# (10,30)

USB_OC_2# (10,30)
VISACH2_D3 (9,10)

PCH_GPP_F_0 (10)
PCH_GPP_F_1 (10)

PCH_GPP_F_2 (10)
PCH_GPP_F_3 (10)

ITP_PMODE (9)

PCH_JTAG_TDO
PCH_JTAG_TDI (9)

PCH_JTAG_TMS (9)

(9)

XDP_PWRBTNB

CRB 1.0

SYS_RST#

R602
*0/5%_4

MERGED XDP

H_PREQ#(5)
PCH_XDP_PREQ#_R(12)

H_PRDY#(5)
PCH_XDP_PRDY#_R(12)

R598 *1K_4
C579 *0.1u/25V/X5R_4

R613 *0/5%_4

EC_PV_E08

R601 1k/5%_4
C580 0.1u/25V/X5R_4

XDP_DBRESET#

EC_PV2_E02

R266 SP_4

R267 SP_4

H_TMS PCH_JTAG_TMS

H_TDO PCH_JTAG_TDO

+3.3V_AUX

SPI0_MOSI_XDP_C

EC_PWBTN_OUT#

+3.3V

ITP_PMODE_PCH_XDP
PCH_JTAG_TDO_R

PCH_JTAG_TCK

R246 *0/5%_4

R247 *0/5%_4

R175 SP_4
R173 SP_4
R167 SP_4

stuff for merged XDP

Leakage

+3.3V_SUS

R607 1K_4

R218 1K_4
R219 *51/5%_4

R268 *51/5%_4

PCH_XDP_PREQ#

PCH_XDP_PRDY#

PCH_JTAG_TDIH_TDI

+1.0V_SUS

HP Restricted Secret

A A

Title

Title

Title

XDP DEBUG

XDP DEBUG

XDP DEBUG

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

5

4

3

2

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

34 56Wednesday, July 29, 2015

34 56Wednesday, July 29, 2015

34 56Wednesday, July 29, 2015

B

B

B

5

CONFIDENTIAL

PL20

HCB2012KF800T50_0805

PJ1
POWER JACK 3P

D D

DCJ-03RHAB
DFTJ03MR003

C C

123

5

19V_DC_SOURCE

4
6

FOR ISN ISSUE

2 1

PD4

*P4SMAJ20A

PR128
*13K/F_6

EC9

22u/25V/X5R_8

ADATER_ID_R

PR129

*10K/F_6

EC8

22u/25V/X5R_8

0.1u/25V/X5R_4

PL19

HCB2012KF800T50_0805

PC138

EC7

0.1u/25V/X5R_4

*2200P/50V/X7R_6

PC257

UMA 90W AD
DIS 120W AD

+3.3V_AUX

PD2
*RB500V-40

ADATER_ID

PC134

*0.1u/25V/X5R_ 4

EC_PV2_P01

ECP-SI-P02

2 1

PC268

0.1u/25V/X5R_4

PR332
UMA@45.3K/F_4

PR332

DIS@26.7K/F_4

CS34532FB18

PD11
*ZD5.6V

ECP-SI2-P03

84

PU5B

+

-

AS393MTR-G1

+3.3V_AUX

PR372
100K/F_4

ECP-PV-P01

PR373 *0_4S

7

ADATER_ID

AC_Lost

+19V_INPUT +19V_INPUT

ECP-PV-P01

PR370

100K/F_4

PR371

B B

100K/F_4

PR374
*0_4S

5
6

ECP-SI2-P04

+5V

PR258

PR307

*3.9K/F_4

PC242
*3900P/50V/X7R_4

*133K/F_4

PR265

*80.6K/F_4

12

ADATER_ID_R

PR312
*0_4

1 2

DC13

PD7
*MMSZ5235BS-7-F(6.8V)

2 1

1 2

DC14

PR309
*3.9K/F_4

A A

5

4

+19V_INPUT

EC19

PR142

PR143

*2200P/50V/X7R_6

3.317V

*13K/F_6

20.5K/F_4

2.2R/F_1206

ADP_VIN_SnuB

PC140
1u/25V/X5R_6

PR335

12

PR336
113K/F_4

ADATER_ID_R-

12

EC21

*10u/25V/X5R_8

FOR ISN ISSUE

3
2

2.994V

+3.3V_AUX

AD_ID(28)

6575ENC(36)

ADATER_ID (28) EC_THROTTLING_CPU (28)

+19V_INPUT

PD3

UDZVTE-1715B

PR136
*0_4

PC139

0.1u/25V/X5R_4

2 1

AC_Lost_1

DC15
DC16

PC222
*2700P/50V/X7R_4

DC17

4

PR140

4.7K/F_4

PR141

4.7K/F_4

5
6

3
2

PR260
*100K/J_4

+5V

84

+

-

*AS393MTR-G1

+5V

84

+

-

*AS393MTR-G1

PR303
*330K_4

PR134

499K/F_4

DC8
DC9

12

PR135

20.5K/F_4

12/10-pwr

PC220
*0.1u/25V/X5R_ 4

7

PU16B

PR257

*604K/F_4

1

PU16A

84

+

-

3
2

DC19

DC18

EC20

EC11

*10u/25V/X5R_8

PU19A
AS393MTR-G1

1

ADATER_ID_out

ECP-SI2-P01

PR343

100K/F_4

84

+

1

-

PU5A

AS393MTR-G1

EC10

*10u/25V/X5R_8

*10u/25V/X5R_8

PR341
*0_4S

6575ENC

PC137

0.1u/25V/X5R_4

DC10

+5V

PR266
*10K/F_4

PR308
*0_4

1 2

0.1u/25V/X5R_4

PR337
*100K/F_4

PR340
*0_4

PR138
*0_4

6575ENC

PR137

*0_4S

PR139
100K/F_4

throttle_op_out2

PC264

DC3

31

2

+VIN

AC_Lost (28)

+3.3V_AUX

3

Id=16A
Qg=41~58nC
Rdson=6.9~8.5mOHM

1
3

PR346
200K/F_4

19V_VIN_GATE

PR344
*200K/F_4

PQ74

*ME2N7002E(60V,2 50MA)

PC263

0.1u/25V/X5R_4

1 2

ECP-SI-P02

3

12

PR342
20K/F_4

PL18

ECP-SI-P02

0.01R/F_3720

DC1 DC2

21

PC267

0.1u/25V/X5R_4

1 2

PQ29
AON6413

4

PR345
200K/F_4

1

2

3

52

ECP-SI-P02

PU20

INA213

REF

GND

V+

+VIN_S

PC265
*0.1u/25V/X5R_ 4

FCM1005KF-121T03_04 02

6

OUT

5

IN-

4

IN+

INA211BI C OUT

INA211BI C IN-

INA211BI C IN+

ECP-PV-P01

PC262

IOUT_R

12

12

PR339
20K/F_4

PR351 *0_4S

IOUT(28)

3900P/50V/X7 R_4

EC_PV2_P02

+5V_SUS

PU4

G9090-300T

1

PC127

2.2u/10V/X5R_4

UMA,Triggered current 4.678A/91.22W
DIS, Triggered current 6.225A/121.38W

IN

VOUT

SD3NC

2

5

4

G

PC130

*0.1u/25V/X5R_ 4

3V_Ref

DC11

*ME2N7002E(60V,2 50MA)

PR123

DIS@97.6K/F_4

PR123

UMA@182K/F_4

PC129

1 2

1u/6.3V/X5R_4

PQ75

2

PR133

2P11P

PR338

1 2

*0_4S

DC12

31

2

2

21

PL17

FCM1005KF-121T03_04 02

PC266

0.1u/25V/X5R_4

1 2

PR333

1 2

*0_4S

throttling
UMA 90W AD

DIS 120W AD

3V_Ref_throttle

PR121
*0_4S

ECP-SI-P02

12

PR120
210K/F_4

2

+VIN

PC135

0.1u/25V/X5R_4

ECP-SI-P02

DC5
DC6

+19V_INPUT

84

5

+

6

-

ECP-SI-P02

PR131
200K_6

PR132
820K_6

PC261

0.1u/25V/X5R_4

7

PU19B

AS393MTR-G1

PR122
10M_4

+12VCPU

PC136

0.1u/25V/X5R_4

+5V

3V_Ref

12

12

PR125

PR124

*10K/F_4

10K/F_4

ECP-SI2-P01

PR126

1 2

DC7

*0_4S

2

throttle_op_out2

CONFIDENTIAL

HP Restricted Secret

Title

Title

Title

DC-IN

DC-IN

DC-IN

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

1

+3.3V_SUS

12

PR130
10K/F_4

PR127
*0_4

31

PQ28

ME2N7002E(60V,250MA)

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

HP-CRANE

Project:

HP-CRANE

Project:

HP-CRANE

1

35

VR_HOT# (5,44)

A

A

A

35 54Wednesday, July 29, 2015

35 54Wednesday, July 29, 2015

35 54Wednesday, July 29, 2015

5

4

3

2

1

36

EC-DB-E33

+VIN

PR305

2 1

5V_1

PC236

0.1u/25V/X7R_6

Vref=2V

PR273

15.8K/F_4

PR287
100K/F_4

LOW

PR281
*1K/F_4

PR279
*100K/F_4

PR274

10.2K/F_4

2.2R_6

PC238

0.1u/25V/X5R_4PD6

+3.3V_LDO

ECP-SI2-P01

PR267
*0_4S

6575EN01
5V_UG
5V_BOOT

PR299

5V_PHASE

2.2R_6

5V_LG
5V_VO

5V_FB
6575PG

VREG3 VREG5 SMPS1

OFF

OFF

ON ON

ON

ON

20
16
17

18
15
14

12/03 pwr

PR272

84.5K/F_4

R_TRIP1_5V

D D

*ZD5.6V

ECP-SI-P01

PJP12

*SHORTPAD

1 2

PC89

VIN_5V

PC244
10u/25V/X5R_8

PC118
10u/25V/X5R_8

ECP-SI-P03

12

PC101

+

+

PC91

PC88

0.1u/25V/X5R_4

10u/6.3V/X5R_6

10u/6.3V/X5R_6

5V OCP= current limit + Iripple/2 =
(84.5K*10uA/8/7.1mohm) + (4.18A/2)= 16.9A

220u/6.3V/ELEC_6358

+VIN

PC114

PJP8

1 2

0.1u/25V/X5R_4

5V_AUX_R 3V_PHASE

ECP-SI-P01

+5V_AUX

*SHORTPAD

C C

+5V_AUX
Imax=14A
OCP=17A
Frequency=400kHz
Ripple=25.2mV

B B

L/S Mosfet parameter

MOSFET

TPCC8067-H 9A 26m
TPCC8062-H

Package ID (Ta=25C) Rds_on_max

DFN3x3
DFN3x3 27A 7.1m

Place these CAPs
close to FETs

PC243
2200P/50V/X7 R_4

PL14

1.5uH/16A-PCMB104 T-1R5MS

12

PC95

*2200P/50V/X7R_4

220u/6.3V/ELEC_6358

*2.2R_8

PC112

PR115

PC115

0.1u/25V/X5R_4

TPCC8062-H

5V_3

ECP-SI-P03

5

213

5

PQ27

213

Rds(on)=7.1 mohm

HWPG_AUX

(28)

Ven=2.4V

PQ26
AON7400AL

4

4

R1= (Vout-2) * R2 / 2

+3.3V_AUX

Power On sequencing

EN0 ENC REF

LOW LOW

> 2.4V

> 2.4V > 2.4V

PC225

4.7u/6.3V/X5R_ 4

EN1
DRVH1
VBST1

SW1
DRVL1
VO1

2

VFB1

7

PGOOD

64.9K/F_4

OFF
ON
ON ON

+3.3V_LDO

PR259
*0_6S

6575_3V

3

12

VIN

VREG3

PU17

RT6575AGQW

CS1

CS2

1

5

19

8223_ENC

ENTRIP1 6575_VIN

ENTRIP2

PR277

R_TRIP2_3.3V

OFF OFF

OFF OFF

3V_AUX for EC only

5V_LDO

6575_5V

13

6

EN2

VREG5

10

DRVH2

9

VBST2

8

SW2

11

DRVL2

4

VFB2

VCLK

GND_1

21

PR286

100K/F_4

SMPS2

ON

5V_AUX for TONSEL pull high only

PR282
100K/F_4

PC240

4.7u/6.3V/X5R_ 4

6575EN02
3V_UG
3V_BOOT

3V_LG

3V_FB

PR275

10.2K/F_4

+3.3V_LDO

3V_15V_2

PR292

2.2R_6

PR276

6.65K/F_4

Vref=2V

R1= (Vout-2) * R2 / 2

PR278
*0_4

TPCC8067-H

PC228

0.1u/25V/X7R_6

PQ24

6575ENC (35)

Place these CAPs
close to FETs

1

PQ25

TPCC8065-H

PC239

0.1u/25V/X5R_4

2.2UH/8A-PCMC063T-2R2MN

PR110
*2.2R_8

3V_2

PC109

*2200P/50V/X7R_4

5

4

213

52

4

3

Rds(on)=7.1 mohm

3.3V OCP=current limit + Iripple/2 =
(64.9K*10uA/8/14.5mohm) + (2.47A/2)=6.8A

3

EC_AUX_ON(28)

2

1

VIN_3V

PC111
2200P/50V/X7 R_4

PL13

+VIN

5V_S5_EN#

PQ51
*DMN601K-7

ECP-SI-P01

PJP11

*SHORTPAD

1 2

ENTRIP1

PQ52

*DMN601K-7

3V_AUX_R

PC99

10u/6.3V/X5R_6

PC241
10u/25V/X5R_8

PC218

10u/6.3V/X5R_6

+3.3V_AUX
Imax=5.7A
OCP=6.8A
Frequency=500kHz
Ripple=28.8mV

PC113
10u/25V/X5R_8

12

PC96

+

PC213

0.1u/25V/X5R_4

220u/6.3V/ELEC_6358

12

PR253
*1M/F_4

3

2

12

1

PR252
*1M/F_4

PJP17

*SHORTPAD

1 2

+VIN

PC110

0.1u/25V/X5R_4

ECP-SI-P01

+3.3V_AUX

A A

5

4

3

2

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

HP-CRANE

Project:

HP-CRANE

Project:

Title

Title

Title

3V_AUX/5V_AUX(RT6575AGQW)

3V_AUX/5V_AUX(RT6575AGQW)

3V_AUX/5V_AUX(RT6575AGQW)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

HP-CRANE

1

36 54Wednesday, July 29, 2015

36 54Wednesday, July 29, 2015

36 54Wednesday, July 29, 2015

A

A

A

5

+3.3V_SUS

PG_+VDDQ(28,42)

D D

EC-DB-E16

S3_ON(28,30,38,42,43)

ECP-PV-P01

DDR_VTT_CNTL(5)
MAIN_ON2(28,43)

EC-DB-E17

DIS_SMDDR_VTERM(43)

C C

DDR_VTTREF

B B

SMDDR_VTERM

PC29

0.1u/25V/X5R_4

10u/6.3V/X5R_6

+VDDQ asserted after +VCCST_PLL asserted

PR23 10k/1%_4
PC22 1u/10V/X5R_4

PR157 *0_4S
PR158 *0_4

PC23 *1u/6.3V/X5R_4

PR159

1P35V_VTTREF

PC38

PC44

*0_4S

20

2

1

4

19

+5V_SUS

ECP-PV-P01

PC45

PR39
100/F_4

0.033u/50V/X7R_6

1.35V_S3_R

10u/6.3V/X5R_6 PR47

ECP-SI2-P01

VTT
VTTSNS

VTTGND

VTTREF
VLDOIN

*0_4S

PR38
*0_4S

4

PR29
100K/F_4

1P35V_S3

1P35V_S5

7

10

S58S3

PU1

RT8231BGQW

LPMB

VID

3

14

11

1P35V_VID

1P35V_LPMB

PR24

10K/F_4

12/03 pwr

PR46
105K/F_4

1P35V_CS

13

CS

PGOOD

PGND

FB

6

1P35V_FB

1P35V_TON

9

TON

UGATE

BOOT1

PHASE

LGATE

PAD

VDDQ

5

21

1P35V_VDDQ

PR30

9.76K/F_4

ECP-SI-P04

ECP-SI2-P05

3

TPCA8A10-H Rdson < 3.8m Ohms
OCP=Current limit + Iripple/2=(105K*5uA/10/3.8mohm)+ (4.18A/2)=15.9A

PR26
620K/F_4

5

4

213

5

4

213

VDD

17

18

16
15
12

1P35V_UGATE

1P35V_BOOT

1P35V_PHASE
1P35V_LGATE
1P35V_VDD

PC36
1u/6.3V/X5R_4

ECP-SI2-P02

PR56

*0_6S

+5V_SUS

ECP-SI2-P01

DDR1

PR25

*0_4S

PQ4

TPCA8064-H

PC41

0.1u/25V/X7R_6

PQ6

TPCA8A10-H

2

Place these CAPs
close to FETs

PC19
2200P/50V/X7R_4

1.0uH/18A-PCMC104T-1R0MN

PR45
*2.2R_8

DDR2

PC30

*2200P/50V/X7R_4

PL8

PC150

0.1u/25V/X5R_4

+

ECP-SI-P04

PC48

1

+VIN(24,35,36,38,39,40,42,43,45,46,47,48,49,50)
+VDDQ(7,9,14,15,42,43,49,50)
+3.3V_SUS(5,9,10,11,12,13,24,26,28,31,33,34,35,38,39,41,42,43,49)
+5V_SUS(25,29,30,32,35,39,40,41,42,43,48,49)
SMDDR_VTERM(14,15,43)

PC20
10u/25V/X5R_8

ECP-SI-P01

*SHORTPAD

1 2

PC151
10u/25V/X5R_8

PJP1

+VINVIN_8231

PC17

0.1u/25V/X5R_4

37

ECP-SI-P01

PJP4

*SHORTPAD

1 2

+

PC49

PC59

PC64

+VDDQ

+VDDQ1.35V_S3_R

Imax=12A
OCP=16A
Frequency=400kHz
Ripple=21mV

0.1u/25V/X5R_4

10u/6.3V/X5R_6

390U/2.5V/ELEC_6358

390U/2.5V/ELEC_6358

A A

Title

Title

Title

+VDDQ /SMDDR_VTERM (RT8231BGQW)

+VDDQ /SMDDR_VTERM (RT8231BGQW)

+VDDQ /SMDDR_VTERM (RT8231BGQW)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

5

4

3

2

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

37 54Wednesday, July 29, 2015

37 54Wednesday, July 29, 2015

37 54Wednesday, July 29, 2015

A

A

A

5

+VIN

ECP-SI-P01

PJP15

*SHORTPAD

D D

1 2

PC170

0.1u/25V/X5R_4

Place these CAPs
close to FETs

PR172
*20K/F_4

PC162

0.1u/25V/X5R_4

PC42

12

PC164

2200P/50V/X7R_4

+

S3_ON(28,30,37,42,43)

PG_MAIN(28)

C C

PR173
20K/F_4

ECP-SI-P05

PC156

*0.1U/16V/X7R_4

+3.3V_SUS

PR177
100K/F_4

PG_+VCCIO(28,44)

+3.3V

PR175
10K/F_4

B B

+3.3V POWER GOOD

+3.3V_SUS

( DG:PS_GD )

PR166

10k/5%_4

PG_MAIN

PR155

100k/5%_4

+3.3V_LDO

+3.3V_LDO_G

+3.3V

A A

5

2

PQ32
DTC144EUA

1 3

3

2

1

ECP-SI-P05

PQ30
DMN601K-7

VIN_VccIO

12

10u/25V/X5R_8

+

681_MODE

PR171
10K/F_4

PR179
*0_4S

4

PC43

10u/25V/X5R_8

681_EN

681_LP#

681_PG

ECP-SI2-P01

PR194

*0_4S

4

5.1R/F_6

1

VIN

5

EN

7

MODE

6

LP#

13

PG

PR193

10/F_4

ECP-SI-P05

+3.3V_SUS

PR195

PC167
1u/6.3V/X5R_4

1 2

9

BST

8

SW

12

VOUT

2

PGND

3

C1

4

C0

VCCIO2

PR65

*0_4S

EC-DB-E48

ECP-SI2-P01

681_VBST

681_SW

681_C1
681_C0

PR114
*0_4S

ECP-SI2-P01

VCCIO3

681_3V3

10

PU7
NB681

11

3V3

AGND

MODE M2 (Float)-Pre-ES

LP#

C1 VoutC0

0

1

1

1

1 11 0.95V

0

XX

0.7V

00

0.8V

1 0.85V

0.9V01

PR184

2.2R_6

681_VOUT1

PR42
*10K/F_4

PR49
10K/F_4

3

PC161

0.1u/25V/X7R_6

VCCIO1

0.36UH/24A-PCME064T-R36MS1R407

ECP-SI-P05

PR64

*0_4S

EC-DB-E48

ECP-SI2-P01

VSS_SA_IO_SENSE(7,40)

3

ECP-SI2-P06

PL3

1 2

PR192
10/F_4

PR41
10K/F_4

PR48
*10K/F_4

PR180

*0_4

PR178

*0_4

PC60

681_VOUT

+3.3V

EC-DB-E34

MODE M2 (Float)-ES

LP#

C1 VoutC0

0

1

1

1

1 11

XX

0.7V

00

0.85V

0

1

0.9V

01

0.95V

1V

2

PC56

22uF/6.3V_6

0.1u/25V/X5R_4

VCCPCHCORE_VID1 (10)
VCCPCHCORE_VID0 (10)

2

1

+VCCIO
Imax=5.3A
OCP=7.66A
Frequency=750kHz
Ripple=15mV

ECP-SI-P01

PC54

22uF/6.3V_6

PJP3

*SHORTPAD

1 2

+VCCIO_P

PC57

PC53

22uF/6.3V_6

PC50

PC51

22uF/6.3V_6

22uF/6.3V_6

22uF/6.3V_6

ECP-SI2-P01

PR112
*0_4S

VCCIO_SENSE (7)

MODE M2 (100K to GND)

LP#

C1 VoutC0

0

1

1

1

1 11

XX

0V

00

0.8V

0

1

0.95V

01

1V

1.05V

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

+VCCIO(NB681)

+VCCIO(NB681)

+VCCIO(NB681)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

38

0.95V

+VCCIO

A

A

A

38 54Wednesday, July 29, 2015

38 54Wednesday, July 29, 2015

38 54Wednesday, July 29, 2015

5

4

3

2

1

39

12

+

PC98

10u/25V/X5R_8

ECP-SI-P01

PJP7

*SHORTPAD

12

+1.0V_SUS_R1V_PCH_LX

PC234

*1000P/16V/X7R_4

ECP-SI-P06

+

PC97

0.1u/25V/X5R_4

PC102

390U/2.5V/ELEC_6358

+VIN

+1.0V_SUS
Imax=8A
OCP=11A
Frequency=300kHz
Ripple=32mV

ECP-SI-P01

PJP9

*SHORTPAD

PC103

PC100

0.1u/25V/X5R_4

10u/6.3V/X5R_6

+1.0V_SUS

12

5

213

52

3

1

Place these CAPs
close to FETs

PC214

PC215

0.1u/25V/X5R_4

PQ21

TPCC8067-H

PL12

1UH/11A-PCMC063T-1R0MN

1 2

PR255
*4.7R_6

1V_2

12

PC219

*1000P/50V/X7R_4

2200P/50V/X7R_4

VIN_1V

12

PC216

10u/25V/X5R_8

+

12/03 pwr

12

R1

PR296

8.2K/F_4

D D

ECP-SI2-P01

+3.3V_SUS

PR285

10K/F_4

C C

HWPG_SUS(28)

PR298
*0_4S

ECP-SI2-P01

PG_+1.8V_SUS(41)

ECP-PV-P01

PC235

*0.1u/25V/X5R_4

PR295

86.6K/F_4

PR290
*0_4S

SUS_ON_1.0

PR289
470K/F_4

+5V_SUS

PR261
*0_4S

1V_V5IN

1V_PGOOD

1V_TRIP

1V_TST

PC223
1u/6.3V/X5R_4

1 2

7

V5IN

1

PGOOD

3

EN

2

TRIP

5

TST

4

VFB

PU15

TPS51211

GND12GND14GND16GND13GND

PR262

10

VBST

9

DRVH

8

SW

6

DRVL

11

GND

15

2.2R_6

1V_VBST 1V_1

1V_PCH_DH

1V_PCH_DL

PC221

0.1u/25V/X7R_6

PQ23

TPCC8065-H

4

4

1V_VFB

B B

Vo=0.704*(R1+R2)/R2

R2

PR297
20K/F_4

HP Restricted Secret

A A

Title

Title

Title

+1.0V_SUS(TPS51211)

+1.0V_SUS(TPS51211)

+1.0V_SUS(TPS51211)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

5

4

3

2

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

39 54Wednesday, July 29, 2015

39 54Wednesday, July 29, 2015

39 54Wednesday, July 29, 2015

A

A

A

5

4

3

2

1

40

+5V_SUS

D D

OCP=Current limit+ Iripple/2=(10uA*40k/8/3.8m)+(2.4A/2)=14A

+3.3V

PR264

C C

10K/F_4

ECP-SI2-P01

PR271
*0_4S

PG_+VCCSA(44)
VR_ON(28,44)

EC-DB-E35

B B

PR263
*0_4S PR304

ECP-PV-P01

12/03 pwr

PC224
*0.1u/25V/X5R_4

PR109

40.2K/F_4

VCCSA_PG

EN_+VCCSA

ECP-SI2-P01

PC227

1u/6.3V/X5R_4

VCCSA_CS

10

9
8

13

PR288
*0_4S

1 2

PR270

100/F_4

CS

PGOOD
EN

PAD

+3.3V

PR108
470K/F_4

PQ58

0.1u/25V/X7R_6

VCCSA1

TPCA8A10-H

PR280

100/F_4

TPCC8067-H

4

PC231

4

PQ59

VCCSA_G0

VCCSA_V5IN

PU14
RT8240B

5

11

VCC

GND

RGND

7

12

G0

6

UGATE
BOOST

PHASE

LGATE

FB

3

VCCSA_DH

4

VCCSA_VBST

PR293 2.2R_6

2

VCCSA_LX

1

VCCSA_DL

Place these CAPs
close to FETs

5

213

5

213

PC105

0.1u/25V/X5R_4

*4.7R_6

VCCSA2

12

PC233

*1000P/50V/X7R_4

VIN_+1.05V_VCCSA

12

PC229

2200P/50V/X7R_4

1UH/11A-PCMC063T-1R0MN

+

PL15

1 2

PC232

10u/25V/X5R_8

ECP-SI-P01

ECP-SI2-P07

HCB2012KF800T50_0805

12

PC108

10u/25V/X5R_8

+

+

PC104

PL21

*390U/2.5V/ELEC_6358

+1.05V_VCCSA_P

+

PC106

390U/2.5V/ELEC_6358

+VIN

PC226

0.1u/25V/X5R_4

PC116

10u/6.3V/X5R_6

+VCCSA
Imax=11.1A
OCP=14.4A
Frequency=400kHz
Ripple=24mV

ECP-SI-P01

PJP10

*SHORTPAD

PC117

0.1u/25V/X5R_4

1.05V

+VCCSA

12

ECP-SI-P07

PR254

*0_4S

PR256

*0_4S

8240FB

8240RGND

PR111
*0_4S

PR113
*0_4S

ECP-PV-P01

VCCSA_SENSE(7)

VSS_SA_IO_SENSE(7,38)

8240FB1

8240RGND1

EC-DB-E48

ECP-SI2-P01

HP Restricted Secret

A A

Title

Title

Title

+VCCSA(RT8240B)

+VCCSA(RT8240B)

+VCCSA(RT8240B)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

5

4

3

2

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

40 54Wednesday, July 29, 2015

40 54Wednesday, July 29, 2015

40 54Wednesday, July 29, 2015

A

A

A

5

4

3

2

1

41

D D

+5V_SUS

PC249

1u/6.3V/X5R_4

SUS_ON_1.8

+3.3V_SUS

PC252

10u/6.3V/X5R_6

C C

+3.3V_SUS

EC_SUS_ON(28,43)

B B

ECP-SI-P08

PR327 100K/F_4
PR328 *10K_4

PC251

0.1u/25V/X5R_4

SUS_ON_1.8

PC250

0.1u/25V/X5R_4

PU18
G9661-25ADJF12U

4

VPP

2

VEN

3

VIN

8

GND

9

GND

EC-DB-E37

+3.3V_SUS

PGOOD

VO

NC

ADJ

7

+1.8V_SUS_ADJ

1
6

5

R1

R2

PR326
10K_4

PG_+1.8V_SUS

PR322

12.7K/F_4

PR324
10K/F_4

PG_+1.8V_SUS (39)

+1.8V_PCH_P

PC248
10u/6.3V/X5R_6

ECP-SI-P01

PJP19

*SHORTPAD

1 2

Imax= 0.531A
Pd: 0.8W

+1.8V_SUS

Vout =0.8(1+R1/R2)

HP Restricted Secret

A A

Title

Title

Title

+1.8V_SUS (G9661)

+1.8V_SUS (G9661)

+1.8V_SUS (G9661)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

5

4

3

2

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

41 54Wednesday, July 29, 2015

41 54Wednesday, July 29, 2015

41 54Wednesday, July 29, 2015

A

A

A

5

TPCC8067-H

SUS ON Load SW

Rdson=20m@10V Vgs

Imax=3.8A

3
2
1

4

5V_SUS_G

PC217
1n/25V/X7R_4

1 2

Pd: 0.25W

PQ53
TPCC8067-H

D D

+5V_AUX

SUS_ON(43)

5

PR251

30R/F_4

VCCST Load SW

EC_PV2_P03

C C

DIS_+VCCPLL_OC(43)

PG_+VDDQ(28,37)
S3_ON(28,30,37,38,43)

PR203
*0_4S

ECP-PV-P01

PR205
*0_4

PC180

*0.01U/50V/X7R_4

Load1

+VIN

EC-DB-E38 EC-DB-E38

PR204
*1M/F_6

PQ37B

*2N7002KDW

34

5

PQ37A

*2N7002KDW

+5V_SUS

2

PR206
*1M/F_6

4

EC-DB-E39

+12VCPU

PR211
*1M_4

61

*TPCC8067-H

+VCCSRF_OC_G

PR210
*2M_4

EC-DB-E38

SUS_ON

+VDDQ

PQ38

PC184
*2200P/50V/X7R_4

52

4

3

3

AO6402A
Rdson=24m@10V Vgs

Imax=3.26A
Pd: 0.255W

4

6
5
2
1

PQ50
AO6402A

3

3.3V_SUS_G

1 2

PC210
1n/25V/X7R_4

+3.3V_AUX +3.3V_SUS

PR250

30R/F_4

VCCST Load SW

PR209
*0/5%_8

IMAX 0.11A

1

+VCCPLL_OC

DIS_+1.0V_VCCST_VCCPLL(43)

S3_ON

EC-DB-E20

PR291 10k/5%_4

PC230
*0.1U/25V/X5R_4

Load2

2N7002KDW

PR302
1M/F_6

PQ57A

2

1

42

EC-DB-E39

PQ56

AO6402A

3

PC237
2200P/50V/X7R_4

+1.0V_SUS

65241

AO6402A
Rdson=24m@10V Vgs

Imax=0.3A
Pd: 0.05mW

PR294
*0/5%_8

+VCCST_VCCPLL

+VIN

PQ57B

2N7002KDW

2

34

5

PR306
1M/F_6

+12VCPU

PR301

1M_4

+VCCST_VCCPLL_G

61

PR300
*2M_4

EC-DB-E38

B B

MAIN ON_1 Load SW

PQ49
AO6402A

6
5
2
1

PR249

MAIN_ON1_D

A A

5

30R/F_4

AO6402A
Rdson=24m@10V Vgs

Imax=1A
Pd: 0.024W

+3.3V+3.3V_AUX

4

3

+3.3V_G

PC209
1n/25V/X7R_4

1 2

TPCC8067-H
Rdson=20m@10V Vgs

3
2
1

PC90
1n/25V/X7R_4

Imax=8A
Pd: 1.28W

+5V+5V_AUX

3

PQ22
TPCC8067-H

5

4

MAIN_ON1_D(43)

PR106

30R/F_4

4

+5V_G

1 2

Mosfet parameter

Mosfet

TPCC8067-H

Package ID(Ta=25C) Rds_on_max Vgs_max

TSOP-6ME3424D-G 5.0A/6.7A 42m

3x3 9A 26m +/- 20V

2

+/- 20V

+/- 20VTPCA8064-H SO-8 7.9m20A

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

Load Switch

Load Switch

Load Switch

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

A

A

A

42 54Wednesday, July 29, 2015

42 54Wednesday, July 29, 2015

42 54Wednesday, July 29, 2015

5

4

3

2

1

DISCHARGE

D D

PQ54

MAIN_ON2(28,37)

C C

MAIN_ON1(28,47)

2

DTC144EUA

PQ55

2

DTC144EUA

+VIN

PR268
1M/F_6

S0_ON2_G DIS_SMDDR_VTERM_R

PR284
1M/F_6

1 3

+VIN +3.3V +5V

PR269
1M/F_6

S0_ON1_G

PR283
1M/F_6

1 3

+VCCCORE

3

2

1

3

2

1

PR311
*22R_8

DIS8

PQ60

*ME2N7002E_300mA

PR329
22R_8

DIS10

PQ72

ME2N7002E_300mA

+VCCGT

3

2

1

3

2

1

PR310
*22R_8

DIS7

PQ61

*ME2N7002E_300mA

PR325
22R_8

DIS9

PQ71

ME2N7002E_300mA

+VCCIO +VCCSA

PR314
22R_8

DIS6

3

PQ65

PR331
1M/F_6

PQ73

2

2

+12VCPU

2

ME2N7002E_300mA

1

3

ME2N7002E_300mA

1

PR315
22R_8

DIS1

3

PQ64

ME2N7002E_300mA

1

PC254
*2200P/50V_4

MAIN_ON1_D (42)

EC-DB-E21

DIS_SMDDR_VTERM(37)

EC-DB-E21

+VIN

PR164
1M/F_6

PR176

2

PQ31
DTC144EUA

S3_ON(28,30,37,38,42)

PQ35
DTC144EUA

1 3

2

1 3

1M/F_6

+VIN

PR200
1M/F_6

DIS_+VDDQ

PR202
1M/F_6

SMDDR_VTERM

DIS2 DIS3

3

2

1

+VDDQ

3

2

1

PR182
22R_8

PQ33
ME2N7002E_300mA

PR208
22R_8

PQ36
ME2N7002E_300mA

43

+VCCST_VCCPLL +VCCPLL_OC

B B

DIS4

+1.0V_SUS +1.8V_SUS

2

PR319
22R_8

DIS14

31

PQ67
ME2N7002E_300mA

PR316
1M/F_4

EC_SUS_ON_R

PQ62
DTC144EUA

1 3

PR317
1M/F_4

EC_SUS_ON(28,41)

A A

2

5

2

PR321
22R_8

DIS13

31

PQ69

ME2N7002E_300mA

4

2

PR318
22R_8

DIS12

3

PQ66

ME2N7002E_300mA

1

2

PR320
22R_8

DIS11

3

ME2N7002E_300mA

1

PQ68

+12VCPU+3.3V_SUS+VIN +5V_SUS

2

3

PR313
1M/F_6

31

PQ63

ME2N7002E_300mA

PC245
*0.01u/25V/X7R_4

DIS_+1.0V_VCCST_VCCPLL(42) DIS_+VCCPLL_OC(42)

SUS_ON (42)

2

PQ1

ME2N7002E_300mA

3

2

1

HP Restricted Secret

Title

Title

Title

Discharge

Discharge

Discharge

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

EC_PV2_P04

PR7
22R_8

*ME2N7002E_300mA

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

PQ34

PR207
*22R_8

DIS5

3

2

1

A

A

A

43 54Wednesday, July 29, 2015

43 54Wednesday, July 29, 2015

1

43 54Wednesday, July 29, 2015

8

7

6

5

4

3

2

1

Intel SKYLAKE IMVP8 POWER CKT - 3+2 PHASE

12/03 pwr

+5V

+3.3V +3.3V

D D

PR1

PR21
*0_4S

PR13
*0_4S

PR15

PR9
*0_4S

22k_4

CPU1 CPU2

PC145

470P/50V/NPO_4

PR154
1K/F_4

ECP-SI-P09

ECP-SI2-P08

PC13
*1000P/50V_4

CPU3

PC7 3300P/50V/X7R_4

PC9
470P/50V/NPO_4

PC12

CPU4 CPU5

470P/50V/NPO_4

PR19
1K/F_4

PC5

*1000P/50V_4

ECP-PV-P01

VR_ON(28,40)
PG_+VCCIO(28,38)

VR_READY(9,28)

PG_+VCCSA(40)

PR148 *0_4S
PR149 *0_4

BK: CRB

PD1 1N4148WS
PD5 1N4148WS

PR152
47/F_4

+VCCCORE

PR20

VCCCORE_SENSE(6)

C C

VSSCORE_SENSE(6)

100/F_4

PR12
100/F_4

ECP-SI-P09

ECP-SI2-P08

ECP-SI2-P01

23.7K/F_4

PR10
47/F_4

+VCCGT

PR75

B B

VCCGT_SENSE(6)

100/F_4

VSSGT_SENSE(6)

PR18

27.4K/F_4

CPU6

3300P/50V/X7R_4

12/03 pwr

CPU7

PR61

100K/J_4_NTC

1 2

PR74
100/F_4

+VCCST_VCCPLL

PR146
*51/F_4

VR_HOT#(5,35)

ECP-SI2-P01

*0_4S

ECP-SI2-P01

ECP-SI-P10

ECP-SI2-P08

PR145 *0_4S

BK: CRB

7

PUT COLSE
TO VCORE
HOT SPOT

A A

8

BK: CRB

PR147
22k_4

PC142 *1u/10V/X5R_4

PR153

4.02K/F_4

2200P/50V/X7R_4

PC146
47P/50V/NPO_4

PR14
976/F_4

PROG
VBOOT/ADDR
IMAX

PC15

PR11

2200P/50V/X7R_4

4.02K/F_4
PC14

47P/50V/NPO_4

PR8

1.5K/F_4

PC1

PC11
470P/50V/NPO_4

VBOOTA/ADDRA
IMAXA

PR63

4.12K/F_4

PR60

16.2K/F_4

6

81203 EN

81203 VRDY
81203 DIFF

PC143

81203 COMP

81203 FB

81203_VSP

81203_VSN

81203 IOUT

81203 DIFFA

81203 COMPA

81203 FBA

81203_VSPA

81203_VSNA

81203 IOUTA

81203 VRHOT
81203 TSENSE

PC31

0.1U/25V/X5R_4

PC2

4.7U/10V/X5R_6

2

EN

6

VRDY

50

DIFF

48

COMP

49

FB

51

VSP

52

VSN

1

IOUT

10

PH/FDm/FDa/SR/DDR

28

VBOOT/ADDR

36

ICCMAX

16

DIFFA

18

COMPA

17

FBA

15

VSPA

14

VSNA

13

IOUTA

27

VBOOTA/ADDRA

29

ICCMAXA

12

VRHOT

37

TSENSE

12/03 pwr

PR6

2.2R_6

NCP81203MNTXG

6X6 52PIN QFN

VCORE PORTION

Work F=
400Khz

PR1166= 10 ohm
PR1196= 49.9 ohm

Vcore_+VIN

81203 VRMP

81203 VCC

7

9

VCC

VRMP

PU6

GT PORTION

ROSC

EPAD

8

53

81203 ROSC

PR16

37.4K/F_4

5

PR151
1K/F_4

PC141

0.01U/50V/X7R_4

3

SDIO

5

SCLK

4

ALERT#

35

DRVON

34

PWM1

38

CSN1

39

CSP1

33

PWM2

40

CSN2

41

CSP2

32

PWM3

42

CSN3

43

CSP3

45

CSSUM

47

CSCOMP

46

ILIM

44

CSREF

30

PWM1A

26

CSN1A

25

CSP1A

31

PWM2A

24

CSN2A

23

CSP2A

21

CSSUMA

19

CSCOMPA

ECP-SI-P10

20

ILIMA

22

CSREFA

11

TSENSEA

BOTTOM PAD
CONNECT TO
GND Through
4 VIAs

81203 SDIO
81203 SCLK

81203 CSP1

CSP1(45)

81203 CSP2

CSP2(45)

81203 CSP3

81203 CSSUM
81203 CSCOMP

81203 ILIM
81203 CSREF

81203 CSP1A

CSP1A(46)

81203 CSP2A

CSP2A(46)

81203 CSSUMA
81203 CSCOMPA

81203 ILIMA
81203 CSREFA

81203 TSENSEA

PC10

0.1U/25V/X5R_4

BK: CRB

PR3
100/F_4

12/03 pwr

PR144
10/F_4

PR22

15.8K/F_4

12/03 pwr

CSP1A

CSP2A

PR156

19.1K/F_4

PR5

45.3/F_4

PR150 49.9/F_4

PR174

CSP1

3.65K/F_4

PR170

CSP2

3.65K/F_4

12/03 pwr

PR165
2K/F_4

PR198
105K/F_4

1 2

PR66
100K/J_4_NTC

ECP-SI-P09

0.1U/25V/X5R_4

PR35

3.65K/F_4

12/03 pwr

PR167

3.65K/F_4
PR62

105K/F_4PR2

1 2

PR188
100K/J_4_NTC

ECP-SI-P10

12/03 pwr

PR51

4.12K/F_4

CPU8

PR55

16.2K/F_4

4

+VCCST_VCCPLL

PR4
*0_4

PC33

0.1U/25V/X5R_4

PC25

0.1U/25V/X5R_4

+5V

12/03 pwr

CPU10

12/03 pwr

PC18

PC32

0.068U/25V/X7R_4

PC24

0.068U/25V/X7R_4

CPU9

PC21

0.1U/25V/X5R_4

PR58

1 2

100K/J_4_NTC

PUT CLOSE
TO PWM

PR40

*100K/F_4

PR28

*100K/F_4

PR160
100K/F_4

PC152
680P/50V/X7R_4
PC153
2200P/50V/X7R_4

PR36
*100K/F_4

PR27
*100K/F_4

PR163
100K/F_4

PC148
1000P/50V/X7R_4
PC149
680P/50V/X7R_4

PUT COLSE
TO VCCGT
HOT SPOT

PC4
1U/6.3V/X5R_4

PR161 44.2K/F_4
PR162 44.2K/F_4

ECP-SI2-P08

PR43 10/F_4
PR37 10/F_4

ECP-SI-P10

ECP-SI-P10

PR169 51K/F_4
PR168 51K/F_4

ECP-SI-P10

ECP-SI2-P08

PR50 10/F_4
PR52 10/F_4

3

CSN1A

CSN2A

Route the Alert signal between the Clock and the Data signals.

CSN1

CSN2

CSP1
CSP2

H_VIDSOUT (5)
H_VIDSCK (5)
H_VIDALERT# (5)

DRVON (45,46)
PWM1 (45)

CSN1 (45)

PWM2 (45)

CSN2 (45)

PROG

3+2
CONFIGURATION

VBOOT/ADDR

VCORE VBOOT
SET AT 1V,
SVID
ADDRESS=00h

11/28pwr

CSN1
CSN2

IMAX

11/28pwr

VCORE
IMAX SET
AT 95A

VBOOTA/ADDRA

VCCGT VBOOT
SET AT 1V,
SVID
ADDRESS=01h

IMAXA

VCCGT
IMAX SET
AT 70A

CSP1A
CSP2A

CSN1A
CSN2A

PWM1A (46)

CSN1A (46)

PWM2A (46)

CSN2A (46)

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

VCC_CORE & VCC_GT

VCC_CORE & VCC_GT

VCC_CORE & VCC_GT

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

2

Project:

HP-CRANE

HP-CRANE

HP-CRANE

12/03 pwr

PR17
10K/F_4

PR33
15K/F_4

12/03 pwr

PR34

52.3K/F_4

12/03 pwr

PR31
10K/F_4

12/03 pwr

PR32

36.5K/F_4

1

44

ECP-SI-P10

44 54Wednesday, July 29, 2015

44 54Wednesday, July 29, 2015

44 54Wednesday, July 29, 2015

A

A

A

8

7

6

5

4

3

2

1

45

PC67

*330U/2.5V_6342

+

ECP-SI-P09

PC172

+

+VINVcore_+VIN

PC3

0.1u/25V/X5R_4

+VCCCORE

+VCCCORE
Imax=66A
OCP=78A
Frequency=455kHz
Ripple=12mV
TDC=29A, Loadline=2.1m

*330u/2V/7343

Place these CAPs
close to FETs

PC35

PC6

12

PR70
*0_4S

12

+

+

100u/25V/ELEC_6358

1
7

5

BST1
SW1

LG1

ECP-SI2-P02

PR187
*0_6S

PR190

2.2/F_6

CPU11

HG1_HHG1

PC168

0.1U/25V/X7R_6

PQ8

TPCA8A10-H

12

PQ12

*TPCA8064-H

PR183
10K/F_4

4

5

213

4

PQ7

TPCA8A10-H

D D

8

HG

PU8

NCP81151

GND6PAD

9

BST

SW

LG

2

PWM1(44)
DRVON(44,46)

DRVON

+5V

PWM

3

EN

4

VCC

PC157

2.2u/6.3V/X5R_6

TPCA8064-H

5

213

4

5

213

PQ5

5

4

213

PR44
*2.2R_8

CPU12

PC144

PC26
*2200P/50V/X7R_6

PC8

PC16

*0.1U/25V/X5R_4

2200p/50V/X7R_4

ECP-SI2-P01 ECP-SI2-P01

CSP1(44)

PC147

10U/25V/X5R_8

10U/25V/X5R_8

PL4

0.22UH/50A-PCME104T-R22MS0R607

PR68
*0_4S

100u/25V/ELEC_6358

CSN1(44)

C C

BOTTOM PAD
CONNECT TO
GND Through
4 VIAs

Place these CAPs
close to FETs

PL1

HCB2012KF800T50_0805

PL2

HCB2012KF800T50_0805

OS-CON

PC61

330U/2.5V_6342

+

12/19-pwr

PC178

+

+

330u/2V/7343

ECP-SI-P09

PC65

330U/2.5V_6342

+

PC181

330u/2V/7343

Vcore_+VIN

ECP-SI2-P02

PQ11

PQ3

*TPCA8064-H

PR189
10K/F_4

5

4

213

4

TPCA8A10-H

PR199
*0_6S

HG2_HHG2

8

HG

B B

PWM2(44)

DRVON

+5V

2

PWM

3

EN

4

VCC

PC173

2.2u/6.3V/X5R_6

BST

PU11

NCP81151

GND6PAD

9

BOTTOM PAD
CONNECT TO
GND Through
4 VIAs

SW

LG

PR201

2.2/F_6

1

BST2

7

SW2

PC171

0.1U/25V/X7R_6

CPU13

12

TPCA8A10-H

5

LG2

5

213

PQ15

PQ2

TPCA8064-H

4

5

4

213

5

213

PR73
*2.2R_8

CPU14

PC58
*2200P/50V/X7R_6

PC154

PC27

*0.1U/25V/X5R_4

2200p/50V/X7R_4

0.22UH/50A-PCME104T-R22MS0R607

ECP-SI2-P01 ECP-SI2-P01

CSP2(44)

PC28

PC155

10U/25V/X5R_8

10U/25V/X5R_8

PL5

PR67
*0_4S

PR69
*0_4S

CSN2(44)

Ceramic / 0805/X5R

PC175

*22U/6.3V/X5R_8

PC183

22U/6.3V/X5R_8

12/10-pwr

PC187

22U/6.3V/X5R_8

PC186

22U/6.3V/X5R_8

PC176

22U/6.3V/X5R_8

A A

8

7

6

5

4

3

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

VCORE OUT STAGE

VCORE OUT STAGE

VCORE OUT STAGE

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

2

HP-CRANE

HP-CRANE

HP-CRANE

1

45 54Wednesday, July 29, 2015

45 54Wednesday, July 29, 2015

45 54Wednesday, July 29, 2015

A

A

A

8

7

6

5

4

3

2

1

46

Place these CAPs

PC160

*0.1U/25V/X5R_4

close to FETs

CPU16

PC40

2200p/50V/X7R_4

SW2A

PR72
*2.2R_8

ECP-SI-P10

CPU18

PC55
*2200P/50V/X7R_6

PC165

*0.1U/25V/X5R_4

SW1A

PR71
*2.2R_8

ECP-SI-P10

PC52
*2200P/50V/X7R_6

PC46

2200p/50V/X7R_4

ECP-SI-P10

ECP-SI2-P01

CSP1A(44)
CSN1A(44)

PC158

10U/25V/X5R_8

ECP-SI-P10

ECP-SI2-P01

PC39

10U/25V/X5R_8

D D

ECP-SI2-P02

PR191
*0_6S

HG1A HG1_LA

8

HG

PU9

NCP81151

GND6PAD

9

BST

SW

LG

2

PWM1A(44)
DRVON(44,45)

DRVON

+5V

C C

PWM

3

EN

4

VCC

PC163

2.2u/6.3V/X5R_6

BOTTOM PAD
CONNECT TO
GND Through
4 VIAs

PR197

2.2/F_6

1

BST1A

7

SW1A

5

LG1A

0.1U/25V/X7R_6

CPU15

PC169

12

ECP-SI2-P02

12

PQ10

TPCA8064-H

PR185
10K/F_4

PQ14

TPCA8A10-H

PR186
*0_6S

HG2A HG2_LA

8

HG

PU10

NCP81151

GND6PAD

9

BST

SW

LG

2

B B

PWM2A(44)

DRVON

+5V

PWM

3

EN

4

VCC

PC174

2.2u/6.3V/X5R_6

PR181

2.2/F_6

1

BST2A

7

SW2A

5

LG2A

0.1U/25V/X7R_6

CPU17

PC159

PQ9

TPCA8064-H

PR196
10K/F_4

PQ13

TPCA8A10-H

5

4

213

5

4

213

4

4

5

213

5

213

Place these CAPs
close to FETs

VCCGT_+VIN

PC47

PC166

10U/25V/X5R_8

10U/25V/X5R_8

PL7

0.24UH_PCME064T-R24MS1R007

PR59
*0_4S

PR54
*0_4S

ECP-SI2-P01

VCCGT_+VIN

PL6

0.24UH_PCME064T-R24MS1R007

PR53
*0_4S

ECP-SI2-P01

PR57
*0_4S

12

CSP2A(44)

BOTTOM PAD
CONNECT TO
GND Through
4 VIAs

CSN2A(44)

ECP-SI-P01

PJP2

*SHORTPAD

1 2

PC37

+

0.1u/25V/X5R_4

PC34

+VIN

+VCCGT
Imax=46A
OCP=62A
Frequency=455kHz

100u/25V/ELEC_6358

OSCON

Ceramic / 0805/X5R

12/10-pwr

PC62

330U/2.5V_6342

+

12/19-pwr

PC63

+

PC182

22U/6.3V/X5R_8

330U/2.5V_6342

ECP-SI-P10

+

Ripple=15mV
TDC=32A, Loadline=3.1m

+VCCGT

PC177

PC179

+

330u/2V/7343

*330u/2V/7343

PC185

22U/6.3V/X5R_8

A A

8

7

6

5

4

3

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

VCCGT OUTPUT STAGE

VCCGT OUTPUT STAGE

VCCGT OUTPUT STAGE

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

2

HP-CRANE

HP-CRANE

HP-CRANE

1

46 54Wednesday, July 29, 2015

46 54Wednesday, July 29, 2015

46 54Wednesday, July 29, 2015

A

A

A

5

4

3

2

1

47

D D

C C

MAIN_ON1(28,43)

12V

PC119 *330P/50V/X7R_6
PR117
10K/F_4

PR116
*0_4S

ECP-PV-P01

12V_3

PC121

3900P/50V/X7R_4

PC120

1000P/50V/X7R_4

12V_COM
12V_EN

PU3

EUP3484SDIR1

2

VIN

6

COMP

7

EN

4

GND1

12V_+VIN

PR118

120K/F_4

PC132
10u/25V/X5R_8

1 2

PR119
10K/F_6

1 2

12V_1

PC128

0.1u/25V/X5R_4

PC255

0.1u/25V/X7R_6

PC131
10u/25V/X5R_8

12/03 pwr

PL16

10U/4A PCMB063T-100MS

PR334
*2.2R_8 PC126

12V_2

PC260
*2200P/50V/X7R_4

PC258

2200P/50V/X7R_4

EC-DB-E41

ECP-SI2-P02

PR330

1

12V_BST

BST

3

12V_SW

SW

5

12V_FB

FB

8

12V_SS

SS

GND2

9

*0_6S

PC122

0.1u/25V/X5R_4

PC259
10u/25V/X5R_8

PC123

0.1u/25V/X5R_4

ECP-SI-P01

PJP14

*SHORTPAD

12

PC125

10u/25V/X5R_8

PC253

10u/25V/X5R_8

+VIN

PC133

0.1u/25V/X5R_4

PC256

10u/25V/X5R_8

+12V_P

PC124

10u/25V/X5R_8

+12V
Imax=1.5A
OCP=4A
Frequency=357kHz
Ripple=75mV

ECP-SI-P01

PJP13

*SHORTPAD

PC274

10u/25V/X5R_8

PC275

10u/25V/X5R_8

10u/25V/X5R_8

+12V

12

ECP-SI-P11

B B

Vout=0.923*((R1+R2)/R2)

HP Restricted Secret

A A

Title

Title

Title

+12V

+12V

+12V

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

5

4

3

2

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

47 54Wednesday, July 29, 2015

47 54Wednesday, July 29, 2015

47 54Wednesday, July 29, 2015

A

A

A

5

VGA-CORE

PC76

DIS@1u/6.3V/X5R_4

ECP-SI2-P01

ECP-SI2-P01

+1.8V_VGA

ECP-PV-P01

ECP-SI2-P01

DIS@470K_4/NTC

DIS@9.76K/F_4

Place NTC close to the
GPUCORE Hot-Spot.

PR228

1 2

VDDIO_SVI2

*DIS@0_4

PR220

DIS@10K/F_4

ECP-SI2-P01

GFX_PWR_GOOD

12/10-pwr

1 2

PR86 *DI S@0_4S

1 2

PR85 *DIS@0_4

1 2

PR87 *DIS@0_4S

1 2

PR231 *DIS@0_4S

1 2

PR227 *DIS@0_4S

1 2

PR230 *DIS@0_4S

1 2

PR91 *DIS@0_4S

PR105

PR234
DIS@27.4K/F_4

GPU3

PR235

+VGA_CORE

PR247
DIS@10/F_4

PR248
DIS@10/F_4

+3.3V

PR221
*DIS@0_4

PR229

*DIS@0_4S

CORE_PWM_PROCHOT#

PR82

PC73

DIS@100K/F_4

PR232

*DIS@0_4

DIS@680P/50V/X7R_4

PC204

DIS@330P/50V/X7R_4

PC206

DIS@0.01u/25V/X7R_4

62771 PG_NB

62771 PG

62771 SVC

62771 SVD

VDDIO_SVI2

62771 SVT

62771 ENABLE

62771 PWROK

NTC_MVDDQ

NTC_GPU

IMON_MVDDQ

IMON_GPU

PR233

DIS@133K/F_4

*DIS@0.1u/25V/X5R_4

62771_COMP_GPU

PC83

DIS@390P/50V/X7R_4

PC84

GPU5

PC205

DIS@1000P/50V/X7R_4

35

PGOOD_NB

20

PGOOD

3

SVC

4

VR_HOT_L

5

SVD

6

VDDIO

7

SVT

8

ENABLE

9

PWROK

1

NTC_NB

11

NTC

2

IMON_NB

10

IMON

PC78

DIS@0.1u/25V/X5R_4

PC80

DIS@100P/50V/NPO_4

PR100

DIS@37.4K/F_4

GPU4

PR99
DIS@2K/F_4

PR97

DIS@301R/F_4

GPU6

PR237

DIS@1.87K/F_4

Load line setting

ECP-SI-P12

D D

C C

PG_+0.95V_VGA(49)

CHNGE POWER ENABLE
ECP-SI-P13

B B

+3.3V_VGA

GFX_PWR_GOOD(49)

GPU_SVC_R(17)

OCP_L(17)

GPU_SVD_R(17)

GPU_SVT_R(17)

PR83

DIS@100K/F_4

Place NTC close to the
MVDDQ Hot-Spot.

VDDC_SEN(19)

VDDC_RTN(19)

ECP-SI2-P01

ECP-SI2-P01

DGPU_PWROK_IN

Close to the GPU side.
BOM option:
For JET stuff 0 ohm resister.

For Topaz stuff 10 ohm resister.

4

PR89

DIS@1R/F_6

+5V

PR84
*DIS@0_6S

1 2

1 2

ECP-SI2-P02

GPU1 GPU2

37

36

FB_NB

COMP_NB

FB18COMP

19

62771_FB_GPU

38

VSEN_NB

DIS@ISL62771HRTZ-T

VSEN16RTN

17

VDDC_SEN

VDDC_RTN

62771 VDD

62771 VDDP

26

25

VDD

VDDP

PU2

15

ISUMN_GPU

PR96

DIS@499/F_4

1Phase
OCP

40

39

ISUMP_NB

ISUMN_NB

LGATE_NB

PHASE_NB

UGATE_NB

ISEN212ISEN113ISUMP14ISUMN

GFX_ISEN2
GFX_ISEN1

DIS@0.22U/25V_6X

ECP-SI-P12

PC75
DIS@1u/6.3V/X5R_4

34

33

32

31

BOOT_NB

30

BOOT2

29

UGATE2

28

PHASE2

27

LGATE2

24

LGATE1

23

PHASE1

22

UGATE1

21

BOOT1

41

EP

PC202

PC81

PC82

DIS@0.22u/10V/X5R_4

GPU14

GPU15

BOOT_2_GPU

UGATE_2_GPU

PHASE_2_GPU

LGATE_2_GPU

LGATE_1_GPU

PHASE_1_GPU

UGATE_1_GPU

BOOT_1_GPU

DIS@0.047u/16V/X7R_4

1Phase
RC time
constant

PR95

PR79

DIS@10K/F_4

PR80

DIS@10K/F_4

+5V_SUS

Add 9 GND VIAs
for thermal pad

PC201
DIS@0.22U/25V_6X

VSUM-_GPU

VSUM+_GPU

PR94

DIS@2.61K/F_4

GPU7

PR103

DIS@NTC_10K_4

DIS@11K/F_4

VSUM-_GPU

PC85
DIS@0.1u/25V/X5R_4

3

UGATE_2_GPU

PR81

BOOT_2_GPU

PHASE_2_GPU

LGATE_2_GPU

DIS@2.2R/F_6

UGATE_1_GPU

BOOT_1_GPU

PHASE_1_GPU

LGATE_1_GPU

GPU16

REMOVE PG_+1.8V_VGA CIRCUIT

+1.8V_VGA Power Good

DIS@TPCA8064-H

PC72

DIS@0.22u/25V/X7R_6

PR93

DIS@2.2R/F_6

PQ17

4

4

PQ18

DIS@TPCA8A10-H

PC79

DIS@0.22u/25V/X7R_6

GPU10

ECP-SI-P13

5

213

5

213

PQ20

DIS@TPCA8064-H

DIS@TPCA8A10-H

2

Place these CAPs
close to FETs

PC71

DIS@2200P/50V/X7R_6

PHASE_2_GPU

PR90
*DIS@2.2R/F_6

GPU17

PC74
*DIS@1000P/50V/X7R_4

VSUM+_GPU
VSUM-_GPU

+VGA_CORE_VIN

PC198

PC196

DIS@10u/25V/X5R_8

DIS@0.1u/25V/X5R_4

DIS@0.24UH_PCME064T-R24MS1R007

PR88

*DIS@0R_2/S

PR239

CZ@10K/F_4

GFX_ISEN2 GFX_ISEN1

PR238

DIS@3.65K/F_6

PR240

DIS@1R/F_6

GPU18 GPU19

( Near by IC side)

Place these CAPs
close to FETs

PQ19

5

4

213

5

4

213

PC92

PC211

DIS@2200P/50V/X7R_6

PHASE_1_GPU

PR107

*DIS@2.2R/F_6

GPU11

PC94

*DIS@1000P/50V/X7R_4

GFX_ISEN1 GFX_ISEN2

VSUM+_GPU
VSUM-_GPU

ECP-SI-P01

*SHORTPAD

1 2

PC70

DIS@10u/25V/X5R_8

ECP-SI-P12

PL10

PR92
*DIS@0R_2/S

PR242

*CZ@10K/F_4

+VGA_CORE_VIN

PC93

DIS@10u/25V/X5R_8

DIS@0.1u/25V/X5R_4

DIS@0.24UH_PCME064T-R24MS1R007

PR104

*DIS@0R_2/S

PR244

CZ@10K/F_4

GPU12 GPU13

PR98

DIS@3.65K/F_6

PR101

DIS@1R/F_6

( Near by IC side)

PJP6

PC212

PL11

PC208

DIS@2200P/50V/X7R_6

DIS@10u/25V/X5R_8

ECP-SI-P12

PR102
*DIS@0R_2/S

1

+VIN

+VGA_CORE
Imax=53A
OCP=59A
Frequency=300kHz
Ripple=36mV
TDC=36A, Loadline=2.1m

+

PC87

PC86

DIS@0.1u/25V/X5R_4

DIS@330u/2V_7343

PC203

+

+

DIS@330u/2V_7343

PR241

*CZ@10K/F_4

1.Level 1 Environment-related Substances Should Never be Used.

2.Recycled Resin and Coated Wire should be procured from Green Partners.

+

PC207

+VGA_CORE

PC77

DIS@330u/2V_7343

+VGA_CORE

*DIS@330u/2V_7343

48

A A

DIS@0.1u/25V/X5R_4

ECP-SI2-P01

GFX_PWR_GOOD

5

4

PR219

*DIS@0_4S

1 2

PERST#_BUF(16)

PC199

GPU8

2
1

+3.3V

DIS@TC7SH08FU

3 5

PU13

4

DGPU_PWROK_IN

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

HP-CRANE

Project:

HP-CRANE

Project:

1

HP-CRANE

A

A

A

48 54Wednesday, July 29, 2015

48 54Wednesday, July 29, 2015

48 54Wednesday, July 29, 2015

Title

Title

Title

GPU_CORE (ISL62771)

GPU_CORE (ISL62771)

GPU_CORE (ISL62771)

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

3

2

Page Modified: Sheet of

5

VGA POWER

VGA POWER

VGA POWERVGA POWER

+VIN

D D

C C

B B

3.3V VGA

EN_+3.3V_VGA(11,28)

+0.95V_VGA

EN_+3.3V_VGA EN_+0.95V_VGA

DIS@2N7002K_300MA

EN_+3.3V_VGA

DIS@100K_4

PQ41

PR222

EC-MV-P01

PR350 *DIS@0_4S

+VDDQ

PC271

DIS@10u/6.3V/X5R_6

EC-SI-E22
ECP-SI-P15

PR217

DIS@1M_4

2

PC269 DIS@1u/6.3V/X5R_4

EC-PV-E11

3

PR223
DIS@1M_4

1

+5V

PC272
DIS@0.1u/25V/X5R_4

PC273
DIS@0.1u/25V/X5R_4

2

PU21
DIS@G9661-25ADJF12U

4
2
3

8
9

PR218
*DIS@22R_8

DIS15

3

PQ40

1

VPP
VEN
VIN

GND
GND

4

DIS@2N7002K_300MA

PGOOD

VO

NC

ADJ

7

+1.8V_SUS_ADJ

+3.3V

1
6

5

+VGA_CORE+3.3V_VGA

2

R1

R2

PR246
DIS@22R_8

DIS16

3

PQ48

1

3VGFX_ONG

PG_+1.8V_SUS

+1.8V_VGA +0.95V_VGA

PR245
DIS@22R_8

DIS17

3

DIS@2N7002K_300MA

2

1

PR349DIS@10K/F_4

+0.95V_VGA_P

PR348
DIS@2K/F_4

PR347
DIS@10K/F_4

Vout =0.8(1+R1/R2)

PQ47

DIS@2N7002K_300MA

PC246

DIS@22U/6.3V/X5R_8

3

PR243
DIS@22R_8

DIS18

3

PQ46

2

1

PG_+0.95V_VGA(48)

PJP20

*SHORTPAD

1 2

PC107

DIS@22U/6.3V/X5R_8

+1.5V_VGA

3

DIS@2N7002K_300MA

2

1

Imax= 1.9A
Pd: 0.76W

+0.95V_VGA

PR236
DIS@22R_8

DIS19

PQ45

2

+1.8V_VGA(17,19,48)
+3.3V_VGA(16,17,19,48)
+1.5V_VGA(19,20,21)
+0.95V_VGA(16,17,19)

PR212
*DIS@0_6S

EC-DB-E40

EC-PV-E11

EC-MV-P01

AO6402A
Rdson=24m@10V Vgs

PC191
DIS@10u/6.3V/X5R_6

AO6402A
Rdson=24m@10V Vgs

PQ39

+3.3V

65241

3

PC188
DIS@0.1u/25V/X5R_4

EC-PV-E11

PC189
DIS@0.1u/25V/X5R_4

+12VCPU

PR225
DIS@1M_4

3VGFX_OND

3

PQ43

DIS@2N7002K_300MA

2

1

*DIS@AO6402A

PC200

DIS@2N7002K_300MA

DIS@1000P/10V/X7R_4

+1.8V_VGA

PQ70
DIS@AO6402A

6

3VGFX_OND

PR323

DIS@30R/F_4

5
2
1

4

3

3V_1.8V_VGA_G

PC247
DIS@1n/25V/X7R_4

1 2

1

49

Imax=0.03A
Pd: 0.02mW

+3.3V_VGA

Imax=0.3A
Pd: 2mW

+1.8V_VGA+1.8V_SUS

+3.3V_SUS

+1.5V VGA

PG_DGPU(28)

40mil

+5V_SUS

A A

1 2

PJP16

*SHORTPAD

ECP-SI-P01

DIS@0.01U/50V/X7R_4

PC190

5

PR77

DIS@100K_4

ECP-SI2-P01

PC194
DIS@10U/6.3V/X5R_6

PR213
DIS@10_6

PU12

PR78
*DIS@0_4S

DIS@RT8068A

8060_1.0V 8060LX_1.0V
8060PVIN_1.0V

PC193

DIS@1U/6.3V/X5R_4

4

PG

9

PVIN

10

PVIN

8

SVIN

11

GND

4

EC2

*DIS@1000P/50V/X7R_4

ER1
*DIS@4.7_6

1.5V_1

1

NC

2

LX

3

LX

7

NC

6

FB

5

EN

PC197

*DIS@0.1u/25V/X5R_4

*DIS@68P/50V/COG_4

8060NC_1.0V
8060FB_1.0V8060SVIN_1.0V
8060EN_1.0V

PC192

PR216
*DIS@0_4S

ECP-PV-P01

ECP-SI-P14

PL9

DIS@PCMB051H--1R0MS

12/03 pwr

PR214

DIS@15K/F_4

3

PC195

R1

R2

*DIS@22P/50V/NPO_4

PR215
DIS@10K/F_4

GFX_PWR_GOOD (48)

V0=0.6*(R1+R2)/R2

+1.5V_VGA_P

PC68

DIS@0.1u/25V/X5R_4

2

PC69

DIS@22u/6.3V/X5R_6

ECP-SI-P01

PJP5

*SHORTPAD

1 2

ECP-SI-P14

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

+1.5V_VGA

+

PC276
DIS@390U/2.5V/ELEC_6358

GPU-1.5V / 0.95V

GPU-1.5V / 0.95V

GPU-1.5V / 0.95V
810606-000

810606-000

810606-000

Imax=3.2A
OCP=4A
Frequency=1MHz
Ripple=12mV

120mil

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

+1.5V_VGA

A

A

A

49 54Wednesday, July 29, 2015

49 54Wednesday, July 29, 2015

49 54Wednesday, July 29, 2015

5

4

3

2

1

CPU HOLE

H7

h-c150d150n

D D

1

*Hole

H14

H-C276D197P2

1

*Hole

H10

h-c150d150n

1

*Hole

H15

H-C276D197P2

1

*Hole

VGA HOLE

C C

HOLE1

H-C315I166D146P2

1

H-C315D146P2

h-c150d150n

H-C276D197P2

WLAN HOLE

HOLE2

1

H12

H3

1

*Hole

1

*Hole

12/10 modify

*PAD

PAD4

spad-c197

PAD7

spad-c197

1

*PAD

SPAD-RE394X394NP

1

*PAD

PAD5

spad-c197

1

H8

SPAD-C197

H4

H-C276D197P2

1

H11

H-TC236BC106D106PT

1

Hole

PAD3

1

*PAD

1

*Hole

*Hole

PAD1

spad-re79x118np

1

EC-DB-E23

H9

SPAD-C197

SD CARD SHAPE

SPAD-RE970X70NP

1

PAD8

SPAD-C197

*Hole

1

*PAD

EC-SI-25

PAD2

SPAD-RE362X122NP

*PAD

1

*PAD

H13

1

*Hole

PAD9

SPAD-RE970X70NP

1

SPAD-RE276X394NP

PAD6

1

*PAD

*PAD

EC-SI-23

H1

*Hole

1
2
3
4

HG-TC315BR394X394D138P2-N61

*Hole

1
2
3
4

567

HG-TC315BR394X394D138P2-N61

+VDDQ +VDDQ +VDDQ +VDDQ +VDDQ +VDDQ +VDDQ

C300
*15p/50V/C0G_4

+VDDQ +VDDQ +VDDQ +VDDQ +VDDQ +VDDQ

C95
100p/50V/NPO_4

567

H21

8

8

13
12
11
10

9

13
12
11
10

9

C377
100p/50V/NPO_4

C357
*15p/50V/C0G_4

HG-C315D185P2-N61

H6

*Hole

1
2
3
4

HG-TC315BR394X394D138P2-N61

*Hole

1
2
3
4

567

9

567

8

H2

13
12
11
10

9

8

C400
100p/50V/NPO_4

C75
100p/50V/NPO_4

13
12
11
10

HG-C315D185P2-N61

C501
*15p/50V/C0G_4

C484
100p/50V/NPO_4

H16

*Hole

1
2
3
4

9

567

8

HG-C315D138P2-N61

H19

*Hole

1
2
3
4

567

13
12
11
10

9

8

C418
*15p/50V/C0G_4

13
12
11
10

HG-TC315BR394X394D138P2-V11-N61

C122
100p/50V/NPO_4

H17

*Hole

1
2
3
4

HG-TC315BR394X394D138P2-N61

1
2
3
4

567

9

567

8

H5

*Hole

12
11
10

9

8

C374
*15p/50V/C0G_4

C431

100p/50V/NPO_4

13
12
11
10

H18

*Hole

1
2
3
4

HG-TC315BR394X394D138P2-N61

1
2

3

HG-C315I166D138P2V8-N61

C500
100p/50V/NPO_4

567

*Hole

H20

456

13
12
11
10

9

8

9
8
7

50

Place around +VIN trace

B B

A A

+VIN +VIN +VIN +VIN +VIN

C602
*0.1U/25V_4_X7R

+VIN +VIN +VIN +VIN +VIN

C139
*0.1U/25V_4_X7R

+VIN

C4
*0.1U/25V_4_X7R

C43
*0.1U/25V_4_X7R

C316
*0.1U/25V_4_X7R

+VIN

5

C261
*0.1U/25V_4_X7R

C3
*0.1U/25V_4_X7R

C108
*0.1U/25V_4_X7R

+VIN +VIN

C5
*0.1U/25V_4_X7R

C259
*0.1U/25V_4_X7R

C109
*0.1U/25V_4_X7R

C205
*0.1U/25V_4_X7R

4

C1
*0.1U/25V_4_X7R

C582
*0.1U/25V_4_X7R

+VIN +VIN +VIN +VIN +VIN +VIN +VIN +VIN

+3.3V
+3.3V

C558
*15p/50V/C0G_4

C556
*15p/50V/C0G_4

+3.3V

C132
*15p/50V/C0G_4

C166 1000p/16V/X7R_4
C165 1000p/16V/X7R_4

3

C559
*15p/50V/C0G_4

C586
*15p/50V/C0G_4

+5V +5V +5V

C606
*15p/50V/C0G_4

+12V +3.3V_AUX +3.3V_AUX

C321
*15p/50V/C0G_4

C512
*15p/50V/C0G_4

For SPI_CLK

C536
*15p/50V/C0G_4

+3.3V_AUX+12V+12V

C363
*15p/50V/C0G_4

C302
*15p/50V/C0G_4

C577
*15p/50V/C0G_4

C206
*15p/50V/C0G_4

C553
*15p/50V/C0G_4

2

C260
*15p/50V/C0G_4

C609
*15p/50V/C0G_4

C185
*15p/50V/C0G_4

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

HOLE/VIN CAP/RF CAP

HOLE/VIN CAP/RF CAP

HOLE/VIN CAP/RF CAP

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

C531
*15p/50V/C0G_4

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

50 56Wednesday, July 29, 2015

50 56Wednesday, July 29, 2015

50 56Wednesday, July 29, 2015

5

Power Delivery Map

4

+3.3V_AUX

AC enable-3V/5V LDO

G9661 PU18

3

+1.8V_SUSLDO

SUS_ON_1.8

MOS SW

AO6402A PQ70

+1.8V_VGA

3VGFX_OND

2

GPU Power

1

51

MOS SW

AO6402A PQ49

+3.3V

MAIN_ON1_D

PWM

D D

Adapter

RT6575A
PU17

+5V_AUX

AC enable/AUX_ON

AO6402A PQ50

Imax=1A

MOS SW

G5243AT11U Q22

MOS SW

TPCC8067-H PQ22

+3.3V_SUSMOS SW

EC_SUS_ON

+3.3V_LAN

LAN_PWR_ON

+5V

MAIN_ON1_D

VIN

C C

MOS SW

TPCC8067-H PQ53

TPS2546
U23

G547E1P8U

+VDDQ

B B

A A

5

PWM

RT8231BGQW
PU1

NB681
PU7

TPS51211
PU15

RT8240A
PU14

PWM

NCP81203
PU6

PWM

EUP3484
PU3

PWM

ISL62771HRTZ-T
PU2

S4_ON

SMDDR_VTERM

S3_ON

+VCCIOPWM

S3_ON

+1.0V_SUSPWM

PG_+1.8V_VGA

+VCCSAPWM

PG_+VCCIO

+VCCCORE

VR_ON

+12V

MAIN_ON1

+VGA_CORE

PG_+1.8V_VGA

4

U28

MOS SW

AO6402A PQ56

R597 +12V_HDD

+5V_SUS

EC_SUS_ON

S4_ON

3

EN_+3.3V_VGA

G517G1TP1U
U10

AL7

AP2331SA-7
Q18

R320
R596
R595

G547 U39
G547 U40
PWM

RT8068A
PU12

LDO

G9661 PU21

MOS SW

AO6402A PQ50

0_ohm

+5V_TOUCH
+5V
+LCDVCC

PANEL_VCC_ON

PWR_AUD
+5V_HDMI
+5V_FAN
+5V_HDD
+5V_ODD

+5V_S3_F1

S3_ON

+5V_S3_F2

S3_ON

+1.5V_VGA

GFX_PWR_GOOD

+USB3.0_VCC2

+3.3V_AUX

+USB3.0_VCC1

S3_ON

MISC Power

+3.3V_VGA

PCH, XDP, SPI flash ROM,NGFF LAN

LAN Power

Touch Panel Power

MISC Power

Panel Power
Codec Power
HDMI Power
FAN Power
HDD Power
ODD Power

USB2.0 Power
USB2.0 Power

GPU Power

USB3.0 Power

USB3.0 Power
DDR Power

+0.95V_VGA
VTT Power

+VCCIO Power

+1.0V_VCCST_VCCPLL

+VCCSA Power

CPU Power
VCCGT Power

HDD Power

HP Restricted Secret

GPU Power

Title

Title

Title

Power Delivery Map

Power Delivery Map

Power Delivery Map

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

HP-CRANE

Project:

HP-CRANE

Project:

HP-CRANE

51 56Wednesday, July 29, 2015

51 56Wednesday, July 29, 2015

1

51 56Wednesday, July 29, 2015

A

A

A

5

4

3

2

1

SMBUS

+3.3V_SUS

+3.3V

52

+3.3V_SUS

D D

R R

SKY-PCH-H

SMB_CLK_RESUME

SMB_DAT_RESUME

NMOS

NMOS

+3.3V_AUX

+3.3V

C C

SMBCLK0_EC

R R

NMOS

R R

+3.3V

R

SMBCLK_PCH_MAIN

SMBDATA_PCH_MAIN

THERM_CLK

R

THERM_DAT

0xA2

0xA0

0x9A

DDR3 SO-DIMM CHB

DDR3 SO-DIMM CHA

THERMAL SENSOR
(G781-1P8)

MBCLK_GPU

IT8528

SMBDATA0_EC

+3.3V_AUX

0 R

NMOS

0 R

0x41

MBDATA_GPU

GPU(EXO PRO)

EC

B B

R R

DDC_SCL_EC

CONVERTER BOARD

DDC_SDA_EC

0x31

+3.3V

+3.3V

A A

NMOS

NMOS

5

4

R R

LVDS_SCL

LVDS_SDA

3

0xA8

eDP to LVDS CONVERTER
(RTD2136N)

2

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

SMBus

SMBus

SMBus

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

52 56Wednesday, July 29, 2015

52 56Wednesday, July 29, 2015

52 56Wednesday, July 29, 2015

5

4

3

2

1

SKY-S POWER SEQUENCE

tPCH04

tPCH01 >9ms

tPCH02

tPCH34 >20ms

tPCH04 >9ms , VccRTC stable to start of VccDSW voltage ramp

tPCH02 >10ms, VCCDSW stable to DSW_PWROK high

Same as PCH_REMRST_R

by HWPG_SUS.

3.3V,1.8V --> 1.0V

tPCH03 >10ms, by HWPG_SUS

RSMRST# and SLP_SUS# deasserti on to SUSCLK toggling

Clock

study

Minimum duration of PWRBTN# assertion = 16ms

VCCRTC

D D

MB -> EC -> PCH

MB to EC

EC -> MB

EC to PCH

RTC_RST#

+5V_AUX/+3.3V_AUX

(+3.3V_DSW)

EC_DPWROK

(PCH_DPWROK)

PWRBTN#

EC_SUS_ON

+3.3V_SUS/+5V_SUS/
+1.0V_SUS/+1.8V_SUS

(PCH Prim Rails)

PCH_REMRST_R

PCH_SUSCLKPCH to MB

EC to PCH

PCH to EC

C C

PCH to EC

PCH_PWRBTN#

SLP_S5#

SLP_S4#

AMD dGPU POWER SEQUENCE

ALL power rail Tramp-up : > 20ms

RUNPWROK

+3.3V_VGA

+1.8V_VGA

>10us

ALL power rail Tramp-down : > 20ms

+0.95V_VGA

+VGA_CORE
+1.5V_VGA

<100ms

PESETB

AUDIO POWER SEQUENCE

AVDD

DVDD

PVDD

53

SLP_S3#PCH to EC

SLP_S0#PCH to EC

S3_ONEC to MB

+VCCST_VCCPLL

tCPU11 >1ms, +VCCST stabe to H_PWRGD

tCPU12 >1ms, +VDDQ stabe to H_PWRGD

H_PWRGD

+1.35V_VDDQ

EC to MB

MAIN_ON1

MAIN has a wide range of specifications, which may affect boot latency

+3.3V, +5V

MB to EC

PG_MAIN

(--> VCCIO_EN)

tCPU10 >1ms, +VCCIO stabe to H_PWRGD

+VCCIO

B B

EC to MB

PG_VCCIOMB to EC

(--> VRON?)

VR_ON

(IMVP_VRON)

(ALL_SYS_PG --> EC --> VR_ON)

tCPU09 >1ms, +VCCSA stabe to H_PWRGD

+VCCSA

MAIN_ON2EC to MB

(DDR_VTT_CNTL)

SMDDR_VTERM

+VCCCORE

+VCCGT

MB to EC

EC to MB

A A

MB to PCH

VR_READY

PCH_PWROK
(VCCST_PWRGD)

SYS_PWROK

tPLT08 >1ms, SLP_S3 de-assertion to PCH_PWROK assertion

PCH_PWROK to VCCST_PWRGD for CPU

SUS_STAT#

PCH to MB

CPU to +VCCORE

5

PLTRST#

SVID

4

( VR_EADY to EC delay--> EC_PWROK)
EC_PWROK or ALL_SYS_GD --> EC delay --> EC_SYS_PWROK --> SYS_PWROK

tPLT05 > NO LIMIT, Refer to DG page 403

+VCCCORE +VCCGT

VID

3

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

VID

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

Quanta Computer Inc.

Project:

Project:

Project:

Power Sequence

Power Sequence

Power Sequence
810606-000

810606-000

810606-000

1

HP-CRANE

HP-CRANE

HP-CRANE

B

B

B

53 56Wednesday, J uly 29, 2015

53 56Wednesday, J uly 29, 2015

53 56Wednesday, J uly 29, 2015

5

4

3

2

1

CLOCK

SKY-PCH-H

CLKOUT_CPUNSCC_P/N

D D

CLKOUT_CPUBCLK_P/N

CLK_24MHZ_P
CLK_24MHZ_N

CLK_DMI_100M_P
CLK_DMI_100M_N

Processor

54

CLK_PCIBCLK_P

CLKOUT_CPUPCIBCLK_P/N

CLK_PCIBCLK_N

CLK_CPU_XDP_P

CLKOUT_ITPXDP_P/N

C C

CLKOUT_LPC[1]

+1.0V_SUS_VCCF24

CLKOUT_PCIE_P/N[0]

2.7 KΩ

SRCCLKREQ#[0]

CLK_CPU_XDP_N

CLK_PCIE_LAN_P
CLK_PCIE_LAN_N

LAN_PCIE_CLKREQ#

ITP/XDP Port

ECCLKOUT_LPC[0]

LPC PIN HEADER / 80 port

LAN

+/-1.0%

XCLK_BIASREF

B B

CLKOUT_PCIE_P/N[1]

SRCCLKREQ#[1]

CLK_PCIE_WLAN_P
CLK_PCIE_WLAN_N

WLAN_PCIE_CLKREQ#

*

WLAN

CLKOUT_PCIE_P/N[2]

SRCCLKREQ#[2]

XTAL24_IN

XTAL24_OUT

A A

5

4

CLK_PCIE_CR_P
CLK_PCIE_CR_N

CR_PCIE_CLKREQ#

24 MHz +/- 30 PPM

*

OSC

3

CARD READER

2

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Title

Title

Title

CLOCK MAP

CLOCK MAP

CLOCK MAP

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

Page Modified: Sheet of

Project:

HP-CRANE

HP-CRANE

HP-CRANE

1

B

B

B

54 56Wednesday, July 29, 2015

54 56Wednesday, July 29, 2015

54 56Wednesday, July 29, 2015

5

PWROK MAP

1a

+VIN

2

D D

EC_AUX_ON

5

EC_SUS_ON

+3.3V_AUX_+5V_AUX

+3.3V_SUS

EN

Load Switch

/ RSMRST_PWRGD#

3

HWPG_AUX

S3_ON

4

2

EN PWRGD

+1.0V_VCCST_VCCPLL

EN

Load Switch

+VDDQ

PG_+VDDQ

3

2

1

+VCCCORE+VCCGT+VCCSA

55

VCC VCCGT VCCSA

SKY-S Processor

PROCPWRGD

+5V_SUS

EN

RC Delay

Load Switch

MAIN_ON1

7

PG_MAIN

7a

VR_ON PG_+VCCSA

9

VR_READY

HWPG_SUS

8

PWRBTN#

4

HWPG_AUX

3

6

ALL_SYS_PG

4

C C

6

7

PG_+1.8V_SUS

PG_+VCCIO

+1.8V_SUS

EN

+1.0V_SUS

IMVP8

B B

EN

+VCCORE/+VCCGT

7a

VR_ON

A A

5

PWRGD

PWRGDEN

PWRGD

PG_+VDDQ

PG_+VCCIO

PG_MAIN

PG_+1.8V_SUS

8

HWPG_SUS

8a

81203 VRDY

PG_+VCCSA

+3.3V / +5V

EN

Load Switch

+VCCIO

EN

+VCCSA

EN

EC

(10ms)

GPF7

(15ms)

GPH5

GPH2

GPH2

GPB7

GPI0

PWRGD

PWRGD

PWRGD

GPE0
GPE1

GPD0

GPE7

GPI6 SLP_SUS#

GPH6

( Delay 10ms )

GPC3 DSW_PWROK

GPH1

(5ms)

GPH4

GPE2

GPE3

GPC6

43

PG_MAIN

54

PG_+VCCIO

8b

10a

1b
1a

10
9a

9b

S3_ON

MAIN_ON1

MAIN_ON2

EC_AUX_ON

EC_SUS_ON

VR_READY

EC_PWROK

EC_SYS_PWROK

PM_SLP_S3#

PM_SLP_S4#

PM_SLP_SUS#

EC_RSMRST#

EC_DPWROK

2

3

7b

2
5

3

249 ohm

249 ohm

0 ohm

0 ohm

VCCST_PWRGD

PCH_PWROK

PCH_SYSPWROK

PCH_REMRST#

PCH_DPWROK

11

11

13

VCCST_PWRGD

+1.0V_SUS+1.8V_SUS+3.3V_SUS

H_PWRGD

12

+VccPrim_1p0+VccPrim_1p8 +VccPrim_3p3

PCH_PWROK

SYS_PWROK

SLP_S3#
SLP_S4#

RSMRST#

Title

Title

Title

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

Page Modified: Sheet of

Page Modified: Sheet of

2

Page Modified: Sheet of

SKY-PCH-H

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

Project:

Project:

PWROK MAP

PWROK MAP

PWROK MAP
810606-000

810606-000

810606-000

PROCPWRGD

PLTRST#

HP-CRANE

HP-CRANE

HP-CRANE

1

14

PLTRST_N

55 56Wednesday, July 29, 2015

55 56Wednesday, July 29, 2015

55 56Wednesday, July 29, 2015

B

B

B

5

DB to SI Change List

EC-SI-E01 Un-stuff CPU HW straps, R444,R61,R462 -- Page 5
EC-SI-E02 Un-stuff H_PWRGD pull down, R493 -- Page 5
EC-SI-E03 Un-stuff SPI_IO2 pull downy, R589 -- Page 9
EC-SI-E04 Change Q13 gate power rail, -- Page 9
EC-SI-E05 Remove Q12 and add R698/R697 -- Page 9
EC-SI-E06 Remove C583 to fix DRAMRST rise time -- Page 9
EC-SI-E07 For XDP only, R596,R587 -- Page 10
EC-SI-E08 Don't populate R532 for +3.3V Leakage -- Page 11
EC-SI-E14 Don't populate AR3 for +3.3V Leakage -- Page 25
EC-SI-E15 Change AR1 to 4.7 ohm for EA-- Page 25
EC-SI-E16 Change from +3.3V to +3.3V_AUX for EC_SMI#_R for +3.3V_SUS Leakage -- Page 25
EC-SI-E17 Don't stuff R402/R403 for +3.3V_SUS leakage -- Page 28

D D

EC-SI-E18 Change U29.72 to IOUT -- Page 28
EC-SI-E19 Add EC6 220pf on +5V_SUS, EC5 220pf on PWRBTN#, EC4 220pf on PWR_ON_LED# -- Page 32
EC-SI-E20 Add serial resistor R699 on L_FRAME# -- Page 28
EC-SI-E21 rChange serial resistor from 33ohm to 100ohm on F_LAD0_R,F_LAD1_R,F_LAD2_R,F_LAD3_RmL_FRAME#_R,L_FRAME#_R,F_LAD0_D,F_LAD1_D,F_LAD2_D,F_LAD3_D,R405,R406,R408,R456,R455,R454,R453 -- Page 28
EC-SI-E22 Add+0.95V_VGA power LDO circuit -- Page 49
EC-SI-E23 Stuff some capactiors EMI reserved before. -- Page 50
EC-SI-E24 Change AD4,AD5,AD6,AD7 part and their pin2 connect to GND -- Page 25
EC-SI-E25 Change DDR3L socket, JDIM1,JDIM2-- Page 14,15
EC-SI-E26 Add ESD protector for 3D CAMERA, U41-- Page 29
EC-SI-E27 Add ESD capactior for Audio codec return path AC38,AC30,AC45 -- Page 25
EC-SI-E28 C203, C204, C592 and C593 change with 1000pf cap for ESD -- Page 26
EC-SI-E29 AL1-AL4 change to 220 ohm bead same as previous mode for EMI, AL1~AL4 -- Page 25
EC-SI-E30 Add ESD protector for DMIC (close to CN6) -- Page 25

ECP-SI-P01 change footprint to short pad, PJP1~PJP19 -- Page35~49
ECP-SI-P02 change current sense IC multiple and EC detect system power consumption,PU20,PR133,PR351,PR132 -- Page 35
ECP-SI-P03 add power rating,PQ26,PC101 -- Page 36
ECP-SI-P04 adjust output voltage and common design. PR30/PC48/PC49 -- Page 36
ECP-SI-P05 adjust sequence and remote sense resistor.PC156/PR192/PR193 -- Page 38
ECP-SI-P06 common design. PC102 -- Page 39
ECP-SI-P07 common design. PC104/PC106-- Page 40
ECP-SI-P08 adjust sequence. PR327/PR328-- Page
ECP-SI-P09 Iout and load line setting. PR14/PR15/PC18/PC67/PC172-- Page 44
ECP-SI-P10 OCP, Iout, load line setting and common design. PR33/PR18/PR156/PR168/PR169/PC24/PC32/PC148/PC21/PL6/PL7/PC52/PC55-- Page 44
ECP-SI-P11 improve ripple. PC274/PC275-- Page 47
ECP-SI-P12 OCP, load line setting and common design. PR96/PR237/PC82/PL10/PL11-- Page 48
ECP-SI-P13 Remove PG_+1.8V_VGA circuit. PQ42/PQ44/PR224/PR226 -- Page48
ECP-SI-P14 add power rating. PL9/PC276 -- Page 49

C C

ECP-SI-P15 change power solution from load switch to LDO. PQ16/PR76/PC66/PC107/PC246/PU21/PR347/PR349/PR348/PR350/PR269/PC271/PC272/PC273 -- Page49

SI-1 to SI-2 Change List

EC-SI2-E01 Chagne 0 ohm to shortpad., R115 -- Page 31
EC-SI2-E02 Chagne 0 ohm to shortpad., AR35,AR39,AR9 -- Page 25
EC-SI2-E03 Change and stuff Audio power., AU2,AR20,AR46,AR45 -- Page 25
EC-SI2-E04 Chagne 0 ohm to shortpad. L23,R32, -- Page 24
EC-SI2-E05 Un-stuff Intel ME Crypto TLS pull up resistor, R198 -- Page 9
EC-SI2-E06 Chagne 0 ohm to shortpad., R649 -- Page 9
EC-SI2-E07 Stuff VRALERTB_PU pull up resistor, R604 -Page 9
EC-SI2-E08 Un-stuff BMUSY pull up, R619 --Page 9
EC-SI2-E09 Chagne 0 ohm to shortpad.-- Page 10
EC-SI2-E10 Un-stuff GPP_F_11, GPP_G_5 pull up ,R156/R536 -- Page 10
EC-SI2-E11 Chagne 0 ohm to shortpad. R595 -- Page 12
EC-SI2-E12 Chagne 0 ohm to shortpad, R533/R534. -- Page 22
EC-SI2-E13 Chagne 0 ohm to shortpad. R313 -- Page 23
EC-SI2-E14 Chagne 0 ohm to shortpad. R426 -- Page 28
EC-SI2-E15 Un-stuff SPI_MOSI to XDP_HOOK3, R76-- Page 34
EC-SI2-E16 Un-stuff PCH_SUSCLK pull down, R265 -- Page 9
EC-SI2-E17 Reserve commond choke / 0 ohm on PCIE_WLAN_RX sgnal close to PCH side. R701/R700.L41 -- Page 28
EC-SI2-E18 Delete 0 ohm., R558,R551,R258,R622 -- Page 9,10,34

ECP-S2I-P01 change 0R_0402 to shortpad, -- Page35-40, 44-46,48-49
ECP-SI2-P02 change 0R_0603 to shortpad. PR56,PR187,PR199,PR186,PR191,PR330,PR84 -- Page 37, 45-48
ECP-SI2-P03 add adapter protect detect schematic ,PR370,PR371,PR372,PR373,PR374 -- Page 35
ECP-SI2-P04 delete adapter protect detect schematic . PU16,PD7,PC220,PC222,PC242,PR257,PR258,PR260,PR265,PR266,PR303,PR307,PR309 -- Page 35
ECP-SI2-P05 adjust VDDQ power rail output voltage.PR30 -- Page 37

B B

ECP-SI2-P06add VCCIO power rail efficiency PL3 -- Page 38
ECP-SI2-P07 detel PJP18 and add PL21.-- Page 40
ECP-SI2-P08 change PR14,PR15,PR18,PC149,PC152 value- Page44

SI-2 to PV Change List

EC-PV-E01 Change serial resistor value from 0 ohm to 100ohm on EC_PRHOT_S - page5
EC-PV-E02 Chagne 0 ohm to shortpad., R107,R487,R294,R295,R265,R599,R281,R273,R264,R545,R290,R288,R243,R539,R644,R540,R224,R274,R245,
R289,R553,R301,R297,R366,R495,R369,R501,L33,R299,R226,R671,R670,R677,R686,R573,AR20,AR14,AR7,R356,R312,R667,R360,R687,R400,R391,R398,R379,R378,
R334,R701,R700,R433,R475,R427,R404,R561,R203,R361,R1,R86,R201 -- Page 5,9,10,11,12,13,14,15,16,22,23,24,25,26,27,28,30,31,32,34
EC-PV-E03 Remove 0 ohm and short net on CPU XDP traces., R472,R482,R486,R468,R470,R110,R109 -- Page 5
EC-PV-E04 Remove 0 ohm., R647,R432,R428,R69,R62 -- Page 10,28,34
EC-PV-E05 Reserve 0 ohm for AMD dgfx power off mode. R702, -- Page 9
EC-PV-E06 Don't stuff R559/R571 and stuff R572/R557, -- Page 12
EC-PV-E07 Don't stuff some components for TPM., R279,R278,R269,R257,R285,R241,R244,C183,C174,C175 -- Page 33
EC-PV-E08 Don't stuff conponents, R606,C59,R70,R460,R448,C579,R613 -Page 34

ECP-PV-P01 change 0R_0402 to shortpad, -- PR373,PR374,PR351,PR157,PR159,PR298,PR263,PR111
,PR113,?PR203,PR148,PR116,PR230,PR216 Page35,37,39,40,42,44,47,48,49

PV to PV2 Change List

EC-PV2-E01 Change CN1 footprint SMT suggestion -- Page 32
EC-PV2-E02 Change 0 ohm to shortpad. R233,R578,AR10,R91,R166,R266,R267,R175,R173,R167,R48,R49
EC-PV2-E03 Remove co-lay 0ohm:R194,R195,R196,R197,R180,R181,R178,R179,R182,R183,R192,R193,R188,R189,R190,R191,R187,R186,R185,R184 -- Page 24

R351,R352,R348,R349,R657,R658,R659,R660,R662,R663,R664,R665 -- Page 30
EC-PV2-E04 Board ID to PV2 -- Page 12

EC_PV2_P01 Throttling point setting change: UMA(182K), DIS(97.6K) -- Page 35
EC_PV2_P02 Adapter ID setting change: UMA(45.3K), DIS(26.7K). -- Page 35

A A

EC_PV2_P03 Remove power control of +VCCPLL_OC related circuit. -- Page 42
EC_PV2_P04 Remove Discharge related circuit of +VCCPLL_OC. -- Page 43

PV2 to MV Change List

EC-MV-E01 Change 0 ohm to shortpad. R132,R133,R143,R100,R103,R474,R122,R126,R127,R510,R511,R394,R395,R206
EC-MV-E02 Board ID to MV -- Page 12
EC_MV_P01 Change 0 ohm to shortpad. PR212,PR350

5

4

3

2

1

56

HP Restricted Secret

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Project:

HP-CRANE

Project:

HP-CRANE

Project:

Title

Title

Title

Cange List

Cange List

Cange List

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev

810606-000

810606-000

810606-000

Page Modified: Sheet of

Page Modified: Sheet of

4

3

2

Page Modified: Sheet of

HP-CRANE

1

B

B

B

56 56Wednesday, July 29, 2015

56 56Wednesday, July 29, 2015

56 56Wednesday, July 29, 2015
