Page 1
C
KPC-1920
19” Widescreen Fanless Panel PC with Intel® Celeron-M 1.5GHz
User’s Guide
-1920 User’s Manual
KP
I
Page 2
C
Contact Info:
Quanmax Inc.
4F, No. 415, Ti-Ding Blvd. Sec. 2NeiHu District,
Taipei 114Taiwan
Tel: +886-2-2799-2789
Fax: +886-2-2799-7399
Visit our site at: www.quanmax.com
© 2008 Quanmax Inc. All rights reserved.
The information in this user’s guide is provided for reference only. Quanmax does not assume any
liability arising out of the application or use of the information or products described herein. This u ser’s
guide may contain or reference information and products protected by copyrights or patents and does
not convey any license under the patent rights of Quanmax, nor the rights of others.
Quanmax is a registered trademark of Quanmax. All trademarks, registered trademarks, and trade
names used in this user’s guide are the property of their respective owners. All rights reserved. This
user’s guide contains information proprietary to Quanmax. Customers may reprint and use this user’s
guide in other publications. Customers may alter this user’s guide and publish it only afte r the y remo ve
the Quanmax name, cover, and logo.
Quanmax reserves the right to make changes without notice in product or component design as
warranted by evolution in user needs or progress in engineering or manufacturing technology.
Changes which affect the operation of the unit will be documented in the next revision of this user’ s
guide.
Revision Date Edited by Changes
1.0 11/06/2008 SLee Initial Release
-1920 User’s Manual
KP
II
Page 3
Content
C
Content
Content.......................................................................................................................3
Figures.......................................................................................................................4
Tables.........................................................................................................................5
Safety Instructions......................................................................................................6
Before You Begin..................................................................................6
Preventing Electrostatic Discharge....................................................... 7
Preface.......................................................................................................................8
How to Use This Guide.........................................................................8
Unpacking.............................................................................................8
Regulatory
Warranty Policy.....................................................................................9
Maintaining Your Computer.................................................................10
Chapter 1 Introduction........................................................................................... 13
Overview.............................................................................................13
Product Specifications.......................................................................................15
Mechanical Layout..............................................................................16
Chapter 2 Assembly/Disassembly......................................................................... 18
Mounting.............................................................................................18
Desktop
Wi-FI Antenna Installation (optional) VESA.........................................19
Chapter 3 Getting Started......................................................................................20
When Working Inside a Computer........................................................6
Compliance Statements...................................................... 8
Mounting............................................................................... 18
Power Connection ..............................................................................20
Operating System and Drivers............................................................ 21
Chapter 4 Maintenance and Prevention
Chapter 5 Interface................................................................................................ 23
External Connectors ...........................................................................23
KP
-1920 User’s Manual
................................................................22
3
Page 4
Figures
C
Figures

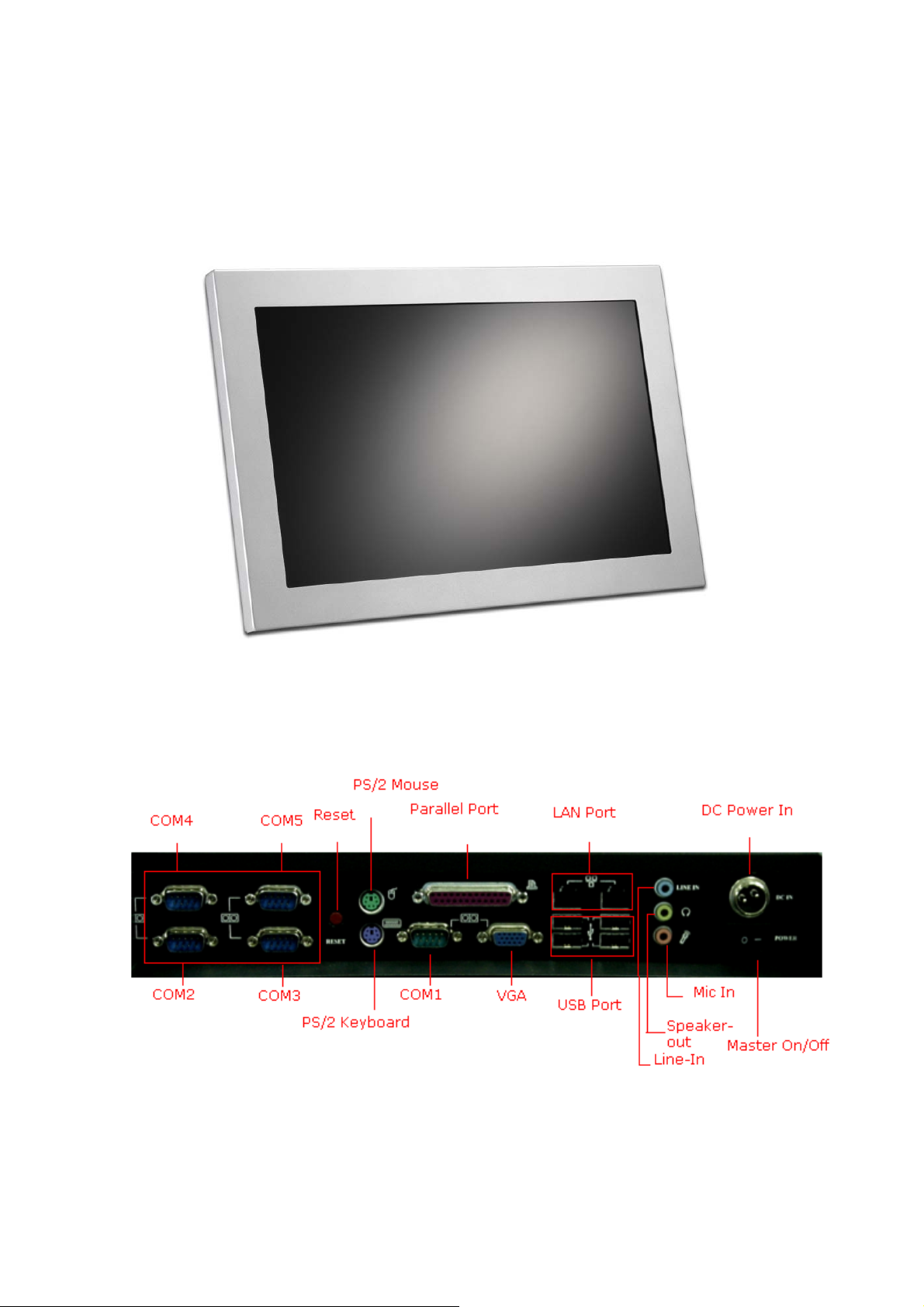

Figure 1 Mechanical Layout - Front and Side...........................................................16
Figure 2 Mechanical Layout - I/O Panel................................................................... 16

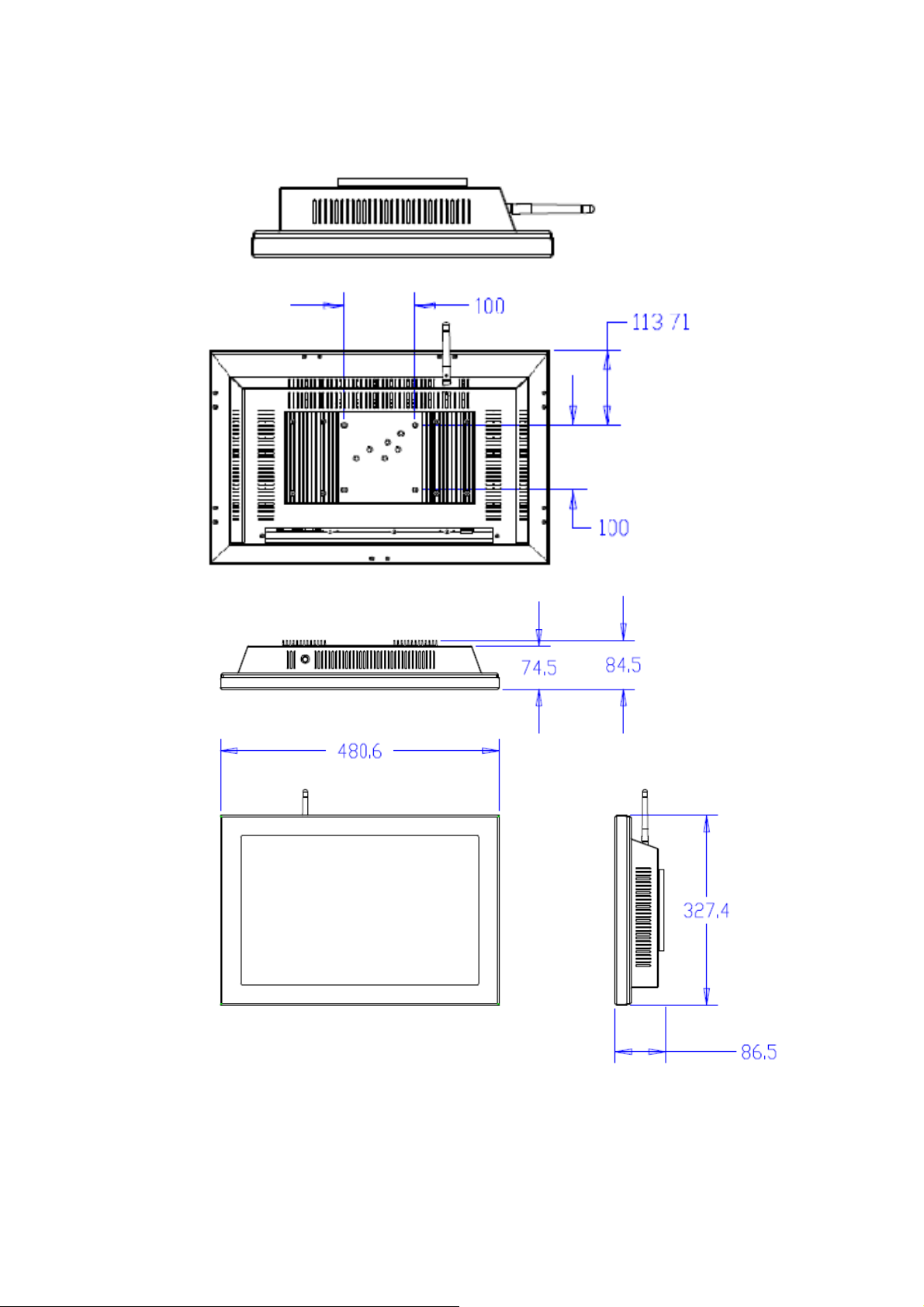

Figure 3 Mechanical Dimensions.............................................................................17

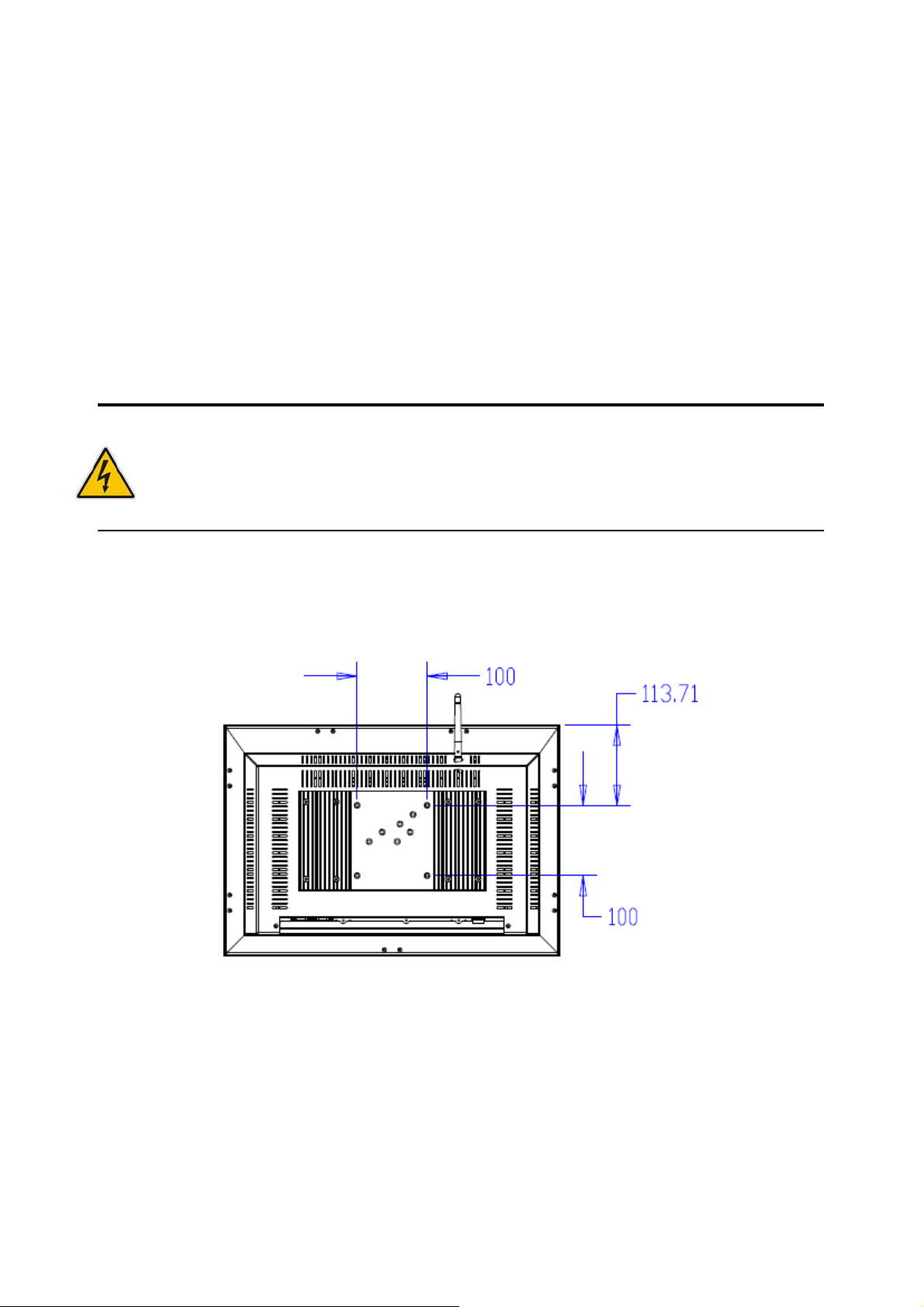

Figure 4 Mounting hole locations on the KPC-1920.................................................18

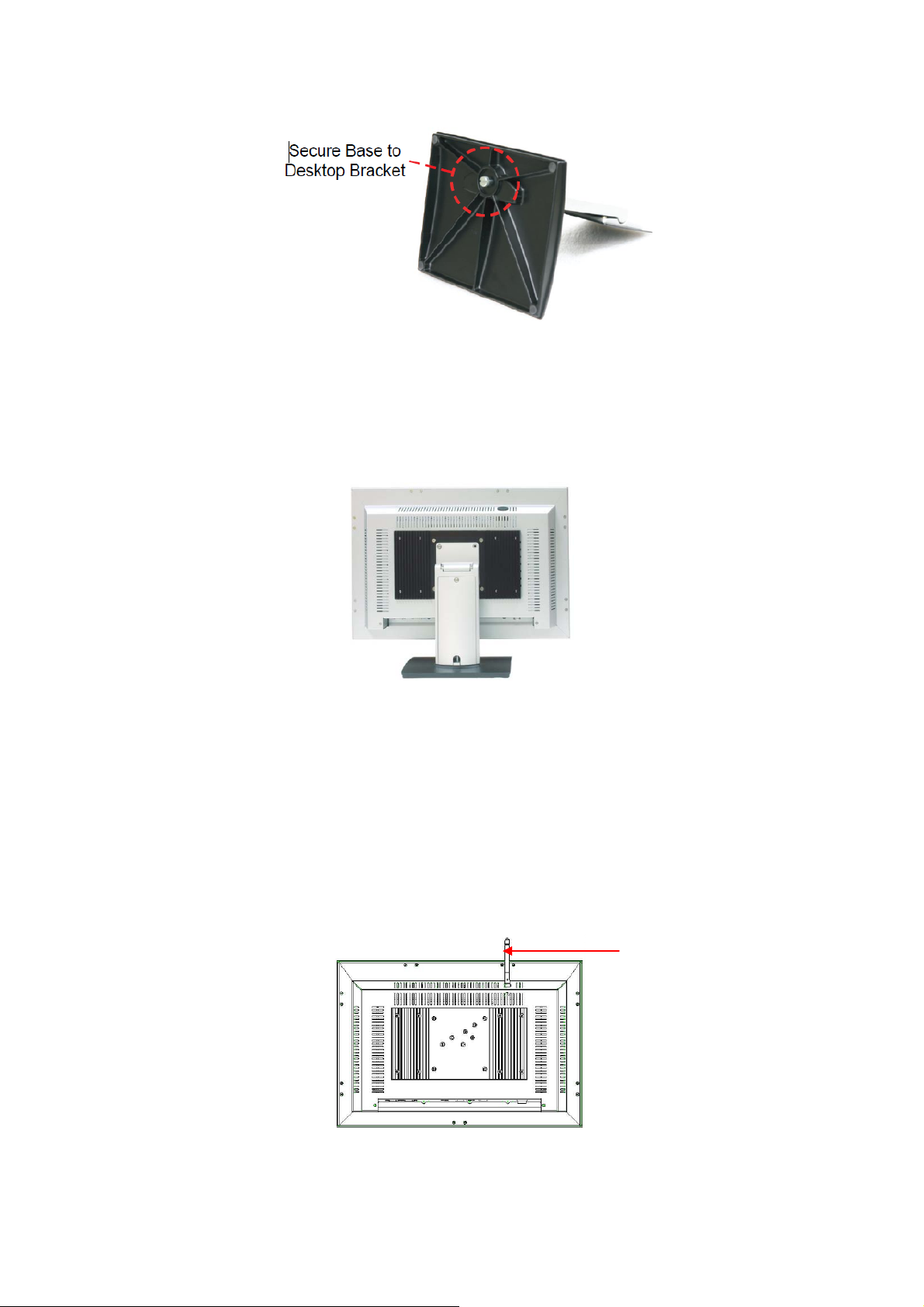

Figure 5 Attach the base to the desktop mounting bracket.......................................19
Figure 6 Attach the base to the desktop mounting bracket.......................................19
Figure 7 Installing the antenna for the optional Wi-Fi card on the KPC-1920

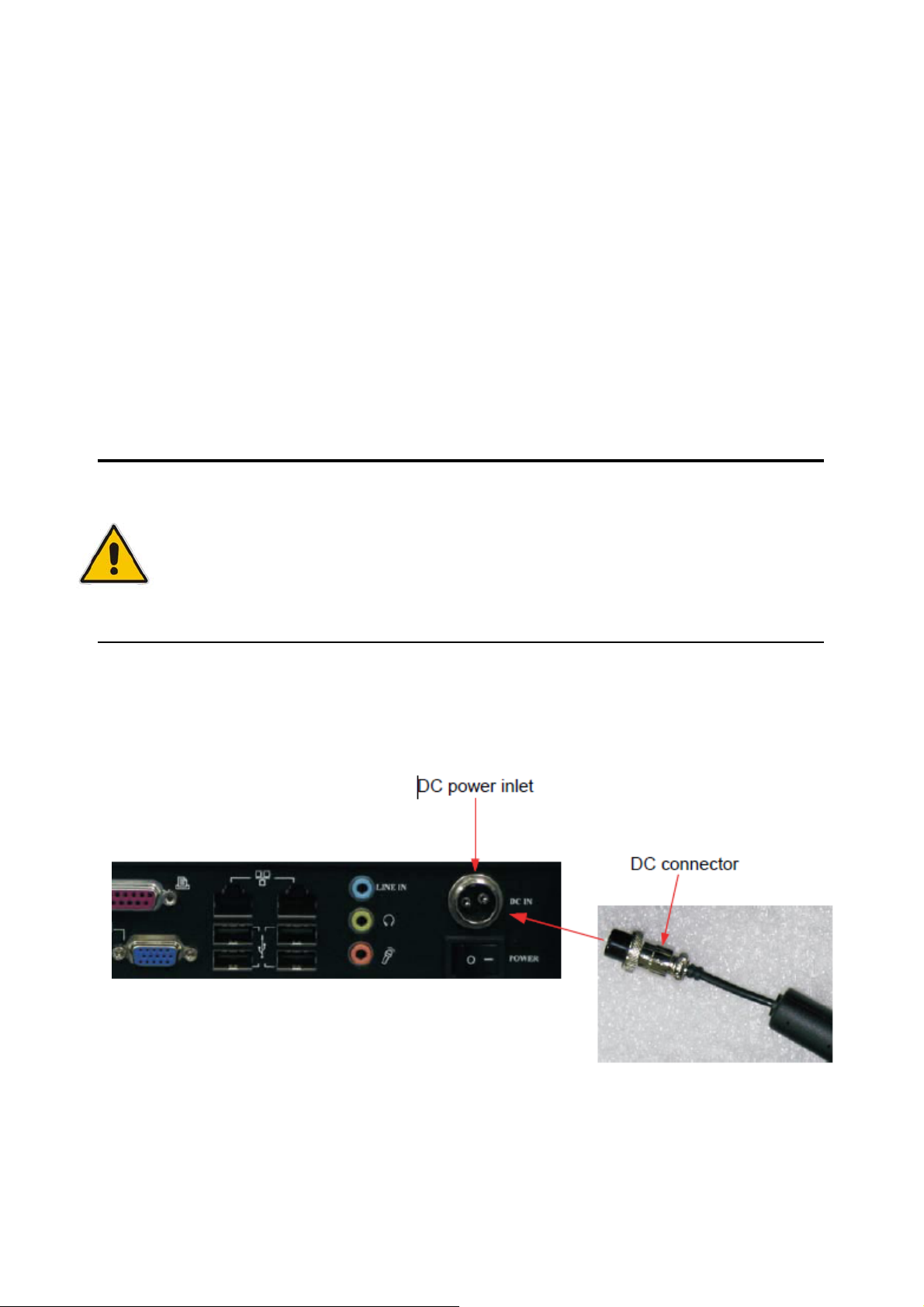

Figure 8 DC power inlet location..............................................................................20
...........19
KP
-1920 User’s Manual
4
Page 5
Tables
C
Tables
Table 1 Specifications............................................................................................... 15
Table 2 PS/2 Mouse Connector pin definition...........................................................23
Table 3 PS/2 Keyboard Connector pin definition...................................................... 23
Table 4 COM1 RS-232 Serial Port Connector pin definition.....................................23
Table 5 COM2 RS232/422/485 Serial Port Connector pin definition ........................24
Table 6 Parallel Port Connector pin definition
Table 7 VGA Display Connector pin definition.......................................................... 24
Table 8 Fast Ethernet + 2 USB 2.0 Connector pin definition....................................25
Table 9 Audio Jack Connector pin definition.......................................................... 25
...........................................................24
KP
-1920 User’s Manual
5
Page 6
Safety Instructions
C
Safety Instructions
Before You Begin
Before handling the product, read the instructions and safety guidelines on the
following pages to prevent damage to the product and to ensure your own personal
safety . Refer to the “Advisories” section in the Preface for advisory conventions used
in this user’s guide, including the distinction between Warnings, Cautions, Important
Notes, and Notes.
Always use caution when handling/operating a computer. Only qualified,
experienced, authorized electronics service personnel should access the
interior of a computer. The power supplies produce high voltages and
energy hazards, which can cause bodily harm.
Use extreme caution when installing or removing components. Refer to the
installation instructions in this user’s guide for precautions and procedures.
If you have any questions, please contact Quanmax Post-Sales Technical
Support.
WARNING
High voltages are present inside the chassis when the unit’s power cord is
plugged into an electrical outlet. Turn off system power, turn off the power
supply, and then disconnect the power cord from its source before
removing the chassis cover. Turning off the system power switch does not
remove power to components.
When Working Inside a Computer
Before taking covers off a computer, perform the following steps:
1. Turn off the computer and any peripherals.
2. Disconnect the computer and peripherals from their power sources or
subsystems to prevent electric shock or system board damage. This does not
apply when hot swapping parts.
3. Follow the guidelines provided in “Preventing Electrostatic Discharge” on the
following page.
4. Disconnect any telephone or telecommunications lines from the computer.
KP
-1920 User’s Manual
6
Page 7
Safety Instructions
C
In addition, take note of these safety guidelines when appropriate:
To help avoid possible damage to system boards, wait five seconds after
turning off the computer before removing a component, removing a system
board, or disconnecting a peripheral device from the computer.
When you disconnect a cable, pull on its connector or on its strain-relief loop,
not on the cable itself. Some cables have a connector with locking tabs. If you
are disconnecting this type of cable, press in on the locking tabs before
disconnecting the cable. As you pull connectors apart, keep them evenly
aligned to avoid bending any connector pins. Also, before connecting a cable,
make sure both connectors are correctly oriented and aligned.
CAUTION
Do not attempt to service the system yourself except as explained in this
user’s guide. Follow installation and troubleshooting instructions closely.
Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation
and follow proper ESD procedure to reduce the risk of damage to components.
Quanmax strongly encourages you to follow proper ESD procedure, which can
include wrist straps and smocks, when servicing equipment.
You can also take the following steps to prevent damage from electrostatic
discharge (ESD):
When unpacking a static-sensitive component from its shipping carton, do not
remove the component’s antistatic packing material until you are ready to install
the component in a computer. Just before unwrapping the antistatic packaging,
be sure you are at an ESD workstation or grounded. This will discharge any
static electricity that may have built up in your body.
When transporting a sensitive component, first place it in an antistatic container
or packaging.
Handle all sensitive components at an ESD workstation. If possible, use
antistatic floor pads and workbench pads.
Handle components and boards with care. Don’t touch the components or
contacts on a board. Hold a board by its edges or by its met al mounting bracket.
Do not handle or store system boards near strong electrostatic, electromagnetic,
magnetic, or radioactive fields.
KP
-1920 User’s Manual
7
Page 8
Preface
C
Preface
How to Use This Guide
This guide is designed to be used as step-by-step instructions for installation, and as
a reference for operation, troubleshooting, and upgrades.
NOTE
Driver downloads and additional information are available under
Downloads on our web site: www.quanmax.com.
Unpacking
When unpacking, follow these steps:
1. After opening the box, save it and the packing material for possible future
shipment.
2. Remove all items from the box. If any items listed on the purchase order
are missing, notify Quanmax customer service immediately.
3. Inspect the product for damage. If there is damage, notify Quanmax
customer service immediately. Refer to “Warranty Policy” for the return
procedure.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices.
FCC Compliance Statement for Class A Devices
The product(s) described in this user’s guide has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the user’s guide, may cause harmful
KP
-1920 User’s Manual
8
Page 9
Preface
C
interference to radio communications. Operation of this equipment in a residential
area (domestic environment) is likely to cause harmful interference, in which case
the user will be required to correct the interference (take adequate measures) at
their own expense.
Changes or modifications not expressly approved by Quanmax could void the user's
authority to operate the equipment.
NOTE
The assembler of a personal computer system may be required to test
the system and/or make necessary modifications if a system is found to
cause harmful interference or to be noncompliant with the appropriate
standards for its intended use.
Warranty Policy
Limited Warranty
Quanmax Inc.’s detailed Limited Warranty policy can be found under Support at
www.quanmax.com. Please consult your distributor for warranty verification.
The limited warranty is void if the product has been subjected to alteration, neglect,
misuse, or abuse; if any repairs have been attempted by anyone other than
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God,
or other causes beyond the control of Quanmax or the manufacturer. Neglect,
misuse, and abuse shall include any installation, operation, or maintenance of the
product other than in accordance with the user’s guide.
No agent, dealer, distributor, service company , or other pa rty is authorized to change,
modify, or extend the terms of this Limited Warranty in any manner whatsoever.
Quanmax reserves the right to make changes or improvements in any product
without incurring any obligation to similarly alter products previously purchased.
Return Procedure
For any Limited Warranty return, please contact Support at www.quanmax.com and
login to obtain a Return Material Authorization (RMA) Number. If you do not have an
account, send an email to [email protected] to apply for one.
All product(s) returned to Quanmax for service or credit must be accompanied by a
Return Material Authorization (RMA) Number. Freight on all returned items must be
KP
-1920 User’s Manual
9
Page 10
Preface
C
prepaid by the customer who is responsible for any loss or damage caused by
common carrier in transit. Returns for Warranty must include a Failure Report for
each unit, by serial number(s), as well as a copy of the original invoice showing the
date of purchase.
To reduce risk of damage, returns of product must be in a Quanmax shipping
container. If the original container has been lost or damaged, new shipping
containers may be obtained from Quanmax Customer Service at a nominal cost.
Quanmax owns all parts removed from repaired products. Quanmax uses new and
reconditioned parts made by various manufacturers in performing warranty repairs
and building replacement products. If Quanmax repairs or replaces a product, its
warranty term is not extended.
Shipments not in compliance with this Limited Warranty Return Policy will not be
accepted by Quanmax.
Limitation of Liability
In no event shall Quanmax be liable for any defect in hardware, software, loss, or
inadequacy of data of any kind, or for any direct, indirect, incidental, or
consequential damages in connection with or arising out of the performance or use
of any product furnished hereunder. Quanmax’s liability shall in no event exceed the
purchase price of the product purchased hereunder. The foregoing limitation of
liability shall be equally applicable to any service provided by Quanmax or its
authorized agent.
Maintaining Your Computer
Cleaning Components
Internal fans cool the computer by drawing in air through air vents in the front of the
computer and blowing it out the rear-side panels. Dust and other debris is drawn in
with the air and, if allowed to build up, will interfere with the operation of various
system components and insulate components, preventing heat from dissipating. To
prevent this, an air filter has been installed in front of the air vents in the front panel
to block dust and other debris from entering the computer.
Dust and debris builds up on the air filter over time. When the air filter becomes very
dirty, it is difficult for cooling air to pass through the air filter and enter the computer.
So, the air filter must be cleaned to prevent the computer from overheating. Remove
and clean the air filter on a regular basis following the steps described in the “Air
Filter” section of Chapter 2. Also, regularly vacuum the exterior of the chassis to
remove dust that has accumulated around the air vents.
KP
-1920 User’s Manual
10
Page 11
C
Environmental Factors
Temperature
The ambient temperature within an enclosure may be greater than room
ambient temperature. Installation in an enclosure should be such that the
amount of air flow required for safe operation is not compromised.
Consideration should be given to the maximum rated ambient temperature.
Overheating can cause a variety of problems, including premature aging and
failure of chips or mechanical failure of devices.
If the system has been exposed to abnormally cold temperatures, allow a
two-hour warm-up period to bring it up to normal operating temperature before
turning it on. Failure to do so may cause damage to internal components,
particularly the hard disk drive.
Humidity
Preface
High-humidity can cause moisture to enter and accumulate in the system. This
moisture can cause corrosion of internal components and degrade such
properties as electrical resistance and thermal conductivity. Extreme moisture
buildup inside the system can result in electrical shorts, which can cause
serious damage to the system.
Buildings in which climate is controlled usually maintain an acceptable level of
humidity for system equipment. However, if a system is located in an unusually
humid location, a dehumidifier can be used to maintain the humidity within an
acceptable range. Refer to the “Specifications” section of this user’s guide for
the operating and storage humidity specifications.
Altitude
Operating a system at a high altitude (low pressure) reduces the efficiency of
the cooling fans to cool the system. This can cause electrical problems related
to arcing and corona effects. This condition can also cause sealed components
with internal pressure, such as electrolytic capacitors, to fail or perform at
reduced efficiency.
Power Protection
The greatest threats to a system’s supply of power are power loss, power spikes,
and power surges caused by electrical storms, which interrupt system operation
and/or damage system components. To protect your system, always properly
ground power cables and one of the following devices.
KP
-1920 User’s Manual
11
Page 12
C
Surge Protector
Surge protectors are available in a variety of types and usually provide a level
of protection proportional with the cost of the device. Surge protectors prevent
voltage spikes from entering a system through the AC power cord. Surge
protectors, however, do not offer protection against brownouts, which occur
when the voltage drops more than 20 percent below the normal AC line voltage
level.
Line Conditioner
Line conditioners go beyond the over voltage protection of surge protectors.
Line conditioners keep a system’s AC power source voltage at a fairly constant
level and, therefore, can handle brownouts. Because of this added protection,
line conditioners cost more than surge protectors. However, line conditioners
cannot protect against a complete loss of power.
Preface
Uninterruptible Power Supply
Uninterruptible power supply (UPS) systems offer the most complete protection
against variations on power because they use battery power to keep the server
running when AC power is lost. The battery is charged by the AC power while it
is available, so when AC power is lost, the battery can provide power to the
system for a limited amount of time, depending on the UPS system.
UPS systems range in price from a few hundred dollars to several thousand
dollars, with the more expensive unit s allowing you to run larger systems for a
longer period of time when AC power is lost. UPS systems that provide only 5
minutes of battery power let you conduct an orderly shutdown of the system,
but are not intended to provide continued operation. Surge protectors should be
used with all UPS systems, and the UPS system should be Underwriters
Laboratories (UL) safety approved.
KP
-1920 User’s Manual
12
Page 13
Chapter 1
C
Chapter 1
Introduction
Overview
The KPC-1920 Panel PC offers a 19” widescreen panel monitor and powerful
computing performance based on Intel technology at extremely low power Intel®
Celeron-M processor for a wide range of public service applications. The rugged
chassis is designed for a harsh environment while the 16:10 screen aspect ratio
follows the trend toward multimedia content. The KPC-1920 features fanless
operation, providing for a quiet, reliable and low-maintenance system and is ideal for
interactive applications in retail and educational environments, as an information
kiosk, POS, gaming, digital signage, and thin client.
Checklist
1. Take out the KPC-1920 from the carton box, check if the unit is properly
secure in the plastic bag.
2. Check the contents of the carton box:
Panel PC
AC power adapter (incl. wall socket cord)
Desktop stand (arm + base)(Optional)
Screw bag
Wi-Fi antenna (optional)
Features
Display
The KPC-1920 has a 19” TFT LCD display with WXGA resolution and 500 cd/m2
brightness and Capacitive/Resistive type touch screen panel.
Motherboard
The KPC-1920 implements a Mini-ITX motherboard with Intel® Celeron® M
1.5GHz µFC-BGA (1MB L2 cache), Intel® 855GME GMCH and Intel® I/O
Controller Hub 4 ICH4 chipset, 512MB DDR266 (expandable up to 2 GB), dual
KP
-1920 User’s Manual
13
Page 14
Chapter 1
C
Fast Ethernet via two Intel 82551ER Fast Ethernet Controllers, LPC-based
Winbond W83627HF Super I/O controller, and Realtek ALC655 AC'97 audio
CODEC.
Input/Output
The KPC-1920 has the following I/O interfaces:
2x Fast Ethernet (RJ45 on panel)
5x Serial Port (COM2 supports RS-232/422/485)
4x USB 2.0 (on panel)
Mic-in, Line-in, Line-out (on panel)
PS/2 Keyboard, Mouse (on panel)
Parallel Port (on panel)
Power Button
Storage
The KPC-1920 has a 2.5” Hard Disk and a CompactFlash Type II.
Expansion
The KPC-1920 has a Mini PCI slot.
Power Supply
The KPC-1920 is powered by an external 100V-240V AC power adapter
(12VDC out).
KP
-1920 User’s Manual
14
Page 15
C
Product Specifications
System
CPU Intel Celeron-M 1.5GHz 1M L2 Cache
Chipset Intel 855GME GMCH/852GM +ICH4
Memory DDR333 DIMM 512MB(2 DIMMS up to 2GB)
Internal Storage
Expansion slots Mini-PCI slot
I/O
LCD Display
2.5" HDD storage
1x CompactFlash Type Ⅱ socket
2x Fast Ethernet
4x USB2.0 , 5x Serial Port RS232
1x Parallel port , 1x VGA out
PS2 Keyboard/Mouse
Mic in, Line-in, Line-out
Reset button
Chapter 1
Display type TFT WXGA widescreen LCD
Size(Diagonal) 19"
Brightness 300cd/m2
Resolution 1440x900
Network
Wireless LAN 802.11b/g
ON board LAN 2xFast Ethernet controller Intel 82551ER
Power Supply
Output Rating 80W
Input Voltage 100~240V
Output Voltage 12V
Environmental Specification
Temperature
Weight
Accessories Power cable
Compliant
FCC YES
CE YES
Operating: 0-40°C ,5%-80% non-condensing
Storage: -20-60°C, 5%-80% non-condensing
9.1kg(without table-stand)
10.5kg(with table-stand)
RoHS YES
Dimensions 480.6mm x 327.4mm x 84.5mm
Table 1 Specifications
KP
-1920 User’s Manual
15
Page 16
C
Mechanical Layout
Front and Side Panel
Chapter 1
I/O Panel
Figure 1 Mechanical Layout - Front and Side
Figure 2 Mechanical Layout - I/O Panel
KP
-1920 User’s Manual
16
Page 17
C
Mechanical Dimensions
Chapter 1
Figure 3 Mechanical Dimensions
KP
-1920 User’s Manual
17
Page 18
C
Assembly/Disassembly
Mounting
Before opening your system, make sure to turn it off and disconnect the
power sources to prevent electric shock or system damage.
Chapter 2
Chapter 2
WARNING
The KPC-1920 comes with VESA FDMI 100 standard mounting holes as shown
below. Use M4x0.7 metric machine screws with the appropriate length for your
mounting bracket. The available internal clearance for the mounting screws is 8mm.
Figure 4 Mounting hole locations on the KPC-1920
Desktop Mounting
The KPC-1920 comes with a desktop mounting bracket. Attach the base to the
bracket spine using the single large screw provided and a flathead screwdriver as
shown.
KP
-1920 User’s Manual
18
Page 19
Chapter 2
C
Figure 5 Attach the base to the desktop mounting bracket.
Secure the bracket to the VESA mounting holes on back of the KPC-1920 using the 4
M4x0.7 screws provided and a Phillips screwdriver as shown.
Figure 6 Attach the base to the desktop mounting bracket.
Wi-FI Antenna Installation (optional) VESA
To install the antenna for the optional Wi-Fi card on the KPC-1920, remove the cap
covering the antenna mount as indicated below and screw the supplied antenna into
the mount.
Antenna
Figure 7 Installing the antenna for the optional Wi-Fi card on the KPC-1920
KP
-1920 User’s Manual
19
Page 20
C
Chapter 3
Getting Started
Power Connection
AC Power
Use the power cord suitable for the power supply in your country. Do not
Chapter 3
CAUTION
remove or alter the grounding prong on the power cord. In situations where
a two-slot receptacle is present, have it replaced with a properly grounded
three-prong grounding type receptacle.
Connect the supplied the AC/DC adapter to the system by inserting the DC connector
of the adapter into DC power inlet on the I/O panel of the system as shown. Secure
the connector by tightening the knurled screw on the DC connector.
Figure 8 DC power inlet location
KP
-1920 User’s Manual
20
Page 21
Chapter 3
C
Connect the AC power cord of the AC adapter to a corresponding AC outlet.
Power switch
CAUTION: Use the power cord suitable for the power supply in your country. Do not remove or alter
the grounding prong on the power cord. In situations where a two-slot receptacle is present, have it
replaced with a properly grounded three-prong grounding type receptacle.
Operating System and Drivers
If your product does not come with an operating system pre-installed, you will need
to install an operating system and the necessary drivers to operate it. After you have
finished assembling your system and connected the appropriate power source,
power it up using the power supply and install the desired operating system.
You can download the drivers for the product from the Quanmax website at
www.quanmax.com and install as instructed there. For other operating systems,
please contact Quanmax.
KP
-1920 User’s Manual
21
