HQ-CG 3,6; EX; UK
Cordless Grass- and Bush Shear
Artikel-Nr.: 3410439
Ident-Nr.: 11010
Komponenten / Ersatzteile
Position Artikel-Nr. Beschreibung
1 341044001011 self-tapping screw ST2.9*13 3,2 x 13
4 341044001014 switch für Führungsholm
17 341044001027 wheel shaft
19 341044001029 wheel
26 341044001036 guard for grass shear blade für Grasschneidemesser
33 341044001043 guard for trimming blade für Strauchmesser
45 341044001055 driving gear
48 341044001058 gear
49 341044001059 blade cover
51 341044001061 Wheel bracket
901 341044001001 grass shear blade
902 341044001002 schrub trimming blade
903 341044001903 PCB cpl with accu and LED mit Akku u. LED
904 341044001904 motor cpl with pinion mit Antriebsritzel
Cordless 3.6v Grass
& Shrub Trimmer Kit
Original Operating Instructions
INTERCHANGEABLE SHRUB TRIMMING
AND LAWN EDGING BLADES
The perfect tool for light trimming
of grass and shrubs
INCLUDES TELESCOPIC
HANDLE ATTACHMENT
Allows grass trimming
whilst in an upright position
MAXIMUM RUNNING
TIME 60 MINUTES
Greater freedom
in the garden
TOOL FREE BLADE CHANGE
Little fuss and time saving
1.3AH LITHIUM ION
INTEGRATED BATTERY
Holds charge
when not in use
AFTER SALES SUPPORT
UK / IRELAND HELPLINE NO 0151 6491500
REP. IRELAND HELPLINE NO 1890 946244
WEB SUPPORT www.einhell-uk.co.uk
MODEL NUMBER: HQ-CG 3.6
HOMEBASE ARTICLE NUMBER: 677522
Contents
03. Safety Guide
07. Product Diagrams
10. Technical Data
10. Assembly
14. Declaration of Conformity
15. Product Guarantee
Important!
Read and follow the operating instructions and
safety information before using for the first time.
02
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
General safety regulations for
electric tools
This equipment is not designed to be used
by people (including children) with limited
physical, sensory or mental capacities or
those with no experience and/or knowledge
unless they are supervised by a person who
is responsible for their safety or they have
received instructions from such a person in
how to use the equipment safely. Children
must always be supervised in order to ensure
that they do not play with the equipment.
CAUTION: Read all safety regulations
and instructions.
Any failures made in following the safety
regulations and instructions may result in an
electric shock, fire and/or serious injury.
Keep all safety regulations and
instructions in a safe place for future use.
The term “electric tool” used in the safety
regulations refers to electric tools operated
from the mains power supply (with a power
cable) and to battery operated electric tools
(without a power cable).
1. Workplace safety
• Keep your work area clean and well
illuminated. Untidy or unlit work areas can
result in accidents.
• Do not use this tool in a potentially
explosive environment containing
combustible liquids, gases or dust.
Electric tools generate sparks, which can
in turn ignite dust or vapors.
• Keep children and other persons away
from the electric tool while it is being
used. Allowing yourself to get distracted
can cause you to lose control of the tool.
2. Electrical safety
• The tool’s connector plug must be
able to fit into the socket outlet. Do
not modify the plug in any way! Do not
use adapter plugs in conjunction with
electrically grounded tools. Unmodified
plugs and matching socket outlets reduce
the risk of an electric shock.
• Avoid touching grounded surfaces,
such as those of pipes/tubes, heaters,
cookers and refrigerators. There is an
increased risk of getting an electric shock if
you are electrically grounded.
• Keep the tool away from rain and
moisture/wet conditions. Penetration of
water into an electric tool increases the risk
of an electric shock.
• Do not use the cable to carry the tool,
hang it up or pull the plug out of the
socket. Keep the cable away from
sources of heat, oil, sharp edges and
moving tool parts. Damaged or tangled
cable increases the risk of an electric
shock.
• If you intend to use an electric tool
outdoors, ensure that you only use
extension cable that is approved for
outdoor applications. Using extension
cable that is approved for outdoor
applications reduces the risk of an electric
shock.
• If operation of the electric tool in a
damp environment can not be avoided,
use a earthleakage circuit-breaker. The
earth-leakage circuit-breaker reduces the
risk of an electric shock.
3. Personal safety
• Be alert, work conscientiously and
exercise appropriate caution when
using the electric tool. Do not use
the tool if you are tired or are under
the influence of drugs/medication or
alcohol. One moment of carelessness or
lack of attention when using the electric
tool can cause serious bodily injury!
• Always wear personal protective
equipment (PPE), including safety
goggles. Wearing personal protective
equipment such as a dust mask, non-slip
footwear, protective headgear and ear
muffs (depending upon the type of electric
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
03
tool and the particular application) reduces
the risk of sustaining injury.
• Make sure that the tool cannot start up
accidentally. Ensure that the electric
tool is switched off before you connect
the tool to the power supply and/or
insert the battery, or pick up or carry
the tool. Physically touching the switch
with your finger when carrying the tool or
connecting the tool to the power supply
switched on can lead to accidents.
• Remove adjusting tools/wrench(es) prior
to switching on the power tool. A tool or
wrench that is positioned inside a rotating
power tool part can cause injury.
• Avoid abnormal working postures. Make
sure you stand squarely and keep your
balance at all times. This way, you will be
able to have better control over the tool in
unexpected situations.
• Wear suitable clothes. Never wear loose
tting clothes or jewelry. Keep hair,
clothes and gloves away from moving
parts. Loose clothing, dangling jewelry and
long hair can be caught by moving parts.
• If dust extraction and dust collection
devices can be mounted, ensure that
these are connected and are properly
used. The use of a dust extraction system
can reduce the danger posed by dust.
4. Using the treatment of
electric tools
• When not in use, store electric tools
out of the reach of children. Do not
allow those persons to use this tool who
are unfamiliar with it or who have not
read these instructions. Electric tools
are dangerous when they are used by
inexperienced persons.
• Take good care of your tool. Check that
moving parts properly function and do
not jam, that parts are not broken off or
damaged in any way and that the tool
can be used to its full capacity. Have
damaged parts repaired prior to using
the tool. The cause of many accidents
can be traced back to poorly maintained
electric tools.
• Keep your blades sharp and clean.
Properly maintained blades with sharp edges
jam less frequently and are easier to use.
• Make sure to use electric tools,
accessories, attachments, etc. in
accordance with these instructions. Take
the conditions in your work area and the
job in hand into account. Using electric
tools for applications other than those
intended can lead to dangerous situations.
5. Service
• Have your tool repaired only by
authorized specialists using original
replacement parts. This will ensure that
your tool remains safe to use.
• Do not overload your tool. Only use
suitable electric tools to perform your
work. Using the right electric tool allows you
to work better and safer within the tool’s
quoted capacity range.
• Do not use an electric tool whose switch
is defective. An electric tool that no longer
can be switched on or off is dangerous
and must be repaired.
• Pull the plug out of the socket and/
or remove the battery before making
any adjustments to the tool, changing
accessories or put the tool down. This
precaution eliminates the possibility of
inadvertently starting the tool.
04
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
6. Careful handling and use
of Cordless equipment
• Ensure that the equipment is switched
off before you insert the battery. Inserting
a battery into an electric tool that is
switched on can cause accidents.
• Only charge the batteries in chargers
that are recommended by the
manufacturer. A charger that is designed
for a certain type of batteries may pose
a fire risk if it is used with other types of
batteries.
• Use only the correct batteries in the
electric tools. The use of other batteries
may result in injuries and a fire risk.
• Keep unused batteries away from paper
clips, coins, keys, nails, screws and
other metallic objects that could cause
a short circuit between the contacts. A
short circuit between the battery contacts
may cause burns or a fire.
• In case of incorrect use, uid may
escape from the battery. Avoid contact
with it. If you touch it by mistake, rinse
the affected area with water. If you get
the fluid in your eyes, also seek medical
advice. Leaking battery fluid can cause
skin irritation or burns.
Additional safety instructions
• The battery pack supplied with your
cordless tool is not charged. The battery
pack has to be charged before you use
the tool for the first time.
• The battery pack does not reach its
maximum capacitance until it has been
charged and discharged approximately
five times.
• Battery packs lose their charge even when
they are not being used. Regular charging
is therefore recommended.
• Please check the data marked on the
rating plate of the battery charger. Be sure
to connect the battery charger to a power
supply with the voltage marked on the
rating plate. Never connect it to a different
mains voltage.
• Keep the battery charger and the cordless
tool out of children’s reach.
• Wear suitable work clothes. Wear safety
goggles.
• Never open the battery pack. Avoid
contact with a leaking battery pack. In
case of accidental contact, wash the
affected area of skin with soap and water.
If battery acids gets in your eye, rinse
out the eye with clear water for at least
10 minutes and seek a doctor’s advice
immediately. Neutralize other affected
areas with a mild acid such as lemon juice
or vinegar.
• Protect the battery charger and its cable
from damage and sharp edges. Have
damaged cables repaired without delay
by a qualified electrician.
• Make sure that the contacts of the battery
pack do not come into contact with other
metallic objects such as nails or screws.
There is a risk of short-circuiting!
• Use only battery chargers that are intended
for the battery pack in question.
• Do not use damaged battery chargers.
• Leave repairs strictly to the appointed
service center or authorized dealers.
• Do not use the supplied battery charger to
charge other cordless tools.
• Never allow the battery pack to become
fully discharged. This will cause it to develop
a defect.
• Timely recharging of the battery pack will
help it serve you well for a long time. You
must recharge the battery pack when you
notice that the power of the cordless tool
drops.
• In heavy use the battery pack will become
warm. Allow the battery pack to cool to
room temperature before commencing
with the charging.
• Protect your cordless tool and the battery
charger from moisture and rain.
• Do not use the cordless tool or the battery
charger near vapors and inflammable
liquids.
• Do not throw battery packs into an open
fire. There is a risk of explosion!
• Use the battery charger only in dry
conditions and an ambient temperature of
10-40°C.
• Do not keep the battery charger in places
where the temperature is liable to reach
50°C. In particular, do not leave the battery
charger in a car that is parked in the
sunshine.
• Do not ignite the battery pack or expose it
to fire.
Do not lose these safety instructions.
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
05

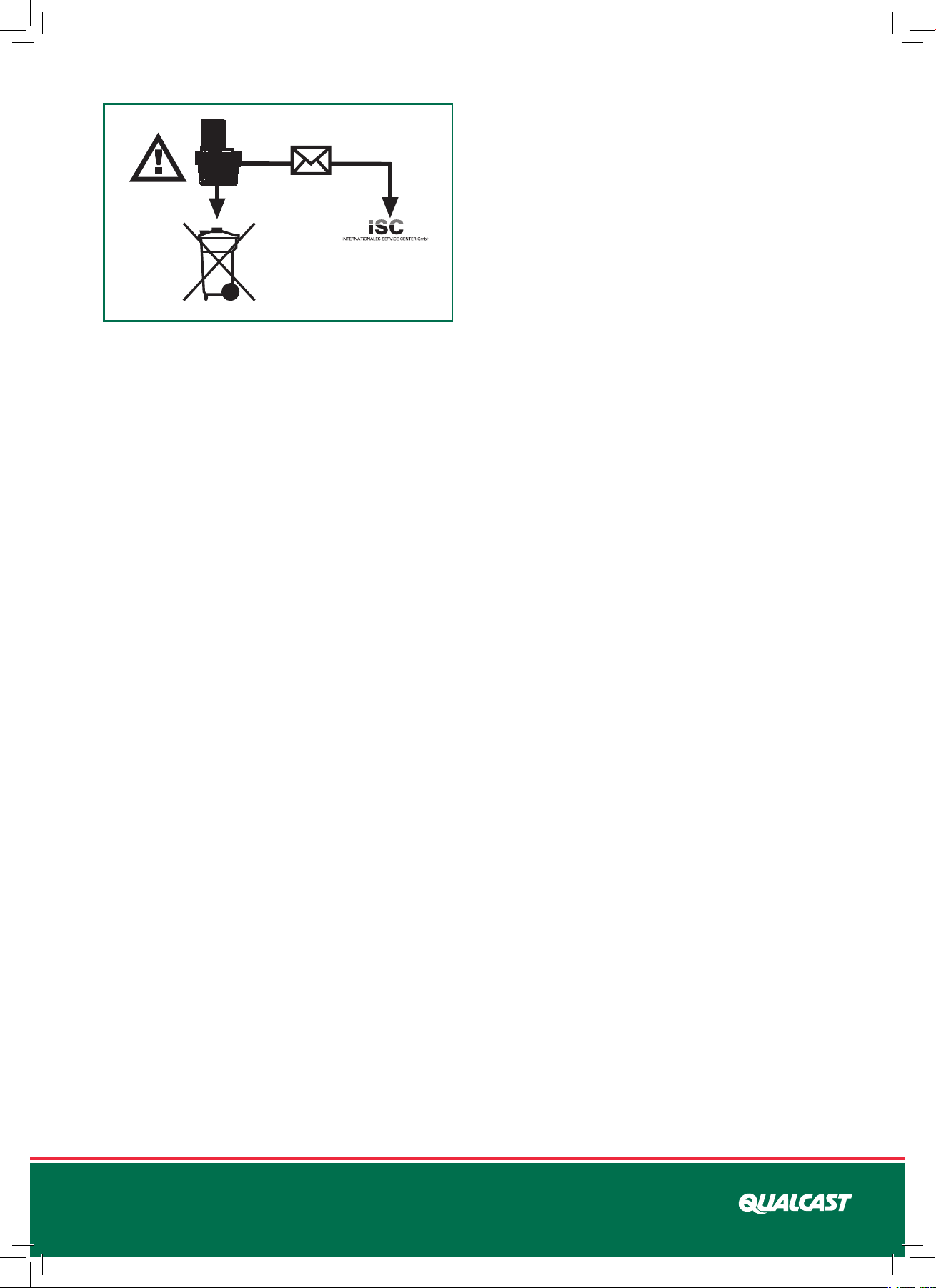

Rechargeable batteries and cordless electric
machines and tools contain materials that
are potentially harmful to the environment.
Never place any cordless electric machines
or tools in your household refuse. When
cordless electric machines or tools become
defective or worn, remove the rechargeable
batteries and call your local council for your
closest waste disposal facility.
Safety instructions for grass trimmer
• Before you begin your work, examine
the material you want to cut. Remove
any foreign bodies. Keep a continuous
watch out for foreign bodies while you are
working. If you come across any foreign
bodies while cutting, turn off the device
(release the ON button) and remove the
items in question.
• Keep the device at a suitable distance
from your body while working. Only switch
on the device when all parts of the body
are well out of the way.
• Make sure that no people or animals ever
come within the working or swiveling range
of the device.
• Only use the device in broad daylight or
make sure that you provide adequate
artificial light.
• Important! The cutting tools continue
running on after the device has been
switched off.
• When the device is not in use, make sure
that it is stored in such a way that there is
no risk of hands coming into contact with
the cutting blades.
• If the cutting blades get jammed while
cutting, turn off the device (release the ON
button) and remove the object in question
(thick branch, foreign body) with a suitable
blunt aid. Never remove any such objects
with your fingers as the pre-tensioned blade
can cause serious injuries through cutting.
• Keep the air vents clean.
• Keep the charging cable away from the
blades. Never use the device with the
charging cable plugged in.
• We recommend that you use a socket with
a residual current device with maximum
30mA tripping current for the charger.
• Never attempt to remove the cuttings with
the motor running or to hold material you
wish to cut. Always switch off the device
before attempting to remove any jammed
cuttings.
• Make sure you keep all parts of your body
away from the blade. Never attempt
to remove the cuttings with the blade
running or to hold the material you wish
to cut. Always switch off the equipment
before attempting to remove any jammed
cuttings. A single moment of carelessness
when using the hedge trimmer can result in
serious injuries.
• Carry the grass trimmer by its handle with
the blades at a standstill. Always fit the
protective cover when transporting the
grass trimmer or putting it into storage.
Careful handling of the equipment reduces
the likelihood of injury by the blade.
• Keep the cable out of the cutting zone.
• Hold the equipment correctly, for example
with both hands if the equipment is fitted
with two handles.
06
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
1
2
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
07
3a
3b
4a
5
4b
6
08
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
7
8
9
10
Explanation of the warning signs on the machine (Figure 10)
1. Important! Read the operating instructions and follow the warnings and safety instructions.
2. Keep all other persons away from the danger zone.
3. Caution! The cutter blades continue to run after the motor is switched off.
Wait for the blades to come to a standstill.
Risk of injury!
4. Dispose of batteries correctly!
5. Protect the tool from the damp and never expose it to rain.
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
09

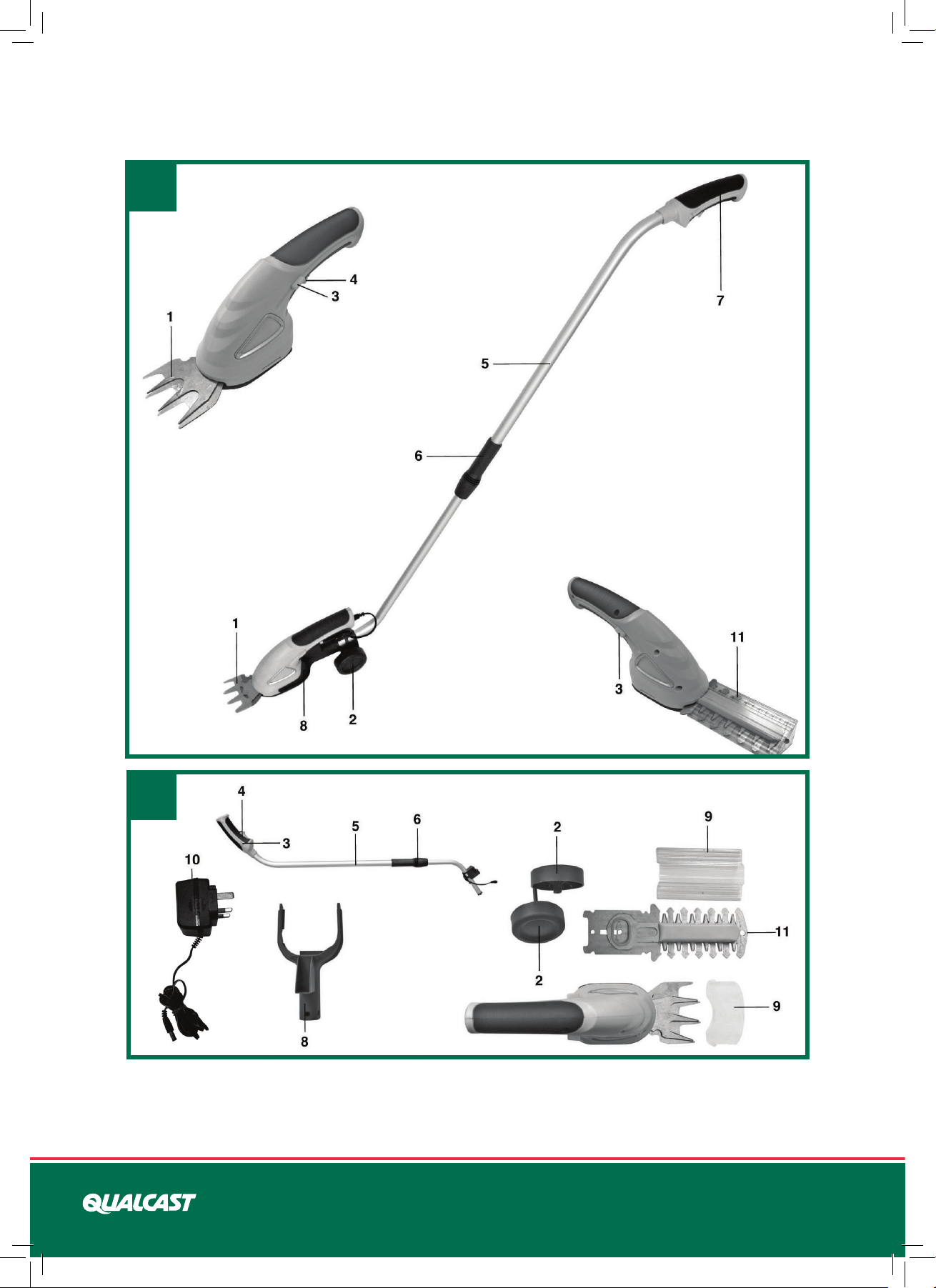

2. Layout (Fig. 1/2)
4. Technical data
1. Grass cutter blade
2. Wheels
3. Safety lock-off
4. ON button
5. Telescopic long handle
6. Clamp coupling for telescopic long handle
7. Handle grip
8. Mount
9. Blade guard
10. Battery charger
11. Shrub cutter blade
3. Proper use
The equipment is designed for cutting the
edges of lawns and small areas of grass in
private and hobby gardens.
Tools for private and hobby gardens are not
suitable for use in public facilities, parks and
sport centers, along roadways, on farms
or in the forestry sector. For the tool to be
used properly it is imperative to follow the
instructions set out in the manufacturer’s
directions for use.
Speed n0: 950 rpm
Cutting width of the grass cutter: 70 mm
Cutting width of the shrub cutters: 100 mm
Cutting thickness of the shrub cutters: 8 mm
Running time max.: 60 min
Battery pack: Li-Ion / 3,6 V d. c. / 1.3 Ah
Charging time: 3-5 h
Protection class: III
LpA sound pressure level: 72.7 dB
LWA sound power level: 92.9 dB
Uncertainty sound level: 2.06 dB
Vibration ahV grass cutters: 2.5m/s
Vibration ahV shrub cutters: 5.5m/s
Uncertainty vibration level: 1.5m/s
Weight: 1.4 kg
Battery charger
Mains voltage 230 V ~ 50 Hz
2
2
2
Important! It is prohibited to use the tool
to chop material for composting because
of the potential danger to persons and
property.
The machine is to be used only for its
prescribed purpose. Any other use is deemed
to be a case of misuse. The user / operator
and not the manufacturer will be liable for any
damage or injuries of any kind caused as a
result of this.
Please note that our equipment has not been
designed for use in commercial, trade or
industrial applications. Our warranty will be
voided if the machine is used in commercial,
trade or industrial businesses or for equivalent
purposes.
Output
Rated voltage 6 V DC
Rated current: 300 mA
Sound and vibration were measured in
accordance with EN ISO 3744.
5. Before starting
5.1 Charging the battery pack (Figure 1, 3)
• Connect the charger to the charging station
(Figure 5).
• Check that your mains voltage is the same
as that marked on the rating plate of the
battery charger. Plug the battery charger
in a socket outlet. The red LED (Figure 5 /
Item 1) comes on to indicate that charging
voltage is available.
• The battery pack is being charged. An
empty battery pack requires a maximum
charging period of 3 to 5 hours. The
temperature of the battery pack may rise
10
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
slightly during the charging operation.
This is normal.
• As soon as battery pack is fully charged, the
red LED (Fig. 5/Item 1) extinguishes.
circumstances are you to use the shrub
cutter with the telescopic long handle tted.
6. Operation
If the rechargeable battery fails to charge, check
whether there is voltage at the socket outlet.
Timely recharging of the battery pack will help
it serve you well for a long time. Recharging is
always necessary when you notice a drop in
the tool’s performance.
Never allow the battery pack to become
fully discharged. This will cause it to
develop a defect.

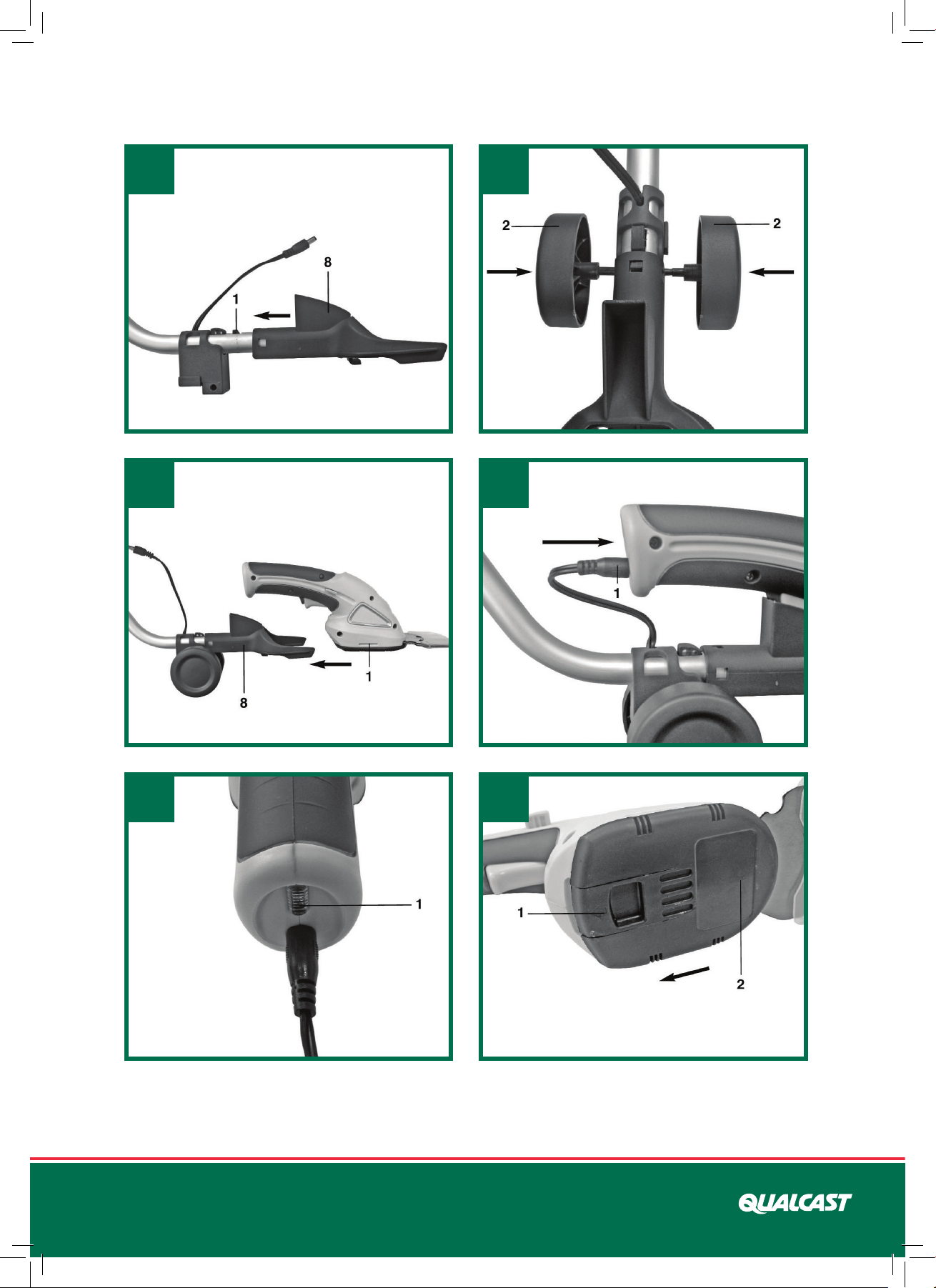

5.2 Fitting the long handle
Using the telescopic long handle (Fig. 1/Item
5) you can push the cordless trimmer on
wheels over the lawn.
To fit the long handle, push the mount (Fig. 3a/
Item 8) onto the long handle until the lock (Fig.
3a/Item 1) engages in one of the recesses on
the mount. The equipment is provided with
one recess at the top for standard cutting and
two recesses on the left and right for cutting
edges. Now pass the wheels (Fig. 3b/Item 2)
through the axle mount and push together.
Undo the clamp coupling (Fig. 1/Item 6),
adjust the telescopic handle to the required
length and then retighten the clamp coupling
again. Now push the trimmer unit in the
direction indicated by the arrow into
the mount (Fig. 4a/Item 8) as shown in Figure
4a. Ensure that the mount locks into the
recesses correctly. Then connect the power
plug (Fig. 4b/Item 1) to the equipment as
shown in Figure 4b. To disassemble, proceed
in reverse order.
Important!
It is prohibited to remove or bridge any of
the switching elements installed on the tool
by the manufacturer (e.g. by securing a
button to the handle) as this would prevent
the tool from switching off automatically
and result in high risk of injury. Under no
The area to be cut must first be cleared of
stones and other solid objects. The safety
lock-off (Fig. 1/Item 3) prevents the tool being
started unintentionally. Activate the safety lockoff (Figure 1 / Item 3) by pushing it forward and
pressing the ON/OFF switch (Figure 1 Item 4) at
the same time. To switch off the tool, let go of
the ON/OFF switch (Figure 1 / Item 4).
6.1 Cutting grass
Allow the grass cutter to glide above the
ground. The best results are achieved when
the lawn is dry. When you notice a drop in
cutting performance, recharge the tool
immediately so that the battery does not
become fully discharged.
6.2 Trimming hedges
The tool can be used to trim small hedges
and shrubs.
Hold the tool slightly tilted in relation to the
hedge you want to cut. First cut the sides from
the bottom up, then cut the top.
Watch out for foreign objects in or on the
hedge which could damage the blades.
When is the best time to trim hedges?
• As a general rule, hedges which lose their
leaves in the autumn should be trimmed in
June and October.
• Hedges which do not lose their leaves
should be cut in April and August.
6.3. Changing the blades
Important. Risk of injury!
Always fit the protective cover to the blades
before changing the blades on the unit.
To remove the blades, raise the lug (Fig. 6/Item 1)
and push off the cover (Fig. 6/Item 2) in direction
of the arrow. Once you have removed the
blade you will be able to see the toothed
wheels of the gear unit (Fig. 7). Make sure that no
dirt gets into the gear unit when you change the
blade. To assemble, proceed in reverse order.
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
11
When you fit the shrub cutter blade
Ensure the protective covers are fitted to
the blades before changing the blades
on the unit.
Check the position of the pin for the eccentric
connector (Fig. 7/Item 1). Take the shrub
cutter blade and slide the eccentric mount
(Fig. 8/Item 1) into position so that the pin for
the eccentric connector and the eccentric
mount fit together precisely when assembled.
Slot the shrub cutter blade onto the guide pins
(Fig. 7/Item 2).
When you fit the grass cutter blade
Ensure the protective covers are fitted to the
blades before changing the blades on the unit.
Check the position of the pin for the eccentric
connector (Fig. 7/Item 1) again. Shift the eccentric
mount (Fig. 9/Item 1) on the grass cutter blade to
the left or the right to find the position at which the
pin for the eccentric connector (Fig. 7/Item 1) and
the eccentric mount (Fig. 9/Item 1) match up.
7. Cleaning, maintenance and
ordering of spare parts
7.1 Cleaning
• Keep all safety devices, air vents and the
motor housing free of dirt and dust as far as
possible. Wipe the equipment with a clean
cloth or blow it with compressed air at low
pressure.
• We recommend that you clean the device
immediately each time you have finished
using it.
• Clean the equipment regularly with a moist
cloth and some soft soap. Do not use
cleaning agents or solvents; these could
attack the plastic parts of the equipment.
Ensure that no water can seep into the
device.
• A few drops of oil (e.g. sewing machine oil)
will improve the cutting performance of the
blades, but never apply any grease to the
blades. To ensure constant exact cutting it
is also important to remove grass remnants
and dirt from between the upper and lower
blade.
Important!
Never clean the tool under running water and particularly never with high pressure -
because of the potential danger to persons
and property. Keep your cordless grass
trimmer in a dry and frost-proof place.
Choose a place that children are unable
to enter.
7.2 Maintenance
• To achieve good results you should keep the
blades sharp at all times. In particular we
recommend that you immediately level off
any jags or ridges caused by stones or the
like. The tool should be thoroughly cleaned
both before and after use.
• There are no parts inside the equipment
which require additional maintenance.
7.3 Ordering replacement parts:
Please quote the following data when
ordering replacement parts:
• Type of machine (HQ-CG 3.6)
• Article number of the machine
34.104.39
• Identication number of the machine
11010
• Replacement part number of the part
required
For our latest prices and information please
go to www.einhell-uk.co.uk
Grass cutter blade: 341044001001
Shrub cutter blade: 341044001002
8. Disposal and recycling
The unit is supplied in packaging to prevent
its being damaged in transit. This packaging
is raw material and can therefore be reused
or can be returned to the raw material
system. The unit and its accessories are
made of various types of material, such as
metal and plastic. Defective components
must be disposed of as special waste. Ask
your dealer or your local council.
12
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
Disposal
For EU countries only
Never place any electric tools in
your household refuse. To comply
with European Directive 2002/96/
EC concerning old electric and
electronic equipment and its
implementation in national laws,
old electric tools have to be separated
from other waste and disposed of in an
environment-friendly fashion, e.g. by taking to
a recycling depot.
Recycling alternative to the demand to return
electrical devices:
As an alternative to returning the electrical
device, the owner is obliged to cooperate in
ensuring that the device is properly recycled
if ownership is relinquished. This can also be
done by handing over the used device to
a returns center, which will dispose of it in
accordance with national commercial and
industrial waste management legislation.
This does not apply to the accessories and
auxiliary equipment without any electrical
components which are included with the
used device.
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
13
14
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
PRODUCT GUARANTEE
This product is guaranteed against manufacturing defects for a period of
This product is guaranteed for twenty four months from the date of original purchase. Any
defects that arises due to faulty materials or workmanship will either be replaced, refunded
or repaired free of charge where possible during this period by the dealer from whom you
purchased the unit.
The guarantee is subject to the following provisions:
- The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or
consumable items.
- The product must be correctly installed and operated in accordance with the instructions
contained in this manual.
- It must be used solely for domestic purpose.
- The guarantee will be rendered invalided if the product is re-sold or has been damaged
by inexpert repair.
- Specifications are subject to change without notice.
- The manufacture disclaims any liability for the incidental or consequential damages.
- The guarantee is in addition to, and does not diminish your statutory or legal rights.
Guarantor: Home Retail Group
AVEBURY MILTON KEYNES, MK9 2NW
For technical support and assistance or requests for spare parts and accessories
please contact 0151 649 1500 between the following hours:
Mon - Thursday 8.45am - 5.00pm Friday 8.45am - 3.15pm
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
Helpline No. UK 0151 649 1500 / IRE 189 094 6244
15
AFTER SALES SUPPORT
UK / IRELAND HELPLINE NO 0151 6491500
REP. IRELAND HELPLINE NO 1890 946244
WEB SUPPORT www.einhell-uk.co.uk
MODEL NUMBER: HQ-CG 3.6
HOMEBASE ARTICLE NUMBER: 677522
Loading...
