Qualcast QG-BC 30, HQ-BC 30 Original Operating Instructions

QG-BC 30 HQ-BC 30

Petrol Scythe

Artikel-Nr.:

Ident-Nr.:

Komponenten / Ersatzteile

Position Artikel-Nr. Beschreibung

1 340188001001 ENG ASY 0,76 kW

4 340188001004 Holder

5 340188001005 Cover für Schnittmesser

9 340188001009 Cover für Schnittfaden

14 340188001014 Flang spindle

15 340188001015 Nut

16 340188001016 String box ASY

17 340188001017 Spring

20 340188001020 Inner Spool lid

24 340188001024 Screw

33 340188001033 Band Plastic

34 340188001034 Stop Switch

41 340188001041 Nut

50 340188001050 carrying strap

55 340188001055 Screw

57 340188001057 Knob

901 340188001901 spool cpl.

ENG ASY

0,76 kW

Artikel-Nr.: 340188001001

Ident-Nr.:

Komponenten / Ersatzteile

Position Artikel-Nr. Beschreibung

4 340187001104 Sponge 1

5 340187001105 Sponge 2

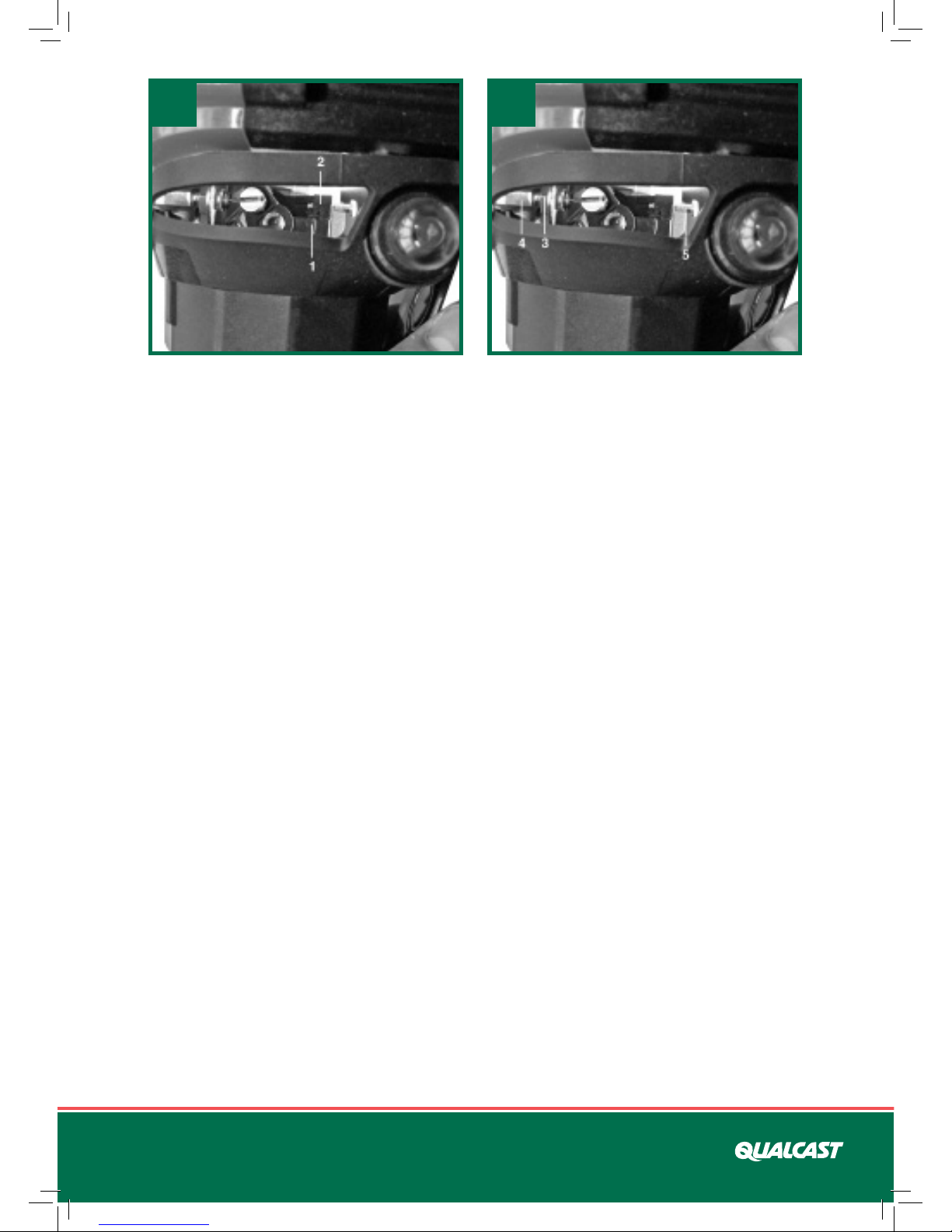

17 340187001117 Carburetor

18 340187001118 Carburetor gasket

19 340187001119 Carburetor seat

23 340187001123 Spark plug TORCH L8RTC

24 340187001124 Cylinder

25 340187001125 Gasket of cylinder

26 340187001126 Piston ring 2pcs

27 340187001127 Piston

28 340187001128 Piston pin

29 340187001129 Piston pin retainer 2 pcs

33 340187001133 Gasket of crank case

48 340187001148 Flywheel und Mitnehmer

51 340187001151 Clutch driver

53 340187001153 Clutch disc

54 340187001154 Starter handle für Seilzugstarter

61 340187001161 Fuel tank

64 340187001164 Oil pipe seat

66 340187001166 Oil filter 1

68 340187001168 Benzintankdeckel

71 340187001171 Exhaust

72 340187001172 Exhaust mantle

75 340187001175 Ignition apparatus mit Zündkerzenstecker

AFTER SALES SUPPORT

UK / IRELAND HELPLINE NO 0151 6491500 REP. IRELAND HELPLINE NO 1890 946244 WEB SUPPORT www.einhell-uk.co.uk

MODEL NUMBER: QG-BC 30 MANUFACTURERS ARTICLE NUMBER: 34.018.90

30cc

Petrol Brush Cutter

Original Operating Instructions

EASY PULL STARTING SYSTEM WITH ROTOCHOKE

Quick and easy to start

CARRY STRAP / HARNESS INCLUDED

For greater control and comfort

POWERFUL 30CC 2 STROKE PETROL ENGINE WITH TWIN HEAD ATTACHMENT

Can be used as a Grass Trimmer or Brush Cutter

23CM CUTTING WIDTH WHEN BRUSH CUTTING, 43CM CUTTING WIDTH WHEN GRASS TRIMMING

Large cutting area for efficiency

TWIN HEAD ATTACHMENT

With Automatic line feed for continuous trimming

Contents

03. Safety Guide

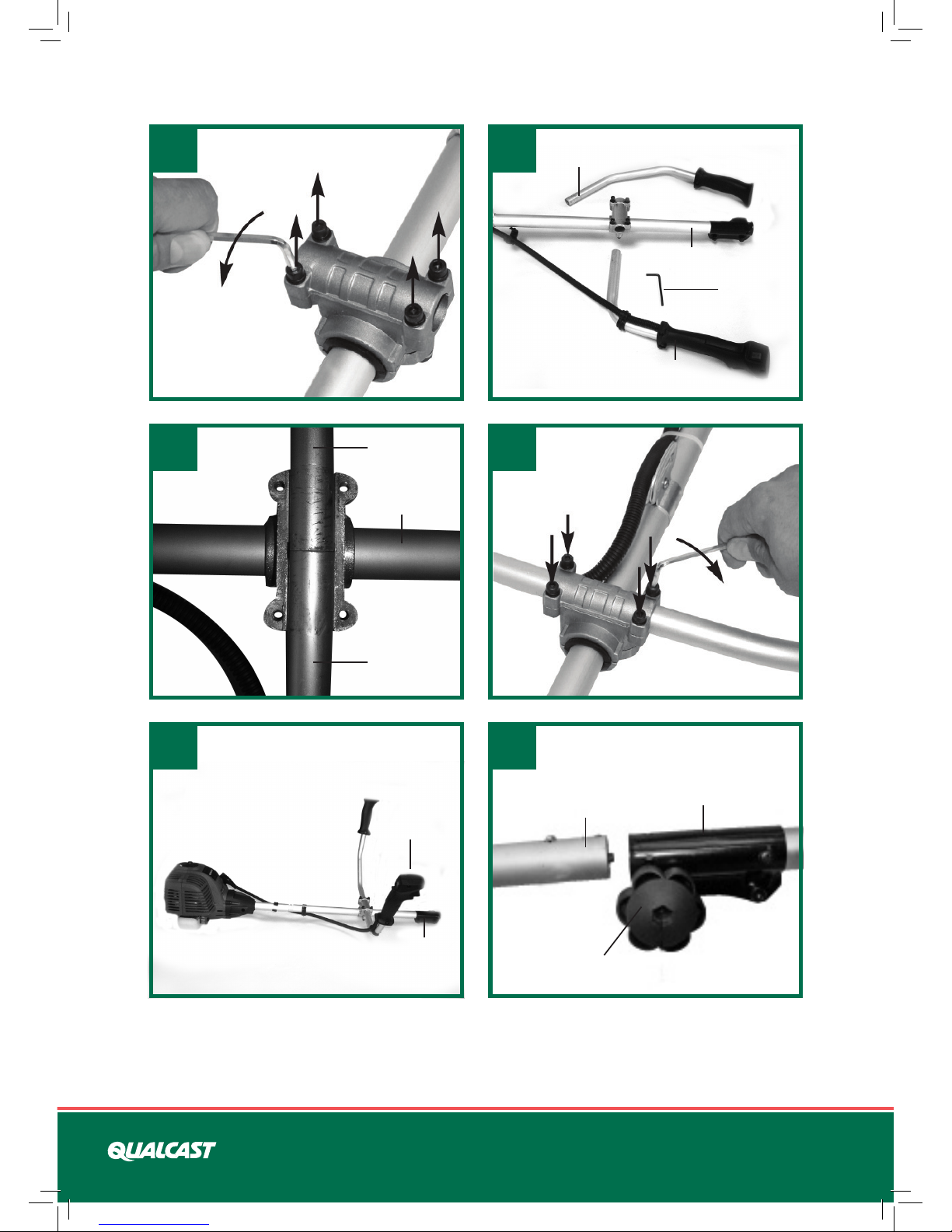

06. Assembly and Parts list

14. Getting Started

16. Operation

21. Trouble Shooting

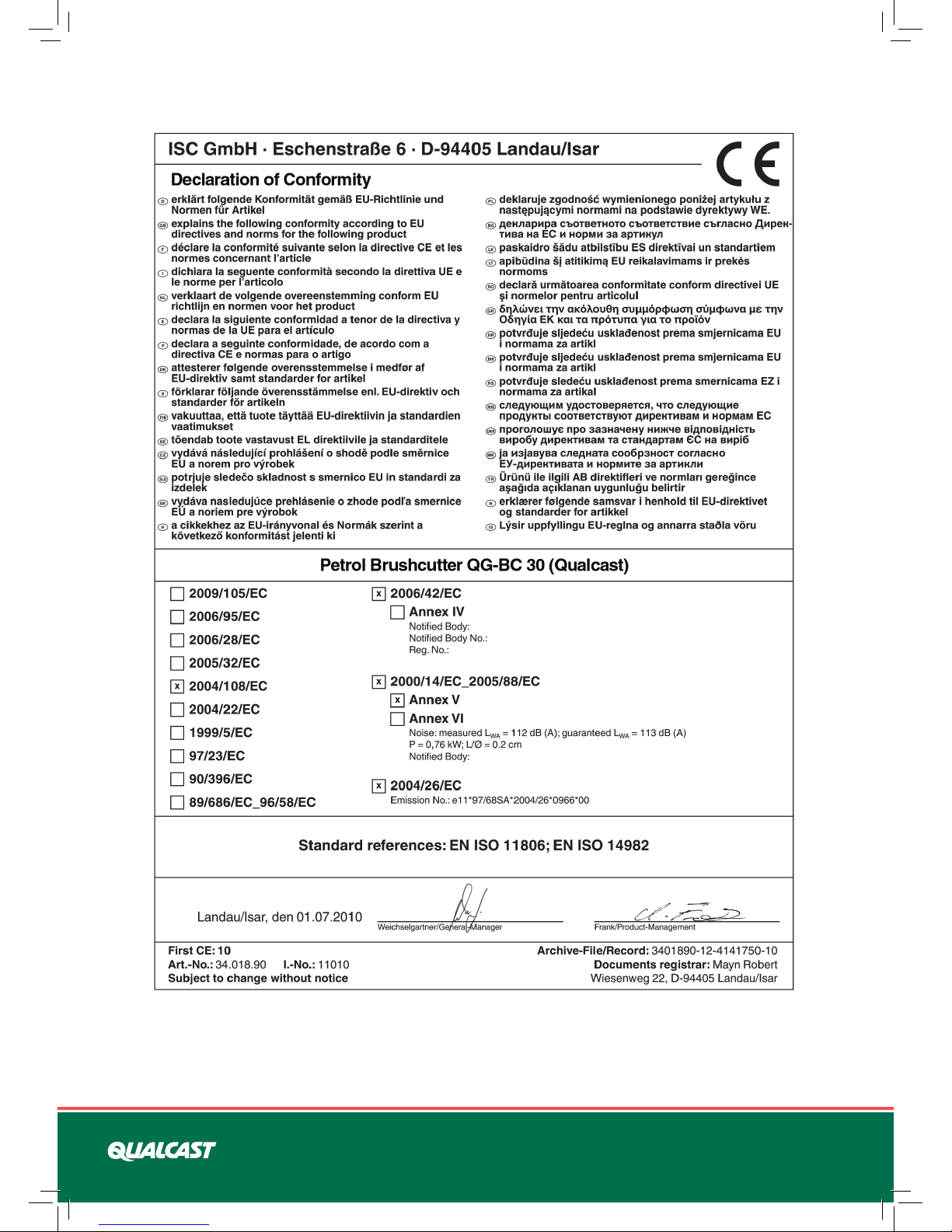

23. Declaration of Conformity

24. Guarantee Certiﬁcate

Helpline No. UK 0151 649 1500 / IRE 189 094 6244

15 m

Explanation of the information signs on the equipment:

1. Warning!

2. Read the instructions for use before operating the equipment.

3. Wear safety goggles, a face guard

and ear defenders.

4. Wear sturdy, non-slip footwear.

5. Wear safety gloves.

6. Protect the equipment from rain and damp.

7. Be careful of objects being thrown out!

8. Always switch off the equipment and pull out

the spark boot plug before carrying out any maintenance work.

9. All bystanders must be kept at least 15 m

from the equipment.

10. The tool continues to rotate!

11. Caution: Hot parts. Keep your distance.

Helpline No. UK 0151 649 1500 / IRE 189 094 6244

Safety Information

1. Read the instructions with due care. Familiarize yourself with the settings and proper operation of the machine.

2. Never allow children or other persons who are not familiar with the operating instructions to use the petrol grass trimmer.

3. Never mow in the direct vicinity of persons especially children - or animals.

Warning: Maintain a safety distance of 15m. If approached, switch off the appliance immediately. Always keep in mind that the machine operator or user is responsible for accidents involving other persons and/or their property.

Preliminary measures

1. Always wear sturdy, non-slip footwear and long trousers when operating the machine. Never operate the machine barefoot or in sandals.

2. Check the grounds on which the machine will be used and remove all objects that could be caught up and violently ﬂung out.

3. Warning: Petrol is highly ﬂammable!

• Only store petrol in containers designed to

hold petroleum-based liquids.

• Only refuel out in the open and do not smoke

during the refueling process.

• Always refuel before starting the engine.

Do not open fuel tank cap and do not refuel when the engine is running or when the brush cutter is hot.

• If petrol has overowed, do not under any

circumstances attempt to start the engine. Instead, remove the machine from the affected area. Avoid starting the engine until the petrol fumes have completely evaporated.

• For safety reasons, the petrol tank and other

tank closures must be replaced if they are damaged.

4. Replace defective exhausts.

5. Before using the petrol brush cutter, visually inspect it to ensure that the mounting bolts and the entire cutting apparatus are in good working order (i.e. not worn out or damaged). To prevent any imbalance, replace worn out blades or damaged mounting bolts as a set only (if applicable).

Handling

1. Wear close ﬁtting, tough work clothing that will provide protection, such as long slacks or trousers, protective footware, heavy duty work gloves, hard hat, a safety face shield, or safety glasses for eye protection and a good grade of ear defenders or other sound barriers for hearing protection.

2. Store in a safe place. Open fuel cap slowly to

release any pressure which may have formed in fuel tank. To prevent a ﬁre hazard, move at least 10 feet (3 meters) from fueling area before starting.

3. Turn unit off before setting it down.

4. Always hold unit ﬁrmly with both hands, the thumb and ﬁngers encircling the handles.

5. Keep all screws and fasteners tight. Never operate your equipment when it is improperly adjusted or not completely and securely assembled.

6. Keep handles dry, clean and free of fuel mixture.

7. Keep the cutting head as close to ground as practical. Avoid hitting small objects with the line spool. When cutting on a slope, stand below stringhead. NEVER cut or trim on a hill or slope, etc. if there is the slightest chance of slipping, sliding or losing ﬁrm footing.

8. Check the area you will be trimming for debris that may be struck or thrown during operation.

9. Keep all parts of your body and clothing away from the cutting head when starting or running engine. Before starting the engine, make sure the cutting head will not come in contact with any obstructions.

10. Stop the engine before examining cutting line.

11. Store equipment away from possible

ﬂammable materials, such as gas-powered water heaters, clothes dryers, or oil-ﬁred furnaces, portable heaters, etc.

12. Always keep the safety guard, the cutting

head, and engine free of debris build-up.

13. Operation of equipment should always be

restricted to mature and properly instructed individuals.

14. If unfamiliar with trimming techniques, practice

the procedures with engine in “OFF” position.

15. Always clear work area of debris such as

cans, bottles, rocks, etc. Striking objects can cause serious injury to the operator or bystanders and also damage equipment. If an object is hit accidentally, turn the

Helpline No. UK 0151 649 1500 / IRE 189 094 6244

engine off immediately and examine the equipment. Never operate unit with damaged or defective equipment.

16. Always trim or cut at high engine speeds. Do not run engine slowly at start or during trimming operations.

17. Do not use equipment for purposes other than trimming or mowing weeds.

18. Never raise the cutting head above knee height during operation.

19. Do not operate unit with other people or animals in the immediate vicinity. Allow a minimum of 50 feet (15 meters) between operator and other people and animals when trimming or mowing. Allow a distance of 100 feet (30 meters) between operator and other people and animals when operating the petrol grass trimmer.

20. If operating on a slope, stand below the cutting attachment. Do not operate on a slope or hilly incline if there is the slightest chance of slipping or losing your footing.

Additional instructions

1. DO NOT USE ANY OTHER FUEL other than that

recommended in your manual. Always follow

instructions in the Fuel and Oil section of this

manual. Never use petrol unless it is properly mixed with 2-stroke engine oil. Permanent damage to engine will result, voiding manufacturer’s warranty.

2. DO NOT SMOKE while refueling or operating

equipment.

3. DO NOT OPERATE UNIT WITHOUT AN EXHAUST

and properly installed exhaust shield.

4. DO NOT TOUCH or let your hands or body

come in contact with the exhaust. Hold unit with thumbs and ﬁngers encircling the handles.

5. DO NOT OPERATE UNIT IN AWKWARD

POSITIONS, off balance, outstretched arms,

or one-handed. Always use two hands when operating unit with thumbs and ﬁngers encircling the handles.

6. DO NOT RAISE THE LINE SPOOL above ground

level while unit is operating. Injury to operator could result.

7. DO NOT USE UNIT FOR ANY PURPOSES OTHER

than trimming lawn or garden areas.

8. DO NOT OPERATE UNIT FOR PROLONGED PERIODS. Rest periodically.

9. DO NOT OPERATE UNIT WHILE UNDER THE

INFLUENCE OF ALCOHOL OR DRUGS.

10. DO NOT OPERATE UNIT UNLESS SAFETY GUARD IS INSTALLED AND IN GOOD CONDITION.

11. DO NOT ADD, REMOVE OR ALTER ANY COMPONENTS OF THIS PRODUCT. Doing so

could cause personal injury and/or damage the unit voiding the warranty.

12. DO NOT operate your unit near or around

ﬂammable liquids or gases whether in or out of doors. An explosion and/or ﬁre may result.

13. DO NOT USE ANY OTHER CUTTING TOOLS. For your own safety only use the accessories and additional equipment speciﬁed in the operating manual. The use of tools or accessories other than those recommended in this operating manual may place you in danger of personal injury.

Safety when handling the blade

1. FOLLOW ALL WARNINGS and instructions for

using the machine and for installing the blade.

2. The blade may suddenly jump away out of

control if it comes up against objects which it cannot cut through. This may result in Serious injury. Keep onlookers and animals at

least 15 m away from where you are working. If the machine strikes a foreign body, stop the engine immediately and bring the blade to a standstill. Check the blade for signs of damage. Always replace the blade if it is bent or damaged.

3. THE BLADE WILL THROW UP OBJECTS AT

HIGH SPEED: This may cause injuries to eyes,

face and legs. Always wear eye, face and leg protection. Remove all objects from the working area before using the blade. Keep other people and animals at least 15 m away from the machine in all directions.

4. Check your machine and other equipment

carefully for signs of damage. Do not use the machine unless all the blade mountings have been installed correctly.

5. THE BLADE WILL SLOW DOWN AND STOP IF

YOU RELEASE THE THROTTLE VALVE.

While it is slowing down, the blade can still cause injury to you or onlookers. Before you carry out any work on the blade, switch off the engine and make sure that the blade has stopped.

6. DANGER ZONE WITH A DIAMETER OF 15

METRES. Onlookers may suffer injuries. Keep

onlookers and animals at least 15 m away from where you are working.

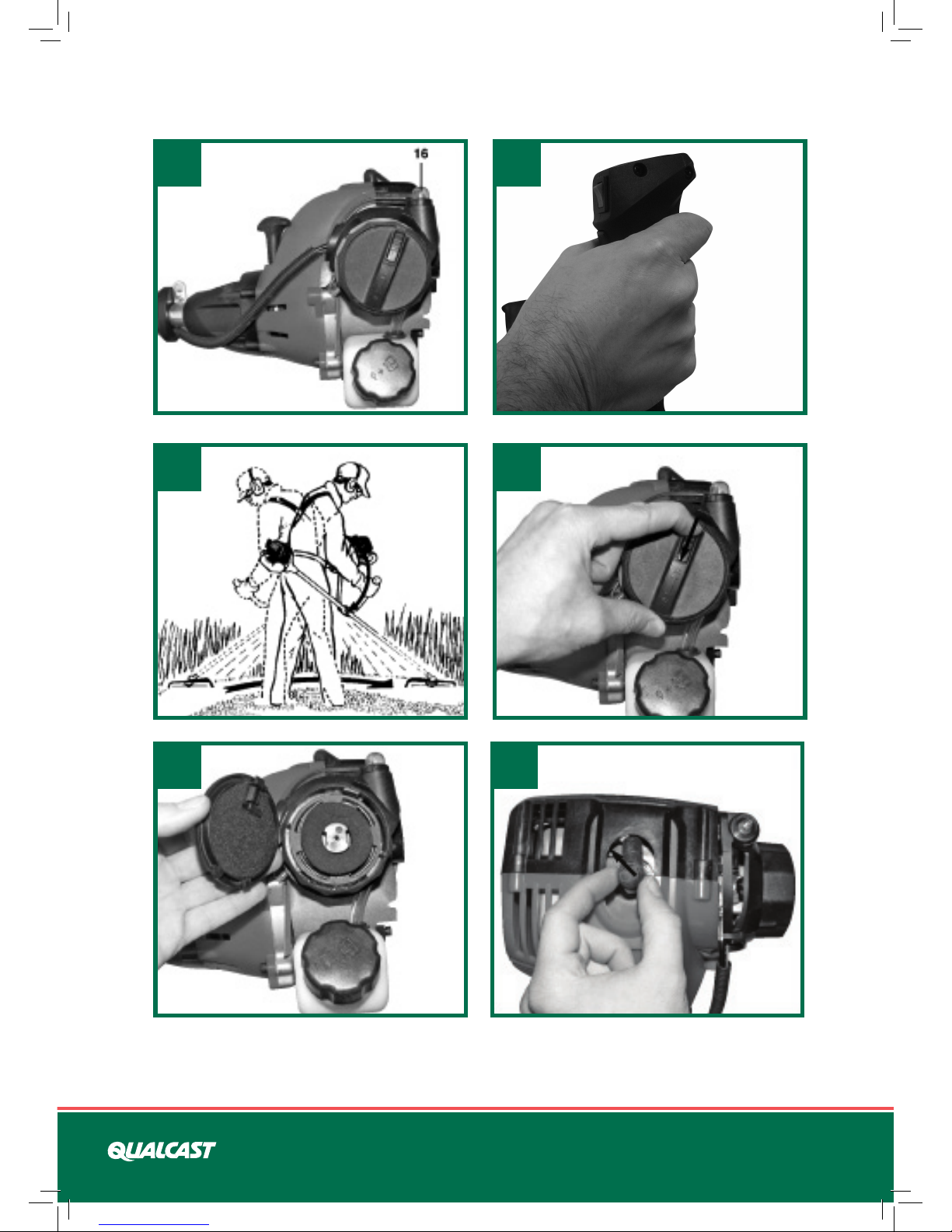

B C

Helpline No. UK 0151 649 1500 / IRE 189 094 6244
