O-T L

Tested and

Listed by

O-T

OMNI-Test Laboratories, Inc.

Portland

Oregon USA

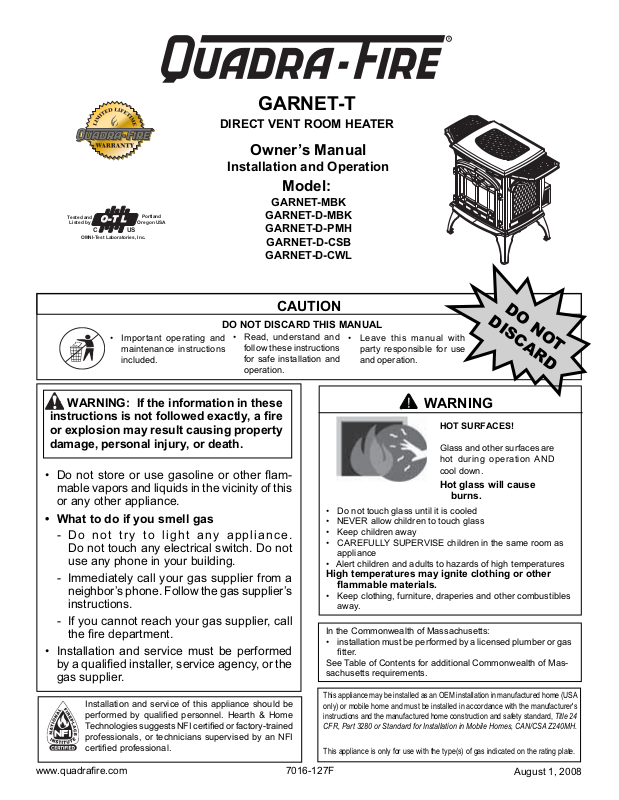

GARNET-T

DIRECT VENT ROOM HEATER

Owner’s Manual

Installation and Operation

Model:

GARNET-MBK GARNET-D-MBK GARNET-D-PMH

GARNET-D-CSB

GARNET-D-CWL

CAUTION

DO NOT DISCARD THIS MANUAL

• Important operating and maintenance instructions included.

WARNING: If the information in these instructions is not followed exactly, a  re or explosion may result causing property damage, personal injury, or death.

• Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

• What to do if you smell gas

- Do not try to light any appliance.

Do not touch any electrical switch. Do not use any phone in your building.

- Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call

the ﬁ re department.

• Installation and service must be performed by a qualiﬁ ed installer, service agency, or the gas supplier.

• Read, understand and follow these instructions for safe installation and operation.

DO NOT

DISCARD

• Leave this manual with party responsible for use and operation.

WARNING

HOT SURFACES!

Glass and other surfaces are hot during operation AND

cool down.

Hot glass will cause

burns.

• Do not touch glass until it is cooled

• NEVER allow children to touch glass

• Keep children away

• CAREFULLY SUPERVISE children in the same room as appliance

• Alert children and adults to hazards of high temperatures

High temperatures may ignite clothing or other

 ammable materials.

• Keep clothing, furniture, draperies and other combustibles away.

In the Commonwealth of Massachusetts:

• installation must be performed by a licensed plumber or gas ﬁ tter.

See Table of Contents for additional Commonwealth of Massachusetts requirements.

Installation and service of this appliance should be performed by qualiﬁ ed personnel. Hearth & Home Technologies suggests NFI certiﬁ ed or factory-trained professionals, or technicians supervised by an NFI certiﬁ ed professional.

www.quadraﬁ re.com

This appliance may be installed as an OEM installation in manufactured home (USA only) or mobile home and must be installed in accordance with the manufacturer's instructions and the manufactured home construction and safety standard, Title 24

CFR, Part 3280 or Standard for Installation in Mobile Homes, CAN/CSA Z240MH.

This appliance is only for use with the type(s) of gas indicated on the rating plate.

7016-127F

August 1, 2008

and Welcome to the Quadra-Fire Family!

SAMPLE

Hearth & Home Technologies welcomes you to our tradition of excellence! In choosing a Quadra-Fire appliance, you have our assurance of commitment to quality, durability, and performance.

This commitment begins with our research of the market, including ‘Voice of the Customer’ contacts, ensuring we make products that will satisfy your needs. Our Research and Development facility then employs the world’s most advanced technology to achieve the optimum operation of our stoves, inserts and ﬁ replaces. And yet we are old-fashioned when it comes to craftsmanship. Each appliance is

SAMPLE OF SERIAL NUMBER / SAFETY LABEL

LOCATION: HANGING ON A CHAIN ON BACK OF APPLIANCE

Portland

Report No. / Rapport Numéro

061-S-35c-5

MODEL / MODÈLE: GARNET-T

VENTED GAS FIREPLACE HEATER / NOT FOR USE WITH SOLID FUEL

FOURNAISE AU GAZ AVEC VENTILATIONNE PAS UTILISER AVEC LE

COMBUSTIBLE SOLIDE

meticulously fabricated and gold and nickel surfaces are hand-ﬁ nished for lasting beauty and enjoyment. Our pledge to quality is completed as each model undergoes a quality control inspection. From design, to fabrication, to shipping: Our guarantee of quality is more than a word, it’s QuadraFire tradition, and we proudly back this tradition with a Limited Lifetime Warranty.

We wish you and your family many years of enjoyment in the warmth and comfort of your hearth appliance. Thank you for choosing Quadra-Fire.

Serial No / Numéro du

1445 North HIghway

Colville, WA 99114

www.quadrafire.com

APPROVED FOR CANADA AND USA TO: ANSI Z21.88b-2003 / CSA 2.33b-2003 Vented Gas Fireplace Heaters, and applicable sections of UL307b Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles, CAN/CGA 2.17-M91 “Gas Fired Appliances for use at High Altitudes.” This appliance is manufactured for operation with Natural Gas. For conversion to propane Manufacturer’s instructions must be used. This appliance may be installed in a bedroom or bedsitting room; in Canada remote thermostat installation is required. Blower is optional. Order Part #BK-GAS.

This appliance equipped for altitudes 0-2000’ (0-610m) in USA; and in Canada for altitudes of 0-4500’ (0-1370m). In USA for Altitudes above 2000’, the vent configuration, orifice or combination of both may need to be changed. See Owner’s Manual for information on making these changes. This appliance must be installed in accordan ce with local c odes, if any (and Commonwealth of Massachusetts approved); if none, follow ANSI Z223.1 in USA, CAN 1-B149 in Canada. Install and use only in accordance with manufacturer’s installation and operating instructions. NOTE: Have the gas supply line installed in accordance with local building codes by a qualified installer approved and/or licensed as required by the locality. (In the Commonwealth of Massachusetts, installation must be performed by a licensed plumber or gas fitter.) / Pour les altitudes au dessus de 2000’ aux États-Unis, la configuration du ventilateur, son orifice ou les deux peuvent possiblement avoir à être changé. Voyez le manuel du propriétaire pour les informations sur ces changements. Cet appareil doit être installé en accord avec les codes locaux, s’il-y-a lieu (et approuvé par dans la République de Massachusetts); sinon lisez ANSI Z223.1/CAN 1-B149. Installez et utilisez en accords avec les instructions d’installation et d’opération du manufacturier. de construction locaux. L'installation doit être effectuée par un technicien qualifeé et/ou muni d'une licence de manière à respecter les règlements municipaux. (Dans la République de Massachusetts, l'installation doit être effectuée par un plombier ou un installateur d'appareils à gaz agrée.)

HEARTH: A non-combustible hearth pad is not required. However, the floor beneath the stove must be stable, level, and strong enough to support the stove without a tipping hazard. CHEMINÉE: Un coussinet non-combustible de cheminée n’est pas exigé. Cependant, le plancher en dessous du poêle doit être droit, à niveau et assez fort pour supporter le poêle sans le hasard de basculer.

Route power cord away from unit. Do not route cord under or in front

FAN TYPE VENTED CIRCULATOR / VENTILATEUR CIRCULATOIRE Blower Electrical Rating / Evaluation du Ventilateur 115 V, .55 Amps, 60 Hz, 150 Watts

For use with Natural Gas

0-2000 FT’ 0-2000FT Input Rate on “HI” (BTU/Hr) 17,000 17,000 Puissance Évaluée à “HI” (BTU/Hr) Input Rate on “LO” (BTU/Hr) 12,000 13,000 Puissance Évaluée à “LO” (BTU/Hr) Maximum Output (BTU/Hr)** 14,500 13,500 Puissance Maximum (BTU/Hr** Main Burner Orifice 49 56 Orifice du Brûleur Principal Minimum Inlet Pressure Maximum Inlet Pressure

anifold Pressure on

M **Max Venting, Blower On **Ventilation Maximum, Ventilateur Allumé

2008 2009 2010 Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Jan

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER L’ÉTIQUETTE

(Inches W.C.)

“HI” (Inches W.C.)

"A" measurement is from stove top, not side

A. Side of stove top to side wall 6 in. (15cm) D B. Rear of stove to back wall 2 in. (5cm) C. Corner of stove top to side wall-Left 2 in. (5cm) C. Corner of stove top to side wall-Right D. Minimum Alcove Height 43 in. (109cm) Ha E. Maximum Alcove Depth 36 in. (91cm) P F. Minimum Alcove Width 30 in. (76cm) G. Mantle Clearance from stove top 19-1/2 in. (50cm) Espace libre du po

H. Top of Stove to Alcove Ceiling 19-3/8 in. (49cm) Distance entre le haut du poêle et le plafond

Usage au gaz naturel

4.5” 11” Pression Minimum de la Valve (pouces W.C.)

7.0” 14” Pression Maximum de la Valve (pouces W.C.)

3.5” 10” Pression du Collecteur d’ Échappement à “HI” (pouces W.C.)

Cet appareil est équipé pour les altitudes de 0-2000’ (0-610m) aux États-Unis; et au Canada pour les altitudes de 0-4500’ (0-1370m).

Left

SAMPLE

Date of Manufacture / Date du Manufacturier

APPROUVÉ POUR LE CANADA ET LES ÉTATS-UNIS: ANSI Z21.88b-2003 / CSA 2.33b-2003 Fournaises au Gaz avec Ventilation, et les sections applicable de UL 307b Appareils de Chauffage Au Gaz pour les Maisons Mobiles et les Véhicules Motorisés, CAN/CGA 2.17-M91 “Gas Fired Appliances for use at High Altitudes”. Cet appareil est manufacturé pour l’opération avec le Gaz Naturel. Pour une conversion au gaz propane Manufacturier instructions doivent être utilisées. Cet appareil peut être utilisé dans une chambre à coucher ou salle de séjour; au Canada, l’installation d’un thermostat à distance est exigée. Ventilateur

of appliance.

optionnel, Pièce #BK-GAS. de l'appareil.

Thermal Efficiency / Efficacité Thermique*

P.4.1-02 Canada Minimum pipe (P.4.1-02 Le Canada tuyau minimum) 67.38% NG / 69.52% LP

For use with Propane

Usage au gaz propane

Right

2 in. (5cm) Du coin du dessus du po

Éloignez le fil électrique de l'appareil. Ne pas faire passer le fil électrique au dessus ou en dessous

76.93% NG (No blower / Sans ventilateur allumé)

78.19% LP (No blower / Sans ventilateur allumé)

*With Maximum horizontal length. / Avec longueur horizontale maximum

REMARQUE: Le conduit gaz doit être installé conformément aux codes

u coté du poêle au coté du mur Le contrôle arrière au mur arrière Du coin arrière du poêle au mur de coté gauche

uteur minimum du plancher au plafond

rofondeur maximum de l'alcove Largeur minimum de l'alcove

Made in U.S.A. / Fait Aux États-Unis

êle au mur de coté droit (acces a la valve)

êle au manteau

7016-128

Serial Number Model Name

Test Lab & Report No.

Manufactured Date

Page 2

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

- TABLE OF CONTENTS -

Section 1: Listing and Code Approvals

A. Appliance Certiﬁ cations ......................4

B. Glass Speciﬁ cations ............................4

C. BTU Speciﬁ cations ..............................4

D. High Altitude Installations ....................4

E. Non-Combustible Materials .................4

F. Combustible Materials ........................4

G. Requirements for the

Commonwealth of Massachusetts ......5

Section 2: Getting Started

A. Design & Installation

Considerations ....................................6

B. Tools and Supplies Needed................6

C. Inspect Appliance & Components .......6

Section 3: Appliance Location & Clearances

A. Selecting Appliance Location..............7

B. Clearances to Combustibles ...............7

Section 4: Termination Locations

A. Vent Termination Minimum

Clearances..........................................8

Section 7: Electrical Information

A. Recommendation for Wire ..................29

B. Connecting to the Appliance ...............29

Section 8: Appliance Setup

A. Remove Shipping Materials ................31

B. Leg Leveling System ...........................31

D. Accessories .........................................32

F. Mineral Wool .......................................32

G. Glass Replacement .............................33

H. Blower Installation ...............................33

I. Ignition Module Access and Battery ...

J. Intake Damper Operation ....................36

K. Shutter Adjustment ............................. 36

Section 9: Operating Instructions

A. Before Lighting Appliance ...................37

B. Lighting Appliance ...............................38

C. After Appliance is Lit ...........................39

D. Frequently Asked Questions ...............39

Standing Pilot Ignition System Wiring

C. Flue Restrictor Installation ..................31

E. Positioning the Logs ............................32

Replacement .......................................36

..29

Section 5: Vent Information

A. Venting Components ..........................10

B. Use of Elbows .....................................10

C. Measuring Standards ..........................10

D. How to Use the Vent Graph ................11

E. Venting Guidelines ..............................11

F. Horizontal Termination ........................12

G. Vertical Termination ............................15

H. Slim Line Wall Thimble .......................23

Section 6: Gas Information

A. Fuel Conversions ................................25

B. Gas Pressures ....................................27

C. Gas Connection.. ................................27

Section 10: Troubleshooting ............................... 40

Section 11: Maintaining & Servicing Appliance

A. Maintenance Tasks .............................43

Section 12: Reference Materials

A. Appliance Dimension Diagram ...........44

B. Vent Components Diagram ................45

C. Vent Components List ........................46

D. Service Parts List ................................48

E. Accessories ........................................51

F. Service and Maintenance Log ............52

G. Homeowner’s Notes ...........................53

H. Warranty Policy ...................................55

I. Contact Information ............................56

August 1, 2008

Quadra-Fire · Garnet-T · 7016-127F

Page 3

Listing and Code Approvals

A. Appliance Certi cation

MODEL: Garnet-T LABORATORY: OMNI Test Laboratories, Inc.

061-S-35c-5

TYPE: Direct Vent Gas Heater STANDARD:

The product is listed to ANSI standards for “Vented Gas Appliance Heaters” and applicable sections of “Gas Burning Heating Appliances for Manufactured Homes and Recreational Vehicles” and "Gas Fired Appliances for use at High Altitudes".

Manufactured Home or Mobile Home installation may occur only after the home is site located and must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or, when such a standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS A225.1, or Standard for Gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.

ANSI Z21.88a-2003

UL307bCAN/CBA 2.17-M91

CSA 2.33a-2003

C. BTU Speci cations

Model

(US or Canada)

Garnet-T (NG)

Garnet-T (LP)

* Thermal efﬁ ciency maximum pipe with blower on. ** Canada minimum pipe.

Maximum

Input

BTU

17,000 12,000 49 76.93 67.38 17,000 13,000 56 78.19 69.52

Minimum

Input

BTU

Oriﬁ ce

Size

(DMS)

*Steady State %

**P.4

D. High Altitude Installations

Omni-Test Laboratories listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2000 feet in the U.S.A. and 0 to 4500 feet in Canada.

When installing this appliance at an elevation above 2000 feet, it may be necessary to decrease the input rating by changing the existing burner oriﬁ ce to a smaller size. Input rate should be reduced by 4% for each 1000 feet above a 2000 foot elevation in the U.S.A. If the heating value of the gas has been reduced, these rules do not apply. To identify the proper oriﬁ ce size, check with the local gas utility.

When installed, the appliance must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

B. Glass Speci cations

This appliance is equipped with 5mm ceramic glass. Replace glass only with 5mm ceramic glass. Please contact your dealer for replacement glass.

NOTE: This installation must conform with local codes. In the absence of local codes you must comply with the National Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and the CAN/CGA B149 Installation Codes in Canada.

WARNING

Do NOT use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the unit and to replace any part of the control system and any gas control which has been under water.

If installing this appliance at an elevation above 4500 feet (in Canada), check with local authorities.

E. Non-Combustible Materials

Materials that are reported as passing ASTM E 136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C, shall be considered non-combustible materials.

F. Combustible Materials

Materials made of or surfaced with wood, compressed paper, plant fibers, plastics, or other materials that can ignite and burn, whether flame proofed or not, or whether plastered or unplastered shall be considered combustible materials.

Page 4

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

NOTE: The following requirements reference various Massachusetts and national codes not contained in this document.

G. Requirements for the Commonwealth of Massachusetts

For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above ﬁ nished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisﬁ ed:

Installation of Carbon Monoxide Detectors

At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gas ﬁ tter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the ﬂ oor level where the gas equipment is to be installed. In addition, the installing plumber or gas ﬁ tter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualiﬁ ed licensed professionals for the installation of hard wired carbon monoxide detectors.

In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery backup may be installed on the next adjacent ﬂ oor level.

In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

Approved Carbon Monoxide Detectors

Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certiﬁ ed.

Signage

A metal or plastic identiﬁ cation plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, “GAS VENT DIRECTLY

BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS.”

Inspection

The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a) 1 through 4.

Exemptions

The following equipment is exempt from 248 CMR 5.08(2)(a) 1 through 4:

The equipment listed in Chapter 10 entitled “Equipment

•

Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board; and

Product Approved side wall horizontally vented gas fueled

•

equipment installed in a room or structure separated from the dwelling, building or structure used in whole or in part for residential purposes.

MANUFACTURER REQUIREMENTS Gas Equipment Venting System Provided

When the manufacturer of Product Approved side wall horizontally vented gas fueled equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

•

Detailed instructions for the installation of the venting system design or the venting system components; and

•

A complete parts list for the venting system design or venting system.

Gas Equipment Venting System NOT Provided

When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the ﬂ ue gases, but identiﬁ es “special venting systems”, the following requirements shall be satisﬁ ed by the manufacturer:

•

The referenced “special venting system” instructions shall be included with the appliance or equipment installation instructions; and

•

The “special venting system” shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

See Gas Connection section for additional Commonwealth of Massachusetts requirements.

August 1, 2008

Page 5Quadra-Fire · Garnet-T · 7016-127F

Getting Started

. Design & Installation Considerations

Quadra-Fire direct vent gas appliances are designed to operate with all combustion air drawn from outside of the building and all exhaust gases expelled to the outside. No additional air source is required.

CAUTION

Check building codes prior to installation.

• Installation MUST comply with local, regional, state and national codes and regulations.

• Consult local building, ﬁ re ofﬁ cials or authorities having jurisdiction about restrictions, installation inspection, and permits.

C. Inspect Appliance & Components

WARNING

Inspect appliance and components for damage. Damaged parts may impair safe operation.

• Do NOT install damaged components.

• Do NOT install incomplete components.

• Do NOT install substitute components.

Report damaged parts to dealer.

• Carefully remove the appliance and components from the packaging.

When planning an installation, it is necessary to determine the following information before installing:

• Where the appliance is to be installed.

•

The vent system conﬁ guration to be used.

• Gas supply piping.

• Electrical wiring.

• Whether optional accessories - devices such as a blower,

thermostat or remote control - are desired.

WARNING

Keep appliance dry.

• Mold or rust may cause odors.

• Water may damage controls.

B. Tools and Supplies Needed

Before beginning the installation be sure that the following tools and building supplies are available. Note: Not all

tools will apply to every installation.

Reciprocating saw Pliers Hammer Phillips Screwdriver Flat Blade Screwdriver Plumb Line Level Manometer Tape Measure

Variable Speed Drill/Driver Wrench Set Framing Square Framing Material Hi temp caulking material Voltmeter Gloves Safety Glasses Non-corrosive Leak Check Solution

or combustible gas detector

• Remove cast door and glass door, and set aside on pro tective surface. See page 33.

• Remove log set and component pack from ﬁ rebox.

• Report to your dealer any parts damaged in shipment,

particularly the condition of the glass.

• Read all of the instructions before starting the installation. Follow these instructions carefully during the installation to ensure maximum safety and bene t.

WARNING

Hearth & Home Technologies disclaims any responsibility for, and the warranty will be voided by, the following actions:

• Installation and use of any damaged appliance or vent system component.

• Modiﬁ cation of the appliance or vent system.

• Installation other than as instructed by Hearth & Home Technologies.

• Improper positioning of the gas logs or the glass door.

• Installation and/or use of any component part not approved by Hearth & Home Technologies.

Any such action may cause a  re hazard.

Page 6

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Appliance Location and Clearances

NOTE:

· Illustrations reﬂ ect typical installations and are FOR

DESIGN PURPOSES ONLY.

· Illustrations/diagrams are not drawn to scale.

· Actual installation may vary due to individual design

preference.

A. Selecting Appliance Location

When selecting a location for your appliance it is important to consider the required clearances to walls (see Figure 3.1).

NOTE: For actual appliance dimensions refer to Section 12.

B. Clearances

WARNING

Fire Risk Provide adequate clearance:

• Around air openings

• To combustibles

• For service access Locate appliance away from trafﬁ c areas.

WARNING

Fire Risk.

• Locate and install appliance to all

clearance speciﬁ cations in manual.

G-Alcove

"A" measurement is from

stove top, not side

Model ABCDEF G H Garnet-T

Figure 3.1

It is permissible to place the appliance on carpet.

Inches

Millimeters

6 2 2 43 36 30 19-3/8 19-1/2

152 51 51 1092 914 762 492 495

CAUTION

Some carpet materials may be sensitive to radiant heat from the appliance causing discoloration or odor.

NOTE: Flooring beneath appliance may reach 90 degrees plus room ambient temperature. Check with flooring manufacturer for maximum temperature allowed on flooring surfaces.

WARNING

Fire Risk. Odor Risk. Tipping Risk

• Install appliance on a stable, level platform/ ﬂ oor strong enough to support appliance without tipping.

• USE wood ﬂ ooring, ceramic tile, brick hearth or high pressure laminate ﬂ ooring applied directly over the sub-ﬂ ooring material.

August 1, 2008

Page 7Quadra-Fire · Garnet-T · 7016-127F

Termination Locations

A. Vent Termination Minimum Clearances

WARNING

Fire Risk. Explosion Risk. Maintain vent clearance to combustibles

as speciﬁ ed.

• Do not pack air space with insulation or other materials.

Failure to keep insulation or other materials away from vent pipe may cause ﬁ re.

Measure vertical clearances from this surface.

Measure horizontal clearances from this surface.

(See Figure 4.4 for speciﬁ c clearances.)

Figure 4.1 Termination Clearances

GAS, WOOD OR FUEL

OIL TERMINATION

TERMINATION

GAS

HORIZONTAL

OVERHANG

2 FT. MIN.

GAS DIRECT VENT TERMINATION CAP

20 INCHES MIN.

LOWEST

DISCHARGE

OPENING

H (MIN.) - MINIMUM HEIGHT FROM ROOF TO LOWEST DISCHARGE OPENING

ROOF PITCH

IS X/ 12

VERTICAL

WALL

Roof Pitch H (Min.) Ft.

Flat to 6/12 .........................................................1.0*

Over 6/12 to 7/12........................................................1.25*

Over 7/12 to 8/12 ...............................................1.5*

Over 8/12 to 9/12 ...............................................2.0*

Over 9/12 to 10/12 ............................................. 2.5*

Over 10/12 to 11/12 ...........................................3.25

Over 11/12 to 12/12 ........................................... 4.0

Over 12/12 to 14/12 ........................................... 5.0

Over 14/12 to 16/12 ........................................... 6.0

Over 16/12 to 18/12 ........................................... 7.0

Over 18/12 to 20/12 ........................................... 7.5

Over 20/12 to 21/12 ........................................... 8.0

* 3 foot minimum in snow regions

Figure 4.3 Minimum Height from Roof to Lowest Discharge

Opening

Figure 4.3 speciﬁ es minimum vent heights for various

pitched roofs.

Gas

Termination

A 6 in. 20 in. min. Horizontal distance between terminations

B 20 in. 24 in. min. Distance to perpendicular wall

C 18 in. 18 in. Vertical distance between terminations

Figure 4.2 Multiple Vertical Termination

Page 8

Wood & Fuel Oil

Termination

Comments

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

J or K

(See Note 2)

Electrical

Service

U.S.

(3 FT)

= VENT TERMINAL

A = 12 inches ............. clearances above grade, veran-

(See Note 1)

= AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED

da, porch, deck or balcony

B = 12 inches ............ clearances to window or door

that may be opened, or to permanently closed window. (Glass)

D* = 18 inches ............. vertical clearance to unventilat-

ed soffit or to ventilated soffit located above the terminal

*30 inches ............ for vinyl clad soffits and below

electrical service

F = 9 inches .............. clearance to outside corner

G = 6 inches ............... clearance to inside corner

H = 3 ft. (Canada) ...... not to be installed above a gas

meter/regulatorassembly within 3

feet (90cm) horizontally from the

center-line of the regulator

= 3 ft. ................

.......

clearance to gas service regula-

tor vent outlet J = 9 inches (U.S.A.)

12 inches (Canada)clearance to non-mechanical air

supply inlet to building or the

combustion air inlet to any other

appliance

K = 3 ft. (U.S.A.)

6 ft. (Canada) ......... clearance to a mechanical

(powered) air supply inlet

L** = 7 ft. ......................... clearance above paved

(See Note 1)

sidewalkor a paved driveway located on public property

M*** = 18 inches .............. clearance under veranda ,

porch, deck, balconyor overhang

42 inches .............. vinyl

S = 6 inches ................. cleara n ce from sides of

(See Note 3)

electrical service

T = 12 inches ................ clearance above electrical

(See Note 3)

service

Alcove Applications

N = 6 inches ................. non-vinyl sidewall s

P=8ft.

___________________________________________________________________

12 inches ............... vinyl sidewalls

MIN

1cap 3feet 2xQ 2 caps 6 feet 1 x Q 3 caps 9 feet 2/3 x Q 4caps 12feet 1/2xQ

= # termination caps x 3 R

MIN

= (2 / # terminationcaps) xQ

MAX

ACTUA L

ACTUAL

** a vent shall not terminate directly above a sidewalk or paved

driveway which is located between two single family dwellings and serves both dwellings.

*** only permitted if veranda, porch, deck or balcony is fully open on

a minimum of 2 sides beneath the floor, or meets Note 2.

NOTE 1: On private property where termination is less than 7 feetabove a sidewalk, driveway, deck, porch, veranda or balcony, use of a listed cap is suggested. (See vents components pages.)

NOTE 2: Termination in an alcove space (spaces only open on one side and

an overhang) are permitted with the dimensions specified for

without

vinyl or non-vinyl siding and soffits. 1. There must be at least 3 feet minimum between termination caps. 2. All mechanical air intakes within 10 feet of a termination cap must be a minimum of 3 feet below the termination cap. 3.All gravity air intakes within 3 feet of a termination cap must be a minimum of 1 foot below the termination cap.

NOTE 3: Location of the vent termination must not interfere with access to the electrical service.

Figure 4.4

August 1, 2008

NOTE: Local codes or regulations may require different clearances.

NOTE: Termination caps may be hot. Consider their proximity to doors or other traffic areas.

WARNING: In the U.S.: Vent system termination is NOT permitted in screened porches. You must follow side wall, overhang and ground clearances as slated in the instructions.

In Canada: Vent system termination is NOT permitted in screened porches. Vent system termination is permitted in porch areas with two or more sides open. You must follow side wall, overhang and ground clearances as stated in the instructions.

Quadra-Fire assumes no responsibility for the improper performance of the appliance when the venting system does not meet these requirements.

CAUTION: IF EXTERIOR WALLS ARE FINISHED WITH VINYL SIDING, IT IS SUGGESTED THAT A VINYL PROTECTOR KIT BE INSTALLED.

Page 9Quadra-Fire · Garnet-T · 7016-127F

Vent Information

A. Venting Components

In order to comply with applicable codes and product warranties, use only following venting components:

• Hearth & Home Technologies (HHT)

• Simpson Dura-Vent

• Selkirk Direct-Temp

• Amerivent Direct

• Security Secure Vent

DO NOT USE FIELD-FABRICATED VENTING COMPONENTS. Refer to the venting manufacturer’s

instructions.

This product is approved to be vented either horizontally, through the side wall or vertically through the roof. You may vent through a Class A or masonry chimney if an approved adapter is used.

This appliance is a direct vent heater. All combustion air must come directly from the outside of the building. The vent pipe for this unit consists of an inner and an outer pipe. The inner pipe carries the appliance exhaust out of the system, and the outer pipe brings fresh combustion air into the appliance.

B. Use of Elbows

CAUTION

ALL vent conﬁ guration speciﬁ cations MUST be followed.

• This product is tested and listed to these speciﬁ cations.

• Appliance performance will suffer if speciﬁ cations are not followed.

Diagonal runs have both vertical and horizontal vent aspects when calculating the effects. Use the rise for the vertical aspect and the run for the horizontal aspect. (See Figure

5.1.)

Two 45° elbows may be used in place of one 90° elbow. On 45° runs, one foot of diagonal is equal to 8-1/2 in. (216mm) horizontal run and 8-1/2 in. (216mm) vertical run. A length of straight pipe is allowed between two elbows. (See Figure

5.1.)

Vertical

• A round support box/wall thimble or heat shield is required when the venting passes through a combustible wall.

• A support box or ceiling ﬁ restop is required when the venting passes through a ceiling.

• Roof ﬂ ashing and a storm collar are required when venting passes through the roof.

• Follow instructions provided with the venting for installation of these items.

WARNING

Fire Hazard. Explosion Risk. Asphyxiation Risk. Do NOT connect this gas appliance to a chimney

ﬂ ue serving a separate solid-fuel or gas burning appliance.

• Vent this appliance directly outside.

• Use separate vent system for this appliance. May impair safe operation of this appliance or

other appliances connected to the ﬂ ue.

12 in.

8-1/2 in.

Horizontal

Figure 5.1

C. Measuring Standards

Vertical and horizontal measurements were made using the following standards.

• Pipe measurements are from center line to center line.

• Horizontal terminations are measured to the outside of the mounting surface (ﬂ ange of termination cap). See Figure 4.1 on page 8.

• Vertical terminations are measured to the top of the last pipe before termination cap.

• Horizontal pipe installed level with 1/4 in. rise.

Page 10

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

D. How to Use the Vent Graph E. Venting Guidelines

6 in. (152mm) Minimum starter pipe

30 in. (762mm) Maximum Horizontal run with no vertical pipe and with 1/4 in. (6mm) rise per foot. Must use approved Termination Cap.

25 ft. (8m)

Maximum Vertical

Termination cap

Termination Cap

6 ft. (2m) Minimum Vertical Termination

25' 24'

22'

20'

18'

16'

14'

12'

10'

2' 4' 6' 8' 10' 12' 14' 15'

Example 1

Example 2

Adjust Intake

Damper

Install Flue

Restrictor

1. Measure the vertical distance from the center line of the flue pipe to the center of the 90° elbow. On the graph below, draw a horizontal line from that measurement on the vertical axis across until it intersects with the slanted line.

2. From the point of this intersection, draw a vertical line to the bottom of the graph.

3. The point at which this line meets the bottom line of the graph is the maximum length of the horizontal run.

EXAMPLE 1: If the vertical dimension from the center line of the ﬂ ue vent to the center of the 90° elbow is 7 ft. (2m), the horizontal run to the outer wall ﬂ ange must not exceed 9 ft.-8 in. (3m).

EXAMPLE 2: If the vertical dimension from the center line of the ﬂ ue vent is 21 ft. (6m), the horizontal run to the outer wall ﬂ ange must not exceed 4 ft.-3 in. (1m).

4. Each 90° elbow is equivalent to 3 ft. (914mm) of vent pipe and each 45° elbow is equivalent to 1 ft. (305mm) of vent pipe, and must be subtracted from the vent pipe run. A single horizontal to vertical 90° elbow is already calculated into the allowable 15 ft. (5m) run. Each additional 90° elbow reduces the maximum horizontal distance by 3 ft. (914mm).

EXAMPLE: The use of 3 elbows would reduce the allowable horizontal run to 9 ft. (3 -1 = 2 elbows x 3 ft. = 6 ft.; 15 ft. max. - 6 ft. = 9 ft. max.).

NOTES

The maximum horizontal vent run is 15 ft. (5m) when the vertical vent rise is 10 ft. (3m).

Horizontal sections require a 1/4 in. (6mm) rise for every 12 in. (305mm) of horizontal travel.

Exterior Vent Diameter = 6-5/8 in. (168mm); Inner Vent Diameter = 4 in. (102mm)

Horizontal sections require noncombustible support every 3 ft. (914mm), e.g. wall straps.

For any vertical termination a minimum of 6 in. (152mm) vertical must be used.

EXCEPTIONS

FOR HORIZONTAL INSTALLATIONS:

The maximum horizontal vent run is 30 in. (762mm).

The maximum horizontal vent run with a 45° elbow is 18 in. (457mm).

No external minimum rise is required.

The minimum horizontal vent run is 6 in. (152mm).

NOTE: If your installation falls within the gray-shaded area on graph, see information on intake damper operation, on page 36.

*In the Commonwealth of Massachusetts, the word damper shall be replaced with the words flue restrictor.

Figure 5.2

VERTICAL DISTANCE FROM APPLIANCE TO 90° ELBOW

August 1, 2008

Page 11Quadra-Fire · Garnet-T · 7016-127F

F. Horizontal Termination

Type A -

Up & Out Installations for Top Vent Configurations

90º ELBOW

center line

TERMINATION CAP

Type B -

PIPE LENGTH

WALL THIMBLE COVER

PIPE LENGTH

WALL THIMBLE

Rear Installations for Use with Rear Vent Kit

CENTER LINE

17-3/4 in.

(451mm)

W AL L THIMBL E

W AL L THIMBLE COVER

TERMINATION CAP

Type C - 45° Elbow in Corner Installation

Step 1.

Determine the desired location of the appliance. Check to ensure that wall studs or roof rafters are not in the way when the venting system is attached. If this is the case, you may want to adjust the location of the appliance.

WARNING

Fire Hazard. Exhaust Fume Risk. Impaired Performance of Appliance.

• Ensure vent components are locked together correctly.

• Pipe may separate if not properly joined.

Step 1.

Step 2.

Direct vent pipe is designed with a locking connection. To connect the venting system to the appliance flue outlet, a twist-lock adapter is built into the appliance at the factory. Wall thickness may vary. Remember to include wall thickness in minimum clearances when figuring venting lengths for your installation needs.

Note: Female ends of direct vent pipe/elbows are designed to slide straight onto the male ends of adjacent pipes by orienting the pipe indentations so they match and slide into the entry slots on the male ends, see Figure 5.4. Push the pipe sections completely together, then twist-lock one section clockwise approximately one-quarter turn, until the two sections are fully locked. The female locking lugs may not be visible from the outside. They may be located by examining the inside of the female ends.

45° Elbow

Figure 5.3

Page 12

Wall Thimble

2 in. (51mm) Clearance from stove corner to combustible wall.

2 in. (51mm) Clearance from stove corner to combustible wall

Figure 5.4

Quadra-Fire · Garnet-T · 7016-127F

Female Locking Lugs

Male Locking Lugs

August 1, 2008

HOT

WARNING

codes, and must not be easily blocked or obstructed, see Figure 4.4 on page 9.

Fire Risk. Explosion Risk. Combustion Fume Risk. Use vent run supports per installation instructions. Connect vent sections per installation instructions.

• Maintain all clearances to combustibles.

• Do NOT allow vent to sag below connection point to appliance.

• Maintain speciﬁ ed slope (if required).

Improper support may allow vent to sag or separate.

Step 3.

For installations using a round support box/wall thimble (check pipe manufacturer's instructions), mark the wall for a 10 in. x 10 in. (254mm x 254mm) square hole. The center of the square hole should line up with the center line of the horizontal pipe, as shown in Figure 5.5. Cut and frame the hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of noncombustible material, i.e. masonry block or concrete, a 7 in. (178mm) diameter hole is acceptable.

(3) For installations requiring a vertical rise on the exterior

of the building, a snorkel kit is available with a 14 in. (356mm) and a 36 in. (914mm) tall snorkel termination cap. Follow the same installation procedures as used for standard horizontal terminations. If the snorkel termination must be installed below grade (i.e. basement application), proper drainage must be provided to prevent water from entering the snorkel termination. Do not backfill around snorkel termination.

Step 4.

Position the horizontal vent termination cap in the center of the 10 in. x 10 in. (254mm x 254mm) square hole and run a bead of non-hardening mastic around its outside edges, so as to make a seal between it and the wall, attach termination cap to the exterior wall with the four wood screws provided. The arrow on the vent cap should be pointing up (Figure

5.6).

WOOD SCREW

CENTER OF HOLE

CENTER LINE

WALL THIMBLE

Figure 5.5

CENTER LINE

NOTE:

(1) Installation requires a minimum of 6 in. (152mm)

horizontal run of vent with a 1/4 in. (6mm) rise run towards the termination. Each 1 ft. (305mm) of horizontal venting must include a 1/4 in. (6mm) rise. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a house or structure fire.

(2) The location of the horizontal vent termination on an

exterior wall must meet all local and national building

HOT

WALL THIMBLE

Figure 5.6

NOTES:

(1) The four wood screws provided should be replaced with

appropriate fasteners for stucco, brick, concrete, or other types of sidings.

(2) A termination cap with a built-in vinyl siding standoff is

highly recommended on a building with vinyl siding. The pilot hole will be 2 in. (51mm) closer to the bottom of the square than the top. Using a framing square, draw a 14 in. x 14 in. (356mm x 356mm) square around the pilot hole in the siding. See Figure 5.7 on the next page.

August 1, 2008

Page 13Quadra-Fire · Garnet-T · 7016-127F

8 in.

(203mm)

7 in.

(178mm)

7 in.

(178mm)

6 in.

(152mm)

1/4 in. (6mm)

Fold Strap Here

Sheet Metal Screw

Figure 5.7

(NOTE: Some termination caps may cause the vent

pipe to be off center on the flashing). Ensure that proper clearances to combustible materials are maintained. If you are not using an approved termination cap with a built-in vinyl siding standoff on a building with vinyl siding, a vinyl siding standoff should be installed between the vent cap and the exterior wall (Figure 5.8). Attach the vinyl siding standoff to the horizontal vent termination. The vinyl siding standoff prevents excessive heat from possibly melting the vinyl siding material. Vent terminal shall not be recessed into a wall or siding. Remove siding from the area where the standoff will be located.

VINYL SIDING

Apply sealant to all four sides

SCREWS

Wall Thimble

Figure 5.9

Wall Thimble Cover/Ceiling Firestop as Required by Local Jurisdiction

Strap

Note: The attachment from the vent pipe to the vent termination cap must be sealed with silicone. Termination caps shall not be recessed into a wall or siding.

WARNING

Fire Hazard. Exhaust Fume Risk. Impaired Performance of Appliance.

• Ensure vent components are locked together correctly.

• Pipe may separate if not properly joined.

WARNING

Do NOT connect a pipe section to a termination cap without using the telescoping ﬂ ue section found on the termination cap.

Bolt horizontal top to vinyl standoff

WALL THIMBLE COVER

WALL THIMBLE

Figure 5.8

SCREWS

Vinyl siding standoff with siding beneath removed

Step 5.

Place the wall thimble cover over the pipe assembly and slide the appliance and vent assembly towards the wall, carefully inserting the vent pipe into the vent termination cap assembly. It is important that the vent pipe extend into the vent termination cap a sufficient distance so as to result in a minimum pipe overlap of 1-1/4 in. (32mm). Secure the connection between the vent pipe and the vent termination cap by attaching the two sheet metal strips extending from the vent termination cap assembly into the outer wall of the vent pipe. Use the two sheet metal screws provided to connect the strips to the pipe section (Figure 5.9).

Page 14

Quadra-Fire · Garnet-T · 7016-127F

WARNING

Burn Risk.

• Local codes may require installation of a cap

shield to prevent anything or anyone from touching the hot cap.

August 1, 2008

G. Vertical Termination

1. Direct Vent Pipe

STORM

COLLAR

FIRESTOP

VERTICAL

TERMINATION

CAP

FLASHING

SUPPORT

BOX

WARNING

Fire Risk. Explosion Risk. Maintain vent clearance to combustibles as speci-

ﬁ ed.

• Do not pack air space with insulation or other materials.

Failure to keep insulation or other materials away from vent pipe may cause ﬁ re.

PIPE

LENGTH

Figure 5.10

Step 1.

Check the installation instructions for required 1 in. (25mm) clearances (air space) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafters, or other nearby combustible surfaces. See page 17, Figure

5.16. Check the instructions below for maximum vertical rise of the venting system, and any maximum horizontal offset limitations. All offsets must fall within the set parameters of the vent graph (Figure 5.2) located on page 11.

25 ft. (8m) MAXIMUM

Figure 5.11

Step 2.

Set the gas appliance in its desired location. Drop a plumb

bob down from the ceiling to the position of the appliance flue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof. Determine if ceiling joists, roof rafters, or other framing will obstruct the venting system. You may wish to relocate the appliance, or to offset, as shown in Figure 5.12, on the next page, to avoid cutting loadbearing members. When location is determined, drill small hole.

NOTE: Maximum vertical rise allowable is 25 ft. (8m) Figure

5.11).

NOTE: Maximum number of 45° elbows permitted for a

vertical installation is eight, provided their installation does not decrease maximum allowable horizontal run (as specified by vent graph, on page 11).

August 1, 2008

Page 15Quadra-Fire · Garnet-T · 7016-127F

necessary to reach from the ceiling support box/wall thimble up through the roof line. Galvanized pipe and elbows may be utilized in the attic, as well as above the roofline. The galvanized finish is desirable above the roofline, due to its higher corrosion resistance.

Plumber’s Tape connected to Wall Strap

Wall Strap

Two 45˚ Elbows

Figure 5.12

Step 3.

To install the round support box/wall thimble cover in a flat ceiling, cut a 10 in. (254mm) square hole in the ceiling, centered on the hole drilled in Step 2. Frame the hole as shown in Figure 5.13.

Ceiling Joists

Framing

NOTE:

) If an offset is necessary in the attic to avoid obstructions,

it is important to support the vent pipe every 3 ft. (914mm) to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose, Figure 5.12.

(2) Whenever possible, use 45° elbows, instead of 90°

elbows. The 45° elbow offers less restriction to the flow of flue gases and intake air.

Step 6.

Slip the flashing over the pipe section(s) protruding through the roof. Secure the base of the flashing to the roof with roofing nails. Ensure the roofing material overlaps the top edge of the flashing as shown in Figure 5.14. Verify that the chimney is the required height above the roof. See roof pitch table (Figure 4.3 on page 8).

Shingles overlap on top edge of flashing

CAP AND STORM COLLAR NOT SHOWN FOR CLARITY

1 - 1/2 in. (38mm) Long Wood Screws

Figure 5.13

Step 4.

Assemble the desired lengths of pipe and elbows necessary to reach from the appliance up through the round support box. Ensure that all pipe and elbow connections are in their fully twist-locked position. Assemble as instructed.

Step 5.

Cut a hole in the roof centered on the small drill hole placed in the roof in Step 2. The hole should be of sufficient size to meet the minimum requirements for clearance to combustibles, as specified. Continue to assemble lengths of pipe and elbows

Page 16

Quadra-Fire · Garnet-T · 7016-127F

Figure 5.14

Step 7.

Continue to assemble pipe sections until the height of the vent (before adding the termination cap) meets the minimum code requirements as outlined in the current CAN/CGA-B149 Installation Codes (in Canada), the National Fuel Gas Code NFPA 54/ANSI Z223.1 (in USA), or local codes. Note that for steep roof pitches, the vent height must be increased. See Roof Pitch Table (Figure 4.3, on page 8). In high wind conditions, nearby trees adjoining rooflines, steep pitched roofs, and other similar factors can result in poor draft, or down drafting. In these cases increasing the vent height or switching to the high wind termination cap may solve this problem.

August 1, 2008

Step 8.

Slip the storm collar over the pipe, and push it down to the top of the flashing (Figure 5.15). Use non-hardening sealant above and below the joint between the storm collar and the pipe.

Optional High Wind Termination Cap

Secure Flashing with Non-Hardening Sealant and Roofing Nails

Figure 5.15

Step 9.

Twist-lock the vent cap and seal.

WARNING

Fire Risk. Explosion Risk.

• Any occupied areas above the first floor, including closets and storage spaces, which the vertical vent passed through must be enclosed. The enclosure may be framed and sheetrocked with standard construction materials; however, refer to these installation instructions for the minimum allowable clearance between the outside of the vent pipe and the combustible surfaces of the enclosure. Do not fill any of the required air space with insulation.

Note: For multi-story vertical installations, a ceiling firestop is required at the second floor, and any subsequent floors (Figure 5.16). The opening should be framed to 10 in. x 10 in. (254mm x 254mm) inside dimensions, in the same manner as shown in Figure 5.13.

Nails

Ceiling Firestop

Minimum 1 in. (24mm) Clearance

Figure 5.16

August 1, 2008

Page 17Quadra-Fire · Garnet-T · 7016-127F

2. Cathedral Ceiling

Step 1.

Follow installation Steps 1 and 2 under vertical installation section, page 15.

Step 2.

Remove shingles or other roof covering as necessary to cut the rectangular hole for the support box. Cut the hole 1/8 in. (3mm) larger than the support box outline.

Step 3.

Lower the support box through the hole in the roof until the bottom of the support box protrudes at least 2 in. (51mm) below the ceiling (Figure 5.17). Align the support box both vertically and horizontally with a level. Temporarily tack the support box in place through the inside walls and into the roof sheathing.

Figure 5.18

Level

Cathedral Ceiling Support Box

2 in. (51mm) Min. below finished ceiling

Cut hole 1/8 in. (3mm) greater in size than pattern of support box as it is projected onto roof line

Figure 5.17

Step 4.

Using tin snips, cut the support box from the top corners down to the roofline, and fold the resulting flaps over the roof sheathing (Figure 5.18). Before nailing it to the roof, run a bead of non-hardening mastic around the top edges of the support box to make a seal between it and the roof. Clean out any combustible material from inside the support box.

Step 6.

Place the support clamp (provided with the support box) inside the support box (at the bottom), and secure to the pipe section. The clamp allows the support box to support the weight of the pipe sections. Continue to add pipe sections until you are above the roofline.

Step 7.

Complete the cathedral ceiling installation by following the same procedures outlined in steps 7 through 9 for vertical installations, pages 16-17.

Step 8.

Install the black trim collar around the outside of the cathedral ceiling support box (Figure 5.18). The two pieces of the trim collar slide over one another to allow for easy adjustment around the support box. Using the six screws provided, secure the four corners and the overlapping sections of the trim collar to the ceiling. You may want to predrill the holes for the overlapped sections for ease of installation.

Trim Collar

Step 5.

Page 18

Quadra-Fire · Garnet-T · 7016-127F

Figure 5.19

Cathedral Ceiling

Support Box

Screws

August 1, 2008

3. Class A Metal Chimney

EXISTING

METAL

CHIMNEY

SYSTEM

4 in. (102mm) FLEX PIPE

TERMINATION

TOP

ADAPTOR

FLASHING

CAP

Step 4.

Pass the flex pipe down through the center of the chimney system, and center the top adapter on the top of the chimney pipe. Drill four 1/8 in. (3mm) diameter holes through the top adapter, and into the chimney top. Ensure that you are drilling into the metal on the chimney. Twist lock the high wind termination cap onto the top adapter (Figures 5.22 and 5.23).

Figure 5.20

DIRECT

VENT PIPE

RETRO

CONNECTOR

CAUTION

Ensure that existing chimney is functionally sound and clean.

• Have inspection done by qualified chimney sweep or professional installer BEFORE converting to direct vent appliance.

Step 1.

Remove existing chimney cap.

Step 2.

Measure the distance from the top of the chimney to the bottom of the ceiling support box, add 3 in. (76mm) to this measurement, and cut a section of 4 in. (101mm) flex pipe to that length (the flex should be fully extended).

Figure 5.22

High Wind Termination Cap

Sheet Metal Screws

Drill Four 1/8 in. (3mm) Diamater Holes

Figure 5.23

Step 3.

Connect the end of the flex pipe section to the underside of the top adapter, using four sheet metal screws (Figure

5.21).

Top Adapter

Flex Pipe

Sheet Metal Screws

Figure 5.21

August 1, 2008

Step 5.

Pull the flex pipe down through the ceiling support box, until it protrudes approximately 3 in. (76mm). Connect the flex pipe to the retro connector, and attach with sheet metal screws.

Step 6.

Push the flex pipe back up into the ceiling support box, center the retro connector, and attach it to the support box with sheet metal screws.

Step 7.

The connection between the appliance and the retro connector may be completed with sections of direct vent pipe.

Page 19Quadra-Fire · Garnet-T · 7016-127F

4. Existing Masonry Chimney

Type A & B - Co-Axial to Co-Linear

Type A

Co-Axial to

Co-Linear

Connector

Pipe Length

Optional

Type B

Chimney Liner

Termination Cap

Chimney Liner

Termination Cap

3 in. (76mm)

Flex Liner

Showing two 35 ft.

(11m) Sections of

Flex Liner

Type C - Up & Out Installation

TOP ADAPTOR

90° ELBOW

DIRECT

VENT PIPE

CONNECTOR

RETRO

Type D - Hearth Mount

Chimney Liner Termination Cap

TERMINATION CAP

FLASHING

4 in. (102mm)

FLEX LINER

Co-Axial to

Co-Linear

Connector

Pipe Length

Optional

Figure 5.24

25 ft. (8m) of 3 in.

(76mm) Flex Liner

Exhaust Section

This section of the chimney must be sealed

The chimney must be sealed from the 4 ft. (1m) section to termination using a smoke shelf or a damper. The seal should be 6 in. (152mm) below the end of the 4 ft. (1m) Air Intake section.

4 ft. (1m) of 3 in.

(76mm) Flex Liner

Air Intake Section"

25 ft. (8m) of 3 in.

(76mm) Flex Liner

Exhaust Section

This section of the chimney must be sealed

Alcove Clearance to Combustibles must be maintained.

Co-Axial to Co-Linear Connector

Chimney must be sealed from 4 ft. (1m) section to termination using a smoke shelf or a damper*. Seal should be 6 in. (152mm) below end of 4 ft. (1m) Air Intake section.

4 ft. (1m) of 3 in. (102mm)

Flex Liner

Air Intake Section"

*In the Commonwealth of Massachusetts, the word damper shall be replaced with the words ﬂ ue restrictor.

Page 20

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

CAUTION

Ensure that existing chimney is functionally sound and clean.

• Have inspection done by qualified chimney sweep or professional installer BEFORE converting to direct vent appliance.

Step 1.

Before cutting any holes, assemble the desired sections of direct vent pipe to determine the center of the masonry penetration.

Step 2.

Once the center point of the penetration has been determined, cut a 6 in. (152mm) diameter hole in the masonry. If the hole is too large, the retro connector might not mount properly; if the hole is too small, the appliance might starve for intake air. If there is a frame wall in front of the masonry wall, cut and frame a 10 in. (254mm) square opening in the wall (centered around the 6 in. (152mm) masonry opening). If there is sheet rock only (no studs) in front of the masonry the 10 in. (254mm) opening is still needed, but does not need to be framed. If the hole is framed a wall thimble is required. This allows the retro connector to mount directly on the masonry and provide the correct clearances to combustibles (Figure 5.25).

Cut and bend flashing as needed to fit

Figure 5.26

Sealant adhesive

Step 4.

To determine the length of flex needed, measure from 3 in. (76mm) above the top of the flashing down to the level of the opening. Add the distance from the center of the chimney out through the wall. Cut a piece of 4 in. (102mm) flex to this length (extended to its nominal length). Be sure to leave 2-3 in. (51-76mm) of flex above the existing chimney to allow for connection to the termination kit.

Step 5.

Connect the flex liner to the top adapter using three sheet metal screws (Figure 5.21, page 19).

Studwall

10 in. x 10 in. (254mm x 254mm)

framed opening in wall

Retro Connector

Wall Thimble Cover

(4) Masonry Bolts

(Not Included)

NOTE: FOR HEARTH APPLICATIONS REFER TO PAGE 19 FOR THE USE OF A CO-AXIAL TO CO-LINEAR APPLIANCE CONNECTOR.

Figure 5.25

Masonry Chimney

Step 3.

Secure the flashing to the top of the masonry chimney using a bead of non-hardening sealant-adhesive. If the flashing is larger than the top of the chimney, cut and fold flashing as needed to fit chimney (Figure 5.26).

Step 6.

Feed the flex liner through the flashing into the chimney. Carefully feed the flex liner down the chimney to the bottom and out the opening in the masonry wall, forming an angle to line up the flex liner with the vent opening on the appliance.

WARNING

Fire Risk. Explosion Risk.

• Do not let the ﬂ ex liner sag below the level at which it will connect to the appliance or connector. This could allow hot gas to become trapped and potentially become a ﬁ re hazard. The ﬂ ex liner path should always be sloped up toward the termination cap.

Step 7.

If additional lengths of flex liner are needed to span the chimney height, use a flex coupler to connect the pieces of flex liner together. Connect the flex to the coupler by using four sheet metal screws for each side (Figure 5.27, on the next page).

August 1, 2008

Page 21Quadra-Fire · Garnet-T · 7016-127F

Flex Liner

Flex Coupler

Sheet Metal Screws

Figure 5.27

Step 8.

Secure the top adapter to the flashing. Use three sheet metal screws through the side of the top adapter into the flange on the flashing (Figure 5.28). Twist lock the high wind termination cap on to the top adapter.

High Wind Termination Cap

Top Adaptor

6 in. (152mm) diameter opening in masonry wall

Retro Connector

(3) Masonry Bolts (Not included)

Figure 5.29

Step 10.

Slide wall thimble cover over retro connector and secure with masonry bolts (Figure 5.30). If you have a framed wall in front of the masonry, use wood screws to mount wall thimble cover to framed wall, over retro connector and 10 in. (254mm) square framed opening (Figure 5.25, page

21). If needed, add a section of direct vent pipe to the retro connector in order to extend through the opening in the wall thimble cover.

(3) Sheet Metal Screws

Flashing

Figure 5.28

Step 9.

Attach the flex to the retro connector. Use three sheet metal screws to attach the flex liner to the connector (Figure

5.29). Mount the retro connector to the masonry wall using masonry bolts. Redrill larger holes on connector as needed. Be careful to ensure that the connector is centered in the opening and the mounting holes line up with the masonry wall.

Retro Connector

Wall Thimble Cover

(4) Masonry Bolts

(Not included)

Figure 5.30

Step 11.

The connection between the appliance and the retro connector may be completed with sections of direct vent pipe.

Page 22

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

H. Slim Line Wall Thimble

CAUTION

Sharp Edges

• Wear protective gloves and safety glasses during installation.

BEFORE YOU BEGIN: Review the venting conﬁ gurations in Figures A, B and C on the next page.

1. Assembling Slim Line Trim Ring and Heat Shield

Figure 5.31 Lay the trim ring on ﬂ at surface and bend up the

six welded brackets into a 90 degree position. The brackets along the outer edge of the ring are for locating the ring in the center of the hole.

Figure 5.33 Attach the heat shield to the trim ring with the

four screws provided. Screws go through the heat shield and into the brackets on the trim ring.

2. Installing Slim Line Trim Ring and Heat Shield

Measure from the ﬂ oor to the center of the vent pipe. Cut out a 9-1/2 in. (241mm) hole in the wall. Hold the trim ring/heat shield assembly in place and put a mark on the shield with a black marker where it protrudes through the exterior wall. See Figure A on the next page.

Use that mark as a guide to trim off excess heat shield with a pair of sheet metal shears.

3/4

Figure 5.32 The heat shield is shipped ﬂ at and must be hand

bent into a half circle before attaching it to the trim ring. Bend the heat shield as shown.

NOTE: Wear leather gloves when bending the heat shield to prevent injury.

August 1, 2008

Figure 5.34 When installing the trim ring/heat shield assem-

bly make sure the trim ring is centered in the hole and that the shield is above the pipe. There must be a minimum of 3/4 in. (19mm) minimum clearance maintained to combustibles from the top of the heat shield.

Ensure that framing on the inside of the wall is a minimum inner framing diameter of 10 in. x 10. in. (254mm x 254mm).

The four trim ring mounting screws provided should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

Page 23Quadra-Fire · Garnet-T · 7016-127F

FIG. A 90 DEGREE ELBOW

Place mark where protrudes through

exterior wall to cut off excess

90° ELBOW

center line

PIPE LENGTH

Use HEAT SHIELD or WALL THIMBLE

PIPE LENGTH

TRIM RING

SOLID OR

VENTILATED

TERMINATION CAP

FIG. B 45 DEGREE ELBOW

45° Elbow

TRIM RING

NOTE: Wall Thimble removed

to show Heat Shield

HEAT SHIELD OVER PIPE

2 in. 951mm) Clearance from stove corner to combustible wall.

2 in. (51mm) Clearance from stove corner to combustible wall

FIG. C MINIMUM CLEARANCE

INTERIOR WALL (2 in. (51mm)

clearance from rear of stove)

CENTER LINE

Figure 5.33

Page 24

MINIMUM OF 6 in. (152Mm) OF PIPE THROUGH THE WALL

WALL THIMBLE

TERMINATION CAP

HEAT SHIELD OVER

TOP HALF OF PIPE

TRIM RING

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Gas Information

A. Fuel Conversions

Before making gas connections ensure that the appliance being installed is compatible with the available gas type.

Any natural or propane gas conversions necessary to meet the appliance and locality needs must be made by a qualiﬁ ed technician using Hearth & Home Technologies speciﬁ ed and approved parts.

1. Converting to LP Gas

THERMOCOUPLE

PILOT HOOD

MILLIVOT GENERATOR

NOTE: Gas conversions should only be performed by a qualified service person, and/or where required by state and local codes, licensed installer/service technician. In the Commonwealth of Massachusetts, installation must be performed by a licensed plumber or gas fitter.

KIT CONTENTS: Replacement ori ce; replacement pilot injector; valve regulator; conversion label.

TOOLS REQUIRED: Power drill (a 90° drill is helpful); Slotted screwdriver or Torx TH20; #2 Phillips bit; 5/32" Allen wrench; 3/8" open end wrench.

Figure 6.2 Pull off pilot hood and set aside. NOTE: Do not

remove the wire clip.

5/32 in. Allen wrench

Figure 6.3 Use a 5/32 in. Allen wrench to remove the pilot

injector. Replace pilot injector with the appropriate size injector supplied

with the appliance (#35 for Propane, #62 for Natural Gas). Replace pilot hood, snapping into position. Be sure to align

notch on left side of pilot hood.

Remove 2 screws

Figure 6.1 Lift off the appliance top and place it on a flat sur-

face, with the porcelain side up to prevent damage. Remove the appliance front by sliding it upwards in the grooves, being careful not to chip the porcelain. Lay the appliance front face up on a flat surface.

Remove burner: First remove ONLY the two screws indicated in. DO NOT remove the screws from the burner top. Lift the burner up and out of the ﬁ rebox.

August 1, 2008

Figure 6.4 Remove main burner oriﬁ ce using a 3/8 in. wrench.

Replace oriﬁ ce with the proper size as indicated below for your gas type and venting.

PROPANE NATURAL GAS

#56 #49

Reinstall burner.

Page 25Quadra-Fire · Garnet-T · 7016-127F

2. Valve Regulator Replacement

WARNING

Fire Risk. Explosion Risk.

• Disconnect any electrical cords and

turn off gas supply to unit before proceeding if converting fuel on an appliance already fully installed.

Remove upper and lower back shield. Loosen the set collars on the extension rods with the 3/32 in. Allen wrench. Remove the rods and adapter cap.

Mounting Screws

Pressure Regulator Tower

Diaphragm

with the kit. Tighten screws securely. (Reference torque = 25 in./lb.) Install the enclosed identiﬁ cation label (F) to the valve body where it can be seen.

Fill out the conversion label and attach it to the valve cover.

WARNING

Fire Risk. Explosion Risk. Gas Leak Risk.

• Rubber gasket must be seated properly on valve face.

• Do no install a valve or regulator that has been dropped.

WARNING

Fire Risk. Explosion Risk.

• If the information in these instructions is

not followed exactly, a ﬁ re, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.

•

The qualiﬁ ed service agency is responsible for the proper installation of this conversion kit. The installation is not proper and complete until the operation of the converted appliance is checked as speciﬁ ed in the manufacturer’s instructions supplied with the kit.

Figure 6.5 Turn control knob to the OFF position, ensure that

gas supply to the valve has been turned off. Using a Torx TH20, or slotted screwdriver, remove the three pressure regulator mounting screws (A), pressure regulator tower (B), and diaphragm (C).

Screws

Rubber Gasket

Identification Label

Figure 6.6 Ensure that the rubber gasket (D) is properly

positioned and install the new HI/LO pressure regulator assembly to the valve using the new screws (E) supplied

Page 26

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

B. Gas Pressures

Proper input pressures required for optimum appliance performance, gas line sizing requirements need to be followed from NFPA51.

WARNING

Fire Risk. Explosion Hazard. High pressure will damage valve.

• Disconnect gas supply piping BEFORE pressure testing gas line at test pressures above 1/2 psig.

• Close the manual shutoff valve BEFORE pressure testing gas line at test pressures equal to or less than 1/2 psig.

C. Gas Connection

NOTE: Have the gas supply line installed in accordance with

local building codes, if any. If not, follow ANSI Z223.1. Installation should be done by a qualiﬁ ed installer approved and/or licensed as required by the locality. (In the Commonwealth of Massachusetts, installation must be performed by a licensed plumber or gas ﬁ tter.)

NOTE: A listed (and Commonwealth of Massachusetts approved) 1/2 inch (13mm) T-handle manual shut-off valve and ﬂ exible gas connector are connected to the 1/2 inch (13mm) control valve inlet.

• If substituting for these components, please consult local codes for compliance.

WARNING

Verify inlet pressures.

• High pressure may cause overfire condition.

• Low pressure may cause explosion.

Install regulator upstream of valve if line pressure is greater than 1/2 psig.

Pressure requirements for appliance are shown in the table below.

PRESSURE NG LP

Minimum Inlet Pressure 5 inches w.c. 11 inches w.c. Maximum Inlet Pressure 10 inches w.c. 13 inches w.c. Manifold Pressure on “HI” 3.5 inches w.c. 10 inches w.c.

If the pressure is not sufﬁ cient, ensure:

1) the piping used is large enough.

2) the supply regulator is adequately adjusted.

3) that the total gas load for the residence does not exceed the amount supplied.

The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure.

WARNING

Gas Leak Risk.

• Support control when attaching pipe to prevent bending gas line.

NOTE: The gap between the supply piping and gas access hole may be plugged with non-combustible insulation to prevent cold air inﬁ ltration.

Leak test all gas line joints and the gas control valve prior to and after starting the ﬁ replace.

Before making the gas connection, ensure that the appliance you are installing is designed for the type of gas being supplied. This information can be found on the Ratings Label under the appliance. If the appliance has been converted to propane (LP), the valve cover should have a label stating that the unit has been converted to propane.

Connect the gas line at the 3/8 in. (9.5mm) pipe connector on the valve at the back of appliance. We recommend connecting the appliance with an approved flex gas line. If flex gas lines are not approved in your area, you must connect a hard pipe to the gas hookup.

You must supply a manual shut-off valve in a visible location within 3 feet (914mm) of the appliance.

August 1, 2008

Page 27Quadra-Fire · Garnet-T · 7016-127F

WARNING

Fire or Explosion Hazard

• Gas build-up during line purge may ignite.

• Purge should be performed by qualiﬁ ed technician.

• Ensure adequate ventilation.

• Ensure there are no ignition sources such as sparks or open ﬂ ame.

A small amount of air will be in the gas supply lines. When

•

ﬁ rst lighting appliance it will take a short time for air to purge from lines. When purging is complete the appliance will light and operate normally.

Air only needs to be purged again if gas valve has been turned to the OFF position.

WARNING

CHECK FOR GAS LEAKS Explosion Risk

Fire Risk Asphyxiation Risk

• Check all ﬁ ttings and connections.

• Do not use open ﬂ ame.

• After the gas line installation is complete, all connections must be tightened and checked for leaks with a commercially-available, non-corrosive leak check solution. Be sure to rinse off all leak check solution following testing.

Fittings and connections may have loosened during shipping and handling.

Omni-Test Laboratories listed gas appliances are tested and approved without requiring changes for elevations from 0 to 2000 feet in the U.S.A. and 0 to 4500 feet in Canada.

If installing this appliance at an elevation above 4500 feet (in Canada), check with local authorities.

Page 28

WARNING

Fire hazard. Do NOT change the valve settings.

• This valve has been preset at the factory.

• Changing valve settings may result in ﬁ re

hazard or bodily injury.

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Electrical Information

This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a prop

A. Recommendation for Wire

See B5 below for recommended maximum lead length (two wire) when using wall thermostat/switch.

NOTE: This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with National Electric Code ANSI/NFPA

70-latest edition or the Canadian Electric Code, CSA C221.1.

8. Ensure the thermostat is mounted level for accurate readings.

9. The thermostat should be mounted on an inside wall and not in direct line with the appliance convection air.

10. If the thermostat is located too close to the appliance, you may need to set the temperature setting slightly higher to maintain the desired temperature in your home.

B. Connecting to the Appliance

WARNING

Wire 110v to electrical junction box. Do NOT wire 110v to the valve. Do NOT wire 110V to wall switch.

• Incorrect wiring will damage millivolt systems.

1. This appliance may be used with a wall switch, wall mounted thermostat and / or a remote control.

2. If using thermostat, use one compatible with a millivolt gas valve system.

3. Follow parameters for locating thermostat (see individual thermostat instructions) to ensure proper operation of appliance.

4. Use low resistance thermostat wire for wiring from ignition system to the wall switch and thermostat.

Do not connect this appliance to a thermostat serving any other appliance.

Bedroom installation in Canada requires this appliance to be connected to a thermostat.

WARNING

Shock hazard.

•

This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three prong receptacle. Do not cut or remove the grounding prong from this plug.

C. Standing Pilot Ignition System Wiring

This appliance DOES NOT require 110 VAC supply for operation. A wiring diagram is shown in Figure 7.1 on the next page.

This appliance is equipped with a millivolt control valve.

5. Use the following chart for wire sizing.

Wire Size Max. Length

16 gauge 65 feet 18 gauge 40 feet 20 gauge 25 feet 22 gauge 18 feet

6. Keep wire lengths as short as possible by removing any excess wire length.

7. Low voltage and 110 VAC voltage cannot be shared within the same wall box.

August 1, 2008

Page 29Quadra-Fire · Garnet-T · 7016-127F

retingI

pomreh

toliP

Teli

Telpuocomreh

IGNITION MODULE

Black

ON/OFF

Switch

Black

Figure 7.1

CAUTION

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

PILOT ASSEMBLY

TPTH

VALVE

CAUTION

Shock hazard.

• Replace damaged wire with type 105O C rated wire.

• Wire must have high temperature insulation.

Page 30

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Appliance Setup

A. Remove Shipping Materials

Remove shipping materials from inside or underneath the ﬁ rebox.

B. Leg Leveling System

Figure 8.1 Thread Allen bolts through nuts until ﬂ ush. The

Allen bolts and nuts are included in the component pack inside the appliance ﬁ rebox.

C. Flue Restrictor Installation

When your installation falls within a shaded area on the vent graph (page 11) a  ue restrictor must be installed for proper operation.

Figure 8.4 Installation of the ﬂ ue restrictor requires the

removal of the bafﬂ e located inside the ﬁ rebox. Remove the bafﬂ e by ﬁ rst removing the two screws holding the bafﬂ e in place (one on each side). Lift the bafﬂ e out of the bracket along the back of the ﬁ rebox, angle the bafﬂ e slightly and remove it from the ﬁ rebox.

Figure 8.2 Slide assembled nuts and bolts into the slots on

the legs with the nuts on the bottom.

Figure 8.3 Use a 5/32 in. 4mm) Allen wrench to adjust legs

up and down to desired level.

Figure 8.5 With the bafﬂ e removed, remove the two screws

located in the back of the ﬁ rebox. Reuse the screws to install the ﬂ ue restrictor.

August 1, 2008

Page 31Quadra-Fire · Garnet-T · 7016-127F

D. Accessories

Install approved accessories per instructions included with accessories. Refer to Section 12 for appropriate accessories.

WARNING

Shock or ﬁ re risk. Use ONLY optional accessories approved for

this appliance.

• Using non-listed accessories voids warranty.

• Using non-listed accessories may result in a safety hazard.

• Only Hearth & Home Technologies approved accessories may be used safely.

E. Positioning the Logs

While still breakable, the logs do not become fragile until after the appliance is burned and they have cured. After curing, any handling must be done with care as breakage can easily occur.

Figure 8.7 Align left front log with notch in burner and notch

on rear log

Figure 8.8 Align right front log with burner and notch in left

front log.

PLEASE NOTE: Logs have been designed to work specifically with the burner of this appliance. Exact placement will ensure proper operation of your gas appliance and reduce sooting.

The three piece log set is packed in the components

box and consists of the following:

Qty Name Diagram 1 Rear Log Fig. 1 1 Left Log Fig. 2 1 Right Log Fig. 3

Figure 8.6 Gently remove top of unit and set aside. Remove

cast face by sliding straight up and set aside. Remove the glass by releasing the latch located on the top of the appliance. Lean glass frame forward and lift out.

Place the notch in the Rear Log over the pilot assembly. Push the log all the way to the rear of the firebox.

F. Mineral Wool

WARNING

Explosion Risk.

• Follow ember placement instructions in manual.

• Do NOT place embers directly over burner ports.

• Replace ember material annually.

Improperly placed embers interferes with proper burner operation.

Figure 8.9 Place individual pieces of embers in front of and

around the gas log where they can be seen. Space them so that gas can contact them on all sides. Avoid stacking the embers on top of each other.

NOTE: Do not block gas ports.

Page 32

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

G. Glass Replacement

Turn the appliance OFF and let it cool down before replacing the glass.

Lift off the appliance top and place it on a ﬂ at surface, with the porcelain side up, to prevent damage.

Remove the appliance front by sliding it upward in the grooves, being careful not to chip the porcelain. Lay the front face up on a ﬂ at surface.

Unhook latch now exposed on top of the appliance. Pull the top of the glass frame towards you and lift it out of the retainer along the bottom of the ﬁ rebox.

Replacement is the reverse of the removal.

CAUTION

Handle glass assembly with care.

• Inspect the gasket to ensure it is undamaged.

• Inspect the glass for cracks, chips or scratches.

• Do NOT strike, slam or scratch glass.

• Do NOT operate appliance with glass door removed, cracked, broken or scratched.

• Replace glass assembly as a complete assembly.

H. Blower Installation

TOOLS REQUIRED: Short #2 Philips head screwdriver;

11/16" wrench; and a 3/8” wrench.

FROM THE KIT YOU WILL NEED: Blower in mounting with wiring harness; speed control (rheostat); speed control knob; pal nut; snap disc; screws; and 1 zip-tie.

FROM THE APPLIANCE COMPONENT BAG YOU WILL NEED: Snap disc bracket; 10-32 nut.

Figure 8.10 Open and inspect contents of the blower kit. The

contents of the kit are listed at left. If any of the parts are missing or damaged, please contact your dealer for replacements.

NOTE: Not all parts will be used for this installation.

KIT CONTENTS:

1 - Blower Mounted in Housing 2 - Speed Control Knob 3 - Pal Nut 4 - Ceramic Snap Disc 5 - Speed Control (Rheostat) 6 - Wire Harness (attached to Blower) 7 - 12 Screws 8 - 12 inch Glass Tape 9 - 1 Zip Tie 10 - Bracket #1 11 - Snap Disc Bracket

August 1, 2008

Figure 8.11 Remove the top of the appliance and set aside.

Remove the back shield by removing the two screws along the top of the shield.

Place the blower on the ﬂ oor behind the appliance and route the ends of the wiring harness through the rubber grommet on the underside. Holding the blower in place, attach it to the appliance with four of the screws provided.

Page 33Quadra-Fire · Garnet-T · 7016-127F

SNAP DISC

BRACKET

SPADE

TERMINALS

Figure 8.12 Install the snap disc. A snap disc bracket is located

in the appliance's component bag. Bend the two spade teminals on the snap disc from a horizontal to a vertical position. Insert the snap disc through the hole in the snap disc bracket and attach the two white wires from the wiring harness to the snap disc.

Figure 8.14 Install the speed control (rheostat). The speed

control mounts to the decorative cover previously removed. Insert the stem of the speed control through the hole located on the right side of the cover. Secure with the pal nut using an 11/16 in. wrench.

Attach the black and white wires that were routed under the appliance . Push the speed control knob onto the stem and re-attach the decorative cover.

Secure the wires up and out of the way using the zip tie provided.

Plug in the blower.

Figure 8.13 With the cast iron front of the appliance removed,

remove the decorative cover located under the appliance. To remove the cover, remove the two screws on the front of the appliance that hold the cover in place. Pull the cover forward, down and out.

Attach the snap disc bracket to the stud located under the left side of the appliance using the 10-32 nut.

NOTE: The blower will not run until the appliance has

heated up enough to activate the snap disc. This can take up to 15 minutes depending on the temperature of the room. Likewise, the blower will not turn off until the appliance has cooled off enough to turn off the snapdisc.

Turning the control knob to the left (counterclockwise) until

you hear an audible click will turn the blower "OFF". Turning the control knob to the right (clockwise) until you hear a click will turn the blower "ON". Turning the control knob further to the right will reduce the speed of the blower.

Page 34

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Fan Speed Control

Power Cord

(110 VAC)

Thermal Disc

WHITE

BLACK

GREEN

Strain Relief

Bushing

Figure 8.15 Blower Wiring Diagram

Ground

WHITE

BLACK

Fan Assembly

August 1, 2008

Page 35Quadra-Fire · Garnet-T · 7016-127F

I. Ignition Module Access and Battery Replacement

Figure 8.16 The ignition module is located under the appliance

attached to the decorative cover.

Lift off the appliance top and place it on a flat surface, with the porcelain side up to prevent damage.

Remove the appliance front by sliding it upwards in the grooves, being careful not to chip the porcelain. Lay the appliance front face up on a flat surface.

OPEN

Figure 8.17 Loosen the wingnut that secures the damper. The

wingnut is located on the underside of the appliance, to the right of the pilot assembly.

To CLOSE the intake damper, pull the wingnut forward toward the front of the appliance..

To OPEN the damper, push the wingnut back. Adust the damper in 1/4 in. increments until the desired flame is achieved. After adjustment, tighten the nut.

K. Shutter Adjustment

OPEN

With the cast iron front of the appliance removed, remove the decorative cover located under the appliance. To remove the cover, remove the two screws on the front of the appliance that hold the cover in place. Pull the cover forward, down and out. The module will then be accessible for service or battery replacement.

The single "AA" 1.5V battery that powers the ignitor is located in the module. To replace the battery, open the battery compartment and remove the old battery. Replace the battery making sure the polarity is correct.

J. Intake Damper Operation

The intake damper can be used with or without the ﬂ ue restrictor to adjust the air ﬂ ow. Opening the damper makes the ﬂ ames shorter and more active. Closing the damper makes the ﬂ ames taller and less active.

Figure 8.18 The shutter is located on the underside of the

appliance, on the right side. To adjust the shutter, loosen the wingnut.. Retighten the wingnut after adjustment.

Moving the shutter bolt to the right closes the shutter. Moving the shutter bolt to the left, will open the shutter. Opening the shutter causes flames to become shorter and blue. Closing the shutter creates taller orange/yellow flames.

NOTE: Do not close so much as to cause a sooty flame. Improper adjustment can cause sooting in the firebox and/ or on the outside of a house with a horizontal termination.

After adjustment, tighten nut to lock in place.

Page 36

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Operating Instructions

A. Before Lighting Appliance

Read this entire manual prior to using the appliance. Failure to follow the instructions may result in property damage, bodily injury, or even death.

• Remove all shipping materials from inside and/or

underneath the ﬁ rebox.

• Review proper placement of logs, mineral wool.

• Check the wiring.

• Check the bafﬂ e adjustment.

• Ensure that there are no gas leaks.

• Ensure that the glass is sealed and in the proper posi-

tion.

• Ensure that the ﬂ ow of combustion and ventilation air

is not obstructed (front grilles and vent caps).

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualiﬁ ed installer, service agency or the gas supplier.

WARNING

Do NOT use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

B. Controls

WARNING

Glass door must be in place when appliance is operating.

Risk of:

• Combustion Fumes

• Fire

Do NOT operate appliance with glass door removed.

• Open viewing glass for servicing only.

• Glass door MUST be in place and sealed before operating appliance.

• Only use glass door certiﬁ ed for use with appliance.

• Glass replacement should be done by qualiﬁ ed technician.

WARNING

HOT! DO NOT TOUCH. SEVERE BURNS MAY RESULT. CLOTHING IGNITION MAY RESULT.

Glass and other surfaces are hot during operation and cool down.

• Keep children away.

• CAREFULLY SUPERVISE children in same room as appliance.

• Alert children and adults to hazards of high temperatures.

• Do NOT operate with protective barriers open or removed.

• Keep clothing, furniture, draperies and other combustibles away.

FAN SPEED: This knob controls the speed of the blower that pushes the heated air into the room.

MAIN BURNER: This control is used to turn the appliance on and off.

PILOT IGNITOR: The pilot ignitor is used only to start the pilot. When the valve control knob is turned to the pilot position and fully depressed press the piezo ignitor repeatedly creating a blue spark directly next to the pilot, igniting the pilot flame.

VALVE CONTROL: This knob is used to control gas to the appliance and for starting the pilot. There are three positions, ON, OFF, & PILOT. The indicator on the valve indicates the position of the knob.

COMFORT CONTROL: This knob controls the flame height from low (“LO”) to high (“HI”).

NOTE: If using a remote control wall switch, or thermostat, the On/Off Switch must be left “OFF”. Turning the On/Off Switch to “ON” will keep the appliance on continually.

August 1, 2008

Page 37Quadra-Fire · Garnet-T · 7016-127F

C. Lighting Appliance

FOR YOUR SAFETY READ BEFORE LIGHTING

LIGHTING INSTRUCTIONS

TO TURN OFF GAS TO APPLIANCE

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may

result causing property damage, personal injury or loss of life

A. This appliance has a pilot that must be lit manually. When lighting the pilot, follow these instructions exactly. B. BEFORE LIGHTING, smell around the appliance area for gas. Be sure to smell next to the floor because some gas is heavier

than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS:

* Do not try to light any appliance. * Do not touch any electric switch, do not use any phone in your building. * Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions. * If you cannot reach your gas supplier, call the fire department. C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, don't

try to repair it, call a qualified service technician. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to

appliance and to replace any part of the control system and any gas control which has been under water.

inspect the

1. STOP! Read the safety information above on this label.

2. Set the thermostat to the lowest setting (if applicable) and turn off the switch at the control panel.

3. Disconnect the power from the appliance.

4. Open the door of the appliance. May need to remove face/front first.

5. Push in gas control knob slightly and turn clockwise to the "OFF" position. Do not force.

6. Wait five (5) minutes to clear out any gas. Smell for gas, including near the floor. If you smell gas, STOP! Follow "B" of the safety information above. If you don't smell gas go to the next step.

7. Push gas control knob in and turn counterclockwise to the pilot position. NOTE: Knob cannot be turned unless knob is pushed in slightly. Do not force.

8. PIEZO IGNITER: (This may take many repetitions for lighting.)

ELECTRONIC IGNITER: If the unit is equipped with an electronic igniter it should begin sparking right away.

9. The pilot should be visible through the door opening.

10. Reinstall door and face. Wait five minutes to allow pilot flame to stablize and establish proper draft.

11. After the pilot is lit, continue holding control knob down for approximately 30 seconds. Release the knob and it will pop back up. Pilot should remain lit.

If it goes out, repeat steps 7 through 9.

* If the knob does not pop up when released, stop and immediately call your

service technician or gas supplier.

* If the pilot will not stay lit after several tries, turn the gas control knob

clockwise to "OFF" and call your service technician or gas supplier.

12. Push down and turn gas control knob counterclockwise to "ON".

13. Push burner rocker switch on the control panel to "ON". If thermostat is to be used, leave switch in "OFF" position and set the thermostat to desired setting.

14. Reconnect electrical power to appliance.

Press down on the gas control knob in pilot position and simultaneously press the piezo igniter.

MILLIVOLT GENERATOR

PILOT HOOD

THERMOCOUPLE

TO TURN OFF GAS TO APPLIANCE

1. Set the thermostat to lowest setting.

2. Turn off all electric power to the appliance if service is to be performed.

3. Push in gas control knob slightly and turn clockwise to "OFF" position.

Page 38

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

D. After Appliance is Lit

Initial Break-in Procedure

When you light your appliance, you may notice that it produces heat which does have an associated odor or smell. If you feel this odor is excessive it may require the initial three to four hour continuous burn on high followed by a second burn up to 12 hours to fully drive off any odor from paint and lubricants used in the manufacturing process. Condensation on the glass is normal.

NOTE: The appliance should be run three to four hours on the initial start-up. Turn it off and let it cool completely. Remove and clean the glass. Replace the glass and run the appliance for an additional 12 hours. This will help to cure the products used in the paint and logs.

During this break-in period it is recommended that some windows in the house be opened for air circulation. This will help avoid setting off smoke detectors, and help eliminate any odors associated with the appliance’s initial burning.

WARNING

Fire Risk. High Temperatures.

Keep combustible household items away from appliance. Do NOT obstruct combustion and ventilation air.

• Do NOT place combustible items on top of or in front of appliance.

• Keep furniture, draperies away from appliance.

CAUTION

• Prevent accidental appliance operation when not attended.

• Unplug or remove batteries from remote control if absent or if appliance will not be used for an extended period of time.

• Property damage possible from elevated temperatures.

CAUTION

Smoke and odors released during initial operation.

• Open windows for air circulation.

• Leave room during initial operation.

• Smoke may set off smoke detectors.

Smoke and odors may be irritating to sensitive individuals.

WARNING

Fire Hazard. Keep combustible materials, gasoline and other ﬂ ammable vapors and liquids clear of appliance.

• Do NOT store ﬂ ammable materials in the appliance’s vicinity.

• Do NOT use gasoline, lantern fuel, kerosene, charcoal lighter ﬂ uid or similar liquids in this appliance.

• Combustible materials may ignite.

E. Frequently Asked Questions

ISSUE SOLUTIONS

Condensation on the glass This is a result of gas combustion and temperature variations. As the appliance warms,

this condensation will disappear.

Blue ﬂ ames This is a result of normal operation and the ﬂ ames will begin to yellow as the appliance

is allowed to burn for 20 to 40 minutes.

Odor from appliance When ﬁ rst operated, this appliance may release an odor for the ﬁ rst several hours.

This is caused by the curing of the paint and the burning off of any oils remaining from manufacturing. If appliance has not been used for some time, dust can build up and cause an odor.

Film on the glass This is a normal result of the curing process of the paint and logs. Glass should be

cleaned within 3 to 4 hours of initial burning to remove deposits left by oils from the manufacturing process. A non-abrasive cleaner such as gas appliance cleaner may be necessary. See your dealer.

Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down,

similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or longevity of the appliance.

August 1, 2008

Page 39Quadra-Fire · Garnet-T · 7016-127F

Troubleshooting

With proper installation, operation, and maintenance your gas appliance will provide years of trouble-free service. If you do experience a problem, this troubleshooting guide will assist a qualiﬁ ed service person in the diagnosis of a problem and the corrective action to be taken. This troubleshooting guide can only be used by a qualiﬁ ed service technician.

Symptom Possible Cause Corrective Action

1. After repeated triggering of the piezo button, the spark ignitor will not light the pilot.

2. The pilot will not stay lit after carefully following the lighting instructions.

a. Defective ignitor. Check the spark at the electrode and pilot. If no spark and electrode

wire is properly connected, replace the ignitor.

b. Defective pilot or misaligned electrode (spark at electrode).

c. No gas or low gas pressure.

d. No LP in tank. Check the LP (propane) tank. You may be out of fuel. a. Defective thermo-

couple.

Using a match, light the pilot. If the pilot lights, turn off the pilot and trigger the piezo button again. If the pilot lights, an improper gas/air mixture caused the bad lighting and a longer purge period is recommended. If the pilot will not light, ensure the gap at the electrode and pilot is one-eighth (1/8) inch to have a strong spark. If the gas is OK, replace the pilot.

Check the remote shut-off valve from the appliance. Usually, there is a valve near the gas main. There can be more that one (1) valve from the appliance and the main.

Check that the pilot ﬂ ame impinges on the thermocouple. Clean and /or adjust the pilot for maximum ﬂ ame impingement.

Ensure that the thermocouple connection at the gas valve is fully inserted and tight (hand tighten plus 1/4 turn).

3. The pilot is burning, there is no gas to the burner, the valve knob is in the ON position, and the ON/OFF switch is in the ON position.

Disconnect the thermocouple from the valve, place one millivolt lead wire on the tip of the thermocouple and the other meter wire on the thermocouple copper lead. Start the pilot and hold the valve knob in. If the millivolt reading is less than 15mV, replace the thermocouple.

b. Defective valve. If the thermocouple is producing more than 15 millivolts, replace faulty

valve.

a. ON/OFF switch or wires defective.

b. Thermopile may not be generating sufﬁ cient millivoltage.

Check the ON/OFF switch and wires for proper connections. Place the jumper wires across the terminals at the switch. If the burner comes on, replace the defective switch. If the switch is OK, place the jumper wires across the switch wires at the gas valve. IF the burner comes on, the wires are faulty or connections are bad.

If the pilot ﬂ ame is not close enough physically to the thermopile, adjust the pilot ﬂ ame.

Be sure the wire connections from the thermopile at the gas valve terminals are tight and that the thermopile is fully inserted into the pilot bracket.

Check the thermopile with a millivolt meter. Take the reading at THTP&TP terminals of the gas valve. The meter should read 325 millivolts minimum, while holding the valve knob depressed in the pilot position, with the pilot lit, and the ON/OFF switch in the OFF position. Replace the faulty thermopile if the reading is below the speciﬁ ed minimum.

With the pilot in the ON position, disconnect the thermopile leads from the valve. Take a reading at the thermopile leads. The reading should be 325 millivolts minimum. Replace the thermopile if the reading is below the minimum.

Page 40

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Symptom Possible Cause Corrective Action

3. (Continued) c. Defective valve. Turn the valve knob to the ON position. Place the ON/OFF switch in the ON position. Check the millivolt meter at the thermopile terminals. The millivolt meter should read greater than 125mV. If the reading is acceptable, and if the burner does not come on, replace the gas valve.

d. Plugged burner oriﬁ ce.

e. Wall switch or wires are defective.

4. Frequent pilot outage

problem.

5. The pilot and main

burner extinguish while in operation.

6. Glass soots. a. Flame impinge-

7. Flame burns blue

and lifts off burner.

a. Pilot ﬂ ame may be too high or too low, or blowing (high), causing safety pilot to drop out.

a. No LP in tank. Check the LP (propane) tank. Reﬁ ll the fuel tank. b. Inner vent pipe

leaking exhaust gases back into the system.

c. Horizontal vent improperly pitched.

d. Bad thermopile or thermocouple.

e. Improper vent cap installation.

ment. b. Improper shutter

setting. c. Debris around

opening at base of burner.

a. Insufﬁ cient oxygen being supplied.

Check the burner oriﬁ ce for stoppage. Remove stoppage.

Follow the corrective action in Symptom and Possible Cause 1.a. Check the switch and wiring. Replace where defective.

Clean and adjust the pilot ﬂ ame for maximum ﬂ ame impingement on thermocouple. Follow lighting instructions carefully.

Check for proper vent connection at ﬂ ue collar and all vent joints.

The horizontal vent cap should slope down only enough to prevent any water from entering the appliance.

Replace if necessary.

Check for proper installation and freedom from debris or blockage.

Adjust the log set so that the ﬂ ame does not excessively impinge on it. Check that logs are placed according to installation instructions.

Adjust the air shutter at the base of the burner.

Inspect the opening at the base of the burner. NO MATERIAL SHOULD BE PLACED IN THIS OPENING.

Ensure that the vent cap is installed properly and free of debris. Ensure that the vent system joints are tight and have no leaks.

Ensure that no debris has been placed at the base of, or in the area of the air holes in the center of the base pan beneath the burner.

August 1, 2008

Ensure that the glass is tightened properly on the appliance, particularly on top corners.

Page 41Quadra-Fire · Garnet-T · 7016-127F

Maintaining and Servicing Your Appliance

Although the frequency of your appliance servicing and maintenance will depend on use and the type of installation, a qualiﬁ ed service technician should perform an appliance check-up at the beginning of each heating season.

WARNING

Risk of injury or property damage.

Before servicing:

• Turn off gas.

• Turn off electricity to appliance.

• Ensure appliance is completely cooled.

After servicing:

• Replace front and glass, if removed.

• Reseal and reinstall any venting removed for servicing.

WARNING

Annual inspection by qualiﬁ ed technician recommended.

Check:

• Condition of glass, glass assembly and glass seal.

• Obstructions of combustion and ventilation air.

• Obstructions of termination cap.

• Burner ignition and operation.

• Burner air shutter adjustment

• Gas connections and ﬁ ttings.

Clean:

• Glass

• Air passageways, grilles, control compartment

• Burner, burner ports. USE CAUTION WHEN CLEANING/

HANDLING CERAMIC BURNER.

CAUTION

Handle glass assembly with care. NOTE: Clean glass after initial 3-4 hours

operation. Longer operation without cleaning

glass may cause a permanent white  lm on glass.

When cleaning glass door:

• Avoid striking, scratching or slamming glass.

• Do NOT use abrasive cleaners.

• Use a hard water deposit glass cleaner on white ﬁ lm.

• Do NOT clean glass when hot.

• Turn off appliance after 3-4 hours of operation and ALLOW TO COOL.

• Remove and clean glass assembly.

• Replace glass assembly and operate appliance for additional 12 hours.

Refer to maintenance instructions.

Risk of:

• Fire

• Delayed ignition or explosion

• Exposure to combustion fumes

• Odors

WARNING

Inspect external vent cap regularly.

• Ensure no debris blocks cap.

• Combustible materials blocking cap may ignite.

• Restricted air ﬂ ow affects burner operation.

Page 42

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

A. Maintenance Tasks

Inspect Maintenance Tasks

Doors 1. Inspect for scratches, dents or other damage and repair as necessary.

2. Verify no obstructions to air ﬂ ow.

3. Verify maintenance of proper clearance to combustible household objects.

Gasket Seal, Glass Assembly and Glass

Valve Compartment and Firebox Top

Logs 1. Inspect for broken, damaged, or missing logs. Replace as necessary.

Firebox 1. Inspect for paint condition, warpage, corrosion or perforation. Sand and repaint as neces-

Burner Ignition and Operation

Venting 1. Inspect venting for blockage or obstruction such as bird nests, leaves, etc.

Remote Controls 1. Verify operation of remote.

1. Inspect gasket seal and its condition.

2. Inspect glass for scratches and nicks that can lead to breakage when exposed to heat.

3. Conﬁ rm there is no damage to glass or glass frame, Replace as necessary.

4. Verify that latches engage properly and glass attachment components are intact and operating properly. Replace as necessary.

5. Clean glass. Replace glass assembly if severely coated with silicate deposits that cannot be removed.

1. Vacuum and wipe out dust, cobwebs, debris or pet hair. Use caution when cleaning these areas. Screw tips that have penetrated the sheet metal are sharp and should be avoided.

2. Remove any foreign objects.

3. Verify unobstructed air circulation.

2. Verify correct log placement and no ﬂ ame impingement causing sooting. Correct as necessary.

sary.

2. Replace appliance if ﬁ rebox has been perforated.

1. Verify burner is properly secured and aligned with pilot or igniter.

2. Clean off burner top, inspect for plugged ports, corrosion or deterioration. Replace burner if necessary. USE CAUTION WHEN CLEANING/HANDLING CERAMIC BURNER.

3. Replace ember material with new dime-size and shape pieces. Do not block ports or obstruct lighting paths.

4. Check for smooth lighting and ignition carryover to all ports. Verify there is no ignition delay.

5. Inspect for lifting and other ﬂ ame problems.

6. Inspect oriﬁ ce for soot, dirt or corrosion.

7. Verify manifold and inlet pressures. Adjust regulator as required.

8. Inspect pilot ﬂ ame strength. Clean or replace oriﬁ ce as necessary.

9. Inspect thermocouple/thermopile sensor rod for soot, corrosion and deterioration. Clean with emery cloth or replace as required.

10. Verify millivolt output. Replace as necessary.

2. Conﬁ rm that termination cap remains clear and unobstructed by plants, etc.

3. Verify that termination cap clearance to subsequent construction (building additions, decks, fences or sheds) has been maintained.

4. Inspect for corrosion or separation.

5. Verify weather stripping, sealing and ﬂ ashing remains intact.

2. Replace batteries in remote transmitters and battery-powered receivers.

August 1, 2008

Page 43Quadra-Fire · Garnet-T · 7016-127F

Reference Materials

A. Appliance Dimension Diagram

Dimensions are actual appliance dimensions. Use for reference only. For clearances refer to Section 3.

Location Inches Millimeter Location Inches Millimeter

A 27-3/4 705 D 17-3/8 441 B 17-7/8 454 E 23-5/8 600

C 15-3/8 391 F 17-3/4 451

Figure 12.1 Appliance Dimensions

Page 44

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

B. Vent Components Diagram

9-1/4 in.

(235mm)

SLP45-BK

6-1/2 in.

(165mm)

6-5/8 in.

(168mm)

6-3/8 in.

(162mm)

6-5/8 in.

(168mm)

6-3/8 in.

(162mm)

SLP90M

6-1/2 in.

(165mm)

9-5/8 in.

(244mm)

9-5/8 in.

(244mm)

17-24 in.

(432-610mm)

3-3/4 in. (95mm)

SLP12AM

12-17 in.

(305-432mm)

11-3/4 in. (298mm)

SLP12M

23-3/4 in.

(603mm)

6-1/2 in.

(165mm)

5-3/4 in.

(146mm)

6-5/8 in.

(168mm)

SLP6M

47-3/4 in.

(1213mm)

35-3/4 in.

(908mm)

SLP4M

SLP6AM

4 in. (102 mm) inner pipe 6-5/8 in. (168 mm) outer pipe

Figure 12.2 SL-D Series Vent Components

August 1, 2008

SLP24M

SLP48MSLP36M

Page 45Quadra-Fire · Garnet-T · 7016-127F

C. Vent Components List

Description

HHT SL-P

M= Multi Pack (6)

Simpson

Dura-Vent

Selkirk

Direct-Temp

DirectVent Pro

4” Pipe Length, Galvanized SLP4M ---4” Pipe Length, Black SLP4-BK ---6” Pipe Length, Galvanized SLP6M 46-DVA-06 4DT-6 - SV4L6 6” Pipe Length, Black SLP6-BK 46-DVA-06B 4DT-6B - SV4LB6 7” Pipe Length, Galvanized - - - 4D7 7” Pipe Length, Black - - - 4D7B 9” Pipe Length, Galvanized - 46-DVA-09 4DT-9 - 9” Pipe Length, Black - 46-DVA-09B 4DT-9B - 12” Pipe Length, Galvanized SLP12M 46-DVA-12 4DT-12 4D12 SV4L12 12” Pipe Length, Black SLP12-BK 46-DVA-12B 4DT-12B 4D12B SV4LB12 18” Pipe Length, Galvanized - 46-DVA-18 4DT-18 - 18” Pipe Length, Black - 46-DVA-18B 4DT-18B - 24” Pipe Length, Galvanized SLP24M 46-DVA-24 4DT-24 4D2 SV4L24 24” Pipe Length, Black SLP24-BK 46-DVA-24B 4DT-24B 4D2B SV4LB24 36” Pipe Length, Galvanized SLP36M 46-DVA-36 4DT-36 4D3 SV4L36 36” Pipe Length, Black SLP36-BK 46-DVA-36B 4DT-36B 4D3B SV4LB36 48” Pipe Length, Galvanized SLP48M 46-DVA-48 4DT-48 4D4 SV4L48 48” Pipe Length, Black SLP48-BK 46-DVA-48B 4DT-48B 4D4B SV4LB48 Adjustable Length, 3”-6”, Black SLP6A-BK - - Adjustable Length, 3”-6”, Galvanized SLP6AM ---Adjustable Length, 3”-7”, Galvanized - 46DVA-08A - - Adjustable Length, 3”-7”, Black - 46DVA-08AB - - Adjustable Length, 3”-12”, Black SLP12A-BK ---Adjustable Length, 3”-12”, Galvanized SLP12AM ---Adjustable Length, 3”-14.5”, Galvanized - 46DVA-16A - - Adjustable Length, 3”-14.5”, Black - 46DVA-16AB - - Adjustable Length, 7”, Galvanized - - - 4D7A Adjustable Length, 7”, Black - - - 4F7AB Adjustable Length, 11”-14”, Galvanized - - 4DT-AJ - Adjustable Length, 11”-14”, Black - - 4DT-AJB - Adjustable Length, 12”, Galvanized - 4DTAJ12 - 4D12A SV4LA12 Adjustable Length, 12”, Black - 4DTAJ12-B - 4D12AB SV4LBA12 Adjustable Length, 16”, Galvanized - 46DVA-16A - 4D16A Adjustable Length, 16”, Black - 46DVA-16AB - - Adjustable Length, 24”, Galvanized ----SV4LA24 Adjustable Length, 24”, Black ----SV4LBA24 2’ Flexible Pipe Length SLP-FLEX-2 ---3’ Flexible Pipe Length SLP-FLEX-3 ---5’ Flexible Pipe Length SLP-FLEX-5 ---10’ Flexible Pipe Length SLP-FLEX-10 ---3” x 35’ Flex Extension - 2280 - - 4” x 35’ Flex Extension - 2281 - - 45° Elbow, Galvanized SLP45M ---45° Elbow, Black SLP45-BK See Swivel 4DT-EL45B 4D45LB SV4EBR45 45° Elbow, Swivel, Galvanized - 46DVA-E45 - - SV4E45

Amerivent

Direct

Security

Secure Vent

Page 46

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Description

HHT SL-P

M= Multi Pack (6)

Simpson

Dura-Vent

Selkirk

Direct-Temp

Amerivent

Direct

Security

Secure Vent

DirectVent Pro

45° Elbow, Swivel, Black - 46DVA-E45B - - SV4EB45 90° Elbow, Galvanized SLP90M See Swivel 4DT-EL905 4D90LS 90° Elbow, Black SLP90-BK See Swivel 4DT-EL90SB 4D90LBS SV4EBR90 90° Elbow, Swivel, Galvanized - 46DVA-E90 - - SV4E90 90° Elbow, Swivel, Black - 46DVA-E90B - - SV4EB90 Adjustable Flashing, 0/12-6/12 SLP-RF6M 46DVA-F6 4DT-AF6 4DF SV4FA Adjustable Flashing, 7/12-12/12 SLP-RF12M 46DVA-F12 4DT-AF12 4DF12 SV4FB Attic Insulation Shield - Cold Climates 36” - - - 4DAIS37 Attic Insulation Shield 12” SLP-AS2M - - 4DAIS12 SV4RSA Attic Insulation Shield, Adjustable 11”-20” - 46-DVA-IS - - Cathedral Support Box SLP-CCS-BK 46DVA-CS 4DT-CSS 4DRSB SV4CSB Ceiling Support - 46DVA-DC 4DT-CS 4DFSP SV4SD Co-Axial to Co-Lineal Appliance Connector - 46DVA-GCL - - Decorative Ceiling Firestop - Black SLP-DCF-BK ---Decorative Radius Cover DRC-RADIUS ---Firestop Spacer/Ceiling Firestop SLP-FSM 46DVA-FS 4DT-FS 4DFSP SV4BF Flex Trap Cap with Firestop Flex Trap Cap with Firestop and 30’ Flex Pipe

SLP-FLEX-TRAP SLP-FLEX-TRAP30

----

---Masonry Chimney Conversion Kit - 46DVA-KMC - - Offset Support - 46DVA-ES 4DT-OS - SV4SU Offset Wall Thimble, Black SLP-WT-BK ---Silicone Roof Flashing, 4” to 8” pipes (6) RF4-8M ---Storm Collar SLP-SCM 46DVA-SC 4DT-SC 4DSC SV4FC Trim Plate, Black - - 4DT-TP 4DFPB SV4LA Wall Support Band SLP-HVSM 46-DVA-WS 4DT-WS/B 4DWS SV4BM Wall Thimble Support Box/Ceiling Support ----SV4PF Wall Thimble, Black SLP-WSM 46DVA-WT 4DT-WT 4DWT SV4RSM

TERMINATION CAPS & KITS

Basic Horizontal Termination Kit (A) - 46DVA-KHA 4DT-HKA 4DHTK2 SV-SHK Chimney Liner Termination Kit - 46DVA-GK - - Horizontal Square Termination Cap SLP-HHW2 46DVA-HC 4DT-HHC 4DHC SV4CHC Horizontal Termination Kit (B) - 46DVA-KHC 4DT5-HKB 4DHTK1 SV-HK RHVK Snorkel Kit - 844-8921 - - Snorkel Termination 14” SLK-SNKD 46DVA-SNK14 4DT-ST14 4D12S SV4STC14 Snorkel Termination 36” - 46DVA-SNK36 4DT-ST36 4D36S SV4STC36

*Stove Adaptor Kit (Vertical Cap Kit)

LINK-STOVE ----

Trapezoid Termination Kit (3-1/8”-4-3/4”) SLP-TRAP1 ---Trapezoid Termination Kit (5-1/4” X 9-1/4”) SLP-TRAP2 Vertical Termination Cap SLP-TVHW 46DVA-VCH 4DT-VKC 4DVT SV4CGV

* Stove Adaptor Kit (Vertical Cap Kit) Includes 30’-4” ﬂ ex, adapters, wall thimble, masonry, ZC ﬂ ashing, 991DA vertical cap.

NOTES:

August 1, 2008

Before cutting any holes check pipe manufacturers current instructions.

Each pipe manufacturer has their own list of parts for kits.

SL is not interchangeable with SLP.

Page 47Quadra-Fire · Garnet-T · 7016-127F

D. Service Parts List

(NG, LP) Exploded Parts Diagram

GARNET-T

Beginning Manufacturing Date: 6-16-04 Ending Manufacturing Date:

Three-piece Log Set

Page 48

Item

1 Valve Cover

Description Item

9 Pilot Assembly 17 Bafﬂ e

Description Item

Description

2 Knob, Extension, SIT, ON/OFF 10 Air Shutter Assembly 18 Relief Door Assembly 3 Knob, Extension SIT, HI/LO

11 Side 19 Front Plate, Solitaire 4 Valve 12 Back Shield 20 Front 5 Log Set 13 Switch Bracket 21 Door, Left 6 Ignition Module

14 Switch, Rocker, ON/OFF 22 Door, Right 7 Burner Assembly 15 Bafﬂ e Back 23 Door Assembly 8 Bulkhead with Flex Tube 16 Top 24 Gasket, Pilot

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

D. Service Parts List (cont’d.)

(NG, LP) Exploded Parts Diagram

GARNET-T

Beginning Manufacturing Date: 6-16-04 Ending Manufacturing Date:

IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealer's VIP site. When

ordering, supply serial and model numbers to ensure correct service parts.

Item

Part Description

Alphabetical Order

Part #

Adapter, DV (6-5/8 in.) 7000-162 10 Air Shutter Assembly 7016-017 12 Back Shield 7016-140 17 Bafﬂ e 7016-125 15 Bafﬂ e Back 7016-126

Blower Shroud, Back 7016-132

Blower Shroud, Top 7016-118

Blower, Universal, Gas BK-GAS

8 Bulkhead with Flex Tube 7000-156

Burner Stop 7010-152

Burner Support 7016-120

Burner Assembly 7016-011

Burner Neck Assembly 7016-166

7 Burner with Neck Assembly 7016-012

Cable/Switch Assembly, S.I.T. 230-1900

Component Pack

BK: 7016-007 PMH :7016-027

(Includes ON/OFF Valve; Mineral Wool; Pilot Injector, EZ, LP 35; Conversion Regulator, S.I.T., LP; Conversion Label; Oriﬁ ce Plug

Insert #56; Leveling Assembly; Snap Disc Bracket; Warranty Card; Owner’s Manual; Restrictor; Touch-up Paint and Fasteners.

CCR: 7016-028 CLG: 7016-024 CME: 7016-025

Damper Assembly 7016-006 23 Door Assembly 7016-004

Door Frame 7016-117 21 Door, Left, Matte Black 7016-108MBK 21 Door, Left, Porcelain (specify color) 7016-108POR 21 Door, Left, Powder Coat (specify color) 7016-108PWD 22 Door, Right, Matte Black 7016-107MBK 22 Door, Right, Porcelain (specify color) 7016-107POR 22 Door, Right, Powder Coat (specify color) 7016-107PWD

Electrode, S.I.T., EZ, Flush 842-4580

Flex Line 3/8 Flare x 22L 7000-197

Flue Collar 7016-122

Flue Shield 7016-130 20 Front, Matte Black 7016-106MBK 20 Front, Porcelain (specify color) 7016-106POR 20 Front, Powder Coat (specify color) 7016-106PWD 19 Front Plate, Solitaire (

GARNET-MBK only) 464-0160

Gasket, Elbow 460-0610

Gasket, Glass, 10 ft. 844-3010 24 Gasket, Pilot 7000-196

Glass Assembly 7016-023

August 1, 2008

Page 49Quadra-Fire · Garnet-T · 7016-127F

D. Service Parts List (cont’d.)

(NG, LP) Exploded Parts Diagram

GARNET-T

Beginning Manufacturing Date: 6-16-04 Ending Manufacturing Date:

IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealer's VIP site. When

ordering, supply serial and model numbers to ensure correct service parts.

Item

Part Description

Alphabetical Order

Part #

Hinge Pins, Gold (set of 2) 844-5750

6 Ignition Module 230-1880

Injector, Pilot, EZ, LP, 35 200-2630 3 Knob, Extension, HI/LO, S.I.T. 571-533 2 Knob, Extension, ON/OFF, S.I.T. 571-534

Knob, Speed Control 19942

Latch, Draw 229-0640

Leveling Assembly 7000-000 5 Log Set

7016-018 Magnet, Round 7000-140 Mineral Wool 200-2550 ON/OFF Valve 15697A

9 Pilot Assembly, NG 230-1781 9 Pilot Assembly, NG, EZ, with Injector 842-4280

Pilot Shield 7016-164 Pilot Spacer 7016-165 Regulator, Conversion, S.I.T.,LP 230-1520 Regulator, Conversion, S.I.T.,NG 230-1570

18 Relief Door Assembly 7016-005

Relief Door Bracket 7016-121 Restrictor 7016-145

11 Side, Matte Black 7016-109MBK 11 Side, Porcelain (specify color) 7016-109POR 11 Side, Powder Coat (specify color) 7016-109PWD

Snap Disc Bracket 7009-108 Snap Disc, Ceramic, 125 230-0960 Speed Control 842-0370

13 Switch Bracket 7016-143 14 Switch, Rocker, ON/OFF 230-0730

Thermocouple, 34 in. 200-2950 Thermopile/Generator, Millivolt 842-0250

16 Top, Matte Black 464-0140MBK 16 Top, Porcelain (specify color) 464-0140POR 16 Top, Powder Coat (specify color) 464-0140PWD

Valve Bracket 7016-142

1 Valve Cover 7016-133 4 Valve, S.I.T, LP 842-0230 4 Valve, S.I.T, NG 842-0240

Wire Harness 7009-114

Page 50

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

E. Accessories

(NG, LP) Exploded Parts Diagram

GARNET-T

Beginning Manufacturing Date: 6-16-04 Ending Manufacturing Date:

IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealer's VIP site. When

ordering, supply serial and model numbers to ensure correct service parts.

DESCRIPTION

PART #

Manual Thermostat 812-3760 Programmable Thermostat 811-0520 Remote Control, Smart Stat 841-0960 Remote Control, Smart Batt 841-0970 Speed Control (Rheostat) 842-0370 Snap Disc for Blower (125-20) 230-0470 Slim-Line Wall Thimble HTI-DV-WT Glass Assembly with Frame 7016-004 Warming Shelves, Matte Black WS-GAR-MBK Warming Shelves, Porcelain Mahogany WS-GAR-PMH Mesh Screen SCR-GAR-D

August 1, 2008

Page 51Quadra-Fire · Garnet-T · 7016-127F

F. Service And Maintenance Log

Date of Service Performed By Description of Service

Page 52

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

G. Homeowner’s Notes

August 1, 2008

Page 53Quadra-Fire · Garnet-T · 7016-127F

G. Homeowner’s Notes

Page 54

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

H. Warranty Policy

Lifetime Warranty

LIMITED LIFETIME WARRANTY

The Hearth & Home Technologies limited Lifetime Warranty guarantees that the following components will work as designed for the lifetime of the stove or Hearth & Home Technologies will repair or replace them. These items include but are not limited to steel and cast iron components, all gas burners, gas logs, combustion chambers, heat exchanger systems, stainless steel ﬁ rebox components, plating, doors, glass damaged by thermal breakage, steel bafﬂ e supports, steel and ceramic bafﬂ es and manifold tubes. Labor is for the ﬁ rst ﬁ ve years.

THREE YEAR WARRANTY

Our pellet ﬁ repots are covered under Hearth & Home Technologies three-year warranty program. Labor is for 3 years.

TWO YEAR WARRANTY

All electrical components such as but not limited to blowers, wiring, vacuum switches, speed controls, control boxes, thermodisc switches, pilot assembly, gas valves, thermostats and remotes are covered under Hearth & Home Technologies two-year warranty program. Effective April, 2005 igniters are also covered under the two year warranty. Labor is for two years.

ONE YEAR WARRANTY

Porcelain and Powder Coat ﬁ nishes are warranted against manufacturer defects for one year. Labor to repair or replace these parts is covered for one year, reimbursed per our warranty service fee schedule.

CONDITIONS

This warranty is non-transferable and is made to the original retail purchaser only provided that the purchase was made through an authorized dealer of Hearth & Home Technologies. It must be installed and operated at all times in accordance with the Installation and Operating Instructions furnished with this product, as well as any applicable local and national codes. Any alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.

Labor to repair or replace items covered under the limited Lifetime Warranty will be covered for the ﬁ rst ﬁ ve years per our warranty service fee reimbursement schedule. Parts covered under the limited Lifetime Warranty will be covered for the lifetime of the appliance up to a maximum of ten (10) years after Hearth & Home Technologies discontinues the model and two (2) years for optional accessories. Adjustments, regular maintenance, cleaning and temporary repairs do not qualify for a service call fee and will not be covered. The replacement of consumer replaceable items and installation of upgraded component parts do not quality for a service call fee, and will not be covered.

This limited Lifetime Warranty does not extend to or include surface ﬁ nish on the appliance, door gasketing, glass gasketing, glass, ﬁ rebrick, pellet logs, kaowool or other ceramic insulating materials. It does not cover installation or operational-related problems such as overﬁ ring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains, inadequate venting or ventilation, excessive offsets, or negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers, etc.

Any installation, construction, transportation, or other related costs or expenses arising from defective part(s), repair, replacement, etc., will not be covered by this warranty, nor will Hearth & Home Technologies assume responsibility for them. Further, Hearth & Home Technologies will not be responsible for any incidental, indirect, or consequential damages, except as results in damage to the interior or exterior of the building in which this appliance is installed. This limited Lifetime Warranty does not apply to the venting components, hearth components or other accessories used in conjunction with the installation of this product not manufactured by Hearth & Home Technologies

This warranty is void if the stove has been overﬁ red or operated in atmospheres contaminated by chlorine, ﬂ uorine, or other damaging chemicals, the stove is subjected to prolonged periods of dampness or condensation, or there is any damage to the stove or other components due to water or weather damage which is the result of, but not limited to, improper chimney or venting installation. Hearth & Home Technologies may, at its discretion, fully discharge all obligations with respect to this warranty by either repairing or replacing the unit, or refunding the wholesale price of the defective part(s).

This limited Lifetime Warranty is effective on all appliances sold after May 1, 2002 and supersedes any and all warranties currently in existence.

Policy 250-8620 Rev K

August 1, 2008

Page 55Quadra-Fire · Garnet-T · 7016-127F

______________________________________

_______________________________________

__________________

I. Contact Information

Please contact your Quadra-Fire dealer with any questions or concerns.

CONTACT INFORMATION:

Hearth & Home Technologies

1445 North Highway

Colville, WA 99114

Division of HHT INDUSTRIES

For the number of your nearest Quadra-Fire dealer

please visit our web site at www.quadraﬁ re.com

CAUTION

Do NOT discard this manual.

• Important operating and maintenance instructions included.

• Read, understand and follow these instructions for safe installation and operation.

• Leave this manual with party responsible for use and operation.

Your Records for Model:

Garnet-T

DEALERSHIP WHERE PURCHASED:

______________________________________

SERIAL NUMBER:

DATE PURCHASED:

DATE INSTALLED:

This product may be covered by one or more of the following patents: (United States) 4593510, 4686807, 4766876, 4793322, 4811534, 5000162, 5016609, 5076254, 5113843, 5191877, 5218953, 5263471, 5328356, 5341794, 5347983, 5429495, 5452708, 5542407, 5601073, 5613487, 5647340, 5688568, 5762062, 5775408, 5890485, 5931661, 5941237, 5947112, 5996575, 6006743, 6019099, 6048195, 6053165, 6145502, 6170481, 6237588, 6296474, 6374822, 6413079, 6439226, 6484712, 6543698, 6550687, 6601579, 6672860, 6688302B2, 6715724B2, 6729551, 6736133, 6748940, 6748942, 6769426, 6774802, 6796302, 6840261, 6848441, 6863064, 6866205, 6869278, 6875012, 6880275, 6908039, 6919884, D320652, D445174, D462436; (Canada) 1297749, 2195264, 2225408, 2313972; (Australia) 780250, 780403, 1418504 or other U.S. and foreign patents pending.

__________________

_______________________________________

DEALER TELEPHONE:

__________________

Page 56

Quadra-Fire · Garnet-T · 7016-127F

August 1, 2008

Quadra-Fire GARNET-MBK, GARNET-D-CWL, GARNET-D-PMH, GARNET-D-CSB, GARNET-T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
