QSC Audio I-82H, I-YM8 User Manual

ISIS Series High Performance Portable Loudspeaker

I-82H

203 mm (8”) two-way With Speakon® inputs, pole cup and mic stand adapter

User Manual

I-YM8

Optional Accessory Kit Multi-purpose yoke mount/ floor monitor hardware

*TD-000140-00*

TD-000140-00 rev.A

IMPORTANT SAFETY PRECAUTIONS

& EXPLANATION OF SYMBOLS

1- Read these instructions. 2- Keep these instructions. 3- Heed all warnings. 4- Follow all instructions. 5- Clean only with a dry cloth. 6- Install in accordance with QSC Audio Product’s instructions and a licensed, professional engineer. 7- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-

fiers) that produce heat. 8- Only use attachments/accessories from QSC Audio Products, Inc. 9- Use only with mounts or brackets specified by QSC Audio Products. 10- Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any

way.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous” voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in this manual.

WARNING! Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated equipment for damage. Any missing, corroded, deformed or non-load rated component could significantly reduce the strength of the installation, placement, or array. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated for the loading conditions of the installation and any possible short-term unexpected overloading. Never exceed the rating of the hardware or equipment. Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.

Warranty (USA only; other countries, see your dealer or distributor)

Disclaimer

QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.

QSC Audio Products 3 Year Limited Warranty

QSC Audio Products, Inc. (“QSC”) guarantees its products to be free from defective material and / or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre-paid transportation with a copy of proof of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal rights. This limited warranty is freely transferable during the term of the warranty period.

Customer may have additional rights, which vary from state to state.

In the event that this product was manufactured for export and sale outside of the United States or its territories, then this limited warranty shall not apply. Removal of the serial number on this product, or purchase of this product from an unauthorized dealer, will void this limited warranty. Periodically, this warranty is updated. To obtain the most recent version of QSC’s warranty statement, please visit www.qscaudio.com.

QSC® is a registered trademark of QSC Audio Products, Inc.

Speakon® is a registered trademark of Neutrik Inc. All trademarks are the property of their respective owners.

“QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office

I-82H Introduction

Thank you and congratulations on your purchase of the ISIS Series I-82H High Performance Portable Loudspeakers. This product represents the state-of-the-art in lightweight sound reinforcement loudspeaker systems. To get the most from your investment, we encourage you to review this manual carefully.

The I-82H loudspeaker system is a full range, high output, twoway design delivering superior sound quality and high SPL in a lightweight, attractive enclosure. Equipped with two Speakon connectors, connection is fast and reliable with parallel connection of multiple cabinets literally a snap. These loudspeakers make an excellent choice for a wide variety of applications.

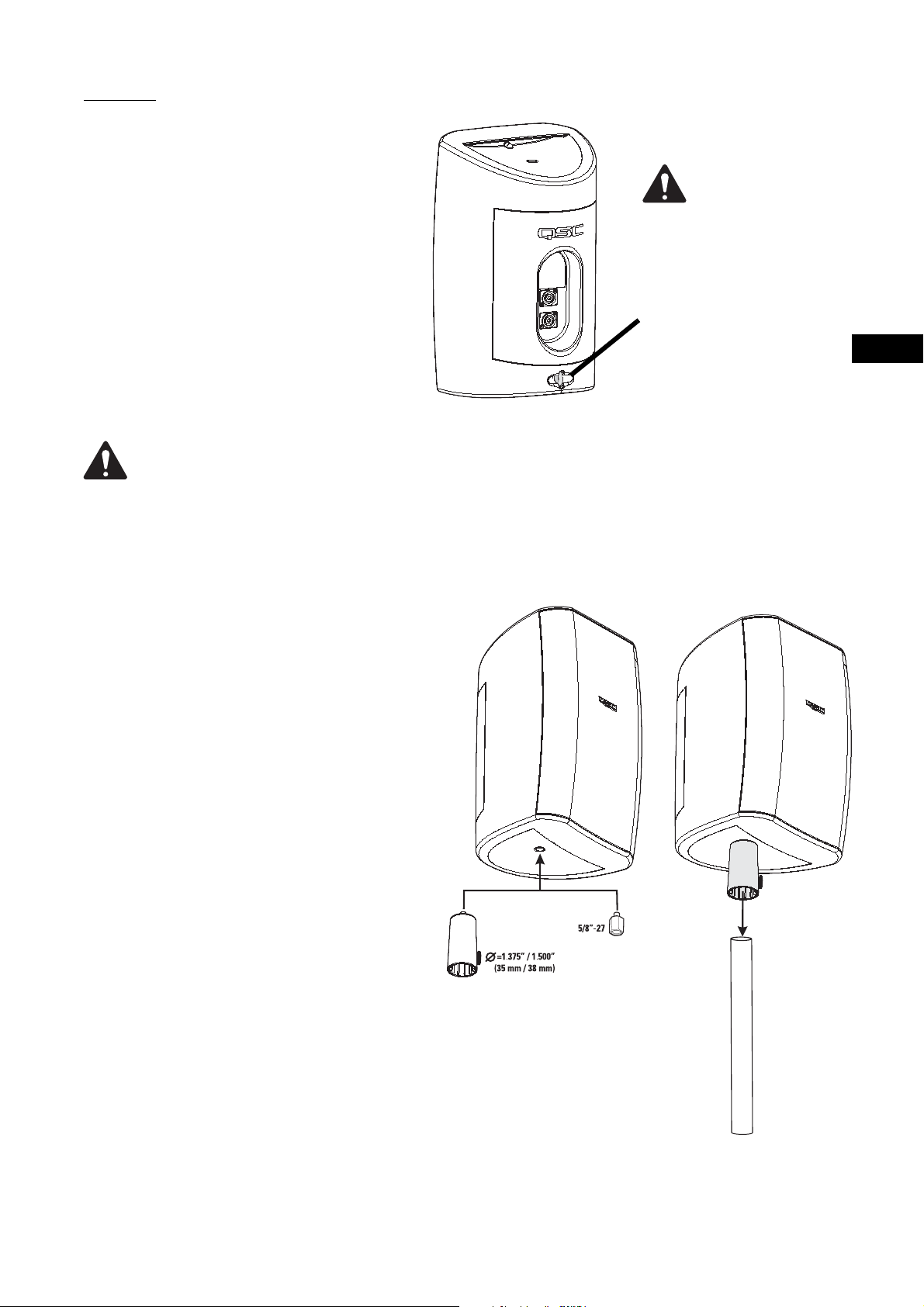

Two mounting adapters are provided; a pole cup that accepts

1.375” or 1.500” (35 mm or 38 mm) pole diameters and a 5/8”-27 mic stand adapter (fits most mic and boom stand hardware). The pole cup is equipped with a retaining knob to secure the adapter to the pole. Also included are four self-adhesive rubber feet for the bottom of the enclosure.

I-YM8 Optional Yoke Mount / Floor Monitor Kit

The optional I-YM8 Accessory Kit provides a yoke mount suitable for pole mounting and a pair of swivel extension feet for use as floor or stage monitors. The included pole cup or mic stand adapter can be attached to the yoke mount using the included knob as well as standard truss clamps for additional mounting options.

Coverage Angles

Before mounting the loudspeaker, determine the mounting orientation and desired coverage angles. As supplied from the factory, the loudspeaker’s coverage angles are 90° (horizontal) x 60° (vertical) with the cabinet oriented vertically. The waveguide can be rotated to interchange the coverage angles.

Rotating the Waveguide to Alter HF Coverage Pattern

1- Remove the grill. Gently and evenly work the grill out of its retaining groove to avoid bending the grill.

2- Remove the eight waveguide retaining screws. A #2-size Phillips screwdriver is recommended.

3- Reach into the waveguide’s port and pull gently to remove the waveguide. Be careful not to damage the connections, wiring, or the gasket between the waveguide and the cabinet.

4- Rotate the horn 90° clockwise or counter clockwise and set it back in place. Make certain the wiring is not stressed or pulled loose from its connections.

5- Before reinstalling the waveguide screws, lift the assembly a small distance and make sure that the gasket is properly in place. Reposition it, if required. Set the waveguide in place and reinstall the screws. Do not overtighten.

6- Replace the grill.

Logo Badge Rotation

The logo badge on the grill screen can be removed, rotated, and reinstalled. Using your fingers, pull the logo badge straight out. Rotate to the desired position and push back into place.

Connection

The I-82H has two Speakon® NL4-type connectors wired for full range, passive operation. Connect the amplifier’s + and - outputs directly to the Speakon’s 1+ and 1- terminals.

The two connectors are wired in parallel to make parallel cabinet connection easy. Your amplifier must be able to safely power the lower impedance of parallel-connected loudspeakers.

NL4 to NL4 Wiring (two- and four-conductor cables)

Two- or four-conductor cable may be used for Speakon to Speakon connections. Four-conductor cable can be used, but the extra conductors do not carry signal.

The I-82H is not wired for biamp operation. Do not connect biamplified equipment to the I-82H.

To Amplifier

Banana to NL4 Wiring

To Loudspeaker

To Amplifier

To Loudspeaker

1/4” Phone to NL4

To Amplifier

To Loudspeaker

Maintain proper speaker and amplifier connection polarity throughout the entire system. All positive-marked loudspeaker terminals should be connected to positive-marked amplifier output terminals. This will provide the best possible low-frequency output from your system.
