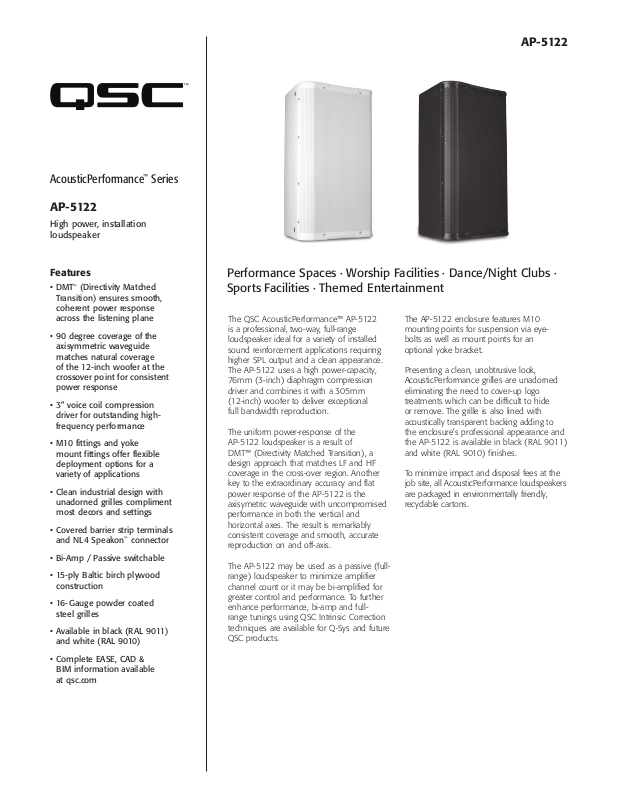

QSC AP-5122 User Manual
AcousticPerformance™ Series
AP-5122
High power, installation
loudspeaker
AP-5122
Features
• DMT™ (Directivity Matched
Transition) ensures smooth,
coherent power response
across the listening plane
• 90 degree coverage of the
axisymmetric waveguide
matches natural coverage
of the 12-inch woofer at the
crossover point for consistent
power response
• 3” voice coil compression
driver for outstanding highfrequency performance
• M10 fittings and yoke
mount fittings offer flexible
deployment options for a
variety of applications
• Clean industrial design with
unadorned grilles compliment
most decors and settings
• Covered barrier strip terminals
and NL4 Speakon™ connector
• Bi-Amp / Passive switchable
• 15-ply Baltic birch plywood
construction
• 16-Gauge powder coated
steel grilles
• Available in black (RAL 9011)
and white (RAL 9010)
Performance Spaces ∙ Worship Facilities ∙ Dance/Night Clubs ∙
Sports Facilities ∙ Themed Entertainment
The QSC AcousticPerformance™ AP-5122
is a professional, two-way, full-range
loudspeaker ideal for a variety of installed
sound reinforcement applications requiring
higher SPL output and a clean appearance.
The AP-5122 uses a high power-capacity,
76mm (3-inch) diaphragm compression
driver and combines it with a 305mm
(12-inch) woofer to deliver exceptional
full bandwidth reproduction.
The uniform power-response of the
AP-5122 loudspeaker is a result of
DMT™ (Directivity Matched Transition), a
design approach that matches LF and HF
coverage in the cross-over region. Another
key to the extraordinary accuracy and flat
power response of the AP-5122 is the
axisymetric waveguide with uncompromised
performance in both the vertical and
horizontal axes. The result is remarkably
consistent coverage and smooth, accurate
reproduction on and off-axis.
The AP-5122 may be used as a passive (fullrange) loudspeaker to minimize amplifier
channel count or it may be bi-amplified for
greater control and performance. To further
enhance performance, bi-amp and fullrange tunings using QSC Intrinsic Correction
techniques are available for Q-Sys and future
QSC products.
The AP-5122 enclosure features M10
mounting points for suspension via eyebolts as well as mount points for an
optional yoke bracket.
Presenting a clean, unobtrusive look,
AcousticPerformance grilles are unadorned
eliminating the need to cover-up logo
treatments which can be difficult to hide
or remove. The grille is also lined with
acoustically transparent backing adding to
the enclosure’s professional appearance and
the AP-5122 is available in black (RAL 9011)
and white (RAL 9010) finishes.
To minimize impact and disposal fees at the
job site, all AcousticPerformance loudspeakers
are packaged in environmentally friendly,
recyclable cartons.
• Complete EASE, CAD &
BIM information available
at qsc.com
AP-5122 Details

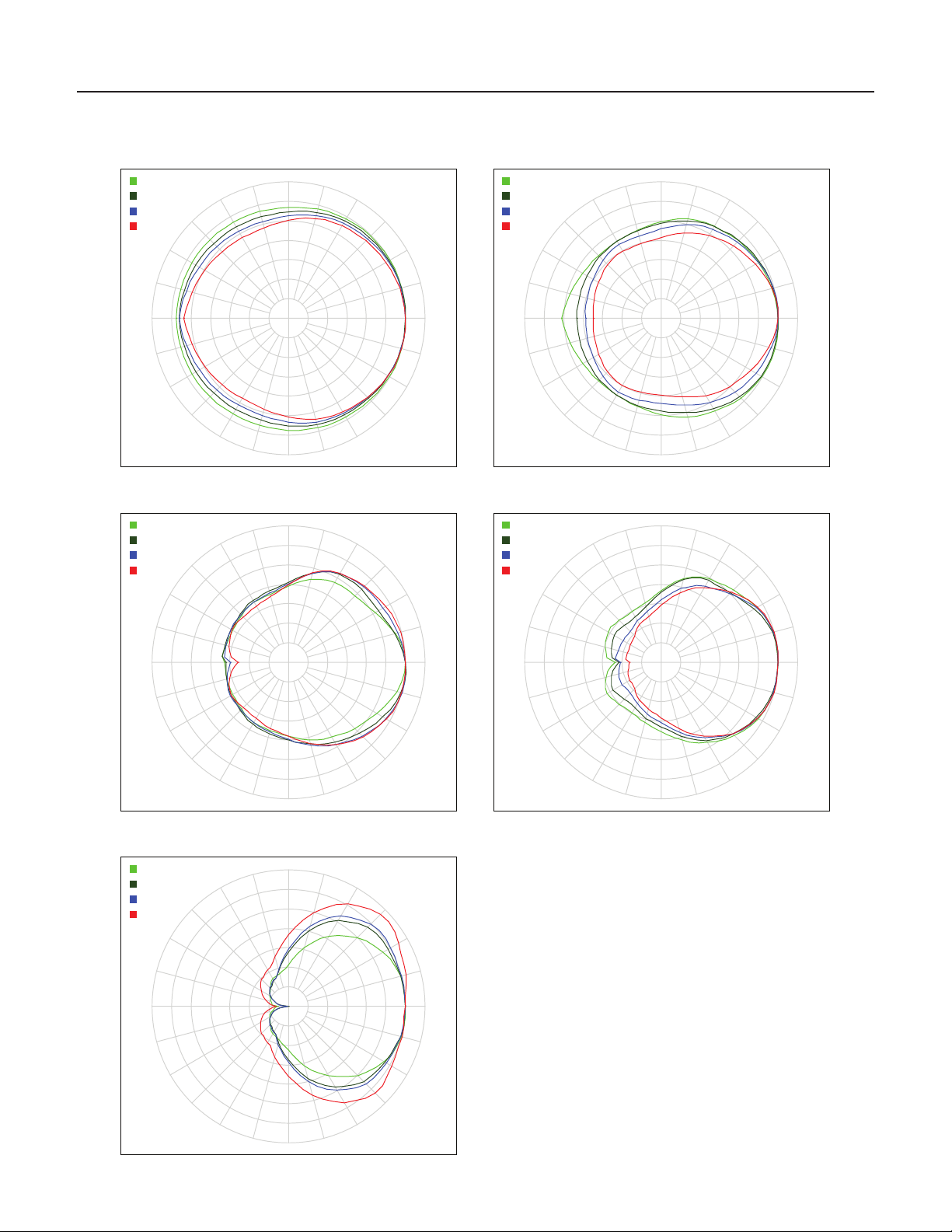

Beamwidth
360
180
90
45
10
20 100 1000 10000
SPL/Im pedance
100
95
90
85
80
75
70
65
60
55
50
45
40
20 100 1000 10000
Responses shown with
recommended processing
Frequency (Hz)
Frequency (Hz)
Horizontal
Vertical
Frequency Response
Impedance
20000
PASSIVE MODE
20000
1+
NL4 /
1 -
BARRIER
STRIP
2+
N/C
2 -
BI-AMP MODE
1+
NL4 /
1 -
BARRIER
2+
STRIP
2 -
Specifications:
HPF
LPF
HF
LF
HF
LF
System Details
Frequency Response (-10dB) 48Hz – 18kHz
120
110
100
90
80
70
60
50
40
30
20
10
0
Power Capacity
System Sensitivity
Coverage Angle 90˚ Axisymmetric
Directivity Factor (Q) 6.0
Directivity Index (DI) 7. 8
Recommended Crossover 950 Hz, 48dB/octave
Maximum Rated SPL Passive: 122dB @1m, continuous
Rated Impedance 8Ω
HF Transducer 76mm (3-inch) voice coil, compression
LF Transducer 305mm (12in) driver with 102mm
1
2
550W / 60V continuous
95dB, 1W@1m
128dB @1m, peak
4
3
driver; 72W / 24V (2 Hrs)
(4in) VC; 550W / 60V (2 Hrs)
Optional Accessories AP-YM12 Yoke mount
M10 Kit-W
Enclosure Details
Input Connector Covered Barrier Strip, NL4 connector
Enclosure Material 15-ply Baltic birch plywood
Attachment Points 15x M10 threaded inserts
Color Black (RAL 9011), White (RAL 9010)
Grille 16 Gauge powder coated steel

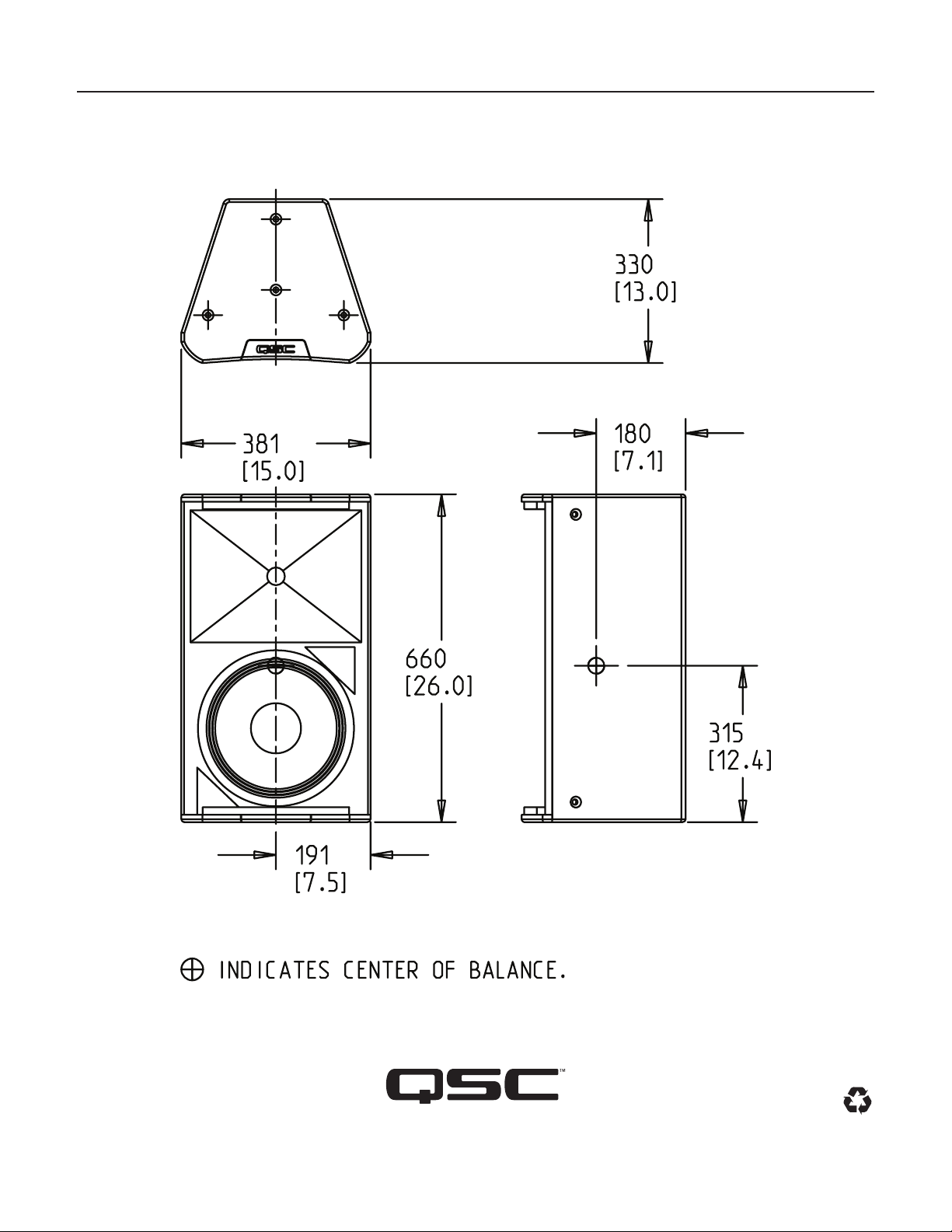

Dimensions (HxWxD) 660 mm x 381 mm x 330 mm
(26" x 15 " x 13 ")
Net Weight 29.5 kg (65 lb)
Shipping Carton Dimimensions
(HxWxD)
705mm x 484mm x 435mm
(27.8x19x17-inches)
Shipping Weight 32.6kg (72 lbs)
As part of QSC’s ongoing commitment to product development,
specifications are subject to change without notice.
1
2 hour rating using IEC60268 noise based on minimum impedance
2
Mid-band based on nominal impedance
3
Calculated as the nominal sensitivity plus 10x the log of continuous
rated power in volts squared divided by nominal impedance
4
Calculated as the continuous calculated max output plus 6dB
