Qnap TS-431P/16TB-RED User Manual

TS-x31P

Centralize your email management with QmailAgent
Manage contact information with Qcontactz
Create digital notes with Notes Station

QcontactzQmailAgent Notes Station

Featuring a Cortex-A15 Annapurna Labs Alpine AL-212 dual-core

1.7 GHz processor with hardware encryption

Next-generation dual-core 1.7G Annapurna Labs processor, with up to 223 MB/s

transfer speeds ( 190 MB/s when encrypted )

Use Qsync Central Station to sync les across computers and mobile devices

LXC + Docker Dual Virtualization Technology on ARM-based NAS

Full backup to external devices, remote servers, or cloud storage

Stream to multiple media devices simultaneously and enjoy high-quality streaming

with DLNA, Apple TV, and Chromecast

TS-131P TS-231P TS-431P

SS

SATA

6Gb/s

1GB

DDR3

USB

3.0 x 3

One Touch

Copy

Hardware

Encryption

Engine

Introducing TS-x31P – an Easy to Use and

GbE

0

0

Aordable NAS for Homes and SMBs

Equipped with ARM® Cortex®-A15 core architecture dual-core 1.7 GHz processor.

TS-x31P’s simple yet practical hardware design and intuitive QTS operating system

makes it possible for you to enjoy the convenience of NAS at no extra cost. With

QNAP’s exclusive mail agent, contact manager and other Introducing applications,

TS-x31P can easily help you connect your home, life and work with a single device,

whether you are at home as a beginner or in a small studio.

Dual-core processor delivers high performance

Equipped with an AnnapurnaLabs, an Amazon company Alpine AL-212

dual-core 1.7 GHz Cortex-A15 processor and 1GB DDR3 RAM, TS-x31P

series are high-performance NAS for home, workgroups and SOHO users

providing outstanding performance of up to 223 MB/s read & 172 MB/s

write throughput. TS-x31P’s enhanced hardware-based encryption and

decryption engine provides transfer speeds of over 190 MB/s with AES

256-bit full NAS volume encryption.

Tested in QNAP laboratories. Results may vary due to different usage environments.

Test environment：
NAS：
Model：TS-431P with QTS 4.2.2
Volume type：RAID5 ( 4 x 1TB HDDs ) ; Direct connected
Client PCs：
Microsoft Windows 10 64bit ; Intel (R) Core (TM) i7-4790 CPU ; DDR3 1600Hz 16GB ;
10GB file Windows Upload/Download, 2 LAN

X

3

External storage

‧

Printer

USB 3.0

‧

SD card reader

‧

UPS

‧

Wi-Fi adapter

‧

And more USB applications

‧

X

2

Throughput

200

150

100

MB/s

50

GbE

AES 256-bit encryption

223

172

Read

‧
‧
‧
‧

Write

Port Trunking

Link Aggregation

increase total data transmission potential

Dual IP

Port trunking is not supported by TS-x31P.

200

150

100

MB/s

50

190

Read

124

Write

QmailAgent 1.0

QmailAgent is an online email client that helps you manage multiple

email accounts, allowing you to access all of your emails and to easily

switch between different accounts. It provides excellent functionality

for composing, reading and organizing emails. You can even attach les,

photos and documents from the TS-x31P when composing emails.

Qcontactz 1. 0

Qcontactz helps you centrally store and manage contact information for

colleagues, business partners, family, and friends. Other features include:

importing from Google® accounts, importing/exporting CSV or vCARD 3.0

les, automatic identication of frequently-used contacts, encryption for

sensitive/condential contact information, smart searching, and more.

Notes Station 3.0

The revamped Notes Station allows users to collectively write docu-

ments and helps users to track changes by retaining the revision history

of documents. You can also create sharing links to share documents in

real time. Documents can also be encrypted to prevent unauthorized

access, and snapshot backup is provided to retain dierent versions of

documents from dierent time periods.

Qsync Central Station 2.0

Qsync turns your TS-x31P into a safe, high-capacity data center for le

synchronization. Any le uploaded to the TS-x31P will be made available

for all linked devices, such as computers, laptops or mobile devices.

Qsync is especially useful for frequent travelers to manage les and always

have the most up-to-date les on dierent devices.

Rapidly deploy IoT apps with Container Station

Container Station exclusively integrates LXC and

Docker® lightweight virtualization technologies,

allowing you to operate multiple isolated Linux®

systems on TS-x31P and download apps from

the built-in Docker Hub® Registry. It can easily

build a secure private cloud to store IoT data and

to quickly create diverse IoT applications.

Devices

Any

Connectivity

Application

Public Cloud

Data Push

Rules Engine Storage

Data Pull

Centralize backup, restoration and synchronization with Hybrid Backup Sync

Hybrid Backup Sync consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) into a single app for easily

transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. Hybrid Backup Sync supports

multi-version backup, exible job scheduling, le compression to save storage space, and more.

DAV

Amazon Glacier Amazon S3

Surveillance Station 5.1

Surveillance Station is a professional network surveillance Video Management

System (VMS) that offers a user-friendly management interface, over 3,000

compatible IP camera models, and expandable IP camera channel licenses. It

supports real-time monitoring, video & audio recording and playback with a

wide range of customizable settings.

App Center

The built-in App Center provides various install-on-demand apps developed by

QNAP and third-party developers, including tools for backup/sync, business, content

management, communications, download, entertainment, and much more.

Yandex Disk

Channel Licenses

FREE:2

FREE:2
Max. 25

Max. 25

WebDAV

Access your NAS from mobile devices

Use Qfile to remotely
manage the files on your
NAS, upload and down­load files, stream videos/
music, share documents

Qle Qget Qnotes Vmobile

and synchronize les with
mobile devices.

Find web resources, set
new download tasks to
the NAS, and manage
your download tasks.

Create and share your
beautifully illustrated
digital notes.

Remotely manage the
cameras connected to
Surveillance Station,
and play recorded vid­eos.

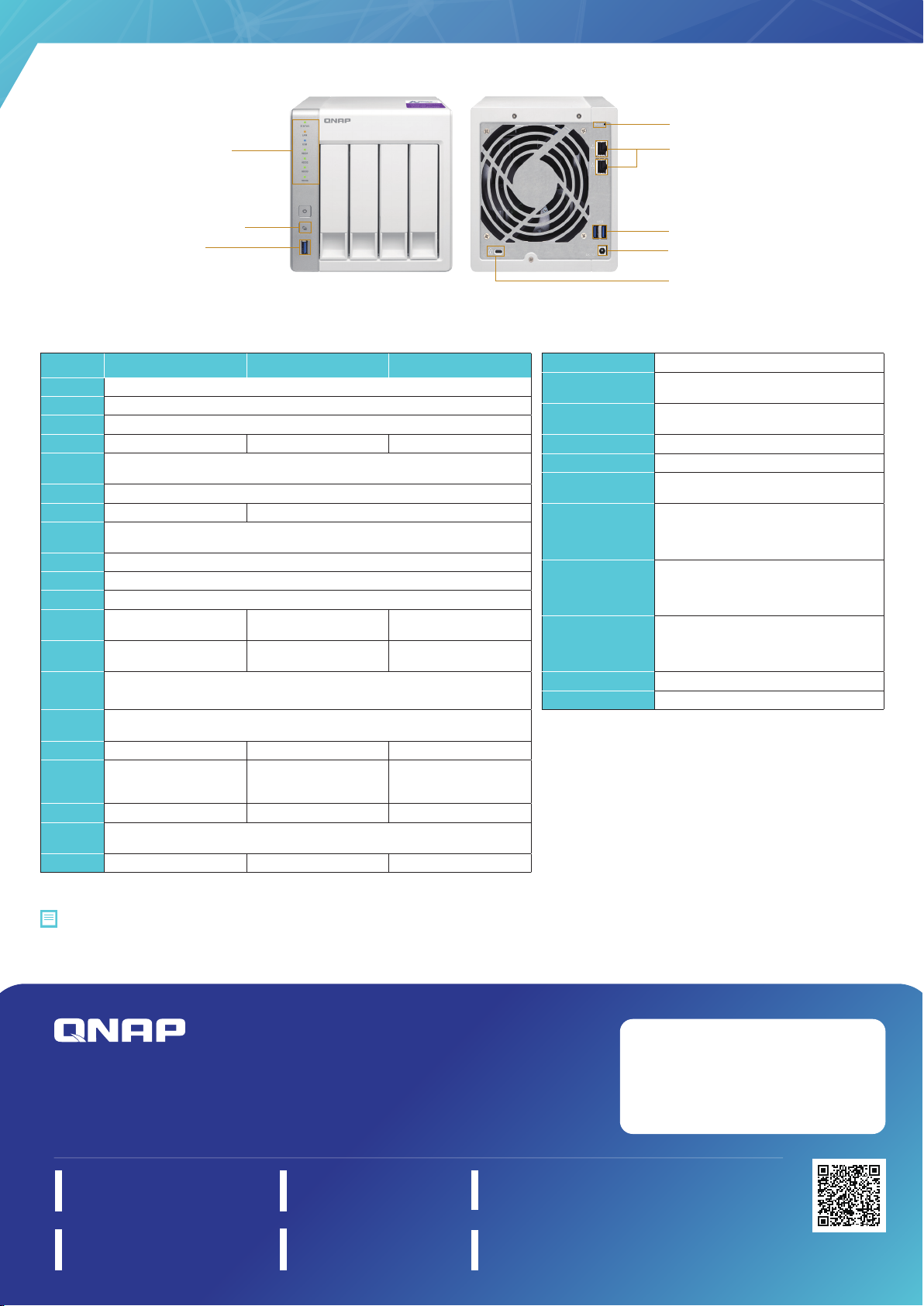

LED status, network, USB,
hard disk indicatior

Reset

GbE RJ45 network port

One Touch Copy Button

USB 3.0 port

USB 3.0 Port

DC 12V power input

Kensington Security Slot

Hardware Specications Software Specications

Ordering SKU

CPU Annapurna Labs Alpine AL-212 dual-core 1.7GHz processor

Memory 1GB DDR3 RAM

Flash Memory 512MB NAND ash

Hard Drive 1 2 4

Hard disk
interface

USB 3 x USB 3.0 ports (front x1; back x 2)

LAN ports 1 x GbE RJ45 2 x GbE RJ45

LED Indicators System Status, HDD, USB, LAN

Button Power, system reset button, USB One Touch Copy

Alarm Buzzer System warning

Form Factor Desktop model

Dimensions
(H) x (W) x (D)

Weight

Temperature 0 - 40˚C / 32~104°F

Relative
humidity

Power AC adapter, 36W, 100 - 240V AC adapter, 65W, 100 - 240V AC adapter, 90W, 100 - 240V

Power con­sumption (W)

Sound Level In operation:15.8 dB (A) In operation:19.2 dB (A) In operation:19.5 dB (A)

Security"
design

Fan 1 x 5 cm Silent fan (12V DC) 1 x 7 cm Silent fan (12V DC) 1 x 12 cm Silent fan (12V DC)

TS-131P TS-231P TS-431P

SATA 6Gb/s, 3Gb/s HDD or SSD; Hot-swappable

169 x 73 x 219 mm

6.65 x 2.87 x 8.62 inch

Net Weight:1.04 kg (2.29 lbs)

Gross Weight:1.8 kg (3.97 lbs)

5 ~ 95% RH non-condensing; wet bulb:27˚C

Hard drive sleep mode:7.29W

In operation:11.62W

(with 1 x 1TB hard drive installed)

169 x 102 x 219 mm

6.65 x 4.02 x 8.62 inch

Net Weight:1.28kg (2.82 lbs)

Gross Weight:2.32kg (5.11 lbs)

Hard drive sleep mode:8.46W

In operation:15.6W

(with 2 x 1TB hard drive installed)

K-Lock Security Slot

(with 4 x 1TB hard drive installed)

169 x 160 x 219 mm

6.65 x 6.3 x 8.62 inch

Net Weight:3 kg (6.61 lbs)

Gross Weight:4.3 kg (9.48 lbs)

Hard drive sleep mode:11.65W

In operation:26.7W

All specications are subject to change without notice.
For more information, please go to www.qnap.com

Supported RAID types Single disk, RAID 0/1/5/6/10/5 + spare / 6 + spare

Storage Manager

Supported client systems

Internal le system EXT4

External le system EXT4, EXT3, NTFS, HFS+, FAT32

Supported protocols

File sharing

Video surveillance

Other Features

Streaming server DLNA Server, Airplay, Chromecast, iTunes Server

Remote access myQNAPcloud

RAID capacity expansion and conguration migration

CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP,

Maximum number of users:4096; Maximum number

Maximum shared folders:512; Maximum simultane-

Station, Download Station, Qsync, Notes Station, FTP
Server, Print Server, VPN Server, VPN Client, Antivirus

Flexible Volume/LUN; online

Windows 7/8/8.1/10, Windows Server 2012 R2,

Apple Mac OS X 10.7+, Linux & UNIX

HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

of user groups:512;

ous connections:700

Including 2 free camera support,

You can purchase additional license to expand to

a maximum of 25 channels

(Http://license.qnap.com)

File Station, Photo Station, Music Station, Video

Protection,

Package contents

* NAS

* Ethernet cable

* Quick installation guide

* Flat-head screw ( for 3.5-inch hard drive )

* Flat-head screw ( for 2.5-inch hard drive )

* AC adapter

* Power cord
