Rackmount NAS
Servers for SMB
Reliable and scalable NAS servers for building a private cloud
CPU
2GB/8GB DDR3L
Max 8GB
x4
Quad Core 2.0GHz
Up to 2.41GHz
x 4
Quad GbE Ports
Up to 423 MB/s
Use your NAS as a PC
TS-1253U /
TS-1253U-RP
• Manage, share, and back up business data
• Real-time Remote Replication (RTRR) and cloud-based storage backup
• NAS and iSCSI-SAN unified storage solution
• Enhanced data security with high-performance AES 256-bit encryption and anti-virus
• Supports VMware®, Citrix®, and Microsoft® Hyper-V and advanced virtualization features
• Use your NAS as a PC with QvPC Technology
• Operate multiple Windows, Linux and Android-based virtual machines with the
integrated Virtualization Station
• On-the-fly and offlin hardware accelerated video transcoding
• Expand the total storage capacity with an economical 12 bay UX-1200U-RP expansion enclosure
CELERON
SATA 6Gb/s
2.5"/3.5"
Virtualization
Technology
Dual core 2.41GHz, up to 2.58GHz
1GB DDR3L RAM (Max 8GB) & dual LAN ports
Storage
Expansion
HDMI 1080P
Local Display
On-the-fly
Transcoding
TS-853U / TS-853U-RP TS-453U / TS-453U-RP TS-451U
st Generation NAS
1
Cross-platform network
storage for storing and
sharing data
NAS 4000
Turbo NAS
The 4th Generation Enhanced with
the QvPC Technology
File Server
Network storage device
2002年
2002
nd Generation NAS
2
iSCSI SAN with network
storage and surveillance
system
2008年
2008
rd Generation NAS
3
Scalable storage system with storage
manager, myQNAPcloud, Qsync
2011
2011年
TS-869U-RP
As new technologies continue to emerge, QNAP further
expands its product line-up of next-generation
networked storage. From the rst-generation's central
le management server to the second-generation’s iSCSI
SAN compatible unied storage system to the
third-generation’s Turbo NAS with customizable apps,
QNAP has been the leading storage solution provider.
With the industry-rst QvPC Technology integrated in
the fourth-generation NAS, our Turbo NAS series are the
world's rst NAS that can be transformed into a
cost-eective PC substitute for business applications.
The Turbo NAS series features Intel
and quad-core processors to deliver exceptional
performance, and with QvPC Technology provides
awless business content storage, backup, and sharing
abilities.
Celeron® dual-core
®
TS-459U-RP
th Generation NAS
4
QTS 4 integrated with
Virtualization Station and
QNAP QvPC Technology
2014
2014
TS-1253U-RP
The Evolution of NAS
Table of Contents
High-performance, Reliable, and Scalable NAS ..........................................................
QTS 4.1.3 OS ...........................................................................................................................
Unified Storage Management .......................................................................................
File Storage, Management and Sharing (File
Q'center CMS (Central Management System) ...........................................................
Virtualization Station ........................................................................................................
QvPC Technology .................................................................................................
Business Solutions ..............................................................................................................
Station) ............................................
...............
1
4
19
23
27
29
33
39
Mobile Apps & Utilities ......................................................................................................
App Center & Development Platform ...........................................................................

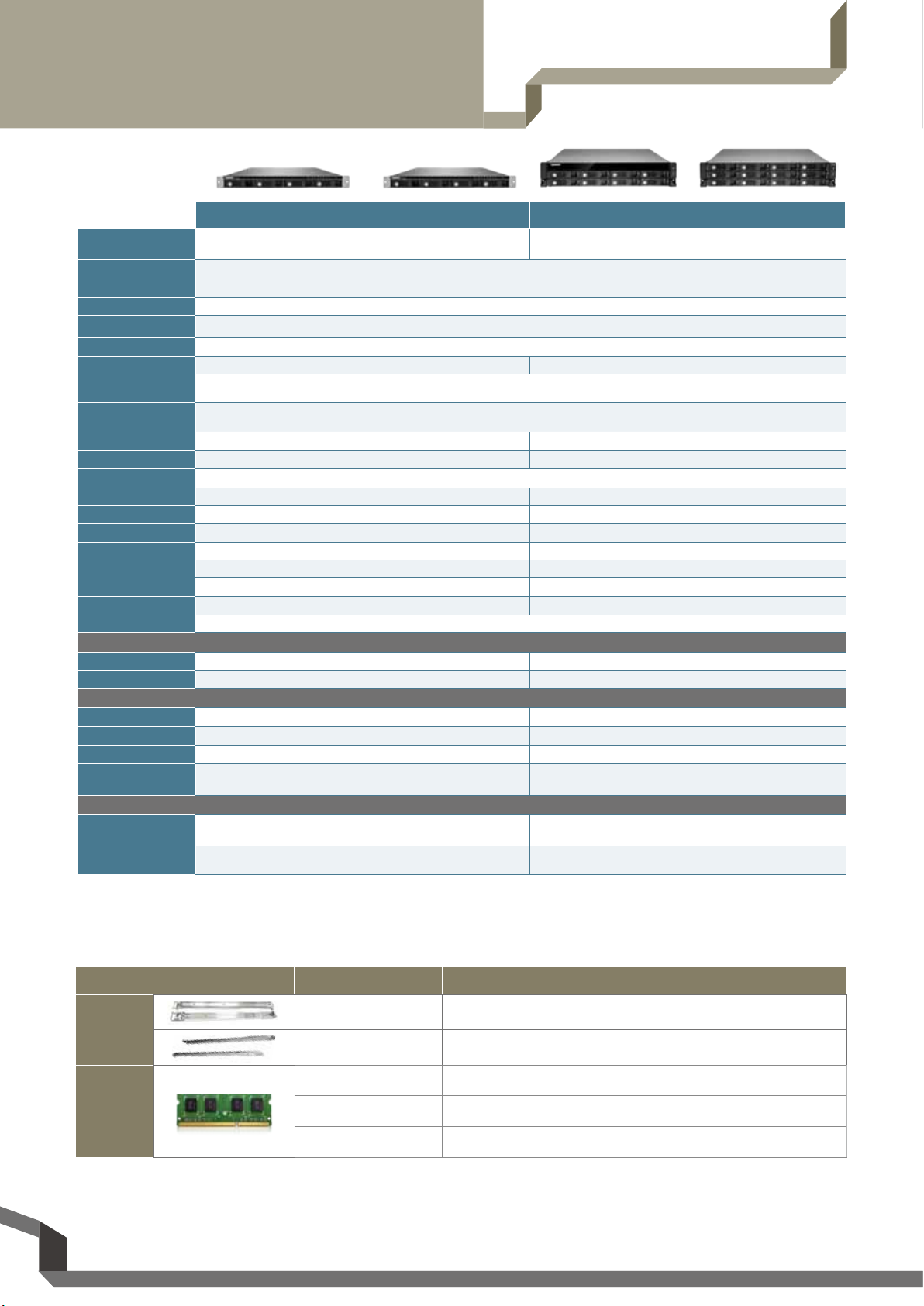

Hardware Spec
Software Specification .......................................................................................................
ification ....................................................................................................
53
55
59
60
High-performance, Reliable,
and Scalable NAS
High-performance, Reliable, and Scalable NAS
As the value & volume of business data continues to rise, businesses need high-performance storage solutions which are secure,
reliable, and easy to manage. QNAP's rack-mountable Turbo NAS act as both IP-SAN (iSCSI) and NAS solutions and can be easily
utilized in dierent business & SOHO applications including backup, disaster recovery, le sharing, and virtualization.
Energy-saving yet powerful quad-core processor for multitasking
TS-x53U series
Powered by a quad-core Intel® Celeron® 2.0GHz processor with 2GB / 8GB energy-ecient DDR3L RAM (expandable to 8GB),
coupled with the support of SATA 6Gb/s, 4 x Gigabit LAN ports and HDMI output, the TS-x53U series delivers up to 430 MB/s
throughput with exceptional multitasking performance. The TS-x53U series can also automatically increase the processor's clock
rate from 2.0GHz to 2.41GHz when needed for CPU-intensive tasks. Its fast encryption and decryption performance provides
transfer speeds of up to 273 MB/s with AES 256-bit volume encryption, boosting system performance & security while ensuring
the safety of sensitive business data stored in the NAS.
TS-453U / TS-453U-RP
TS-853U / TS-853U-RP TS-1253U / TS-1253U-RP
Cost-eective solution with dual-core processor for productivity
TS-451U
The TS-451U is a powerful and aordable SOHO NAS that delivers up to 220 MB/s read &
write speeds. Equipped with a 64-bit dual-core Intel® Celeron® 2.41GHz processor (up to
2.58GHz) and up to 8GB RAM (default 1GB), the TS-451U integrates high-speed SATA 6Gb/s
interface, 2 x Gigabit LAN ports and an HDMI port for versatile SOHO applications.
Throughput
430
440
423
394
330
220
MB/s
110
425
421
420
224
220
300
225
150
MB/s
75
271
AES 256-bit Encrypon
273
163
163.8
TS-451U
240.9
158.7
128
90
0
Read
Write
Test environment:
PC: Intel(R) Core(TM) i7-2600 CPU, 16GB DDR3 RAM, Windows 7 professional 64-bit
NAS: Intel 510 SSDs, Intel X-520-DA2 + 802.3ad trunking mode, RAID 5 IO Meter sequential read and write with 8 workers and 8GB file size settings
Read
Write
Tested in QNAP lab. Figures could vary by environments.
Read
Write
TS-453UTS-853UTS-1253U TS-451U
Read
Write
0
Read
Write
Read
Write
Read
Write
TS-453UTS-853UTS-1253U TS-451U
Read
Write
1
Rackmount NAS Servers
Ensuring high reliability with redundant power supply design
and multiple LAN ports
The built-in redundant power supply* and multiple Gigabit Ethernet ports effectively increase reliability and transfer
performance with port trunking. The power supply and Ethernet port design supports failover for ensuring continuous data
availability and smooth business operations.
Single Power Supply Unit : Redundant Power Supply Unit :
TS-451U, TS-453U, TS-853U, TS-1253U TS-453U-RP, TS-853U-RP, TS-1253U-RP
* The redundant power supply design is only available on the TS-453U-RP, TS-853-RP, and TS-1253U-RP.
Enhance productivity with multiple USB 3.0 ports
Equipped with several SuperSpeed USB 3.0 ports, the Turbo NAS allows you to exibly
arrange tasks with a wide range of external devices without interrupting your current
workow. You can back up les to USB drives, access data stored on SD cards via USB
card readers, share up to 3 printers via network, and connect to a UPS to ensure a
continual power supply.
SSD cache acceleration
The Turbo NAS supports SSD caching which can greatly boost the IOPS
performance of storage volumes. It is perfect for improving the overall
workow of IOPS-demanding applications such as virtualization.
Energy eciency for power saving and a greener environment
The Turbo NAS features an advanced 22nm CPU, which has lower voltage requirements and power consumption whilst
maintaining high performance in system operations. Other eco-friendly designs include scheduled power on/o, hard disk
standby mode, and Wake on LAN.
USB 3.0
Power Consumpon
210
200
140
Was
70
38.01
0
21.03
HDD sleepIn operaon
39.86
23.54
HDD sleepIn operaon
82.31
30.49
HDD sleepIn operaon
TS-853U
High-performance, Reliable, and Scalable NAS
83.52
TS-1253U
35.14
HDD sleepIn operaon
PC ServerTS-453UTS-451U
2
High-performance, Reliable,
QTS 4.1.3 OS
and Scalable NAS
Economical storage expansion with scale-up solution
The Turbo NAS oers a high performance yet
aordable storage solution to fulll the needs
of businesses in archiving rapidly-growing
data & large files. The Turbo NAS supports
capacity expansion by connecting one QNAP
expansion enclosures. With the QNAP scaleup solution, the raw storage capacity can be
expanded on demand, making the Turbo
NAS an ideal file center with a large storage
capacity for business data.
The maximum raw storage capacity available by connecting a QNAP expansion enclosure:
Turbo NAS
Model
QNAP Expansion
Enclosure
UX-1200U-RP
No. of RAID
Expansion Enclosure
1 24 192
Total HDD No.
(NAS + Enclosure)
TS-1253U
TS-1253U-RP
UX-800U-RP
UX-1200U-RP
1 20 160
1 20 160
TS-853U
TS-853U-RP
UX-800U-RP
1 16 128
Max. Raw Capacity
(TB)*
TS-453U
TS-453U-RP
TS-451U
*The maximum capacity is calculated by using 8TB HDDs.
3
UX-1200U-RP
UX-800U-RP
UX-1200U-RP
UX-800U-RP
1 16 128
1 12 96
1 16 128
1 12 96
Rackmount NAS Servers
QTS 4.1.3 OS
Intuitive & Simple QTS 4.1.3 OS
Based on Linux, QTS 4.1.3 is designed to be simple and exible while centralizing multiple applications eciently in the App Center.
Multi-Window: Simultaneous multi-window operation for easy usage.
Multi-Task: Improve work eciency by performing multiple tasks at the same time.
Multi-Device: Synchronize cross multiple devices anytime, anywhere.
Multi-App: Use a range of easy-to-manage apps and download more as needed.
Multi-Scenario: Customize your own cloud platform with multiple applications.
Intelligent Desktop
QTS 4.1.3's intelligent desktop oers an intuitive, sleek, and easy-to-follow graphic user interface that simplies your Turbo NAS
experience. It allows you to open multiple application windows and simultaneously run multiple tasks. Application windows
can be minimized to the toolbar to allow you to see an overview of the opened applications and switch between running
applications.
Smart toolbar
Background tasks
Displays all the active and
scheduled tasks performed in the
background.
External devices
Access connected storage devices
and safely eject them with a single
click.
Event notifications
Updates you with system
information including warnings
and other error messages.
Main menu
All of your applications, system preferences,
and additional apps installed from the
App Center are neatly presented for you
to quickly find your desired app. Drag and
drop frequently used icons to the desktop
as shortcuts for easier access.
Multiple desktops
The extended desktop workspace is
specifically designed to improve your
productivity. You can move apps to
different desktops according to their
category and freely switch between them.
Quick search
Quickly search for system settings
and QTS Help.
Smart dashboard
In just one click the smart dashboard presents
all the important system information in a
single panel. Drag any status to the desktop
for constant monitoring.
4
QTS 4.1.3 OS
NAS Connection and Network Settings
Qfinder for
connecting to a NAS
Instant connection and NAS setup
Qfinder is a utility for Windows, Mac, and Linux that lets you
quickly nd and access the Turbo NAS over LAN. Install Qnder
on your computer, open it, and double click your Turbo NAS
name and the login page is ready for you.
Easy access to NAS with
Storage Plug & Connect
The Windows version of Qnder provides a convenient way
to connect to the Turbo NAS and map a network drive or
virtual disk. By creating a shared folder on the Turbo NAS
and mapping it as a network drive, you can use it as if it were
a local drive on your computer.
System network setup
TCP / IP and service connection setup
You can click on the QTS [Control Panel] > [System Settings] > [Network] to activate service connection, assigning QTS
applications to one or more network interfaces (over LAN or wireless). The NAS will allow application access based on IP sources
to optimize the LAN ports utilization for your network environment.
5
Rackmount NAS Servers
Optimize network resources with high security
Turbo NAS oers 2 or 4 Gigabit LAN ports, and you can assign each port for dierent applications to optimize network resources and
increase security (for example: Public IP, Intranet, Server Backend Network, VM Network, etc). When using Virtualization Station, the
network trac from the virtual machines (VMs) is isolated from the network used by the Turbo NAS. The bandwidth for the Turbo
NAS applications will not be impacted by the VM operations, and the VMs can have dedicated bandwidth for operating high-trac
applications. Also, you can exibly install LAN cards and arrange other LAN ports for dierent VMs to use as a dedicated network
resource.
Internet
Internet
Intranet Switch (Intranet)
w
w
w
/
/
:
p
t
t
h
Router
Server Backend Network Switch
AD
Exchange
Server
Transaction
Server
Server
(Public IP) / DMZ
ERP
Server
(Service Binding) By LAN ports
Office Notebook
VDI client
TS-853U
VM Network Switch
VDI thin Clients using QVM
Port Trunking : Link Aggregation for high-speed and high-security
file transmission
Including the practice mentioned above, multiple LAN ports can be used for Port Trunking : Link Aggregation, enabling IT
administrators to set up link aggregation to increase total data transmission capabilities and achieve better efficiency for IT
operations. Failover, load balancing, and multi-IP settings are also supported.
Router
Internet
w
w
w
/
/
:
p
t
t
Switch
Aggregated Ethernet
Link Aggregation /
Port Trunking
Turbo NAS
VM Dedicated Network
h
Desktop PCs
802.11ac WiFi Router
VDI client
6
QTS 4.1.3 OS
Wi-Fi network settings
Turbo NAS supports Wi-Fi networks. Connect a USB Wi-Fi network card to the NAS, click QTS [Control Panel] > [System Settings] >
[Network] > [Wi-Fi], and the available Wi-Fi access points will be listed. The QTS 4.1.3 supports 802.11ac Wi-Fi network protocols. You
can connect the Turbo NAS to a router supporting 802.11ac protocols for higher le transfer speeds.
A Turbo NAS can support a USB Wi-Fi network card. Visit www.qnap.com for a full Wi-Fi network card compatibility
list.
Dynamic DNS (DDNS) service
After connecting to the Internet, click [Control Panel] > [System Settings] > [Network] > [DDNS Service] to get the Internet IP address.
The IP address can be a DHCP or a xed address according to your Internet Service Provider (ISP). You can use the IP address and
register a DDNS on a DDNS server. By properly setting up DDNS, the Turbo NAS ensures that it is always reachable by automatically
updating its IP address with the DDNS service provider whenever the IP address changes.
7
Application Server
QTS 4.1.3 integrates numerous server functions, including Web Server and Printer Server.
Web Server
QTS has a built-in Web Server with PHP/MySQL support
and allows hosting multiple websites and running web
applications on the Turbo NAS such as Joomla, phpBB, and
other online marketing platforms.
Rackmount NAS Servers
FTP Server
Large file sharing
Use FTP for high-speed data transfer and increase the
eciency of large le sharing.
Flexible settings
Use anonymous login, read/write, read-only control or
bandwidth control to flexibly manage the access right
control.
Secure access
Use the safe FTPS (FTP over SSL/TLS) connection to ensure
secure data transmission.
Printer Server
QTS supports Printer Server, with the support for IPP (Internet
Printing Protocol), Samba, print job management, and Bonjour
printing on Mac OS X. By connecting a compatible USB printer
to the Turbo NAS, members can instantly share the printer
resources over the network at the same time (Max. 3 USB
printers).
8
QTS 4.1.3 OS
Security Management
QTS oers various security management options to protect the system from hacking and data from interception, theft, and loss. QTS
security management meets the electronic requirements of HIPAA (Health Insurance Portability and Accountability Act), performing
as an ideal storage solution to store medical records.
Privilege settings
Windows AD/ACL
QTS supports Windows AD/ACL to help IT administrators
manage user account more effectively, and to simplify the
process of privilege settings in large-scale organizations. QTS
also supports SAMBA v4 that enables the Turbo NAS to serve
as a Windows domain controller to manage privilege settings.
LDAP Directory Service
QTS supports the LDAP protocol, integrating the Turbo NAS
into networks that have deployed an LDAP-based directory
service such as OpenLDAP and greatly simplifying the eorts of
managing a large amount of user accounts. QTS makes Turbo
NAS a LDAP server too.
Security protection
IP blocking
IT administrators can set up the black and white lists to grant
proper access from different users to the Turbo NAS by IP
address. It operates as a policy-based automatic IP blocking
by enabling the
network access
protection
command.
RADIUS Server
QTS RADIUS Server provides centralized authentication and
authorization management for computers to connect and
use a network service. The QTS RADIUS Server maintains a
list of user accounts that are authorized for remote network
access through dial-up equipment, Wi-Fi access point, or VPN
connections. IT administrators can easily apply access policies
to multiple access points for a ne-grained control of network
access.
Hard drive encryption
QTS supports up to AES 256-bit encryption for internal drives
and external USB/eSATA drives, and adopts a military-level
FIPS 140-2 validated encryption, which is considered to be the
highest security certication for compliance.
Anti-virus
QTS integrates the ClamAV antivirus toolkit to defend against the latest viruses, malware,
worms, and Trojan horses with continuous free virus database updates, ensuring
continuous business operation. An email notification upon task completion or virus
detection is provided. QTS also supports McAfee virus scanner which is available in the QTS
App Center with a free 30-day trial.
9
Anti-interception
Research and development of computer
VPN Server
QTS supports VPN Server, with VPN connections secured
with up to 256-bit encryption. It is easy to congure and
is seamless integrated with the QNAP myQNAPcloud
service and Auto Router Conguration. Complicated port
forwarding settings for PPTP and OpenVPN are therefore
simplied.
Encrypted access
QTS supports SSL, SSH and SFTP for secure connection
and data transfer. IT administrators can host websites on
the Turbo NAS and only allow access via HTTPS (SSL over
HTTP) secure channel.
Rackmount NAS Servers
The best solution for secured communication :
VPN + proxy server
VPN
Virtual private network (VPN) offers secure connections to access network resources and services across a public network. VPN
oers a convenient solution for NAS users to build end-to-end encrypted tunnels to your Turbo NAS. The built-in VPN functions in
the Turbo NAS supports two dierent congurations: a client-to-site VPN, which allows clients to securely connect back to the NAS,
and a server-to-server VPN, which allows a Turbo NAS to connect to another Turbo NAS across a WAN. In the client-to-server VPN
conguration, employees or users can access enterprise IT resources remotely through their mobile devices such as smartphones
and tablets. Furthermore, they can also access websites that may be blocked in your network environment through the VPN service.
Turbo NAS as a VPN Server
Computers at home
Notebooks at Shanghai office
VPN server
Intranet
resources
Intranet
Mobile devices such
as smartphones
Internet
VPN server
Internet
10
Computers at home
Notebooks at Shanghai office
Mobile devices such
as smartphones
VPN Client
VPN IP :192.168.0.2
VPN Client
VPN IP :192.168.0.3
VPN Router
VPN IP :192.168.01
Marketing computers
Marketing computers
Research and development of computer
Sales computers
Sales computers
Off-site employees'
tablets
Intranet
Intranet
resources
VPN server
VPN server
VPN server
Internet
Internet
Internet
Internet
Computers at home
Notebooks at Shanghai office
Mobile devices such
as smartphones
Marketing computers
Research and development of computer
Sales computers
Off-site employees'
Intranet
Intranet
resources
VPN server
VPN server
Internet
Internet
QTS 4.1.3 OS
In the server-to-server VPN conguration, VPN can better protect your data when you use services like BitTorrent and eMule). By
using this type of conguration, you can set up remote site backup with secure data transmission.
Turbo NAS As a VPN Client for File Download
VPN Client
VPN IP :192.168.0.2
VPN server
Internet
Internet
VPN Client
VPN IP :192.168.0.3
Turbo NAS as a VPN Client for Off-site Backup
Tokyo office
VPN client
Shanghai office
VPN server
Internet
Headquarters
Private network
VPN server
VPN Router
VPN IP :192.168.01
Hong Kong office
VPN client
Internet
Singapore office
11
VPN client
VPN client
Intranet resources
Rackmount NAS Servers
Marketing computers
Research and development of computer
Sales computers
Facebook
Twitter
Proxy server
Internet
Squid: the popular web proxy server
The web proxy provides cache and connection control for internet services like HTTP, FTP. For companies that need a boost to web
response time and security, Squid can be leveraged to make your Turbo NAS a web proxy server to protect other devices in your
local network from internet attacks.
Caching: Improves response times and saves bandwidth required for web access by caching visited web content and other web resources.
Access control: blocks access to certain websites or restricts access for internet connections.
Logging: logs visits to web sites for generating statistics to aid in network management.
Load balancing: distributes the load to several web servers to accelerate service requests.
Turbo NAS as a Proxy Server for Access Control
Marketing computers
Facebook
Case study for VPN + proxy services
Company X decided to open an overseas branch to expand its sales. In a fast-paced, competitive business environment, it is more important than ever
to keep your employees connected to the people and resources they work with every day. Hence, the management team of this company required
using networking technology to reach this goal.
The IT personnel of Company X found that a QNAP Turbo NAS is easy to set up and use. It not only provides everything needed for a data storage, but also
oers VPN and web proxy services for network access to employees in the main oce, as well as home and branch oces. Furthermore, the consumption
of bandwidth is minimized while improving the web access experience by using the web proxy function oered by Squid on the Turbo NAS.
Now, the employees of Company X enjoy secure, high-speed connectivity to the Internet and their business networks—both inside and outside the
oce to eciently retrieve product information as soon as it is announced. And the IT personnel rely on the scheduled backup from branch oces to
the main oce for peace of mind.
Marketing computers
Internet
Proxy server
Sales computers
Twitter
Sales computers
Off-site employees'
tablets
VPN Client + Proxy Server
Internet
VPN server
12
AC mains
UPS support
WiFi Router
USB signal
detection
UPS AC powerUPS AC power
Ethernet
QTS 4.1.3 OS
Uninterruptible Power Supply (UPS)
Activate the UPS support to ensure the Turbo NAS is properly shut down if power fails. In the event of a power failure the Turbo NAS
will shut down automatically or enter auto-protection mode by probing the power status of the connected UPS unit. You can set up
the function by clicking QTS [Control Panel] > [System Settings] > [External Device] > [UPS].
Case study for NAS connecting to a USB UPS
You can set the Turbo NAS to shut down or enter auto-protection mode if the power fails, and determine the action after few
minutes of the power failure. Once the auto-protection mode is activated, the Turbo NAS will revert to the state before power
failure and continue to operate when the power restores.
UPS support
USB signal
detection
AC mains
UPS AC powerUPS AC power
WiFi Router
UPS with SNMP management
Ethernet
When the Turbo NAS and the SNMP-based UPS server connect to the same network, you can select [SNMP connection] and
enter the IP address of SNMP UPS server to set up the power failure notication.
Ethernet
UPS supporting
Switch
Switch
SNMP
13
UPS AC
power
UPS AC power
UPS AC powerUPS AC power
AC mains
Rackmount NAS Servers
AC mains
AC mains
UPS supporting
SNMP
UPS support
Switch
WiFi Router
USB signal
detection
Ethernet
UPS AC powerUPS AC power
UPS AC
power
UPS AC power
UPS AC powerUPS AC power
Switch
Ethernet
Multiple NAS units share USB UPS
The network UPS "master" is connected to the UPS via USB cable. If the power fails, the UPS sends a notication to the network
UPS "master" via USB and all the UPS "slaves" are informed by the UPS master via Ethernet. To set your Turbo NAS as a UPS
"slave": connect the UPS and the Turbo NAS by USB, select [NetworkUPS slave], enter the IP address of the master server, so the
slave server will get notication when the power fails.
Step 2:
Enter the IP address of the master server
Step 1:
Select "Network UPS slave"
Low power shutdown signal
Ethernet Ethernet
Turbo NAS (UPS Slave) Turbo NAS (UPS Slave)
UPS AC power
Turbo NAS (UPS Master)
WiFi Router
USB signal
detection
UPS AC power
UPS AC power
UPS
UPS
AC mains
14
QTS 4.1.3 OS
myQNAPcloud
SmartLink
myQNAPcloud connection
With the myQNAPcloud service it´s easy to create a personal/private cloud for enjoying your Turbo NAS
services safely and conveniently.
myQNAPcloud ID ( QID )
Access your Turbo NAS by signing into your myQNAPcloud portal (www.myqnapcloud.com) with your "QID": a unique ID for you to
access your Turbo NAS and securely share your private data and les.
Publish and share
myQNAPcloud is an easy-to-setup service that simplifies the steps in publishing Turbo NAS content over the Internet. On QTS
myQNAPcloud, you can select numerous web-based Turbo NAS services, such as Photo Station, Music Station, and File Station to
be published to the myQNAPcloud.com website. Likewise, you can easily view friends' public services on the myQNAPcloud.com
website too.
Web-based file management
The myQNAPcloud portal enables you to manage multiple Turbo NAS units in one place. With the easy-to-use management
interface, you can simply download, move, and copy les on your Turbo NAS, lessening the diculty in accessing multiple Turbo
NAS servers. All you need is to sign into myQNAPcloud.
Trustworthy file protection
To ensure the security of remote access service, myQNAPcloud strengthens keys on SSL Certicates to 2048-bits. The les on the
Turbo NAS are 100% under the NAS owner's control.
myQNAPcloud Connect
15
myQNAPcloud Connect application is designed for
Windows PC users. By installing the myQNAPcloud
Connect, users are able to connect to the Turbo NAS
and easily manage les by dragging-and-dropping
within Windows Explorer.
Rackmount NAS Servers
CloudLink for easy remote access
myQNAPcloud features the new CloudLink App (QPKG) for an easier remote access experience. Without any
complex router settings, all you need to do is install the app and login with your myQNAPcloud ID (QID), then
you can access to your Turbo NAS through the myQNAPcloud.com website. CloudLink will automatically
choose the best way to connect based on your network environment. CloudLink supports access to the Turbo
NAS via mobile devices with the Qle/Qmanager apps or via computer with the Qsync utility. Visit the QNAP
App Center to download the CloudLink App (QPKG), and experience the new myQNAPcloud Smart Link
remote access service.
16
QTS 4.1.3 OS
Qsync: A Powerful Utility for File
Synchronization in Business & Personal
Applications.
Public cloud files synchronization services such as
Dropbox can greatly increase the efficiency and
productivity of offices, but comes with certain
drawbacks:
1. Security: there is the possibility of data leaks and
interception of condential information.
2. Cost: the greater the size of your data storage needs,
the greater the cost of the service.
With QNAP's Qsync utility on Turbo NAS, IT administrators can create a Dropbox-like private cloud with a larger storage capacity to
fulll business needs. Any les added to the Qsync folder will be automatically accessible across multiple devices linked to the Turbo
NAS, and synchronized with different work groups flexibly and effortlessly. With no additional costs or storage limits, Qsync can
centralize les from dierent work groups and assist in teamwork on important projects anytime, anywhere.
7 reasons why you need Qsync
1. Cross-device synchronization
Qsync turns your Turbo NAS into a safe data center for les synchronization. Every le uploaded to the Qsync folder will be
made available to multiple devices including computers, laptops and mobile devices. When you are away on a business trip,
Qsync ensures that the most up-to-date les are accessible on all linked devices and reduces your need to rely on USB storage
to carry les and on emails to get the latest les.
17
Synchronize with Windows
Synchronize with Mac
Synchronize with iPhone/Android
smartphones via Qle. Synchronize with
iPad via Qle HD
2. Intelligent offline editing
You can edit your files offline and once your device is online,
Qsync will automatically sync them. This oine editing feature
ensures your les are protected without any information loss.
3. Flexible synchronization methods
Qsync has many sync settings to prevent taking up signicant
storage space on your computer. With both Full Sync and Smart
Sync options, you can choose to synchronize all the files in
the Qsync folder or you can enable the Smart Sync option to
remove local les without aecting the centralized les stored
on your Turbo NAS.
Rackmount NAS Servers
4. Share files & folders more efficiently
5. Auto-upload from mobile devices
You can enable the auto-upload option on the Qfile mobile
app and automatically sync your files to multiple devices.
Your meeting minutes, notes, and seminar recaps will be
automatically uploaded and synchronized as well.
You can create sub-folders within the Qsync folder,
share each with different work groups and everyone
with the same sub-folder is always kept up-to-date
with the latest files. All your files are shared via dragand-drop. With Qsync, your Turbo NAS becomes
an aggregative data center and greatly enhances
teamwork exibility.
6. Integrated version controls protect
against accidental deletion
The Turbo NAS will retain up to 64 versions of files
when they are modified, allowing you to retrieve a
specic previous version at any time. Even if you have
accidentally deleted the file you can restore previous
versions from the recycle bin. With capacity-efficient
restoration, the reserved version only keeps the
changes made to the le and assists in optimizing your
storage space.
7. High security
Qsync can create a private cloud within your intranet and benet from your existing secure network environment. The Turbo NAS
also supports HTTPS connection assisting in creating a safer, more reliable business network environment.
18
Unified Storage
Management
Unified Storage Management
QNAP's Turbo NAS business series is an unied storage system which can serve as iSCSI SAN storage and Turbo NAS. The powerful
Storage Manager can assist you manage iSCSI LUNs and volumes eciently.
Intelligent Storage Manager
The QTS 4.1.3 Storage Manager neatly presents tools and options for managing system storage with an intuitive graphical
interface. Pools, disks and iSCSI storage, the Storage Manager provides a centralized place to easily manage dierent hard drives
(e.g. SAS HDD and SATA HDD) and to maximize storage usage of the tiered and unied storage.
3
2
Shared
folder 1
Volume 1
Storage pool Storage pool
RAID Group 1
LUN 1
(File-Level)
Hot spare
HDDs
1
Turbo NAS
Dashboard
￭
The Storage Manager dashboard presents an overview for IT
administrators to easily check the storage allocation status.
QTS 4.1.3 provides a more secure and exible way to store
and manage the NAS data. This next generation volume
offers powerful features such as storage pooling with
multiple RAID groups, thin provisioned volumes with space
reclamation, and online capacity expansion. Just click “New
Volume” and you can start to allocate capacity.
Shared
folder 2
Volume 2
RAID Group 2 RAID Group 3
LUN 2
(File-Level)
LUN 3
(Block-Level)
Expansion units
19
In addition to Storage Manager, IT administrators can also
check the storage pool and volume status on File Station.
Rackmount NAS Servers
1
2
HDD Management
IT administrators can view the HDD information
to check the HDD allocation status for RAID
group. With the information, it can be ensured
that there is no idle HDD for the maximized
utilization of the storage resources.
Storage Pool
IT administrators can aggregate multiple RAID
groups into a big storage pool to exibly utilize
the storage capacity as a whole, protect them
using redundancy and allowing for better
protection against multiple disk failures for
large-capacity environments. Multiple volumes
can now be created on the Storage Pool to
provide exible deployment.
3
Flexible Volume
Allocation
QTS 4.1.3 allows creating multiple volumes on
the Storage Pool for various applications in
typical business environments with different
workgroups. Each data volume and LUN can
be extended up to 250TB without interrupting
services.
Thin provisioning
Over-allocation allows a server to view more storage
capacity than has been allocated in the storage pool.
Furthermore, the physical storage capacity is used
only when les are written by the application, thereby
improving utilization rates.
Thick provisioning
The physical storage capacity is dedicated up front when the
storage volume is initially allocated.
Efficiently use storage spaces with incremental allocation. Allocate all spaces specified and they cannot be used
by other volumes or LUNs.
Unified Storage Management
20
Unified Storage
Management
iSCSI LUN
QTS 4.1.3 supports two types of LUNs for ecient storage utilization: block-level and le-level iSCSI LUNs. The Turbo NAS also
supports multiple types of congurations for server connections:
- Single LUN or multiple LUNs per iSCSI target.
- Multiple iSCSI targets for a single LUN, only used for clustered environments
Block-Level iSCSI LUN
Besides storing data, volumes can be utilized as an iSCSI LUN. The block-level iSCSI LUN provides less overhead which improves
the overall read/write performance.
File-Level iSCSI LUN
Users can consider le-level iSCSI LUNs if there isn’t enough space for block-level iSCSI LUNs. The le-level iSCSI LUN can be
used for creating a disk image for an iSCSI LUN.
Both block-level and file-level iSCSI LUNs support thin provisioning, space reclamation, and online capacity
expansion. We recommend using block-level iSCSI LUNs unless there is a limitation on space usage.
Virtual Disk Drive -
Virtual disks provide a more flexible way for IT
administrators to expand storage. By using the
built-in iSCSI initiator to connect an iSCSI target
of the Turbo NAS, you can create a virtual disk
on the local server. The Turbo NAS can be a stack
master to connect up to 8 virtual disks or stack
targets, aggregating storage space from multiple
NAS systems. Thus, all NAS users only need to
connect to a single target to access the space
from all of the network storage devices.
For every virtual disk on the local server, it
will be seen as a single drive of disk arrays.
Increase exibility of storage expansion
Set as Stack Master
Turbo NAS
LUN A
LUN B
LUN C
Turbo NAS
iSCSI
21
LUN A LUN B LUN C
Set as Stack Target
Rackmount NAS Servers
QNAP high-performance unied and tiered storage solutions
Data used by businesses continues to grow exponentially and with greater diversity in data types and importance. It is
imperative to oer a secure and ecient storage solution that can process this enormous amount of data while minimizing the
total cost of ownership.
Establishing a tired storage system based on efficiency and capacity can aid in improving overall processing efficiency.
Businesses can classify data accordingly by sharing folders with a le-based storage system and processing les that require
more demanding data throughput with a block-based storage system to accommodate dierent usage models.
QNAP Turbo NAS business series can exibly congure dierent tiers to hard drives on a single unit according to dierent data
usage needs, delivering the best unied and tiered storage solution.
Tiered storage for better eciency
In the cloud era, businesses need a storage architecture that can provide rapid access to dynamically scalable and virtualized IT
resources. Classifying data into Hot Data (frequently-accessed) and Cold Data (rarely-accessed) to store them in a tiered storage
can help achieve this goal eciently and cost eectively. Businesses often use SSD to improve the overall workow of random
IOPS demanding applications such as databases and virtualization. Different types of storage media are used for different
purposes. Hence, it is better to utilize dierent storage media according to the system requirements.
Tier 1 Tier 2
Storage Type
Characteristic
Usage Scenario
Usage Example
Typical Use
Criterion
SSD SATA HDD
Balance of efficiency, capacity and usability Ubiquitous, convenient, and inexpensive
Online transaction processing (OLTP)
Systems and ERP databases
Data, audio, email, database table, and video creation
and other operations of the workflow in a virtualized
environment
A wide variety of users and environments where
performance is crucial
Weighs more on IOPS, throughput and resiliency Weighs more on data volume and low cost per TB
Archiving, online and offline backup storage, disaster recovery
Low cost and energy saving
Typical for data at rest
The following is a comprehensive comparison of general tiered storage devices.
Hard Drive Solid State Drive (SSD) SATA Hard Drive
Features
Price $$$$$$ $
Capacity 80GB~1TB 500GB~6TB
Performance Very high Moderate-low
Interface SATA (Single Port) 6 Gb/s SATA (Single Port) 6 Gb/s
RPM N/A 7200-RPM
Low power consumption, no noise, antivibration, low
heat, fast speed
Large capacity, lower reliability and performance
External Continuous Transfer Performance 400-500 MB/s 100-170 MB/s
Average Response Time (Milliseconds) N/A R:9.5/W:8.5
Input/Output Operations Per Second (IOPS) 120,000/40,000 Less than 100
Unrecoverable bit read error 1 LBA per 10E16 1 LBA per 10E14
Mean Time Between Failures (MTBF, hours) NN/A 0.8 million
Unified Storage Management
22
File Management
File Management (File Station)
File Station
￭
With File Station, you can easily manage, upload, download, share les, and enjoy media playback anywhere
with a web browser. File Station brings conventional le operations performed on the computer desktop to the
web browser.
File upload
Easily upload the les to your Turbo NAS by dragging and-dropping them into File Station.
Photo slideshow
Right-click on selected photos to play a smooth slideshow.
Mutual file sharing
You can easily share multiple files in a shared folder with
friends via a Share Link. By activating the le upload function,
your friends will be granted the privilege to upload files to
your File Station without requiring an user account. You can
even set an expiration time for shared les.
Media streaming & playing
File Station supports VLC for multimedia streaming. Just click
on your photos, music and videos to directly play them. The
slideshow display helps gather media files in an organized
manner for you to preview and play.
23
Rackmount NAS Servers
Click and play videos
Turbo NAS supports realtime transcoding which allows immediate and smooth video, music, and photo playback. No need to wait for
the les to be converted in advance.
Real-time transcoding allows maximum 12 users to simultaneously
connect and watch videos. Offline transcoding allows more users.
Check page 19 to learn more about transcoding feature.
View and edit Microsoft Office files
Use Google Chrome browser with its office extension to open
and edit the following Microsoft Oce les: .doc .docx .xls .xlsx
.ppt and .pptx
Recycle bin
The recycle bin helps retrieve files accidentally deleted. It is
categorized by shared folders to increase le retrieval eciency.
Check shared folder usage and space
utilization
The updated user interface of QTS 4.1.3 File Station provides a
detailed view of the designated volume and space usage of the
shared folders to assist you manage space utilization.
Advanced quick search
File Station provides smart filters for
file searching and browsing by file size,
modied date, le name, and so on. Pop-up
thumbnails enable you to quickly & clearly
preview les. File browsing is more intuitive
with File Station.
Photo thumbnails
preview
File Station makes file management
easier by showing thumbnails of photos,
music and videos.
Compress/Extract multiple files
If you need extra space you can easily compress les & folders
into a Zip file. You can also easily unzip files straight to File
Station.
File Management
24
File Management
Qle: Share les with mobile devices
You can install the Qle app on your mobile device to browse and manage les stored on your Turbo NAS anytime,
anywhere.
Access from anywhere
Open Qle on your mobile device to browse les on the Turbo NAS. You can open or share les, and easily
rename, copy, move, download any selected les.
Auto-upload photos
Automatically upload photos to your Turbo NAS whenever you take new photos. It works as a real-time backup
of your precious photos.
25
Qle will download the le to your handheld device and send it via your
default email function. This file cannot exceed 20MB, so please ensure
there is enough free space on your device to save the le.
Install Qfile on your mobile device to browse and manage files stored on
your Turbo NAS anytime, anywhere.
Rackmount NAS Servers
Stream multimedia contents
Use Qle to stream multimedia contents to AirPlay or DLNAcompatible devices and play to enjoy them.
Share files instantly
Qle provides various ways for instant le sharing, including email or
SMS. Qle also provides Share Links to easily share large les. You can
paste the Share Link on instant messenger such as LINE, WhatsApp,
WeChat, and more to share les with others.
Your friends can click on the Share Link to download the les.
File Management
26
Set as VPN Clients
Set as VPN Clients
Set as VPN Clients
Q'center CMS
Q'center CMS (Central Management System)
Previously, IT administrators need to log in to Turbo NAS units individually to check their status. The QNAP Q'center
CMS (Central Management System) offers a platform to centrally manage multiple NAS units. You only need to
install Q'center on the master NAS and set all other Turbo NAS units as managed stations. You can also monitor and
update rmware for all Turbo NAS units at once with this centralized management utility.
Q'center Network Architecture
In order to use Q'center to monitor multiple Turbo NAS units, you have to set up the master Turbo NAS and other managed devices
in the same network environment. QTS 4.1.3 provides the VPN server and VPN client function, making it easy for IT managers to
establish the internal network architecture for Q’center deployment. Just set the master device as a VPN server and other devices the
VPN clients, and the internal network environment will be established by VPN protocol automatically.
Corporate Headquarter
(Q’center Master)
Tokyo Office
Set as VPN Server
Shanghai Office
The Best Utility for IT Administrators
Increase IT Management Efficiency
1. User-Friendly Management Interface
Not only can you monitor the system status for all Turbo NAS units, but you
can also view their firmware information and system logs. You no longer
need to log in to NAS units individually for such information. Besides
viewing system information, IT administrators can update the rmware for
all Turbo NAS units at once with a single click.
Singapore Office
27
Rackmount NAS Servers
2. Simplify IT Asset Management
Q'center presents overall reports of all Turbo NAS units based on the characteristics of a NAS system or its components such as
model or disk capacity, helping you keep track of all your storage assets.
Enhance System Availability
Q'center has an email notification function to notify
administrators of any predefined system conditions. You can
set up alert policies based on the criteria such as CPU usage or
volume usage for a group of selected NAS units, and you will be
alerted if any one of the criteria of a policy is met.
Increase Storage Utilization Rate
IT administrators can monitor capacity usage on every Turbo
NAS to gain insight about space utilization. They can better
allocate storage resources accordingly to maximize the
utilization rate for each Turbo NAS.
Enhance Reliability and Serviceability
By monitoring CPU, memory usage and other performance indicators on a daily or long-term basis (e.g. monthly or yearly),
you will gain a complete view of how well the system performs. You can also analyze how certain tasks (such as download, le
conversion, or encryption) aect the overall system performance. Furthermore, IT administrators can check system performance
anytime to help them redistribute tasks or loads among NAS units or upgrade their systems when they are running on resources.
The report function can generate a series of charts and graphs that display system information to help IT administrators
proactively plan system upgrades and respond to system failures or degradation, as well as evaluate how the eective storage is
used. Statistics collected can be kept for an entire year for capacity planning.
Q'center CMS (Central Management System)
28
Virtualization Station
Virtualization Station
The Turbo NAS series supports Intel VT-x and virtual machine applications. Just download Virtualization Station
from the App Center, and you can install & operate multiple operating systems including Windows, Linux, and
UNIX. The virtual machines can be used in a variety of dierent ways to boost the functionality of your Turbo NAS,
just like having multiple computers with you.
NAS APP
More..
Virtualization technology is normally used in enterprise IT environments, but with the growing needs of a digital oce, virtualization
is now our everyday applications. Many oces have printers, and when users want to print the documents stored on their Turbo NAS
and realized that the printer requires a Windows-only driver, they will need to boot up their PC just for this simple task.
Virtualization System
Office
Linux
VM1 VM2
Storage Management
Security Management
Linux
kernel
VM3 VM4
29
Create multiple VMs on Turbo NAS
You can carry out the above scenario in a VM using the below steps.
Download Virtualization Station from the App Center and create a Windows-based VM
1
Install the printer drivers in the VM
2
Map the destination folder into the Windows-based VM and set the folder as a network drive
3
Access the VM remotely via a web browser to select a photo and then print it
4
Rackmount NAS Servers
The network usage of Virtualization Station is isolated from the Turbo NAS. One Ethernet cable is reserved for the Turbo NAS, and so you will
*
need to connect at least one more cable for the Virtualization Station.
How to map the destination folder into a Windows VM? Please follow these steps: (Using Windows 7 as an example)
A
Go to "Computer" and click "Map network drive"
B
Please enter the IP address of your Turbo NAS and click "Browser". Select the folder you want to use and click
"Finish".
C
This folder will appear as a network drive on your "Computer"
USB devices (USB Passthrough)
QNAP Virtualization Station supports connecting USB devices to virtual machines. Commonly used USB devices can be
connected to virtual machines, and you can select the device using Virtualization Station.
This can be used together with QVM Desk just like a PC.
For document management, you can connect USB card
readers/scanners to a Turbo NAS via Virtualization Station
and store scanned data directly to the Turbo NAS without
taking up Internet bandwidth.
Virtualization Station
30
Virtualization Station
The highlights of QNAP's exclusive virtualization technology
Direct access to files & data via VM
Specific file formats cannot be opened directly by the
Turbo NAS, but the Virtualization Station makes it possible.
Administrators can install Windows, Linux, and UNIX on the
Turbo NAS to run any supported application or le.
QTS File Station
Save bandwidth & time
SolidWorks on Windows
Virtual Machine
Enhance security and save bandwidth
When accessing files & data on a virtual machine they are
not transmitted outside of the Turbo NAS. This provides a
secure environment that prevents sensitive data from being
intercepted and also saves bandwidth & network resources
when you need to access large les.
Downloading a large amount of data to a local PC can
take a long time and use up network bandwidth. When
accessing data on the Turbo NAS through virtual machines
on the Virtualization Station, you can enjoy secure data
transmission and save bandwidth & time as the data is not
transmitted via physical network cables.
Microsoft® Window®
Virtual Machine
31
Dedicated network for VM only
The Virtualization Station provides functions for network
monitoring. You can monitor all NIC (network interface
controller) trac and assign a specic NIC exclusively to a
single VM.
User-based permissions settings
The Virtualization Station administrator can create users and
set proper permissions for each Virtual Machine (VM), helping
to efficiently manage and allocate VM resources for users
with dierent needs. With these permissions, users can work
independently on their VM without worrying about their work
being interrupted or data being lost because another user has
accidentally powered-o the VM.
User-based permissions include:
Console permissions: Control and View-only
VM controls: Snapshot and Advanced
Rackmount NAS Servers
Operate VMs as Remote Desktops
Enjoy utmost convenience by operating Windows, Linux
and UNIX-based VMs as remote desktops. A list of buttons
is provided on the left side of each individual VM display,
allowing users to suspend, shutdown, force shutdown, reset,
bring up key combinations
keys, and even take snapshots for the VMs.
Ctrl AIt Del
& function
QNAP QVM Desk
QNAP QVM Desk supports local display for deploying virtual
applications on a big screen when connected to a HDMI monitor,
keyboard, and mouse. Compared to webpage operations it's
smoother, more secure, and worry-free to do on a Turbo NAS.
Even when Internet connectivity is limited, you can still access
data and run virtual machines on a Turbo NAS.
Linux Android
Windows
Budget-friendly QNAP Turbo NAS for cloud computing
To meet the growing demand of cloud computing, solution providers offer a variety of services to their customers. Customers can leverage
computing or application services with cloud computing in lieu of system maintenance and conguration. However, public cloud services can
have shortcomings. Complying with high standards of security and evolving regulations as well as controlling long-term operating costs are
among the major concerns of public cloud services. Most cloud computing pricing depends on the amount of resources consumed such as
computing power and a subscription period. The integrated Virtualization Station of QNAP Turbo NAS can help your enterprise develop a costeective strategy with the aforementioned tiered and unied storage to manage and store your data, potentially maximizing storage capabilities
per TB. It is the industry’s best private cloud architecture to counterbalance the disadvantages of public cloud services.
AWS EC2
vCPU Cores: 2
Capacity
Available Region
Operating System
Price
1.
Cloud CPU capacity measurement varies from vendor to vendor; here we only present it with vCPU core numbers.
2.
The prices shown here are directly replicated from service providers’ websites.
3.
The price does not include OS license fees for Virtualization Station.
1
2
Memory: 7.5 GiB
Storage: 32 SSD
(m3.large)
Global Global Global U.S. Global
Windows Server Windows Server
$0.266 / hr $0.188 / hr One-time investment
Rackspace
Pulibc Cloud
vCPU Cores: 4
Memory: 4GB
Storage: 80 GB SSD
(General 1-4)
QNAP Turbo NAS Series
Virtualization Station
vCPU Cores: Max. 8
Memory: Max. 14GB
Storage: 8TB SSD
Windows, Linux, Unix and
Android
3
Virtualization Station
VMware vCHS Google IaaS
vCPU Cores: 2
Memory: 8GB
Storage: 80 GB SSD
Windows Server Windows Server
Calculated annually Calculated annually
vCPU Cores: 2
Memory: 7.5GB
Storage: 375 GB SSD
32
QvPC Technology
Powered by QNAP's Exclusive QvPC Technology
About QvPC Techonology
Based on Software-dened Everything, QvPC Technology is the result of years of R&D eort that QNAP has put into developing
and perfecting its software and hardware expertise. QvPC Technology has consolidated a number of high-end technologies
and latest IT trends including VM integration, multimedia transcoding, HDMI output, cloud integration, and NAS connection
technologies, allowing users to operate Turbo NAS as a PC when they plug in a keyboard, mouse and monitor. QvPC Technology
can turn a NAS into a low-cost & high-performance 2-in-a box NAS that can function as a NAS and a PC. Whether you are working
in a studio or at a remote site, you are assured to receive the best user experience.
QvPC Technology features HybridDesk Station (HD Station) as the user interface, which consists of QVM Desk, Defense Desk, and
Local Display Desk and provides SMBs various software applications.
Linux
Virtualization
USB Pass-through
USB Connector
Station
QVM Desk
Defense Desk Local Display Desk
HD Station 2.0 (HybridDesk Station 2.0)
NAS Firmware
NAS Hardware Platform
All trademarks in this brochure are the property of their respective owners.
*
Connect a monitor with a HDMI
cable, and you can enjoy a
variety of applications with HD
Station 2.0. You can initiate the
service in QTS system and install
different applications according
to your needs.
33
QVM Desk
Defense Desk
Local Display Desk
Rackmount NAS Servers
The highlights of QNAP's exclusive QvPC Technology
HD Station 2.0 (HybridDesk Station 2.0)
HD Station 2.0 is a monitor-based user interface based
on QNAP's exclusive QvPC Technology. Simply plug in
a keyboard, mouse, and HDMI monitor to a Turbo NAS,
and you can start the installation process and access
data without connecting to a PC, tablet, or smartphone.
A variety of local display applications are available on
HD Station including QTS, Google Chrome, QVM, XBMC,
and Surveillance Station.
HD Station 2.0 is touchscreen enabled. Simply plug in a
touchscreen monitor and start using it immediately
Streamlined installation: No complicated procedures
necessary to install your Turbo NAS.
After purchasing a Turbo NAS, users usually install firmware from an installation disc and search for the Turbo NAS
on their network, or log in to the NAS manufacturer's website to complete the installation process. For users without
relevant networking knowledge, this installation process may be dicult. Some users decide to purchase other external
storage devices that can be instantly used (such as USB hard drives). However, these devices are "islands of information"
that can only be accessed by the computer they are connected to. These storage solutions also offer no protection
against failure, and are easily misplaced.
A Turbo NAS is an ideal solution for storing data. With QvPC Technology users only need to plug in a HDMI monitor,
keyboard, mouse and follow on-screen instructions to complete their NAS installation. Even users without any network
knowledge can easily set up and install a Turbo NAS. All les stored on a Turbo NAS are protected with RAID technology
and are accessible via the Internet anytime.
?
NAS
HDMI
NAS
Conventional installation: You need an disc or to log in
to a website to complete the installation, and it can be
complicated for general users.
Streamlined installation: simply plug in a monitor, keyboard
and mouse and follow the on-screen instructions to complete
the installation.
QvPC Technology
34
QvPC Technology
QNAP QVM Desk turns a Turbo NAS into an oce PC
Run Windows, Linux and Android virtual machines on a HDTV
Leveraging the virtualization technology, QNAP QVM Desk supports local display for a virtual interface and turns the
Turbo NAS into a PC when connected to a HDMI monitor, keyboard, and mouse. Any files on the Turbo NAS series
can be opened using virtual machines running Windows, Android, Linux, and Unix through QVM Desk. You can also
instantly switch between dierent virtual machines to meet your needs, just like using multiple PCs at the same time.
Compared to the operations via a webpage, it's smoother, more secure, and worry-free to do on a Turbo NAS. Even
when the Internet connectivity is limited, you can still access data and run virtual machines on a Turbo NAS.
Linux Android
35
35
Windows
Rackmount NAS Servers
RunAndroidonaNASwithQvPC
Have you ever feel constrained by the lack of storage space on your tablet or smartphone and have no idea where
to back up your les or what apps to delete for more space? With QvPC Technology, you can run Android on a virtual
machine, and back up apps or les like LINE, WeChat, Gmail, your phonebook, photos, and chat messages from your
Android device to the virtual machine with backup software like App Backup & Restore and My Backup Pro. This way,
the les on the pubic cloud can be stored on your private cloud. You no longer need to worry about having diculty
accessing your data anymore. In addition, your NAS can be transformed to an Android device and the millions of apps
on Google Play can be operated on it as well.
LINE Wechat Gmail Facebook
QvPC Technology
36
QvPC Technology
Defense Desk 24/7 safeguards your
oce and property
Live-view
QvPC Technology supports local display of live surveillance
feeds on the screen with a QNAP remote control. You don't
need an additional PC for live-view, nor do you need an
Internet connection to check the stored video recordings. You
can monitor up to 16 channels simultaneously, adjust PTZ
functions, and conduct audio surveillance. QvPC also supports
instant notification functions and will show alerts on the
monitored page should any incident happens, helping you
take immediate action and control the work environment more
eciently.
Playback
You can connect your Turbo NAS to a monitor to playback
recordings. Just select a timeframe, and you can search the
recordings within this period. It also supports video fastforwarding and rewinding (up to 16x speed). You can quickly
look for detailed images with the zoom function, and listen to
audio for key background sounds during the playback.
Manage Local Display Desk easily
Quickly install QTS and
access files
Just plug in an HDMI monitor/TV, keyboard
and mouse to a Turbo NAS, and within a few
simple steps you will complete installation and
be able to access les using the QTS operating
system.
37
Surf the web via Chrome/Firefox on TV
QvPC Technology supports HDMI-out and Google Chrome/Firefox, allowing you to surf the web
easily, and is ideal for oces to build an information search center with minimal costs.
Build an online music center with Spotify
Rackmount NAS Servers
Over a million songs can be found on Spotify. Create a media center and enjoy your music collections with your NAS
while at work.
Qremote mobile app turns your mobile device into a handy remote control
iOS® and Android users can download the Qremote app to turn their smartphones into a remote control to
conveniently play videos, music, and photos on TV via HD Station 2.0. The Ocial XMBC Remote app can also be used.
QvPC Technology
38
Business Solutions
QNAP's Unique Transcoding Technology
Every year many SMBs produce hundreds of promotional videos for marketing purposes. However, due to
the increasing use of HD videos (720p, 1080p), video files are becoming increasingly large in size and can
use lots of network bandwidth to share or play them over a network.
Transcode Management
With the popularity of high-definition
smartphones and digital cameras, video
resolutions are getting higher. A higher
resolution means larger file sizes and more
bandwidth needed to stream it. Transcoding
creates videos with optimal resolutions
for sharing & watching in order to save
bandwidth, but also retains the unaltered
original video on the Turbo NAS.
Smart transcoding adapts to suit dierent bandwidth
The Turbo NAS Series provides a range of resolutions to play/share videos according to different bandwidth limits. Higher
resolutions need more bandwidth, and you can select the right resolution for your network environment to get the best viewing
experience.
Resolution
Network
Ethernet
Wi-Fi
(108.11 ac)
Wi-Fi
(108.11 a/b/n)
4G (LTE)
240p 360p 480p 720p 1080p
4K2K
39
3G
Rackmount NAS Servers
Multi-mode transcoding function
4K 2K
Offline Transcoding
Background hardware-accelerated transcoding
The Turbo NAS fully supports oine background transcoding for 4K (H.264) videos. Just add videos to the transcoding list and use
the Turbo NAS to convert the original high-resolution video for use with multiple resolutions. Then you can select an appropriate
resolution when sharing or watching to match your device or network environment.
Auto transcoding
When you set a folder on the Turbo NAS to be an autotranscoding folder, videos added to it will be automatically
converted to a resolution you have set. For example, if you
set the folder to 360p, videos added to this folder will be
automatically transcoded to 360p as a background task .
On-the-fly transcoding
If you have many high-resolution videos, but did not transcode in advance, you can
use on-the-y transcoding. This will adapt to meet bandwidth limits, with the Turbo
NAS transcoding in real time for directly watching the video.
Embed subtitles
By selecting the Embed Subtitles option in the Transcode Management function,
you can embed subtitles to a video when converting a video to any resolution. The
subtitles will then be displayed when a video is played on whatever device you are
using.
Hardware-accelerated transcoding technology
With Intel® HD Graphics, video creation & conversion is faster, easier and can signicantly reduce the time needed when handling
multiple on-the-y transcoding tasks.
Performance
Compare the transcoding time between
the TS-453U-RP and
TS-469U-RP with using the same
high-resolution (1080p) video.
Powered by an Intel Celeron CPU with
QNAP's exclusive transcoding technology,
the TS-453U-RP is 18 times faster than the
Atom-based TS-469U-RP.
TS-469U-RP
18X faster18X faster
140 sec
2069 sec
TS-453U-RP
Transcoding times (sec)
Business Solutions
40
Business Solutions
Virtualization Applications
The Turbo NAS supports iSCSI & NFS protocols and is virtualization ready with compatibility for VMware®, Citrix®, and Microsoft®
Hyper-V to provide buasinesses with powerful & exible storage solutions for virtualization applications.
Virtualization ready
The Turbo NAS supports iSCSI & NFS protocols and is virtualization ready with compatibility for VMware®, Citrix®, and Microsoft®
Hyper-V to provide businesses with powerful & exible storage solutions for virtualization applications.
VAAI/Hyper-V plug-in support
Use the free QNAP vSphere Client plug-in and QNAP SMI-S provider for SCVMM and managing the Turbo NAS from the
virtualization management client console is easy.
Secure and exible storage utilization
The Turbo NAS oers exible management through creating and allocating iSCSI LUNs (Logical Unit Numbers), mapping and
unmapping LUNs to and from iSCSI targets, and thin provisioning. CHAP authentication and LUN masking support reinforces
secured deployment in virtualization applications.
NAS/IP SAN unied storage
QTS supports NFS and iSCSI/IP-SAN storage solutions that can be utilized as network-shared storage of virtualized environments,
helping to achieve an ecient cost-saving, energy-saving optimized storage capacity.
41
Rackmount NAS Servers
Deployment time for a 80 GB Thick Provision
Relative time for cloning a
VAAI for iSCSI, VAAI for NAS
The Turbo NAS supports VMware VAAI for iSCSI and
VAAI for NAS. Businesses can select either iSCSI or NFS
as a centralized storage to boost performance. VAAI for
iSCSI supports Full Copy (hardware-assisted copy), Block
Zeroing (hardware-assisted zeroing), Hardware-assisted
Locking, and Thin Provisioning with space reclaim. VAAI
for NAS supports Full File Clone, Extended Statistics,
and Reserve Space. The QNAP Turbo NAS supports VAAI
iSCSI and VAAI NAS to enhance storage performance in a
virtualized environment.
QNAP Turbo NAS:
Boosted Performance by ODX
With ODX
3
Token
1
Offload
Read
Virtual disk 1 Virtual disk 2
Other NAS
Windows Host 1
1
Read
Virtual disk 1
2
Token
2
Data
5
Data
QNAP Turbo NAS
3
Data
Other NAS
4
Offload
Write with
Token
Without ODX
Windows Host 2
4
Write
Data
Virtual disk 2
6
Results
5
Results
Eager Zeroed virtual disk (lower is better)
900
750
600
450
300
150
Relative time (seconds)
0
746
times faster!!
times faster!!
124
124
6
VAAI: block zeroing
Performance drop
performance impact!!
VAAI OFF
VAAI ON
Very small
80 GB VM (lower is better)
2,100
1,750
1,400
1,050
700
350
Relative time (seconds)
0
VAAI: full copy
1,764
times faster!!
times faster!!
374
VAAI: Hardware-assisted Locking
Storage for Microsoft
Hyper-V
With ODX support, the QNAP Turbo NAS becomes a highperformance iSCSI solution under Windows Server 2012,
including Hyper-V virtualized environments. QNAP storage
enables full copies of virtual machines within the NAS
without requiring the Windows hosts to read and write
the data to highly reduce the load on Windows hosts and
improving the performance of copy & move operations on
Windows 2012 hosts. When providing QNAP storage to a
Windows 2012 le server, the end user using a Windows 8
client workstation will also benet from the Ooaded copy
process for large le transfers.
4.7
4.7
NAS management
via SCVMM
QNAP SMI-S enables management of the QNAP Turbo
NAS directly through Microsoft System Center Virtual
Machine Manager 2012 (SCVMM)
vSphere plug-in
The vSphere plug-in allows users to manage the QNAP
Turbo NAS directly on the vSphere client, making
datastore management more eective.
Business Solutions
42
Business Solutions
5
Major Business Applications
Multipurpose workstation for business IT environment
1
IT Management Station
Powered by Mandriva® Pulse, IT
Management Station is designed
to simplify daily tasks and IT asset
management for businesses of all
sizes. Your Turbo NAS becomes an IT
system management server to help
you centrally manage multi-OS &
multi-site IT resources, applications
and security with greater exibility.
At the core of Pulse
Comprehensive Inventory
Pulse automatically retrieves hardware & software
information from your IT system using an inventory
agent to provide you with reliable and timely data.
It measures the potential of your inventory and runs
your IT assets tactfully, thanks to dynamic groups,
self populated from queries.
Mastering
Create generic disc images to carry out mass OS
deployments.
Remote Control
Help your users in their everyday tasks by
connecting from remote locations without
compromising the security of their IT assets.
Cloning
As part of a scheduled or on-demand restoration,
systems and their stored data can be fully backed
up easily.
Deployment
Design, schedule and implement software
installation on your IT assets.
Backup and Restore
Save time, optimize s tor age and protect data
from accidental loss using incremental backups.
43
New features in Mandriva Pulse 2.0
Rackmount NAS Servers
Reporting
Create and edit reports/graphs for better control of your IT
assets and to anticipate future changes.
Pull Mode
Increase the compliance of your roaming devices for
deploying packages needed in any environment.
Update Management
Centralize your software updates for greater control and
security.
Software Convergence
Eciently deploy software using an automated process.
License Management
Optimize your software assets with an overview of used
and available licenses.
Flexible management of your IT assets
Multi-OS
Manage all your IT assets and virtual machines no matter
if it is Windows, GNU/Linux, Mac or Unix.
Multi-site
Remotely & securely manage your sites via SSH tunnel,
simultaneously controlling the bandwidth and conserving
the availability of your network.
A simple web interface with an intuitive dashboard for quick
information regarding your IT assets.
Intuitive tools
Features a desktop icon for quick self
installation to facilitate access and remote
control of new deployments.
A unique management interface for software licenses and
automatic package management.
Business Solutions
44
Business Solutions
Surveillance Station
2
One of the standard Turbo NAS applications, the Surveillance Station is professional network surveillance Video
Management System (VMS) that can be activated in the QTS App Center to turn the Turbo NAS into a professional
Network Video Recorder (NVR) system for real-time monitoring, recording, playback, alarm notications, Intelligent
Video Analytics (IVA), and management to safeguard your assets and property when used with supported IP
cameras. The Turbo NAS comes with 2 free camera channels with optional license upgrades, allowing users to
easily build a surveillance system.
Live-view
Various remote monitoring modes
The Surveillance Station supports various monitoring modes
to display up to 64 channels on a single screen. Users can
also choose to sequentially display each channel or use dual
displays for more information.
Highly-professional NVR system
Wide range of supported IP cameras
Surveillance Station is compatible with over 2,800 IP camera
models across over 90 brands and ONVIF specifications,
including those that support advanced features such as multistreaming and sheye dewarping.
Comprehensive Turbo NAS support
The Turbo NAS offers 2 free IP camera channels and can
be expanded to 24 channels to fulfill various surveillance
deployment needs.
Cross-platform support
Surveillance Station works with all major web browsers
including Google Chrome, Mozilla Firefox and Internet
Explorer. With the QNAP Surveillance Client for Mac, users can
enjoy a similar experience on their Macs.
PTZ (Pan/Tilt/Zoom) control
On the Surveillance Station web interface, you can directly
adjust the PTZ (Pan/Tilt/Zoom) functions of supported
cameras, greatly enhancing the convenience in remote
monitoring.
Instant playback
On the Live-view page, whenever you want to check
suspicious events of a camera channel you just missed, just
hit Instant Playback to bring up the window to review recent
events.
Visual aid by E-map
Just upload pictures of monitored locations to the Surveillance
Station and drag & drop the IP camera icons to them on the
E-map. Once an alarm event happens, the camera icons will
flash to indicate the event type for you to be immediately
alerted to take necessary actions.
Instant notification
When alarm recording is enabled and an event occurs, an
alarm icon will be instantly shown on the monitoring page.
The alert details can be viewed by clicking the icon.
Advanced storage technology protection
Surveillance Station is installed on the Turbo NAS platform
and is protected against loss, theft, and damage of recorded
videos with the help of advanced security features and RAID
technology.
45
Please note: You can also use USB webcams for Surveillance
Station to record videos. Just install the QUSBCam App on
a Turbo NAS from the QTS App Center to assist in building
a small surveillance system for your office with USB
webcams.
Rackmount NAS Servers
Playback
Preview recordings by thumbnails
You can move the mouse cursor over the timeline to preview video thumbnails to quickly identify and search for events. No need to
play the video from the start and wait.
Intelligent Video Analytics (IVA)
IVA is an advanced way to quickly search videos corresponding to particular modes, greatly saving the time & eort of manually
screening out matching videos. IVA includes motion detection, foreign/missing
objects, out-of-focus and camera occlusion.
Real-time watermarking
The support of digital watermarking assists in verifying the authenticity of exported
videos and snapshots by showing the exact recording date & time, camera name,
and Turbo NAS model name, making it essential when videos are needed as
veriable evidence.
Playback and speed control by shuttle bar
With the speed control shuttle bar, you are able to fast forward playback by
dragging the button to the right and to the left to rewind, helping you quickly nd the desired screenshots.
Flexible Management
Flexible camera access control
You can create up to 32 user accounts on the Surveillance Station and exibly assign them to dierent user groups with dierent
rights for monitoring, playback, PTZ control, and audio monitoring.
Advanced event management
The system starts alarm recording when alarm events occur. Administrators can congure events and assign 7 types of event actions
to ensure that they are alerted immediately, including recording, PTZ Control, alarm output, email notification, SMS notification,
buzzer notication, and user-dened actions.
Expendable license management
The Surveillance Station comes with at least one free IP camera license for each Turbo NAS by default. Administrators can expand
the channel number by purchasing additional licenses based on their demands. This provides a exible and costeective method for
scaling surveillance needs.
Manage large-scale camera
By connecting multiple Turbo NAS units, you can simultaneously manage, monitor and playback up to 128 IP cameras with one
Turbo NAS.
Mobile apps
VMobile – Surveillance at anytime, anywhere
VMobile allows you to monitor the Surveillance Station
anytime, anywhere using iOS and Android devices. It provides
camera live-view, PTZ control, instant event notications, video
snapshot, video playback, and searching videos by date and
time.
Vcam – Turn your mobile device into a camera
Vcam turns your mobile device into a network camera. With the Vcam mobile app, you can
record any moment around you to your Turbo NAS, saving the need in buying expensive
IP cameras.
Business Solutions
46
Business Solutions
3
Signage Station
The Signage Station is a free Turbo NAS app that allows businesses to create attractive menu boards, advertising
posters, and business proles and easily publish them to monitors and tablet devices to attract more customers.
Drive business growth and increase revenue
Your content can be presented on a web browser and when on the go, and you can even show your profile, business card and
product catalogs on mobile devices and share on Facebook. The Turbo NAS with the Signage Station is an ideal tool to present
creativity and drive business growth.
Absolutely easy-to-use
iArtist Lite provides a drag-and-drop interface that allows you to exibly embed videos, marquees, pictures, and PowerPoint slides
on the canvas panel. With the layered playlist and timeline features, you can freely arrange the order of media objects. iArtist Lite also
oers numerous templates for various scenarios, saving you lots of time & eort. Useful widgets such as audio, clock, RSS are also
available to add to the designed content.
Instantly publish and conveniently revise
With iArtist Lite you can save your designs as different projects and upload them to multiple Turbo NAS with Signage Station
installed. Whenever you want to revise the content, just open iArtist Lite to update and publish instantly. You can fully control all your
content in a timely way.
Collaboration increasing efficiency
The original content can be saved on a local computer or the Turbo NAS with the help of the connection wizard. Content saved on
the Turbo NAS is accessible for every authorized user to increase the work eciency in projects involving multiple members.
47
iArtist Lite Create your
advertising content easily
How to make advertising content
on iArtist Lite?
The concept of dynamic multimedia content is quite simple: just drag & drop
media les to the iArtist Lite canvas and arrange it as required. Choose the
device that you want to display, such as tablet, HDTV or smartphone. After
selecting the device resolution you can select whether to present it in portrait
or landscape.
Introduction of iArtist Lite functions: :
Rackmount NAS Servers
Add new content
A
Open previous content
B
Save content
C
Upload to Turbo NAS
D
Preview design
E
Online template support
F
A B C D E F
Introduction of iArtist Lite tools:
• Video, photo, and music: Add the file to the canvas from Windows.
• Digital & analog clock: Supports multiple types of clocks and formats, just drag &
drop to canvas.
• Background image: Choose a background color or choose a background image.
• Mask: Add an image mask to the content.
• Text & banner: Edit the text on the banner you'd like to promote.
• RSS: Share an RSS link from a website to share messages.
• Digital menu board: Design a neat menu board, and edit the price and picture
anytime, anywhere.
• Combo menu board: Select the template and add the price and picture.
• HTML: Drop a website on the canvas for the most direct promotion.
• PPT and PDF: Easily add documents to the canvas including slideshows, retaining
the animations from the PPT.
Intuitive user interface with
timeline view
After dragging & dropping from the left panel to the canvas, each
media le will have a corresponding timeline at the bottom of the
canvas to allow users to easily manage their timing and placement.
Business Solutions
48
Business Solutions
mp4
RSS
Notes Station 2.0
4
QNAP has now leveraged its
private cloud functionality to
introduce Notes Station 2.0. It
provides the convenience of
notetaking on cloud-based
services but with the privacy
and security of Turbo NAS. Users do not have
to worry about risks from public storage, and
are able to enjoy easier data access at all times.
Single workspace for
all notetaking activity
With its 3-level structure (Notebooks, Sections, and
Notes), Notes Station 2.0 allows you to manage all
your notes systematically and flexibly whether it is a
note you write to yourself or for work. You can jot your
valuable ideas in Notes Station 2.0 and keep them
safely accessible through your own devices wherever
you are.
mp3
Notes Station 2.0
Powerful editing
Notes Station 2.0 is capable of advanced editing. You can style the text by changing the size, font, or color. You can also edit inserted
images with the built-in photo editor to enrich your content.
Google Calendar support
The event in the Notes Station Calendar links to the note you created it from. You can update the calendar from Notes Station 2.0 to
your Google Calendar with a single click, so you will be reminded for every event.
Upload to Google
Calendar
The events on your
Notes Station Calendar
49
Rackmount NAS Servers
Music
PPT
PDF
DOC
DOC
PDF
PPT
Music
Evernote Users
Good News !
High-performance
encryption
You can encrypt your notes with highperformance AES 256-bit encryption to
protect against unauthorized access.
RSS feeds import
If you have subscribed to RSS feeds
from news websites or blogs, you can
use Notes Station 2.0 to automatically
import the published contents.
PDF import/export
Notes Station 2.0 can import PDF files
into Notes Station 2.0, and export note
les (i.e. Notes, Sections, Notebooks) to
PDF les. When a notebook is exported,
the sections and notes of the notebook
transfer to the chapters and contents of
a PDF le respectively, and vice versa for
the import function.
Online preview
You can quickly view the attached les
in PDF, Word or PowerPoint format online
with Google Docs or Office Online.
Other le formats such as photos, music
and videos can be played instantly with
the built-in programs.
W
Notes sharing and collaboration
Notes Station 2.0 contributes to team work and networking. You can create a link for
your notes and publish them on your social networks or share them through the apps
on your smartphone. Thus, you can invite other people to
work on the same notes.
KIKI
Blogs
PC home
RSS
Blogs
David
Blogs
Snapshot
You can use the snapshot function to
back up dierent revisions of your notes.
Your notes can be eortlessly restored to
an earlier version. The QTS Snapshot is a
great tool to record the state of a note at
dierent time points. You can create up to
1,024 snapshots manually or by schedule
and it is easy to retrieve files from a
specic point in time if they are broken or
mistakenly deleted.
Evernote backup
Notes Station 2.0 comes with an import function to restore backups from Evernote. In
addition, you can directly access your notebooks in Evernote to import them online to
Notes Station without exporting.
Business Solutions
50
Business Solutions
5
Backup Station
Protecting against potentially disastrous data loss is of paramount importance for all sizes of businesses
from micro to enterprise. QNAP Turbo NAS offers an all-inclusive backup and recovery solution with
enormous storage capacity and superior transmission speed. With the functionalities in the Backup Station,
data backup and recovery is simpler and more powerful regardless of your business's dis
plan.
All-inclusive data backup and disaster recovery
1. PC Backup
Windows users can install the free QNAP NetBak
Replicator utility to back up files from Windows PC
- entire disk drives, documents, pictures, music,
videos, fonts, emails, and more - to one or multiple
Turbo NAS units. With simple clicks, you can set
up real-time backup, scheduled backup and autobackup. You can set power off after the backup is
finished to save energy, file filtering to exclude fi
not to back up, and email notification when backup
is completed.
les
aster recovery
2. Mac Backup
Mac users can use the Mac Time Machine to back up data
to the Turbo NAS. You only need to set the Turbo NAS as
the backup destination on the Time Machine management
page, and it's done.
51
Rackmount NAS Servers
Back up data on the Turbo NAS for disaster recovery
Data Center
From Turbo NAS
to external storage
From Turbo NAS
to another NAS
From Turbo NAS
to cloud storage
1. Local backup to external storage devices
Connect an USB device to one of the USB ports. Log into the QTS and go to “ Control Panel”>”Applications”>”Backup Station” and
create a job with the External Backup function.
2. Remote backup with RTRR/rsync services
- Use rsync protocol to execute scheduled backup to remote rsync server.
- Use RTRR (Real-Time Remote Replication) services for real time data backup to a remote Turbo NAS or FTP server.
- Use RTRR to sync shared folders between two Turbo NAS units.
3. Cloud backup to cloud storage
Users can back up the data from the Turbo NAS to online cloud storage services, such as Amazon® S3, Amazon® Glacier,
Microsoft® Azure, Google® Cloud Storage*, IBM® SoftLayer, HP® Cloud, Rackspace®, ElephantDrive®, hicloud S3, and CCIS. The
Turbo NAS also supports other types of cloud backup using S3, OpenStack Swift, WebDAV, or FTP service. Furthermore, Turbo
NAS provides advanced functions such as data encryption, compression, download/upload rate control and scheduled backup
to suit your backup needs.
* Google® Cloud Storage will be available soon in the App Center for download.
Tap on the “Copy” button near the USB port on
the front panel of the Turbo NAS to instantly
back up data to the Turbo NAS.
Business Solutions
52
Mobile Apps & Utilities
Share Files with Mobile Devices
You can install the Qle app on your mobile device to browse and manage les stored on your Turbo NAS anytime, anywhere.
Qle
Access from anywhere
Open Qle on your mobile device to browse les on the Turbo
NAS. You can open or share les, and easily rename, copy, move
and download any selected les.
Stream multimedia contents
Browse and play the music, photos and videos on the Turbo
NAS. No more worries about the space limitation of your mobile
device.
Auto-upload photos
Automatically upload photos to your Turbo NAS whenever you
take new photos. It works as a real-time backup of your precious
photos.
Offline file reading
Download documents, photos or music from the Turbo NAS to
your mobile devices for oine reading.
Vmobile
Mobile surveillance with ease
Vmobile is a professional surveillance mobile app for remotely
managing the Surveillance Station of linked Turbo NAS or the IP
cameras of VioStor NVR.
More advanced functions
Besides real-time monitoring, the Vmobile allows you to
remotely control the recording, snapshots, and playback. Once
alarm events occur, an instant notication is also provided.
Qmanager
Manage multiple NAS units
Add multiple Turbo NAS units on Qmanager, and conveniently
manage anyone of them anytime and anywhere.
Folder & file sharing
Create download links for shared folders or les and share via
email or SMS. You can also share by email as attachments.
53
Monitor system status
Monitor your system information, such as CPU usage, memory
usage, system event information, online users, etc. You can also
check connection status to prevent suspicious invasion.
Remotely manage
With one click, you can use Qmanager to turn on/o or restart
the Turbo NAS, open or close Turbo NAS services, and set up
Wake on LAN.
Utilities
Work eciently and manage the Turbo NAS smartly with the various easy-to-use and practical utilities.
Rackmount NAS Servers
Qnder
Qfinder is available for Windows, Mac, and Linux users to
quickly find and access the Turbo NAS over the LAN. You can
also update the rmware or set up Wake on LAN through the
Qnder.
Qsync
myQNAPcloud Connect
myQNAPcloud Connect is designed for Windows PC users to
connect to the Turbo NAS and easily manage les by drag-anddrop within the Windows Explorer.
NetBak Replicator
Qsync provides cross-platform synchronization. It creates a
specic “Qsync folder” in your devices that you can simply drop
les in, and synchronizes the les to all your devices linked to
the Turbo NAS.
QNAP NetBak Replicator helps you easily back up files or the
entire hard drive data from Windows PC to the Turbo NAS. It also
supports backing up to a remote server via FTP and WebDAV
through the Internet.
Mobile Apps & Utilities
54
App Center &
Add-on Values and Friendly
Development Platform
Development Platform
The QTS App Center provides various apps for you to install on demand, enjoy more applications and increase the value of your purchase.
Powerful and packed with features
The App Center provides over 100 apps, including backup/
sync, business, content management, communications,
developer tools, download, entertainment, surveillance,
utilities and more.
Install in demand
Find what you need and install it immediately with just one
click.
Upgrade reminder
If newer versions of your installed apps are available, an upgrade reminder will show on the QTS desktop to help you keep your Turbo
NAS applications up-to-date.
Most Popular Apps:
★
Gmail Backup
Gmail backup provides Gmail backup and recovery
functionality, allowing users to create individual
backup or domain account backup tasks. Gmail
can be backed up by schedule and the content
previewed through a web management interface.
Backed up mail can be restored to the original mail
account or other accounts: just congure the restore
account, enter the account and password and the
user can restore mail to the specied account.
Google Drive Sync App
Google Drive is a cloud storage service provided by Google that
lets users save their files online for accessing them anywhere. By
installing the Google Drive Sync QPKG on your Turbo NAS you can
select a shared folder to synchronize data with Google Drive or
simply use Google Drive as a backup destination.
55
Rackmount NAS Servers
Dropbox App
The Dropbox service is a cloud-based storage
service that allows you to access your photos,
documents, and videos anywhere, anytime
with easy sharing. However, the free space from
the Dropbox service is limited. To make it more
ecient you can connect it with your Turbo NAS
to store les.
How to use the Dropbox App?
The QNAP Dropbox app can synchronize your Dropbox account and your Dropbox folder on the Turbo NAS in both directions and in
real-time. After you install the Dropbox QPKG and log into your Dropbox account, a Turbo NAS folder called “home" will be created
and the synchronization process will start. With Real Time Remote Replication (RTRR), a built-in Turbo NAS function, you can easily
back up les from your Dropbox account.
The following multimedia applications are disabled by default on Turbo NAS to conserve system resources. To
enable them, go to “Control Panel" > “General Settings" > “System Administration."
Video Station
Build a corporate video website
Video Station is great for archiving and playing video collections
online. Just upload videos, and the Video Station will smoothly
play the video with an optimized resolution for your device and
bandwidth.
Easy video sorting
You can easily categorize your videos as company videos, movies,
TV shows, and music videos for greater organization.
Smart collection
Create a smart video collection that matches predened criteria for names and ratings, making it easier to nd the videos you want
to watch.
Easy video sharing
Share your videos with friends & family via email, download link
or social networking sites including Facebook, Google+ and
Twitter.
App Center & Development Platform
56
App Center &
Development Platform
Music Station
Organize huge music collections
Browse your music in multiple ways, create up to 200 playlists, and rate your music
to feature it in a "My Favorites" collection.
Cloud music center
Access the Music Station via the Internet to enjoy your entire music collection from
anywhere on any device.
Listen to thousands of Internet radio stations
With the built-in TuneIn radio, you can listen to thousands of local and global online
radio programs. You can also manually add new radio stations.
The free Qmusic mobile app allows
you to listen to your complete music
collection anytime and anywhere. Scan
the QR Code to download!
Direct audio output
Turn your Turbo NAS into a complete music system by connecting USB speakers for
direct audio output.
Photo Station
Centralized management
All of your photos, including RAW photos, can be
centrally managed with the Photo Station.
Photo captions
Adding captions for photos can aid in search. For example, you can manually add the date to selected photos and make them part
of your timeline.
Review photos on Google Maps
Retrace the steps of your photos by geo-tagging them and creating a map of your photo albums in Google Maps.
Private collection
Create a protected private collection of personal photos & videos that can only be accessed by you.
57
Rackmount NAS Servers
JRE for x86 NAS
Mono
Play by slideshows
Create attractive slideshows using photos and music stored on your Turbo NAS.
Group photo sharing
Share photos in groups by saving them in Team Folders in your Qsync folder, and allows people with access rights to the Team Folders
to browse those photos in their Photo Station.
Download Station
Your 24/7 download center
Once you nish managing download tasks, just turn o your computer
and they will keep downloading until they are nished.
Powerful BT search engine
Easily nd and add les to your download list with the built-in search engine.
Wide range of supported downloads
Supports downloading from BT, PT, Magnet, FTP/FTPS, HTTP/HTTPS and RSS.
Third-party Development Platform
With its open-source Linux kernel, QTS is a friendly development platform that allows software developers to create all kinds of
applications. Developers can also enjoy a more ecient R&D process with the backup, security, cloud storage tools, and reliable
Turbo NAS hardware design.
Dedicated customer service, sales and R&D support
QNAP Turbo NAS applications can be developed using the following three approaches:
Development Toolkit (API & SDK):
Developers can use the QNAP Development Toolkit (API & SDK) to design applications that run on client devices (such as
smartphones and PCs) to remotely manage and access les stored on their Turbo NAS.
NAS App (QPKG)
Development:
Developers can design add-ons/apps for the Turbo NAS
and have them seamlessly integrate with data stored
on the same platform. Developers can also distribute
their apps via the QTS App Center.
Value-Added
Integration
QDK: App Development Platform
QDK: App Development Platform
Language
MYSQL
C C++
GCC complier
PHP Perl
Python Ruby
Optware IPKG
VM Integration:
Depending on your OS needs, you can use VM
integration to install an alternative OS to run nonLinux-based applications on the Turbo NAS.
NAS API
Java App
JRE for x86 NAS
App Center & Development Platform
.NET App
Mono
58
Hardware Specification
TS-451U TS-453U TS-853U TS-1253U
NAS TS-451U-1G
CPU
Memory
Number of RAM Slots 2 (Max 8GB, SO-DIMM)
Flash 512MB (DOM)
Max. Number of HDDs/SSDs 4 4 8 12
HDDs/SSDs Formfactor,
Interface
Expansion Enclosure
Support
Gigabit LAN Ports 2 4 4 4
USB Ports
HDMI 1
LED Indicators Status, LAN, USB, HDD1-4 Power, Status, LAN, USB, HDD1-8 Power, Status, LAN, USB, HDD1-12
Buttons Power, Reset, USB Auto Copy Power, Reset Power, Reset
Form Factor 1U Rackmount 2U Rackmount 2U Rackmount
Dimensions (HxWxD) 44 x 439 x 499 mm / 1.73 x 17.28 x 19.65 inch 89 x 482 x 534 mm / 3.50 x 18.97 x 21.02 inch
Weight (Net/Gross)
Temperature and Humidity
Power Supply Specication Standard: ATX 250W, 110-240V AC, 50-60Hz, 5A / RP: Redundant, hot swap ATX 250W, 100-240V AC, 47-63Hz, 5A-2.5A
Power Consumption (W)
HDD Sleep 21.03 23.54 36.89 30.49 43.09 35.14 47.85
Typical Operation 38.01 39.86 52.88 82.31 98.53 83.52 126.59
File Sharing
Max Users 4096
Max User Groups 512
Max Shared Folders 512
Max Concurrent
Connections (CIFS)
Performance (MB/s) - Link Aggregation
Windows Upload /
Download
AES 256-bit Encypted
Windows Upload / Downloa
Dual-Core Intel® Celeron® 2.41GHz
(Up to 2.58GHz)
1 GB DDR3L 2GB / 8GB DDR3L
USB 3.0: 4, USB 2.0: 1
7.63 / 11.60 kg 7.63 / 11.60 kg 11.02 / 19.26 kg 16.14 / 18.98 kg
16.82 / 25.57 lb 16.82 / 25.57 lb 24.29 / 42.46 lb 35.58 / 41.84 lb
0-40oC, 5-95% R. H.
700 800 800 800
220 / 224 420 / 421 425 / 430 394 / 423
90.0 /128.0 158.7 / 240.9 163.8 / 273.0 163.0 / 271.0
TS-453U-2G /
TS-453U-8G
2.5" or 3.5" SATA 6Gb/s, 3Gb/s; hot-swappable, with keylock
TS-453U-RP-2G /
TS-453U-RP-8G
1 (UX-1200U-RP, UX-800U-RP)
USB 3.0: 4, USB 2.0: 1 USB 3.0: 4 USB 3.0: 4
0-40oC, 5-95% R. H. 0-40oC, 5-95% R. H. 0-40oC, 5-95% R. H.
4096 4096 4096
512 512 512
512 512 512
TS-853U-2G /
TS-853U-8G
Quad-core Intel® Celeron® 2.0GHz (Up to 2.41GHz)
TS-853U-RP-2G /
TS-853U-RP-8G
TS-1253U-2G /
TS-1253U-8G
TS-1253U-RP-2G /
TS-1253U-RP-8G
Design and specifications are subject to change without notice.
*
Accessories
Category Order P/N Description
Rail Kit
Memory
59
RAIL-B01 2U rail kit for TS-853U, TS-853U-RP, TS-1253U, TS-1253U-RP (ANSI/EIA-RS-310-D)
RAIL-C01 1U rail kit for TS-451U, TS-453U, TS-453U-RP (ANSI/EIA-RS-310-D)
RAM-2GDR3L-SO-1600 2GB DDR3L-1600 RAM Module SODIMM
RAM-4GDR3L-SO-1600 4GB DDR3L-1600 RAM Module SODIMM
RAM-8GDR3L-SO-1600 8GB DDR3L-1600 RAM Module SODIMM
Software Specification
Operating System
• QTS 4.1 (embedded Linux)
Supported Client OS
• Windows XP, Vista, Windows 7 (32/64-bit),
Windows 8 (32/64-bit), Windows Server
2008 R2, 2012, 2012 R2
• Apple Mac OS X
• Linux & UNIX
Supported Browsers
• Microsoft Internet Explorer 10+
• Mozilla Firefox 8+
• Apple Safari 4+
• Google Chrome
Multilingual Support
• Chinese (Traditional & Simplified), Czech, Danish,
Dutch, English, Finnish, French, German, Greek,
Hungarian, Italian, Japanese, Korean, Norwegian,
Polish, Portuguese (Brazil), Romanian, Russian,
Spanish, Swedish, Thai, Turkish
File System
• Internal drive: EXT
• External drive: EXT3, EXT4, NTFS, FAT32, HFS+
Networking
• TCP/IP (IPv4 & IPv6: Dual Stack)
- Not all services support IPv
• Jumbo frame support
• Proxy server (Squid package available in App
Center)
• Proxy client
• DHCP client, DHCP server
• Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS,
SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP,
SMTP, and SMSC
• UPnP & Bonjour discovery
• USB Wi-Fi
Security
• Network access protection with auto-blocking: SSH,
Telnet, HTTP(S), FTP, CIFS/SMB, AFP
• CIFS host access control for shared folders
• FIPS
data encryption*
• AES
256
• Importable SSL certificates
• Instant alert via email, SMS, beep
* The data encryption functions may not be available in
accordance to the legislative restrictions of some countries
(ex. Russia, Belarus, Ukraine, Kazakhstan and Uzbekistan.)
Storage Management
• QNAP flexible Volume/LUN with thin provisioning
and space reclaim
• RAID management
Global hot spare
• Supports storage pool
• Online volume expansion
• Online storage pool expansion
• Online RAID capacity expansion and online RAID
level migration
• Storage expansion via a QNAP UX-
U-RP expansion unit
800
• Bad block scan and hard drive S.M.A.R.T.
• Bad block recovery
• RAID recovery
• Bitmap support
Power Management
• Wake on LAN
• Internal hard drive standby mode
• Scheduled power on/off
• Automatic power on after power recovery
• USB and network UPS support with SNMP
management
• System sleep mode (S3)
Access Right Management
• Batch users creation
• Import/Export users
• User quota management
• Local user access control for CIFS, AFP, FTP, and
WebDAV
• Application access control for Photo Station, Music
Station, Video Station, and File Station
• Subfolder permissions support for CIFS/SMB, AFP,
FTP, and File Station
4
6
ac/a/n adapter support
802.11
validated AES
140-2
-bit external drive encryption*
25
-bit volume-based
6
1200
,
2003
U-RP/UX-
Domain Authentication Integration
• Microsoft Active Directory (AD) & Domain Controller
support
• LDAP server, LDAP client
• Domain users login via CIFS/SMB, AFP, FTP, and
File Station
myQNAPcloud Service
• Private cloud storage and sharing
• Free host name registration (DDNS)
• Auto router configuration (via UPnP)
• Web-based file manager with HTTPS
encryption
• CloudLink for remote access without complicated
router setup
• myQNAPcloud connect for easy VPN connection
(Windows VPN utility)
Qsync
• Syncs files among multiple devices with SSL
support
• Selective synchronization for syncing specific
folders only
• Use team folders as a file center for greater team
collaboration (maximum sync tasks:32)
• Shares files by links via email
• Policy settings for conflicted files and file type filter
support
• Version control: up to 64 versions.
• Incremental synchronization for HDD space saving
• Supports Windows & Mac OS
Web Administration
• Smart toolbar and dashboard for neat system
status display
• Smart fan Control
• Dynamic DNS (DDNS)
• SNMP (v2 & v3)
• Resource monitor
• Network recycle bin for file deletion via CIFS/SMB,
AFP, and File Station
- Automatic Cleanup
- File Type Filter
• Comprehensive logs (events & connection)
• Syslog client/server
• System settings backup and restore
• Restore to factory default
• Mobile app: Qmanager for remote system
monitoring & management
File Server
• File sharing across Windows, Mac, and Linux/UNIX
• Windows ACL
• Advanced folder permission for CIFS/SMB, AFP, FTP
• Shared folder aggregation (CIFS/SMB)
FTP Server
• FTP over SSL/TLS (Explicit)
• FXP support
• Passive ftp port range control
File Station
• Supports ISO Mounting (Up to
• Supports thumbnail display of multimedia files
• Supports sharing download links and upload links
• Drag-n-drop Files via Google Chrome and Mozilla
Firefox
• Photo, music, and video preview and playback with
hardwar
e-accelerated transcoding
• File Compression (ZIP or 7z)
• Creation of and sending download links for sharing
public files with expiration time and password
protection
• Support for displaying subtitles (*.SRT, UTF-8
format)
- Video seeking support for video playback during
on-the-fly transcoding
- Support slideshow playback in media viewer
• Mobile App: Qfile for file browsing and
management
Transcode Management
• Transcode video files to
and
p resolutions
1080
• Automatic video transcoding for watched folders
• Hardware-accelerated transcoding support
• Embed subtitles with videos inbackground
transcoding
240
p,
256
360
2048
ISO Files)
p,
480
-bit
p,
p
720
Backup Station
• Remote replication server (over rsync)
• Real-time remote replication (RTRR) to another
QNAP NAS or FTP server
• Works as both RTRR server & client with bandwidth
control
• Real-time & scheduled backup
• Encryption, compression, file filters, and transfer
rate limitations
• Encrypted replication between QNAP NAS servers
• Desktop backup with QNAP NetBak Replicator for
Windows
• Apple Time Machine backup support
• Data backup to multiple external storage devices
• Synchronizes with cloud storage: Amazon S3,
ElephantDrive, Symform, Dropbox*, and Google
Drive
• Third party backup software support: Veeam
backup & replication, Acronis True Image, Arcserve
backup, emc retrospect, Symantec Backup Exec,
etc.
Print Server
• Max. number of printers:
• Support for Internet Printing Protocol
• Print job display and management
• IP-based and domain name-based privilege
control
Cloud Backup Station
• Amazon S
3
• Amazon Glacier
• Webdev-based cloud storage
• Microsoft Azure
• Open Stack
HD (HybridDesk) Station
• Playback videos, music, photos on yout TV with
XBMC via HDMI output
• Watch various online contents such as YouTube,
Flickr, Picasa, Shoutcast, and more.
• Web browser (Chrome, Firefox)
• Supports USB U.S. keyboard and mouse
• Supports QNAP Qremote app and the official XBMC
remote app
Supports user login permissions
Note:
- The playback and
affected due to the CPU and GPU decoding abilities.
- Up to 7.1 channel audio passthrough is supported
Storage Plug & Connect
• Creating and mapping shared folders usingQNAP
Windows Qfinder
• Creation of and connection to iSCSI targets/LUN
iSCSI (IP SAN)
• iSCSI target with multi-LUNs per target (Up to
targets/LUNs combined)
• Support for LUN mapping & masking
• Online LUN capacity expansion
• Support for SPC-3 persistent reservation
• Support for MPIO & MC/S
• iSCSI LUN backup, one-time snapshot, and
restoration
• iSCSI connection and management by QNAP
Windows Qfinder
• Virtual disk drive (via iSCSI initiator)
• Stack chaining master
• Max No. of virtual disk drives:
Surveillance Station
• Supports over 2,
• Includes 2 free camera licenses, up to 24 camera
channels via additional license purchase
• Instant playback to check recent events
• Online editing to change cameras when in live
view
• Visual aid by using e-maps
• Playback and speed control by shuttle bar
• Video preview using playback timeline
• Intelligent Video Analytics (IVA) for advanced video
search
• Surveillance client for Mac
• Mobile surveillance app: Vmobile (iOS and Android)
• Mobile recording app: Vcam (iOS and Android)
VPN Server
• Secure remote access: PPTP & OpenVPN VPN
services
• Max number of clients:
3
quality of some video files may be
8
IP cameras
700
30
256
VPN Client
• Supported VPN protocols: PPTP & OpenVPN
services
• PPTP Authentication: PAP, CHAP, MS-CHAP, MSCHAPv
2
• PPTP Encryption: None, AES 40/
• OpenVPN Encryption: None, AES 40/
bit
256
• Transmission package monitor
• OpenVPN port control
• OpenVPN link compression
DLNA Server
• Supports DLNA/UPnP TVs and Players such as
PlayStation 3 and Xbox
• Supported audio formats: AIFF, APE, DSD (DSF,
DFF), FLAC, M4A, M4A Apple Lossless (ALAC), MP3,
Ogg Vorbis, WAV (PCM, LPCM), WMA, WMA PRO,
WMA VBR*
• Support CUE indexing files for APE, FLAC audio
format.
• Video and Audio On-the-fly Transcoding
*DRM-protected files are not supported.
App Center
• Over
official and community software add-
100
(including Dropbox, Google Drive Sync, McAfee,
ons
WordPress, HappyGet II, and more.)
Photo Station, Music Station, Video Station,
Download Station, Notes Station, Signage Station,
Digital TV Station (DVB-T only)
* Designs and specifications are subject to change
without notice.
360
128
bit, AES
128
256
bit, AES
bit
60
Rackmount NAS
Servers
Reliable and scalable NAS servers for building a private cloud
• Manage, share, and back up business data
• Real-time Remote Replication (RTRR) and cloud-based storage backup
• NAS and iSCSI-SAN unified storage solution
• Use your NAS as a PC with QvPC Technology
• Enhanced data security with high-performance AES 256-bit encryption and anti-virus
TS-x53U series
TS-1253U/
TS-1253U-RP
Quad Core 2.0GHz CPU (Max 2.41GHz)
Quad GbE Ports, 2GB/8GB DDR3L (Max 8GB)
Use your NAS as a PC
TS-853U / TS-853U-RP
TS-453U / TS-453U-RP
Systems, Inc.
TEL : +886-2-2641-2000 FAX : +886-2-2641-0555 Email: qnapsales@qnap.com
Address：3F, No.22, Zhongxing Rd., Xizhi Dist., New Taipei City, 221, Taiwan
QNAP may make changes to specification and product descriptions at any time, without notice.
Copyright © 2015 QNAP Systems, Inc. All rights reserved.
QNAP® and other names of QNAP Products are proprietary marks or registered trademarks of QNAP Systems, Inc. Other products
and company names mentioned herein are trademarks of their respective holders.
AMD, the AMD logo, and combinations thereof are trademarks of Advanced Micro Devices, Inc.
Netherlands (Warehouse Services)
Email：nlsales@qnap.com
TEL：+31(0)107600830
Germany
Email：desales@qnap.com
TEL：+49-89-381562991
China
Email：cnsales@qnap.com.cn
TEL：+86-400-628-0079
TS-451U
SATA 6Gb/s
2.5"/3.5"
Storage
Expansion
HDMI 1080P
Local Display
Dual Core 2.41GHz CPU (Max 2.58 GHz)
Dual GbE Ports, 1GB DDR3L (Max 8GB)
Virtualization
Technology
On-the-fly
Transcoding
CELERON
India
Email：indiasales@qnap.com
US
Email：usasales@qnap.com
TEL：+1-909-595-2782
Thailand
Email：thsales@qnap.com
TEL：+66-2-5415988
P/N: 51000-023780-RS
201502 (EN) A
Loading...
