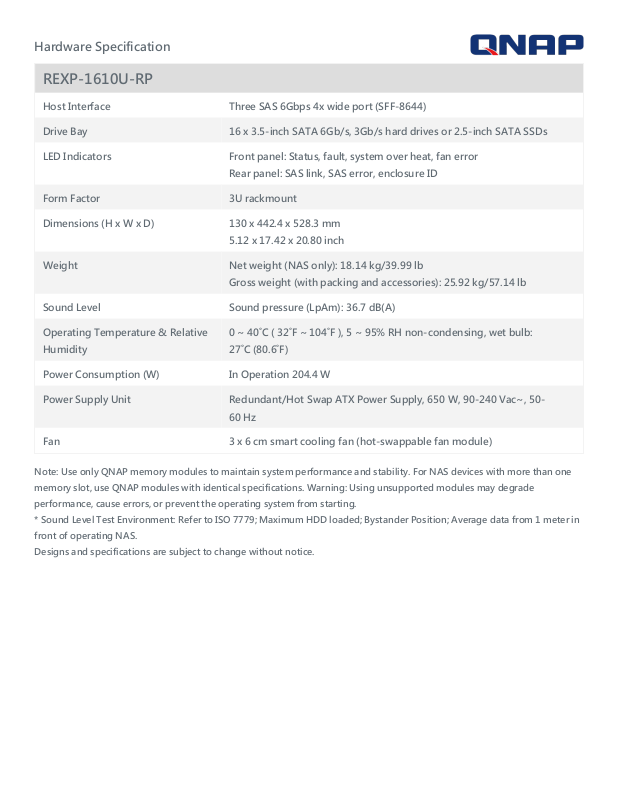

Hardware Specification

REXP-1610U-RP

Host Interface Three SAS 6Gbps 4x wide port (SFF-8644)

Drive Bay 16 x 3.5-inch SATA 6Gb/s, 3Gb/s hard drives or 2.5-inch SATA SSDs

LED Indicators Front panel: Status, fault, system over heat, fan error

Rear panel: SAS link, SAS error, enclosure ID

Form Factor 3U rackmount

Dimensions (H x W x D) 130 x 442.4 x 528.3 mm

5.12 x 17.42 x 20.80 inch

Weight Net weight (NAS only): 18.14 kg/39.99 lb

Gross weight (with packing and accessories): 25.92 kg/57.14 lb

Sound Level Sound pressure (LpAm): 36.7 dB(A)

Operating Temperature & Relative

Humidity

Power Consumption (W) In Operation 204.4 W

Power Supply Unit Redundant/Hot Swap ATX Power Supply, 650 W, 90-240 Vac~, 50-

Fan 3 x 6 cm smart cooling fan (hot-swappable fan module)

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one

memory slot, use QNAP modules with identical specifications. Warning: Using unsupported modules may degrade

performance, cause errors, or prevent the operating system from starting.

* Sound Level Test Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in

front of operating NAS.

Designs and specifications are subject to change without notice.

0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb:

27˚C (80.6˚F)

60 Hz
