Qmark WPC1500 User Manual [en, es, fr]

WPC1500

Portable Convection

Heater

Fixed Dimensions: 29-1/2”W x 18”H x 3-7/8”D

Installation, Operation & Maintenance Instructions

GENERAL

This radiant heater is designed to provide supplemental heat in small areas such as offices and may be used as an
under desk heater. However, care must be taken to avoid blocking heater or covering it with any thing that could allow
it to build up heat – See warnings.

IMPORTANT INSTRUCTIONS

WARNING

When using electrical appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:

1. Read all instructions before using this heater.

2. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces.

3. Keep combustible materials such as furniture, pillows, bed­ding, papers, clothes, and curtains at least 3 feet (0.9 m)
away from front of heater and keep them away from the
sides and rear.

4. Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the heater is left
operating and unattended.

5. Always turn heater off at switch and unplug heater from out­let when not in use.

6. Do not operate any heater with a damaged cord or plug or
after the heater malfunctions, has been dropped or dam­aged in any manner. Discard heater, or return to authorized
service facility for examination and/or repair.

7. Do not use this heater outdoors.

8. This heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never locate heater
where it may fall into a bathtub or other water container.

9. Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route cord
under furniture or appliances. Arrange cord away from traf­fic area and where it will not be tripped over.

10. This heater is provided with a three blade grounded plug
(see Figure 3). Always connect to a properly grounded out­let only.

11. A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint, or flammable liquids
are used or stored.

12. Check heater cord and plug connections. Faulty wall outlet
connections or loose plugs can cause the outlet or plug to
overheat. Be sure the plug fits tight in the outlet. Heaters
draw more current than small appliances, therefore over­heating of the outlet may occur even if it has not occurred
with the use of other appliances. If plug outlet or faceplate is
HOT, discontinue use and have qualified electrician
check/replace the faulty outlet.

13. Always plug heater directly into a wall outlet/receptacle.
Never use with an extension cord or relocatable power tap
(outlet/power strip).

14. If this heater is to be used in damp areas such as base­ments or garages, a ground fault circuit must be provided.

15. Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire,
electric shock, or injury to persons.

16. This heater is provided with a tip over switch that will dis­connect power to the heater if it is tilted or falls over. The
heater can only be used in the vertical position or tilted back
slightly when used with built in stand.

17. Your heater includes an additional light feature for safety.
The red warning light is located above the heater operation
light (amber) on the front panel of your heater. When the red
light illuminates, it signifies that the safety thermal cutout is
in operation. This safety device automatically shuts off your
heater in the event of overheating. Do not continue to use
heater if it repeatedly cycles OFF and ON due to over-tem­perature. Should the unit overheat and activate the thermal
cutout cycle, the cause of the overheating should be deter­mined before further operation by a qualified electrician to
determine the problem.

!

SAVE THESE INSTRUCTIONS

Specifications

I

I

I

I

I

I

I

V

Low High

Model Volts Watts Amps

WPC1500 120 500/1000/1500 4.2/8.3/12.5

PRODUCT FEATURES

1 The heater can either be free-standing or wall-mounted to

meet different user requirements.
2 Steel finned heating element heats quickly and efficiently.
3 3 wattages: 500W/1000W/1500W, choose the right wattage to

meet comfort needs and save energy.
4 Equipped with thermostat for precise temperature control.
5 Equipped with overheat and tip-over protective devices for

safe operation.

UNPACKING

After unpacking unit, inspect carefully for any damage that may
have occurred during transit. Shipping damage claim must be
filed with carrier. Please make note of the model number and
date code for future reference.

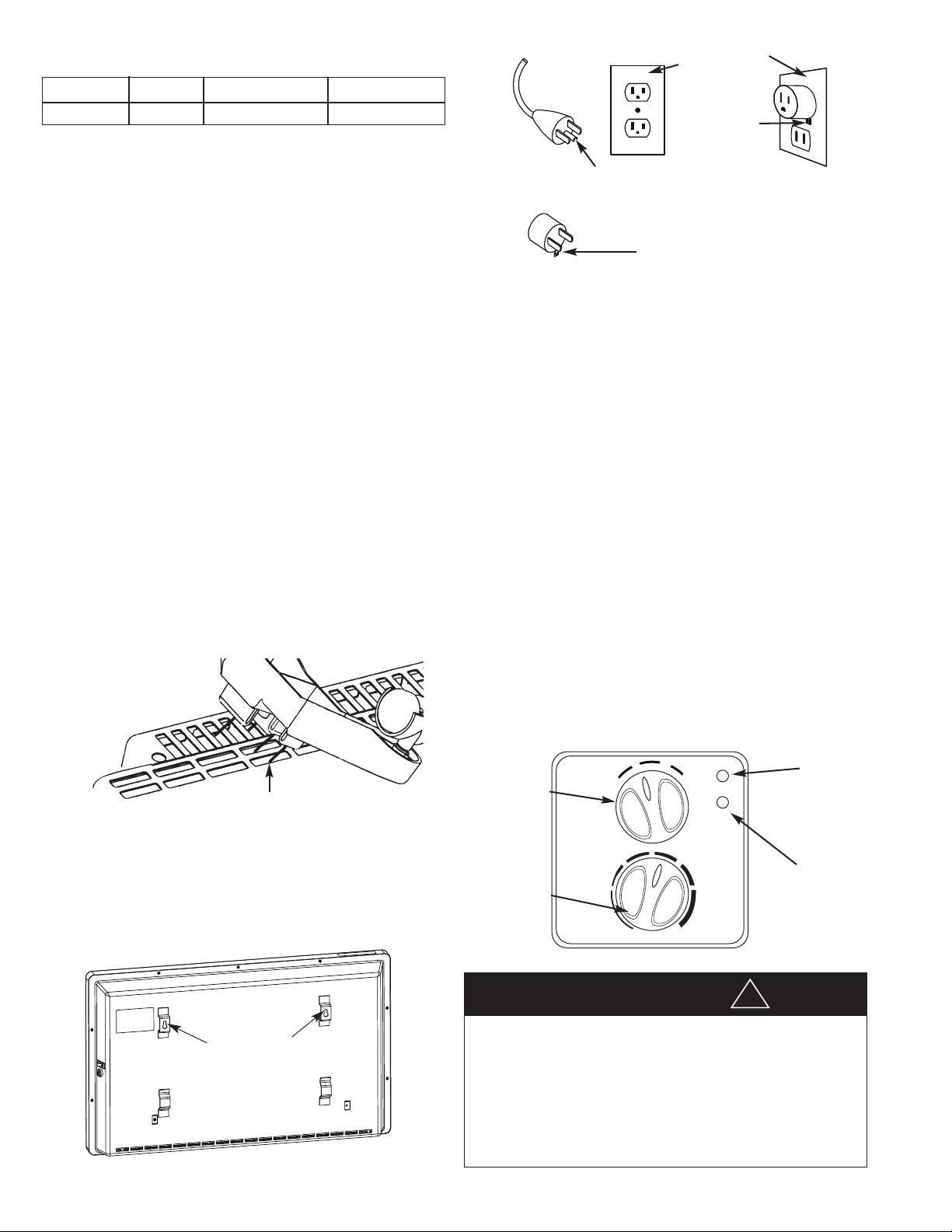

ASSEMBLY AND INSTALLATION INSTRUCTIONS

1. If the heater is to be used as a free standing unit, support

legs must be attached. Remove the two legs from the acces-

sory box. Lay the heater on the floor, insert the two legs into

the rectangle holes on the left and right sides near the ends

of the heater bottom making sure to fit the 4 clips of each leg

into the holes (see Figure 1). Press firmly to securely snap

into place (a small flat screwdriver may be required to secure

clips). After both sides are fitted, stand the heater upright on

the wheels and proceed to OPERATION.

Figure 1

2. For wall mounting applications, omit Step 1 above. Use

appropriate fasteners and drill 2 holes in the desired location,

15-3/4” apart, center to center, so that the heater bottom is

about 20” from the floor. Allow the fasteners to extend at least

1/4” from the wall and fit the keyhole slots in the heater back

onto the fasteners (see Figure 2). Make sure the heater is

secure.

Fourth hole from end

Cover of Grounded
Outlet Box

Metal
Screw

A

Grounding Pin

B

C

Grounding Means

Figure 3

3. This heater is for use on 120 volts. The cord has a plug as
shown at A (Figure 3). An adapter as shown at C is available
for connecting three-blade grounding-type plugs to two-slot
receptacles. The green grounding lug extending from the
adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be
used if a three-slot grounded receptacle is available.

OPERATION INSTRUCTIONS

Wattage selection

Select wattage according to room size and ambient temperature.
The upper knob on the control panel is the wattage adjustment
knob; “I, II, III, IV” refer to “0W, 500W, 1000W, 1500W” respec­tively.

Temperature adjustment

The lower knob on the control panel is used to preset tempera­ture: turn the knob from “low” to “high” clockwise
to increase temperature. When the temperature reaches the pre­set temperature on the thermostat, the heating element will turn
off. To find a comfortable setting, start by turning the thermostat
to High and once the room temperature reaches the desired
temperature, reduce the thermostat until there is an audible
click, signaling the thermostat has turned off the element. The
thermostat will maintain this comfort level.

Your heater includes an additional light feature for safety. The red
warning light is located above the heater operation light (amber)

Wattage
Selection Knob

Temperature
Selection Knob

Red
Warning
Light
(Overheat)

Amber
Indicator
Light
(Power On)

Figure 2

Figure 4

a

Keyhole Slots

CAUTION

!

THE ILLUMINATED RED INDICATOR LIGHT SIGNIFIES THE
HEATER HAS BEEN SUBJECTED TO SOME ABNORMAL
CONDITION. CHECK HEATER TO INSURE THAT IT HAS NOT
BEEN BLOCKED IN ANY MANNER (IF SO, REMOVE BLOCK­AGE). IF THERE IS NO INDICATION OF BLOCKAGE, IT IS
RECOMMENDED THE HEATER BE CHECKED BY A REP­UTABLE ELECTRICIAN OR REPAIR SERVICE TO INSURE
THE HEATER HAS NOT BEEN DAMAGED.

on the front panel of your heater. When the red light illuminates,

L1

N

1N2

L2

Limit

Warning
Light

Power
Light

Power
Switch

Switch

A

12

T

hermostat

Terminal
B

lock

Tip Over
Switch

Ground

P

lug

Element

it signifies that the safety thermal cutout is in operation. This
safety device automatically shuts off your heater in the event of
overheating. Do not continue to use heater if it repeatedly cycles
OFF and ON due to over-temperature. Should the unit overheat
and activate the thermal cutout cycle, the cause of the overheat­ing should be determined before further operation by a qualified
electrician to determine the problem.

MAINTENANCE INSTRUCTIONS

CLEANING

Turn thermostat off. Disconnect electrical power before cleaning
heater.

Use a soft cloth for dusting. For cleaning use only a damp rag
and nonabrasive dish detergent. Do not use abrasive or chemi­cal cleaners as these may harm the finish.

If heater is used in a very dusty location, use a vacuum cleaner
dust brush to remove dust and other foreign material from the
grilles.

Always unplug heater when not in use. When heater is not to be
used for an extended period of time, cord should be coiled and
tied to prevent damage and heater should be stored in a safe
location.

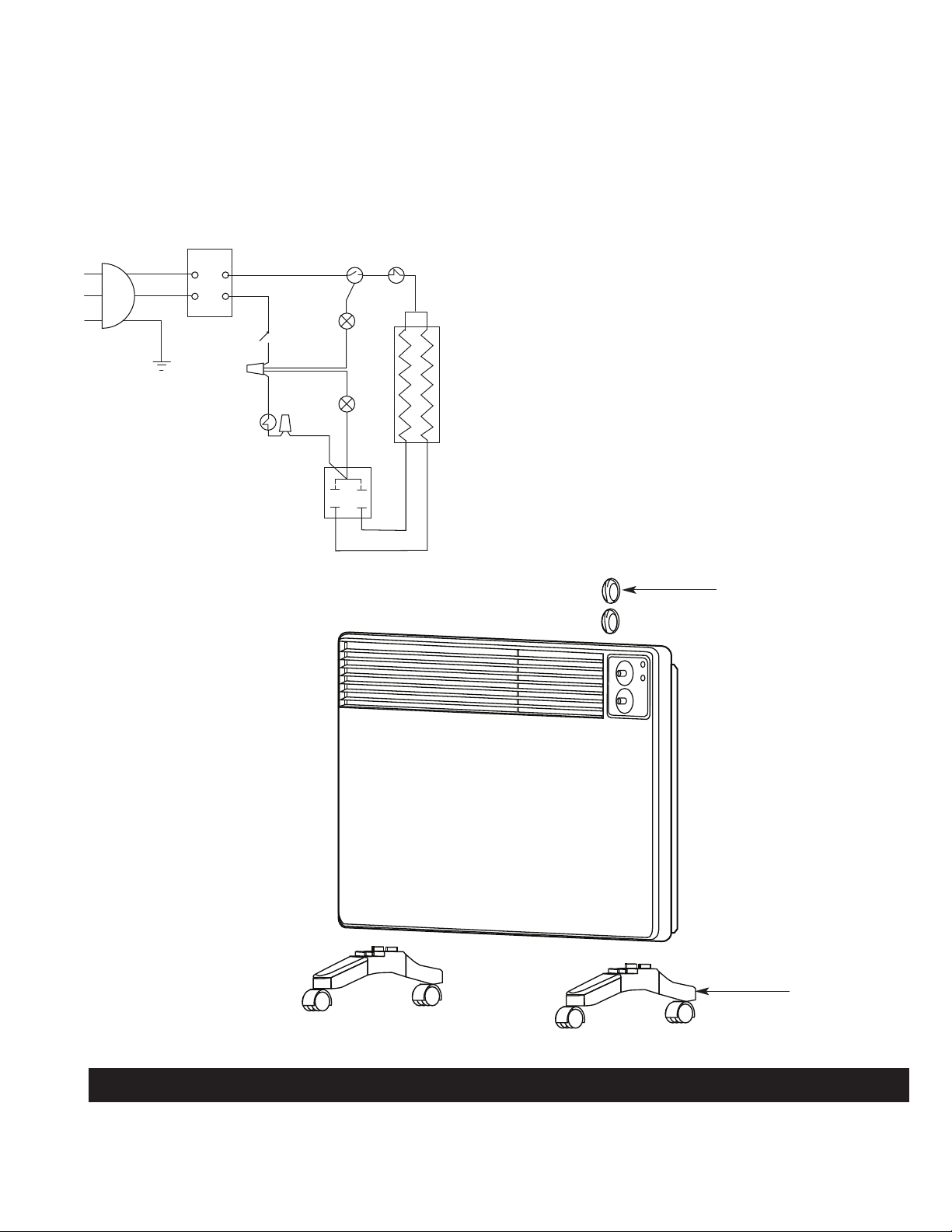

Figure 5 - Wiring Diagram

1

Replacement Parts List

Reference
Number Description Part Number: Quantity

1 Knob 3301-2058-000 1
2 Wheel Kit 1205-10305-000 1

(Contains 2 legs with 4 wheels)

2

All products manufactured by Marley Engineered Products are warranted against defects in workmanship and materials for one year from date of installation, except heat-

LIMITED WARRANTY

ing elements which are warranted against defects in workmanship and materials for five years from date of installation. This warranty does not apply to damage from acci­dent, misuse, or alteration; nor where the connected voltage is more than 5% above the nameplate voltage; nor to equipment improperly installed or wired or maintained
in violation of the product’s installation instructions. All claims for warranty work must be accompanied by proof of the date of installation.

The customer shall be responsible for all costs incurred in the removal or reinstallation of products, including labor costs, and shipping costs incurred to return products to
Marley Engineered Products Service Center. Within the limitations of this warranty, inoperative units should be returned to the nearest Marley authorized service center
or the Marley Engineered Products Service Center, and we will repair or replace, at our option, at no charge to you with return freight paid by Marley. It is agreed that such
repair or replacement is the exclusive remedy available from Marley Engineered Products.

THE ABOVE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, AND ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE WHICH EXCEED THE AFORESAID EXPRESSED WARRANTIES ARE HEREBY DISCLAIMED AND EXCLUDED FROM THIS
AGREEMENT. MARLEY ENGINEERED PRODUCTS SHALL NOT BE LIABLE FOR CONSEQUENTIAL DAMAGES ARISING WITH RESPECT TO THE PRODUCT,
WHETHER BASED UPON NEGLIGENCE, TORT, STRICT LIABILITY, OR CONTRACT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state.

For the address of your nearest authorized service center, contact Marley Engineered Products in Bennettsville, SC, at 1-800-642-4328. Merchandise returned to the fac­tory must be accompanied by a return authorization and service identification tag, both available from Marley Engineered Products. When requesting return authorization,
include all catalog numbers shown on the products.

HOW TO OBTAIN WARRANTY SERVICE AND
WARRANTY PARTS PLUS GENERAL INFORMATION

1. Warranty Service or Parts 1-800-642-4328

2. Purchase Replacement Parts 1-800-654-3545

3. General Product Information www.marleymep.com

Note: When obtaining service always have the following:

1. Model number of the product

2. Date of manufacture

3. Part number or description

470 Beauty Spot Rd. East
Bennettsville, SC 29512 USA

Part No. 5200-11036-002

ECR 39299

11/11
