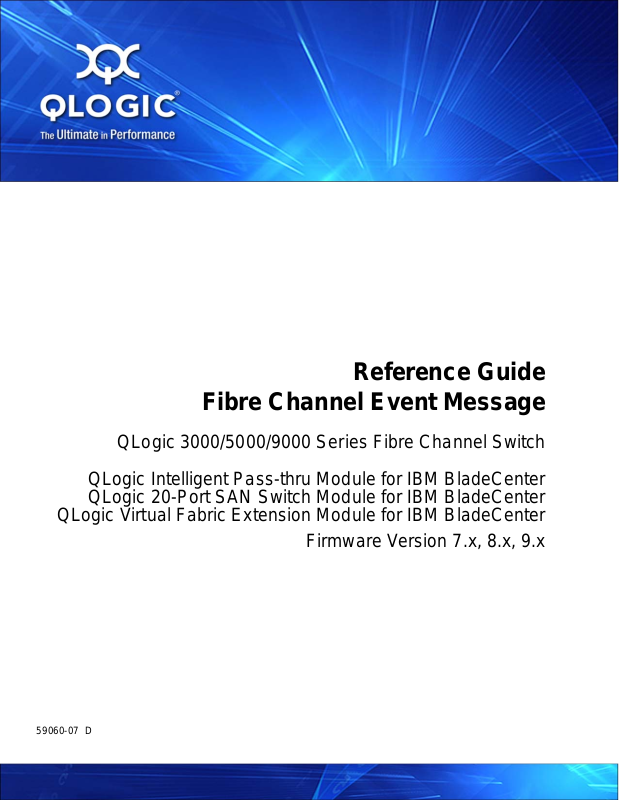

Reference Guide
Fibre Channel Event Message
QLogic 3000/5000/9000 Series Fibre Channel Switch
QLogic Intelligent Pass-thru Module for IBM BladeCenter
QLogic 20-Port SAN Switch Module for IBM BladeCenter
QLogic Virtual Fabric Extension Module for IBM BladeCenter
Firmware Version 7.x, 8.x, 9.x
59060-07 D
Reference Guide Fibre Channel Event Message
QLogic 3000/5000/9000 Series Fibre Channel Switch
Information furnished in this manual is believed to be accurate and reliable. However, QLogic Corporation assumes no
responsibility for its use, nor for any infringements of patents or other rights of third parties which may result from its
use. QLogic Corporation reserves the right to change product specifications at any time without notice. Applications
described in this document for any of these products are for illustrative purposes only. QLogic Corporation makes no
representation nor warranty that such applications are suitable for the specified use without further testing or
modification. QLogic Corporation assumes no responsibility for any errors that may appear in this document.
Document Revision History
Revision A, August 2008
Firmware version 7.x, 8.x, 9.x
Revision B, October 2008
Revision C, October 2009
Revision D, November 2011
Changes Pages Affected
Updated to support firmware version 8.0 2-32, 2-34, 2-69, 2-75, 2-76
Updated document format and branding Throughout
ii 59060-07 D
Table of Contents
Preface
Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Related Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Documentation Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Knowledge Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
1 Events and Event Logging
Understanding Severity Levels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Displaying Events using the Event Browser. . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Displaying the Events Using the Command Line Interface . . . . . . . . . . . . . 1-2
Configuring the Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Archiving and Downloading the Event Log. . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Configuring Port Alarm Thresholds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
2 Event Messages
Fault Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Alarm Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Critical Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-53
Warning Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-67
Informative Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-72
59060-07 D iii
Reference Guide Fibre Channel Event Message
QLogic 3000/5000/9000 Series Fibre Channel Switch
iv 59060-07 D
Preface
This manual describes the alarm messages for QLogic Fibre Channel switches.
This manual is organized as follows:
This preface describes the intended audience, related materials, and
technical support.
Section 1 describes event logging concepts, including definitions of severity
levels, how to configure the event log, how to display the event log, and how
to download the event log from the switch.
Section 2 describes the message format and lists the messages.
Intended Audience
This manual is for Storage Area Network (SAN) administrators to provide a
reference for switch alarm messages, their meanings, and follow up actions.
Related Materials
The Fibre Channel Standards are available from:
Global Engineering Documents
15 Inverness Way East
Englewood, CO 80112-5776
Phone: (800) 854-7179 or (303) 397-7956
Fax: (303) 397-2740
Documentation Conventions
This guide uses the following documentation conventions:
NOTE: provides additional information.
CAUTION!
causing damage to data or equipment.
WARNING!!
causing personal injury.
59060-07 D v
indicates the presence of a hazard that has the potential of
indicates the presence of a hazard that has the potential of
Preface
Documentation Conventions
Text in blue font indicates a hyperlink (jump) to a figure, table, or section in
this guide, and links to Web sites are shown in underlined blue
example:
Table 9-2 lists problems related to the user interface and remote agent.
See “Installation Checklist” on page 3-6.
. For
For more information, visit www.qlogic.com
.
Text in bold font indicates user interface elements such as a menu items,
buttons, check boxes, or column headings. For example:
Click the Start button, point to Programs, point to Accessories, and
then click Command Prompt.
Under Notification Options, select the Warning Alarms check box.
Text in Courier font indicates a file name, directory path, or command line
text. For example:
To return to the root directory from anywhere in the file structure:
Type
cd /root and press ENTER.
Enter the following command: sh ./install.bin
Key names and key strokes are indicated with UPPERCASE:
Press CTRL+P.
Press the UP ARROW key.
Text in italics indicates terms, emphasis, variables, or document titles. For
example:
For a complete listing of license agreements, refer to the QLogic
Software End User License Agreement.
What are shortcut keys?
To enter the date type mm/dd/yyyy (where mm is the month, dd is the
day, and yyyy is the year).
Topic titles between quotation marks identify related topics either within this
manual or in the online help, which is also referred to as the help system
throughout this document.
vi 59060-07 D
Technical Support
Customers should contact their authorized maintenance provider for technical
support of their QLogic products. QLogic-direct customers may contact QLogic
Technical Support; others will be redirected to their authorized maintenance
provider. Visit the QLogic support Web site listed in Contact Information for the
latest firmware and software updates.
For details about available service plans, or for information about renewing and
extending your service, visit the Service Program web page at
http://www.qlogic.com/services
Training
QLogic offers training for technical professionals for all iSCSI, InfiniBand, and
Fibre Channel products. From the main QLogic web page at www.qlogic.com
click the Support tab at the top, and then click Training and Certification on the
left. The QLogic Global Training portal offers online courses, certification exams,
and scheduling of in-person training.
Preface
Technical Support
.
,
Technical Certification courses include installation, maintenance and
troubleshooting QLogic products. Upon demonstrating knowledge using live
equipment, QLogic awards a certificate identifying the student as a certified
professional. You can reach the training professionals at QLogic by e-mail at
training@qlogic.com
Contact Information
QLogic Technical Support for products under warranty is available during local
standard working hours excluding QLogic Observed Holidays. For customers with
extended service, consult your plan for available hours. For Support phone
numbers, see the Contact Support link at support.qlogic.com
Support Headquarters QLogic Corporation
QLogic Web Site www.qlogic.com
Technical Support Web Site http://support.qlogic.com
Technical Support E-mail support@qlogic.com
Technical Training E-mail training@qlogic.com
.
.
4601 Dean Lakes Blvd.
Shakopee, MN 55379 USA
59060-07 D vii
Preface
Technical Support
Knowledge Base
The QLogic knowledge base is an extensive collection of QLogic product
information that you can search for specific solutions. We are constantly adding to
the collection of information in our knowledge base to provide answers to your
most urgent questions. Access the knowledge base from the QLogic Support
Center: http://support.qlogic.com.
viii 59060-07 D
1 Events and Event Logging
Messages originate from the switch, from Enterprise Fabric Suite, or from the
QuickTools web applet in response to events that occur in the fabric. This chapter
describes the following topics:
Understanding Severity Levels
Displaying Events using the Event Browser
Displaying the Events Using the Command Line Interface
Configuring the Event Log
Archiving and Downloading the Event Log
Configuring Port Alarm Thresholds
Understanding Severity Levels
Events are classified by the following severity levels:
Table 1-1. Event Severity Levels
Severity Level Description
Fault Describes events that may require assistance from your autho-
rized maintenance provider . Each fault event has a correspond ing
alarm message.
Alarm Describes events that are disruptive to the administration or oper-
ation of a fabric and require administrator intervention. Alarms are
always logged and always displayed on the screen. Alarm thresholds can be defined for certain port er rors, allowin g you to custo mize the point at which an alarm will be generated.
Critical Describes events that are generally disruptive to the administra-
tion or operation of the fabric, but require no action.
Warning Describes events that are generally not disruptive to the adminis-
tration or operation of the fabric, but are mo re imp or tant than the
informative level events.
Informative Describes routine events associated with a normal fabric.
59060-07 D 1-1
1–Events and Event Logging
Displaying Events using the Event Browser
Displaying Events using the Event Browser
Both Enterprise Fabric Suite and QuickTools have an event browser that displays
a list of events generated by the switches in the fabric and by the applications
themselves. Event browser messages are permanently discarded when you close
an Enterprise Fabric Suite or QuickTools session; however, you can save these
events to a file on the workstation before you close the session and read the file
later with a text editor or browser.
The information in the event browsers is presented in the following order: seve rity,
time, source, type, and description of the event. The maximum number of entries
allowed on a switch is 1,200. Both the Enterprise Fabric Suite and QuickTools
event browser can contain a maximum of 10,000 event messages. Once the
maximum is reached, the event list wraps, and the oldest events in the event list
are deleted.
Event browser entries from the switch use the switch time stamp. Event browser
entries from Enterprise Fabric Suite and QuickTools use the management station
and workstation time stamps, respectively. You can filter and sort the contents of
both event browsers.
The Event Browser begins recording when enabled and Enterprise Fabric Suite o r
QuickTools is running. If the Event Browser is enabled using the Preferences
dialog, the next time Enterprise Fabric Suite or QuickTools is started, all events
from the switch log will be displayed. If the Event Browser is disabled when
Enterprise Fabric Suite or QuickTools is started and later enabled, only those
events from the time the Event Browser was enabled and forward will be
displayed.
Displaying the Events Using the Command Line Interface
When you log into a switch through Telnet, the command line interface
automatically displays the alarm history. You can use the Show Alarm or
Show Log command to display the alarm history at any time. New alarm
messages are displayed in the command stream as they occur.
1-2 59060-07 D
1–Events and Event Logging
Displaying the Events Using the Command Line Interface
In the CLI, each message has the following format:
[ordinal][time_stamp][severity][source][message_ID][message_text]
Table 1-2. Event Log Message Format
Component Description
[ordinal] A number assigned to each message in sequence since that last
time the alarm history was cleared.
[time_stamp] The time the alarm was issued in the format
day-month-hh:mm:ss:ms-yyyy. This time stamp comes from the
switch for events that originate with the switch, and from the
workstation for events that originate from Enterprise Fabric
Suite.
[severity] The event severity: A–Alarm, C–Critical, W–Warning, I–Informa-
tive.
[source] The program module or application that generated the event.
Sources include Zoning, Switch, PortApp, EPort, Management
Server. Alarms do not include the source.
[message_ID] A number that identifies the message using the following format:
category.message_number
[message_text] The alarm message text
Here is a sample of an informative-level message from the Switch source:
[1][Wed May 26 12:30:29.965 UTC 2004][I][8400.0022][Switch][Successful login user
(snmp@IB-session6) with admin privilege]
For more information about the CLI commands, refer to the Command Line
Interface Guide for your switch.
59060-07 D 1-3
1–Events and Event Logging
Configuring the Event Log
Configuring the Event Log
You can customize what events are recorded in the switch event log using the
Set Log command. With the Set Log command, you can filter the events to be
recorded by component, specific ports, and severity level. You can choose from
the following component events:
E_Port events
Management server events
Name server events
Port events
Switch management events
Simple Network Management Protocol (SNMP) events
Zoning events
For more information about the CLI commands, refer to the Command Line
Interface Guide for your switch.
Archiving and Downloading the Event Log
You can use the CLI to create a file on the switch that contains the most recent
1200 entries. This file can then be downloaded to the workstation using FTP. To
create and download a log file, do the following:
1. Log into the switch through Telnet and create an archive of the event log
using the Set Log Archive command.
SANbox #> admin start
SANbox (admin) #> set log archive
This creates a file on the switch named logfile.
2. Open an FTP session on the switch and login with the account name images
and password images. Transfer the file logfile in binary mode with the Get
command.
>ftp ip_address
user:images
password: images
ftp>bin
ftp>get logfile
xxxxx bytes sent in xx secs.
ftp>quit
1-4 59060-07 D
Configuring Port Alarm Thresholds
Configuring Port Alarm Thresholds
You can configure the switch to generate alarms for selected events. Configuring
an alarm involves choosing an event type, rising and falling triggers, a sample
window, and finally enabling or disabling the alarm. You can configure port alarm
thresholds for the following port events using Enterprise Fabric Suite or the CLI:
Cyclic Redundancy Check (CRC) errors
Decode errors
Inter-switch Link (ISL) connections
Device logins
Device logouts
Loss-of-signal errors
To configure port threshold alarms using Enterprise Fabric Suite, do the following:
1. Open the Switch menu in the faceplate display, and select Port Threshold
Alarm Configuration.
1–Events and Event Logging
2. The Port Threshold Alarm Configuration dialog prompts you to enable or
disable all alarms, select an event, set triggers, set a sample window and
enable or disable an individual alarm. For more information, refer to the
Enterprise Fabric Suite User Guide for your switch.
To configure port threshold alarms using the command line interface, use the
Set Config Threshold command. For more information, refer to the Command
Line Interface Guide for your switch.
59060-07 D 1-5
1–Events and Event Logging
Configuring Port Alarm Thresholds
1-6 59060-07 D
2 Event Messages
This section lists event messages from the command line interface and Enterprise
Fabric Suite in message ID sequence by the following severity levels:
Fault Events
Alarm Events
Critical Events
Warning Events
Informative Events
You can look up a message by its message ID or by searching for the message
text. If the message you are looking for does not appear in this section, contact
your authorized maintenance provider.
Fault Events
The following fault messages apply only to QLogic 9000 series Fibre Channel
switches. Fault events, like alarms, require administrator attention and may
require assistance from your authorized maintenance provider.
AC_FAULT
Meaning: AC power may be unplugged or switched off.
AUX_PORT_ERROR
Meaning: At least one internal FC link is not functional.
FAN_FAULT_DETECTED
Meaning: Fan blade reports an internal fault.
FAN_FLOW_MISMATCH
Meaning: Incompatible air flow directions (FAN0, FAN1, PS0, PS1)
FAN0_MISSING
Meaning: FAN0 is not installed.
59060-07 D 2-1
2–Event Messages
Fault Events
FAN1_MISSING
Meaning: FAN1 is not installed.
FW_APP_FAIL
Meaning: Internal application failure.
FW_APP_PEER_FAULT
Meaning: Application declared an error communicating with other CPU.
FW_APP_SELF_FAULT
Meaning: Application declared an internal fault.
FW_APP_STARTUP_FAIL
Meaning: Application is unable to complete startup processing.
FW_FILE_SYSTEM_REMADE
Meaning: A Remake Filesystem command was performed in maintenance
mode.
FW_FT_APP_REG_FAIL
Meaning: Application is unable to register with Fault Tolerant (FT) manager.
FW_FT_APP_SYNC_FAIL
Meaning: Failure to synchronize data to the secondary CPU blade.
FW_FT_CPU_FAILOVER_FAILED
Meaning: Unable to complete failover process.
FW_FT_NO_ABDICATE_REPLY
Meaning: Unable to failover due to lack of secondary CPU blade response.
FW_HEARTBEAT_LOST
Meaning: Communication with the blade was lost.
FW_INIT_FAIL
Meaning: Blade did not complete the initialization sequence.
FW_POST_FAIL
Meaning: Power-On Self Test failure.
FW_UPDATE_FAIL
Meaning: Firmware update to the secondary CPU blade failed.
2-2 59060-07 D
HW_BAD_SEATING
Meaning: Blade is improperly seated.
HW_MP_ACCESS_CPU0
Meaning: The maintenance panel SPROM data accessed through CPU0 is
HW_MP_ACCESS_CPU1
Meaning: The maintenance panel SPROM data accessed through CPU1 is
HW_MP_DATA_MISMATCH
Meaning: The maintenance panel SPROMs accessed through CPU0 and
HW_POWERUP_FAIL
Meaning: Blade never established initial communications.
2–Event Messages
Fault Events
either inaccessible or invalid.
either inaccessible or invalid.
CPU1 are not identical.
HW_SENSOR_FAULT
Meaning: Hardware temperature/voltage sensors are not functional.
HW_UNSUPPORTED_BLADE
Meaning: Installed blade is unknown or not supported.
SENSOR_FAULT
Meaning: Power Supply blade reports an internal fault.
temp_sensor_TEMP
Meaning: The temperature sensor reading is out of range; it is too high.
temp_sensor can be BOARD_0, BOARD, BOARD_1, DS1780_0,
DS1780, DS1780_1, MAX1617_0, MAX1617, ASIC_0, ASIC,
MAX1617_1, ASIC_1, or MEZZ_BOARD.
voltage_sensor_HIGH
Meaning: The voltage_sensor voltage supply is out of range; it is too high.
voltage_sensor can be 1.55V, 2.5V, 1.5V, ASIC_1.8V, 1.25V, 1.8V,
3.3V, CPU_1.8V, 5V, 12V, ASIC_0_1.5V, or ASIC_1_1.5V.
voltage_sensor_LOW
Meaning: The voltage_sensor voltage supply is out of range; it is too low.
1.55V, 2.5V, 1.5V, ASIC_1.8V, 1.25V, 1.8V, 3.3V, CPU_1.8V, 5V,
12V, ASIC_0_1.5V, or ASIC_1_1.5V.
59060-07 D 2-3
2–Event Messages
Alarm Events
Alarm Events
An alarm event requires action before you can proceed any further. The following
lists each alarm event ID numbers and message displayed, and provides a
description of the meaning of the message and recommended action to take.
(A1000.000F) (The switch is canceling the hotreset - try again later)
Meaning: You cannot move forward with the hot reset. All applications and
switch resources are backing out of the procedure and returning to
normal operation.
Action: Ensure that the fabric is stable and that no changes are being
made to switch configurations or connections and then try again.
(A1000.001D) (Hotreset failed and the switch must be reset normally)
Meaning: The hot reset has failed and left the switch in an indeterminate
state.
Action: Reset the switch.
(A1000.001E) (Hotreset failed and the switch is being reset)
Meaning: There was a failure during the hotreset process; the switch is being
reset normally.
Action: None
(A1003.000B) (Failing release of fabric lock held by switch with domain domain_ID)
Meaning: The local switch is locked because zoning changes are being
made by a remote switch.
Action: Wait for the lock to time out and try again.
(A1003.000C) (Fabric Busy, failing lock request from domain domain_ID)
Meaning: The command failed because the fabric is busy with another
command in progress.
Action: Wait 10 seconds and retry the command.
(A1003.000D) (Fabric already locked by domain domain_ID)
Meaning: The switch given by the domain_ID has locked the fabric.
Action: Unlock the domain_ID lock on the switch given by domain_ID.
(A1003.000E) (Couldn't acquire lock from domain domain_ID)
Meaning: The fabric may be changing, and therefore could not acquire the
lock.
Action: Wait for the fabric to stabilize, then try again.
2-4 59060-07 D
(A1003.0010) (Segmenting, zoneset zone_set_name not defined)
Meaning: In non-interop mode, there is a conflict in the zoning configuration,
causing the Inter-Switch Link (ISL) to isolate. The zone set is not
found within the local zoning data base while interop mode is
disabled.
Action: Contact your authorized maintenance provider.
(A1003.0011) (Segmenting, zoneset zone_set_name already active)
Meaning: In non-interop mode, there is a conflict in the zoning configuration,
causing the Inter-Switch Link (ISL) to isolate. A switch tried to
activate a zone set that is already active while interop mode is
disabled.
Action: Contact your authorized maintenance provider.
(A1003.0012) (Segmenting, zoneset zone_set_name merge conflict)
Meaning: In non-interop mode, there is a conflict in the zoning configuration,
causing the Inter-Switch Link (ISL) to isolate. After a zone merge
with interop mode disabled, two zone sets were discovered in the
local zoning database with the same name, but different
membership.
2–Event Messages
Alarm Events
Action: Contact your authorized maintenance provider.
(A1003.0013) (Segmenting, zone zone_name merge conflict)
Meaning: In non-interop mode, there is a conflict in the zoning configuration,
causing the Inter-Switch Link (ISL) to isolate. After a zone merge
with interop mode disabled, two zone were discovered in the local
zoning database with the same name, but different membership.
Action: Contact your authorized maintenance provider.
(A1003.0014) (Segmenting, alias alias_name merge conflict)
Meaning: There is a conflict in the zoning configuration causing the
Inter-Switch Link (ISL) to isolate. Two aliases with the same name
but different membership were discovered in the local zoning
database.
Action: Reconcile the active zone sets so that the two aliases have
identical membership.
(A1003.0015) (Zoneset Activation received from switch with domain domain_ID failed,
unknown zoneset zone_set_name)
Meaning: A zone set activation received from the named switch failed
because the zone set was not in the zoning database.
Action: Examine the named switch to verify that the zoning database is
correct.
59060-07 D 2-5
2–Event Messages
Alarm Events
(A1003.0016) (Releasing Lock held too long by domain_ID)
Meaning: A zone merge could not be completed in the acceptable time.
Action: Check the status of the switch given by domain_ID.
(A1003.0017) (Activation of zoneset by management server failed due to port port_number
out of range.)
Meaning: A zone member defined by domain ID and port was received within
a management server AZSD command with a port number out of
range.
Action: Check the management server application zoning configuration to
ensure zone members are properly configured.
(A1003.001B) (Failing remote zoning configuration, total zoneset limit would be e xceed ed)
Meaning: The maximum number of zone sets allowed on the switch has
been exceeded because of a zone merge.
Action: Reduce the number of zone sets on the remote switch.
(A1003.001C) (Failing remote zoning configuration, tota l member limit would be exceed ed)
Meaning: The maximum number of zone members allowed on the switch has
been exceeded because of a zone merge.
Action: Reduce the number of zone members on the remote switch.
(A1003.001D) (Failing remote zoning configuration, total zones in zonesets limit would be
exceeded)
Meaning: The maximum number of zones allowed in all zone sets has been
exceeded because of a zone merge.
Action: Reduce the number of zones on the remote switch.
(A1003.001F) (Failing remote zoning configuration, member limit for zone zone_name
exceeded, (size= number_of_zones, limit= maximum_number_of_zones))
Meaning: The maximum number of members allowed for the given zone has
been exceeded because of a zone merge.
Action: Reduce the number of members in the given zone on the remote
switch.
(A1003.0020) (Failing remote zoning configuration, total zone limit would be exceeded)
Meaning: The maximum number of zones allowed on the switch has been
exceeded because of a zone merge.
Action: Reduce the number of zones on the remote switch.
2-6 59060-07 D
2–Event Messages
Alarm Events
(A1003.0021) (Failing remote zoning configuration, Zoneset is empty)
Meaning: An empty zone set was included as part of a zone merge and was
rejected.
Action: Modify the zoning database on the remote switch to remove or
correct the empty zone set.
(A1003.0022) (Unable to update dat abase with newly activated information, Zoning Save in
Progress)
Meaning: Modifications were being made to the security or zoning database
while a security set or zone set was being activated or deactivated
from a remote switch.
Action: Try the activation or deactivation again later.
(A1003.0023) (Fabric Busy Zoneset operation failed)
Meaning: The activation or deactivation of a zone set failed because the
fabric is currently busy.
Action: Try the activation or deactivation again later.
(A1003.0024) (Request already in progress (internal lock held))
Meaning: A fabric operation is currently in progress.
Action: Wait and try again.
(A1003.0025) (Error reading security set.)
Meaning: There was a problem handling the activate direct management
server command. The format of the command was not standard.
Action: Check the security configuration.
(A1003.0028) (SFC failure received from remote switch with domain domain_ID)
Meaning: The remote switch given by domain_ID rejected the Staged Fabric
Configuration (SFC) message, so the SFC request has failed.
Action: Check the status of the remote switch at the given domain ID.
There could be an issue with the security configuration or the
zoning configuration.
(A1003.0029) (No response received from switch with domain ID domain_ID)
Meaning: The remote switch given by domain_ID did not reply to an Acquire
Change Authorization (ACA) message, so the ACA request has
failed.
Action: Check the status of the remote switch at the given domain ID.
There could be an issue with the security configuration or the
zoning configuration.
59060-07 D 2-7
2–Event Messages
Alarm Events
(A1003.002A) (No response received from switch with domain ID domain_ID)
Meaning: A Staged Fabric Configuration (SFC) frame was sent to the switch
given by domain_ID, but a response was not received.
Action: Check the status of the remote switch at the given domain ID.
There could be an issue with the security configuration or the
zoning configuration.
(A1003.002B) (No response received from switch with domain ID domain_ID)
Meaning: A Update Fabric Configuration (UFC) frame was sent to the switch
given by domain_ID, but a response was not received.
Action: Check the status of the switch.
(A1003.002C) (Zone Merge response indicates failure due to zoning limits, Isolating link)
Meaning: Response from other switch indicates that the active zone sets
could not be merged.
Action: Edit or delete the conflicting zone objects or deactivate the zone
set on the remote switch.
(A1003.002D) (Zone Merge response indicates failure to merge, Isolating link)
Meaning: The attempt to merge two fabrics failed because each active zone
set contained a zone with the same name, but different
membership.
Action: Edit the affected zone to remove the conflict or deactivate one of
the zone sets.
(A1003.002E) (Zoning merge has been rejected.)
Meaning: The attempt to merge two fabrics failed because the active zone
sets each contained a zone with the same name, but different
membership.
Action: Either edit the affected zone to remove the conflict, or deactivate
one of the zone sets.
(A1003.002F) (SW2 Zoning Not Supported by other switch, Isolating link)
Meaning: The inter-switch link isolated because the local switch is configured
for FC-SW-2-compliant zoning (interoperability mode set to
Standard), but the remote switch is not.
Action: Set the interoperability mode on the remote switch to Standard.
(A1003.0030) (Zone Merge rejected by remote switch.)
Meaning: The zone merge failed.
Action: See the switch log for more details on why the merge failed.
2-8 59060-07 D
2–Event Messages
Alarm Events
(A1003.0031) (Error reading zoneset from activate direct.)
Meaning: A device supporting the management server has sent an Activate
Zoneset Direct $(AZSD) command that did not follow the expected
standard layout.
Action: Contact your authorized maintenance provider.
(A1003.0032) (Zoneset zone_set_name failed validity checks (empty or contains empty
zone/alias))
Meaning: The zone set either has no zones or contains a zone or alias
without members.
Action: Add zones and members, or remove the empty zones and aliases
from the zone set.
(A1003.0033) (No memory for command completion)
Meaning: Insufficient switch memory.
Action: Contact your authorized maintenance provider.
(A1003.0034) (Merge failed, total zoneset limit would be exceeded.)
Meaning: A fabric merge failed because the combined number of zone sets
exceeds the zoning database limit.
Action: Remove zone sets from the local switch zoning database to allow
the fabric merge to complete.
(A1003.0035) (Merge failed, invalid zone data received, ISOLATING)
Meaning: A remote switch sent a zone merge that was invalid.
Action: Reconcile interoperability modes on the local and remote switches
so that they are the same.
(A1003.0036) (Merge failed, member limit for zone zone_name exceeded, (size=
member_number, limit= member_limit))
Meaning: A fabric merge failed because the combined number of members
in two zones having the same name exceeds the limit for the
number of members in a zone.
Action: Remove members either from the zone on the local switch or the
remote switch so that the combined sum is less than member limit.
(A1003.0037) (Merge failed, Total zone member limit would be exceeded)
Meaning: A fabric merge failed because the total number of zone members
exceeds the zoning database limit.
Action: Remove zone members either from the local switch or the remote
switch so that the combined sum is less than member limit.
59060-07 D 2-9
2–Event Messages
Alarm Events
(A1003.0038) (Merge failed, Total zones in zonesets limit would be exceeded.)
Meaning: A fabric merge failed because the total number of zones in zone
sets exceeds the zoning database limit.
Action: Remove zones either from the local switch or the remote switch so
that the combined sum is less than the zones-in-zone sets limit.
(A1003.0039) (Merge failed, total zone limit would be exceeded.)
Meaning: A fabric merge failed because the total number of zones exceeds
the zoning database limit.
Action: Remove zones either from the local switch or the remote switch so
that the combined sum is less than maximum zone limit.
(A1003.003A) (Zone Merge conflict for ZoneSet zone_set_name (Zone mismatch for zone=
zone_name, check type or members), ISOLATING)
Meaning: A fabric merge failed because two zones of the same name in two
zone sets of the same name have different membership.
Action: Reconcile the membership in the two zones so that they are the
same.
(A1003.003B) (Incomplete merge request sequence received, unable to process request.)
Meaning: A remote switch sent a merge request that was not understood.
Action: Check the remote switch for configuration errors or equipment
malfunction.
(A1003.003C) (Incompatible Zoning mode, Isolating link)
Meaning: The fabric contains switches with a mix of interoperability mode
settings.
Action: Configure all switches in the fabric to have the same value for
interoperability mode.
(A1003.003E) (Security: Ports downed for INVALID_ATTACH require administrative action
to be brought online.)
Meaning: When deactivating a security set, ports that were previously
downed due to security violations remain down.
Action: Reset the ports or place the ports online.
(A1003.003F) (ISL group empty and links up. Set ports offline to activate.)
Meaning: An attempt to activate fabric binding with an ISL group that has no
members is not allowed because there are inter-switch links (ISL)
logged in to the switch.
Action: Configure all ISLs offline or add each ISL member with fabric
binding information to the ISL group before activating.
2-10 59060-07 D
2–Event Messages
Alarm Events
(A1003.0040) (Zone Member type member_type unsupported.)
Meaning: An invalid zone member type was discovered in a zone. ACL hard
zone membership must be defined by domain_ID and port number.
Action: Correct the member type.
(A1003.0041) (Zoning objects which contain Fibre Channel (FC) Address Members not
being sent to remote switch on save, not supported in this mode)
Meaning: An attempt was made to assign a zone member by FC address
while interoperability mode was disabled. When Interop mode is
disabled, zone membership must be defined by worldwide name or
domain_ID and port number.
Action: Enable Interop mode or change the zone membership type.
(A1003.0048) (Active Zone Set zoneset_name no longer in database, please deactivate
zone set if not already in progress (the save will be deferred until zone set
no longer active!)
Meaning: The switch will not allow you to delete a zone set that has the same
name as the active zone set from the zoning database.
Action: Deactivate the active zone set before deleting the zone set has the
same name.
(A1003.004C) (Active ZoneSet containing Fibre Channel Address may cause fabric to
segment due to switches that do not support this zone member type)
Meaning: Some switches in the fabric may not support Fibre Channel
address zone members in the active zone set.
Action: Edit the necessary zone sets to use worldwide name zone
membership.
(A1003.004D) (Port group does not contain entry for this switch)
Meaning: The security set cannot be activated because the port group does
not have an entry for the local switch worldwide name.
Action: Edit the port group to include the local switch worldwide name.
(A1003.004E) (Group entry for local switch does not support authentication)
Meaning: The local switch worldwide name group entry is not configured for
authentication, but other members within the group are. This
configuration is not allowed.
Action: Change the local switch worldwide name entry to run Challenge
Handshake Authentication Protocol (CHAP) authentication or
remove CHAP authentication from other members of the group.
59060-07 D 2-11
2–Event Messages
Alarm Events
(A1003.004F) (No Zone Merge Response)
Meaning: A merge request was sent out to all switches in the fabric but a
response was not received from at least one switch.
Action: Check other switches in fabric to determine why a response was
not sent.
(A1003.0050) (ISL group does not contain entry for this switch)
Meaning: The Inter-Switch Link (ISL) group does not contain an entry for the
local switch worldwide name. This is a required entry.
Action: Add the switch worldwide name to the ISL group, then activate the
security set.
(A1003.0051) (Domain ID for local switch does not match fabric binding)
Meaning: The configured fabric binding value for the local switch worldwide
name does not match the current domain ID for the switch.
Action: Change the fabric binding value for local switch worldwide name
within the ISL group to the current value of the domain ID.
(A1003.0052) (ISL group does not contain entry for switch domain_ID)
Meaning: The ISL group does not contain an entry for each switch in the
fabric. Fabric binding requires an entry for each switch.
Action: Make sure there is an entry in the ISL group for each switch in the
fabric, and try activating the security set again.
(A1003.0053) (Fabric binding must be unique, domains are assigned to multiple security
group members
Meaning: The fabric binding setting for the members of the ISL group are not
unique.
Action: Make the fabric binding settings unique for each member of the ISL
group, or set them to 0 so that they are not enforced.
(A1003.0054) (Failure at remote switch)
Meaning: A frame was sent to a remote switch, but the expected response
was not received.
Action: Check the status of the remote switch.
(A1003.0055) (Problem on zoning save of following switches: domain_ID_list)
Meaning: A zoning save could not be performed on some remote switches.
Action: Examine the named switches. If there are no obvious problems,
contact your authorized maintenance provider.
2-12 59060-07 D
2–Event Messages
Alarm Events
(A1003.0058) (Active ZoneSet zone_set no longer in dat abase, please deactivate zone set if
not already in progress or fabric will be inconsistent)
Meaning: A zone set with the same name as the current active zone set no
longer resides in the zoning database. The active zone set will not
be added to the full zone set sequence to prevent inconsistency in
the zoning database.
Action: Deactivate the active zone set to keep the fabric consistent.
(A1003.0059) (Failing remote zoning configuration, zone member type not supported)
Meaning: A remote switch's zoning configuration contains a zone member
type that is not supported.
Action: Edit the zone to remove the unsupported member type.
(A1003.0060) (Zone Merge conflict (Alias mismatch for alias= alias, check members)
Meaning: The zone merge failed due to an alias mismatch.
Action: Examine the zoning configuration for conflicts.
(A1003.0062) (Failing delete orphans zoning request, fabric locked by switch with domain
ID domain_ID. Retry command later.)
Meaning: An attempt was made to delete the orphan zones while the fabric
was locked.
Action: Retry the command later.
(A1003.0063) (Failing delete orphans zoning request, fabric busy. Retry command later.)
Meaning: An attempt was made to delete the orphan zones while the fabric
was busy.
Action: Retry the command later.
(A1003.0064) (UFC failure received from domain domain_ID)
Meaning: An Update Fabric Configuration (UFC) message was received with
a failed status from the switch given by domain_ID.
Action: Check the status of the switch at the given domain ID.
(A1003.0066) (ISL group entry for switch wwn does not contain valid binding
configuration. Entry should have binding domain domain_ID)
Meaning: A switch in the fabric is using a domain ID that differs from the
configured fabric binding domain ID.
Action: Change either the current switch domain ID or the fabric-binding
domain ID so that they match.
59060-07 D 2-13
2–Event Messages
Alarm Events
(A1003.0069) (Failing remote zoning configuration, invalid zone data received)
Meaning: Zoning activation failed because the switch detected invalid zoning
data that is not supported in the local interop mode.
Action: Check your zoning configuration and remove incompatible zone
members.
(A1004.0001) (Port in active hard zone, but not installed or present on this switch.)
Meaning: A zone member in an ACL zone on this switch is defined with an
invalid port number.
Action: Examine the fabric and correct the zone membership.
(A1004.0005) (No communication from neighbor switch on port port_number with domain
ID domain_ID, lost route)
Meaning: This switch has not received a hello from the remote switch for 80
seconds. The routes learned through this link are discarded.
Action: None
(A1004.0008) (Eport Isolating due to ELP Incompatibility)
Meaning: An E_Port isolated due to an ELP (Exchange Link Parameter)
incompatibility.
Action: Review the accompanying alarms for a specific cause.
(A1004.0009) (Eport Isolating due to ESC Incompatibility)
Meaning: An E_Port isolated because the connecting switch failed to support
the standard routing protocol FSPF.
Action: Connect a compatible switch.
(A1004.000A) (Eport Isolating due to EFP Domain Overlap)
Meaning: An E_Port isolated because each fabric has a switch with the same
domain ID.
Action: Change the domain ID on one of the conflicting switches.
(A1004.000B) (Eport Isolating due to Switch Administratively Offline)
Meaning: An E_Port isolated because the local switch has been placed
offline.
Action: Configure the administrative state to Online to establish the link.
2-14 59060-07 D
2–Event Messages
(A1004.000C) (Eport Isolating due to Domain ID Locked, Domain ID unavailable)
Meaning: An E_Port isolated because the requested domain ID matches
another in the fabric, and assigning an alternative is prohibited by
the domain ID Lock parameter.
Action: Disable the domain ID lock parameter or reconfigure the domain
IDs.
(A1004.000D) (Eport Isolating due to RDI SW Reject)
Meaning: An E_Port isolated because the principal switch rejected the local
switch domain ID.
Action: Change the domain ID so that it is unique in the fabric.
(A1004.000E) (Eport Isolating due to RDI Domain out of Range)
Meaning: An E_Port isolated because the principal switch rejected the local
switch domain ID as being out of range (1–239).
Action: Change the domain ID to a valid number.
Alarm Events
(A1004.000F) (Eport Isolating due to Merge Zone Failure)
Meaning: An inter-switch link failed because the two active zone sets have a
zone with the same name, but different members.
Action: Modify one or both of the zones so that their membership is the
same, or deactivate one of the active zone sets. To connect the two
fabrics, reset the affected E_Ports.
(A1004.0010) (Eport Isolating due to Remote switch using same domain ID)
Meaning: An E_Port isolated because the remote switch has the same
domain ID.
Action: Change the domain ID on one of the switches.
(A1004.0011) (Eport Isolating due to Remote switch isolated)
Meaning: An E_Port isolated because the remote switch has the same
domain ID.
Action: Change the domain ID on one of the switches.
(A1004.0012) (Eport Isolating due to ISL Security)
Meaning: A remote switch attempted to log in but was rejected because it
failed to satisfy the ISL group membership requirements.
Action: Review the ISL group configuration and make the necessary
corrections to include the remote switch as a member.
59060-07 D 2-15
Loading...
