www.PyleAudio.com
Model: PRJHD66
User Manual
•••••••••••••••
CONTENTS
Accessory and purchasable parts
Warning
Safety Precautions
Caution
Installation of projector
Full setting
standard setting front projection)
Installation method
input port instruction
signalconnection map

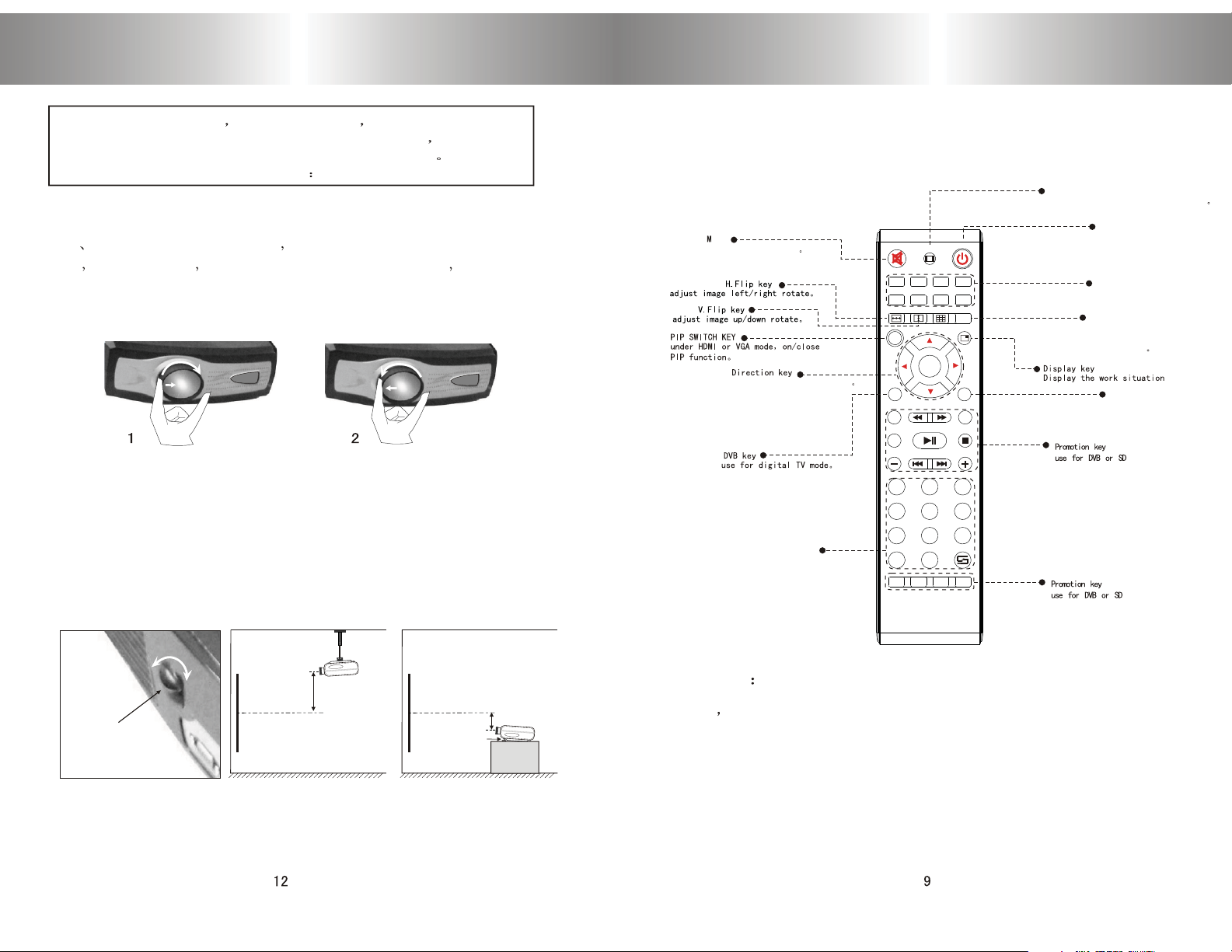

Remote control instruction
Panel keystoke instruction
Open/close
Open operation
Close operation
Image trapezoid adjustment
Focus adjustment
Trapezoid adjustment
Image trapezoid adjustment
Menu setting method
Image menu adjustment
volume menu adjustment
Function menu adjustment
system menu adjustment
When you open the carton of projector,
plese check the full accessories
Accessory list :
Projector ------------------------ 1 unit
remote control --------------------------1 pc
power cable ---------------------------1 pc
AV signal cable--------------------------1 pc
VGA signal cable-------------------------1 pc
warranty card------------------------1pc
manual ---------------------------- 1 pc
spare fuse ------------------------1 pc
clear paper ----------------------------1 pc
Purchasable accessory
1, projector screen
2, projector ceiling mount
3, spare lamps
preset menu adjustment
Maintenance
filter clearance
lamp replacement
Trouble shooting
Specification
Accessory
Specification
LCD Model 5"TFT
Input signal video component video(Ypbpr) ,VGA HDMI
TV
audio stereo
WARNING
warning
Please remember the model Number
and series number if you need.
And please check all accessories
when you drop the carton package
When you use this projector , please read this manual carefully
MODEL NUMBER
SERIES NUMBER
output signal audio 5W 2 speaker(select)
LCD native resolution 640 480 support 576P, 720P 1080P)
contrast ratio 800 1
Lens aperture 3.8
Focus 160mm
Lamp Power 150W
Color-Temperature 9300K
Life > 6000 hours
working time < 24 hours
Image size 60 100inch
Brightness 1800 Lumens
keystone 20 degree
Power Voltage 220 10 VAC 50Hz or 110 10 VAC 60Hz
power consumption < 200W
Working condifition temperature 0 +70
humidity 10 65
store condition temperature -20 +70
humidity 10 90
Donot see the light from the lens ,it is high bright lamp.
It will damage your eye .specially for chirdren.
Warning:Donot place the projector in the wet condition,
avoid to getting an electric shock
High Voltage,donot open it ,
except for professiona
WARNING
It indicates there is a instruction
for important operation
It indicates there is a dangerous
voltage
Warning
when close the projector ,the fans will continue to turn 90seconds.
Before pull out the power cable, please be sure the fans stop to turn .
Or it will damage the projector lamp
Remote control Frequency 38KHz
machine size 298 210 120mm
weight 6Kg
About the remote control battery:
The remote control battery should be fixed correctly ,
Or it will damage the remote control.
Make sure the remote control out of chirdren reach
If all parameter changed,donot note again
Safety precautions
g
Warning;
when use this projector ,please read this manual carefully.
If wrong operation ,it will cause electric shock or fire.so when use
and repair this projector ,please comply with the following points
1,Read manual
Before use this projector ,please
read full manual carefully and
operate according to this manual instruction
2,Clear
when clear this projector ,please pull
out the power cable. Use the wet cloth
to clear,not the cleasner
3.Accessory
please use our recommended accessory.
Or it will damage the projector.
4,Use environment
Donot place the projector in wet environment
5,installation and fix
please place this projector in stable table .
6, Ventilation
the ventilation in the projector are best
for projector work stably. Donot let the dust
wall up the filter. Or it will cause the projector
high-temperature protected. So please use the
water to clear the filter per month.
7, Power
please make sure the power same as your
projector inquiry specification. (220 V or 110V)
8, Earthing wire
this projector has earthing wire .
It is three pin plug.
9,protect the power cable
Please confirm the power cable
are perfect when connect the
projector.
10,Thunder
when the thunder happen or long time
no use , please pull the power cable
out of projector.
11,Repairment
As the high voltage inside ,please
donot open or try to repair the
projector by yourself. . Please ask a
professional technician to repair
the projector.
12, Far away Heat device
please make sure this projector far
away other heat device . It will
damage the projector service life
Trouble shootin
TROUBLE SHOOTING
Please refer to this chapter when you encounter a problem list prior to contacting your
dealer.
Problem: Possible solution(s):
Projector turns off automatically 1, Dust cover the filter ,
Please wash this filter by water .
2, Some of fans are broken ,donot turn again,
It is high temperature protected system.
Please replace the broken fans quickly.
Lamp doesn't work. 1, Power supplier are wrong . Please confirm your
Projector power specification . 220V or 110V .
2 , Lamp are broken or out of service life.
Please replace the lamp and test it again
3, Check the ignitor . It is broken , please change a
New ignitor.
Trouble Shooting
r
e
e
s
Caution
TROUBLE SHOOTING
Please refer to this chapter when you encounter a problem list prior
to contacting your dealer.
Problem: Possible solution(s):
No power 1, The projector donot connect the power cable
2, Donot open the projector .
3, Fuse broken
Remote doesn't operate 1,Projector turned on to quickly after
last turn off (needs 5 minutes).
2,Batteries defect.
3, Aim remote correctly at IR receiver.
No image
2, Projector turned off.
3, Selected the wrong input signal.
4, the mainboard are broken . Please
Replace this mainboard.
1, Please remove the len cap at first
About the installation
In order to improve the projector service life,
It shouldnot place in a wet and
ventilation condition
Donot put the projector under the sunshine
directly
Projector working temperature: 0 +70
Projector store temperature : -20 +70
Donot block the ventilation-window
of projector
If the projector interior temperature
are too hot , the machine will be shut
off automatically.This is hot protected system.
So please clean the filter of projector
per month . It is very important.
Donot let the dust cover the filter.
About Open and close the projector
when open the projector ,connect
the power cable and press the "power"
key on the panel .the projector will
work ,but the lamp will be bright more
and more .After 5 minutes, the lamp wo
normally
when close the projector , press the pow
key again . And then the lamp shut off.
But the fans still work until 5minutes lat
When close the projector ,donot pull out
the power cable directly . After 5minute
the projector will shut off automatically.
Warning
Fans will adjust the temperature It is controlled by system when the projector work,
the fans turn slowly or quickly so the fans noise are different But it is normal
when the projector work ,donot pull out the pwer cable If the fans stop to work,it will cause
the projector interior temperature very high, so it may damage the projector.
Installation
PROJECTOR INSTALLATION
Maintenance
Please use the setup instruction below:
Speaker
L
Subwoofer
Appreciate seats
Screen
Speaker C
Projector
2.Take away the panel like the picture 2
Speaker
R
DVD
Amplifier
Door
Speaker
Ls
Speaker
Rs
In order to get good image quality ,donot let the sunlight shine
the screen directly .If you use the projector in the day time,
Before replacing the lamp,make sure the lamp are cold
Before open the lamp cover board,pull out the power cable
When replacing the lamp,donot drop some dirty goods
inside the projector.
Maintenance
Projector Installation
Replace the projector lamp
Our projector lamp warranty 6 months In different use environment
after 6000hours the lamp brightness will reduce the image will
become dark .Therefore please replace the lamp according to
the following steps
1, use the tool to remove the screw,like the picture 1 show
Standard setting Front projection
Please refer to the following sheet , adjust your picture size
and distance (from the lens to screen )
Taille D' cran
50"
72"
100"
The data maybe have 3% error,due to the image size according
to the distance between projector and screen if the distance is
less 2m or over 5m,the image maybe not clear.
warning
4:3 16:9
2.45m
3.45m
4.73m
2.65m
3.75m
5.15m
Please check the following picture to show the trapezoid adjustment
Screen
Screen
symmetry
axis
Projector
Incorrect installation,
the images left-right small.
Installed correctly,
the image is rectangular.
Incorrect installation,
the images right-left small.
Projector installation
Installation method:
Contact a proffessional service man to mount this projector to a ceiling.
Follow the instructions belowe for the correct projector positions:
Maintenance
Maintenance filter
The filter should be cleaned at least once a month (more often
in dusty environments),or the projector will overheat
the step as follow
screen
screen
projector
Front projection
ceiling mount
projector
Front projection
Table mount
projector
Rear projection
Ceiling mount
projector
Rear projection
Table mount
screen
screen
Warning
1 This projector might damage beyond repair when it is incorrectly mounted on
a ceiling or when its incorrectly installed on a surface or installed on a
incorrect surface. It may also inflict damage to persons within close vicinity.
2)This projector can only be used in an environment with a temperature not
exceeding the range of 0- 35 degree .The projector may malfunction if
temperatures vary outside the normal operating range.
3 The sharpness of the screen might be interrupted when the
projector is being used in a dusty,wet,moist or smoke filled
environment. The projector might malfunction in a moist or wet
environment.
4 Take care of sufficient ventilation around the projector.
Otherwise this projecctor might overheat and cause life threatening
situations
1.Remove the grille like indicated below
2. clear the dusty on the filter Dry the filter sufficiently
neverinstall a moist filter in this projector,and complete
the installation

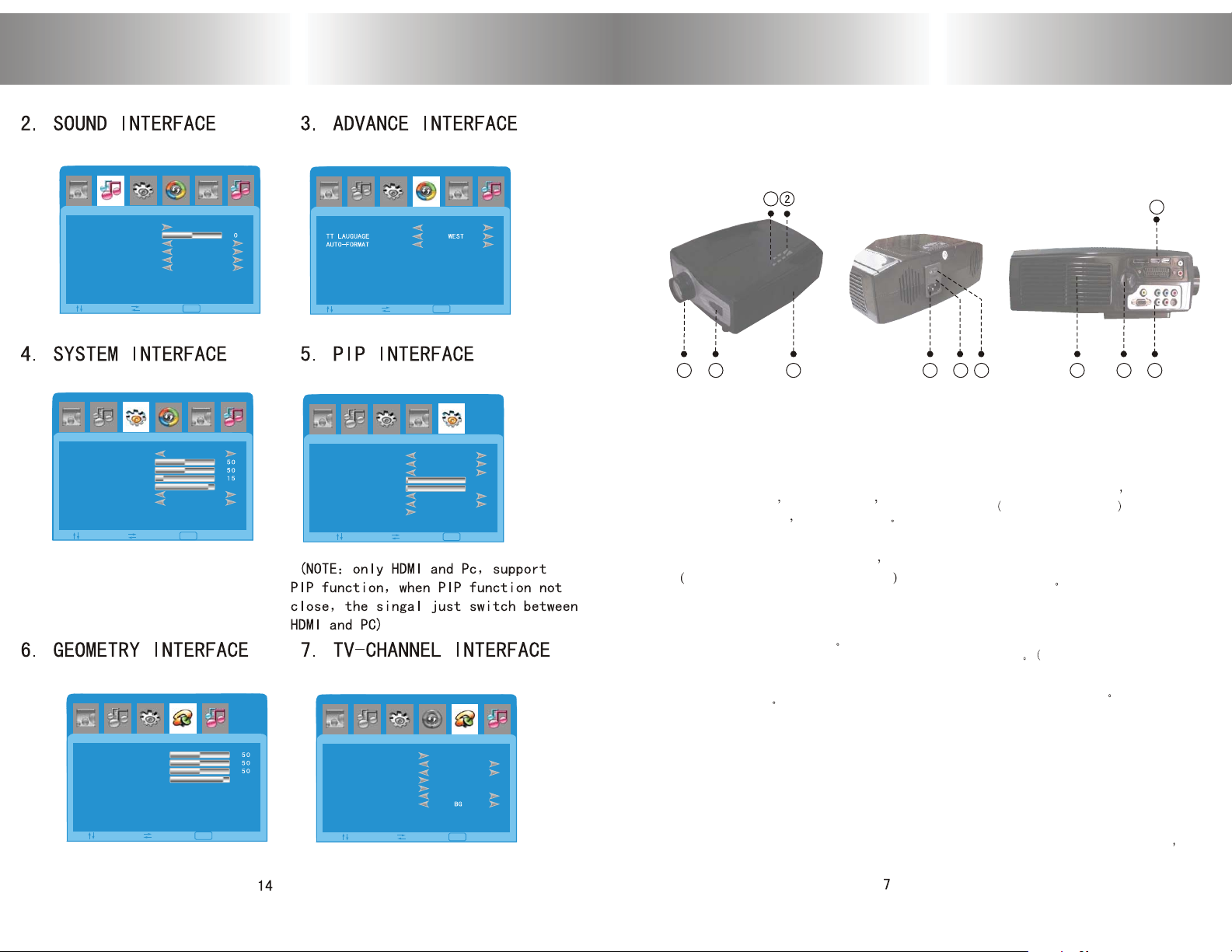

Menu setting
Projector installation
Input port instruction
This projector can support component video signal, s-video signal,VGA
signal and TV signal,the audio in and audio out function.
EOUALIZER
BALANCE
SOUND MODE
AVC
SURROUND
AUDIO OUTPUT
: MOVE
OSD LANGUAGE
OSD H POSITION
OSD V POSITION
OSD DURATION
OSD HALFTONE
H FLIP
V FLIP
: MOVE
H.POSITION
V.POSITION
CLOCK
PHASE
: MOVE
SOUND
: A D J
SYSTEM
: A D J
GEOMETRY
: A D J
STANDARD
OFF
OFF
NORMAL
MENU
ENGLISH
OFF
OFF
MENU
MENU
: EXIT
: EXIT
: EXIT
ADVANCE
SLEEP TIMER
: MOVE
: A D J
OFF
ON
MENU
: EXIT
••
PIP
: A D J
TV
LARGE
BLACK
MAIN
PIP
4
4
1. Indicator light
on stay situation the light is red
on working situation the light is green
MENU
: EXIT
2. Panel key
MULITI WINDOW
SUB SOURCE
SIZE
42
PIP H.POSITION
PIP V.POSITION
BORDER COLOR
SOUND SOURCE
SWAP
: MOVE
use panel key to adjust parameter
read the introduce of the panel key
3. Remote control receiver
when use the remote control,please
point this receiver directly
4. Lens
adjust the lens focus to improve
the image quality
5. Trapezoid correction
TV
AUTO SCAN
MTS
98
SKIP
FINE TUNING
MANUAL SEARCH
COLOR SYSTEM
SOUND SYSTM
: MOVE
: A D J
MO N O
ON
AUTO
MENU
: EXIT
turn the knob on the projector left or right .
Adjust the image become square,can adjust +/-15
6. HDMI signal input , max support 1080i signal.
•
•
•
•• ••••
7. Signal wire connect
connect projector signal source
read the signal port introduce
8. Power switch
when use ,you need connect the
power wire with projector and
the power jace
9. Fuse
if open the power switch,the indicator
light donot work,it maybe the fuse
broken 5A220V)
10. Power switch
open and shut off this switch
when you want to open the projector
it must open this switch at frist
11. ventilation
this ventlilation window is very important
donot block this window.otherwise
it will burn the projector
12. ventilation
two side of the projector have the ventilation
•
•
•
when use ,you must ensure do not block it
Projector install
• •••••••••••••••••••• ••••• ••••••
••••••••••••••••••
Menu setting
Menu setting method
1. Using the projector press menu key,
the picture disply on screnn to adjust the
menu(picture one)
2. press key the menu in turn
circle into image > volume >
function > system > setting >
image adjust interface
3. Elect the adjust interface use key
elect the item that need to adjust(picture two
4. use key to adjust the elect item paremeter
5. Finished the elect item parameter press the
menu key again exit the page
6. Repeat operate the 2 5step
till finished all the parameter's enactment
press exit key,exit the menu page
otherwise the menu page will auto exit
after a period time
CONTRAST
BRIGHTNESS
HUE
SATURATION
SHARPNESS
COLOR TEMP
SCALE
PICTURE MODE
3D NR
MPEG NR
: MOVE
CONTRAST
BRIGHTNESS
HUE
SATURATION
SHARPNESS
COLOR TEMP
SCALE
PICTURE MODE
3D NR
MPEG NR
: MOVE
: A D J
: A D J
STANDARD
43
MID
HIGH
MENU
: EXIT
STANDARD
43
MID
HIGH
MENU
: EXIT
••• ••• ••••••
Connecting video equipment
Without S-video output terminal.
1. Image menu adjustment
a. Press menu key untile disply the
above picture of the menu
b. Press key elect the option
that need to adjust
c. Press key adjust
parallelisn elect parameter.
d. Press the "menu" key again exit
the menu page parameter adjust station.
CONTRAST
BRIGHTNESS
HUE
SATURATION
SHARPNESS
COLOR TEMP
SCALE
PICTURE MODE
3D NR
MPEG NR
: MOVE
: A D J
STANDARD
43
MID
HIGH
MENU
: EXIT
••
Image adjustment
Remote control instruction
The new projector using it first time commonly will
appear image faintness and the the image is trapezoid it is course
that not adjust well of the lens focus and the trapezoid
please follow the step the correction
Focus adjustment
• turn the lens into the projector then turn it out slowly
at the same time looking at the resolution point carefully
when the image is very clearly (take the middle area of the image),it is the
best situation of the lens
NOTE: When you replace the projector from a cold to a warm environment water vapour
might occur. Don't turn the projector on when this occurs but wait until the vapour
has disappeared.
KEYSTONE
If a projected picture has keystone distortion, correct image with Keystone adjustment. The
image becomes trapezoid shape when the screen or project is not level. Please reposition
the projector to improve its angle to the screen. However, the circumference of the image
may not be focussed.
Remote panel instruction
ute
open or close the volume
menu mode .adjust patameter
Number Buttons
selects TV channel directly
MUTE
YPbPr
H.Flip V.Flip
PIP
DTV
DTV Menu
EPG
TEXT
SUBPage
ON/OFF
16:9/4:3
HDMIVGASVAV
ATV DT V
SCART
Preview
MODE
Display
OK
M
Menu
RE
Return
REVEAL
INDEX
SIZE
12
4
780
-/--
UP
DOWN
3
5
6
0
MIX
HOLD
16 :9/4 :3 switch key
switch the display picture for 16 :9 or4 :3
Power
for turn the power on.
•••••••• ••••••••• •• •••••• •
••• • • •• • ••• • ••• • • ••• •• • • •
Image effect reset key
can set the image brightness,
soft colour or personality
quickly in turn
• •••••••
••••••••••••••
••••••••• •••••• •••
Projector
Projector
Keystone
Screen
Screen
If not able to use the Keystone correction function to correct the trapezoid distortion, please
reduce of the projector to centre the screen vertically.
Precautions
1 you need to dry the remote control with a dry cloth immediately
when it gets wet.
2, when the battery hasn't been used for a long time we advise you to
remove it from the remote .be sure that children can't reach the
removed button cell .swallowing a of harm and is very dangerous
Panel keystoke instruction
Panel keystoke sketch map
Power key
•
It can open or close the projector
its function same as the "power"
in the remote control
PC/AV Key
It can choose the input signal
(such as: AV.SVIDEO .Component video ,
HDMI,PC or TV)
•
Menu,direction Key
It can adjust the menu by
UP/Down ,left/righ
•
Indicator light
If the projector is the new one please read projector install
chapter placed the projector connect the powerwire and the signelwire
the operation as follow:
Open operation
1.Before use the remoter .
Put in two 7 size battery in it
2. Open the power switch on the backboard
the power light begin to flash
press the power key on the remote control or panel
the indicator light turn light
After 2 second the projector lamp begin work
began appear unclear white light on the screen
after 2 minute,the projector begin work
5. For the new projector. When the frist time to use maybe will appear image
unclear or trapezoid distortion please read image adjustment chapter
6. After the image is clear then you can watch program during watching
you also can setup the system parameter please read menu setting chapter
Close operation
1.During use the projector press power key can let the projector
switch to stay situation
2.After inter into stay situation the projector under auto protect auto release hot
the indicator light is flase situation but here the projector is under auto protect
situation not accept any order if need to startup again must wait for finished
the release hot .
Loading...
