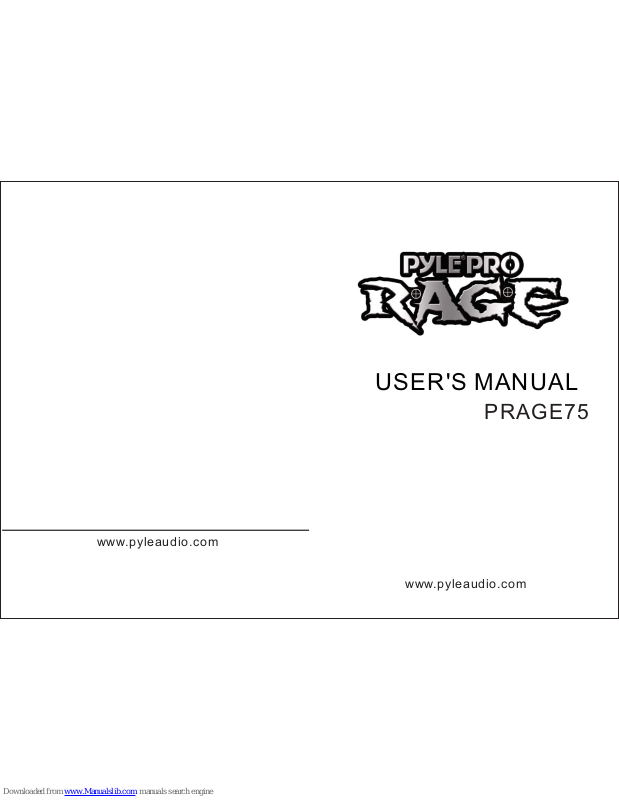

USER'S MANUAL
PRAGE75
www.pyleaudio.com
www.pyleaudio.com
PRAGE75
“”
“”
“”
“”
“” “”
1.HIGH INPUT This is the High Sensitivity input of the amp.
2.LOW INPUT This is the Low Sensitivity input of the amp.
3.CLEAN CHANNEL VOLUME:When the Clean Channel is selected,this control adjusts its
volume. At low settings the sound will be very clean with a pleasing, bell-like ring. Turning
this control above half way will introduce a desirable, bluesy distortion as the power
amplifier stage is driven into crunch mode .
4.CLEAN CHANNEL TREBLE: Increasing the Treble will make your clean sounds brighter
and more cutting.
5.CLEAN CHANNEL BASS: Turning up the Bass control will add warmth and low-end depth
to your clean sound.
6.CHANNEL SELECT SWITCH: This push switch allows you to change between the amp's
two channels,Clean and Overdrive,via the front panel.When this switch is out ,the Clean
channel is engaged,pushing it in switches to the Overdrive channel.
7.OVERDRIVE CHANNEL GAIN: Turning up the Gain control will increase the amount of
preamp distortion generated in the Overdrive channel.Low gain control settings will produce
classic rock and blues tones.Crank this control for fat and aggressive sounds that are
perfect for soloing or hard rock and nu-metal riffs.
8.OVERDRIVE CHANNEL VOLUME: This control adjusts the volume of the Overdrive
Channel.The louder you turn up this channel,the looser your amp will sound and feel
especially.
9.OVERDRIVE CHANNEL TREBLE:This important knob controls the aggressive topend
sizzle you have on high gain sounds and the cut and definition of lower gain crunch tones.
Experimenting with this control will help you to dial in your own signature tones on your amp.
10.OVERDRIVE CHANNEL MIDDLE:Adjusting the middle frequencies in your Overdrive
Channel will vary the amount of body to your sound.Attenuating(decreasing) the middle by
turning this control anticlockwise will yield a more hollow sound with the bass and treble
frequencies appearing to be more accentuated. Conversely,increasing the middle will add
body to the overdrive channel's sound.
：
：
12 3
4567
8 9 10 11 12 13
1.CD INPUT: Use this jack to connect the output from a CD player, MP3 player,laptop,etc.,to
the amplifier.
2.CD VOLUME:Adjusts the output volume of the CD devices.
3.FOOTSWITCH:Use this jack to connect one of the footswitch cables. This allows you to
remotely switch between the Clean and Overdrive channels.
4.HEADPHONE: Use this jack for plugging in headphones.
5.EFFECT SEND: Jack socket for connection to the input of external effects processor.
6.EFFECT RETURN:Jack socket for the connection from the output of external effects
processor.
PRAGE75 USERS MANUAL’
PRAGE75 USERS MANUAL’
Rear Panel functions
FRONT PANEL:
12
3
4
56
TECHNICAL SPECIFICATIONS
Output Power Rating
Input Impedance
Max Input Level
Singnal To Noise Ratio
Speaker SizeAnd Rating
Dimensions (H x W x D)
Weight
70 W MAX @ 5% THD ,8ohm
200 K Ohms
700mv (RMS)
70db @ max Rated Power
10 , 8ohm”
42 x 44.5 x 24.5 cm /16.5 x 17.5 x 9.6 in
13.1kg / 29.1 lb
7
11.OVERDRIVE CHANNEL BASS:Turning up this control will add extra low-end thump to
high gain riffs and a warm,natural sounding depth to lower gain crunch tones.
12.REVERB:This control lets you add a natural sounding Reverb that never gets harsh or
grainy.Short Reverb times produce a plate-type effect while longer Reverb times result in
much larger sounding hall-type effects.
13.POWER: The power switch turns your amplifier on and off.
“”
6
