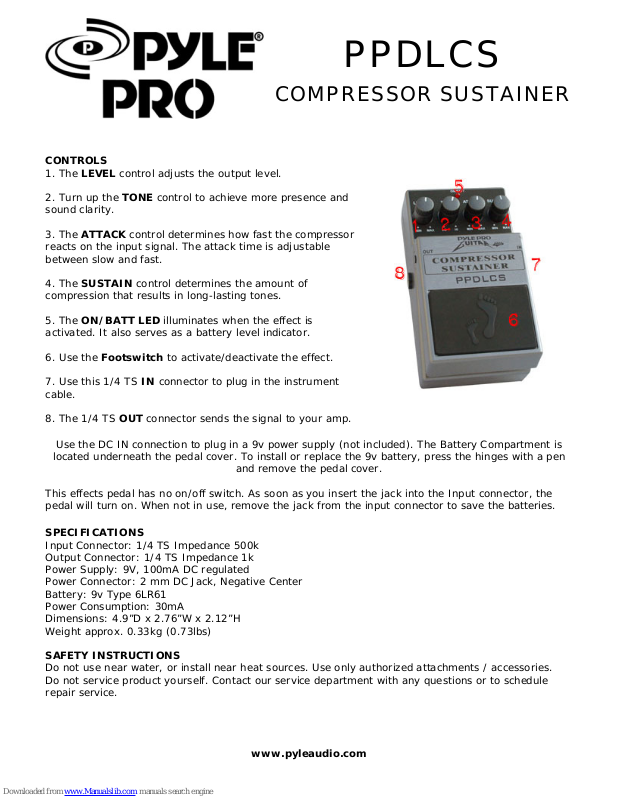

PPDLCS

COMPRESSOR SUSTAINER

CONTROLS

1. The LEVEL control adjusts the output level.

2. Turn up the TONE control to achieve more presence and
sound clarity.

3. The ATTACK control determines how fast the c
reacts on the input signal. The attack time is adjustable
between slow and fast.

4. The SUSTAIN control determines the amount of
compression that results in long-lasting tones.

5. The ON/BATT LED illuminates when the effect is
activated. It also serves as a battery level indicator.

6. Use the Footswitch to activate/deactivate the effect.

7. Use this 1/4 TS IN connector to plug in the instrument
cable.

8. The 1/4 TS OUT connector sends the signal to your amp.

Use the DC IN connection to plug in a 9v power supply (not included). The Battery Compartment is

located underneath the pedal cover. To install or replace the 9v battery, press the hinges with a pen

and remove the pedal cover.

This effects pedal has no on/off switch. As soon as you insert the jack into the Input connector, the
pedal will turn on. When not in use, remove the jack from the input connector to save the batteries.

SPECIFICATIONS

Input Connector: 1/4 TS Impedance 500k
Output Connector: 1/4 TS Impedance 1k
Power Supply: 9V, 100mA DC regulated
Power Connector: 2 mm DC Jack, Negative Center
Battery: 9v Type 6LR61
Power Consumption: 30mA
Dimensions: 4.9”D x 2.76”W x 2.12”H
Weight approx. 0.33kg (0.73lbs)

SAFETY INSTRUCTIONS

Do not use near water, or install near heat sources. Use only authorized attachments / accessories.
Do not service product yourself. Contact our service department with any questions or to schedule
repair service.

www.pyleaudio.com
