Page 1
PWMA100
PWMA200
Page 2
1
We th ank you f or your p urcha si ng th is a mpl if ier sys tem.B ef ore
you use you r new a mpl ifi er sys tem , ple ase r ead th e man ual b ook
thorou ghly and caref ully.
Pleas e keep this instruction book in a safe place afte r readin g for
futur e referen ce.
WARNING
To prev ent fire or sho ck hazar d, do not expose the unit to rain or moistur e.
Dangerously high voltages are presen t inside the uni t. Do not open the casi ng
of the unit. Ref er servic ing to qualified personnel only.
Recharge the built -in 12V DC recha rgeable battery before any use of the uni t.
To preve nt the rechargeabl e battery from being dama ged, make sure that the
power ON /OFF switch of the PA system is turned off after each use .
Basic Features of the Amplifier system
All in one design for easy carrying and portable use.
Uni-directional Lavalier microphone with high sensitivity for clear voice
transmission and receiving.
Quartz stabilizer for carrier frequency transmission to avoid interference.
The system works on both AC and DC.You can also use the built in rechargeable
battery or with car cigarette lighter power for 12V DC.(The power cord for car
is not included, call Pyle 718-535-1800 for optional purchase)
Amplifier operates on the VHF band and there are 98 different possible channels
ready for max a group of 98 amplifiers working together at the same place and
the same time.
SMT technology and SMD electronic components used in building this amplifier,
are very high quality, operate very stable and will last a long time.
3 styles of microphones are good for different purposes. You can use the
handheld mic, headset mic and Lavalier mic
alternatively.
Tone control.
Wired/wieless microphone
Aux input for connectin g to MD/CD etc.
9V common battery or 8.4V rechargeable battery can
be used in the wireless handheld microphone and the
wireless transmitter.
FM Radio Function.
Meeting
Page 3
This unique designe d ampl ifi er spe aker s yste m with m icro pho ne is perfec t for
the followimg applicat ions.
Used as lecturing amplifier indoor or outdoor.(Especially for dancing and gym
teachers).
A perfect address delivery system for in and outdoor meetings, tourism and
churches.
It is a good amplifier for interpretation, class teaching and commercial vendor
demonstrations.

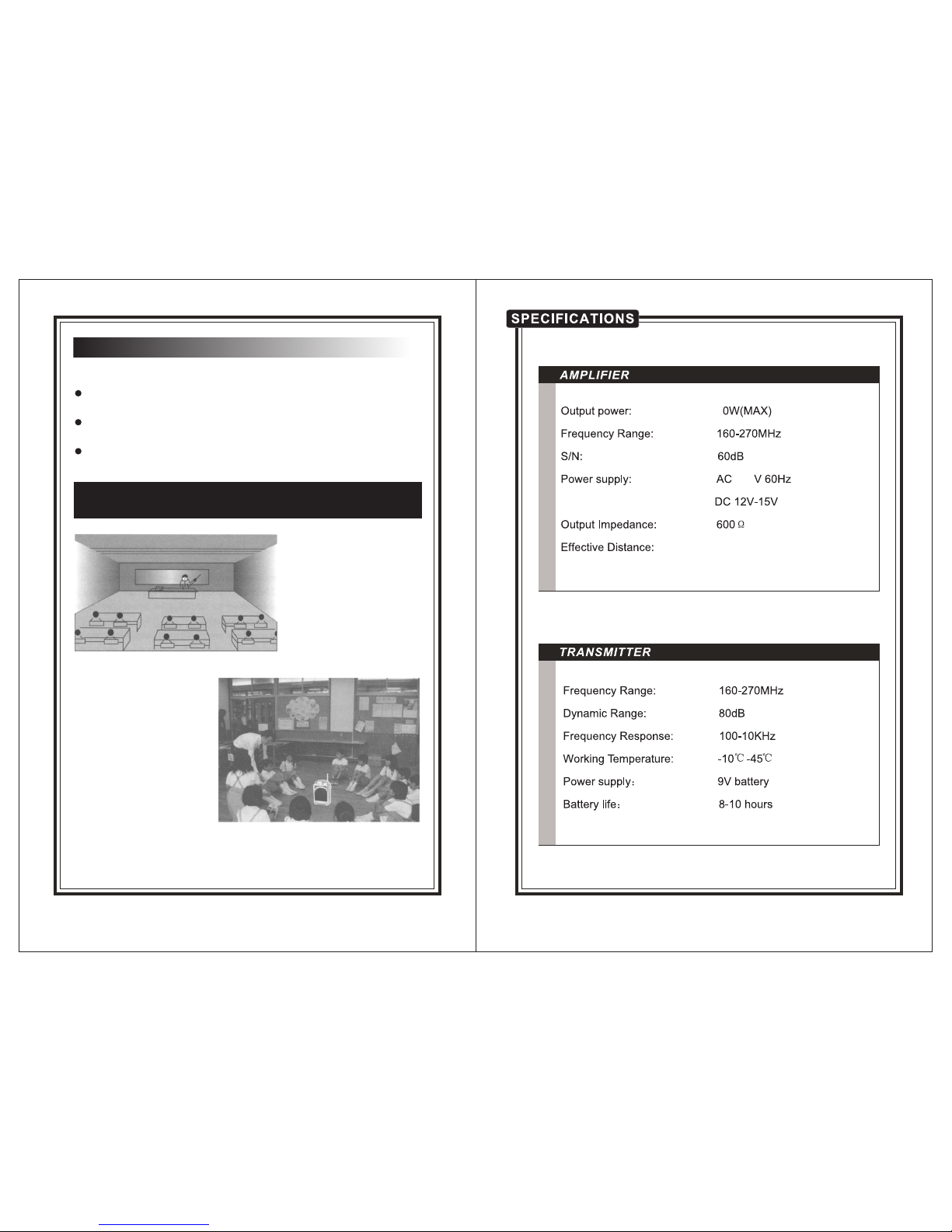

The usage of the amplifier system
You can be heard from afar with clear sound quality and dependable
performance
Classroom teaching
Game
2
UP TO 100FT
11
8
110
Page 4
La v al i er Mi c ro p ho n e
Be l t Pac k Tr a ns m itt er
9V
battery
He a ds e t M ic r op h on e
12 V /1 . 2A H
Bu i lt - in ba t te r y
(optional )
(optional )
(optional )
Wi re d Mic ro ph one

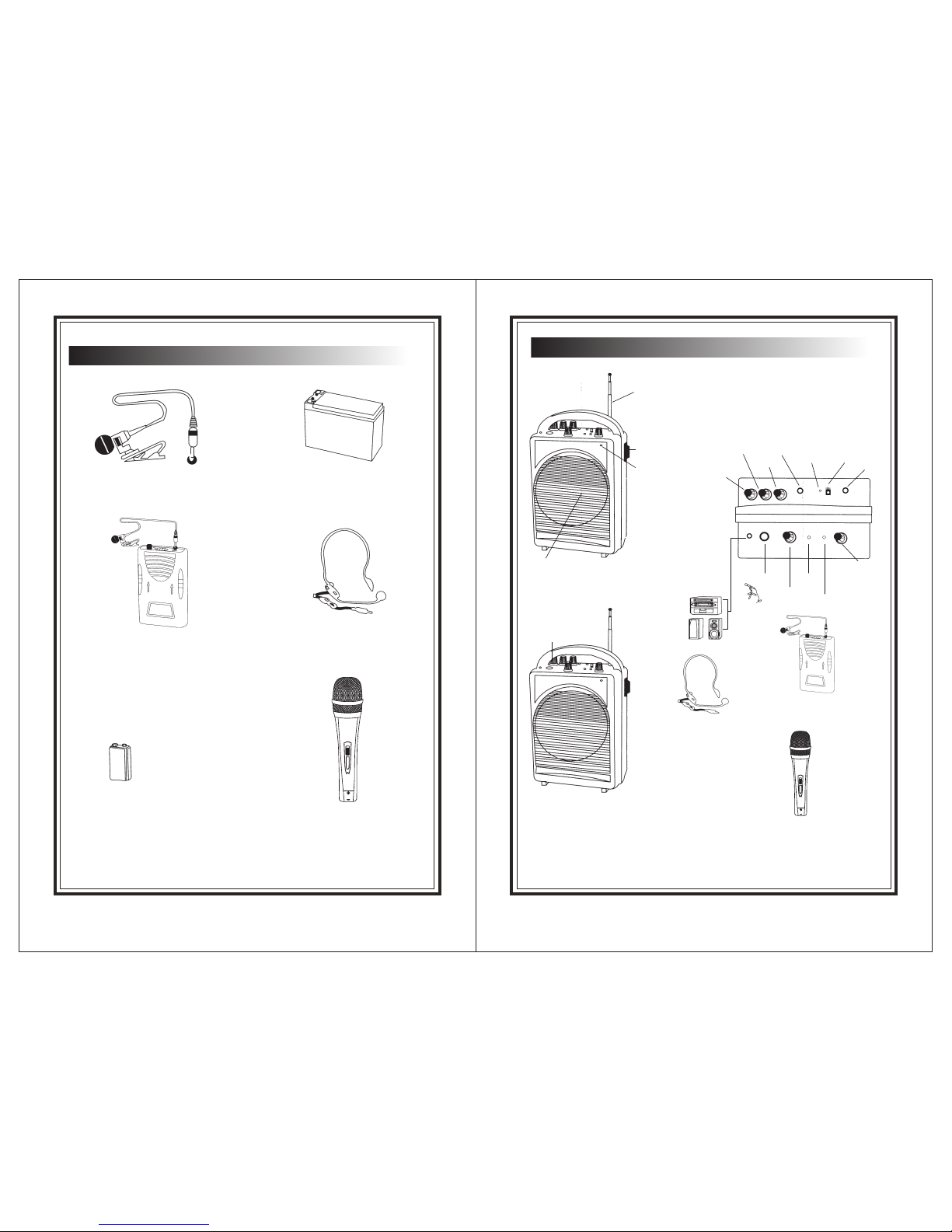

Op t ions of acc e ssor i es
10
OFF
The system descriptions:
PWMA20 0/PWMA1 00 Single chan nel main frame
(With Buil t-in Recha rgeable bat tery)
PWMA200 /PMWA100 Singl e channel MAIN
FRAME(Built -in Rechargeable
batter y and with FM)
Radio Tuning FM
(optional)
Antenna
Power ON/OFF
& Charge
Wireless RF LED
speaker
6 "
1
/
2
LOW HIGH RADIO
FM TURNING
AUX VOL RADIO
Charge mode LED
12-18V DC input
Antenna
Aux input
Audio Output
Wired Mic Input
Battery
status LED
Wireless microphone
volume control
power
Wired microphone
volume control
3
Ha nd hel d Wi reles s MI C
He ads et Mi cro ph one
Be lt Pa c k Tr an smi tt er
OFF
Page 5
1. One Amplified Speaker Unit
2. One Piece of Lavalier Wireles s MIC with Transmitter
3. One Headset MIC .
4.Wired Microphone
1. Plug in the AC power cord into your AC wall outlet. Make sure you
are using the corr ect voltage when you plug in the system to AC
power.
2. Switch the main power ON, the LED on the panel will be lit. After using the
system, make sure to turn the main power off to avoid the damaging battery .
3. When you discon nect the AC power, the built-in battery will power the system
on DC voltage no delay.
4. Fully exten d the telescoping antenna to achieve the best wireless recept ion
range of the wirel ess MIC, or to get the best result from radio. If the main receiver
receives strong interferenc es on the same frequen cy as the microphone or FM
channel you will experience noise or static interrupt ion. At this time, adjust
the antenn a to reduce or delete the inte rference.
5. Adjust the Volume with the contr ol knob to get the desired lev el.
Operation of the system
System operation on AC Power
(single channel main frame) standard match
PW MA 20 0 PWM A1 00
1.L ava lie r or han dhe ld wi rel ess m icr oph one s not av ail abl e
wit h all mo del s
2.Tw o sa me ch annel m icrop hones w ill n ot w ork a t the sam e
tim e on a sin gle c han nel receiver.
Not e:
4
1. Check the battery to see if it has a low charge.
2. Built-i n battery low, pleas e use AC power instead to power the sys tem.
3. Check the cable connection to the speaker. The cable might be broken after
extend ed use.
4. Possible frequency interference with local trans mission. Please contact the
dealer to change channels for better rece ption.
1. Th e re sieve r or t ransm it ter is no t tu rned on , pl ea se ch ec k al l pow er s ou rce
and mak e su re they a re a ll on.
2. Th e vo lume co nt ro l knobs a re t urned t o lo we st le ve l. M ake sur e th ey a re
ad ju st ed .
3. Lava li ere c ab le s are b ro ken aft er e xte nd ed u se.
Pow er:
Ext ern al DC power:
Spe ake r:
Fre que nc y Ran ge:
Sen sit iv ity :
Osc ill at ion g Mod e:
Wir ele ss effec tive ra nge :
Dim ens io n:
Pea k pow er:
Out put p ower:
AC 110V 50H z;DC 1 2V/1 .2AH
(bui lt-in recharg eabl e batt ery; )
12V/ 1A
16CM , 10W/ 4¦
VHF 16 0-27 0MHz
10dB /¦V (S /N:>60d B)
¡0.0 05% qu artz contr ol pha se loc ked
UP TO 100FT
180 X 300 X 10 0MM
80W ma x
20W
Noise or unit stops abruptly
No voice heard
Take out the 9V battery to avoid
acid damaging the components of
the transmitter if you are not going
to use it for a long period of time.
Technical specifications
We reserve the right of change to technology and specif ications of our products
withou t notice in advance.
CAUTI ON:
War ning : Don' t dism ant le thi s prod uct.
The maint enan ce and i nspe ctio n shou ld
be c arrie d out by a qual ified tec hnic ian
to a void t he ri sk of el ectr ic sho ck and
dam agin g the co mpon ents .
RISK O F ELECT RIC SH OCK
DO NOT O PEN
C A U T I O N
!
9
Page 6
5. Be careful to adjust the main control of the transmitter, start from lowest volume
and slowly turn it to a appropriate level to hear your voice clea rlywithout feed
back. The syste m is ready to use.
6. After use, you have to take the battery out of the transmitter to avoid battery
leaking to damage the transmitter.
MIC
Cover
Volume
Power LED
Power switch
MIC port
1. Open the battery cover.
2. Put the batter y into the compar tment and
make sure you have a right polarity before
you use it.
3. Turn the swi tch to O N and yo u can us e the
micro ph on .
4. Please take the battery out if you are not going
to use it for a period of time.
Ca ut io n:
If the LE D flas hes, th is sho ws the ba tter y is good . If the
LED is on, it shows that the battery is low, you have to change
the battery before you can use the system. If the LED does not
flash and is not on, the battery is dead or pola rities are wrong.
MIC. net head
Indicator
Switch
Holder
9V Battery
Battery Battery cover
chamber
Close
Open
Handheld wireless MIC

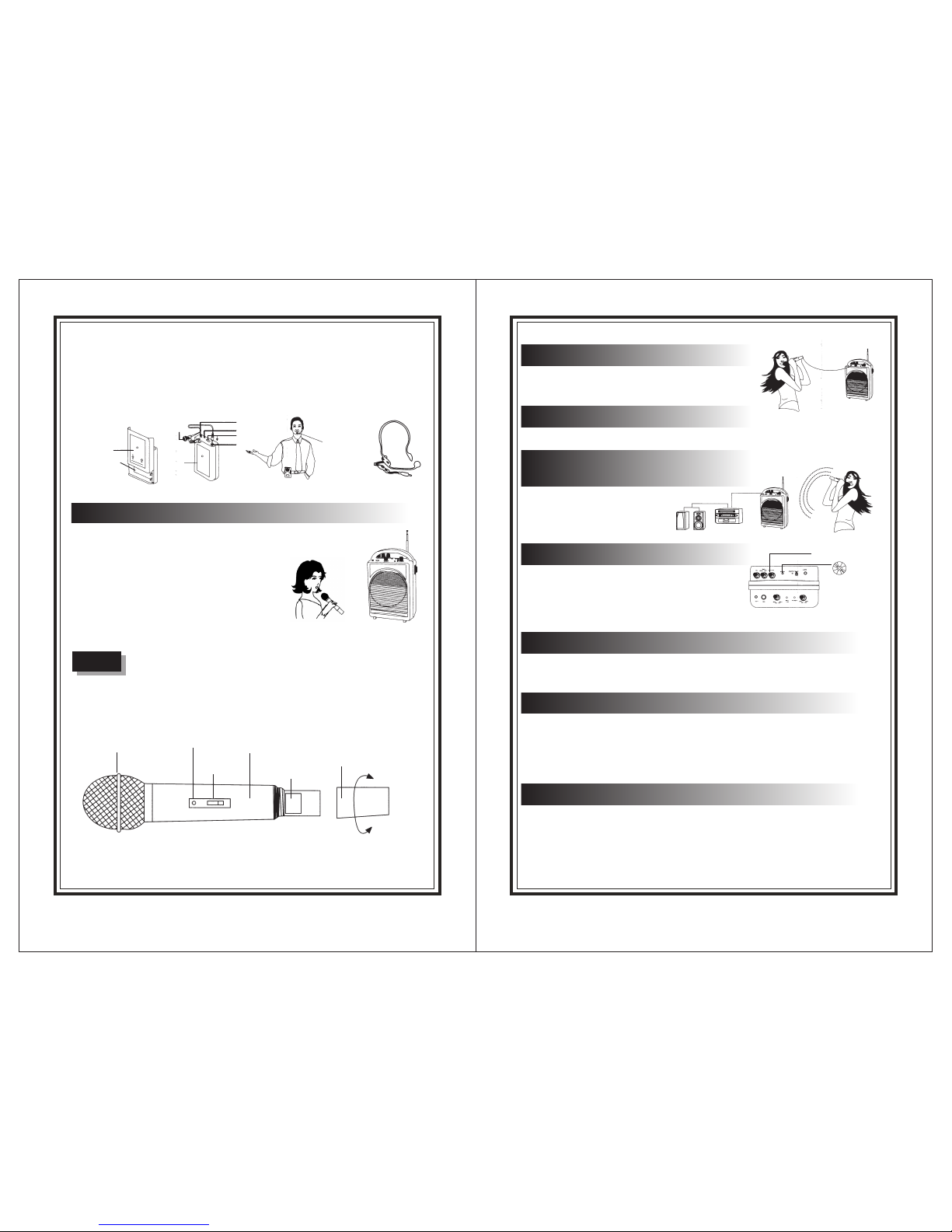

How to use the handheld Microphone(Optional)
Don't p ut the mic ropho ne direc tiy towa rds
the hor n of the mai n recei ver in nea r distan ce,
or it wil l occur sc reami ng feedb ack.
Cover
9V battery Chamber
Lavalier Wireless transmitter Lavalier Wireless MIC
Belt pack style
Hea dset MIC
You can get better reception
and sound from the
microphone if there is
little distance between the
microphone and your
mouth.
6
Just plug the microphone to the wired mic input jack,
you hear your voice immediately.
You may turn the Tone knob to the best position for desired level .
Plug the recording system int o the
audio out and you can record whi le
using the amplifier syste m.
Connect the cable of the CD/Mp3 etc into the Aux
Input Jack and the sou nd will amplify.
Adjust the volume dependi ng on your requirement.
The speaker volume control will adjust the amplifier volume to your desired level.
You can not use several wir eless microphones of the same frequ ency
at the same time.
Open the battery com partm ent on the back of the sy stem case.
Make sure you have the right polari ties matched when ch anging battery.
How to use a wired microphone
How to a djust t he TONE
How to connect recording system
to the amplifier system
Ho w t o use th e Aux In put?
How to adjust the volume
Units of the same frequency cannot be used
How to change the 9V battery?
Volume control
Wired receiving
Wireless receiving
Input music volume control
CD/MD/ETC
7
Page 7
5
You hav e to u npl ug the sy ste m fr om ma in powe r aft er e ach u se.
Warning:
Ca ut io n:
Be sure to switch off the system’s power after use, otherwise
the battery will be over discharged and it can damage the Lead
Ac id rech ar ge ab le b atter y an d sh or te n th e ba ttery l if e
dramatically.

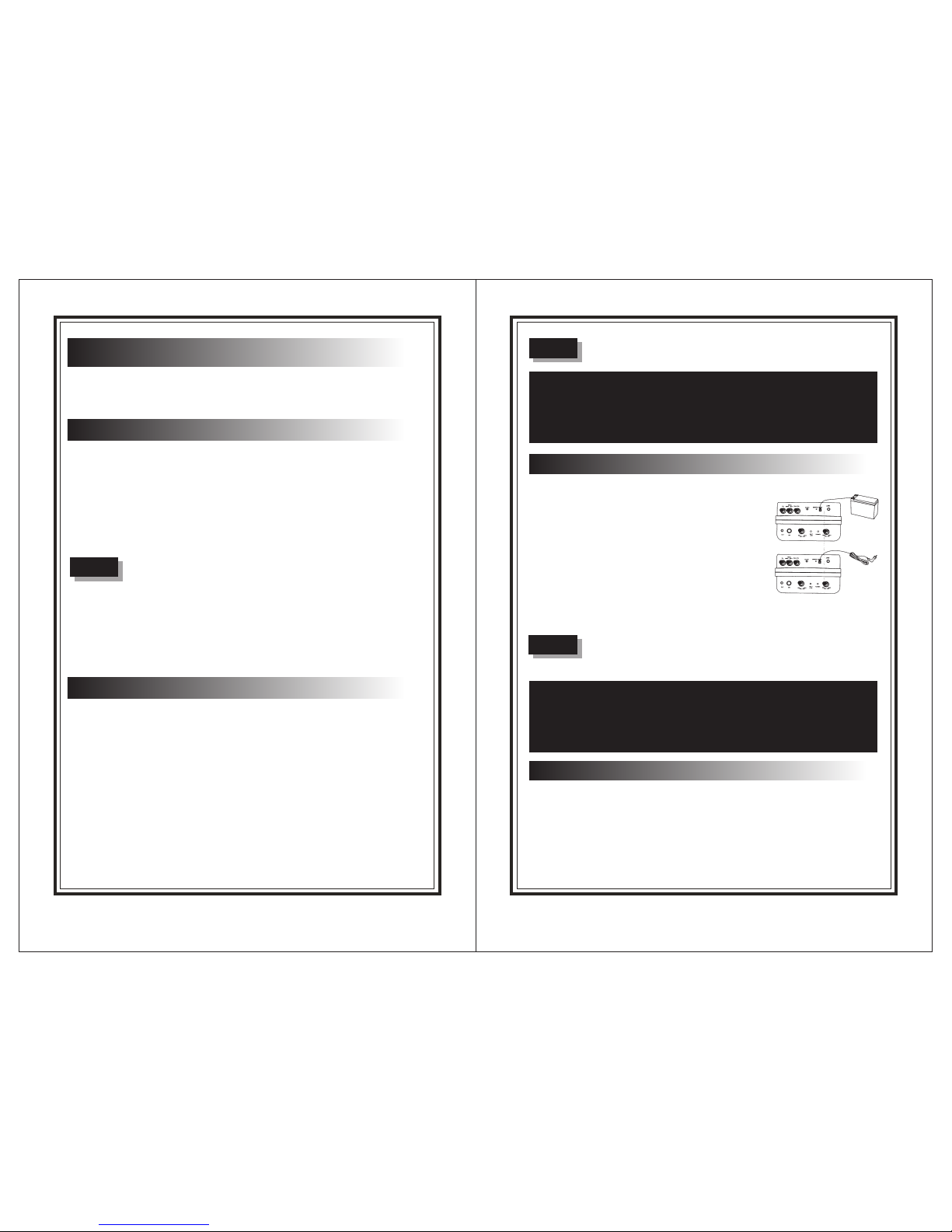

System works on DC power
1.Turn o n th e main sw it ch to O N an d the p ow er LED wi ll i ndi ca te the ba ttery
wor ks w ell .
2.You may use the car cigarette light power connector
to connect the car and the main receiver amp
or use an exte rnal 12V DC pow er conne ctor to
connect the main receiver amplifier and the external
12V battery to supply power source to the main
receiver amplifer.
Warning: After use ,ple ase make sure to switch
the main power to OFF to avoi d battery dama ge.
You will need to pl ug in AC power and rech arge the inte rnal ba tter y
in the case of the occurrence of no ises and inte rrup tion of voice
.
NO TE :
Warning:
Be sure to switch off the system main power after use,otherwise
the battery will be over discharged and it can damage the Lead
Ac id rech ar ge ab le b atter y an d sh or te n th e ba ttery l if e
dramatically.
How to use the Lavalier Microphone
1. Open the battery compartment by slidin g off the cover.
2. Put the battery into the compartment with correct polarity,and close the cover.
3. Plug the Lavalier microphone part to the jack.
4. Switch on the power of the transmitter and when the LED shows,it is ready
to work.
12V DC
battery
Car 12V
output
Connector
1. Turn the main power on, then adj ust the speake r volume to a proper leve l.
2. Turn the FM radio to desired statio n. It covers 88-108 MHz .
3. Adjust the volu me to a proper sound le e .v l
1. It is recommended to charge the battery for first tim e use for 8 hours.
2. Turn the main switch to "Charge" and the built -in batter y will be charged with a
consis tent curre nt and voltage .
3. The charging indi cator will change from bright to dim while batt ery charging,
the LED will shut off when the battery is fully charged. When the battery is getti ng
low, you will hear a buzz romin der from the syste m, asking you to char ge the
battery imm ediately. Recharge the battery over 8 hours before using the unit.
When batte ry has been charged over 8 hours, it can opera te for 6 hours.
Ca ut io n:
1. If the battery is ov er dis char ged , the LED w ill no t work ti ll the
batt ery is re juve nated. Whe n the vol tage is less than 100V, the
"CHA RGE LE D" will not ligh t. Whe n the vol tage is more than
120V, "CH ARGE LED" will stay l it and fu ncti on nor mal. You hav e
to charge the b atte ry when the bui lt-i n alarm warns y ou to
char ge the ba ttery.
2. If yo u do not us e system fo r 90 days, we recomm end charg ing
the sy stem every th ree mo nths over 8 hou rs.
If you have any probl em with the system, please check the main power and
batteri es for microphone sets and the built in battery, If you are using
a new 9V battery, please make sure you have put it in a correct polarity.
1. Please adjust the speaker volume to the minimum.
2. Adjust the transm itter volu me control to a low level .
3. Change the speaker direction to avoid dire ct feedbac k.
4. Turn the TONE to the lowest level.
Please low er the volume to a level that no feedback can be heard.
For the following problems:
Screaming from the speaker
How to charge the battery built in?
How to use Radio for Model PWMA200 (radio tuning
function not available on )
Trouble shooting
8
Loading...
