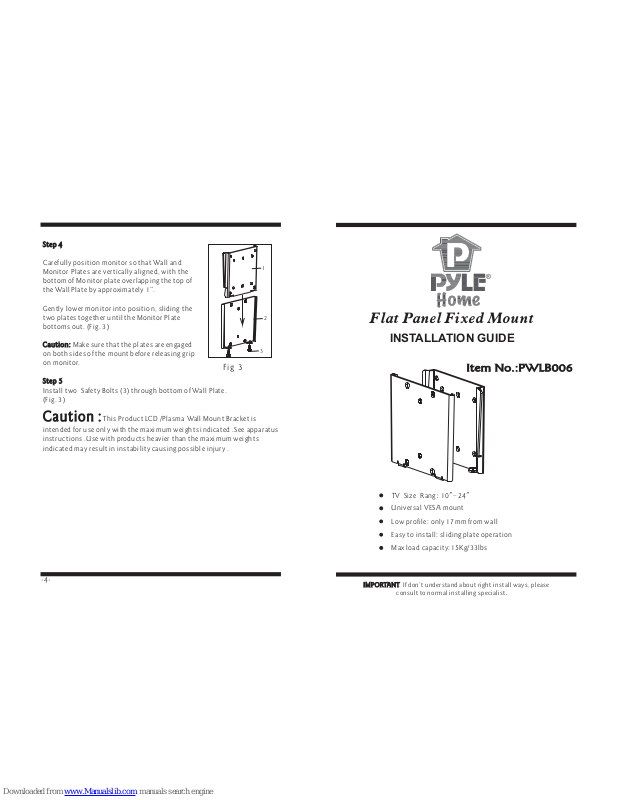

Page 1
Universal VESA mount
Low profile: only from wall17mm
Easy to install: sliding plate operation
Max load capacity:15Kg/33lbs
Flat Panel Fixed Mount
Step 4
Caution:
Step 5
Carefully position monitor so that Wall and
Monitor Plates are vertically aligned, with the
bottom of Monitor plate overlapping the top of
the WallPlate by approximately 1”.
Gently lower monitor into position, sliding the
two plates together until the Monitor Plate
bottoms out. (Fig. 3)
Make sure that the plates are engaged
onbothsidesofthemountbeforereleasinggrip
on monitor.
Install two Safety Bolts (3) through bottom of Wall Plate.
(Fig. 3)
Step 4
Caution:
Step 5
1
Fig 3
2
3
IMPORTANT: If don’t understand about right install ways, please
consult to normal installing specialist.
IMPORTANT
-4-
Item No.:PWLB006Item No.:PWLB006
INSTALLATION GUIDE
Caution :This Product LCD/Plasma Wall Mount Bracket is
intended for use only with the maximum weights indicated .See apparatus
instructions .Use with products heavier than the maximum weights
indicated may result in instability causing possible injury .
Caution :
TV Size Rang 10 24:"-"
Page 2
A
B
D
C
E
I
G
H
Fig 1
Step 1
Important
Determine the desired location
for the monitor.
Make sure there is
adequate mounting space
available for the monitor,
considering the monitor dimensions.
This mount is supplied with the
necessary hardware for either
Wooden Stud Mounting or
Masonry Mounting. Determine
your mounting type and proceed accordingly.
:
Step 1
Important
Step 2
Wooden Stud Mounting:
Using an electronic stud finder, locate the center of the wooden stud.
Position the Wall Plate (2) in desired mounting location over stud.
Level the Wall Plate with a bubble level, and thenusing the wall plate
as a template, mark mounting hole locations over thecenter of the stud.
Drill 2 mounting holes 50mm deep, into the stud using a 3mm drill bit.
Step 2
Wooden
Stud Mounting:
Position the Wall Plate (2) in desired mounting location on wall.
Level the Wall Plate with a bubble level, and then using the wall plate
as a template, mark mounting hole locations on wall.
Drill 2 mounting holes 50mm deep, using a 8mm masonry bit. Insert
WallAnchors (I) into the mounting holes, and lightly tap them flush to
the wall with a hammer.
WallAnchors should only be used for masonry mounting.
use wall anchors to mount the mount to drywall.
Securely mount Wall Plate with supplied Long Blot (H) and washer(F).
Masonry Mounting:
Caution:
NEVER
Masonry Mounting:
Caution:
NEVER
Step 3
Caution:
Attach Monitor Plate to backof the monitor with4mm , 5mmor 1 4”-20x5 8”
supplied hardware. (A-E) (Fig. 2) Check the monitor’s owners manual
for correct length screw to use.
Never force screws into the monitor, as damage may occur.
//
Step 3
Caution:
Description
A
3
B
D
C
E
F
G
1
1
4
4
2
4
4
4
H
I
6
4
2
Letter
Monitor Plate
WallPlate
M4x12 bolt
M4x8 bolt
M5x10 Safety bolt
Long bolt
Wallanchor
Qty
M5x12 bolt
14-20x58bolt//””
M5x8 bolt
M5 washer
M6 washer
2
1
2
Parts:
1
2
F
3
Fig 2
A,B,C,D,
E
F
G
-3-
-2-
