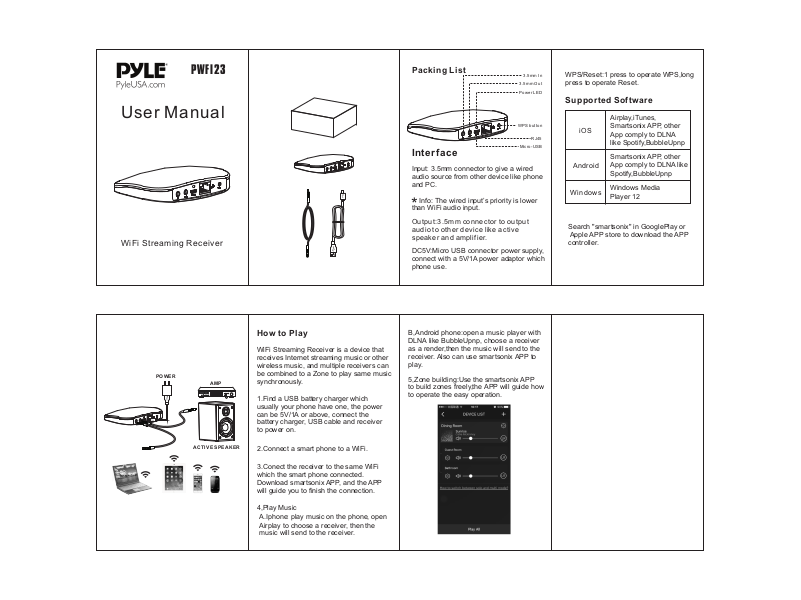

Page 1
PWFI23
Packing List
3.5 mm I n
3.5 mm O ut
Power L ED
WPS/Reset:1 press to operate WPS,long
press to operate Reset.
Supported Software
User Manual
WiFi Streaming Receiver
WPS b ut to n
RJ45
Micro -U SB
Interface
Input: 3.5mm connector to give a wired
audio source from other device like phone
and PC.
Info: The wired input’s priority is lower
than WiFi audio input.
Output: 3.5mm co nnecto r to outpu t
audio to ot her devi ce like ac tive
speaker a nd ampli fier.
DC5V:Micro USB connector power supply,
connect with a 5V/1A power adaptor which
phone use.
Airplay,iTunes,
iOS
Smartsonix APP, other
App comply to DLNA
like Spotify,BubbleUpnp
Smartsonix APP, other
Android
App comply to DLNA like
Spotify,BubbleUpnp
Windows
Windows Media
Player 12
Search "smartsonix" in GooglePlay or
Apple APP store to download the APP
controller.
POWE R
AMP
ACTI VE S PEA KE R
How to Play
WiFi Streaming Receiver is a device that
receives Internet streaming music or other
wireless music, and multiple receivers can
be combined to a Zone to play same music
synchronously.
1.Find a USB battery charger which
usually your phone have one, the power
can be 5V/1A or above, connect the
battery charger, USB cable and receiver
to power on.
2.Connect a smart phone to a WiFi.
3.Conect the receiver to the same WiFi
which the smart phone connected.
Download smartsonix APP, and the APP
will guide you to finish the connection.
4,Play Music
A.Iphone: play music on the phone, open
Airplay to choose a receiver, then the
music will send to the receiver.
B,Android phone:open a music player with
DLNA like BubbleUpnp, choose a receiver
as a render,then the music will send to the
receiver. Also can use smartsonix APP to
play.
5,Zone building:Use the smartsonix APP
to build zones freely,the APP will guide how
to operate the easy operation.
