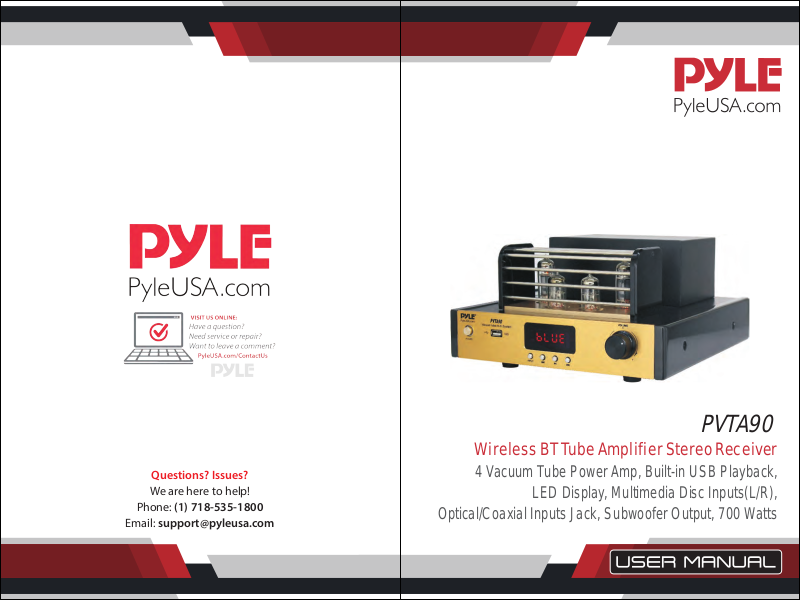

Pyle PVTA90 User guide

PVTA90

Wireless BT Tube Amplifier Stereo Receiver

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

4 Vacuum Tube Power Amp, Built-in USB Playback,

LED Display, Multimedia Disc Inputs(L/R),

Optical/Coaxial Inputs Jack, Subwoofer Output, 700 Watts

Front and Back Panel

1. Power ON/OFF Switch

2. USB reader

3. Blue LED display screen

4. Master Volume Controller

5. Input select

6. Previous Song

7. Play/Pause Function

8. Next Song

9. CD/DVD lnputs (L/R)

10. CD/DVD lnputs (L/R)

11. Coaxial Input Jack

12. Subwoofer Output

13. Optical Input Jack

14. Speaker Output

15. Speaker Output

16. Cooling Fan

17. AC 120V/240V Input

18. 120V/240V Voltage Selector

1 2 3 4

5 6 7 8

11

9 10 12 13 14 15 16 17 18

WIRELESS BT STREAMING OPERATION INSTRUCTION:

External devices which have a built-in Wireless BT feature can be connected
to this amplier wirelessly to play through the amplier's speakers. If your
amp is connected to speakers, you will hear audible tones which will help
for connecting.

Features:

• 4 Vacuum Tube Power Amp

• Wireless BT Streaming Ability

• Built-in USB Playback

• LED Display

• Built-in Cooling Fan

• Blue LED Screen for Media Playback Information

• Double-sided Fiber Circuit Board

• CD/DVD Inputs (L/R)

• Subwoofer Output

• Optical/Coaxial Inputs Jack

• Master Volume Control

Wireless BT Connectivity:

• Receives Wireless Signal for Audio Streaming

• Simple & Hassle-Free Pairing Setup

• Integrated Antenna for Extended Wireless Range

• Works with All of Today’s Latest Devices

(Smartphones, Tablets, Laptops, Computers, etc.)

• Wireless BT Version: 4.2

• Wireless BT Network Name: 'Pyle Speaker'

• Wireless Range: 40'+ Ft.

What's in the Box:

• Wireless BT Tube Amplier

• Power Cable

• Remote Control

1. Press the "INPUT" button located on the front panel and select "BT" mode.

2. Turn ON the Wireless BT of your external device.

3. Search for available BT devices and make sure to be within range of your
amp, and wait for your device to select "Pyle Speaker" on the pairing
devices lists of Wireless BT networks.

4. The unit is automatically ready to pair with your devices when you hear
audible tones.

5. Now you can play music on your external device through the amplier.

www.PyleUSA.com

2

Technical Specs:

• Power Output: 1000 Watts Peak Power

• Power supply: AC 120V/240V

• Remote Control Battery: Need 2x ’AAA’ Battery (not included)

• Construction Material: Aluminium

• Amplier Chip: C5198/A1941

• Rated output power: 2*50W /4Ω

• Audio input: RCA input +USB input+Bluetooth input+Optical/Coaxial Input

• Audio output: 1 set of Banana Speaker Jacks

• Signal to noise ratio:＞75dB

• Dimension (L x W x H): 13.78'' x 13.39'' x 8.46'' –inches
