Page 1

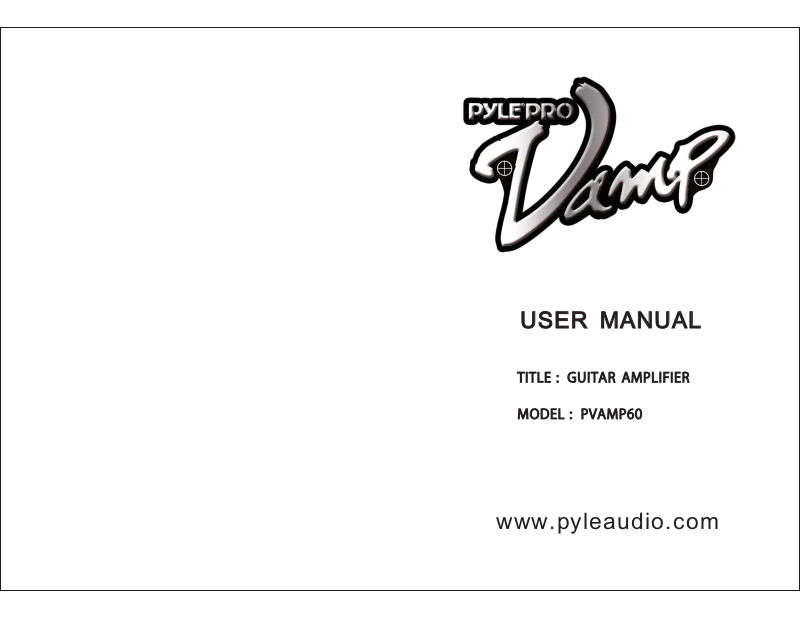

USER MANUAL
TITLE GUITAR AMPLIFIER
TITLE GUITAR AMPLIFIER
MODEL PVAMP60
MODEL PVAMP60
：
：
：
：
www.pyleaudio.com
Page 2
PVAMP60
HIGH
HIGH
LOW
LOW
INPUT
INPUT
INPUT
INPUT
Functions
1. HIGH INPUT
1. HIGH INPUT
Plug in a hi-level signal here.
Plug in a hi-level signal here.
2. LOW INPUT
2. LOW INPUT
Plug in a low-level signal here.
Plug in a low-level signal here.
3. GAIN
3. GAIN
This is the distortion intensity control
This is the distortion intensity control
for the overdrive channel.
for the overdrive channel.
4. SELECT
4. SELECT
This switch is select the drive channel or normal
This switch is select the drive channel or normal
channel.
channel.
5. TREBLE
5. TREBLE
This equalization control adjusts the amount of
This equalization control adjusts the amount of
boost in the high frequency range
boost in the high frequency range
6. MIDDLE
6. MIDDLE
This equalization control adjusts the amount of
This equalization control adjusts the amount of
boost in the middle frequency range.
boost in the middle frequency range.
7. BASS
7. BASS
This equalization control adjusts the amount of
This equalization control adjusts the amount of
boost in the low frequency range.
boost in the low frequency range.
8. LENGTH
8. LENGTH
This equalization control reverb length
This equalization control reverb length
9. DEPTH
9. DEPTH
This equalization control reverb depth
This equalization control reverb depth
10. VOLUME
10. VOLUME
This is the overall level control for the
This is the overall level control for the
normal channel.
normal channel.
11. LINEOUT
11. LINEOUT
This is a 1/4"jack for hooking up external
This is a 1/4"jack for hooking up external
speakersto the amplifier.
speakersto the amplifier.
12. PHONE
12. PHONE
This is a 1/4"3-conductor stereo headphone jack
This is a 1/4"3-conductor stereo headphone jack
for plugging in headphones.
for plugging in headphones.
13. POWER
13. POWER
This on/off switch provides power the unit.
This on/off switch provides power the unit.
SELECT
GAIN
TREBLE
MIDDLE
BASS
LENGTH
DEPTH
VOLUME
PHONE
LINEOUT
12
11
POWER
13
TECHNICAL SPECIFICATIONS
PVAMP60
Power
Rated Power
Load Impedance
Speaker
Signal/Noise Ratio
Frequency Response
Dimension
Weight
CAUTION:
CAUTION:
WARNING:
WARNING:
AVIS:
AVIS:
ATTENTION:
ATTENTION:
CH AS SI S SURFA CE H OT .
CH AS SI S SURFA CE H OT .
TO R ED UC E THE RIS K OF F IR E OR
TO R ED UC E THE RIS K OF F IR E OR
ELECTRIC SHOCK,DO NOT EXPOSE
ELECTRIC SHOCK,DO NOT EXPOSE
TH IS E QU IPMEN T TO R AI N OR MOIS TU RE .
TH IS E QU IPMEN T TO R AI N OR MOIS TU RE .
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR.
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR.
SUPERFICIE DE CHASSIS CHAUDE.
SUPERFICIE DE CHASSIS CHAUDE.
~ 110 V, 60 Hz
60 Watts MAX
8 Ohms
8
70dB
20 HZ t o 15 KHZ
15.75” x 8.27”x 13.58”
22 lbs.
