TABLE OF CONTENTS
Contents
SAFETY INSTRUCTION
* Safety instructions
* Battery and Recharging instructions
PRODUCT FEATURES
MAIN BODY AND ACCESSORIES
BATTERY INSTALLATION AND REMOVAL
RECHARGING BATTERY
GENERAL OPERATION
* Starting Operation
SIDE BRUSH INSTALLATION
CLEANING AND MAINTENANCE
* Cleaning Dust Bin
* Cleaning Intake
TROUBLESHOOTING
1
1
1
2
2
4
5
6
6
6
7
7
10
11
www.PyleUSA.com
SAFETY INSTRUCTIONS
Before using this product, please read the safety instructions and follow all normal safety
precautions.
1. Read this user manual thoroughly and carefully before using this product
2. Keep this manual in your sight.
3. Any operation oppose to descriptions in this user manual may lead to harm to
human or this product.
Safety Instructions
1. Only use the product indoors, do not use it outdoors.
2. Before starting the product, make sure the dust bin lter is properly installed.
3. Do not use this product in wet or moist environment (any environment with liquid), e.g
bathroom or laundry.
4. Before use, collect the oor environment (remove all the fragile objects and cords, clothing,
papers, loose cables, as well as making sure to lift curtains and drapes o the oor to avoid
any possible accidents. In case that a loose cable is tangled with the product, the cable might
move around with the product as it works and topple down the table, chairs, or cabinet and
might cause hurt or property damage.)
5. Do not sit on top of this product or attach an object on the top of it. Beware of children or
pets while the product is in operation
6. Do not make this product close to cigarette, lighter , match or any ammable
7. Never use the product to clean up combustible or highly volatile liquids such as gasoline.
8. White the product is in operation, make sure all doors leading outside are closed. .
9. In case that the product is malfunctioned or damaged by external force, please contact the
seller before repairing.
10. Before charging, check whether adapter and outlet are properly connected.
11. Use this product in temperature from 0 to 40 (centigrade degree) and do not place this
product in high-temperature environment or under baking sunlight for a long time.
12. The appliance is not to be used by person (including children) with reduced physical,
sensory or mental capabilities, or persons lack of experience and knowledge, unless they
have been given supervision or instruction.
13. Children being supervised do not play with the appliance.
Battery and Recharging Instructions
1. The battery is rechargeable, please use the voltage and curr ent specied on the packing. If
you are not sure of the voltage and current of your house, please contact the seller or local
power company of a licensed electrician. (Only use battery pack which provided by
manufacturer or specied by manufacturer, please check the polarity before installing the
battery. Battery voltage: 14.4VDC, working current: 850mA)
2. Only use the original battery and power adapter of the product for charging.
3. Charging adaptor is for indoors use only.
4. Do not recharge the product if the battery cord or plug is damaged.
5. Never touch the charger, plug or cable with damped hands.
6. Before cleaning the product, unplug the adaptor, switch o the unit and take out the battery.
7. Please take out the battery when it is not in use for a long time.
8. The battery must be removed from the product before it is scrapped.
9. The product must be disconnected from the power source when removing the battery. The
battery is to be disposed of safety
1
www.PyleUSA.com
PRODUCT FEATURES
This revolutionary Mini Robotic Vacuum Cleaner is equipped with functions suitable
for cleaning up oor surfaces of home and oce, such as wood, tile, and linoleum.
The Mini Robotic Vacuum Cleaner is denitely a good household helper.
Random Spiral Along the wall Spiral
MAIN BODY AND ACCESSORIES
Main body x 1 Rechargeable
www.PyleUSA.com
Adapter x 1
battery x 1
Filter x 1 User Manual x 1 Side brush x 2
2
MAIN BODY AND ACCESSORIES
3
www.PyleUSA.com
PRODUCT FEATURES

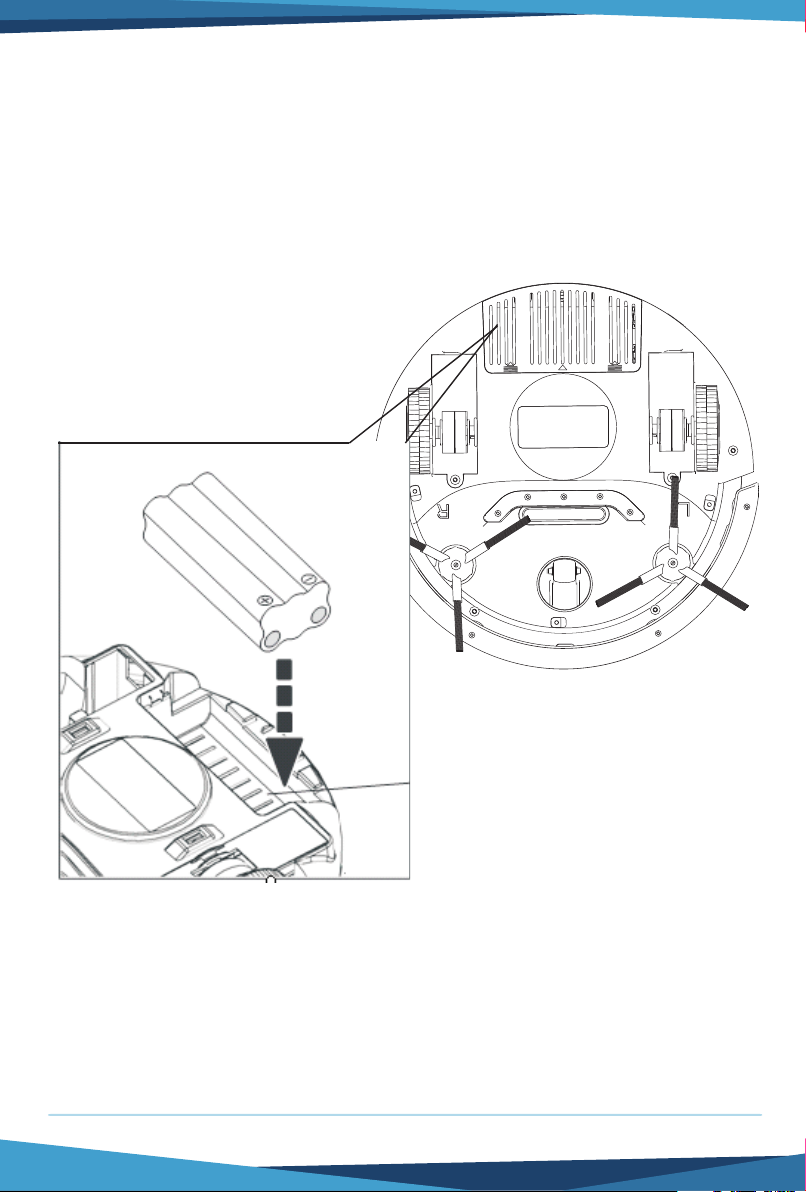

1. Before installing or removing the battery, the product must be disconnected from
the power source.
2. Open the battery cover.
3. Insert the battery into the battery cabinet and close the cover. Make sure the cover
clips well located in its position.
www.PyleUSA.com
4
RECHARGING BATTERY
1. Before charging, make sure the battery is correctly installed.
2. The procedure of charging the product is as follows: rstly, connect the adapter
output into the DC jack, and then plug into power socket of the other end, a blue
light will ash.
3. After fully charged, the indicator light will turn to solid blue light.
4. When the product runs out of power, LED indicator will turn red, which prompts
the user to charge the product.
5. To ensure the best performance and lift span of the battery, please charge the
product for at least 4 hours continuously. After fully charged for 4 hrs, indicator light
will turn to solid blue light. The product can do cleaning after 4 hours charging.
5
www.PyleUSA.com
GENERAL OPERATION
Starting Operation
1. For rst use, take out the insulating strip in battery cabinet as shown in gure
below, and then put back the battery cover.
2. Place the product in a room with much free space, and then power it on to do
cleaning work.
3. When the product runs out of power, the LED indicator in the illumination ring will
turn red which the product will stop working.
Note:
* This product is not suitable for long-pile carpets.
SIDE BRUSH INSTALLATION
Put the L side brush at L place and R side brush at R place on the bottom and then
push to x it and vice versa—to pull up, side brush will be taken out.
6
www.PyleUSA.com
CLEAN AND MAINTENANCE
Cleaning Dust Bin
1. Open the upper cover by lifting the lid near the power on/o button.
2. Put your nger into the dust bin groove and grip to take it out.
7
www.PyleUSA.com
CLEAN AND MAINTENANCE

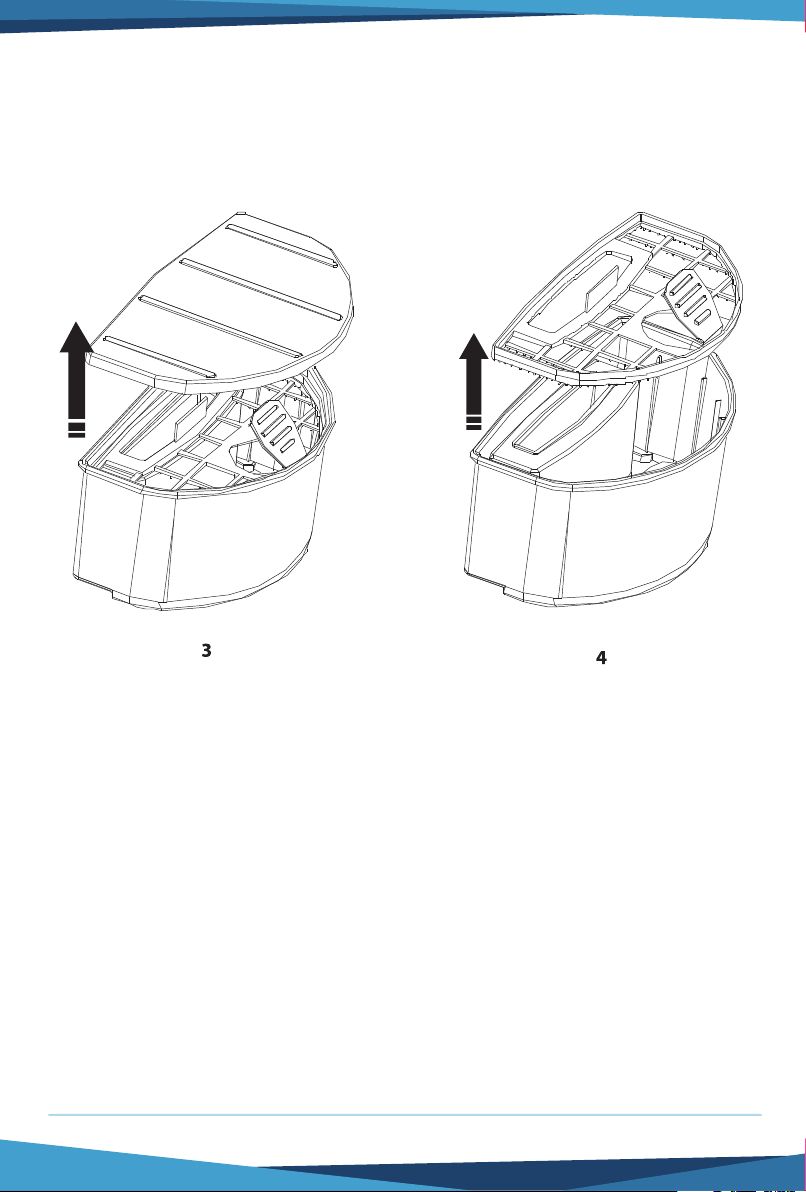

3. Open the dust bin lid
4. Take out the inner lter
5. Empty the dirt in the dust bin.
www.PyleUSA.com
5
8
CLEAN AND MAINTENANCE
Cleaning Dust Bin
1. Rinse the dust bin with tap water.Do not wash it in washing machine,dish-washing
machine or other machine.
2. Periodically clean the lter with a soft bristle brush.
3. Reinstallthe lter and the dust bin lid once they get dried.
4. Put back the dust bin into the cleaner.
NOTE:
Before putting back the dust bin, please make sure the PE pad (function as non-return
valve) in the dust bin is well attached. Recheck the lter also before operating the
product. Using product without lter might cause malfunction.
6 7
9 8
9
www.PyleUSA.com
CLEAN AND MAINTENANCE
Cleaning intake
After repeated use for some time, dirt and dust might accumulate around the intake
of the product, to ensure its best cleaning eciency and constant airow it should be
cleaned periodically.
1. Remove the external power source.
2. Clean up the dirt and dust at the intake.
www.PyleUSA.com
10
TROUBLESHOOTING
Problem Possible Cause Solution
Red LED stays
1
after power on
Vacuum on but
can not collect
2
dirt and hair
The product is
moving backwards
3
after being started
LED indicators
ash in blue after
4
4hrs charging
The side brushes
crooked, not good
5
to sweep
The product
6
won’t start
The product circles
around only, cannot
7
go straight
1. Battery Low condition
2. Main body is picked up
1. The dust bin is full
2. The lter is not installed
correctly
1. The product is on dark
colored oor
2. Anti-drop sensor light
was covered
Power supply might been
cut o during charging
Being used for a long time
1. Battery is not installed
properly
2. Battery low
3. The robot is under
protection status
One of the wires of the
wheels might be loosened
1. Recharge the battery
2. Replace the robot on
the oor
1. Clean the dust bin
2. Re-install the lter
correctly
1. Put the robot on light
color oor.
2. Clean anti-drop sensor
light.
The robot can be operated
if the battery has been fully
charged for 4hrs
If it becomes crooked,
please scald it in hot water
to recover it to its original
shape
1. To install the battery
correctly
2. To have the battery fully
charged (turn o the
cleaner rst)
3. To re-set the robot
1. Open the wheel cover
and connect the loosen
wire properly
2. Send the robot to seller
for repairing
11
www.PyleUSA.com
