SAFETY INFORMATION
This unit has been produced according to all current safety regulations. The following safety tips should
safeguard users against careless use and the dangers.
• Although this appliance has been carefully manufactured and rigorously checked prior leaving the factory,
as with all electrical appliances it is possible for problems to develop. If you notice smoke, an excessive
build up of heat or any other unexpected phenomena, you should disconnect the plug from the mains
power socket immediately.
• Ensure that the unit is sufficiently ventilated! Never place next to or underneath curtains!
• The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.
• This set should only be connected to a mains power supply which matches that stated on the label on the
rear of the TV - do not attempt to connect it to any other type of supply.
• The socket -outlet must be installed near the equipment and easily accessible.
• To prevent overload, don't share the same mains supply socket with too many other items of equipment.
• Apparatus with Class 1 construction shall be connected to a mains socket outlet with
a protective earthing connection.
• Keep away from rodents. Rodents enjoy biting into electric exes.
• Always hold the plug when pulling out the plug from the mains supply socket. Do not pull on the ex, the
ex can become overloaded and cause short circuit.
• Set up the unit so that no one is able to trip over the ex.
• Do not place heavy items on the ex, which may damage it.
• Take note that the ex cannot be reached and pulled by young children, avoiding injury.
• Do not set up the unit near to heat sources. The casing and the ex could be damaged by the impact of
heat.
• The screen is made of plastic and can break if damage is done. Be careful when collecting sharp edged
plastic splinters to avoid injury.
• Avoid placing the unit on any surface that may be subject to vibrations or shocks.
• To protect the unit during a thunderstorm unplug the AC power cable and disconnect the aerial.
Caution: Do not touch the aerial (RF) connector.
• When you leave your home for a long period of time, unplug the AC power cable for safety reasons.
• The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to
prevent overheating. The ventilation holes are not to be blocked. Do not set up near radiators.
Do not place in direct sunshine. When placing on a shelf leave 5 cm (2") free space around the whole unit.
• Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas such as Bathrooms,
steamy kitchens or near swimming pools.
• Do not use this unit when moisture condensation may occur
4
Page 4
www.PyleUSA.com
• Any repairs must be carried out by qualied personnel only.
• Do not open this unit. A non - expert attempting to repair the unit could be dangerous and potentially
cause a re hazard.
• Liquids spilt into the unit can cause serious damage. Switch the set OFF and disconnect the mains power
supply, then consult a qualied service person before attempting to use the unit again.
• Do NOT remove the safety covers. There are no useable or serviceable parts inside.
You may invalidate the warranty. Qualied personnel must only service this apparatus.
• Do NOT tap or shake the screen, you may damage the internal circuits. Take good care of the remote
control, do not drop.
• Never place hot objects or open ame sources on or close to the TV.
• High temperatures can melt plastic and lead to res.
• To clean the TV use a soft dry cloth.Do NOT use solvents or petrol based uids. For stubborn stains, you
may use a damp cloth with dilute detergent.
HEADPHONE WARNING
Loud music can damage your hearing irreversibly, therefore do not set the volume to a high level when
listening through headphones, particularly for lengthy listening periods.
WHERE TO INSTALL
Locate the television away from direct sunlight and strong lights, soft indirect lighting is recommended for
comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen. Place the TV on
a sturdy platform of which the surface should be at and steady. This will prevent it from falling over.
Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will
break or damage the screen, and so that small objects cannot be inserted into the ventilation slots or
openings in the cabinet.
5
Page 5
www.PyleUSA.com
PRODUCT INTRODUCTION
Front View
LED Indicator Remote Control Window (keep clear)
The functions of the TV buttons are described below.
PLAY: Play/pause the disc playing.
EJECT: Eject the disc.
INPUT: Press to select the source.
MENU: Press to display the OSD menu, Press again to exit the menu.
CH+/CH-: Press to scan through channels. Use to move down/up in the OSD menu screen.
VOL+ VOL-: Press to adjust the volume. Use to move lef/right in the OSD menu screen
VOL+ button can be used to skip forward to next menu.
POWER: Turn on/o the TV set.
6
Page 6
CONNECTIONS
www.PyleUSA.com
16
15
14
13
1 2 3 4 5 6 7 8 9 10

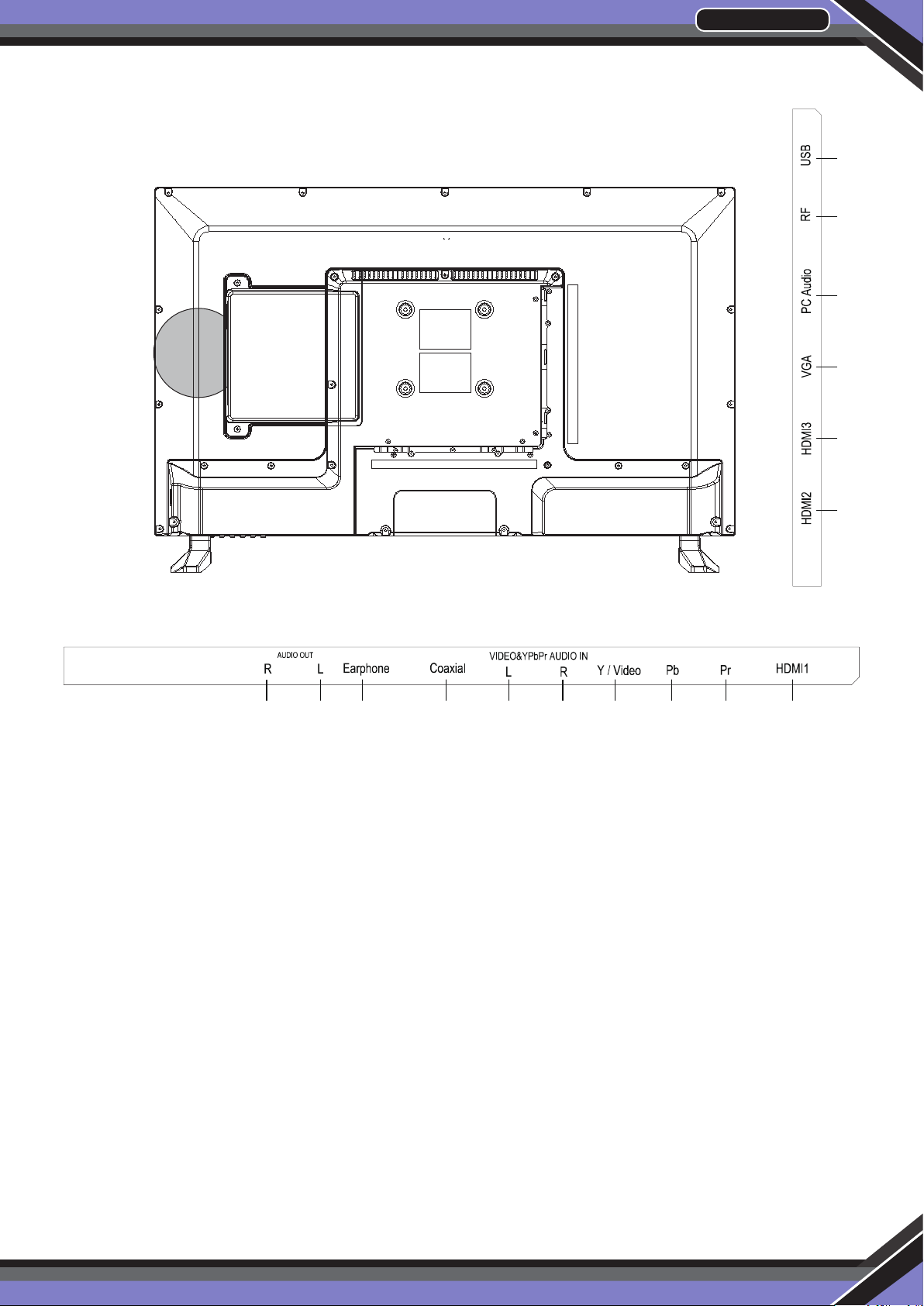

1/2. Audio output to connect power amplier stereo equipment.
3. Connect a stereo headphone (3.5mm) for private listening.
3. Connect an optional coaxial digital cable through a compatible
4. Connect an optional coaxial digital cable through a compatible amp/receiver
to enjoy superior audio sound.
5/6 . Connect to an AV device that features component video and audio output jacks.
7/8/9. Connect to an YPbPr device that features component video and audio output jacks
11 12
10/11/12. Connect it to the HDMI of DVD or other equipment.
13. Connect an optional VGA cable from your personal computer.
14. Connect an optional 3.5mm audio cable for sound when using VGA.
15. Connect antenna or cable for television reception.
16. For service technician use only.
7
Page 7
www.PyleUSA.com

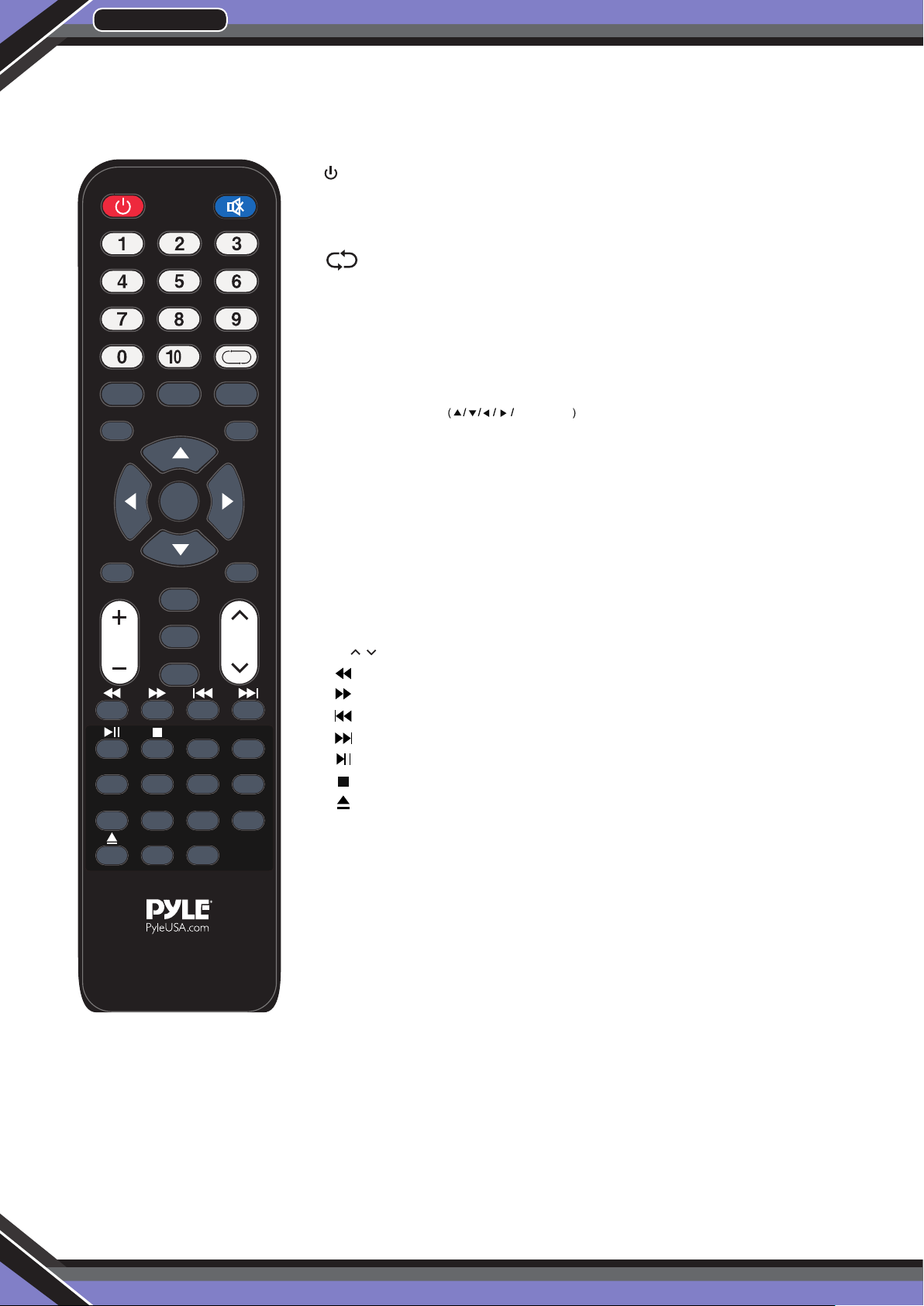

REMOTE CONTROL
The remote control is using Infra-Red (IR). Point it towards the front of the LED TV. The remote control may
not work correctly if it is operated out of range or out of angle.
POWER
+
S.MODE
TV MENU
MTS EXIT
VOL
FAV
GOTO ANGLE
SUB-T A-B PROG
P.MODE
ENTER
AUTO
DISPLAY
CCD
ZOOM SLEEP
FAV- FAV+ REPEAT
TITLE
SLOW
STEP
DVD
SETUP
MUTE
EPG
SOURCE
CH
DVD
MENU
POWER: Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press VOL+ to unmute.
NUMBER BUTTONS
Press 0-9 to select TV channel directly when you are watching TV.
Return to the previous channel viewed.
S.MODE: Select the sound mode.
P.MODE: Select the picture mode.
EPG: To show the Electronic Program Guide during no-menu state only
in DTV mode.
TV MENU: System setup menu.
SOURCE: Press to display the input source menu.
CURSOR KEYS
ENTER
Allows you to navigate the on-screen menus and adjust the system
settings to your preference.
MTS: Press to select an alternate audio language (if applicable).
EXIT: Exit the OSD menu.
AUTO: When you connect the TV with a PC through VGA input, press to
adjust the screen resolution automatically.
DISPLAY: Provides information on the currently viewed program.
CCD: Select closed caption subtitles (if available) OFF > ON > CC on
Mute (pg. 22)
VOL + / - : Adjust the volume.
CH / : Scan through channels.
: Fast Reverse.
: Fast Forward
: Previous Chapter.
: Next Chapter.
: Pause Program
: Play Program
: Load/Eject DVD Disc
ZOOM: Select viewable display options:
Normal > Wide > Zoom > Cinema. (pg. 12)
SLEEP: Press to activate the Sleep function to turn o the TV automatically
5 Min > 10 Min > 15 Min > 30 Min > 45 Min > 60 Min > 90 Min >
120 Min > 180 Min > 240 Min > OFF.
FAV: Press to display a list of favorite TV channels you have added. (pg. 19)
FAV-: Press to scan to a lower channel from your list of favorites.
FAV+: Press to scan to a higher channel from your list of favorites.
REPEAT: Repeat playing the title or chapter
SUB-T: Turn on/o the subtitle display in DTV mode and DVD mode.
A-B: Select and play the preferable paragraph of DVD program by
pressing this key twice at the beginning and end of it.
PROG: The track programming
DVD MENU: DVD to return to menu
TITLE: DVD title.
DVD SETUP: DVD Menu Settings
8
Page 8
www.PyleUSA.com
AUTO SCAN
Press button to select the antenna type.
Press button to select go to next step and press ENTER/ button to start auto scan.
SELECT INPUT SOURCE
Press INPUT button to display the input source list,
Press or INPUT button to select the input source
Press ENTER button to enter the input source,
Press EXIT button to quit.
10
Page 9
www.PyleUSA.com
MAIN MENU
Press MENU to display the main menu or return to the previous menu or close the main menu
Press to highlight the desired menu icon, and press ENTER to select.
MAIN MENU OPERATION
Picture Menu
Press MENU to enter the main menu, Press button to select. Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
Press button to select among Picture Mode/Brightness/Contrast/Color/Tint/Sharpness/Color Temperature/
Advanced Settings.
Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
Picture Mode
Adjust picture mode to change picture appearance.
Press button to select (Standard / Dynamic / Soft / User).
Note: The brightness, contrast, color, tint and sharpness are only available in User mode, you can adjust as
you like.
Standard: Produces a highly dened image in a normally lit room.
Dynamic: Produces a highly dened image in a brightly lit room.
Soft: Produces a highly dened image in a soft lit room.
User: Select to customize picture settings.
Brightness
Adjust the visual perception output of the entire picture, it will effect the iuminousness of the picture.
Press button to adjust.
Contrast
Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.
Press button to adjust.
11
Page 10
www.PyleUSA.com
Color
Adjust the saturation of the color based on your own like. Press button to adjust.
Tint
Adjust the hue (Red, Green, Blue) of the picture. Press button to adjust.
Sharpness
Adjust the peaking in the detail of the picture. Press button to adjust.
Color Temperature
Increase or reduce warm color of the picture personally (red), and the cool color personally (blue) according
to your like.
Normal Increase the sex-linked colors for the white.
Warm Increase the red color for the white.
Cool Increase the blue tone for the white.
Advanced Settings
Adjust advanced video features to ne tune the picture. Press button to enter sub-menu..
Aspect
Adjust how the picture lls the screen.
Normal Automatically adjust Aspect Ratio based on TV size and TV program.
Wide Use to watch wide screen (16:9) content.
Zoom Expands image to ll screen. Top and button maybe cut o.
Cinema Stretches image at edges but keeps a clear image in the center.
Noise Reduction
Set options to reduce video noise.
O Select to turn o video noise detection.
Low Detect and reduce low video noise.
Medium Detect and reduce moderate video noise.
High Detect and reduce enhanced video noise.
Dynamic Contrast
Automatically adjust picture detail and brightness.
Press button to select (O/On).
HDMI Mode
Only available in HDMI input.
Press button to select (Video/Graphic).
12
Page 11
www.PyleUSA.com
SOUND MENU
Press MENU to enter the main menu, Press button to select.
Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
Press button to select among Equalizer / Bass / Treble / Balance / Digital Audio Output /AVL .
Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
SOUND MODE
Select a sound mode to achieve ideal sound.
Press button to select (Standard / Music / Movie / Sports / User).
Note: The bass and treble are only available in User mode, you can adjust as you like.
Standard Produces a balanced sound in all environments.
Music Preserves the original sound. Good for musical programs.
Movie Enhances treble and bass for a rich sound experience.
Sports Enhances vocals for TV audio.
User Select to customize audio settings.
BASS
Adjust the bass effect. Increases or decreases lower-pitched sounds. Press button to adjust.
TREBLE
Adjust the treble effect.Increases or decreases high-pitched sounds. Press button to adjust.
BALANCE
Adjust the balance between left and right speakers to adapt to your listening position.
Press button to adjust.
MTS
Congures the multi-track sound. It is only available in ATV.
Press button to select(Mono/Stereo/SAP).
Mono Sets the sound to mono.
Stereo Sets the sound to stereo when stereo is not available, the sound is automatically switched to
mono.
SAP Sets the sound to the second audio program.
AUDIO LANGUAGE
Select the language supported by the chosen digital channel . It is only available in DTV.
Press button to select (English / French / Spanish).
DIGITAL AUDIO OUTPUT
Send digital audio to external audio system. Press button to select.
PCM Select to output audio in 2-channel stereo.
Raw Original image coded date.
O Set digital audio output o.
13
Page 12
www.PyleUSA.com
SURROUND SOUND
Set the Surround Sound. Press button to select (On / O).
AVL
Set the auto volume control. Press button to select (On / O).
NOTE:
Balance: This item can adjust the speaker ’s output, it enables you to listen to best at your position.
AVL: This item uses for reducing the difference between channel and program’s volume automatically.
it made the overall water to be even. This function will also reduce the uctuation of the sound.
TIME MENU
Press MENU to enter the main menu, Press button to select.
Press ENTER / to enter.
Press MENU again to exit or back to parent menu
Press button to select among Sleep Timer/Time Zone/Daylight Saving Time/Time Format/Auto Clock/ Clock.
Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
SLEEP TIMER
Set a timer for the TV to turn o automatically.
Press button to select(O / 5min/10min /15min/ 30min / 60min / 90min / 120min/180min/240min).
TIME ZONE
Select your time zone.
Press button to select(Eastern/Central/Mountain/Pacic/Alaska/Hawaii/Samoa/Newfoundland/Atlantic).
DAYLIGHT SAVING TIME
Set the daylight saving time for your area. Press button to select (On / O).
TIME FORMAT
Select your time format.
Press button to select (12-hour / 24-hour).
AUTO CLOCK
Use to synchronize the display automatically. It is only available in DTV.
Press button to select (On / O).
CLOSE CAPTION
CC MODE
Turn Closed Captioning on/o.
Press button to select (CC O / CC On / CC On Mute).
14
Page 13
www.PyleUSA.com
ANALOG CC
Set Closed Captioning for standard(analog) program.
Press button to select (CC1 / CC2 / CC3 / CC4 / TEXT1 / TEXT2 / TEXT3 / TEXT4).
DIGITAL CC
Set Closed Captioning for digital program.
Press button to select(O / Service1 / Service2 / Service3 / Service4 / Service5 / Service6).
OPTION
Adjust the digital Closed Captioning setting. Press button to enter.
MODE
Set the look of digital Closed Captioning. Automatic uses broadcaster ’s style.
Press button to select (Default / Custom).
FONT STYLE
Select from 8 font styles.
Press button to select(Default / Font 0 / Font 1 / Font 2 / Font 3 / Font 4 / Font 5 / Font 6 / Font 7).
FONT SIZE
Adjust the size of the digital Closed Captioning font. Pressvbutton to select(Default /Normal / Large / Small).
FONT EDGE STYLE
Adjust the edge of the digital Closed Captioning box.
Press button to select (Default / None / Raised / Depressed / Uniform / Left Shadow / Right Shadow).
FONT EDGE COLOR
Adjust the color of the digital Closed Captioning box.
Press button to select (Default/ Black / White / Red / Green / Blue / Yellow / Magenta / Cyan).
FG COLOR
Adjust the color of the digital Closed Captioning font.
Press button to select (Default/ Black / White / Red / Green / Blue / Yellow / Magenta / Cyan).
BG COLOR
Adjust the digital Closed Captioning background color.
Press button to select (Default/ Black / White / Red / Green / Blue / Yellow / Magenta / Cyan).
FG OPACITY
Adjust the transparency of the digital Closed Captioning font.
Press button to select (Default / Solid / Flashing / Translucent).
BG OPACITY
Adjust the digital Closed Captioning background transparency.
Press button to select (Default / Solid / Flashing / Translucent).
SETUP MENU
Press MENU to enter the main menu, Press button to select.
Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
15
Page 14
www.PyleUSA.com
Press button to select among Menu Language / Transparent / OSD Timeout / Closed Caption /Over
Scan/Source Label/ Other settings / Restore Default / Setup Wizard.
Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
MENU LANGUAGE
Select an OSD menu language can be displayed. Default English is selected as menu language.
Press button to select language (English / Français / Español).
TRANSPARENT
Adjust the transparency of the OSD (on screen display) menu.
Press button to select. (0%,25%,50%,75%,100%)
OSD TIME OUT
Adjust the duration of the OSD (on screen display) menu.
Press button to select. (5 Sec.,15Sec.,30Sec.,45Sec.,60Sec.)
CLOSED CAPTION
Adjust Closed Captioning settings. Only available under TV and AV source.
Press ENTER / button to enter.
For detail please refer to page 12.
OVER SCAN
Press button to select (On / O).
It is only available to enter 1080i/720p/1080p in DTV/Component/HDMI.Default is On. It xed set to be On in
ATV/AV. It xed set to be Off in PC/USB.
INPUT LABELS
Create labels for the devices connected to your TV. Press ENTER / button to enter.
OTHER SETTINGS
Set the parameter of audio only, no signal power off and no operation power off. Press ENTER / button to
enter.
AUDIO ONLY
Play the audio with the picture turned off. When you turn the Audio Only on and exit the OSD menu, the
panel will be dark; and then press any key to exit the Audio Only status.
Press button to select (On / O).
16
Page 15
www.PyleUSA.com
RESTORE DEFAULT
Change power on options or reset TV to factory default. Press ENTER / button to enter.
SETUP WIZARD
Set the rst time installation. Press ENTER / button to enter. For detail please refer to page 1~2.
LOCK MENU
Press MENU to enter the main menu, Press button to select. Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
Press button to select among Change Password / System Lock / Input Block / US Rating / Canada
Rating / RRT Setting / Reset RRT.
Press ENTER / to enter. Press button to adjust.
Press MENU again or back to parent menu.
Enter your 4- digital password. Default password is 0000, and if forget what you set, please call the service
center.
CHANGE PASSWORD
Enter a new 4-digital password then re-enter it to conrm. Press button to enter.
KEY LOCK
Lock or unlock the buttons on the TV. Press button to select (O / On).
SYSTEM LOCK
Lock or unlock the buttons on the TV. Press button to select (O / On).
INPUT BLOCK
Block or unblock the input sources. Press button to enter.
Press button to select (Unblock / Block).
17
Page 16
www.PyleUSA.com
US RATING
Restrict movie and TV programs by US Ratings. Only available when "System Lock" is "on".
Press button to enter. For detail please refer to page 16~17.
CANADA RATING
Restrict movie and TV programs by Canadian Ratings.. Only available when "System Lock" is "on".
Press button to enter. For detail please refer to page 17.
RRT SETTING
Display an advance V-Chip rating table for digital channels.
The item is available only When current stream has downloadable rating data.
RESET RRT
Reset the RRT to default. The item is available only When current stream has downloadable rating data
US RATING
For the United States, the rating setting basically include the following options: TV, MPAA.
TV
The TV rating compose of two aspects: age-based and content-based.
Age Dene
TV-Y General Audience
TV-Y7 Parental Guidance Suggested
TV-G Parents Strongly Cautioned
TV-PG Retricted
TV-14 No one 17 and under admitted
TV-MA Adult Audience Only
*Note:
The content ratings will increase depending on the level of the age-based rating.
For example, a program with a TV-PG V(violence) rating may contain moderate violence, while a TV-14 V (violence) rating
may contain intense violence. So locking a higher level option will automatically cause locking the options that has more
sensitive level.
18
Page 17
www.PyleUSA.com
CHANNEL MENU
Press MENU to enter the main menu, Press button to select. Press ENTER / to enter.
Press MENU again to exit or back to parent menu.
Press button to select among Air/Cable / Auto Scan / Favorite / Show/Hide / Channel Number /
Channel Label . Press ENTER / to enter.
Press button to adjust. Press MENU again or back to parent menu.
AIR/CABLE
Select signal type. Press button to select (Air/Cable).
AUTO SCAN
Automatically search for channels. Press ENTER / button to enter.
FAVORITES
Add channels to create a favorite list. Press button to enter.
CHANNEL LIST
Display your program list. Press button to enter.
SHOW/HIDE
Show or hide the channels in your program list. Press button to enter.
19
Page 18
www.PyleUSA.com
CHANNEL NUMBER
Show the channel number. Press button to adjust.
CHANNEL LABEL
Create labels for channels ,up to 7 characters. Press button to adjust.
PC MENU
Press INPUT to select PC source.
Press MENU to enter the main menu, Press button to select Setup menu.
Press to select PC Settings.
Press button to select among H-Pos / V-Pos / Clock / Phase / Auto. Press ENTER / to enter.
Press button to adjust.
Press MENU again or back to parent menu.
HPOS
Adjust the horizontal position of the picture. Press button to adjust.
VPOS
Adjust the vertical position of the picture. Press button to adjust.
CLOCK
Adjust the vertical position of the picture. Press button to adjust.
PHASE
Adjust the horizontal interfering lines. Press button to adjust.
AUTO
Adjust to the screen automatically to the optimal position of the picture. Press button to enter.
20
Page 19
www.PyleUSA.com
*Notes:
1. Color, Tint, Sharpness, Noise Reduction, Dynamic Contrast and HDMI Mode in
PICTURE are invalid.
2. MTS and Audio Language in SOUND menu are invalid.
3. Auto Clock in TIME menu is invalid.
4. Close Caption in SETUP menu is invalid.
5. US Rating, Canada Rating, RRT Setting and Reset RRT in LOCK menu are invalid.
6. PC mode has no CHANNEL menu.
DVD OPERATION
BASIC OPERATION
• Press the Power button on the TV or the remote control, then press the INPUT button to select DVD mode.
• If there is no disc in the DVD player the screen will show "NO DISC".
• Insert Disc according to picture next to disc slot.
• Do not touch the playing surface.
• Hold the disc around the outside with your fingers and place the disc into the slot. The player will
automatically draw the disc into the player.
• To "Eject" the disc, press the EJECT button on the TV or the " " button on the remote control.
DVD SETUP MODE
• Setup Mode provides the menu forthe conguration of General Setup Page, Audio Setup Page,
Dolby Digital, Setup, Preference Page.
• Item selection in the Setup Menu is done by using the Navigation Arrows, SETUP button and the
OK button.
• Press the SETUP button rst , enter into SETUP menu, then press the DIRECTION RIGHT button,
you can enter into the next Sub-menu.
• Press the SETUP button again to exit the Setup Menu.
GENERAL SET UP
TV DISPLAY
• 4:3 Pan Scan
This is selected when the DVD player is connected to a normal TV. Wide-screen images are shown on the
screen, but with some parts out automatically.
• 4:3 Letter Box
This is selected when the player is connected to a normal TV. Wide-screen images are shown on the screen,
with black belt on the top and bottom.
• Wide
This is selected when the player is connected to a wide-screen TV.
21
Page 20
www.PyleUSA.com
OSD LANGUAGE
This is used to select the OSD language.
SCREEN SAVER
Start the screen saver, the screen saver image will appear when the player stops or the picture is
frozen for a few minutes. This saver can keep the screen from being damaged.
• ON (Start the screen saver)
• OFF (Remove the screen saver).
LAST MEMORY
Can set the items on the last memory, "ON"and "OFF" option.
Select "On", the shutdown will shutdown the machine before the settings for memory, re-boot the
machine settings.Set near the same time.
Select "O", every time the machine automatically switched back to the default settings
• On (Start the memory)
• Off (Remove the memory).
22
Page 21
www.PyleUSA.com
DVD OPERATION
AUDIO SETUP
• SPEAKER SETUP
In the “Audio Setup page” press “ ” button to select “Speaker Setup” item, press the “OK ENTER” or “ "
button (play) into the “Speaker Setup Page”.
DOWNMIX
• LT/RT: A disc recorded multi channel soundtrack, the output signal will be incorporated to left and right channel
• STEREO: A disc recorded multi channel soundtrack, The output signal will be incorporated to stereo.
PREFERENCE SETUP
You must press STOP twice to enter Preference Page or NO disc
23
Page 22
www.PyleUSA.com
TV TYPE
• PAL: This is selected when the player is connected to an PAL System TV.
• MULTI: The player will set the TV system according to the disc in the tray.
• NTSC: This is selected when the player is connected to a NTSC System TV.
AUDIO
If a language listed below is recorded on the disc, you can play the sound in such language. If not, the
language recorded will be used.
SUBTITLE
If a language listed below is recorded on the disc, you set the subtitle to be displayed in such language.
If not, the language recorded will be used.
DISC MENU
If a language listed below is recorded on the disc, you can set the Menu to be displayed in such language.
If not, the language recorded will be used.
24
Page 23
PTVDLED32 SPECIFICATION
Display
Screen size,
Screen
technology
visible
format
32inch
16:9
www.PyleUSA.com
Resolution
contrast
Minimum
Display
Minimum viewing
response
Picture repetition
Video color
TV
Functions
Connections
ratio
brightness
colors
time
systems
angle
rate
Standard
TV
CATV (optional)
CC
DC 12 Volt
USB
INPUT
DVD
HDMI
PC AUDIO
VGA
AV-IN
IN
YPBPR-IN
COAXIAL
OUTPUT
1366*768
5000:1
200cd/m²
16.7M
176°H,176°V
7ms
colors
50/60Hz
NTSC
NTSC/ATSC
CABLE( CH1~CH135) /AIR(
608CC
No
Only for the use of
3
1
1
1
1
1
1
CH2~CH69)
upgrade
OSD
Audio
Power
language
output
requirement
EARPHONE
OUTPUT
1
English/French/Spanish
Watt
2x8
AC110~240V
Power consumption
Peak luminance ratio in
Power consumption in stand-by mode
Mercury content in mg / contains lead 0,00 mg /
VESA
maximum
%
60W
<75%
0.5W
100m m
Yes
x100 m m
25
Page 24
www.PyleUSA.com
PTVDLED40 SPECIFICATION
Display
Screen size,
Screen
technology
visible
format
40inch
16:9
Resolution
contrast
Minimum
Display
Minimum viewing
response
Picture repetition
Video color
Functions
TV
Connections
ratio
brightness
colors
time
systems
angle
rate
Standard
TV
CATV (optional)
CC
DC 12 Volt
USB
INPUT
DVD
HDMI
PC AUDIO
VGA
AV-IN
IN
YPBPR-IN
COAXIAL
OUTPUT
1920*1080
4000:1
200cd/m²
16.7M
176°H,176°V
7ms
colors
50/60Hz
NTSC
NTSC/ATSC
CABLE( CH1~CH135) /AIR(
608CC
No
Only for the use of
3
1
1
1
1
1
1
CH2~CH69)
upgrade
OSD
language
Audio
Power
Power consumption
Peak luminance ratio in
output
requirement
EARPHONE
maximum
Power consumption in stand-by mode
Mercury content in mg / contains lead 0,00 mg /
VESA
%
OUTPUT
1
English/French/Spanish
Watt
2x8
AC110~240V
70W
<75%
0.5W
200m m
Yes
x200 m m
26
Page 25
Page 26
Page 27
www.PyleUSA.com
SETUP WIZARD
Connect an RF cable from the TV’s input called “RF-In” and to your TV Aerial socket.
Select Language
Press button to select the language to be used for menus and message. Press button to select
go to next step and press ENTER/ button to go.
SELECT TIME
Press button to select the time zone, daylight saving time and time format you want to.
Press button on the remote control to adjust.
Press button on the remote control to select go to next step and press ENTER/ button to go.
9
Page 28
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE.
Take note of the following safety information which appears on the back of the TV.
CAUTION TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER
SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that there are important operating maintenance instructions in
the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk of electric shock is
present within this unit.
KEEP THESE INSTRUCTIONS
• Do not use this TV near water.
• Clean only with a slightly damp cloth.
• Do not block any ventilation openings.
www.PyleUSA.com
• Install in accordance with the supplied Quick Start Guide and this User Guide.
• Protect the power chord from being walked on or pinched, particularly at plugs, and the point where it
exits from the TV.
• Do not allow the power chord to overhang the edge of a table.
• Unplug this TV during lightening storms or when unused for long periods of time.
WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE
THIS TV TO RAIN OR MOISTURE.THE TV MUST NOT BE EXPOSED TO DRIPPING OR
SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE TV.
NOTE: No naked ames such as candles should be placed on the TV.
3
Loading...
