Pyle PL73DGR User guide

Visit us @ pyleaudio.com

PL73DTN

PL73D

Adjustable Headrests w/ Built-In 7-Inch TFT/LCD Monitor w/ Built in DVD Player & IR/FM Transmitter
w/Zipper Hide-Away Cover / Built In Game With Joystick

Owner's Manual

Description for playing MP5 disks

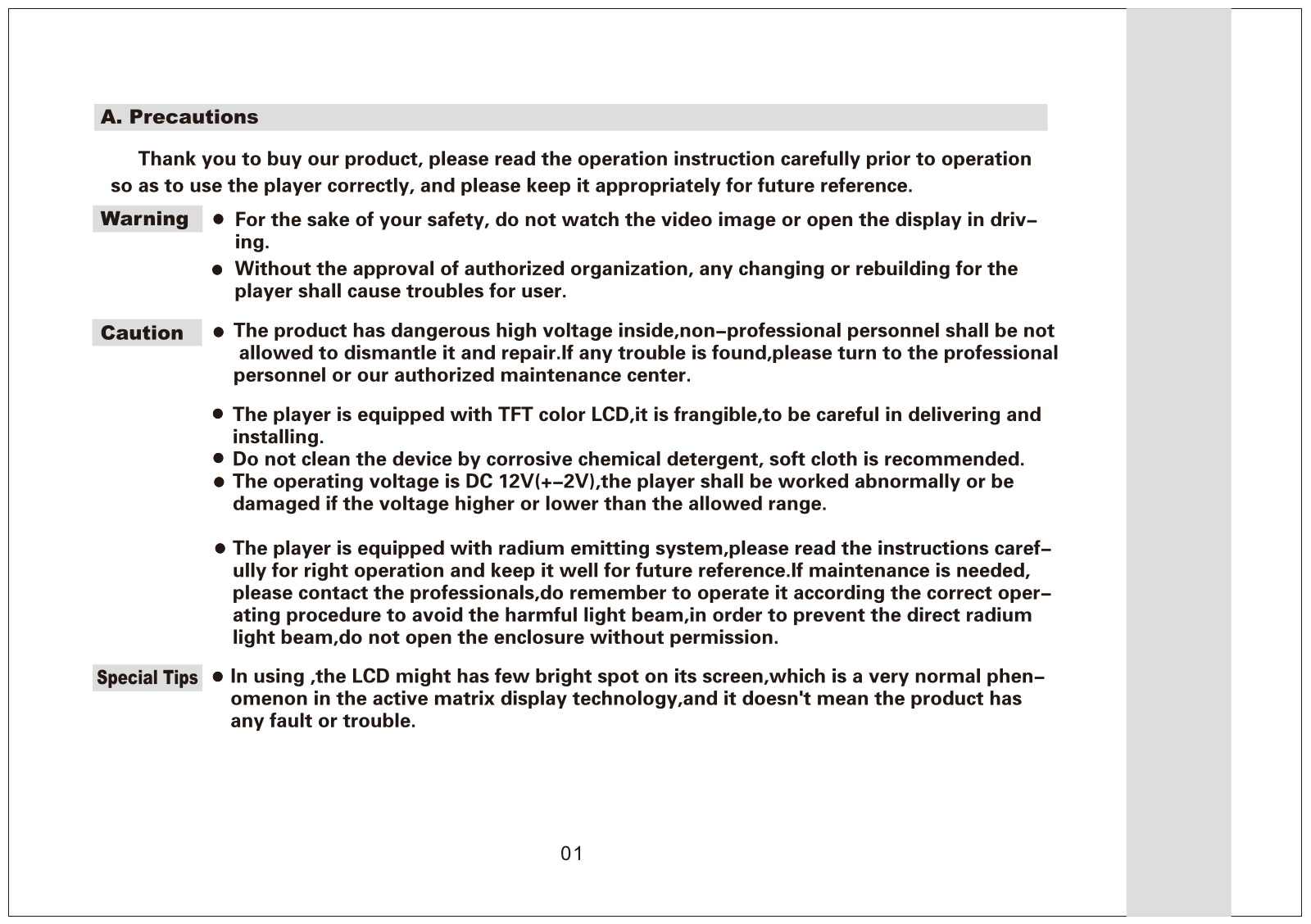

01

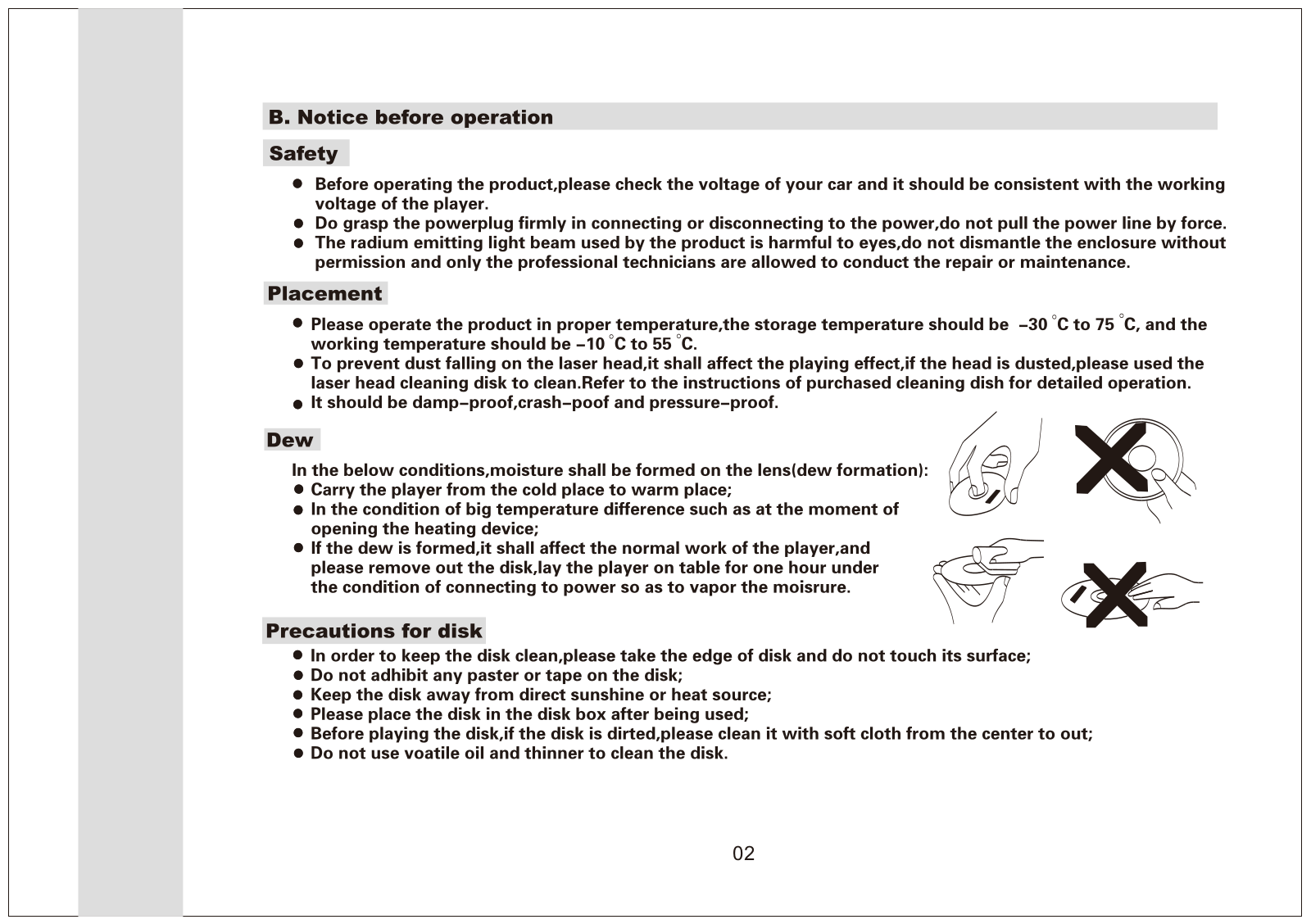

02

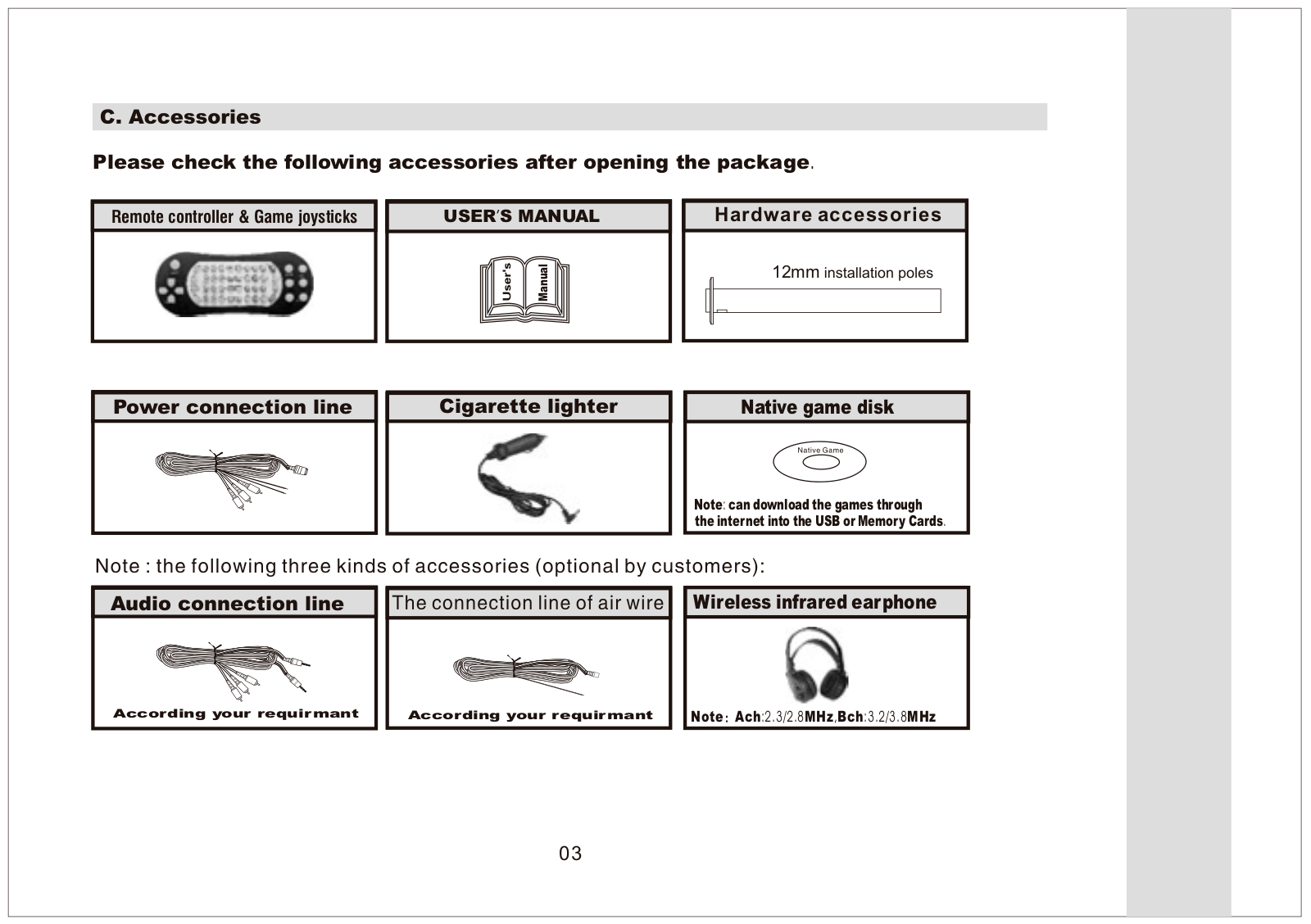

Please check the following accessories after opening the package.

Remote controller & Game joysticks

Power connection line

Audio connection line

According your requir mant

USER’S MANUAL

Manual

Cigarette lighter

According your requir mant

03

Hardware accessories

12mm

Native game disk

Note: can download the games through
the internet into the USB or Memor y Cards.

Wireless infrared earphone

Note Ach:2.3/2.8MHz,Bch:3.2/3.8MHz

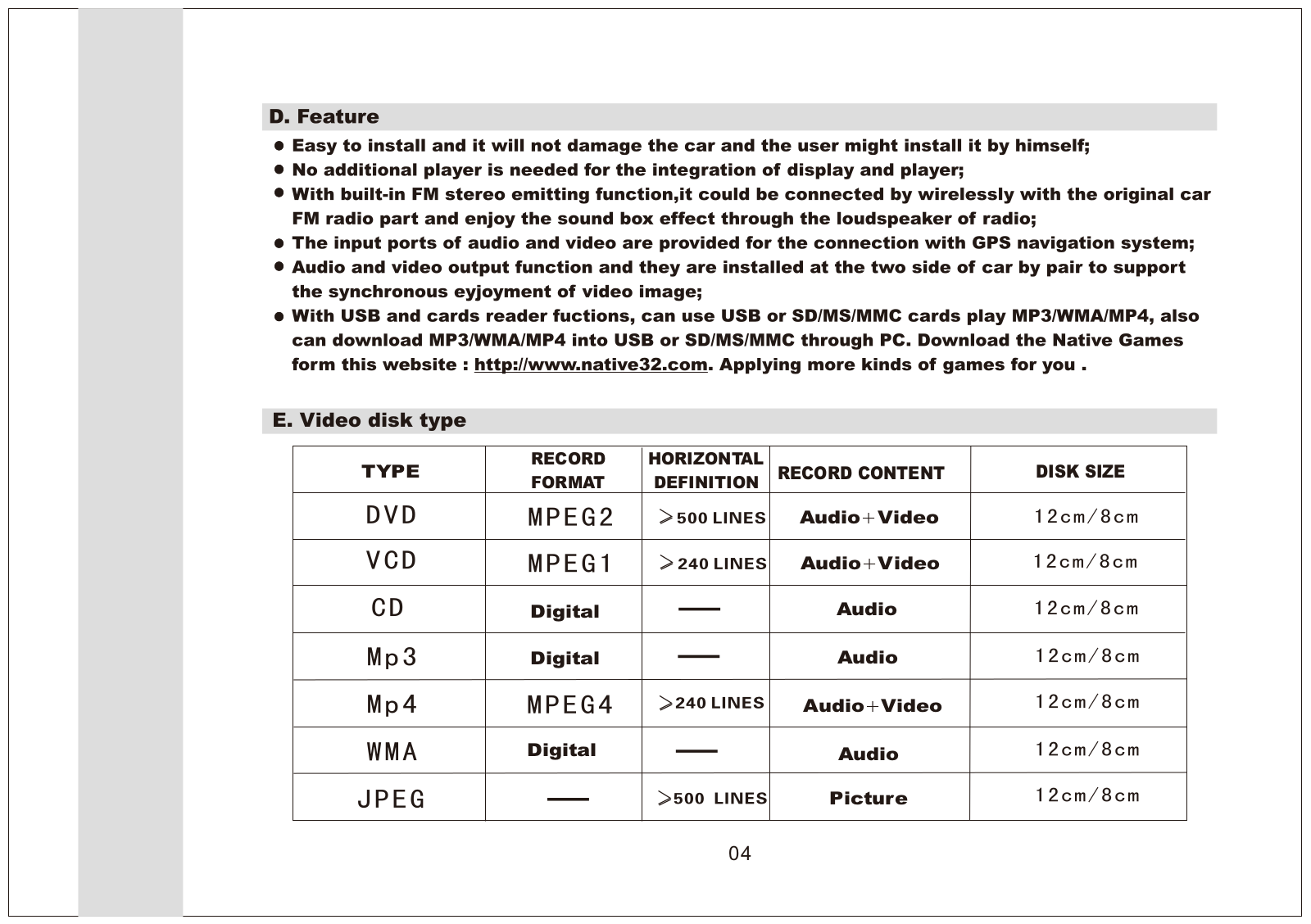

TYPE

RECORD
FORMAT

HORIZONTAL

DEFINITION

RECORD CONTENT

Audio+Video

Audio+Video

DISK SIZE

Digital

Digital

Digital

Audio

Audio

Audio+Video

Audio


04

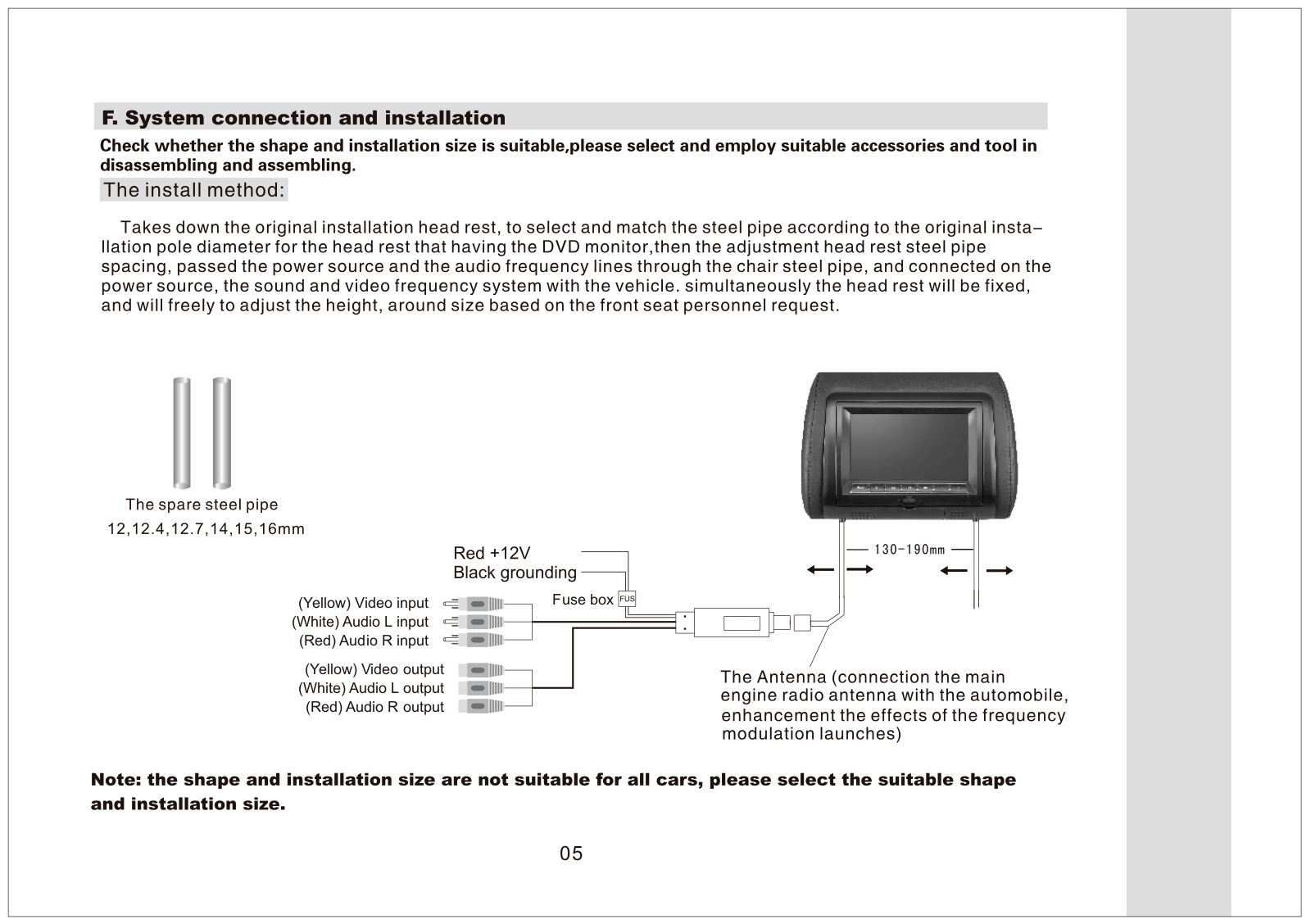

(Yellow) Video input

(White) Audio L input

(Red) Audio R input

(Yellow) Video output

(White) Audio L output

(Red) Audio R output

Fuse box

05

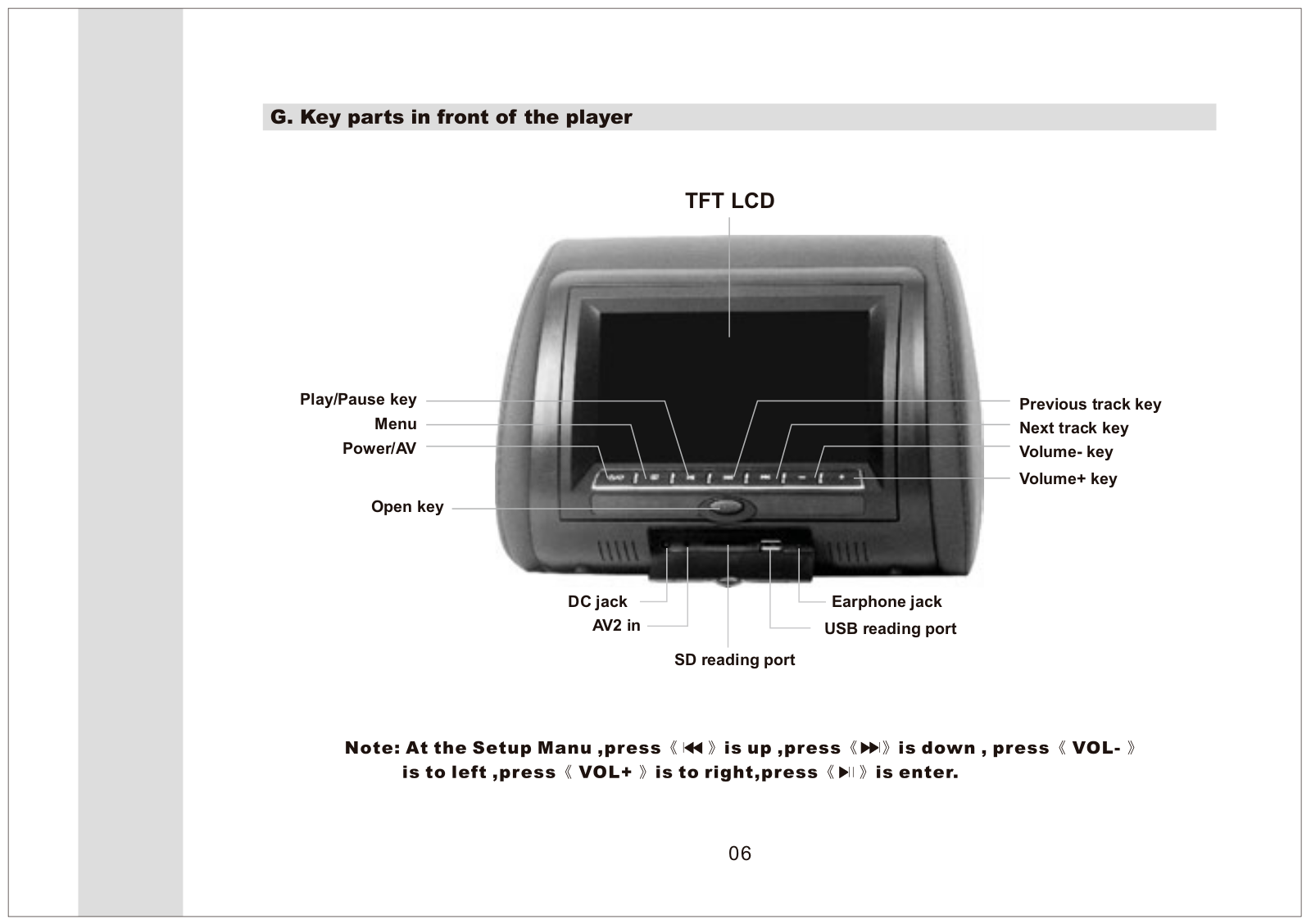

TFT LCD

Play/Pause key

Menu

Power/AV

Open key

DC jack

AV2 in

Previous track key

Next track key

Volume- key

Volume+ key

Earphone jack

USB reading port

SD reading port

06

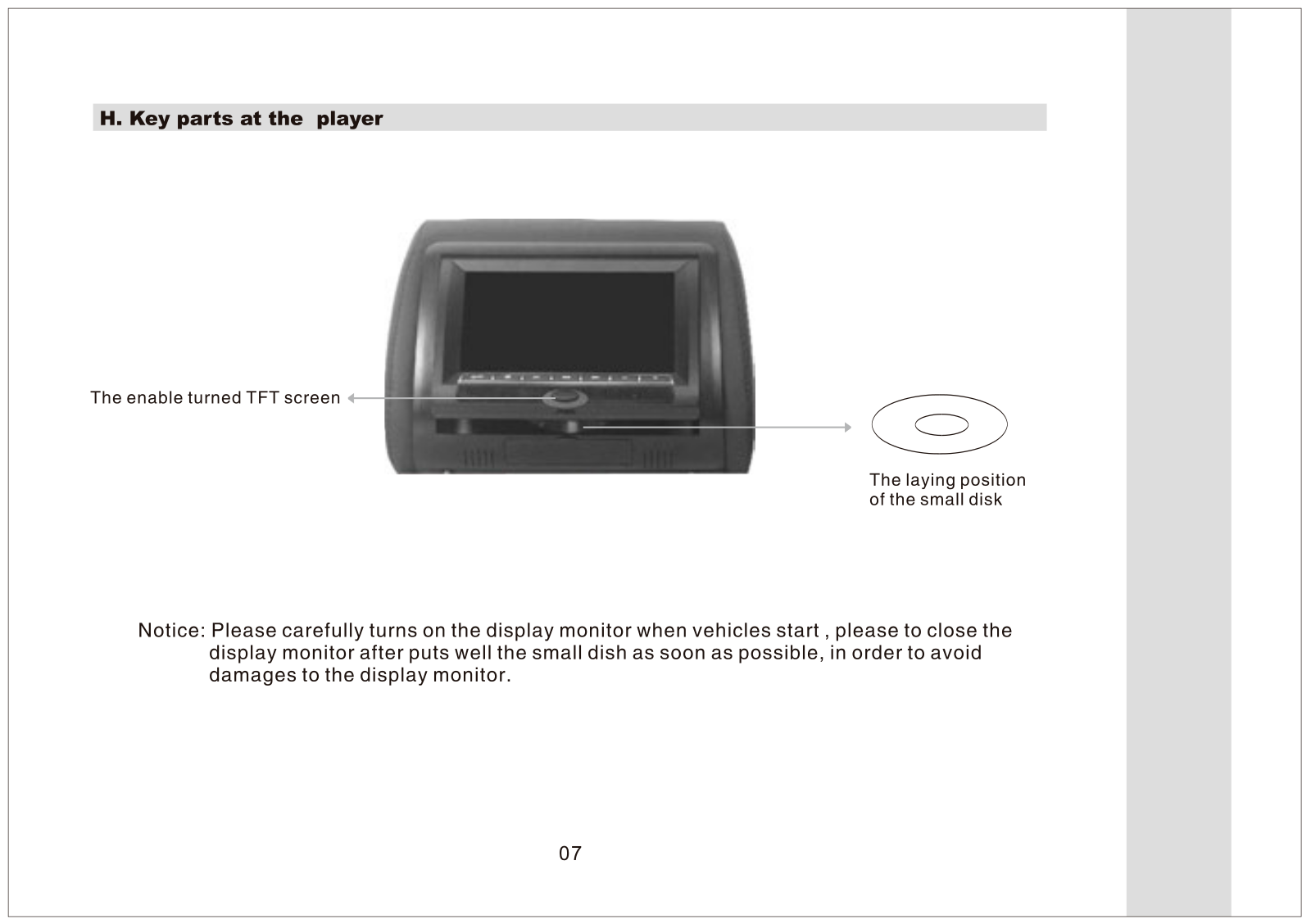

07

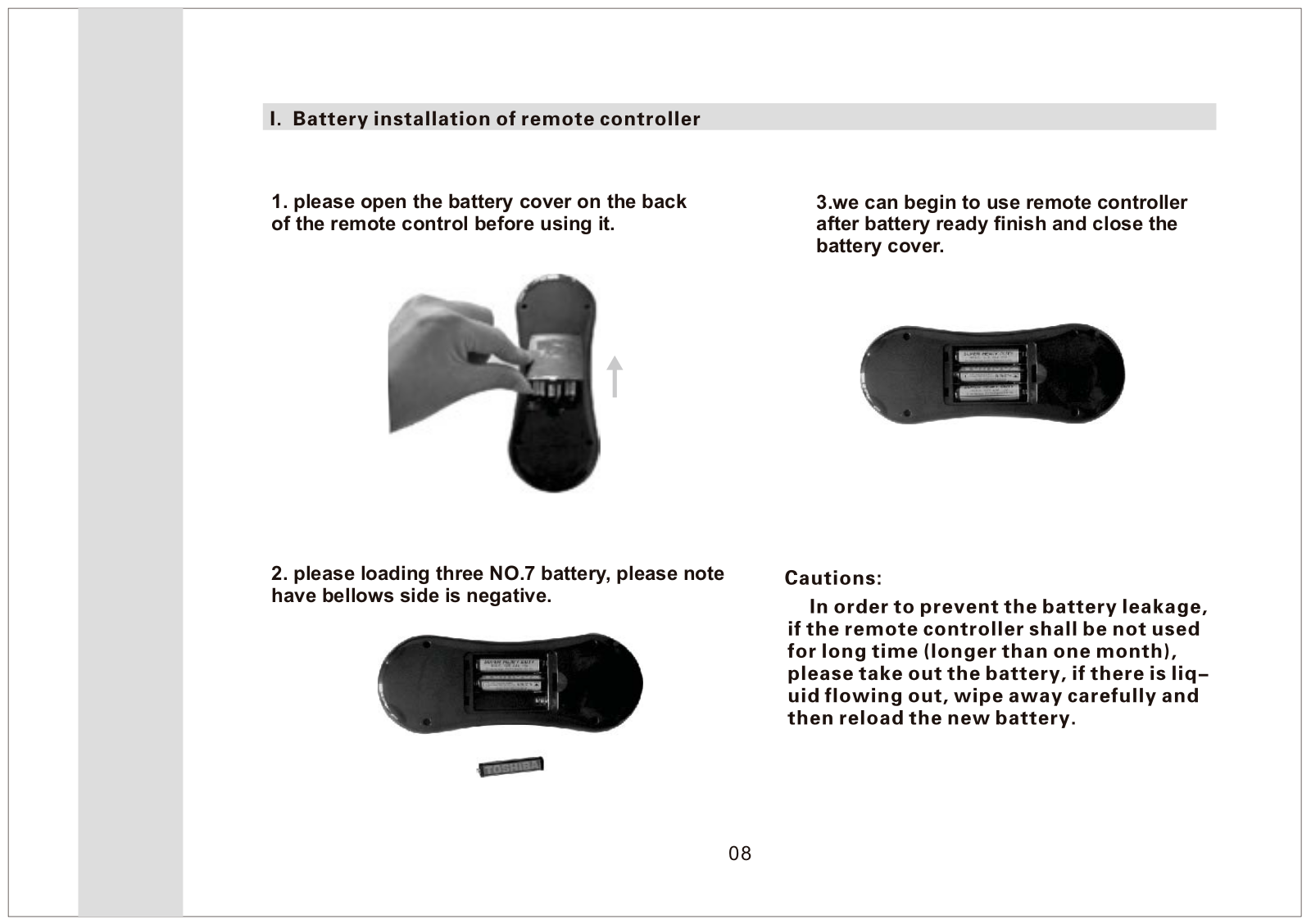

1. please open the battery cover on the back
of the remote control before using it.

2. please loading three NO.7 battery, please note
have bellows side is negative.

3.we can begin to use remote controller
after battery ready finish and close the
battery cover.

08

09

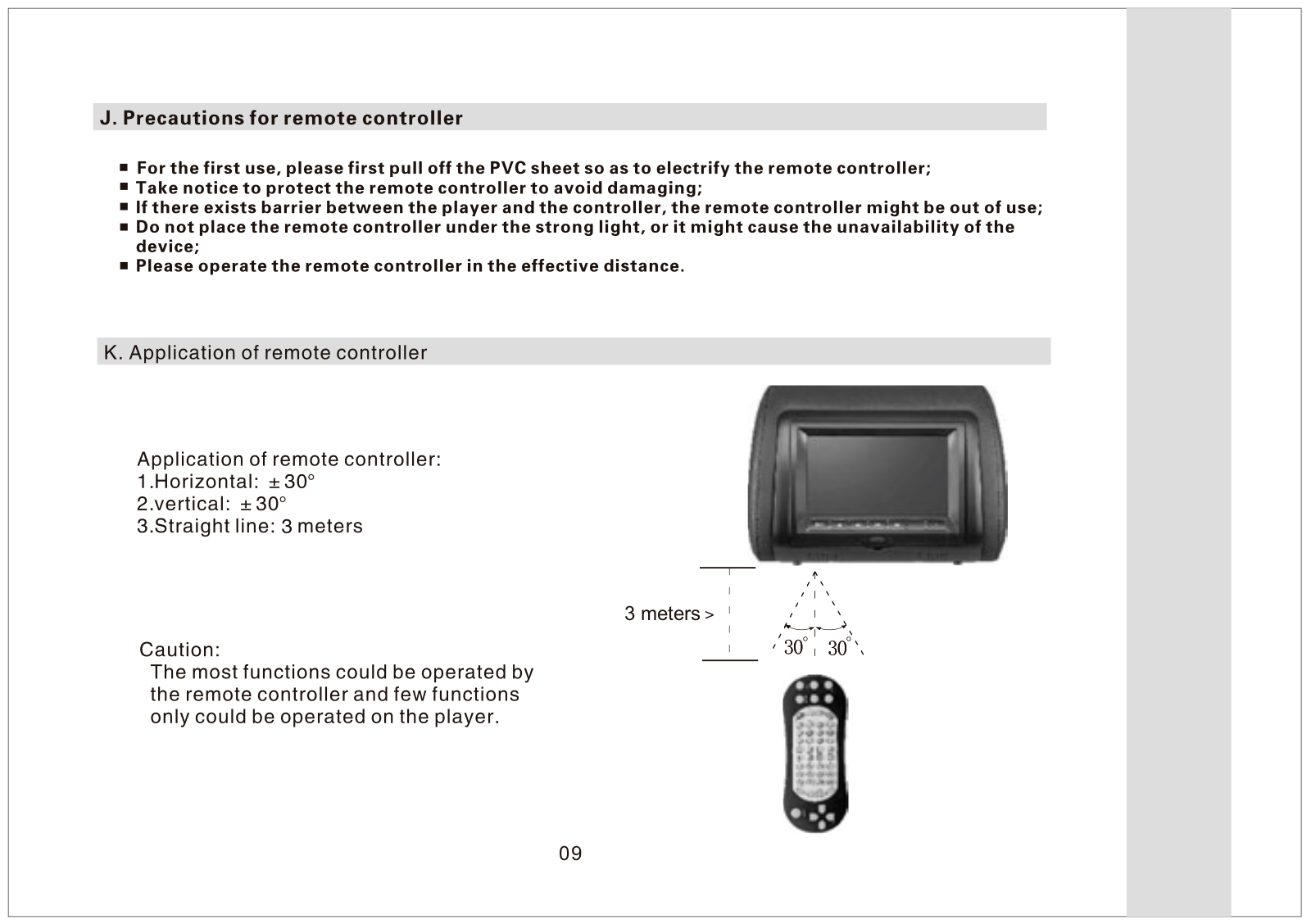

3 meters

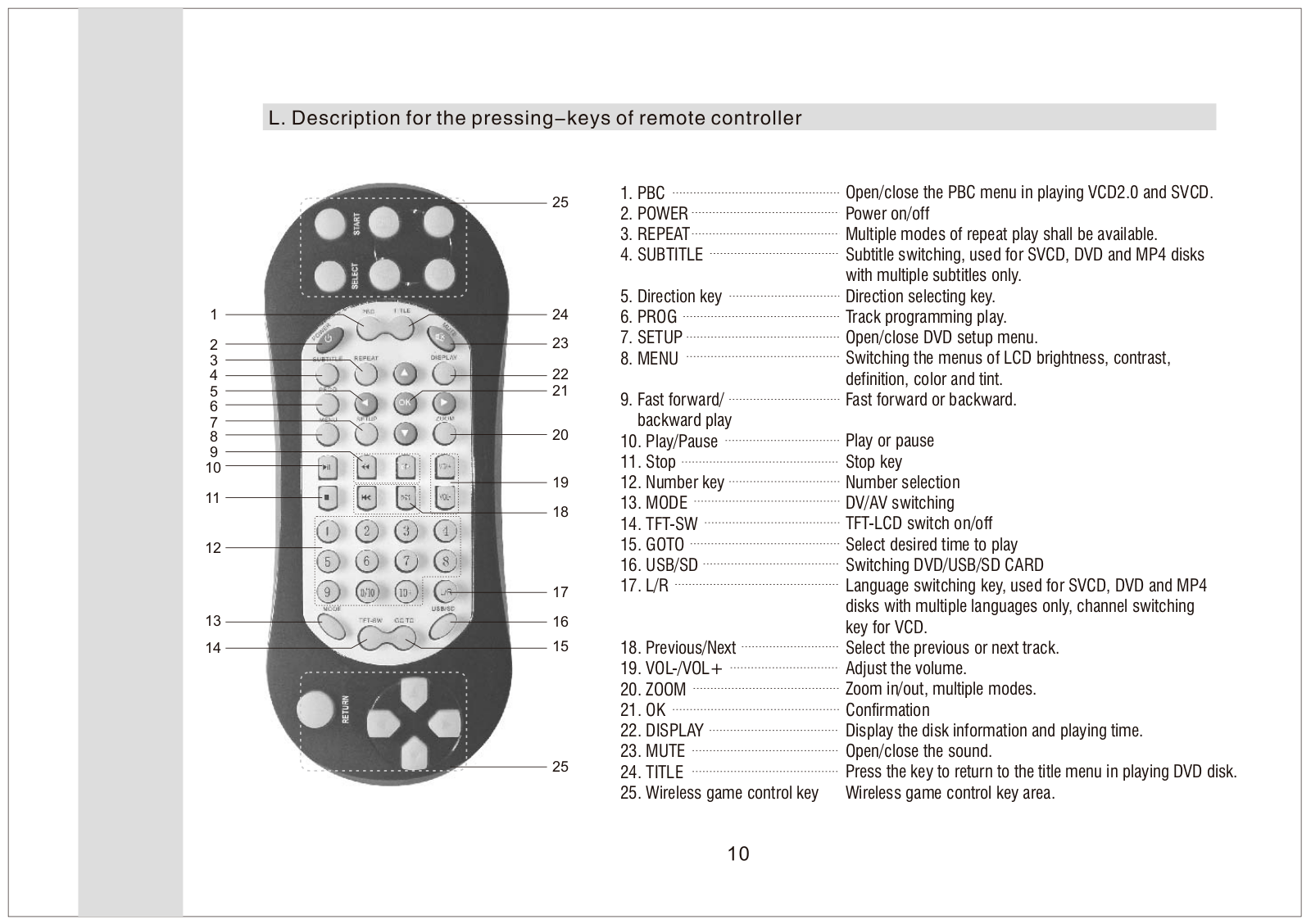

1. PBC

25

2. POWER

3. REPEAT

4. SUBTITLE

Open/close the PBC menu in playing VCD2.0 and SVCD.
Power on/off
Multiple modes of repeat play shall be available.
Subtitle switching, used for SVCD, DVD and MP4 disks
with multiple subtitles only.

5. Direction key

1

2
3
4
5
6
7
8
9

10

11

12

13

14

24

23

22
21

20

19

18

17

16

15

6. PROG

7. SETUP

8. MENU

9. Fast forward/
backward play

10. Play/Pause

11. Stop

12. Number key

13. MODE

14. TFT-SW

15. GOTO

16. USB/SD

17. L/R

18. Previous/Next

19. VOL-/VOL+

20. ZOOM

21. OK

22. DISPLAY

23. MUTE

25

24. TITLE

25. Wireless game control key

Direction selecting key.
Track programming play.
Open/close DVD setup menu.
Switching the menus of LCD brightness, contrast,
definition, color and tint.
Fast forward or backward.

Play or pause
Stop key
Number selection
DV/AV switching
TFT-LCD switch on/off
Select desired time to play
Switching DVD/USB/SD CARD
Language switching key, used for SVCD, DVD and MP4
disks with multiple languages only, channel switching
key for VCD.
Select the previous or next track.
Adjust the volume.
Zoom in/out, multiple modes.
Confirmation
Display the disk information and playing time.
Open/close the sound.
Press the key to return to the title menu in playing DVD disk.
Wireless game control key area.

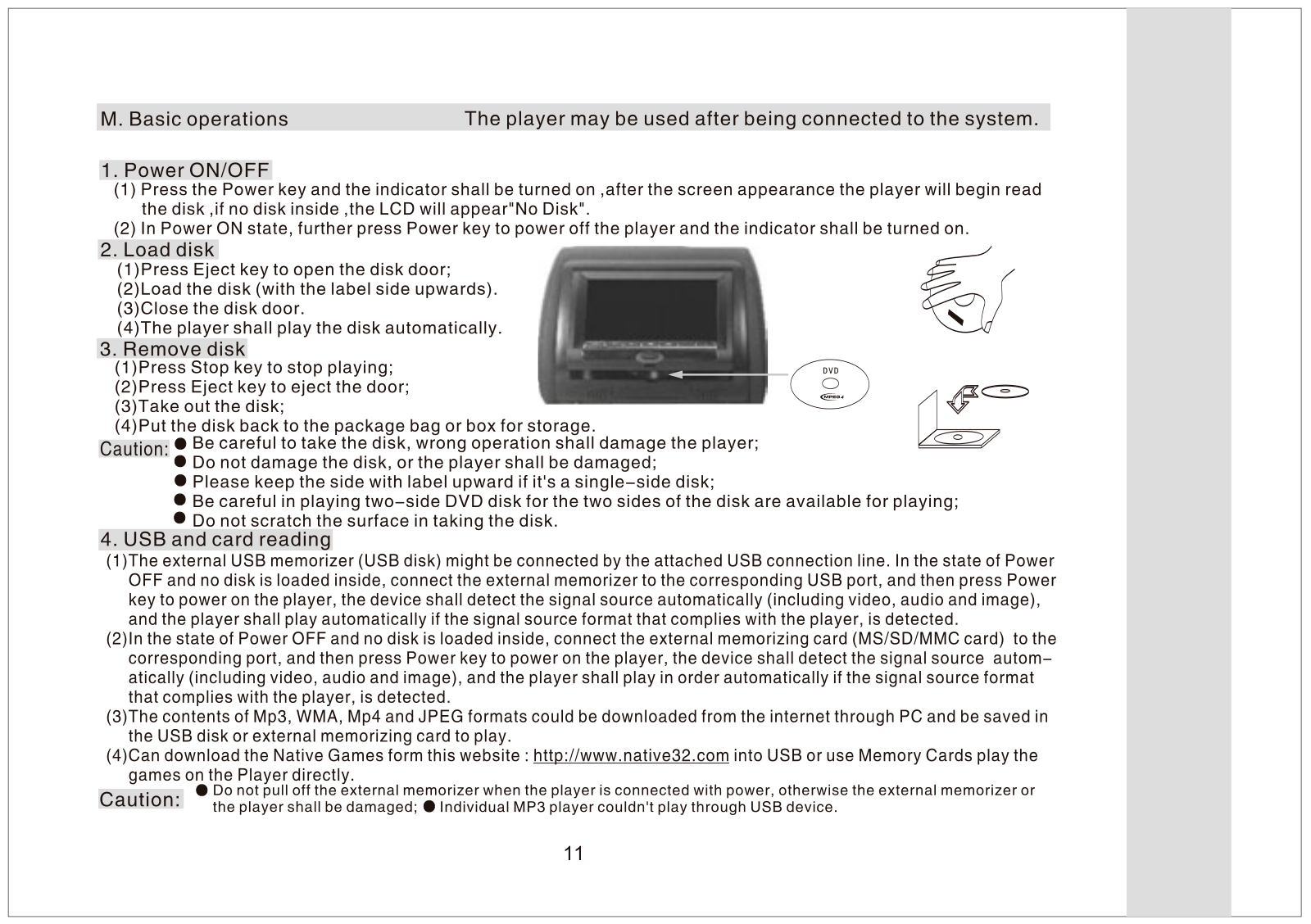

11

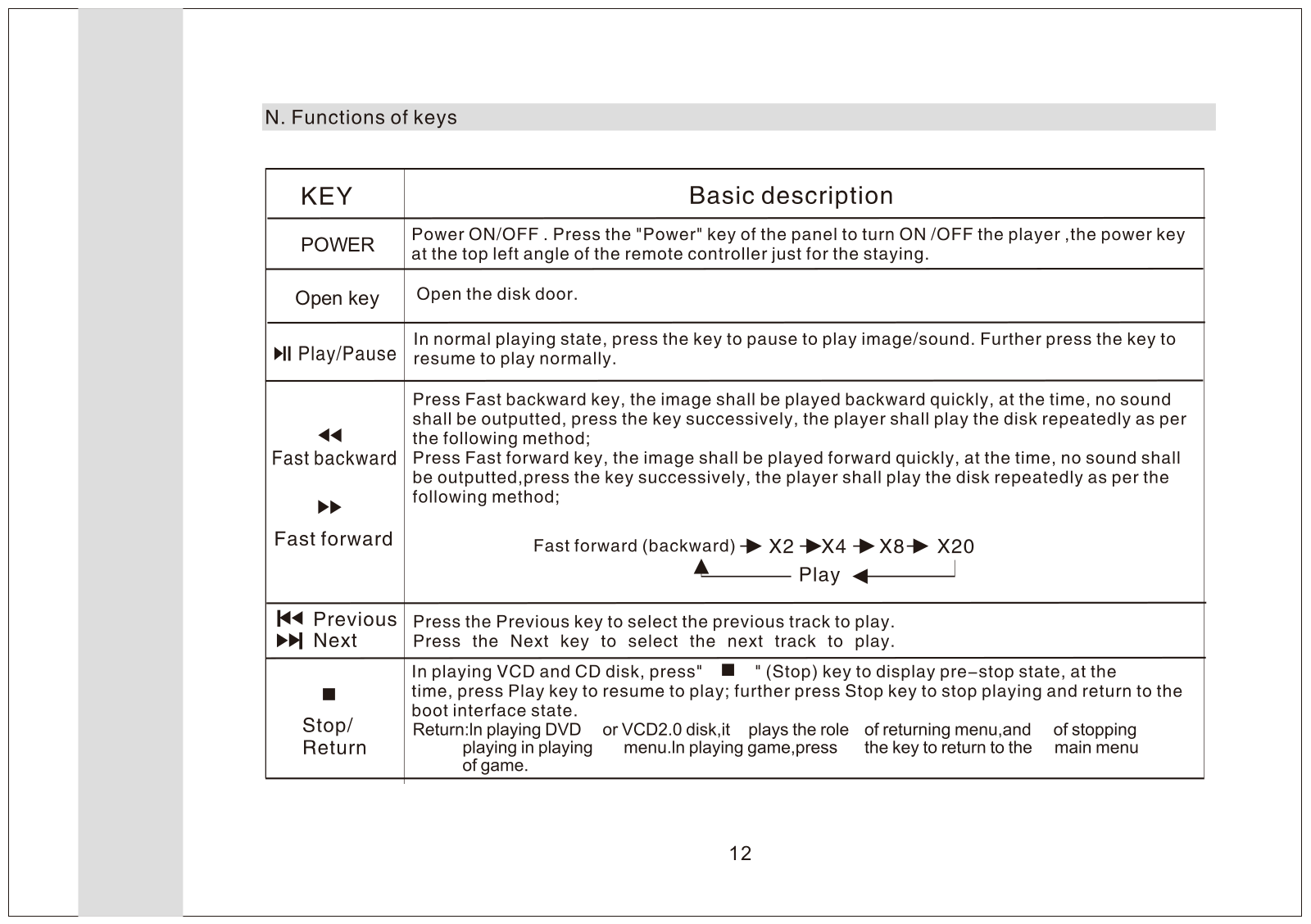

POWER

Open key

12

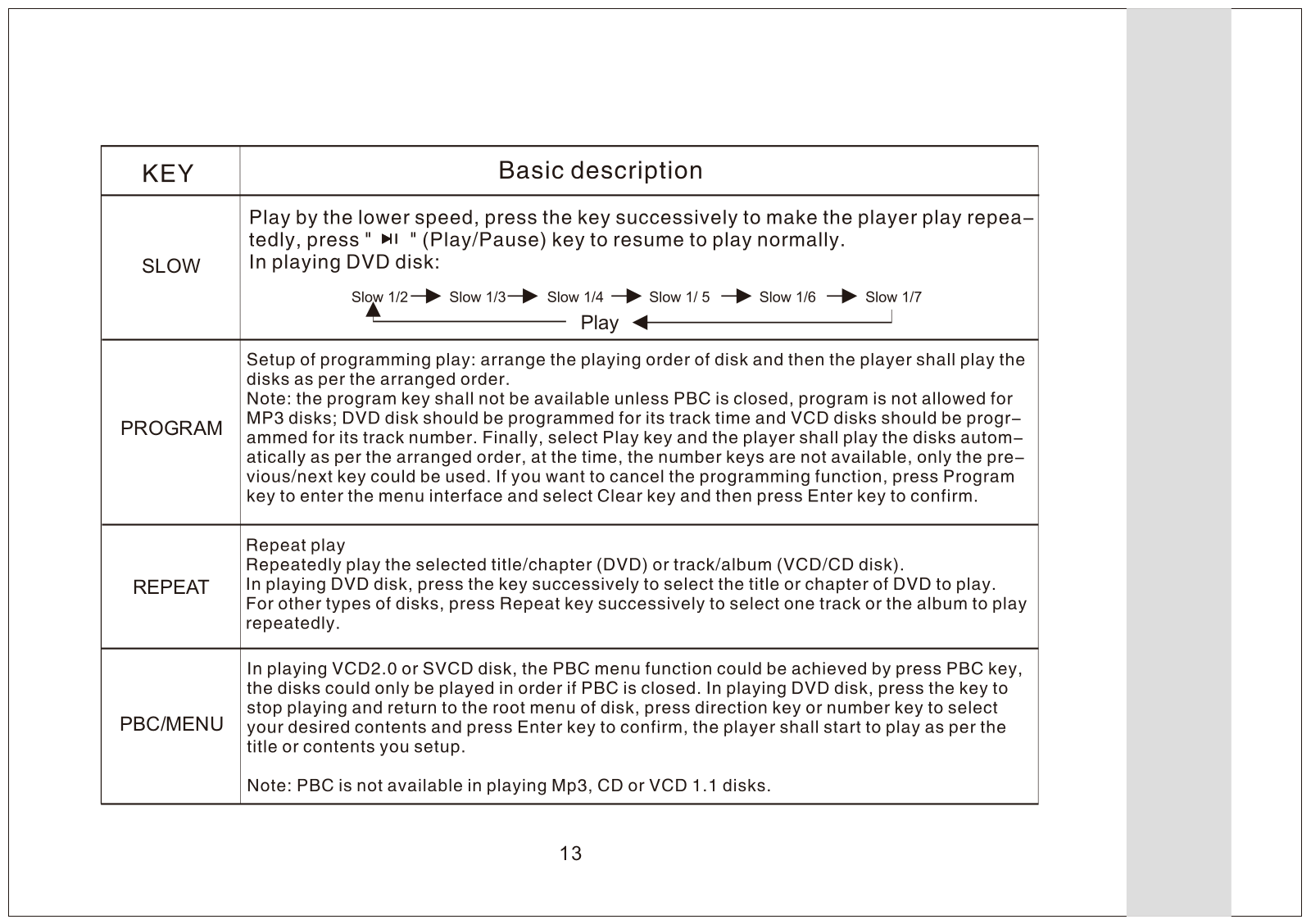

SLOW

PROGRAM

REPEAT

PBC/MENU

13

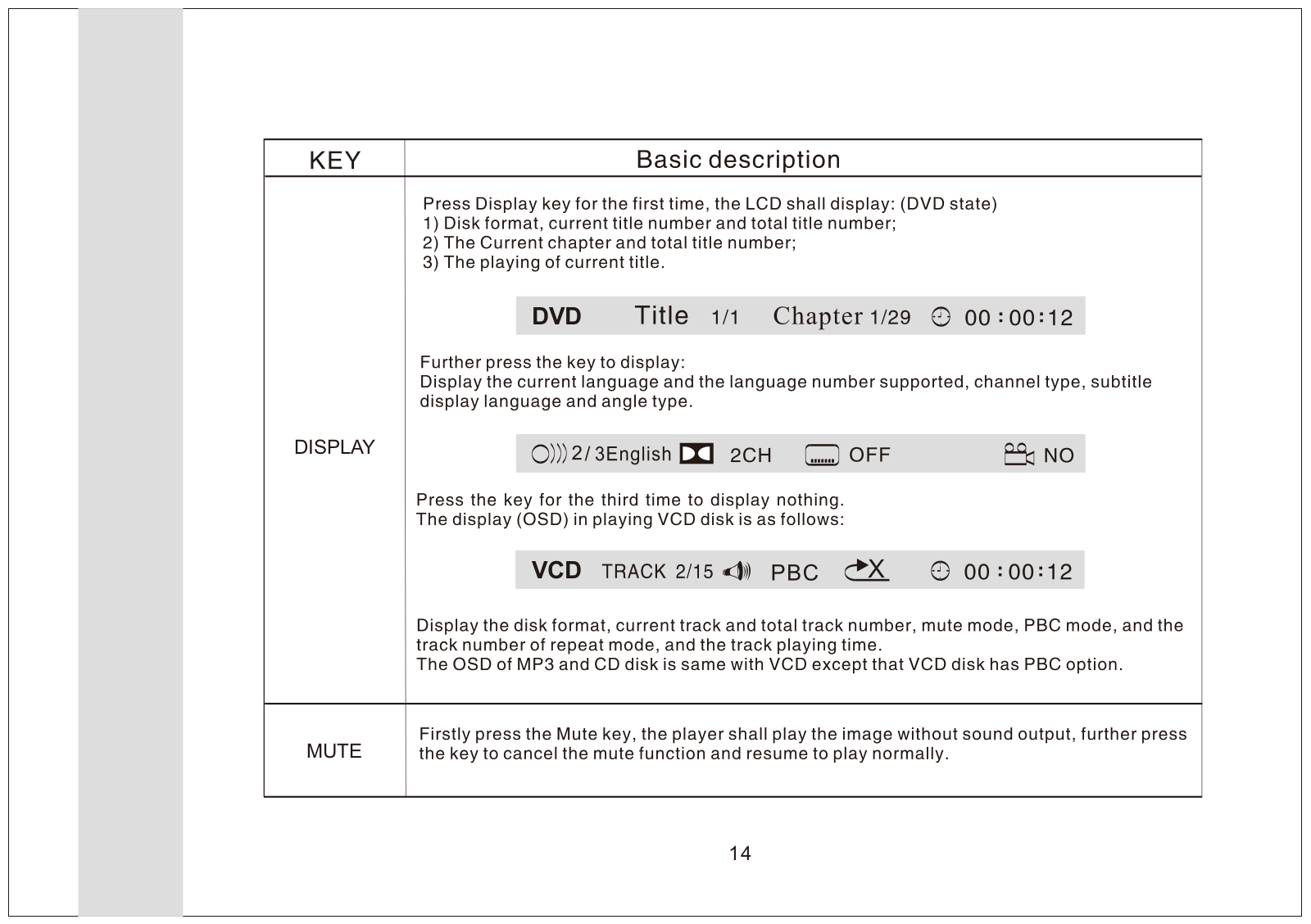

DISPLAY

MUTE

DVD

VCD

14

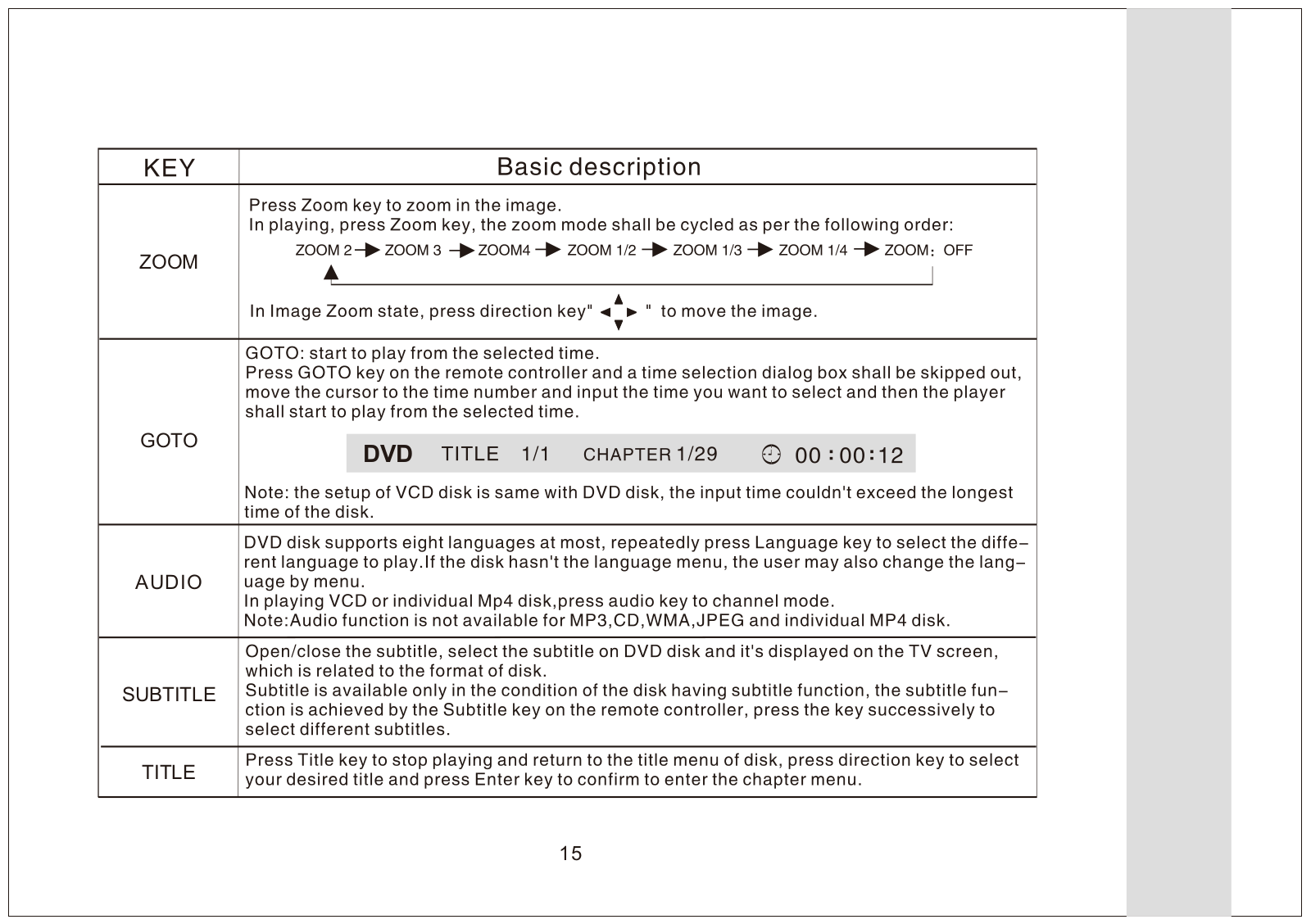

ZOOM

GOTO

AUDIO

SUBTITLE

TITLE

DVD

15

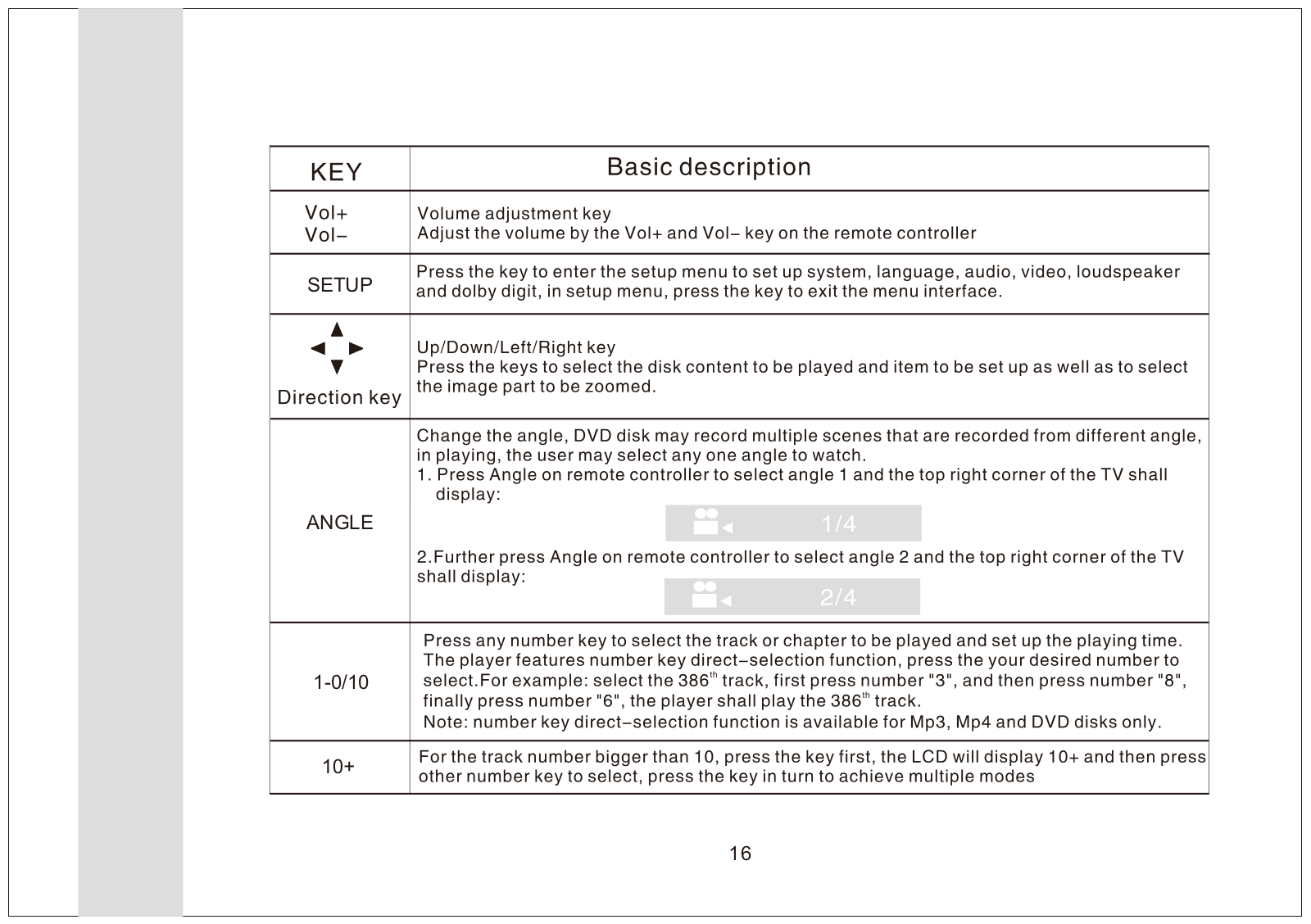

SETUP

ANGLE

1-0/10

16

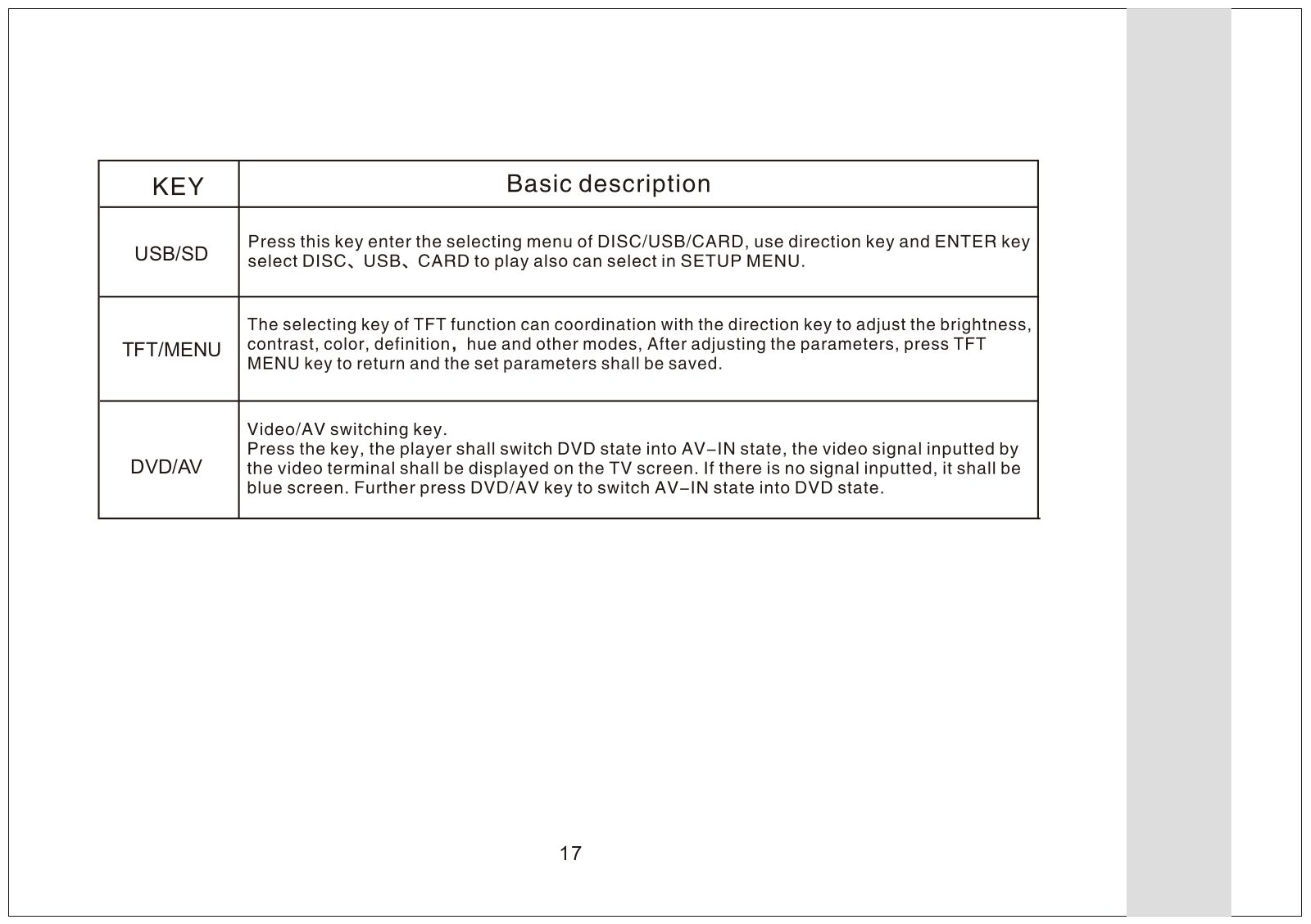

USB/SD

TFT/MENU

DVD/AV

17

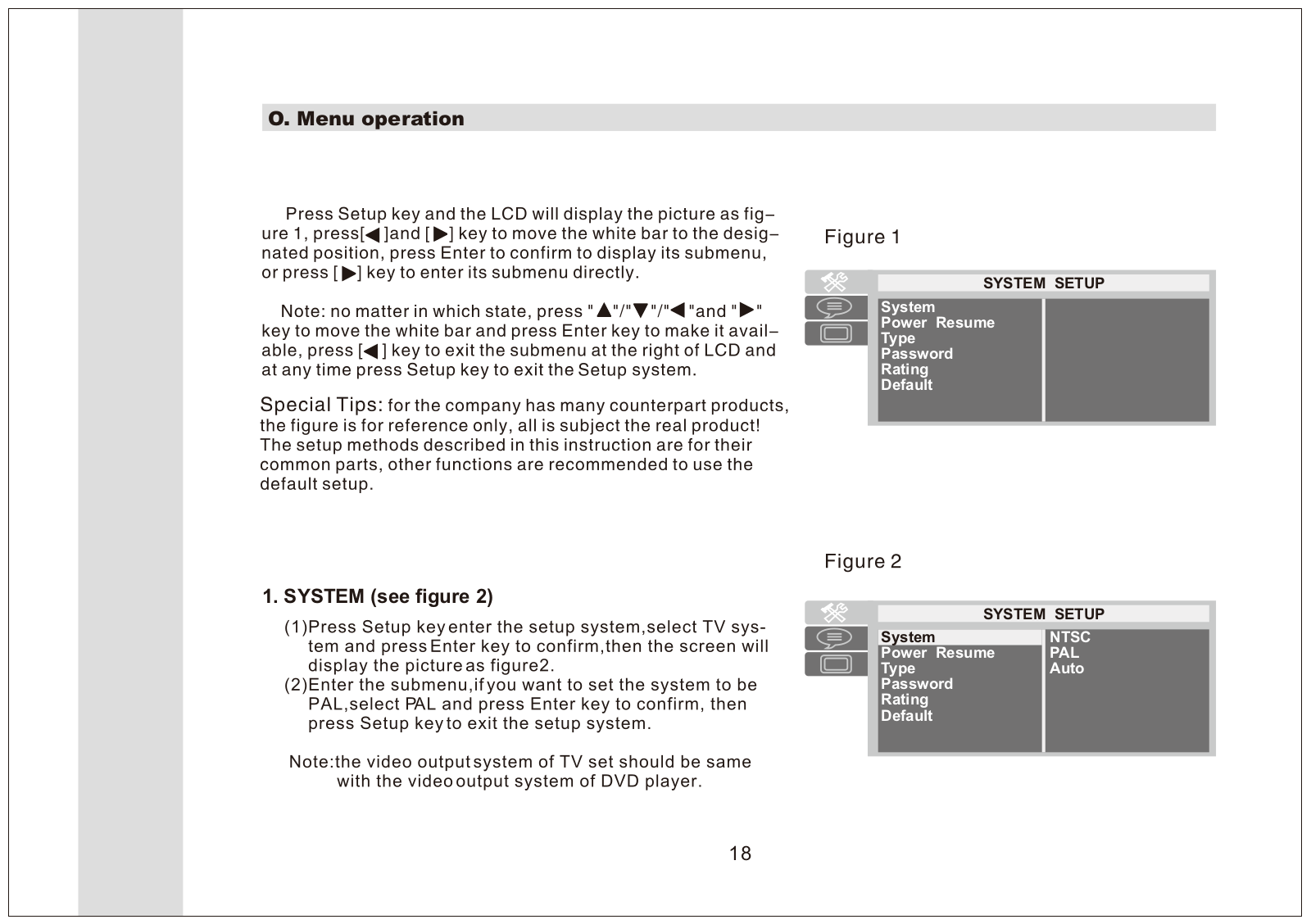

O. Menu operation

1. SYSTEM (see figure 2)

18

System
Power Resume
Type
Password
Rating
Default

System

Power Resume
Type
Password
Rating
Default

SYSTEM SETUP

SYSTEM SETUP

NTSC
PAL
Auto

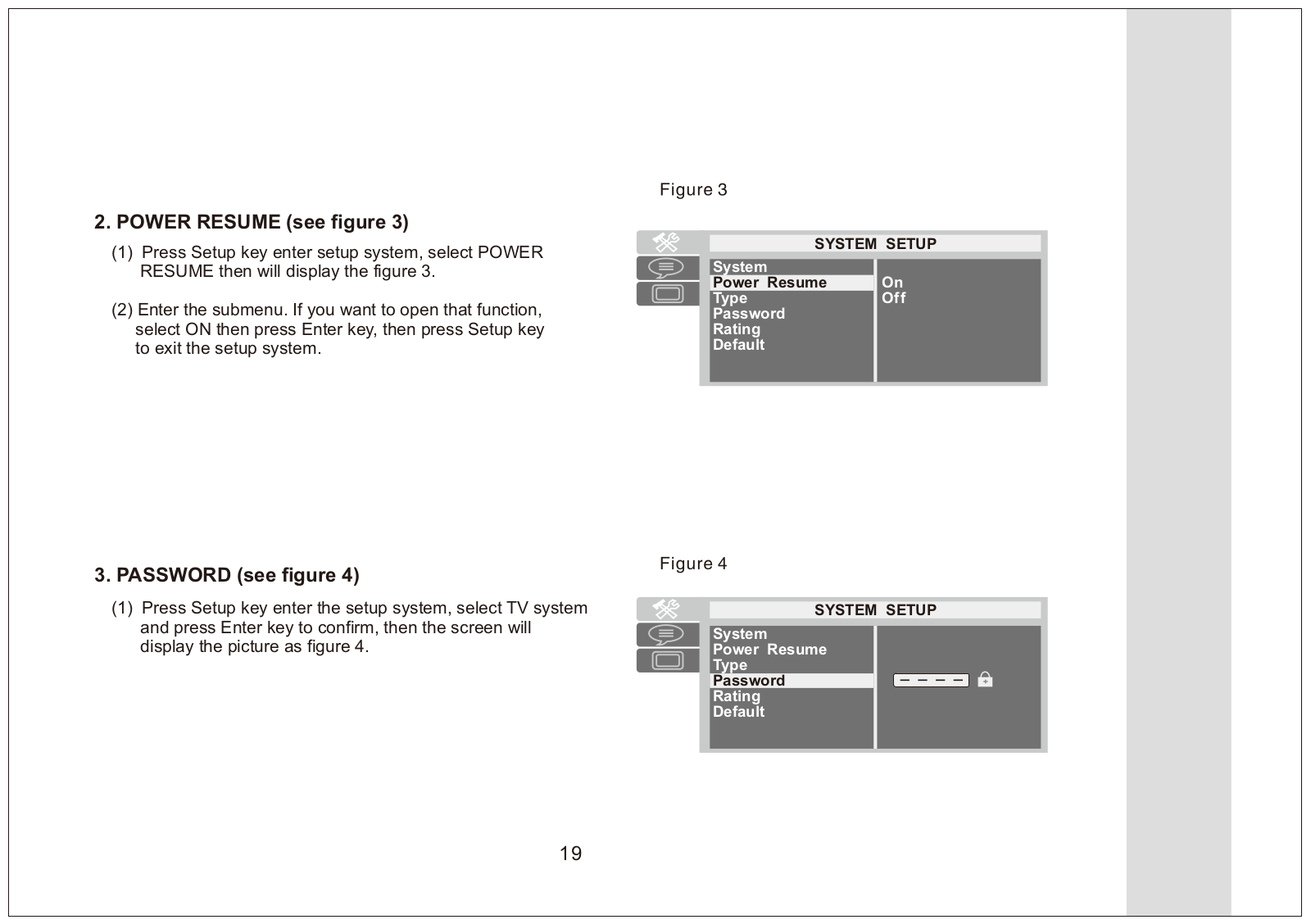

2. POWER RESUME (see figure 3)

(1) Press Setup key enter setup system, select POWER
RESUME then will display the figure 3.

(2) Enter the submenu. If you want to open that function,
select ON then press Enter key, then press Setup key
to exit the setup system.

3. PASSWORD (see figure 4)

(1) Press Setup key enter the setup system, select TV system
and press Enter key to confirm, then the screen will
display the picture as figure 4.

19

System

Power Resume On

Type
Password
Rating
Default

System
Power Resume
Type

Password

Rating
Default

SYSTEM SETUP

Off

SYSTEM SETUP

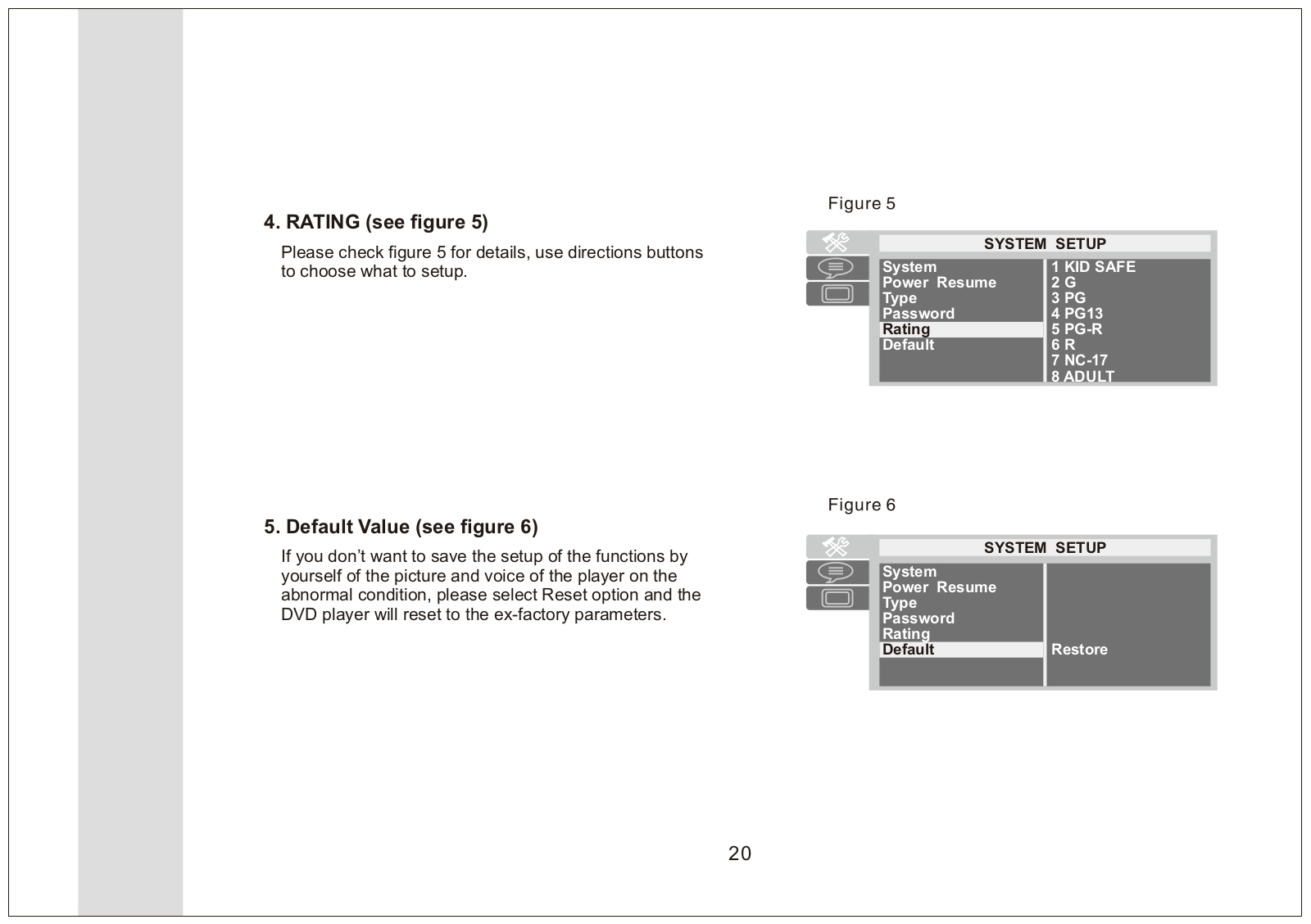

4. RATING (see figure 5)

Please check figure 5 for details, use directions buttons
to choose what to setup.

System
Power Resume
Type
Password

Rating

Default

SYSTEM SETUP

1 KID SAFE
2 G
3 PG
4 PG13
5 PG-R
6 R
7 NC-17
8 ADULT

5. Default Value (see figure 6)

If you don’t want to save the setup of the functions by
yourself of the picture and voice of the player on the
abnormal condition, please select Reset option and the
DVD player will reset to the ex-factory parameters.

20

System
Power Resume
Type
Password
Rating

Default

SYSTEM SETUP

Restore

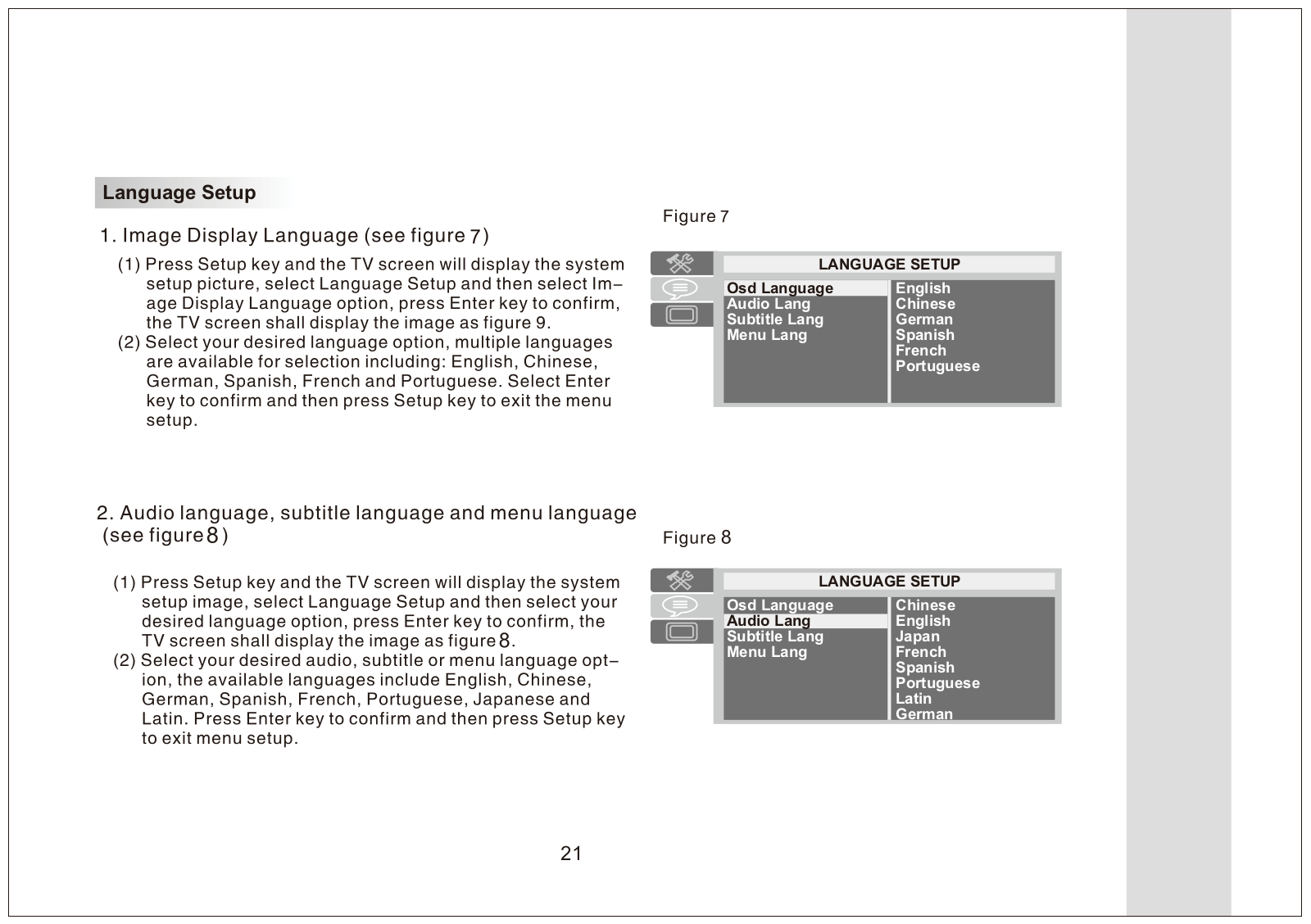

Language Setup

21

Osd Language

Audio Lang
Subtitle Lang
Menu Lang

Osd Language

Audio Lang

Subtitle Lang
Menu Lang

LANGUAGE SETUP

LANGUAGE SETUP

English
Chinese
German
Spanish
French
Portuguese

Chinese
English
Japan
French
Spanish
Portuguese
Latin
German

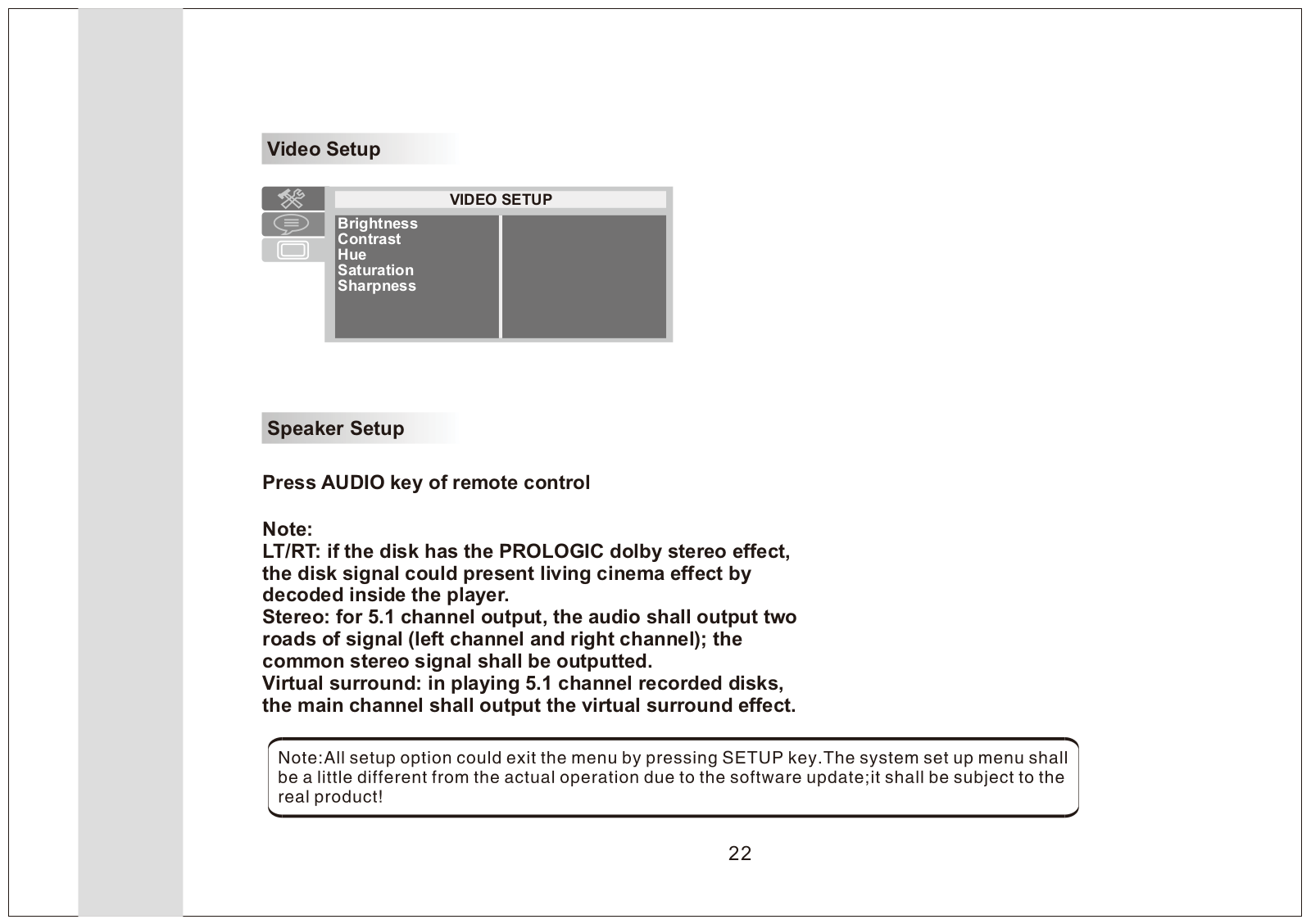

Video Setup

Brightness
Contrast
Hue
Saturation
Sharpness

VIDEO SETUP

Speaker Setup

Press AUDIO key of remote control

Note:
LT/RT: if the disk has the PROLOGIC dolby stereo effect,
the disk signal could present living cinema effect by
decoded inside the player.
Stereo: for 5.1 channel output, the audio shall output two
roads of signal (left channel and right channel); the
common stereo signal shall be outputted.
Virtual surround: in playing 5.1 channel recorded disks,
the main channel shall output the virtual surround effect.

22

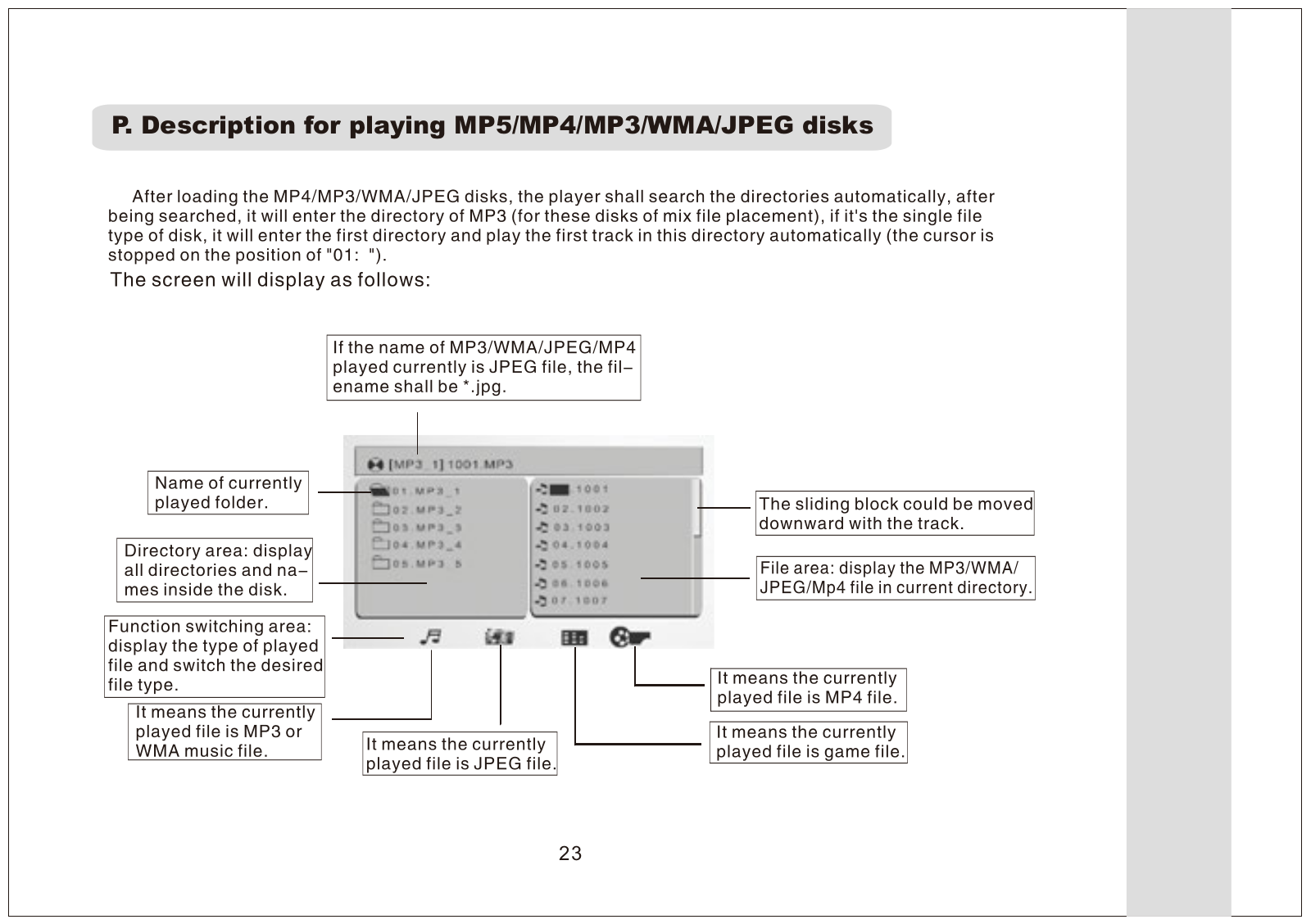

P. Description for playing MP5/MP4/MP3/WMA/JPEG disks

23

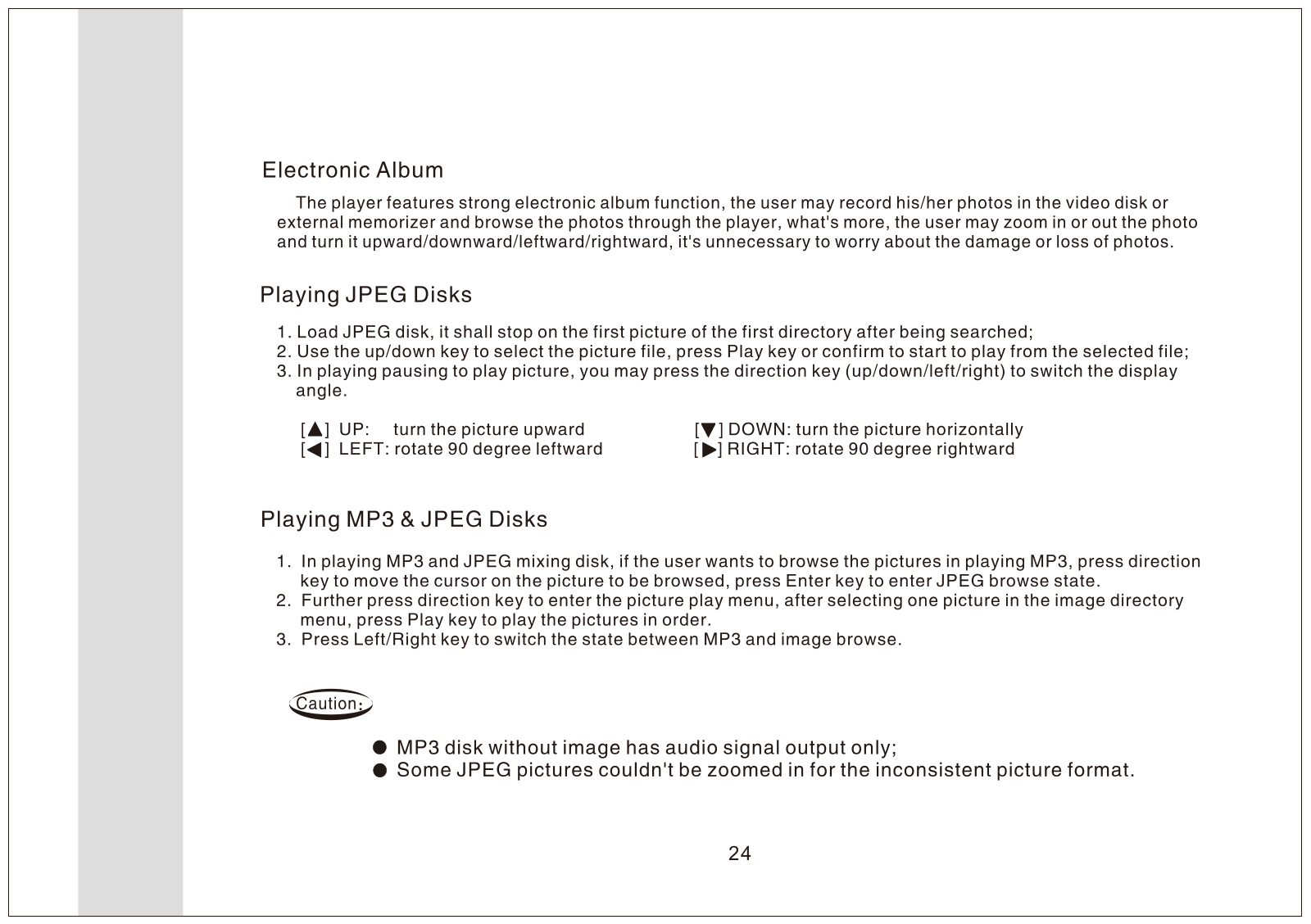

24

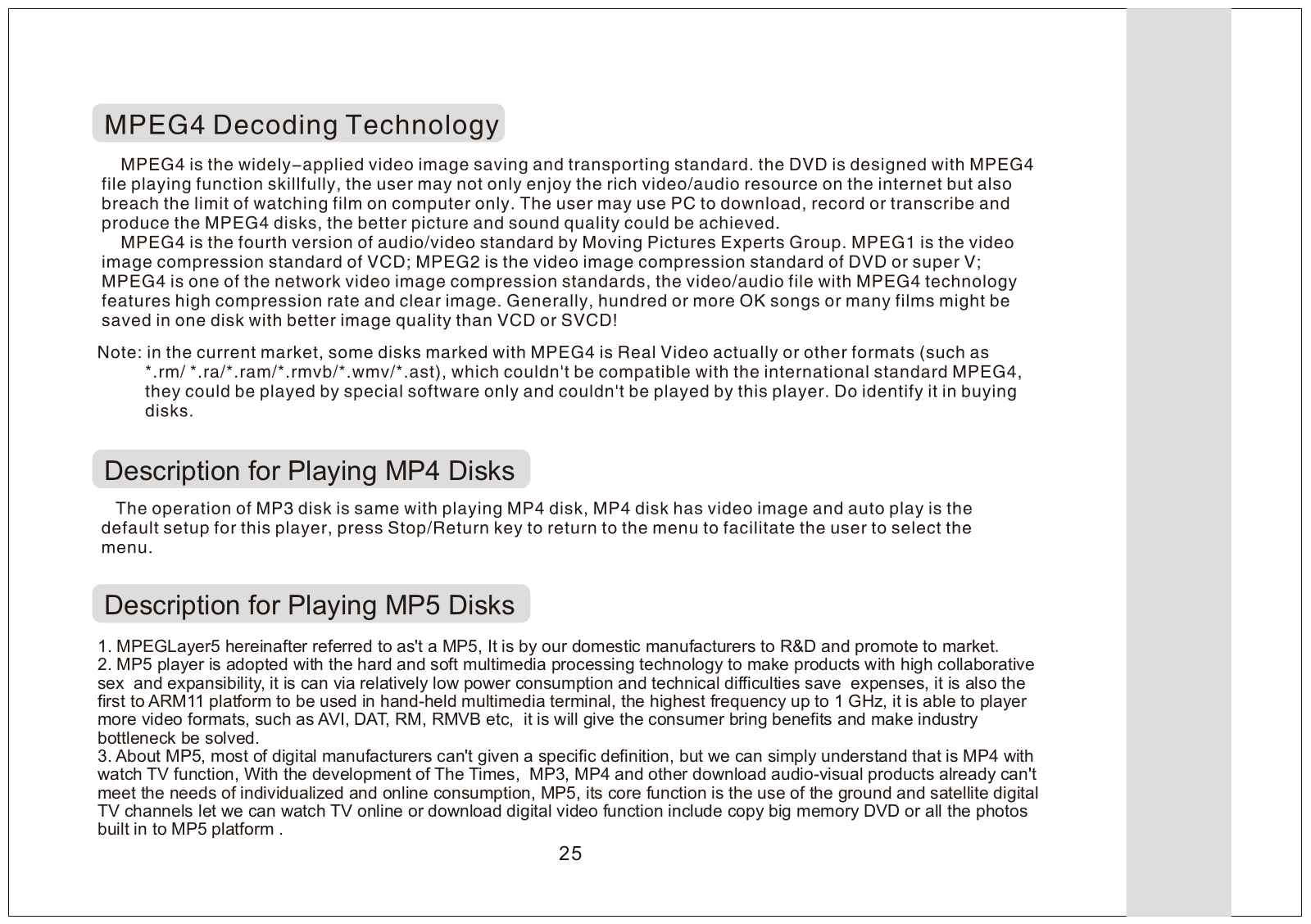

Description for Playing MP4 Disks

Description for Playing MP5 Disks

1. MPEGLayer5 hereinafter referred to as't a MP5, It is by our domestic manufacturers to R&D and promote to market.

2. MP5 player is adopted with the hard and soft multimedia processing technology to make products with high collaborative
sex and expansibility, it is can via relatively low power consumption and technical difficulties save expenses, it is also the
first to ARM11 platform to be used in hand-held multimedia terminal, the highest frequency up to 1 GHz, it is able to player
more video formats, such as AVI, DAT, RM, RMVB etc, it is will give the consumer bring benefits and make industry
bottleneck be solved.

3. About MP5, most of digital manufacturers can't given a specific definition, but we can simply understand that is MP4 with
watch TV function, With the development of The Times, MP3, MP4 and other download audio-visual products already can't
meet the needs of individualized and online consumption, MP5, its core function is the use of the ground and satellite digital
TV channels let we can watch TV online or download digital video function include copy big memory DVD or all the photos
built in to MP5 platform .

25

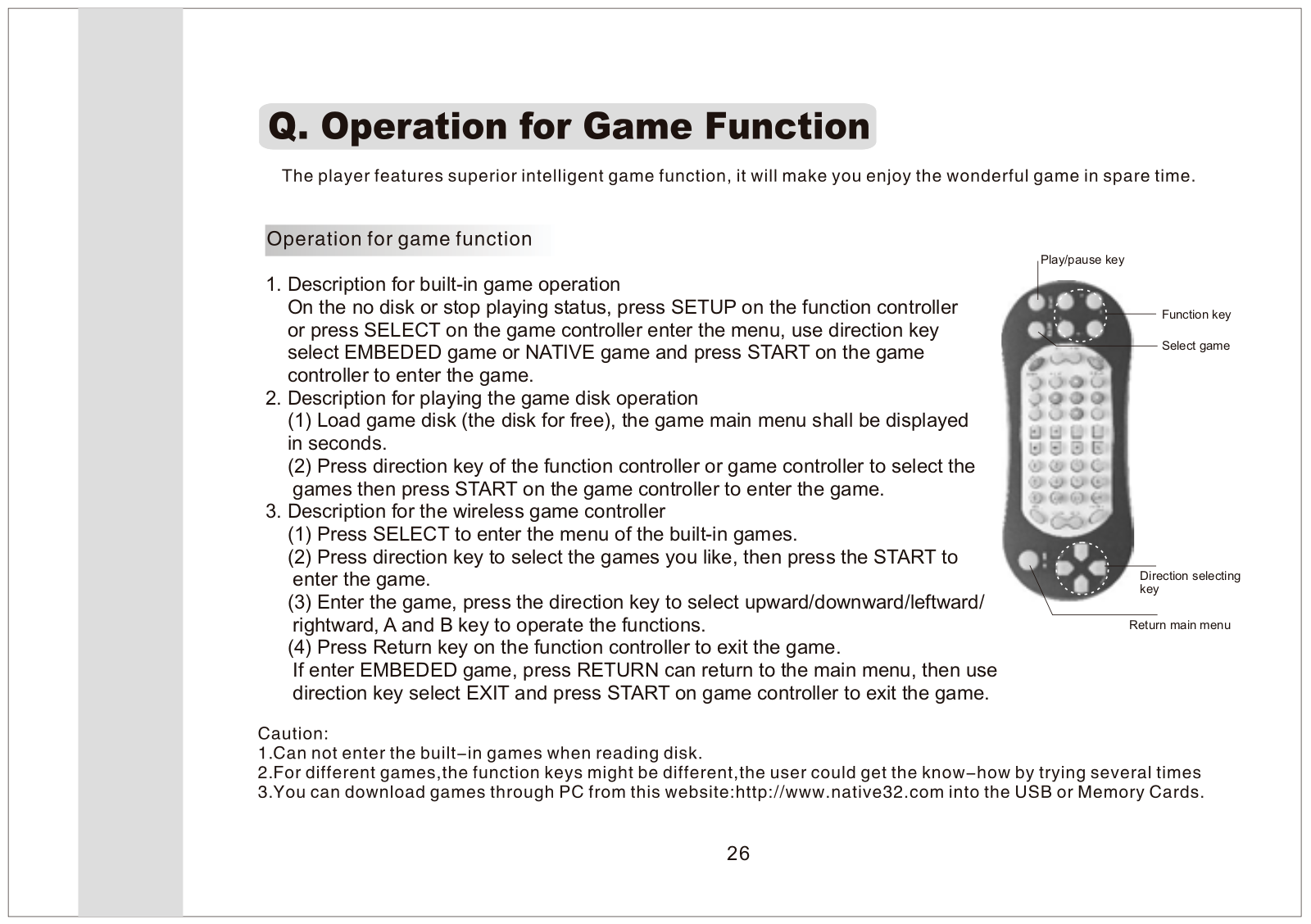

1. Description for built-in game operation
On the no disk or stop playing status, press SETUP on the function controller
or press SELECT on the game controller enter the menu, use direction key
select EMBEDED game or NATIVE game and press START on the game
controller to enter the game.

2. Description for playing the game disk operation
(1) Load game disk (the disk for free), the game main menu shall be displayed
in seconds.
(2) Press direction key of the function controller or game controller to select the
games then press START on the game controller to enter the game.

3. Description for the wireless game controller
(1) Press SELECT to enter the menu of the built-in games.
(2) Press direction key to select the games you like, then press the START to
enter the game.
(3) Enter the game, press the direction key to select upward/downward/leftward/
rightward, A and B key to operate the functions.
(4) Press Return key on the function controller to exit the game.
If enter EMBEDED game, press RETURN can return to the main menu, then use
direction key select EXIT and press START on game controller to exit the game.

26

Play/pause key

Function key

Select game

Direction selecting
key

Return main menu

27

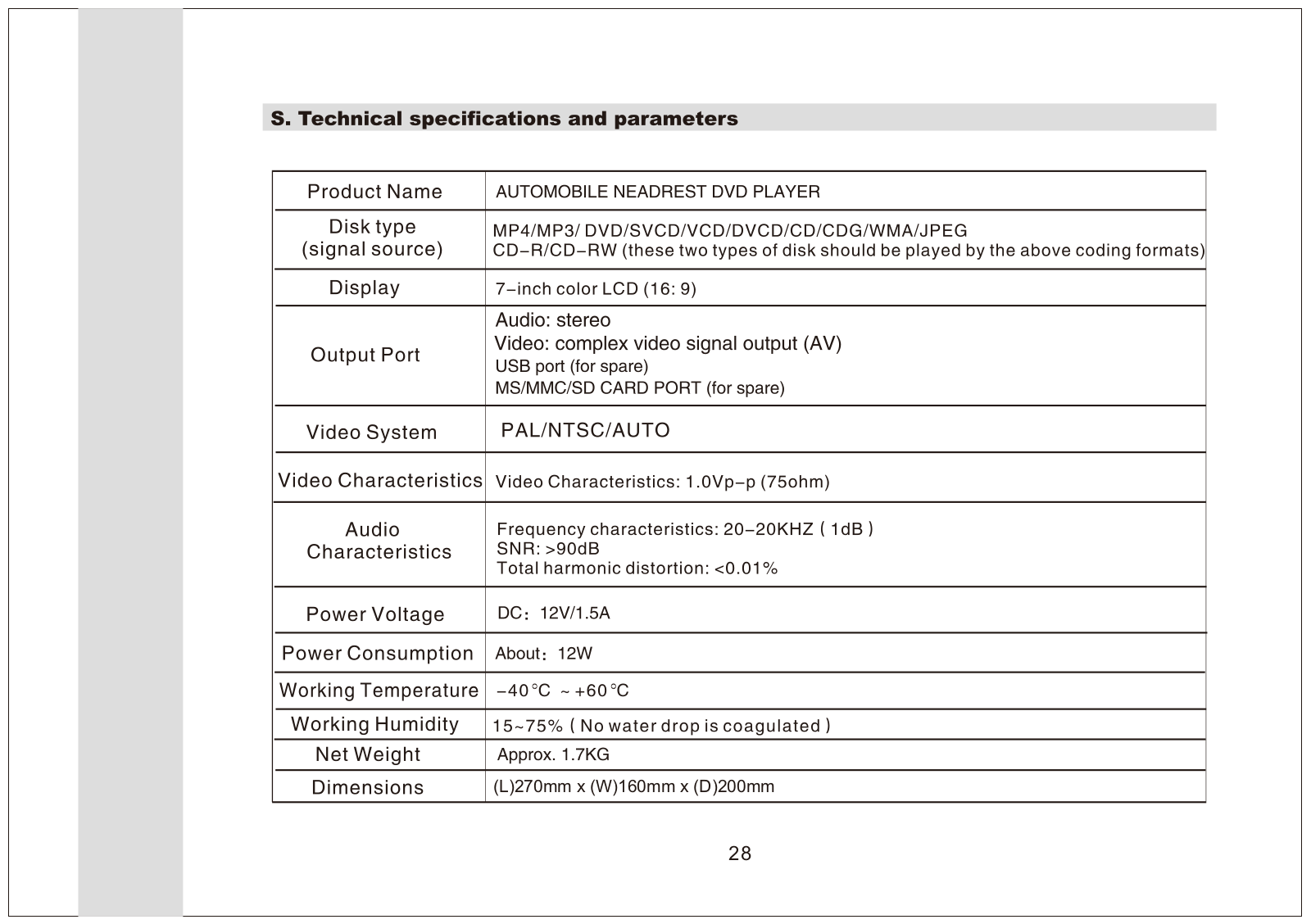

(L)270mm x (W)160mm x (D)200mm

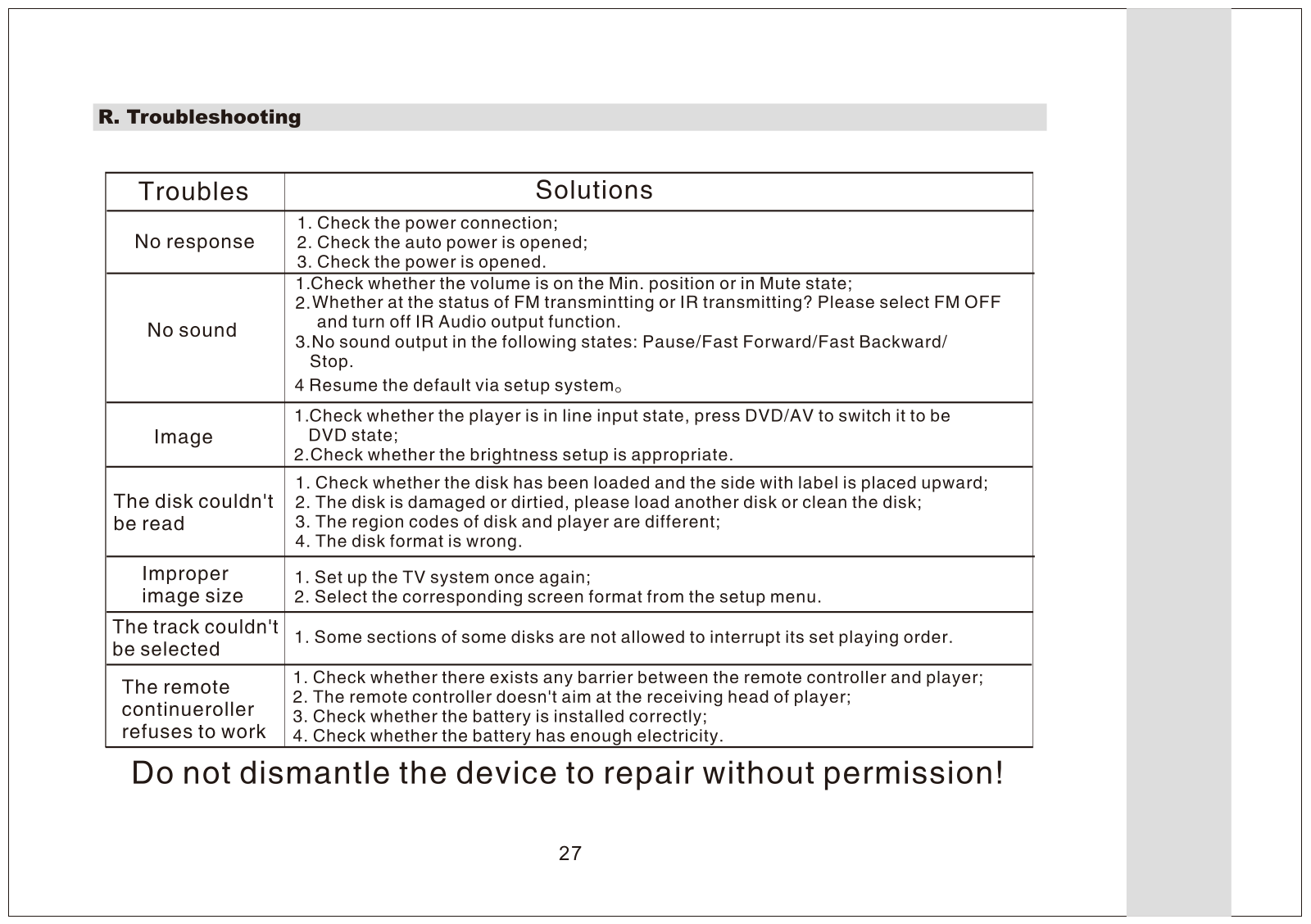

28

Visit us @ pyleaudio.com

IMPORTANT: Pack carefully in original package if possible. We are not

responsible for damage incurred in returning items for repair. A letter

stating your exact street addres, daytime phone number, and the problem

you are experiencing should be included. You must also enclose a copy

of the original receipt a sproof of date of purchase

Brooklyn, NY 11204

[phone]

Monday Through Thursday. 9AM to 5PM

Friday 9AM to 1PM Eastern.
