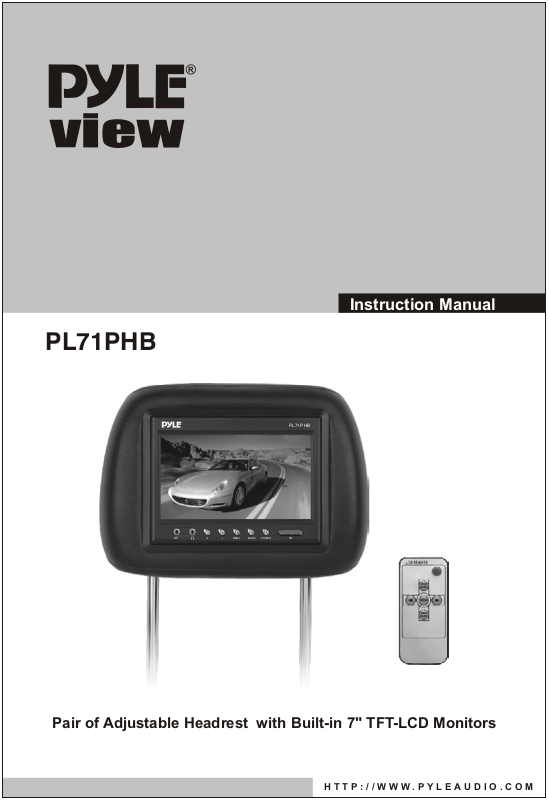

Page 1
PL71PHB
Instruction Manual
PL71 PHB
AV MENU MODE POWER IR
Pair of Adjustable Headrest with Built-in 7" TFT-LCD Monitors
H T T P : / / W W W . P Y L E A U D I O . C O M
Page 2
Warning
Read this manual before using this product.
This product is composed of precision components
and should not be dissembled Service must be
perfurmed by a factory authorized technician.
Protect the product from moisture and shock.
Attentions:
1. When connect the electric power wires, you should make clear about the
positive and negative electrode ( the red one is positive and the black
is negative). If you wrongly connected the fuse in the filter box will be
broken protectively. Please replace the fuse in same parameter.
2. Because the LCD screen is the main component It should be paid
attention to be damp-proof.
3. The device must be installed firmly to prevent falling of device that will
possibly cause injury and device-broken.
4. The connecting-point of direct current (12V) should connect on the Main
line of storage battery as possible as it can , for keeping this device in
normal operation and be away from the large voltage drop influence.
5. There is high voltage cluster in this machine, if you are the professional
person, should never to take part the machine if malfunction and
contact the dealer in time.
1
Page 3
2
Page 4
Install the Pillow
Sound system
VCD/ DV D
Red line (+12V)
Black line (ground)
Yellow line (signal)
How to use the adapter tubes
3
Page 5
Monitor Controls and Features
AV MENU MODE POWER IR
1 2 3 4 5 6 7 8
PL71 PHB
1. V2 in (Alternate video input)
2. Earphone jack
3. Positive adjustment
4. Negative adjustment
5. Activation of menu indicator
6.
16:9/4:3 mode select
7. Power on/off
8. IR remote window
4
Page 6
Remote Contorl
V1/V2 conversion
Power ON/OFF
Analog variable decrease
Switch for mode
Analog variable increase
Menu button
Changing the battery in the remote control
The remote battery is held in a small " drawer"
on one edge of the remote. To open this
drawer, press and hold the small button on
the edge of this drawer (as shown below) and
slide the drawer out.
Insert a new battery and push the drawer
back fully into the remote.
Battery
Release button
Installation Diagram
(Yellow) Video 1 input
(Yellow) Video 2 input
(Red) Audio right input
(White) Audio left input
(Black) Grounding
(Red) Battery +12V
5
Page 7
Specification
* Screen Size: 7" TFT-LCD Monitor
* Built-in Mini Speaker
* Aspect Ratio: 16:9 Wide Screen
* 1440 x 234 Resolution
* Contrast Ratio: 300:1
* Brightness: 350cd/m2
* Viewing Angle: U/D: 160°, L/R: 160°
* Response Time: 25ms
* Video Input Systems: AV1, AV2
* PAL/NTSC Compatible
* Full Function Wireless Remote Control
* English OSD Menu
* Built-In IR Transmitter for Wireless IR Headphones
* Adjustable Mouning Posts From 4 3/4" - 7 1/2"
* Dual Diameter Mounting Posts (1/2" 3/8")
* Dimensions: 10" W x 7.5" H x 4.5 D
* Sold as: Pair
Troubleshooting
6
Page 8
Accessories
7" TFT LCD Pillow Monitor
Wireless Remote Control
Assembling Stick
AV Input Line
Power Wire
User's Manual
2
1
2
1
1
2
Thank you for purchasing the headrest TFT LCD color monitor. To enjoy the
features of this device and to ensure years of trouble-free operation, please read
this manual carefully and follow the instructions.
WARNING:
Hazard do not operate this unit unless vehicle is parked in safe and legal area.
7
