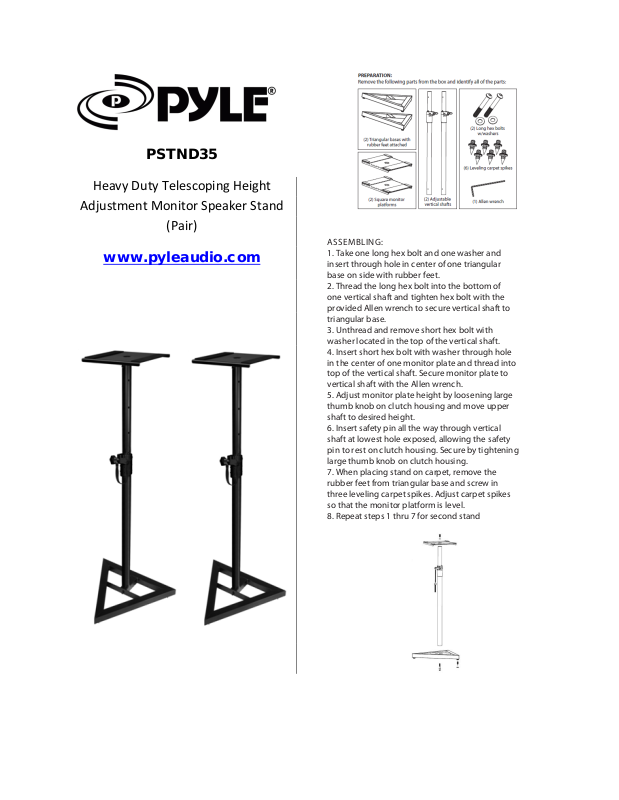

PSTND35
Heavy Duty Telescoping Height
Adjustment Monitor Speaker Stand
(Pair)
www.pyleaudio.com
ASSEMBLING:
1. Take one long hex bolt and one washer and
insert through hole in center of one triangular
base on side with rubber feet.
2. Thread the long hex bolt into the bottom of
one vertical shaft and tighten hex bolt with the
provided Allen wrench to secure vertical shaft to
triangular base.
3. Unthread and remove short hex bolt with
washer located in the top of the vertical shaft.
4. Insert short hex bolt with washer through hole
in the center of one monitor plate and thread into
top of the vertical shaft. Secure monitor plate to
vertical shaft with the Allen wrench.
5. Adjust monitor plate height by loosening large
thumb knob on clutch housing and move upper
shaft to desired height.
6. Insert safety pin all the way through vertical
shaft at lowest hole exposed, allowing the safety
pin to rest on clutch housing. Secure by tightening
large thumb knob on clutch housing.
7. When placing stand on carpet, remove the
rubber feet from triangular base and screw in
three leveling carpet spikes. Adjust carpet spikes
so that the monitor platform is level.
8. Repeat steps 1 thru 7 for second stand
