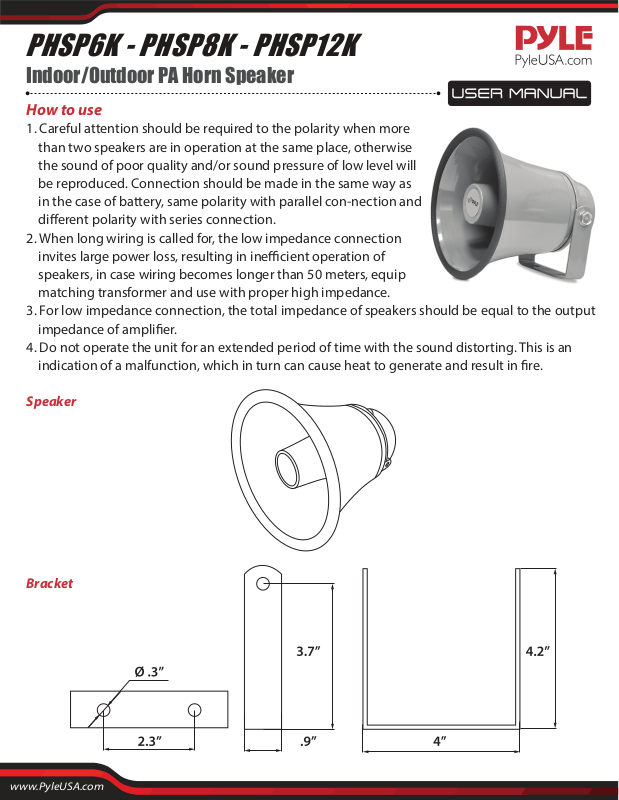

PHSP6K - PHSP8K - PHSP12K
Indoor/Outdoor PA Horn Speaker
How to use
1.Careful attention should be required to the polarity when more than two speakers are in operation at the same place, otherwise the sound of poor quality and/or sound pressure of low level will be reproduced. Connection should be made in the same way as in the case of battery, same polarity with parallel con-nection and di erent polarity with series connection.
2.When long wiring is called for, the low impedance connection invites large power loss, resulting in ine cient operation of speakers, in case wiring becomes longer than 50 meters, equip matching transformer and use with proper high impedance.
3.For low impedance connection, the total impedance of speakers should be equal to the output impedance of ampli er.
4.Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a malfunction, which in turn can cause heat to generate and result in re.
Speaker
Bracket
www.PyleUSA.com
PHSP6K - 6.1”
PHSK8K - 7.9”
PSSK12K - 9”
PHSP6K - 6.3”
PHSK8K - 8.1”
PSSK12K - 10”
Technical Data |
PHSP6K |
PHSP8K |
PHSP12K |
|
|
|
|
Load rating |
25W |
50W |
55W |
|
|
|
|
Nominal impedance |
8 ohms |
8 ohms |
8 ohms |
|
|
|
|
Freaquency range |
400Hz-6KHz |
400Hz-6KHz |
400Hz-5KHz |
|
|
|
|
SPL(@1W/m) |
100 dB |
103 dB |
105 dB |
|
|
|
|
Dimension ØxD (mm) |
Ø160x155mm |
Ø206x200mm |
Ø260x228mm |
|
|
|
|
Material |
ALU |
ALU |
ALU |
|
|
|
|
