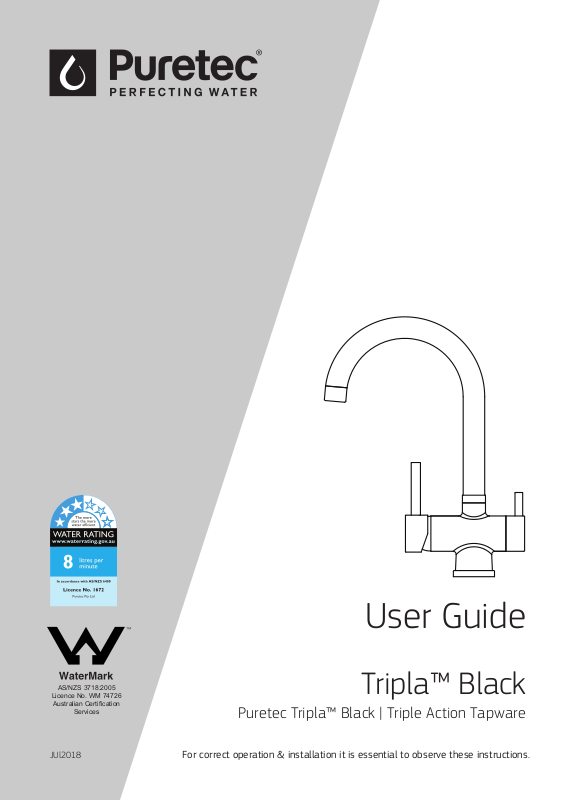

Tripla™ Black

Puretec Tripla™ Black | Triple Action Tapware

For correct operation & installation it is essential to observe these instructions.JUl2018

What's inside

Puretec Customer Service ................................................................................................. 2

Operation ...................................................................................................................................... 2

Servicing........................................................................................................................................ 3

Technical Information ............................................................................................................ 3

Recommended Working Pressures ................................................................................. 3

Installation Guide (BL1 & Bl2 models) ........................................................................ 4

Installation Guide (BL3 model) ........................................................................................ 5

Assembly (BL1 & Bl2 models) .......................................................................................... 6

Assembly (BL3 model) .......................................................................................................... 7

Water Connection Patterns ................................................................................................. 8

Replacement of Ceramic Disc Cartridge(s) ................................................................ 9

Tripla BL1 & BL2 Parts Description ...........................................................................10

Tripla BL3 Parts Description ..........................................................................................11

Notes .......................................................................................................................................... 12

Warranty .................................................................................................................................... 12

Warranty/Australia ............................................................................................................... 13

Warranty/New Zealand ...................................................................................................... 13

What's Inside

Puretec Customer Service

Thank you for purchasing a Puretec Tripla. Your tap is manufactured from only quality materials and will last for years, if maintained and installed properly.

The system is designed for metropolitan supply water but can be used in other situations. For other types of water supply please contact your local Puretec stockist or call our Puretec Customer Service Helpline prior to installing the tap.

Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand)

Operation

All surfaces should only be cleaned with liquid detergent or soap and water. Under no circumstance should any abrasive or acid base cleaning agents be used.

Introduction

Servicing

Periodically clean the aerator for any lodged sediment that may restrict ow. A Puretec whole house water lter is highly recommended to ensure longevity of all household

tapware.

Should it be necessary to have your mixer serviced while under warranty, please carry out the following procedure:

1. Firstly call the plumber, preferably the one that has installed it, (most problems are caused by the supply lines not being cleaned out properly, prior to connecting the mixers).

2. Make sure that the plumber has installed your mixer according to the Instruction Guide.

3. If the plumber is satised that he cannot rectify the problem then contact your

plumbing supply store or your local Puretec stockist.

Important: We do not recommend the dismantling of any internal parts of the mixer purely to see what is inside as this will breach your warranty.

Technical Information

Puretec mixers can be used in conjunction with:

• Pressure storage hot water systems

• Any mains water pressure not exceeding 500 kPa

• Maximum hot water temperature of 60°C

• Instantaneous hot water systems

Recommended Working Pressures

• Minimum working pressure 50 kPa (7.5 PSI)

• Maximum working pressure 500 kPa

It should be noted that water mains pressure builds up during o peak periods, mainly

at night, sometimes doubling or trebling normal daytime pressures.

Note: Not suitable for unequal pressure. On high pressure areas where the pressure exceeds the recommended working pressure as indicated above pressure limiting valves must be installed or warranty is voided.

Puretec Tripla™ Black Series | Triple Action Tapware

Installation Guide (BL1 & BL2 models)

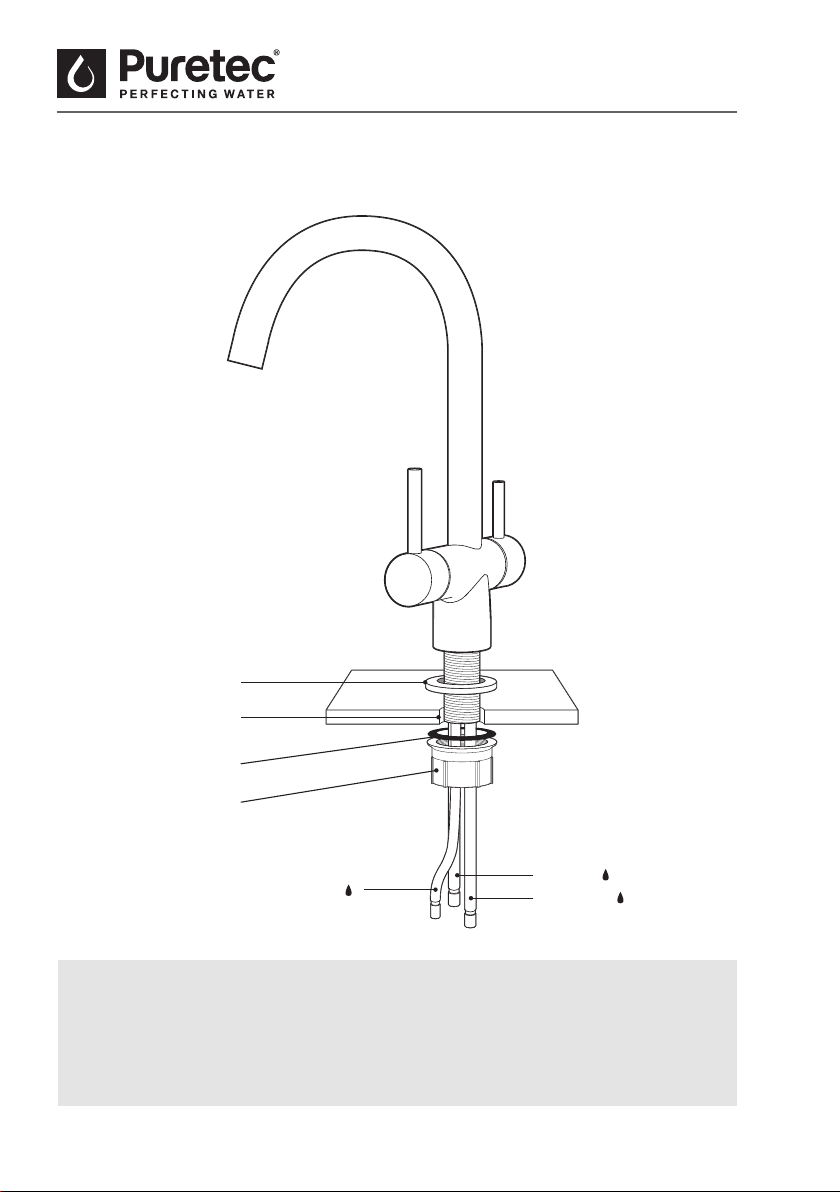

Installation Guide

Base

Sink Faucet

Hole (Ø33mm)

Rubber Washer

Nut

Water Fiter (green )

HOT (red )

COLD (blue )

Note: It is important to ush out the supply pipes to the mixer before connecting the exible hoses with the initial installation, so no foreign matter can enter into the

cartridges.

A Puretec Water Filter is highly recommended for product longevity.

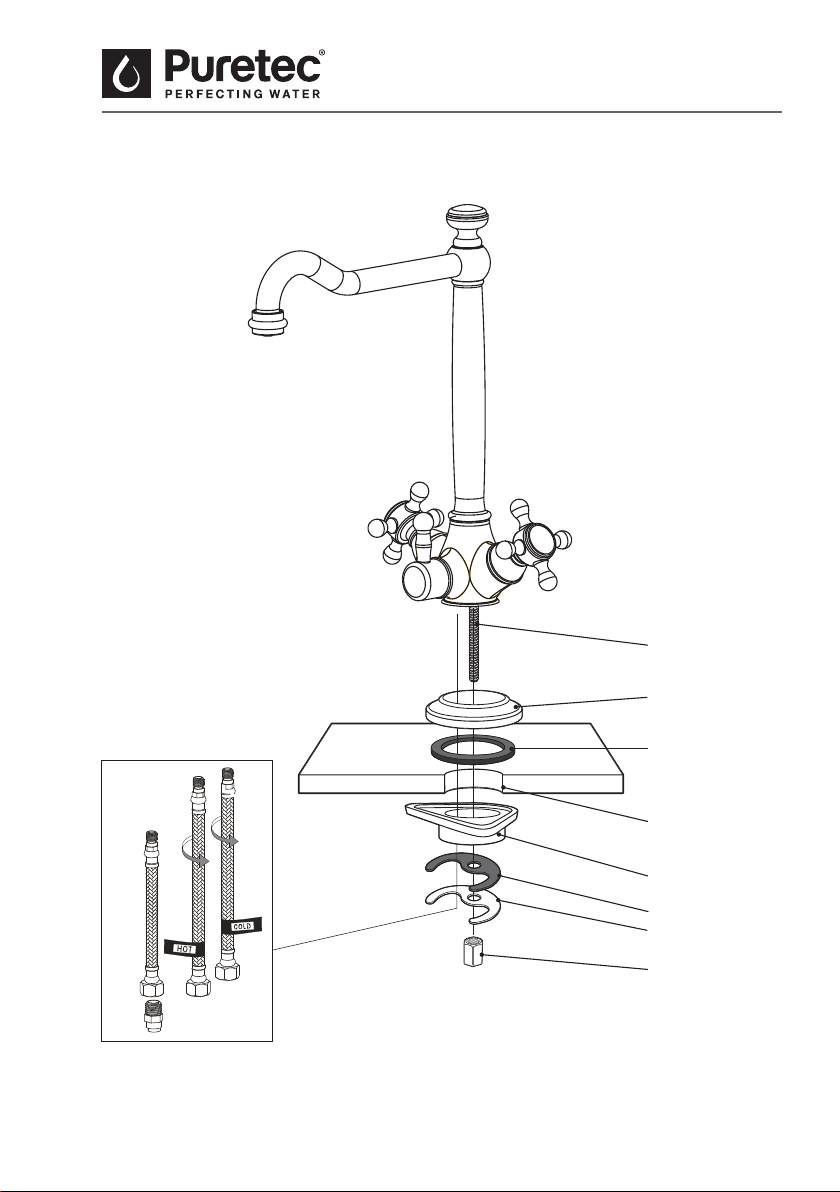

Installation Guide (BL3 model)

Retaining screw

Base

gasket

Sink Faucet Hole (Ø33mm)

Plastic xed nut

Rubber washer Metal washer

Locking Nut

Puretec Tripla™ Black Series | Triple Action Tapware

Assembly (BL1 & BL2 models)

Step 1.

Connect the hoses to the faucet and tighten them.

Only use hand to screw the exible hose.

Do not over tight. Don't use any tools.

Assembly

Step 2.

Feed the hoses through the basin or sink. Required through hole size is Ø33mm.

Base should be on top of the sink

Rubber Washer

Nut

Tripla faucet

Base

basin or sink

Sink Faucet

Hole (Ø33mm)

Step 3.

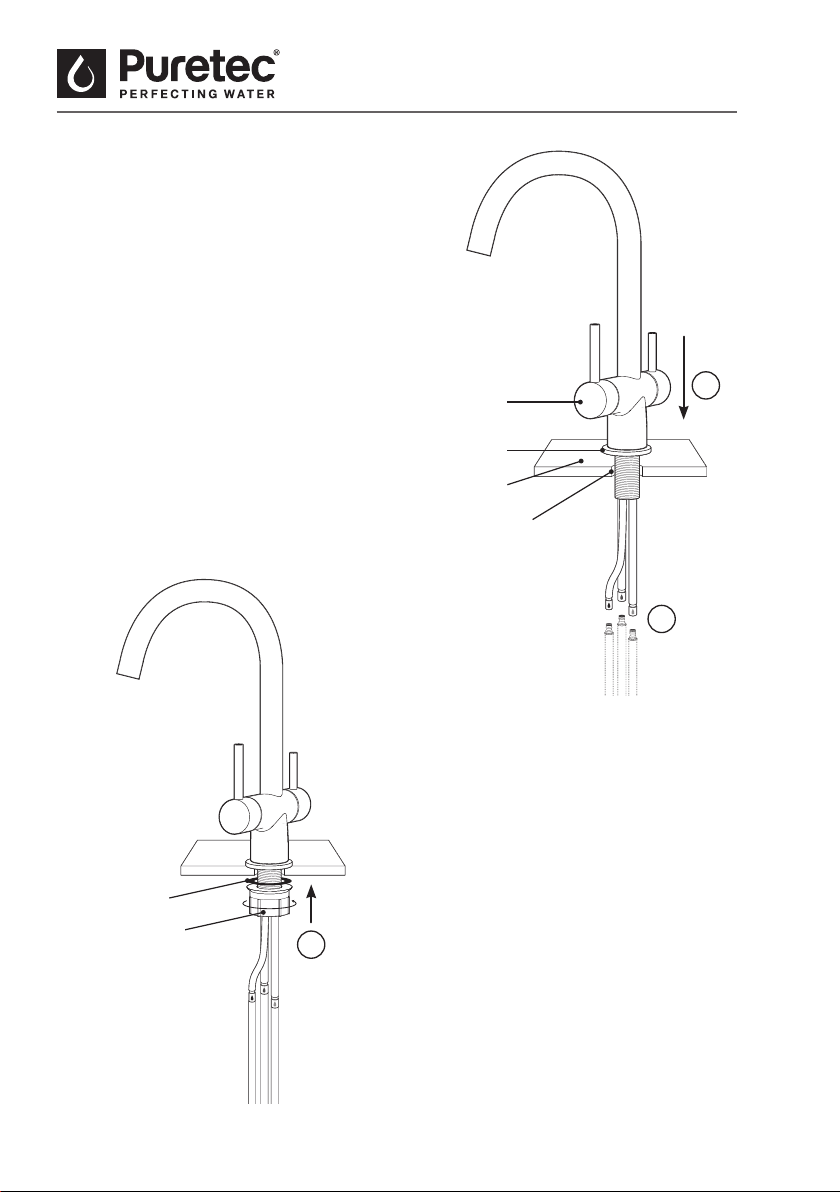

Place the rubber washer and screw the nut below the sink. Position the tap on your desired angle then tighten the nut.

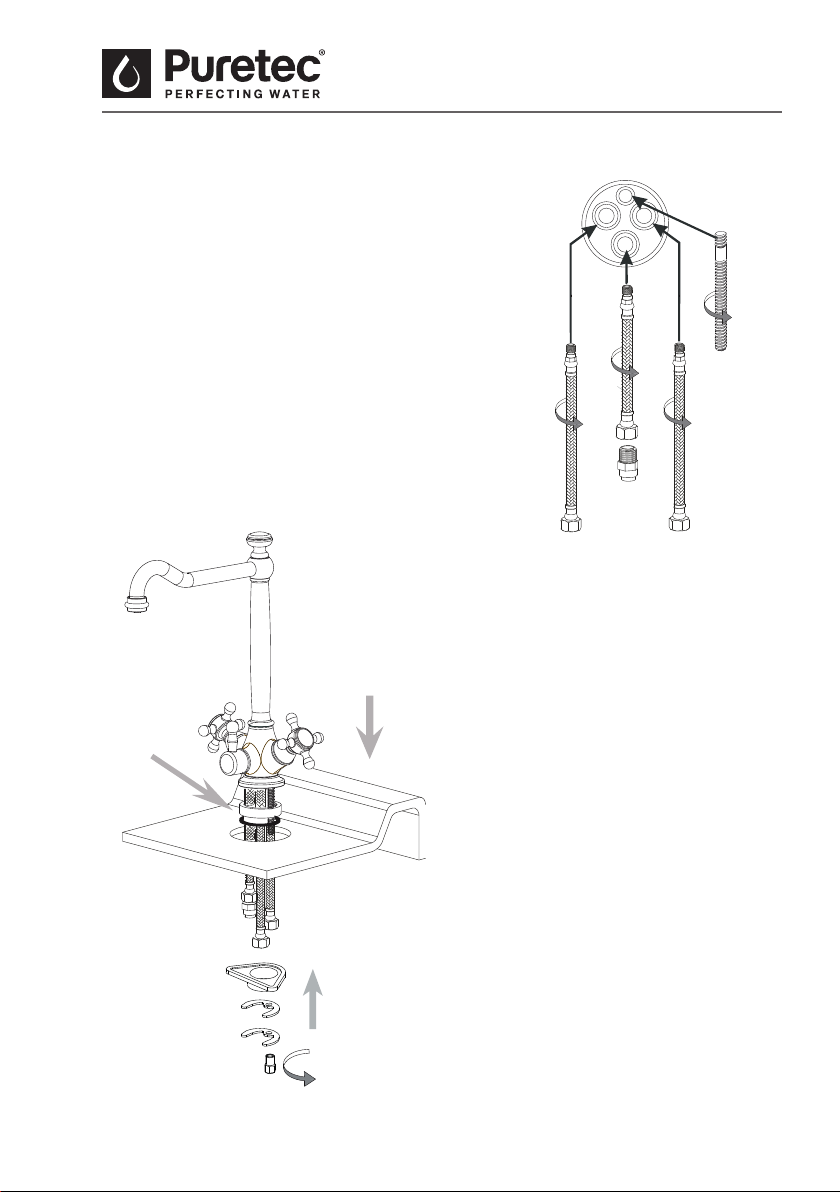

Assembly (BL3 model)

Step 1.

Connect the retaining screw and braided hoses to the faucet and tighten them.

Only use hand to screw the exible hose. Do not

over tight. Don't use any tools.

See connection pattern on page 8.

Step 2.

Connect the straight adaptor to the ltered exible

hose

Step 3.

Feed the hoses through the basin or sink. Required through hole size is Ø33mm.

Base and washer should be on top of the sink

Step 4.

Insert the plastic xed nut, rubber

washer, metal washer and screw the nut by turning counterclockwise.

Step 5.

Position the tap on your desired angle and tighten the nut by using a wrench.

Puretec Tripla™ Black Series | Triple Action Tapware

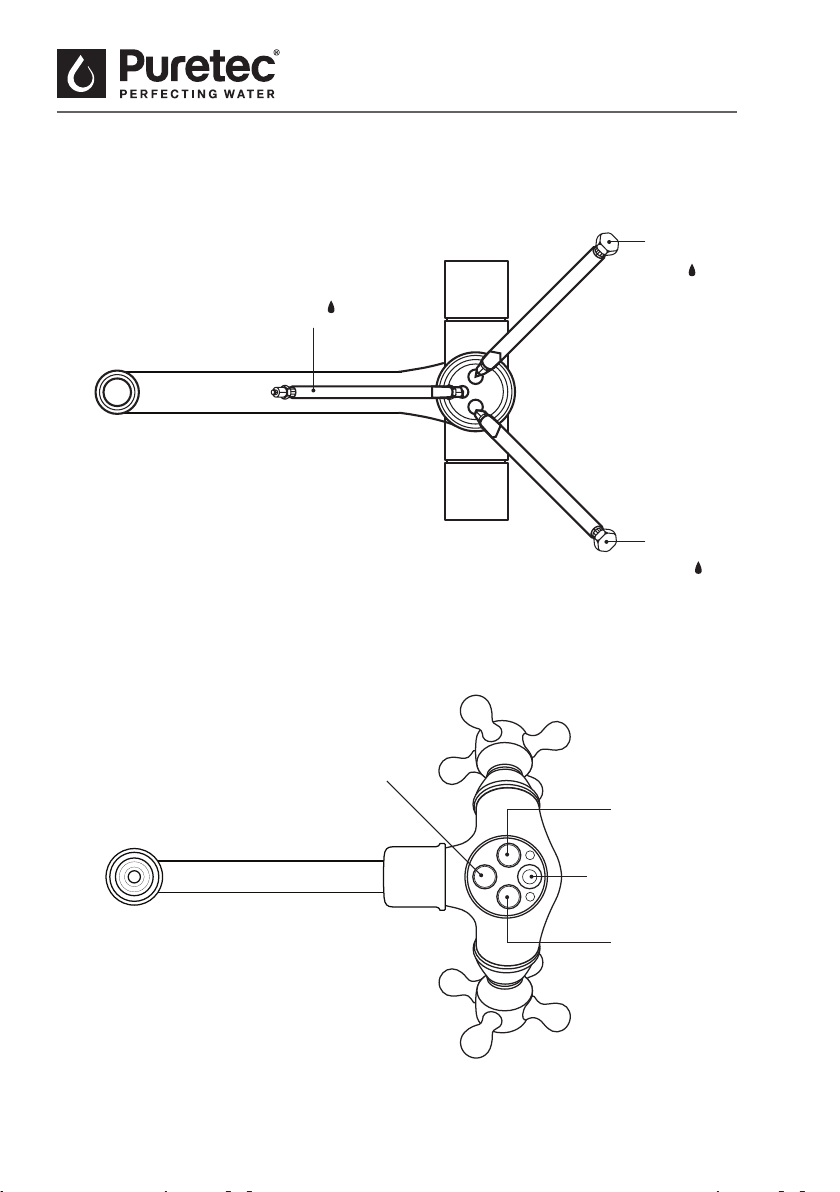

Water Connection Patterns

Connections

For TRIPLA BL1 & BL2

For TRIPLA BL3

Water Filter

Connection

( green )

Water Filter

Connection

HOT Water Connection ( red )

COLD Water Connection ( blue )

COLD Water Connection

Retaining screw

HOT Water Connection

Maintenance

Replacement of Ceramic Disc Cartridge(s)

1. Hot/Cold Outlet

• Remove screw in lever and li lever o, now you can unscrew dome cap and

loosen the cartridge lock nut.

• Li out old cartridge and clean inside making sure no old O-rings are still stuck

inside cartridge housing.

• Insert new cartridge making sure O-rings on bottom of new cartridge have not fallen o and lugs in bottom of cartridge line up with holes in cartridge housing.

• Now you can tighten lock nut with a torque wrench to 14 newton meters, then reinstall the dome cap and lever screw.

2. Filtered/Rain Ancillary Outlet

• Remove lever.

• Unscrew handle then remove cartridge by unscrewing it anti-clockwise, using 5/8”

socket. Install cartridge by completing removal instructions as above, in reverse order.

• Ensure cartridge is rmly tightened not over tighten.

• Ensure all sealing rings/gaskets are lubricated using silicone lube.

Puretec Tripla™ Black Series | Triple Action Tapware

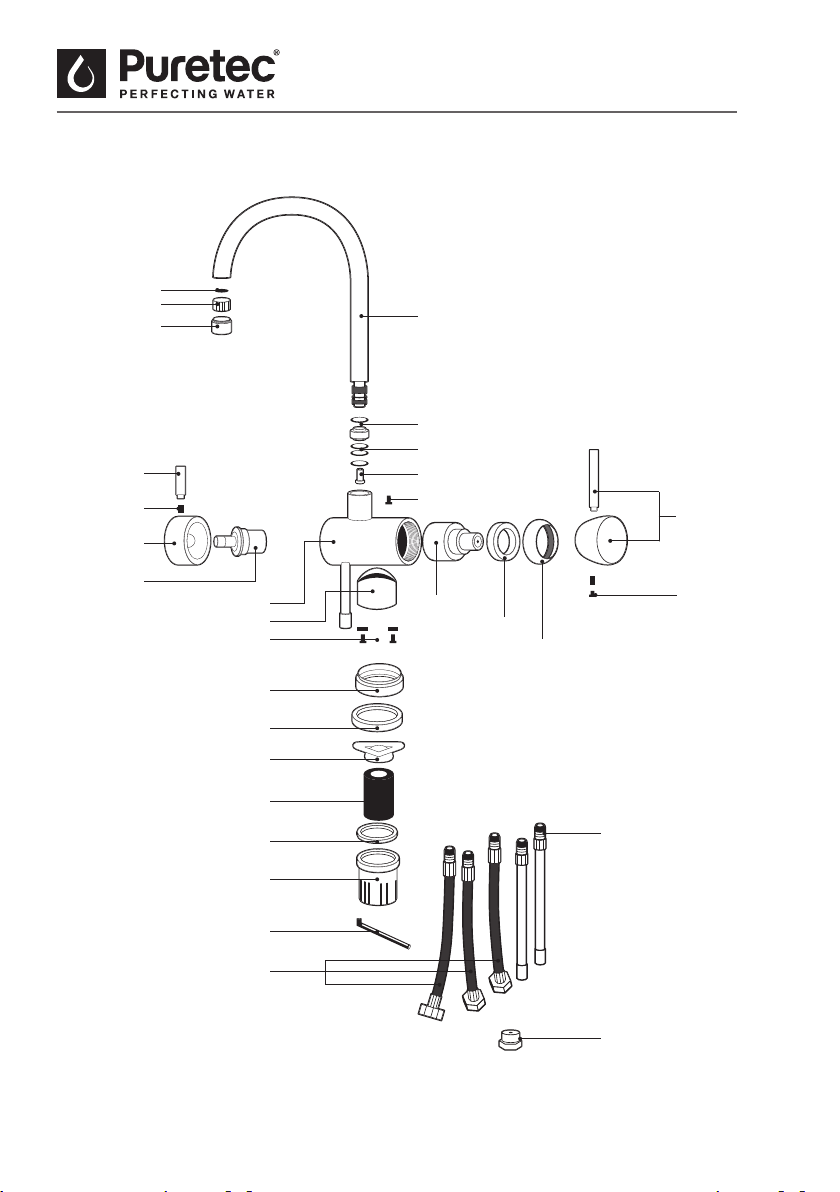

Tripla BL1 & BL2 Parts Description

3. gasket

2. aerator

1. aerator shell

9. handle

10. screw

11. handle

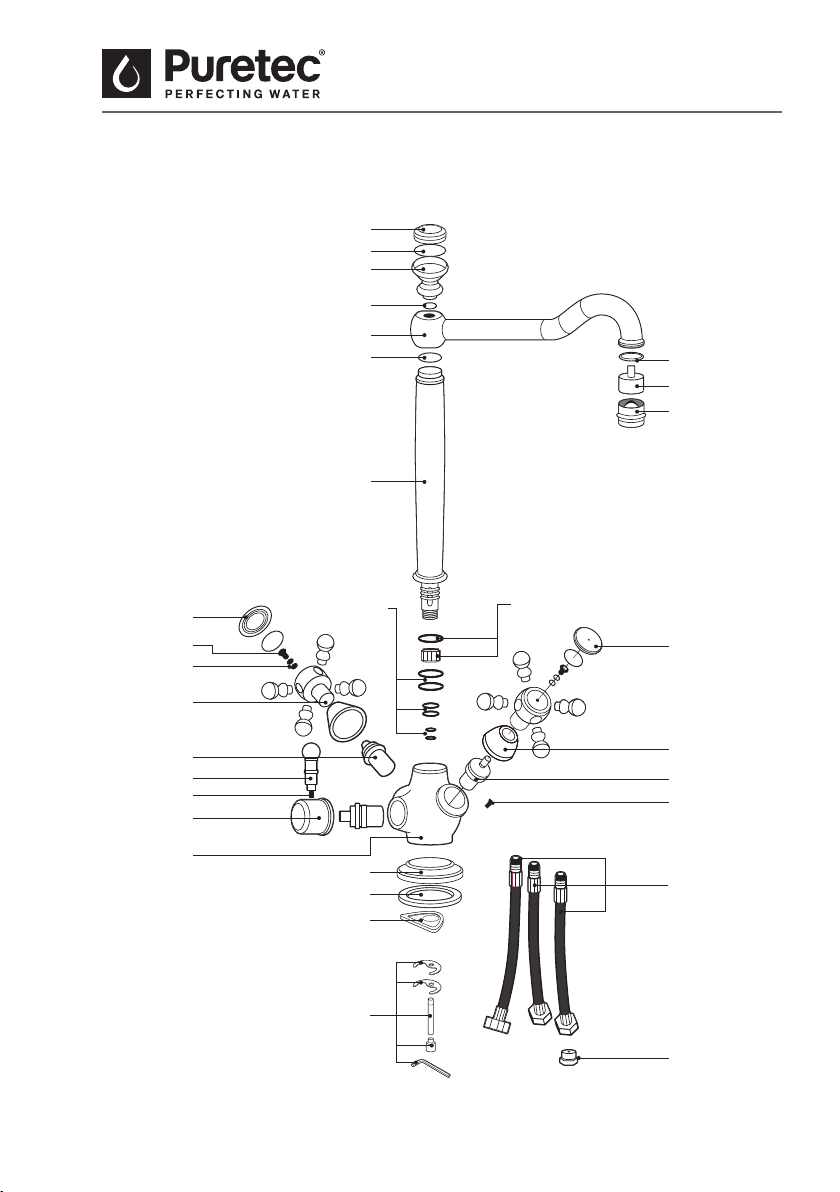

Parts Description

4. spout

5. gasket

6. O-ring

7. plug

8. screw

17. handle

12. cartridge

13. body

19. body base

20. screws

21. base

22. gasket

23. plastic xed nut

24. threaded tube

25. gasket

26. nut

27. wrench

28. exible hose

14. cartridge

15. nut

16. cap

30. copper tube

29. lter adaptor

18. screw

Tripla BL3 Parts Description

4. cap

5. O-ring

6. cap

7. O-ring

8. spout

9. O-ring

9. spout

Parts Description

3. gasket

2. aerator

1. aerator shell

12 handle cap

13 screw

14. gaskets

15. handle

16. cartridge

17. handle

18. screw

19. handle

20. body

11. O-rings

25. base

26. gasket

27. plastic xed nut

29. tting group

10. gasket

21. handle cap

22. cap

23. cartridge

24. screw

28. exible hose

30. lter adaptor

Puretec Tripla™ Black Series | Triple Action Tapware

Warranty

Notes

The complete range of Puretec products are developed, rened and made to meet and exceed stringent specications for the worldwide market.

Important Note: Sales of products are subject to our Terms & Conditions which are

available upon request. All specications, prices and photos are a guide only and are subject to change without notice. Please ring to conrm details. Do not use products with

microbiological unsafe water without adequate disinfection. Under normal circumstances a pressure limiting valve is not required. If incoming water pressure is excessive it may

however be necessary to install an approved pressure limiting valve.. Maximum ow

depends on cartridge, vessel, pressure, impurities etc.

Warranty

This warranty commences from the date of purchase. To make a claim under the warranty, take the product and proof of purchase to place where you purchased the product, and they will lodge a Warranty Request with Puretec. In addition to the

guaranties provided under the law, Puretec oer warranties as follows: Tripla Tapware 1

year parts and labour, 6 years parts including ceramic disc.

Puretec will pay your reasonable, direct expenses of claiming under this warranty. You may submit details and proof of your expense claim to place of purchase for consideration.

The warranty only applies if the product was used and/or installed in accordance with the user guide and/or installation instructions. This warranty is given in lieu of all other express or implied warranties and manufacturer shall in no circumstance be held liable for damages consequential or otherwise or delays caused or faulty manufacturing except as excluded by law.

Applicable to all above, is that the Warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs incurred.

Warranty

Warranty/Australia

This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road,

Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.

This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled to replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Warranty/New Zealand

This warranty is given by Puretec Ltd, Reg. No 4464398, Level 2, 40 Onehunga Mall, Auckland 1061, telephone no. 0800 130 140 and email at sales@puretec.co.nz.

This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Consumer Guarantees Act. You are entitled to replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
