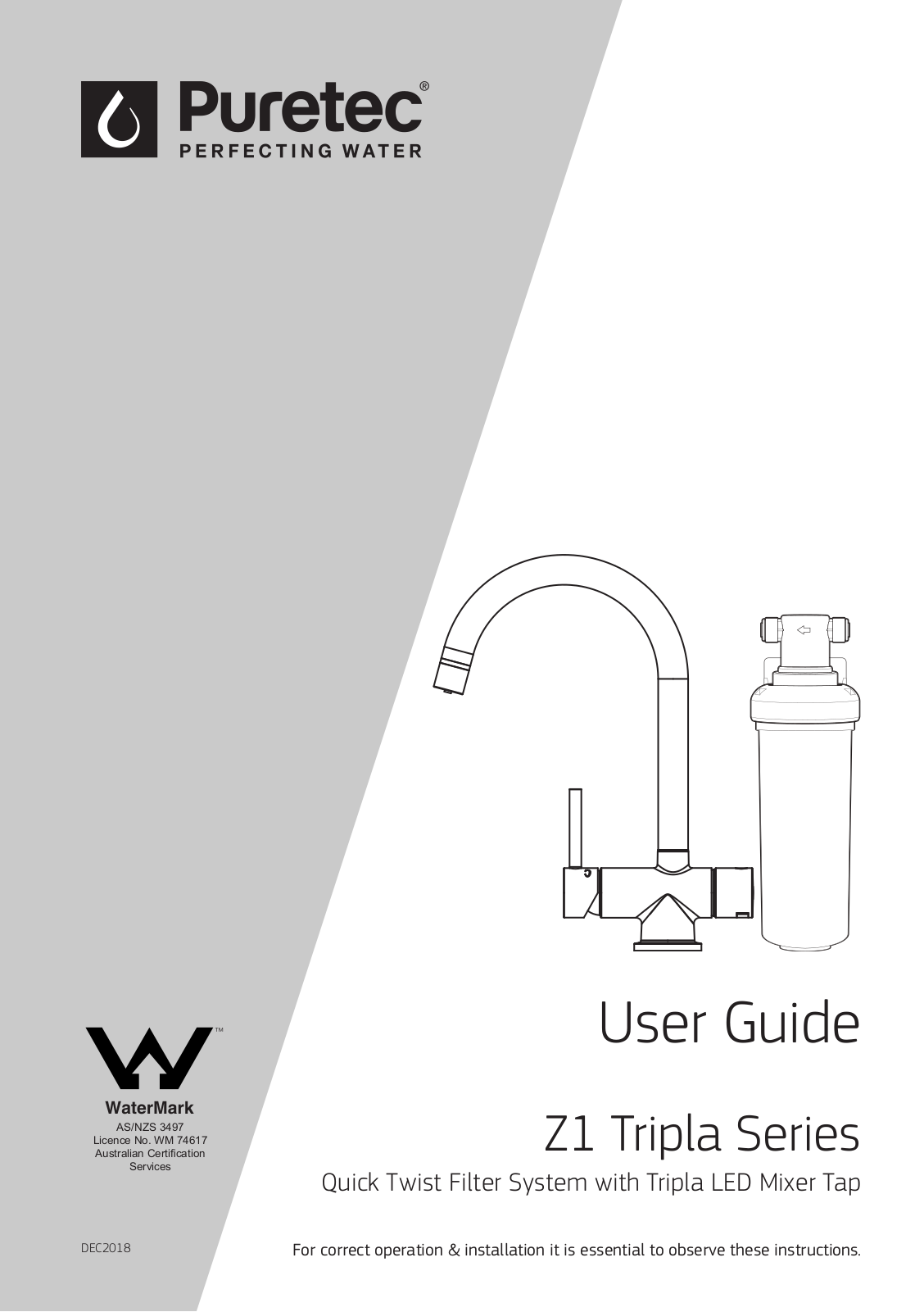

User Guide
Z1 Tripla Series
Quick Twist Filter System with Tripla LED Mixer Tap
DEC2018 |
For correct operation & installation it is essential to observe these instructions. |
|

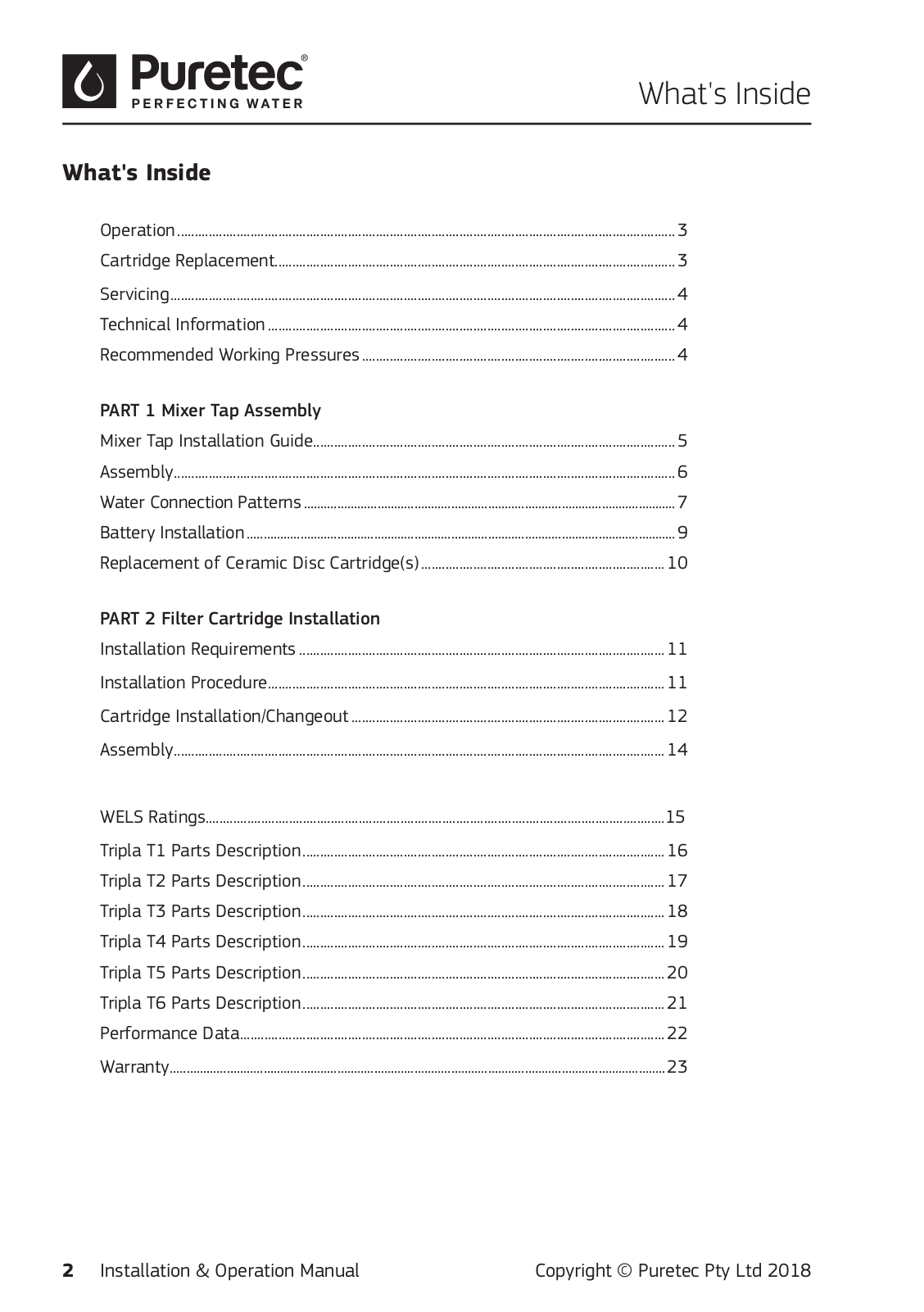

What's Inside |
What's Inside |
|
Operation................................................................................................................................................ |
3 |
Cartridge Replacement................................................................................................................... |
3 |
Servicing................................................................................................................................................. |
4 |
Technical Information...................................................................................................................... |
4 |
Recommended Working Pressures........................................................................................... |
4 |
PART 1 Mixer Tap Assembly |
|
Mixer Tap Installation Guide........................................................................................................ |
5 |
Assembly................................................................................................................................................ |
6 |
Water Connection Patterns................................................................................................................ |
7 |

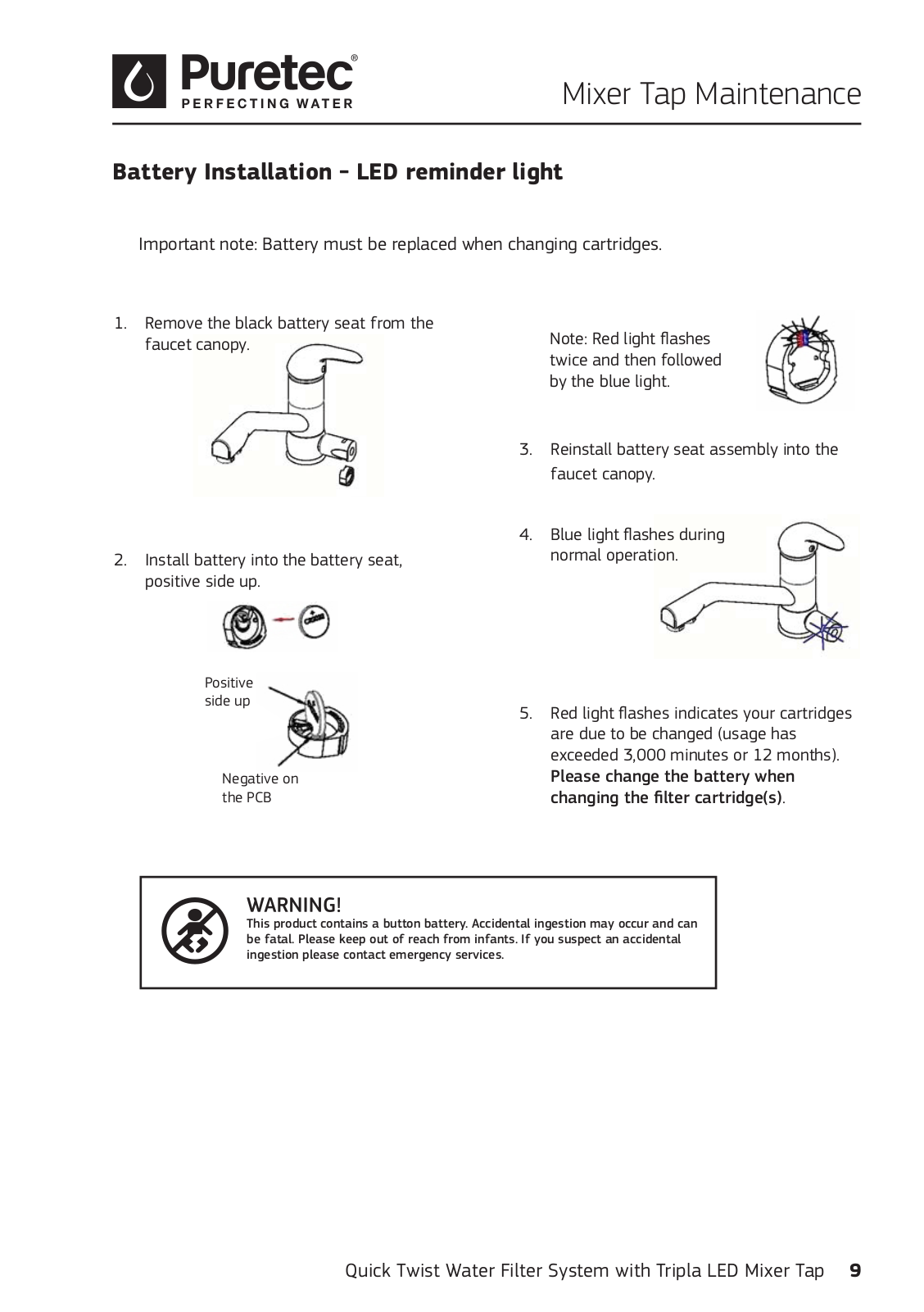

Battery Installation................................................................................................................................. |
9 |

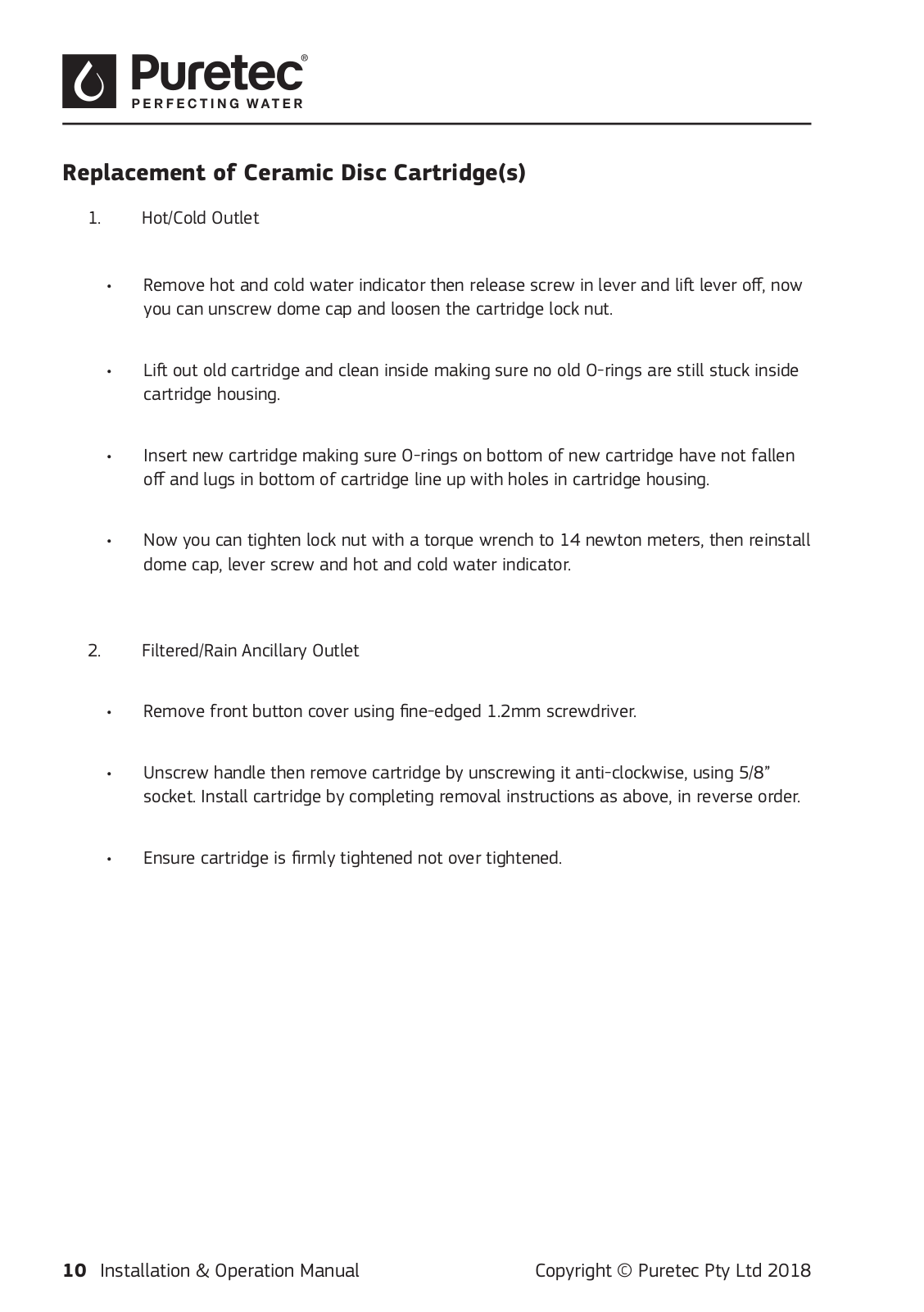

Replacement of Ceramic Disc Cartridge(s)....................................................................... |
10 |

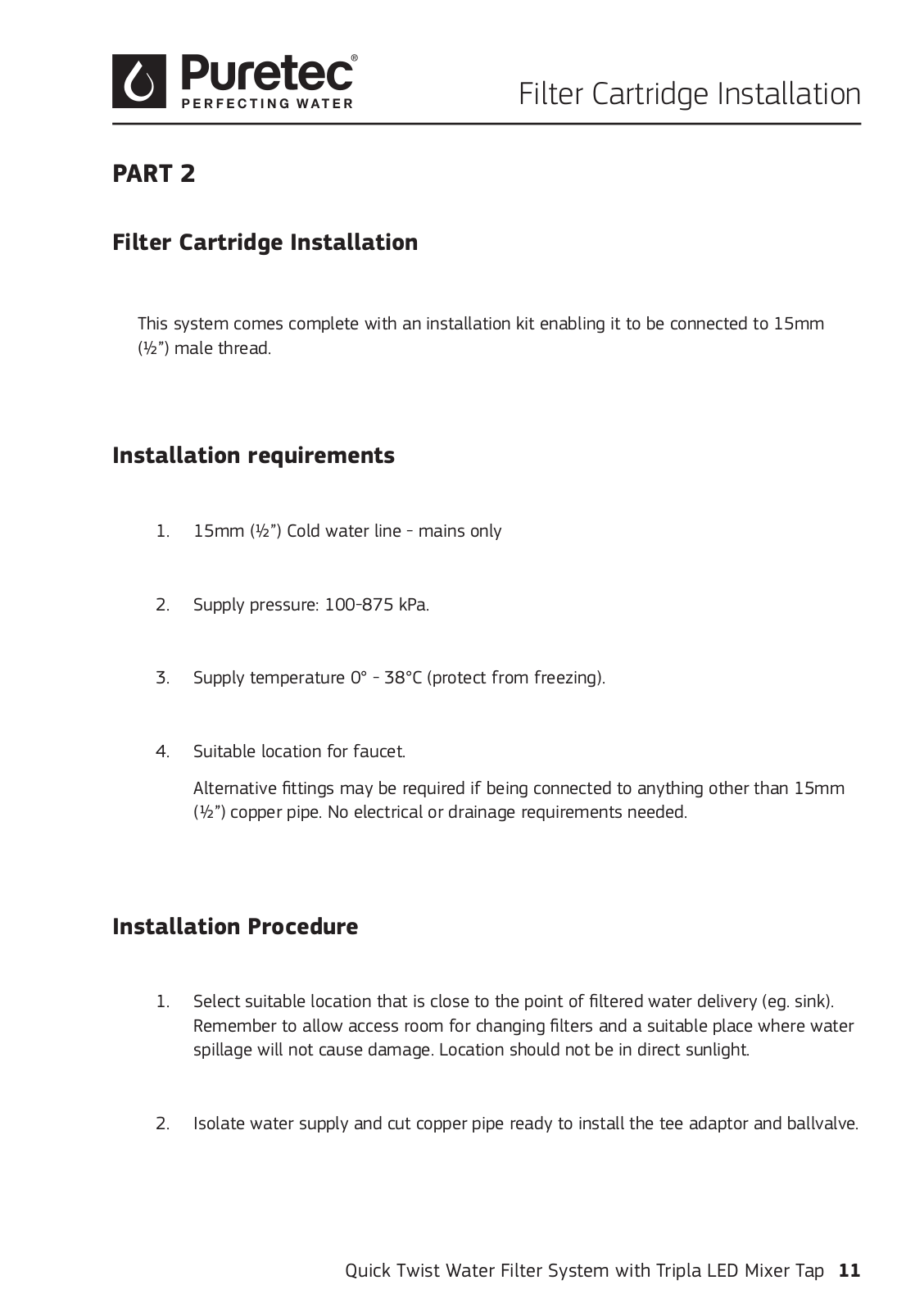

PART 2 Filter Cartridge Installation |
|
Installation Requirements.......................................................................................................... |
11 |
Installation Procedure.................................................................................................................. |
11 |

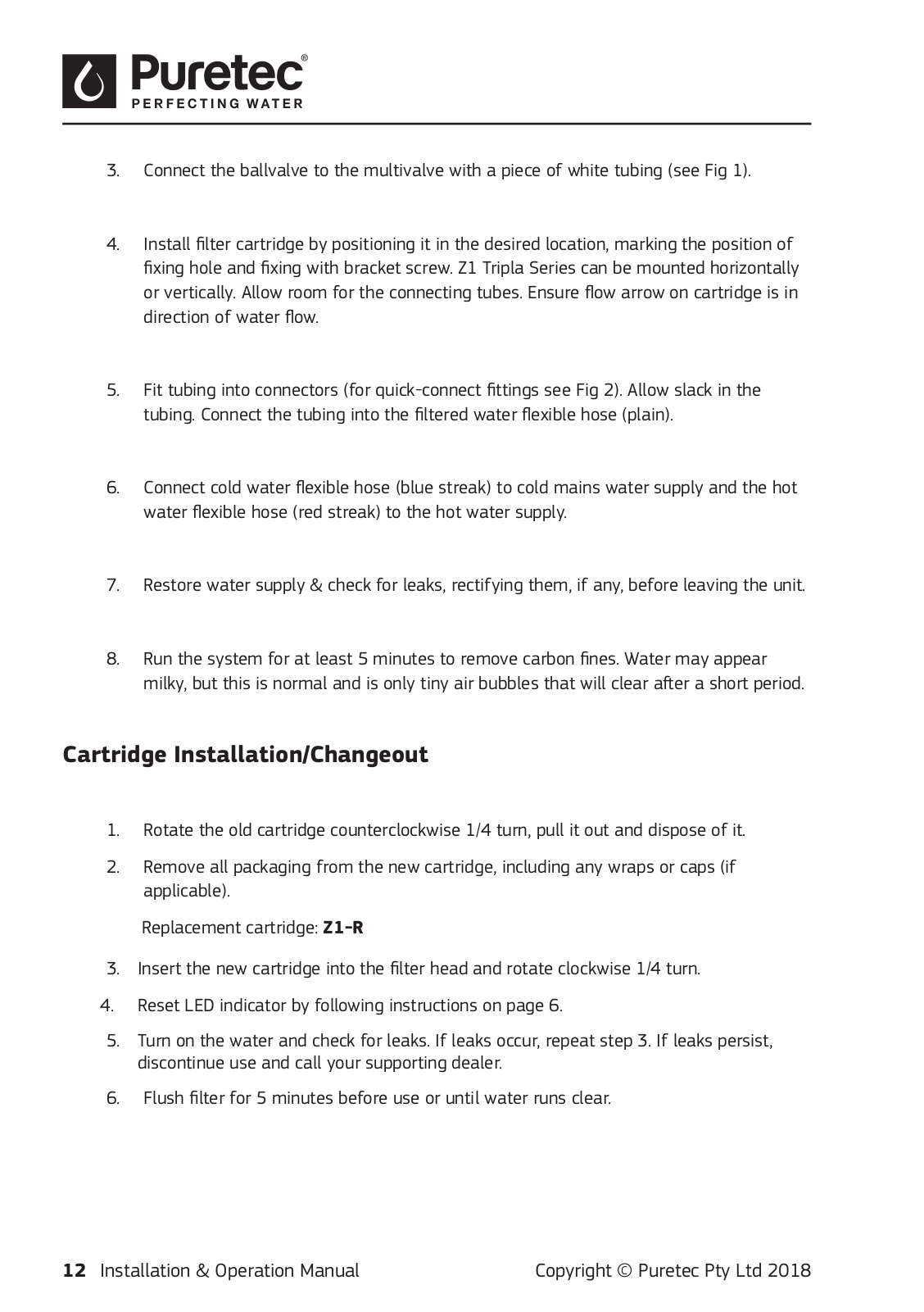

Cartridge Installation/Changeout........................................................................................... |
12 |
Assembly............................................................................................................................................. |
14 |

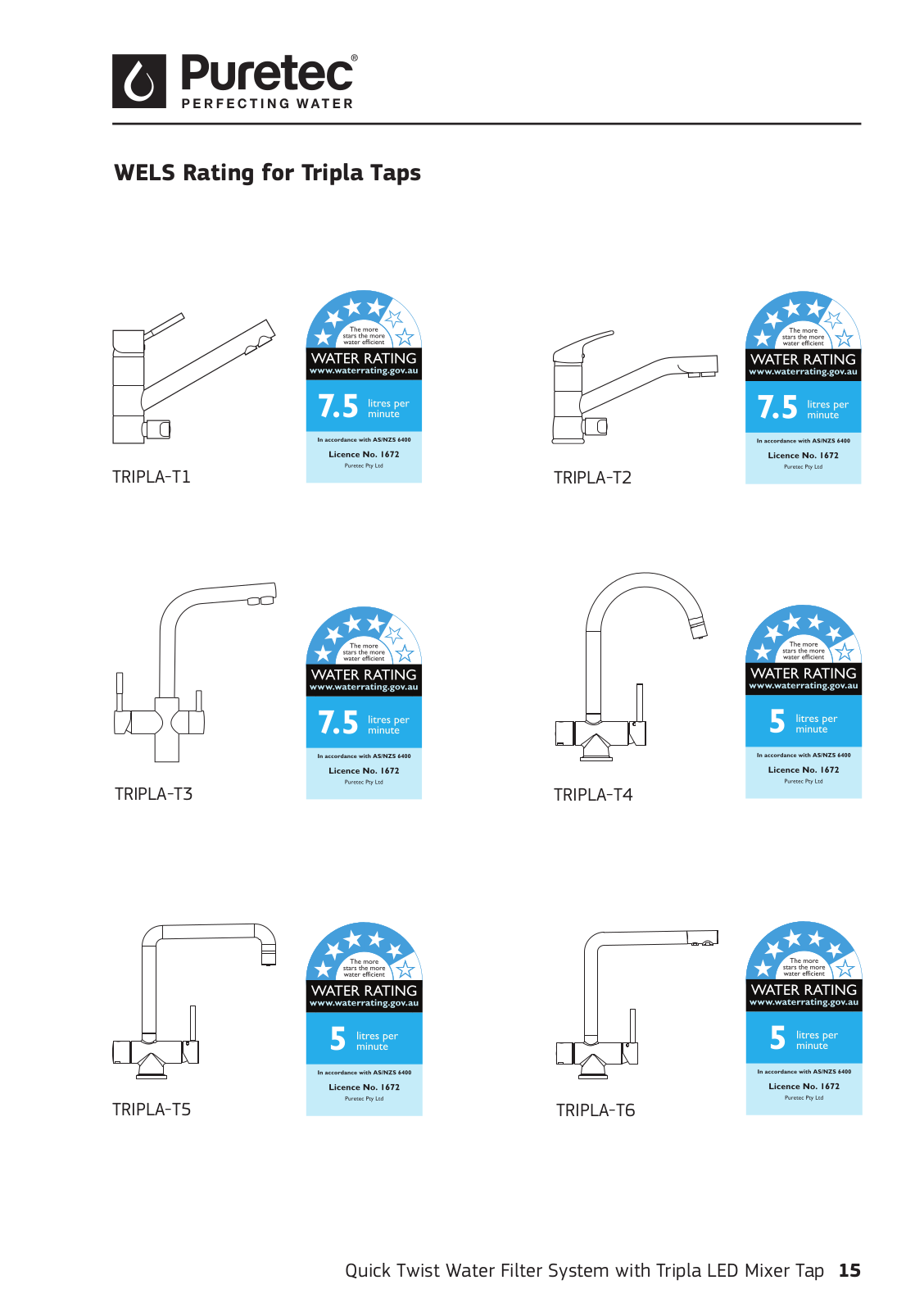

WELS Ratings.................................................................................................................................... |
15 |

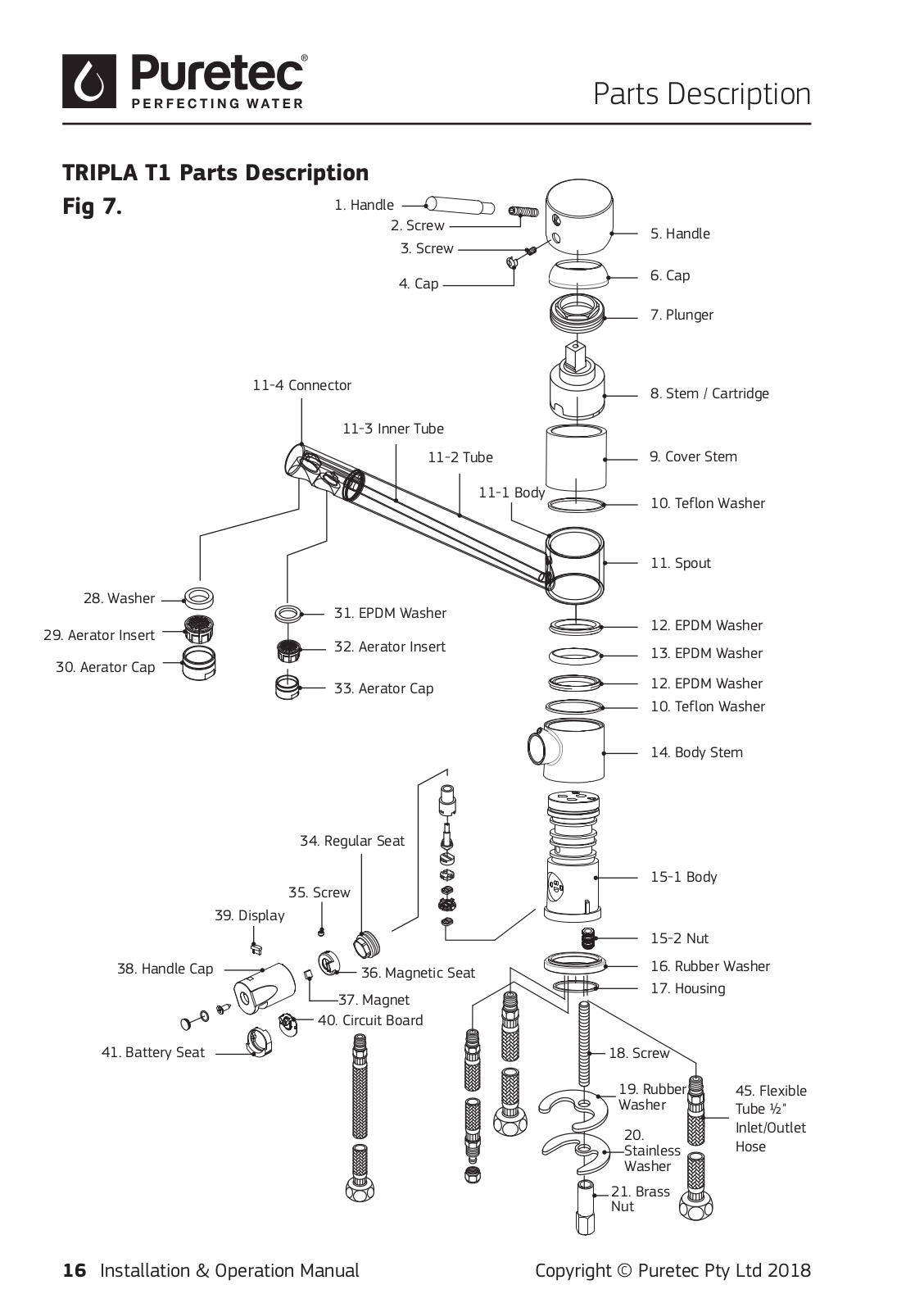

Tripla T1 Parts Description........................................................................................................ |
16 |

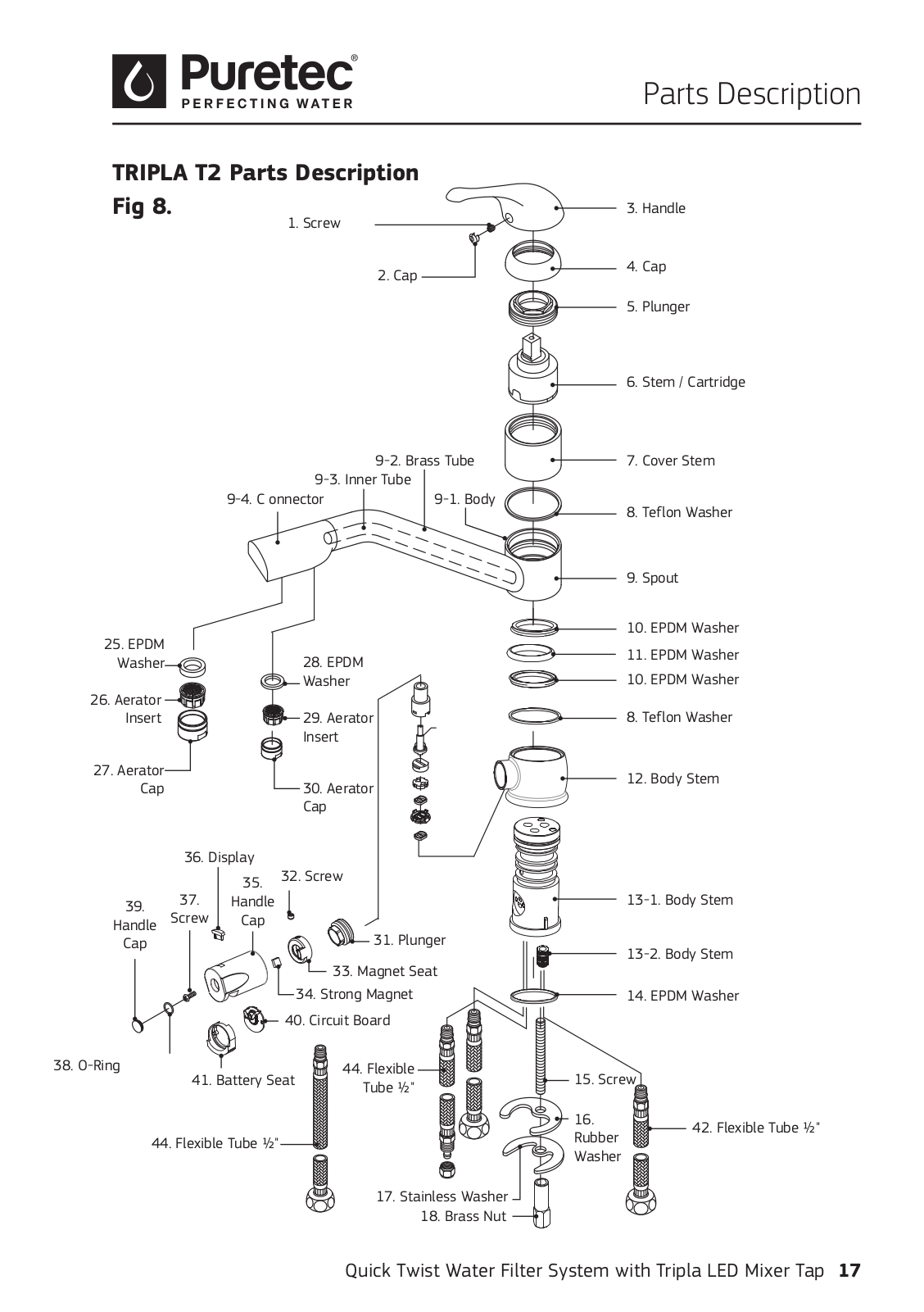

Tripla T2 Parts Description........................................................................................................ |
17 |
Tripla T3 Parts Description........................................................................................................ |
18 |

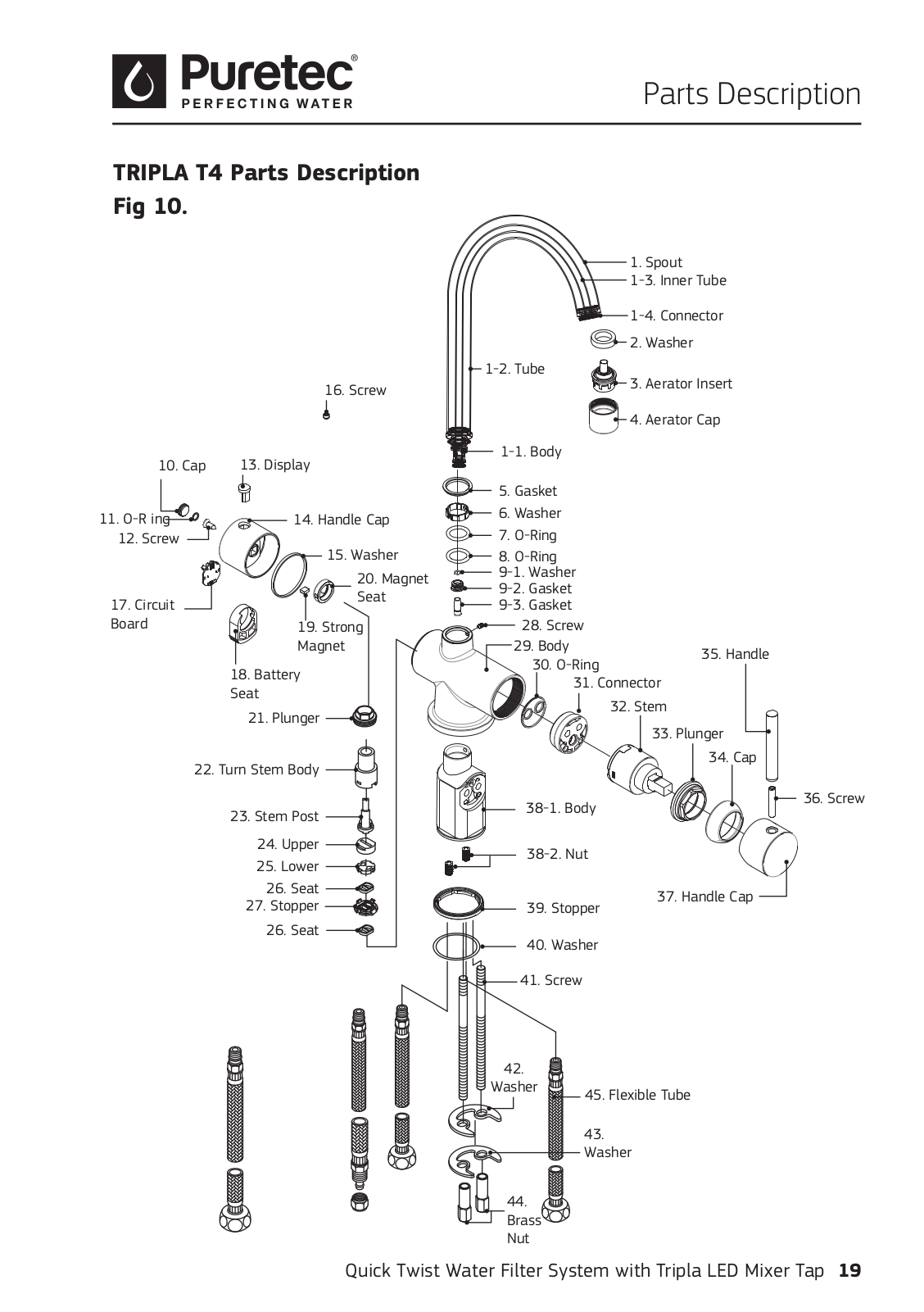

Tripla T4 Parts Description........................................................................................................ |
19 |

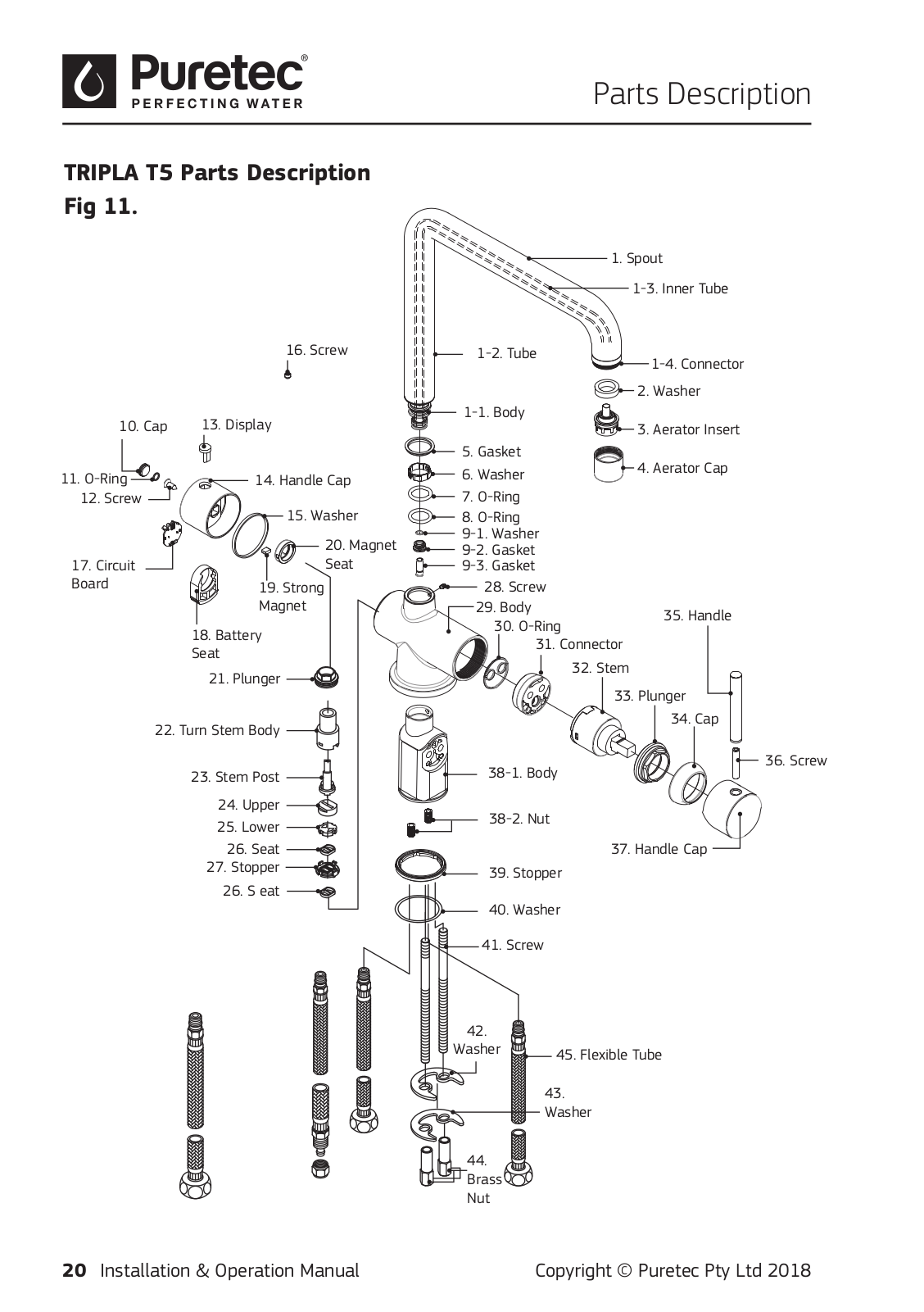

Tripla T5 Parts Description........................................................................................................ |
20 |
Tripla T6 Parts Description........................................................................................................ |
21 |
Performance Data.......................................................................................................................... |
22 |

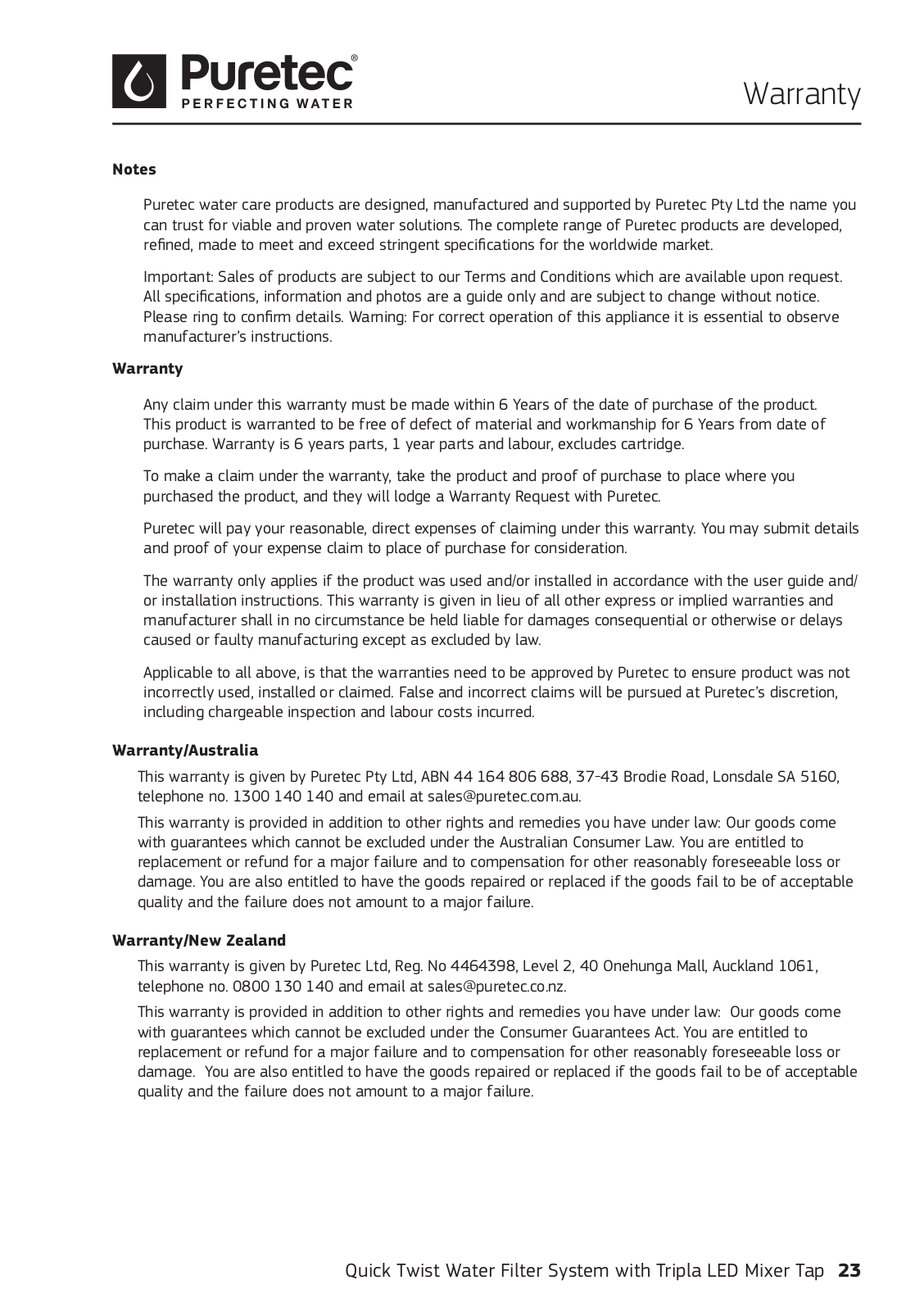

Warranty.................................................................................................................................................... |
23 |
2 Installation & Operation Manual |
Copyright © Puretec Pty Ltd 2018 |

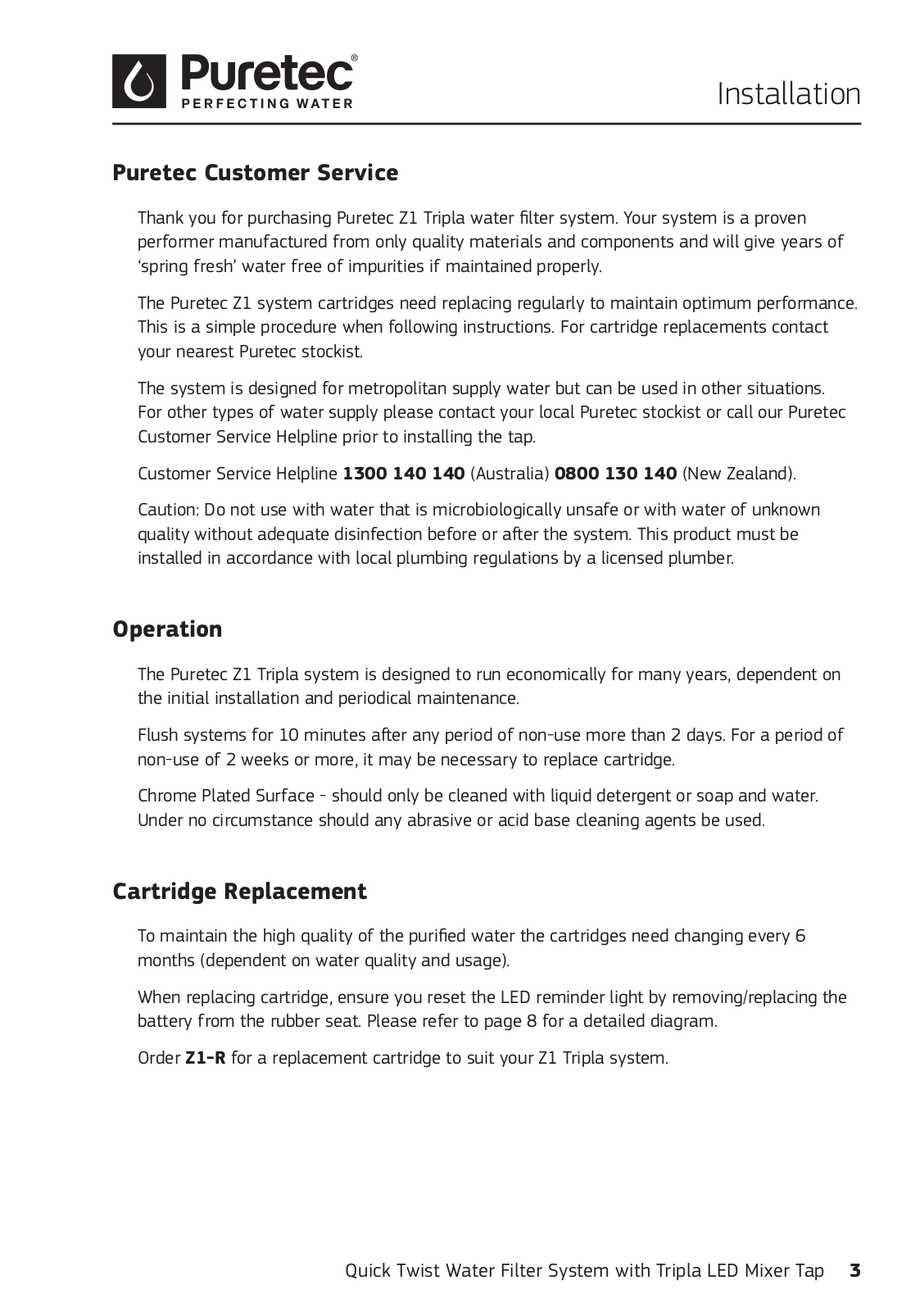

Installation
Puretec Customer Service
Thank you for purchasing Puretec Z1 Tripla water filter system. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly.
The Puretec Z1 system cartridges need replacing regularly to maintain optimum performance. This is a simple procedure when following instructions. For cartridge replacements contact your nearest Puretec stockist.
The system is designed for metropolitan supply water but can be used in other situations. For other types of water supply please contact your local Puretec stockist or call our Puretec Customer Service Helpline prior to installing the tap.
Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand).
Caution: Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the system. This product must be installed in accordance with local plumbing regulations by a licensed plumber.
Operation
The Puretec Z1 Tripla system is designed to run economically for many years, dependent on the initial installation and periodical maintenance.
Flush systems for 10 minutes after any period of non-use more than 2 days. For a period of non-use of 2 weeks or more, it may be necessary to replace cartridge.
Chrome Plated Surface - should only be cleaned with liquid detergent or soap and water.
Under no circumstance should any abrasive or acid base cleaning agents be used.
Cartridge Replacement
To maintain the high quality of the purified water the cartridges need changing every 6 months (dependent on water quality and usage).
When replacing cartridge, ensure you reset the LED reminder light by removing/replacing the battery from the rubber seat. Please refer to page 8 for a detailed diagram.
Order Z1-R for a replacement cartridge to suit your Z1 Tripla system.
Quick Twist Water Filter System with Tripla LED Mixer Tap 3
Installation Guide

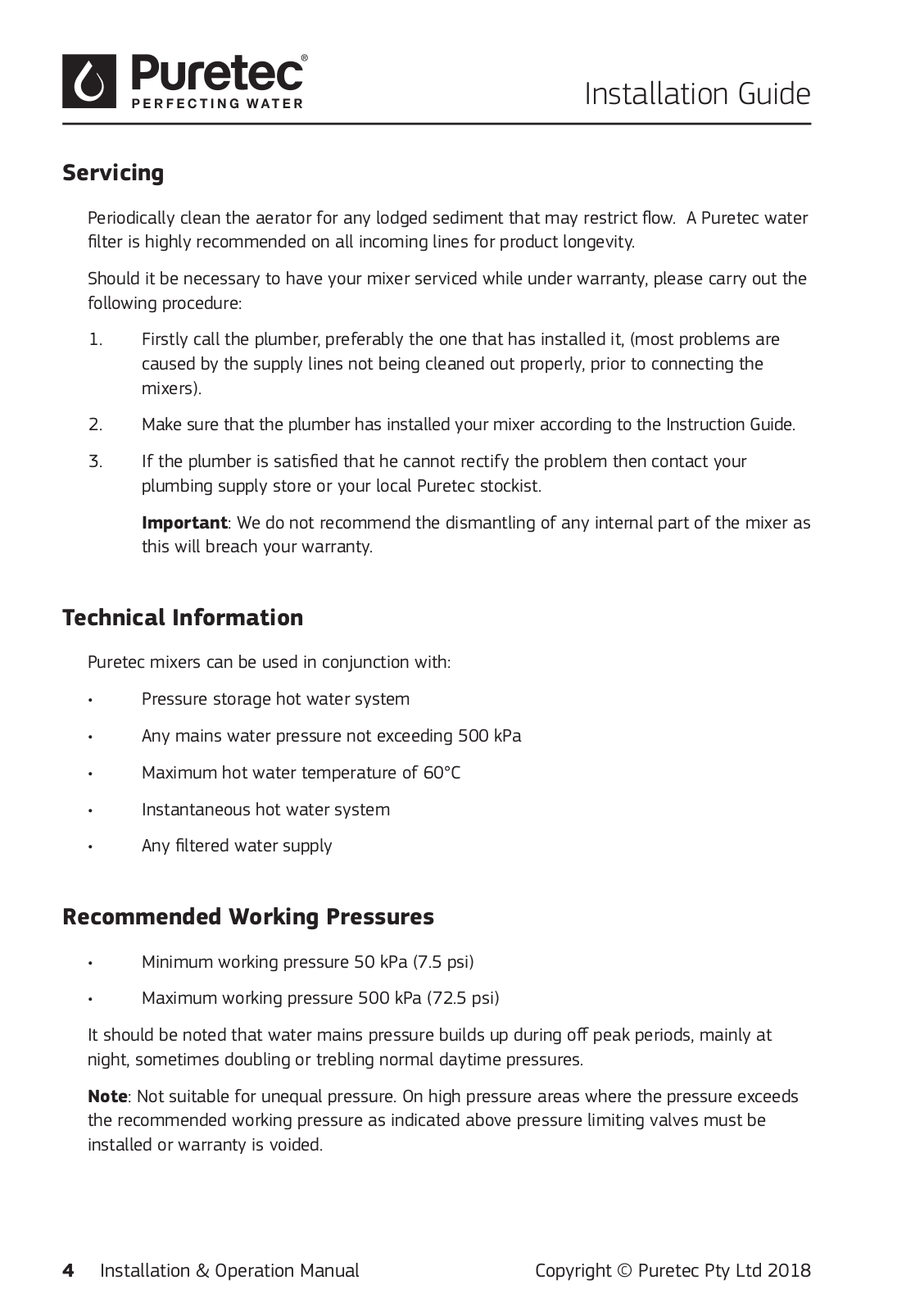

Servicing
Periodically clean the aerator for any lodged sediment that may restrict flow. A Puretec water filter is highly recommended on all incoming lines for product longevity.
Should it be necessary to have your mixer serviced while under warranty, please carry out the following procedure:
1.Firstly call the plumber, preferably the one that has installed it, (most problems are caused by the supply lines not being cleaned out properly, prior to connecting the mixers).
2.Make sure that the plumber has installed your mixer according to the Instruction Guide.
3.If the plumber is satisfied that he cannot rectify the problem then contact your plumbing supply store or your local Puretec stockist.
Important: We do not recommend the dismantling of any internal part of the mixer as this will breach your warranty.
Technical Information
Puretec mixers can be used in conjunction with:
•Pressure storage hot water system
•Any mains water pressure not exceeding 500 kPa
•Maximum hot water temperature of 60°C
•Instantaneous hot water system
•Any filtered water supply
Recommended Working Pressures
•Minimum working pressure 50 kPa (7.5 psi)
•Maximum working pressure 500 kPa (72.5 psi)
It should be noted that water mains pressure builds up during off peak periods, mainly at night, sometimes doubling or trebling normal daytime pressures.
Note: Not suitable for unequal pressure. On high pressure areas where the pressure exceeds the recommended working pressure as indicated above pressure limiting valves must be installed or warranty is voided.
4 Installation & Operation Manual |
Copyright © Puretec Pty Ltd 2018 |
Mixer Tap Assembly
PART 1

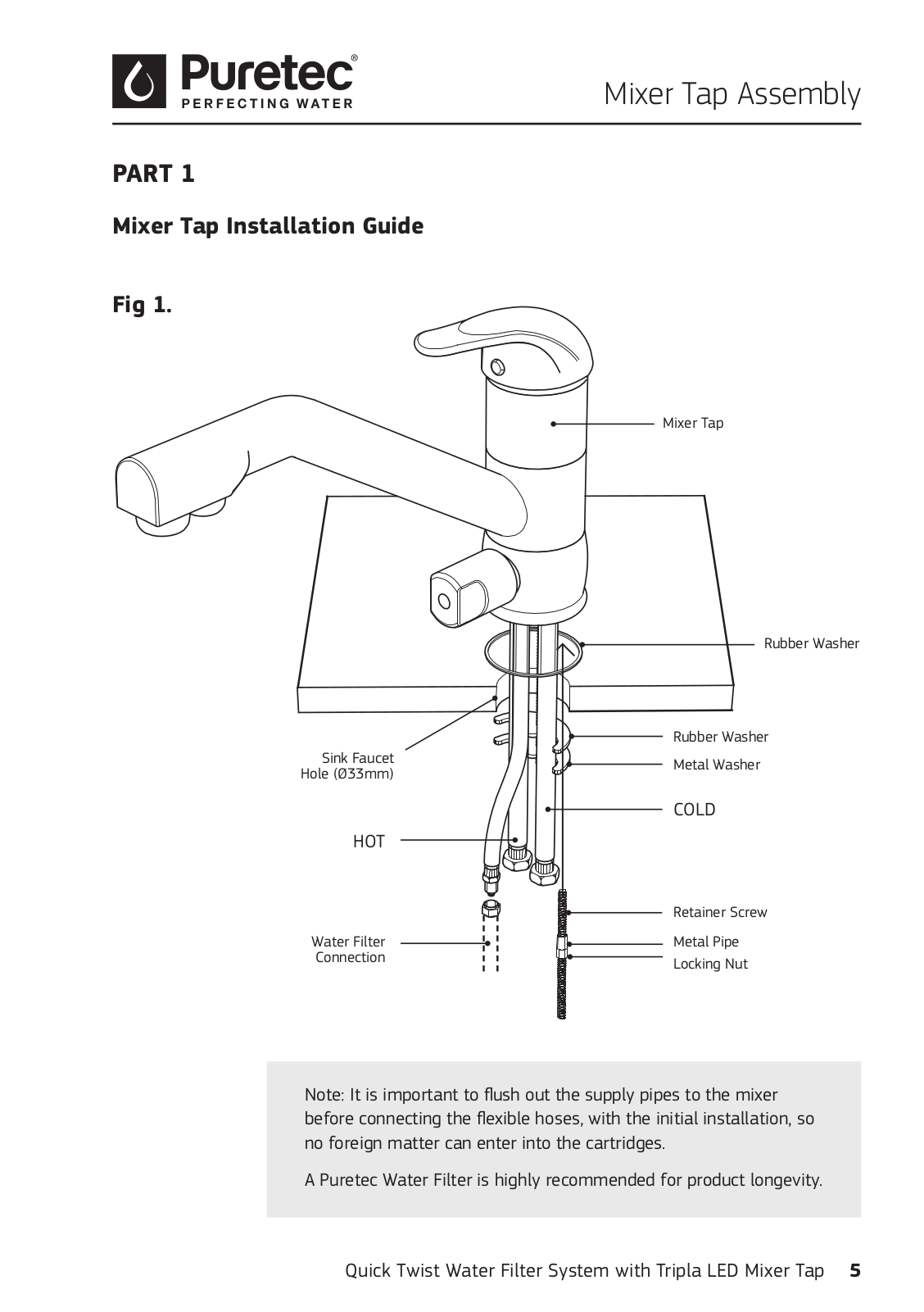

Mixer Tap Installation Guide
Fig 1.
Sink Faucet
Hole (Ø33mm)
HOT
Water Filter
Connection
Mixer Tap
Rubber Washer
Rubber Washer
Metal Washer
COLD
Retainer Screw
Metal Pipe
Locking Nut
Note: It is important to flush out the supply pipes to the mixer before connecting the flexible hoses, with the initial installation, so no foreign matter can enter into the cartridges.
A Puretec Water Filter is highly recommended for product longevity.
Quick Twist Water Filter System with Tripla LED Mixer Tap 5
Mixer Tap Assembly

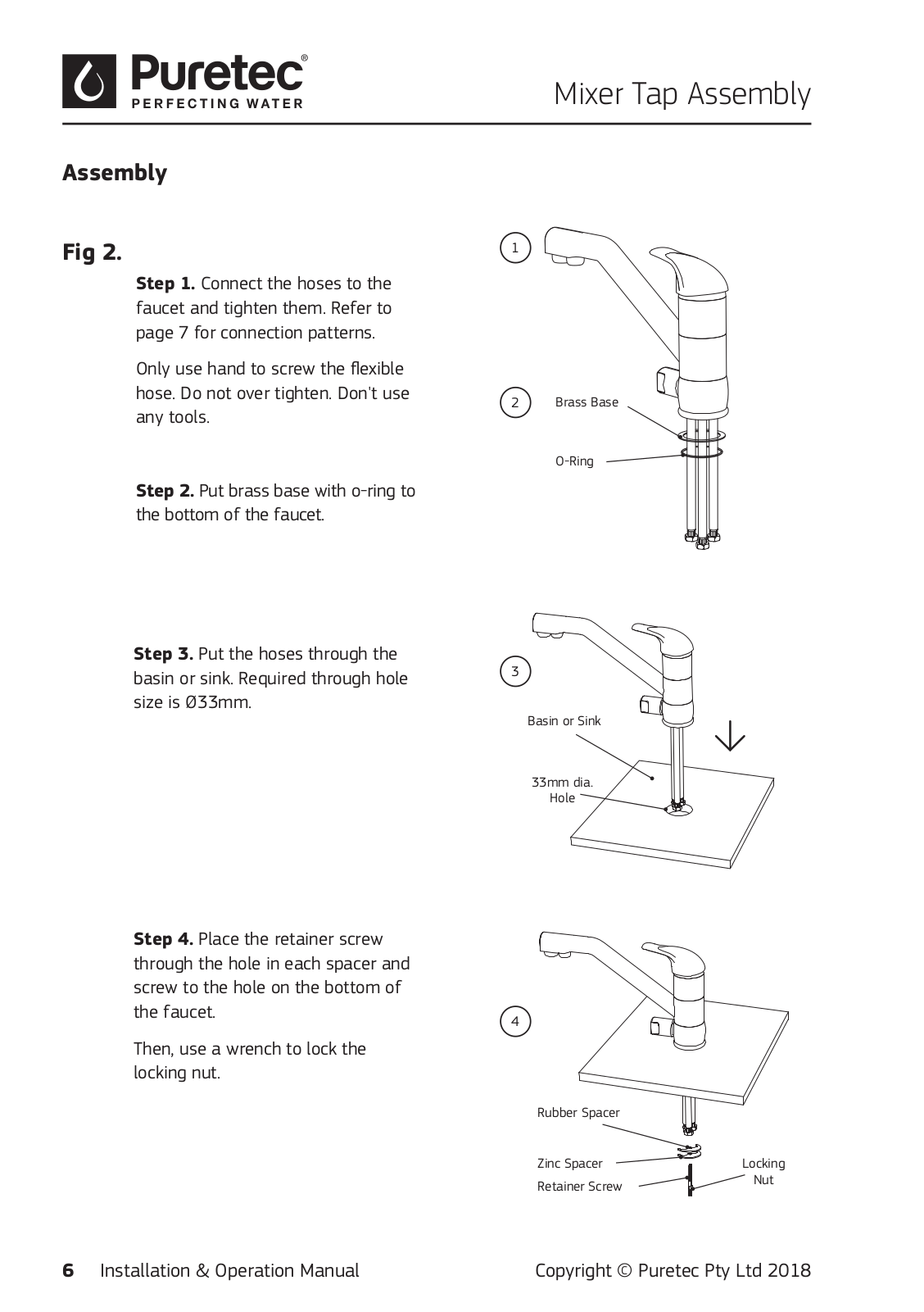

Assembly
Fig 2.
Step 1. Connect the hoses to the faucet and tighten them. Refer to page 7 for connection patterns.
Only use hand to screw the flexible hose. Do not over tighten. Don't use any tools.
Step 2. Put brass base with o-ring to the bottom of the faucet.
Step 3. Put the hoses through the basin or sink. Required through hole size is Ø33mm.
Step 4. Place the retainer screw through the hole in each spacer and screw to the hole on the bottom of the faucet.
Then, use a wrench to lock the locking nut.
6 Installation & Operation Manual
1
2Brass Base
O-Ring
3
Basin or Sink
33mm dia. Hole
4
Rubber Spacer |
|
Zinc Spacer |
Locking |
Retainer Screw |
Nut |
|
Copyright © Puretec Pty Ltd 2018
Mixer Tap Connections
Water Connection Patterns

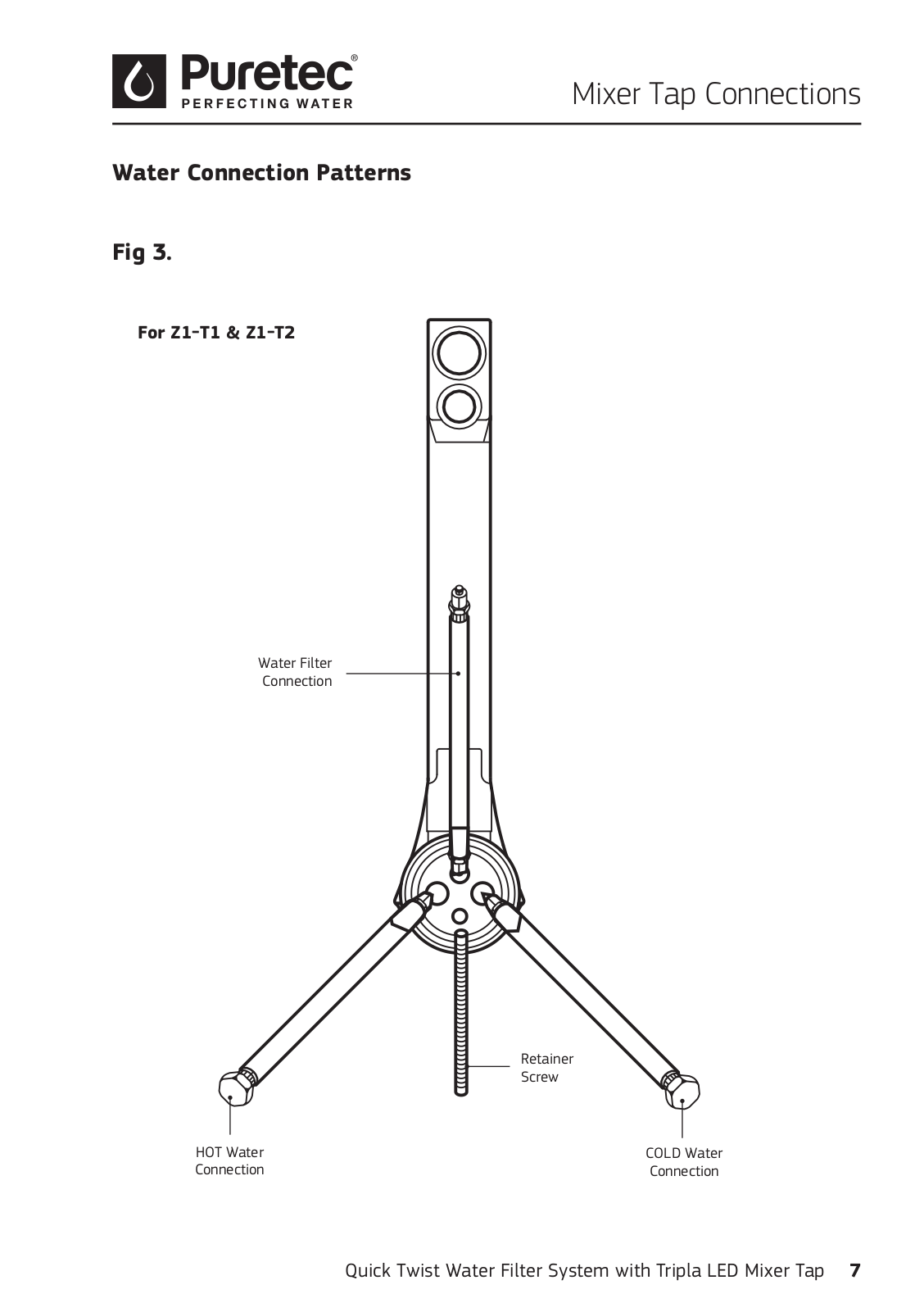

Fig 3.
For Z1-T1 & Z1-T2
Water Filter
Connection
|
Retainer |
|
Screw |
HOT Water |
COLD Water |
Connection |
Connection |
Quick Twist Water Filter System with Tripla LED Mixer Tap 7
Water Connection Patterns

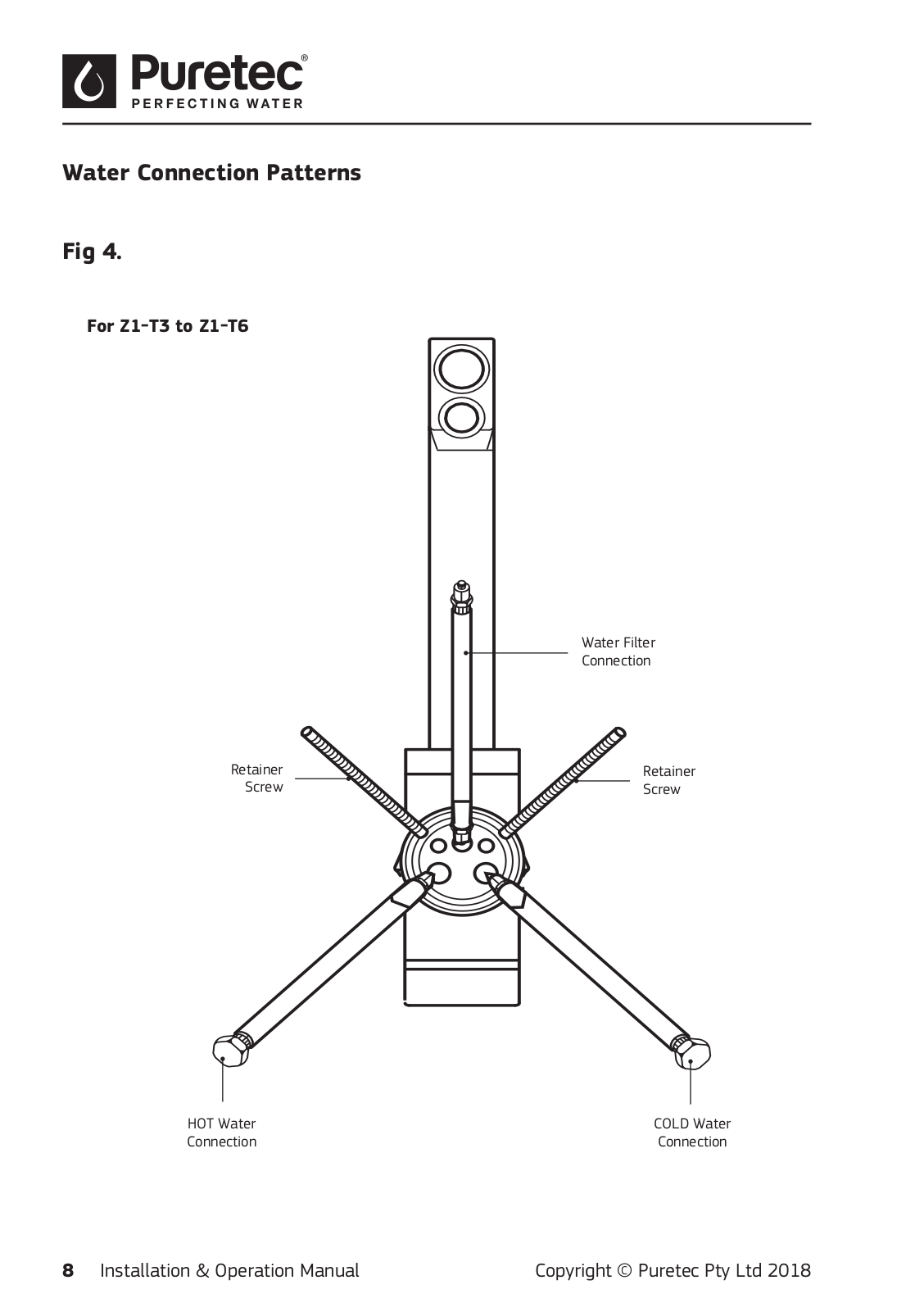

Fig 4.
For Z1-T3 to Z1-T6
Retainer
Screw
HOT Water
Connection
Water Filter
Connection
Retainer
Screw
COLD Water
Connection
