Puretec SPARQ-S4 User Manual

Download

SODA

COLD

CHILLING

User Guide

WMTS 105

Certicate No. 23291

Australian Certication

Services

FEB2019

Sparq S4

Sparkling, Chilled & Still Water System

For correct operation & installation it is essential to observe these instructions.

What's Inside

Puretec Customer Service ...........................................................................................................................3

Installation Record

Before Installation

Parts Included

Specications

Dimensions

Tap Button Identication

Installation Procedure ....................................................................................................................................8

How To Use Quick Connect Fittings

How To Operate The Tap

Filter Maintenance

Gas Replacement

Troubleshooting

Warranty

..............................................................................................................................................................15

...........................................................................................................................................3

.............................................................................................................................................4

......................................................................................................................................................4

.......................................................................................................................................................5

............................................................................................................................................................5

...............................................................................................................................6

......................................................................................................10

............................................................................................................................12

.........................................................................................................................................12

............................................................................................................................................13

...............................................................................................................................................14

AUSTRALIA

Customer Service: 1300 140 140 Email: sales@puretec.com.au Web: www.puretec.com.au

NEW ZEALAND

Customer Service: 0800 130 140 Email: sales@puretec.co.nz Web: www.puretec.co.nz

Introduction

Puretec Customer Service

Thank you for purchasing a Puretec Sparq S4 Drinking Water Appliance. The Sparq S4 is a proven performer manufactured from only quality materials and components. It will give years of reliability and trouble-free operation if maintained properly.

Caution: Do not use with water that is microbiologically unsafe or without adequate

disinfection before or aer the system.

The Puretec Sparq S4 is designed for metropolitan supply water only.

Puretec Drinking Water Appliances are designed to run economically for many years and this is dependent on the initial installation and periodic maintenance.

Flush system for 5 minutes or more, aer any period of non-use, more than 2 weeks.

Note: Where maximum line pressure exceeds 500 kPa, the supplied multivalve must be installed to comply with Australian Plumbing Standards.

Installation Record

For future reference, ll in the following data:

PRODUCT INFORMATION

Model Number:

Serial / Batch Number:

(Refer to label on the rear of the unit)

Purchased From:

Date of Installation:

Installer / Plumber Details:

All installation and service work should be completed by qualied tradespeople. Faulty operation due to unqualied persons will result in voided warranty.

All plumbing must comply with AS 3500.1 and AS3500.2.15.

SPARQ-S4

Pre-Installation

Before Installation

Read the instructions and check if there is adequate space to mount all of the components.

Check the mains water pressure is between 172 - 500kPa.

NOTE: This product must be connected to MAINS WATER ONLY.

Check the appliance rating plate and ensure correct power is available for the appliance.

Check the under counter cupboard supporting the appliance is adequate for the total net weight of 24kg (including the gas bottle).

IMPORTANT NOTE: Ensure there is adequate ventilation available through the cupboard. If there is inadequate ventilation, and the cupboard temperature rises to above 40°C, the system may become damaged and malfunction which will void the product warranty. To

ensure there is sucient cross-ow ventilation suitable holes or vents will need to be cut

into the cupboard and door.

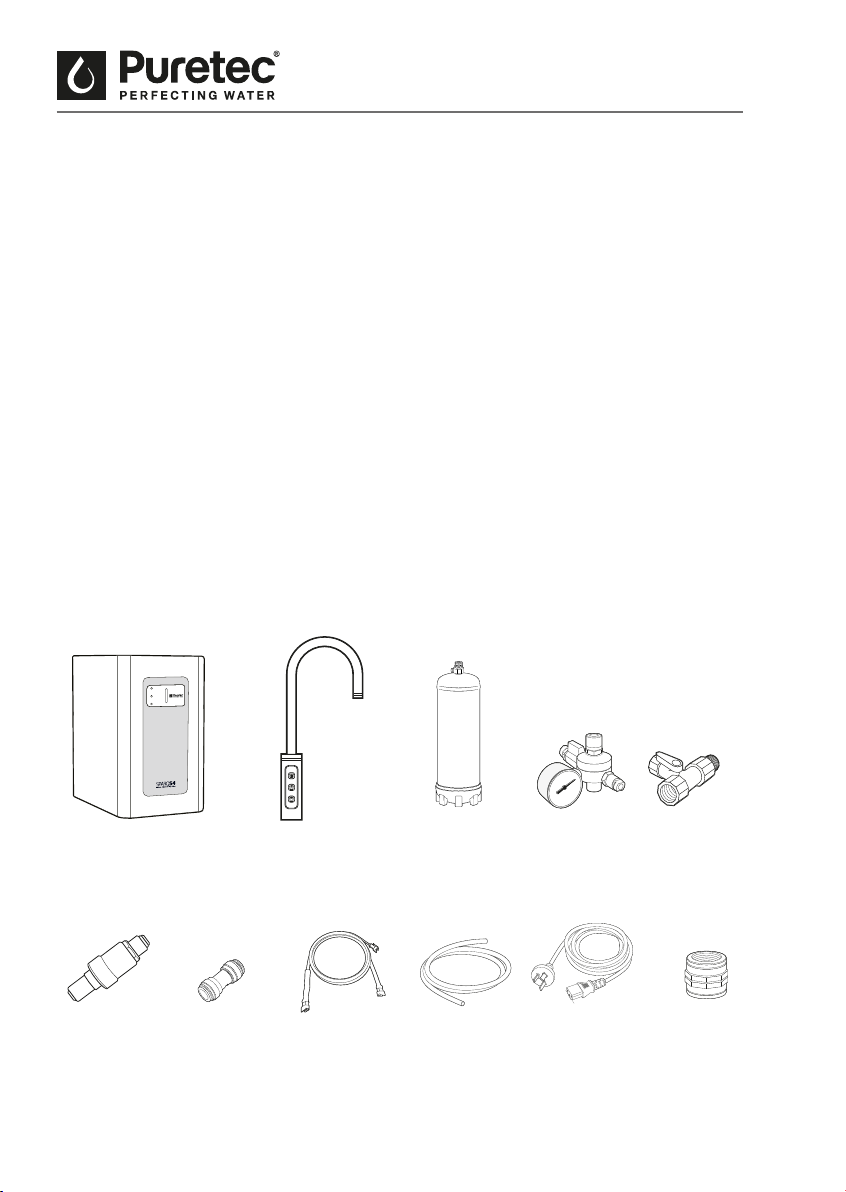

Parts Included

SODA

COLD

CHILLING

Sparq Unit Faucet/Tap

Wiring Loom

CO2 Bottle

TubingMultivalve

Regulator

Power CordStraight

SmartTee

Spacer

Connector

Specications

Model: SPARQ-S4

Throughput L/hour: 20

Chilled Temperature: 4°C to 10°C

Power Requirements: 50Hz / 220~240 V

Max Power Consumption: 100 W

Tap Dimensions: 423 (H) x 205 mm (W)

Appliance Dimensions: 390 (H) x 81 (W) x 105 (D) mm

Warranty: 1 year^

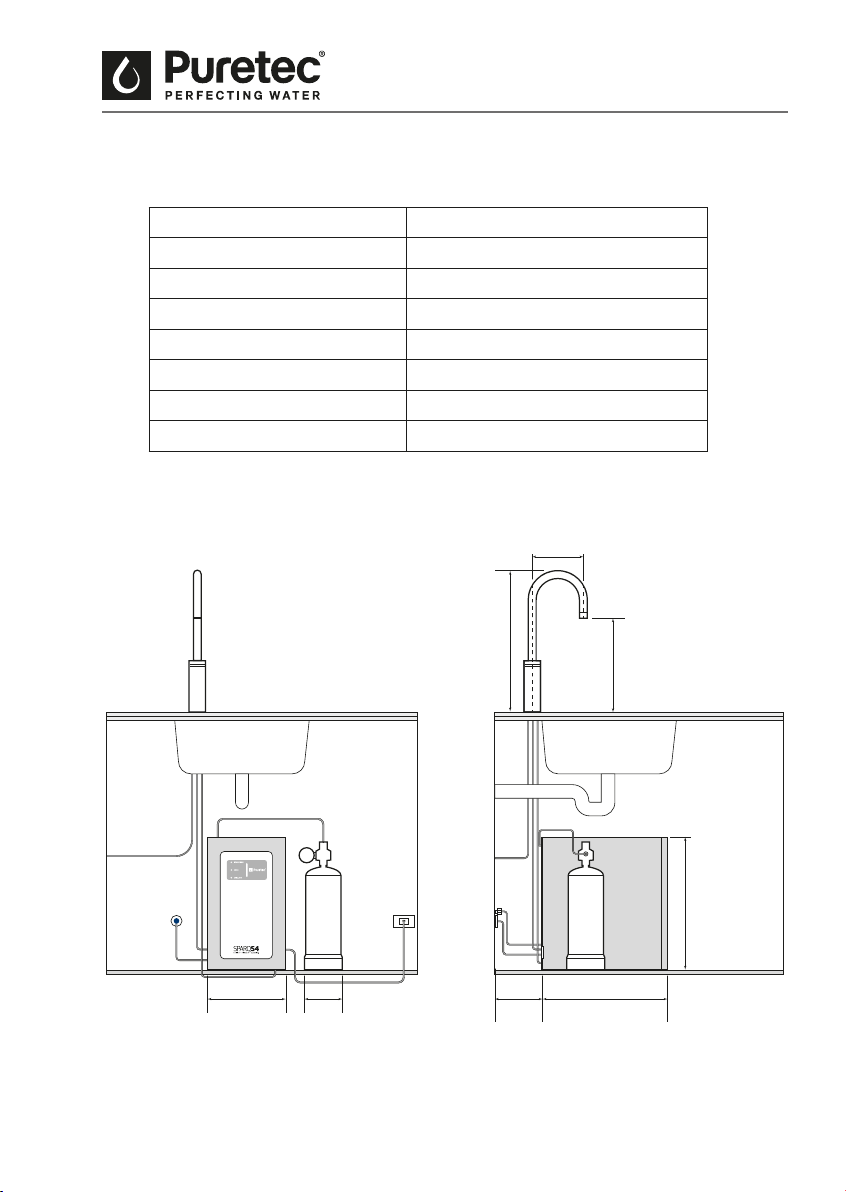

Dimensions

Fig.1

402 mm

Specications

205mm

260mm

115mm

A Ø26mm hole is required for faucet (Max. 30mm). ^Warranty cover parts and labour for the period of 1 year where applicable subject to approval.

Minimum 150mm Air Gap

370mm230mm

390mm

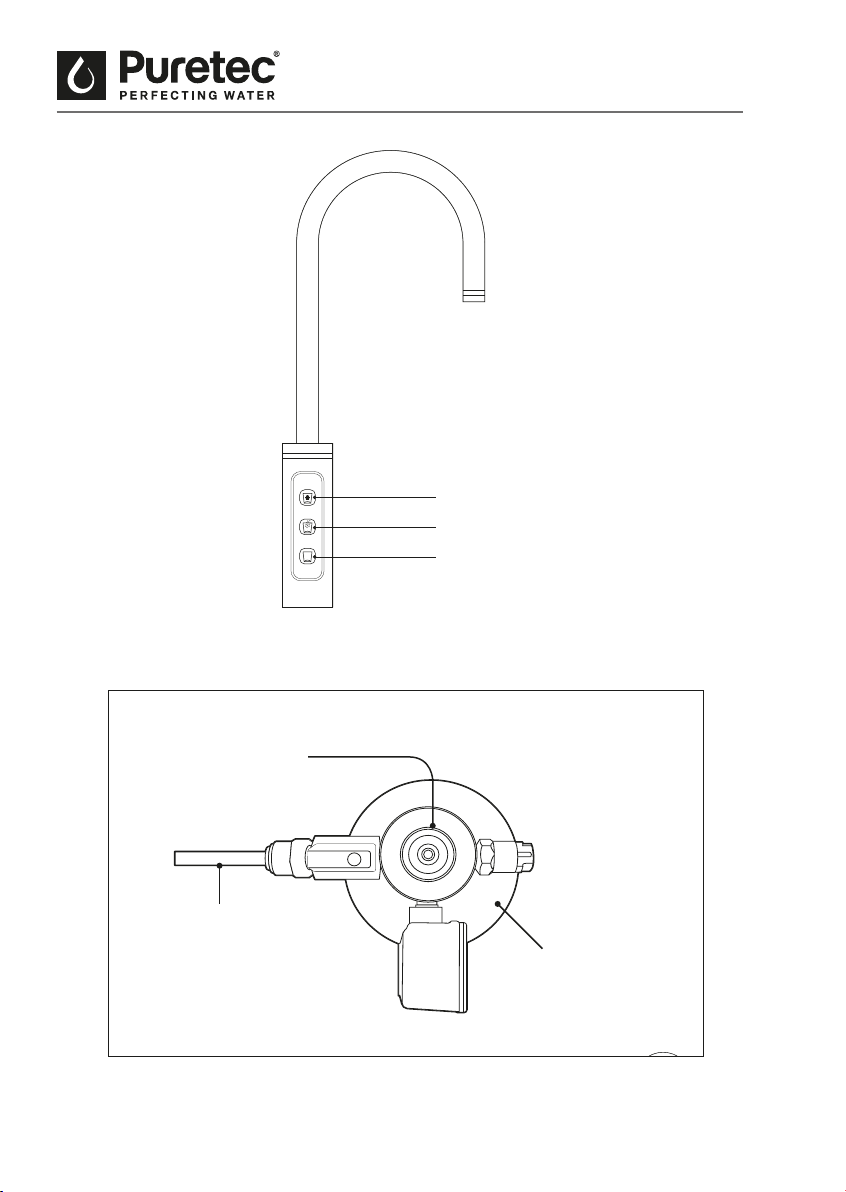

Tap Button Identication

Fig.2

System Identication

Cold

Sparkling

Ambient

Pressure Regulator

Tube (Black)

Bottle

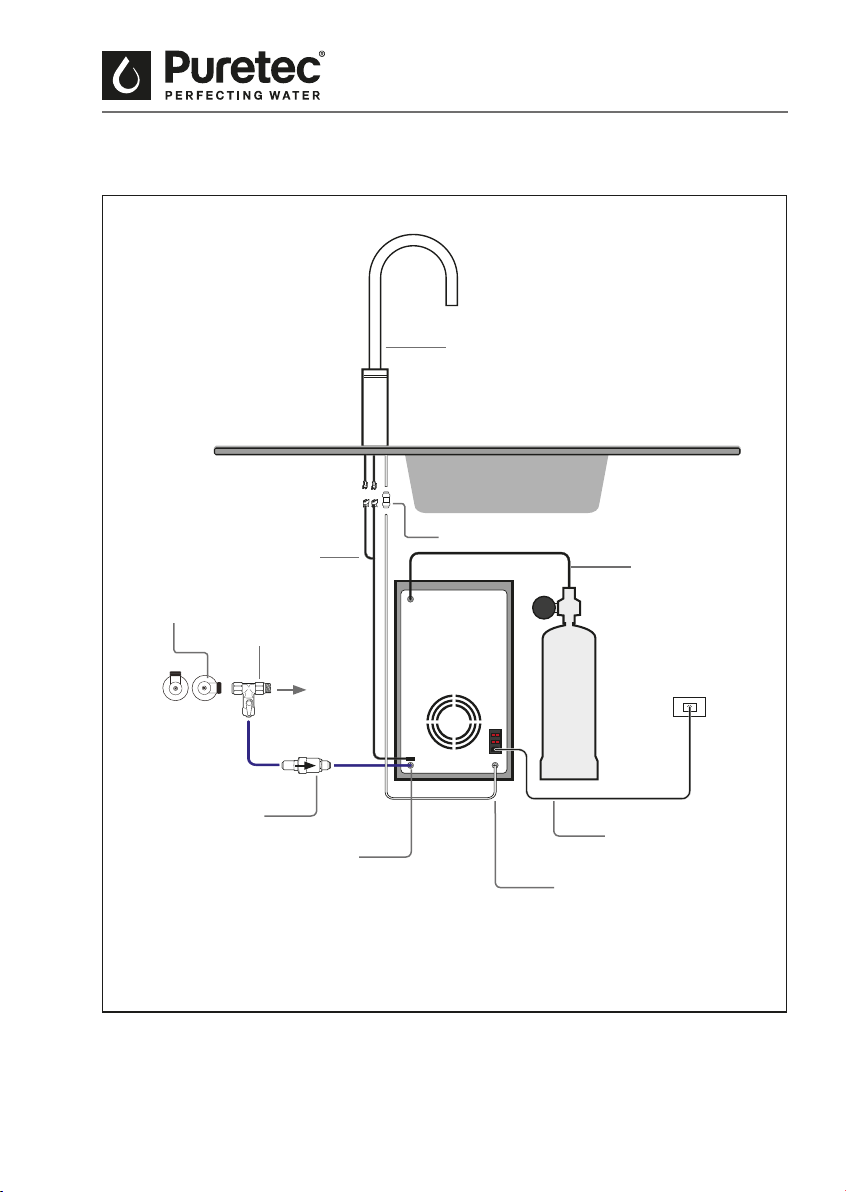

Fig.3

Water Inlet

Wiring Loom

Smart Tee

Sparq Faucet

Straight Connector

System Identication

Connector

(Black)

Multivalve

Water Inlet Connection

Note: All lines are 1/4" tube.

Tap

(Blue)

Unit Power Supply

Water Outlet (White)

Installation

Installation Procedure

VERY IMPORTANT! These installation steps are VERY important and must be

followed in the correct sequence. Remove all packaging before installation including tubes on the back of the unit (see Fig.4 for how to remove tubes).

1. Select a suitable position for the tap so that it dispenses into the sink bowl with ample clearance below the outlet and drill a 26 mm hole (max 30 mm).

2. Isolate water supply. Uninstall the connections on the cold water line and connect the Smart Tee™. Reinstall the previous connection to the tee valve.

3. Connect the Multivalve to the Smart Tee™ with a length of BLUE tubing. Please see

Fig.3 for water ow direction.

4. Connect the Straight Connector to the White Tube connected to the tap (see Fig.3).

5. Remove the black plastic nut from the tap thread and connect the Wiring Loom to the tap (see Fig.3).

6. Feed the Straight Adaptor and Wiring Loom through the tap hole and place tap into position.

7. Screw the tap nut and tighten making sure the tap is correctly positioned on top. Fixing the tap to a sink may require more care to align all parts. Note: For thin bench tops or a sink mount, use the supplied spacer, slipping it up the thread, followed by the black nut to tighten.

8. Choose the best position for the unit with required 150 mm clearance for ventilation

to the rear and top of the unit. Remember to allow access room for changing lters

and a suitable place where water spillage will not cause damage.

9. With a length of BLUE tubing (enough length to pull out of the cupboard to change

lters if not enough height), connect the Multivalve to the inlet at the back of the unit (see Fig.3). Note: If cupboard space does not permit enough space for lter changes, leave enough tube length to allow the lter system to come out of the cupboard to change the lters.

10. With a length of WHITE tubing, connect the straight adaptor to the water outlet.

Installation

11. Attach the Wiring Loom from the tap to the unit (see Fig.3).

12. Connect the power cord (DO NOT TURN POWER ON).

DO NOT turn on the water/and or power supply, this will be done in Step 22-26 of

Cold/Ambient Water Startup on Page 10.

13. Position the CO2 bottle as close to the unit as possible, ensuring the bottle is upright.

NOTE: Bottles should always be upright during storage and transit. If the bottle

has been le horizontal, place upright and let stand for 60 minutes for contents

to settle before initialising. The SPARQ-CO2 is NOT rellable.

14. Ensure regulator is o by turning the shut-o valve into the closed position.

15. Connect the CO2 bottle to the regulator. Screw the regulator on rmly (warning: some

CO2 will escape as the valve in the bottle is depressed).

16. Attach the BLACK tube to the CO2 connection at the back of the unit and CO2 bottle

(See Fig.2).

DO NOT open the regulator, this will be done in Step 27 of Soda/Sparkling Water

Startup on page 11.

17. Double check all tubes have been connected properly.

18. Check all plumbing ttings have been tightened and all tubing is connected rmly.

19. Ensure there is adequate ventilation around the unit (150 mm).

20. Check all tubes from the undersink unit to the tap, ensure there are no sags or kinks in

the hoses, and any tube sag is minimised as it can cause ow to be reduced.

Fig.4

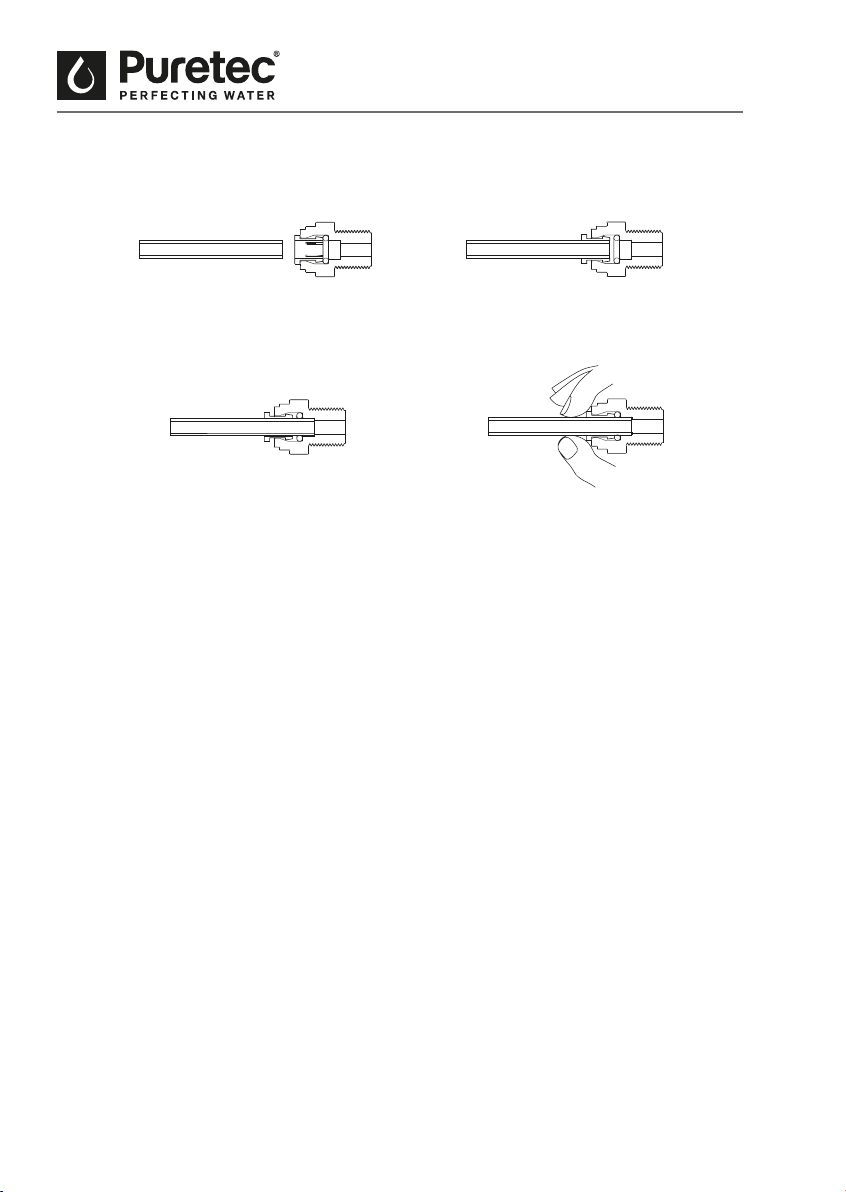

How To Use Quick Connect Fittings

Installation

1. Cut the tube square and push in to the tube stop. For metal tube remove burrs and chamfer tube end to prevent O-Ring seal being damaged.

3. Tube is secured in position.

2. Fitting grips before it seals. Ensure tube is pushed in to tube stop.

DISCONNECTION PROCEDURE

4. Push collet against body and

slide tube out of tting.

21. Check all electrical connections are correct and there are no loose wires.

COLD/AMBIENT WATER

22. Turn on the water and check for leaks.

23. Allow tank to ll for 5 minutes.

24. Turn on the power supply at the power point - tap should light up and aer a minute

all lights on the tap will be blue.

25. Flush the lters by pressing on the cold button on the tap rst for 1 minute and

followed by the ambient button for another minute (it is normal for black nes, cloudiness or micro-bubbles to come through). To activate water ow, press the button

once and the ring light on the top goes green, then press the button again for water

ow.

26. Turn on the COLD power switch on the back of the chiller. The chilling indicator on

Installation

the front panel of the unit will turn o once the correct temperature is reached. The

temperature is preset to 4-10 degrees. It takes up to 20 minutes.

SODA/SPARKING WATER

27. Ensure CO2 bottle is connected rmly to the regulator and the gas tube is tted.

28. Turn on the SODA power switch on the back of the chiller.

29. Open the regulator valve.

30. Turn o the water supply at the inlet (Smart Tee™ valve).

31. Purge the Soda line for 1-2 minutes by pressing on the Sparkling Button on the tap

until the water ow stops and only CO2 comes out.

32. Restore the water supply and allow 1-2 minutes for the lines to rell.

33. Operate the Sparkling Button on the tap (approx. 15 sec.) until excess CO2 excess has been dispensed.

34. Your Puretec system is now ready for use. It may require an hour or two for the

sparkling water to reach full "zz".

NOTE: A small amount of water will come out aer using the Sparkling feature for

1-2 seconds. This is normal as the CO2 is purged from the line.

Operation & Maintenance

How To Operate The Tap

When the BLUE light is on, the tap is in 'Sleep Mode'. Press the desired button once and the LED light will change from Blue to Green to indicate that the tap is ready. Press the button again to start dispensing water.

1. Push the button (top) for cold water.

2. Push the button (middle) for sparkling water.

3. Push the button (bottom) for ambient water.

Filter Maintenance - Every 12 Months or When Taste Returns

1. Turn o ball valve and purge lines by pressing tap on until ow stops.

2. Remove lter cover by pushing the clip in.

3. Remove lter manifold pushing in the button to unclip.

4. Unscrew old lters from the manifold.

5. Clean inside manifold (wipe down) so there is no excess water.

6. Screw in new lters.

7. Reinsert manifold ensuring it is clipped in properly.

8. Restore water supply checking that there is no water leaks.

9. Reinstall the lter cover.

10. Flush the lters for 10 minutes by operating the ambient water button rstly for 3

minutes and then the chilled water button for 3 minutes or until black carbon nes have cleared. It is usual for there to be black carbon nes and/or white cloudiness initially,

however these will clear up.

Gas Replacement

Gas Replacement - As Required

1. Close regulator, turn o soda button and water supply.

2. Purge sparking lines by pressing the sparkling button for 30 sec.

3. Disconnect regulator from BLACK tubing.

4. Unscrew the regulator from CO2 bottle (turn the regulator anti-clockwise).

5. Connect regulator to new CO2 bottle (turn the regulator clockwise).

6. Connect BLACK tubing to regulator.

7. Open the regulator and turn on the soda switch (at rear of the unit).

8. Purge the soda line for 1-2 minutes by operating the sparking/soda button on the tap

until the water ow stops and only CO

9. Restore the water supply and allow 1-2 minutes for the lines to rell.

10. Operate the sparkling water button on the tap for 30 seconds or until excess CO2 has

been dispensed.

11. Your Puretec system is now ready for use. It may require an hour or two for the

sparkling water to reach full "zz".

comes out.

Troubleshooting

SYMPTOMS POSSIBLE CAUSE POSSIBLE SOLUTION

No cold water. Cold temperature switch is o. Please turn the cold

temperature switch on.

Refrigerant is low. Call your service provider.

No cold water from tap.

Soda not working

or at.

Problem with compressor or

Call your service provider.

thermostat.

Ice blockage. Please turn o the power

supply and allow 24 hrs for the blockage to melt.

No water inside the cold water tank.

bottle is empty. Replace CO2 bottle.

Please check mains water supply.

Soda power is o. Turn on the soda power switch.

line needs purging. Follow the instructions in

changing the CO2 bottle to purge the line.

Warranty

WARRANTY

Any claim under this warranty must be made within 1 year of the date of purchase of the product. This product is warranted to be free of defect of material and workmanship for 1 year from date of purchase. To make a claim under the warranty, take the product and proof of purchase to place where you purchased the product, and they will lodge a Warranty Request with Puretec. 1 year warranty is parts and labour. Excludes cartridges and canisters.

Puretec will pay your reasonable, direct expenses of claiming under this warranty. You may submit details and proof of your expense claim to place of purchase for consideration.

The warranty only applies if the product was used and/or installed in accordance with the user guide and/or installation instructions. This warranty is given in lieu of all other express or implied warranties and manufacturer shall in no circumstance be held liable for damages consequential or otherwise or delays caused or faulty manufacturing except as excluded by law.

Applicable to all above, is that the warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs incurred.

WARRANTY / AUSTRALIA

This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.

This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled to replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

WARRANTY / NEW ZEALAND

This warranty is given by Puretec Ltd, Reg. No 4464398, PO Box 875, Cambridge 3450, NZ,

telephone no. 0800 130 140 and email at sales@puretec.co.nz.

This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Consumer Guarantees Act. You are entitled to replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Puretec water care products are designed, manufactured and supported by Puretec Ltd the name you can trust for viable and proven water

solutions. The complete range of Puretec products are developed, rened, made to meet and exceed stringent specications for the worldwide

market. All pictures and information are supplied as a guide only. Fittings not Included. ^1 Year Platinum Protection applies to Puretec Systems

when used in conjunction with a Puretec lter cartridge. Warranty excludes cartridges.

Important Note: Sales of products are subject to our Terms and Conditions which are available upon request. All specications, information and photos are a guide only and are subject to change without notice. Please ring to conrm details. Warning: For correct operation of this appliance it

is essential to observe manufacturer’s instructions. Caution: Do not use with microbiologically unsafe water or water of unknown quality without

adequate disinfection before or aer the system. Under normal circumstances a pressure limiting valve is not required. However, if incoming water pressure exceeds 500 kPa, a pressure limiting valve must be tted prior to inlet. Copyright © Puretec Ltd 2018

Puretec SPARQ-S4 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
