SAVE THESE INSTRUCTIONS!!
Unpacking and Inspection
Unpacking and Inspection Unpacking and Inspection
Unpacking and Inspection
Carefully unpack the unit. If it appears damaged in any way, return it to the retailer it was purchased
from in its original packaging. PULSE cannot accept any responsibility for damage arising from the use
of non approved packaging.
INTRODUCTION
INTRODUCTIONINTRODUCTION
INTRODUCTION
The PULSE PA-40 is a fully featured portable PA system, designed to provide high quality audio
reproduction, reliable performance and many years of service.
MAIN FEATUR
MAIN FEATURMAIN FEATUR
MAIN FEATURES
ES ES
ES
Ultra-compact and very powerful this little PA System from PULSE will grab the attention of any crowd
and ensure your message can be heard! Ideal for all uses from bingo to education, conference to
outdoor events. Supplied complete with a handheld wireless microphone, internal sealed lead acid
battery, shoulder carry strap and carry case.
•
40Wrms power output
•
Compact & powerful
•
UHF wireless receiver built-in with 16 selectable frequencies for clear, interference free
wireless reception
•
Up to 8 hours operation from a 4.5 hour charge
•
AUX input for line level sources (e.g. Laptop or MP3)
•
MIX output allows secondary units to be linked
•
Master tone control
•
Independent microphone and master volumes
•
Mesh front panel on carry case allows operation of the unit from within carry case.
•
Supplied complete with a handheld wireless microphone, internal sealed lead acid battery,
switch mode charger & mains cord, shoulder carry strap and carry case.
•
Optional tripod stand (PA-40 STAND) - raises the unit off the floor allowing the sound to
travel further
•
Optional Microphone Kit (PA-40 BP/LAV) available as a separate item contains a UHF
beltpack, headset and lavalier microphones to provide a flexible system for most uses.
•
Weight: 3.1kg

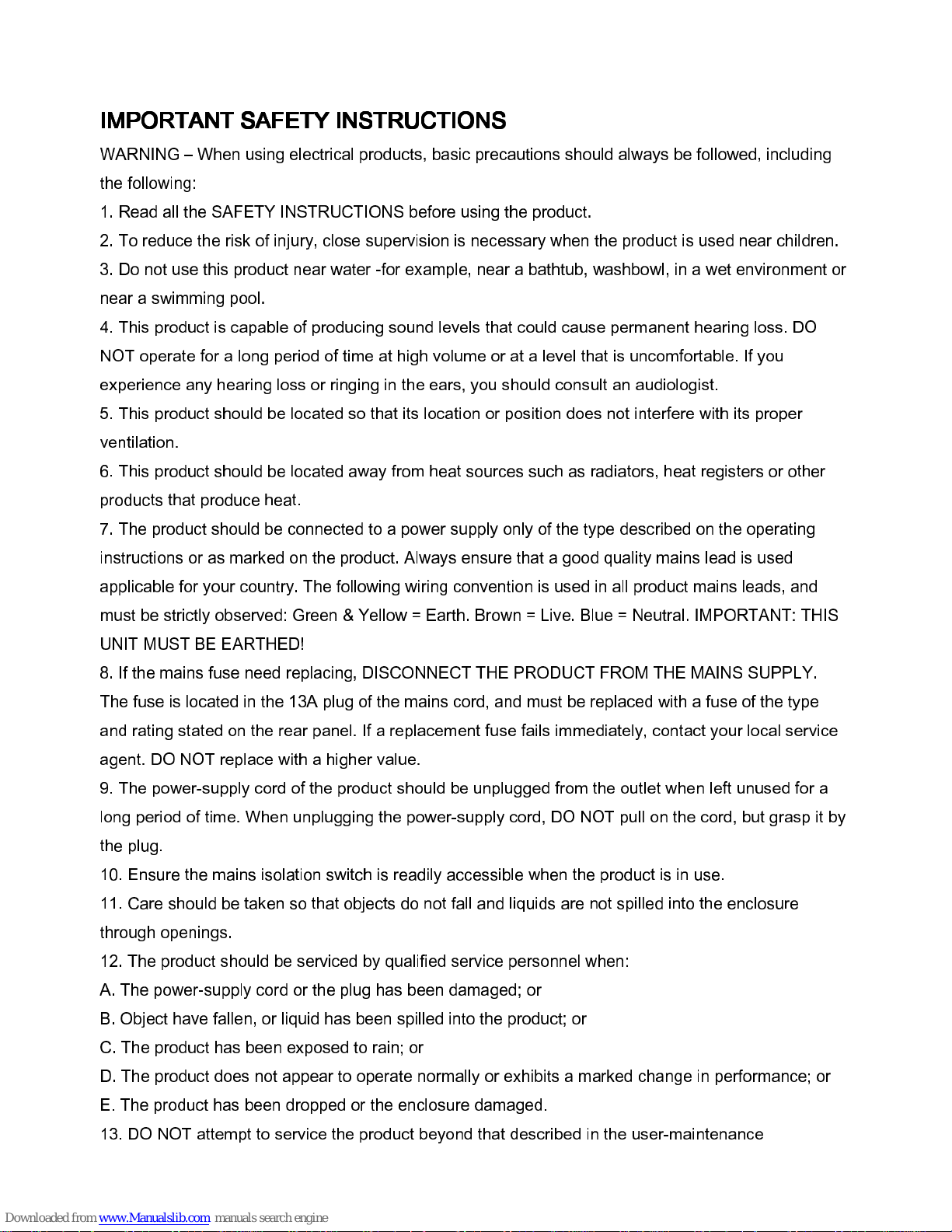

IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING – When using electrical products, basic precautions should always be followed, including
the following:
1. Read all the SAFETY INSTRUCTIONS before using the product.
2. To reduce the risk of injury, close supervision is necessary when the product is used near children.
3. Do not use this product near water -for example, near a bathtub, washbowl, in a wet environment or
near a swimming pool.
4. This product is capable of producing sound levels that could cause permanent hearing loss. DO
NOT operate for a long period of time at high volume or at a level that is uncomfortable. If you
experience any hearing loss or ringing in the ears, you should consult an audiologist.
5. This product should be located so that its location or position does not interfere with its proper
ventilation.
6. This product should be located away from heat sources such as radiators, heat registers or other
products that produce heat.
7. The product should be connected to a power supply only of the type described on the operating
instructions or as marked on the product. Always ensure that a good quality mains lead is used
applicable for your country. The following wiring convention is used in all product mains leads, and
must be strictly observed: Green & Yellow = Earth. Brown = Live. Blue = Neutral. IMPORTANT: THIS
UNIT MUST BE EARTHED!
8. If the mains fuse need replacing, DISCONNECT THE PRODUCT FROM THE MAINS SUPPLY.
The fuse is located in the 13A plug of the mains cord, and must be replaced with a fuse of the type
and rating stated on the rear panel. If a replacement fuse fails immediately, contact your local service
agent. DO NOT replace with a higher value.
9. The power-supply cord of the product should be unplugged from the outlet when left unused for a
long period of time. When unplugging the power-supply cord, DO NOT pull on the cord, but grasp it by
the plug.
10. Ensure the mains isolation switch is readily accessible when the product is in use.
11. Care should be taken so that objects do not fall and liquids are not spilled into the enclosure
through openings.
12. The product should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged; or
B. Object have fallen, or liquid has been spilled into the product; or
C. The product has been exposed to rain; or
D. The product does not appear to operate normally or exhibits a marked change in performance; or
E. The product has been dropped or the enclosure damaged.
13. DO NOT attempt to service the product beyond that described in the user-maintenance
instructions. All other servicing should be referred to qualified service personnel.
14. WARNING - DO NOT place objects on the product’s power cord or place it in a position where
anyone could trip over, walk on or roll anything over it. DO NOT allow the product to rest on or to be
installed over power cords of any type. Improper installations of this type create the possibility of fire
hazard and/or personal injury.
IF YOUR PRODUCT STOPS WORKING ;
IF YOUR PRODUCT STOPS WORKING ; IF YOUR PRODUCT STOPS WORKING ;
IF YOUR PRODUCT STOPS WORKING ;
• READ THE MANUAL !!!
• Turn volume to zero and re-adjust each control in
• Check all connections (input and output, at both ends of cable)
• Check status lights, battery charge and power connections
• Disconnect from mains before changing fuse
• Replace fuse only with same type and rating
• If problems persist contact a qualified service agent
OPERA
OPERAOPERA
OPERATION
TIONTION
TION & CONNECTIONS
& CONNECTIONS & CONNECTIONS
& CONNECTIONS

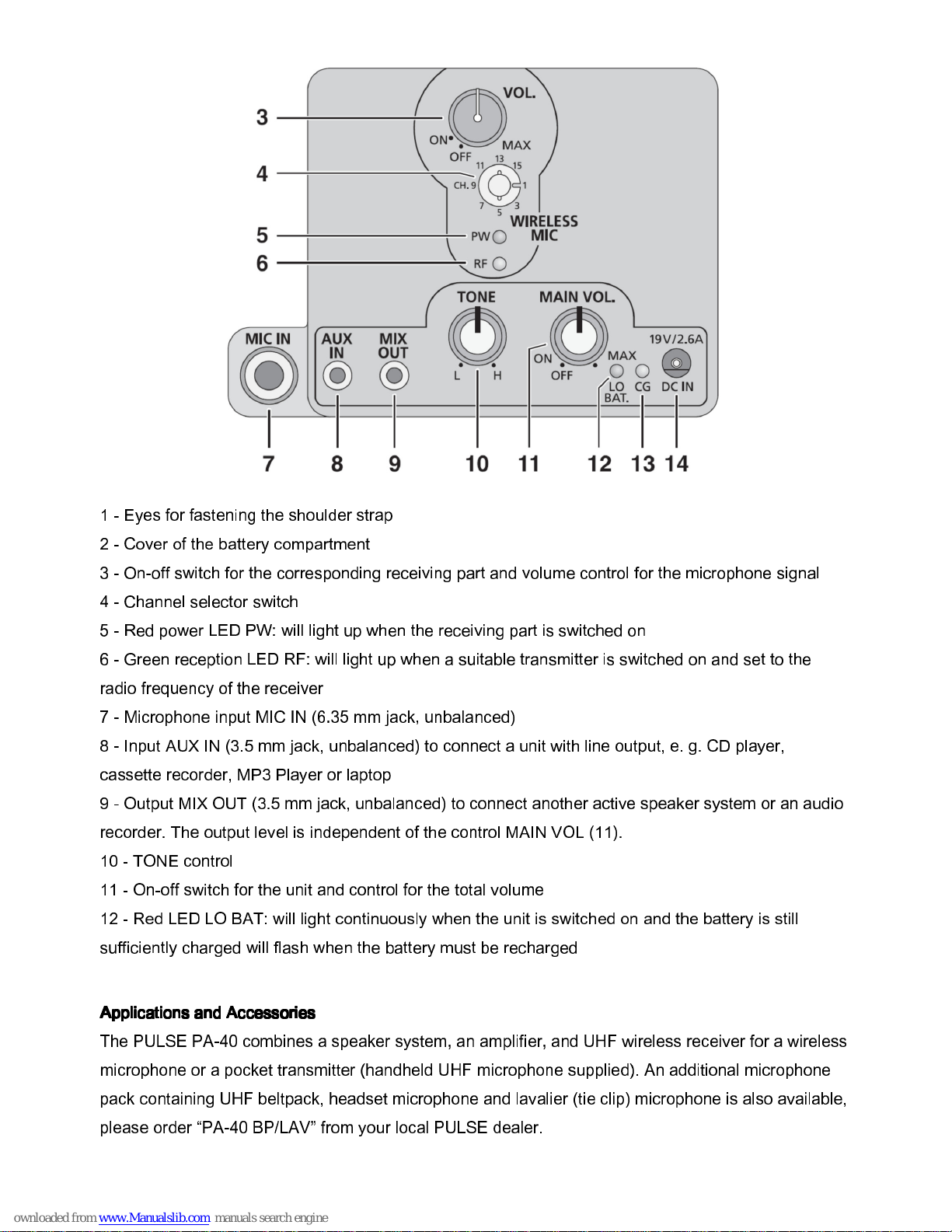

1 - Eyes for fastening the shoulder strap
2 - Cover of the battery compartment
3 - On-off switch for the corresponding receiving part and volume control for the microphone signal
4 - Channel selector switch
5 - Red power LED PW: will light up when the receiving part is switched on
6 - Green reception LED RF: will light up when a suitable transmitter is switched on and set to the
radio frequency of the receiver
7 - Microphone input MIC IN (6.35 mm jack, unbalanced)
8 - Input AUX IN (3.5 mm jack, unbalanced) to connect a unit with line output, e. g. CD player,
cassette recorder, MP3 Player or laptop
9 - Output MIX OUT (3.5 mm jack, unbalanced) to connect another active speaker system or an audio
recorder. The output level is independent of the control MAIN VOL (11).
10 - TONE control
11 - On-off switch for the unit and control for the total volume
12 - Red LED LO BAT: will light continuously when the unit is switched on and the battery is still
sufficiently charged will flash when the battery must be recharged
Applications and Accessories
Applications and AccessoriesApplications and Accessories
Applications and Accessories
The PULSE PA-40 combines a speaker system, an amplifier, and UHF wireless receiver for a wireless
microphone or a pocket transmitter (handheld UHF microphone supplied). An additional microphone
pack containing UHF beltpack, headset microphone and lavalier (tie clip) microphone is also available,
please order “PA-40 BP/LAV” from your local PULSE dealer.

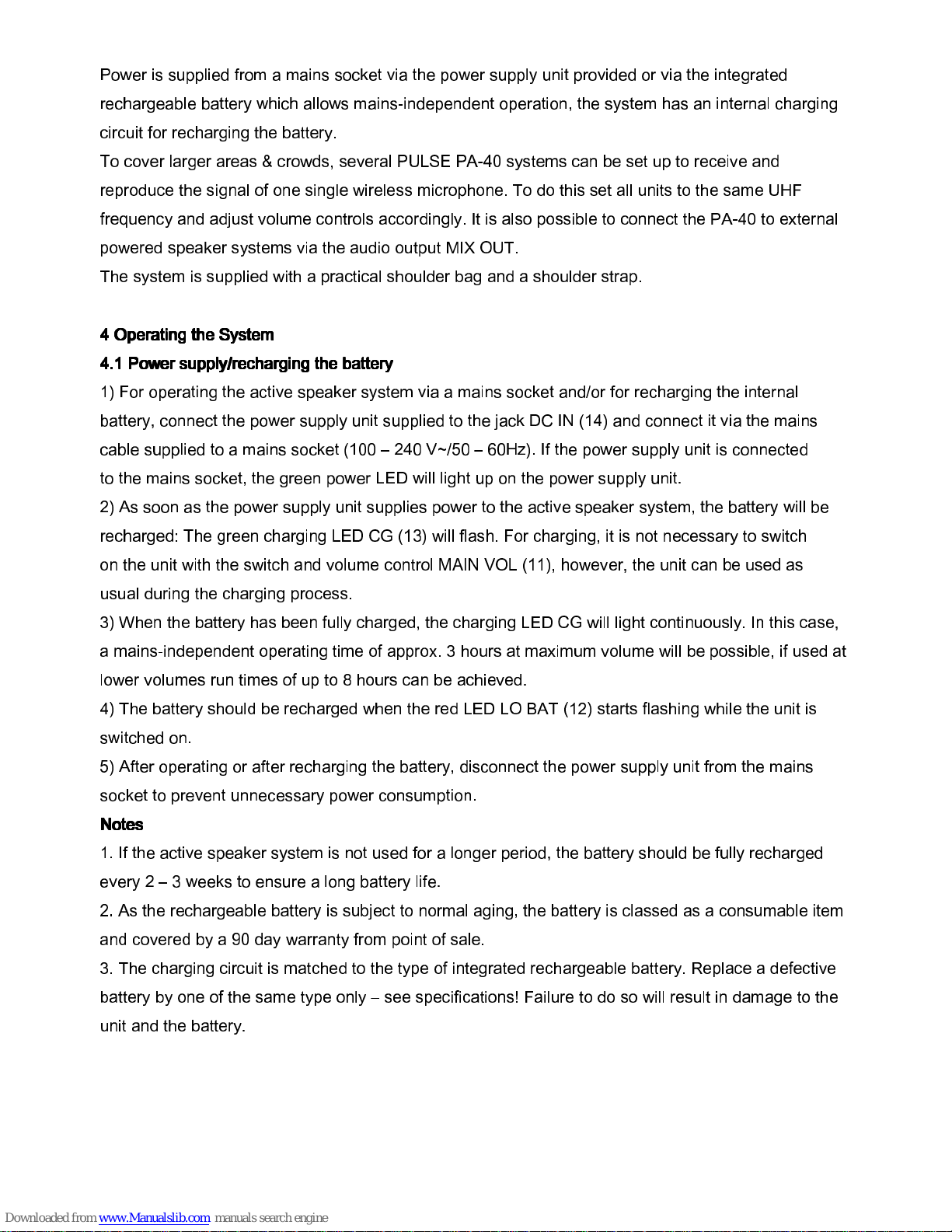

Power is supplied from a mains socket via the power supply unit provided or via the integrated
rechargeable battery which allows mains-independent operation, the system has an internal charging
circuit for recharging the battery.
To cover larger areas & crowds, several PULSE PA-40 systems can be set up to receive and
reproduce the signal of one single wireless microphone. To do this set all units to the same UHF
frequency and adjust volume controls accordingly. It is also possible to connect the PA-40 to external
powered speaker systems via the audio output MIX OUT.
The system is supplied with a practical shoulder bag and a shoulder strap.
4
4 4
4 Operating the System
Operating the SystemOperating the System
Operating the System
4.1 Power supply/recharging the battery
4.1 Power supply/recharging the battery4.1 Power supply/recharging the battery
4.1 Power supply/recharging the battery
1) For operating the active speaker system via a mains socket and/or for recharging the internal
battery, connect the power supply unit supplied to the jack DC IN (14) and connect it via the mains
cable supplied to a mains socket (100 – 240 V~/50 – 60Hz). If the power supply unit is connected
to the mains socket, the green power LED will light up on the power supply unit.
2) As soon as the power supply unit supplies power to the active speaker system, the battery will be
recharged: The green charging LED CG (13) will flash. For charging, it is not necessary to switch
on the unit with the switch and volume control MAIN VOL (11), however, the unit can be used as
usual during the charging process.
3) When the battery has been fully charged, the charging LED CG will light continuously. In this case,
a mains-independent operating time of approx. 3 hours at maximum volume will be possible, if used at
lower volumes run times of up to 8 hours can be achieved.
4) The battery should be recharged when the red LED LO BAT (12) starts flashing while the unit is
switched on.
5) After operating or after recharging the battery, disconnect the power supply unit from the mains
socket to prevent unnecessary power consumption.
Notes
NotesNotes
Notes
1. If the active speaker system is not used for a longer period, the battery should be fully recharged
every 2 – 3 weeks to ensure a long battery life.
2. As the rechargeable battery is subject to normal aging, the battery is classed as a consumable item
and covered by a 90 day warranty from point of sale.
3. The charging circuit is matched to the type of integrated rechargeable battery. Replace a defective
battery by one of the same type only – see specifications! Failure to do so will result in damage to the
unit and the battery.
4.2
4.2 4.2
4.2 Positioning & Transporting
Positioning & TransportingPositioning & Transporting
Positioning & Transporting
For optimum setup the system is best mounted on a stand at a height of 1 – 1.5 m above the ground.
An optional stand “PA-40 STAND” can be purchased from your local PULSE dealer.
For mobile use, e. g. guided tours or outdoor events, the shoulder strap or the shoulder bag supplied
can be used. Fasten the strap to the eyes (1). For operation inside the shoulder bag, put the active
speaker system into the bag in such a way that the sound from the speaker will be radiated through
the mesh side. To access the operating elements and connections, open the lateral flap of the bag
(Velcro fastener).
4.3 Connections for Microphones & Audio Sources
4.3 Connections for Microphones & Audio Sources4.3 Connections for Microphones & Audio Sources
4.3 Connections for Microphones & Audio Sources
Always switch off the active speaker system before connecting!
1) In addition to the wireless microphone, a cable connected microphone may be used. Connect the
microphone to the jack MIC IN (7).
2) Audio units with a line output (e. g. CD player, cassette recorder, MP3 player or laptop) can be
connected to the jack AUX IN (8). A cable-connected microphone and an audio unit should only be
connected at the same time if the output level can be adjusted on the audio unit; otherwise the volume
ratio between the microphone and the audio unit cannot be altered.
3) For sound recordings, connect a recorder to the jack MIX OUT (9). The output level is independent
of the position of the control MAIN VOL (11).
4) For PA applications of larger zones, connect an additional PULSE PA-40 to the jack MIX OUT (9).
More units can then be daisy chained from the mix out of the second unit etc.
5 Operation
5 Operation5 Operation
5 Operation
1) Switch on the unit with the on-off switch and volume control MAIN VOL (11). During operation,
the red LED LO BAT (12) will light up. If it the light flashes, recharge the battery as per chapter 4.1.
2) If a microphone is connected to the jack MIC IN (7) or a unit to the jack AUX IN (8), adjust the
desired volume with the control MAIN VOL.
3) If a wireless microphone or a beltpack transmitter is used, switch on the receiver with the on/off
switch and volume control VOL (3). The red LED PW (5) will light up.
4) Leave the wireless microphone or the pocket transmitter switched off for the time being and
use the rotary switch (4) to select a channel which is free and interference-free.
If the green LED RF (6) lights up after the channel has been selected and with the microphone
or transmitter still switched off, interference or signals of other transmitters are received on this
channel. In this case, set the receiver to a different channel.
5) Switch on the wireless microphone or the pocket transmitter and set it to the same channel as the
receiver. The green LED RF (6) will light up to indicate reception of a radio signal.
6) If a microphone is connected to the jack MIC IN (7) or a unit to the jack AUX IN (8), use the control
VOL (3) to add the microphone signal received. If the wireless microphone or the pocket transmitter is
used on its own, advance the control VOL (3) to approx. 2/3 and adjust the volume with the control
MAIN VOL (11).
7) Adjust the sound with the TONE control (10).
Service
Service Service
Service
All PULSE products are thoroughly examined and tested before leaving the factory, and if used
correctly will give many years of excellent service. However, if a problem arises, proceed as follows:
A) Contact the retailer from whom the unit was purchased and describe the symptoms of the fault.
B) If the retailer cannot help, return the equipment to the national distributor for your country. Use the
original packaging to protect the product from damage. Include a note with the equipment stating your
name and address, details of the problem, date code and date and place of purchase.
The unit does not contain any user serviceable parts. For details of spares, accessories and other
products, contact you local retailer. In the event of any difficulty contact PULSE directly
via www.pulse-audio.co.uk
Loading...
