Pulse MEGAMOUTH MK3 User Manual

www.pulse-audio.co.uk | MEGAMOUTH MK3 User Manual

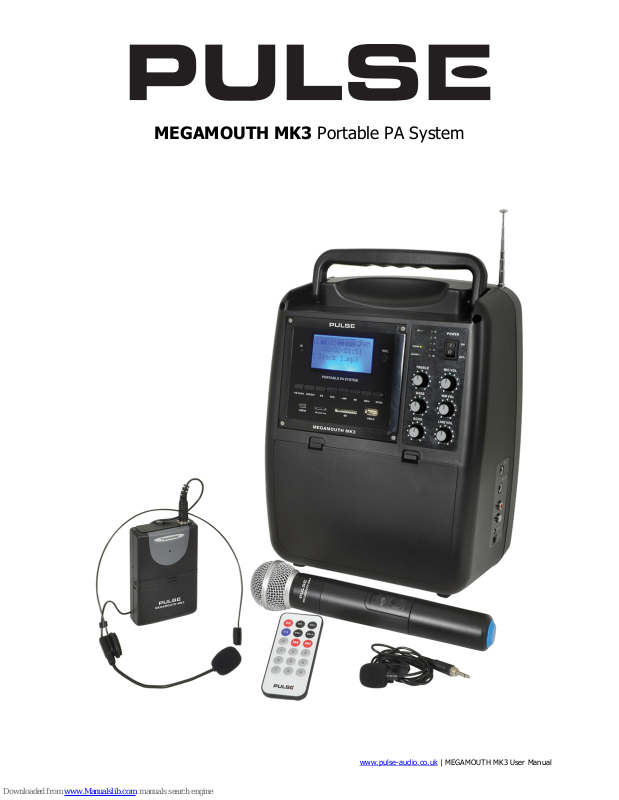

MEGAMOUTH MK3 Portable PA System

www.pulse-audio.co.uk | MEGAMOUTH MK3 User Manual

Introduction

Thank you for choosing the Megamouth portable PA unit. This product has been designed to provide
convenient sound reinforcement for teaching, demonstrations and music applications. Please read the
following instructions to achieve the best results from your purchase.

Package Contents

Please check the contents to ensure that the product has been received in good condition.
If you find any accessory is missing or the product has arrived with any problems, please contact your
retailer at once.

• 1 x Megamouth portable PA unit

• Neckband headset microphone

• 1 x VHF handheld microphone

• Mains fig.8 power lead

• 1 x VHF bodypack transmitter

• 1 x Tie-clip microphone

• IR Remote control for media player

• User manual

This product contains no user-serviceable parts inside so make no attempt to try to fix or modify this item
yourself as this will invalidate the warranty. We recommend you keep the original packaging and proof of
purchase for any possible replacement or returned demand.

Warning

To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent
electric shock do not remove the cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.

Safety

Prior to connecting mains, check the supply voltage is correct and the mains lead is OK.
Avoid ingress of water or particles into the enclosure or accessories.
If the mains fuse blows, refer the unit to qualified service personnel.

If the VHF microphones are to be unused for a long period of time, remove the batteries and store for
later use.

Placement

Keep the unit out of direct sunlight and away from heat sources.
Place the unit in an upright position during use and storage.
Keep the unit away from moisture or dusty environments.

Cleaning

Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls.
To avoid damage, do not use solvents to clean this equipment.

www.pulse-audio.co.uk | MEGAMOUTH MK3 User Manual

Rear Panel Main Controls

1. Media player See detailed section below

2. Internal microphone For recording into media player

3. VHF antenna For FM and wireless microphone reception

4. RF carrier indicator Lights when wireless microphone RF is detected

5. VU level indicators Indicators for output level in dB

6. POWER On/Off rocker power switch

7. POWER/CHARGE LEDs Indicators for mains power on and/or charging

8. MIC VOL Rotary volume control for 6.3mm MIC input

9. TREBLE Rotary master treble tone control

10. WM VOL Rotary volume control for Wireless Microphone

11. BASS Rotary master bass tone control

12. LINE VOL Rotary volume control for RCA LINE IN input

13. ECHO Echo effect level for microphone

14. Compartment Latching cover for battery and storage compartment
