Pulse FXI6 Series User Manual

Download
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
1 | P a g e
PULSE IP Camera User Manual
Model Number: FXI6 Series
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
2 | P a g e
Warnings Follow these safeguards to prevent serious injury or death.
Cautions Follow these precautions to prevent potential injury or material damage.
Warnings:
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with DC 12V according to the IEC60950-1 standard. Please refer to the technical specifications for more details.
Do not use a third-party power adapter or power cord When the device is installed on the wall or ceiling, make sure that it is firmly attached.
Safety Instruction
These instructions are intended to assist users with the operation of the FXI6 and also to instruct on how to avoid dangerous situations or damage to the device.
Warnings: Serious injury or death may be caused if any of the warnings below are neglected. Cautions: Injury or damage to the equipment may occur if any of the following caution
messages are neglected.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
3 | P a g e
Notice：
Make sure that the power supply voltage is correct before using the camera.  Do not drop the device or expose it to physical shock.  Do not expose the device to temperatures outside the range of -10 C to +50C
when the device is in operation.
Do not expose the device to damp/wet conditions or high electromagnetism
radiation.
To avoid heat accumulation, make sure that your operating environment has
proper ventilation.
Do not attempt to open, disassemble, or modify the device
A few parts (e.g. electrolytic capacitor) of the equipment shall be replaced
regularly according to their average life time. The average life time varies from the differences between operating environments and usage history. Regular maintenance checks are recommended for all users. Please contact your dealer for more details.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
4 | P a g e
Welcome …………………………………………………………………………………………………………………
5
Package Contents …………………………………………………………………………………………………
6
Product Overview …………………………………………………………………………………………………
7
Configuring the FXI6 via Web Browser ………………………………………………………
10
Access FXI6 Web Configuration Menu ………………………………………………
10
Connect The Camera to DHCP server ……………………………………………………………
10
Connect to the Camera using Static IP ……………………………………………………………
11
Home Web Page ……………………………………………………………………………………………
12
System Page …………………………………………………………………………………………………
14
Video & Audio Page ……………………………………………………………………………………..
15
Networking Page……………………………………………………………………………………………
16
DDNS Page…………………………………………………………………………………………………….
19
SIP Page………………………………………………………………………………………………………….
21
Status Page …………………………………………………………………………………………………..
23
User Management Page …………………………………………………………………………………..
25
Maintenance Page …………………………………………………………………………………………
26
SMTP Page …………………………………………………………………………………………………….
27
FTP Page ……………………………………………………………………………………………………….
28
Alarm HTTP Server Setting…………………………………………………………………………….
29
Motion Detection Page …………………………………………………………………………………
30
System Log ……………………………………………………………………………………………………
32
Contents
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
5 | P a g e
Welcome
The FXI6 is a next generation mini IP dome camera for remote monitoring and surveillance over your LAN or internet.
The FXI6 combines best in class IP video technology and SIP protocols for a robust IP surveillance solution. The product features H.264 video streams with up to 30 frames per second in full D1, delivering rich image clarity at rapid transmission rates. Integrated SIP can pass alarms to the PSTN, mobile phones, SIP IP phones, SIP videophones and enables 2-way VoIP communication.
The FXI6 ensures ease of use, integration and deployment with a multilingual graphical user interface. The FXI6 can be quickly installed and connected to your network and accessed from anywhere over the internet. i-Flash Technology flexible video management software enables users to monitor multiple environments in one easy to use application. The intuitive web interface lets users easily access, manage, view and record live video streams from the device.
The FXI6 is a powerful solution for small to medium sized offices, homes and storage facilities looking to safeguard their valuables.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
6 | P a g e
FXI6 Series IP Camera
Installation Guide and
Software CD
Package Contents
Items in the package:
FXI6 Series IP Camera Installation Guide and Software CD
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
7 | P a g e
reset button
audio
network
Product Overview
FXI6 Series Camera
Connectors and Cables (With Audio)
Reset Button – Reset the Camera
Audio: Audio Input
Network: 10/100 Switch LAN Port for connecting to Ethernet
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
8 | P a g e
P2 (2MP)
P13 (1.3MP Low Lux WD)
P30 (3.1MP Low Lux WD)
Video Compression
H.264, Motion JPEG
H.264, Motion JPEG
H.264 , Motion JPEG
Image Sensor
1/3.2”, 2-Megapixel CMOS, 1,600Hx1,200V
1/3”, 1.3 Megapixel CMOS 1,280H x 960V
1/3”, 3.1 Megapixel CMOS 2,048H x 1,536V
Lens
1/3” ,M12 MEGA, f=2.8mm, F=2.0 OR 1/3” ,M12 MEGA, f=3.6mm, F=1.8 OR
1/3” ,M12 MEGA ,f=4.2mm, F=1.8
1/3” ,M12 MEGA, f=2.8mm, F=2.0
OR 1/3” ,M12 MEGA ,f=3.6mm, F=1.8 OR 1/3” ,M12 MEGA ,f=4.2mm, F=1.8
1/3", M12 MEGA, f=2.8mm, F=2.0 OR 1/3”, M12 MEGA, f=3.6mm, F=1.8 OR 1/3” ,M12 MEGA ,f=4.2mm, F=1.8
Day/Night
IR-CUT control
IR-CUT control
IR-CUT control
Min. illumination
Color 0.5Lux
Color 0.05Lux
Color 0.02Lux
Min. illumination Response
1.0V/lux-sec (550nm)
1.0V/lux-sec (550nm)
1.0V/lux-sec (550nm)
Max Video Resolution
1,600H x 1,200V
1,280H x 960V
2,048H x 1,536V
Max Frame Rate
10 fps at 1600 x 1200, 25 fps at 1280 x 720 to 240 x 135 Multiple Streams
25 fps at 1280 x 960, 30 fps at 1280 x 720 to 160 x 112 Multiple Streams
15 fps at 2048 x 1536, 30 fps at 1920 x 1080 to 160 x 112 Multiple Streams
Pixel Dynamic Range
71dB
110dB
100dB
Frame Rate
Auto, 5 - 30fps
Auto, 1 - 30fps
Auto, 1 - 30fps
Compressed Video Output rate
16Kbps - 2Mbps
16Kbps - 2Mbps
16Kbps - 2Mbps
Audio Input
MIC IN
MIC IN
MIC IN
Audio Compression Standard
G.711
G.711
G.711
Audio Compression Rate
16-96kbps，support 8-16KHz
16-96kbps，support 8-16KHz
16-96kbps，support 8-16KHz
Network Connection
RJ45 10M/100M Ethernet
RJ45 10M/100M Ethernet
RJ45 10M/100M Ethernet
Power
PoE 802.3af
PoE 802.3af
PoE 802.3af
Operation Temperature
-10°C – 45°C
-10°C – 45°C
-10°C – 45°C
Operation Humidity
10–90%（non-condensing）
10–90%（non-condensing）
10–90%（non-condensing）
Dimension
112 mm diameter, 83mm H
112 mm diameter, 83mm H
112 mm diameter, 83mm H
Weight
~ 350g
~ 350g
~ 350g
Vandal Resistant
IK10
IK10
IK10
FXI6 Key Features
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
9 | P a g e
Installation Guide
Minimum Recommended System Requirement
• Windows 2000 Server Professional, Windows XP, Windows Vista, Windows 7
• CPU: Intel Pentium 4 or higher, 2 GHz.
• RAM: 1 GB (4 GB recommended for larger systems).
• Support for DirectX 8.0 and above.
Using PoE as power supply with PoE Splitter:
• Connect a RJ-45 cable to the NETWORK port of FXI6.
• Connect the other end of the RJ-45 cable to a PoE switch.
NOTE: If you are going to connect the device to a hub/switch/router, please use a straight-through cable. A cross over cable should be used if you are going to connect the device directly to a PC.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
10 | P a g e
Configuring the FXI6 via Web Browser
The FXI6’s embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML pages allow you to configure your IP camera through Microsoft Internet Explorer.
Access FXI6 Web Configuration Menu
Connect the Camera to DHCP server.
1. Run the Search tool provided in Software CD
2. Click on button in order to begin device detection
3. The detected devices will appear in the Output field
4. Start Internet Explorer on your computer
5. Enter device IP in the address bar of the browser or double click the camera in Search tool
6. Enter the administrator user name and password to access the Web Configuration Interface
7. The default user name and password are both set to admin.
8. IE will indicate that “This website wants to install the following add-on:
9. Install this add-on by following the instructions in IE.
10. You will see the home page.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
11 | P a g e
Connect to the Camera using Static IP
If the camera does not get response from DHCP server after 3 minutes, it can be accessed by the default IP 192.168.1.168.
1. Connect your PC to the same network as the FXI6.
2. Configure the IP address of your PC to: 192.168.1.XXX (1<XXX<255) and configure the subnet mask to 255.255.255.0.
3. Make sure that the device is turned on and connected to the network.
4. Start Internet Explorer on your computer.
5. Enter 192.168.1.168 in the address bar of the browser.
6. Enter the administrator user name and password to access the Web Configuration Interface
7. The default user name and password are both set to admin.
8. IE will indicate that the add-on is required, install this add-on by following the instructions in IE.
9. You will see the home page.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
12 | P a g e
1
Motion Detection
If the motion detection alarm is triggered, the indicator will flash red. Click on the indicator to turn off the alarm.
2
Control Console
PTZ Console controller. PTZ device needs to be connected. (not supported in FXI6)
3
ZOOM
Zoom control (not supported in FXI6 )
4
Focus
Adjust focus of image (not supported in FXI6)
5
PTZ Speed
Adjust PTZ Speed (not supported in FXI6)
6
Default
Click this option to reset the video brightness, contrast, and saturation to their factory default configuration.
FXI6 Home Web Page
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
13 | P a g e
7
BRIGHTNESS
Adjusts the image brightness.
8
CONTRAST
Adjusts the image contrast
9
View Size
Resize the image to fit into the window panel in the home scream
10
Configuration
Camera Configuration Setting
11
Language
Select language – English or Chinese
12
Play / Stop
Plays/Stops the video.
13
Capture
Captures the image displayed and saves it to C:\GS_Capture (default directory).
14
Record
Records the video and saves it to C:\GS_Record (default directory).
15
Sound Off/On
Toggles the sound On or Off
16
Talk
Establishes two-way audio
17
Playback
Replays the saved video
18
Config
Configures the Save Location for captured images and recorded videos.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
14 | P a g e

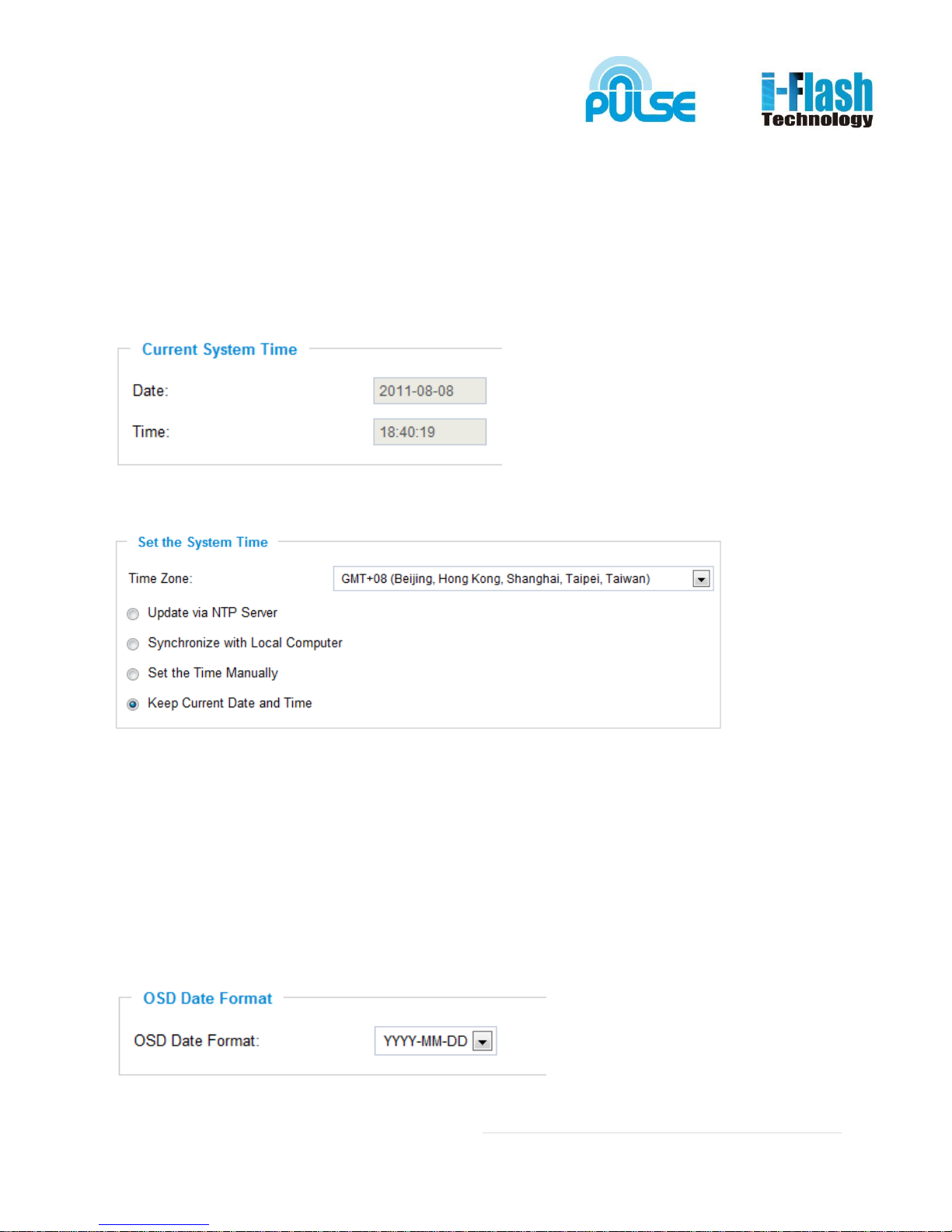

FXI6 System Page
The page allows you to configure the system setting on FXI6
Current System Time - displays the current date and time (24h clock).
Set the System Time
Update via NTP Server - the camera will obtain the time from an NTP server Specify the NTP
server's IP address or host name. And you can select your time zone from the drop-down list or define your own time zone setting.
o NOTE: If using a host name for the NTP server, a DNS server must be configured under
Basic Settings -> Networking. Synchronize with Local Computer - sets the time from the clock on your computer. Set the Time Manually - this option allows you to manually set the time and date.
OSD Date Format - set the format of date on OSD
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
15 | P a g e
Device Name Setting –This field lets you configure the name of the FXI6, which helps “Search” and
“Surveillance” Software to identify the device in the same subnet.
Video & Audio Page
On Screen Display (OSD) Settings OSD Time/ Text – The time stamp and channel name displayed on the
screen.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
16 | P a g e
Preferred Video Codec
– The FXI6 supports the H.264 video codec.
Resolution
– The higher the resolution is, the better the video quality is, and higher bandwidth is required.
Bit Rate
– The number of bits that are conveyed or processed per unit of time.
Maximum Frame Rate
– The video frame rate is adjustable based on network conditions. Increasing the frame rate will increase the amount of data significantly therefore consuming more bandwidth. Video will be impaired due to packet loss when there is insufficient bandwidth.
Bit Rate Control
– Variable Bit rate (VBR) and Constant Bit Rate (CBR). Variable Bit Rate - If VBR is selected, the codec varies the amount of output data per time segment. VBR produces a better quality-to-space ratio. The bits available are used to enable more flexibly and encode sound or video data more accurately, with fewer bits used in less demanding passages and more bits used in difficult-to-encode passages. Constant Bit Rate - If CBR is selected, the codec’s output data is constant
regardless of the input data. The output bit rate is defined in “Bit rate”. CBR
is useful for streaming multimedia content on limited capacity channels. It is easier to calculate required bandwidth as well as the required storage space using CBR.
Image Quality
If ‘Bit Rate Control’ is set to “VBR”, “Image quality” needs to be configured. The better the video quality is, the higher the bit rate will be.
I-frame Interval
– While streaming video over a network, compression technologies are used to show the incremental difference between each frame. I-frames are used to help keep the video looking normal. When intervals are shorter, the video quality is higher but uses more bandwidth.
Video Settings
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
17 | P a g e
NOTE: The users might need to configure the Primary Stream and Secondary Stream properly. Sometimes, the user might like to watch the live video stream from the web GUI in low resolution mode while recording a copy via “Surveillance System” software in high resolution due to the limitation of internet bandwidth. In this case, for example, primary stream can be configured to have better resolution, and then the users can use primary stream to record while watching secondary video streams.
Audio Settings
Preferred Audio Codec – The FXI6 supports up to 3 different Vocoder types, a-law
(PCMA), u-law (PCMU) and G.726. The audio can also be turned off by switching the setting
to “Disabled”
Power Frequency - this setting should match the power frequency used in the country to avoid flickering in the image
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
18 | P a g e
Networking Page – Assign an IP to FXI6
FXI6 supports IP version 4. The IP address can set automatically via DHCP, or a static IP address can be set manually. To make FXI6 work properly, the user needs to set the DNS configuration properly. For security purposes, the user can also assign the FXI6 an HTTP Port other than 80
IP Address Configuration
The FXI6 operates in two modes:
Dynamically Assigned via DHCP – all the field values for the Static IP mode are not used. The FXI6 acquires its IP address from the first DHCP server it discovers on its LAN.
Statically Configured as – configures all of the following fields: IP address, Subnet Mask, Default Gateway IP address, DNS Server 1 (primary), DNS Server 2 (secondary). These fields are set to zero by default. Static IP addresses are recommended for the FXI6
DNS Configuration
There are two methods of DNS configuration on the FXI6:
1. The FXI6 can obtain the DNS server automatically
2. Users can configure their own preferred DNS server
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
19 | P a g e
HTTP Port
The FXI6 supports user configured http ports. If the HTTP port is changed, the port number is needed to access the web GUI, for instance: http://192.168.1.168:8080.
NOTE: If the HTTP Port is 80, when you add this device to Surveillance Software, the RTSP port is 554. If the HTTP Port is changed, when you add this device to Surveillance Software, please make sure the RTSP port number equals HTTP Port plus 2000.
DDNS Page
Dynamic DNS provides devices that have a variable, often changing IP address with a well-known hostname resolvable by network applications through standard DNS queries.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
20 | P a g e
Set up DDNS
1. Apply for a domain name from your service provider.
2. Login to the web configuration page, click Basic Settings > DDNS.
3. Enter the required information
DDNS Active – If you want to use DDNS, please set this field to “Enabled” . DDNS ISP Type – Select your DDNS ISP Type. Self-Define DDNS Address – Self-define the DDNS server instead of using DDNS ISP Type. Site Name – The DDNS name for your device. DDNS Account/ DDNS Password – The account and password from the DDNS Provider STUN Server – If the device is behind a router, a STUN server is needed to help penetrate
the NAT.
4. Click Save to save the changes. You might need to reboot the device to apply all the changes.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
21 | P a g e
SIP Page
The FXI6 has the ability to receive phone calls and make phone calls when an alarm event is triggered through motion detection or alarm input. Register the FXI6 to a SIP server to enable the product to make and receive phone calls. To make outgoing phone calls out, the user needs to configure the Phone List properly.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
22 | P a g e
Account Name
– The field configures the SIP account name.
SIP Server
– The SIP Server’s IP address or Domain name provided by your service provider.
Outbound Proxy
– The IP address or Domain name of the Outbound Proxy, Media Gateway, or Session Border Controller. Used for firewall or NAT penetration in different network environments. If the system detects a symmetric NAT, STUN will not work. ONLY outbound proxies can provide a solution for a symmetric NAT.
SIP User ID
– User account information provided by your service provider (ITSP); this is either an actual phone number or is formatted like one.
Authenticate ID
– The SIP service subscriber’s Authenticate ID used for authentication. It can be identical to or different from the SIP User ID.
Authenticate Password
– The SIP service subscriber’s account password for the GXV to register to the SIP server of the ITSP.
STUN Server
– If the device is behind a router, a STUN server is needed to help penetrate the NAT.
Stream
– To choose between Primary and Secondary stream.
Preferred Vocoder
– To choose different Vocoder type.
Registration Expiration
– This parameter allows users to specify the time frequency (in minutes) in which the GXV refreshes its registration with the specified registrar. The default interval is 60 minutes.
Local SIP Port
– This parameter defines the local SIP port used to listen and transmit. The default value is 5060. Local RTP Port – This parameter defines the local RTP-RTCP port pair that is used to listen and transmit. The default value is
5004.
Register FXI6 to a SIP Server
1. From the FXI6 home page, click Basic Settings > SIP.
2. Go to SIP Settings Tab.
3. General Phone Settings.
Registered – The field shows the registration status of the account with the SIP server.
Unregister On Reboot – If it’s checked, the SIP user’s registration information will be cleared
from the server when the phone reboots.
4. Enter the required information.
5. Click Save to save all the changes. You need to restart the device to apply all changes.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
23 | P a g e
Configure Phone List Page
To make sure the FXI6 can make phone calls to the number you preferred when alarm is triggered. You need to add number to the phone list.
Steps to add phone number:
1. From the FXI6 home page, click Basic Settings > SIP.
2. Go to Phone List Tab.
3. Enter the Phone number and name, click Add a Number to save all the changes.
4. Numbers added to the system will be listed in this page.
Status Page
System Statistics
System Statistics lists hardware and software information, for example, the part number, the software version, about the FXI6
Hardware Version – This field contains the product’s hardware information.
Part Number – This field contains the product part number information.
Bootloader Version – Bootloader code version number.
Core Version – Core code version number.
Base Version – Base code version number.
Firmware Version – Firmware code version number.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
24 | P a g e
System Up Time Since – This field shows the system up time since the last reboot.
Network Status
MAC Address – The device ID, in HEXADECIMAL format.
LAN IP Address – This field shows the LAN IP address of
the FXI6.
LAN Subnet Mask – This field shows the LAN subnet mask of the FXI6.
LAN Default Gateway – This field shows the LAN default gateway of the FXI6.
DDNS Status – This field shows the status of DDNS.
Camera Type
This section shows the sensor information of FXI6.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
25 | P a g e
FXI6 User Management Page
All current users will be list in the User List section of this page. You can also add and remove users here.
Existing User Name –The field lists all of the current users. You can insert or remove users from the list by click on the Add or Update or Delete button.
User Name / Password – The user name and password required to login.
Privilege – The privilege for the user to access to configuration page.
Allow Anonymous Login – If ‘Allow Anonymous Login’ is set to Yes, no user name and password are
required to login to the FXI6 web configuration pages. If you login anonymously, you will not be able to change any settings.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
26 | P a g e
FXI6 Maintenance Page
Server Maintenance
Restart – Click this button to restart the FXI6.
Restore – Click this button to perform a partial factory reset (The IP address will not be cleared).
Restore the Device
Click “Restore” to reset the camera to default factory setting, except IP Address.
Firmware Upgrade and Provisioning Items
Upgrade via – This field lets you choose the firmware upgrade method. The FXI6 supports
HTTP, HTTPS and TFTP.
Firmware Server Path – The IP address or domain name of the firmware server (the location of the firmware files) .
Automatic Upgrade Interval – Enter the frequency (in minutes) in which the HTTP/HTTPS/TFTP server will be checked for new firmware upgrades or configuration changes.
Automatic Upgrade – The default setting is “No.” Choose “Yes” to enable automatic. HTTP/HTTPS/TFTP upgrade and provisioning. When set to “No”, the IP Camera will only perform a HTTP/HTTPS/TFTP upgrade and perform a configuration check once during the boot process.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
27 | P a g e
Performing a firmware upgrade:
1. Download the firmware package from www.i-flashtech.com
2. Unzip the firmware package and copy the files to the firmware upgrade server directory. Upgrades are supported via TFTP, HTTP and HTTPS.
3. Log in to the Maintenance page of the FXI6. Select the server type from the dropdown list under the “Upgrade Via” field. Enter your server’s root directory in the “Firmware Server Path” field.
4. Reboot the FXI6 to begin the firmware upgrade process.
SMTP Page
The SMTP server is used to send out emails when alarm event or motion detection is triggered. The SMTP settings must be configured to make sure the alarm email is sent out properly.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
28 | P a g e
SMTP Server Settings
Enable SMTP – Checked to enable SMTP
SMTP Server – The IP or hostname of the SMTP server, for example,
smtp.gmail.com.
SMTP Server Port – The port of the SMTP server. The FXI6 supports port 25 and SSL port 465, which is for SMTP with an encrypted connection.
From E-Mail Address – The email address that sends out the alarm email(s).
To E-Mail Address – The email addresses that the alarm email(s) will be sent to. You can have up to 3 emails configured.
User Name/ Password – The user name and password required to log in to your SMTP server, for example, 123@gmail.com/123.
SSL – Checked if the SMTP server requires a secure connection.
Test Email Account Settings – Click the Test button to send a test email from the From E-Mail to the To E-Mail to make sure that SMTP is configured properly. If the receiver can get the test email, then the SMTP settings are ready to go.
FTP Page
The FTP server is used to store video files if you configure the FXI6 to record video and upload it to the FTP server when an alarm event or motion detection is triggered.
FTP Settings
Enable FTP – The default setting is “No,” if you want the FXI6 to upload the
recorded video to the FTP server when an alarm is triggered, set this field to “Yes.”
FTP Server – The IP address or hostname of the SMTP server, ie. ftp.myserver.com.
FTP Server Port – The port that your FTP server is using.
User Name / Password – The user name and password required to log into your FTP server
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
29 | P a g e
Path – The directory in the FTP server where recorded video will be uploaded.
Test FTP Account Settings – Click the Test button to upload a sample file to make sure that FTP is
properly configured.
PTZ Settings
This setting is not supported in FXI6
Alarm HTTP Server Settings
Server Name: input the Server Name
URL: input the Server IP Address
User Name & Password: input User Name & Password
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
30 | P a g e
Motion Detection Page
The FXI6 supports Motion Detection. To utilize this feature, please follow the below steps:
1. Setup the motion detection monitored area.
2. Configure the motion detection time schedule.
3. Configure alarm action properly.
Setup Motion Detection Monitored Area
Enable Motion Detection – If this option is selected, motion detection will be enabled. If
something/somebody moves in the motion detection region, an alarm will be triggered.
Show Motion Detection Regions – If this option is selected, the motion detection regions will be displayed on the screen with a white border.
To Edit a Monitored Area
1. In the Select a Region dropdown list, select the region ID.
2. Click Edit.
3. Click on the video, drag and draw you preferred area.
4. Set the Sensitivity. Click the Save button to save the sensitivity.
NOTE: The Sensitivity value varies from 0 to 100. The larger the value is, the higher the sensitivity.
5. Click Save to save the settings.
To Remove a Monitored Area
1. In the Select a Region dropdown list, select the region you would like to remove.
2. Click Remove.
3. Click Save to save the changes.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
31 | P a g e
Configure Motion Detection Time Schedule & Alarm Actions
This section allows you to configure the time during which the FXI6 will monitor the motion detection. The FXI6 not only can monitor your settings but also can take actions when the alarm is triggered.
i-Flash Technology Limited
Rm 1110, 11F, Fabrico Industrial Buildings, 78 Kwai Cheung Road, Kwai Chung, NT. Hong Kong
Web: Tel: Fax: Email:
PULSE FXI6 Series Installation Guide
32 | P a g e
FXI6 System Log
This page is used to set up the system log server path and system log level. Once they are correctly configured, the device will send out system log messages to the system log server, which will help perform troubleshooting.
Syslog Server – The IP address or URL of System log server.
Syslog Level – Select the device to report the log level. Default is None. The level is one of Debug, Info,
Warning or Error.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
