Pulse Connectors
Pulse is a leader in the design and manufacturing of RJ45, RJ11 and keystone jack CAT5e/6 connectors. Pulse offers an extensive
range of connectors that support a wide variety of applications, such as networking (SFP cage and connector), PC peripheral devices
(SATA, USB, IEEE 1394 connectors), telecommunications (IDC connector, patch panel), and consumer electronics (HDMI connector).
Pulse offers design support for OEM and ODM customers which reduces development time and ensures seamless integration of
design, development, production, and time-to-market.
With manufacturing sites throughout Asia and a global network of sales offices, Pulse understands the importance of performance
and time-to-market and provides excellent worldwide logistics and technical support for local and international customers.
For more information and detailed product data sheets, please go to our website at
http://www.pulseeng.com/connectors
or contact
your local Pulse sales representative.
Pulse Connector Attribute Search Instructions
A powerful “attribute” search tool is available on the Pulse website to help you find the connector you need. Just click on the
connector link on the landing page, choose the attributes you are looking for. A comparison list will be displayed. The following is a
three-step example on how to use this new search engine:
Step 1
Go to
http://www.pulseeng.com/connectors
on the Pulse website. This lands the user on the Connectors landing page. Browse the
products and the links. For this example, click on the text link below that says “USB Connectors (All PRODUCTS)” as shown here.
Step 2
After clicking the text link, you land on this page
(http://www.pulseeng.com/products/AttributeSearch.aspx?CID=6211)
. Shown
below is a replication of the attribute search for the USB Connectors, with various “attributes” selected. See white type on black
background. For the purpose of this example, continue with the USB TYPE A query by clicking a “SEARCH” button.
Yes, the user can pick another category to search other USB connector options.
40
www.pulseeng.com
G003.U (2/07)
USB Connectors
USB Connector Options (ALL PRODUCTS)
CONNECTOR PRODUCTS
Connector Products
G003.U (2/07)
www.pulseeng.com
41
CONNECTOR PRODUCTS
Step 3
Completing Step 2 will display a series of related connectors for part comparison, showing common and specific features. If there
are more than 3 or 4 results, a horizontal scroll bar appears at the bottom of the screen so that all of the search results are displayed.
Click on “Download Data Sheet” to review the product details or eliminate unwanted parts by clicking the “X” to make them disappear,
leaving the part number(s) that best fit(s) your connector requirements. Both maneuvers can be done in reverse order as needed.
SFP Cage and Connector for Servers and Routers
Part Number E81M0-VCYF83-L E81M0-TCYB91-L E81M0-WCYFEB-L SFPCAGE002-L SFPCAGE005-L
Number of Ports 1X1 2X1 1X4 1X1 1X1
Connector Type SFP Connector SFP Cage & Connector SFP Cage SFP Cage SFP Cage
Package SMT Press Fit Press Fit Press Fit THT
Solder Temperature
255°C to 265°C
⎯⎯⎯
255°C to 265°C
5-10 Seconds 5-10 Seconds
Contact Mating
Gold 15 µ" Gold 3 µ" ⎯⎯⎯
Area Plating
SMT - Surface Mount Package THT - Through Hole Package
Connector Products
42
www.pulseeng.com
G003.U (2/07)
CONNECTOR PRODUCTS
XFP Cage & Connector
Common Features
Number of Ports 1X1 1X1 1X1 1X1
PCB Mount Angle Side Entry Side Entry Side Entry Side Entry
Features
Part Number E81N0-YCUDF4-L XFP001-L XFP002-L XFP003-L
Connector Type XFP Connector XFP Cage XFP Cage XFP Cage
Contact Mating
GOLD 30 µ" ⎯⎯- ⎯
Area Plating
Package SMT Press Fit Press Fit Press Fit
Package Height
5.17 12.9 15.2 22.2
(mm)
SATA Connectors for Data Storage Interfaces
Common Features
Number of Ports 1X1 1X1 1X1 1X1
Solder Temperature
255°C to 265°C 255°C to 265°C 255°C to 265°C 255°C to 265°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
Features
Part Number E8177-71U914-L E8177-71W914-L E8177-71W924-L E8177-71W925-L
Contact Mating
GOLD 30 µ" GOLD 30 µ" GOLD 30 µ" GOLD 50 µ"
Area Plating
Package SMT SMT THT THT
PCB Mount Angle Side Entry Top Entry Top Entry Top Entry
HDMI (High Definition Media Interface) Connectors
Common Features
Number of Ports 1X1 1X1 1X1 1X1
PCB Mount Angle Side Entry Side Entry Side Entry Side Entry
Solder Temperature
255°C to 265°C 255°C to 265°C 255°C to 265°C 255°C to 265°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
Features
Part Number E810K-SB0G14-L E810K-SAY204-L E810K-SBY104-L E810K-SAY104-L
Package THT THT SMT SMT
Panel Stop NO YES NO YES
Contact Mating
Area Plating
Gold 30 µ" Gold 30 µ" Gold 30 µ" Gold 30 µ"
RJ Connectors, Single Port, Top Entry, No Shield
Part Number E5264-Y0L034-L E5288-300042-L E5244-7007S2-L E5266-7007S2-L E5288-P00B74-L E5288-7U0BS4-L
Number of Positions 6 8 4 6 8 8
Number of Contacts 4 8 4 6 8 8
Package THT THT SMT SMT SMT SMT
Panel Stop YES NO YES YES NO YES
Contact Mating
Gold 30 µ" Gold 6 µ" Gold 6 µ" Gold 6 µ" Gold 30 µ" Gold 30 µ"
Area Plating
Solder Temperature
230°C to 240°C 230°C to 240°C 255°C to 265°C 255°C to 265°C 255°C to 265° 255°C to 265°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
Connector Products
G003.U (2/07)
www.pulseeng.com
43
CONNECTOR PRODUCTS

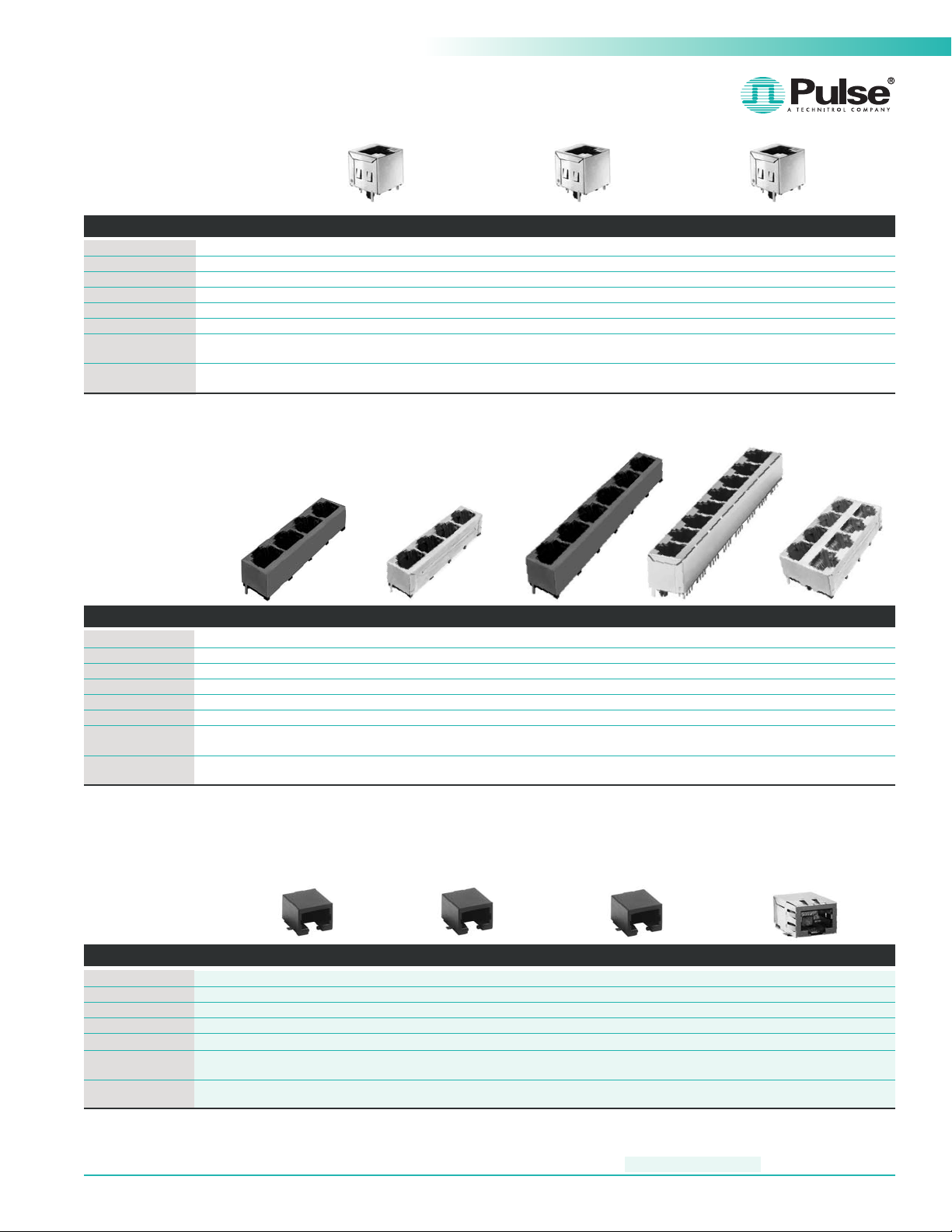

RJ Connectors, Single Port, Top Entry, Shielded
Part Number E5288-320045-L E5288-320B42-L E5288-RA0C04-L
Number of Positions 8 8 8
Number of Contacts 8 8 8
Package THT THT THT
Shield EMI Tabs YES YES NO
LED Option No LEDs No LEDs Yellow & Green
Contact Mating
Gold 50 µ" Gold 6 µ" Gold 30 µ"
Area Plating
Solder Temperature
230°C to 240°C 255°C to 265°C 230°C to 240°C
5-10 Seconds 5-10 Seconds 5-10 Seconds
RJ Connectors, Multiport,Top Entry
Part Number E5288-30C142-L E5288-32C142-L E5288-30E145-L E5288-32G142-L E5288-YCCB02-L
Number of Positions 8 8 8 8 8
Number of Contacts 8 8 8 8 8
Number of Ports 1X4 1X4 1X6 1X8 2X4
Package THT THT THT THT THT
Shield Option No Shield Nickel Shield No Shield Nickel Shield Nickel Shield
Contact Mating
Gold 6 µ" Gold 6 µ" Gold 50 µ" Gold 6 µ"
Gold 6 µ"
Area Plating
Solder Temperature 230°C to 240°C 230°C to 240°C 230°C to 240°C 230°C to 240°C 230°C to 240°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
RJ Connectors, Single Port, Side Entry, Surface Mount (SMT)
Part Number E5344-HH05Y2-L E5366-FH05Y2-L E5388-EH05Y2-L E5388-UH05V5-L
Number of Positions 4 6 8 8
Number of Contacts 4 6 8 8
Tab Down Down Down Down
Shield Option No Shield No Shield No Shield Nickel Shield
Contact Mating
Gold 6 µ" Gold 6 µ" Gold 6 µ" Gold 50 µ"
Area Plating
Solder Temperature
255°C to 265°C 255°C to 265°C 255°C to 265°C 255°C to 265°C
5-10 Seconds 5-10 Second 5-10 Seconds 5-10 Seconds
SMT - Surface Mount Package THT - Through Hole Package
Connector Products
44
www.pulseeng.com
G003.U (2/07)
CONNECTOR PRODUCTS
RJ Connectors, Single Port Side Entry, Through Hole (THT)
Part Number E5344-000012-L E5564-60L122-L E5388-E00212-L E5908-000042-L E5908-150742-L
Number of Positions 4 6 8 10 10
Number of Contacts 4 4 8 8 8
Tab Down Up Down Down Down
Shield Option No Shield No Shield No Shield No Shield Nickel Shield
Contact Mating
Gold 6 µ" Gold 6 µ" Gold 6 µ" Gold 6 µ" Gold 6 µ"
Area Plating
Solder Temperature
230°Cto 240
°C
230°Cto 240
°C
230°Cto 240
°C
230 to 240
°C
230°Cto 240
°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
RJ Connectors, Multi-Port, 1XN, Side Entry, Through Hole (THT)
Part Number E5608-00A0R4-L E5608-00C082-L E5908-15C344-L E5908-15G642-L
Number of Positions 10 10 10 10
Number of Contacts 8 8 8 8
Number of Ports 1X2 1X4 1X4 1X8
Tab Down Down Down Down
Shield Option No Shield No Shield Nickel Shield Nickel Shield
Contact Mating
Gold 30 µ" Gold 6 µ" Gold 30 µ" Gold 6 µ"
Area Plating
Solder Temperature
230°Cto 240
°C
230°Cto 240
°C
230 to 240
°C
230°Cto 240
°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
RJ Connectors, Multi-Port, 2XN, Side Entry, Through Hole (THT)
Part Number E5908-5V0145-L E5908-5VA144-L E5966-57C122-L E5908-5VC153-L E5908-0TG0U4-L
Number of Positions 10 10 6 10 10
Number of Contacts 8 8 6 8 8
Number of Ports 2X1 2X2 2X4 2X4 2X8
Shield Option Nickel Shield No Shield Nickel Shield Nickel Shield No Shield
Contact Mating
Gold 50 µ" Gold 30 µ" Gold 6 µ" Gold 15 µ" Gold 30 µ"
Area Plating
Solder Temperature
230°C to 240°C 230°C to 240°C 230°C to 240°C 255°C to 265°C 230°C to 240°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
SMT - Surface Mount Package THT - Through Hole Package
Connector Products
G003.U (2/07)
www.pulseeng.com
45
CONNECTOR PRODUCTS
RJ Connectors, Side Entry with LEDs,Through Hole (THT)
Part Number E5J88-10L054-L E5J88-34L022-L E5J88-44AJ22-L E5J88-14C022-L E5J88-A4A0B4-L E5J88-C4C2B5-L
Number of Positions 8 8 8 8 8 8
Number of Contacts 8 8 8 8 8 8
Number of Ports 1X1 1X1 1X2 1X4 2X2 2X4
LED Option Yellow & Green Green & Yellow
Green/Yellow
Yellow & Green Green & Green Green & Yellow
& Green/Yellow
Tab Up U p U p U p ⎯⎯
Shield Option No Shield Nickel Shield Nickel Shield Nickel Shield Nickel Shield Nickel Shield
Contact Mating
Gold 30 µ" Gold 6 µ" Gold 6 µ" Gold 6 µ" Gold 30 µ" Gold 50 µ"
Area Plating
Solder Temperature
230°C to 240°C 230°C to 240°C 255°C to 265°C 230 to 240°C 230°C to 240°C 230°C to 240°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
RJ Connectors, CAT. 5,Through Hole (THT)
Part Number E6588-220722-L E6588-12A125-L E6588-22C324-L E6588-A5M125-L E6588-A5N125-L E6588-AARSA4-L
Number of Positions 8 8 8 8 8 8
Number of Contacts 8 8 8 8 8 8
Number of Ports 1X1 1X2 1X4 2X1 2X2 2X4
LED Option No LEDs No LEDs No LEDs No LEDs No LEDs Green & Yellow
Shield Option Nickel Shield Nickel Shield Nickel Shield Nickel Shield Nickel Shield Nickel Shield
Contact Mating
Gold 6 µ" Gold 50 µ" Gold 30 µ" Gold 50 µ" Gold 50 µ" Gold 30 µ"
Area Plating
Solder Temperature
230°C to 240°C 230°C to 240°C 255°C to 265°C 230°C to 240°C 230°C to 240°C 230°C to 240°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
USB Connectors
Part Number E8144-A01321-L E8144-K1B024-L E8144-B01021-L E828B-2201P2-L
Connector Type USB Type A USB Type A USB Type B
RJ45 over Dual
USB Type A
Number of Ports 1X1 2X1 1X1 3X1
PCB Mount Angle Side Entry Side Entr y Side Entry Side Entry
Shield Plating
Nickel Tin Nickel Nickel
Material
Connector Material
White Black Black Black
Color
Contact Mating
Gold 3 µ" Gold 30 µ" Gold 3 µ" Gold 6 µ"
Area Plating
Solder Temperature
230°C to 240°C 230°C to 240°C 230°C to 240°C 230°C to 240°C
5-10 Seconds 5-10 Seconds 5-10 Seconds 5-10 Seconds
SMT - Surface Mount Package THT - Through Hole Package
