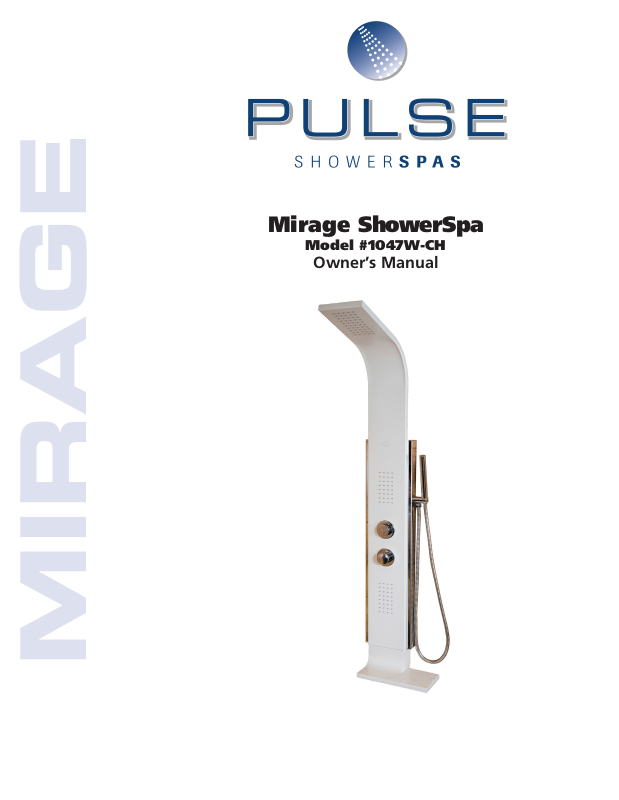

PULSE 1047W-CH User Manual

Mirage ShowerSpa

Model #1047W-CH

Owner’s Manual

MIRAGE

Mirage ShowerSpa Model 1047W-CH

Please Read The Following Instructions

C O M P L E T E LY Before Beginning!

Our goal is to ensure your installation goes smoothly and safely. Please read these instruc­tions carefully and follow recommendations for plumbing and mounting. After reading

instructions, if you determine you do not have the necessary skills and/or tools, we
recommend that a licensed plumbing contractor complete the installation.

If you encounter any problems during installation

CALL TECHNICAL SUPPORT

TOLL FREE at 888-785-7320

Before returning your ShowerSpa to the store

You Will Need The Following Tools

Soft pencil or felt pen to mark tile

4mm allen wrench

Safety glasses

Tape measure

Level

Reciprocating saw w/metal cutting blade (Sawzall®)

Channel locks or adjustable wrench

Drill (Preferably cordless)

¼" Masonry drill bit

Phillips screwdriver

2

2.76 in

11.81 in

Product Dimensions

450 mm

17.72 in

Measured
To Top
Of Mount
Bracket

1350 mm

53.15 in

850 mm

33.46 in

500 mm

19.69 in

480 mm

18.90 in

320 mm

12.60 in

885 mm

34.84 in

750 mm

29.53 in

Measured
To Top
Of Mount
Bracket

280 mm

11.02 in

160 mm

6.3 in
300 mm

70 mm

3

Parts Legend

1. ShowerSpa

2. Hand Shower

3. Rubber Washer......7(4 extra)

4. Hand Shower Holder

5. Hand Shower Hose

6. Diverter Control

7. Thermostatic Valve

8. Shelf

9. Wall Mount Bracket ...........2

10. Nylon Wall Anchor .............4

11. Mounting Screw .................4

12. Shelf Mounting Screw .......4

13. Washer ................................4

14. Shelf Mounting Nut ...........4

15. Hand Shower Holder Nut

16. Large Washer

4

Assembly

After unpacking your ShowerSpa, some assembly is required prior to installation.

Shelf Assembly (optional)

1. Line up screw holes located on bottom of ShowerSpa with screw holes located on top of shelf (8) and place screws (12) in holes.

2. Secure washer (13) and nut (14) to each screw (12).

Hand Shower Holder Assembly

1. Insert hand shower holder (4) into hole located on side of ShowerSpa and secure with washer (16) and nut (15).

2. Secure nut (15) with adjustable wrench if needed.

3. Connect hand shower supply line from diverter to hand shower holder. Securely tighten to ensure no leaks. (Caution - do not overtighten)

After ShowerSpa is mounted to the wall

Hand Shower Assembly

1. Insert washer (3) into hexagon shaped end of hand shower hose (5) and attach to threaded outlet on bottom of ShowerSpa. Do not over­tighten.

2. Insert washer (3) into tapered end of hand shower hose (5) and attach to hand shower (2). Insert hand shower into holder (4).

Installation – New Construction

Extensive Remodel – New Finished Wall Surface

1. Prior to sheetrock, stub-out ½" hot and cold supply lines beyond
finished wall surface, 4" on center. For best results, attach 90°
brass fittings (available at most hardware stores) to the stub-outs
maintaining ¼" – ½" of space between the fitting and finished
wall. The open end of the 90° brass fittings should point down so
the ShowerSpa's supply lines attach parallel to wall. 1

2. For a person 5'8" – 6'2" we recommend stub-outs be 44" above
finished floor.

3. Before installation, make certain water is COMPLETELY TURNED
OFF to both hot & cold supply lines of shower.

4a. Mark location of holes for top mount, making sure holes are

level. For a person 5'8" – 6'2", we recommend placing holes of
upper mount at approx. 61 ¼" above finished floor.

4b. To determine location for lower mount measure distance

between indents on bottom edge of horizontal mounting bars
on back of ShowerSpa (approx. 27 ¾"). Using this distance,
measure down from holes in upper mount to obtain location of
holes in lower mount making certain mounts are plumb.

2

3

4c. Use mounts to mark location of holes for each mount.

5. Before drilling holes, make certain that connecting to stub-outs
DOES NOT INTERFERE with backside of ShowerSpa and it is flush
with finished wall at desired mounting height.

6. Drill ¼" holes through wall surface using a masonry bit. Drill
slowly through wall surface to avoid cracking and chipping. Insert
anchors and securely screw brackets to wall. Before connecting
hot and cold supply lines, hang ShowerSpa on wall, check height
and make sure ShowerSpa is flush against wall with a secure fit.

7. Connect hot and cold water supply lines to stub-outs—DO NOT
OVERTIGHTEN. Before mounting ShowerSpa, check fittings to
make sure they are secure. Turn on water and check for leaks.
When fittings are leak-free, mount ShowerSpa on wall.

8. OPTIONAL—Seal around body of ShowerSpa with a bead of
silicone. DO NOT SEAL BOTTOM.

2

5

Retrofit – Existing Shower Replacement

NOTE—In a remodel in which you are not replacing the finished wall surface (tile, or backing material) it is advisable to purchase a PULSE

ShowerSpa model that covers the location of your existing valve assembly—either single handle or two-handle type. If your PULSE
ShowerSpa model does not cover this area, you will need to either choose another PULSE ShowerSpa model that does or make necessary
repairs with appropriate materials (i.e. wallboard, tile, fiberglass, etc).

1. TURN OFF WATER SUPPLY TO SHOWER. Typically there is a gate
valve where the water main enters the house. Turning the water
valve off at hot water tank does not turn off cold water supply
line.

2. Make certain water is completely turned off to both hot & cold
supply lines of shower. Turn shower valve on, both hot and cold,
to VERIFY WATER SUPPLY IS OFF. Open a sink faucet in the
bathroom in which you are installing ShowerSpa to relieve any
pressure and help adequately drain shower supply lines.

3. Remove handle(s) and trim cover(s) of your existing shower valve,
exposing valve body in wall.

4. Locate hot and cold supply lines entering valve. Using a
reciprocating saw with sharp metal saw blade, cut existing
valve out, preserving threads of supply lines entering valve. You
should also cut riser within wall supplying existing shower head.
Carefully twist and remove valve.

5. Unscrew old shower head from shower arm, then unscrew
shower arm from wall.

6. Water lines must be extended to outside of wall cavity, 4" on
center. For best results, attach 90° fittings (available at most
hardware stores) to the stub-outs maintaining ¼" – ½" of space
between fitting and finished wall. The open end of 90° fittings
should point down so supply lines attach parallel to wall.

1

7a. Mark location of holes for top mount, making sure holes are

level. For a person 5'8" – 6'2", we recommend placing holes of
upper mount at approx. 61 ¼" above finished floor.

2

7b. To determine location for lower mount measure distance

between indents on bottom edge of horizontal mounting bars
on back of ShowerSpa (approx. 27 ¾"). Using this distance,
measure down from holes in upper mount to obtain location of
holes in lower mount making certain mounts are plumb.

7c. Use mounts to mark location of holes in each mount.

8. Before drilling holes, make certain connecting to stub-outs DOES
NOT INTERFERE with backside of ShowerSpa and it is flush with
finished wall at desired mounting height.

3

9. Drill ¼" holes through wall surface using masonry bit. Drill slowly
through wall surface to avoid cracking and chipping. Insert
anchors and securely screw brackets to wall. Before connecting
hot and cold supply lines, hang ShowerSpa on wall, check height
and make sure ShowerSpa is flush against wall with a secure fit.

10. Connect hot and cold water supply lines to stub-outs—DO NOT
OVERTIGHTEN. Before mounting ShowerSpa, check fittings to
make sure they are secure. Turn on water and check for leaks.
When fittings are leak-free, mount ShowerSpa on wall.

11. OPTIONAL—Seal around body of ShowerSpa with a bead of
silicone. DO NOT SEAL BOTTOM.

1

Additional fittings or longer supply lines may be necessary depending on your specific situation.

2

The mounting height can vary depending on several factors (i.e. location of supply lines, interference from ShowerSpa plumbing, old valve access area,

personal preference, etc.)

3

The desired mounting height of ShowerSpa determines, or is determined by location of the ½" stub-outs.

6

Usage

Thermostatic Mixing Valve

The Mirage ShowerSpa comes equipped with a thermostatic mixing valve to safely control water temperature.
Once you set the knob to the desired operating temperature, the thermostatic mixing valve will regulate the
temperature, keeping it constant even when water pressure drops inside the plumbing lines (i.e. someone
flushes a toilet, etc.).

The button on the knob points to the current water temperature. Rotate the knob counter-clockwise to increase
temperature or clockwise to decrease temperature. Anti-scald technology is provided by limiting temperature to
38°C/100°F unless the button on the knob is pressed. To increase the temperature beyond 38°C/100°F, press the
button and continue turning counter-clockwise. Each time you revisit your ShowerSpa, allow the water to reach
operating temperature before entering the shower.

Brass Diverter

The brass diverter is used to change between ShowerSpa functions. Simply rotate the diverter knob either
direction to select the desired function—shower head, hand shower, or body jets.

Hand Shower

The brass hand shower has a sleek wand-shaped design that delivers a satisfying power-spray pattern with a

1.5M - 1.8M stainless steel stretch hose.

Body Jets

There are two single-function jets with silicone tips for rub clean, Spray-Straight™ performance.

Care and Maintenance

Always blot dry any water from the surface of your ShowerSpa. To protect your ShowerSpa from hard water
stains and mineral deposits, use an auto spray wax periodically and wipe down your ShowerSpa after each use.
Allowing water to evaporate on the surface can lead to a buildup of mineral deposits. Cleaning with a damp,
non-abrasive sponge and drying with a clean soft cloth should help keep your ShowerSpa looking beautiful.
Showerhead, handshower, and body jets have silicone rubber tips that should be rubbed periodically to help
break up any mineral deposits. This will ensure long lasting, Spray-Straight™ performance.

REMEMBER

Never use any abrasives or harsh cleaners!

Clean with mild soap and water ONLY!

To keep your ShowerSpa in pristine condition,

DRY AFTER EACH USE!

7

Manufacturer’s Limited Warranty

PULSE ShowerSpas, Inc. warrants that all ShowerSpas are free from de­fect in workmanship and/or materials for a period of three years from
the date of purchase. This warranty extends to the original purchaser
only and is non-transferable.

This warranty does not cover, and PULSE ShowerSpas will not pay for
any conditions, malfunctions or damages resulting from (1) normal
wear and tear, improper installation (whether performed by a contrac­tor, a service company or the consumer), improper maintenance, mis­use, abuse, negligence, accident or alteration; (2) the use of abrasive,
caustic or “no-rinse” cleaning agents; (3) the use of the product in any
manner contrary to the product instruction; (4) any condition in the
home such as excessive water pressure or corrosion.

Should any ShowerSpa be determined by PULSE ShowerSpas, Inc.
to be defective in normal residential use, at the option of PULSE
ShowerSpas, Inc., such product shall either be replaced or repaired
and returned to the customer free of defects. The consumer shall give
notice of any defects to PULSE ShowerSpas, Inc. within thirty days of
discovery of such defect.

Proof of purchase (original sales receipt) must be provided to PULSE
ShowerSpas, Inc. with all warranty claims.

PULSE ShowerSpas, Inc. is not responsible for any labor charges,
removal charges, installation or other consequential costs. In no event
shall the liability of PULSE ShowerSpas, Inc. exceed the purchase price
of the ShowerSpa.

Some states/provinces do not allow limitations of how long an implied
warranty lasts or the exclusion or limitation of such damages, so these
limitations and exclusions may not apply to you. This warranty gives
the consumer specific legal rights. You may also have other rights that
vary by state/province.

Follow manufacturers recommended installation. Use caution with
children under ten years of age. Do not use ShowerSpa as a support
device. Do not use harsh chemicals or abrasives when cleaning. Turn
water supply off when servicing your ShowerSpa.

Pulse ShowerSpas, Inc. ~ 297 Anna Street ~ Watsonville, CA 95076 ~ 888.785.7320

[e-mail] ~ www.pulseshowerspas.com ~ [e-mail]

Part #1047W-CH-OM-ENG Rev. Y2014-12-09
