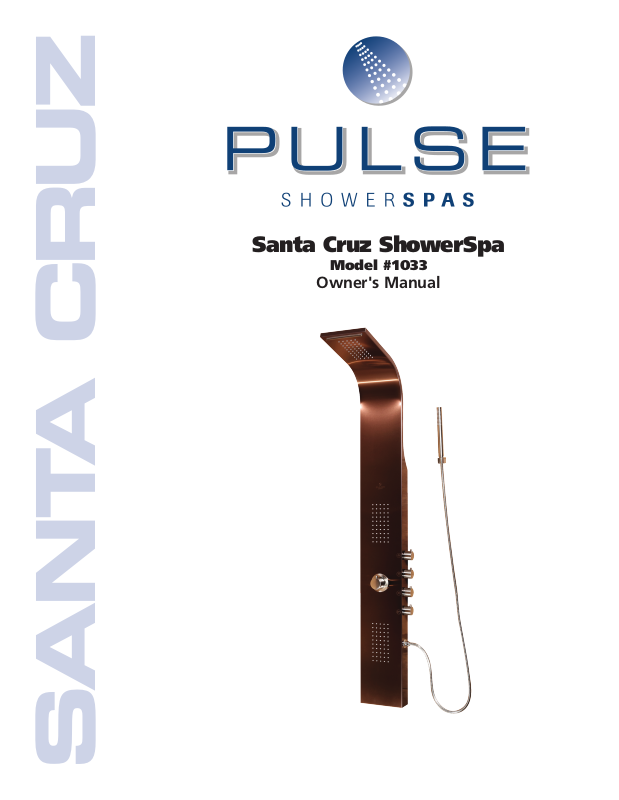

Santa Cruz ShowerSpa
Model #1033
Owner's Manual
S A N TA C R U Z
Santa Cruz
ShowerSpa Model #1033
Please Read The Following Instructions
COMPLET E LY Before Beginning!
Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading
instructions, if you determine you do not have the necessary skills and/or tools,
we recommend that a licensed plumbing contractor complete the installation.
If you encounter any problems during installation
CALL TECHNICAL SUPPORT
TOLL FREE at 888-785-7320
Before returning your ShowerSpa to the store
You Will Need The Following Tools
Soft pencil or felt pen to mark tile
Safety glasses
Tape measure
Level
Reciprocating saw w/ metal cutting blade (Sawzall®)
Channel locks or adjustable wrench
Drill (Preferably cordless)
¼" Masonry drill bit
2
Stub-Out Location
3
Parts Legend
1. ShowerSpa
2. Hand Shower
3. Rubber Washer .............. (6)
(3 extra)
4. Hand Shower Hose
5. Hand Shower Holder
6. Mounting Screw ............ (6)
7. Nylon Anchor .................(6)
8. Mount Bracket ...............(2)
9. Hand Shower Hose Outlet
10. Thermostatic Valve
11. Diverter Knobs
4
Assembly
After installing your ShowerSpa, some assembly is required
Hand Shower Holder Installation
1. Locate the desired mounting location of the hand shower holder (6) and mark the holes. For best results, mount the hand shower
holder on the same side as the hand shower hose outlet (9).
2. Drill ¼" holes through wall surface using a masonry bit. Drill slowly through wall surface to avoid cracking and chipping.
3. Make certain the opening in the hand shower holder (5) tapers toward the floor when you mount it to the wall. Insert anchors (7)
into holes in wall and securely tighten hand shower holder to wall with mounting screws (6).
Connecting The Hand Shower
1. Insert washer (3) into hexagon shaped end of hand shower hose (4) and attach to threaded outlet on bottom of ShowerSpa. Do
not overtighten.
2. Insert washer (3) into tapered end of hand shower hose (4) and attach to hand shower (2). Insert hand shower into holder.
Installation – New Construction
Extensive Remodel – New Finished Wall Surface
1. Prior to sheetrock, stub-out ½" hot and cold supply lines
beyond finished wall surface, 3" on center. For best results,
attach 90° brass fittings (available at most hardware stores)
to the stub-outs maintaining ¼" – ½" of space between the
fitting and finished wall. The open end of the 90° brass fittings should point down so the supply lines attach parallel
to the wall.1
2. The height of the stub-outs is completely dependent upon
the desired mounting height of your Santa Cruz ShowerSpa.
For a person 5'8" – 6'2" we recommend the stub-outs be 38"
from finished floor.
3. Before installation, make certain that water is completely
turned off to both hot & cold supply lines of the shower.
4. Mark location of holes for the mounting brackets, making
sure holes are plumb. For a person 5'8" – 6'2" tall, we recommend placing the holes of the upper bracket at 59¼" from
finished floor height.3 From the upper bracket holes, measure downfor location of the lower bracket holes (approx.
33½").
2
NOTE—Before drilling holes for the brackets, make certain the
Showerspa will rest flat against finished wall surface at the
desired mounting height with the supply lines connected.
5. Drill ¼" holes through wall surface using a masonry bit. Drill
slowly through wall surface to avoid cracking and chipping.
Insert anchors and securely screw brackets to wall. Before
connecting hot and cold supply lines, hang ShowerSpa on
wall, check the height and make sure ShowerSpa is flush
against wall with a secure fit.
6. Connect hot and cold water supply lines to stub-outs—
DO NOT OVERTIGHTEN. Before mounting the ShowerSpa,
check fittings to make sure they are secure. Turn on water
and check for leaks. When fittings are leak-free, mount
ShowerSpa on wall.
7. OPTIONAL—Seal around body of ShowerSpa with a bead of
silicone. DO NOT SEAL BOTTOM.
1
Additional fittings or longer supply lines may be necessary depending on your specific situation.
2
The desired mounting height of ShowerSpa determines height of the ½" stub-outs. The stub-outs must be located at a height allowing
supply lines to be connected and body of ShowerSpa to rest flat against finished wall.
3
The mounting height may vary depending on several factors (i.e. location of supply lines, interference from ShowerSpa plumbing, old valve
access area, personal preference, etc.)
5
Installation – Retrofit
Existing Shower Replacement
NOTE—In a remodel in which you are not replacing the finished
wall surface (tile, or backing material) it is advisable to purchase a PULSE ShowerSpa model that covers the location of
existing valve assembly—either single handle or two-handle
type. If your PULSE ShowerSpa model does not cover this
area, you will need to either choose another PULSE ShowerSpa model that does or make necessary repairs with appropriate materials (i.e. wallboard, tile, fiberglass, etc).
1. TURN OFF WATER SUPPLY TO SHOWER. Typically there is a
gate valve where the water main enters the house. Turning
the water valve off at hot water tank does not turn off cold
water supply line.
2. Make certain that water is completely turned off to both the
hot & cold supply lines of the shower. Turn shower valve on,
both hot and cold, to verify water supply is OFF. Open a sink
faucet in the bathroom in which you are installing the ShowerSpa to relieve any pressure and help adequately drain the
shower supply lines.
3. Remove handle(s) and trim cover(s) of your existing valve
exposing valve body in wall.
4. Locate hot and cold supply lines entering valve. Using a
reciprocating saw with sharp metal saw blade, cut existing
valve out, preserving threads of the supply lines entering
valve. You should also cut the riser within wall supplying the
existing showerhead. Carefully twist and remove valve.
5. Unscrew old showerhead from shower arm and then unscrew shower arm from the wall.
6. Water lines must be extended outside of wall cavity, 3" on
center. For best results, attach 90° brass fittings (available at
most hardware stores) to the stub-outs maintaining ¼" – ½"
of space between the fitting and finished wall. The open
end of the 90° brass fittings should point down so the supply
lines attach parallel to the wall.
4
7. Make certain that when you connect to the stub-outs they
DO NOT INTERFERE with the backside of the ShowerSpa
after mounting.
5
8. Mark location of holes for the mounting brackets, making sure holes are plumb. For a person 5'8" – 6'2" tall, we
recommend placing the holes of the upper bracket at 59¼"
from finished floor height.3 From the upper bracket holes,
measure down 33½" for location of the lower bracket holes.
Before drilling holes for the brackets, make certain the
Showerspa will rest flat against finished wall surface at the
desired mounting height with the supply lines connected.
9. Drill ¼" holes through wall surface using a masonry bit. Drill
slowly through wall surface to avoid cracking and chipping.
Insert anchors and securely screw brackets to wall. Before
connecting hot and cold supply lines, hang the ShowerSpa
on wall, check the height and make sure the ShowerSpa is
flush against the wall with a secure fit.
10. Connect hot and cold water supply lines to stub-outs—
DO NOT OVERTIGHTEN. Before mounting the ShowerSpa,
check fittings to make sure they are secure. Turn on water
and check for leaks. When fittings are leak-free, mount
ShowerSpa on wall.
11. OPTIONAL—Seal around body of ShowerSpa with a bead of
silicone. DO NOT SEAL BOTTOM.
3
The mounting height may vary depending on several factors (i.e. location of supply lines, interference from ShowerSpa plumbing, old valve
access area, personal preference, etc.)
4
Additional fittings or longer supply lines may be necessary depending on your specific situation.
5
The mounting height can vary depending on several factors (i.e. location of supply lines, old valve access area, interference from ShowerSpa
plumbing, personal preference, etc).
6
Usage
Thermostatic Mixing Valve
The Santa Cruz ShowerSpa is equipped with a thermostatic mixing valve to safely control water
temperature. Once you set the desired operating temperature, the thermostatic mixing valve will
maintain the temperature, keeping it constant even when water pressure drops inside the plumbing lines
(i.e. someone flushes a toilet).
The safety button on the valve handle points to the current water temperature. Rotate handle counterclockwise to increase temperature or clockwise to decrease temperature. Temperature is limited to
38°C/100°F unless the safety button is de-pressed allowing the handle to rotate further counterclockwise.
Brass Diverter
The Santa Cruz ShowerSpa offers independent control of each function. Water pressure can be directed
to a single function or split between the different functions via the four diverter control handles (located
on the side of the ShowerSpa). The four functions are rain showerhead, waterfall showerhead, hand
shower, and body jets. To turn a function on, rotate the respective diverter handle towards you. To turn
the ShowerSpa off, rotate all diverter handles to the upright position and leave thermostatic mixing valve
at desired temperature.
Showerheads
There are two separate showerhead functions each controlled independently with a diverter control
handle. You may concentrate all pressure to one function or share between the two. The rain
showerhead provides a relaxing feel of soft rain while the waterfall showerhead is a drenching cascade of
water.
Hand Shower
The hand shower has a single power-spray pattern that can be used alone or in combination with any of
the other ShowerSpa functions.
Body Jets
Two oversized body sprays can be enjoyed as a single function or in tandem with other ShowerSpa
functions.
Please Note - when sharing multiple functions pressure and performance will be compromised.
Care and Maintenance
Always blot dry any water from the surface of your ShowerSpa. To help protect your ShowerSpa
from hard water stains and mineral deposits, use an auto spray wax periodically and wipe down your
ShowerSpa after each use. Allowing water to evaporate on the surface can lead to a buildup of mineral
deposits. Cleaning with a damp, nonabrasive sponge and drying with a clean soft cloth should help keep
your ShowerSpa looking beautiful.
REMEMBER
NEVER use any abrasives or harsh cleaners!
Clean with mild soap and water ONLY!
To keep your ShowerSpa in pristine condition,
DRY AFTER EACH USE!
7
Manufacturer’s Limited Warranty
PULSE ShowerSpas, Inc. warrants that all ShowerSpas are free
from defect in workmanship and/or materials for a period of
three years from the date of purchase. This warranty extends to
the original purchaser only and is non-transferable.
This warranty does not cover, and PULSE ShowerSpas will not pay
for any conditions, malfunctions or damages resulting from (1)
normal wear and tear, improper installation (whether performed
by a contractor, a service company or the consumer), improper
maintenance, misuse, abuse, negligence, accident or alteration;
(2) the use of abrasive, caustic or “no-rinse” cleaning agents; (3)
the use of the product in any manner contrary to the product
instruction; (4) any condition in the home such as excessive water
pressure or corrosion.
Should any ShowerSpa be determined by PULSE ShowerSpas,
Inc. to be defective in normal residential use, at the option of
PULSE ShowerSpas, Inc., such product shall either be replaced or
repaired and returned to the customer free of defects. The consumer shall give notice of any defects to PULSE ShowerSpas, Inc.
within thirty days of discovery of such defect.
Proof of purchase (original sales receipt) must be provided to
PULSE Shower Spas, Inc. with all warranty claims. PULSE ShowerSpas, Inc. is not responsible for any labor charges, removal
charges, installation or other consequential costs. In no event
shall the liability of PULSE ShowerSpas, Inc. exceed the purchase
price of the ShowerSpa.
Some states/provinces do not allow limitations of how long an
implied warranty lasts or the exclusion or limitation of such damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may
also have other rights that vary by state/province.
Follow manufacturers recommended installation. Use caution
with children under ten years of age. Do not use ShowerSpa as
a support device. Do not use harsh chemicals or abrasives when
cleaning. Turn water supply off when servicing your ShowerSpa.
Pulse ShowerSpas, Inc. ~ 297 Anna Street ~ Watsonville, CA 95076 ~ 888.785.7320
info@pulseshowerspas.com ~ www.pulseshowerspas.com ~ support@pulseshowerspas.com
Part #1033-OM-ENG Rev. Y2015-01-30
