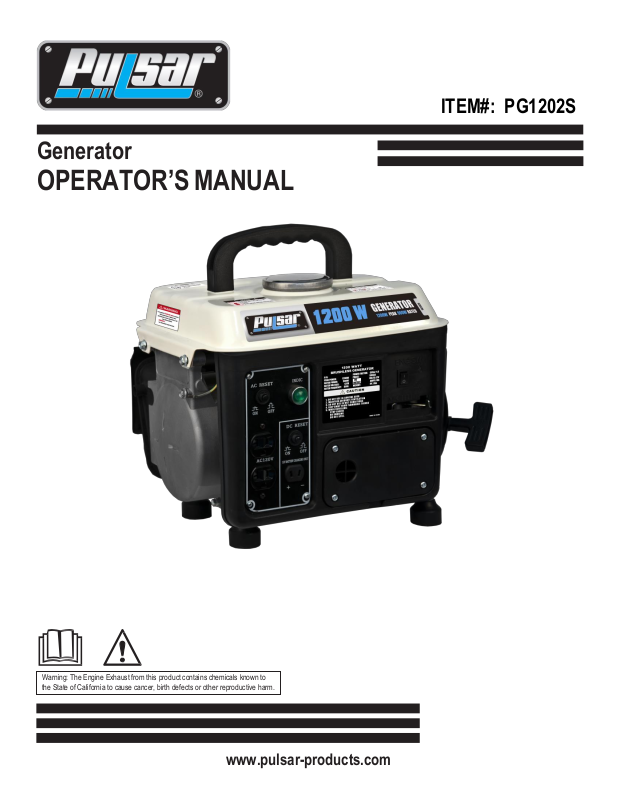

Generator
OPERATOR’S MANUAL
ITEM#: PG1202S
www.pulsar-products.com
PG1202S MANUAL
Contents
ITEM#: PG1202S ................................................................................................................................................. 1
INTRODUCTIONS .................................................................................................................................................. 1
Product Specifications: ................................................................................................................................ 1
How to contact us: ....................................................................................................................................... 1
SAFETY RULES ...................................................................................................................................................... 2
Safety Symbols ............................................................................................................................................. 2
Safety Instructions ....................................................................................................................................... 2
FEATURES ............................................................................................................................................................. 5
ASSEMBLY ............................................................................................................................................................ 6
Unpacking .................................................................................................................................................... 6
Packing List .................................................................................................................................................. 6
Installing the Handle .................................................................................................................................... 6
Grounding the Generator ............................................................................................................................ 7
How to Start Engine ..................................................................................................................................... 7
OPERATION .......................................................................................................................................................... 9
How to Stop Engine...................................................................................................................................... 9
Receptacles and Extension Cords ................................................................................................................ 9
Extension Cord Selection ........................................................................................................................... 10
Moving the Generator ............................................................................................................................... 10
Don’t Overload Generator ......................................................................................................................... 11
Power Management .................................................................................................................................. 12
Cold Weather Operation ............................................................................................................................ 12
MAINTENANCE .................................................................................................................................................. 13
Pre-Operation Steps ................................................................................................................................... 13
After Each Use ............................................................................................................................................ 13
Maintenance Schedule .............................................................................................................................. 13
Air Filter ..................................................................................................................................................... 14
Checking Spark Plug ................................................................................................................................... 14
Draining Fuel Tank and Carburetor ............................................................................................................ 14
Draining the fuel tank ................................................................................................................................ 14
Draining the carburetor ............................................................................................................................. 14
Storage and Transportation of the Generator: ......................................................................................... 14
Engine Long Term Storage: ........................................................................................................................ 14
DIAGRAMS ......................................................................................................................................................... 15
TROUBLESHOOTING .......................................................................................................................................... 16
WARRANTY ........................................................................................................................................................ 17
Pulsar Products Inc Limited 1 Year Warranty: ........................................................................................... 17
Length of Warranty: ................................................................................................................................... 17
Consumer Responsibilities: ........................................................................................................................ 17
What this Warranty Does Not Cover: ........................................................................................................ 18
Where Warranty is Valid: ........................................................................................................................... 18
How to Obtain Warranty Service: .............................................................................................................. 18
SPECIFICATIONS ................................................................................................................................................. 19
DIMENSIONS .............................................................................................................................................. 19
PG1202S MANUAL
ENGINE ....................................................................................................................................................... 19
GENERATOR .............................................................................................................................................. 19
PARTS LIST ......................................................................................................................................................... 20
Cylinder Head System Assy ........................................................................................................................ 21
Cylinder Barrel ........................................................................................................................................... 22

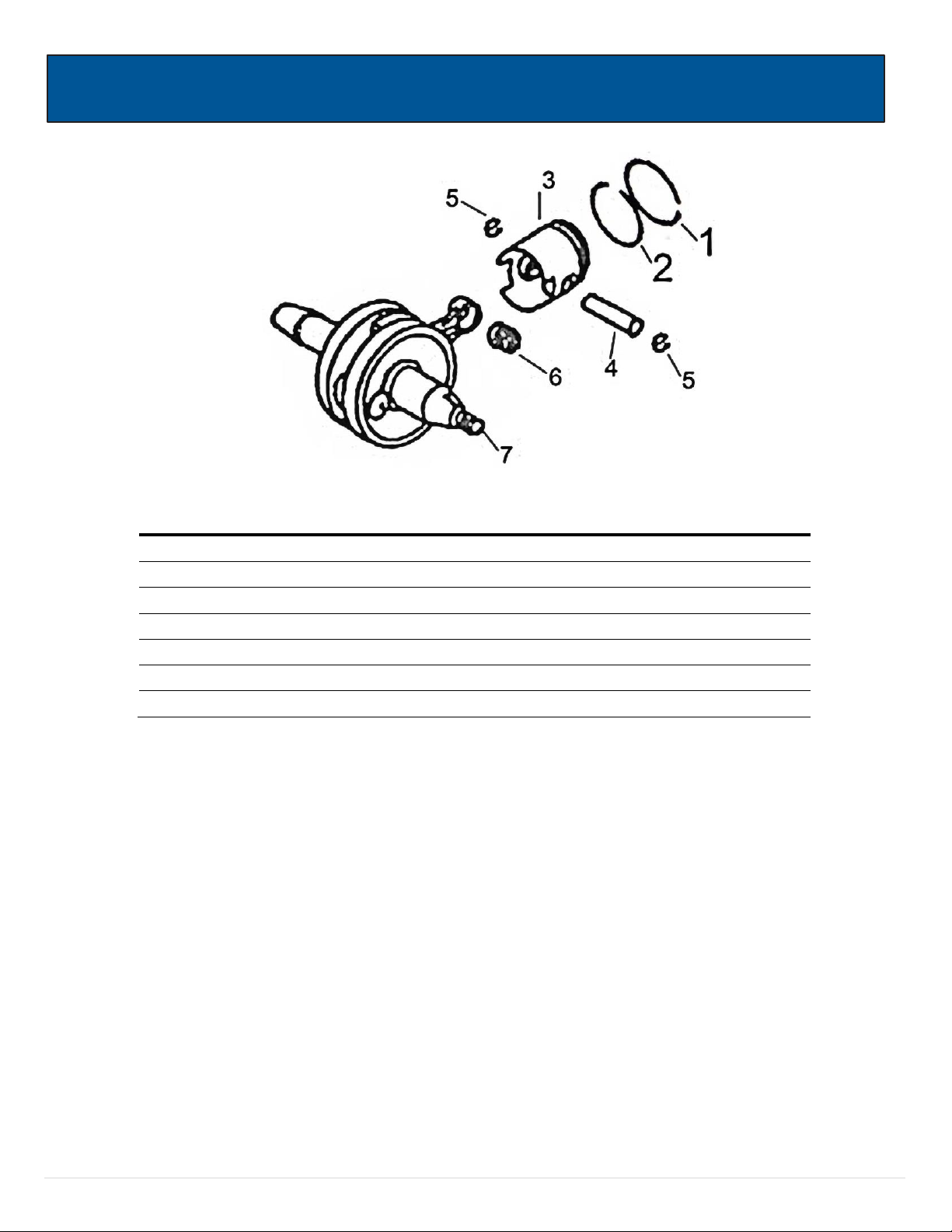

Piston and Crankshaft Connecting Rod System Assy ................................................................................ 23
Recoil Starter System Assy ........................................................................................................................ 24
Carburetor System Assy............................................................................................................................. 25
Flywheel System Assy ................................................................................................................................ 26
Ignition System Assy .................................................................................................................................. 27
Control System Assy .................................................................................................................................. 28
Muffler System Assy .................................................................................................................................. 29

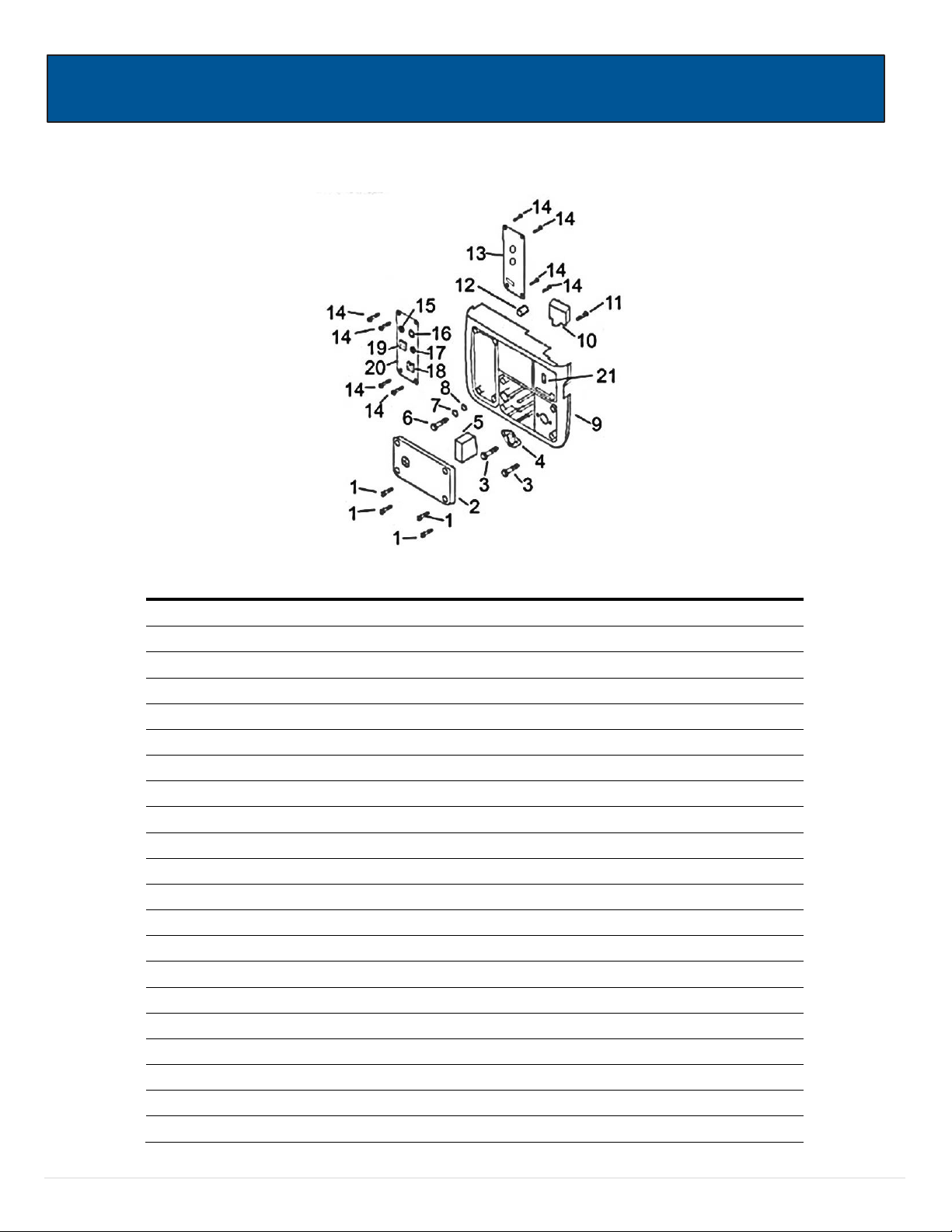

Control Box Assy ........................................................................................................................................ 31
PG1202S MANUAL
AC Output
Rated Wattage
900W
Rated Voltage
120V
Rated Frequency
60Hz
Rated Ampere
7A
Peak Wattage
1200kVA
Date of Purchase:
Model Number:
Item Number:
Serial Number:
SAVE THIS MANUAL FOR FUTURE REFERENCE
INTRODUCTIONS
Thank you for purchasing this superior quality portable generator from Pulsar Products Inc. When operating and
maintaining this product as instructed in this manual, your generator will give you many years of reliable
service.
Product Specifications:
This generator is an engine-driven, revolving field, alternating current (AC) portable generator. It is designed to
supply electrical power to operate tools, appliances, camping equipment, lighting, or serve as a back up power
source during power outages.
The emissions control system for this generator is compliant with all standards set by the U.S. Agency.
How to contact us:
To order parts, receive warranty assistance, or other services inquiries, you can contact us by Internet at
www.pulsar-products.com
PULSAR PRODUCTS INC
2051 S Lynx Place
Ontario, California, U.S.A 91761
Record the following information bellow for service or warranty assistance.
This manual contains important information regarding safety, operation, and maintenance.
1 | P a g e
PG1202S MANUAL
WARNING!
Read and understand this manual in its entirety before operating this generator. Improper
use of this generator could result in serious injury or death.
WARNING!
Do not operate indoors or in a confined space preventing dangerous carbon
monoxide gas from dissipating.
• Using a generator indoors WILL KILL YOU IN MINUTES!
•
get fresh air and seek
•
•
•
• When working in areas where vapors could be inhaled, use a respirator mask according to all of its instructions.
WARNING!
Engine exhaust contains chemicals that lead to cause cancer and birth defects.
•
Always wash hands after handling generator.
WARNING!
To reduce the risk of serious injury, avoid attempting to lift the generator alone.
Toxic Fumes
Risk of fire
Risk of explosion
Risk of electric shock
Hot surface
Lifting hazard
Indicates a potentially hazardous situation which could result in serious injury or death
if not avoided.
Indicates a potentially hazardous situation which could result in damage to equipment
or property.

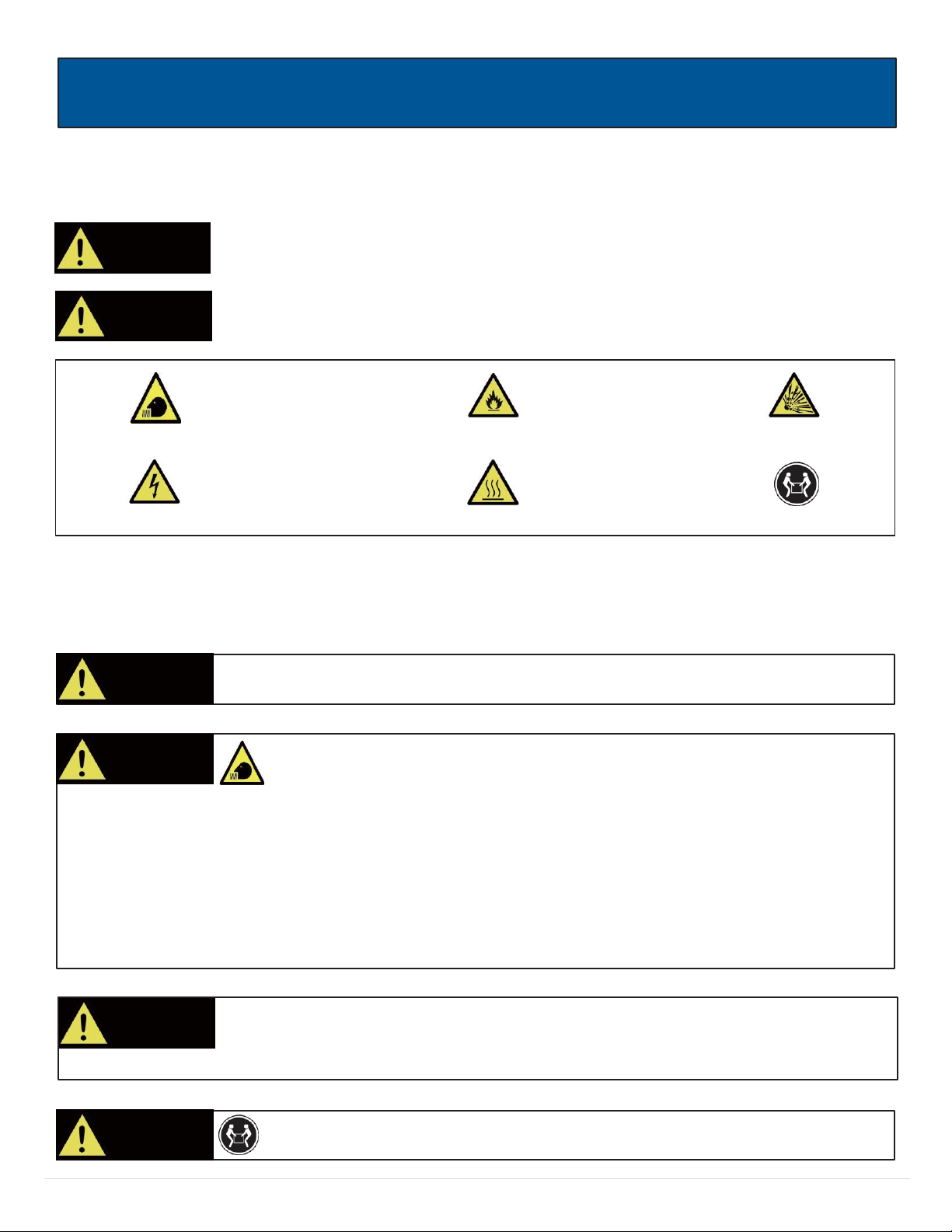

SAFETY RULES
Safety Symbols
WARNING!
CAUTION!
Safety Instructions
The manufacturer cannot anticipate every possible hazardous circumstance that the user may encounter. Therefore, the
warnings in this manual, on tags, and on affixed decals are not all-inclusive. To avoid accidents, the user must understand
and follow all manual instructions and use common sense.
Carbon monoxide gas is a poisonous, odorless gas that can cause headache, confusion, fatigue, nausea, fainting,
sickness, seizures, or death. If you start to experience any of these symptoms, IMMEDIATELY
medical attention.
Never use indoors, in a covered area, or in a confined space, even if doors and windows are open.
Install a battery operated carbon monoxide alarm near bedrooms.
Keep exhaust from this unit from entering a confined area through windows, doors, vents, or other openings.
2 | P a g e
PG1202S MANUAL
WARNING!
Never exceed generator’s wattage / amperage capacity. This could damage the generator
and / or connected electrical devices.
Check operating voltage and frequency requirements of all electrical devices prior to plugging them into the generator.
WARNING!
Never start or stop engine with electrical devices plugged in to the receptacles. Failure to do
so could damage the generator and / or connected electrical devices.
• Always start the engine and let it stabilize before connecting any electronic devices.
• Disconnect all electronic devices before stopping the engine.
•
•
•
WARNING!
Keep engine away from flammable objects and other hazardous materials.
• The fuel and its vapors used to power this unit are highly flammable and could explode resulting in serious injury or
•
• Never overfill fuel tank. If fuel spills, move the unit at least 30 feet away from the spill and wipe up any remaining fuel
•
•
•
•
•
•
• When transporting unit, disconnect the spark plug wire and make sure the fuel tank is empty with the fuel shutoff valve
turned to the off position.
WARNING!
Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which
could result in injury.
• To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly.
WARNING!
Avoid contacting hot areas of this unit.
• Use caution around the muffler, cylinder, and other engine parts as they can be extremely hot.
• Allow hot components to cool before touching.
Starter and other moving parts can catch on clothing, jewelry, and hair.
Do not wear loose clothing or gloves.
Remove jewelry or anything else that could be caught in moving parts.
Tie back or wear protective head covering to contain long hair.
death.
Never fill or drain fuel tank indoors.
on the unit before starting the engine.
Never smoke while operating or fueling this unit.
Never operate or store this unit near an open flame, heat, or any other ignition source.
Generator should have at least 5 feet of clearance from buildings or other equipment during operation.
Keep engine free of grass, leaves, or grease which are flammable.
When adding or draining fuel, unit should be turned off for at least 2 minutes to cool before removing fuel cap. If unit
has been running then the fuel cap is under pressure, remove slowly.
To keep fuel from spilling, secure unit so it cannot tip while operating or transporting.
3 | P a g e
PG1202S MANUAL
WARNING!
This generator produces a very high voltage which could result in burns or
electrocution causing serious injury or death.
• Never handle the generator, electronic devices, or any cord while standing in water, while barefoot, or when hands
•
•
•
• Never permit a child or unqualified person to operate generator. Keep children a minimum of 10 feet away from the
•
•
install a transfer switch. Failure to isolate the generator from the power utility could result in serious injury or death to
electric utility workers.
WARNING!
Generator must be properly grounded to prevent electrocution.
• Only operate generator on a level surface.
• Always connect the nut and ground terminal on the frame to an appropriate ground source.
•
•
•
voltage.
•
•
• Never insert objects through cooling slots.
WARNING!
Never operate this unit if there are any broken or missing parts and only use Pulsar
Products Inc replacement parts specifically designed for this unit.
• Improper treatment of generator can damage the unit and shorten it’s life.
• Always repair this unit as specified in this manual. If you have any questions contact your dealer or consult a qualified
• Shut generator off if electrical output is missing, unit vibrates excessively or begins to smoke, spark or emit flames.
or feet are wet.
Always keep the generator dry. Never operate generator in rain or under wet conditions.
Use a ground fault circuit interrupter (GFCI) in a damp or highly conductive area, such as metal decking or steel
work.
Never plug electronic devices into generator having frayed, worn, or bare wires. Never touch bare wires or make
contact with receptacles.
generator at all times.
If using the generator for back up power, notify the utility company.
If connecting generator to a building’s electrical system for standby power, you must use a qualified electrician to
Never modify this unit in any way or modify governed speed.
Increasing governing speed is dangerous which can result in personal injury and / or damaged equipment.
Decreasing governing speed adds an excessive load and can damage equipment.
Only when operating at the preset governing speed will this generator will supply the correct rated frequency and
Only use this unit as intended or serious injury or death could result.
Do not bypass any safety device. Moving parts are covered with guards. Make sure all protective covers are in place.
Never transport or make adjustments to this unit while it is running.
service center.
PROP 65 WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other
reproductive harm.
4 | P a g e
PG1202S MANUAL
1. Handle
2. Fuel Cap
3. Fuel Tank
4. Fuel Shut-Off
5. Recoil Starter
6. Engine On-Off Switch
7. Throttle Lever
8. Air Cleaner
9. Control Panel
10. Generator
11. Muffler
12. Cylinder
FEATURES
5 | P a g e
PG1202S MANUAL
Description
Qty
Generator
1
Quick Start Guide
1
Spark Plug Wrench
1
Handle
1
Bolts Screws
2
ASSEMBLY
Unpacking
1. Place box on a level surface.
2. Remove all items from the box. Make sure all items listed on the packing list are included and not damaged.
Packing List
Check all loose parts to the following list. Contact your service center (866-591-8921) if any loose parts are not included.

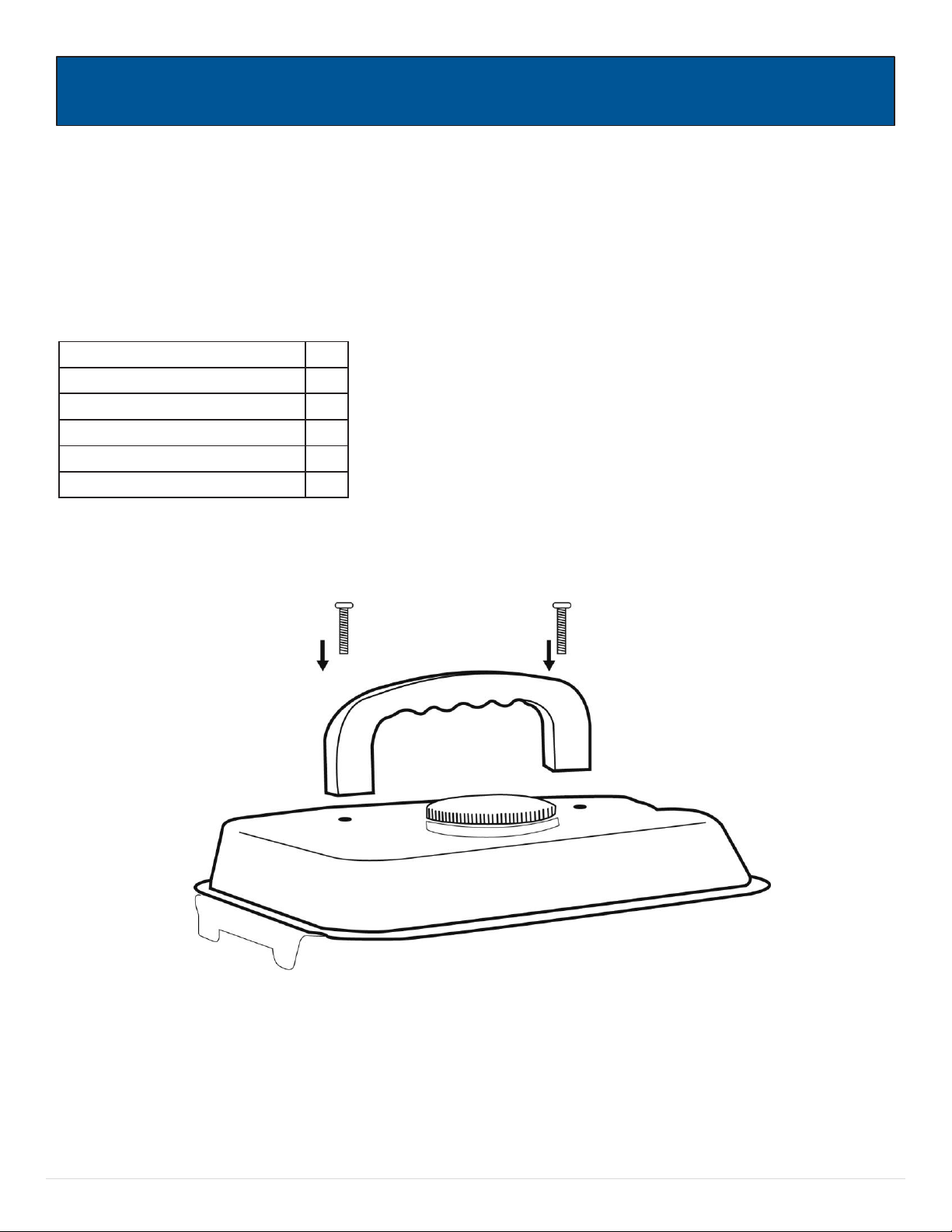

Installing the Handle
6 | P a g e
PG1202S MANUAL
WARNING!
Generator must be properly grounded to prevent electrocution.
• Only operate generator on a level surface.
• Always connect the nut and ground terminal on the frame to an appropriate ground source.
Before starting please make sure you have the correct gasoline and oil mixture in 50:1.
Turn the engine
ON/OFF switch to
the “ON” position.
All electrical loads
MUST be
disconnected from
generator.
Turn fuel valve to
the “ON” position
Move the Choke
lever to the
“CLOSED” position.
Grounding the Generator
The ground terminal located on the side of the generator frame must always be used
to connect generator to a driven ground rod. Connect the ground terminal to the driven
ground rod with a No 8 AWG (American Wire Gauge) copper wire. The wire connects
to the terminal between the lock washer and nut. Tighten the nut securely to ensure
proper connection. Grounding the generator protects you from electric shock that
results from a build up of static electricity or undetected ground faults.
How to Start Engine
7 | P a g e
PG1202S MANUAL

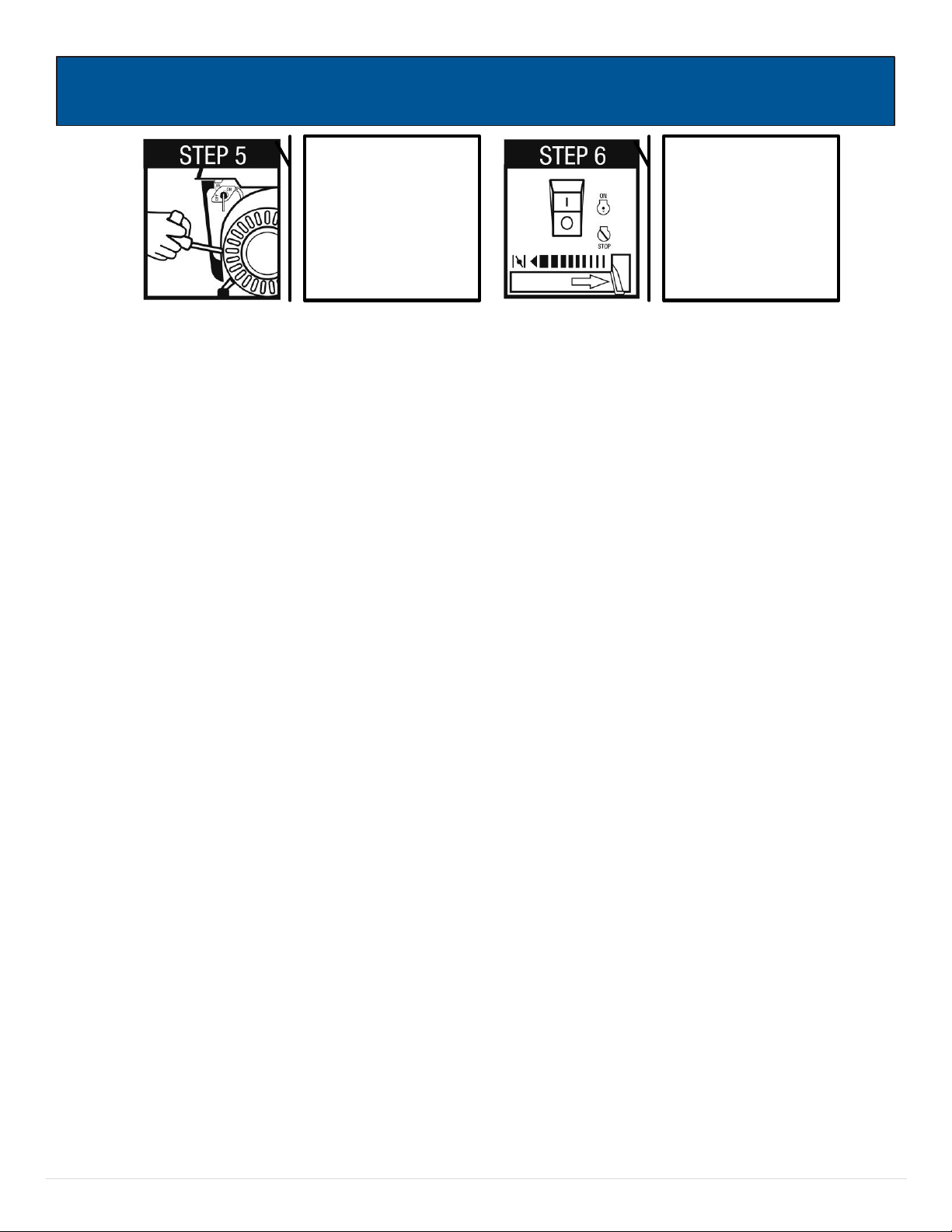

Pull the starter grip
lightly until you
feel resistance,
then pull briskly to
start the engine.
Move the choke
lever to the
“OPEN” position.
8 | P a g e
PG1202S MANUAL
Never start or stop engine with electrical devices plugged in to the receptacles. Failure to
do so could damage the generator and / or connected electrical devices.
• Always start the engine and let it stabilize before connecting any electronic devices.
• Disconnect all electronic devices before stopping the engine.
Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which
could result in injury.
• To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly.
The receptacles are not protected by a GFCI. Use a GFCI protected spider box or GFCI adapter
to connect load to the receptacle.
Turn the engine
ON/OFF switch to the
“OFF” position.
All loads MUST be
devices plugged in to
the receptacles
Turn the fuel valve to
the “OFF” position.
OPERATION
How to Stop Engine
disconnected from
the generator. Never
engine with electrical
start or stop the
Receptacles and Extension Cords
Only use high quality, well-insulated, grounded extension cords in good condition with generator receptacles. Follow each
load manufacturer’s power rating recommendation when selecting receptacle and extension cord.
This generator is equipped with the following receptacles:
• Two 120 Volt AC Receptacles.
If reset trips, disconnect all external electrical appliances before pushing the reset button. After reconnecting the external
electrical appliance, if reset continues to trip that indicates that the electrical lead connected to the generator from one or more
of the appliances may have a short circuit. In that event, discontinue use of that item until it has been checked and/or repaired
by a qualified technician.
9 | P a g e
PG1202S MANUAL
Current
(Amps)
Load (Watts)
Maximum Cord Length
230V
#8 Wire
#10 Wire
#12 Wire
#14 Wire
#16 Wire
2.5
600
X
1000 ft.
600 ft.
375 ft.
250 ft.
5
1200
X
500 ft.
300 ft.
200 ft.
125 ft.
7.5
1800
X
350 ft.
200 ft.
125 ft.
100 ft.
10
2400
X
250 ft.
150 ft.
100 ft.
50 ft.
15
3800
X
150 ft.
100 ft.
65 ft.
X
20
4800
175 ft.
125 ft.
75 ft.
X
X
25
6000
150 ft.
100 ft.
X X X
30
7200
125 ft.
65 ft.
X X X
Do not connect 3-phase loads to generator.
Extension Cord Selection
Refer to the below table to ensure the extension cord used has the capacity to carry the required load. If the size of the
cable is inadequate it can cause a voltage drop, which can damage the electrical device and cord.
Moving the Generator
• Disconnect any electronic devices from generator then turn generator off.
• Turn fuel valve to the “OFF” position.
10 | P a g e
PG1202S MANUAL
Essentials
Rated Watts
Peak Watts
75W Light Bulbs
75 each
75 each
18 CU Ft Refrigerator / Freezer
800
2200
Furnace Fan (⅓ HP)
800
2350
Sump Pump (⅓ HP)
1000
2000
Water Pump (⅓ HP)
1000
3000
Heating/Cooling
Dehumidifier
650
800
Table Fan
800
2000
Window AC (10k BTU)
1200
3600
Central Air (10k BTU)
1500
6000
Electric Blanket
400
400
Space Heater
1800
1800
Kitchen
Blender
300
900
Toaster (2 slice)
1000
1600
Coffee Maker
1500
1500
Electric Range (1 element)
1500
1500
Dishwasher
1500
3000
Electric Oven
3410
3410
Electric Water Heater
4000
4000
Laundry Room
Iron
1200
1200
Washing Machine
1150
3400
Gas Clothes Dryer
700
2500
Electric Clothes Dryer
5400
6750
Bathroom
Rated Watts
Peak Watts
Hair Dryer
1250
0
Curling Iron
1500
0
Family Room
X-Box or Play Station
40
0
AM/FM Radio
100
100
VCR
100
100
Color TV (27”)
500
500
Home Office
Fax Machine
65 0 Personal Computer (17” Monitor)
800 0 Laser Printer
950 0 Copy Machine
1600
0
Power Tools
1000W Quartz Halogen Work Light
1000
0
Airless Sprayer (⅓ HP)
600
1200
Reciprocating Saw
960 0 Circular Saw (7 ¼”)
1400
2300
Miter Saw (10”)
1800
1800
Table/Radial Arm Saw
2000
2000
Electric Drill (½ HP, 5.4 Amps)
600
900
Hammer Drill
1000
3000
Air Compressor
1600
4500
Other
Home Security System
500
500
Garage Door Opener (⅓ HP)
750
750
Don’t Overload Generator
Make sure you can supply enough rated watts and surge watts for all electronic devices connected to the generator. Rated
watts refer to the power a generator must supply to keep a device running. Surge watts refer to the power a generator must
supply to start an electronic device. This power surge for starting a device usually lasts between 2-3 seconds but this
additional output must be taken into account when selecting the electronic devices you plan to attach to the generator. To
prevent overloading the generator take the following steps:
1. Add up the total rated wattage of all electronic devices that will be connected to the generator simultaneously.
2. Estimate surge watts by adding the item(s) with the highest output (it is unnecessary to calculate the surge output
for all devices as they should be connected one at a time).
3. Add the Surge Watts to the total Rated Watts in step 1. Keep total load within generator’s power capacity.
Operating voltage and frequency requirement of all electronic equipment should be checked prior to plugging them into
this generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage variation, and
+/- 3 Hz frequency variation from the generator name plate ratings. To reduce the risk of damage, always have an
additional load plugged into the generator if solid state equipment (such as television set) is used. A power line
conditioner is recommended for some solid state applications.
Wattage Reference Guide
(Wattages listed are just approximations. Check electronic device for actual wattage)
11 | P a g e
PG1202S MANUAL
WARNING!
Never exceed generator’s wattage / amperage capacity. This could damage the generator
and / or connected electrical devices.
Check operating voltage and frequency requirements of all electrical devices prior to plugging them into the generator.
Power Management
Start engine without anything connected to generator.
•
• When engine has stabilized, plug in and turn on first load. It is strongly recommended to plug in devices with the largest
output first and the smallest output last to help prevent overloading the generator.
• Allow generator output to stabilize (engine and attached devices run evenly) before plugging in the next load.
Cold Weather Operation
Under humid conditions where temperatures drop to 40ºF (4ºC) the carburetor and/or crankcase breather system may begin
to freeze. To prevent icing take the following steps:
1. Replace any old fuel with clean, fresh fuel.
2. Turn fuel valve to the open position.
3. Ensure generator is serviced according to the maintenance schedule under “Maintenance” section of manual.
4. Shelter unit from elements.
12 | P a g e
PG1202S MANUAL
After 8 Hours or Daily
Clean Debris
Annually (25 hr Use)
Check and Clean Air Cleaner
Check Muffler
Annually (100 hr Use)
Service Spark Plug (Replace with NGK BP6ES, Champion N9YC or equivalent)
Check & Clean Fuel Filter
Inspect Muffler
Check and Clean Air Cleaner, Replace Air Filter
Regular maintenance will extend the life of this generator and improve its performance. The warranty does not cover items
that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must maintain the
generator as instructed in this manual, including proper storage.
WARNING!
Before inspecting or servicing this machine, make sure the engine is off and no parts are
moving. Disconnect the spark plug wire and move it away from the spark plug.
MAINTENANCE
Pre-Operation Steps
Before starting the engine, perform the following pre-operation steps:
• Check the level of fuel.
• Make sure the air filter is clean.
• Remove any debris that has collected on the generator and around the muffler and controls. Use a vacuum cleaner to
pick up loose debris. If dirt is caked on, use a soft bristle brush.
• Inspect the work area for hazards.
After Each Use
Follow the following procedure after each use:
• Shut off engine.)
• Store unit in a clean and dry area.
Maintenance Schedule
13 | P a g e
PG1202S MANUAL
.700-.800mm
Air Filter
A dirty air filter will reduce the life span of the engine, make it difficult to start the engine, and reduce the unit’s performance.
• To clean, remove the air filter cover.
• Carefully pull the air filter out by lifting up along the edges.
• Remove dirt from filter by tapping on it or having it blown out. Replace with new filter annually.
• Reinstall air filter so that it seals and replace air filter cover.
Checking Spark Plug
• Disconnect the spark plug wire from the spark plug.
• Before removing the spark plug, clean the area around its base to prevent debris from entering the engine.
• Clean carbon deposits off the electrode with a wire brush.
• Check the electrode gap and slowly adjust to .700 mm - .80 mm (.028 - .031") if necessary.
• Reinstall spark plug and tighten to Torque 22.0 – 26.9 Nm (16-20 ft-lb).
• Reconnect spark plug wire.
• If spark plug is worn replace only with an equivalent replacement part. Spark plug should be replaced annually.
(BOSCH F7TC, NGK BP6ES, CHAMPION N9YC or Equivalent)
Draining Fuel Tank and Carburetor
To help prevent gum deposits in the fuel system, drain the fuel from the tank and carburetor before storing the unit for long
periods of time. This will help prevent starting problems in the future. If the unit is stored with fuel and the fuel becomes
stale or turns gummy or to varnish the warranty does not cover this repair or service.
Draining the fuel tank
• Turn the engine OFF.
• Turn the fuel valve to the OFF position.
• Remove the fuel line that leads to the carburetor from the petcock by squeezing the ends of the hose clamps and
sliding the fuel line off.
• If needed, install a fuel hose that will extend to a suitable fuel container large enough to catch the fuel being drained
from the tank.
• Turn the fuel valve to the ON position.
• When the fuel has drained from the tank, close the fuel valve and reinstall fuel line securely on petcock.
Fig 11
Fig 12
14 | P a g e
PG1202S MANUAL
Consult your local hazardous waste management in your area for the proper way to dispose
of used fuel.
Draining the carburetor
• Turn the engine OFF.
• Turn the fuel valve to the OFF position.
• Position a suitable container under the carburetor drain screw to catch fuel; loosen the screw.
• Allow fuel to drain completely into container.
• Retighten drain screw.
Storage and Transportation of the Generator:
Remove any debris that has collected on the generator and around the muffler and control panel. Use a brush or
•
vacuum
Inspect air cooling slots. Remove any debris if obstructed.
•
to remove loose dirt.
• For short-term storage, start generator once every 7 days.
• For semi-long term storage, add fuel stabilizer to prevent stale fuel from causing acid and gum deposits in the fuel
system and carburetor.
• For long-term storage, drain the fuel.
• Store the generator indoors to prevent freezing.
• The generator must be Shipped, Run and Stored in the upright position as seen in this image.
Engine Long Term Storage:
Remove the spark plug and pour about 1 teaspoon of 10W30 Engine oil into the spark plug hole. Reinstall the spark
•
plug.
With the ON/OFF switch in the OFF position pull the recoil starter cord several time to coat the cylinder walls with
oil.
Slowly pull the recoil Starter until you feel the engine build compression (When you feel resistance). Leave the Engine
•
in
this state as this will prevent any corrosion on the cylinder walls if stored for a long period of time.
14 | P a g e
PG1202S MANUAL
Rotor
Stator
R1
R2
D1
D2
FC1
FC2
S
C
Over Volt Protective
Resistance
Spin Rectifier
Rotor Pole Winding
Stator Auxiliary Winding
DC
MC1
MC2
C
D3
Stator DC Winding
Stator Main Winding
Capacitor
Single-phase Rectifier
DIAGRAMS
15 | P a g e
PG1202S MANUAL
Problem
Cause
Solution
Engine is running, but AC output is not
available
1. Open circuit breaker
2. Poor connection
3. Defective cord set
4. Connected device is faulty
5. Fault in generator
1. Reset circuit breaker
2. Check and repair
3. Check and repair
4. Connect a device that is working
properly
5. Contact service department
Engine runs well without load but bogs
down when loads are connected
1. Short circuit in connected device
2. Generator is overloaded
3. Clogged fuel filter
4. Engine speed is too slow
5. Short circuit in generator
1. Disconnect device
2. Don’t overload generator
3. Clean or replace fuel filter
4. Contact service department
5. Contact service department
Engine will not start, shuts down during
operation, or starts and runs rough.
1. ON/OFF switch set to “OFF”
2. Dirty Air filter
3. Clogged fuel filter
4. Stale fuel
5. Spark plug wire disconnected from
spark plug
6. Bad spark plug
7. Water in fuel
8. Fuel valve is in “OFF” position
9. Over choking
10. Rich fuel mixture
11. Intake valve stuck open or closed
12. Loss of engine compression
13. Engine has flooded
1. Turn switch to “ON”
2. Replace Air filter
3. Clean or replace fuel filter
4. Replace fuel
5. Reconnect spark plug wire
6. Replace spark plug
7. Drain fuel tank and replace fuel
8. Turn fuel valve to “ON” position
9. Turn off choke
10. Contact service department
11. Contact service department
12. Contact service department
13. Wait 5 minutes and recrank engine
Engine lacks power
1. Generator is overloaded
2. Clogged fuel filter
3. Dirty Air filter
4. Engine needs servicing
1. “Don’t overload
generator”
2. Clean or replace fuel filter
3.. Replace Air filter
4. Contact service department
Engine “hunts” or falters
1. Choke was removed too soon
2. Clogged fuel filter
3. Carburetor is running too rich or too
lean
1. Move choke to middle position until
engine runs evenly
2. Clean or replace fuel filter
3. Contact service department
TROUBLESHOOTING
16 | P a g e
PG1202S MANUAL
WARRANTY
Pulsar Products Inc Limited 1 Year Warranty:
From the date of original purchase, Pulsar Products Inc warrants to the original purchaser that each portable generator sold,
shall be free from defect in material and workmanship for the items and time period set forth below. Pulsar Products Inc, at its
discretion, agrees to repair or replace any defective part that upon examination, inspection, and testing by a Pulsar Products
Inc authorized service dealer, is found to be defective within the original warranty period. Pulsar Products Inc will also decide
upon the use of new or rebuilt parts or comparable product. Any part or product that is replaced will be retained by Pulsar
Products Inc. This warranty period shall not be extended and any repaired product shall be warranted for the remaining
period of the original warranty. The consumer is responsible, and shall prepay all transportation costs, including returning
items to the factory or warehouse. This warranty is non-transferable and proof of purchase must be presented for requesting
warranty service. If a proof-of-purchase receipt is not provided, the product’s shipping date by the manufacturer will be used
to determine the warranty period.
Length of Warranty:
Personal use applications of this portable generator are warranted for a 12-month period or 250 hrs (Whichever
comes first). Proof of purchase and of maintenance must be provided.
• 6 Month - Limited comprehensive coverage on all generator components and labor.
• 12 Month - Limited coverage on generator engine and alternator components, parts only.
“Personal use” means personal residential household use or recreational use by the retail consumer. “Commercial use”
means all other uses including commercial, construction, or other income producing purposes. Once a generator has been
used for commercial purposes, it shall thereafter be considered as a “commercial use” generator for the purposes of this
warranty. Any portable generator used for commercial use, as rental equipment or for the purpose of primary power in place
of utility, will not be covered under this warranty.
Consumer Responsibilities:
• Consumer is responsible for carefully reading and following all instructions in the owner’s manual. Any product that is
damaged due to misuse or abuse will not be covered by this warranty.
• Consumer is responsible for all transportation costs to an authorized Pulsar Products Inc Service Center. Unless
otherwise requested, ground shipping will be applied for part shipment and customer will pay any additional charges for
expedited shipments.
• Consumer is responsible for labor costs associated with warranted repairs twelve (12) months after the purchase date.
Labor rates will only be based on normal working hours.
• Consumer is responsible for maintaining generator as specified in the owner’s manual. Documentation of this
maintenance may be required to cover warranty requests.
• Consumer is responsible for presenting any problems with the generator to an authorized Pulsar Products Inc Service
Center as soon as the problem exists. Warranted repairs will be completed in a reasonable period of time, not to
exceed 30 days.
17 | P a g e
PG1202S MANUAL
What this Warranty Does Not Cover:
• Normal wear: This warranty excludes normal wear items such as filters, spark plugs, gaskets, O-rings, adapter
cord sets, wheels, and starting batteries.
• Maintenance: This warranty does not apply to tune-ups or routine maintenance and does not cover any adjustments or
repairs not performed by an authorized repair facility.
• Misuse: This warranty does not apply if your product has failed due to abuse, misuse, neglect, using incorrect fuels or
lubricants, overloading, overspeeding, improper maintenance, improper storage, unapproved modifications, or has been
operated in any way contrary to the instructions found in the products owner’s manual.
• Adverse conditions: This warranty does not apply if your product has failed due to freezing, accident or natural
disasters.
• Product shipment: This warranty does not apply to damage resulting from shipping, handling, or warehousing. Any
damage claims to this product caused by shipment must be filed with freighter.
• Other exclusions: This warranty does not apply if your product has been sold “as is” or where the factory applied serial
number has been removed. Refurbished, used, demonstration or floor models are not covered by this warranty.
Where Warranty is Valid:
For warranty coverage, this product must be purchased from an authorized Pulsar Products Inc dealer and the warranty only
extends to the original purchaser. Refurbished, used, demonstration, or floor models are not covered by this warranty.
Products purchased from on-line auction websites, such as ebay, are not covered under this warranty. Products used for
commercial use are not covered under this warranty.
How to Obtain Warranty Service:
Take the original receipt and product to the place of purchase or mail the original receipt and product to the address found on
the web site if purchased on-line. You can also locate your nearest Pulsar Products Inc dealer for service or warranty
questions by calling toll free at 1-866-591-8921. Pulsar Products Inc recommends you retain all of your receipts covering the
purchase and maintenance of your Portable Generator, but will not deny you warranty coverage as long as proof of purchase
or service can be obtained.
Pulsar Products Inc’s obligation under this warranty is exclusively limited to product repair or replacement and
shall not be liable for any incidental or consequential damages including, but not limited to, the expense of
delivering product to and from a repair center, loss or damage to personal property, loss of revenue, telephone
charges, loss of time, or inconvenience. Some states, provinces or jurisdictions do not allow the exclusion or
limitation of incidental damages, so the above limitation may not apply to you. The warranty gives you specific legal
rights, and you may also have other rights which vary from state to state or province to province.
18 | P a g e
PG1202S MANUAL
Length
16 in
Width
15 in.
Height
14 in.
Weight
39.68 lbs.
Type
Air cooled 2 stroke
Fuel
Mix 50 parts gasoline to 1 part 2stroke oil
Oil
Two-stroke lubrication
Gasoline and oil mixing ratio
50:1
Displacement
72cc
Starting System
Recoil (Electronic Ignition)
Spark Plug
F6TC/LD
Cooling System
Forced Air
Decibel Ratio
76dB
Rated Output
72cc @ 3600rpm
Fuel Tank Capacity
1.1 Gal.
AC Output Rating
120 Volts
Frequency
60 Hz
AC Current
7 Amps
Rated Output, Continuous
900 Watts
DC Output Rating
12 Volts
DC Current
8 Amps
SPECIFICATIONS
DIMENSIONS
ENGINE
GENERATOR
19 | P a g e
PG1202S MANUAL
PARTS LIST
20 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-A-01
FLANGE BOLT (M6× 12)
2
PG1202S-A-02
CYLINDER AIR SHROUD
3
PG1202S-A-03
NUT (M6× 18)
4
PG1202S-A-04
STUD BOLT (M6× 110)
5
PG1202S-A-05
FLANGE BOLT (M6× 105)
6
PG1202S-A-06
SPARK PLUG
7
PG1202S-A-07
CYLINDER HEAD
8
PG1202S-A-08
CYLINDER HEAD GASKET
9
PG1202S-A-09
CYLINDER LINER
10
PG1202S-A-10
CYLINDER BOTTOM GASKET
Cylinder Head System Assy
A
21 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-B-01
FLANGE BOLT (M6× 55)
2
PG1202S-B-02
FLANGE BOLT (M6× 45)
3
PG1202S-B-03
OIL SEAL (Ф30× Ф20× 7)
4
PG1202S-B-04
RUBBER PAD
5
PG1202S-B-05
CRANKCASE (LEFT)
6
PG1202S-B-06
BEARING (6004)
7
PG1202S-B-07
SPEED REGULATION FORK (Ф47)
8
PG1202S-B-08
LOCATING RING (Ф10)
9
PG1202S-B-09
CRANKCASE (RIGHT)
10
PG1202S-B-10
OIL SEAL (Ф12× Ф6× 5)
Cylinder Barrel
B
22 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-C-01
COMPRESSION RING A
2
PG1202S-C-02
COMPRESSION RING B
3
PG1202S-C-03
PISTON
4
PG1202S-C-04
PISTON PIN
5
PG1202S-C-05
PISTON PIN CLIP (10mm)
6
PG1202S-C-06
NEEDLE BEARING (Ф14× Ф10× 13)
7
PG1202S-C-07
CRANKSHAFT
Piston and Crankshaft Connecting Rod System Assy
C
23 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-D-01
STARTING COVER
2
PG1202S-D-02
STARTER KNOB
3
PG1202S-D-03
RECOIL STARTER ROPE
4
PG1202S-D-04
START RETURN SPRING
5
PG1202S-D-05
RECOIL STARTER REEL
6
PG1202S-D-06
BEARING PLATE
7
PG1202S-D-07
DRIVE PLATE
8
PG1202S-D-08
CLIP SPRING
9
PG1202S-D-09
SETTING SCREW
10
PG1202S-D-10
FLANGE BOLT (M6× 12)
Recoil Starter System Assy
D
24 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-E-01
AIR INLET VALVE BODY GASKET
2
PG1202S-E-02
AIR INLET VALVE BODY
3
PG1202S-E-03
FLANGE BOLT (M6× 20)
4
PG1202S-E-04
CARBURETOR GASKET (IN)
5
PG1202S-E-05
CARBURETOR ASSY
6
PG1202S-E-06
CARBURETOR GASKET (OUT)
Carburetor System Assy
E
25 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-F-01
FLANGE NUT (M10× 1.25)
2
PG1202S-F-02
FLYWHEEL
Flywheel System Assy
F
26 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-G-01
FLANGE BOLT (M6× 12)
2
PG1202S-G-02
MAGNETO
3
PG1202S-G-03
LOCATINGT
4
PG1202S-G-04
HIGH VOLTAGE SET
5
PG1202S-G-05
STOP SWITCH CORD
6
PG1202S-G-06
FLANGE BOLT (M6× 16)
Ignition System Assy
G
27 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-H-01
FLAT SCREW (M6× 40)
2
PG1202S-H-02
CONTROL ADJUSTING SPRING
3
PG1202S-H-03
SPEED GOVERNING GASKET
4
PG1202S-H-04
SPEED GOVERNING SPRING
5
PG1202S-H-05
FLANGE NUT (M6)
6
PG1202S-H-06
SHIFTET
7
PG1202S-H-07
GOVERNOR ARM
8
PG1202S-H-08
BOLT (M6× 20)
9
PG1202S-H-09
THROTTLE RETURN SPRING
10
PG1202S-H-10
GOVERNOR ROD
11
PG1202S-H-11
SPEED REGULATION FORK
12
PG1202S-H-12
WASHER (Ф3)
13
PG1202S-H-13
SPRING WASHER (Ф3)
14
PG1202S-H-14
FLAT SCREW (M3× 8)
15
PG1202S-H-15
SLIP RING
16
PG1202S-H-16
FLANGE BOLT (M6× 12)
17
PG1202S-H-17
STAND
Control System Assy
H
28 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-I-01
FLANGE BOLT (M6× 12)
2
PG1202S-I-02
MUFFLER COMP
3
PG1202S-I-03
MUFFLER GASKET
Muffler System Assy
I
29 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-J-01
FLANGE BOLT (M6× 20)
2
PG1202S-J-02
CLAMP
3
PG1202S-J-03
FUEL TUBE
4
PG1202S-J-04
FUEL CONTROL VALVE
5
PG1202S-J-05
FUEL TANK
6
PG1202S-J-06
FUEL FILTER
7
PG1202S-J-07
FUEL CUP
8
PG1202S-J-08
FUEL CAP
9
PG1202S-J-09
HANDLE
10
PG1202S-J-10
SPRING WASHER (Ф6)
11
PG1202S-J-11
FLAT SCREW (M6× 32)
12
PG1202S-J-12
WASHERS
J
30 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-K-01
FLAT SCREW (M5× 15)
2
PG1202S-K-02
AIR FILTER COVER
3
PG1202S-K-03
FLANGE BOLT (M6× 60)
4
PG1202S-K-04
PLATE PAD
5
PG1202S-K-05
AIR FILTER
6
PG1202S-K-06
FLAT SCREW (M6× 30)
7
PG1202S-K-07
SPRING WASHER (Ф6)
8
PG1202S-K-08
WASHER (Ф6)
9
PG1202S-K-09
CONTROL PANEL
10
PG1202S-K-10
CAPACITOR
11
PG1202S-K-11
PLATE SCREW (ST4× 16)
12
PG1202S-K-12
TUBE (Ф6)
13
PG1202S-K-13
PLATE COVER
14
PG1202S-K-14
PLATE SCREW (ST4× 10)
15
PG1202S-K-15
DC CIRCUIT BREAKER (10A)
16
PG1202S-K-16
LIGHT
17
PG1202S-K-17
AC CIRCUIT BREAKER (8A)
18
PG1202S-K-18
AC SOCKET
19
PG1202S-K-19
DC SOCKET
20
PG1202S-K-20
PANEL COVER
21
PG1202S-K-21
ENGINE SWITCH
K
Control Box Assy
31 | P a g e
PG1202S MANUAL
No.
Parts No.
Description
1
PG1202S-L-01
STATOR ASSY.
2
PG1202S-L-02
ROTOR COMP.
3
PG1202S-L-03
FLANGE BOLT (M8× 155)
4
PG1202S-L-04
RUBBER PAD
5
PG1202S-L-05
GENERATOR STAY
6
PG1202S-L-06
FLANGE BOLT (M6× 80)
7
PG1202S-L-07
FLAT SCREW (M4× 20)
8
PG1202S-L-08
RECTIFIER COMP.
9
PG1202S-L-09
NUT (M4)
L
32 | P a g e
Loading...
