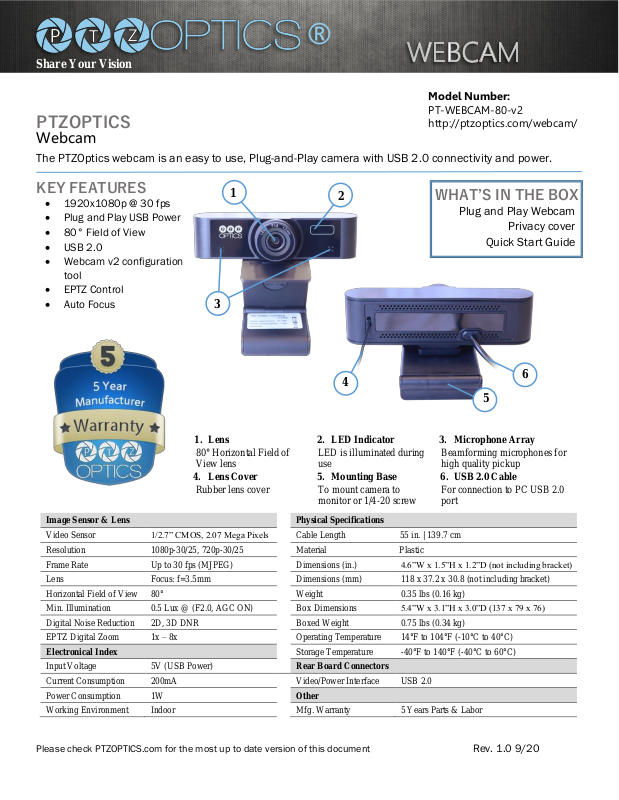

Page 1
®
Share Your Vision
Please check PTZOPTICS.com for the most up to date version of this document Rev. 1.0 9/20
Model Number:
PT-WEBCAM-80-v2
http://ptzoptics.com/webcam/
PTZOPTICS
Webcam
The PTZOptics webcam is an easy to use, Plug-and-Play camera with USB 2.0 connectivity and power.
KEY FEATURES
• 1920x1080p @ 30 fps
• Plug and Play USB Power
• 80° Field of View
• USB 2.0
• Webcam v2 configuration
tool
• EPTZ Control
• Auto Focus
Image Sensor & Lens
Physical Specifications
Video Sensor
1/2.7” CMOS, 2.07 Mega Pixels
Cable Length
55 in. | 139.7 cm
Resolution
1080p-30/25, 720p-30/25
Material
Plastic
Frame Rate
Up to 30 fps (MJPEG)
Dimensions (in.)
4.6”W x 1.5”H x 1.2”D (not including bracket)
Lens
Focus: f=3.5mm
Dimensions (mm)
118 x 37.2 x 30.8 (not including bracket)
Horizontal Field of View
80° Weight
0.35 lbs (0.16 kg)
Min. Illumination
0.5 Lux @ (F2.0, AGC ON)
Box Dimensions
5.4”W x 3.1”H x 3.0”D (137 x 79 x 76)
Digital Noise Reduction
2D, 3D DNR
Boxed Weight
0.75 lbs (0.34 kg)
EPTZ Digital Zoom
1x – 8x
Operating Temperature
14°F to 104°F (-10°C to 40°C)
Electronical Index
Storage Temperature
-40°F to 140°F (-40°C to 60°C)
Input Voltage
5V (USB Power)
Rear Board Connectors
Current Consumption
200mA
Video/Power Interface
USB 2.0
Power Consumption
1W Other
Working Environment
Indoor
Mfg. Warranty
5 Years Parts & Labor
1. Lens
2. LED Indicator
3. Microphone Array
80° Horizontal Field of
View lens
LED is illuminated during
use
Beamforming microphones for
high quality pickup
4. Lens Cover
5. Mounting Base
6. USB 2.0 Cable
Rubber lens cover
To mount camera to
monitor or 1/4-20 screw
For connection to PC USB 2.0
port
WHAT’S IN THE BOX
Plug and Play Webcam
Privacy cover
Quick Start Guide
1 2 3 4 5
6
