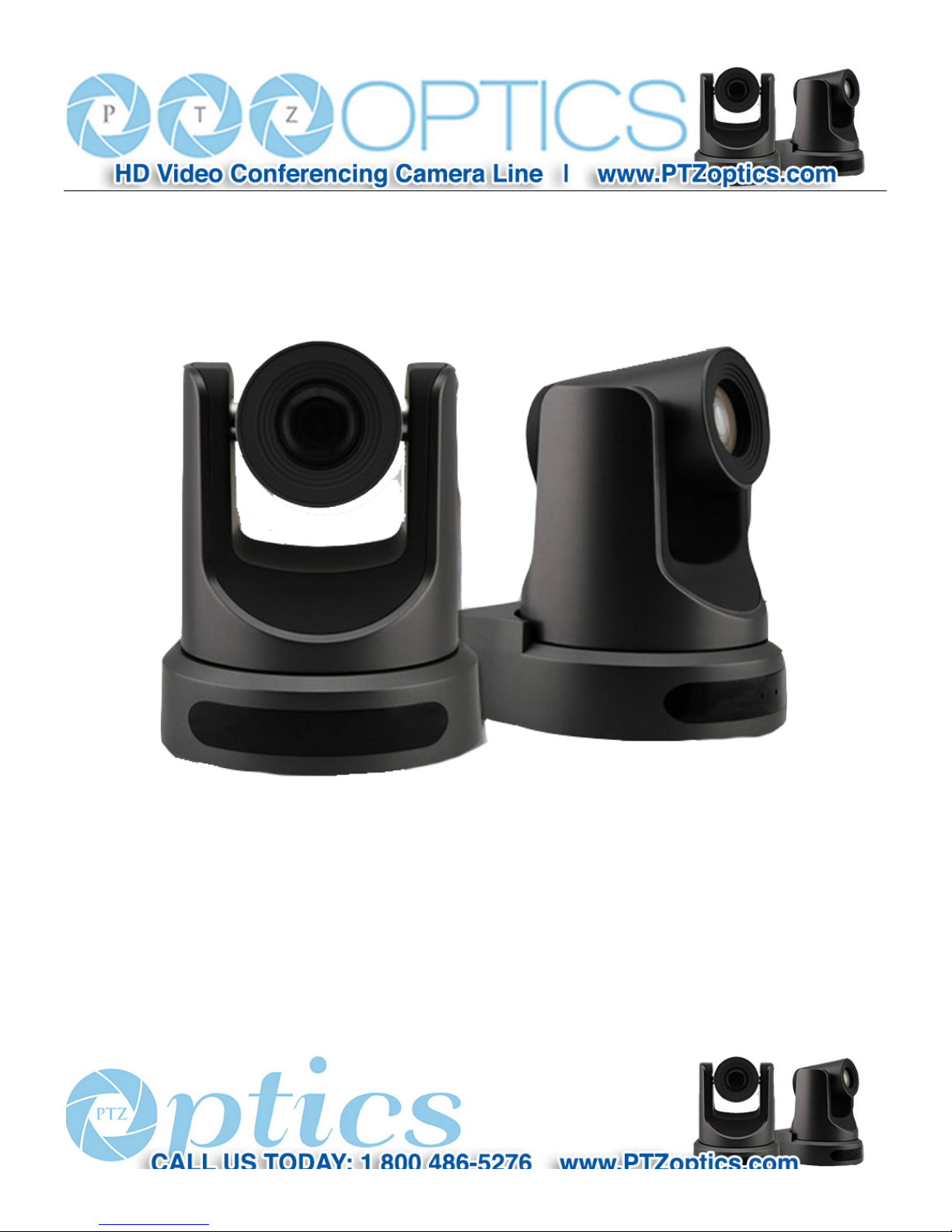

Page 1
PTZ Optics 20X-USB
User Manual
V1.0
(English)
Page 2
1
Preface
Thanks for using this USB3.0 HD Video Conferencing Camera.
This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please
read the manual thoroughly.
Precautions
This product can only be used in the specified conditions in order to avoid any damage to the camera:
! Don’t subject the camera to rain or moisture.
! Don’t remove the cover. Otherwise, you may get an electric shock. In case of abnormal operation, contact the
authorized engineer.
! Never operating under unspecified temperature , humidity and power supply;
! Please use the soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted neuter detergent;
do not use any type of solvents, which may damages the surface.
Note
This is class A production. Electromagnetic radiation at the specific frequency may affect the image quality of TV in
home environment.
Page 3
2
Contents
1、 Note ································································································ 3
2、 Supplied Accessories ············································································· 4
3、 Quick Start ························································································· 5
4、 Features ···························································································· 8
5、 Product Specification ············································································ 9
6、 Main Unit ························································································ 11
7、 IR Remote Controller Explanation ··························································· 12
8、 Use IR Remote Controller ····································································· 14

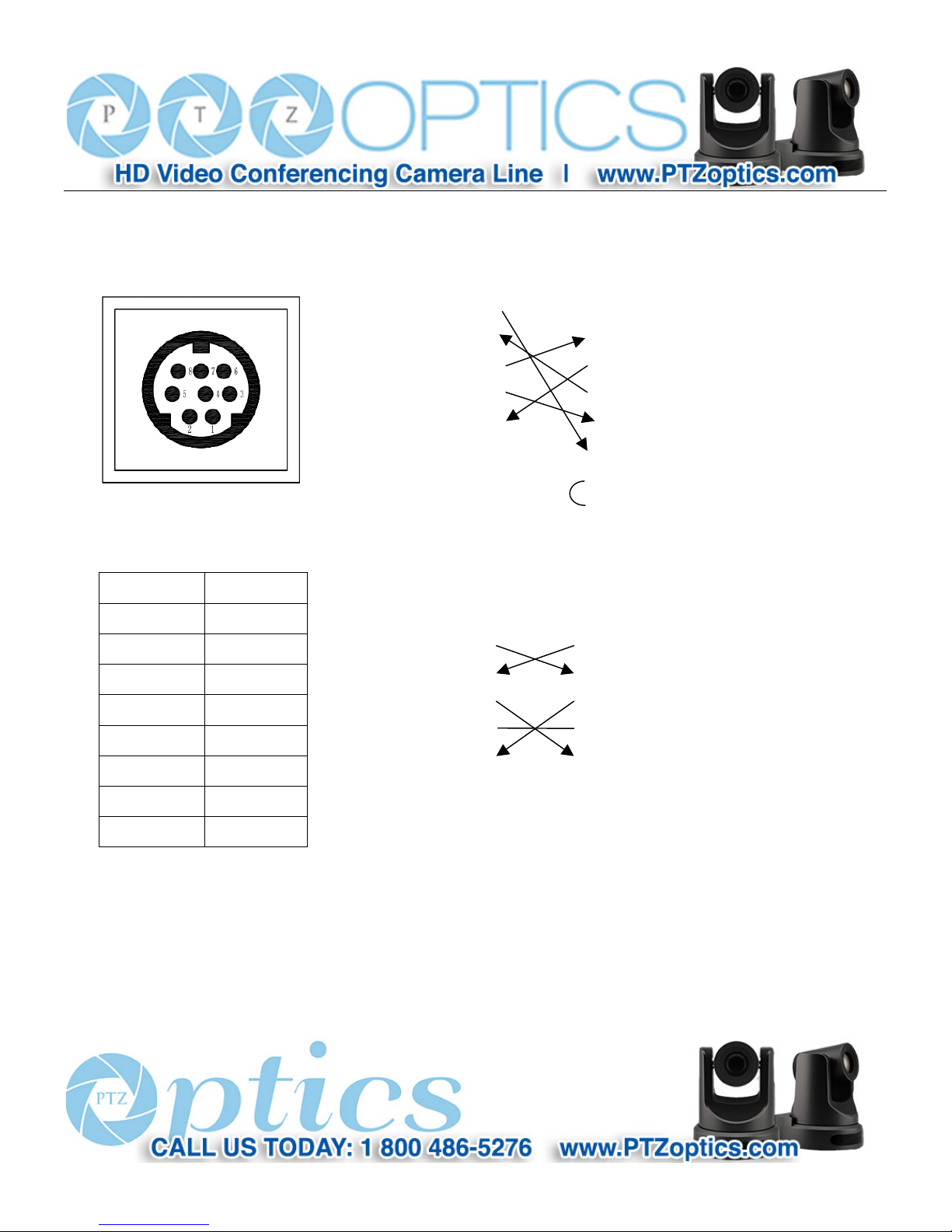

9、 RS-232 Interface ················································································ 17
10、 Serial Communication Control ······························································· 19
11、 Menu Setting ···················································································· 33
12、 Maintains and Trouble Shooting ····························································· 38
Supplied Accessories
When you unpack, check that all the supplied accessories are included:
Camera ....................................... 1
AC power adaptor ...................... 1
Power cord ................................... 1
RS232 cable ................................. 1
Remote controller ........................ 1
User manual ............................... 1
Page 4
3
Note
" Electric Safety
Installation and operation must accord with electric safety standard.
" Caution to transport
Avoid stress, vibration and soakage in transport, storage and installation.

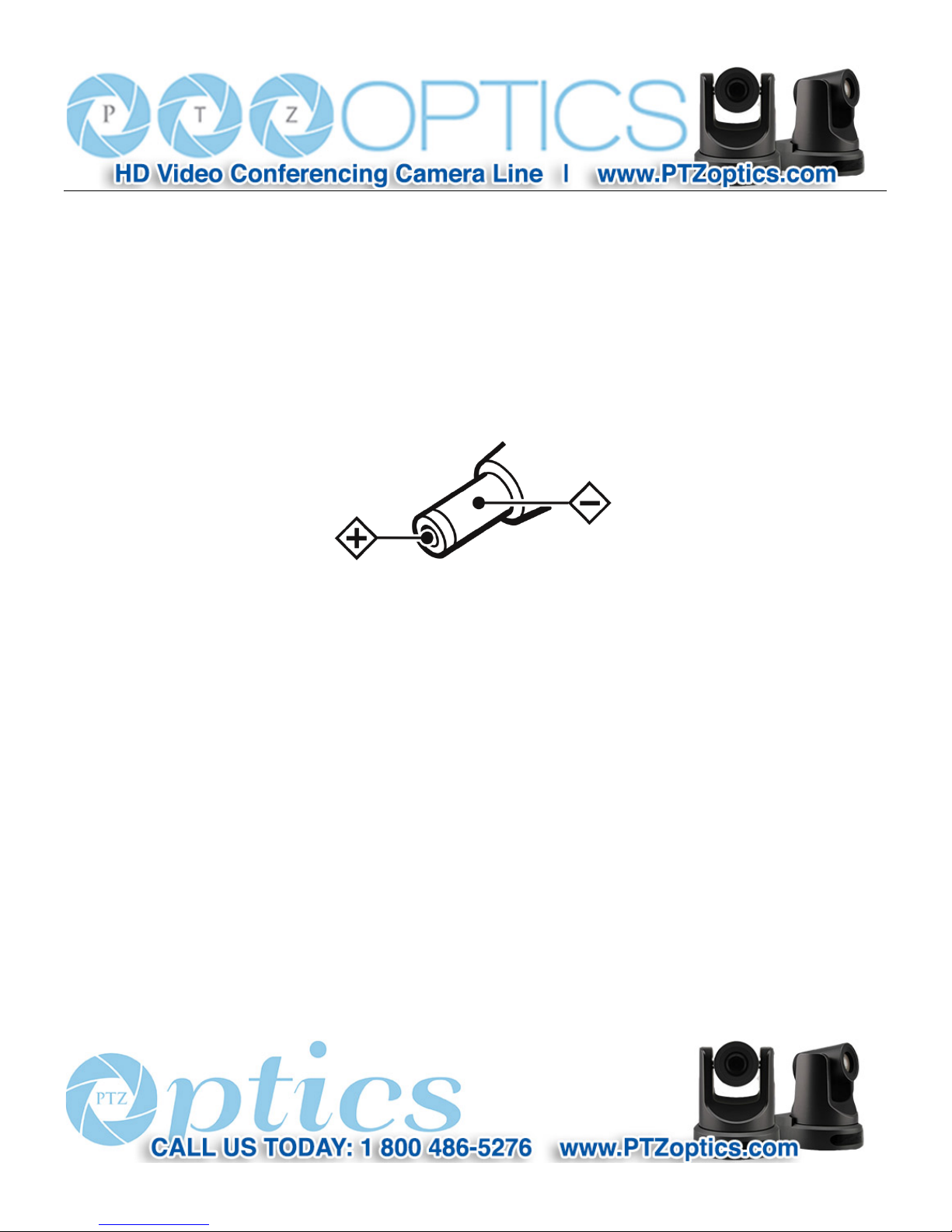

" Polarity of power supply
The power supply of the product is +12V, the max electrical current is 2A .Polarity of the power supply plug drawing as
follows.
" Careful of installation
Do not grasp the camera head when carrying the camera. Don’t turn camera head by hand. Doing so may result in
mechanical damage.
Don’t apply in corrosive liquid, gas or solid environment to avoid damaging the cover which is made up of plastic
material.
To make sure no obstacle in rotation range.
Never power on before installation is not completed.
" Don’t dismantle the camera
We are not responsible for any unauthorized modification or dismantling.
CAUTION!
The specific frequency of electromagnetic field may affect the image of the camera!
Page 5
4

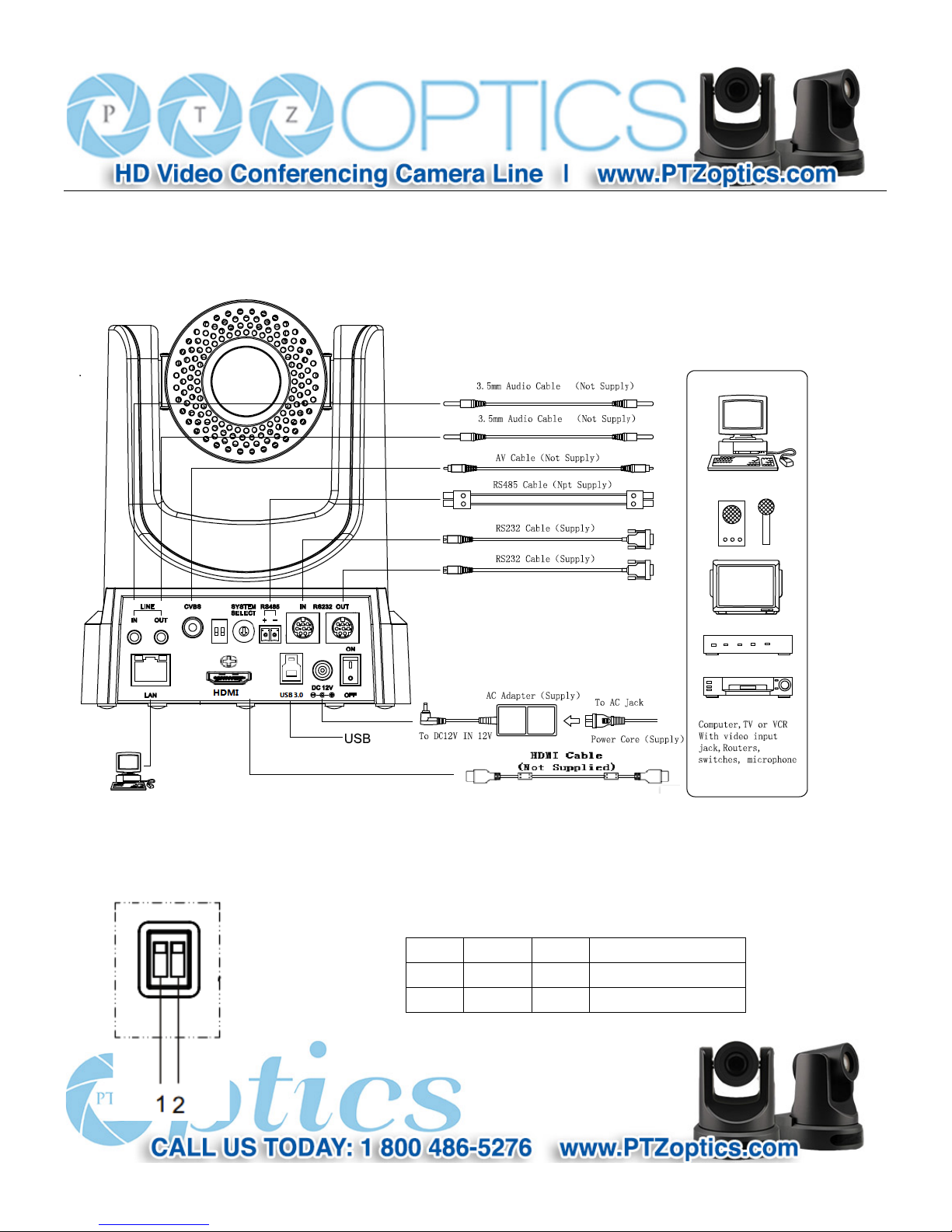

Quick Start
Step1. Please check connections are correct before starting
Step2. Setting switches
Set both of the switch1 and switch2 to "OFF'. That is "Normal Working Mode".
SW-1
SW-2
Modes
1
OFF
OFF
Normal Working Mode
2
ON
OFF
-
Page 6
5
Step3. Setting of the system select switch
The option of video format:
VIDEO SYSTEM
0 - 8 - 1 - 9 - 2
1080i60
A - 3
1080i50
B - 4
720p60 C -
5
720p50
D
576i
6
1080p30
E
480i
7
1080p25
F
-
CAUTION:
a. After changing the switch, you need to restart the camera to take effect.
Step4. Press the Switch ON/OFF button on the rear of the camera, the power lamp light.
Step5. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the
process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be called up after
initialization)
Step6. (Optional) If you want to restore the factory default settings, Press [MENU] button to display the OSD menu. Select
the item [MENU] -> [RESTORE DEFAULT] -> [Restore]. Set the value [Yes], press [HOME] button to restore the factory
default settings.
3
OFF
ON - 4
ON
ON
-
Page 7
6
Features
1. Support USB3.0 transmission, the highest rate up to 5Gbps, ensure real-time lossless HD data
transmission.
2. Support HD USB3.0,HD-SDI(optional),Network stream, three-stream simultaneous output, compatible with CVBS.
3. Adopt Panasonic's 1/3 inch, 2.12 million pixels high quality HD CMOS sensor, which can realize maximum 1920 x
1080 high resolution image with high quality, maximum output frame rate reach 30 frames per second.
4. High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even
under low illumination conditions, picture can still keep clean and clear, SNR more than 55dB.
5. Use TAMRON high quality super telephoto lens, support 20x optical zoom, and 16x digital zoom.
6. Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed
communications. Support Web control.
RESTORE DEFAULT
Restore Yes
Change Value
[Home] OK
[Menu] Back
Page 8
7
Product Specification
Model
20X-USB
Name
PTZ Optics USB3.0 Type HD Color Video Camera
Camera
Video System
1080i/60,1080i/50, 1080p/30,
1080p/25, 720p/60, 720p/50,
NTSC, PAL
Sub stream
resolution
640x360,320x180
Sensor
1/3", CMOS, Total Pixel: 2.2M,
Effective Pixel: 2.12M
Rate
128K,256K,384K,512K,768K,1024
K,1536K,2048K,3072K,4096K,
5120K,6144K,8192K Optional,
or Customed
Scanning Mode
Progressive
Rate control
Variable rate, fixed rate, fixed
quality
Lens
20x, f4.42mm ~ 88.5mm, F1.8
~ F2.8
Maximun frame rate
PAL:1-25, NTSC:1-30 is 30.
Digital Zoom
16x
I frame interval
Customizable (greater than the
maximum frame rate)
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
Video format
PAL,NTSC
Shutter
1/25s ~ 1/10000s
Web frame
Main frame,Sub frame
White Balance
Auto, Indoor, Outdoor,
One-Push, Manual
web video size
Appropriate size, original size,
full-screen
Backlight
Compensation
Support
HD Output
1xUSB3.0,B-type female
Digital Noise
Reduction
2D&3D Digital Noise
Reduction
1xHDMI (Optional):Verision 1.3
Video S/N
≥55dB
SD Output
1xCVBS: RCA jack, 1Vp-p, 75Ω
Horizontal Angle of
View
60.7° ~ 3.36°
Network interface
1xRJ45: 10M/100M Adaptive
Ethernet ports
Vertical Angle of
View
34.1° ~ 1.89°
Audio Input
1-ch 3.5mm audio interface, LINE
IN/LINE OUT
Page 9
8
Horizontal Rotation
Range
±170°
Control Input/Output
1xRS-232 IN: 8pin Min DIN, Max
Distance: 30m, Protocol: VISCA/
Pelco-D/Pelco-P
Vertical Rotation
Range
-30° ~ +90°
1xRS-485: 2pin phoenix port,
Max Distance: 1500m, Protocol:
VISCA/Pelco-D/Pelco-P
Pan Speed Range
1.7° ~ 100°/s
Power Connector
JEITA type (DC IN 12V)
Tilt Speed Range
1.7° ~ 69.9°/s
Input Voltage
12V DC (10.8 ~ 13.0V DC)
Ceiling Installation
Support
Current Consumption
2.0A (Max)
Number of Preset
245
Operating Temperature
-5°C ~ 40°C
Preset Accuracy
0.1°
Storage Temperature
-20°C ~ 60°C
Video coding
standards
H264,JPEG
Power Consumption
18W (Max)
Video frame
Main stream, Sub stream
Dimensions
141mm x 169mm x 176mm
Main stream
resolution
1920x1080,1280x720
Weight
1.5Kg
Page 10
9

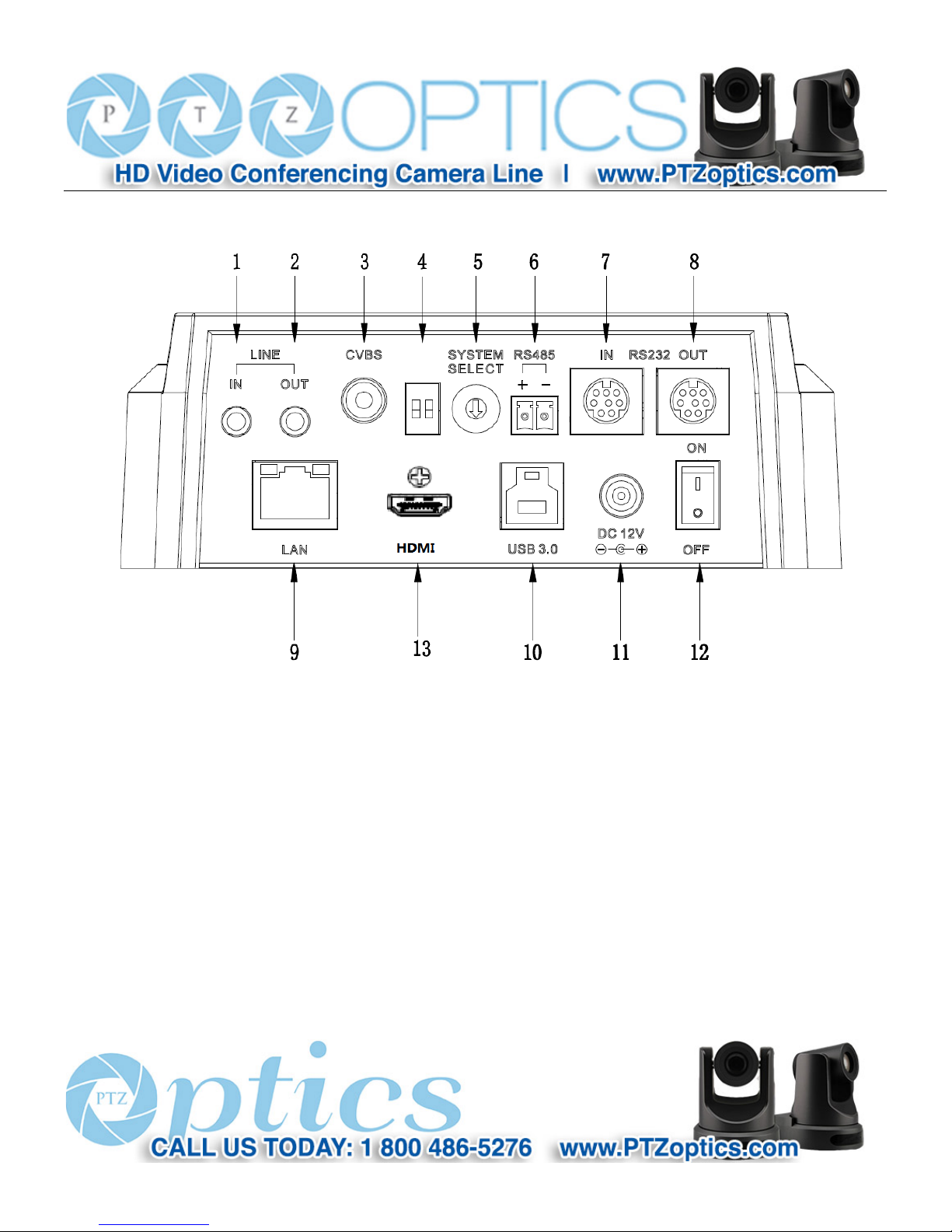

Main Unit
1. Audio LINE IN Interface 7. RS232 IN jack
2. Audio LINE OUT Interface 8. RS232 OUT jack
3. CVBS Interface 9. Network
4. Dip switches 10. USB3.0
5. System select switch 11. DC 12V jack
6. RS485 jack 12. Power switch
13. HDMI
Page 11
10

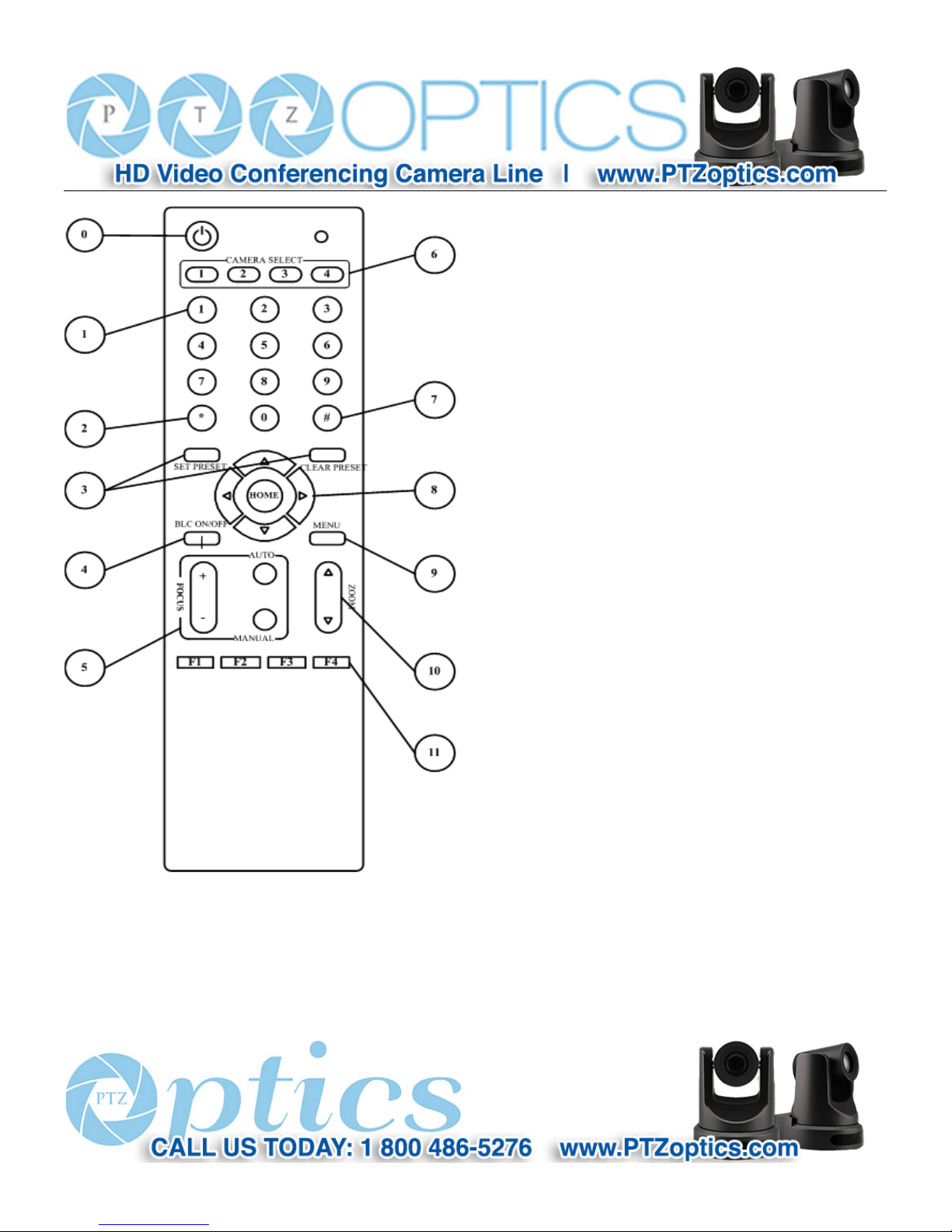

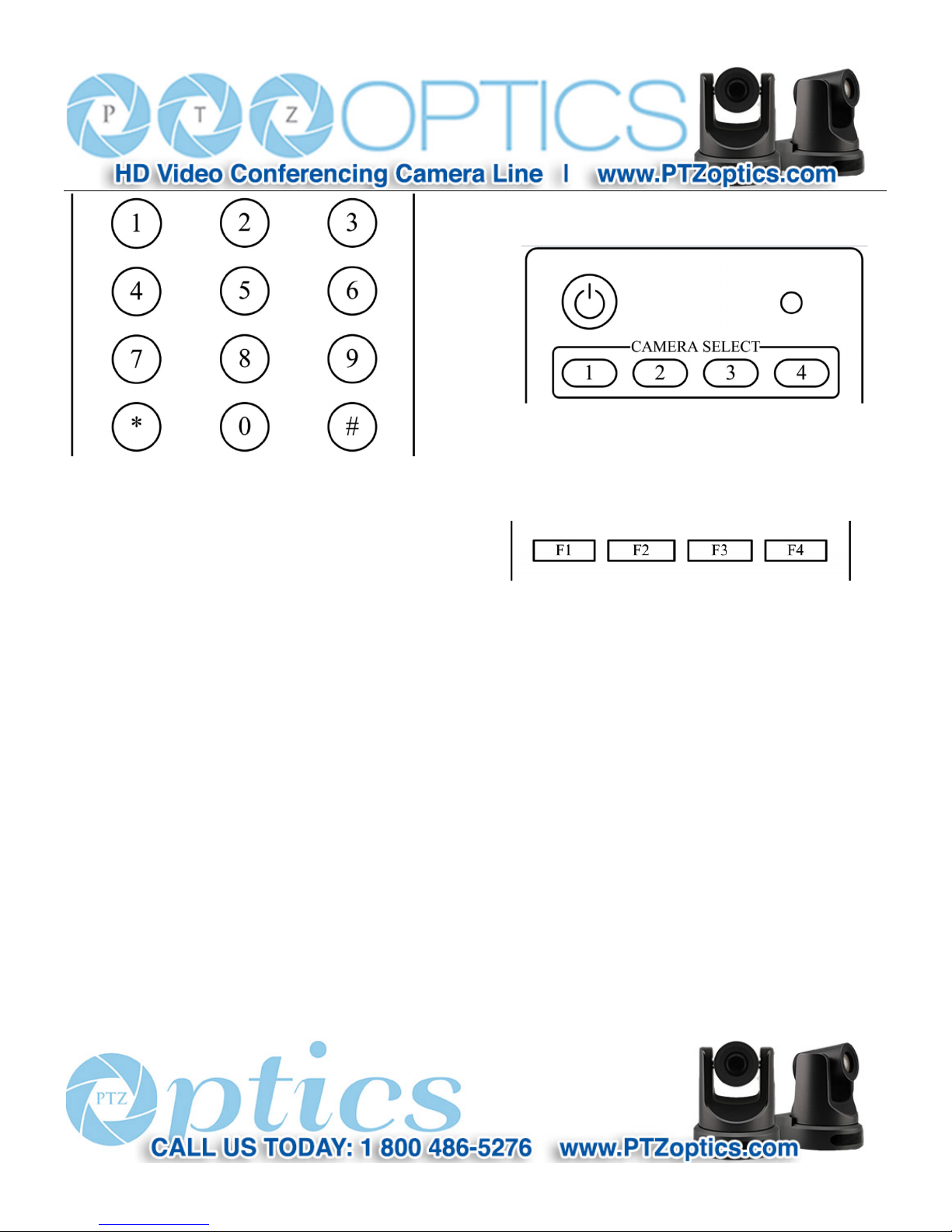

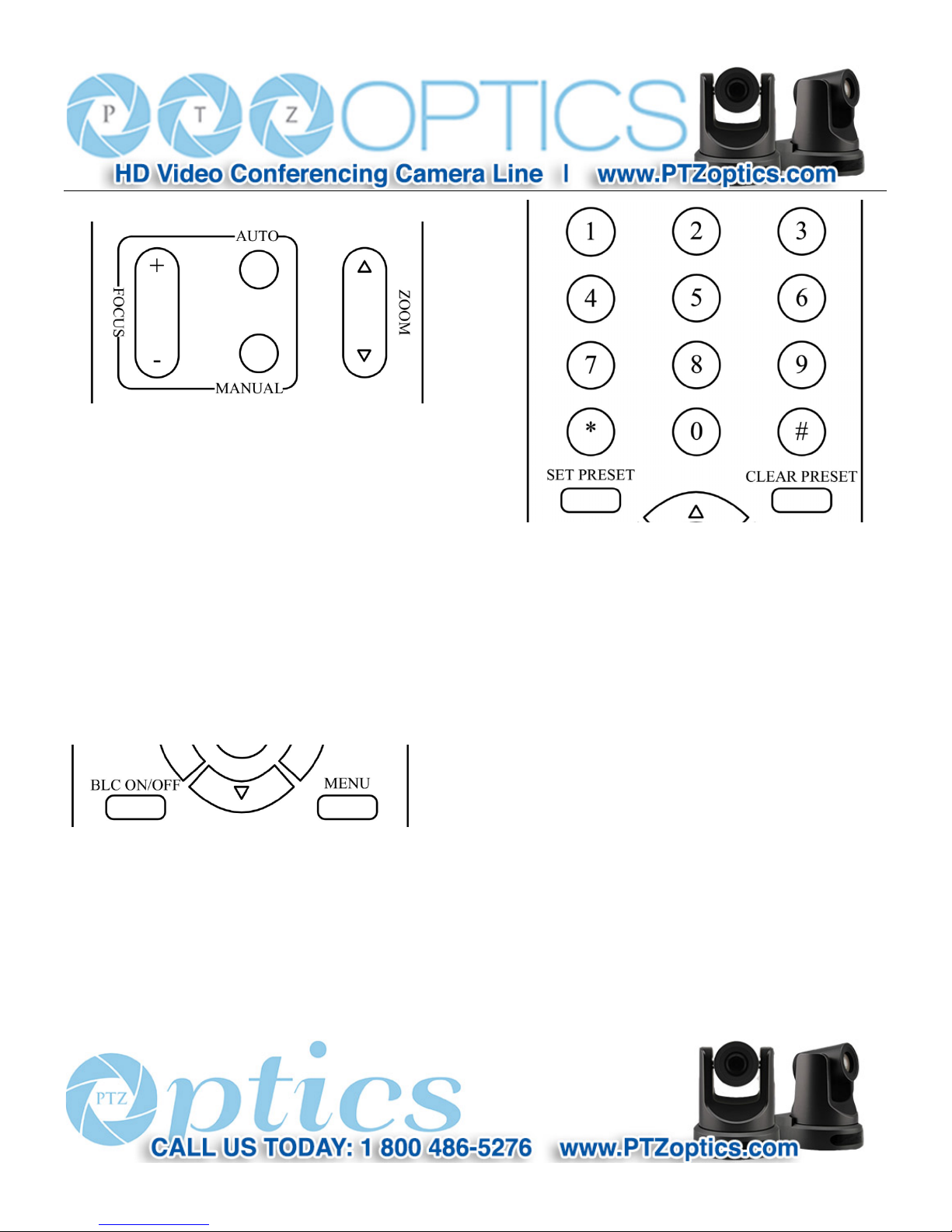

IR Remote Controller Explanation
0. Standby Button
Press this button to enter standby mode. Press it again to
enter normal mode.
(Note: Power consumption in standby mode is
approximately half of the normal mode)
1. Position Buttons
To set preset or call preset
2. * Button
3. Set/Clear Preset Buttons
Set preset: Store a preset position
[SET PRESET] + Numeric button (0-9): Setting a
corresponding numeric key preset position
Clear preset: Erase a preset position
[CLEAR PRESET] + Numeric button (0-9)
Or: [*]+[#]+[CLEAR PRESET]: Erase all the preset
individually
4. BLC (Backlight Compensation) Button
BLC ON/OFF: Press this button to enable the backlight
compensation. Press it again to disable the backlight
compensation.(NOTE: Effective
only in auto exposure mode)
Note: If a light behind the subject, the subject will
become dark. In this case, press the backlight ON / OFF button. To cancel this function, press the backlight ON / OFF
button.
5. Focus Buttons
Used for focus adjustment.
Page 12
11
Press [AUTO] adjust the focuses on the center of the object automatically. To adjust the focus manually, press the
[MANUAL] button, and adjust it with [Focus＋] (Focus on far object) and [Focus－] (Focus on near object)
6. Camera Select Buttons
Press the button corresponding to the camera you want to operate with the remote controller.
7. # Button
8. Pan/Tilt Control Buttons
Press arrow buttons to perform panning and tilting. Press [HOME] button to face the camera back to front
9. Menu Setting
Menu button: Press this button to enter or exit the OSD menu
10. Zoom Buttons
Zoom : Zoom In
Zoom : Zoom Out
11. Set Camera IR Address Buttons
[*]+[＃]+[F1]: Address1
[*]+[＃]+[F2]: Address2
[*]+[＃]+[F3]: Address3
[*]+[＃]+[F4]: Address4
Page 13
12

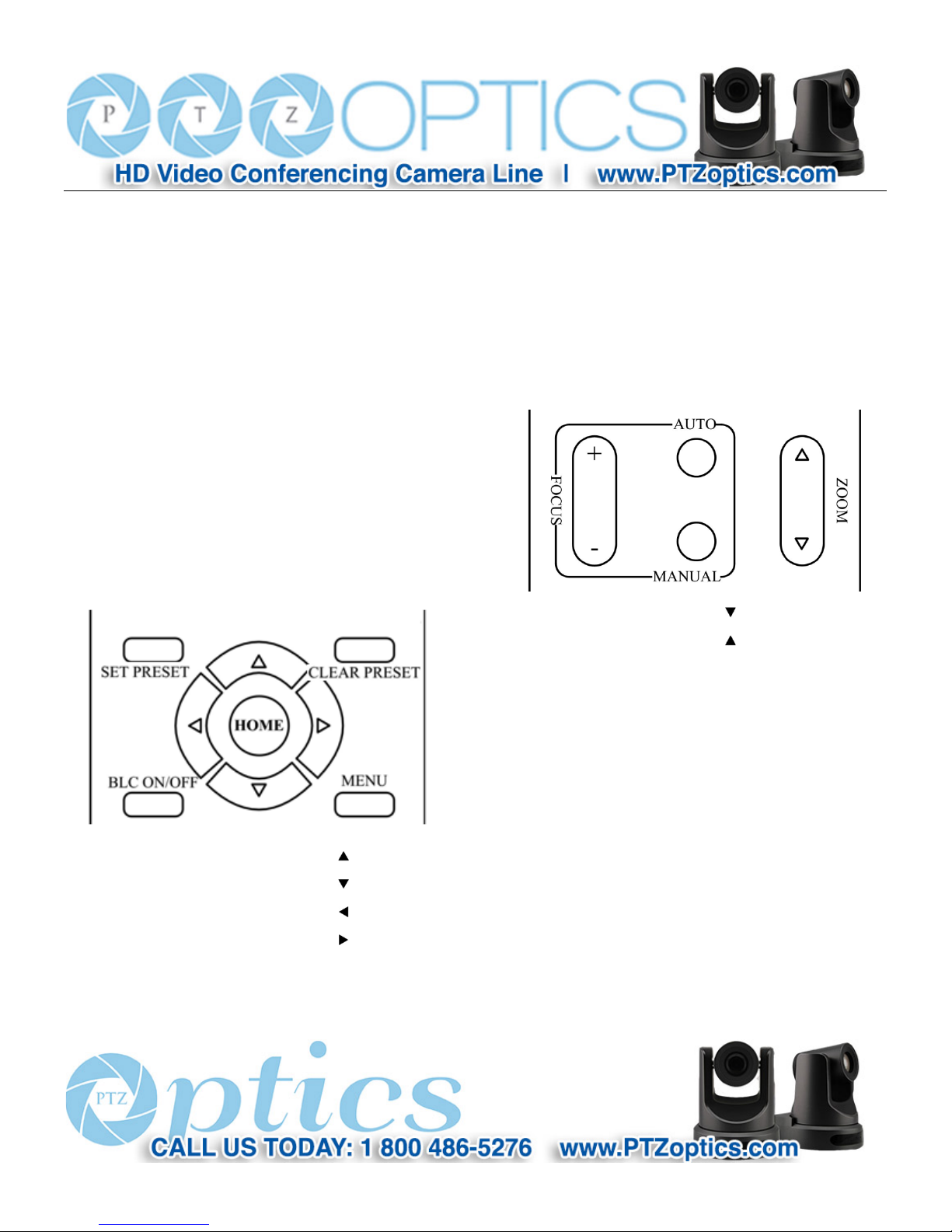

USE IR Remote Controller
When the camera is working, you can use remote
controller to perform panning, tilting, zooming and
focusing, store and call back preset positions.
Button Instruction：
1. In this instruction, ‘press the button’ means the
press and relax the two actions. Such as ‘press
[HOME] button’ means to press the [HOME] key and
then relax action, and a special note will be given if a hold
down for more than one second is required.
2. When a button-combination is required, do it in
sequence. For example, ‘[*] + [#] + [F1]’means press [*]
first and then press [#] and press [F1] at last.
1. Pan/Tilt Control
Move up: Press [ ]
Move down: Press [ ]
Move left: Press [ ]
Move right: Press [ ]
Face the camera back to front: Press [HOME]
Press and hold the up/down/left/right button, the
camera will keep rotating from slow to fast, until it run to
the mechanical limit; the camera stops as soon as the
button is released.
2. Zoom
!
Zoom Out: press [ZOOM ] button
Zoom In: press [ZOOM ] button
Press and hold the button, the camera will keep
zooming in or zooming out and it stops as soon as the
button is released.
Page 14
13
3. Focus Control
Focus Far: Press [FOCUS+] button (NOTE: Effective
only in manual focus mode)
Focus Near: Press [FOCUS-] button (NOTE: Effective
only in manual focus mode)
Press and hold the button, the action of focus continues
and stops as soon as the button is released.
AUTO: Change focus mode to AF, adjusting the focus
automatically.
MANUAL: Change focus mode to MF, adjusting the
focus manually.
4. Backlight Switch
BLC ON/OFF: Press this button to enable the backlight
compensation. Press it again to disable the backlight
compensation. (Note: Backlight is only effective in full
auto exposure mode)
5. Presets Set/Clear
1. To store a preset position: The users should press
the [SET PRESET] button first and then press the
numeric button 0-9.
10 preset positions in total are available.
2. To erase the memory content of a preset position:
The users should press the [CLEAR PRESET] button first
and then press the numeric button 0-9.
Note:
Press [*]+[#]+[CLEAR PRESET] will erase all
preset individually positions in the memory.
6. Recalling the Preset
Page 15
14
Press any of the numeric buttons 0-9 directly to
recall stored preset positions and settings.
Note:
No action is executed if a relative preset position is
not stored.
7. Camera Selection
Press the button corresponding to the camera you
want to operate.
8. Camera IR Address Set
[*]+[＃]+[F1]: Address1
[*]+[＃]+[F2]: Address2
[*]+[＃]+[F3]: Address3
[*]+[＃]+[F4]: Address4
Page 16
15
RS-232 Interface
Camera Windows DB-9
1.DTR 1.CD
2.DSR 2.RXD
3.TXD 3.TXD
4.GND 4.DTR
5.RXD 5.GND
6.GND 6.DSR
7.IR OUT 7.RTS
8.NC 8.CTS
9.RI
Camera Mini DIN
1.DTR 1.DTR
2.DSR 2.DSR
3.TXD 3.TXD
4.GND 4.GND
5.RXD 5.RXD
6.GND 6.GND
7.IR OUT 7.NC
8.NC 8.NC

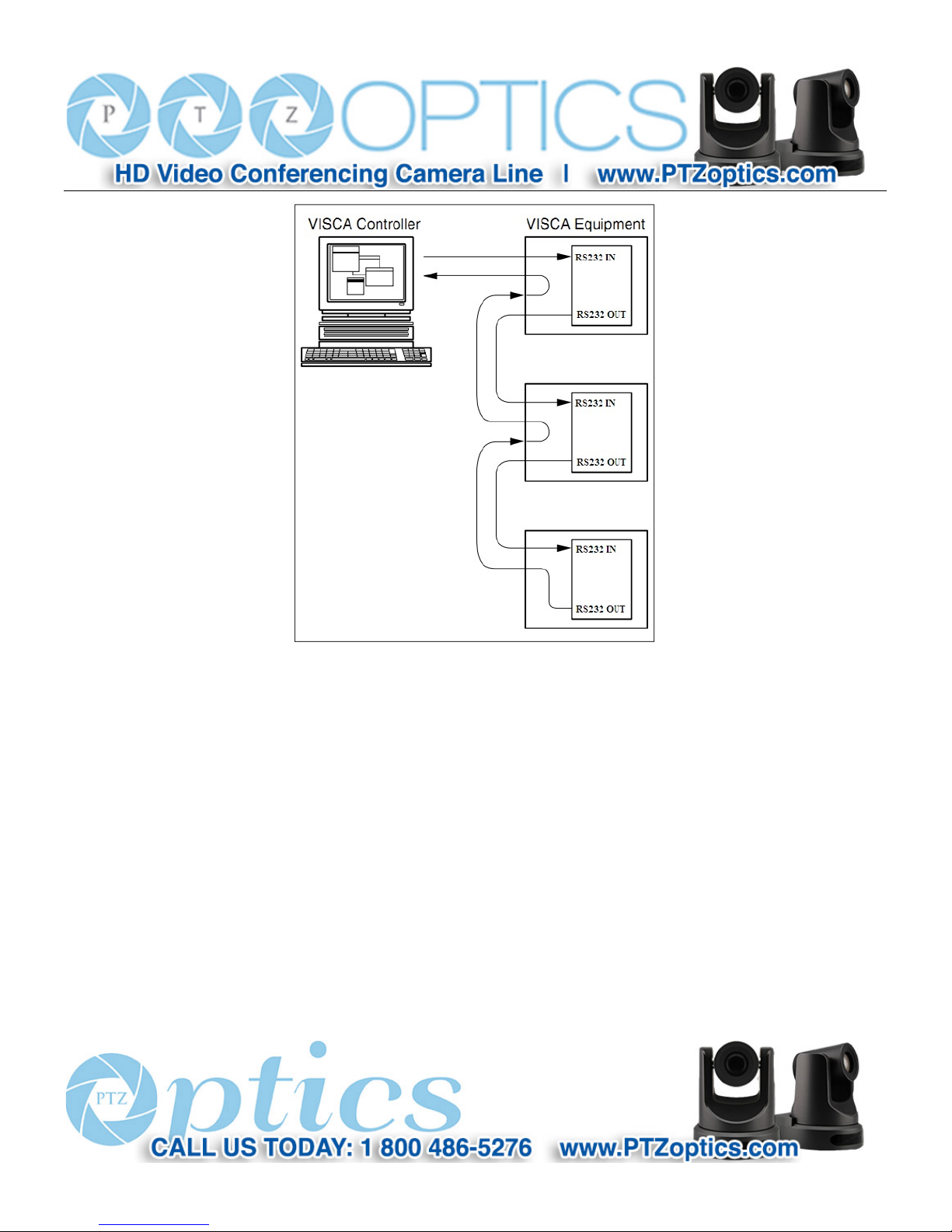

VISCA Network Configuration
No.
Function
1
DTR
2
DSR 3 TXD
4
GND
5
RXD
6
GND
7
IR OUT
8
NC
Page 17
16
Serial Communication Control
In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface.
# RS232!Communication!Control!
The camera can be controlled via RS232 ,the parameters of RS232C are as follows:
Baud rate: 2400/4800/9600 bit/s.
Start bit: 1 bit.
Data bit: 8 bits.
Stop bit: 1bit.
Parity bit: none.
# RS485!Communication!Control!
Page 18
17
The camera can be controlled via RS485, Half-duplex mode, supports VISCA or Pelco-D or Pelco-P protocol,
supports the following configurations:
Baud rate: 2400/4800/9600 bit/s.
Start bit: 1 bit.
Data bit: 8 bits.
Stop bit: 1bit.
Parity bit: none.
Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the process
of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be called up after
initialization) Then the users can control the camera with commands in the command list.
Page 19
18
VISCA Command List
Part 1 Camera-Issued Messages
Ack/Completion Message
Command
Function
Command Packet
Comments
ACK/Comletion
Messages
ACK
z0 4y FF
(y: Socket No.)
Return when the command is accepted.
Completion
z0 5y FF
(y: Socket No.)
Return when the command has been
executed.
z = Camera Address + 8
Error Messages
Command
Function
Command Packet
Comments
Error Messages
Syntax Error
z0 60 02 FF
Returned when the command format is
different or when a command with illegal
command parameters is accepted.
Command Buffer Full
z0 60 03 FF
Indicates that two sockets are already
being used(executing two commands)
and the command could not be accepted
when received.
Command Canceled
z0 6y 04 FF
(y: Socket No.)
Returned when a command which is
being executed in a socket specified by
the cancel command is canceled. The
completion message for the command is
not returned.
No Socket
z0 6y 05 FF
(y: Socket No.)
Returned when no command is executed
in a socket specifild by the cancel
command, or when an invalid socket
number is specified.
Page 20
19
Command Not Executable
z0 6y 41 FF
(y: Execution command Socket
No. Inquiry command: 0)
Returned when a command canot be
executed due to current conditions.For
example, when commands controlling the
focus manually are received during auto
focus.
Part 2 Camera Control Command
Command
Function
Command Packet
Comments
AddressSet
Broadcast
88 30 01 FF
Address setting
IF_Clear
Broadcast
88 01 00 01 FF
I/F Clear
CAM_Power
On
8x 01 04 00 02 FF
Power ON/OFF
Off
8x 01 04 00 03 FF
CAM_Zoom
Stop
8x 01 04 07 00 FF
Tele(Standard)
8x 01 04 07 02 FF
Wide(Standard)
8x 01 04 07 03 FF
Tele(Variable)
8x 01 04 07 2p FF
p = 0(low) - 7(high)
Wide(Variable)
8x 01 04 07 3p FF
Direct
8x 01 04 47 0p 0q 0r 0s FF
pqrs: Zoom Position
CAM_Focus
Stop
8x 01 04 08 00 FF
Far(Standard)
8x 01 04 08 02 FF
Near(Standard)
8x 01 04 08 03 FF
Far(Variable)
8x 01 04 08 2p FF
p = 0(low) - 7(high)
Near(Variable)
8x 01 04 08 3p FF
Direct
8x 01 04 48 0p 0q 0r 0s FF
pqrs: Focus Position
Auto Focus
8x 01 04 38 02 FF
AF On/Off
Manual Focus
8x 01 04 38 03 FF
Auto/Manual
8x 01 04 38 10 FF
CAM_ZoomFocus
Direct
8x 01 04 47 0p 0q 0r 0s
0t 0u 0v 0w FF
pqrs: Zoom Position
tuvw: Focus Position
CAM_WB
Auto
8x 01 04 35 00 FF
Normal Auto
Indoor mode
8x 01 04 35 01 FF
Indoor mode
Page 21
20
Outdoor mode
8x 01 04 35 02 FF
Outdoor mode
OnePush mode
8x 01 04 35 03 FF
One Push WB mode
Manual
8x 01 04 35 05 FF
Manual Control mode
OnePush trigger
8x 01 04 10 05 FF
One Push WB Trigger
CAM_RGain
Reset
8x 01 04 03 00 FF
Manual Control of R Gain
Up
8x 01 04 03 02 FF
Down
8x 01 04 03 03 FF
Direct
8x 01 04 43 00 00 0p 0q FF
pq: R Gain
CAM_Bgain
Reset
8x 01 04 04 00 FF
Manual Control of B Gain
Up
8x 01 04 04 02 FF
Down
8x 01 04 04 03 FF
Direct
8x 01 04 44 00 00 0p 0q FF
pq: B Gain
CAM_AE
Full Auto
8x 01 04 39 00 FF
Automatic Exposure mode
Manual
8x 01 04 39 03 FF
Manual Control mode
Shutter priority
8x 01 04 39 0A FF
Shutter Priority Automatic Exposure
mode
Iris priority
8x 01 04 39 0B FF
Iris Priority Automatic Exposure mode
Bright
8x 01 04 39 0D FF
Bright Mode(Manual control)
CAM_SlowShutter
AutoSlowShutterLimit
8x 01 04 2A 0p 00 FF
CAM_Iris
Reset
8x 01 04 0B 00 FF
Iris Setting
Up
8x 01 04 0B 02 FF
Down
8x 01 04 0B 03 FF
Direct
8x 01 04 4B 00 00 0p 0q FF
pq: Iris Position
CAM_Gain
Reset
8x 01 04 0C 00 FF
Gain Setting
Up
8x 01 04 0C 02 FF
Down
8x 01 04 0C 03 FF
Direct
8x 01 04 0C 00 00 0p 0q FF
pq: Gain Position
Gain Limit
8x 01 04 2C 0p FF
p: Gain Position
CAM_Bright
Reset
8x 01 04 0D 00 FF
Bright Setting
Up
8x 01 04 0D 02 FF
Down
8x 01 04 0D 03 FF
Direct
8x 01 04 0D 00 00 0p 0q FF
pq: Bright Position
Page 22
21
CAM_ExpComp
On
8x 01 04 3E 02 FF
Exposure Compensation On/Off
Off
8x 01 04 3E 03 FF
Reset
8x 01 04 0E 00 FF
Exposure Compensation Amount Setting
Up
8x 01 04 0E 02 FF
Down
8x 01 04 0E 03 FF
Direct
8x 01 04 4E 00 00 0p 0q FF
pq: ExpComp Position
CAM_BackLight
On
8x 01 04 33 02 FF
Back Light Compensation On/Off
Off
8x 01 04 33 03 FF
CAM_NR(2D)Mode
Auto
8x 01 04 50 02 FF
ND2D Auto/Manual
Manual
8x 01 04 50 03 FF
CAM_NR(2D)Level
-
8x 01 04 53 0p FF
p: NR Setting (0: Off, level 1 to 5)
CAM_NR(3D)Level
-
8x 01 04 54 0p FF
p: NR Setting (0: Off, level 1 to 8)
CAM_Flicker
-
8x 01 04 23 0p FF
p: Flicker Settings
(0: Off, 1: 50Hz, 2: 60Hz)
CAM_DHotPixel
-
8x 01 04 56 0p FF
p: Dynamic Hot Pixel Setting (0: 0ff,
level 1 to 6)
CAM_ApertureMode(
sharpness)
Auto
8x 01 04 05 02 FF
Sharpness Auto
Manual
8x 01 04 05 02 FF
Sharpness Manual
CAM_Aperture(sharp
ness)
Reset
8x 01 04 02 00 FF
Aperture Control
Up
8x 01 04 02 02 FF
Down
8x 01 04 02 03 FF
Direct
8x 01 04 42 00 00 0p 0q FF
pq: Aperture Gain
CAM_PictureEffect
Off
8x 01 04 63 00 FF
Picture Effect Setting
B&W
8x 01 04 63 04 FF
CAM_Memory
Reset
8x 01 04 3F 00 pp FF
pp: Memory Number(=0 to 127)
Set
8x 01 04 3F 01 pp FF
Recall
8x 01 04 3F 02 pp FF
CAM_LR_Reverse
On
8x 01 04 61 02 FF
Image Flip Horizontal On/Off
Off
8x 01 04 61 03 FF
CAM_PictureFlip
On
8x 01 04 66 02 FF
Image Flip Vertical On/Off
Off
8x 01 04 66 03 FF
Page 23
22
CAM_RegisterValue
-
8x 01 04 24 mn 0p 0q FF
mm: Register No. (=00-7F)
pp: Register Value (=00-7F)
CAM_ColorGain
Diret
8x 01 04 49 00 00 00 0p FF
p: Color Gain setting 0h (60%) to Eh
(200%)
SYS_Menu
Off
8x 01 06 06 03 FF
Turns off the menu screen
Pan_tiltDrive
Up
8x 01 06 01 VV WW 03 01 FF
VV: Pan speed 0x01 (low speed) to 0x18
(high speed)
WW: Tilt speed 0x01 (low speed) to 0x14
(high speed)
YYYY: Pan Position
ZZZZ: Tilt Position
Down
8x 01 06 01 VV WW 03 02 FF
Left
8x 01 06 01 VV WW 01 03 FF
Right
8x 01 06 01 VV WW 02 03 FF
Upleft
8x 01 06 01 VV WW 01 01 FF
Upright
8x 01 06 01 VV WW 02 01 FF
DownLeft
8x 01 06 01 VV WW 01 02 FF
DownRight
8x 01 06 01 VV WW 02 02 FF
Stop
8x 01 06 01 VV WW 03 03 FF
AbsolutePosition
8x 01 06 02 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
RelativePosition
8x 01 06 03 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
Home
8x 01 06 04 FF
Reset
8x 01 06 05 FF
Pan_tiltLimitSet
LimitSet
8x 01 06 07 00 0W
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
W: 1 UpRight 0: DownLeft
YYYY: Pan Limit Position
ZZZZ: Tilt Position
LimitClear
8x 01 06 07 01 0W
07 0F 0F 0F 07 0F 0F 0F FF
CAM_AFSensitivity
High
8x 01 04 58 01 FF
AF Sensitivity High/Normal/Low
Normal
8x 01 04 58 02 FF
Low
8x 01 04 58 03 FF
CAM_SettingReset
Reset
8x 01 04 A0 10 FF
Reset Factory Setting
CAM_Brightness
Direct
8x 01 04 A1 00 00 0p 0q FF
pq: Brightness Position
CAM_Contrast
Direct
8x 01 04 A2 00 00 0p 0q FF
pq: Contrast Position
CAM_Flip
Off
8x 01 04 A4 00 FF
Single Command For Video Flip
Flip-H
8x 01 04 A4 01 FF
Flip-V
8x 01 04 A4 02 FF
Page 24
23
Flip-HV
8x 01 04 A4 03 FF
CAM_SettingSave
Save
8x 01 04 A5 10 FF
Save Current Setting
CAM_Iridix
Direct
8x 01 04 A7 00 00 0p 0q FF
pq: Iridix Position
CAM_AWBSensitivit
y
High
8x 01 04 A9 00 FF
High
Normal
8x 01 04 A9 01 FF
Normal
Low
8x 01 04 A9 02 FF
Low
CAM_AFZone
Top
8x 01 04 AA 00 FF
AF Zone weight select
Center
8x 01 04 AA 01 FF
Bottom
8x 01 04 AA 02 FF
CAM_ColorHue
Direct
8x 01 04 4F 00 00 00 0p FF
p: Color Hue setting 0h (− 14 dgrees) to
Eh ( +14 degrees
Part 3 Query Command
Inquiry Command List
Command
Command packed
Inquiry Packet
Comments
CAM_PowerInq
8x 09 04 00 FF
y0 50 02 FF
On
y0 50 03 FF
Off(Standby)
y0 50 04 FF
Internal power ciruit error
CAM_ZoomPosInq
8x 09 04 47 FF
y0 50 0p 0q 0r 0s FF
pqrs: Zoom Position
CAM_FocusAFMode
Inq
8x 09 04 38 FF
y0 50 02 FF
Auto Focus
y0 50 03 FF
Manual Focus
CAM_FocusPosInq
8x 09 04 48 FF
y0 50 0p 0q 0r 0s FF
pqrs: Focus Position
CAM_WBModeInq
8x 09 04 35 FF
y0 50 00 FF
Auto
y0 50 01 FF
Indoor mode
y0 50 02 FF
Outdoor mode
y0 50 03 FF
OnePush mode
y0 50 05 FF
Manual
CAM_RGainInq
8x 09 04 43 FF
y0 50 00 00 0p 0q FF
pq: R Gain
CAM_BGainInq
8x 09 04 44 FF
y0 50 00 00 0p 0q FF
pq: B Gain
CAM_AEModeInq
8x 09 04 39 FF
y0 50 00 FF
Full Auto
y0 50 03 FF
Manual
Page 25
24
y0 50 0A FF
Shutter priority
y0 50 0B FF
Iris priority
y0 50 0D FF
Bright
CAM_ShutterPosInq
8x 09 04 4A FF
y0 50 00 00 0p 0q FF
pq: Shutter Position
CAM_IrisPosInq
8x 09 04 4B FF
y0 50 00 00 0p 0q FF
pq: Iris Position
CAM_BrightPosInq
8x 09 04 4D FF
y0 50 00 00 0p 0q FF
pq: Bright Position
CAM_ExpCompMod
eInq
8x 09 04 3E FF
y0 50 02 FF
On
y0 50 03 FF
Off
CAM_ExpCompPosI
nq
8x 09 04 4E FF
y0 50 00 00 0p 0q FF
pq: ExpComp Position
CAM_BacklightMode
Inq
8x 09 04 33 FF
y0 50 02 FF
On
y0 50 03 FF
Off
CAM_Nosise2DMode
Ing
8x 09 04 50 FF
y0 50 02 FF
Auto Noise 2D
y0 50 03 FF
Manual Noise 3D
CAM_Nosise2DLevel
8x 09 04 53 FF
y0 50 0p FF
Noise Reduction (2D) p: 0 to 5
CAM_Noise3DLevel
8x 09 04 54 FF
y0 50 0p FF
Noise Reduction (3D) p: 0 to 8
CAM_FlickerModeIn
q
8x 09 04 55 FF
y0 50 0p FF
p: Flicker Settings(0: OFF, 1: 50Hz, 2:
60Hz)
y0 50 02 FF
Auto Sharpness
CAM_ApertureModeI
nq(Sharpness)
8x 09 04 05 FF
y0 50 03 FF
Manual Sharpness
CAM_ApertureInq(Sh
arpness)
8x 09 04 42 FF
y0 50 00 00 0p 0q FF
pq: Aperture Gain
CAM_PictureEffectM
odeInq
8x 09 04 63 FF
y0 50 02 FF
Off
y0 50 04 FF
B&W
CAM_MemoryInq
8x 09 04 3F FF
y0 50 0p FF
p: Memory number last operated.
SYS_MenuModeInq
8x 09 06 06 FF
y0 50 02 FF
On
y0 50 03 FF
Off
CAM_LR_ReverseInq
8x 09 04 61 FF
y0 50 02 FF
On
y0 50 03 FF
Off
CAM_PictureFlipInq
8x 09 04 66 FF
y0 50 02 FF
On
y0 50 03 FF
Off
Page 26
25
CAM_RegisterValueI
nq
8x 09 04 24 mm FF
y0 50 0p 0p ff
mm: Register No. (00 to FF) pp: Register
Value (00 to FF)
CAM_ColorGainInq
8x 09 04 49 FF
y0 50 00 00 00 0p FF
p: Color Gain setting 0h (60%) to Eh
(200%)
CAM_IDInq
8x 09 04 22 FF
y0 50 0p 0q 0r 0s FF
pqrs: Camera ID
CAM_VersionInq
8x 09 00 02 FF
y0 50 ab cd
mn pq rs tu vw FF
ab: Factory Code(00: VHD, 01:MR,
08:T)
cd: Hardware Version
mnpq: ARM Version
rstu: FPGA Version
vw: Camera model
01: C Type
02: M Type
03: S Type
VideoSystemInq
8x 09 06 23 FF
y0 50 00 FF
1920x1080i60
y0 50 01 FF
1920x1080p30
y0 50 02 FF
1280x720p60
y0 50 04 FF
NTSC
y0 50 05 FF
NTSC
y0 50 06 FF
NTSC
y0 50 07 FF
1920x1080p60
y0 50 08 FF
1920x1080i50
y0 50 09 FF
1920x1080p25
y0 50 0A FF
1280x720p50
y0 50 0C FF
PAL
y0 50 0D FF
PAL
y0 50 0E FF
PAL
IR_Receive
8x 09 06 08 FF
y0 50 02 FF
On
y0 50 03 FF
Off
Pan-tiltMaxSpeedInq
8x 09 06 11 FF
y0 50 ww zz FF
ww: Pan Max Speed
zz: Tilt Max Speed
Pan-tiltPosInq
8x 09 06 12 FF
y0 50 0w 0w 0w 0w
0z 0z 0z 0z FF
wwww: Pan Position
zzzz: Tilt Position
Page 27
26
CAM_TypeInq
8x 09 00 03 FF
y0 50 01 FF
C Type
y0 50 02 FF
M Type
y0 50 03 FF
S Type
CAM_DateInq
8x 09 00 04 FF
y0 50 0r ss uu uu vv ww 0D FF
Version dater: Big Version Numberss:
Little Version Numberuuuu: Yearvv:
Monthww: Day
CAM_ModeInq
8x 09 04 A6 FF
y0 50 00 FF
Mode0
y0 50 02 FF
Mode2
CAM_GainLimitInq
8x 09 04 2C FF
y0 50 0q FF
p: Gain Limit
CAM_DHotPixelInq
8x 09 04 56 FF
y0 50 0q FF
p: Dynamic Hot Pixel Setting (0: 0ff,
level 1 to 6)
CAM_AFSensitivityI
nq
8x 09 04 58 FF
y0 50 01 FF
High
y0 50 02 FF
Normal
y0 50 03 FF
Low
CAM_BrightnessInq
8x 09 04 A1 FF
y0 50 00 00 0p 0q FF
pq: Brightness Position
CAM_ContrastInq
8x 09 04 A2 FF
y0 50 00 00 0p 0q FF
pq: Contrast Position
CAM_FlipInq
8x 09 04 A4 FF
y0 50 00 FF
Off
y0 50 01 FF
Flip-H
y0 50 02 FF
Flip-V
y0 50 03 FF
Flip-HV
CAM_IridixInq
8x 09 04 A7 FF
y0 50 00 00 0p 0q FF
pq: Iridix Position
CAM_AFZone
8x 09 04 AA FF
y0 50 00 FF
Top
y0 50 01 FF
Center
y0 50 02 FF
Bottom
CAM_ColorHueInq
8x 09 04 4F FF
y0 50 00 00 00 0p FF
p: Color Hue setting 0h (− 14 dgrees) to
Eh ( +14 degrees
CAM_AWBSensitivit
yInq
8x 09 04 A9 FF
y0 50 00 FF
High
y0 50 01 FF
Normal
y0 50 02 FF
Low Block Inquiry Command List
Page 28
27
Command
Command packed
Inquiry Packet
Comments
CAM_LensBlockInq
8x 09 7E 7E 00 FF
y0 50 0u 0u 0u 0u 00 00 0v 0v
0v 0v 00 0w 00 FF
uuuu: Zoom Position
vvvv: Focus Position
w.bit0: Focus Mode 1: Auto 0: Manual
CAM_CameraBlockIn
q
8x 09 7E 7E 01 FF
y0 50 0p 0p 0q 0q 0r 0s tt 0u vv
ww 00 xx 0z FF
pp: R_Gain
qq: B_Gain
r: WB Mode
s: Aperture
tt: AE Mode
u.bit2: Back Light
u.bit1: Exposure Comp.
vv: Shutter Position
ww: Iris Position
xx: Bright Position
z: Exposure Comp. Position
CAM_OtherBlockInq
8x 09 7E 7E 02 FF
y0 50 0p 0q 00 0r 00 00 00 00
00 00 00 00 00 FF
p.bit0: Power 1:On, 0:Off
q.bit2: LR Reverse 1:On, 0:Off
r.bit3~0: Picture Effect Mode
CAM_EnlargementBl
ockInq
8x 09 7E 7E 03 FF
y0 50 00 00 00 00 00 00 00 0p
0q rr 0s 0t 0u FF
p: AF sensitivity
q.bit0: Picture flip(1:On, 0:Off)
rr.bit6~3: Color Gain(0h(60%) to
Eh(200%))
s: Flip(0: Off, 1:Flip-H, 2:Flip-V,
3:Flip-HV)
t.bit2~0: NR2D Level
u: Gain Limit
Note:
The [x] in the above table is the camera address, [y] = [x + 8].
Page 29
28
Pelco-D Protocol Command List
Function
Byte1
Byte2
Byte3
Byte4
Byte5
Byte6
Byte7
Up
0xFF
Address
0x00
0x08
Pan Speed
Tilt Speed
SUM
Down
0xFF
Address
0x00
0x10
Pan Speed
Tilt Speed
SUM
Left
0xFF
Address
0x00
0x04
Pan Speed
Tilt Speed
SUM
Right
0xFF
Address
0x00
0x02
Pan Speed
Tilt Speed
SUM
Zoom In
0xFF
Address
0x00
0x20
0x00
0x00
SUM
Zoom Out
0xFF
Address
0x00
0x40
0x00
0x00
SUM
Focus Far
0xFF
Address
0x00
0x80
0x00
0x00
SUM
Focus Near
0xFF
Address
0x01
0x00
0x00
0x00
SUM
Set Preset
0xFF
Address
0x00
0x03
0x00
Preset ID
SUM
Clear Preset
0xFF
Address
0x00
0x05
0x00
Preset ID
SUM
Call Preset
0xFF
Address
0x00
0x07
0x00
Preset ID
SUM
Auto Focus
0xFF
Address
0x00
0x2B
0x00
0x01
SUM
Manual Focus
0xFF
Address
0x00
0x2B
0x00
0x02
SUM
Query Pan Position
0xFF
Address
0x00
0x51
0x00
0x00
SUM
Query Pan Position Response
0xFF
Address
0x00
0x59
Value High
Byte
Value Low
Byte
SUM
Query Tilt Position
0xFF
Address
0x00
0x53
0x00
0x00
SUM
Query Tilt Position Response
0xFF
Address
0x00
0x5B
Value High
Byte
Value Low
Byte
SUM
Query Zoom Position
0xFF
Address
0x00
0x55
0x00
0x00
SUM
Query Zoom Position
Response
0xFF
Address
0x00
0x5D
Value High
Byte
Value Low
Byte
SUM
Page 30
29
Pelco-P Protocol Command List
Function
Byte1
Byte2
Byte3
Byte4
Byte5
Byte6
Byte7
Byte8
Up
0xA0
Address
0x00
0x08
Pan Speed
Tilt Speed
0xAF
XOR
Down
0xA0
Address
0x00
0x10
Pan Speed
Tilt Speed
0xAF
XOR
Left
0xA0
Address
0x00
0x04
Pan Speed
Tilt Speed
0xAF
XOR
Right
0xA0
Address
0x00
0x02
Pan Speed
Tilt Speed
0xAF
XOR
Zoom In
0xA0
Address
0x00
0x20
0x00
0x00
0xAF
XOR
Zoom Out
0xA0
Address
0x00
0x40
0x00
0x00
0xAF
XOR
Focus Far
0xA0
Address
0x00
0x80
0x00
0x00
0xAF
XOR
Focus Near
0xA0
Address
0x01
0x00
0x00
0x00
0xAF
XOR
Set Preset
0xA0
Address
0x00
0x03
0x00
Preset ID
0xAF
XOR
Clear Preset
0xA0
Address
0x00
0x05
0x00
Preset ID
0xAF
XOR
Call Preset
0xA0
Address
0x00
0x07
0x00
Preset ID
0xAF
XOR
Auto Focus
0xA0
Address
0x00
0x2B
0x00
0x01
0xAF
XOR
Manual Focus
0xA0
Address
0x00
0x2B
0x00
0x02
0xAF
XOR
Query Pan Position
0xA0
Address
0x00
0x51
0x00
0x00
0xAF
XOR
Query Pan Position
Response
0xA0
Address
0x00
0x59
Value High
Byte
Value Low
Byte
0xAF
XOR
Query Tilt Position
0xA0
Address
0x00
0x53
0x00
0x00
0xAF
XOR
Query Tilt Position
Response
0xA0
Address
0x00
0x5B
Value High
Byte
Value Low
Byte
0xAF
XOR
Query Zoom Position
0xA0
Address
0x00
0x55
0x00
0x00
0xAF
XOR
Query Zoom Position
Response
0xA0
Address
0x00
0x5D
Value High
Byte
Value Low
Byte
0xAF
XOR
Page 31
30
Menu Setting
1. MENU
Press [MENU] button to display the main menu on
the normal screen, using arrow button to move the cursor
to the item to be set. Press the [HOME] button to enter the
corresponding sub-menu.
2. EXPOSURE
Move the cursor to the Exposure item in the main
menu and press [home] button, EXPOSURE menu
appears, as shown in the following figure.
Mode: Exposure mode. Optional items: Auto,
Manual, SAE, AAE, Bright
ExpCompMode: Exposure compensation mode,
Optional items: On, Off (Effective only in Auto
mode)
ExpComp: Exposure compensation value,
Optional items:-7 ~ 7(Effective only in ExpComp
Mode item to On)
Gain Limit: Maximum gain limit. Optional
items: 0 ~ 15 (Effective only in Auto, AAE, Bright
mode)
Backlight: Set the backlight compensation,
Optional items: On, Off (Effective only in Auto
mode )
DRC: DRC strength, Optional items: 0 ~ 8.
EXPOSURE
Mode Auto
ExpCompMode Off
Backlight Off
Gain Limit 3
Anti-Flicker Off
DRC 3
Select Item
Change Value
[Menu] Back
MENU
Exposure
Color
P/T/Z
Noise Reduction
Setup
Restore Default
[Home] Enter
[Menu] Exit
Page 32
31
Bright: Intensity control, Optional items: 00~17.
(Effective only in Bright mode)
Anti-Flicker Flicker: Anti-flicker. Optional
items: Off, 50Hz, 60Hz (Effective only in Auto,
Bright mode)
Iris: Aperture value. Optional items: F1.8,
F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6,F11.0,
Close（Effective only in Manual, AAE mode）
Shutt: Shutter value. Optional items: 1/30,1/60,
1/90,1/100,1/125,1/180,1/250,1/350,1/500,1/725,1/1000,1
/1500,1/2000,1/3000,1/4000,1/6000,1/10000 (Effective
only in Manual, SAE mode)
3. COLOR
Move the cursor to the Color item in the main menu
and press [home] button, COLOR menu appears, as
shown in the following figure.
WB-Mode: White balance mode. Optional
items: Auto, Indoor, Outdoor, One Push (ok),Manual
RG: Red gain. Optional items: 0~255（Effective only
in Manual mode）
BG: Blue gain. Optional items: 0~255
（Effective only in Manual mode）
RG Tuning: Red gain fine-tuning, Optional
items: -10~10（Effective only in Auto, Indoor,
Outdoor mode）
BG Tuning: Blue gain fine-tuning, Optional
items: -10~10（Effective only in Auto, Indoor,
Outdoor mode）
Sat.: Saturation. Optional items: 60% ~ 200%.
Hue: Chroma adjustment, Optional items:0 ~
14
IR Filter: IR Filter, Optional items:1 ~ 3
COLOR
WB Mode Auto
RG Tuning 0
BG Tuning 0
Saturation 100%
Hue 7
IR Filter 3
AWB sens Low
Style Style1
Select Item
Change Value
[Menu] Back
Page 33
32
AWB sens: The white balance sensitivity,
Optional items: Normal, High, Low.
Style: Optional items: Style1, Style2, Style3.
4. IMAGE
Move the cursor to the Image item in the main menu
and press [home] button, IMAGE menu appears, as
shown in the following figure.
Luminance: Brightness adjustment. Optional items:
0 ~ 14
Contrast: Contrast adjustment. Optional items: 0 ~
14
Sharpness: Sharpness adjustment. Optional items:
Auto,0 ~ 15
Flip-H: Image flipped horizontally. Optional
items: On, Off
Flip-V: Image Flip Vertical. Optional items: On,Off
B&W-Mode: Image color. Optional items: On,
Off
Gamma: Optional items: Default,0.45,0.5,0.56,
0.63
5. P/T/Z
SpeedByZoom: The depth of field scale switch,
Optional items: On, Off
AF-Zone: Interested in focusing area, Optional items:
Top, Center, Bottom
AF-Sense: Automatic focusing sensitivity
options, Optional items: Low, Normal, High
6. NOISE REDUCTION
Move the cursor to the Noise Reduction item in the
P/T/Z
SpeedByZoom On
AF-Zone Center
AF-Sense Low
Select Item
Change Value
[Menu] Back
Luminance 6
Contrast 8
Sharpness 1
Flip-H Off
Flip-V Off
B&W-Mode Off
Gamma Default
Select Item
Change Value
[Menu] Back
Page 34
33
main menu and press [home] button, NOISE
REDUCTION menu appears, as shown in the
following figure.
NR2D-Level: 2D noise reduction. Optional
items: Off, Auto, 1 ~ 5
NR3D-Level: 3D noise reduction. Optional
items: Off, 1 ~ 8
D-HotPixel: Dynamic bad points, Optional
items: Off, 1 ~ 5
7. SETUP
Move the cursor to the Setup item in the main menu
and press [home] button, SETUP menu
appears, as shown in the following figure.
Language: menu language, Optional items: EN,
Chinese
Protocol: Control protocol type. Optional items:
AUTO, VISCA, PELCO-D, PELCO-P
V_Address: Protocol address, To be decided
according to the agreement, AUTO, VISCA protocol
Optional items: 1 ~ 7
P_D_Address: PELCO-D protocol Optional
items: 0 ~ 254
P_P_Address: PELCO-P protocol Optional
items: 0 ~ 31
V_AddrFix: If I can change through the serial port of
infrared switch, Optional items: On, Off（When set to On,
useless in 88 30 01 FF Command）
Net Mode: Set the serial port control networking,
Optional items: Serial, Paral
SETUP
Language EN
Protocol VISCA
V_Address 1
V_AddrFix Off
Net Mode Serial
Baudrate 9600
Select Item
Change Value
[Menu] Back
NOISE REDUCTION
NR2D-Level 3
NR3D-Level 3
D-HotPixel Off
Select Item
Change Value
[Menu] Back
Page 35
34
Baudrate: Serial port baud rate. Optional items: 2400,
4800, 9600
8. RESTORE DEFAULT
Move the cursor to the Restore Default item in the
main menu and press [home] button, RESTORE
DEFAULT menu appears, as shown in the following
figure.
Restore: Confirm restore factory settings. Optional
items: Yes, No
Note: Press [HOME] button to confirm, All
parameter restore default, Include IR Remote address and
VISICA Address
Save: Save Options. Optional items: Yes, No
RESTORE DEFAULT
Restore? No
Change Value
[Home] OK
[Menu] Back
Page 36
35
Equipment Setup and internet connection
1. Operating Environment
Operating System: Windows 2000/2003/XP/vista/7
Network Protocol: TCP/IP
Client PC: P4/128MRAM/40GHD/ support scaled graphics card, support DirectX8.0 or more advanced version.
2. Equipment Installation
1) Connect internet camera to your internet or to your PC directly via internet cable.
2) Turn on DC12V power.
3) The orange light of internet port lit on, green light flashing, and the physical connection finished.
3. Internet Connection

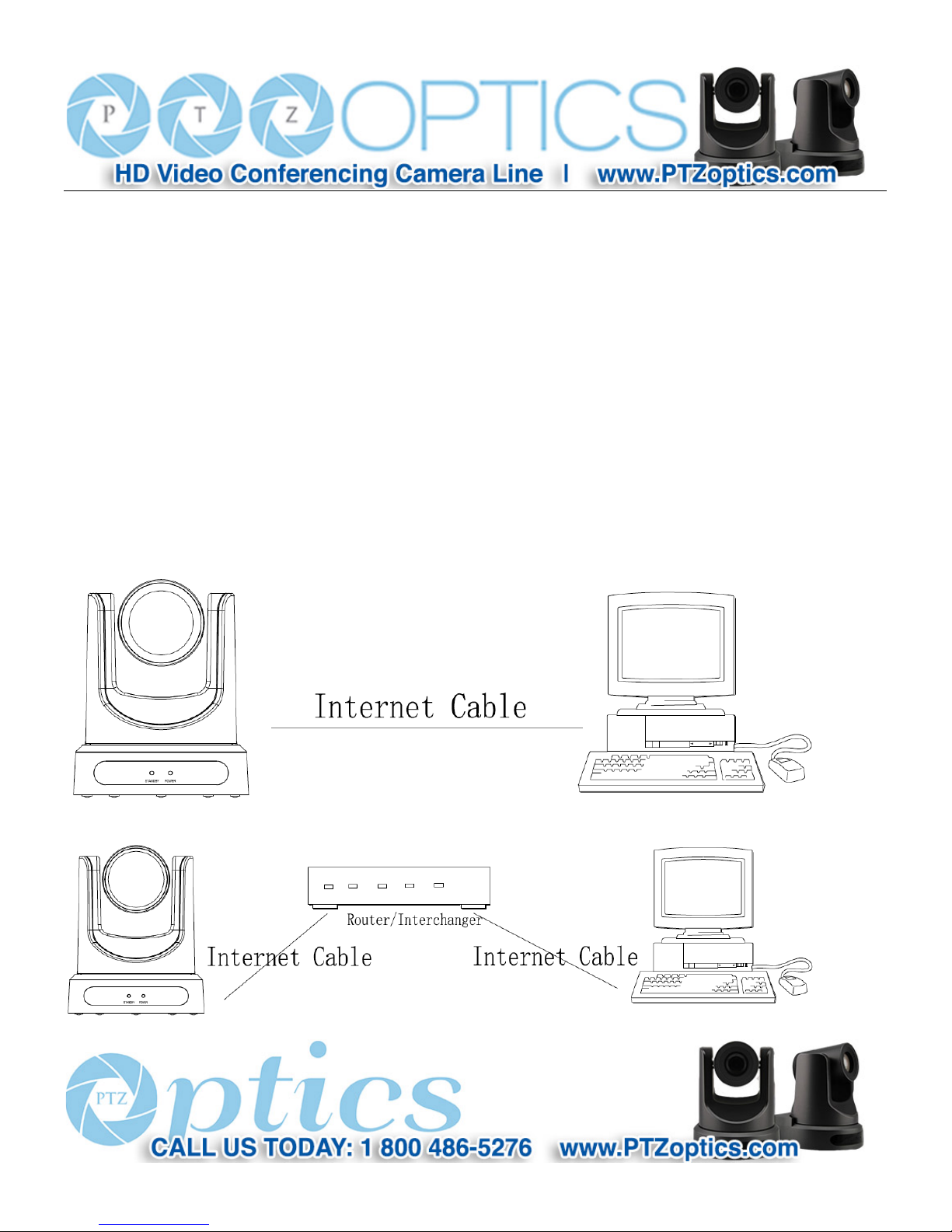

Connection ways between internet camera and computer, as picture 1.1 and picture 1.2 shown:
Picture 1.1 connect by internet cable
Page 37
36
Picture 1.2 Connect by router /interchanger
IP camera visited/ controlled by LAN
1 Setup IP address
1.1 Connect IP Camera to internet (or PC), then turn on the power on IP Camera, shown as above. IP address can
be searched via update software(software upgrading tool,named upgrade_En.exe in small CD in package). shown as below:

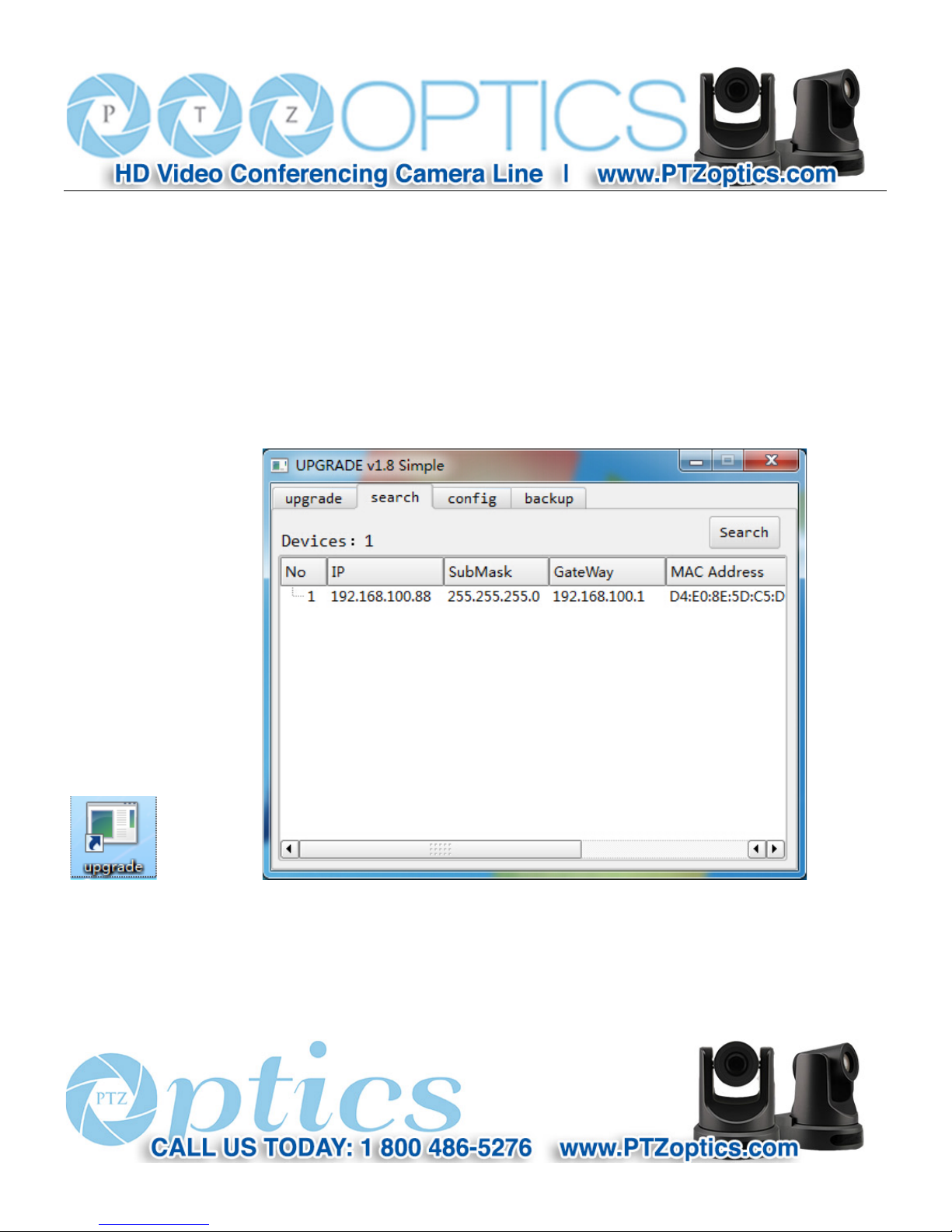

Run upgrade_En.exe (UPGRADE v1.8) by CD-Rom, click [Search].The software will show the current LAN camera's
IP address, subnet mask number, network gateway number and camera MAC serial number etc, shown as below:
If IPC IP address and PC IP address not in the same internet segment, upgrade_En.exe can modify IP address, subnet
mask and port number etc. accordingly.

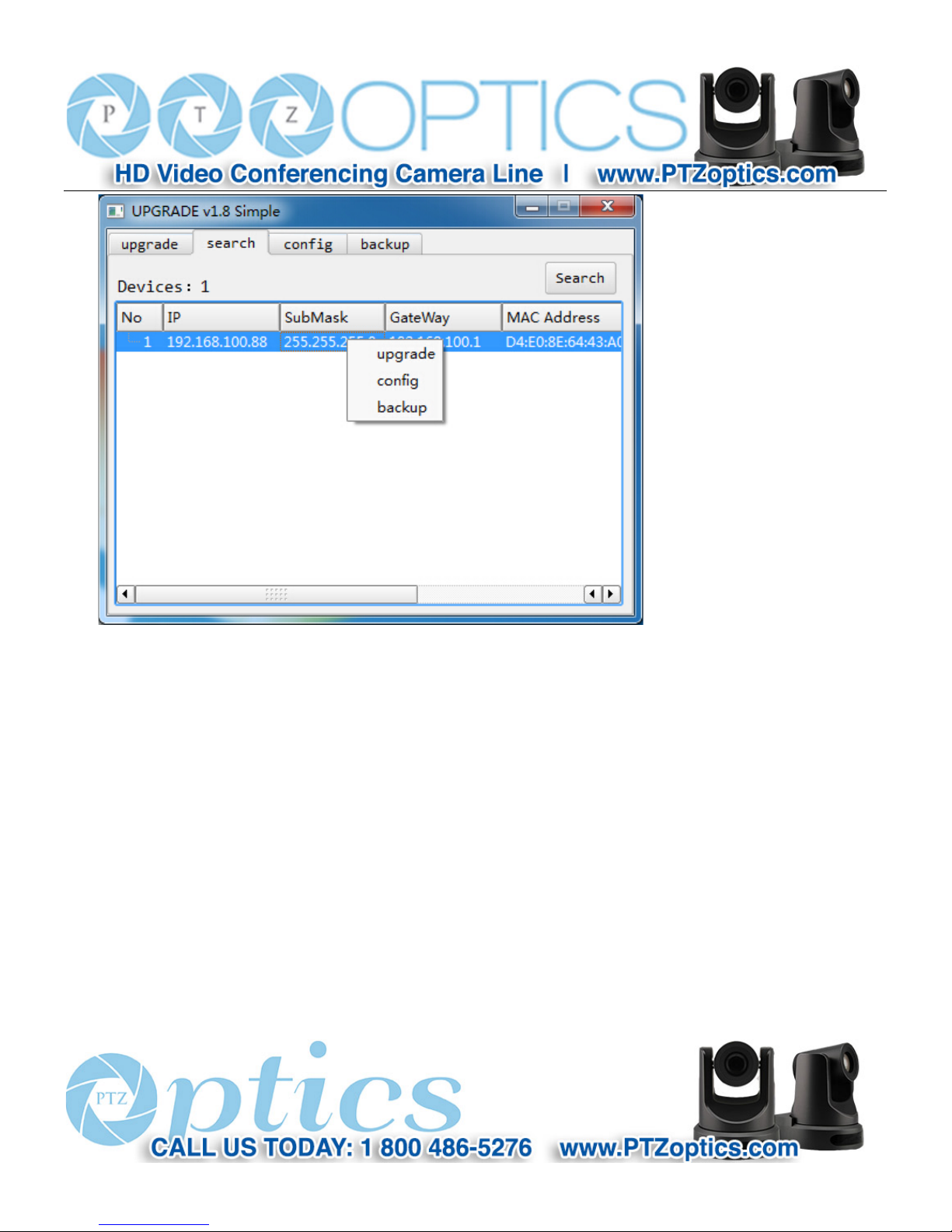

In UPGRADE v1.8, select the camera needed to be modified, shown as below:
Page 38
37

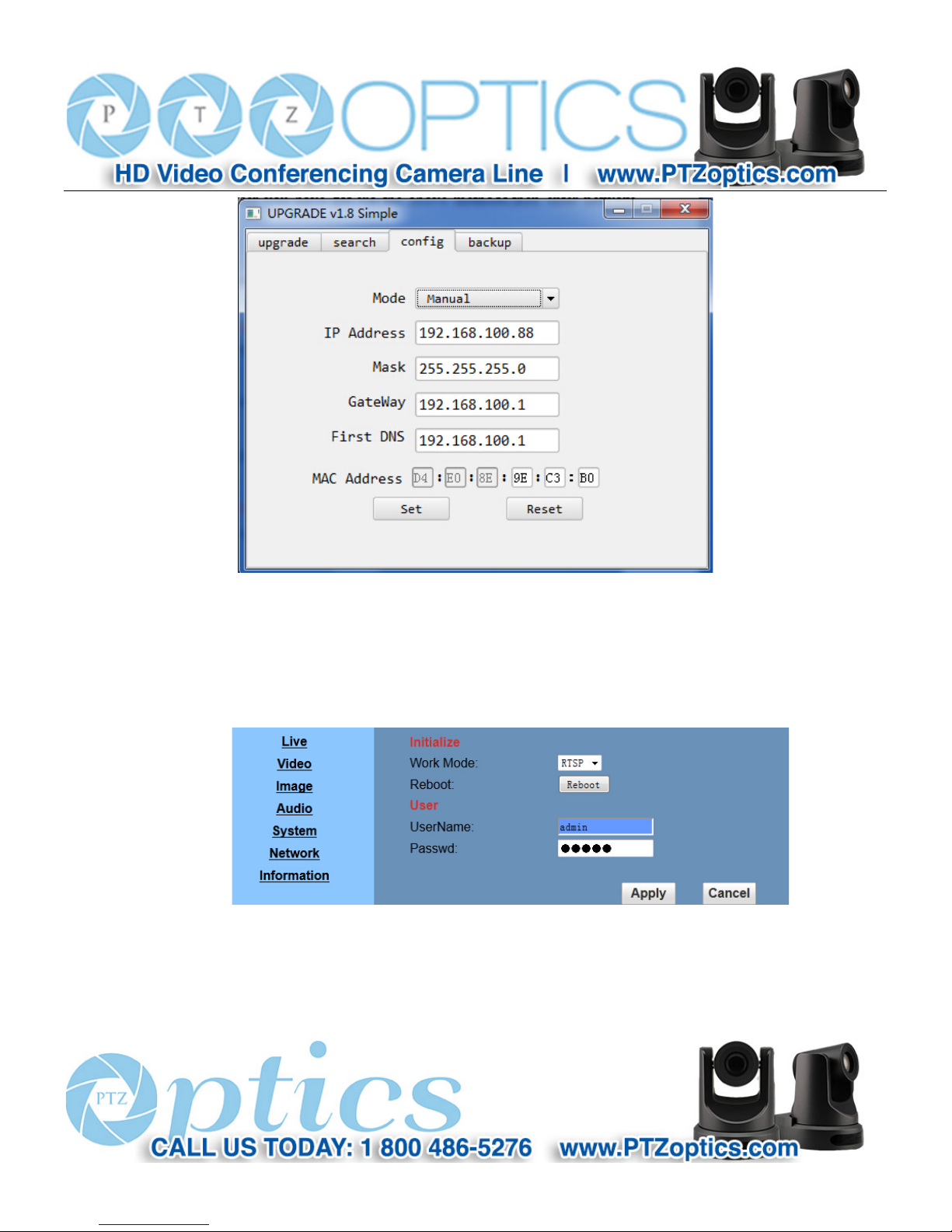

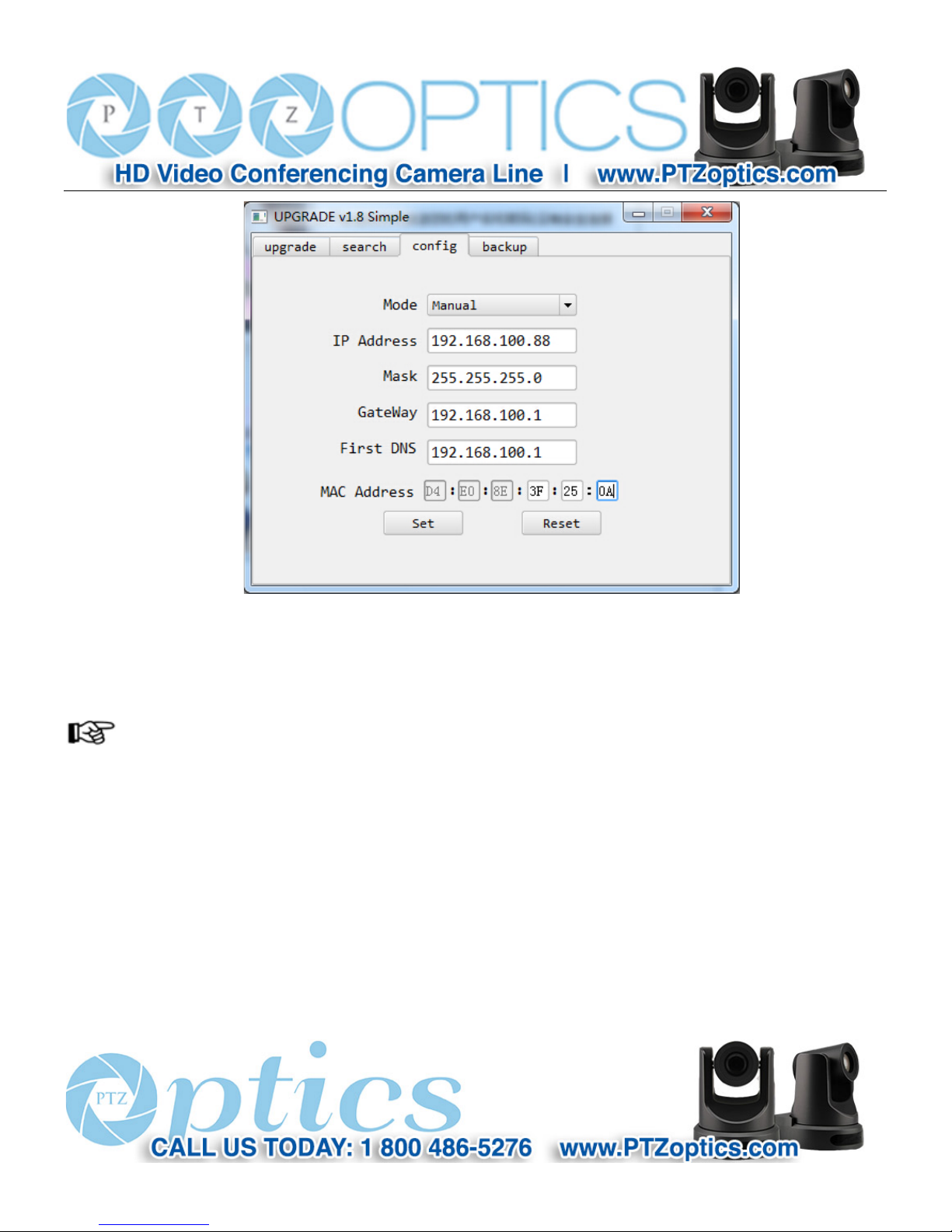

Click “config” then go to below:
Page 39
38
Enter new IP in "IP" bar, subnet mask in "Mask" bar, Gateway,First DNS, MAC address,and click “Set”. Shown as
above.(For example: if your PC IP is 192.168.1.88, then camera IP must be 192.168.1.xx, the first, second, third number
must keep the same)
NOTE!
IP camera default IP address"192.168.100.88", user "admin", password "admin".

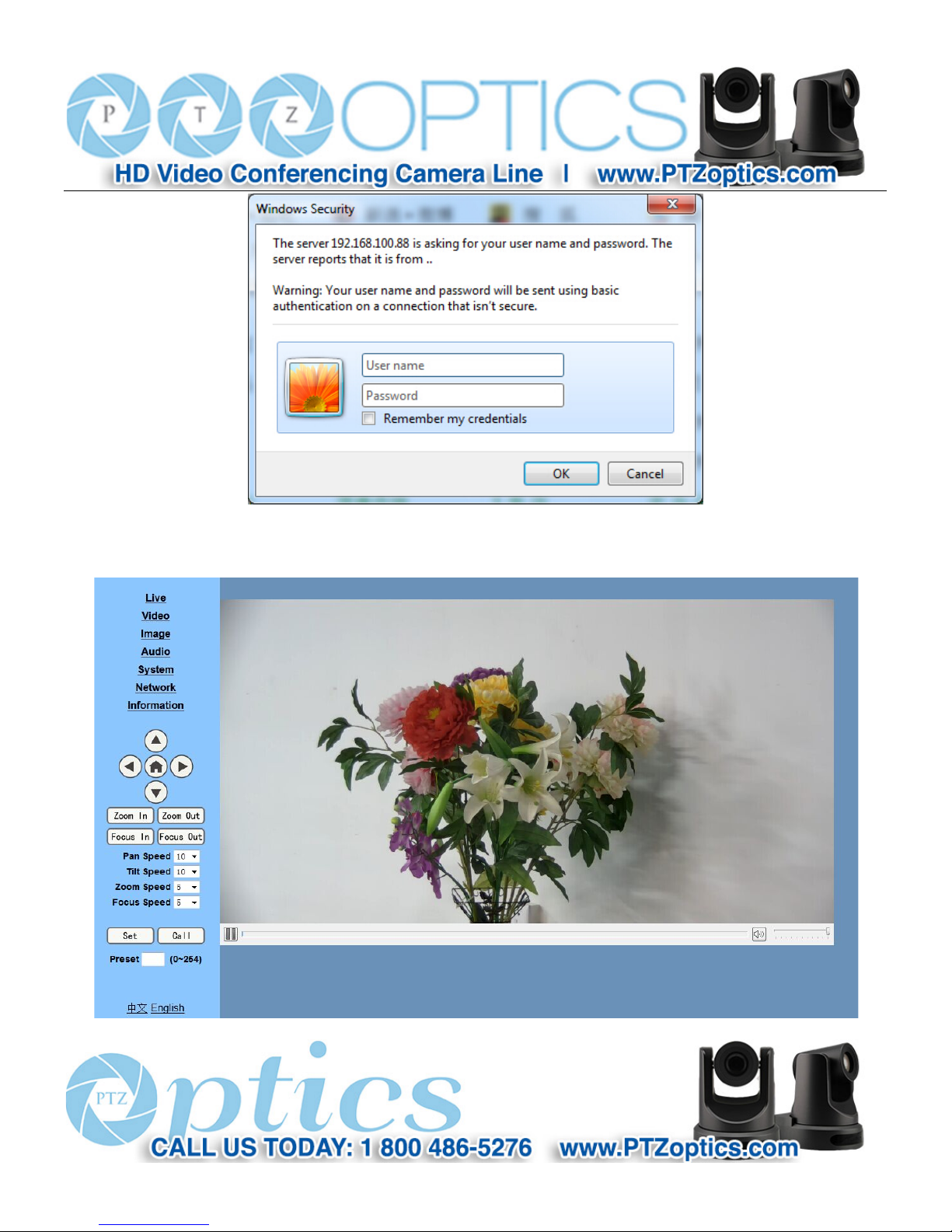

2 Visit/Access IP Camera
2.1 Input http://192.168.100.88 to IE ( better with IE web browser, others will cause little latency),a login
window pop up, input login name: admin, password: admin, shown as below:
Page 40
39
2.2 Input login name and password, click "confirm", then pop up below window,language select button on the left bottom:
Page 41
40
NOTE！
If user first time use this camera by internet (only for new user), must install a player software (VLC). Please go to
http://4dx.pc6.com/xy/vlcplayer.zip,pop out the download window, click“Save”. Then Install VLC (player software),
After installation,login again,will show as above:
IP Camera accessed/controlled by WAN (internet)
1. Setup IPC accessed/controlled by dynamic DNS
2 dynamic DNS available:
Dyndns.org,
3322.org

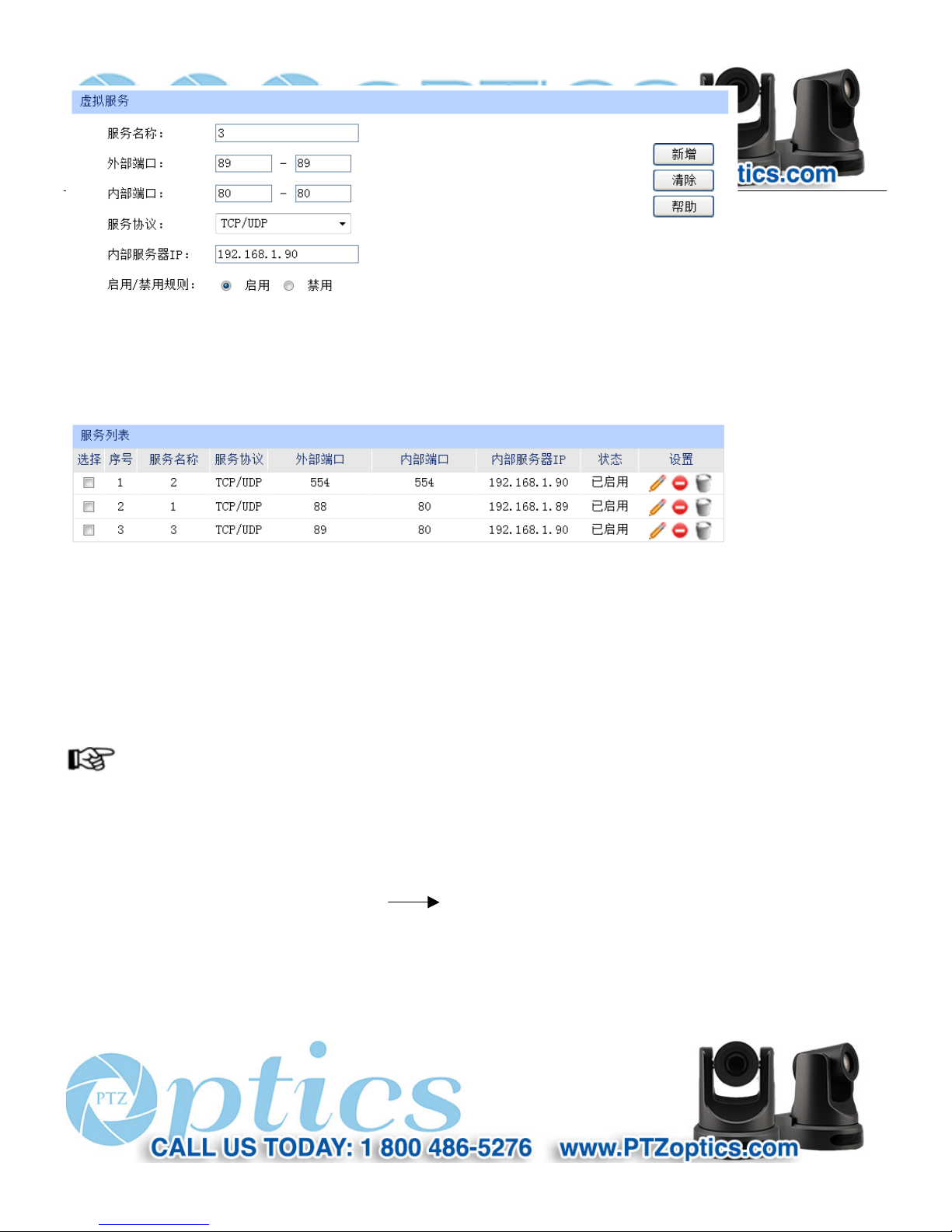

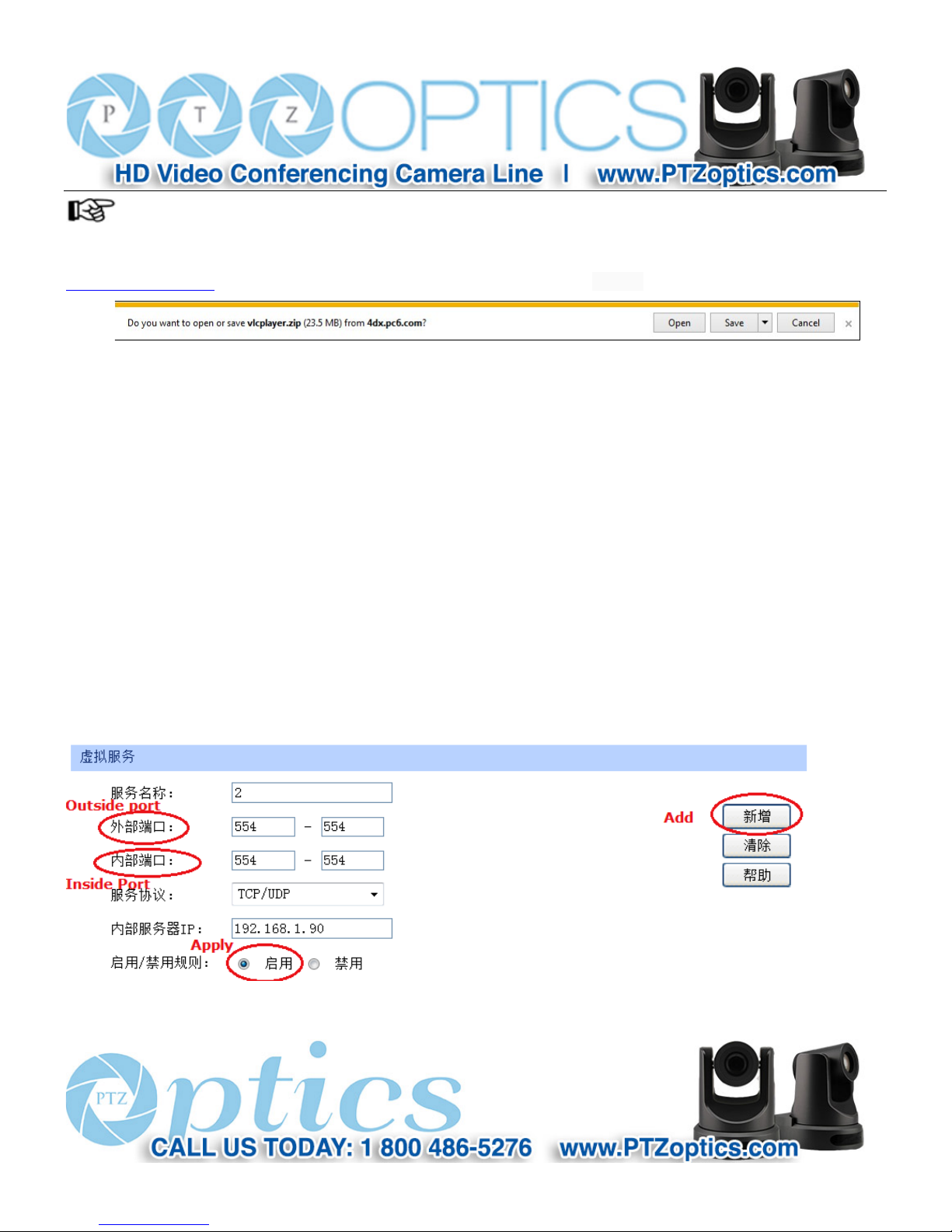

1.1 Router Port Mapping:
Take TP-LINK router for example,enter Router Home Page (interface page),select “Transit control”- “ Transit
rule"--"Virtual server"-- “Virtual service” ,add a new port number in “Outside Port” ,add a new port number in
“inside port”, put camera IP address to “IP address”,then select “Apply” and “Add”,shown as below: (sorry,we do
not have English Version TP-Link here,so put the Chinese Version picture for reference,the position is the same)
Page 42
41
2. Dynamic DNS visit camera
1.1 Camera accessed by dynamic DNS
Set domain name to camera, setup the parameter, then dynamic DNS can access camera.
Access link：http://hostname :port number
For example, setup host computer name: youdomain.f3322.org, camera port number: 554,
Access link should be: http://youdomain.3322.org:554
NOTE！
If camera port default as 80,then unnecessary to input port number, use host name can access camera directly .
VLC stream media player monitoring
1. Visit VLC media server procedure

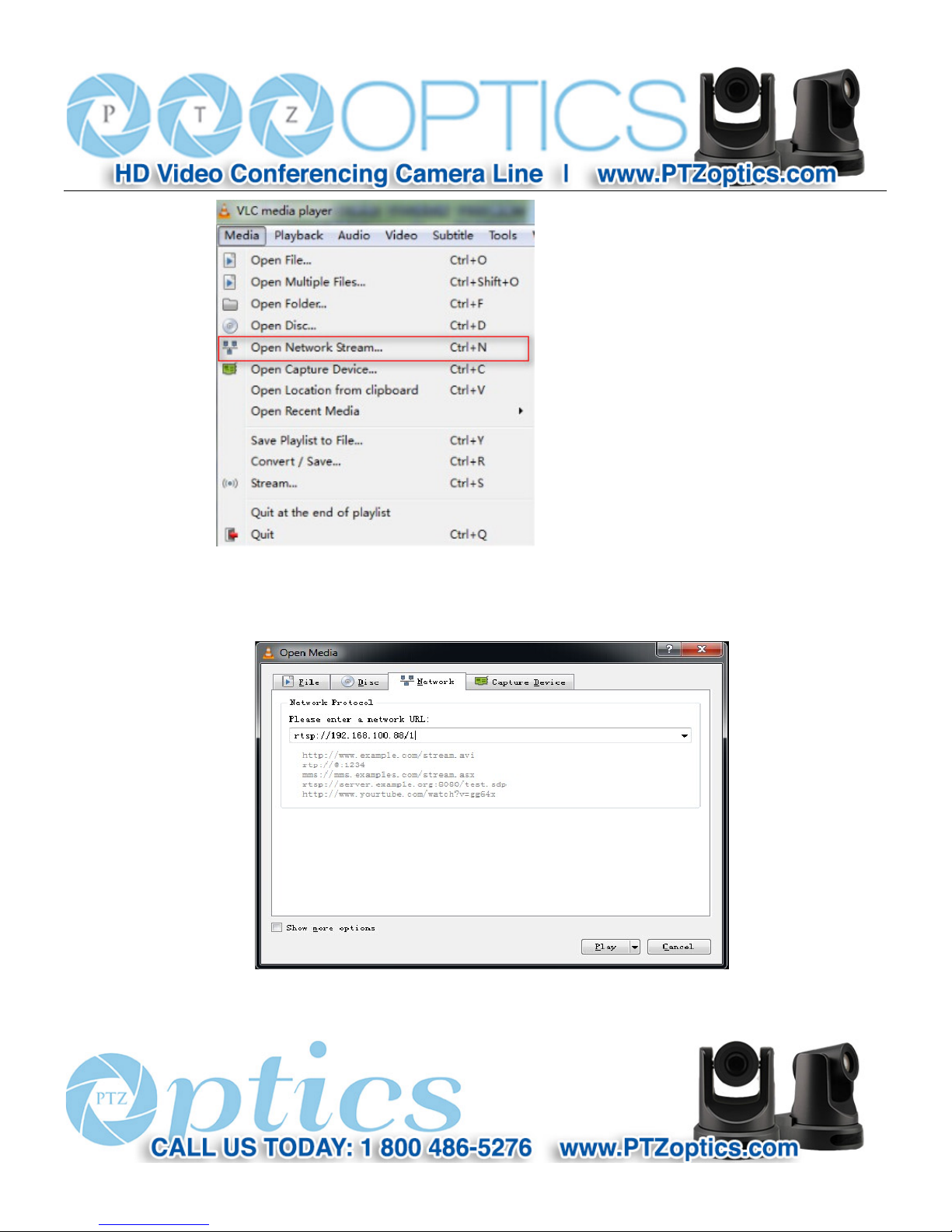

1.1 Open VLC media player, click "Media" "Open Network Steam", or click "Ctrl+N"; as below:
Page 43
42
1.2 Input URL address: rtsp://ip: port number/1 (Main stream); rtsp://ip: port number/2(sub stream)(When RTSP port
number default value is 554,then can be omitted as rtsp://ip/1 or rtsp://ip/2)
Page 44
43
IP Camera parameter setup
1 Homepage introduction
1.1 Menu
All pages include 2 menu bars:
Real time monitoring: displaying video image
Parameter setup: with function buttons
1.2 Video viewing window
Video viewing window must be same as video resolution, the bigger the resolution is, the bigger the playing area is.
Double click viewing window, will show full-screen, double click again, will return to initialized size.
Status bar in viewing window shown as below
1） Video playback pause button: control real-time video pause, stop the last picture, click recoverable video again.
2） Audio control buttons: can set slient mode.
3）Full screen switch button.

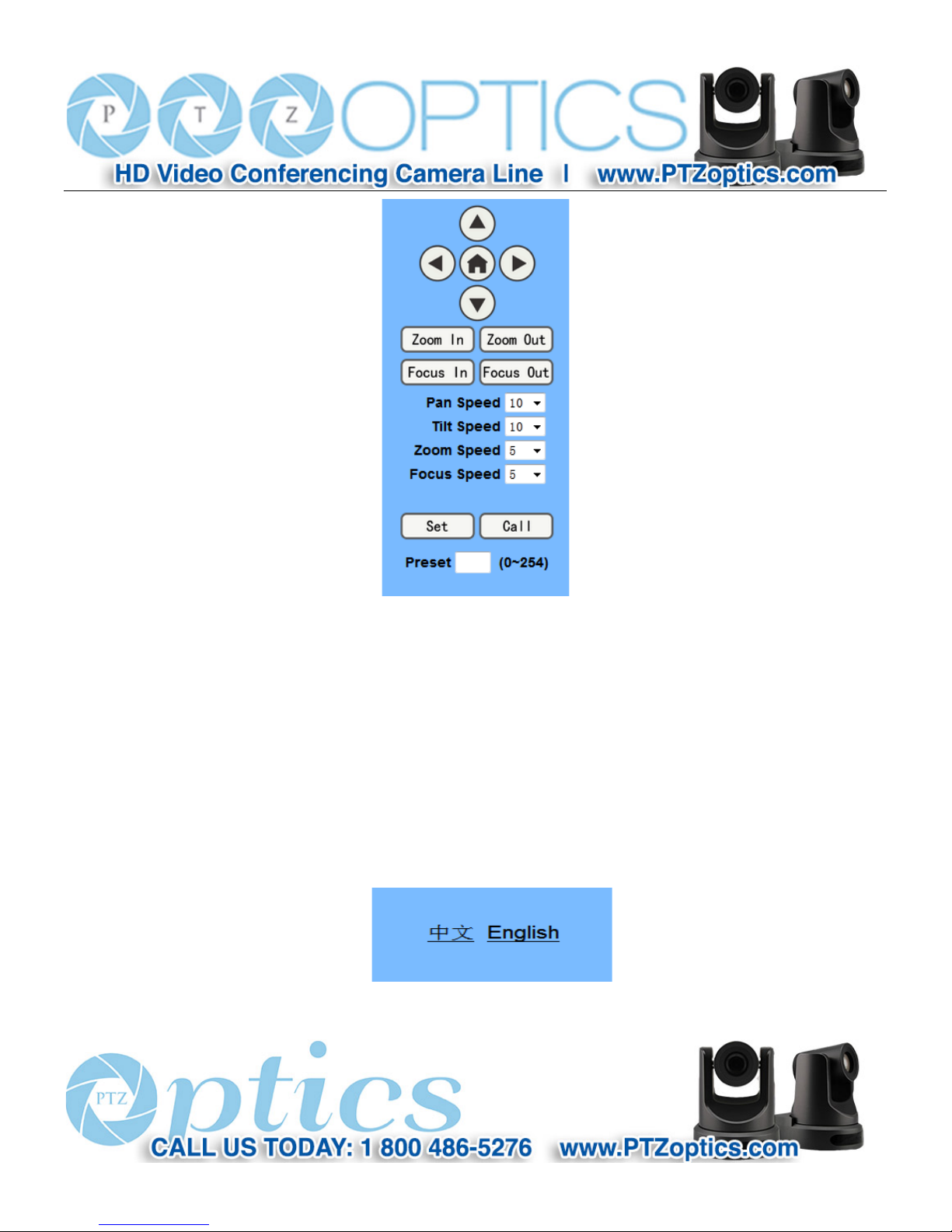

1.3 PTZ Setup
Page 45
44
1) PTZ direction control box: Up, down, left, right, home oblique button as above
2) Rate: Vertical speed can be chosen as 1 ~ 24, horizontal direction at the rate of 1 ~ 20.
select corresponding speed and click direction button to realize PTZ speed up or speed down.
3) Zoom In/Zoom out: for zooming in or zooming out, Focus In/ Focus Out: Focusing on distant
objects or Focusing on close objects.
4) Set/Call: When PTZ turn to expected position, can set up a number of preset that user want. click "Set"
button,when PTZ turn to other position, click "Call" button,PTZ turn back to preset position.
1.4 Language selection
Chinese/English
Page 46
45
1 Media

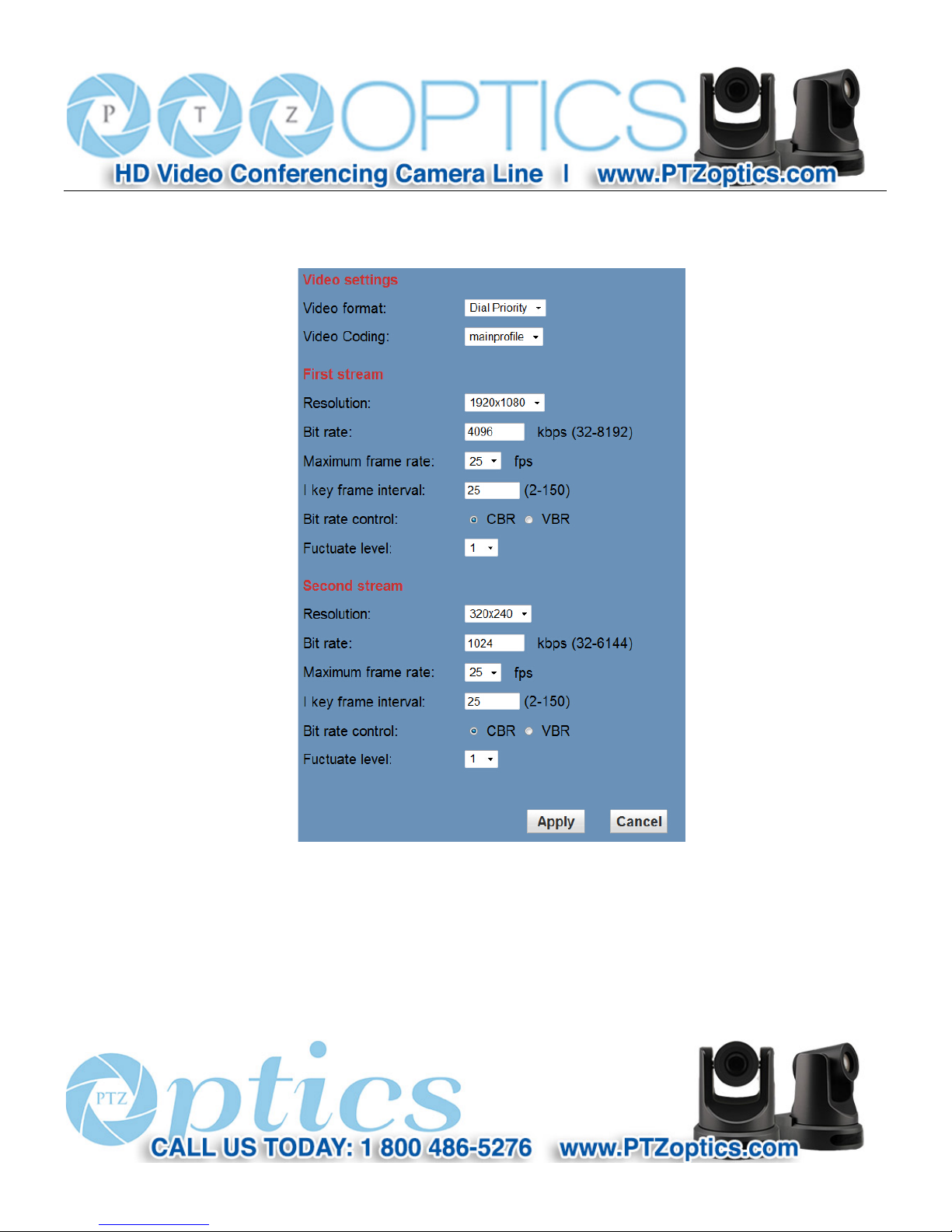

1.1 Video Setup,please click "Video"
1) Video format
Support 50HZ(PAL)and 60HZ(NTSC),and Dial priority three formats.
2) Video Coding
Support baseline and mainprofile format
3) Resolution
Page 47
46
Main bit flow support 1920x1080,1280x720,minor bit flow support 640x360,320x180,the bigger resolution is, the
clearer the image will be, more network bandwidth will be taken.
4) Bit Rate
User can assign bit flow/stream, normally speaking, the bigger bit flow is, the clearer the image will be. The bit
allocation must combine with network bandwidth, when the network bandwidth is too narrow and the allocated bit
flow is too big, will cause video signal flow not to be transmitted normally, the video effect will be worse.
5) Maximum frame rate:
User can specify the size of the frame rate, generally, the frame rate greater, the image more smooth; Frame rate is
smaller, the more sense of beating.
6) Bit Rate:
Code stream control way:
Constant bit rate: video coder will be coding according to preset speed
Variable bit rate: video coder will adjust the speed based on preset speed to gain the best image quality.
7) I key frame interval:
Set interval between 2 I frame, the bigger interval is, the response will be lower from viewing window.
8) Fluctuate level
Restrain the fluctuation magnitude of variable rate, grade 1 ~ 6

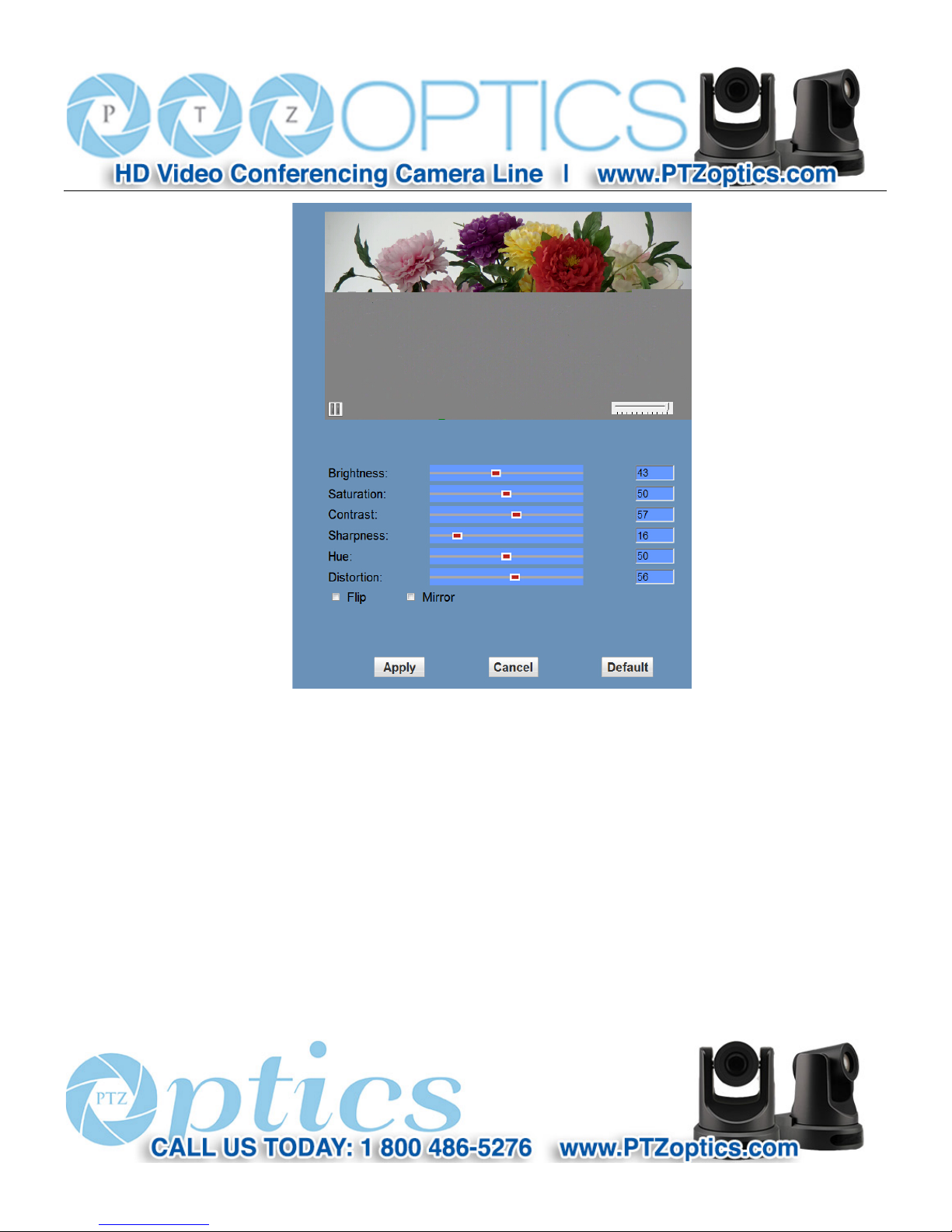

2 Image Setup,please click “Image”
Page 48
47
1) Brightness
Image bright 0~100, slider control, on the right shows the corresponding numerical. Default 43.
2) Saturation
Saturation 0~100, slider control, on the right shows the corresponding numerical. Default 50.
3) Contrast
Contrast0~100, slider control, on the right shows the corresponding numerical. Default 57.
4) Sharpness
Sharpness0~100, slider control, on the right shows the corresponding numerical. Default 16.
5) Hue
Hue 0~100, slider control, on the right shows the corresponding numerical. Default 50.
6) Distortion
Page 49
48
Adjusted the wide-angle lens image distortion occurs, controllable range 0 ~ 100, right shows the corresponding
numerical. Default 0.
7) Flip & Mirror
Tick Flip to realize image upside down, tick mirror to realize image around the mirror. Default not tick.
8) Button
Adjusting the parameters, press "apply" button to save, press "cancel" button to cancel the adjustment of the
parameters, press "default" button obtain the default value.

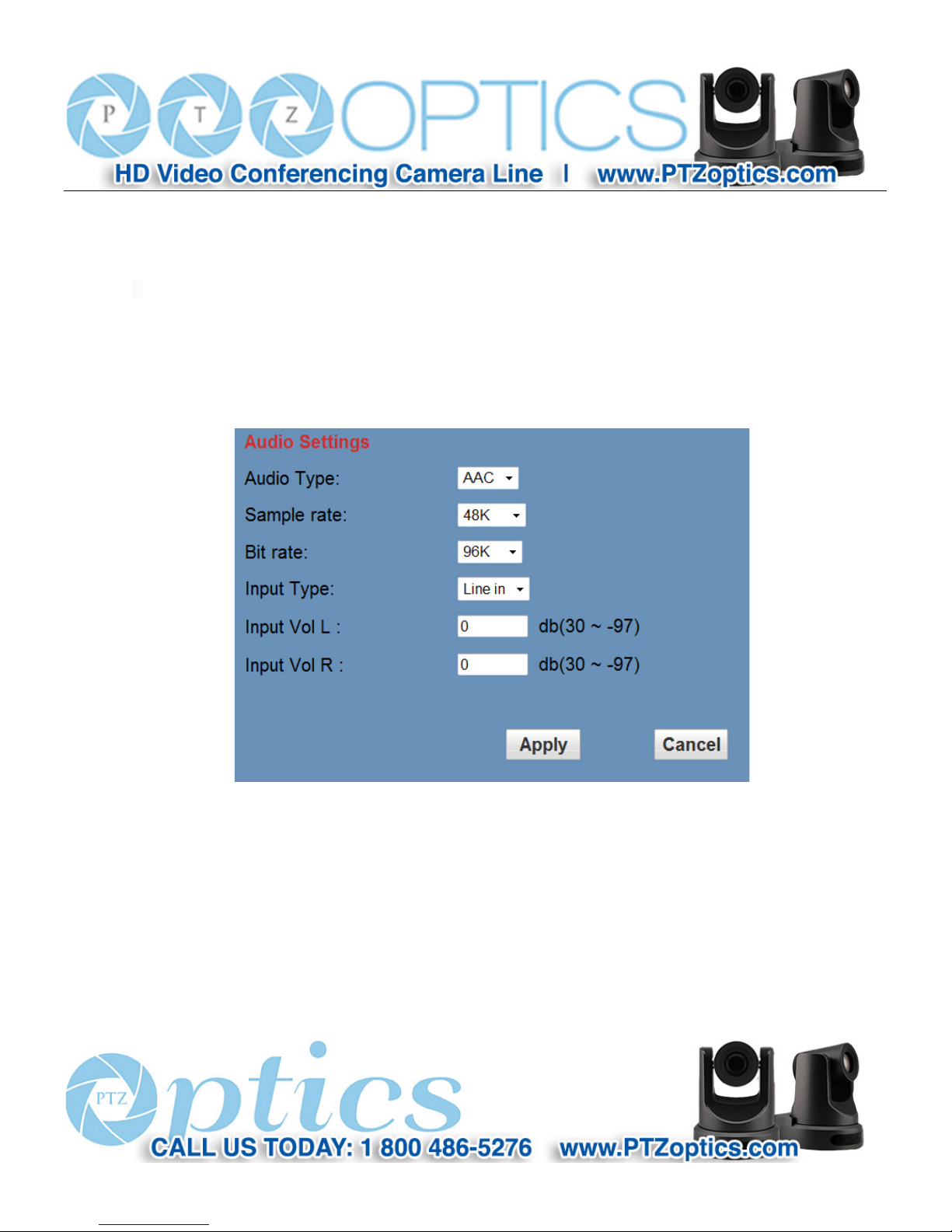

3 Audio Setup,please click “Audio”
1) Audio Type
Audio type AAC
2) Sample rate
Sample rate 44.1 K and 48 K,selectable.
3) Bit rate
Bit rate 96k,128k,256k,selectable
4) Input Type
line in only
Page 50
49
5) Input VolL
The volume of the left channel
6) Input VolR
The volume of the right channel
7) Button
Press "apply" button to save parameters, press "cancel" button to cancel parameter

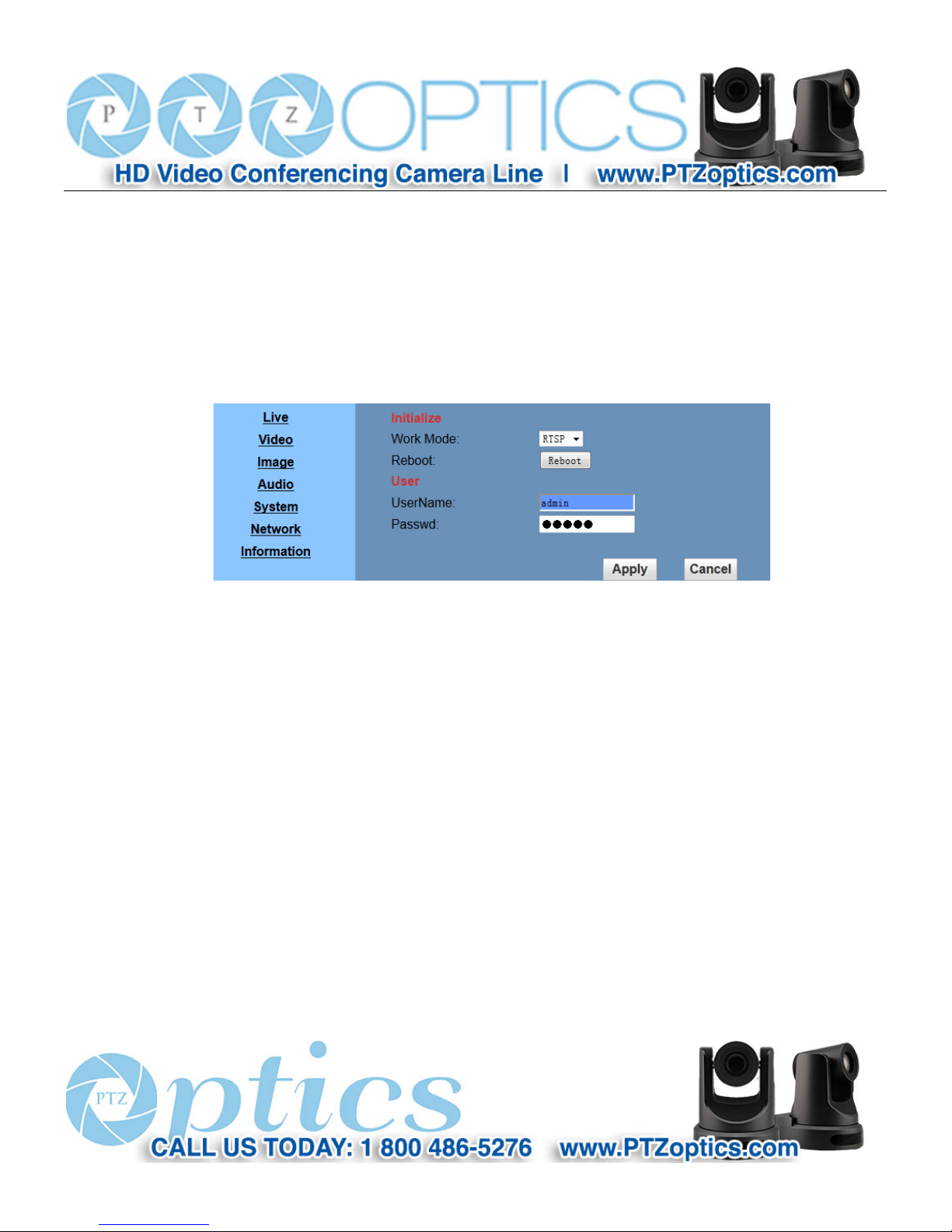

4 System Setting,please click “System”
1) Work Mode
Work Mode RTSP
2) Reboot
Click the "Reboot" button, system restart.
3) User and password
The user can modify the password (letters and Numbers only)
4) Apply / Cancel
Modify password and click the "apply" button to the login page, press "cancel" button to cancel
password change.

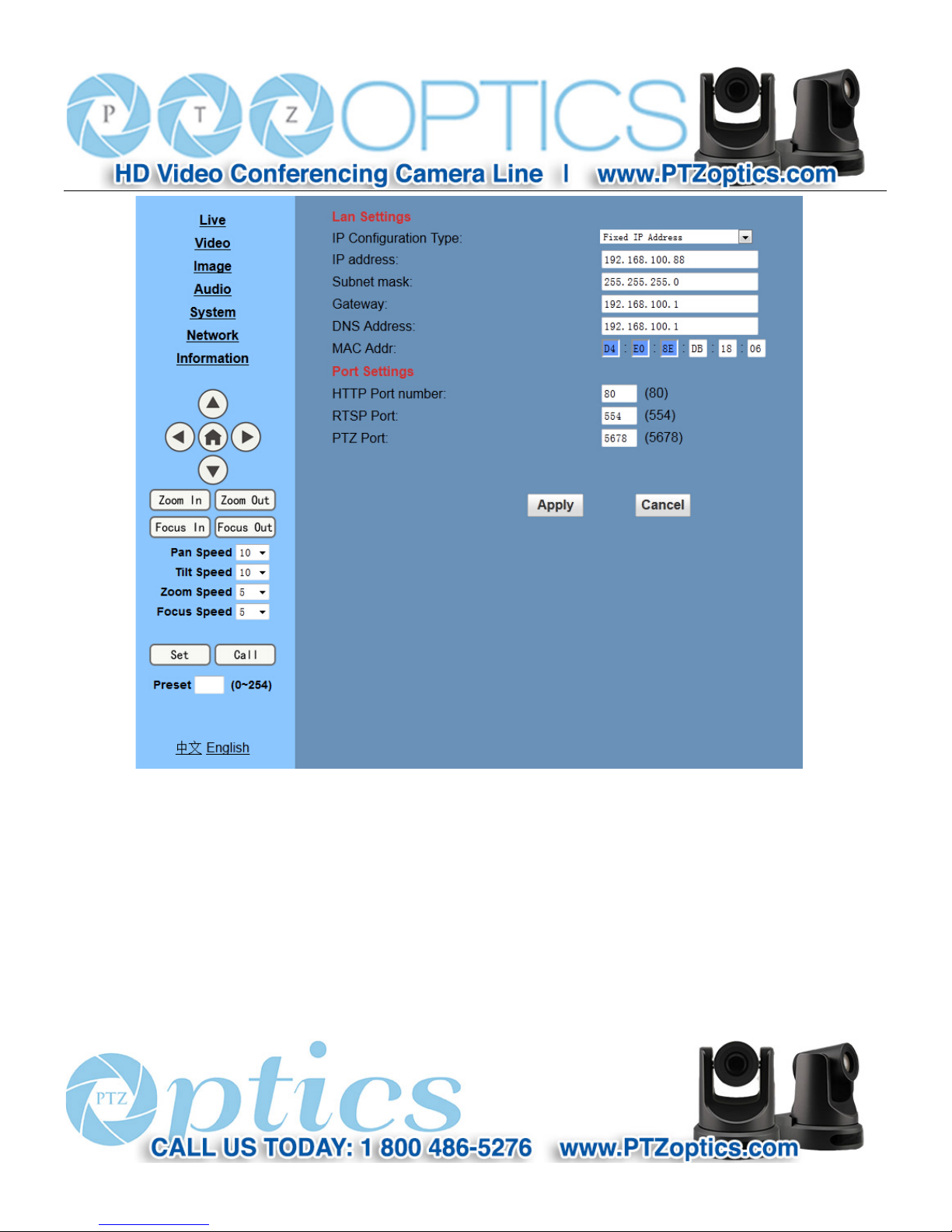

5 Network Setting,please click “Network”
Page 51
50

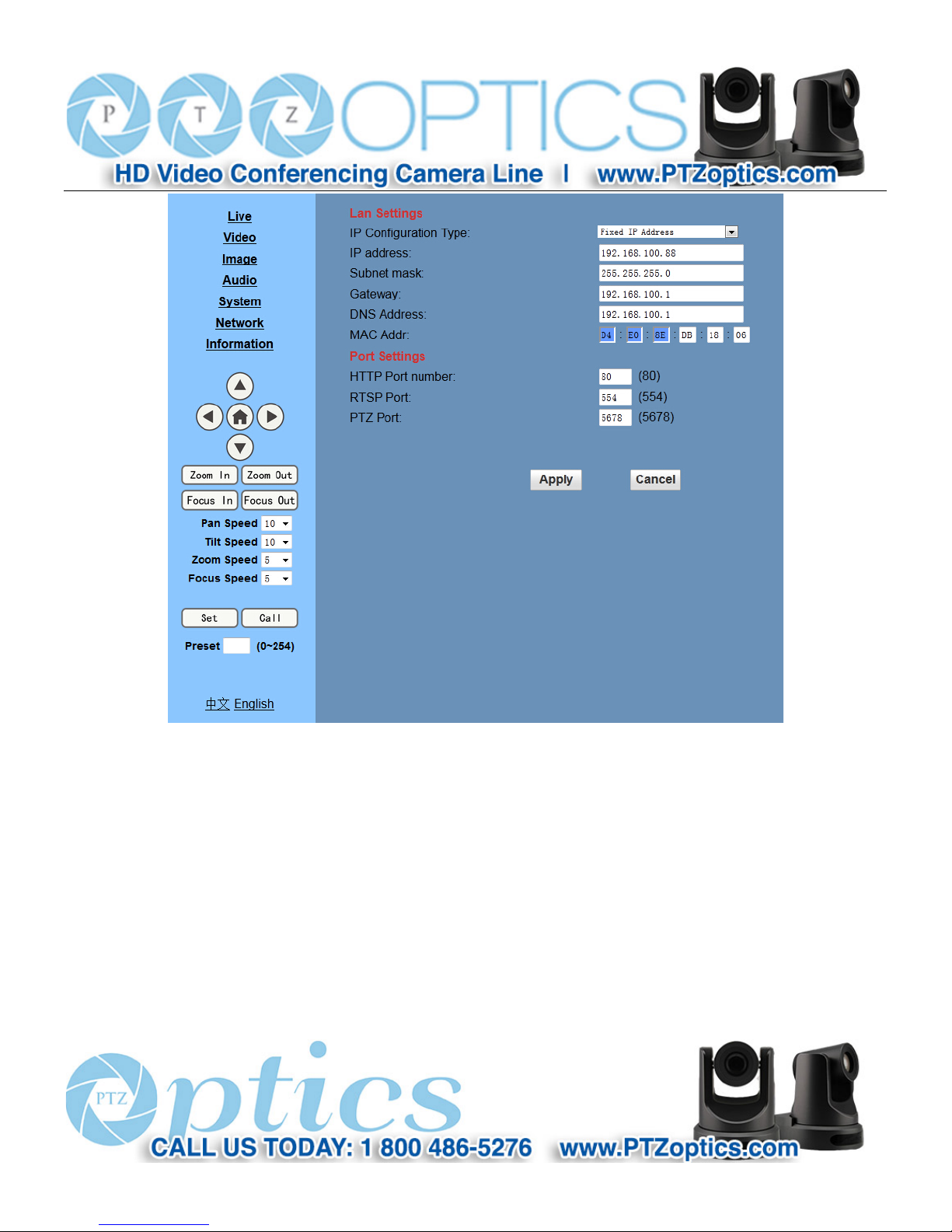

1) Lan Settings!
Default the IP address is 192.168.100.88, The MAC address can be modified.
2) Port Settings!
IP address identifies the network device, the device can run multiple web applications, each network
program using network port to transmit data, so data transmission to be carried out between the port and port. Port
setting is to set up WEB SERVER program using which port to transmit. When port mapping, need to be
consistent with the port number(default port: 80)
3) RTSP Port!
Page 52
51
Network camera support RTSP protocol, use the VLC tools broadcast.
4) TCP Port!
Support TCP protocol, default port: 5678.
5) Apply / Cancel!
Modify network parameters then press "Apply" button to modify network parameters, press "Cancel"
button to cancel network parameters.
6 Device Information,please click “information”
Show the current device information, as shown below.

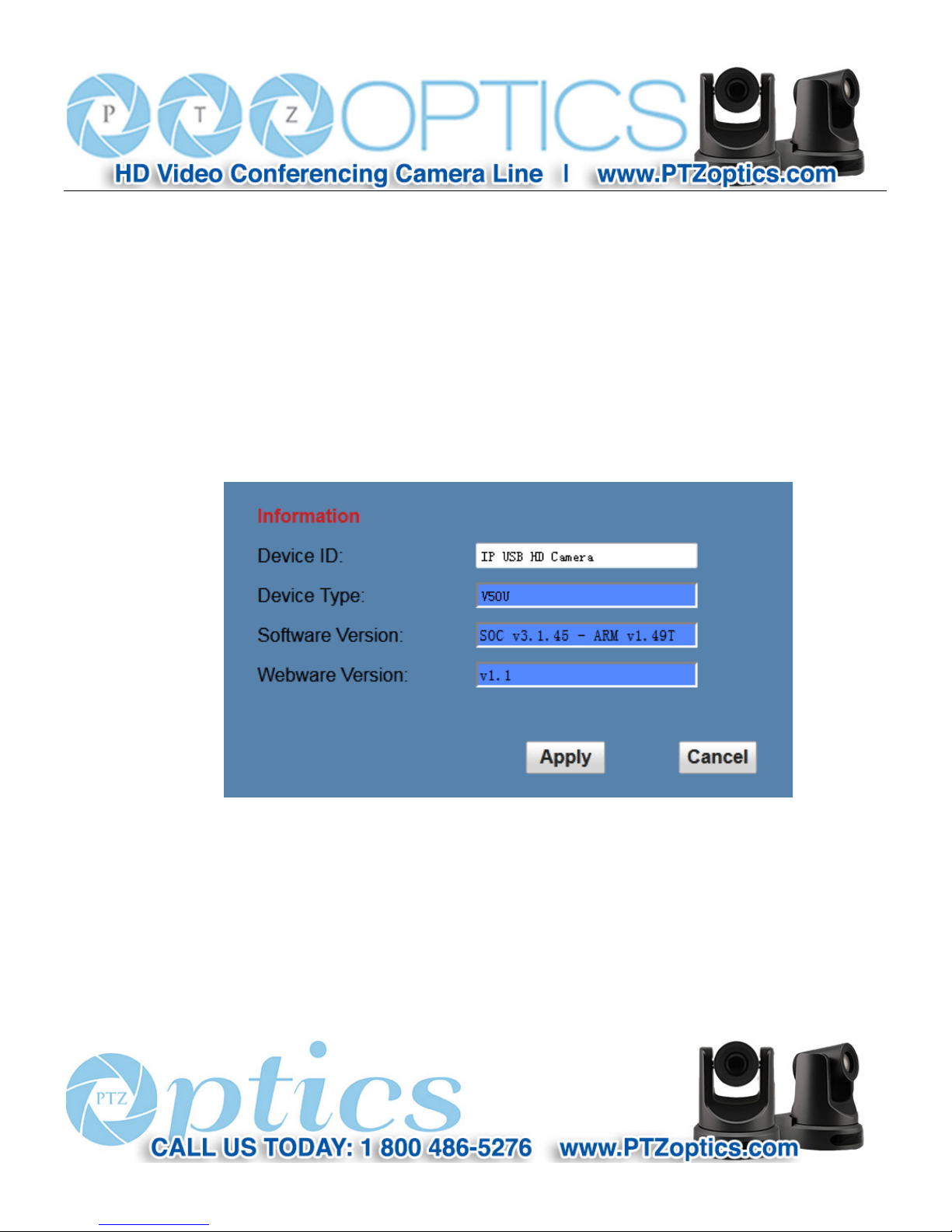

Page 53
52
Network Control
1. View from Web browser (better in IE)
" To view from web browser, firstly need to check camera IP address. There are 2 methods to check:
Method 1: press * and # and 4 on remote controller one by one, the camera IP address will be shown on screen.
Method 2: connect camera to PC with ethernet cable, use “upgrade_En.exe” to search for IP address
" Please enter the IP address, username, password to web browser you have got via the above methods, then enter
network control/viewing.
2. Change IP address,2 methods as below:
Method 1: On web control page, find “Network”--->Change IP---->Click “Apply”----> Restart camera
Page 54
53
Method 2: Open “upgrade_En.exe”, change IP and click “Set”
Page 55
54
3. Once IP changed, need to restart the camera. 2 methods to restart as below:
Method 1: Turn off and turn on manually to restart camera
Method 2: On web page, find “System” and click “Apply” (when under remote controlling environment, better use
this method)
Page 56
55
PTZ ON IP NETWORK
This model currently supports various PTZ control methods, including RS232, RS485, IR remote control, HTTP
CGI, and TCP protocol.
The following is the detailed description about HTTP CGI and TCP Protocol control methods.
1. TCP Protocol Method
V51N implements TCP server inside, there is a port configurated by Web for receiving the connection from
TCP client,the TCP port number is 5678. Once connection between client and server set up, the client will send PTZ
command to server,the server then parse and execute PTZ command.
PTZ command format is based on VISCA Protocol to define, details as below:
Command
Function
Command Packet
Comments
Zoom
Stop
81 01 04 07 00 FF
Tele(Standard)
81 01 04 07 02 FF
Wide(Standard)
81 01 04 07 03 FF
Tele(Variable)
81 01 04 07 2P FF
P = 0(low speed) - 7(high speed)
Wide(Variable)
81 01 04 07 3P FF
Focus
Stop
81 01 04 08 00 FF
Far(Standard)
81 01 04 08 02 FF
Near(Standard)
81 01 04 08 03 FF
Far(Variable)
81 01 04 08 2P FF
P = 0(low speed) - 7(high speed)
Near(Variable)
81 01 04 08 3P FF
Auto Focus
81 01 04 38 02 FF
AF On/Off
Manual Focus
81 01 04 38 03 FF
Auto/Manual
81 01 04 38 10 FF
Pan & tilt
Up
81 01 06 01 VV WW 03 01 FF
VV: Pan speed 0x01 (low speed) to 0x18
(high speed)
WW: Tilt speed 0x01 (low speed) to 0x14
(high speed)
Down
81 01 06 01 VV WW 03 02 FF
Left
81 01 06 01 VV WW 01 03 FF
Right
81 01 06 01 VV WW 02 03 FF
UpLeft
81 01 06 01 VV WW 01 01 FF
UpRight
81 01 06 01 VV WW 02 01 FF
DownLeft
81 01 06 01 VV WW 01 02 FF
Page 57
56
DownRight
81 01 06 01 VV WW 02 02 FF
Stop
81 01 06 01 VV WW 03 03 FF
Home
81 01 06 04 FF
Preset position
Reset
81 01 04 3F 00 PP FF
PP: Position Number(==0x00-0x59,
0x64-0xFE)
Set
81 01 04 3F 01 PP FF
Recall
81 01 04 3F 02 PP FF
2. HTTP CGI Method
This model integrated with web server inside, support CGI related with PTZ.
2.1 Pan and Tilt control URL format as below:
http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]&[pan speed]&[tilt speed]
More descriptions:
[Camera IP]: This camera IP address;
[action] including：up, down, left, right, ptzstop;
[pan speed] : 1(low speed) – 24(high speed);
[tilt speed]: 1(low speed) – 20(high speed).
2.2 Zoom control URLformat as below:
http://[Camera IP]/cgi-bin/ptzctrl. cgi?ptzcmd&[action]&[zoom speed]
More descriptions:
[Camera IP]: This camera IP address;
[action] including: zoomin, zoomout, zoomstop;
[zoom speed]: 0(low speed) – 7(high speed).
2.3 Focus control URLformat as below:
http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]&[focus speed]
More descriptions:
[Camera IP]: This camera IP address;
[action] including: focusin, focusout, focusstop;
[focus speed]: 0(low speed) – 7(high speed)
2.4 Preset Position control URL format as below:
Page 58
57
http://[Camera IP]/cgi-bin/ptzctrl.cgi?ptzcmd&[action]&[position number]
More descriptions:
[Camera IP]: This camera IP address;
[action] including: posset, poscall;
[position number]: 0-89,100-254.
USB Control
Connect USB cable from camera to computer (must with USB3.0 port)
Install the software in the small CD in the package (amcap.exe) ,and click to open.
Page 59
58
Maintenance and Troubleshooting
Camera Maintains
" If camera will not be used for a long time, please turn off the power switch, disconnect AC power cord of AC
adaptor to the outlet.
" Use soft cloth or tissue to clean the camera cover.
" Please use the soft dry cloth to clean the lens. If the camera is very dirty, clean it with diluted neuter detergent. Do
not use any type of solvents, which may damages the surface.
Unqualified Application
" No shooting extreme bright object for a long period of time, such as sunlight, light sources, etc.
" No operating in unstable lighting conditions, otherwise image will be flickering.
" No operating close to powerful electromagnetic radiation, such as TV or radio transmitters, etc.
Troubleshooting
" No image
1. Check whether the power cord is connected, voltage is OK, POWER lamp is light.
2. Check whether the camera can self-test after startup.
3. Check the BOTTOM switch and make sure the two switches are both set OFF.
4. Check video cable is connected correctly.
" Abnormal display of image
Check video cable is connected correctly.
" Image dithering even at widest zoom position
1. Check whether camera is fixed correctly.
2. Make sure if there are something like vibration machine or other things nearby.
Control
" IR remote controller cannot control the camera
1. Change the battery
2. Check the camera working mode.
Page 60
59
3. Check IR address of the Remote Commander is set correctly.
" Serial communication cannot control the camera
1. Check the camera working mode.
2. Check control cable is connected correctly.
Copyright Notice
All contents of this manual, whose copyright belongs to our Company. Cannot be cloned, copied or translated
without the permission of the company. Product specifications and information which were referred to in this document are
for reference only, and the content will be updated at any time without prior notice.
2014/9
Loading...
