PSC Falcon 4220 Quick Reference Manual

Quick Reference Guide

Falcon® 4220

Windows CE® .NET Ruggedized PDA

PSC Inc

959 Terry Street
Eugene, Oregon 97402
Telephone: [phone]
Fax: [phone]

An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures
described therein may be reproduced or transmitted in any form or by any means without prior written per­mission of PSC Inc. or its wholly owned subsidiaries ("PSC"). Owners of PSC products are hereby granted
a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own
internal business purposes. Purchaser shall not remove or alter any proprietary notices, including copy­right notices, contained in this documentation and shall ensure that all notices appear on any reproduc­tions of the documentation.

Should future revisions of this manual be published, you can acquire printed versions by contacting PSC
Customer Administration. Electronic versions may either be downloadable from the PSC web site
(www.pscnet.com) or provided on appropriate media. If you visit our web site and would like to make
comments or suggestions about this or other PSC publications, please let us know via the “Contact PSC”
page.

Disclaimer

Reasonable measures have been taken to ensure that the information included in this manual is complete
and accurate. However, PSC reserves the right to change any specification at any time without prior
notice.

PSC is a registered trademark of PSC Inc. The PSC logo is a trademark of PSC. All other trademarks and
trade names referred to herein are property of their respective owners.

Falcon

®

is a registered trademark of PSC Inc. and of its wholly owned subsidiaries.

Microsoft Windows

®

, Windows® 2000, Windows® CE .NET, Windows® NT, and Windows® XP are reg-

istered trademarks of Microsoft Corporation.

Patents

This product may be covered by one or more of the following patents: 4593186 • 4758717 • 5130520 • 4460120.

Quick Reference Guide 1

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Features of the PDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

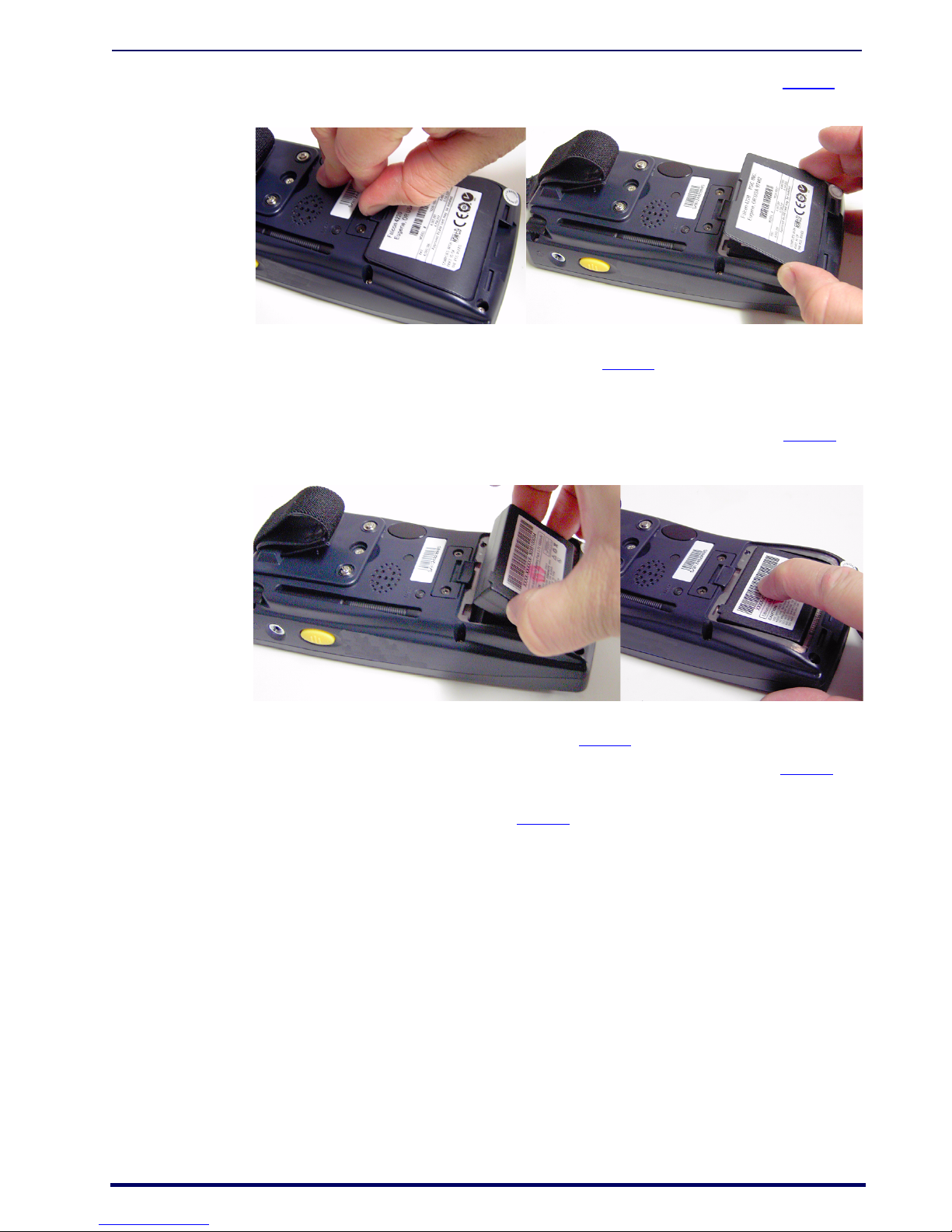

Installing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Checking Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Charging the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

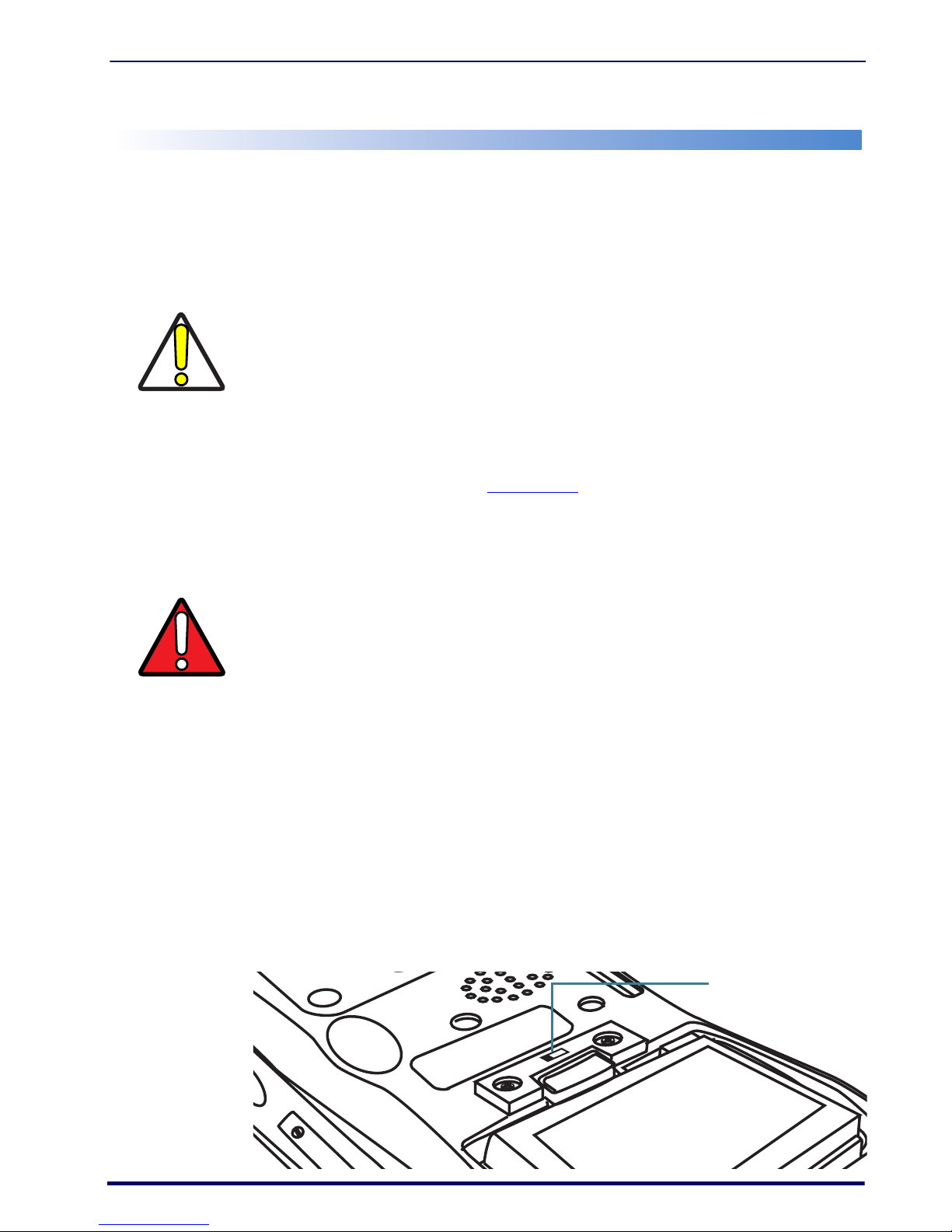

Backup Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Setting Up the PDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Starting the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Adjusting the Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

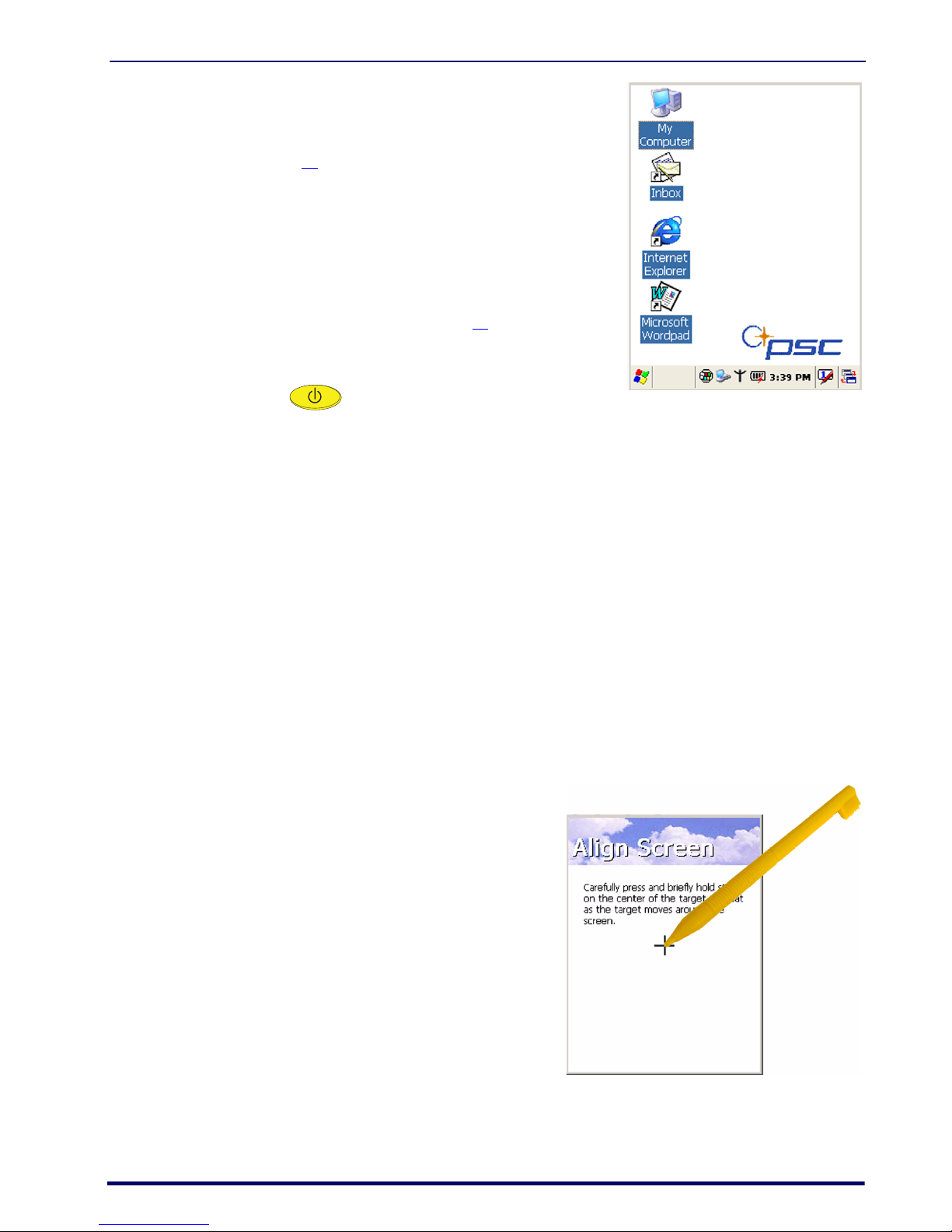

Calibrating the Touch Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

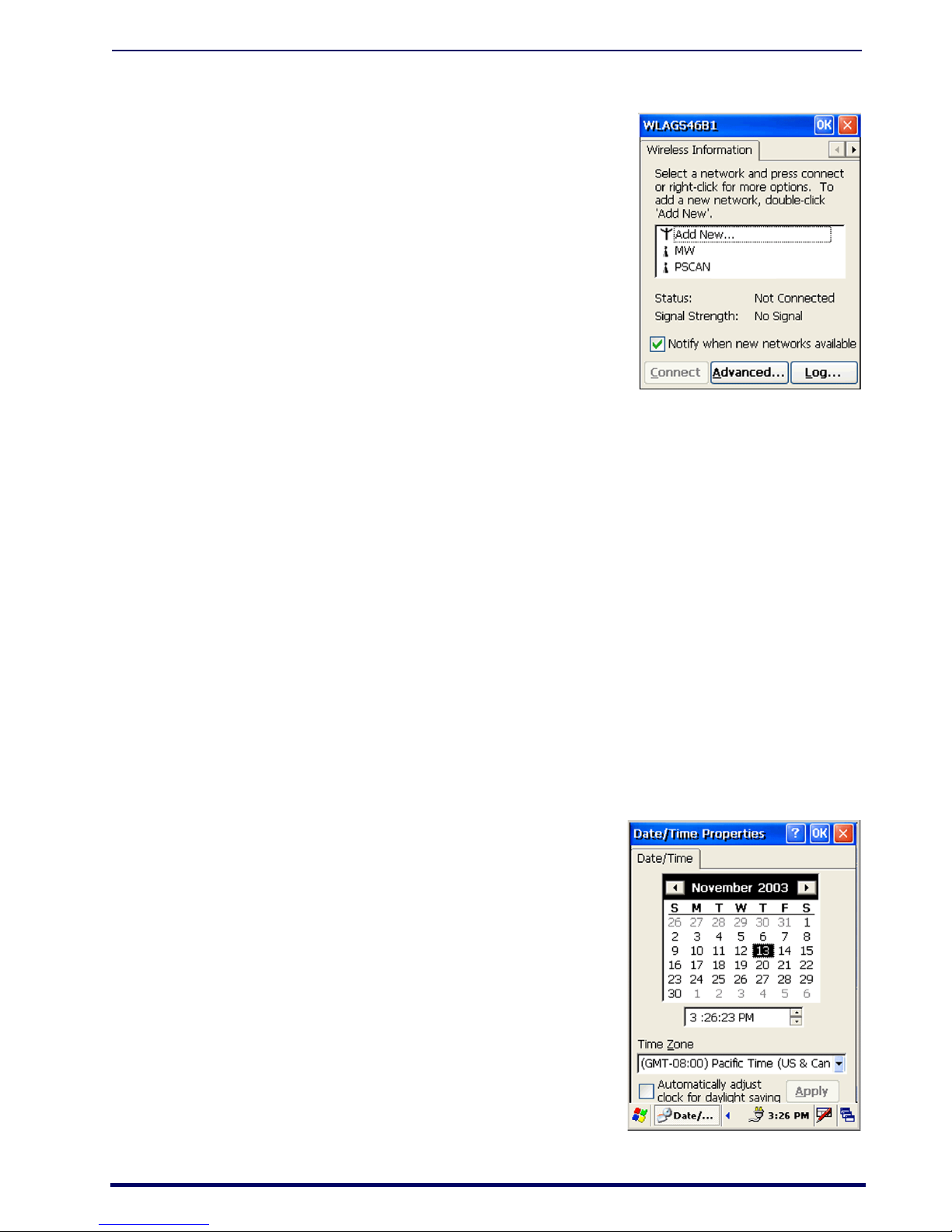

Setting up the RF Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Entering Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using the Stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Input States (Modes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Navigating the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

The Command Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

The Task Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

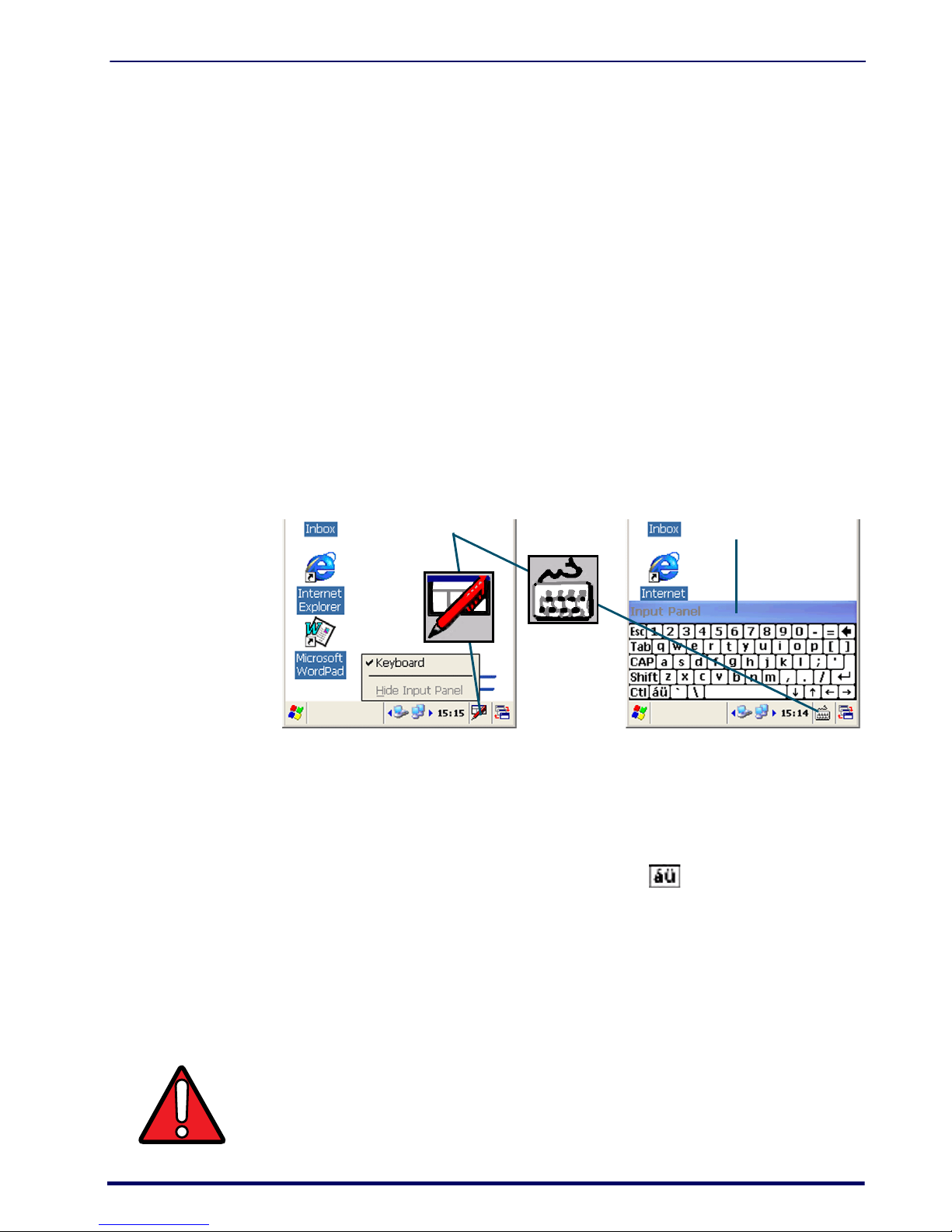

Soft Keypad/Input Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

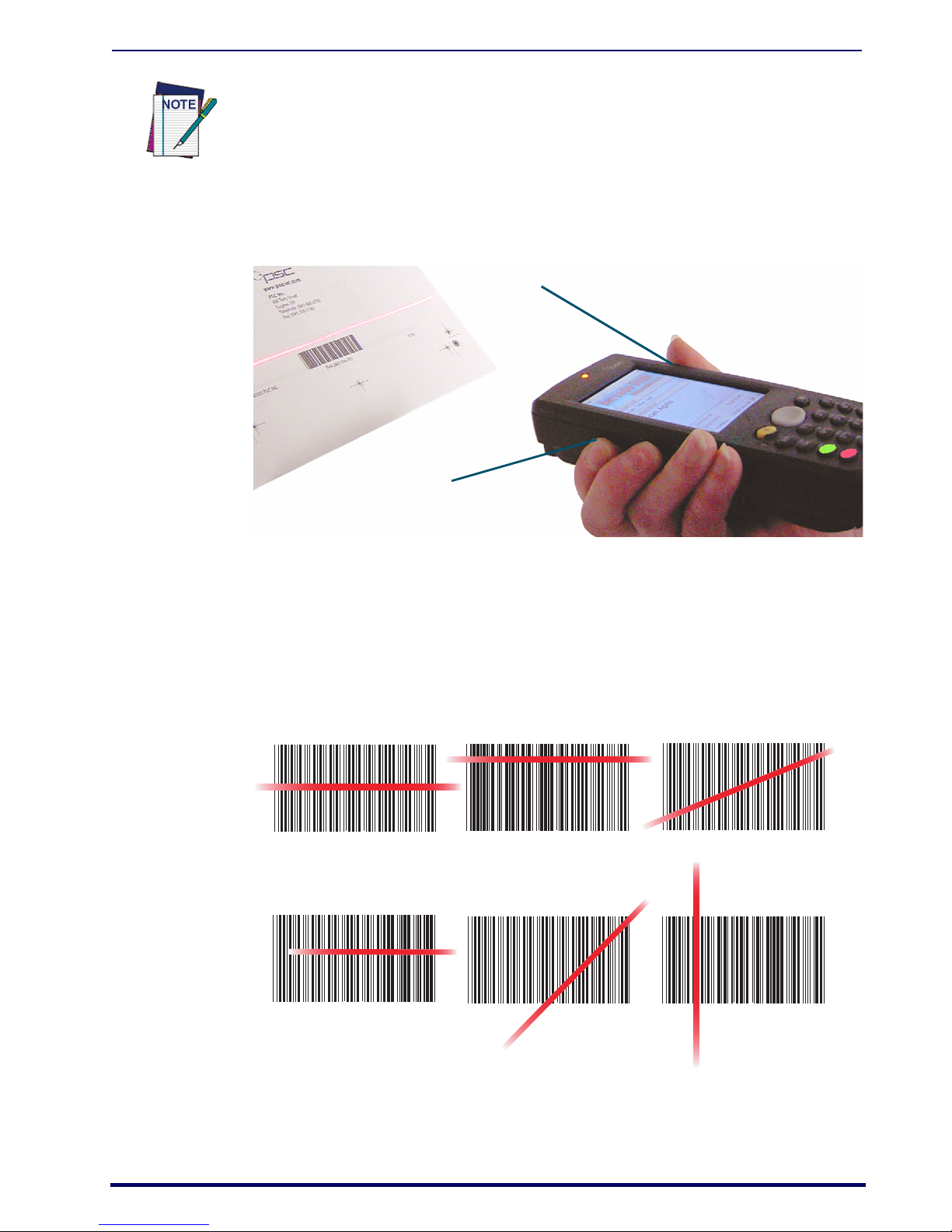

Scanning Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

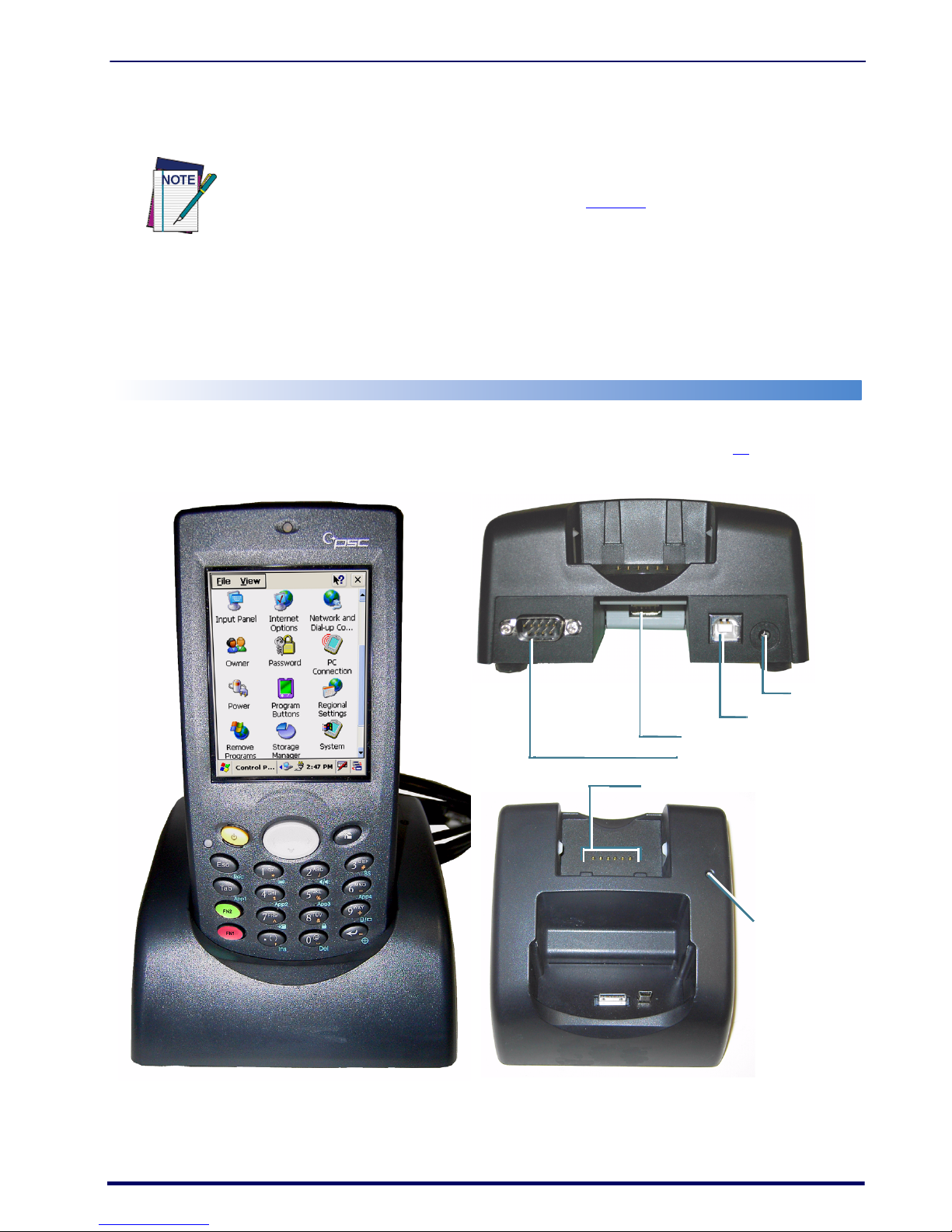

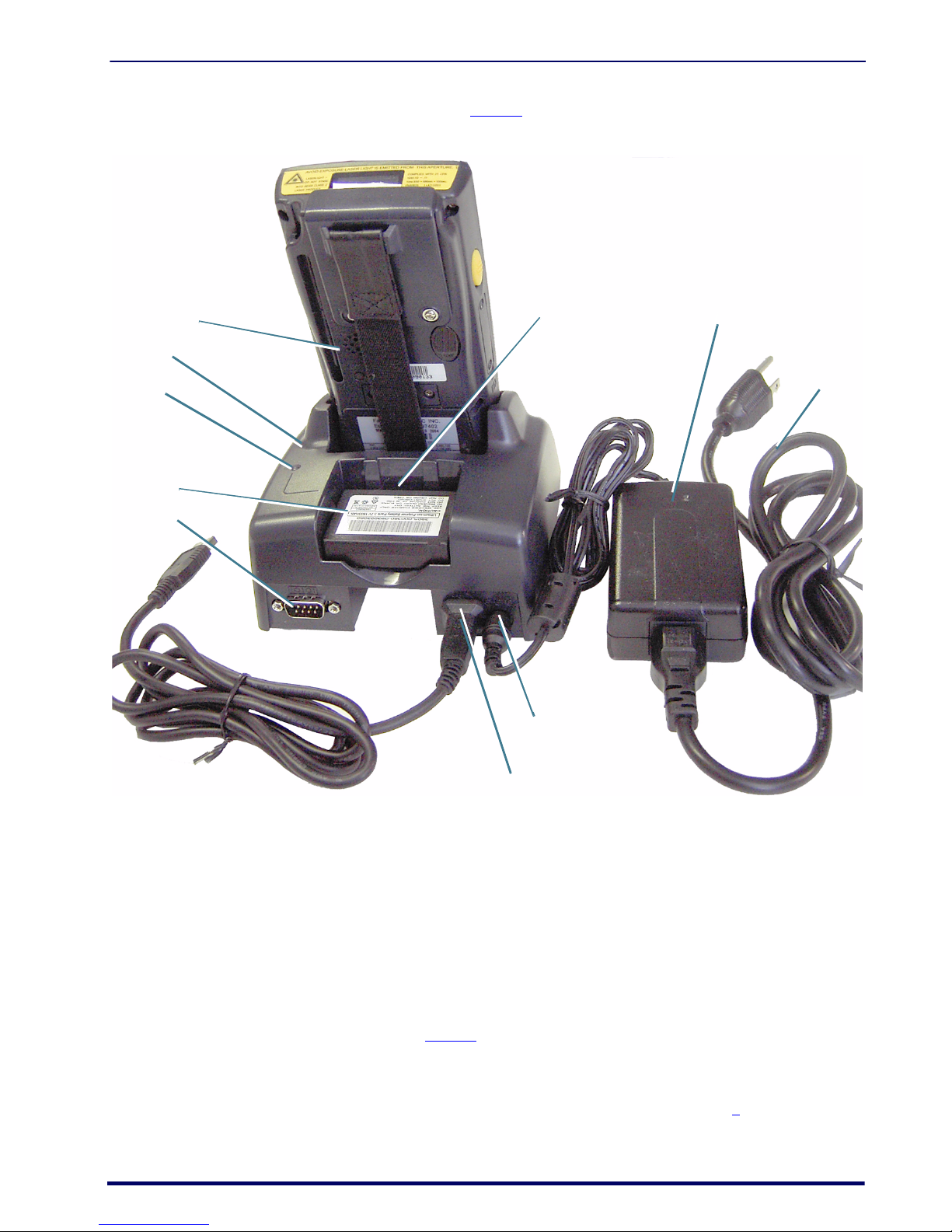

Using the Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

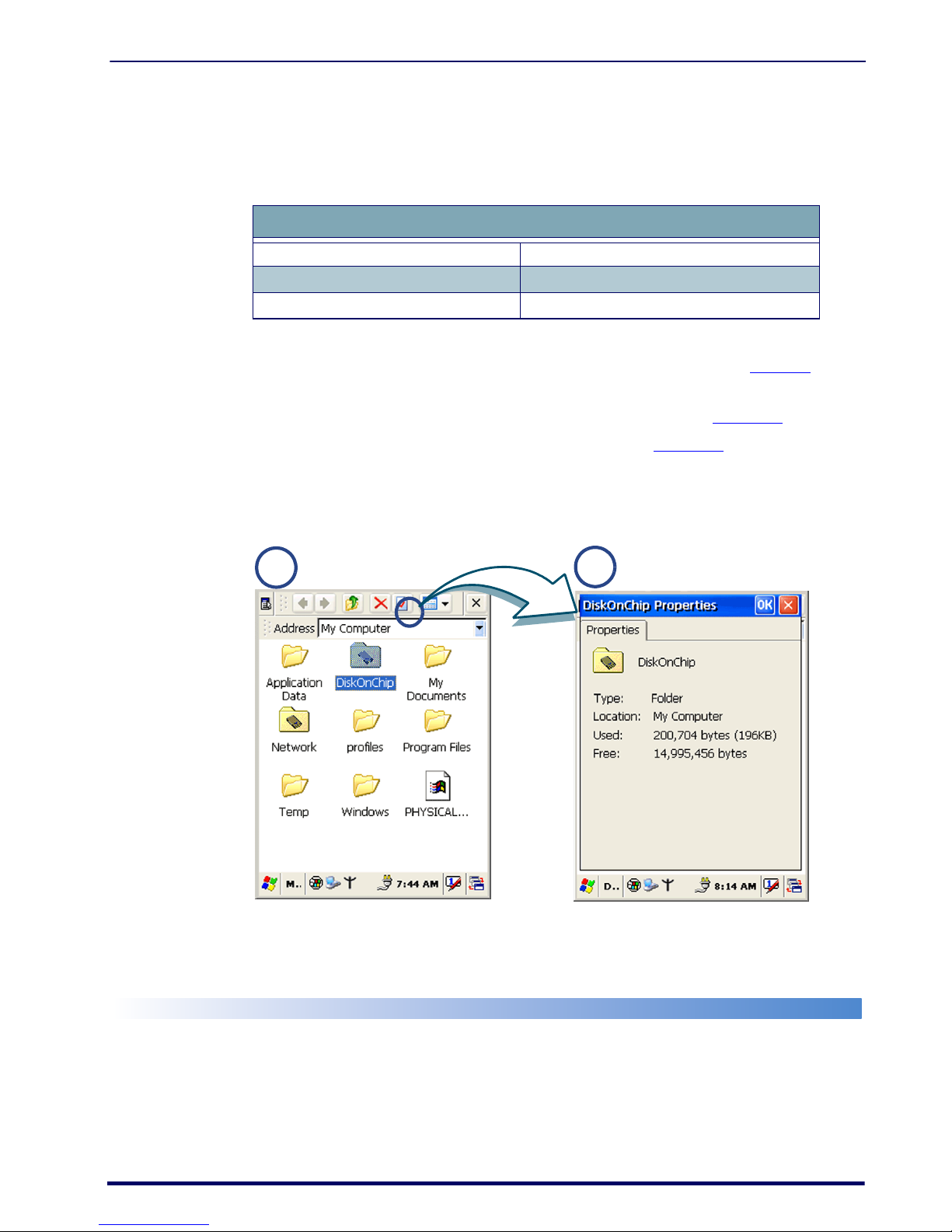

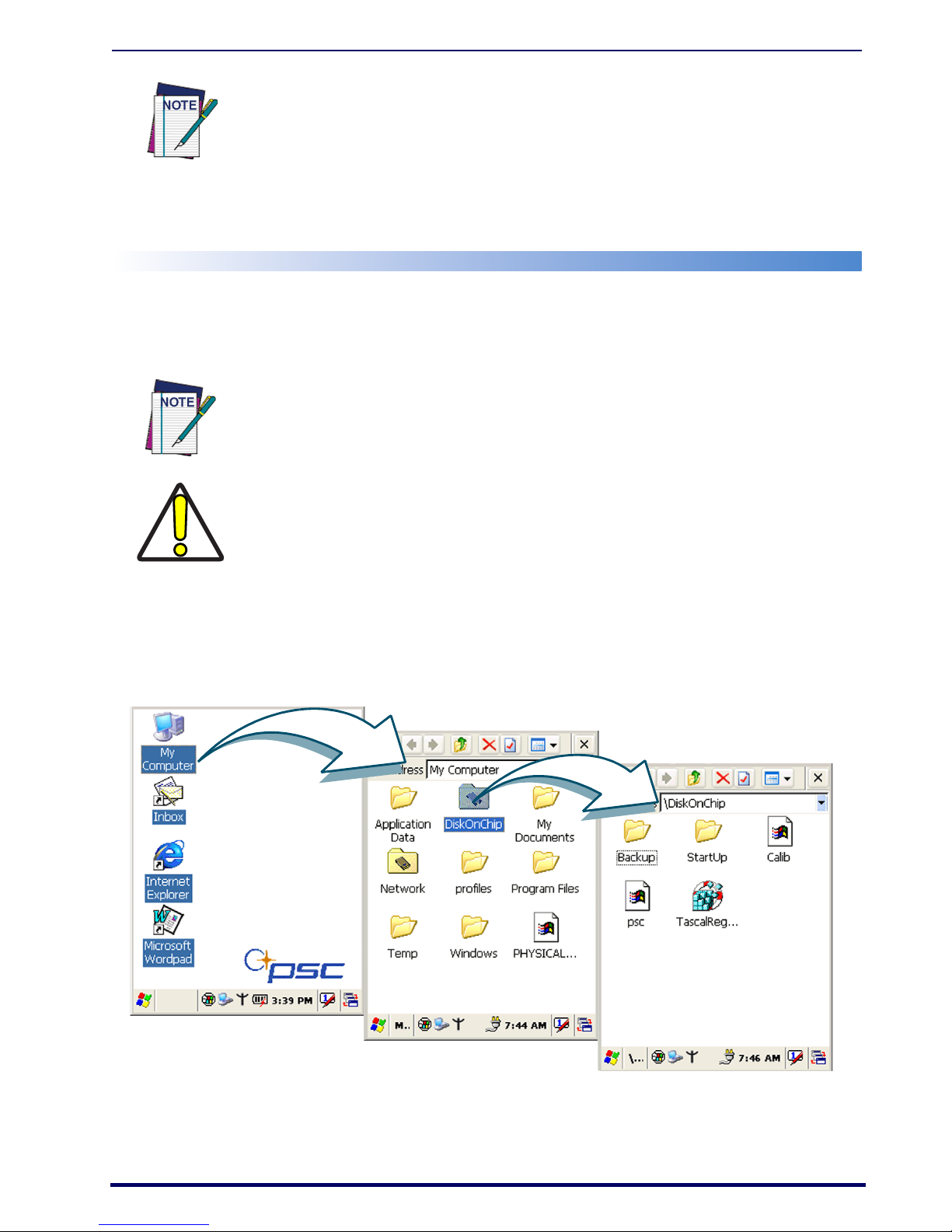

Flash Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

2

Falcon® 4220 Windows® CE PDA

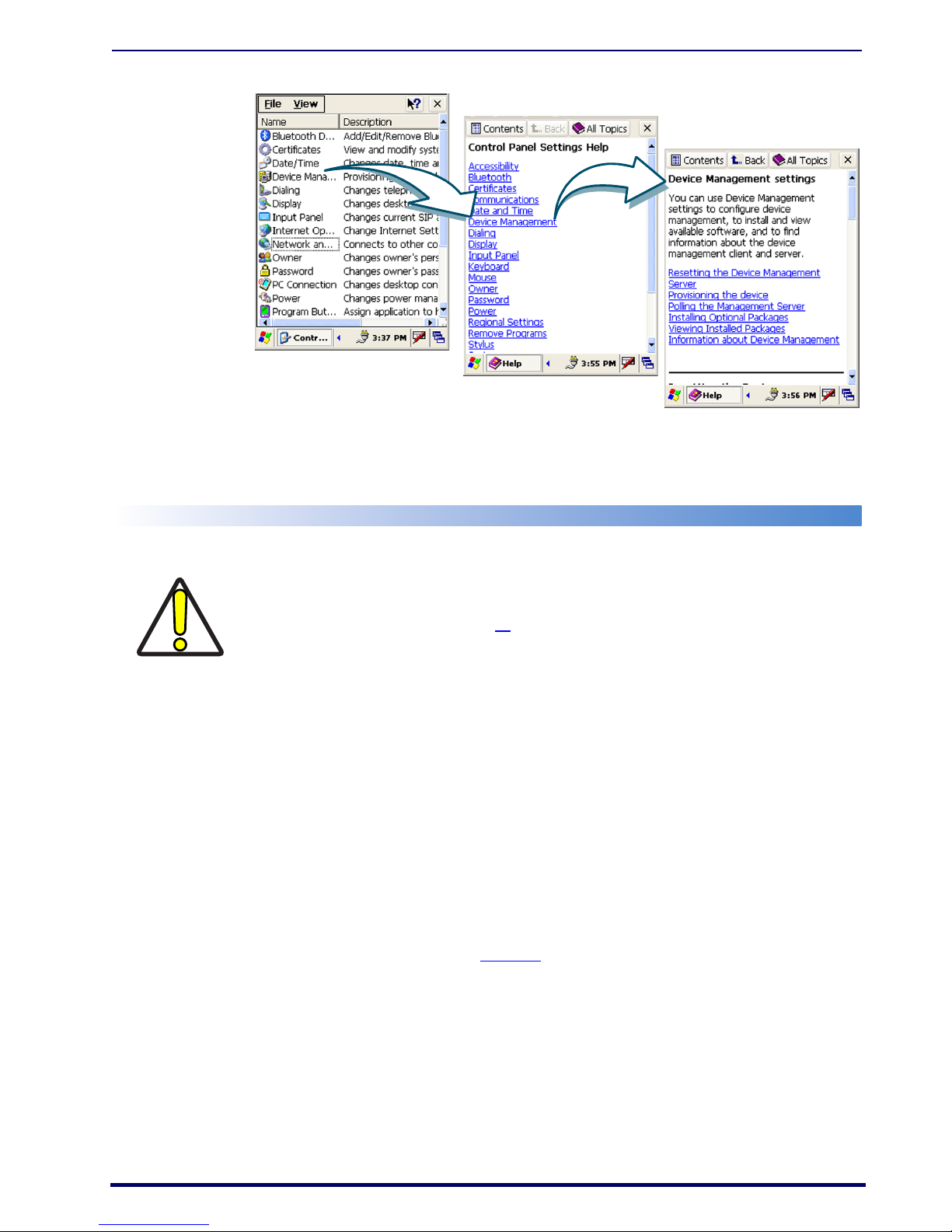

Context Sensitive Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Resetting the PDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Warm Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cold Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Appendix A: PSC Falcon® WinCE End User License Agreement . . . . . . . . . 31

Appendix B: Microsoft

®

Windows® CE .NET End User License Agreement 34

Appendix C: PSC Falcon

®

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Appendix D: Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

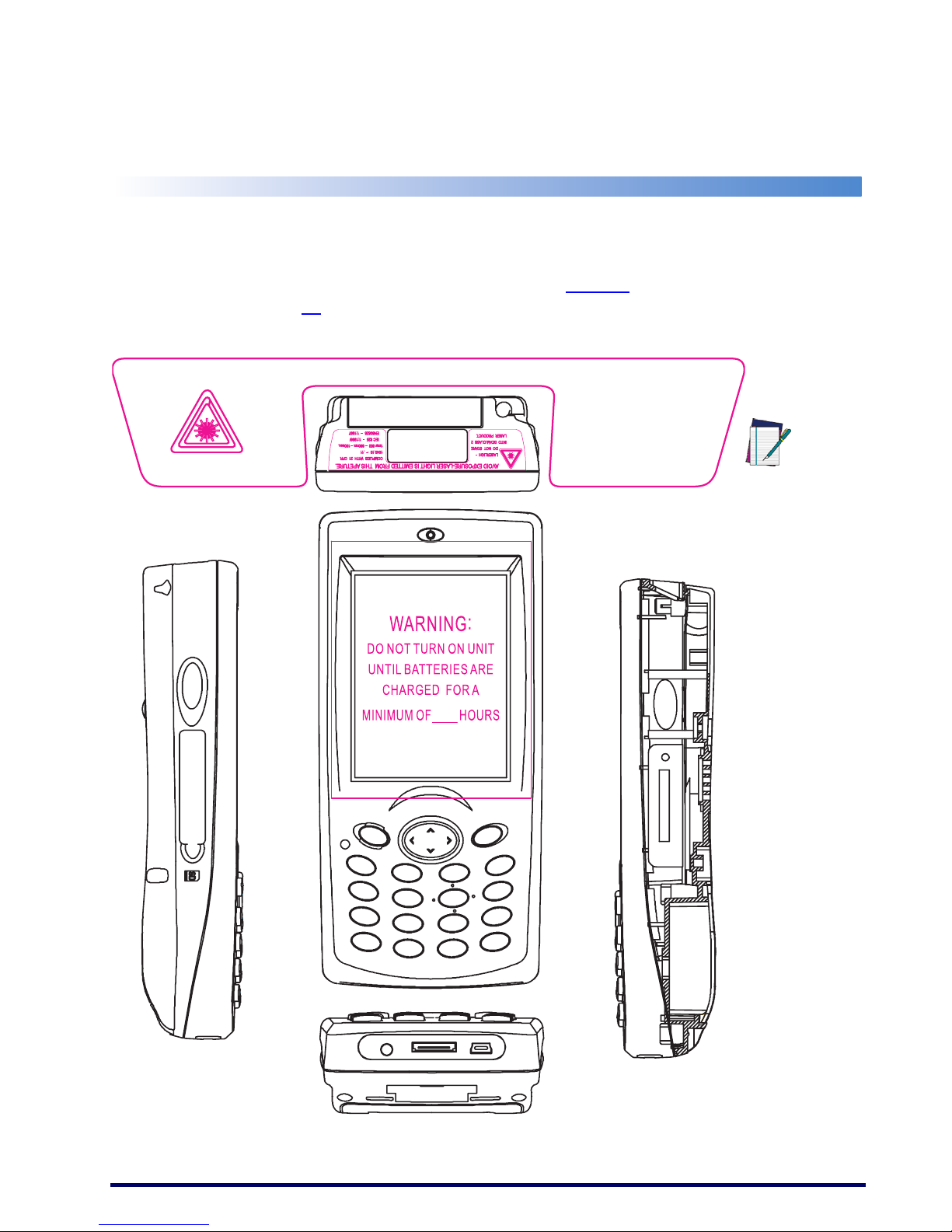

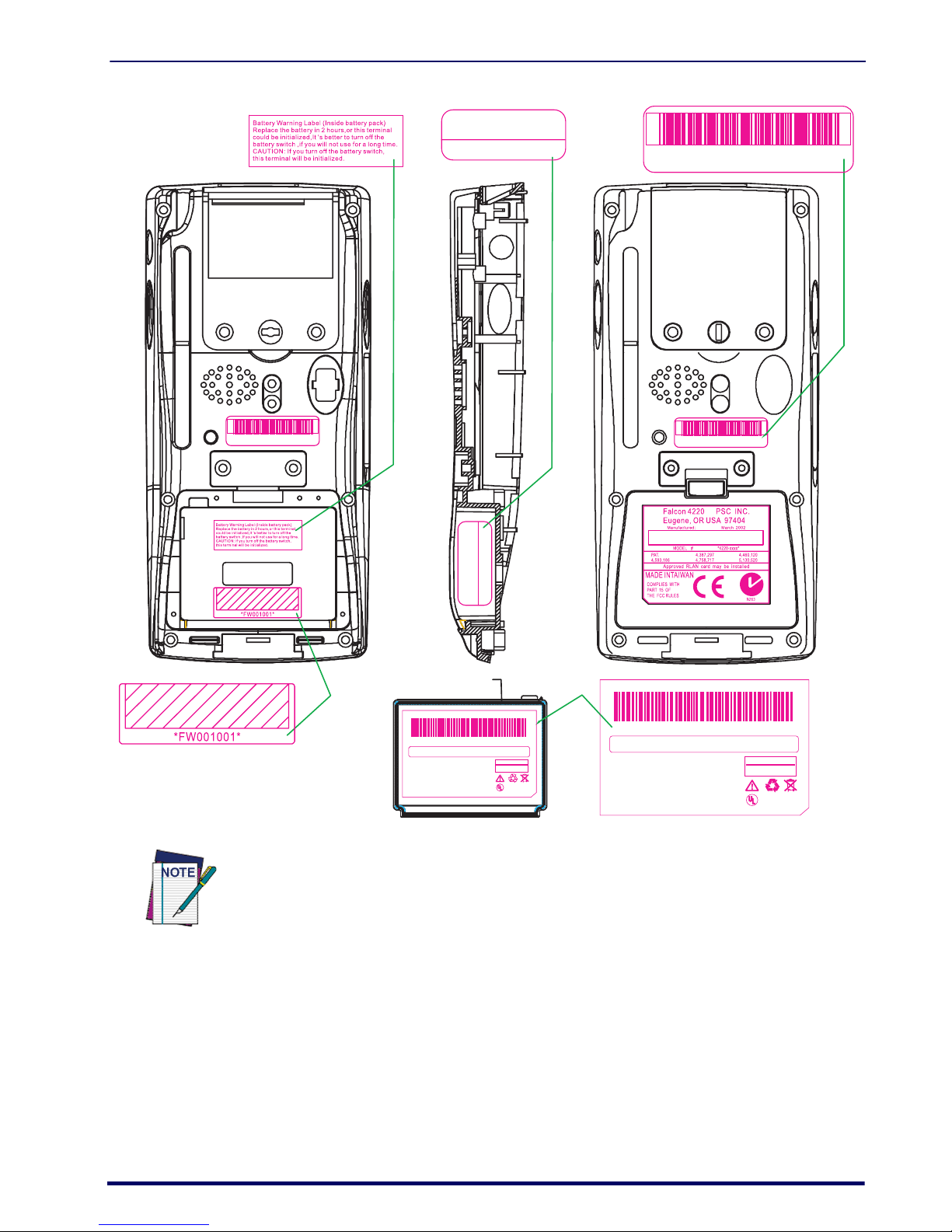

Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Advisory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Radio Frequency Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Canadian Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Appendix E: Laser Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

International Caution Statements for

CLASS 1, 2, 3R, II, and IIA Laser Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

French . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

German . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Italian . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Danish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Dutch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Swedish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Finnish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Norwegian . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Portuguese . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

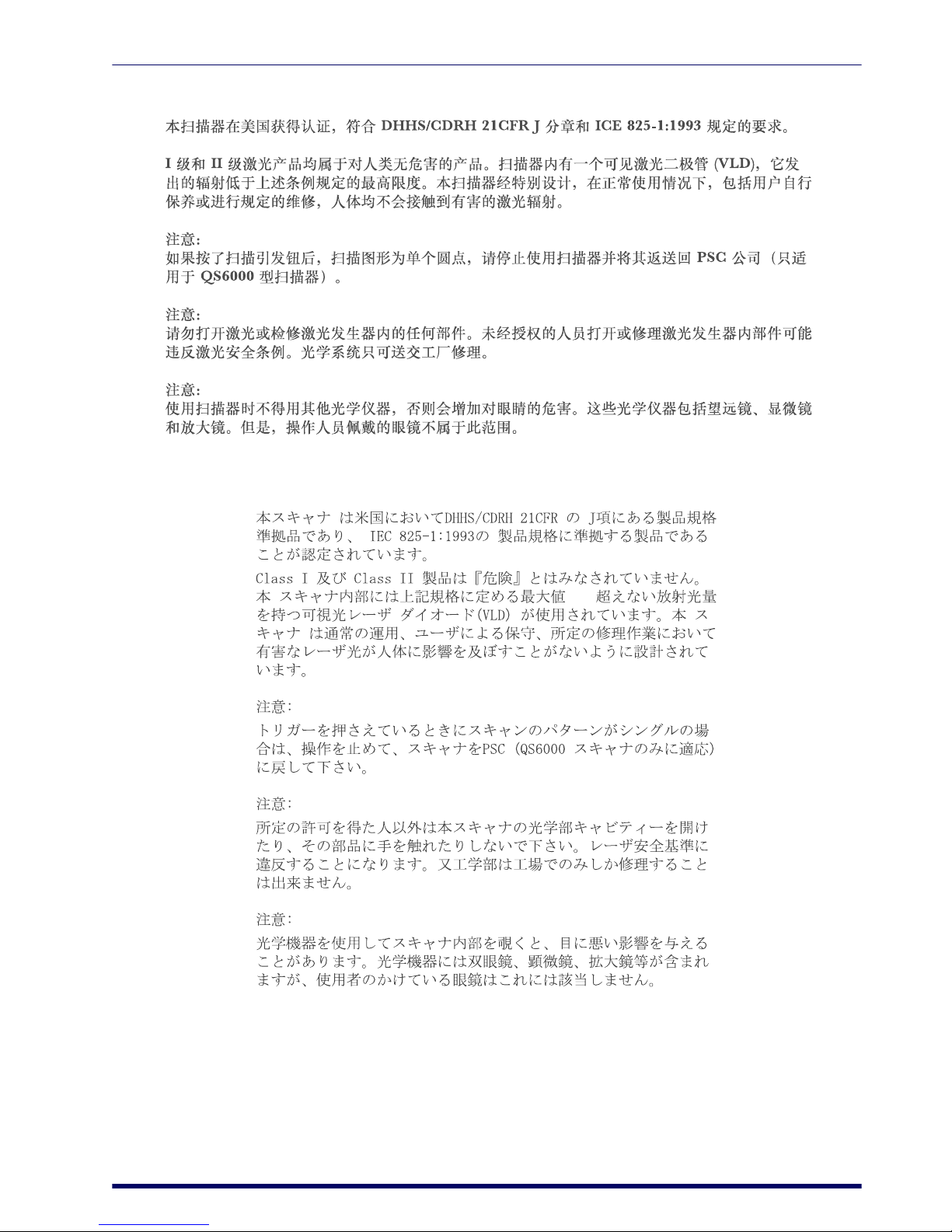

Chinese . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Japanese . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Quick Reference Guide 3

Introduction

The Falcon 4220 is a compact and rugged Personal Digital Assistant
(PDA) using the Microsoft Windows® CE .NET v4.2 operating system.
The PDA uses an Intel® XScale microprocessor and a 3.5” VGA, color
touchscreen display. The PDA supports RF wireless LAN 802.11b
(embedded module) for communication.

Before Getting Started

Figure 1. Contents of the Shipping box

Open the package and
check to make sure all
the parts are present:

1. PDA

2. Stylus

3. Earphone/
Microphones

4. CF Open Cover

5. Handstrap and
Plate

6. Lithium Ion
Polymer Battery
Pack

7. Power Adaptor

8. Synchronization
Cable

9. US Power Cord
(standard;
optional power
cords for other
countries can be
ordered.)

10. Falcon 4220 Quick

Reference Guide

(this manual, not
shown)

11. Product CD (not
shown)

Falcon® 4220 Quick Reference Guide

4

Falcon® 4220 Windows® CE PDA

CAUTION

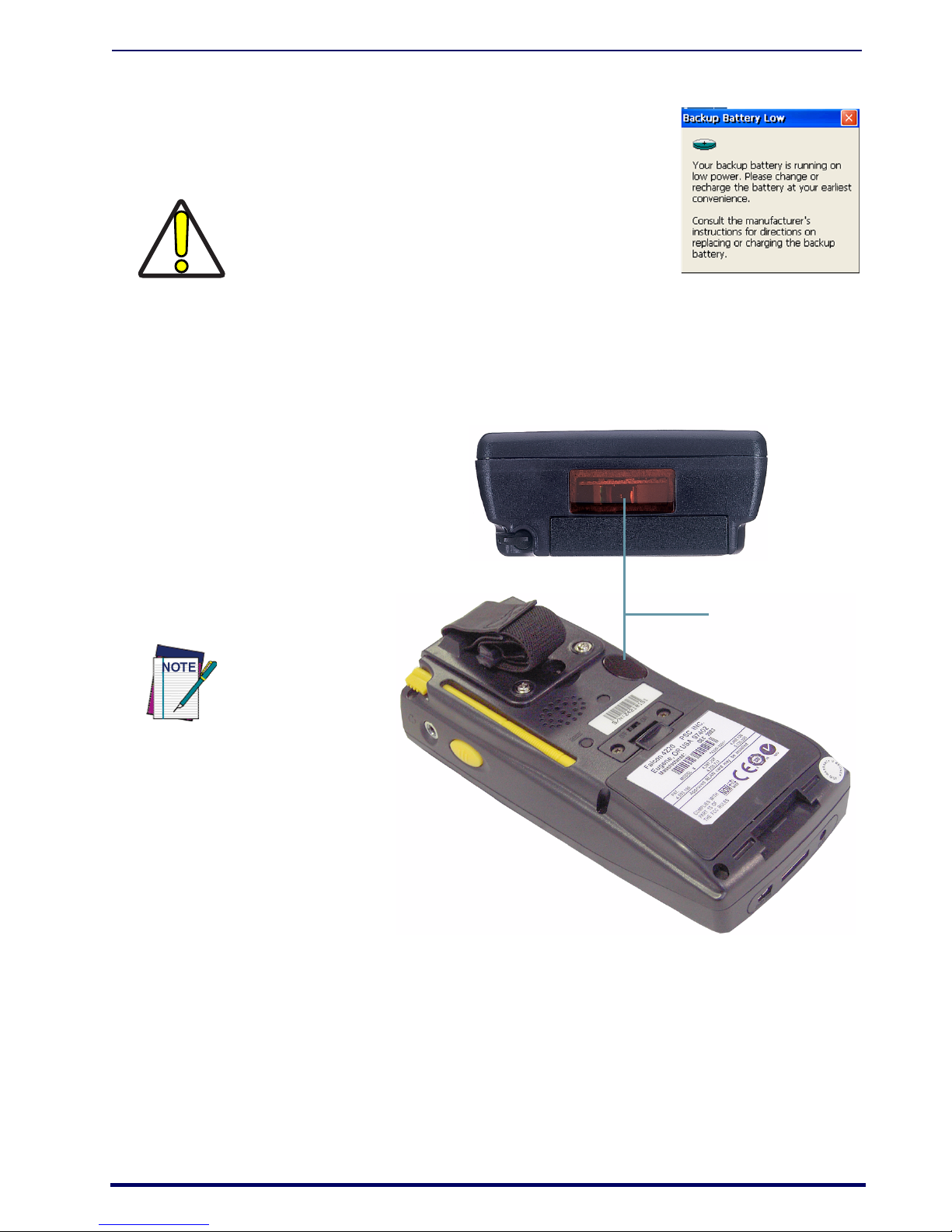

The Backup Battery Low warning (shown here) opens if you turn
the unit on before charging is complete.

You must charge both the battery pack and backup battery for at
least thirteen (13) hours prior to first use. You can use either the
power adaptor or a dock to charge the batteries.

When you install the battery pack, the device will power on.
Power off the PDA until the batteries have charged for a minimum of thirteen (13) hours.

When you install the battery pack, the device will power on. Power off the PDA until the batteries
have charged for a minimum of thirteen (13) hours.

Make sure to
remove the protec-

tive plastic film
from both the IrDA
port and the laser

scanning window
(in units equipped
with a laser scan-

ner) when you first
unpack the unit. If
these protective

films are not
removed, neither
the IrDA port nor

the laser scanner
may operate cor­rectly.

There is no protec­tive film on units

equipped with a
Linear Imager.

Protective Plastic Film

Features of the PDA

Quick Reference Guide 5

Features of the PDA

Refer to Table 1 on page 7 for a list and description of the illustrated
features.

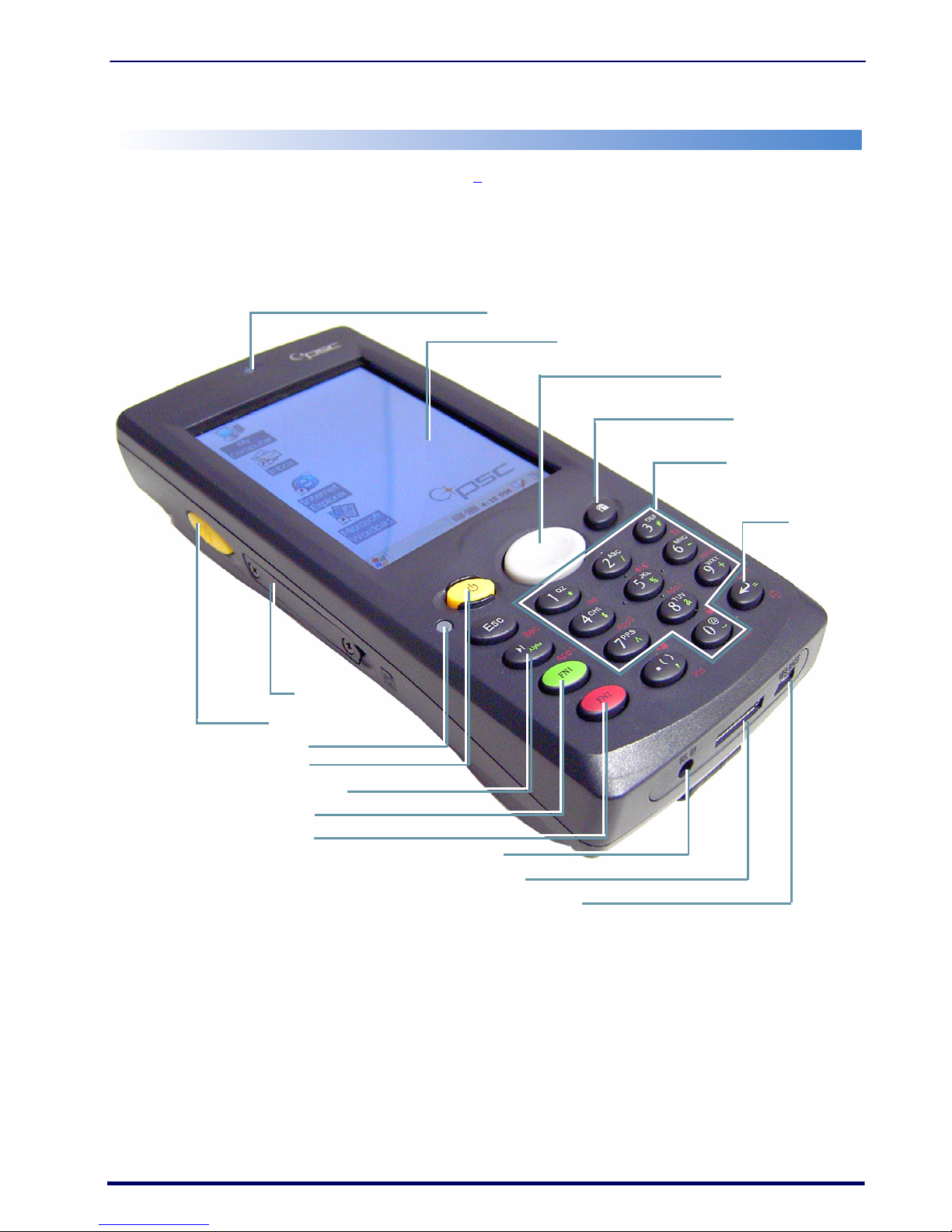

Figure 2. PDA Keypad View

Scanner LED Indicator

LCD Touchscreen/Display

Navigation Key

Home Key

Power/Backlight Key

Power LED Indicator

Left Scan Key

SD Slot

DC Power Port

USB/Serial Client Synchronization Port

USB Host Port

Enter Key

Tab/Alpha Key
FN1 Key

FN2 Key

Alpha-Numeric Keys

Falcon® 4220 Quick Reference Guide

6

Falcon® 4220 Windows® CE PDA

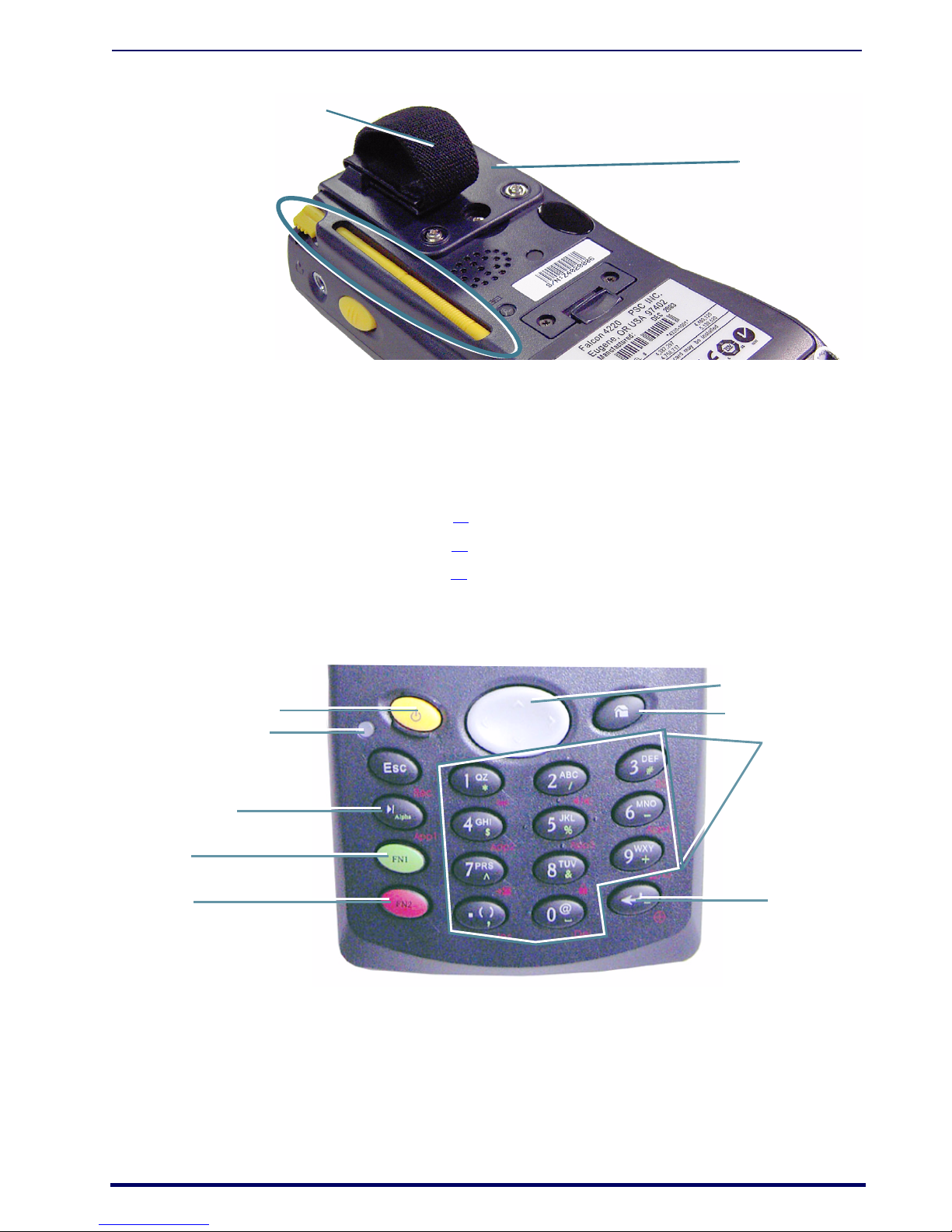

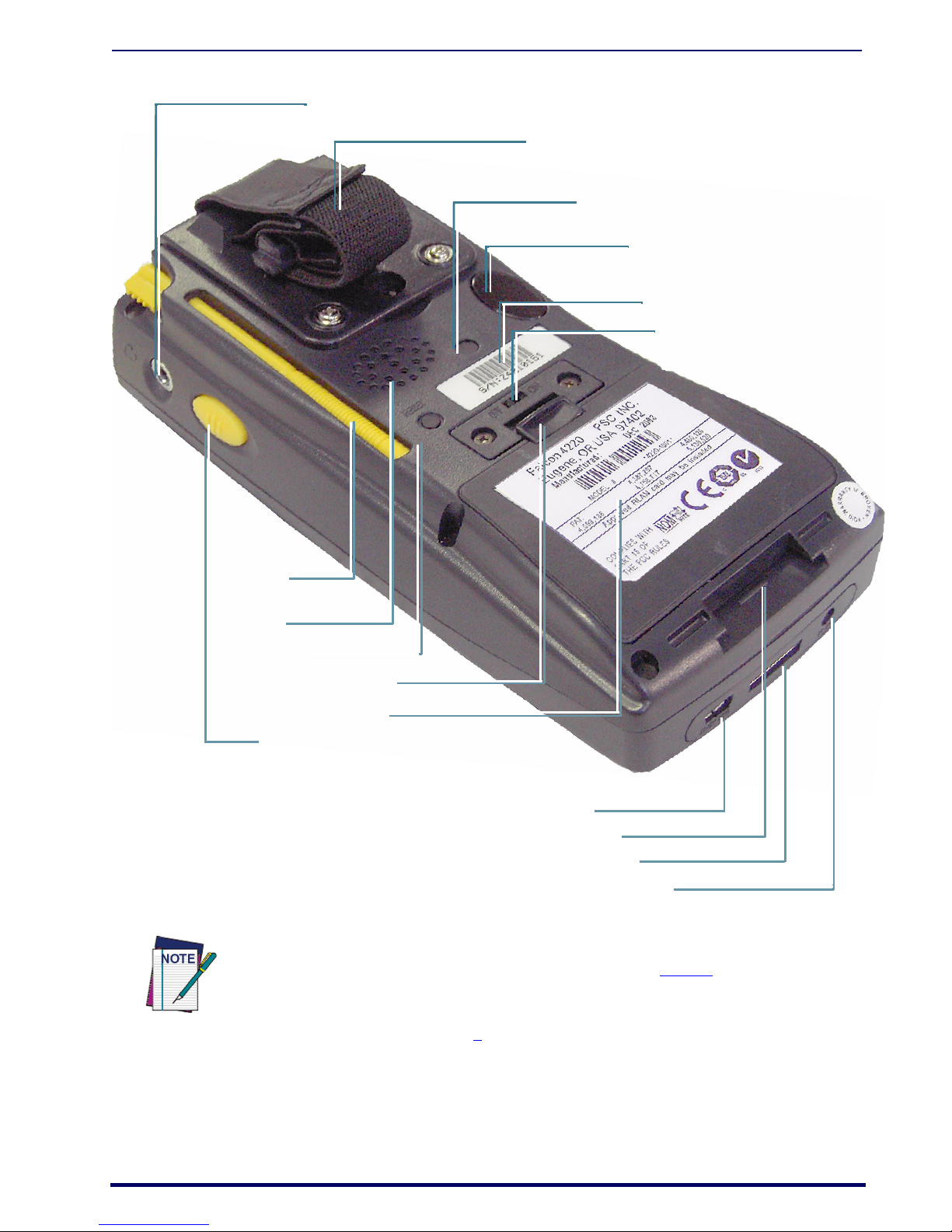

Figure 3. PDA Back View

Refer to Table 1 on page 7 for a list and description of the illustrated
features.

Handstrap (shown here rolled out of the way)

IrDA Port

Trigger Switch (For use with Optional Handle)

Reset Key

Battery Cover Latch

Right Scan Key

Stylus

DC Power Port

Ear/Microphone Port

Speaker

Battery Cover

USB/Serial Client Synchronization Port

USB Host Port

Handstrap Recess

Serial Number Label

Battery Door Latch
(On/Off Switch)

The color of the stylus in your PDA may vary from that shown in Figure 3.

Features of the PDA

Quick Reference Guide 7

Table 1. Features of the PDA

Features

Function/Description

Backup Battery The backup battery maintains the date, time, memory, and other functions.

Battery Compartment,

Cover, Latch, and On/

Off Switch

Move the On/Off Switch to the “On” position to open the battery door. Move the switch to the
“Off” position to lock the battery door in place.

Move the latch upwards to release the battery cover. Insert the battery into this compart­ment, following the directions on page 11

and replace the battery cover.

To use high capacity battery pack, you must use the high capacity battery cover.

Compact Flash (CF)

Slot

The Compact Flash card slot accepts storage cards or other CF type peripherals. Refer to
the Falcon 4220 Product Reference Guide for installation instructions.

To use a larger CF interface such as an RF card with an external antenna, camera or GPS
card, you must use the Open CF Cover.

DC Power Adaptor

Connect the external power adaptor to this port to charge the battery. You must charge the
batteries for thirteen (13) hours prior to first use. Charge the battery completely. Subsequent
charge cycles require four (4) hours.

Ear/Microphone Port

Connect the Ear/Microphone to listen to audio files using the media player, or record voice
messages with an applicable application.

Handstrap

The PDA comes with the handstrap, which is easily removable to access features and can be
replaced by an ergonmically designed handle.

Home Key

Moves to desktop window or runs an application defined by the user. Can be defined as a
scan button.

IrDA Port

A communications port that uses Infrared to communicate with another
device that also has an IrDA port.

Keypad

Use the alpha-numeric, function, and navigation keys on the keypad to enter numbers, let­ters, symbols and navigate with the keypad. Press the <FN2> + <Tab/Alpha> keys to access
alpha characters. For details on each key in the keypad, please refer to Table 3 on page 19

.

Trigger Switch Used with the optional ergonomically designed handle accessory.

LCD/Touchscreen

(Display)

The display screen shows the desktop and running applications. Tap on screen with stylus to
interact with applications.

Caution: Never use a pen, pencil, or other sharp object on the Falcon’s touchscreen display.

Use only the supplied stylus or plastic-tipped pens intended for use with a touchscreen­sensitive display.

Navigation Key

Press the edge of the 4-way navigation rocker key to move the cursor or highlighted text
entry during a menu/list selection.

• The <Up> arrow moves the cursor up one line.

• The <Right> arrow moves the cursor to the right one character.

• The <Down> arrow moves the cursor down one line.

• The <Left> arrow moves the cursor to the left one character.

Power LED /

Alarm Indicator

When the battery pack is installed in the PDA and charging in the Dock, this LED is Red.

When the battery is completely charged, the LED changes to Green. When the LED flashes
blue, it indicates a low battery. Some applications use a blue LED to indicate an Alarm or

Error.

For more information on each of these features, please refer to the Falcon 4220 Product Reference Guide, which is

located on the CD that came with your PDA and/or on the internet at www.psc.comwww.psc.com

.

Falcon® 4220 Quick Reference Guide

8

Falcon® 4220 Windows® CE PDA

Power/Backlight Key

Press the Power/Backlight key briefly to turn the unit on. The Backlight comes on automat­ically. Press this key again briefly to turn the unit off. To turn the Backlight off while the unit is
on, press and hold the key for at least a second. This key acts to toggle the Backlight func­tion off and on.

Reset Key

Use the stylus to press this button to perform a warm reset. Press the reset button and

<FN2> key simultaneously to initiate a cold reset. PSC recommends that you always attempt

a warm reset first.

CAUTION: Do not use a paper clip on the reset button, or you could disable the reset func-

tion, puncture the industrial seal, and void your warranty.

Scan key

(Left and Right)

Use either the right or left <Scan> button to activate the scanner and read a bar code. The
scanner starts to read the bar code. The scanner automatically turns off either when the bar
code is read, when you release the scan button, or after 10 seconds, which ever comes first.

Refer to "Scanning Bar Codes" on page 23

for more information.

Scanning LED

When scanning, a red LED indicates the scanner is on and a green LED indicates a suc­cessful, good read.

Scan Window

The scanning beam is emitted from this aperture. Aim the scanning beam at the bar code
you wish to scan. Refer to "Scanning Bar Codes" on page 23

for more information.

Secure Digital (SD) Slot

The secure digital card slot accepts a secure digital storage card. Refer to the Falcon 4220
Product Reference Guide for installation instructions.

Speaker

The speaker emits the sounds from *.WAV and other media files. It can also be set to emit
beeps or tones to indicate errors or good reads when bar code scanning and inputting data
using the keypad or stylus.

Stylus

Use the stylus for navigation, on the soft input panel (SIP), and to select items on the touch
screen. It is a good idea to replace the stylus in the holder after each use so you don’t lose or
misplace it.

USB Host Port

The USB Host port can be used with a USB keyboard, mouse, compact flash card, and/or
Ethernet connection. When using the dock, you can use standard a USB host port to con­nect USB peripherals.

The USB Host Port supports only peripherals with low power consumption.

USB/Serial

Synchronization Port

To synchronize data between a PC and the PDA, connect the USB or Serial cable with Desk­top and the PDA.

You must download and install Microsoft ActiveSync 3.7 or higher in the PC. Download
ActiveSync from the Microsoft Web site at www.microsoft.com

.

Features

Function/Description

For more information on each of these features, please refer to the Falcon 4220 Product Reference Guide, which is
located on the CD that came with your PDA and/or on the internet at www.psc.comwww.psc.com

.

Batteries

Quick Reference Guide 9

Batteries

The battery pack in the PDA is a Lithium Ion Polymer battery pack

3.7V. The power LED flashes blue to indicate a low battery state.

Installing the Battery Pack

To charge the battery pack, complete the following steps:

1. On units with a handstrap, detach the handstrap by releasing its
hook from the connection at the base of the unit.

Figure 4. Battery Latch Switch

CAUTIONS

Do not turn on the unit for the first time until batteries have charged for at least thirteen (13)
hours. When you install the battery pack, the device will power on. Power off the PDA until the

batteries have charged for a minimum of thirteen (13) hours.

If you remove the battery or the battery completely discharges, there is a two (2) hour window in
which to insert a charged battery before the backup battery fails and the contents of the Flash

memory are lost.

If both the battery pack and the backup battery are allowed to discharge completely, you must
recharge both batteries for thirteen (13) hours.

Always charge the battery at 32°–113°F (0°–45°C) temperature range.

Use only the correct battery, power supplies, charger, and dock supplied by a PSC reseller. The
use of other battery supplies can damage the PDA and void your warranty. For the correct sup-

plies, refer to the PSC Price Book on

www.psc.com or contact your PSC reseller.

WARNING

Lithium-ion battery packs may get hot, explode, ignite, or/and cause serious injury if exposed to
abusive conditions.

• Do not place the battery pack in or near fire, direct sunlight, heat, or other high temperature
locations.

• Do not install the battery pack backwards so the polarity is reversed.

• Do not connect the positive terminal and negative terminal of the battery pack to each other

with any metal object (such as a wire or coins).

• Do not expose the battery pack to liquids, or allow it to get wet.

• Do not disassemble, modify, or pierce the battery pack . It contains safety and protection
devices, which, if damaged, may cause it to generate heat, explode or ignite.

In the event the battery pack leaks and fluid gets into one's eye, do not rub the eye. Rinse well

with water and immediately seek medical care. If left untreated, the battery fluid could cause
damage to the eye.

OFF

ON

Battery Latch Switch

Falcon® 4220 Quick Reference Guide

10

Falcon® 4220 Windows® CE PDA

2. Move the Battery Latch Switch to the “Off” position (see Figure 4).

Figure 5. Releasing Battery Latch & Removing the Battery Cover

3. Slide the battery latch upwards and remove the battery cover
from the battery compartment (see Figure 5

).

4. Insert the battery pack into the battery compartment with the
label facing out. Set the lower edge of the battery cover into the
bottom edge of the rim of the battery compartment (see Figure 6

).

Figure 6. Insert the Battery Pack

5. Slide the battery latch up and press the cover into place, sliding
the battery lock down again (see Figure 6

).

6. Move the Battery Latch Switch to the “On” position (see Figure 4

).

7. Connect the Power Adaptor or place the unit in the dock to
charge the batteries. (see Figure 7

).

Checking Battery Power

If you remove the battery pack or the battery completely discharges,
you have about 2 hours to swap in a new battery pack or charge it
before the backup battery completely discharges.

Battery Power Gauge.

The Power control panel applet displays a bat­tery power gauge. Refer to “Power Configuration” in the 4220 Product
Reference Guide.

Low Battery Conditions.

When the battery pack is low, the Power LED

on the device flashes blue.

Batteries

Quick Reference Guide 11

Complete Battery Discharge.

In this event, the battery sensor ini­tiates a shutdown of all applications, and closes the RF Network con­nection. When the battery is replaced, the PDA will resume as before.

Battery Discharge Characteristics.

Battery discharge characteristics
are (six) 6 to (sixteen) 16 hours per charge, depending upon usage,
number of scans, backlight usage, and other factors that draw upon
battery power.

Charging the Batteries

After using the Falcon, if a low battery indicator appears, the main
battery needs recharging.

There are four methods for charging a main battery. Refer to Tab l e 2
for a complete listing of methods, durations, and LED indicators.

Table 2. Battery Charging Methods and Indications

Charging with the Power Adapter

1. Connect the power cord to the power adapter.

Make sure the Falcon is firmly seated in the dock, charger, or power adaptor. If it is not firmly

seated, battery charging and communication with the Host PC will NOT be initiated.

Charging Locations:

Battery Charging

Methods and

Indications

Charge Duration*
(Standard Battery

Pack)

Battery Pack Charge Indication

Simultaneously

Charges Backup

Battery?

Falcon Charge LED

Dock or Charger

Battery Charge LED(s)

Within the Falcon
while seated in a Sin­gle- or Quad-Slot
Dock

4 hours

Charging: RED

No effect YES

Fully Charged: GREEN

Within the Falcon
while connected to
an external power
supply

4 hours

Charging: RED

No effect YES

Fully Charged: GREEN

Battery Pack seated
in spare battery
charging slot of Dock
(Single- or Quad-Slot)

3-5 hours N/A

Charging: Solid RED

NO

Fully charged: GREEN

Battery Pack seated
in charging slot of
battery charger (Sin­gle- or Quad-Slot)

3-4 hours N/A

Charging: Solid RED

NO

Fully charged: GREEN

* High Capacity battery packs take approximately 50% longer to charge than standard battery packs.

Falcon® 4220 Quick Reference Guide

12

Falcon® 4220 Windows® CE PDA

2. Connect the power cord to a power source.

3. Insert the power adapter into to the power port of the PDA.

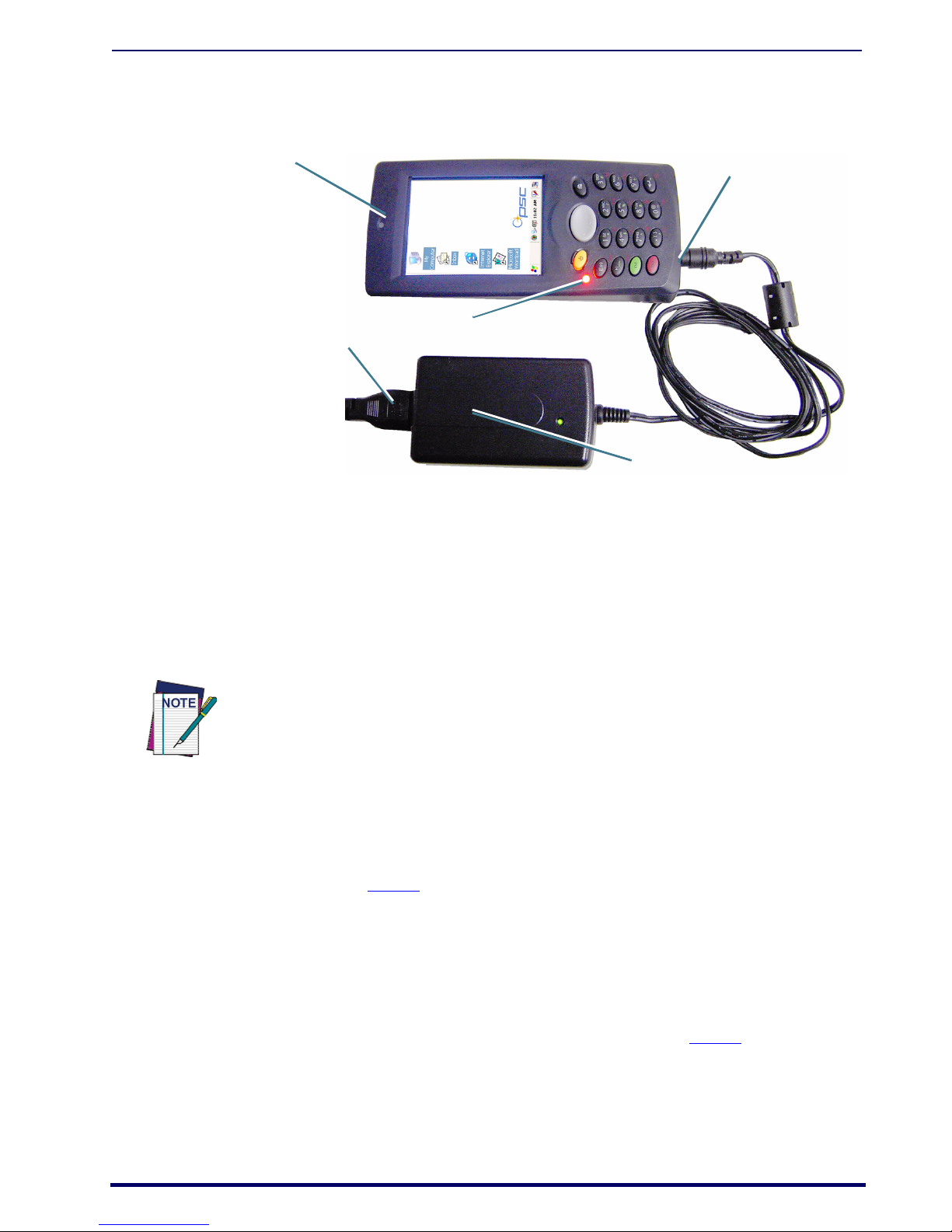

Figure 7. Charging the PDA with the Power Adaptor

Charging with the Dock

There are two methods for charging the battery pack using the dock:

• Leave the battery pack in the PDA. This method also charges
the spare battery.

• Place the battery pack into the Spare Battery charging slot.
This method does NOT charge the spare battery.

You can charge the battery pack while it is in the PDA.

1. Connect the power cord to the power adapter.

2. Connect the power cord to a power source.

3. Insert the power adapter into to the power port of the dock.
(Refer to Figure 8

.)

4. Put the PDA in the dock.

Charging the Battery Pack in the Spare Battery Slot

You can also charge a spare battery in the dock’s spare battery
charging slot.

1. Remove the battery from the device. Refer to Figure 6.

2. Connect the power cord to the power adapter.

3. Connect the power cord to a power source.

4. Insert the power adapter into to the power port of the dock.

Power Adaptor

Power Cord

Power Port

PDA

Charging LED

Make sure that the Falcon is firmly seated in the dock. If it is not firmly seated, battery charging

and communication with the Host PC will NOT be initiated.

Batteries

Quick Reference Guide 13

5. Insert the battery into the spare battery charging slot in the rear
of the dock. Refer to Figure 8

.

Figure 8. Charging with the Dock and Power Adaptor

Charging with the Battery Charger

You can charge the both the standard battery pack and the optional
high capacity battery pack using the battery charger. Place battery
packs into a Quad-slot charger connected to a power source.

A complete charge for the standard battery pack using the battery
charger takes about four-six (4-6) hours depending upon the type of
battery pack being charged (standard battery pack vs. the optional
high capacity battery pack).

Refer to Table 2 on page 11

for a complete listing of battery charging
methods and LED status indicators which indicate the current battery
charger state.

Refer to “Installing the Battery Pack” starting on page 9

, to remove

the battery pack from the Falcon.

PDA

Power Adaptor

Power
Cord

PDA

Dock

Battery

Spare Battery
Charging Slot

Power Port

Serial
Por t

USB Host Port

Dock
Charging
LED

Falcon® 4220 Quick Reference Guide

14

Falcon® 4220 Windows® CE PDA

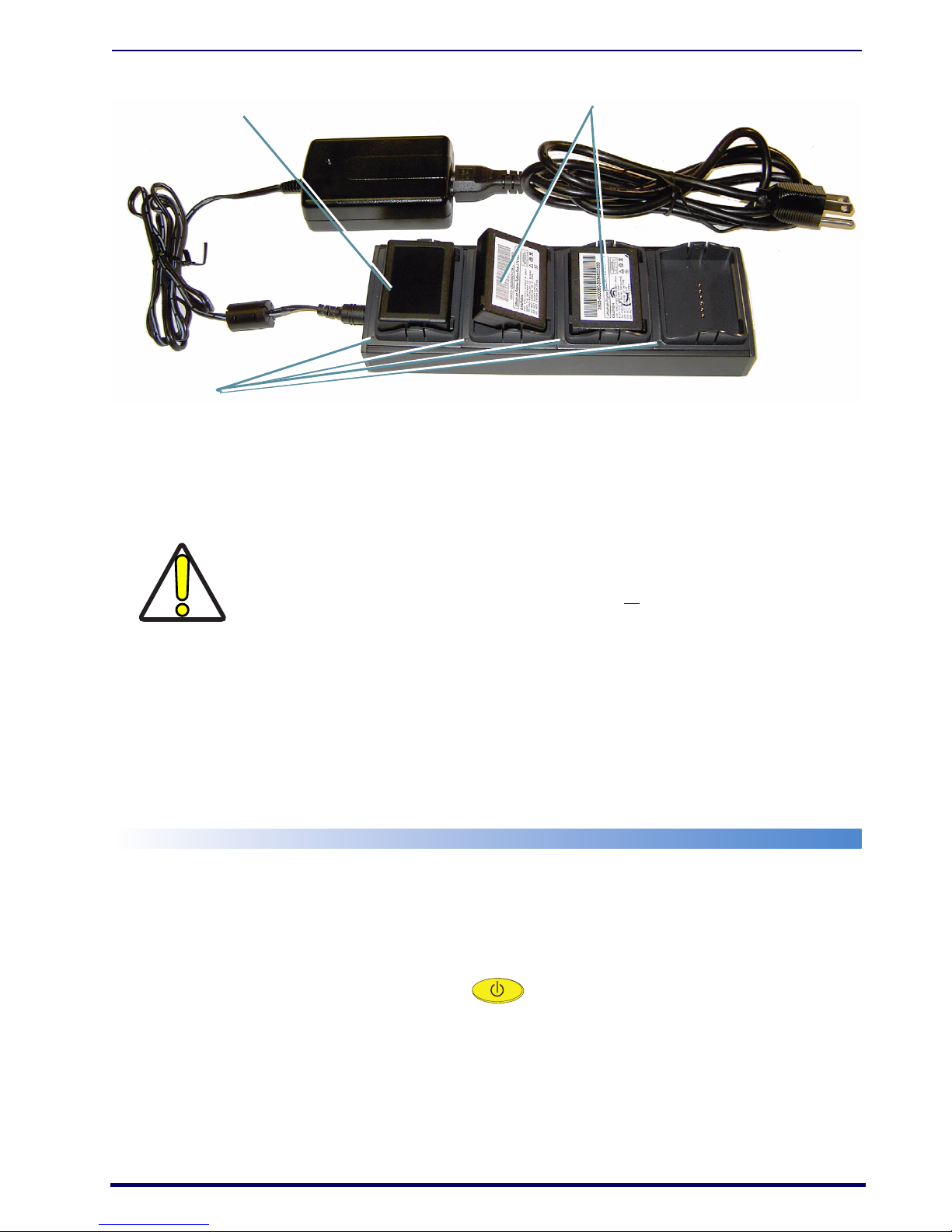

Figure 9. Quad-Slot Battery Charger

Backup Battery

The backup battery in the PDA is a 25mAh rechargeable backup bat­tery that holds system data at least 2 hours without main battery.

The backup battery is charged off the battery pack, so it is important
to keep the battery pack with at least a minimal charge so the unit
can maintain date, time, data, and other settings.

Setting Up the PDA

This section covers the basic aspects of preparing the Falcon PDA for
use.

Starting the Device

Powering On:

Press the Power/Backlight key briefly to turn the
unit on. The Backlight comes on automatically. Press this key again
briefly to turn the unit off. To turn the Backlight off while the unit is on,
press and hold the key for at least a second. This key acts to toggle
the Backlight function off and on.

Status LEDs

High Capacity
Battery Pack

Standard Battery Pack

CAUTION

If you remove the battery or the battery completely discharges, there is a two (2) hour window in
which to insert a charged battery before the backup battery completely discharges and the con­tents of the RAM memory are lost. It is a good idea to keep your data and applications in Flash

Memory for that reason. Refer to "Flash Memory" on page

26 for more information.

If both the battery pack and the backup battery are allowed to discharge completely, you must

recharge both batteries for thirteen (13) hours.

Setting Up the PDA

Quick Reference Guide 15

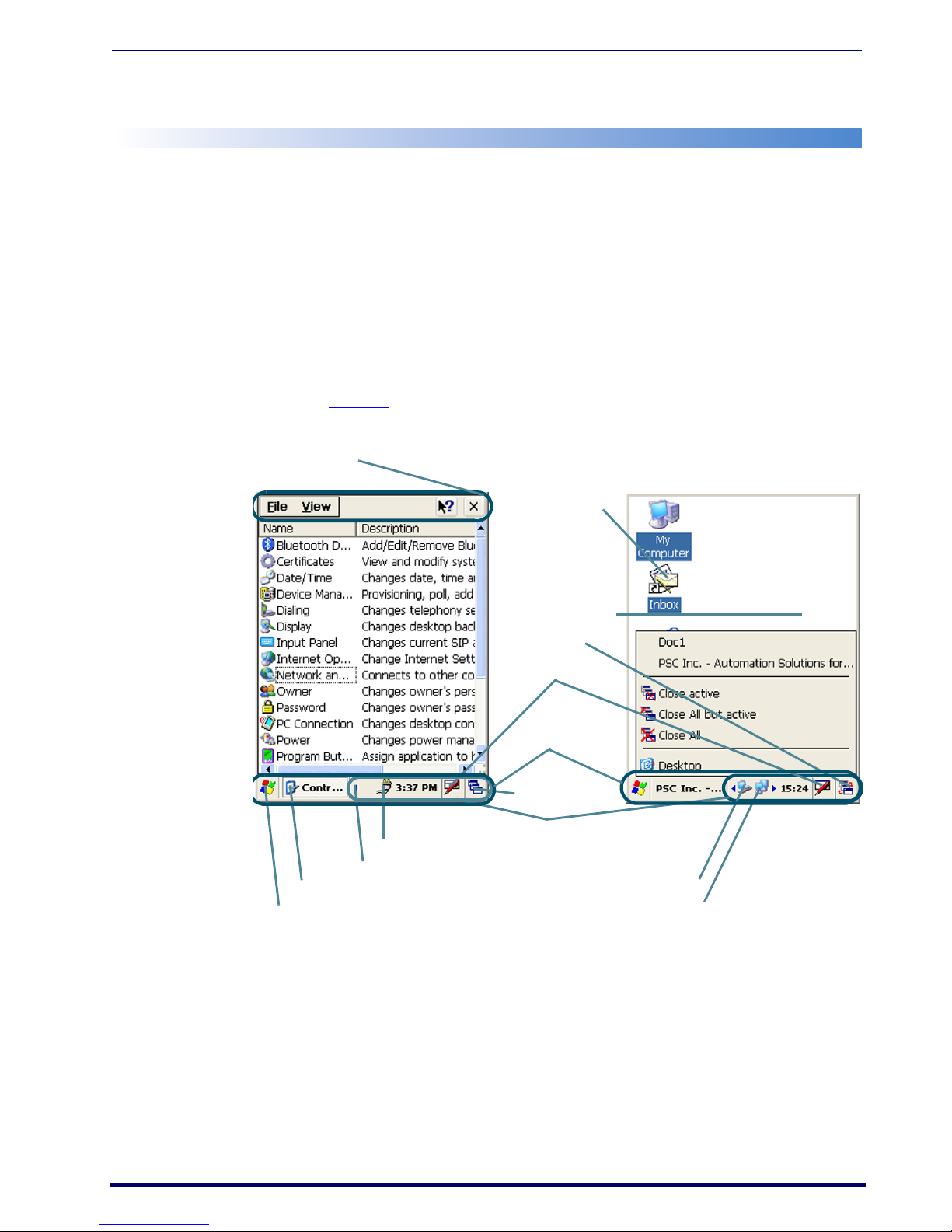

Desktop:

The figure to the right shows the

desktop display, or main screen.

Refer to the "Navigating the Display" on
page 22

for more information on navigat-

ing the touchscreen.

Entering Data:

You can input data using
the keypad, stylus, soft input panel (SIP),
and the Scanner.

These methods are described in detail in
"Entering Data" on page 17

.

Powering Off:

To turn the PDA off, press

the Power/Backlight key again. This
action suspends the device, but does not actually turn it off. All run-

ning applications remain as you left them until you press the Power/

Backlight key again to resume operation of the device.

Adjusting the Brightness

The factory default for the Brightness is set at maximum. You can adjust
the brightness to your environment and comfort.

1. Press the <FN2> key while simultaneously pressing on the Right or

Left edge of the Navigation key.

2. Press the Right edge to increase brightness and the Left edge to

decrease brightness. No screen will open

3. Adjust as desired.

Calibrating the Touch Screen

On the initial boot-up of the PDA,
the Stylus Calibration screen (labeled

Align Screen) opens.

Press and briefly hold the stylus
on the center of each target as it
moves around the screen.

To recalibrate the touchscreen if it
seems out of alignment, press the

<FN2> + <Enter> keys simultaneously

to open the Stylus Calibration (Align
Screen) window.

To circumvent the Touch Screen
Calibration, press the <ESC> key.

Falcon® 4220 Quick Reference Guide

16

Falcon® 4220 Windows® CE PDA

Setting up the RF Card

On the initial boot-up of the PDA, the

WLAGS46B1 screen/Wireless tab opens and

asks you to configure the wireless RF
(radio card) settings.

1. Select the network you wish to access

and tap the Connect button, or select

Advanced for more options.

2. To add a new network, double-tap on

the Add New selection from the list.

Press OK from the control bar, or press the

<Enter> key on the keypad to save your

selections and close the screen.

Adjusting the Volume

The factory default for the Vol um e is maximum. You can adjust the vol­ume to your environment and comfort.

1. Press the <FN2> key while simultaneously pressing on the Up or

Down edge of the Navigation key.

2. Press the Up edge to increase volume and the Down edge to

decrease volume. No screen will open.

3. Adjust as desired.

4. To mute the sound, press the <FN2> + <2> keys. Press <FN2> + <2> to

toggle sound on or off.

Setting the Date and Time

You can change the year, month, date, time, time zone, or select
automatic adjust for daylight savings time. To set or change the date
and time:

1. Select Start > Settings > Control Panel > Date/

Time.

2. Select the month.

3. To change the year, select the year to

open a numeric dial.

4. To change the time, select the hour,

minute, seconds, or AM/PM.

5. Select your time zone from the list.

6. To automatically adjust for daylight

savings time, select the checkbox.

7. Tap Apply, OK, or press the <Enter> key

on the PDA to make your changes.

Entering Data

Quick Reference Guide 17

Entering Data

To select and open programs, select Start > Programs from the task bar
to open a list of available programs. Or if the program has an icon on
the desktop, double-tap to open it.

There are several ways to enter data on the PDA once in an applica­tion:

• Use the keypad to enter alpha-numeric characters. Refer to
"Using the Keypad" on page 18

.

• Use the stylus on the touchscreen display. Refer to "Using the
Stylus" on page 17

for more information on using the stylus.

• Select text in the same way you select text on a PC. Use the
stylus to highlight the desired text by dragging the stylus
across the desired text, double-tapping to select one word, and
triple-tapping to select an entire line/paragraph. Refer to "Nav­igating the Display" on page 22

.

• Use the soft input panel (digital keyboard) with the stylus.
Refer to "Soft Keypad/Input Panel" on page 23

.

• Use the bar code scanner to enter data. Press the trigger or
scan button to initiate a scan. The scanned data will be entered
into the current application’s open file. Refer to “Scanning Bar
Codes” starting on page 23

for more information on using the

scanner.

For information on factory installed applications, refer to the Falcon
4220 Product Reference Guide.

Using the Stylus

The stylus is located next to the CF cover or handstrap plate on the
right rear of the PDA as illustrated in Figure 10

. The stylus on the PDA is

the equivalent of the mouse on a PC.

Use the stylus to:

• Navigate the touchscreen display.

• Select characters in the soft input panel (SIP).

• Select applications from the desktop or system tray.

• Select buttons, tabs, fields and text within applications and
dialog boxes.

CAUTION

Never use a pen, pencil, or other sharp object on the Falcon’s touchscreen display. Use only the
supplied stylus or plastic-tipped pens intended for use with a touchscreen-sensitive display. To

replace a missing stylus refer to the PSC Price Book on

www.psc.comwww.psc.com or contact

your PSC reseller.

Falcon® 4220 Quick Reference Guide

18

Falcon® 4220 Windows® CE PDA

Figure 10. Back View of a PDA with a Stylus

It is good practice to replace the stylus into the holder after each use
so you don’t lose or misplace it.

Using the Keypad

The following tables provide the details of key functions:

• Table 3 on page 19

identifies functions and key categories.

• Table 4 on page 20

shows the keypress cycles using Alpha keys.

• Table 5 on page 21

shows how to access the <FN2> and <FN1> key

functions and the results of using them.

Figure 11. Falcon 4220 Keypad

The keypad is organized like a cell phone with multi-tap access to
alpha characters on numeric keys.

Note: Your stylus color may vary from that shown.

Handstrap

Strap Plate

Navigation Key

Home Key

Power LED Indicator

Enter Key

Alpha­Numeric
Keys

Power/Backlight Key

Tab/Alpha Key

FN1 Key

FN2 Key

Entering Data

Quick Reference Guide 19

Table 3. PDA Keypad Overview

Input States (Modes)

Most of the keys on the keypad of the PDA have more than one func­tion. To access the secondary features and functions, you must first
press a function key to access the desired state. You may be required
to press multiple keys simultaneously.

Numeric Mode.

In Numeric (normal) mode, the ten alpha-numeric

keys generate numeric characters.

Alpha Mode:

Press the <FN1>+<TAB/Alpha> keys simultaneously to acti-

vate Alpha Mode. To change the current input character type, press

<FN1>+<TAB/Alpha> keys simultaneously to rotate the current input char-

acter type.

Key Name Function/Description

Navigation Key

Press the edge of the 4-way navigation rocker key to move the cursor or highlighted text entry dur­ing a menu/list selection.

• The <Up> arrow moves the cursor up one line.

• The <Right> arrow moves the cursor to the right one character.

• The <Down> arrow moves the cursor down one line.

• The <Left> arrow moves the cursor to the left one character.

Alpha-

Numeric

Keys

Use the alpha-numeric keys to enter numbers and letters. Numerals are the default output.

• To enter lower case Alpha characters, press the <FN1>+<TAB/Alpha> keys once simulta-
neously. The Alpha state is persistent.

• To enter upper case Alpha characters, press the <FN1>+<TAB/Alpha> keys a second time.
This state is also persistent.

• Press the <FN1>+<TAB/Alpha> keys a third time to exit the Alpha state.

<FN1>

Key

Press the <FN1> key to enter the FN1 input state. Use FN1 mode to access the features and oper­ations described in Ta bl e 5

.

<FN2> Key

Press the <FN2> key to enter the FN2 input state. Use FN2 mode to access the features and oper­ations described in Ta bl e 5

.

<Power/

Backlight> Key

Press the Power/Backlight key briefly to turn the unit on. The Backlight comes on automatically.
Press this key again briefly to turn the unit off. To turn the Backlight off while the unit is on, press
and hold the key for at least a second. This key acts to toggle the Backlight function off and on.

Scan Key

(Left and Right)

Press the Right or Left <Scan> key to activate the scanner. The Scan keys will only work if the PDA
is in a power on state. Both the Right or Left <Scan> key will wake up the PDA from a suspended
state (refer to page 5

) unless that key has been reprogrammed or reassigned.

<Tab/Alpha> Key

Press the <FN1>+<TAB/Alpha> keys simultaneously to activate Alpha Mode. To change the cur-
rent input character type, press <FN1>+<TAB/Alpha> keys simultaneously to rotate the current
input character type.

Inputting character types follows this sequence: Numeric > Alpha lower case > Alpha upper

case > Numeric. Refer to Ta bl e 4

for more information.

For more information on each of these features, please refer to the Falcon 4220 Product Reference Guide, which is

located on the CD that came with your PDA and/or on the internet at www.psc.com

.

Falcon® 4220 Quick Reference Guide

20

Falcon® 4220 Windows® CE PDA

Table 4. Inputting Alpha-Numeric Characters

Inputting character types follows this sequence: Numeric > Alpha lower

case > Alpha upper case > Numeric:

1. Press the <FN1>+<TAB/Alpha> keys simultaneously to activate Alpha

mode. This state is persistent and produces lower case characters
when you press an alpha-numeric key next.

2. Press the <FN1>+<TAB/Alpha> keys again simultaneously to activate

Caps mode. This mode is persistent and produces upper case
Alpha characters.

3. Press the <FN1>+<TAB/Alpha> keys again simultaneously to exit both
Alpha and Caps modes and return the unit to Numeric mode.

In Alpha mode, the alpha-numeric keys generate alpha characters as
described in Ta bl e 4

. Press the keys one to four times to complete the
cycle through the alpha-numeric characters until the desired charac­ter appears in the active application.

When entering alpha characters, to enter a second character that is
located on the same key, you must either wait until the cursor moves
one space to the right, or press the Right edge of the Navigation key
(refer to "Navigation Key" on page 19

). Otherwise the key will cycle
through the characters on the key continuously. If you press an alter­nate key next, there is no need wait or to use the Navigation key to
move to the next position.

Numeric Mode

(Default)

Press <FN1>+<TAB/Alpha> Once

Mode = Alpha lower case

Press <FN1>+<TAB/Alpha> Twice

Mode = Alpha CAPs

Press <FN1>+<TAB/

Alpha> 3 Times to

return (end of cycle)

Mode = Numeric

Key

1st Key

press

2nd
Key

press

3rd Key

press

4th Key

press

1st Key

press

2nd

Key

press

3rd Key

press

4th Key

press

<.> ....()() .

<1> q z q z Q Z Q Z 1
<2> ab c aABCA 2
<3> d e f d D E F D 3
<4> g h i g G H I G 4
<5> j k l j J K L J 5
<6> m n o m M N O M 6
<7> p r s p P R S P 7
<8> t u v t T U V T 8
<9> w x y w W X Y W 9
<0> @@@@@@@@ 0

Entering Data

Quick Reference Guide 21

Table 5. Activating FN1 and FN2 Modes/States

FN1 Mode.

Press <FN1> + the indicated alpha key to produce the punc­tuation or symbols indicated on the alpha-numeric keys. These func­tions are described in Ta bl e 5

.

FN2 Mode.

Press the <FN2> key to enter FN2 mode. These functions
are described in Ta bl e 5

.

Key Function in Numeric Mode Function in FN1 mode Function in FN2 mode

<1> Produces the numeral 1. Produces an asterisk symbol. Opens Internet Explorer.

<2>

Produces the numeral 2. Produces “/” (forward slash) sym-

bol.

Toggles the mute function on and off.

<3> Produces the numeral 3. Produces “#” (number) symbol. Deletes the previous character.

<4>

Produces the numeral 4. Produces “$” (dollar) symbol. Opens Application 2 or defined appli-

cation.

<5>

Produces the numeral 5. Produces “%” (percent) symbol. Opens Application 3 or defined appli-

cation.

<6>

Produces the numeral 6. Produces “-” (minus/hyphen) sym-

bol.

Opens Application 4 or defined appli­cation.

<7> Produces the numeral 7. Produces “^” (caret) symbol. Copies selected item to clipboard.
<8> Produces the numeral 8. Produces “&” (ampersand) sign. Pastes selected item from clipboard

<9>

Produces the numeral 9. Produces “+” (plus) symbol. Toggle these keys to rotate the

screen to display as Portrait or as
Landscape orientation.

<0>

Produces the numeral 0. Produces a space. Deletes one character to the right of

the cursor, or deletes the selected
text.

<.> Produces a decimal/period. Produces “,” (comma). Opens the Start menu.

Navigation

key

Opens the Brightness applet. Adjusts the brightness using the

Right/Left edge of the navigation

key.

The Navigation key is not affected
by the <FN2> key.

Navigation

key

Opens the Volume applet. Adjusts the volume using the Up/

Down edge of the navigation key.

The Navigation key is not affected by
the <FN2> key.

<ESC>

Terminates current operation. The <ESC> key is not affected by

the <FN1> key.

Opens the Media Player. Listen to
sounds with the earphones.

<TAB/

Alpha>

Moves the cursor to the next
field.

Press <TAB/Alpha>+<FN1> to
enter Alpha mode. See Tab le 4

.

Opens Application 1 or defined appli­cation.

<Enter>

Accepts the input data, or
moves to the next line.

Produces “=” (equal) sign. Opens the Screen Calibration util-

ity.

Falcon® 4220 Quick Reference Guide

22

Falcon® 4220 Windows® CE PDA

Navigating the Display

There are several navigation areas on your display, including the
command bar, and task bar. Each of these navigation areas have sub­areas of navigation as well. Take the time to familiarize yourself with
these features to save yourself valuable time.

The Command Bar

Use the Command bar at the top of the screen to perform tasks in pro­grams, such as opening a file, saving a file, or editing a file. To create
a new item in the current program, select File > New > View.

Refer to Figure 12

to view the Command bar.

Figure 12. Application Navigation

The Task Bar

The Task bar at the bottom of the screen displays the start menu icon,
an icon for the active program, the current time, and system icons for
utilities loaded in memory. The Task bar includes menu names, but­tons, and the keyboard icon, which opens and closes the soft input
panel (SIP). The Task bar allows you to select and close programs.

AC Power Indicator

Tas k Ba r

Command Bar

Extras Menu

Extras Menu

System Tray

Soft Input Panel

Navigation Arrow

Start Button

Network Connection

Active Window

Desktop

Application
Shortcut Icon

ActiveSync Connection

Navigating the Display

Quick Reference Guide 23

Start Button.

Click the Start button to open the Start menu. The Start
menu includes access to Programs, Favorites, Documents, Settings, Help, and
the Run command. From Settings you can access the Control Panel, Network

and Dial-up Connections, and the Task bar and Start Menu configuration.

System Tray.

The System Tray contains icons for utilities and applets
running in the background. Click the small arrow(s) in the System Tray
to view icons for current input mode(s), keypress, power manage­ment, and network connections.

Extras Menu.

Tap t h e Extras Menu button at the far right of the Task bar
to select from a list of open applications or to access the desktop
while leaving a program open.

Soft Keypad/Input Panel

In applications that accept keyed input, the soft input panel (SIP) can
be used to enter data using the stylus. The SIP is a digital, QWERTY­style keyboard.

Figure 13. Soft Input Panel

To o pe n t h e SIP, tap the Keyboard icon to open the menu and select Key-

board from the pop-up menu.

To close the SIP, tap the Keyboard icon to open the menu and Select Hide

Input Panel to close the keyboard

Use the stylus to select letters, numbers, or symbols from the Soft

Input Panel for the current application. Tap the key to change the

keypad to show international characters and letters.

Scanning Bar Codes

To use the scanning function, complete the following steps:

1. If you have not already done so, remove the protective plastic

film before using devices equipped with a laser scanner.

Soft Input Panel

Keyboard Icon

WARNING

Some Falcons come with laser scanners that scan using laser light. Never look directly into the
laser light or shine the laser light into the eyes.

Falcon® 4220 Quick Reference Guide

24

Falcon® 4220 Windows® CE PDA

2. Select Start > Programs > Scanner > Quick ScanSet to open the scanning

application. This application runs in the background and only
shows up as bar code icon in the system tray.

Figure 14. Scanning a bar code

3. Aim the scanning beam at the center of the bar code.

• Position the device close to bar code when scanning small bar
codes.

• Position it at a distance when scanning larger bar codes.

• The scanner stops scanning after you release the key or after
five (5) seconds.

Figure 15. Scanning Beam Positions

4. Press the Right or Left <Scan> key. The scanner scans as long as
you hold the key or for five (5) seconds.

Before being able to scan bar codes, you must open the Quick ScanSet application. Go to Start

> Programs > Scanning > QuickScan Set.

This application runs in the background. You can

tell that it is running by the bar code icon in the system tray.

Left Scan Key

Right Scan Key

Correct Scanning Positions

Incorrect Scanning Positions

Ideal positioning

A bit high, will read correctly

A bit angled, will read correctly

Positioned too far to the right. Will
not read entire bar code.

Too angled; cannot read the
entire bar code.

Bar code will not read. The
scanner should be posi­tioned perpendicular to
the bar code bars.

Using the Dock

Quick Reference Guide 25

5. Upon reading a bar code, the device beeps and the green LED
indicator comes on until the trigger is released or after five (5)
seconds. The green LED and the beep tone indicate a good read.

6. The bar code data is entered in the current application. Once a
bar code is read successfully, the scanner turns off automatically.

Using the Dock

Use the dock to charge the batteries and to communicate with a Host
PC. Refer to “Charging the Batteries” starting on page 11

.

Figure 16. PDA in the Dock; Top and Rear Views of the Dock

ActiveSync Protocol is used to communicate between PDA and host
PC. Refer to the Product Reference Guide for instructions on commu­nication wth the Host PC.

If the bar code scan failed, adjust the reading angle or distance. Make sure that the scanning
beam scans across all bars of the bar code. Refer to Figure 15.

RS-232 Serial Port

USB Client Port

USB Host Port

Battery Charging Contacts

Power Por

t

Spare Battery
Charging LED

Falcon® 4220 Quick Reference Guide

26

Falcon® 4220 Windows® CE PDA

Flash Memory

In addition to the RAM-based storage standard on Windows CE .NET
terminals, the PDA is also equipped with a DiskOnChip Flash-based
application and file storage area.

Saving to Flash:

To save an application or data to the Flash Memory,

from your current application, select File > Save As > navigate to the Dis-

kOnChip location as described below.

Figure 17. Location of the DiskOnChip

DiskOnChip Location.

To access the contents of DiskOnChip storage:

1. Double-tap the My Computer icon on the desktop.

2. Double-tap the DiskOnChip icon to view DiskOnChip.

Use only Falcon 4220 docks with Falcon 4220 Windows CE .NET devices.

It is very important to make sure that the Falcon is firmly seated in the dock to initiate battery
charging and ActiveSync communication with the Host PC.

The DiskOnChip storage memory persists across all reset (warm/cold reboot) conditions and

software / firmware updates.

Because of this, PSC very strongly recommends installing all applications, applets, programs,

and important data files to the

DiskOnChip Flash location.

If an application or a data file is only installed or saved in RAM, a hard reset will result in the loss
of that application or data file.

Context Sensitive Help

Quick Reference Guide 27

DiskOnChip Size:

The size of the DiskOnChip disk will vary, depending
upon several factors, such as the size and number of currently run­ning applications and the amount of memory currently consumed by
the OS.

Table 6. DiskOnChip Disk Specifications

To view the current size of DiskOnChip:

1. Double-tap the My Computer icon on the desktop. (See Figure 17

).

2. Single-tap the DiskOnChip directory and tap the red check mark in

the command bar at the top of the display. (See Figure 18

A.)

3. The DiskOnChip Properties dialog opens. (See Figure 18

B.) The number

following Free is the amount of memory currently available on the
PDA.

Figure 18. DiskOnChip Size

Context Sensitive Help

Microsoft Windows CE context sensitive help is available where ever a
“?” button appears in the upper right hand corner of the window.

To open context sensitive Help, select/tap the “?” in the upper right
corner of most screens. Select/tap the desired item from the list of
hot links.

DiskOnChip Specifications

Total Flash size 64.0 MB
OS/Firmware uses up to 49.5 MB
DiskOnChip size 14.5 MB

B

A

Falcon® 4220 Quick Reference Guide

28

Falcon® 4220 Windows® CE PDA

Figure 19. Using Windows CE. Net Context Sensitive Help

Resetting the PDA

Warm Reset

A warm reset is a transition from the on, idle, or suspend power state
that closes all applications, clears the working RAM, but preserves
the file system.

Reason to Warm Reset.

If an application “hangs”, initiate a warm

reset to terminate the application only.

Procedure to Warm Reset.

To initialize a warm reset, press and hold

the

<Reset> key. Refer to Figure 20 for the location of the reset key.

After Warm Reset

• The splash screen will appear shortly.

• The desktop appears with the application shortcuts on the
screen.

• The custom settings in the registry are persistent.

CAUTION

Always attempt a Warm reset before initiating a Cold reset. Once you initiate a cold reset, all

applications are forcibly closed and working RAM and files are cleared.

It is a good idea to store important data in the resident DiskOnChip (Flash memory) for this rea-

son. Refer to "Flash Memory" on page

26 for more information.

Do not use a paper clip on the reset button. Use the stylus for that purpose. A paper clip could
puncture the seal of the reset key, invalidating your warranty and destroying the IP54 industrial

seal rating.

Resetting the PDA

Quick Reference Guide 29

• The RF Network PC Card if present, connects to the network
system.

Figure 20. PDA Reset Key

Cold Reset

A cold reset is a complete reset of the PDA in which all applications
are forcibly closed and working RAM and files are cleared.

Reason to Cold Reset.

If the Windows CE .NET operating system (OS)

locks up and/or the warm reset command does not work.

Cold Reset Procedure.

To perform a cold reset, simultaneously press

the

<Reset> key with the stylus while pressing the <FN2> key.

Figure 21. Reset Button Location

Use ONLY the STYLUS
to press the Reset Key

CAUTION

Always attempt a warm reset before initiating a cold reset. Once you initiate a cold reset, all appli­cations are forcibly closed and working RAM and files are cleared.

Cold Reset Keys

Falcon® 4220 Quick Reference Guide

30

Falcon® 4220 Windows® CE PDA

After Cold Reset.

When a PDA goes through the cold reset sequence,

it clears the working RAM and initializes the file system.

• The splash screen will appear shortly.

• You will be asked to recalibrate the touch screen. Press the

<ESC> key to circumvent recalibration.

• The desktop appears with the application shortcuts on the
screen.

• The custom settings in the registry are persistent.

• The RF Network PC Card if present, connects to the network
system.

You will lose any applications and data which are not stored in persis­tent flash memory (refer to "Flash Memory" on page 26

).

Technical Support

PSC Website Support.

PSC’s website (www.psc.com) is the complete
source for technical support and information for PSC products. The
site offers PSC’s TekForum, product support, product registration,
warranty information, product FAQs (frequently asked questions),
product manuals, product tech notes, software updates, patches,
demos, and instructions for returning products for repair.

PSC Website TekForum.

Search for information on the TekForum by
clicking on the Support link at the top of PSC’s home page. Browse the
TekForum at PSC’s website to find answers to your questions about
common technical issues. Register with TekForum to submit a ques­tion to the PSC Technical Support Staff and receive a solution to your
question posted on TekForum within two working days.

Reseller Technical Support.

An excellent source for technical assis­tance and information is an authorized PSC reseller. A reseller is
acquainted with specific types of businesses, application software,
and computer systems and can provide individualized assistance.

Telephone Technical Support.

If you do not have internet or email

access, contact PSC technical support at [phone].

CAUTION

It is always best to use the stylus to depress the reset key. Using a sharp object or paper clip on
the reset button can puncture the reset key, disabling the reset function, rupturing the industrial

seal on the PDA, and voiding your warranty.

It is a good idea to store important data in the resident DiskOnChip (Flash memory) for this rea-

son. Refer to "Flash Memory" on page

26 for more information.

Quick Reference Guide 31

Appendix A: PSC Falcon

®

WinCE End User

License Agreement

Notice to End User: The PSC Product you have acquired contains Software, which is integral to the product’s opera­tion. This Software is being provided to you under license, subject to the terms and conditions of this Agreement. If
you use the PSC Product, you will be deemed to have accepted the terms and conditions of this Agreement. If you
do not intend to be bound to the terms of this Agreement, PSC is not willing to license the Software to you, you may
not use the PSC Product or the Software, and you must contact the party from whom you acquired the PSC Product
for instructions.

This End User Software License Agreement (“Agreement”) is a legally binding agreement governing the licensing of
the Software and Documentation by PSC Inc. and its wholly owned subsidiaries and affiliates (“PSC”) to the entity or
person who has purchased or otherwise acquired a PSC Product (“End User”). For purposes of this Agreement, any
software that is associated with a separate end-user license agreement is licensed to you under the terms of that
license agreement. PSC and End User hereby agree as follows:

1. Definitions.

1.1 “Documentation” means materials such as user’s guides, program reference guides, quick reference guides,
manuals, or similar materials associated with or related to the PSC Product, whether in printed, “online”, or other
form.

1.2 “Proprietary Information” means: (a) source code, object code, software, documentation, and any related internal
design, system design, data base design, algorithms, technology, technical data or information, implementation
techniques, and trade secrets related to the Software, (b) any other trade secrets marked appropriately or identified
as proprietary or confidential, and (c) any information that End User, under the circumstances, should recognize as
confidential. Proprietary Information does not include any information that the receiving party can establish was (1)
in the public domain, (2) already in the receiving party’s possession or rightfully known prior to receipt, (3) rightfully
learned from a third party not in violation of any other's proprietary rights, or (4) independently developed without
access to Proprietary Information.

1.3 “PSC Product” means PSC's Falcon

®

Windows CE .NET series product and/or follow-on products that utilize the

Microsoft

®

Windows® CE operating system, including all preloaded Software in or provided in connection with the
PSC Product and all Documentation related to such product, which has been purchased or otherwise acquired by
End User, whether obtained directly or indirectly from PSC.

1.4 “Software” means any software or computer programs of PSC or its third party licensors in machine readable
form which is either preloaded in or provided in connection with the PSC Product, whether obtained directly or indi­rectly from PSC, including any related update or upgrade such as enhancements or modifications.

2. Scope Of License Granted.

2.1 PSC grants to End User a non-exclusive, non-transferable, perpetual license to use the Software, solely on a
PSC Product, in machine-readable form only, solely for End User's internal business purposes. This Agreement
does not convey ownership of the Software to End User. Title to the Software shall be and remain with PSC or the
third party from whom PSC has obtained a licensed right. As used in this Agreement, the term “purchase” or its
equivalents when applied to the Software shall mean “acquire under license.”

2.2 End User shall not copy, modify, decompile, disassemble, reverse engineer, or otherwise reproduce or remanu­facture the Software, whether modified or unmodified, nor sell, assign, sublicense, distribute, lend, rent, give, or oth­erwise transfer the Software to any other person or organization, for purposes other than as expressly provided in
this Agreement, or to the extent specifically allowed under foreign law solely for the purposes of interoperability, with­out PSC’s prior written consent.

3. Transfers, Support.

3.1 Any copying, installing, reproduction, remanufacture, reverse engineering, electronic transfer, or other use of the
Software on other than a PSC Product will be a material breach of this Agreement.

Appendix A: PSC Falcon® WinCE End User License Agreement

32

Falcon® 4220 Windows® CE PDA

3.2 End User shall not sell, assign, sublicense, distribute, lend, rent, give, or otherwise transfer a PSC Product con­taining Software to any third party unless such third party agrees with PSC in writing to be bound by the terms and
conditions of this Agreement. Any such transfer of a PSC Product absent such agreement shall be null and void.

3.3 End User may obtain support for Software from PSC at PSC’s standard support fees and under PSC’s standard
support terms and conditions in effect at the time the support is requested.

4. Intellectual Property.

End User acknowledges that the Software constitutes valuable trade secrets of PSC or PSC’s third party licensors
and that the Software is protected by intellectual property laws and treaties. The license set forth in this Agreement
does not transfer to End User any ownership of PSC’s or its third party licensors' copyrights, patents, trademarks,
service marks, trade secrets, or other intellectual property rights and End User shall have no right to commence any
legal actions to obtain such rights. End User shall not remove, modify, or take any other action that would obscure
any copyright, trademark, patent marking, or other intellectual property notices contained in or on the PSC Product.

5. Proprietary Information.

5.1 End User acknowledges that Proprietary Information is the confidential, proprietary, and trade secret property of
PSC and PSC’s third party licensors and End User acquires no right or interest in any Proprietary Information.

5.2 End User shall not disclose, provide, or otherwise make available the Proprietary Information of PSC or its third
party licensors to any person other than End User’s authorized employees or agents who are under confidentiality
agreement, and End User shall not use the Proprietary Information other than in conjunction with use of the PSC
Product exclusively for End User’s internal business purposes. End User shall take steps to protect the Proprietary
Information no less securely than if it were End User's own intellectual property.

5.3 The provisions of this Proprietary Information Section shall survive and continue for five (5) years after the termi­nation of this Agreement.

6. Limited Warranty.

6.1 PSC warrants that, under normal use and operation, the PSC Product will conform substantially to the applicable
Documentation for the period specified in the Documentation. During this period, for all reproducible nonconformities
for which PSC has been given written notice, PSC will use commercially reasonable efforts to remedy nonconformi­ties verified by PSC. End User agrees to supply PSC with all reasonably requested information and assistance nec­essary to help PSC in remedying such nonconformities. For all defects reported to PSC within the warranty period,
PSC’s liability is limited to providing End User with one copy of corrections or responding to End User's problem
reports according to PSC's standard assistance practices. PSC does not warrant that the product will meet End
User's requirements or that use of the product will be uninterrupted or error free, or that PSC's remedial efforts will
correct any nonconformance. This limited warranty does not cover any product that has been subjected to damage
or abuse, whether intentionally, accidentally, or by neglect, or to unauthorized repair or unauthorized installation, and
shall be void if End User modifies the product, uses the product in any manner other than as established in the Doc­umentation, or if End User breaches any of the provisions of this Agreement.

6.2 EXCEPT AS PROVIDED IN THIS AGREEMENT, THE PSC PRODUCT IS PROVIDED “AS IS” AND PSC
MAKES NO WARRANTIES OF ANY KIND, EXPRESS OR IMPLIED, WRITTEN OR ORAL, WITH RESPECT TO
THE PRODUCT, AND SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.

7. Infringement.

7.1 PSC will defend End User against any claim in a lawsuit that the PSC Product furnished hereunder infringes a
United States patent or copyright of a third party and PSC will pay any damages finally awarded against End User by
a court of competent jurisdiction that are attributable to such claim or will pay End User’s part of any settlement that
is attributable to such claim, provided, that 1) End User notifies PSC promptly in writing of the claim, 2) PSC controls
the defense or settlement of the claim, and 3) End User cooperates fully with PSC in such defense or settlement. All
notices of a claim should be sent to PSC Inc., Legal Department, 959 Terry Street, Eugene, OR 97402.

7.2 In the defense or settlement of any such claim, PSC may, at its option, 1) procure for End User the right to con­tinue using the PSC Product, 2) modify the PSC Product so that it becomes non-infringing, 3) replace the PSC Prod­uct with an equivalent product not subject to such claim, or 4) provide End User an opportunity to return the PSC
Product and receive a refund of the purchase price paid, less a reasonable allowance for use.

7.3 PSC shall have no liability to End User for claims of infringement based upon 1) the use of any PSC Product in
combination with any product which PSC has not either furnished or authorized for use with such PSC Product 2)
the use of any PSC Product designed, manufactured, or modified to the specifications of End User, or 3) End User’s
modification of the PSC Product without written authorization from PSC.

Appendix A: PSC Falcon® WinCE End User License Agreement

Quick Reference Guide 33

7.4 THE FOREGOING STATES PSC’S COMPLETE AND ENTIRE OBLIGATION CONCERNING CLAIMS OF
PATENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY INFRINGEMENT, CANCELS AND SUPER­CEDES ANY PRIOR AGREEMENTS, WHETHER ORAL OR WRITTEN, BETWEEN THE PARTIES CONCERNING
SUCH CLAIMS, AND WILL NOT BE MODIFIED OR AMENDED BY ANY PAST, CONTEMPORANEOUS, OR
FUTURE AGREEMENTS OR DEALINGS BETWEEN THE PARTIES, WHETHER ORAL OR WRITTEN, EXCEPT
AS SET FORTH IN A FUTURE WRITING SIGNED BY BOTH PARTIES.

8. Limitation Of Liability.

EXCEPT AS PROVIDED IN SECTION 7, PSC SHALL NOT BE LIABLE FOR ANY CLAIMS AGAINST END USER
BY ANY OTHER PARTY. IN NO EVENT SHALL PSC'S LIABILITY FOR DAMAGES, IF ANY, WHETHER BASED
UPON CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, STRICT LIABILITY, WARRANTY,
OR ANY OTHER BASIS, EXCEED THE PRICE OR FEE PAID BY END USER FOR THE PSC PRODUCT. UNDER
NO CIRCUMSTANCES SHALL PSC BE LIABLE TO END USER OR ANY THIRD PARTY FOR LOST PROFITS,
LOST DATA, INTERRUPTION OF BUSINESS OR SERVICE, OR FOR ANY OTHER SPECIAL, CONSEQUENTIAL,
CONTINGENT, INDIRECT, INCIDENTAL, PUNITIVE, EXEMPLARY, OR OTHER SIMILAR DAMAGES, EVEN IF
PSC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

9. Government Restricted Rights; International Use.

9.1 Use, duplication, or disclosure of the Software by the U.S. Government is subject to the restrictions for computer
software developed at private expense as set forth in the U.S. Federal Acquisition Regulations at FAR 52.227-14(g),
or 52.227-19 or in the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013(c)(1)(ii),
whichever is applicable.

9.2 If End User is using the PSC Product outside of the United States, End User must comply with the applicable
local laws of the country in which the PSC Product is used, with U.S. export control laws, and with the English lan­guage version of this Agreement. The provisions of the “United Nations Convention on International Sale of Goods”
shall not apply to this Agreement.

10. Termination.

10.1 Either party may terminate this Agreement or any license granted under this Agreement at any time upon writ­ten notice if the other party breaches any provision of this Agreement.

10.2 Upon termination of this Agreement, End User immediately shall cease using any non-preloaded software and
shall return to PSC or destroy all non-preloaded software covered by this Agreement, and shall furnish PSC with a
certificate of compliance with this provision signed by an officer or authorized representative of End User. For pre­loaded software, End User agrees to sign a waiver prepared by PSC concerning further use of the preloaded Soft­ware. End User’s resumed or continued use of the preloaded Software after termination shall constitute End User’s
agreement to be bound by the terms and conditions of this Agreement for such use.

11. General Provisions.

11.1 Entire Agreement; Amendment. This document contains the entire agreement between the parties relating to
the licensing of the Software and supersedes all prior or contemporaneous agreements, written or oral, between the
parties concerning the licensing of the Software. This Agreement may not be changed, amended, or modified except
by written document signed by PSC.

11.2 Notice

. All notices required or authorized under this Agreement shall be given in writing, and shall be effective
when received, with evidence of receipt. Notices to PSC shall be sent to the attention of Contract Administration,
PSC Inc., 959 Terry Street, Eugene, OR 97402, or such other address as may be specified by PSC in writing.

11.3 Waiver

. A party’s failure to enforce any of the terms and conditions of this Agreement shall not prevent the

party’s later enforcement of such terms and conditions.

11.4 Governing Law; Venue: This Agreement and the rights of the parties hereunder shall be governed by and con­strued in accordance with the laws of the State of Oregon U.S.A, without regard to the rules governing conflicts of
law. The state or federal courts of the State of Oregon located in either Multnomah or Lane counties shall have
exclusive jurisdiction over all matters regarding this Agreement, except that PSC shall have the right, at its absolute
discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in
which any of End User's assets are located.

11.5 Attorneys’ Fees

. In the event an action is brought to enforce the terms and conditions of this Agreement, the

prevailing party shall be entitled to reasonable attorneys’ fees, both at trial and on appeal.

- END -

34

Falcon® 4220 Windows® CE PDA

Appendix B: Microsoft

®

Windows

®

CE .NET

End User License Agreement

Microsoft® has contractually obligated PSC Inc. to include the following information as part of our software end user
license agreement:

You have acquired a device (“DEVICE”) that includes software licensed by PSC Inc. from Microsoft licensing Inc. or
its affiliates (“MS”). Those installed software products of MS origin, as well as associated media, printed materials,
and “'online” or electronic documentation (“SOFTWARE

”) are protected by international intellectual property, laws

and treaties. The SOFTW.ARE is licensed, not sold. All rights reserved.

IF YOU DO NOT AGREE TO THIS END USER LICENSE AGREEMENT (“EULA”), DO NOT USE THE DEVICE OR
COPY THE SOFTWARE, INSTEAD, PROMPTLY CONTACT PSC FOR INSTRUCTIONS ON RETURN OF THE
UNUSED DEVICE(S) FOR A REFUND. ANY USE OF THE SOFTWARE, INCLUDIING BUT NOT LIMITED TO USE
ON THE DEVICE, WILL CONSTITUTE YOUR AGREEMENT TO THIS EULA (OR RATIFICATION OF ANY PREVI­OUS CONSENT).

GRANT OF SOFTWARE LICENSE, This EULA grants you the following license:

You may use the SOFTWARE only on the DEVICE....

• NOT FAULT TOLERANT. THE SOFTWARE IS NOT FAULT TOLERANT. PSC HAS INDEPENDENTLY
DETERMINED HOW TO USE THE SOFTWARE IN THE DEVICE, AND MS HAS RELIED UPON PSC TO
CONDUCT SUFFICIENT TESTING TO DETERMINE THAT THE SOFTWARE IS SUITABLE FOR SUCH
USE.

• NO WARRANTIES FOR THE SOFTWARE. THE SOFTWARE is provided “AS IS” and with all faults. THE
ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT
INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY AGAINST
INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST INFRINGEMENT, IF
YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE SOFTWARE, THOSE
WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS.

• Note on Java Support. The SOFTWARE may contain support for programs written in Java. Java technol­ogy is not fault tolerant and is not designed, manufactured, or intended for use or resale as online control
equipment in hazardous environments requiring fail-safe performance, such as in the operation of nuclear
facilities, aircraft navigation or communication systems, air traffic control, direct life support machines, or
weapons systems, in which the failure of Java technology could lead directly to death, personal injury, or
severe physical or environmental damage. Sun Microsystems, Inc. has contractually obligated MS to make
this disclaimer.

• No Liability for Certain Damages. EXCEPT AS PROHIBITED BY LAW, MS SHALL HAVE NO LIABILITY
FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM OR IN
CONNECTION WITH THE USE OR PERFORMANCE OF THE SOFTWARE. THIS LIMITATION SHALL
APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE. IN NO EVENT SHALL MS BE
LIABLE FOR ANY AMOUNT IN EXCESS OF U.S. TWO HUNDRED FIFTY DOLLARS (U.S. $250.00).

• Limitations on Reverse Engineering, Decompilation, and Disassembly, You may not reverse engineer,
decompile, or disassemble the SOFTWARE, except and only to the extent that such activity is expressly
permitted by applicable law notwithstanding this limitation.

• SOFTWARE TRANSFER ALLOWED BUT WITH RESTRICTIONS. You may permanently transfer rights
under this EULA only as part of a permanent sale or transfer of the Device, and only if the recipient agrees
to this EULA. If the SOFTWARE is an upgrade, any transfer must also include all prior versions of the
SOFTWARE.

• EXPORT RESTRICTIONS, You acknowledge that SOFTWARE is of US-origin. You agree to comply with
all applicable international and national laws that apply to the SOFTWARE, including the U.S. Export
Administration Regulations, as well as end-user, end-use and country destination restrictions issued by
U.S. and other governments. For additional information on exporting the SOFTWARE, see

http://

www.microsoft.com/exporting/.

Quick Reference Guide 35

Appendix C:

PSC Falcon® Warranty

Warranty

Falcon products are guaranteed against defects in materials and workmanship for the period specified at
the time of sale. This warranty shall apply to Falcon Portable Data Terminals (PDT's), Base Stations for the
Falcon and Chargers for the Falcon. Cables, mounts and other accessory items are specifically warranted
for a period of 90-days from product purchase. In order to obtain service under this Warranty, Customer
must notify PSC of the claimed defect before the expiration of the Warranty period and obtain from PSC a
return authorization number for return of the product to designated PSC service center. If PSC determines
Customer’s claim is valid, PSC will repair or replace product without additional charge for parts and labor.
Customer shall be responsible for packaging and shipping the product to the designated PSC service cen­ter, with shipping charges prepaid. PSC shall pay for the return of the product to Customer if the shipment
is to a location within the country in which the PSC service center is located. Customer shall be responsible
for paying all shipping charges, duties, taxes, and any other charges for products returned to any other
locations.

Warranty is subject to the limitations and exclusions set forth in the paragraphs that follow.

WARRANTY SET FORTH ABOVE IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD­ING MERCHANTABILITY AND FITNESS.

Exclusions

Warranty coverage shall not apply to any claimed defect, failure or damage which PSC determines was caused by:
abuse, neglect, improper use of product; failure to provide product maintenance, including but not limited to cleaning
of the display in accordance with product reference guide; installation or service of product by other than PSC repre­sentatives; use of product with any other instrument, equipment or apparatus; modification or alteration of product or
units with Warranty Void labels that have been tampered with. External cables and replacement of upper window/
cartridge due to scratching, stains or other degradation will not be covered under the Warranty. External power sup­plies returned for service must be accompanied by the original product for performance of service.

Returned products that PSC inc. has determined are not covered by Warranty, will be charged PSC Inc. standard
repair rates then in effect for repair of product. Replacement of display due to scratching, stains or other degradation
will not be covered under Warranty. If a product is determined to be not repairable customer will be notified and prod­uct may be returned to customer at their request. A minimum repair fee may be charged.

Limitation of Liability

PSC's REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCT AS SET FORTH ABOVE IS THE CUSTOMER’S
SOLE AND EXCLUSIVE REMEDY ON ACCOUNT OF CLAIMS OF BREACH OF WARRANTY OR PRODUCT
DEFECT. UNDER NO CIRCUMSTANCES WILL PSC BE LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR
ANY LOST PROFITS, OR ANY INCIDENTAL, CONSEQUENTIAL IN-DIRECT, SPECIAL OR CONTINGENT DAM­AGES REGARDLESS OF WHETHER PSC HAD ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

Assignment

Customer may not assign or otherwise transfer its rights or obligations under Warranty except to a purchaser or
transferee of product. No attempted assignment or transfer in violation of this provision shall be valid or binding upon
PSC.

Risk of Loss

Customer shall bear risk of loss or damage for product in transit to PSC. PSC shall assume risk of loss or damage
for product in PSC's possession or product being returned to Customer by PSC, except such loss or damage as may
be caused by the negligence of Customer, its agents or employees. In the absence of specific written instructions for
the return of product to Customer, PSC will select the carrier, but PSC shall not thereby assume any liability in con­nection with the return shipment.

36

Falcon® 4220 Windows® CE PDA

Appendix D:

Safety Information

Safety Labels

The PDA has several labels affixed. Figure 2 below, and Figure 2 on
page 37

show them in closer detail.

Figure 1. PDA Labeling - Front View

AVOID EXPOSURE-LASER LIGHT IS EMITTED FROM THIS APERTURE

IEC 825-1

EN 60825-1

LASER LIGHT-

DO NOT STARE

INTO BEAM CLASS 2

LASER PRODUCT

13

These illustra­tions are for
illustrative
purposes only.
View the actual
labels on the
product itself for
applicable
model and
safety
specifications.

Some PDAs
come with
Linear Imagers
and some come
with Laser
Scanners. The
Laser Safety
Caution shown
to the left,
above, will only
appear and
apply to those
devices
equipped with
Laser Scanners.

Appendix D: Safety Information

Quick Reference Guide 37

Figure 2. PDA Labeling - Back View

Battery Pack

Win CE NET 4.x Pr o
RFY WD-D9M HD­864MF- 8676W-W X2BB
00013- 500-1 44-160
X0B-44 457

Win CE N ET 4.x Pro

RFYWD-D9MHD -

864MF-86 76W-WX2BB

00013-50 0-144-160

X0B-4445 7

S/N: xxx xxxxx

S/N: xxxxxxxx

®

WARNI NG

WARNING

MAY EXPLODE I F

DISPOSED O F IN FIRE

3905-00036a-XXXXXXXXXX

3905-0 0036a-XXX XXXXXXX

Lithium-ion Polymer Battery Pack 3.7V 1800mAh

Lithi um-ion Poly mer Batte ry Pack 3. 7V 1800mA h

CAUTION:

CAUTION :

USE SP ECIFIED CHA RGER ONLY.

KEEP THE B ATTERY CONTACTS DRY
TO PREVEN T INJURY OR BURNS.
DO NOT DI SPOSE OF I N FIRE.
DO NOT SH ORT-CIRCUIT.
DO NOT CRUS H OR OPEN .

®

WARNING

MAY EXPLODE IF

DISPOSED OF IN FIRE

3905-0003 6a-XXXXXX XXXX

Lithium -ion Polyme r Batter y Pack 3.7V 1800mAh

CAUTION:

USE SPECI FIED CHARGE R ONLY.

KEEP THE BATTERY CO N TACTS DRY
TO PREVENT INJ URY OR BURN S.
DO NOT DISPOSE OF IN FI RE.
DO NOT SHORT-CIRCUI T.
DO NOT CRUSH OR OPEN.

S/N: xxxxxxxx

These illustrations are for illustrative purposes only. View the actual labels on the product
itself for applicable model and safety specifications.

Appendix D: Safety Information

38

Falcon® 4220 Windows® CE PDA

Advisory Statements

Regulatory Statements

Radio Frequency Interference

This equipment has been tested and found to comply with the limits
of a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio com­munications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his or her own expense.

Canadian Compliance Statement

This Class A Digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe A est confirme à la norme NMB­003 du Canada.

WARNING

Never apply strong pressure to the touchscreen or subject it to strong impact. If the LCD
panel glass breaks, do not touch the liquid inside; it can cause skin inflammation.

Use only the AC power adapter provided by PSC. The use of any other power adapter can
cause electrical problems, fire, or electric shock.

Unauthorized modifications, repairs, or other tampering with the PDA will void the factory
warranty.

CAUTION

It is a good idea to make regular backups of the data on your PDA. Use the cable or dock to
transfer data to a PC. PSC is not responsible for any damages or loss caused by deletion
or corruption of data resulting from the use of this PDA, including battery failure or
expiration.

This device is rated at IP54 standard for water and dust. However, it is not a good idea to
use it in extremely rainy, dusty, and/or windy conditions. If environmental conditions
exceed the standards for IP54, the industrial seal may fail, voiding the factory warranty.

Quick Reference Guide 39

Appendix E: Laser Safety

International Caution Statements for
CLASS 1

1

, 22, 3R3, II4, and IIA5 Laser Devices

English

PSC scanners are certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of
IEC/EN 60825-1:1998-2001.
Class 1, 2, 3R, Class II, and IIA products are not considered to be hazardous. The scanner contains internally a Visible Laser Diode
(VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations. The scanner is designed so that there is
no human access to harmful laser light during normal operation, user maintenance or during prescribed service operations.

CAUTION

If the scan pattern is a single dot when depressing the trigger, discontinue operation and return the scanner to PSC.

CAUTION

Do not attempt to open or otherwise service any components in the optics cavity. Opening or servicing any part of the optics cavity by
unauthorized personnel may violate laser safety regulations. The optics system is a factory only repair item.

CAUTION

Use of optical systems with the scanner will increase eye hazard. Optical instruments include binoculars, microscopes and magnifying
glasses. This does not include eye glasses worn by the user.

French

Ce scanneurs du PSC sont certifié conforme à la norme DHHS/CDRH 21CFR sous-chapitre J et à la norme IEC/EN 60825-1:1998-2001.
Les produits de class 1, 2, 3R, class II, et de IIA ne sont pas considérés dangereux. Le scanneur contient une diode laser visible (VLD)
dont les émissions ne dépassent pas les limites prescrites dans les normes précitées. Le scanneur est conçu de façon à ce qu’il ne soit
pas possible d’accéder à la lumière laser pendant l’utilisation normale, l’entretien par l’utilisateur et les fonctions de maintenance pre­scrites.

ATTENTION

Si, quand la fonction de balayage est lancée, le diagramme de balayage est constitué d’un seul point, cesser d’utiliser le scanneur et le
retourner à PSC.

ATTENTION

Ne pas essayer d’ouvrir ou de réparer les composants de la cavité optique. L’ouverture de la cavité optique ou la réparation de ses com­posants par une personne non qualifiée peut entraîner le non-respect des règles de sécurité relatives au laser. Le système optique ne
peut être réparé qu’en usine.

ATTENTION

L’utilisation d’instruments optiques avec le scanneur augmente le danger pour les yeux. Les instruments optiques comprennent les
jumelles, les microscopes et les verres grossissants. Ils ne comprennent pas les lunettes portées par l’utilisateur.

1. Class 1 applies to IEC/EN STD (Europe).

2. Class 2 applies to IEC/EN STD (Europe).

3. Class 3R applies to the Falcon 4220 using ALR (Advanced Long Range) Laser, only.

4. Class II applies to CDRH STD (US/Canada).

5. Class IIA applies to CDRH STD (US/Canada).

Appendix E: Laser Safety

40

Falcon® 4220 Windows® CE PDA

German

Dieser Scanner ist den in den Vereinigten Staaten geltenden Vorschriften des DHHS/CDRH 21 CFR Subchapter J und den Vorschriften
der IEC/EN 60825-1:1998-2001 entsprechend bescheinigt.
Produkte der Klasse 1, 2, 3R, Klasse II oder der IIA sind als ungefährlich eingestuft. Im Inneren des Scanners befindet sich eine VLD
(Visible Laser Diode), deren Ausstrahlung die in den oben genannten Vorschriften angeführten Höchstgrenzen nicht überschreitet. Die
Konstruktion des Scanners garantiert, daß bei normalem Betrieb, bei Wartung durch den Benutzer oder im Laufe planmäßiger Wartung­sarbeiten kein Zugang zu schädlichem Laserlicht besteht.

VORSICHT:

Sollte das Abtastbild bei gedrücktem Auslöser aus einem einzigen Punkt bestehen, muß der Betrieb eingestellt und der Scanner an PSC
zurückgesendet werden.

VORSICHT:

Unter keinen Umständen darf versucht werden, die Komponenten im Optikhohlraum zu öffnen oder auf irgendwelche andere Weise zu
warten. Das Öffnen bzw. Warten der Komponenten im Optikhohlraum durch unbefugtes Personal verstößt gegen die Laser-Sicherheits­bestimmungen. Das Optiksystem darf nur werkseitig repariert werden.

VORSICHT:

Die Verwendung von Optiksystemen mit diesem Scanner erhöht die Gefahr einer Augenbeschädigung. Zu optischen Instrumenten
gehören unter anderem Ferngläser, Mikroskope und Vergrößerungsgläser, nicht aber die von Benutzern getragenen Brillen.

Italian

È stato certificato che questo scanner si conforma ai requisiti della sezione J della normativa DHHS/CDRH 21CFR, e anche ai requisiti di
IEC/EN 60825-1:1998-2001.
I prodotti di Classe 1, 2, 3R, Classe II, o IIA non sono considerati pericolosi. Lo scanner contiene al suo interno un Visible Laser Diode
(VLD), diodo laser visibile, le cui emissioni non eccedono i limiti stabiliti dalle normative sunnominate. Lo scanner è progettato in modo
che non ci sia alcun accesso alla luce dannosa del laser nel corso di uso normale, di manutenzione da parte dell’utente o durante la
manutenzione periodica stabilita.

ATTENZIONE

Se, quando si preme l’azionamento, il pattern di scansione è un punto singolo, interrompere l’operazione e riportare lo scanner a PSC .

ATTENZIONE

Non tentare di accedere allo scomparto contenete i componenti ottici o di farne la manutenzione. L’apertura dello scomparto, o la
manutenzione di qualsiasi parte ottica da parte di personale non autorizzato, potrebbe violare le norme della sicurezza. Il sistema ottico
può essere riparato solamente alla fabbrica.

ATTENZIONE

L’uso di strumenti ottici assieme allo scanner può aumentare il pericolo di danno agli occhi. Tali strumenti ottici includono cannocchiali,
microscopi e lenti di ingrandimento. Essi non includono gli occhiali indossati dall’utente.

Danish

Denne scanner opfylder de amerikanske krav stillet i "DHHS/CDRH 21CFR Subchapter J" og opfylder også de krav, der stilles i IEC/EN
60825-1:1998-2001.
Klasse 1, 2, 3R, klasse II eller klasse IIA produkter anses for at være sikre. Scanneren indeholder en Visible Laser Diode (VLD), der ikke
overskrider maksimumgrænserne, som beskrevet i ovenstående reglement. Scanneren er konstrueret, så der ikke er nogen menneskelig
kontakt medskadelige niveauer af laserbestråling under normal brug, normal vedligeholdelse eller under foreskrevet servicering.

ADVARSEL

Hvis scanningmønsteret er et enkelt punkt, når triggeren indtrykkes, skal betjening ophøre og scanneren returneres til PSC.

ADVARSEL

Forsøg ikke at åbne eller reparere komponenter i det optiske hulrum. Uautoriseret åbning eller reparation af komponenter i det optiske
hulrum kan være en overtrædelse af lasersikkerhedsregulativer. Det optiske system må udelukkende repareres as PSC.

ADVARSEL

Anvendelse af optiske systemer med scanneren øger risikoen for øjenskader. Optiske instruments omfatter kikkerter, mikroskoper og lup­per. Det omfatter ikke anvendelse af almindelige briller.

Appendix E: Laser Safety

Quick Reference Guide 41

Dutch

Deze scanner is in de V.S. goedgekeurd en voldoet aan de vereisten van DHHS/CDRH 21CFR Subchapter J een aan de vereisten van
IEC/EN 60825-1:1998-2001.
Producten van klasse 1 ,2, 3R, klasse II en IIA worden niet geacht gevaarlijk te zijn.
De scanner bevat een inwendige Visible Laser Diode (VLD) waarvan de emissies de maximumgrenzen van bovenstaande reglementen
niet overschrijden.
De scanner is zo ontworpen dat men bij normaal gebruik, onderhoud of tijdens het uitvoeren van de voorgeschreven onderhoud­swerkzaamheden niet aan schadelijke niveaus wordt blootgesteld.

WAARSCHUWING

Als het scanpatroon bij het overhalen van de trekker een enkele stip is, stop dan onmiddellijk en stuur de scanner terug naar PSC.

WAARSCHUWING

Probeer niet om onderdelen in de opticaruimte te openen of er onderhoud aan uit te voeren. Het openen of onderhouden van delen in de
opticaruimte door onbevoegd personeel kan een inbreuk vormen op de laserveiligheidsreglementen. Het opticasysteem mag alleen in de
fabriek worden gerepareerd.

WAARSCHUWING

Het gebruik van optische systemen samen met de scanner vergroot het risico voor de ogen. Optische instrumenten zijn onder andere
binoculairs, microscopen en vergrootglazen, maar niet de bril die de gebruiker draagt.

Swedish

Denna scanner uppfyller de amerikanska kraven DHHS/CDRH 21CFR Subchapter J samt kraven i IEC/EN 60825-1:1998-2001.
Produkter i Klass 1, 2, 3R, Klass II och IIA anses ej farliga. Scannern är utrustad med en intern, synlig laserdiod (Visible Laser Diode ­VLD) vars emission inte överstiger max. värdena i ova stående säkerhetsföreskrifter. Scannern har konstruerats så att personer vid nor­mal användning, bruksunderhåll och föreskriven service inte utsätts för skadlig laserstrålning.

VAR FÖRSIKTIG

Om scanningsmönstret är en enda punkt när du trycker på avtryckaren, ska du avbryta användningen och ta scannerna tillbaka till PSC.

VAR FÖRSIKTIG

Försök inte öppna eller reparera komponenter i den optiska kamaren. Om icke auktoriserad personal öppnar eller reparerar delar i den
optiska kammaren, kan detta strida mot säkerhetsföreskrifterna för laserutrustning. Det optiska systemet får endast repareras på fab­riken.

VAR FÖRSIKTIG

Användning av optiska system med scannern ökar risken för ögoskada. Optiska instrument inkluderar kikare, mikroskop och förstoings­glas, men inte användarens glasögon.

Finnish

Tämä tutkain on hyväksytty Yhdysvalloissa vastaamaan DHHS/CDRH 21CFR Subchapter J luokka 60825-1:1998-2001 IEC/EN-vaa­timuksia.
Luokka 1, 2, 3R, Luokka II tai IIAtuotteiden ei katsota olevan vaarallisia. Tutkain sisältää sisäisen näkyvän laserdiodin (Visible Laser
Diode (VLD), jonka päästöt eivät ylitä yllä olevien säädösten asettamia maksimirajoja. Tutkain on suunniteltu siten, etteivät ihmiset altistu
vaaralliselle lasersäteilylle normaalikäytön, käyttäjän suorittaman huollon tai ohjeiden mukaisten huoltotoimenpiteiden aikana.

VAROITUS

Jos skannauskuva on yksittäinen piste laukaisinta painettaessa, keskeytä käyttö ja palauta tutkain PSC:lle.

VAROITUS

Älä yritä avata tai muuten huoltaa mitään rakenneosia optisessa osassa. Valtuuttamattoman henkilöstön suorittaman optisen osan
avauksen tai huoltotoimen voidaan katsoa olevan rikkomus lasersuojaohjeita vastaan. Optisen järjestelmän saa korjata ainoastaan
tehtaalla.

VAROITUS

Mikäli optisia järjestelmiä käytetään tutkainmen kanssa, silmille aiheutuva vaara lisääntyy. Optiset kojeet käsittävät kiikarit, mikroskoopit
ja suurennuslasit. Käyttäjän silmälasit eivät kuulu tähän ryhmään.

Appendix E: Laser Safety

42

Falcon® 4220 Windows® CE PDA

Norwegian

Denne skanneren er godkjent i USA i samsvar med retningslinjene for DHHS/CDRH 21CFR, avsnitt J, og til IEC/EN 60825-1:1998-2001.
Produkter i klasse 1 2, 3R, klasse II eller IIA ansees ikke som helsefarlige. Skanneren inneholder en innvendig, synlig laserdiode (VLD,
Visible Laser Diode), som ikke overskrider maksimalgrensene som er fastsatt i retningslinjene ovenfor. Skanneren er konstruert, slik at
personer ikke utsettes for farlige doser med laserstråler ved normal drift, brukers vedlikehold eller ved foreskrevet service.

OBS!

Hvis skanningsmønsteret består av én enkel prikk når utløseren trykkes inn, skal driften stanses, og skanneren settes tilbake til PSC.

OBS!

Prøv ikke å åpne eller på noen måte utføre service på noen av delene i det optiske kammeret. Ved å åpne eller utføre service på noen av
delene i det optiske kammeret av uautorisert personell, kan krenke forskriftene for lasersikkerhet. Optikksystemet skal bare repareres på
fabrikken.

OBS!

Bruk av optiske systemer med skanneren kan innebære høyere fare for øynene. Optiske instrumenter innbefatter, kikkerter, mikroskop og
forstørrelsesglass. Dette omfatter ikke briller som brukeren har
på seg.

Portuguese

Este scanner foi certificado nos EUA para atender os requisitos do subcapítulo J do DHHS/CDRH 21 CFR e os requisitos do IEC/EN
60825-1:1998-2001.
Os produtos da Classe 1, 2, 3R, Classe II ou IIA não são considerados perigosos. O scanner contém internamente um Diodo de Laser
Visível (VLD - Visible Laser Diode) cujas emissões não ultrapassam os limites definidos nos regulamentos mencionados acima. O scan­ner foi projetado de maneira que não exista acesso humano à luz de laser nociva durante a operação normal, manutenção pelo usuário
ou durante as operações recomendadas de serviço.

CUIDADO

Se ao pressionar o gatilho a luz do laser for um único ponto, interrompa a operação e devolva o scanner à PSC.

CUIDADO

Não tente abrir ou consertar qualquer componente da cavidade óptica. A abertura ou manutenção de qualquer peça da cavidade óptica
por pessoal não autorizado pode infringir os regulamentos de segurança do laser. O sistema óptico só deve ser reparado na fábrica.

CUIDADO

O uso de instrumentos ópticos com o scanner aumenta o risco para a visão. Incluem-se entre os instrumentos ópticos os binóculos,
microscópios e lentes de aumento. Não se incluem os óculos usados pelo usuário.

Spanish

Este escáner está certificado en los EE.UU. porque reúne los requisitos DHHS/CDRH 21CFR Sección J y los requisitos de IEC/EN
60825-1:1998-2001.
Los productos de Clase 1, 2, 3R, Clase II, o IIA no se consideran como peligrosos. El escáner tiene en su interior un Diodo Láser Visible
(VLD) cuyas emisiones no exceden los límites máximos fijados en los reglamentos mencionados anteriormente. El escáner está dis­eñado de modo que las personas no tengan acceso a la luz láser peligrosa durante la operación normal, el mantenimiento por parte del
usuario o durante las operaciones de servicio prescritas.

PRECAUCIÓN

Si al oprimir el interruptor, el patrón de exploración es un solo punto, discontinúe el uso y devuelva el escáner a PSC.

PRECAUCIÓN

No intente abrir o de ninguna manera dar servicio a ninguno de los componentes del receptáculo óptico. Abrir o dar servicio a las piezas
del receptáculo óptico por parte del personal no autorizado podría ser una violación a los reglamentos de seguridad. El sistema óptico
se puede reparar en la fábrica solamente.

PRECAUCIÓN

El uso de sistemas ópticos con el escáner aumentará el riesgo de daños oculares. Los instrumentos ópticos incluyen binoculares,
microscopios y lupas. Esto no incluye los lentes recetados usados por el usuario.

Appendix E: Laser Safety

Quick Reference Guide 43

Chinese

Japanese

Appendix E: Laser Safety

44

Falcon® 4220 Windows® CE PDA

NOTES

DECLARATION OF CONFORMITY

PSC hereby declares that the Equipment specified below has been tested and

found compliant to the following Directives and Standards:

EU Directives:

89/336/EEC EMC
73/23/EEC Low Voltage
R&TTE 1999/5/EC
94/62/EC Packaging

Standards

EMC:
FCC part 15B Class B:2003 (US)
ICES-003 Class B:1997 (Canada)
VCCI Class B:2001 (Japan)
EN 55022 Class B: 1994(Europe)
CNS 13438 Class B: 1997 (Taiwan)
AS/NZS 3548 Class B:1998 (Australia/NZ)
GOST EMC approved (Russia)
CISPR 22 Class B:1997 (World)

Product Safety:
UL 60950:2000(US)
CSA 60950-00 (Canada)
EN 60950:2000 (Europe)
EN 60825-1/A2:2001 (Europe)
IEC 60950-1:2001 (World)
IEC 60825-1:2001 (World)

Immunity:
EN55024:2001 - Generic (Europe)
ETSI EN 301 489-17:2002 (Europe)
ANSI/IEEE C95.1:1992 (FCC SAR)

Radio:
ETSI EN 300 328-2:2001(EU/World)
FCC Part 15C (US)
ID:O9NFalcon4220RSS210 (Canada)
IC:3862A-Falc4220

Power Supply:
UL 60950:2000 (US)
EN 60950 / IEC 60950 from five notified

bodies (Europe/World)

Quality Systems:
ISO 9001:2000
BS EN ISO 9001:2000
Batteries (separately):
UL 60950:2000 (US
IEC 60950:2000(World)

Declaration of Conformity with Regard to the R&TTE Directive 1999/5/EC

English:
Nederlands:
Suomalainen:
Français:
Deutsch:
Italiano:
Dansk:
Português:
Español:
Svenska:
Norsk:
lslenska:

This equipment is in compliance with the essential requirements & other relevant provisions of Directive 1999/5/EC.
Deze apparatuur voldoet aan de essentiële vereisten en andere relevante voorzieningen van EU-richtlijn 1999/5/EC.
Tämä laite noudattaa direktiivin 1999/5/EC keskeisiä vaatimuksia ja sen muita olennaisia määräyksiä.
Cet équipement répond aux exigences et provisions de la Directive 1999/5/EC.
Diese Geräte entsprechen den Anforderungen und anderen relevanten Bestimmungen der Richtlinie 1999/5/EC.
Questa apparecchiatura rispetta i requisiti essenziali e le altre clausole rilevanti della Direttiva 1999/5/CE.
Dette utstyret er i samsvar med de grunnleggende kravene og andre relevante forskrifter i 1999/5/EC-direktivet.
Este equipamento está de acordo com os requisitos essenciais e outras provisões relevantes da Diretiva 1999/5/EC.
Este equipo cumple con los requisitos esenciales y otras provisiones relevantes de la Directiva 1999/5/EC.
Denna utrustning uppfyller de väsentliga kraven och andra relevanta förordningar i Direktiv 1999/5/EC.
Dette utstyret er i samsvar med de grunnleggende krav og andre relevante bestemmelser i EU-direktiv 1999/5/EF
Þetta taeki er samkvaemnt grunnkröfum og öðrum viðeigandi ákvaðum Tilskipunar 1999/5/CE.

Equipment Type:

Product:

Personal Digital Assistant (PDA)
Falcon 4220

Asia Pacific

PSC Hong Kong
Hong Kong
Telephone: [852]-2-584-6210
Fax: [852]-2-521-0291

Australia

PSC Asia Pacific Pty Ltd.
North Ryde, Australia
Telephone: [61] 0 (2) 9878 8999
Fax: [61] 0 (2) 9878 8688

France

PSC S.A.R.L.
LES ULIS Cedex, France
Telephone: [33].01.64.86.71.00
Fax: [33].01.64 46.72.44

Germany

PSC GmbH
Darmstadt, Germany
Telephone: [phone]
Fax: [phone]

Italy

PSC S.p.A.
Vimercate (MI), Italy
Telephone: [39] (0) 39/62903.1
Fax: [39] (0) 39/6859496

Japan

PSC Japan K.K.
Shinagawa-ku, Tokyo, Japan
Telephone: [phone]
Fax: [phone]

Latin America

PSC S.A., INC.
Miami, Florida, USA
Telephone: [phone]
Fax: [phone]

United Kingdom

PSC Bar Code Ltd.
Watford, England
Telephone: [phone]
Fax: [phone]

www.psc.com

PSC Inc.

959 Terry Street
Eugene, OR
Telephone: [phone]
Fax: [phone]

©2004 PSC INC. R44-2432 (Rev. E) 09/04
