Proxima Pro AV 9400 User Manual

Download

Multimedia Projector

Model Pro AV 9400

Pro AV 9400L (Without Lens)

■

PRESENTATIONS

■

WORKING SESSIONS

■

TRAINING

■

MULTIMEDIA

■

ANIMATION

■

VIDEO

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This Projector has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature.

Intense light source. Do not stare directly into the projection lens as possible eye damage could result. Be especially careful that children do not stare directly into the beam.

If the Projector will not be used for an extended time, unplug the new Projector from the power outlet. This Projector should be set in the way indicated. Never hang the projector, or fall down on its side.

It may result in fire hazard.

READ AND KEEP THIS USE'S GUIDE FOR LATER USE.

As the owner of a Pro AV 9400, you are probably eager to try out your new projector. Before you do, we suggest that you spend a little time reading this guide to familiarize yourself with the operating procedures, so that you will receive maximum satisfaction from the many features included in your new projector. This user's guide will acquaint you with your projector's features. Reading it will help us too. Through the years, we have found that many service requests were not caused by problems with our projectors. They were caused by problems that could have been prevented, if the owner had followed the instructions in the guide. You can often correct operating problems yourself. If your projector fails to work properly, see "TROUBLESHOOTING" section on pages 55 ~ 56 and try the solutions marked for each problem.

SAFETY PRECAUTIONS

TO THE OWNER

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the User's Guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE USER'S GUIDE WITH THIS UNIT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

PROJECTOR

(FRONT)

PROJECTOR

(SIDE)

WALL

50cm

50cm50cm

Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed. b. If liquid has been spilled into the projector. c. If the projector has been exposed to rain or water. d. If the projector does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation.

e. If the projector has been dropped or the cabinet has been

damaged.

f. When the projector exhibits a distinct change in

performance-this indicates a need for service.

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons.

Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition.

This projector is equipped with a grounding type AC line plug. Should you be unable to insert the plug into the outlet, contact your electrician. Do not defeat the safety purpose of this grounding type plug.

Follow all warnings and instructions marked on the projectors.

For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and powerline surges.

An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained.

Do not cover the ventilation slot on the projector. Heat build-up can reduce the service life of your projector,

and can also be dangerous.

IMPORTANT SAFETY INSTRUCTIONS

All the safety and operating instructions should be read before the product is operated.

Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Do not use attachments not recommended by the manufacturer as they may cause hazards.

Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.

Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc...

Slots and openings in the back and bottom of the cabinet are provided for ventilation, to insure reliable operation of the equipment and to protect it from overheating.

The openings should never be covered with cloth or other material, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register.

This projector should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company.

Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord will be abused by persons walking on it.

Never push objects of any kind into this projector through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the projector.

Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

GROUND

TABLE OF CONTENTS

PAGE

FEATURES AND DESIGN 5

INTRODUCTION 5 COMPATIBILITY 5

IMAGE RESOLUTION 5 AUTOMATIC MULTISCANNING SYSTEM 5

SCREEN MODE 5 MULTILANGUAGE 5 UNPACKING THE PROJECTOR 5 TRADEMARKS 5

INSTALLATION 6-9

NAME OF EACH PART OF THE PROJECTOR 6 SETTING-UP THE PROJECTOR 7 MOVING THE PROJECTOR 8 POWER REQUIREMENTS 9

CONNECTING THE PROJECTOR 10-21

TERMINAL OF THE PROJECTOR 10-11 CONNECTING THE COMPUTER 12-19 CONNECTING THE VIDEO EQUIPMENT 20-21

BEFORE OPERATION 22-31

CONTROLS AND INDICATOR 22-23 OPERATION OF THE REMOTE CONTROL 24-28

WIRELESS REMOTE CONTROL UNIT 24-26 WIRELESS REMOTE CONTROL UNIT 27-28

CONTROL THE PROJECTOR 29-31

DIRECT OPERATION 29 MENU OPERATION 30-31

BASIC OPERATION 32-51

TURNING ON/OFF THE PROJECTOR 32 DIRECT OPERATION 33-34

MODE SELECT 33 SOUND VOLUME ADJUSTMENT 33 SOUND MUTE FUNCTION 33 ZOOM ADJUSTMENT 33 FOCUS ADJUSTMENT 33 LENS SHIFT ADJUSTMENT 33 DIGITAL ZOOM FUNCTION 34 NORMAL PICTURE FUNCTION 34 FREEZE PICTURE FUNCTION 34 NO SHOW FUNCTION 34

P-TIMER FUNCTION 34 AUTO IMAGE FUNCTION 34 CURSOR FUNCTION 34

MENU OPERATION 35-36

MODE SELECT 35 SOUND ADJUSTMENT 36 LANGUAGE ADJUSTMENT 36

VIDEO MODE 37-39

COLOR SYSTEM SELECT 37 VIDEO SOURCE SELECT 37 PICTURE IMAGE ADJUSTMENT 38 PICTURE SCREEN ADJUSTMENT 39

COMPUTER MODE 40-49

COMPUTER SYSTEM SELECT 40 COMPATIBLE COMPUTER SPECIFICATIONS 41 AUTO IMAGE FUNCTION 42 PICTURE IMAGE ADJUSTMENT 43 PICTURE POSITION ADJUSTMENT 44 PC ADJUSTMENT 45-48 PICTURE SCREEN ADJUSTMENT 49

OTHER FUNCTION SETTING 50-52

BLUE BACK 50-51 DISPLAY 50-51 REVERSE T/B 50-51 REVERSE L/R 50-51 SPLIT WIPE 50-51 POWER MANAGEMENT 50-51 USB (Mouse or Control) 50-51 REMOTE CONTROL (Mode 1 or Mode 2) 50-51 LAMP AGE 52

APPENDIX 53-58

MEINTENANCE 53-55

TEMPERATURE WARNING INDICATOR 53 AIR FILTER CARE AND CLEANING 53 LAMP REPLACEMENT 54 CLEANING THE LENS 55

TROUBLESHOOTING 55-56 TECHNICAL SPECIFICATIONS 57

The Pro AV 9400 is a multimedia projector that combines powerful and sophisticated features with easy-to-use, intuitive controls. Built-in multimedia features include audio, a palette of 16.77 million colors and active matrix liquid crystal display (LCD) technology. The projector is ideal for high-performance business, training and imaging applications that demand exceptional color quality.

The projector is compatible with many different types of personal computers and video devices, including:

● IBM-compatible computers, including laptops, up to 1600 x 1200 resolution.

● Apple Macintosh and PowerBook computers up to 1600 x 1200 resolution.

● Various VCRs, video disc players, video cameras, DVD players, satellite TV tuners or other AV equipment using any of the

worldwide video standards, including NTSC, NTSC4.43, PAL , PAL-M, PAL-N and SECAM.

The resolution of the projector's projected image is 1280 x 1024. The projector displays computer images just as they appear on your computer's monitor. Screen resolutions between 1280 x 1024 and 1600 x 1200 are compressed to 1280 x 1024. The projector cannot display screen resolutions above 1600 x 1200. If your computer's screen resolution is higher than 1600 x 1200, reset it to a lower resolution before you connect the projector.

This projector can detect display signals from most personal computers currently distributed. It is free from complicated adjustments to project picture images from PC.

Screen display can be selected among;

Computer mode --- True, Digital zoom (Expand, Compress, Panning) Video mode --- Regular (4:3), Wide (16:9)

MENU DISPLAY is displayed with; English, German, French, Italian, Spanish and Japanese.

The projector comes with the parts listed below. Check to find all the parts are included. If any parts are missing, contact an authorized dealer or service station.

● User's Manual. ● AC Power Cord.

● Wireless Remote Control Unit . ● Wireless/Wired Remote Control Unit.

● Remote Control Cable. ● Batteries for Remote Control Units.

● Graphic Accelerator Board and Support Software. ● Digital Flat Panel Cable.

● VGA Cable. ● Mouse Cable for PS/2 port.

● Mouse Cable for serial port. ● Mouse Cable for ADB port.

● VGA/MAC Adapter. ● PC Audio Cable (RCA type).

● Video/Audio Cable (RCA type) ● S-Video Cable (Mini DIN-4 type).

● BNC/RCA Adapter. ● Protective Dust Cover.

● Lens Cover. ● Registration Card

● Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple Computer, Inc.

● IBM and PS/2 are trademarks or registered trademarks of International Business Machines, Inc.

● Windows is a trademarks or registered trademarks of Microsoft Corporation.

● Other trademarks are the property of their respective owners.

FEATURES AND DESIGN

INTRODUCTION

COMPATIBILITY

IMAGE RESOLUTION

UNPACKING THE PROJECTOR

TRADEMARKS

SCREEN MODE

AUTOMATIC MULTISCANNING SYSTEM

MULTILANGUAGE

EXHAUST VENT

CAUTION HOT AIR! Air blown from the exhaust vent is hot. Observe the following when handling your

projector or choosing a location to install it.

● Keep heat-sensitive objects away from the exhaust port.

● If you set the projector on top of a metallic surface, the surface will become hot because of the hot air exhaust. Be careful when handling.

● Do not touch the cabinet near to the exhaust vent area, and especially screws and metallic parts. These parts will become hot while the projector is used.

FRONT OF THE PROJECTOR

REAR OF THE PROJECTOR

SPEAKER

INFRARED REMOTE RECEIVER

PROJECTION LENS

REMOVABLE LENS COVER

INFRARED REMOTE RECEIVER

MAIN ON/OFF SWITCH

CARRY HANDLE

POWER CORD CONNECTOR

LEVELING/ELEVATING FEET

AIR INTAKE VENT

BOTTOM OF THE PROJECTOR

AIR INTAKE VENT

LAMP COVER

NAME OF EACH PART OF THE PROJECTOR

INSTALLATION

200" 154"

26.9' (8.2 m)

600" 462"

80.7' (24.6 m)

40"

77"

115"

154"

231"

308"

462"

600"

100"

150"

200"

300"

400"

760 mm 760 mm

100" SCREEN

POSITIONING:

ROOM LIGHT

● This projector is basically designed to project on a flat projection surface.

● This projector can be focused from 4.9' (1.5 m) ~ 80.7' (24.6 m).

● Refer to the figure below as an example when positioning the projector to the screen.

The projector should be placed in a room with limited light. Picture quality will be directly affected by lightning conditions.

Minimum Zoom

Maximum Zoom

DISTANCE

Screen Size

Max. Zoom Min. Zoom

Distance

40"

4.9' (1.5 m)

100"

77"

13.1' (4.0 m)

150" 115"

20' (6.1 m)

300" 231"

40' (12.2 m)

400" 308"

53.8' (16.4 m)

THIS PROJECTOR SHOULD NEVER BE SET IN THE WAY INDICATED. NEVER HANG THE PROJECTOR UPSIDE DOWN. IT MAY RESULT IN FIRE HAZARD.

Two feet adjust the projection angle and leveling the projector. The projection angle can be adjusted up to 4° degrees by rotating the two (left and right) feet located on the bottom of the projector. Level the projector by rotating the two feet.

MOVE THE PROJECTED IMAGE POSITION Adjust the projected image position (maximum 760mm

downward or upward on the 100" screen) by using lens shift function. (See page 33.)

DOWN

LEVELING/ELEVATION FEET

LEVELING AND ELEVATING ADJUSTMENTS

SETTING-UP THE PROJECTOR

INSTALLATION

Use the carry handle when moving the projector.

Replace the lens cover and rotate the leveling/elevation feet fully clockwise when moving the projector to prevent damage to the projector.

CAUTION IN CARRYING OR TRANSPORTING THE PROJECTOR

● Do not drop or give a shock to the projector, otherwise damage or malfunction may result.

● When carrying the projector, use a Proxima recommended Carrying Case.

● Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause

damage to the projector. To transport the projector through a courier or transport service, use a Proxima recommended Case.

● For a carrying or transportation cases, contact a Proxima authorized dealer.

This projector is equipped with a cooling fan to protect it from overheating. Pay attention to the following to ensure the ventilation and avoid a possible risk of fire and malfunction.

● Do not cover the vents with papers or other materials.

●

Keep the rear grill at least 3.3' (1m) away from any object.

● Make sure that there are no objects under the projector. An object under the projector may prevent the projector from taking the cooling air through the bottom vent.

VENTILATION

AIR INTAKE VENT (BOTTOM SIDE)

EXHAUST VENT (REAR SIDE)

MOVING THE PROJECTOR

INSTALLATION

Your projector uses nominal input voltages of 100-120 VAC or 200-240 VAC. The projector automatically selects the correct input voltage. The projector is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. Consult your authorized dealer or service station if you are not sure what type of power is supplied to your building.

Connect the AC power supply cord (supplied) to the projector. The socket-outlet must be near this equipment and must be easily accessible.

INSTALLATION

POWER REQUIREMENTS

Projector side (Female)

AC outlet side (Male)

SIDE OF THE PROJECTOR (CONNECT THE COMPUTER)

COMPUTER INPUT-1 TERMINAL (HDB15) ANALOG

Used to connect a computer to the projector.

COMPUTER INPUT-1 TERMINAL (MDR20) DIGITAL

Used to connect a computer to the projector.

COMPUTER INPUT-2 JACKS (BNC TYPE x 5)

Used to connect a computer to the projector.

MONITOR OUTPUT TERMINAL (HDB15)

Used to connect a monitor to the projector.

COMPUTER AUDIO INPUT-1 JACKS (R and L)

Used to connect an audio output from the computer to the projector.

COMPUTER AUDIO INPUT-2 JACKS (R and L)

Used to connect an audio output from the computer to the projector.

AUDIO MONITOR OUTPUT JACKS (R and L)

Used to connect an audio input from audio equipment to the projector.

CONTROL PORT-1 CONNECTOR

Used to connect a mouse cable to the projector.

CONTROL PORT-2 CONNECTOR

Used to connect a mouse cable to the projector.

USB PORT-1 CONNECTOR

Used to connect a computer to the projector.

USB PORT-2 CONNECTOR

Used to connect a computer to the projector.

SERIAL PORT TERMINAL (DB9)

Used to connect a computer to the projector.

WIRED REMOTE JACK

When using the wired remote control, connect the remote cable to this jack.

USB

audio

analog RGB in

analog RGB out

RGBH V

(mono)

control

USB

R/C jack

serial

audio

control

digital in

PC IN-1

PC IN-2

PC OUT

6 5

1 2

3 4 5

8 9

10 11

12 13

CONNECTING THE PROJECTOR

TERMINAL OF THE PROJECTOR

video/y

c/cb (b-y) cr (r-y)

S-video

(mono)

audio

S-video

(mono)

audio

S-video

audio

VIDEO IN-1

VIDEO IN-2

MONITOR OUT

video/y

c/cb (b-y) cr (r-y)

video/y

c/cb (b-y)

cr (r-y)

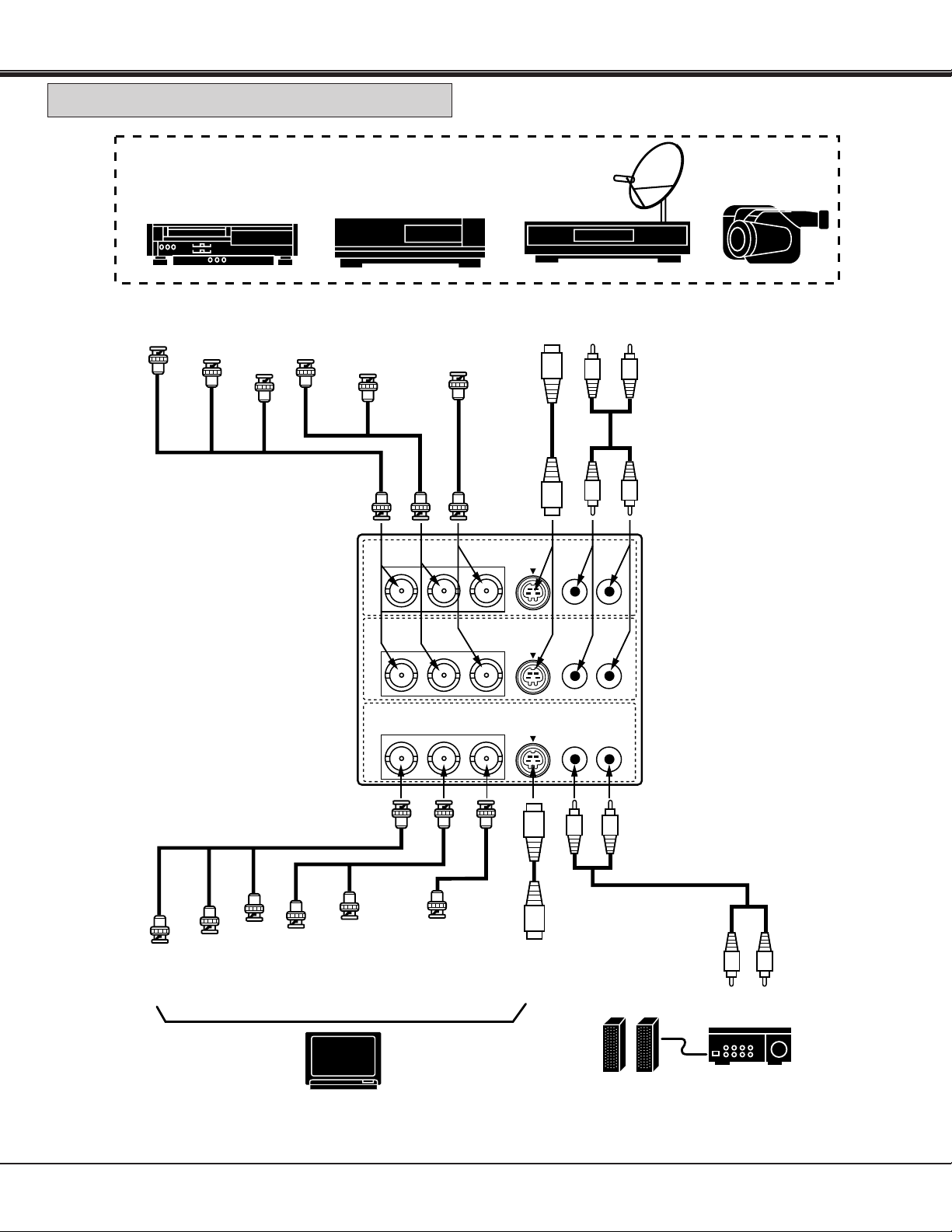

SIDE OF THE PROJECTOR (CONNECT THE VIDEO EQUIPMENT)

VIDEO INPUT JACKS-1 (BNC TYPE x 3)

Used to connect a video source to the projector.

S-VIDEO INPUT JACK-1

Used to connect a S-VHS video source to the projector.

AUDIO INPUT JACKS-1 (R and L)

Used to connect an audio source to the projector.

VIDEO INPUT JACKS-2 (BNC TYPE x 3)

Used to connect a video source to the projector.

S-VIDEO INPUT JACK-2

Used to connect a S-VHS video source to the projector.

14 15 16

17 18

AUDIO INPUT JACKS-2 (R and L)

Used to connect an audio source to the projector.

VIDEO MONITOR OUTPUT JACKS (BNC TYPE x 3)

Permits video connection to a monitor.

VIDEO MONITOR (S-VIDEO) OUTPUT JACK

Permits S-VHS video connection to a monitor.

AUDIO MONITOR OUTPUT JACKS (R and L)

Permits audio connection to a monitor.

19 20 21

CONNECTING THE PROJECTOR

CONNECTING THE COMPUTER

CONNECTING THE PROJECTOR

––––––––

ADB –––––––– –––––––– –––––––– –––––––– –––––––– ––––––––

GND –––––––– –––––––– ––––––––

Serial Port

ADB Port

1 2 3 4 5 6 7 8

9 10 11 12

PS/2 Port

T x D –––––––– –––––––– –––––––– –––––––– ––––––––

READY

––––––––

GND –––––––– –––––––– ––––––––

––––––––

CLK

DATA –––––––– –––––––– –––––––– –––––––– ––––––––

GND –––––––– –––––––– ––––––––

Personal computers can be connected to the HDB15-pin (VGA) terminal on the projector.

● Connect the computer to these terminals using the VGA cable and VGA/MAC adapter (provided). WARNING: For projectors, the VGA cable provided is designed to reduce RFI (Radio Frequency Interference) emissions.

For regulatory compliance reasons, this cable must be used and must not be replaced by any other cable.

Personal computers can be connected to the MDR20-pin terminal on the projector.

● Connect the computer to these terminals using the Digital Flat Panel cable (provided). NOTE: Before using with digital connection, install (Plug in) Graphic Accelerator Board into PCI of the Computer and set up

the computer following instructions in the Graphic Accelerator Board package.

Personal computers can be connected to the computer input (Red, Green, Blue, Horiz. Sync. and Vert. Sync.) on the projector.

● Connect the computer to these jacks using the BNC cables (not provided).

● Connect audio outputs from your computer to these jacks using the audio cable (not provided).

● If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right

and left jacks.

● If the audio input of the audio equipment is monaural, connect it to the left jack.

● When the computer is operated by projector's remote control unit, connect three different type of cables (provided)

between projector control port and computer mouse port or serial port.

■ CONTROL PORT

CONTROL PORT CABLE REMOVAL HINT

Disconnect control port cable with following steps.

1. Hold the portion (A) of the connector with one hand.

2. Pull the portion (B) arrow direction and remove connector.

CONNECTING TO THE COMPUTER INPUT 1 TERMINAL (HDB15) ANALOG

CONNECTING TO THE COMPUTER INPUT 1 TERMINAL (MDR20) DIGITAL

CONNECTING TO THE COMPUTER INPUT 2 JACKS (BNC x 5)

CONNECTING TO THE COMPUTER AUDIO INPUT JACKS (1 and 2)

CONNECTING TO THE MULTI-POLE 12-PIN (CONTROL PORT) CONNECTORS (1 and 2)

COMPUTER TYPE

IBM Compatible computer with PS/2 mouse port. IBM Compatible computer with serial port. Apple Machintosh computer with ADB mouse port.

CABLE

Mouse Cable for PS/2 port. Mouse Cable for Serial port. Mouse Cable for ADB port.

CONNECTING THE PROJECTOR

These jacks will contain the audio information of the selected program source being viewed on the screen (Computer 1, Computer 2, Video 1 or Video 2). If you have selected program source Computer 2 the audio signal connected to the Computer 2 audio input jack will be available at the audio monitor output jacks. Connect audio input from audio equipment to these jacks using the audio cables.

● If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right and left jacks.

● If the audio input of the audio equipment is monaural, connect it to the left jack.

Vcc

- Data

+ Data

Ground

1 2 3 4

This terminal contain the information of the selected program source being viewed on the screen (Computer 1, Computer 2, Video 1 or Video 2). If you have selected program source Computer 2 the video signal connected to the Computer 2 input terminal will be available at the monitor output terminal.

An external monitor can be connected to the HDB15-pin (VGA) terminal on the projector.

● Connect the monitor to this terminal using the VGA cable (not provided).

––––––––

R x D T x D

––––––––

Ground –––––––– –––––––– –––––––– ––––––––

1 2 3 4 5 6 7 8 9

■ SERIAL PORT DB9-PIN

TERMINAL

■ USB PORT

Pin No./Signal

1 Red input 2 Green input 3 Blue input 4 Sense 2 5 Ground (Horiz.sync.) 6 Ground (Red) 7 Ground (Green) 8 Ground (Blue)

Pin No./Signal

9 Non Connect 10 Ground (Vert. sync.) 11 Sense 0 12 Sense 1 13 Horiz. sync 14 Vert. sync 15 Reserved

HDB 15-PIN TERMINAL

CONNECTING TO THE MONITOR OUTPUT TERMINAL (HDB15)

CONNECTING TO THE AUDIO MONITOR OUTPUT (VARIABLE) JACKS

CONNECTING TO THE SERIAL PORT (DB9-PIN) TERMINAL

CONNECTING TO THE USB PORT CONNECTORS (1 and 2)

● If you control the projector by computer, you must connect a cable (not provided) from your computer to this terminal.

This Projector is designed for connecting with USB Port of the computer or peripheral equipment that is to be standard.

54321

109876

15 14 13 12 11

12345

6789

USB

audio

analog RGB in

analog RGB out

RGB H V

(mono)

control

USB

R/C jack

serial

audio

control

digital in

PC IN-1

PC IN-2

PC OUT

COMPUTER OUTPUT (HDB15-PIN TYPE)

COMPUTER

MONITOR CABLE (NOT PROVIDED)

COMPUTER OUTPUT (BNC TYPE x 5)

SERIAL PORT INPUT

AUDIO CABLE (NOT PROVIDED)

COMPUTER AUDIO INPUT 1 or 2

CONTROL PORT OUTPUT 1 or 2

MOUSE CABLE FOR PS/2 PORT (PROVIDED)

MOUSE CABLE FOR SERIAL PORT (PROVIDED)

PS/2 PORT INPUT

VGA CABLE (PROVIDED)

L R

R L

Speaker (L)

Speaker (R)

Amp.

R L

AUDIO INPUT

SPEAKER OUT

MONITOR OUTPUT

BNC CABLE x 5 (NOT PROVIDED)

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

SERIAL PORT OUTPUT

COMPUTER AUDIO OUTPUT

NOTE: The hook up should be done as per the above illustration. After hook up, turn on the projector, monitor, computer, in

that order.

COMPUTER INPUT 1 (ANALOG)

CONNECTING THE PROJECTOR

CONNECTING AN IBM-COMPATIBLE DESKTOP COMPUTER

COMPUTER INPUT 2

CONNECTING THE PROJECTOR

USB

audio

analog RGB in

analog RGB out

RGB H V

(mono)

control

USB

R/C jack

serial

audio

control

digital in

PC IN-1

PC IN-2

PC OUT

COMPUTER

MONITOR CABLE (NOT PROVIDED)

SERIAL PORT INPUT

AUDIO CABLE (NOT PROVIDED)

COMPUTER AUDIO INPUT 1

CONTROL PORT OUTPUT 1

MOUSE CABLE FOR PS/2 PORT (PROVIDED)

MOUSE CABLE FOR SERIAL PORT (PROVIDED)

PS/2 PORT INPUT

L R

R L

Speaker (L)

Speaker (R)

Amp.

R L

AUDIO INPUT

SPEAKER OUT

MONITOR OUTPUT

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

SERIAL PORT OUTPUT

COMPUTER AUDIO OUTPUT

NOTE: The hook up should be done as per the above illustration. After hook up, turn on the projector, monitor, computer, in

that order.

COMPUTER INPUT 1 (DIGITAL)

CONNECTING AN IBM-COMPATIBLE DESKTOP COMPUTER

(DIGITAL INPUT CONNECTION)

DIGITAL FLAT PANEL CABLE (PROVIDED)

NOTE:

Before using with digital connection, install (Plug in) Graphic Accelerator Board into PCI slot of the computer and set up the computer following instructions in the Graphic Accelerator Board package.

GRAPHIC ACCELERATOR BOARD (GA-SS21P8/PCI)

DIGITAL OUTPUT

ANALOG OUTPUT

INSTALL (PLUG) INTO PCI SLOT

NOTE: The hook up should be done as per the above illustration. After hook up, turn on the projector, computer, in that

order.

USB

audio

analog RGB in

analog RGB out

RGB H V

(mono)

control

USB

R/C jack

serial

audio

control

digital in

PC IN-1

PC IN-2

PC OUT

SERIAL PORT OUTPUT

COMPUTER

COMPUTER OUTPUT (DB15-PIN TYPE)

SERIAL PORT INPUT

PS/2 PORT INPUT

AUDIO CABLE (NOT PROVIDED)

VGA CABLE (PROVIDED)

MOUSE CABLE FOR PS/2 PORT (PROVIDED)

MOUSE CABLE FOR SERIAL PORT (PROVIDED)

R L

Speaker (L)

Speaker (R)

Amp.

AUDIO INPUT

SPEAKER

OUT

COMPUTER AUDIO OUTPUT

COMPUTER AUDIO INPUT 1

CONTROL PORT OUTPUT 1

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

COMPUTER INPUT 1 (ANALOG)

CONNECTING THE PROJECTOR

CONNECTING AN IBM-COMPATIBLE LAPTOP COMPUTER

USB

audio

analog RGB in

analog RGB out

RGB H V

(mono)

control

USB

R/C jack

serial

audio

control

digital in

PC IN-1

PC IN-2

PC OUT

NOTE:

Before using with digital connection, install (Plug in) Graphic Accelerator PC card into PC card slot of the computer and set up the computer following instructions in the Graphic Accelerator PC card package.

NOTE: The hook up should be done as per the above illustration. After hook up, turn on the projector, computer, in that

order.

SERIAL PORT OUTPUT

COMPUTER

SERIAL PORT INPUT

PS/2 PORT INPUT

AUDIO CABLE (NOT PROVIDED)

MOUSE CABLE FOR PS/2 PORT (PROVIDED)

MOUSE CABLE FOR SERIAL PORT (PROVIDED)

R L

Speaker (L) Speaker (R)

Amp.

AUDIO INPUT

SPEAKER

OUT

COMPUTER AUDIO OUTPUT

COMPUTER AUDIO INPUT 1

CONTROL PORT OUTPUT 1

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

COMPUTER INPUT 1 (DIGITAL)

DIGITAL FLAT PANEL CABLE (PROVIDED)

CONNECTING THE PROJECTOR

CONNECTING AN IBM-COMPATIBLE LAPTOP COMPUTER

(DIGITAL INPUT CONNECTION)

NOTE: This connction need optionally saled Graphic Accelerator PC card (GA-SM02P2/CB).

Contact your authorized dealer or service station.

GRAPHIC ACCELERATOR PC CARD

DIGITAL OUTPUT

ANALOG OUTPUT

INSTALL (PLUG) INTO PC CARD SLOT

USB

audio

analog RGB in

analog RGB out

RGB H V

(mono)

control

USB

R/C jack

serial

audio

control

digital in

PC IN-1

PC IN-2

PC OUT

123456

CONNECTING THE PROJECTOR

CONTROL PORT OUTPUT 1 or 2

COMPUTER

MONITOR CABLE (NOT PROVIDED)

COMPUTER OUTPUT (BNC TYPE x 5)

BNC CABLE x 5 (NOT PROVIDED)

COMPUTER OUTPUT

COMPUTER AUDIO OUTPUT1 or 2

AUDIO CABLE (NOT PROVIDED)

MOUSE CABLE FOR ADB PORT (PROVIDED)

COMPUTER INPUT 2

VGA/MAC ADAPTER (PROVIDED)

R L

Speaker (L)

Speaker (R)

Amp.

R L

AUDIO INPUT

SPEAKER OUT

COMPUTER AUDIO OUTPUT

SERIAL PORT CABLE (NOT PROVIDED)

SERIAL PORT OUTPUT

NOTE: The hook up should be done as per the above illustration. After hook up, turn on the projector, monitor, computer, in

that order.

COMPUTER INPUT 1 (ANALOG)

CONNECTING A MACINTOSH DESKTOP COMPUTER

VGA CABLE (PROVIDED)

COMPUTER AUDIO OUTPUT

MONITOR OUTPUT

OFF

VGA/MAC ADAPTER

SW1 ~ SW6

Set the dip switches as shown in the table below depending on the RESOLUTION MODE that you want to use before you turn on the projector and computer.

ADB PORT INPUT

SW1

ON OFF OFF

RESOLUTION MODE 13" MODE (640

480)

16" MODE (832

624)

19" MODE (1024

768)

21" MODE (1152

870)

SW6 OFF OFF OFF OFF

SW5

OFF OFF OFF OFF

SW4

OFF

SW3 OFF OFF

ON ON

SW2

ON ON ON ON

USB

audio

analog RGB in

analog RGB out

RGB H V

(mono)

control

USB

R/C jack

serial

audio

control

digital in

PC IN-1

PC IN-2

PC OUT

123456

NOTE: The hook up should be done as per the above illustration. After hook up, turn on the projector, computer, in that

order.

OFF

VGA/MAC ADAPTER

SW1 ~ SW6

COMPUTER

ADB PORT INPUT

VGA/MAC ADAPTER (PROVIDED)

AUDIO CABLE (NOT PROVIDED)

VGA CABLE (PROVIDED)

MOUSE CABLE FOR ADB PORT (PROVIDED)

R L

Speaker (L)

Speaker (R)

Amp.

AUDIO INPUT

SPEAKER

OUT

COMPUTER OUTPUT

COMPUTER AUDIO OUTPUT

COMPUTER AUDIO INPUT 1

CONTROL PORT OUTPUT 1

SERIAL PORT CABLE (NOT PROVIDED)

COMPUTER AUDIO OUTPUT

COMPUTER INPUT 1 (ANALOG)

Set the dip switches as shown in the table below depending on the RESOLUTION MODE that you want to use before you turn on the projector and computer.

CONNECTING A MACINTOSH POWERBOOK COMPUTER

CONNECTING THE PROJECTOR

NOTE: The Macintosh PowerBook requires the use of the PowerBook Video

Adapter shipped with the PowerBook.

SERIAL PORT OUTPUT

SW1

OFF OFF

RESOLUTION MODE 13" MODE (640

480)

16" MODE (832

624)

19" MODE (1024

768)

21" MODE (1152

870)

SW6

OFF OFF OFF OFF

SW5

OFF OFF OFF OFF

SW4

OFF

SW3

OFF OFF

ON ON

SW2

ON ON ON ON

Connect to the video outputs of a VCR, video disc player, DVD player, video camera, satellite TV tuner or other AV equipment. Connect video output from AV equipment to these jacks using the BNC cables.

The video input can be selected 3 type of the input. “COMPOSITE VIDEO", "Y/C SEPARATE VIDEO" and COMPONENT VIDEO {Y, Cb (B-Y), Cr (R-Y)}. When the video equipment with COMPOSITE VIDEO type output jack is used, to select the "Video" position by video source select. When the video equipment with Y/C SEPARATE VIDEO type output jack is used, to select the "Y, C" position. When the video equipment with COMPONENT VIDEO {Y, Cb (B-Y), Cr (R-Y)} type output jack is used, to select the "Y, Cb, Cr " position. (See "VIDEO SOURCE SELECT" section on page 37).

The Video input includes an extra video input jack marked S-VIDEO to allow connection to an S-VHS format VCR that has separate Y/C video signals. The S-VIDEO jack has priority over the VIDEO jack.

Connect to the audio outputs of a VCR, video disc player, DVD player, video camera, satellite TV tuner or other AV equipment. Connect audio output from AV equipment to these jacks using the audio cables.

● If the audio signal from the AV equipment is stereo, be sure to connect the right and left channels to the respective right and left audio input jacks.

● If the external audio signal is monaural, connect it to the left jack.

These jacks will contain the video information of the selected program source being viewed on the screen (Video 1 or Video 2). If you have selected program source Video 2 the video signal connected to the Video 2 video input jack will be available at the video monitor output jacks. If you select program source "Computer 1" or "Computer 2, the video signal connected to the Video 1 video input jack will be available at the video monitor output jacks. Connect video input from AV equipment to these jacks using the BNC cables.

The Video monitor output includes an extra video input jack marked S-VIDEO to allow connection to an S-VHS format VCR that has separate Y/C video signals. The S-VIDEO jack has priority over the VIDEO jack.

These jacks will contain the audio information of the selected program source being viewed on the screen (Video 1 or Video 2). If you have selected program source Video 2 the audio signal connected to the Video 2 audio input jack will be available at the audio monitor output jacks. If you select program source "Computer 1" or "Computer 2", the audio signal connected to the Video 1 audio input jack will be available at the audio monitor output jacks. Connect audio input from AV equipment to these jacks using the audio cables.

● If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right and left jacks.

● If the audio input of the audio equipment is monaural, connect it to the left jack.

CONNECTING THE VIDEO EQUIPMENT

CONNECTING THE PROJECTOR

CONNECTING TO THE VIDEO INPUT JACKS (1 and 2) BNC TYPE x 3

CONNECTING S-VHS VIDEO INPUT JACKS (1 and 2)

CONNECTING TO THE AUDIO MONITOR OUTPUT (VARIABLE) JACKS

CONNECTING TO THE S-VHS VIDEO MONITOR OUTPUT JACK

CONNECTING TO THE VIDEO MONITOR OUTPUT JACKS (BNC TYPE x 3)

CONNECTING TO THE AUDIO INPUT JACKS (1 and 2)

video/y

c/cb (b-y) cr (r-y)

S-video

(mono)

audio

S-video

(mono)

audio

S-video

audio

VIDEO IN-1

VIDEO IN-2

MONITOR OUT

video/y

c/cb (b-y) cr (r-y)

video/y

c/cb (b-y)

cr (r-y)

NOTE: The hook up should be done as per the above illustration. After hook up, turn on the projector, video equipment, in

that order.

VIDEO EQUIPMENT

Video Cassette Recorder

DVD Player Video Disc Player

Satellite TV Tuner

MONITOR

AUDIO INPUT

AUDIO OUTPUT

S-VIDEO OUTPUT

S-VIDEO INPUT

SPEAKERS

AUDIO AMP.

Video Camera

Y OUTPUT (BNC)

VIDEO OUTPUT (BNC)

C OUTPUT (BNC)

Cb (B-Y) OUTPUT (BNC)

Cr (R-Y) OUTPUT (BNC)

Y INPUT (BNC)

VIDEO INPUT (BNC)

C INPUT (BNC)

Cb (B-Y) INPUT (BNC)

Cr (R-Y) INPUT (BNC)

CONNECTING THE PROJECTOR

CONNECTING THE VIDEO EQUIPMENT

memu

mode

auto image

normal

select

volume zoom focus lens shift power

TOP CONTROLS

FRONT INDICATORS

TOP CONTROLS

ready

lamp

replace

warning

temp

2 3 4

BEFORE OPERATION

CONTROLS AND INDICATORS

1 2 3 4

7 8

13 14

LAMP REPLACEMENT INDICATOR

Light is orange when projection lamp is nearing end of service life.

TEMPERATURE WARNING INDICATOR

Flashes red when internal projector temperature is too high.

READY INDICATOR

Light is green when projector lamp is ready to be turned on.

LAMP POWER INDICATOR

Light is dim when the projector is on. Light is brightened when the projector is in stand-by mode.

VOLUME BUTTONS

Used to adjust volume.

ZOOM BUTTONS

Used to operate power zoom lens.

FOCUS BUTTONS

Used to operate power focus system.

LENS SHIFT BUTTONS

Used to operate power lens shift.

LAMP POWER ON/OFF BUTTON

Used to turn projection lamp on or off.

MODE BUTTON

Used to select source. (Computer 1, Computer 2, Video 1 or Video 2 Input)

AUTO IMAGE BUTTON

Used to operate the AUTO IMAGE function.

MENU BUTTON

This button will activate the MENU operation. Use this button, the POINT UP/DOWN/LEFT/RIGHT buttons and the SELECT button to make adjustments to the projector's setting in MENU operation.

NORMAL BUTTON

Used to reset to normal picture adjustment preset by factory.

POINT UP/DOWN/LEFT/RIGHT BUTTONS

To select an item on the MENU that you want to adjust. To select an item, move the arrow by pressing these buttons (UP, DOWN, LEFT or RIGHT).

SELECT BUTTON

This button has different functions depending on when used. This button is used to execute the item selected, to increase or decrease the values in certain items such as CONTRAST or BRIGHTNESS.

BEFORE OPERATION

P-TIMER

AUTO IMAGE

MUTE

VOLUME

COMPUTER

FOCUS

ZOOM

POWER

FREEZE/

NO SHOW

LENS SHIFT

NORMAL

VIDEO

CURSOR

D.ZOOM

LASER

FRONT

SIDE

OPERATION OF THE REMOTE CONTROL

BEFORE OPERATION

LASER POINTER button

This remote control emits a laser beam light as the Laser Pointer from the Laser Light Window. When the LASER POINTER button is pressed, laser light goes on: when the button is released, light goes off. Laser light is emitted with the RED light which tells the laser beam being emitted.

The laser emitted is a class laser; therefore, do not look into the laser light window or shine the laser beam on yourself or other people. The three marks to the right are the caution labels for the laser beam.

CAUTION-use of controls or adjustments or performance of procedures other than those specified herein may result hazardous radiation exposure.

This remote control unit is not only able to operate the projector but also usable as a wireless mouse for a PC. One pointing pad and two click buttons are used for wireless mouse operation. Wireless mouse is usable when PC mouse pointer is displayed on the screen. When the menu or indicator of the projector is displayed on the screen instead of the PC mouse pointer, the wireless mouse cannot be used.

NOTE: To use the unit as a PC wireless mouse, connect the projector to the

PC with the attached cable. Signals from the projector are transmitted to the PC, enabling the remote control unit of the projector to be used as a PC wireless mouse. (Refer to "CONNECTING THE PROJECTOR" in pages 14 to 19 for the connection.)

WIRELESS REMOTE CONTROL UNIT

LASER RADIATION DO NOT STARE INTO BEAM

MAX. OUTPUT: 1mW WAVE LENGTH: 660±20nm CLASS LASER PRODUCT

This product is complied with 21 CFR

part 1040.10

CAUTION

LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT LASER-STRAHLING NICHT IN DEN STRAHL BLICKEN LASER KLASSE 2

|Uœ¸N X 2 [U»i

r[ …« ¨¢–˘

IEC60825-1, Am. 1 1997 MAX OUTPUT ( ¯o˝ ) : 1 mW WAVE LENGTH (g• ) : 660±20nm

AVOID EXPOSURE-LASER RADIATION IS EMITTED FROM THIS APERTURE

[Uı oß

r[ …« ¨¢–˘

LASER LIGHT WINDOW

1 2 3

4 5

7 8 9

10 11 12 13

14 15

COMPUTER SELECT BUTTON

Used to select computer mode. (Computer 1 or Computer 2 Input)

VIDEO SELECT BUTTON

Used to select video mode. (Video 1 or Video 2 Input)

LAMP POWER ON/OFF BUTTON

Used to turn the projection lamp on or off.

VOLUME BUTTONS

Used to adjust volume.

ZOOM BUTTON

Used to select power zoom lens adjust.

P-TIMER BUTTON

Used to operate the P-TIMER function.

FOCUS BUTTON

Used to select focus adjust.

FREEZE/NO SHOW BUTTON

Used to freeze on-screen image or change the screen into black image.

SOUND MUTE BUTTON

Used to mute sound.

LENS SHIFT BUTTON

Used to select power lens shift.

CURSOR BUTTON

Used to display CURSOR on the screen.

AUTO IMAGE BUTTON

Used to operate the AUTO IMAGE function.

MENU BUTTON

This button will activate the MENU operation. Use this button, the POINT UP/DOWN/LEFT/RIGHT button and the SELECT (REAR CLICK) button to make adjustments to the projector's setting in MENU operation.

NORMAL BUTTON

Use to reset to normal picture adjustment preset by factory.

POINTING PAD (POINT UP/DOWN/LEFT/RIGHT BUTTON) When in use as a remote for the projector

To select an item on the MENU that you want to adjust. To select an item, move the arrow by pressing the pad upward, downward, leftward or rightward. Used to operate power zoom lens, power focus system or power lens shift by pressing the pad either upward or downward.

When in use as a wireless mouse

Used to move the pointer. The pointer is moved according to the direction you are pressing.

LASER BUTTON

When this button is pressed, laser light goes on; when the button is released, light goes off.

FRONT CLICK BUTTON When in use as a remote for the projector

Used to compress the image in D.ZOOM mode.

When in use as a wireless mouse

This button has the same function as the right button in a PC mouse.

DIGITAL ZOOM BUTTON

Used to select digital zoom function.

SELECT (REAR CLICK) BUTTON When in use as a remote for the projector.

This button has different functions depending on when used. This button is used to execute the item selected, to increase or decrease the values in certain items such as CONTRAST or BRIGHTNESS.

When in use as a wireless mouse

This button has the same function as the left button in a PC mouse.

BEFORE OPERATION

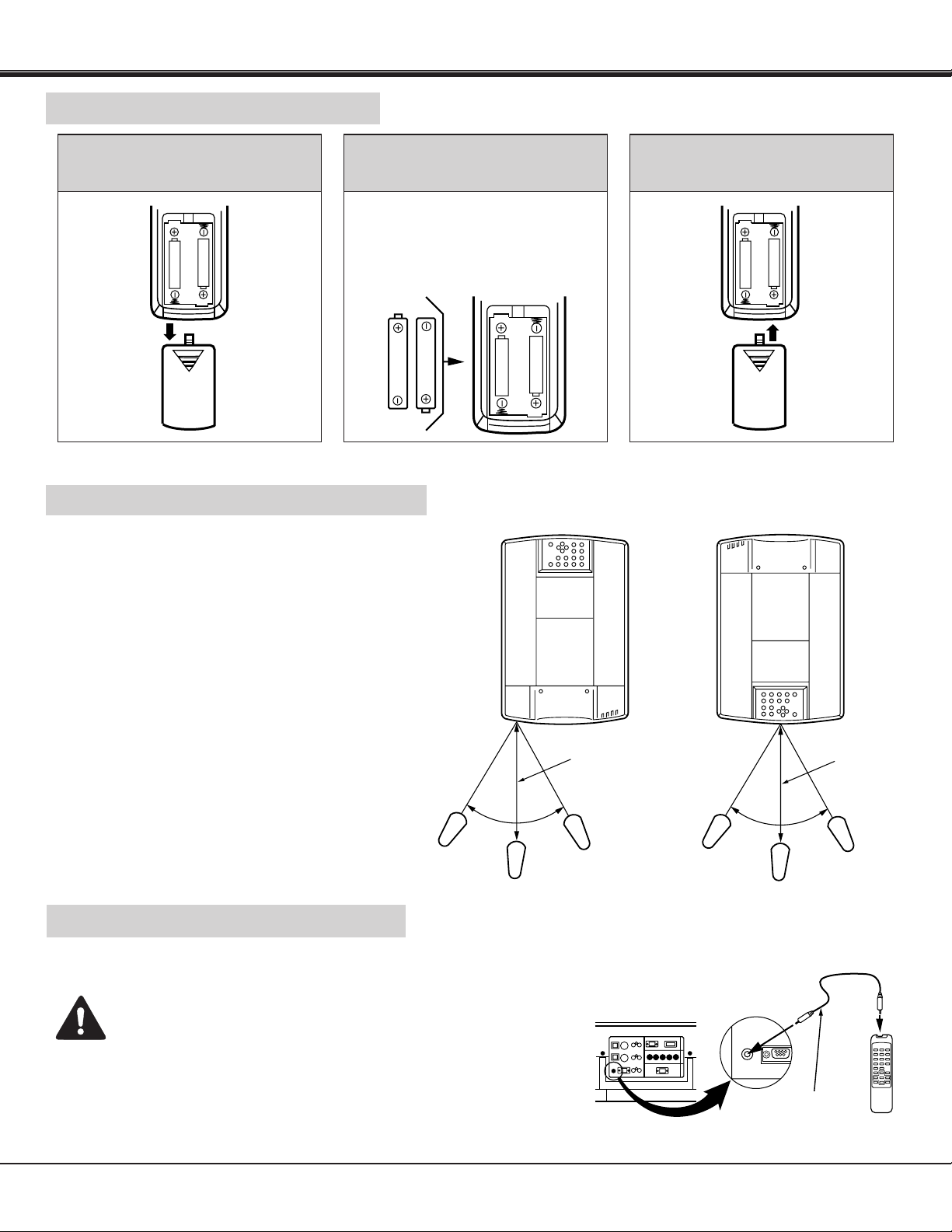

Remote Control Battery Installation

Using the Remote Control Unit

16.4' (5 m)

60°

Remove the battery compartment lid.

Slide the batteries into the

compartment. 3

Replace the compartment lid.

Note : For correct polarity (+ and -

terminal), be sure the battery terminals are in contact with the pins in the compartment.

Point the remote control toward the projector (Receiver window) whenever pressing the buttons. Maximum operating range for the remote control is about 16.4' (5m) and 60° front and rear of the projector.

BEFORE OPERATION

16.4' (5 m)

To insure safe operation, please observe the following precautions :

● Use (2) AA type alkaline batteries.

● Change two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water.

● Do not drop the remote control unit.

● If batteries have leaked on the remote control,

carefully wipe the case clean and load new batteries.

WIRED REMOTE JACK

When using the wired remote control, connect the remote cable to this jack.

COMPUTER SELECT BUTTON

Used to select computer mode. (Computer 1 or Computer 2 Input)

VIDEO SELECT BUTTON

Used to select video mode. (Video 1 or Video 2 Input)

LAMP POWER ON/OFF BUTTON

Used to turn projection lamp on or off.

VOLUME BUTTONS

Used to adjust volume.

ZOOM BUTTONS

Used to operate power zoom lens.

FOCUS BUTTONS

Used to operate power focus system.

SOUND MUTE BUTTON

Used to mute sound.

LENS SHIFT BUTTONS

Used to operate power lens shift.

P-TIMER BUTTON

Used to operate the P-TIMER function.

AUTO IMAGE BUTTON

Used to operate the AUTO IMAGE function.

MENU BUTTON

This button will activate the MENU operation. Use this button, the POINT UP/DOWN/LEFT/RIGHT buttons and the SELECT button to make adjustments to the projector's setting in MENU operation.

POINT UP/DOWN/LEFT/RIGHT BUTTONS

To select an item on the MENU that you want to adjust. To select an item, move the arrow by pressing these buttons (UP, DOWN, LEFT or RIGHT).

FREEZE/NO SHOW BUTTON

Used to freeze on-screen image or change the screen into black image.

SELECT BUTTON

This button has different functions depending on when used. This button is used to execute the item selected, to increase or decrease the values in certain items such as CONTRAST or BRIGHTNESS.

DIGITAL ZOOM BUTTON

Use to select digital zoom function.

NORMAL BUTTON

Used to reset to normal picture adjustment preset by factory.

COMPUTER

VOLUME ZOOM FOCUS

P-TIMERMUTE LENS SHIFT

NO SHOW

AUTO IMAGE

FREEZE/

NORMAL

SELECT

POWER

VIDEO

D.ZOOM

3 4 5 6 7

8 9

14 15

WIRELESS/WIRED REMOTE CONTROL UNIT

BEFORE OPERATION

60°

R/C JACK

SERIAL PORT

Connect a remote control cable to R/C jacks located on the wireless/wired remote control unit and the side of the projector.

60°

The remote control unit can be used as wireless or wired remote control.

WIRED REMOTE CABLE

Remove the battery

compartment lid. 2

Slide the batteries into the compartment.

Replace the compartment lid.

Note : For correct polarity (+ and -

terminal), be sure the battery terminals are in contact with the pins in the compartment.

To insure safe operation, please observe the following precautions :

● Use (2) AA type alkaline batteries.

● Change two batteries at the same time.

● Do not use a new battery with a used battery.

● Avoid contact with water.

● Do not drop the remote control unit.

● If batteries have leaked on the remote control,

carefully wipe the case clean and load new batteries.

BEFORE OPERATION

Remote Control Battery Installation

Using the Remote Control Unit (wireless)

Using the Remote Control Unit (wired)

16.4' (5 m)

OPEN OPEN

ADJUST ITEM

The projector has two types of operation: DIRECT OPERATION and MENU OPERATION. DIRECT OPERATION allows you to operate the projector by using one button without showing the MENU. In MENU OPERATION mode, you display menus where you can adjust the projector's settings. Follow the instruction for each control.

DIRECT OPERATION

WIRELESS/WIRED REMOTE CONTROL

WIRELESS REMOTE CONTROL

LAMP POWER ON/OFF

LAMP POWER ON-OFF LAMP POWER ON-OFF LAMP POWER ON-OFF

MODE

COMPUTER VIDEO

VOLUME (+) and (–) VOLUME (+) and (–) VOLUME (+) and (–) NOT AVAILABLE MUTE MUTE

ZOOM (▲) and (▼)

ZOOM POINT (UP/DOWN)

FOCUS (▲) and (▼)

FOCUS POINT (UP/DOWN)

LENS SHIFT (▲) and (▼)

LENS SHIFT POINT (UP/DOWN)

NOT AVAILABLE

D. ZOOM SELECT (REAR CLICK) FRONT CLICK POINT (UP/DOWN/LEFT/RIGHT)

NOT AVAILABLE

FREEZE/NO SHOW

NOT AVAILABLE

P-TIMER

NOT AVAILABLE

FREEZE/NO SHOW FREEZE/NO SHOW

AUTO IMAGE AUTO IMAGE AUTO IMAGE

MODE SELECT

SOUND VOLUME

SOUND MUTE

ZOOM

FOCUS

LENS SHIFT

DIGITAL ZOOM

NO SHOW

P-TIMER

FREEZE PICTURE

AUTO IMAGE

TOP CONTROL OF THE PROJECTOR

CONTROL THE PROJECTOR

BEFORE OPERATION

NORMAL NORMAL NORMALNORMAL PICTURE

NOT AVAILABLE NOT AVAILABLE CURSOR

CURSOR

D. ZOOM SELECT POINT (UP/DOWN/LEFT/RIGHT)

BEFORE OPERATION

WIRELESS REMOTE CONTROL

COLOR SYSTEM

WIRELESS REMOTE CONTROL

ADJUST ITEM

MODE SELECT

WIRELESS REMOTE CONTROL

SOUND

SOUND VOLUME TREBLE BASS BUILT-IN SP. SOUND MUTE

WIRELESS/WIRED REMOTE CONTROL

MENU POINT LEFT/RIGHT

SELECT POINT UP/DOWN

SELECT

MENU POINT LEFT/RIGHT

SELECT POINT UP/DOWN

SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

TOP CONTROL OF THE PROJECTOR

1. COMPUTER/VIDEO MODE

2. VIDEO MODE

MENU OPERATION

ADJUST ITEM

WIRELESS/WIRED REMOTE CONTROL

LANGUAGE SETTING

BLUE BACK DISPLAY REVERSE T/B REVERSE R/L SPLIT WIPE POWER MANAGEMENT USB REMOTE CONTROL LAMP AGE

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT

MENU POINT(LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

TOP CONTROL OF THE PROJECTOR

ADJUST ITEM

WIRELESS/WIRED REMOTE CONTROL

VIDEO SOURCE

VIDEO Y, C Y, Cb, Cr

PICTURE IMAGE

COLOR TINT WHITE BALANCE CONTRAST BRIGHTNESS SHARPNESS

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

TOP CONTROL OF THE PROJECTOR

PICTURE SCREEN

WIDE REGULAR

BEFORE OPERATION

WIRELESS REMOTE CONTROL

3. COMPUTER MODE

NOTES :

1. The MENU, once activated, will not disappear unless you choose MENU QUIT. If you switch to DIRECT operation by pressing a DIRECT operation button while in MENU mode, the menus will disappear and the MENU operation will end.

2. You can use the REMOTE CONTROL UNIT or the TOP CONTROL OF THE PROJECTOR to operate the MENU operation.

ADJUST ITEM

WIRELESS/WIRED REMOTE CONTROL

COMPUTER SYSTEM

AUTO IMAGE

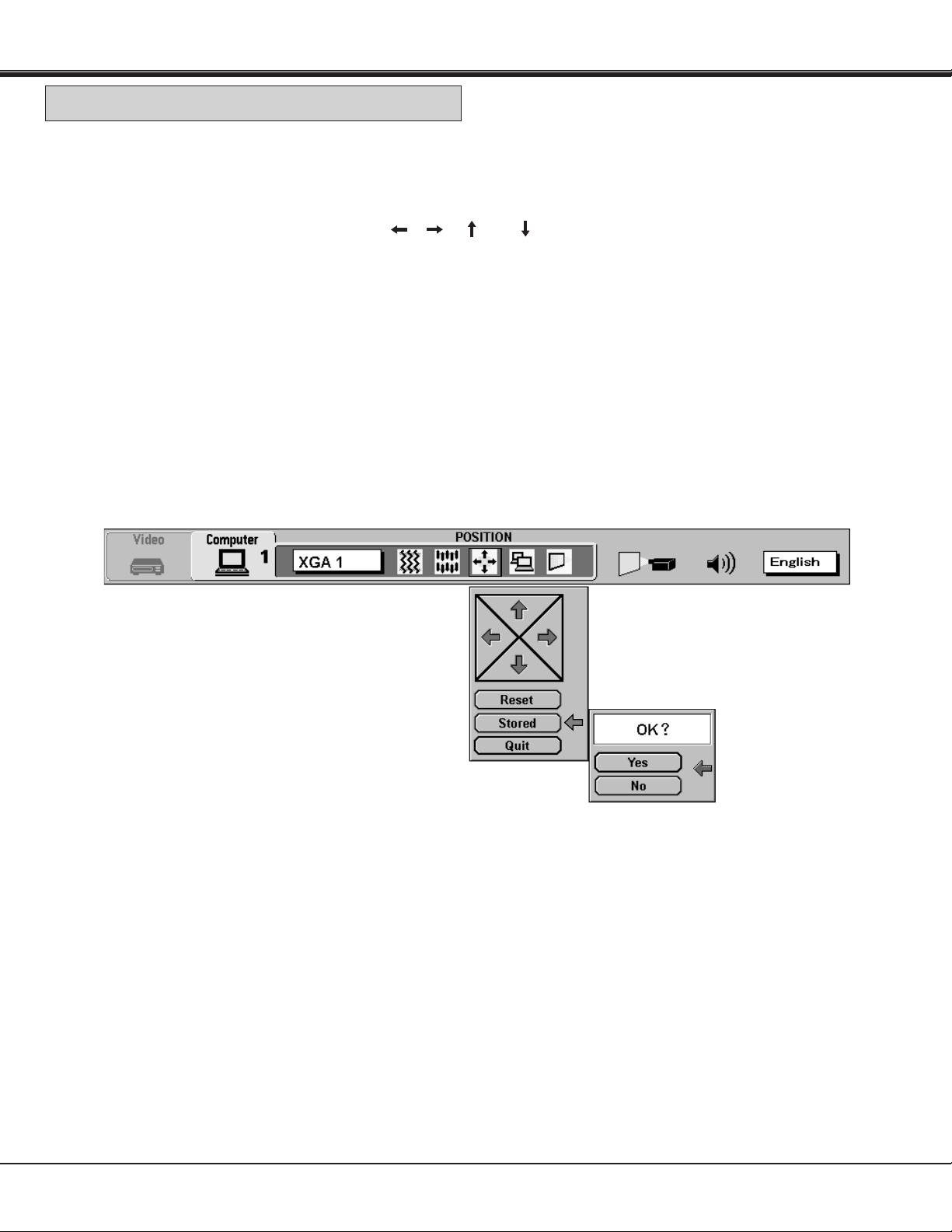

FINE SYNC TOTAL DOTS POSITION

PICTURE IMAGE

FINE SYNC TOTAL DOTS WHITE BALANCE CONTRAST BRIGHTNESS

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

TOP CONTROL OF THE PROJECTOR

PICTURE POSITION

MENU POINT LEFT/RIGHT SELECT POINT LEFT/RIGHT/UP/DOWN SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (LEFT/RIGHT/UP/DOWN) SELECT (REAR CLICK)

PC ADJUSTMENT

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK)

PICTURE SCREEN

TRUE DIGITAL ZOOM

MENU POINT LEFT/RIGHT SELECT POINT UP/DOWN SELECT POINT LEFT/RIGHT/UP/DOWN

MENU POINT (LEFT/RIGHT) SELECT (REAR CLICK) POINT (UP/DOWN) SELECT (REAR CLICK) FRONT CLICK POINT (LEFT/RIGHT/UP/DOWN)

Connect the projector to a source (Computer, VCR, Video Camera, Video Disc Player, etc.) using the appropriate terminals on the side of the projector (See "CONNECTING THE PROJECTOR" section on pages 10-21).

Connect the projector's AC power cord into a wall outlet and turn the MAIN ON/OFF switch (located on the side of the projector) to the ON position. The LAMP POWER indicator will light RED, the READY indicator will light GREEN.

Press the LAMP POWER ON/OFF button on the remote control unit or on the projector to ON. The LAMP POWER indicator light will dim and the cooling fans will operate. The wait display appears on the screen and the count-down starts (30-29-28-...1). The signal from the source appears after 30 seconds.

TO TURN ON THE PROJECTOR

CAUTION: THIS PROJECTOR USES A METAL-HALIDE ARC LAMP. TO EXTEND THE LIFE OF THE LAMP, ONCE YOU HAVE TURNED IT ON, WAIT AT LEAST 5 MINUTES BEFORE TURNING IT OFF.

NOTE: TEMPERATURE WARNING INDICATOR flashes red, the projector will automatically turn off.

Wait at least 5 minutes before turning the projector on. If the TEMPERATURE WARNING INDICATOR continued to flash, follow the procedures below: (1). Press LAMP POWER ON/OFF button to OFF.

(2). Check the air filter for dust accumulation. (3). Remove dust with vacuum cleaner (See "AIR FILTER CARE AND CLEANING" section on page 53.) (4). Press LAMP POWER ON/OFF button to ON.

If the TEMPERATURE WARNING INDICATOR still continues to flash, call your authorized dealer or service station.

TO TURN OFF THE PROJECTOR

Press the LAMP POWER ON/OFF button on the remote control unit or on the projector. The "Power off ?'' appears on the screen. Press again the LAMP POWER ON/OFF button to turn OFF the projector. The LAMP POWER indicator will light bright and READY indicator will turn off. The cooling fans will operate for 1 minute after the projector is turned off. (During this "cooling down" period, the projector cannot be turned on.) The READY indicator will light green again and the projector may be turned on by pressing the LAMP POWER ON/OFF button. To power down completely, turn the MAIN ON/OFF switch (located on the side of the projector) to the OFF position.

TURNING ON/OFF THE PROJECTOR

BASIC OPERATION

Press the MODE button on the projector or the COMPUTER and VIDEO button on the remote control unit to select Computer 1, Computer 2, Video 1 or Video 2 Input. The "Computer 1", "Computer 2", "Video 1" or "Video 2" display will appear on the screen for a few seconds.

DIRECT OPERATION

BASIC OPERATION

MODE SELECT

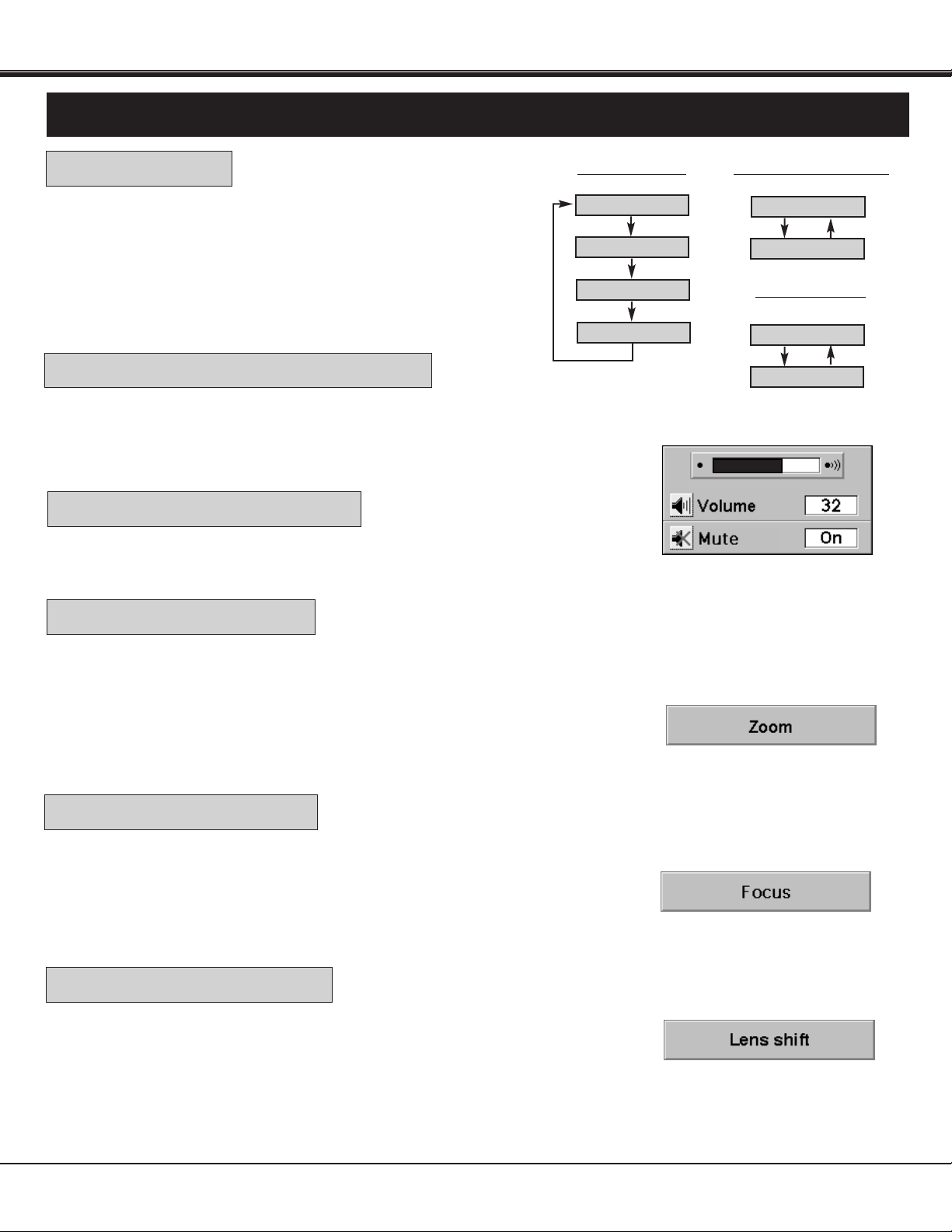

Press the VOLUME buttons on the projector or on the remote control unit to adjust the volume. The volume display will be displayed on the screen for a few seconds.

Pressing volume (+) will increase volume and increase the number on the screen. Pressing volume (-) will decrease volume and decrease the number on the screen.

Pressing the MUTE button on the remote control unit will mute audio. Press the MUTE button again to restore audio to its previous level. The mute display will be displayed on the screen for a few seconds.

Use Top control and Wireless/Wired remote control unit.

Press the ZOOM (▲) or (▼) button to obtain your desired picture size. For a larger picture, press (▲) and for a smaller picture, press (▼).

Use Wireless remote control unit.

Press the ZOOM button and press POINT UP/DOWN button(s) to obtain your desired picture size. The Zoom display will be displayed on the screen for a few seconds. For a larger picture, press (UP) and for a smaller picture, press (DOWN).

Use Top control and Wireless/Wired remote control unit.

Press the FOCUS (▲) or (▼) button for a sharper, crisper picture.

Use Wireless remote control unit.

Press the FOCUS button and press POINT UP/DOWN button(s) to obtain a sharper, crisper picture. The Focus display will be displayed on the screen for a few seconds.

Use Top control and Wireless/Wired remote control unit.

Press the LENS SHIFT (▲) or (▼) button to obtain your desired screen position.

Use Wireless remote control unit.

Press the LENS SHIFT button and press POINT UP/DOWN button(s) to obtain your desired screen position. The Lens shift display will be displayed on the screen for a few seconds.

FOCUS ADJUSTMENT

ZOOM ADJUSTMENT

SOUND MUTE FUNCTION

SOUND VOLUME ADJUSTMENT

LENS SHIFT FUNCTION

Computer 1

Computer 2

Computer 1

Computer 2

Video 1

Video 2

MODE button COMPUTER button

VIDEO button

Video 1

Video 2

BASIC OPERATION

Press the D. ZOOM button on the wireless remote control unit. The "D.zoom" and the magnifying-glass icon is displayed to indicate Digital zoom mode. Digital zoom mode can be adjust the image size or pan the image. To expand the image size, press SELECT (REAR CLICK) button. The image is magnified by degrees (Expand function). To compress the image size, press FRONT CLICK button. The size of image is reduced by degrees (Compress function). To pan the image, press POINT UP/DOWN/LEFT/RIGHT (POINTING PAD) button(s). The image move to the direction indicated (Panning function) See the page 49 for more detail.

The normal picture image level is factory preset on the projector and can be restored anytime by pressing the NORMAL button on the projector or on the remote control unit. The "Normal" display will be displayed on the screen for a few seconds.

Press the FREEZE/NO SHOW button on the remote control unit, and the picture will remain on-screen. This function is cancelled when the FREEZE/NO SHOW button is pressed again or any other button is pressed.

NOTE: Your computer or video equipment is not affected by this function, and will continue to run.

Press the FREEZE/NO SHOW button (on the remote control unit) is twice. The screen will change into black image and the "NO SHOW" is displayed on the screen for a few seconds.

This function is cancelled when the FREEZE/NO SHOW button is pressed again or any other function button is pressed.

Press the P-TIMER button on the remote control unit. The timer display "00:00" appears on the screen and the timer starts to count the time (00:00-59:59).

Press again the P-TIMER button to stop the timer. Then press the P-TIMER button to cancel the P-TIMER function.

Press the AUTO IMAGE button on the projector or on the remote control unit. The item(s) indicated "ON" in the AUTO IMAGE FUNCTION are adjusted automatically.

If all the items in AUTO IMAGE FUNCTION are "OFF", AUTO IMAGE SETTING display appears. If you wish to operate the AUTO IMAGE FUNCTION, perform the steps 3 - 9 of "AUTO IMAGE FUNCTION" section on page 42.

Press the CURSOR button on the wireless remote control unit. The CURSOR is displayed on the screen. Press POINT UP/DOWN/LEFT/RIGHT (POINTING PAD) button(s) to control CURSOR. The CURSOR is moved according to the direction you are pressing. Press CURSOR button again, and CURSOR disappears.

D. zoom

NO SHOW FUNCTION

NORMAL PICTURE FUNCTION

P-TIMER FUNCTION

FREEZE PICTURE FUNCTION

DIGITAL ZOOM FUNCTION

AUTO IMAGE FUNCTION

CURSOR FUNCTION

MEMU

NORMAL SELECT

SELECT BUTTON

FREEZE/ NO SHOW

NORMAL

SELECT

D.ZOOM

In MENU OPERATION mode, you can adjust the projector. You can use the TOP CONTROL THE PROJECTOR or the REMOTE CONTROL UNIT.

You can select a mode from MAIN MENU display among computer 1, computer 2, video 1, video 2.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select Computer or Video and press the SELECT (REAR CLICK) BUTTON. Another dialog box MODE DISPLAY will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. Move the arrow to the mode you want (computer 1, computer 2, video 1 or video 2) to use by pressing the POINT UP/DOWN BUTTON(s) and then press the SELECT (REAR CLICK) BUTTON.

MAIN MENU DISPLAY

MODE DISPLAY

MAIN MENU DISPLAY

MODE DISPLAY

P-TIMER

AUTO IMAGE

MUTE

VOLUME

COMPUTER

ZOOM

POWER

LENS SHIFT

NORMAL

VIDEO

FOCUS

CURSOR

FREEZE/

NO SHOW

LASER

D.ZOOM

WIRELESS REMOTE CONTROL UNIT

TOP CONTROL OF THE PROJECTOR

WIRELESS/WIRED REMOTE CONTROL UNIT

MENU BUTTON

SELECT (REAR CLICK) BUTTON

POINT UP BUTTON

POINT LEFT BUTTON

POINT RIGHT BUTTON

SELECT BUTTON

MENU BUTTON

POINT DOWN BUTTON

BASIC OPERATION

MENU OPERATION

MODE SELECT

FRONT CLICK BUTTON

POINT(UP/DOWN/LEFT/RIGHT)BUTTON Pressing the button upward, downward,

leftward or rightward.

POINT LEFT BUTTON

SOUND ADJUST DISPLAY

LANGUAGE SETTING DISPLAY

MAIN MENU DISPLAY

You can adjust the sound volume, treble, bass levels and Built-in SP., Sound Mute ON/OFF switch in the MENU display.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select SOUND and press the SELECT (REAR CLICK) BUTTON. Another dialog box SOUND ADJUST DISPLAY will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN BUTTON(s).

5. To increase the sound volume, treble and bass, point the arrow to ▲ and then press the SELECT (REAR CLICK) BUTTON. To decrease the sound volume, treble and bass, point the arrow to ▼ and then press the SELECT (REAR CLICK) BUTTON.

6. To disconnect the built-in speaker, point the arrow to Built-in SP. and then press the SELECT (REAR CLICK) BUTTON. The display is changed Off from On and Internal speaker is disconnected.

7. To mute the sound, point the arrow to Mute and then press the SELECT (REAR CLICK) BUTTON. The display is changed On from Off and mute the sound.

8. To quit the MENU, point to Quit and then press the SELECT (REAR CLICK) BUTTON.

A language in the MENU display can be selected among English, German, French, Italian, Spanish and Japanese.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select LANGUAGE and press the SELECT (REAR CLICK) BUTTON. Another dialog box LANGUAGE SETTING DISPLAY will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. Move the arrow to the language you want to use by pressing the POINT UP/DOWN BUTTON(s) and then press the SELECT (REAR CLICK) BUTTON .

5. The setting is permanently held even if the MAIN ON/OFF is switched off.

BASIC OPERATION

SOUND ADJUSTMENT

LANGUAGE ADJUSTMENT

VIDEO SOURCE DISPLAY

MAIN MENU DISPLAY

1. Connect the video equipment to the PROJECTOR, and turn them on projector first.

2. Set MODE SELECT to "VIDEO MODE".

3. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

4. Press the POINT LEFT/RIGHT BUTTON(s) to select VIDEO SOURCE and press the SELECT (REAR CLICK) BUTTON. Another dialog box VIDEO SOURCE DISPLAY will appear. The current VIDEO SOURCE is displayed in the window.

5. Press the POINT DOWN BUTTON and a red arrow will appear.

6. To change the current VIDEO SOURCE, press the POINT UP/DOWN BUTTON(s) to move the arrow to a desirable video source and then press the SELECT (REAR CLICK) BUTTON.

7. The setting changed remains effective until the MAIN ON/OFF switch is turned off.

COLOR SYSTEM DISPLAY

MAIN MENU DISPLAY

This projector is compatible with the six major broadcast video standards: PAL, SECAM, NTSC, NTSC 4.43, PAL-M and PAL-N (COLOR SYSTEMs). When the color system is set to "Auto position", this projector can receive color programs from one of 4 systems (PAL, SECAM, NTSC or NTSC 4.43), automatically. However, if the video signal is not strong enough to detect the video format, the projector may not reproduce the proper video image. In case this happens, this projector allows you to choose a specific broadcast signal format.

1. Connect the video equipment to the PROJECTOR, and turn them on projector first.

2. Set MODE SELECT to "VIDEO MODE".

3. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

4. Press the POINT LEFT/RIGHT BUTTON(s) to select SYSTEM and press the SELECT (REAR CLICK) BUTTON. Another dialog box COLOR SYSTEM DISPLAY will appear. The current COLOR SYSTEM is displayed in the system window.

5. Press the POINT DOWN BUTTON and a red arrow will appear.

6. To change the current COLOR SYSTEM, press the POINT UP/DOWN BUTTON(s) to move the arrow to a desirable system and then press the SELECT (REAR CLICK) BUTTON.

7. The setting changed remains effective until the MAIN ON/OFF switch is turned off.

VIDEO MODE

VIDEO SOURCE SELECT

COLOR SYSTEM SELECT

IMAGE ADJUST DISPLAY

TABLE OF PICTURE IMAGE ADJUSTMENT

COLOUR TINT WHITE BALANCE (R/G/B) CONTRAST BRIGHTNESS SHARPNESS

63 63

63 31

630 0 0

DECREASES

INCREASES

DECREASES INCREASES

MORE PURPLE

MORE GREEN

LIGHTER DEEPER DARKER BRIGHTER SOFTER SHARPER

MAIN MENU DISPLAY

Picture adjustments have been preset at the factory. If you want to change the setting, operate the projector as follows.

1. Press MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select IMAGE and press the SELECT (REAR CLICK) BUTTON. Another dialog box IMAGE ADJUST DISPLAY will appear. This shows the current picture settings.

3. In this dialog box, you can adjust the settings by increasing or decreasing the levels shown as numbers. The items and the range of the levels that you can adjust are summarized in the table below.

4. Press the POINT DOWN BUTTON and a red arrow will appear.

5. Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN BUTTON(s).

6. To increase the level, point the arrow to ▲ and then press the SELECT (REAR CLICK) BUTTON. To decrease the level, point the arrow to ▼ and then press the SELECT (REAR CLICK) BUTTON.

7. You may want to store the settings in the memory so that you can recall them later. To store the settings, move the arrow to Stored and then press the SELECT (REAR CLICK) BUTTON. When you have stored the settings, "OK ?" is displayed for confirmation.

8. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON. The stored settings are permanently held even if the MAIN ON/OFF is switched off.

9. To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

10.If you do not want to store the settings, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON. The settings changed remains effective until the MAIN ON/OFF switch is turned off.

11.To recall the settings from the memory that you have stored, move the arrow to Reset and then press the SELECT (REAR CLICK) BUTTON. When you have reset the settings, "OK ?" is displayed for confirmation. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON. You can adjust the settings again if needed.

NOTE : "TINT" will be skipped in the PAL, SECAM, PAL-M and PAL-N mode.

VIDEO MODE

PICTURE IMAGE ADGUSTMENT

SCREEN ADJUST DISPLAY

MAIN MENU DISPLAY

This projector has the Wide function, which enables you to view a wider video image. WIDE function

This projector is able to project not only a normal video image (with 4 x 3 aspect ratio), but also a wider video image by compressing 4 x 3 image. This feature enable you to enjoy watching pictures like cinema images. You can switch either to WIDE or to REGULAR screen mode.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select SCREEN and press the SELECT (REAR CLICK) BUTTON. Another dialog box SCREEN ADJUST DISPLAY will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. To switch to "Wide" mode, move the arrow to Wide by pressing the POINT UP/DOWN BUTTON(s) and then press the SELECT (REAR CLICK) BUTTON.

5. To switch to "Regular" mode, move the arrow to Regular by pressing the POINT UP/DOWN BUTTON(s) and then press the SELECT (REAR CLICK) BUTTON.

6. The "Wide" setting remains effective until the MAIN ON/OFF switch is turned off.

VIDEO MODE

PICTURE SCREEN ADJUSTMENT

COMPUTER MODE

XGA 1

X X

COMPUTER SYSTEM DISPLAY

CURRENT MODE DISPLAY

MAIN MENU DISPLAY

This projector is adjustable to different types of computer display signals based on VGA, SVGA, XGA, SXGA or UXGA (See "COMPATIBLE COMPUTER SPECIFICATIONS" on the next page). If you set MODE SELECT to "COMPUTER", the projector will automatically process the incoming signal and project the proper image without any special setting. Although this will work in most cases, you may be required to manually set the projector for some computer signals. If the computer image is not reproduced properly, try the following procedure and switch to the computer display mode that you want to use.

1. Connect the COMPUTER to the PROJECTOR, and turn them on projector first.

2. Set MODE SELECT to "COMPUTER MODE (1 or 2)". This shows the current display mode initially detected by the projector in the system window. And "Current mode" display appears.

NOTE : 1. If the projector cannot discriminate or detect the input signal from the computer, the "Go PC adj." display

appears. NOTE : 2. If no input signal from the computer, the "No signal" display appears. NOTE : 3. If the incoming signal is digital, the "D-VGA", "D-SVGA", "D-XGA", D-SXGA" or "D-UXGA" display appears.

3. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

4. Press the POINT LEFT/RIGHT BUTTON(s) to select SYSTEM and press the SELECT (REAR CLICK) BUTTON. Another

dialog box COMPUTER SYSTEM DISPLAY will appear.

5. Press the POINT DOWN BUTTON and a red arrow will appear.

6. If you want to change the current display mode, move the arrow by pressing the POINT UP/DOWN BUTTON(s) to select

one of the modes.

7. Press the SELECT (REAR CLICK) BUTTON to change the display mode.

8. To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

When the mark ( ) is displayed as BLACK, computer system mode will be available on the next page. Move an arrow to the mark ( ) and press the SELECT (REAR CLICK) BUTTON to show computer system mode described on the next page.

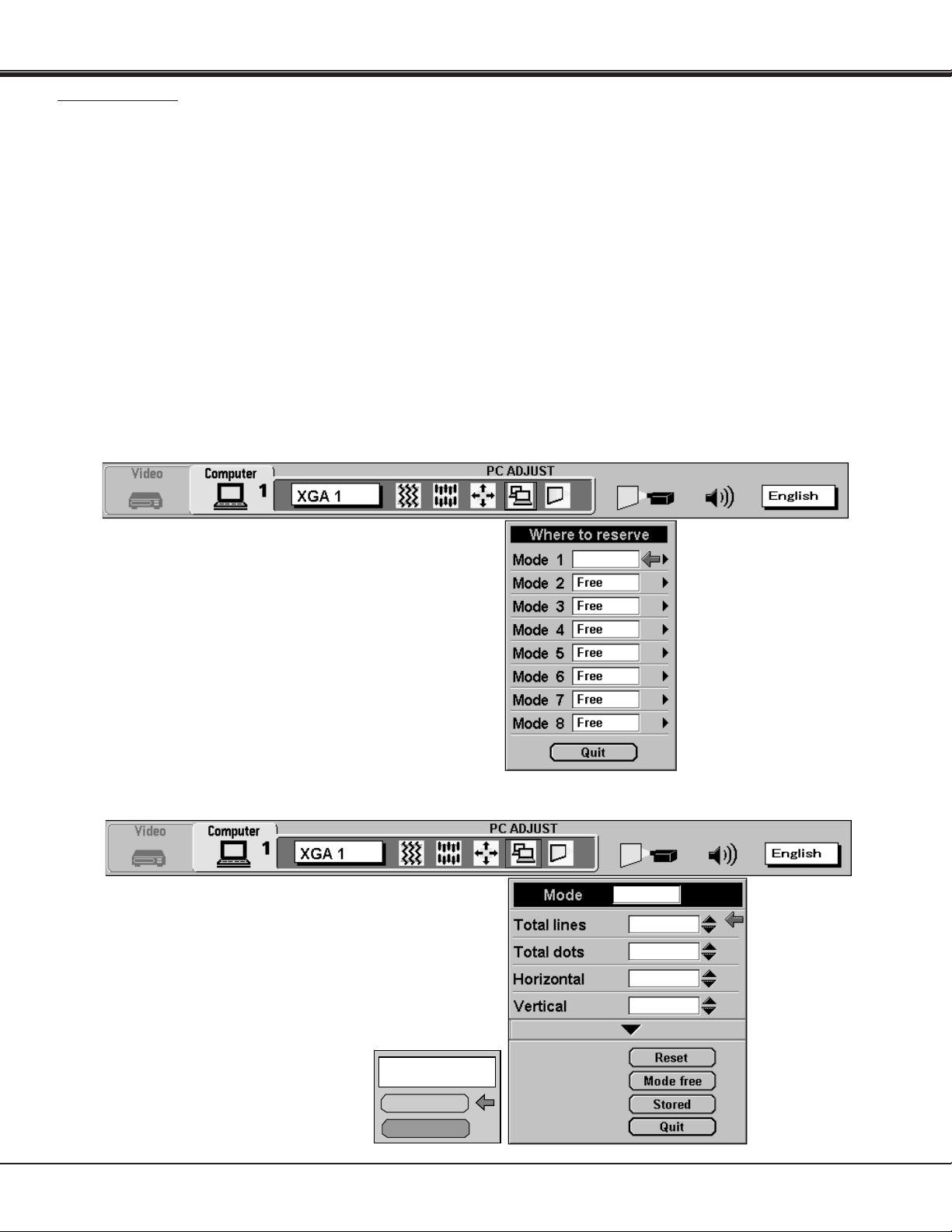

PC ADJUSTMENT

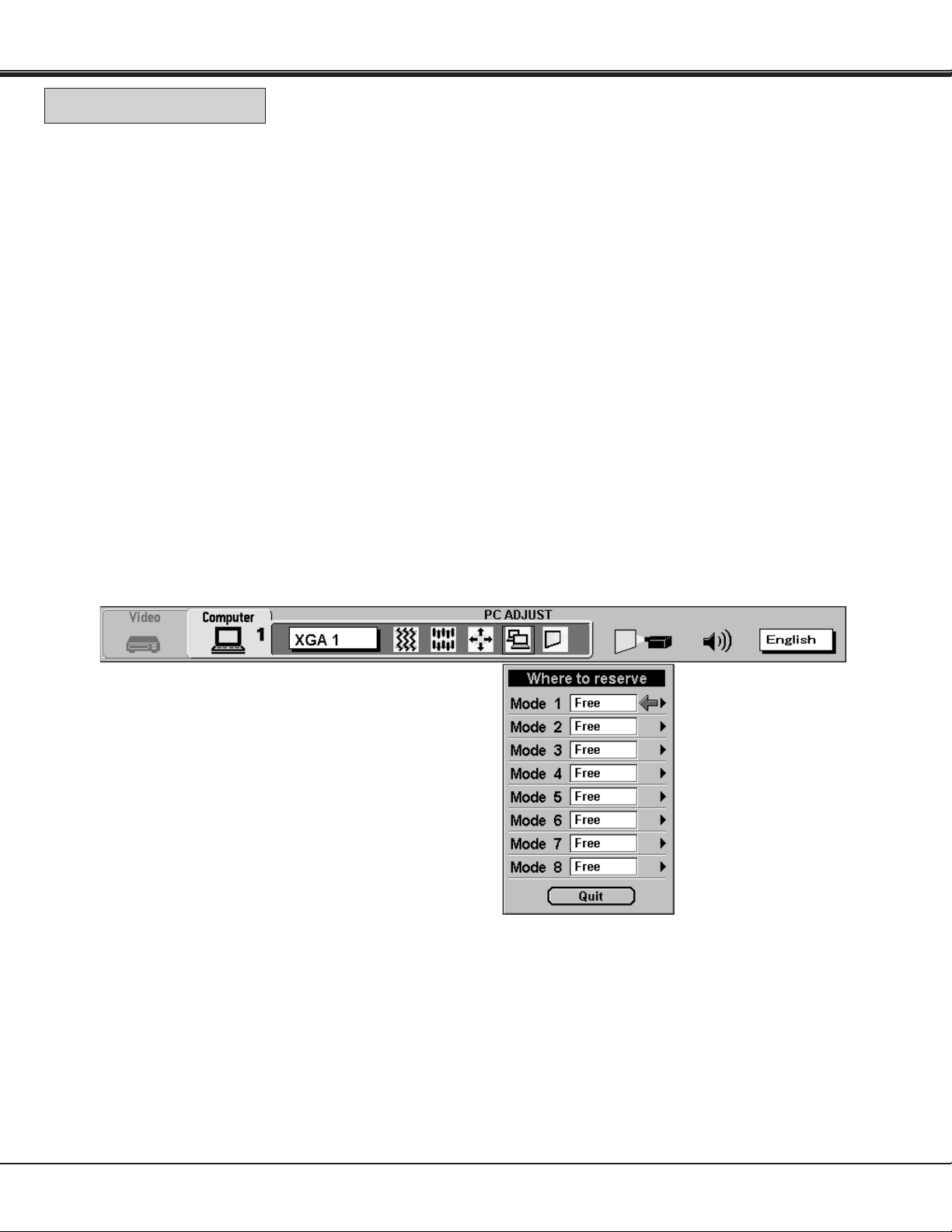

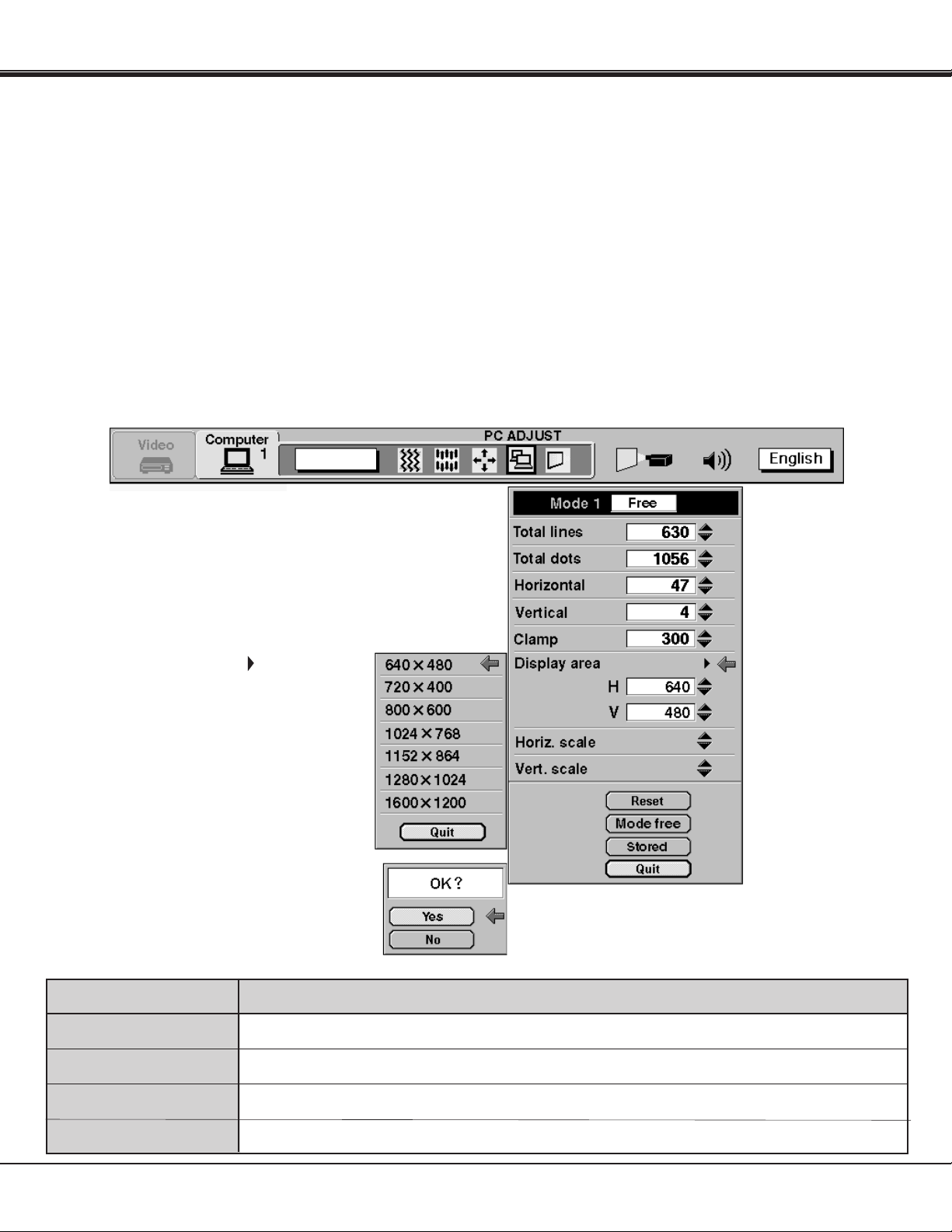

This is a special function that may be used when a computer image is not reproduced properly. (See the pages 45 ~ 48 for more detail.)

COMPUTER SYSTEM SELECT

ON-SCREEN DISPLAY

RESOLUTION

H-Freq. (kHz)

V-Freq. (Hz)

1024 x 768 60.023 75.03XGA3

ON-SCREEN DISPLAY

RESOLUTION

H-Freq. (kHz)

V-Freq. (Hz)

70.0931.47 720 x 400VGA2

Specifications are subject to change without notice. NOTE: Basically this projector can accept the signal from all computers with the above mentioned V, H-Frequency and

less than 200 MHz of Dot Clock.

0640 x 480 31.47 59.88

70.09

74.38

72.81

75.00

66.60

66.67

56.25

60.32

75.00

85.06

72.19

61.03

55.38

60.51

60.31

51.090

60.51

74.55

60.00

84.997

31.47

37.86

37.50

34.97

35.00

35.156

37.88

46.875

53.674

48.08

37.900

34.50

38.000

38.60

32.700

38.00

49.72

48.36

68.677

0640 x 400

640 x 480

0640 x 480

640 x 480

0640 x 480

800 x 600

0800 x 600

800 x 600

0800 x 600

800 x 600

0800 x 600

800 x 600

0800 x 600

800 x 600

0800 x 600

800 x 600

0832 x 624

1024 x 768 1024 x 768

VGA1

VGA3 VGA4 VGA5 VGA6

MAC LC13 MAC13 SVGA1

SVGA2 SVGA3 SVGA4 SVGA5 SVGA6 SVGA7 SVGA8 SVGA9 SVGA10 SVGA11

MAC16 XGA1

XGA2

70.07

74.92

60.02

54.58

79.35

87.17

75.08

70.40

58.60

60.00

59.98

60.01

67.19

76.107

60.02

65.20

75.60

86.00

94.00

75.06

75.08

56.47

60.31

48.50

44.00

63.48

36.00

60.24

64.20

62.50

63.90

63.34

63.74

71.69

81.13

63.98

61.20

71.40

50.00

68.68

75.00

80.00

1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768

1024 x 768

1152 x 864

1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024

1280 x 1024 1280 x 1024 1280 x 1024

1152 x 900

1280 x 1024

1152 x 870 1280 x 960 1280 x 1024

XGA4 XGA5 XGA6 XGA7

XGA8 XGA9

MAC19

77.0762.04

1024 x 768XGA10

75.7061.00

1024 x 768XGA11

86.96

35.522

1024 x 768

XGA12

58.2046.900

1024 x 768

XGA13

58.3047.00

1024 x 768

XGA14

SXGA1

SXGA2 SXGA3 SXGA4 SXGA5

SXGA6

SXGA7

SXGA8

75.02579.976

1280 x 1024

SXGA9

60.0060.00

1280 x 960

SXGA10

SXGA11

SXGA12

SXGA13

SXGA14

MAC21

60.18

63.79

1280 x 1024

SXGA19

60.0163.37

1280 x 1024

SXGA15

72.0076.97

1280 x 1024

SXGA16

66.0061.85

1152 x 900

SXGA17

86.70

46.43

1280 x 1024

SXGA18

MAC MAC

(Interlace)

0640 x 480VGA7 85.0043.2690

72.0058.03

1024 x 768

XGA15

85.024

91.146

1280 x 1024

SXGA20

60.0075.00

1600 x 1200

65.0081.25

1600 x 1200

UXGA2

70.00

87.501600 x 1200UXGA3

75.0093.750

1600 x 1200UXGA4

UXGA1

COMPUTER MODE

COMPATIBLE COMPUTER SPECIFICATIONS

COMPUTER MODE

AUTO IMAGE SETTING DISPLAY

MAIN MENU DISPLAY

The Auto image function is provided to automatically adjust Fine sync., Total dots and Screen position for most computers. NOTE: This auto image function will be skipped when the incoming signal is digital.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select AUTO IMAGE and press the SELECT (REAR CLICK) BUTTON. Another dialog box AUTO IMAGE SETTING DISPLAY will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. Move the arrow to an item(s) you want to adjust by pressing the POINT UP/DOWN BUTTON(s).

5. Change the setting "On" , press the SELECT (REAR CLICK) BUTTON.

6. Move the arrow by pressing the POINT UP/DOWN BUTTON(s) to select "Go!" and then press the SELECT (REAR CLICK) BUTTON. The auto image function is started now. It will take about 10 seconds.

7. To store the settings, move the arrow to Stored and then press the SELECT (REAR CLICK) BUTTON. When you have stored the settings, "OK?" is displayed for confirmation.

8. Move the arrow to "Yes" and then press the SELECT (REAR CLICK) BUTTON. The stored settings are permanently held even if the MAIN ON/OFF is switched off.

9. To quit the MENU, point to Quit and then press the SELECT (REAR CLICK) BUTTON.

10.This setting is temporarily effective until you turn off the projector or change the input signal. NOTE: The fine sync., total dots and screen position of same computers may not be fully adjusted with the "Auto Image

Function." In that case, use the "Picture Image" and/or "Picture Position" adjustments (see pages 43 ~ 44) to make fine-adjust them after the "Auto Image Function" is executed.

AUTO IMAGE FUNCTION

COMPUTER MODE

IMAGE ADJUST DISPLAY

TABLE OF PICTURE IMAGE ADJUSTMENT

WHITE BALANCE (R/G/B) CONTRAST BRIGHTNESS

127

63 63

TOTAL DOTS

FINE SYNC

The number of the total dots in one horizontal period. Adjust the number to match your PC image.

Adjust the picture as necessary to eliminate flicker from the display.

LIGHTER

DEEPER

DECREASE INCREASE

DARKER BRIGHTER

MAIN MENU DISPLAY

NOTE:

The projector may not reproduce a proper image for some UXGA signals. Since UXGA (1600 x 1200) image is converted to SXGA (1280 x 1024) image by partial scan, some lines and dots of the image do not appear. Some video noise of flicker on this compressed UXGA image cannot be eliminated even though you try to make a Fine sync adjustment.

Picture adjustments have been preset at the factory. If you want to change the setting, operate the projector as follows.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select IMAGE and press the SELECT (REAR CLICK) BUTTON. Another dialog box IMAGE ADJUST DISPLAY will appear. This shows the current picture settings.

4. Press the POINT DOWN BUTTON and a red arrow will appear.

5. Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN BUTTON(s).

6. To increase the level, point the arrow to ▲ and then press the SELECT (REAR CLICK) BUTTON. To decrease the level, point the arrow to ▼ and then press the SELECT (REAR CLICK) BUTTON.

8. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON. The stored settings are permanently held even if the MAIN ON/OFF is switched off.

9. To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

10.If you do not want to store the settings, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON. The settings changed remains effective until the MAIN ON/OFF switch is turned off.

PICTURE IMAGE ADJUSTMENT

NOTE:

"Fine sync" and "Total dots" will be skipped when the incoming signal is digital.

POSITION SETTING DISPLAY

MAIN MENU DISPLAY

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select POSITION and press the SELECT (REAR CLICK) BUTTON. Another dialog box POSITION SETTING DISPLAY will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. Move the arrow to a desirable direction ( , , or ) by pressing the POINT LEFT/RIGHT/UP/DOWN BUTTON(s) and press the SELECT (REAR CLICK) BUTTON to a desirable picture position.

5. You may want to store the settings to the memory so that you can recall them later. To store the settings, move the arrow to Stored and then press the SELECT (REAR CLICK) BUTTON. When you have stored the settings, "OK ?" is displayed for confirmation.

6. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON. The stored settings are permanently held even if the MAIN ON/OFF is switched off.

7. To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

8. If you do not want to store the settings, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON. The settings changed remains effective until the MAIN ON/OFF switch is turned off.

9. To recall the settings from the memory that you have stored, move the arrow to Reset and then press the SELECT (REAR CLICK) BUTTON. When you have reset the settings, "OK ?" is displayed for confirmation. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON. You can adjust the settings again if needed.

COMPUTER MODE

PICTURE POSITION ADJUSTMENT

COMPUTER MODE

MAIN MENU DISPLAY

This projector can automatically detect most display signals from most personal computers currently distributed. However, some computers adopt a special signal format which is different from the standard one and the projector cannot detect it. If this happens, the projector cannot reproduce a proper image. And a flickering picture, a non-synchronized picture, a noncentered picture or a skewed picture may be projected instead.

For those non-standard formats, this projector is provided with PC ADJUST, enabling you to precisely adjust several parameters to match with the input signal format. The projector has eight independent memory areas where you can store the parameter you have set. This enables you to recall the setting for a specific computer when you need it.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select PC ADJUST and press the SELECT (REAR CLICK) BUTTON. Another dialog box "Where to reserve" will appear.

3. In this dialog box, you will select one of the memory areas from among "Mode 1" to "Mode 8". If parameters have been previously set and stored in the memory, the status "Stored" will appear on the corresponding row. If not, "Free" will appear.

4. Press the POINT DOWN BUTTON and a red arrow will appear.

5. Move the arrow to one of the "Modes" (Free position) where you want to store the parameters by pressing the POINT UP/DOWN BUTTON(s). Press the SELECT (REAR CLICK) BUTTON to select it.

NOTE : If "Stored" appears in all Modes, no new PC parameter data can be stored. In this case, clear the PC parameter

data using Mode free Function.

PC ADJUSTMENT

NOTE: This function will be skipped when the incoming signal is digital.

OK ?

Yes

630

1056

ITEM TOTAL LINES TOTAL DOTS HORIZONTAL VERTICAL

FUNCTION

The number of the total vertical lines. Adjust the number to match your PC image. The number of the total dots in one horizontal period. Adjust the number to match your PC image. Adjustment of the horizontal picture position. When the image is not centered on the screen, adjust this. Adjustment of the vertical picture position. When the image is not centered on the screen, adjust this.

PC ADJUSTMENT DISPLAY 1

MAIN MENU DISPLAY

6. Another dialog box "PC ADJUSTMENT DISPLAY 1" will appear and the parameter data for the Mode you have selected is shown in this dialog box.

7. The parameters will be filled with the data determined by the projector according to the present signal input.

8. The function of the parameters and their values are summarized in the table as below.

9. Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN BUTTON(s).

10.To increase the level, point the arrow to ▲ and then press the SELECT (REAR CLICK) BUTTON. To decrease the level, point the arrow to ▼ and then press the SELECT (REAR CLICK) BUTTON.

11.If you want to store the settings in the memory, move the arrow to Stored and press the SELECT (REAR CLICK) BUTTON. When you have stored the settings, "OK ?" is displayed for confirmation. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON.

12.To recall the parameter data before setting, move the arrow to Reset and then press the SELECT (REAR CLICK) BUTTON. When you have reset the settings, "OK ?" is displayed for confirmation. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON. You can adjust the settings again if needed.

13.To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

14.If you quit the MENU without storing the settings in the memory, the parameter data you changed will not be kept.

15.The stored settings are permanently held even if the MAIN ON/OFF is switched off.

16.Adjust the data such as a "Clamp", "Display area", "Horiz. scale" and "Vert. scale" if needed, move the arrow by pressing the POINT UP/DOWN BUTTON(s) to select (▼). Press the SELECT (REAR CLICK) BUTTON.

COMPUTER MODE

XGA

ITEM CLAMP DISPLAY AREA HORIZ. SCALE

FUNCTION

Adjustment of the clamp level. When the image has a dark bar, try this adjustment.

Expanding or compressing level for the vertical direction.

Expanding or compressing level for the horizontal direction.

PC ADJUSTMENT DISPLAY 2

MAIN MENU DISPLAY

17. Another dialog box "PC ADJUSTMENT DISPLAY 2" will appear and the parameter data for the Mode you have selected is shown in this dialog box.

18. Move the arrow to an item that you want to adjust by pressing the POINT UP/DOWN BUTTON(s).

19. To increase the level, point the arrow to ▲ and then press the SELECT (REAR CLICK) BUTTON. To decrease the level, point the arrow to ▼ and then press the SELECT (REAR CLICK) BUTTON.

20. If you want to store the settings in the memory, move the arrow to Stored and press the SELECT (REAR CLICK) BUTTON. When you have stored the settings, "OK ?" is displayed for confirmation. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON.

21. To recall the parameter data before setting, move the arrow to Reset and then press the SELECT (REAR CLICK) BUTTON. When you have reset the settings, "OK ?" is displayed for confirmation. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON. You can adjust the settings again if needed.

22. To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

23. If you quit the MENU without storing the settings in the memory, the parameter data you changed will not be kept.

24. The stored settings are permanently held even if the MAIN ON/OFF is switched off.

VERT. SCALE

Adjustment the display area to match your PC.

COMPUTER MODE

Adjust the display area, move the arrow by pressing the POINT UP/DOWN BUTTON(s) to select ( ) and press the SELECT (REAR CLICK) BUTTON. Another dialog box "DISPLAY AREA DISPLAY" will appear. Move the arrow to an item that you want to select display area by pressing the POINT UP/DOWN BUTTON(s) and press the SELECT (REAR CLICK) BUTTON. Selected mode data will be displayed in H, V box. To close dialog, move the arrow to "Quit" and press the SELECT (REAR CLICK) BUTTON.

OK ?

Yes

630

1056

Stored

MAIN MENU DISPLAY

PC ADJUSTMENT DISPLAY

MODE FREE

The Mode free function is provided to confirm or clear the parameter data produced by PC ADJUST.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select PC ADJUST and press the SELECT (REAR CLICK) BUTTON.

Another dialog box "Where to reserve" will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. Move the arrow to one of the "Modes" (Stored position) that you want to confirm by pressing the POINT UP/DOWN

BUTTON(s). Press the SELECT (REAR CLICK) BUTTON. Another dialog box "PC ADJUSTMENT DISPLAY" will appear.

5. To quit the MENU, point to Quit and then press the SELECT (REAR CLICK) BUTTON.

6. To modify the parameter data, perform the steps 9 ~ 24 of PC ADJUSTMENT SECTION.

7. To clear the parameter data, move the arrow by pressing the POINT UP/DOWN BUTTON(s) to select Mode free. Press

the SELECT (REAR CLICK) BUTTON. "OK?" is displayed for confirmation.

8. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON to clear the parameter data.

9. To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

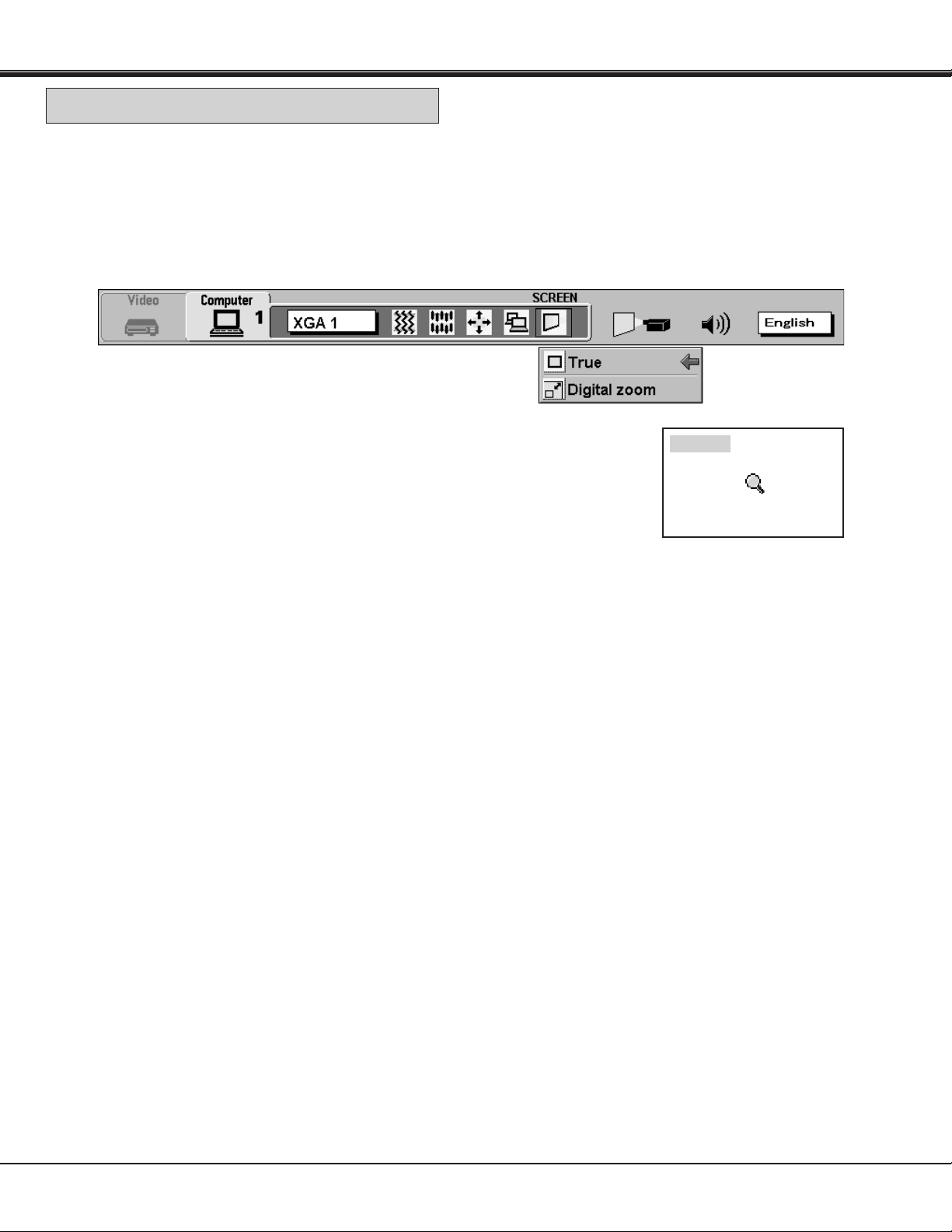

COMPUTER MODE

This projector can adjust the image size and pan the image with PICTURE SCREEN ADJUSTMENT.

1. Press MENU BUTTON and MAIN MENU DISPLAY dialog box will appear.

2. Press POINT LEFT/RIGHT BUTTON(s) to select SCREEN and press the SELECT (REAR CLICK) BUTTON. Another dialog box SCREEN ADJUST DISPLAY will appear.

3. Press POINT DOWN BUTTON and a red arrow will appear.

SCREEN ADJUST DISPLAY

MAIN MENU DISPLAY

4. To adjust the image size or pan the image, move the arrow to Digital zoom by pressing POINT UP/DOWN BUTTON(s) and then press SELECT (REAR CLICK) BUTTON. MAIN MENU DISPLAY and SCREEN ADJUST DISPLAY will disappear. The "D.zoom" and the magnifying-glass icon is displayed to indicate Digital zoom mode.

● This projector cannot display in the resolution more than 1600 x 1200. If your computer's screen resolution is higher than 1600 x 1200, reset the resolution to the lower before connecting the projector.

● The image data of VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768) or UXGA (1600 x 1200) is modified to fit the screen size in the initial mode.

● When the original image size is larger than the screen size (1280 x 1024), this projector becomes Digital Zoom mode automatically.

● The maximum size in expand mode is 4 times as large as the original screen size. (When original image size is smaller than the screen size (1280 x 1024) .

● The maximum size in expand mode is 3.5 times as large as the screen size (1280 x 1024). (When original image size is larger than the screen size (1280 x 1024).

● The minimum size in compress mode is the screen size (1280 x 1024) in SXGA or UXGA mode,1024 x 768 in XGA mode, 800 x 600 in SVGA mode or 640 x 480 in VGA mode.

● Panning function can work only when the image is expanded.

● The normal "Panning Operation" may not function properly if the computer system prepared with the "PC Adjust" is

used.

PICTURE SCREEN ADJUSTMENT

D. zoom

5. Move the magnifying-glass icon by pressing the POINT UP/DOWN/LEFT/RIGHT (POINTING PAD) BUTTON(s).

6. To expand the image, press SELECT (REAR CLICK) BUTTON. The image is magnified by degrees (Expand function).

7. To compress the image size, press FRONT CLICK button on the remote control.The size of image is reduced by degrees (Compress function).

8. To pan the image, press POINT UP/DOWN/LEFT/RIGHT (POINTING PAD) BUTTON(s). Move the magnifying-glass icon to screen end then the image move to the direction indicated (panning function).

9. To cancel the Digital Zoom mode, press other buttons (Except NORMAL and CURSOR BUTTONS).

10. Press the NORMAL BUTTON in Digital zoom mode, the image size changed to the screen size (1280 x 1024).

11. Press the CURSOR BUTTON in Digital zoom mode, the magnifying-glass icon is disappears on the screen. However, the Digital Zoom mode is held.

12..To turn the image size to true size (1280 x 1024 in SXGA or UXGA, 1024 x 768 in XGA, 800 x 600 in SVGA and 640 x 480 in VGA), move the arrow to True by pressing POINT UP/DOWN BUTTON(s) and then press SELECT (REAR CLICK) BUTTON. The image size is turned to the true size.

OTHER FUNCTION SETTING

This Projector is designed for connecting with USB Port of the computer or peripheral equipment that is to be standard. When this function is in the " " (Mouse) position, you control the pointer of the computer used the projector's

wireless remote control unit. When this function is in the " " (Control) position, you control the projector by computer.

NOTE: Before you control the projector by computer, install USB driver (optionally saled parts) and set up the computer

following instruction in the USB driver package. Contact your authorized dealer or service station.

This projector has other functions setting: Blue back, Display, Reverse T/B, Reverse R/L, Split wipe, Power management, USB, Remote control and Lamp age.

BLUE BACK (On or Off)

SPLIT WIPE (On or Off)

REVERSE L/R (On or Off)

REVERSE T/B (On or Off)

DISPLAY (On or Off)

USB (Mouse or Control)

POWER MANAGEMENT (On or Off)

When this function is in the "On" position, the projector will project a blue image without video noise on the screen when the video source is unplugged or turned off.

When this function is in the "On" position, on-screen displays always appear when adjustments are made. Although these on-screen displays are very helpful, these may spoil the view if adjustments are made during presentations. To avoid this, you can keep back certain displays by switching this function "Off". The followings are the displays that you can hide.

● Wait Display ● Mode Display ● Volume Display

● Mute Display ● Zoom/Focus/Lens shift Display ● D.Zoom Display

● Normal Display ● No show Display

When this function is in the "On" position, the top/bottom picture reverse.

Turn SPLIT WIPE function On in the SETTING menu. The picture will change into next one by sliding black image side ways when the input source is changed.

Change the input source by MODE button. The picture is replaced by black image from side ways to the center, and the next one appears from the center to side ways like drawing the black curtains.

Turn POWER MANAGEMENT function On in the SETTING menu. The projector is power save mode. In this mode, the projector LAMP is automatically off when no signal of the source for 5 minutes. Incoming the signal is again, the projector LAMP is automatically on.

When this function is in the "On" position, the left/right picture reverse capability lets you project onto a rear projection screen.

OTHER FUNCTION SETTING

SETTING DISPLAY

MAIN MENU DISPLAY

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select SETTING and press the SELECT (REAR CLICK) BUTTON. Another dialog box SETTING DISPLAY will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. Move the arrow to an item you want to set by pressing the POINT UP/DOWN BUTTON(s).

5. If you want to change the setting, press the SELECT (REAR CLICK) BUTTON.

6. To quit the MENU, point to Quit and then press the SELECT (REAR CLICK) BUTTON.

7. The settings are permanently kept even if the MAIN ON/OFF is switched off.

REMOTE CONTROL (Mode 1 or Mode 2)

This projector can be received two types signal from the remote control unit. One of the type is used the normal code (Mode 1), other is used expand code (Mode 2).

Turn REMOTE CONTROL function Mode 2 in the SETTING menu. The projector can be received the expand cord.

Change of the signal mode in the remote control unit

Press the "MENU" and "NORMAL" button on the remote control unit for 10 seconds simultaneously. And now changed the signal mode.

REMOTE CONTROL UNIT

Mode 1

Press the "MENU" and "NORMAL" BUTTONS.

Mode 2

Press the SELECT (REAR CLICK) BUTTON.

PROJECTOR

Mode 1

Mode 2

Setting the Blue back, Display, Reverse T/B, Reverse R/L, Split wipe, Power management, USB and Remote control

OTHER FUNCTION SETTING

MAIN MENU DISPLAY

SETTING DISPLAY

NOTE: Do not reset the LAMP REPLACEMENT MONITOR TIMER, except after the lamp is replaced.

1. Press the MENU BUTTON and the MAIN MENU DISPLAY dialog box will appear.

2. Press the POINT LEFT/RIGHT BUTTON(s) to select SETTING and press the SELECT (REAR CLICK) BUTTON. Another dialog box SETTING DISPLAY will appear.

3. Press the POINT DOWN BUTTON and a red arrow will appear.

4. Move the arrow by pressing the POINT UP/DOWN BUTTON(s) to select Lamp age and then press the SELECT (REAR CLICK) BUTTON. When you reset the lamp replace monitor, "lamp replace monitor reset?" is displayed for confirmation.

5. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON, "OK?"is displayed for confirmation. Move the arrow to Yes and then press the SELECT (REAR CLICK) BUTTON, the lamp replace monitor is reset.

6. Move the arrow to No and then press the SELECT (REAR CLICK) BUTTON. The lamp replace monitor is not reset.

7. To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

LAMP AGE

The removable air filter prevents dust from accumulating on the surface of the projection lens and projection mirror. Should the air filter become clogged with dust particles, it will reduce the cooling fan's effectiveness and may result in internal heat build up and reduce the life of the projector.

To clean the air filter, follow the cleaning procedures below:

1. Turn the LAMP POWER ON/OFF button OFF.

2. Remove the air filter cover.

3. Remove the air filter and sponge from the filter cover.

4. Clean the air filter with a vacuum cleaner.

5. Replace the air filter and sponge. Make sure that air filter cover is fully inserted.

Do not clean with water. Doing so may damage the air filter. Do not operate the projector with air filter removed.

RECOMMENDATION

TO ENJOY PICTURE IMAGE, USE THE PROJECTOR IN THE CLEAN ENVIRONMENT. USAGE IN THE CLEAN ENVIRONMENT IS RECOMMENDED.

When used under the dusty or smoky conditions, dust may accumulate on the liquid crystal panel and lens inside it, and may resultantly be projected on the screen together with the picture. When the above symptoms are noticed contact the place where your authorized dealer or service station for the cleaning.

TEMPERATURE WARNING INDICATOR

AIR FILTER COVER

AIR FILTER

SPONGE

AIR FILTER COVER

The TEMPERATURE WARNING INDICATOR flashes red when the internal temperature of the projector exceeds the normal temperature. Possible causes for the temperature warning may be :

1. Ventilation slots of the projector are blocked. In such an event, reposition the projector so that ventilation slots are not obstructed.

2. Air filter is clogged with dust particles. Remove dust from the air filter by following instructions in the Air Filter Care and Cleaning section above.

3. If temperature warning indicator remains on after performing the checks listed above, cooling fan/internal circuits may be malfunctioning. Request service from an authorized dealer or service station.

APPENDIX

MEINTENANCE

TEMPERATURE WARNING INDICATOR

AIR FILTER CARE AND CLEANING

APPENDIX

NOTE ON THE LAMP REPLACEMENT INDICATOR AND MESSAGE

The LAMP REPLACEMENT INDICATOR and the warning message "LAMP REPLACEMENT" indicates the guide of the lamp life.

It is unnecessary to replace the lamp immediately if the projector is operating normally with the indicator on. If the LAMP REPLACE INDICATOR is lit (and warning message "LAMP REPLACEMENT" is displayed on the

screen) and the power is not be turned on by pressing the power button (Power is turned off approximately 20 seconds after power button is pressed.), the lamp replacement is required. Please contact a service for the lamp replacement.

Follow these steps to replace the lamp assembly.

1. Turn off the projector and allow the projector to cool thoroughly.

2. Disconnect the AC cord from the projector.

3. Remove 2 screws with a screwdriver and disconnect the lamp cover.

4. Remove 2 screws with a screwdriver and pull out the lamp assembly by grasping the handle.

5. Replace the lamp assembly.

6. Tighten 4 screws to secure the lamp cover to the lamp assembly.

7. Connect the detachable AC cord to the projector.

8. Reset the lamp replacement monitor timer.

(See "LAMP AGE" section on page 52.)

NOTE: Do not reset the LAMP REPLACEMENT MONITOR TIMER, except

after the lamp is replaced.

● For continued safety, replace with a lamp assembly of the same type.

● Allow the projector to cool for at least 45 minutes before you open the lamp cover. The inside of the

projector can become very hot.

● Do not drop the lamp module or touch the glass bulb ! The glass can shatter and cause injury.

LAMP REPLACEMENT INDICATOR

LAMP ASSEMBLY

HANDLE

LAMP COVER

LAMP REPLACEMENT

When the Projection Lamp of this projector draws to an end, the LAMP REPLACEMENT indicator lights yellow and the warning message "LAMP REPLACEMENT" appears as the right figure. When the warning message is displayed, the Projection Lamp should be replaced.

To terminate the warning message.

Replace the Projection Lamp and reset the LAMP REPLACEMENT MONITOR TIMER (See "LAMP AGE" section on page 52.), and the warning message is terminated.

To erase the warning message in a moment.

To erase the warning message for a moment, move the arrow to "YES" by pressing the POINT UP/DOWN BUTTON(s) and then press the SELECT (REAR CLICK) BUTTON. This procedure is temporary measure, and the warning massage appears again when the projector is turned on next time.

LAMP REPLACEMENT

Before calling your dealer or service station for assistance, follow these steps, to make sure everything is properly connected.

1. Make sure you have connected the projector to your equipment as described in section "CONNECTING THE PROJECTOR" on pages 14 ~ 21.

2. Check cable connections. Verify that all computer, video and power cords are properly connected.

3. Verify that power is switched on.

4. If the projector still does not display an image, restart the computer.

5. If the image still does not display, unplug the projector from the computer and check the computer monitor's display. The problem may be with your graphics controller rather than with the projector. (When you reconnect the projector, remember to turn the computer and monitor off before you power up the projector. Power the equipment back up in this order: Projector, monitor, computer)

6. If the problem still exists, check the following chart.

TROUBLESHOOTING

APPENDIX

Follow these steps to clean the projection lens:

1. Apply a non-abrasive camera lens cleaner to a soft, dry cleaning cloth. Avoid using an excessive amount of cleaner. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.

2. Lightly wipe the cleaning cloth over the lens.

3. If you don't intend to use the projector immediately, replace the lens cover.

CLEANING THE LENS

Problem:

No power.

Image is out of focus.

Try these Solutions:

● Plug the projector into an AC outlet.

● Turn the MAIN ON/OFF button to ON.

● Press the LAMP POWER ON/OFF switch to ON.

● Be sure the READY INDICATOR light is ON.

● Wait one minute after the projector is turned OFF before turning the projector

back on.

NOTE: After pressing the LAMP POWER ON/OFF button to OFF. The projector

functions as indicated.

1. The LAMP POWER indicator will light and the READY indicator will turn off.

2. After one minute, the READY indicator will light green again and the projector may be turned on by pressing the LAMP POWER ON/OFF button.

● Check temperature warning indicator. If the indicator flashes red, the projector cannot be turned on.

(See "BASIC OPERATION" section on page 32).

● Check the projection lamp.

● Replace the lamp cover. (Check the interlock switch inside of the lapm cover.)

● Adjust the focus.

● Make sure the projection screen is at least 4.9' (1.5 m) from the projector.

● Check the projection lens to see if it needs cleaning.

NOTE: Moving the projector from a cool temperature location to a warm

temperature location may result in moisture condensation on the lens. In such an event, leave the projector OFF and wait until condensation disappears.

No sound.

Problem:

Check Reverse L/R feature. (See "OTHER FUNCTION SETTING" section on pages 50 ~ 51).

Picture is L/R Reversed.

Check Reverse T/B feature. (See "OTHER FUNCTION SETTING" section on pages 50 ~ 51).

Picture is T/B inverted.

Check Display feature. (See "OTHER FUNCTION SETTING" section on pages 50 ~ 51).

Some displays are not seen during the operation.

● Check audio cable connection from audio input source.

● Adjust audio source.

● Press the VOLUME (+) button.

● Press the MUTE button.

● Check the batteries.

● Make sure nothing is blocking between the remote control sensor and remote

control unit.

● Make sure you are not too far from the projector when using the remote control unit. {Maximum operate range 16.4 ' (5 m)}.

● Check the transmitted signal mode from remote control unit. (See "OTHER FUNCTION SETTING" section on pages 50 ~ 51).

Remote control unit doesn't work.

● Check the cable connection between the projector and the computer.

● Check the mouse setting on your computer.

● Turn on the projector before you turn on the computer.

Wireless mouse function does not work.

Try these Solutions:

APPENDIX

If you still need help after checking the table above, you should call your dealer's technical support line and explain your problem. If your dealer cannot solve your problem, please call Proxima's customer service. The number is :

USA or Canada Phone (800) 447-7692

FAX (619) 457-9647

Rest of Word Phone (619) 457-5500 Europe Phone +31-43-358-5210

Support FAX +31-43-358-5202 http://www.proxima.com

In the event that your unit is determined to be defective, you'll be issued a Return Authorization Number.

After you've received this number, send the unit, a copy of your sales receipt, and a description of the problem, freight prepaid, to Proxima. Clearly note the Return Authorization Number on the outside of the shipping box.

Where to Get Help :

TECHNICAL SPECIFICATIONS

Projector Type Dimensions (W x H x D) Net Weight LCD Panel System Number of Pixels Colour System Scanning Frequency Projection Image Size (Diagonal) Contrast Ratio Horizontal Resolution Projection Lens Motorized Lens Shift Throw Distance Projection Lamp Projection Mirror AV Input Jacks

Computer Audio Input Jack

Video Monitor Output Jack

Audio Monitor Output Jacks Computer Input 1 Jack

Computer Input 2 Jack

Other Jack Built-in Speaker Image Elevation Adjustment Voltage

Power Consumption Operating Temperature Storage Temperature

Remote Control Battery

Multi-media Projector Pro AV 9400

15.4" (390 mm) x 9.2" (234 mm) x 22.9" (582 mm)

39.2 Ibs (17.8 kg)

1.8" TFT Active Matrix type (Thin Film Transistor) x 3 3,932,160 {1,310,720 (1,280 x 1,024) x 3} 6 colour system (PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N) H-sync. 15 ~ 100 KHz, V-sync. 50 ~ 100 Hz Adjustable from 40" to 600" 400:1 800 TV lines F2.0 ~ 2.3 lens with f=75.7 mm ~ 97.5 mm Motor zoom and focus ± 760 mm on 100" screen

4.9' (1.5 m) ~ 80.7' (24.6 m) Metal Halide, 400 watt type Dichroic mirror and X-prism system

BNC Type {Video/Y, C/Cb (B-Y), Cr (R-Y)} x 2 sets, RCA Type (Audio R and L) x 2 sets and DIN 4 pin (S-Video) x 2 sets

RCA Type (R and L) x 2 sets

Computer Output Jack Computer Audio Output Jack

HDB15 pin Terminal RCA Type (R and L) x 1 set

BNC Type {Video/Y, C/Cb (B-Y),Cr (R-Y)} x 1 set and DIN 4 pin (S-Video) x 1 set

RCA Type (R and L) x 1 set

BNC Type (R, G, B, H and V), Multi-pole 12 pin (Control port) and USB port

MDR 20 pin Terminal (Digital), HDB15 pin Terminal (Analog), Multi-pole 12 pin (Control port) and USB port

Wired Remote Jack and Serial port (DB 9) INT. SP. Stereo (R and L), 3 watt RMS (T.H.D.10%) Up to 4°C 100 ~ 120 V, 200 ~ 240 V AC, 50/60 Hz

7.2/3.6 A (Max. Ampere) 41°F ~ 95°F ( 5°C ~ 35°C)

14°F ~ 140°F (10°C ~ 60°C)

(2) AA, UM3 or R06 Type x 2 sets

APPENDIX

This symbol on the nameplate means the product is Listed by Underwriters Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Proxima Corporation warrants that the Proxima® Multimedia Projector Model Pro AV 9400 product manufactured by Proxima is free from defects in materials and workmanship under normal use during the Warranty Period. The Warranty Period commences on the day of purchase by the end-user. The Warranty Per iod is two years. The projector lamp is not covered by this Warranty. Each Proxima product is manufactured from new parts, or new and some used parts. In some cases, the product may have been delivered to another end-user and then returned. In all cases, the product has undergone testing and quality inspection, and Proxima's full warranty terms apply. The end-user's sales receipt or invoice showing the date of purchase of the product and the name of the Reseller is proof of the date of purchase. The Warranty extends only to the original purchaser and is not transferable. During the Warranty Period, Proxima will, at no additional charge, repair or replace defective parts or at the option of Proxima, replace the entire unit. This Limited Warranty does not extend to any Proxima product that has been damaged or been rendered defective (a) as a result of accident, misuse, or other abuse; (b) by the use of parts not manufactured or sold by Proxima; or (c) by modification of the product; or (d) as a result servicing by non-authorized personnel.

Warranty

Limitation of Warranties

The foregoing warranty is expressly in lieu of any other express or implied warranties, including, without limitation, warranties of merchantability or fitness for a particular pur pose. To the extent not prohibited by law, all statutory warranties are hereby waived and excluded from this warranty. Proxima expressly disclaims all warranties not stated in this Limited Warranty.

For Americas: Proxima Corporation

9440 Carroll Park Drive San Diego, CA 92121

Ph: (619) 457-5500

(800) 447-7692 (U. S. and Canada.)

Fax. (619) 457-9647 www.proxima.com <http://www.proxima.com>

For Europe, Asia, Africa, Australasia: ASK Proxima ASA

K. G. Meldahlsvei 9 Postboks 1403 N-1602 Fredrikstad tel. +47-69 34 01 55 fax. +47-69 34 06 32

Technical Support & Service Horsterweg 24 6191 RX Beek The Netherlands tel. +31-43 34 358 5210 fax. +31-43 34 358 5202

4 /99 610 277 8281 (1AA6P1P1769-- M6VF)

Printed in Japan

Part No. 710-00830-1

Proxima Pro AV 9400 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
