Proview XAP User Manual

User ' s Guide

XAP Series

LCD Monitor

XA7-17i

XA7-17i

XA7-19i

XA7-19i

©2005 by Xerox Corporation. All rights reserved.

Copyright protection claimed includes all forms and matters of copyrightable material

and information now allowed by statutory judicial law or hereinafter granted, including
without limitation, material generated from the software programs which are displayed
on the screen such as icons, screen displays, looks, etc.

XEROX® and all Xerox product names mentioned in this publication are trademarks

of XEROX CORPORATION. Other company trademarks are also acknowledged.

Changes are periodically made to this document. Changes, technical
inaccuracies, and typographic errors will be corrected in subsequent editions.

2

Xerox© LCD Monitor User’s Manual

Table of Contents

CE Marking Declaration Of Conformity .................................................4

Federal Communications Commission (FCC) Statement ....................5

Important Safety Instructions .................................................................6

1 Introduction

Features ........................................................................................................ 9

Package Contents .......................................................................................10

Front View and Controls .............................................................................. 11

2 Installation

Connecting Your LCD Monitor to a Computer ............................................ 12

Method 1: Analog (D-SUB) Connection ..................................................12

Method 2: Digital (DVI) Connection ........................................................14

Using Your LCD Monitor ..............................................................................16

Installing the Wall Mount (optional) to Your LCD Monitor ............................20

3 OSD Menu

Using the OSD Menu ..................................................................................21

The OSD Options ........................................................................................22

4 Technical Information

Preset Mode Timing Chart ...........................................................................25

DVI Connector PIN Assignment ..................................................................26

D-SUB Connector PIN Assignment ............................................................. 27

Plug and Play .............................................................................................. 28

Visual Inspection ......................................................................................... 28

Troubleshooting ...........................................................................................29

Specifications .............................................................................................. 30

Authorized Service Centers .........................................................................31

RECYCLING PLACE

ENGLISH

3Xerox© LCD Monitor User’s Manual

Recycling Place

EUROPE
When disposing of Proview products in Europe, please contact one of the following three
locations to make arrangements for recycling.

Proview International (UK) Limited
30 The Avenue, Watford, Hertfordshire
WD17 4AE United Kingdom
Timothy Lo
Tel: [phone]
Fax: [phone]
Email: [e-mail]

PGL Europe B.V. (Proview Group Limited Rotterdam)
Satijnbloem 37,
3068 JP
Rotterdam
Hollande
David Hsieh
Tel: [phone]
Fax: [phone]
Email: [e-mail]

Xoal bvba
Raketstraat 100-B1130
Bruessels
Mr. Leo Starckx
Tel: [phone]
Fax: [phone]
Email: [e-mail]
[e-mail]

ASIA
When disposing of Proview products in Asia, please contact the following location to make
arrangements for recycling.

Proview Technology (ShenZhen) Co., Ltd.
North Block 21, 23# Shatoukok Free Trade Zone, ShenZhen, China.
Mr. Dennis Chang
Tel: [phone]

Fax: [phone]
Email:[e-mail]

AMERICA
When disposing of Proview products in America, please call the following location to make
arrangements for recycling.

Proview Technology, Inc. (U.S.A.)
7373 Hunt Avenue, Garden Grove, CA 92841 U.S.A.
Patrick Yen
Tel:[phone]
Fax:[phone]
Email:[e-mail]

“THIS DISPLAY UNIT IS AN ELECTRIC DEVICE WHICH MAY CONTAIN HAZARDOUS MATERIALS
AND COMPONENTS, AND WHICH MUST BE DISPOSED OF AT END OF LIFE ACCORDING TO
THE PROPER PROCEDURE”

FCC/CE

4

Xerox© LCD Monitor User’s Manual

CE Marking
Declaration Of Conformity

This LCD monitor complies with the requirements of the EC
Directive 89/336/EEC “EMC Directive” and 73/23/EEC “Low
Voltage Directive” as amended by Directive 93/68/EEC.
The electro-magnetic susceptibility has been chosen at a
level that gives correct operation in residential areas,
business and light industrial premises and small-scale
enterprises, inside as well as outside of the buildings.
All places of operation are characterized by their connection
to the public low voltage power supply system.

FCC/CE

ENGLISH

5Xerox© LCD Monitor User’s Manual

This equipment has been tested and found to comply with the limits
of a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

1. Reorient/Relocate the receiving antenna.

2. Increase the separation between the equipment
and receiver.

3. Connect the equipment into an outlet on a circuit which is
different from what the receiver is connected to.

4. Consult the dealer or an experienced radio/TV technician

for help.

CAUTION:

Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the user
authority to operate the equipment.

Federal Communications

Commission (FCC) Statement

Important Safety Instructions

6

Xerox© LCD Monitor User’s Manual

To prevent any injuries, the following safety precautions should
be observed in the installation, use, servicing and maintenance
of this equipment.

Before operating this equipment, please read this manual
completely, and keep it nearby for future reference.

Important Safety Instructions

Warnings

• Do not place the equipment on any uneven or unstable
carts, stands, tables, shelves etc. The equipment may fall,
causing serious injury to children or adults and serious
damage to the equipment itself.

• Use only a cart or stand recommended by the manufacturer.
This equipment and recommended cart or stand should be
handled with care. Quick stops, excessive force, and uneven
surfaces may cause the equipment and cart/stand to
overturn.

• Do not disable the 3-wire grounding type plug. The
grounding pin on the 3-prong plug is an important feature.
Removing the grounding pin will increase the risk of
damaging the equipment. If you can not fit the plug into the
electrical outlet, contact an electrician to install a grounding
outlet.

• Always operate this equipment from the type of power
source indicated on the rear of the serial/model plate.

• Never overload wall outlets and extensions.

• Use and handle the power cord with care.

• Do not place any heavy objects on the AC power cord.

• Do not pull the AC power cord. Do not handle the AC power
cord with a wet hand.

Important Safety Instructions

ENGLISH

7Xerox© LCD Monitor User’s Manual

• Do not touch the power cord and antenna cable during
lightning.

• Remove the plug from the wall outlet if the equipment will
not be used for a long period of time.

• Do not place, use or handle this equipment near water.

• Never expose the equipment to liquid, rain, or moisture.

Seek qualified service if any of the above is spilled into the

equipment.

• Do not attempt to service the equipment yourself.

• Opening and removing the covers may expose you to
dangerous voltage or other hazards and may void your
warranty. Refer service to qualified personnel.

• Always remove the power cord from the outlet before
cleaning the equipment.

• Never use liquid or aerosol cleaners on the equipment.
Clean only with a soft dry cloth.

• Do not expose the equipment to extreme temperature or to
direct sunlight, as the equipment may heat up and suffer
damage.

• Do not install the equipment near any heat sources such as
radiators, heat registers, stoves, or any other apparatus that
might produce heat.

• Do not block any ventilating openings. Leave an open space
around the equipment.

• Never place the equipment :on a bed, sofa, rug, or any other
similar surfaces; too close to drapes/curtains/walls, in a
bookcase, built-in cabinet, or any other similar places that
may cause poor ventilation.

(continued on next page)

Important Safety Instructions

8

Xerox© LCD Monitor User’s Manual

• If any of the following conditions occur, unplug the power
cord from the outlet and request service from qualified
personnel.

a. The power cord or plug is damaged.
b. Liquid is spilled into the product .
c. An object falls onto or into the product.
d. The product has been dropped or damaged.
e. The product’s display is abnormal.

DISPOSAL OF WASTE ELECTRONIC EQUIPMENT BY PRIVATE
HOUSEHOLDS WITHIN THE EUROPEAN UNION

This sign indicates that this product may not be disposed of with your
regular household waste. The recycling and separate collection of such
products is your responsibility. Please drop off the above-mentioned
waste at a designated place for recycling waste electrical and electronic
equipment. If you do not know where to drop off your waste equipment
for recycling, please contact your local city office or household waste

collection service.

9Xerox© LCD Monitor User’s Manual

Introduction

ENGLISH

• Rapid Video Response
Fast action media such as gaming, DVD and video

conferencing will playback smoothly thanks to the rapid video
8ms response time of the LCD panel.

• Adjustable Ergonomic Xstand
This stand is versatile for users to make any adjustment

comfortable for use. Besides the existing VESA mount ability,

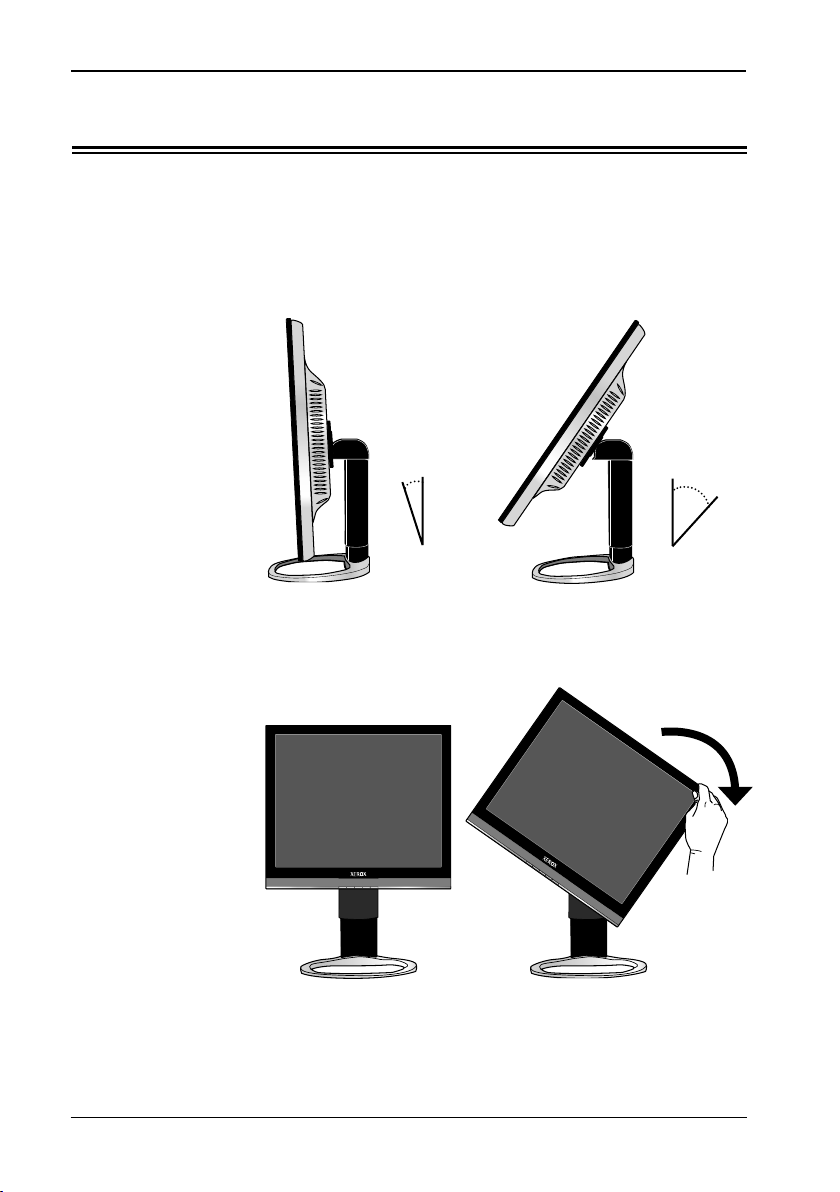

users can tilt, swivel, pivot and adjust the height of the
monitor.

• XshieldTM Protective Glass
Xshield protective glass combines extra LCD protection with

sophisticated visual flair.

• Anti-Reflective Coating
Special panel coating to efficiently reduce distracting glare on

images viewed.

• Multimedia Enhanced Speakers
True multimedia sound without using valuable desktop space.

The XAP series features two built-in 2w stereo speakers
integrated into the stylish design.

• Professional DVI Input
Digital Video Input (DVI) provides precise digital image

display, and the XAP series the flexibility to accept both
digital or analog signals.

1 Introduction

Features
