Proview HV-147 User Manual

USER GUIDE
LCD TV
Component Video Inputs
Multiple I/O Support
Digital Noise Reduction
Progressive Scan Display
Excellent Audio Performance with BBE
LCD TV User Guide
1
FEDERAL COMMUNICATIONS
COMMISSION(F.C.C) STATEMENT
This equipment has been tested and found to comply with the limits of a
class B digital device. Pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit which is different
from what the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user authority to operate the equipment.
F.C.C.
LCD TV User Guide
2

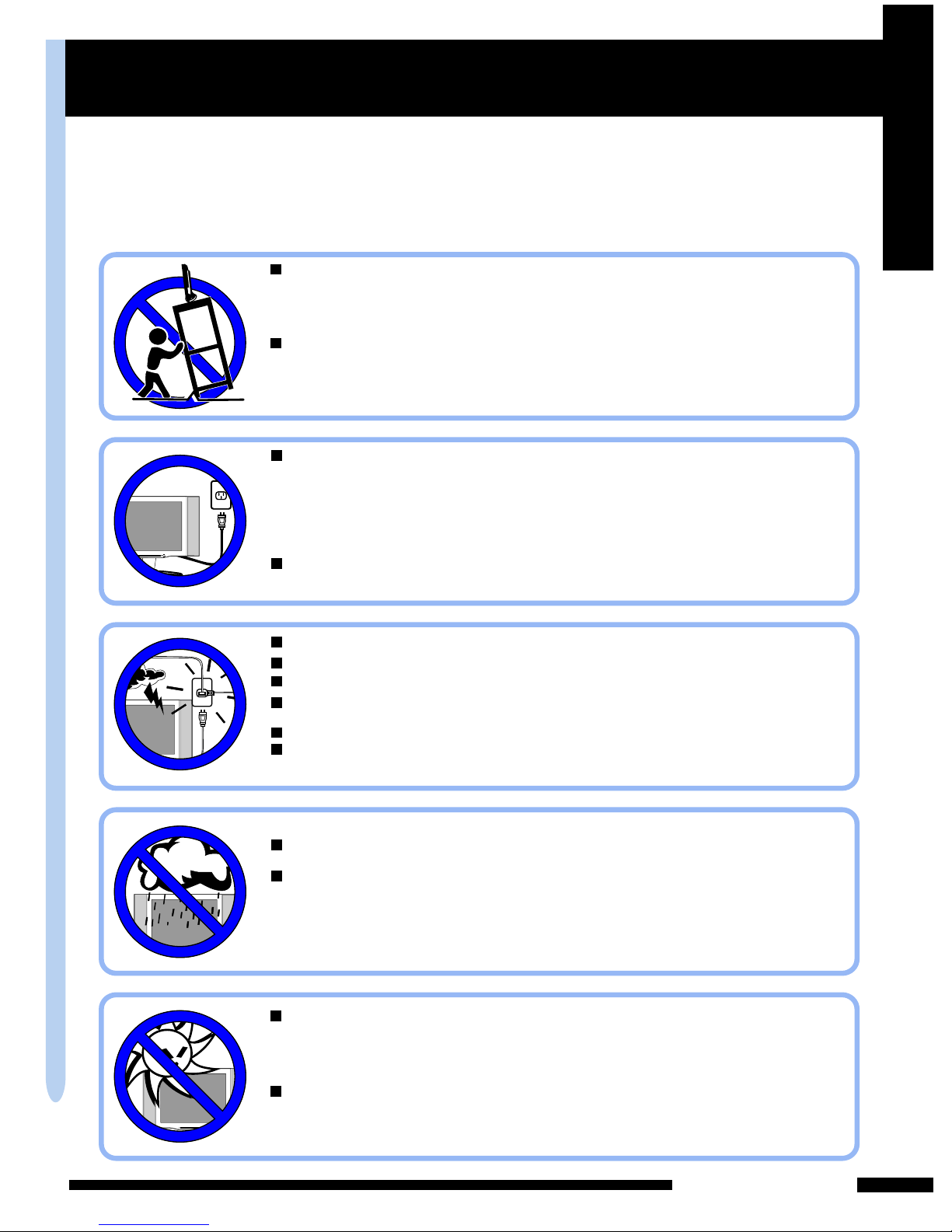

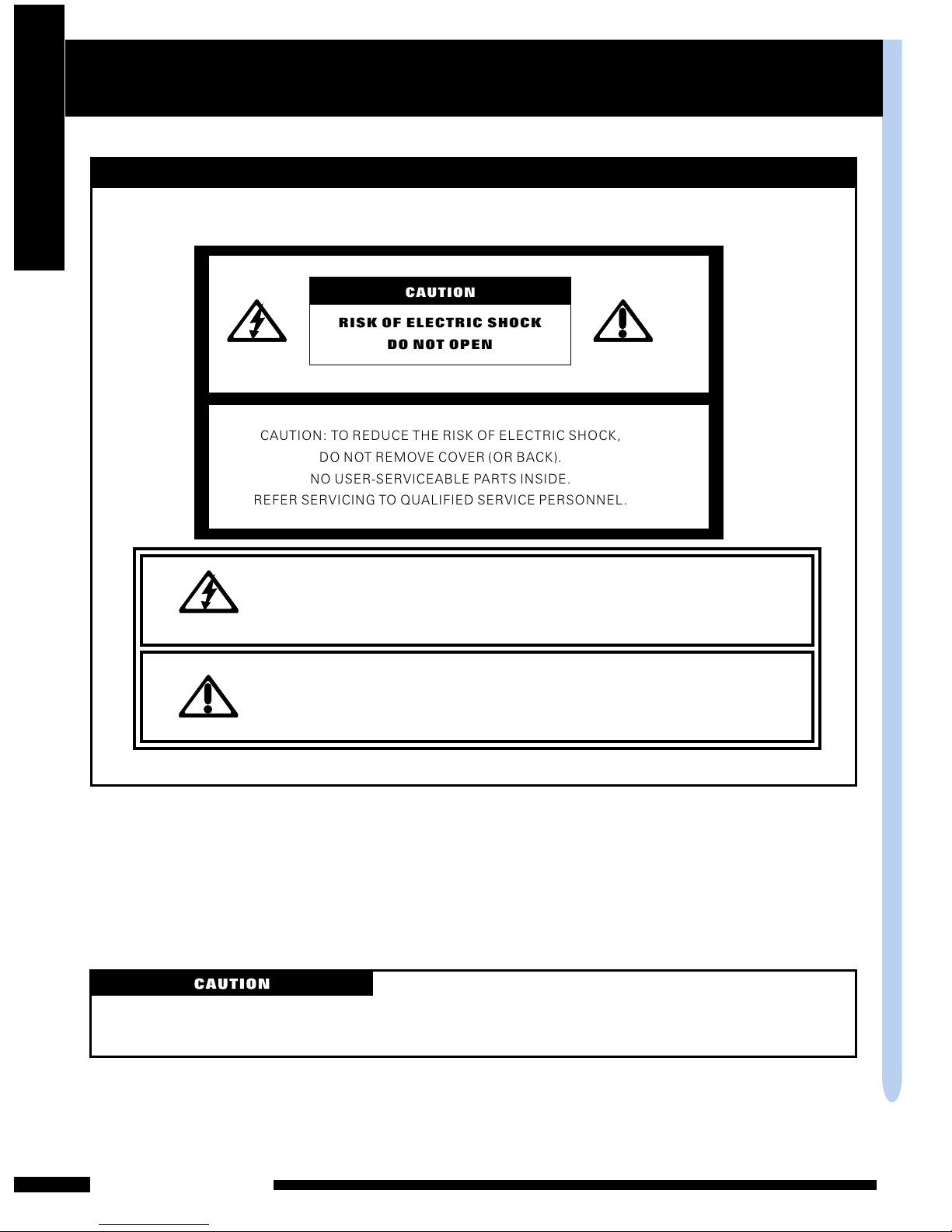

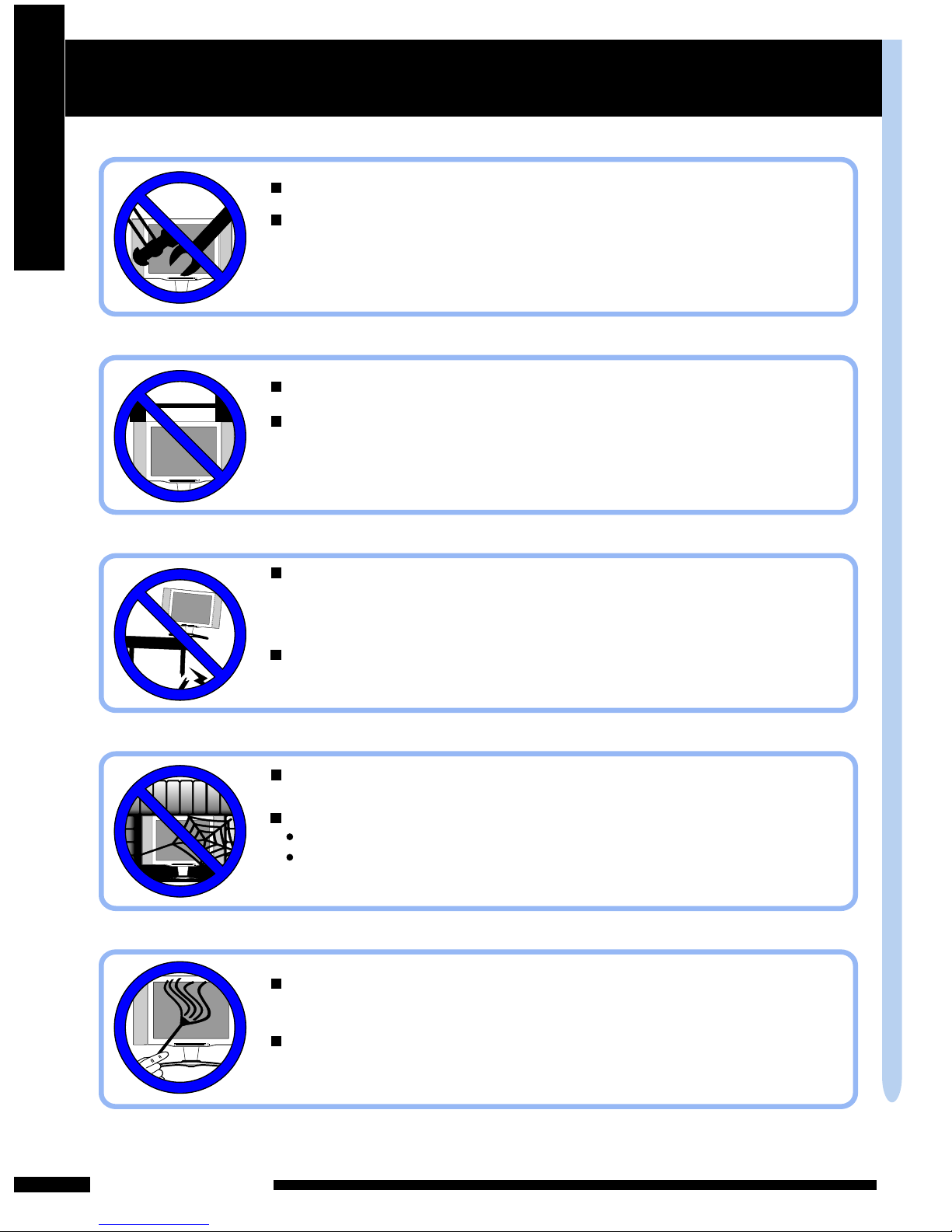

IMPORTANT SAFETY INSTRUCTIONS
Safety Instructions
To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.
This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel.
This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.
WARNING
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure
LCD TV User Guide
3
IMPORTANT SAFETY INSTRUCTIONS
Safety Instructions
To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference.
Do not expose the equipment to extreme temperature or to direct sunlight, the equipment may heat up and cause damage to the equipment.
Do not install the equipment near any heat sources such as radiators, heat registers, stoves, or any other apparatus that might produce heat.
Do not place, use or handle this equipment near water.
Never expose the equipment to liquid, rain, or moisture. Seek for service if any of the above is spilled into the equipment.
Never overload wall outlets and extensions. Use and handle the power cord with care. Do not place any heavy objects on the AC power cord. Do not pull the AC power cord. Do not handle the AC power cord with a wet hand. Do not touch the power cord and antenna cable during lightning. When the equipment has not been used for a long period of time, unplug it from the wall outlet.
Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is an important feature. Removing the grounding pin will increase the risk of damaging the equipment. If you can not fit the plug into the electrical outlet, contact an electrician to install a grounding outlet.
Always operate this equipment from the type of power source indicated on the rear of the serial/model plate.
Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc.. The equipment may fall, causing serious injuries to children or adults and serious damage to the equipment itself. Use only a cart or stand recommended by the manufacturer. This equipment and recommended cart or stand should be handled with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and recommended cart or stand to overturn.
LCD TV User Guide
4
IMPORTANT SAFETY INSTRUCTIONS
Safety Instructions
Do not place the equipment on uneven or unstable carts, stands, tables, shelves etc... The equipment may fall, causing serious injuries to children or adults and serious damage to the equipment itself.
Always place the equipment on the floor or on a surface that is sturdy, level, stable and strong enough to support the weight of the equipment.
Never place the equipment : on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.
Do not block any ventilating openings, leave an open space around the equipment.
Always remove the cord from the outlet before cleaning the equipment.
Never use liquid or aerosol cleaners on the equipment. Clean only with a soft dry cloth.
Do not attempt to service the equipment yourself.
Opening and removing the covers may expose you to dangerous voltage or any other hazards and may terminate your warranty. Refer service from qualified personnel.
Do not place or drop any other objects on top.
Do not insert anything into the ventilation holes of your equipment. Inserting any metal or flammable objects may result to fire or electric shock
LCD TV User Guide
5
IMPORTANT SAFETY INSTRUCTIONS
Safety Instructions
If an outdoor antenna is connected, follow the precautions below:
Section 810 of National Electrical Code (NEC) provides information with
respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit,
size of grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding
electrode.
An outdoor antenna should not be located anywhere that can be
in contact of overhead power lines, or any other electric light or power
circuits.
When installing an outdoor antenna system, extreme caution should be
taken to prevent contact with power lines. Direct contact with power lines
may be fatal and should be avoided at all costs.
EXAMPLE OF OUTDOOR ANTENNA GROUNDING
Antenna lead-in wire
Antenna discharge unit (NEC section 810-20)
Grounding conductors (NEC section 810-20)
Ground clamps
Power service grounding (NEC Art250 part H)
NEC : National Electrical Code
Electric service equipment
Ground clamps
6
LCD TV User Guide
6

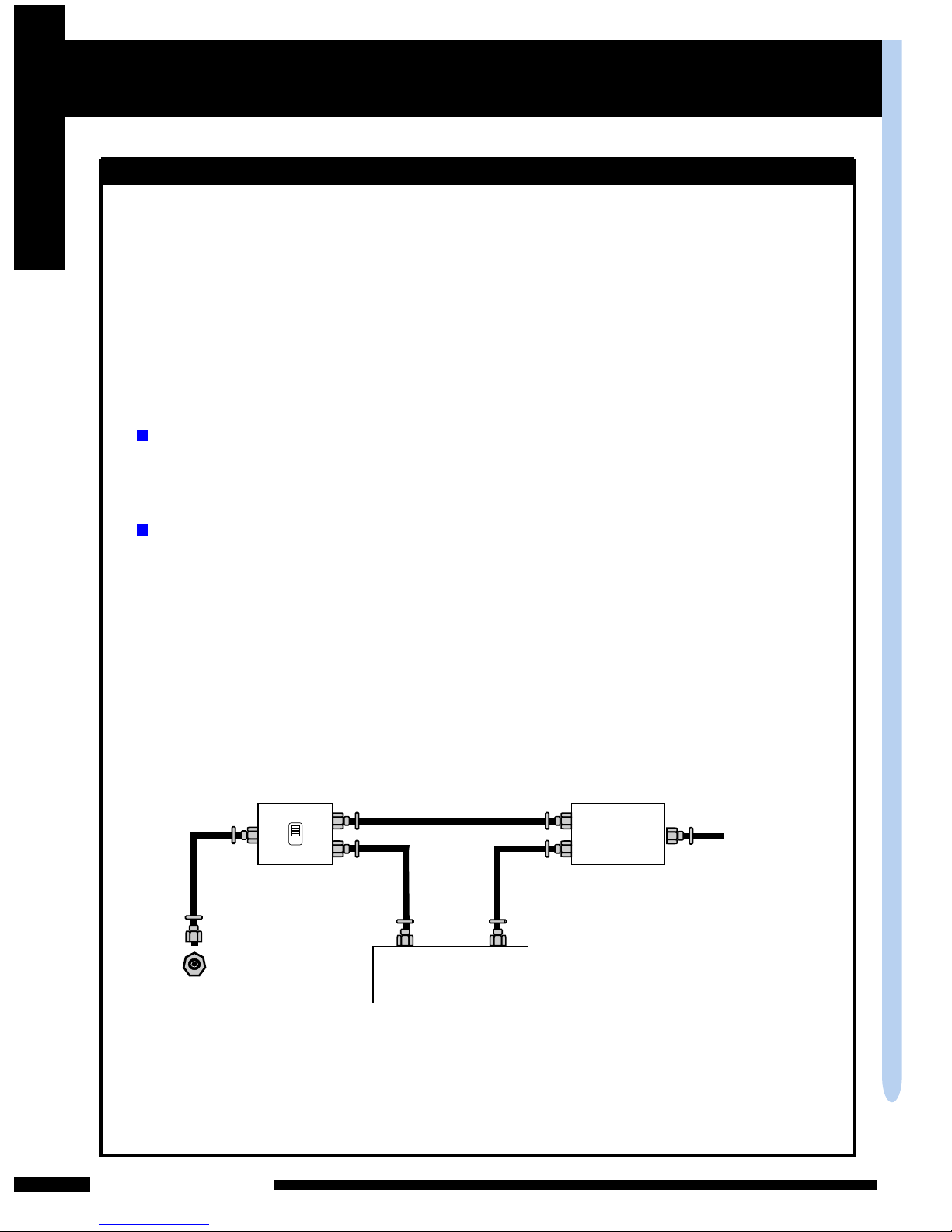

ANTENNA CONNECTION
ANTENNA CONN.
Cable TV (CATV) Connection
A 75-ohm coaxial cable connector is built into the set for easy hookup.
When connecting the 75-ohm coaxial cable to the set, place the 75-ohm cable into
the ANT. terminal.
Some cable TV companies offer premium pay channels. Since the signals of these
premium pay channels are scrambled, a cable TV converter/descrambler is generally
provided to the subscriber by the cable TV company.
This converter/descrambler is necessary for normal viewing scrambled channels.
(Set your TV to channel 3 or 4, typically one of these channels are used.
If this is unknown, consult your cable TV company.)
For more specific instructions on installing cable TV, consult your cable TV company,
One possible method of utilizing the coverter/descrambler provided
by your cable TV company is explained below.
Please note : the RF switch is required to provide two inputs (A and B) . (not included)
A position on the RF switch (not included) ; you can view all unscrambled channels
by using the TV channel keys.
B position on the RF switch (not included) ; you can view all scrambled channels via
the converter/descrambler by using the converter channel keys.
2 set signal splitter
A IN B
OUT
RF switch
Cable TV Line
Cable TV converter/ descrambler
(Not included)
(Not included)
(Not included)
,
This reminder is provided to call the CATV system installer s attention to Article 820-40 of the National Electrical Code (NEC) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building accurately, or as close to the point of cable entry as possible.
Use of this TV for other than private viewing of programs broadcasted on UHF, VHF or transmitted by cable companies for the use of the general public may require authorization from the broadcast/cable company, and/or program owner.
NOTE TO CATV SYSTEM INSTALLER
LCD TV User Guide
7
ANTENNA CONNECTION
ANTENNA CONN.
The antenna requirements for good color TV reception are more important than those of a black & white TV reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connection that is provided with the various antenna systems.
A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (not included).
Use one of the following two diagrams when connecting an outdoor antenna. A: Use a VHF/UHF combination outdoor antenna. B: Use a separate VHF and /or UHF outdoor antenna.
A 300-ohm system is a flat twin-lead cable that can be attached to a 75-ohm terminal through a 300-75-ohm adapter (not included).
Connect the outdoor antenna cable lead-in to the antenna terminal located on the rear of the equipment.
ANTENNAS
OUTDOOR ANTENNA
300-ohm twin-lead cable (flat)
F-type connector
75-ohm coaxial cable (round)
Rear
75-ohm coaxial cable
Combiner (not included)
300-ohm twin-lead cable
300/75-ohm adapter (not included)
VHF/UHF Antenna
A. Combination VHF/UHF antenna
B. Separate VHF and/or UHF Antennas
VHF/UHF Antenna
75-ohm coaxial cable
300-ohm twin-lead cable
300-ohm twin-lead cable
VHF Antenna
UHF Antenna
OUT
IN
LCD TV User Guide
8
CONTENT
CONTENT
Setting up the Channel List.................................................................................23
Watching your LCD TV .........................................................................................24
Using the OSD .....................................................................................................25
Viewing the OSD Chart ........................................................................................26
VIDEO ADJUSTMENT ..........................................................................................27
PC DISPLAY .....................................................................................................28
TV SETTING .....................................................................................................29
C.C/V-CHIP .....................................................................................................30
AUDIO SETUP .....................................................................................................32
SETUP MENU .....................................................................................................33
23
USING THE FEATURES
36
SPECIFICATIONS
35
TROUBLESHOOTING
PREPARATION
9
Features .......................................................................................................9
Package Contents ................................................................................................10
Your LCD TV .....................................................................................................11
Front View .....................................................................................................11
Rea View 1 .....................................................................................................12
Rear View 2 .....................................................................................................13

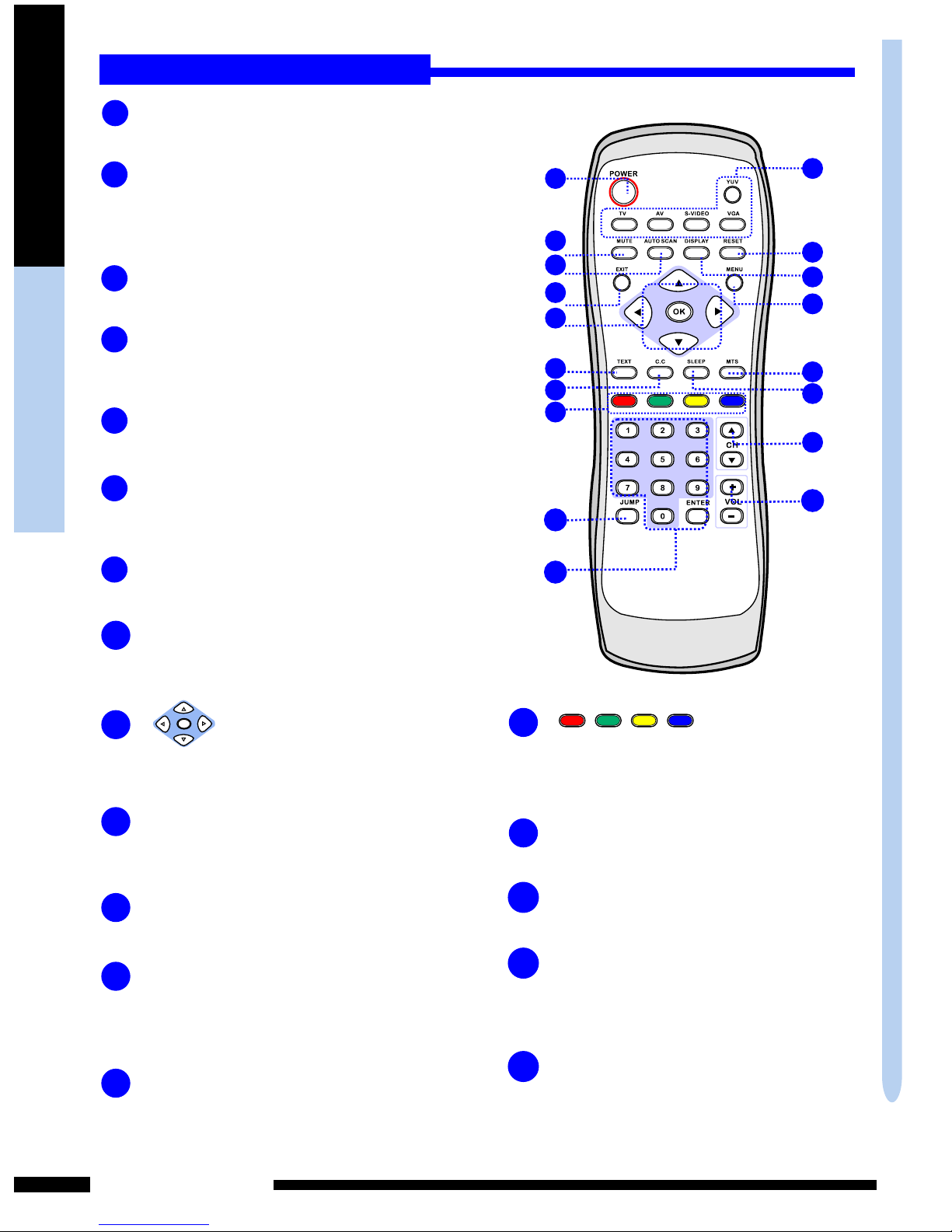

Remote Control ....................................................................................................14
Using your LCD TV................................................................................................16
17
INSTALLATION
Connecting a TV Cable or an Antenna ...............................................................17
Connecting a VCR.................................................................................................18

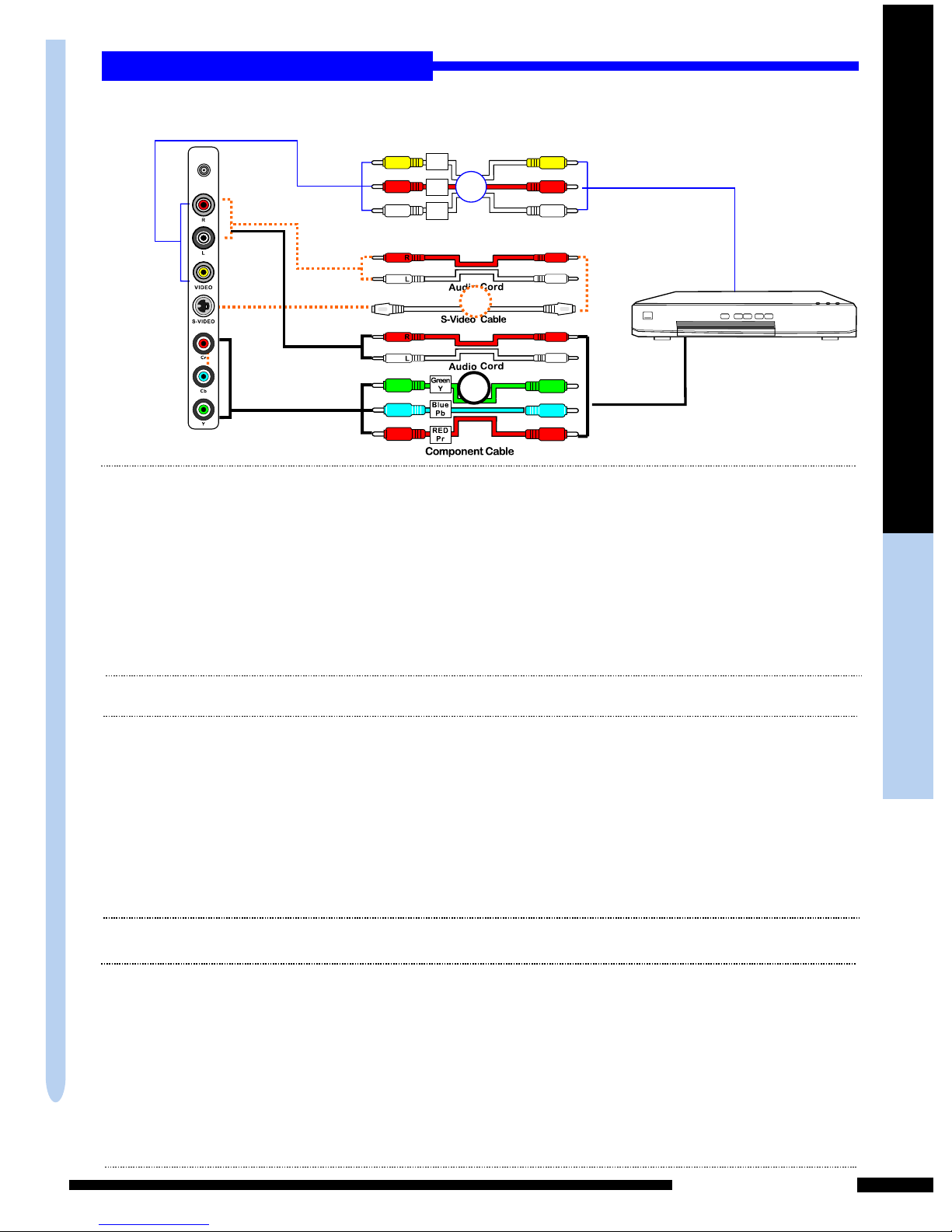

Connecting a DVD Player ....................................................................................19

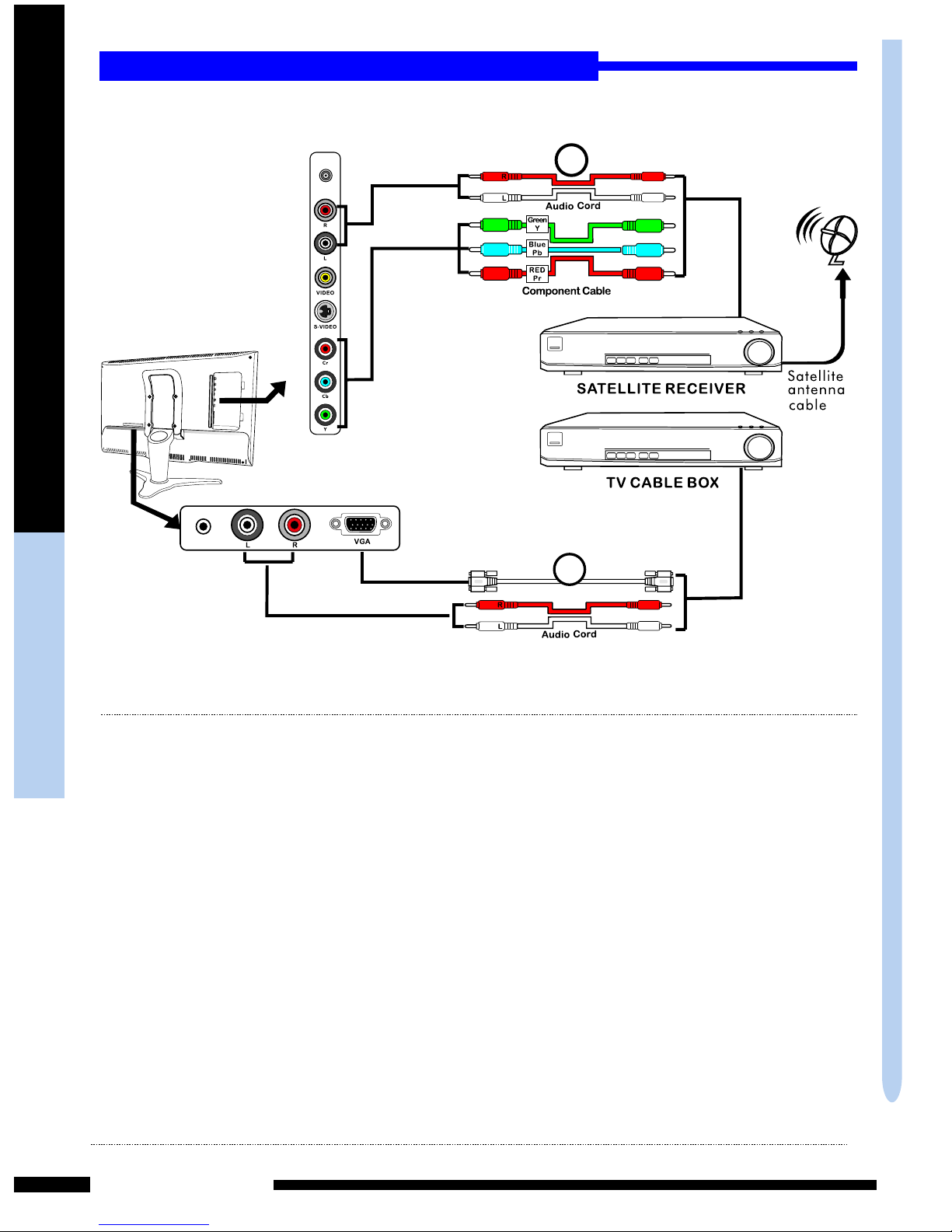

Connecting a TV Box and Satellite Receiver.....................................................20
Connecting a Video Camera ...............................................................................21
Connecting a Subwoofer ....................................................................................22
PREPARATION
9
PREPARATION
PREPARATION
Congratulations on the purchase of your LCD TV.
Features
1 Composite A/V terminal
1 S-VIDEO terminal
1 set of COMPONENT Video input terminals
1 VGA connector
2 sets of Audio input terminals
1 Line output (Ear phone)
Various Audio/Video terminals for external equipment connection
BBE High Definition Sound restores clarity and presence for better speech intelligibility and musical realism.
Excellent Audio performance with BBE
Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. Under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
Offer the best video quality for DVD (480i)connection.
Component Video Inputs
PREPARATION
PREPARATION
10
LCD TV
These items are all you need to set up and operate the LCD TV
in its basic configuration.*
*
Most components (VCRs, DVD player, etc.) come with the necessary cable for connection. If you want to set up a complex system, you may need to buy extra cable, connector, etc.
Remote control/ AAA batteries
Power Cord
A/V Cable
User Guide
COMPONENT Cable
S-Video Cable
D-SUB Cable
Audio Cable

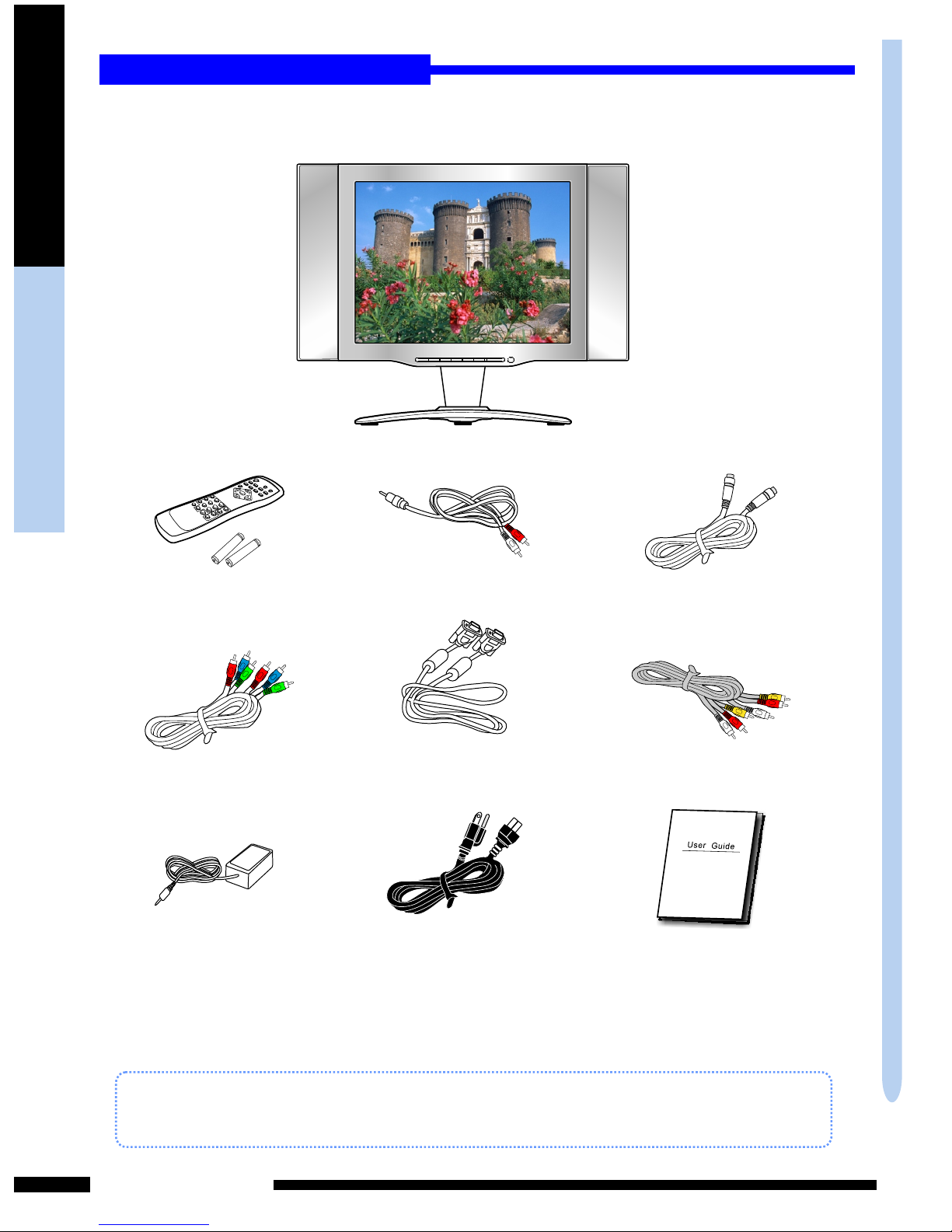

Package Contents
Once you open the box, make sure all of the following contents are included. If you are missing any items, please return this product to the original place of purchase.
DC Adapter
PREPARATION
PREPARATION
11
Your LCD TV

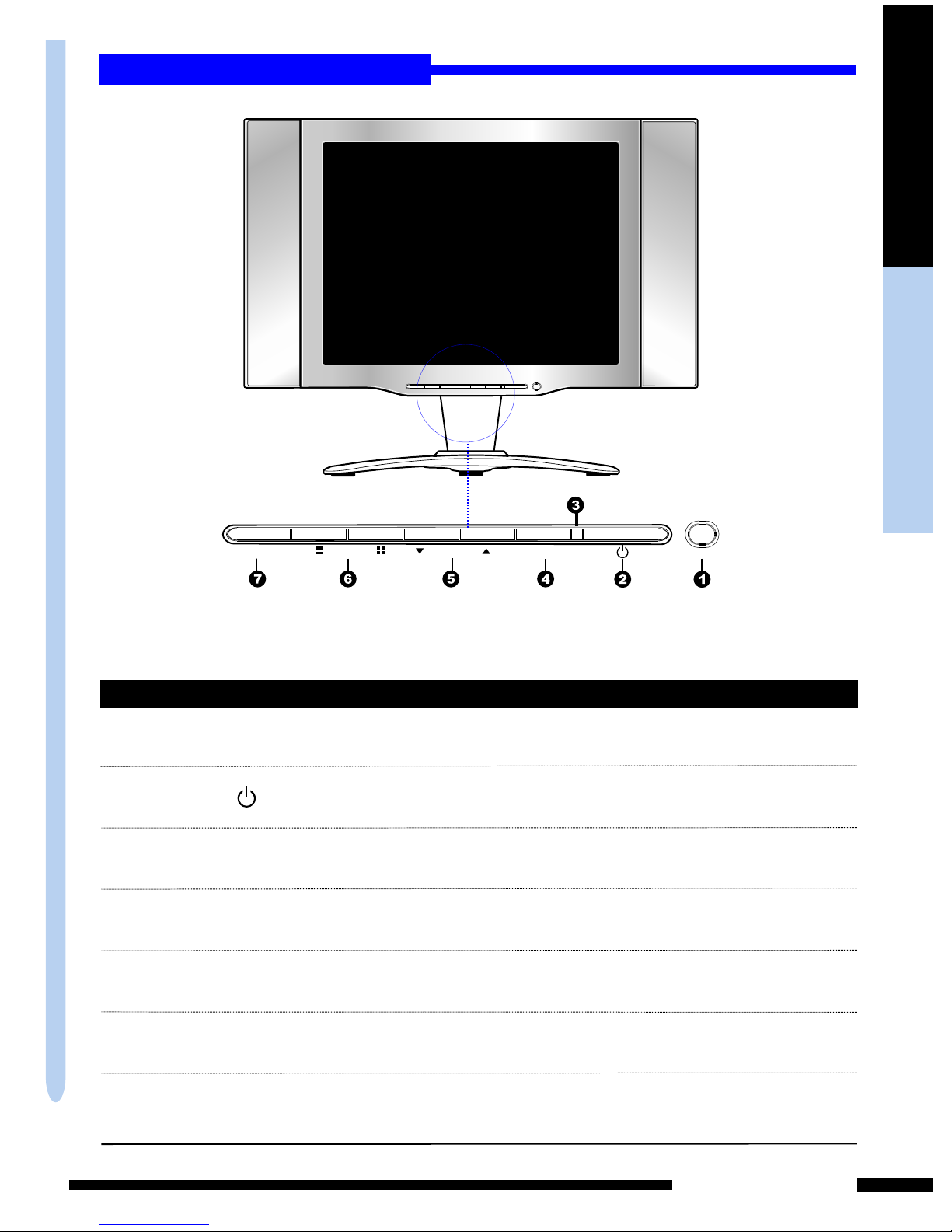

Front View
VOLUME
CHANNEL
MENU/SELECTSOURCE
Scans up and down channels. Selects menu items when in the OSD.
Turns the LCD TV on and off .
Adjusts the volume up and down. Changes values for menu items when in the OSD.
The LED light indicates when the LCD TV is activated (green light indicates on and amber indicates off).
ITEM
DESCRIPTION
CHANNEL
POWER
SOURCE
MENU/SELECT
Press to display the OSD (on screen display), press again to turn the OSD off.
Selects from different input signal sources.
6
5
4
3
2
1
Infrared Receiver (IR)
7
VOLUME
IR
LED
PREPARATION
PREPARATION
12
Your LCD TV
Rear View_1
ITEM
DESCRIPTION
5
4
3
2
1
VGA
Connects the satellite receiver or other AV equipment with D-Sub connector.
AUDIO IN
Connects the audio input jack of the satellite receiver or other AV equipment with D-Sub connector.
AUDIO IN
LINE OUT
DC IN
LINE IN
Connects the ear phone output jack of the AV equipment.
DC IN
Connects the DC adapter cord.
Connects to the component (Y, Cb, Cr) video jacks and your DVD player,or video equipment.
COMPONENT
PREPARATION
PREPARATION
13
Your LCD TV

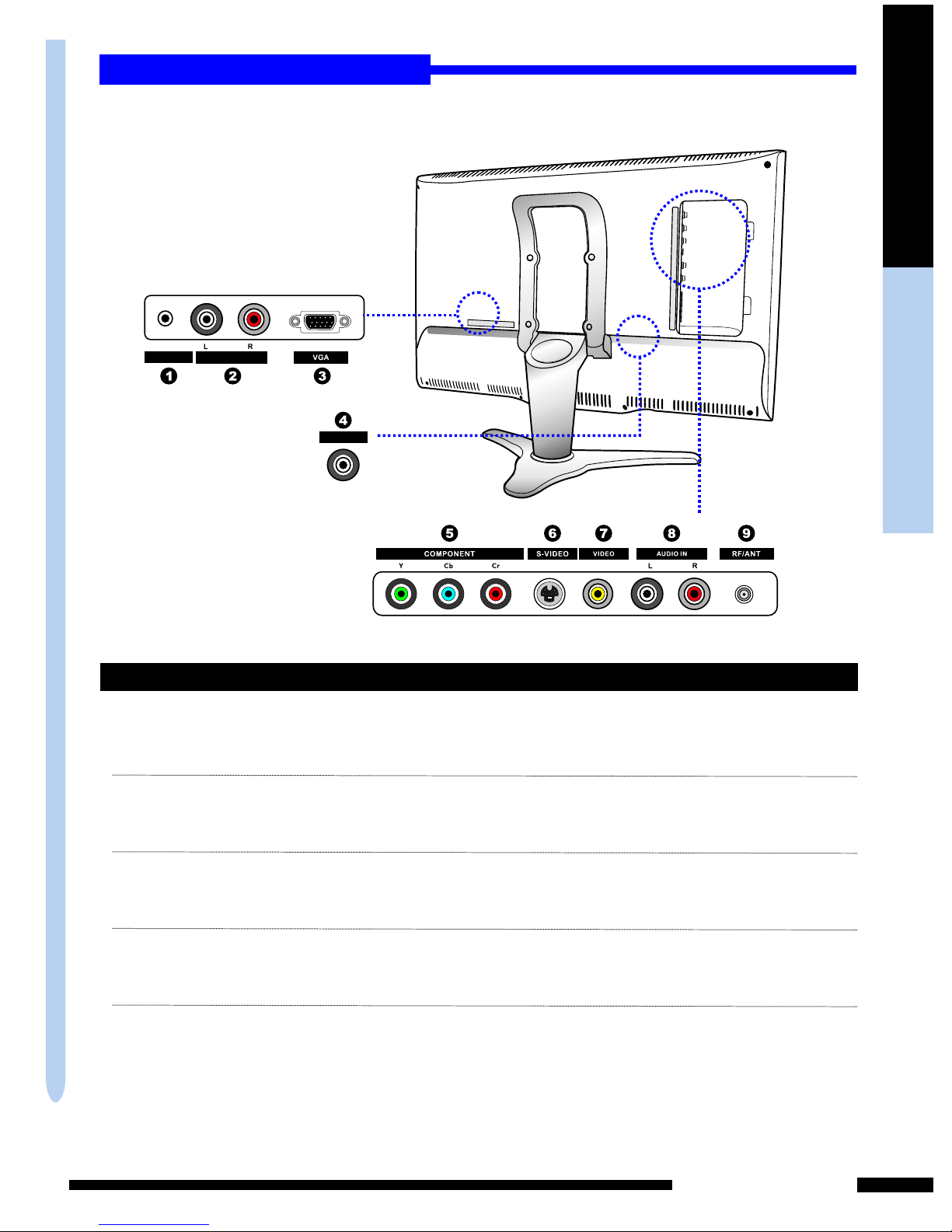

Rear View_2
ITEM
DESCRIPTION
9
8
7
AUDIO IN
Connects to the audio or video equipment with left and right audio output jacks of the Video or S-Vide or Component (Y, Cb, Cr)
S-VIDEO
Connects to the S-VIDEO output jacks and Audio output
jacks on your video equipment.
VIDEO
Connects to the composite A/V output jacks on your video equipment.
6
AUDIO IN
LINE OUT
DC IN
RF/ANT.
The RF input that connects to your VHF/UHF antenna or cable.
PREPARATION
PREPARATION
14
Remote Control
EXIT
Exits the OSD menu.
MUTE
Mutes and restores your LCD TV sound.
MENU
Displays the OSD menu (on screen display).
DISPLAY
Displays information on the LCD TV screen such as channel and channel label.
Selects the video equipment connected to the video input of your LCD TV: TV/AV/S-VIDEO/VGA/YCbCr
AUTO SCAN
Automatically detect and store all active channels in your area.
Turns your LCD TV on and off.
POWER
1
8
9
3
5
4
6
7
1
2
3
4
5
6
7
8
OK
RESET
Restores the factory settings.
Allows you to move, select and set up the OSD options.
TV/AV/S-VIDEO/VGA/YUV
2
9
For Europe TV system only.
TEXT
10
Turns the TELETEXT on and off.
CC
Turns the Closed Caption on and off.
11
12
MTS
Selects through the Multi-channel TV Sound(MTS) options: Stereo, SAP, and Mono.
Sets up the LCD TV sleep time.
SLEEP
13
For Europe TV system only.
14
To access the item or pages in TELETEXT mode.
Selects and switch to a channel using 0-9 and ENTER.
Switches back and forth between two channels.
0~9,ENTER
JUMP
16
15
17
Scans up and down through channels.
CH + /-
Adjusts the volume.
VOLUME +/-
18
16
18
17
15
10
11
12
13
14
PREPARATION
PREPARATION
15
Remote Control
Installing the batteries in your remote control
Effective range
Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.
Slide the cover back into place.
2
3
Slide the back cover to open the battery compartment of the remote control.
1
Your remote control can be activated from up to 5m away, if pointed directly in front of the device.
Do not use caustic cleaners ( porcelain, stainless steel, toilet, or oven cleaner etc...). You may cause damage to your remote.
Note :
5M
O
30
O
30
PREPARATION
PREPARATION
16
IMPORTANT SAFETY INSTRUCTIONS

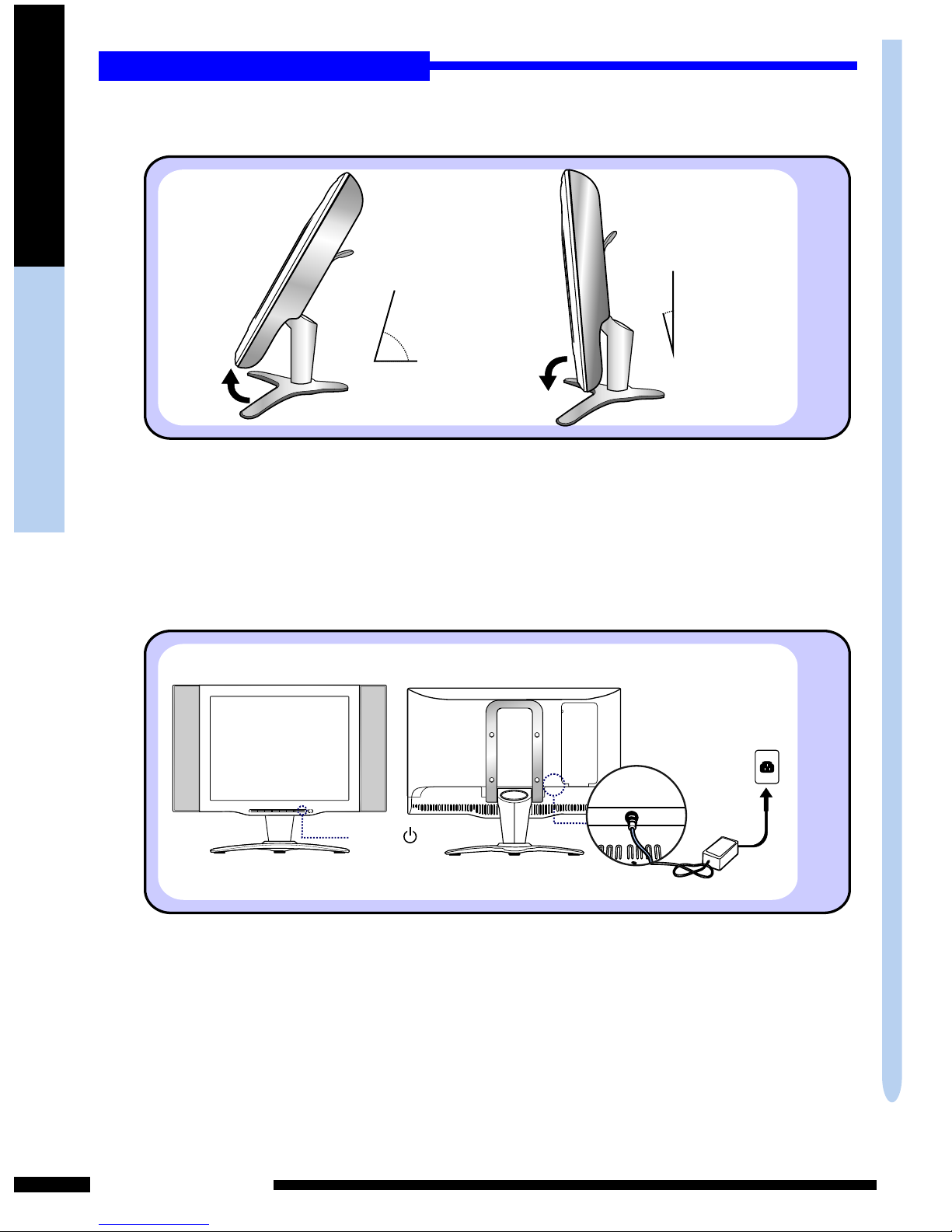

You may adjust the angle of the LCD TV about 25 degrees.
o
20
Always turn the LCD TV off when the LCD TV is not in use for a long period of time. The Power button is only used for switching the LCD TV on and off, it does not disconnect the device from the main voltage. To completely disconnect the main voltage, please remove the power plug from the socket.
1
2
o
-5
Using your LCD TV
POWER
Unplug from a wall outlet
DC Adapter
INSTALLATION
17
INSTALLATION
INSTALLATION
Make sure the AC power cable to the DC adapter.
Antenna
1
Antenna/75-ohm coaxial input
Basic Connection: Connecting cable or an antenna.
,
Refer to the owner s manual of the external equipments to be connected. When connecting an external equipment, do not connect any AC power cords to wall outlets until you have completed all connections.
Connecting a TV Cable or an Antenna
Use a supplied antenna cable to connect the VHF/UHF to your LCD TV.
1 2
3 4
Press the POWER button on the remote to turn on your LCD TV.
Press the TV button on the remote to view.
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
DC Adapter
2
Connect to a wall outlet
INSTALLATION
INSTALLATION
18
Audio
(R)
Video/Audio Cord
Video
Audio
(L)
1
2
Connecting a VCR
,
Use an Audio cable to connect the VCR s audio output jacks to your LCD TV.
Use an S-Video cable to connect your LCD TV and VCR player.
1
2 3 4
To watch VCR, press the S-VIDEO button on the remote.
Method 1 :
,
Use an AV cable to connect the VCR s composite output jacks to your LCD TV.
1
2 3 4
To watch VCR, press the AV button on the remote.
Method 2 :
Press the POWER button on the remote to turn on your LCD TV.
Press the POWER button on the remote to turn on your LCD TV.
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
INSTALLATION
INSTALLATION
19
For best picture quality, if your equipment has component video output, use component cable instead of a standard video or S-video cable.
Audio
(R)
Video/Audio Cord
Video
Audio
(L)
1
2
DVD PLAYER
Connecting a DVD Player
Use a component cable to connect the Y, Cb, and Cr jacks on the DVD player
,
to your LCD TV. Use an audio cable to connect the DVD s audio jacks to your LCD TV.
1
2 3 4
Press the POWER button on the remote to turn on your LCD TV.
To watch DVD, press the S-VIDEO button on the remote.
Method 1 :
Method 2 :
,
Use an Audio cable to connect the DVD s audio output jacks to your LCD TV. Use an S-Video cable to connect your LCD TV and DVD player.
Press the POWER button on the remote to turn on your LCD TV.
To watch DVD, press the YUV button on the remote .
Method 3 :
,
Use an AV cable to connect the DVDs composite output jacks to your LCD TV.
To watch DVD, press the AV button on the remote .
Press the POWER button on the remote to turn on your LCD TV.Press the POWER button on the remote to turn on your LCD TV.
1
2 3 4
1
2 3 4
3
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
INSTALLATION
INSTALLATION
20
D-SUB Cable
1
Connecting a TV Box and Satellite Receiver
Use a component cable to connect the Y/Cb/Cr jacks on the satellite receiver to your LCD TV. Use an Audio cable to connect the Satellite Receiver audio jacks to LCD TV.
1
2
3 4
To watch programs by satellite receiver, press the YUV button on the remote.
Use a D-SUB cable to connect the TV Cable Box D-SUB(VGA) connector to your LCD TV. Use an audio cable to connect the LCD TV and TV Cable Box .
5 6
To watch TV by TV cable box, press the VGA button on the remote .
Press the POWER button on the remote to turn on your LCD TV.
LINE OUT
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
2
INSTALLATION
INSTALLATION
21
,
Use an Audio cable to connect the Video Camera s audio output jacks to your LCD TV. Use an S-Video cable to connect your LCD TV and video camera.
1 2
3 4
To watch your video camera, press the S-VIDEO button on the remote.
Method 1 :
,
Use an AV cable to connect the Video Camera s composite output jacks to your LCD TV.
1 2
3 4
To watch your video camera, press the AV button on the remote.
Method 2 :
Press the POWER button on the remote to turn on your LCD TV.
Press the POWER button on the remote to turn on your LCD TV.
Connecting a Video Camera
Note:
Not all cameras have the ability to connect to a TV. Please check your video camera user guide for compatibility.
Audio
(R)
Video/Audio Cord
Video
Audio
(L)
1
2
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
INSTALLATION
INSTALLATION
22
,

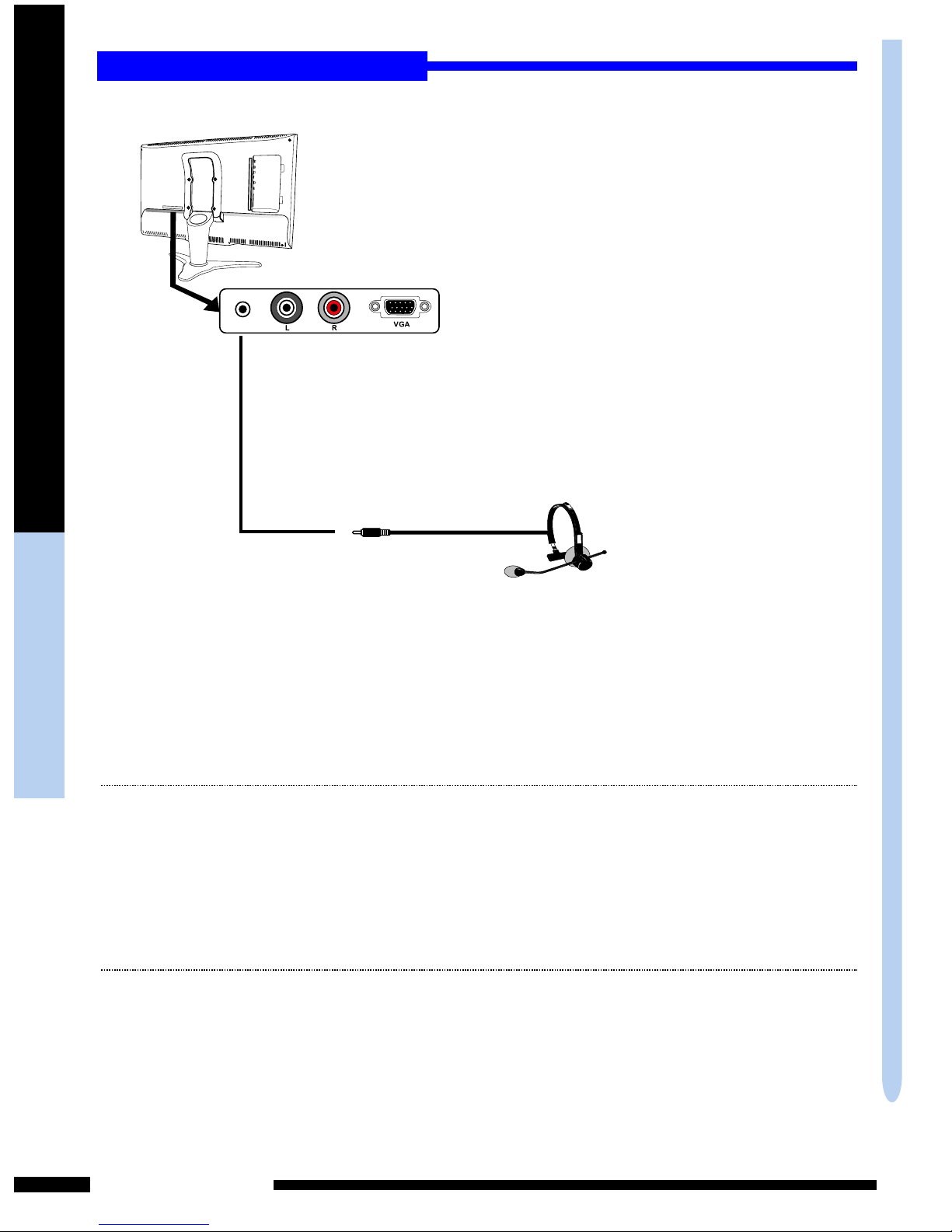

Connect the LCD TV s LINE output jack to the Ear phone.
1
2
3
Press the POWER button on the remote to turn on your LCD TV.
Audio Cable
Connecting an Ear Phone
LINE OUT
Connect the AC power cable to the DC adapter and connect the adapter to the power jack on the back of your LCD TV.
Using the Features
Using the Features
23
USING THE FEATURES
1
Press to move the highlight bar to the CH SEARCH, then press the OK button.
2
3
1
2
Press to select the CH MEMORY, then press
the OK button.
3
4
Press to select the NO option to remove a channel. Repeat steps 1~4 to remove other channels.
5
Editing channels
Allow you to customize the channel list that appears when you use the CHANNEL+- buttons.
SOURCE CABLE STD CH SEARCH CH MEMORY NO RETURN
TV SETTING
Press the MENU button on the remote control to display the TV Menu, and use to select the TV SETTING, then press the OK button.
VIDEO ADJUSTMENT PC DISPLAY TV SETTING C.C/V-CHIP AUDIO SETUP SETUP MENU RESET EXIT
MENU
The CH SEARCH automatically creates a list of receivable channels Press the EXIT button at any time to interrupt the memorization process. (the list cannot be created if interrupted) ..
Press the MENU button on the remote control
to display the TV Menu, and use to select
the TV SETTING, then press the OK button.
To add a channel , use
you wish to add and Press to select
the YES option
the 0-9 buttons to choose the
channel
, then repeat steps 2~3 to add
the channel.
Press the CHANNEL+- button on the remote control to select the channel you wish to delete.
You can also use to select the RESET option, then press the OK button to restore a default TV channel
table.
Setting up the Channel List
After you have finished connecting a TV cable or antenna to your LCD TV, press the TV button on the remote control.
SOURCE CABLE STD CH SEARCH CH MEMORY NO RETURN
TV SETTING
VIDEO ADJUSTMENT PC DISPLAY TV SETTING C.C/V-CHIP AUDIO SETUP SETUP MENU RESET EXIT
MENU
Using the Features
Using the Features
24
Watching your LCD TV
1
2
3
4
6
5
Press the POWER button to turn your LCD TV on.
Press the TV button to enter TV mode.
Press the CH button to change channels, or use the 0-9 buttons to choose a channel, then press the ENTER button.
Press the JUMP button to alternate back and forth between two channels.
If your LCD TV does not display a picture, check to make sure all connections are secure and correct.
Press the EXIT button again to hide the information.
Press the DISPLAY button to display the information such as channel or channel label.
Press the VOL button to adjust the volume. Press the MUTE button to turn the sound off, press again to turn the sound on.
24
1
3
2
5
17
5
3
4
3
6
TV
Using the Features
Using the Features
25

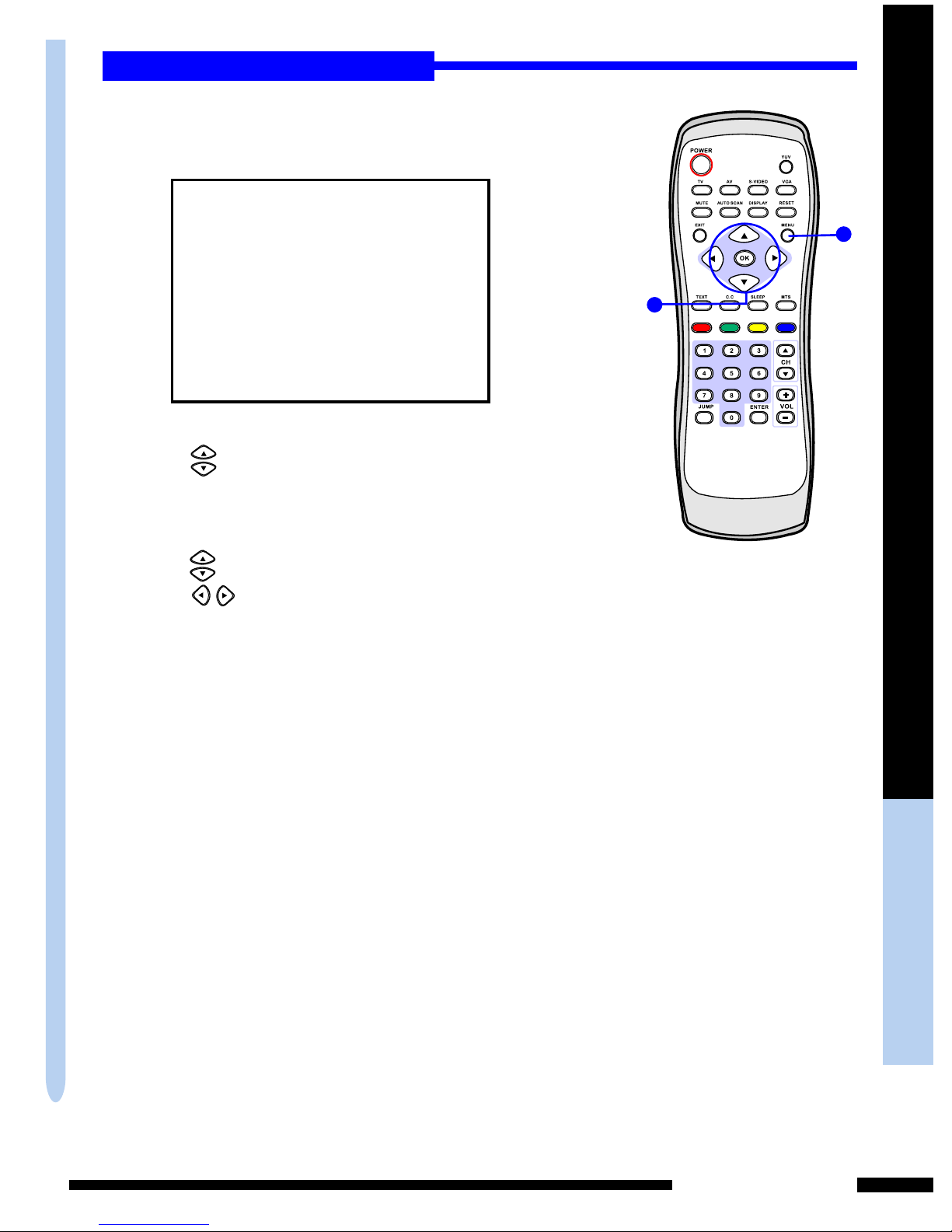

To select the signal source, press the MENU button on the remote control. The main menu will appear on the screen.
1
1
3
2
2
Use to highlight your main menu option,
then press the OK button
to enter your selected option.
Use to highlight an option of the sub-menu.
Use to change the value of the item.
Press the EXIT button to exit the OSD.
Using the OSD
VIDEO ADJUSTMENT PC DISPLAY TV SETTING C.C/V-CHIP AUDIO SETUP SETUP MENU RESET EXIT
MENU
Using the Features
Using the Features
26
17
1
2
4
3
VIDEO ADJUSTMENT
C.C /V-CHIP
TV SETTING
PC DISPLAY
Allows you to make adjustments to your picture settings
Allows you to edit and label channels, auto scan.
Allows you to customize the audio options and effects.
Allows you to adjust the RGB color.
6
5
SETUP MENU
AUDIO SETUP
Allows you to set up the following features: OSD timeout, OSD language.
This function will enable if the signal source is VGA.
This function will enable if the signal source is TV.
Allows you to restore the factory setting.
7
RESET
Viewing the OSD Chart
Allows you to block the programs by TV ratings.
This function will enable if the signal source is TV.
Allows you to exit the OSD.
8
EXIT
Using the Features
Using the Features
27
VIDEO ADJUSTMENT
If the signal source is TV/C-VIDEO/S-VIDEO/YCbCr, the OSD displays:
1
CONTRAST BRIGHTNESS COLOR HUE SHARPNESS
NOISE REDUCE COLOR SYSTEM (AUTO) RETURN
50 50
0
50
3
VIDEO ADJUSTMENT
50
The VIDEO ADJUSTMENT includes the following options:
BRIGHTNESS
Allows you to adjust the brightness of the picture.
CONTRAST
Allows you to adjust the contrast of the picture.
SHARPNESS
COLOR
Allows you to adjust the color intensity of the picture.
HUE
Allows you to adjust the color tint of the picture.
Option Description
Allows you to adjust the sharpness of the picture.
NOISE REDUCE
If the receiving signal is weak and picture is blurry, you can adjust the level to improve the picture.
RETURN
Allows you to return to the previous menu.
2
COLOR SYSTEM
Allows you to select TV system as NTSC, PAL or AUTO.
Using the Features
Using the Features
28
PC DISPLAY
If the signal source is VGA, the OSD displays:
1
The PC DISPLAY includes the following options:
Option Description
2
COLOR
Allows you to adjust the amount of red tint in an image..
Allows you to customize color option as USER, WARM, or
COOL.
R-GAIN
B-GAIN
G-GAIN
RETURN
Allows you to return to the previous menu.
CONTRAST BRIGHTNESS CLOCK PHASE H-POSITION V-POSITION COLOR AUTO CONFIGURE RETURN
50 50
0
50
3
PC DISPLAY
50
CONTRAST
Allows you to adjust the contrast of the picture.
BRIGHTNESS
Allows you to adjust the brightness of the picture.
CLOCK
Allows you to adjust the vertical size of the picture.
PHASE
Allows you to improve focus clarity and image stability.
H POSITION
Allows you to adjust the position of the picture left and right in the window.
V POSITION
Allows you to adjust the position of the picture up and down in the window.
AUTO CONFIGURE
USER:
Allows you to auto adjust the display mode.
Allows you to adjust the amount of green tint in an image..
Allows you to adjust the amount of blue tint in an image..
Using the Features
Using the Features
29
TV SETTING
If the signal source is TV, the OSD displays:
1
The TV SETTING includes the following options:
Option Description
2
RETURN
Allows you to return to the previous menu.
SOURCE CH SEARCH CH MEMORY RETURN
CABLE STD
NO
TV SETTING
SOURCE
Allows you to choose the antenna or cable signal.
AIR : If you are receiving TV channels with an antenna.
CABLE STD/HRC/IRC: If you are receiving TV channels with
a CATV cable.
CH SEARCH
Allows you to add/remove channels. (Refer to page 25)
CH MEMORY
Allows you to automatically create a list of receivable
channels
Using the Features
Using the Features
30
C.C/V-CHIP
If the signal source is TV, the OSD displays:
1
MODE INPUT SECRET NO. RETURN
CC/T OFF
- - - -
C.C /V-CHIP
The C.C/V-CHIP includes the following options:
2
MODE (Close Caption Mode):
Allows you to select from 4 closed caption modes:
CC1~CC4 : Displays a printed version of the dialog
or sound effects of program.
TT1~TT4: Displays station information, using either half
or the whole screen.
3
The factory password is 0 0 0 0. Enter the four-digit password then press the OK button, the V-CHIP SETUP displays.
V-CHIP function
1
Press to move the highlight bar to the MODE, then press the OK button.
2
Press the MENU button on the remote control to display the TV Menu, and use to select the C.C/V-CHIP, then press the OK button.
4
Press to move the highlight bar to the V-CHIP, then select ON to enable the V-CHIP function.
The U.S has 2 rating systems for viewing content: MPAA Rating and TV Rating. The TV Rating works in conjunction with the V-CHIP to help parents block inappropriate programs from their children. The MPAA Rating is used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television.
Using the Features
Using the Features
31
Y
All children
Age-Based Ratings
Y7
Directed to children age 7 and older
G
General Audience
PG
Parents Guidance suggested
14
Parents strongly cautioned
MA
Mature Audience only
Rating Description
TV Rating
Press the EXIT button to to the V-CHIP SETUP.return
Press to select the rating you want and press the OK Button, press the OK button again
to unlock.(B: blcked, U:Unblocked)
1
2
Rating Description
G
PG
PG-13
R
NC-17
X
General Audiences. Movie is appropriate for all ages.
Parental guidance suggested. May Contain material not suited for younger viewers.
Contains content that may not be appropriate for viewers under the ages of 13.
Restricted. Contains adult content, no one under 17 admitted without parent.
No one 17 and under admitted.
No one 17 and under admitted.
Press the EXIT button to to the V-CHIP SETUP.return
Press to select the rating you want and press the OK Button, press the OK button again to
unlock.(B: blcked, U:Unblocked)
1
2
Use 0-9 on the remote control to enter a new four-digit password and press the OK button.
MPAA Rating
Change PIN
1
Using the Features
Using the Features
32
AUDIO SETUP
If the signal source is TV/C-VIDEO/YCbCr/S-VIDEO/VGA, the OSD displays:
1
BASS TREBLE BALANCE BBE MUTE RETURN
AUDIO SETUP
50
50
50
ON
The AUDIO SETUP includes the following options:
Option Description
2
BASS
Allows you to adjust the lower-pitched sounds.
TREBLE
Allows you to adjust the higher-pitched sounds.
BALANCE
Allows you to adjust the balance of the speakers.
BBE
Allows you to turn the surround sound on or off
(for stereo programs only).
BBE (Barcus-Bery Electronics): BBE recreates the natural sound and improves sound clarity
MUTE
Allows you to mute the sound.
RETURN
Allows you to return to the previous menu.
Using the Features
Using the Features
33
SETUP MENU
1
The OSD SETUP includes the following options:
Option Description
2
SETUP MENU
Allows you to select a language for all the on-screen menu.
OSD TIMEOUT
Allows you to set up the display time of the on-screen menu : 5~60 seconds and off.
RETURN
Allows you to return to the previous menu.
If the signal source is TV/C-VIDEO/YCbCr/S-VIDEO/VGA, the OSD displays:
LANGUAGE SLEEP TIMER H POSITION V POSITION OSD TIMEOUT RETURN
50
50
50
ENGLISH OFF
Allows you to set up a remaining time before the TV shuts off automatically : Off/0~120 mins.
LANGUAGE
SLEEP TIMER
H-POSITION
Allow syou to move the OSD position horizontally.
V-POSITION
Allows you to move the OSD position vertically.
Using the Features
Using the Features
34
TROUBLESHOOTING
TROUBLESHOOTING
35
TROUBLESHOOTING
Before consulting service personnel, check the following chart for a possible cause of the trouble you are experiencing and for a solution.
PROBLEM
SOLUTION
TV will not turn on
Make sure the power cord is securely connected to the TV, DC adapter, and wall outlet. The batteries in the remote control may be exhausted. Replace the batteries.
No picture, no sound
Check the interface cable between TV and antenna/cable TV.
Press the Power button on the remote.
Press the TV button on the remote, or press other input source button to select the connected video sources.
Poor picture, sound OK
Check the interface cable between TV and antenna/cable TV. Try another channel, the station may have broadcast difficulties.
Adjust the Brightness/Contrast options in the VIDEO ADJUSTMENT.
Picture OK, Poor sound
Sound may be muted. Press the MUTE button on the remote.
Audio noise
Move any infrared equipment away from the TV.
Press the TV button on the remote, then press the VOL+ button to increase the volume.
Make sure the power cord is securely connected to the TV, DC adapter, and wall outlet.
SPECIFICATION
SPECIFICATION
SPECIFICATION
36
Panel System
Display Resolution
Television System
Antenna Input
Inputs /Outputs
Speaker Out
14 Inch LCD TV
NTSC/PAL-D/K
75 Ω unbalanced
3W x 2
640 pixels(horizontal) x 480 pixels (vertical)
Power Source
Power Consumption (MAX)
AC 100-240V , 60/50 HZ , 60W
Dimension(Physical)
10.79 lbs
18.58 inch (W) x14.61 inch (H) x 8.91 inch (D)
Weight(Net)
Model
HV-147
Composite Video In
S-Video In
Component In
D-SUB
Audio In
Ear Phone
1
1
1
1
2
1
Your Proview Plasma/LCD Display will be repaired or replaced in accordance with the terms of this warranty, at Proview's option, if it proves to be defective in material or workmanship under normal use, during the warranty period ( Warranty Period) listed below, effective from the date ( Date of Purchase) of original consumer purchase of the product. This warranty is good only to the original purchaser of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.
WARRANTY PERIOD:
LABOR and PARTS: 1 YEAR from the Date of Purchase. Your unit will be repaired or replaced with a new, substitute model or factory reconditioned
unit, at Proview's option. If repaired, parts used in the repair may be new or remanufactured. Replacement Units and Repair Parts are warranted for the remaining portion of the original unit's warranty period. EFFECTIVE DATE OF WARRANTY: Your warranty period begins on the date of sale to the original consumer/end user. KEEP THE DATED BILL OF SALE OR PROOF OF DELIVERY as evidence of the purchase date. You will be required to submit a legible copy of your bill of sale or proof of delivery when requesting warranty service.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESSED WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state. CONCERNING PIXEL FUNCTIONALITY: Your Plasma/LCD Television contains about one million individual pixels. These Televisions typically contain a small number of pixels that do not function normally. Your display has been inspected and is in compliance with manufacturer's specifications, indicating that any pixel defects do not effect the operation or use of your display.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
Damage caused in shipping or transit Image burn-in (Plasma Only) Service required as a result of improper installation, including incorrect or insufficient AC supply (please consult the owner's manual for power supply requirements) Installation or repair of antenna systems, cable converters, cable company supplied equipment, or other components in a video system Setup or adjustment on consumer controls, or damage caused by improper adjustments Damage caused by other system components Any panel that has been modified or incorporated into any other product Replacement of batteries on the remote control. Damage (including cosmetic damage), failure, loss or personal injury due to misuse, abuse, negligence, improper maintenance or storage, or to acts of nature or other causes beyond our control. (Causes beyond our control include but are not limited to lightning strike, power surges, power outages and water damage.) Repair or replacement of warranted parts by other than Proview authorized service centers. Units purchased or serviced outside of the coverage area. Product where the original factory serial numbers have been removed defaced or changed in any way. Product sold and labeled as as is, where is or similar disclaimer.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer. FOR SERVICE: Before you call for warranty service, check your operating guide under the troubleshooting section, this may help you avoid a service call. For warranty service information, please contact the Proview Customer Interactive Center telephone number (see below). When calling for service, please have your product model number, serial number and the date of purchase or the date of original installation available. If a replacement
unit is required, under some circumstances you may be asked to provide a reserve deposit to the Proview Service Center against a credit card number as surety for advanced shipment. Your credit card will not be charged if you return the defective unit within 30 working days. If a replacement unit is received, please use the carton and packaging from that unit in returning the defective unit to the Proview Brand Service Center. Parts and service in accordance with the Proview warranty are Proview's responsibility and will be provided without charge. Other service requirements will be at the owner's expense. If you have problems in obtaining satisfactory warranty service, write or call the Proview Customer Interactive Center. Service may be provided by independently owned and operated service organizations. To assure proper credit and avoid unnecessary charges, you must obtain a Proview Return Authorization before returning any product to the Proview Service Center. Contact the Customer Interactive Center for details. In-Home Service (for screen sizes over 20 only): Please retain dated bill of sale or delivery ticket as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the service person at the time warranty service is provided.
Please call (877 532-8176) to locate you're nearest
Proview Authorized Service Center, or
Visit our website at:
Http: //www.proview.net/service/index.htm
CONTACT THE PROVIEW CUSTOMER SERVICE CENTER BY TELEPHONE OR MAIL: To obtain customer assistance, product information or Service locations by phone:
(877 532-8176), MonFri 7am8 pm CT and Sat 8am5 pm CT
To obtain customer assistance, product information or Service locations by Mail:
Proview Customer Interactive Center P.O. Box 192 Lincolnshire, IL. 60069-9998
IMPORTANT PRODUCT REGISTRATION INFORMATION:
It is important to register this or any Proview product. Registering will allow us to reach you promptly should we discover a safety or reliability issue that can affect your product. To register please visit www.proview.net/service/ce/reg.htm and fill in your information. Registration is completely optional. Failure to register this product will not affect your warranty. Your Proview product will be repaired or replaced in accordance with the terms of this warranty, at the option of Proview, if it proves to be defective in material or workmanship under normal use and conditions during the warranty period ( warranty period ) listed below effective from the date of original consumer purchase of the product ( date of purchase ). This warranty is good only to the original purchaser of the product and effective only when used in the United States, including Alaska, Hawaii and U.S. Territories.
Loading...
