Proview AI937W, EP930W User Manual

19’’ WIDE TFT LCD MONITOR
AI937W
USER’S GUIDE
©2007 by Proview®. All rights reserved.
Copyright protection claimed includes all forms and matters of copyrightable material and information now allowed by statutory judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as icons, screen displays, looks, etc.
All Proview® product names mentioned in this publication are trademarks of Proview. Other company trademarks are also acknowledged.
Changes are periodically made to this document. Changes, technical inaccuracies, and typographic errors will be corrected in subsequent editions.
ENGLISH
CONTENTS
2
LCD Monitor User’s Guide
Table of Contents
CE Marking Declaration Of Conformity ..............................................................4
Federal Communications Commission (FCC) Statement .................................5
Important Safety Instructions ..............................................................................6
Chapter 1 Introduction
Features ................................................................................................ 9
Package Contents ..............................................................................10
Front View and Controls ..................................................................... 11
Chapter 2 Installation
Connecting Your LCD Monitor to a Computer ...................................12
Method 1: Analog (D-SUB) Connection ......................................... 12
Method 2: Digital (DVI) Connection ...............................................13
Installing Your LCD Monitor ................................................................16
Chapter 3 On-Screen Display (OSD) Menu
Using the OSD Menu ..........................................................................17
The OSD Options ...............................................................................18
Chapter 4 Technical Information
Preset Mode Timing Chart ..................................................................21

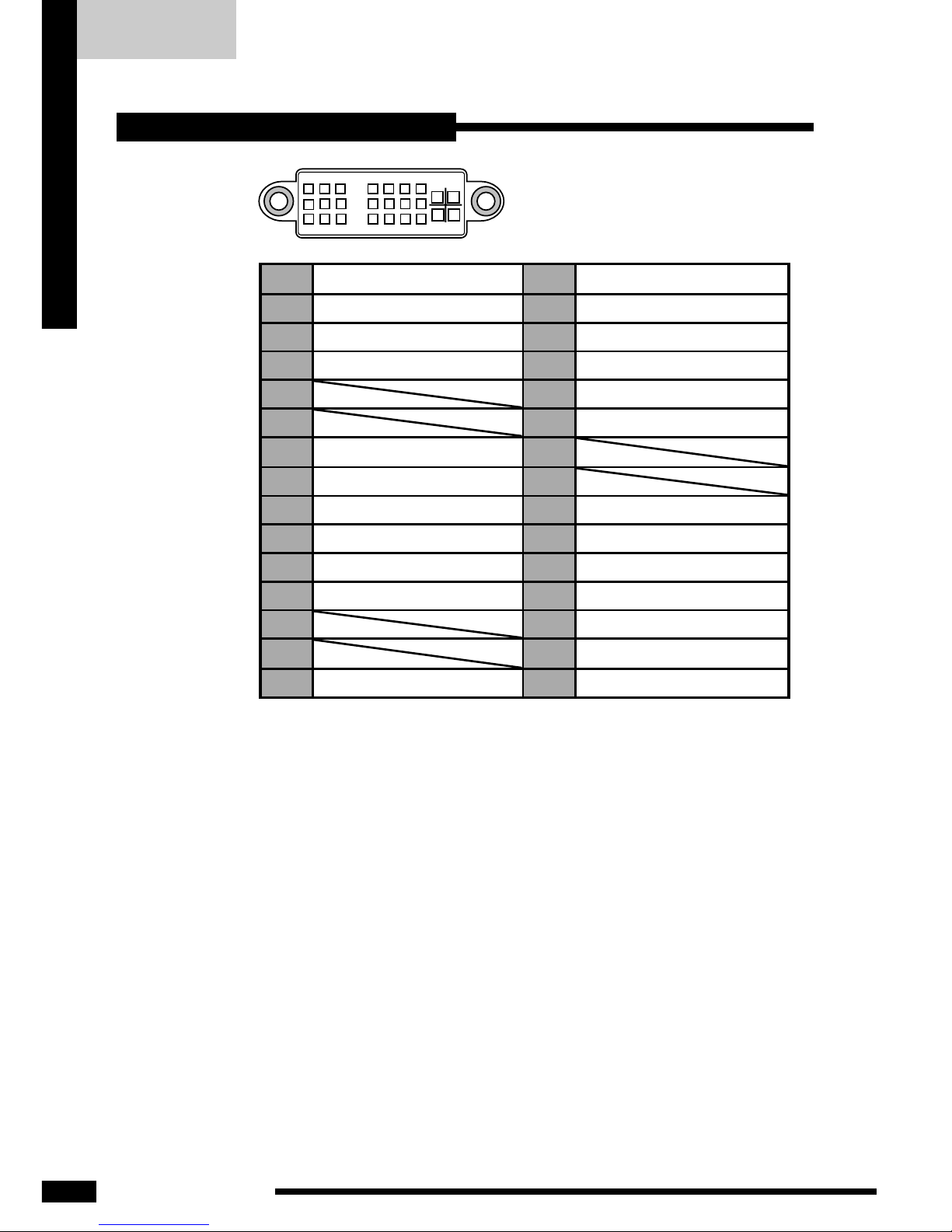

DVI Connector PIN Assignment ..........................................................22

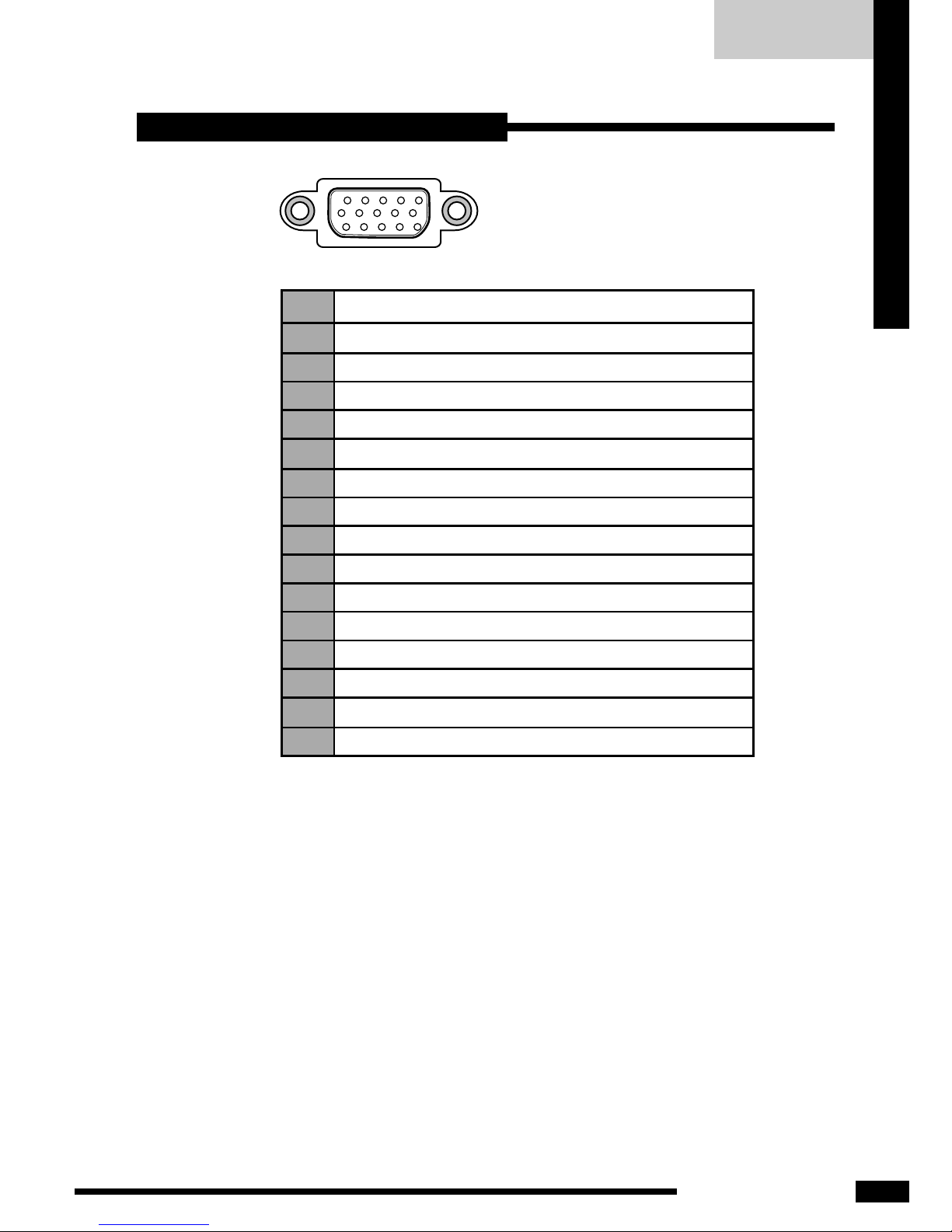

D-SUB Connector PIN Assignment ....................................................23
Plug and Play ...................................................................................... 24
Visual Inspection ................................................................................. 24
Troubleshooting ..................................................................................25
Specifications ...................................................................................... 26
ENGLISH
3
LCD Monitor User’s Guide
RECYCLING PLACE
EUROPE When disposing of Proview Monitors in Europe, please contact one of the following three locations to make arrangements for recycling.
Proview International (UK) Limited 30 The Avenue, Watford, Hertfordshire WD17 4AE United Kingdom Timothy Lo Tel: +44-1923-248-111 Fax: +44-923-248-222 Email: tim.lo@proview.co.uk
PGL Europe B.V. (Proview Group Limited Rotterdam) Satijnbloem 37, 3068 JP Rotterdam Hollande David Hsieh Tel: +31-10-238-1090 Fax: +31-10-238-1091 Email: david@proview-group.nl
Xoal bvba Raketstraat 100-B1130 Bruessels Mr. Leo Starckx Tel: +32-2-702-6011 Fax: +32-2-725-2513 Email: rma@proview-repair.com leo.starckx@proview-repair.com
ASIA When disposing of Proview Monitors in Asia, please contact the following location to make arrangements for recycling.
Proview Technology (ShenZhen) Co., Ltd. North Block 21, 23# Shatoukok Free Trade Zone, ShenZhen, China. Mr. Dennis Chang Tel: +86-755-2526-1512
Fax: +86-755-2526-1565 Email:recycling@proview.com.cn
AMERICA When disposing of Proview Monitors in America, please call the following location to make arrangements for recycling.
Proview Technology, Inc. (U.S.A.) 7373 Hunt Avenue, Garden Grove, CA 92841 U.S.A. Patrick Yen Tel:+714-799-3865 Fax:+714-379-6290 Email:pyen@proview.net
“THIS DISPLAY UNIT IS AN ELECTRIC DEVICE WHICH MAY CONTAIN HAZARDOUS MATERIALS AND COMPONENTS, AND WHICH MUST BE DISPOSED OF AT END OF LIFE ACCORDING TO THE PROPER PROCEDURE”
Recycling Place
ENGLISH
FCC/CE
4
LCD Monitor User’s Guide
CE Marking Declaration Of Conformity
This LCD monitor complies with the requirements of the EC Directive 89/336/EEC “EMC Directive” and 73/23/EEC “Low Voltage Directive” as amended by Directive 93/68/EEC.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings.
All places of operation are characterized by their connection to the public low voltage power supply system.
ENGLISH
5
LCD Monitor User’s Guide
FCC/CE
This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit which is different from what the receiver is connected to.
4. Consult the dealer or an experienced radio/TV technician
for help.
CAUTION:
Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user authority to operate the equipment.
Federal Communications
Commission (FCC) Statement
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
6
LCD Monitor User’s Guide
To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment.
Before operating this equipment, please read this manual completely, and keep it nearby for future reference.
Important Safety Instructions
Warnings
• Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc. The equipment may fall, causing serious injury to children or adults and serious damage to the equipment itself.
• Use only a cart or stand recommended by the manufacturer. This equipment and recommended cart or stand should be handled with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart/stand to overturn.
• Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is an important feature. Removing the grounding pin will increase the risk of damaging the equipment. If you can not fit the plug into the electrical outlet, contact an electrician to install a grounding outlet.
• Always operate this equipment from the type of power source indicated on the rear of the serial/model plate.
• Never overload wall outlets and extensions.
• Use and handle the power cord with care.
• Do not place any heavy objects on the AC power cord.
• Do not pull the AC power cord. Do not handle the AC power cord with a wet hand.
• Do not touch the power cord and antenna cable during lightning.
• Remove the plug from the wall outlet if the equipment will not be used for a long period of time.
• Do not place, use or handle this equipment near water.
• Never expose the equipment to liquid, rain, or moisture.
Seek qualified service if any of the above is spilled into the equipment.
ENGLISH
7
LCD Monitor User’s Guide
IMPORTANT SAFETY INSTRUCTIONS
• Do not attempt to service the equipment yourself.
• Opening and removing the covers may expose you to dangerous voltage or other hazards and may void your warranty. Refer service to qualified personnel.
• Always remove the power cord from the outlet before cleaning the equipment.
• Never use liquid or aerosol cleaners on the equipment. Clean only with a soft dry cloth.
• Do not expose the equipment to extreme temperature or to direct sunlight, as the equipment may heat up and suffer damage.
• Do not install the equipment near any heat sources such as radiators, heat registers, stoves, or any other apparatus that might produce heat.
• Do not block any ventilating openings. Leave an open space around the equipment.
• Never place the equipment :on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.
• If any of the following conditions occur, unplug the power cord from the outlet and request service from qualified personnel.
a. The power cord or plug is damaged. b. Liquid is spilled into the product . c. An object falls onto or into the product. d. The product has been dropped or damaged. e. The product’s display is abnormal.
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
8
LCD Monitor User’s Guide
DISPOSAL OF WASTE ELECTRONIC EQUIPMENT BY PRIVATE HOUSEHOLDS WITHIN THE EUROPEAN UNION
This sign indicates that this product may not be disposed of with your regular household waste. The recycling and separate collection of such products is your responsibility. Please drop off the above-mentioned waste at a designated place for recycling waste electrical and electronic equipment. If you do not know where to drop off your waste equipment for recycling, please contact your local city office or household waste collection service.
ENGLISH
9
LCD Monitor User’s Guide
INTRODUCTION
• FAST VIDEO RESPONSE
Fast action media such as gaming, DVD and video conferencing will
playback smoothly thanks to the fast video response time of the LCD panel.
• VERY HIGH RESOLUTION
The 19” wide screen has the outstanding 1440x900 resolution. It can
make the image displayed more precise. AI937W is excellent to be your first wide screen monitor.
• HIGH CONTRAST RATIO
Colors will appear vibrant and lifelike producing superior image quality.
• PLUG-AND-PLAY CAPABILITY
Easy trouble-free configuration and set-up.
• MULTIPLE VIDEO SIGNAL INPUT
The AI937W comes with digital and analog video signal inputs both,
Digital DVI can deliver more precise signal representation but VGA port is probably more popular for now.
• BUILT-IN POWER TO SAVE SPACE
All components of the power adapter are designed into the chassis.
There will not be adapter occupying the desktop space.
INTRODUCTION
Features
• Multimedia Enhanced Speakers
These space-saving integrated speakers add amazing multimedia enjoyment to your everyday life.
ENGLISH
INTRODUCTION
10
LCD Monitor User’s Guide

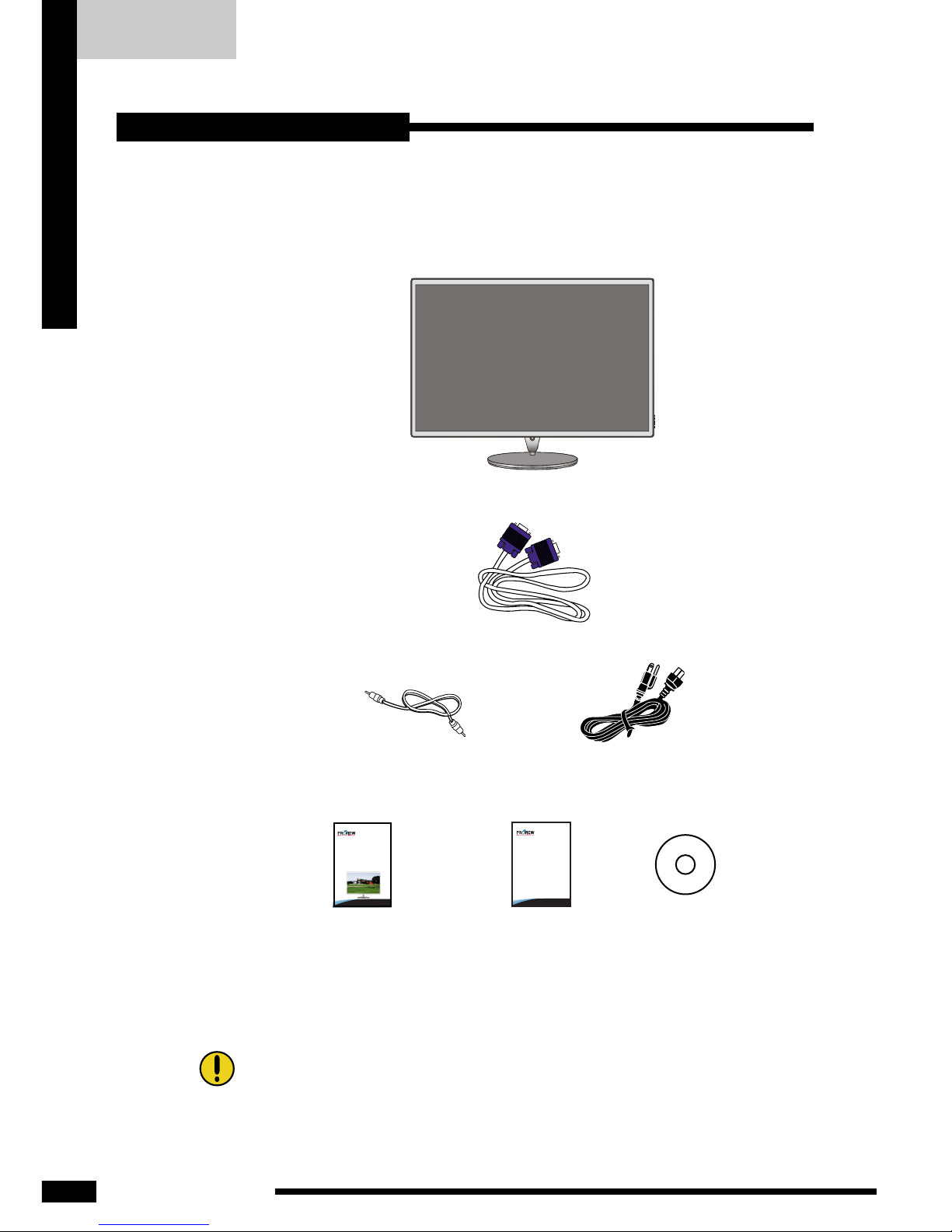

Make sure all of the following contents are included in the box. If any items are missing, please return this product to the original place of purchase.
CAUTION:
Be sure to save original box and all packing material for future transport of monitor.
Power Cord*
Package Contents
LCD Monitor
Quick Guide
Warranty
Card**
CD-ROM
(Driver/Manual)
D-SUB Cable
Audio Cable
19’’WIDE TFT LCDMONITOR
GUID QUICK
AI937W
E
Warranty Card
optional
**
* Power cord specification : H05 VV-F 3G 0.75mm
2

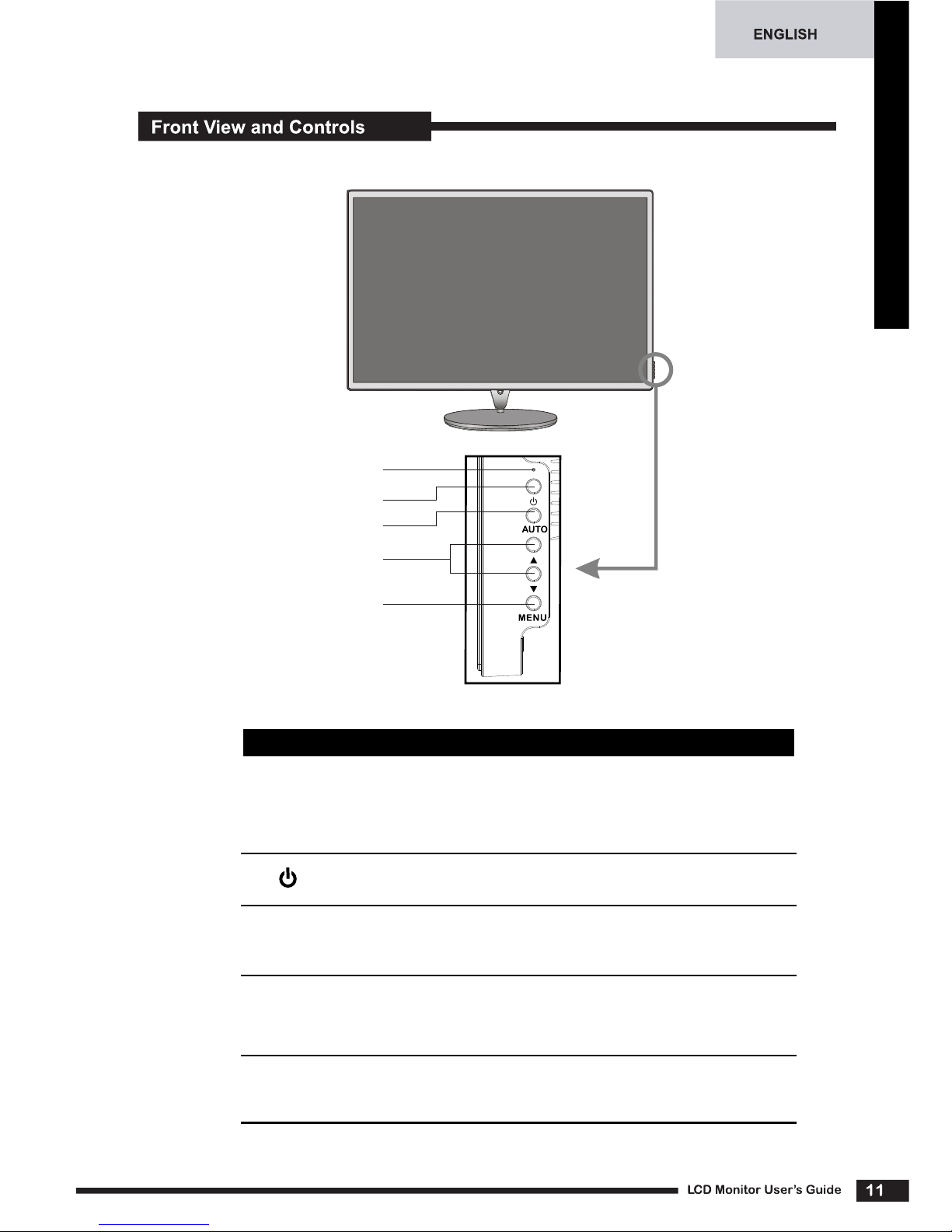

ITEM DESCRIPTION
▲▼ In OSD mode, press the ▲▼ buttons to move the selection
highlight to the next menu item counterclockwise or clockwise, respectively. Adjusts the volume up and down.
Turns the LCD monitor on and off.
LED The LED light indicates when the LCD monitor is activated
(blue light indicates power on and amber light indicates power saving).
MENU Press once to display the OSD (On Screen Display). And
press to activate the items you highlight .
AUTO Press to automatically adjust the display settings to
optimize performance based on the D-SUB signal.
 
 
INTRODUCTION
ENGLISH
INSTALLATION
12
LCD Monitor User’s Guide
Turn off the computer and unplug the power cable.
Connect the signal cable to the VGA port on the back of the computer.
Connect the audio cable to the line-in port on the back of the computer.
Connect the power cord to wall outlet and LCD monitor.
Press the button, located on the bottom side of the main unit to turn
the monitor on, then turn the computer on. If the monitor displays an image, the monitor is successfully installed. If no image is displayed, check all connections.
Refer to the owner’s manual of the computer for connections. In the process of connecting external equipment, do not connect any AC power cords to wall outlets until all other connections are completed.
INSTALLATION

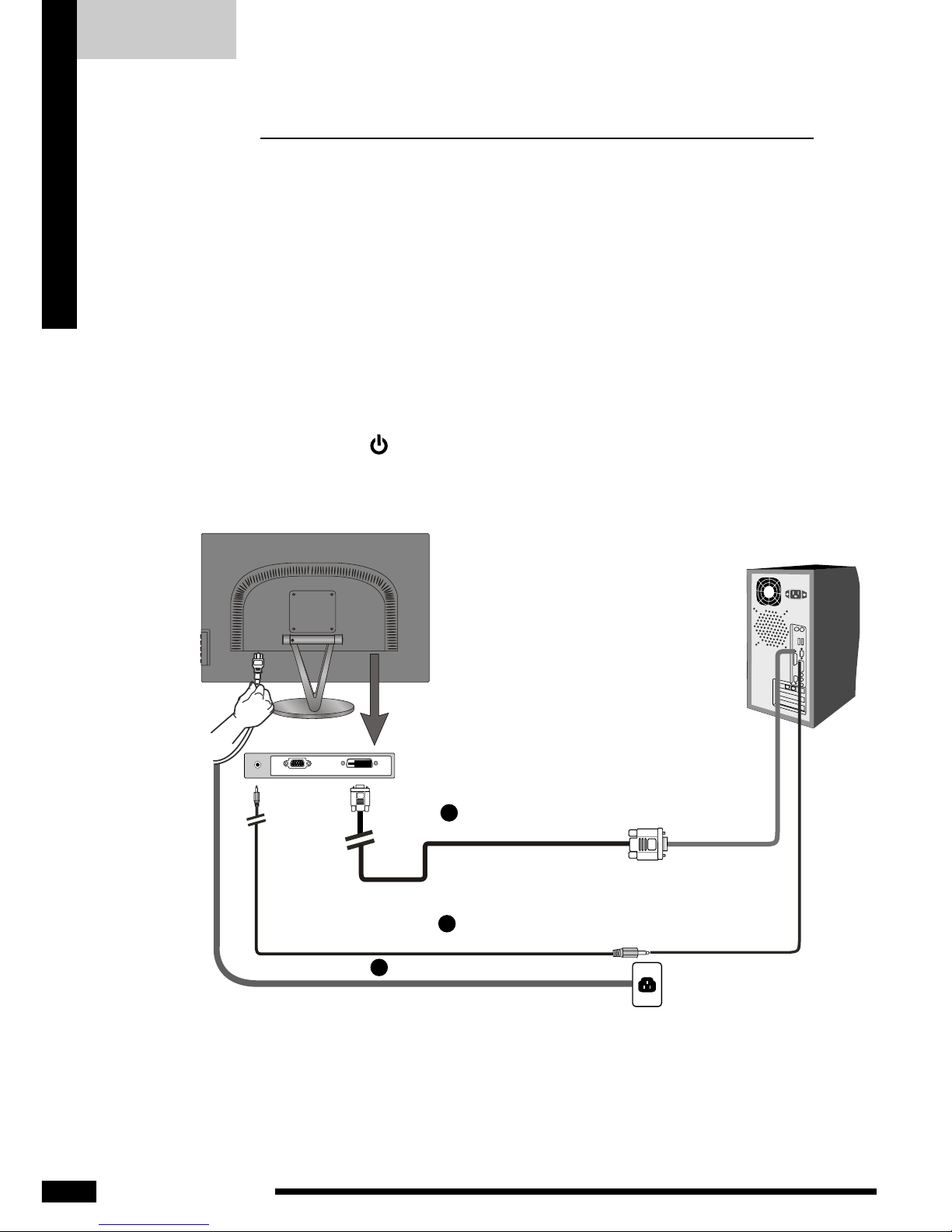

Connecting Your LCD Monitor to a Computer

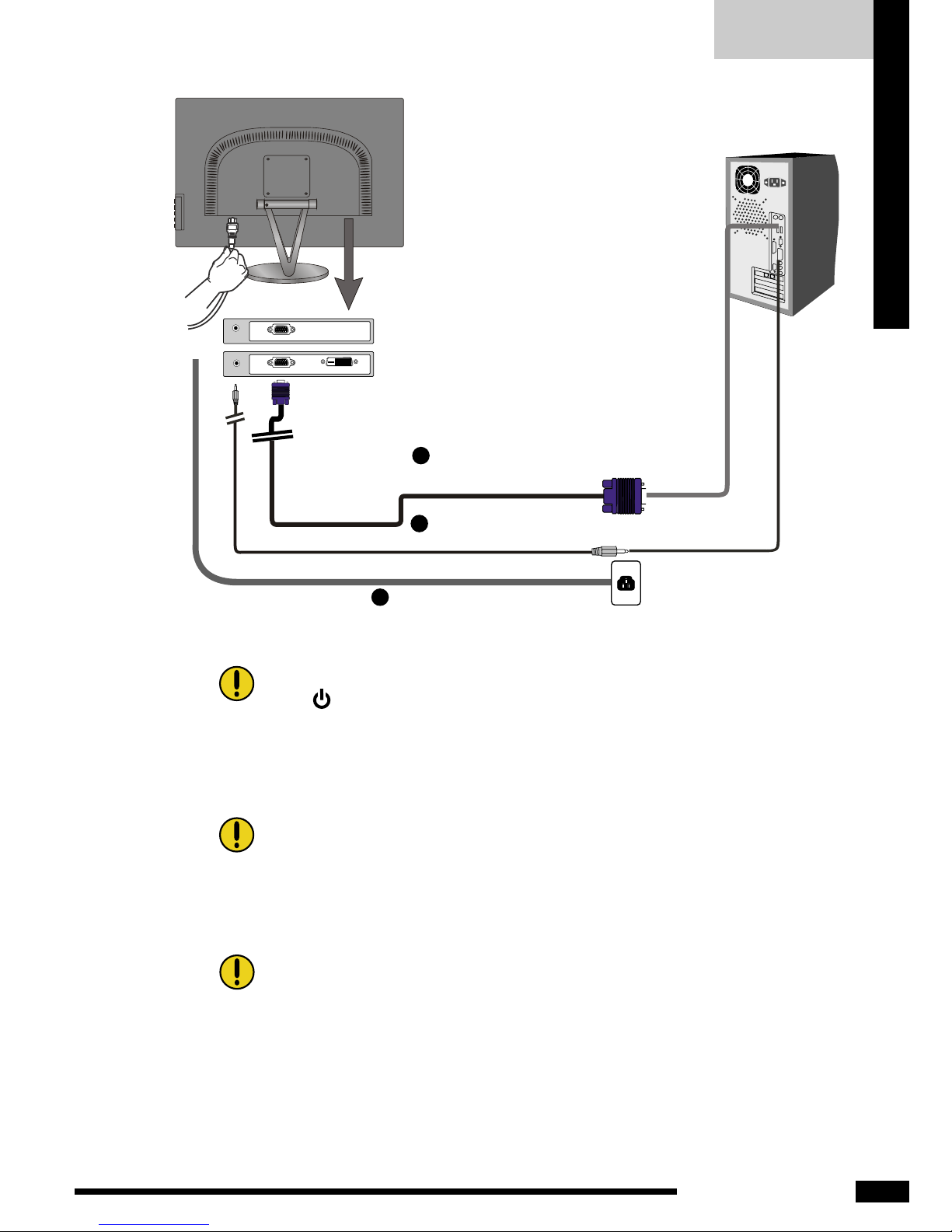

Method 1: Analog (D-SUB) Connection
ENGLISH
13
LCD Monitor User’s Guide
INSTALLATION
NOTE:
Unplug the monitor before installation to avoid electric shock or damage.
NOTE:
The button is used for switching the LCD monitor on and off, it does not disconnect the device from the main voltage. To completely disconnect the main voltage, please remove the power plug from the socket.
NOTE:
The LED indicator is blue when the monitor operates normally and will turn to amber when in power saving mode. When the monitor is off, the LED turns dark.
DVI
AUDIO
VI
AUDIO
VI
AUDIO AUDIO AUDIO AUDIO AUDIO AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
1 x D-SUB
1 x D-SUB +1 x DVI
VGA
VGA
4
Connect to power source
2
Connect to the D-SUB port
Connect to the Line-in port
3
ENGLISH
INSTALLATION
14
LCD Monitor User’s Guide
Method 2: Digital (DVI) Connection
Turn off the computer and unplug the power cable.
Connect the signal cable (DVI) to the DVI port on the back of the
computer.
Connect the audio cable to the line-in port on the back of the
computer.
Connect the power cord to wall outlet and LCD monitor.
Press the button, located on the bottom side of the main unit to turn
the monitor on, then turn the computer on. If the monitor displays an image, the monitor is successfully installed. If no image is displayed, check all connections.
DVI
AUDIO
1 x D-SUB +1 x DVI
VGA
Connect to power source
4
3
Connect to the Line-in port
2
Connect to the DVI port
2
ENGLISH
15
LCD Monitor User’s Guide
N
OIT
ALL
A
T
S
NI
If the screen displays “out of range”, please follow the instructions below to set up:
Press the MENU button to display the OSD.
Press the or button to highlight the (INPUT SELECT) icon, then press the MENU button. The OSD displays:
• Press the or button to select DIGITAL INPUT.
The wide-screen display enables you to view your content in a brand new way. The next generation of computing environments and game consoles are planning to support wide­screen resolutions.
■ Multitask - view applications side by side and reduce toggling between them.
■ Enrich - view DVD films in their native wide format for an enhanced multimedia experience.
■ Experience - enjoy gaming action at full frame rates and higher wide-screen resolution.
However, having the effective wide resolution (
WXGA+, 1440 x 900
), you need to select the
correct setting in your Display Property of Windows® system.
Please note, some video cards and PCs with integrated video will not probably support the wide-screen resolutions. You have to update the video chip/card driver or even
purchase a new video card to utilize the advantages of the wide-screen.
For your PC, refer to the available drivers and downloads from the PC manufacturer’s web site. For upgraded video card, refer to the video card manufacturer’s web site: nVIDIA® (www. nvidia.com), ATI® (www.ati.com), S3® (www.s3graphics.com), Intel® (www.intel.com) and so on.
HOW TO GET SUPPORT FOR YOUR WIDE SCREEN
1
2
1
2
DIGITAL INPUT
ENGLISH
INSTALLATION
16
LCD Monitor User’s Guide

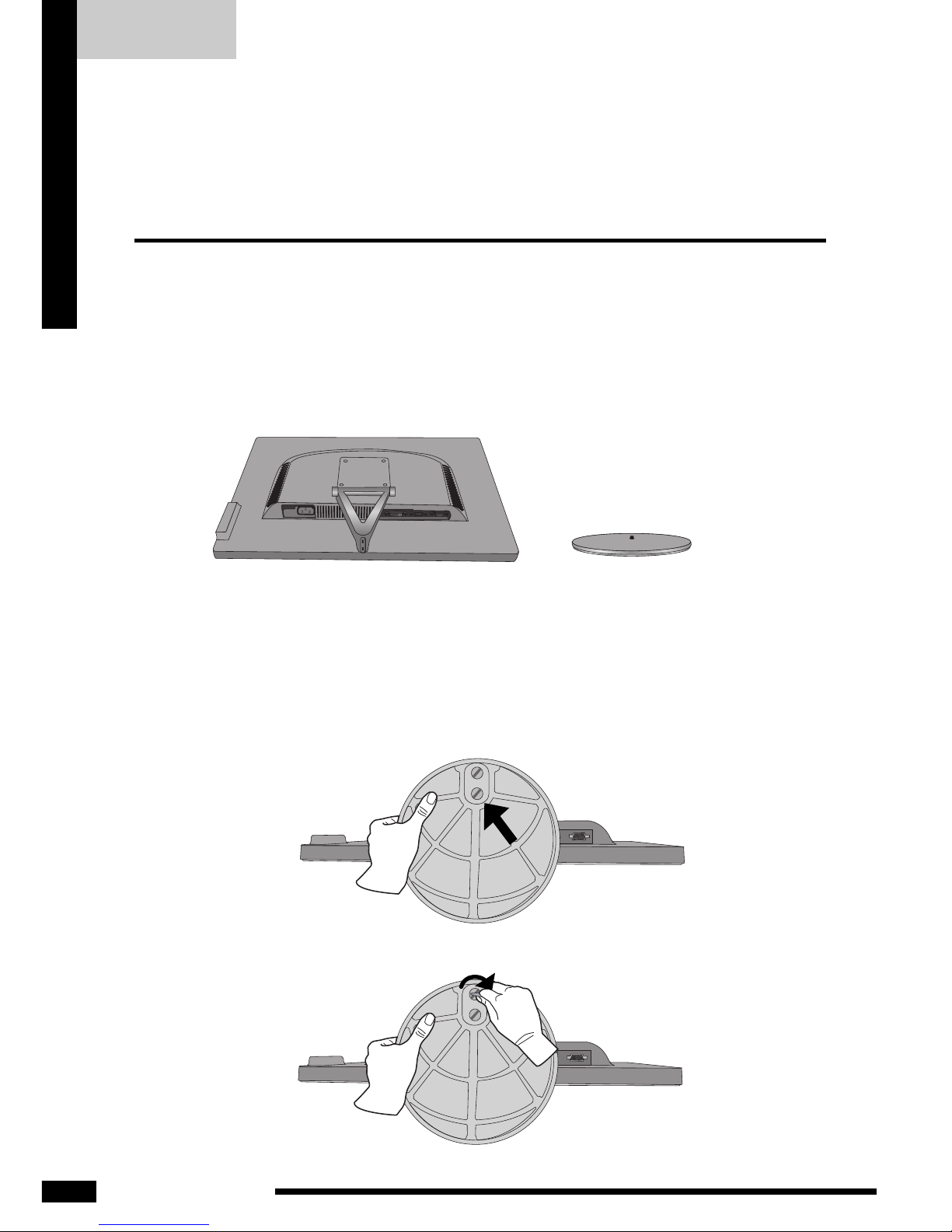

Installing Your LCD Monitor
Follow the instructions below to set up and install the monitor.
The package contains:
Display unit Stand
Cover an even stable surface with a soft cloth. Place the unit face-down
on the cloth. Fit the stand onto the bottom of the display unit as shown, then push until the two latches snap into their sockets.
STANDDISPLAY UNIT
ENGLISH
17
LCD Monitor User’s Guide
OSD MENU
To create the best picture, your AI937W has been preset at the factory with the Preset Mode Timing shown on page 21. The OSD (On Screen Display) Menu allows the user to adjust
various settings and options by following the steps below.

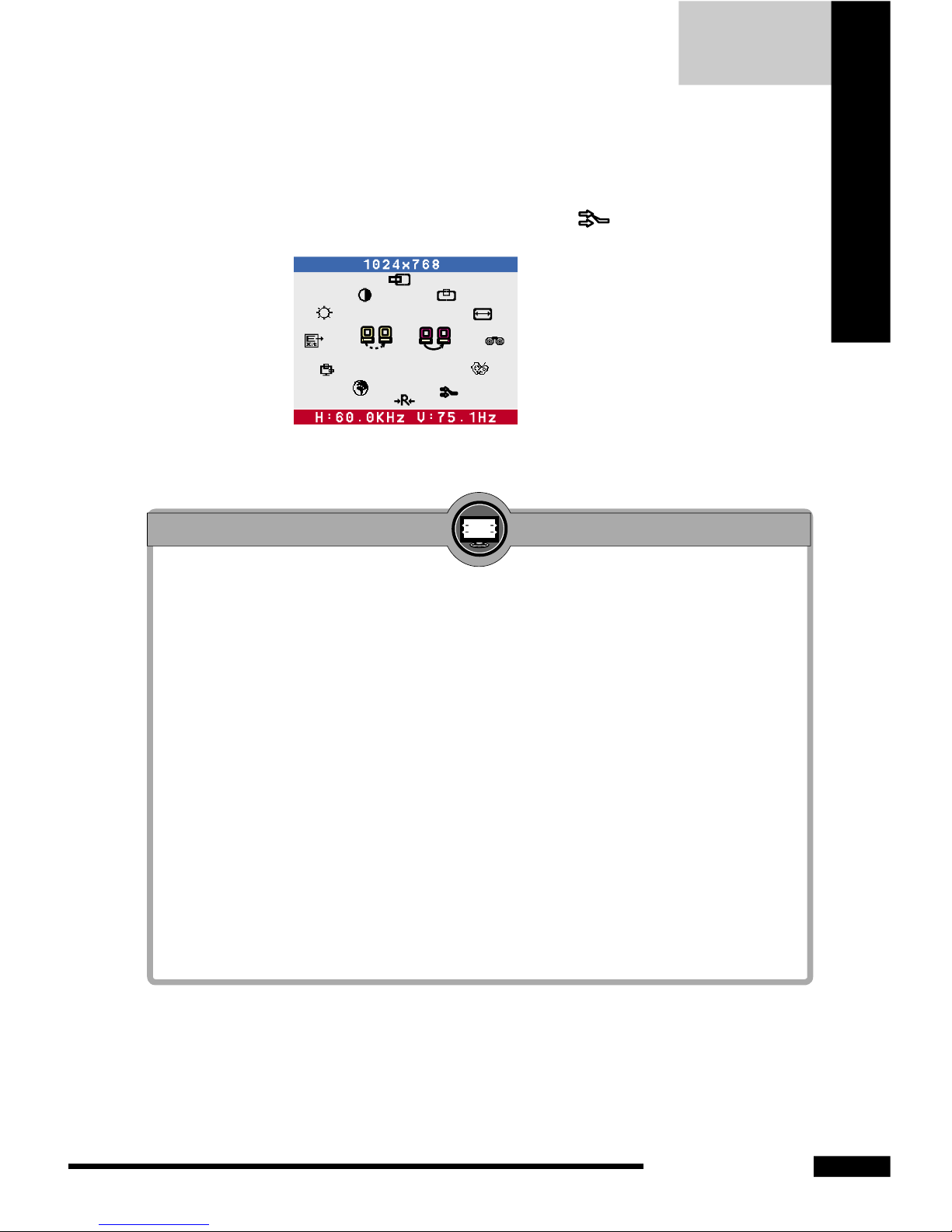

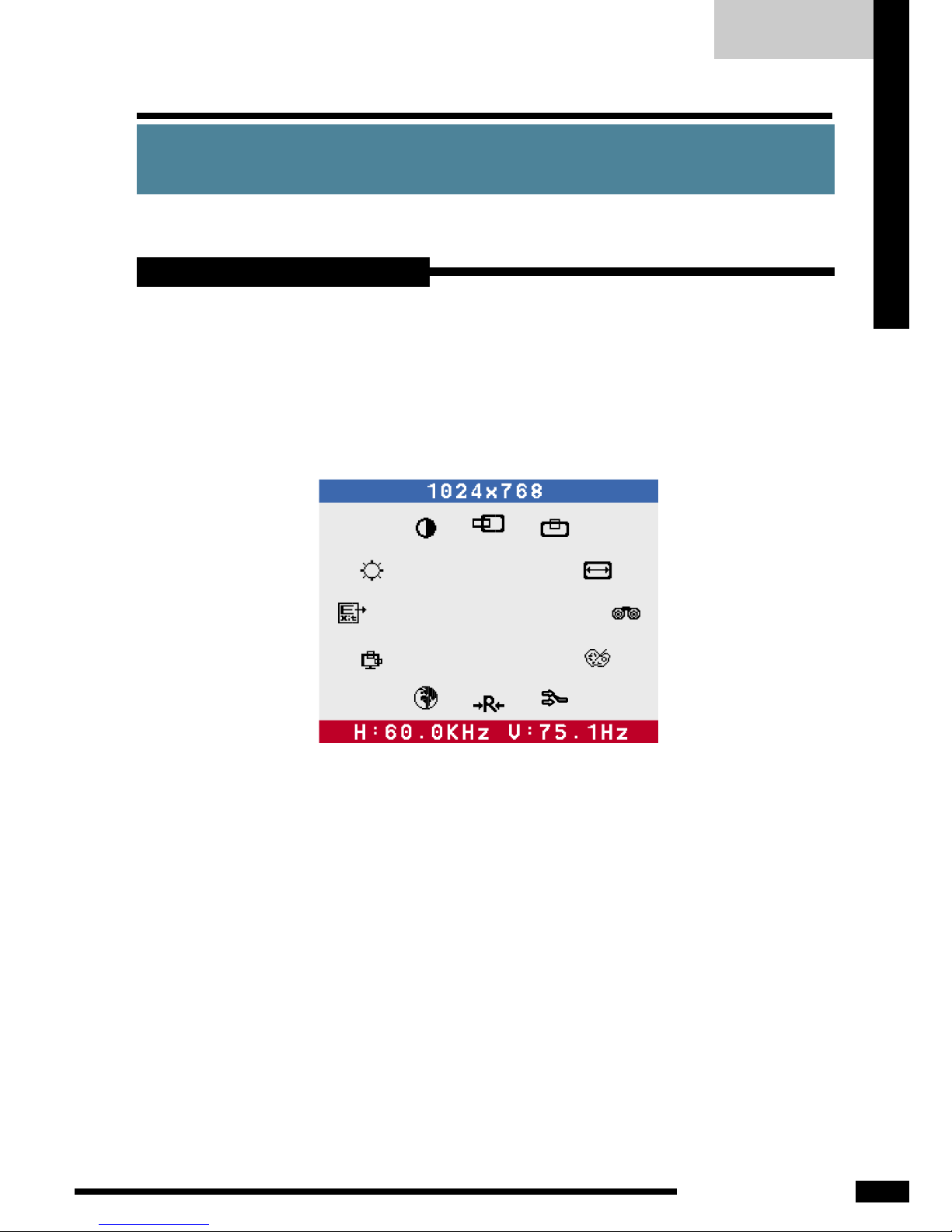

Press the MENU button to display the OSD. The OSD main menu
provides an overview of the selection of controls available.
Press theor button to highlight the desired icon. Then, press
the MENU button to activate the highlighted icon
Press the or button to change the value of the selected item.
Select the EXIT icon to exit the OSD.
Repeat steps 1 through 4 to make further adjustments. All changes
are stored immediately.
Using the OSD Menu
On-Screen Display (OSD) Menu
BRIGHTNESS
ENGLISH
OSD MENU
18
LCD Monitor User’s Guide
The OSD menu includes the following options:
O BRIGHTNESS
Controls the overall brightness.
CONTRAST Controls the difference between the brightest and darkest regions of
the picture.
H. POSITION Adjusts the position of the picture left and right in the window.
V. POSITION Adjusts the position of the picture up and down in the window.
H.SIZE Adjusts the width of the picture.
PHASE
Adjusts signal phase, which can improve focus clarity and image stability.
The OSD Options
BRIGHTNESS
ENGLISH
19
LCD Monitor User’s Guide
OSD MENU
Select User Mode
Allows the user to adjust red, green and blue color component levels independently.
COOL
Inclines colors toward the blue end of the spectrum. Fixes the red, green and blue component levels at factory settings; they cannot be independently adjusted.
WARM
Inclines colors toward the red end of the spectrum. Fixes the red, green and blue component levels at factory settings; they cannot be independently adjusted.
EXIT
Exits the OSD menu.
INPUT SELECT Allows selection of ANALOG INPUT or DIGITAL INPUT depending on the type of input signal currently in use.
RESET
Restores all options to the factory settings.
LANGUAGE
Controls which language is used on all the on-screen menus.
COLOR Allows selection of the general color tint: Select User Mode, WARM, or COOL.
Native(Optional)
To give the white color a natural tint.
sRGB(standard Red Green Blue)
ENGLISH
OSD MENU
20
LCD Monitor User’s Guide
OSD
Changes the position of the OSD.
H. POSITION
Moves the OSD left and right in the window.
V. POSITION
Moves the OSD up and down in the window.
EXIT
Exits the OSD menu.
EXIT
Exits the OSD.
ENGLISH
21
LCD Monitor User’s Guide
TECHNICAL INFORMATION
Preset Mode Timing Chart
Technical Information
The screen image has been optimized during manufacture for the display modes listed below.
Video signal: (IBM PC/AT)
Dot X Line
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
720 x 400 31.47 70.00 640 x 480 31.47 60.00
37.86 72.00
37.50 75.00
800 x 600
37.88 60.00
48.08
72.00
46.87 75.00
1024 x 768 48.36 60.00
56.48 70.00
60.02 75.00
1280 x 1024 63.98 60.00
79.97 75.00
1440 x 900 55.94 60.00
70.64 75.00
800 x 600
1024 x 768
1280 x 1024
1440 x 900
640 x 480
640 x 480
1024 x 768
800 x 600
ENGLISH
TECHNICAL INFORMATION
22
LCD Monitor User’s Guide
PIN DESCRIPTION PIN DESCRIPTION
1 15 GND 2 TMDS Data 2+ 16 Hot Plug Detect 3 TMDS Data 2/4 shield 17 TMDS Data 0- 4 18 TMDS Data 0+ 5 19 TMDS Data 0/5 shield 6 DDC Clock 20
7 DDC Data 21 8 Analog Vertical Sync 22 Clock shield 9 TMDS Data 1- 23 Clock +
10 TMDS Data 1+ 24 Clock -
11 TMDS Data 1/3 shield C1 Analog red 12 C2 Analog green 13 C3 Analog blue
14 +5V Power C4 Analog
1 8
169
17 24
C1 C2
C3 C4
DVI Connector PIN Assignment
TMDS Data 2-
ENGLISH
23
LCD Monitor User’s Guide
TECHNICAL INFORMATION
PIN DESCRIPTION
1 Red
2 Green 3 Blue 4 Ground 5 Self Test
6 Red Ground 7 Green Ground 8 Blue Ground
9 5 VDC 10 Ground 11 Ground 12 SDA (FOR DDC) 13 H. Sync 14 V. Sync
15 SCL (FOR DDC)
1 5
6
11
5
10
1
D-SUB Connector PIN Assignment
ENGLISH
TECHNICAL INFORMATION
24
LCD Monitor User’s Guide
Permanently unlit or lit pixels
The standard of production techniques today cannot guarantee an absolutely fault free LCD display. A few isolated permanently lit or unlit pixels may be present. The maximum permitted number of pixel faults is stipulated in the stringent international standard ISO 13406-2 (Class II).
Example: A 17” flat-screen monitor with a resolution of 1280 x 1024 has 1280 x 1024 = 1310720 pixels. Each pixel consists of three subpixels (red, green and blue), so there are about 4 million dots in total.
According to ISO 13406-2 (Class II), a maximum of 6 pixels and 7 subpixels may be defective, i. e. a total of 25 faulted dots. This corresponds to approx. 0.002 % of the entire screen surface.
Visual Inspection
This monitor conforms to the VESA DDC (Display Data Channel) standard, which means that when it is used with a DDC compatible video card, the monitor is easier to set up. With VESA DDC 1/2B, when the monitor is turned on, it will automatically notify a windows 9X/2000/XP host computer of its scanning frequencies, capabilities and characteristics. Windows 9X/2000/XP will automatically recognize the presence of the monitor and select the appropriate display resolution.
Plug and Play
ENGLISH
25
LCD Monitor User’s Guide
TECHNICAL INFORMATION
Before consulting service personnel, check the following chart for a possible cause and solution to the trouble you are experiencing.
Monitor will not turn on
Make sure the power cord is plugged in.
No picture
Make sure the power cord is plugged in.
Check the signal cable connecting the LCD monitor and the
computer (refer to page 12-15).
Press the POWER button on the monitor.
Poor picture or abnormal picture
Check the DVI cable connecting the LCD monitor and the computer (refer to page 12-15).
Press the MENU button to adjust the Brightness Contrast option in the OSD.
Adjust the Color Select option in the OSD.
Press the AUTO button on the monitor, to automatically adjust the
display mode.
Out of range message appears
Press the MENU button. Highlight the INPUT SELECT icon, then press the MENU button. Press the
or
button to select
DIGITAL INPUT (refer to page 15).
If using Windows 9X/2000/XP, wait a few seconds; once Windows detects the problem, a dialog will appear allowing you to manually set up the video mode according to the preset mode timing chart
(refer to page 21).
Troubleshooting
ENGLISH
TECHNICAL INFORMATION
26
LCD Monitor User’s Guide
Changes are periodically made to this specifications. Current specifications may also be obtained via the internet,
www.proview.com
Specifications
MODEL AI937W
LCD Panel Panel Size 19”w TFT LCD
Dot Pitch 0.285mm x 0.285mm Speakers Built-In Max. Resolution 1440x900 Input Connector D-SUBx1+DVIx1+PC AUDIO / D-SUBx1+PC AUDIO
Power Source AC100-240V, 50-60Hz Power Consumption 60W Dimension(W,H,D) 433x348x186mm
Loading...
