Proteam Qv2000 Owner's Manual

QUARTERVAC

6

6c

9

6b

10

4

12

13

15

6a

5

7

8

14

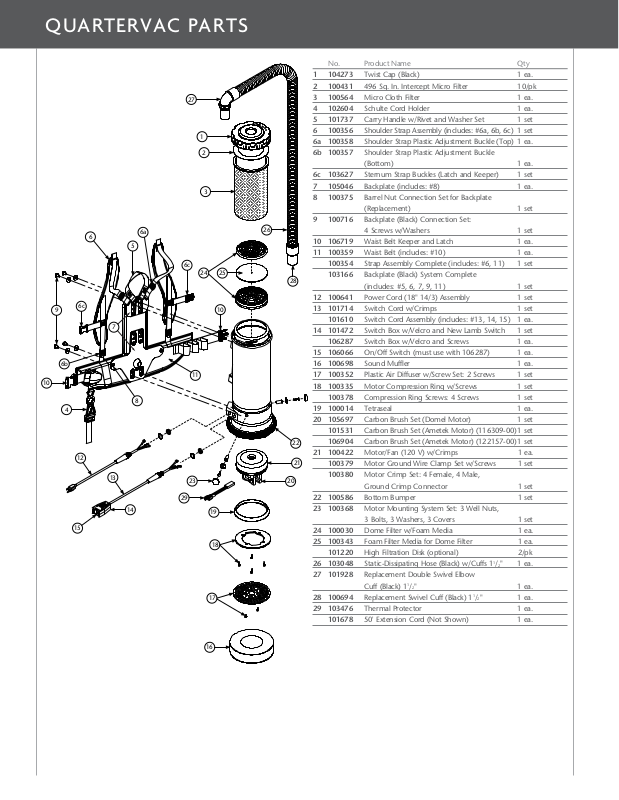

PARTS

27

1

2

3

6c

24

25

10

11

23

29

19

18

17

No. Product Name Qty

1 104273 Twist Cap (Black) 1 ea.
2 100431 496 Sq. In. Intercept Micro Filter 10/pk
3 100564 Micro Cloth Filter 1 ea.
4 102604 Schulte Cord Holder 1 ea.
5 101737 Carry Handle w/Rivet and Washer Set 1 set
6 100356 Shoulder Strap Assembly (includes: #6a, 6b, 6c) 1 set
6a 100358 Shoulder Strap Plastic Adjustment Buckle (Top) 1 ea.
6b 100357 Shoulder Strap Plastic Adjustment Buckle
(Bottom) 1 ea.
6c 103627 Sternum Strap Buckles (Latch and Keeper) 1 set
7 105046 Backplate (includes: #8) 1 ea.
8 100375 Barrel Nut Connection Set for Backplate
(Replacement) 1 set
9 100716 Backplate (Black) Connection Set:

26

4 Screws w/Washers 1 set
10 106719 Waist Belt Keeper and Latch 1 ea.
11 100359 Waist Belt (includes: #10) 1 ea.
100354 Strap Assembly Complete (includes: #6, 11) 1 set
103166 Backplate (Black) System Complete

28

(includes: #5, 6, 7, 9, 11) 1 set
12 100641 Power Cord (18" 14/3) Assembly 1 set
13 101714 Switch Cord w/Crimps 1 set
101610 Switch Cord Assembly (includes: #13, 14, 15) 1 ea.
14 101472 Switch Box w/Velcro and New Lamb Switch 1 set
106287 Switch Box w/Velcro and Screws 1 ea.
15 106066 On/Off Switch (must use with 106287) 1 ea.
16 100698 Sound Muffler 1 ea.
17 100352 Plastic Air Diffuser w/Screw Set: 2 Screws 1 set
18 100335 Motor Compression Ring w/Screws 1 set
100378 Compression Ring Screws: 4 Screws 1 set
19 100014 Tetraseal 1 ea.
20 105697 Carbon Brush Set (Domel Motor) 1 set
101531 Carbon Brush Set (Ametek Motor) (116309-00) 1 set
106904 Carbon Brush Set (Ametek Motor) (122157-00) 1 set

22

21 100422 Motor/Fan (120 V) w/Crimps 1 ea.

21

100379 Motor Ground Wire Clamp Set w/Screws 1 set
100380 Motor Crimp Set: 4 Female, 4 Male,

20

Ground Crimp Connector 1 set
22 100586 Bottom Bumper 1 set
23 100368 Motor Mounting System Set: 3 Well Nuts,
3 Bolts, 3 Washers, 3 Covers 1 set
24 100030 Dome Filter w/Foam Media 1 ea.
25 100343 Foam Filter Media for Dome Filter 1 ea.
101220 High Filtration Disk (optional) 2/pk

1

26 103048 Static-Dissipating Hose (Black) w/Cuffs 1

/2" 1 ea.
27 101928 Replacement Double Swivel Elbow
Cuff (Black) 1

1

/2" 1

ea.

28 100694 Replacement Swivel Cuff (Black) 11/2" 1 ea.
29 103476 Thermal Protector 1 ea.
101678 50' Extension Cord (Not Shown) 1 ea.

16
